Vector 831.488540 User Manual

Model No. 831.488540
User's Manual

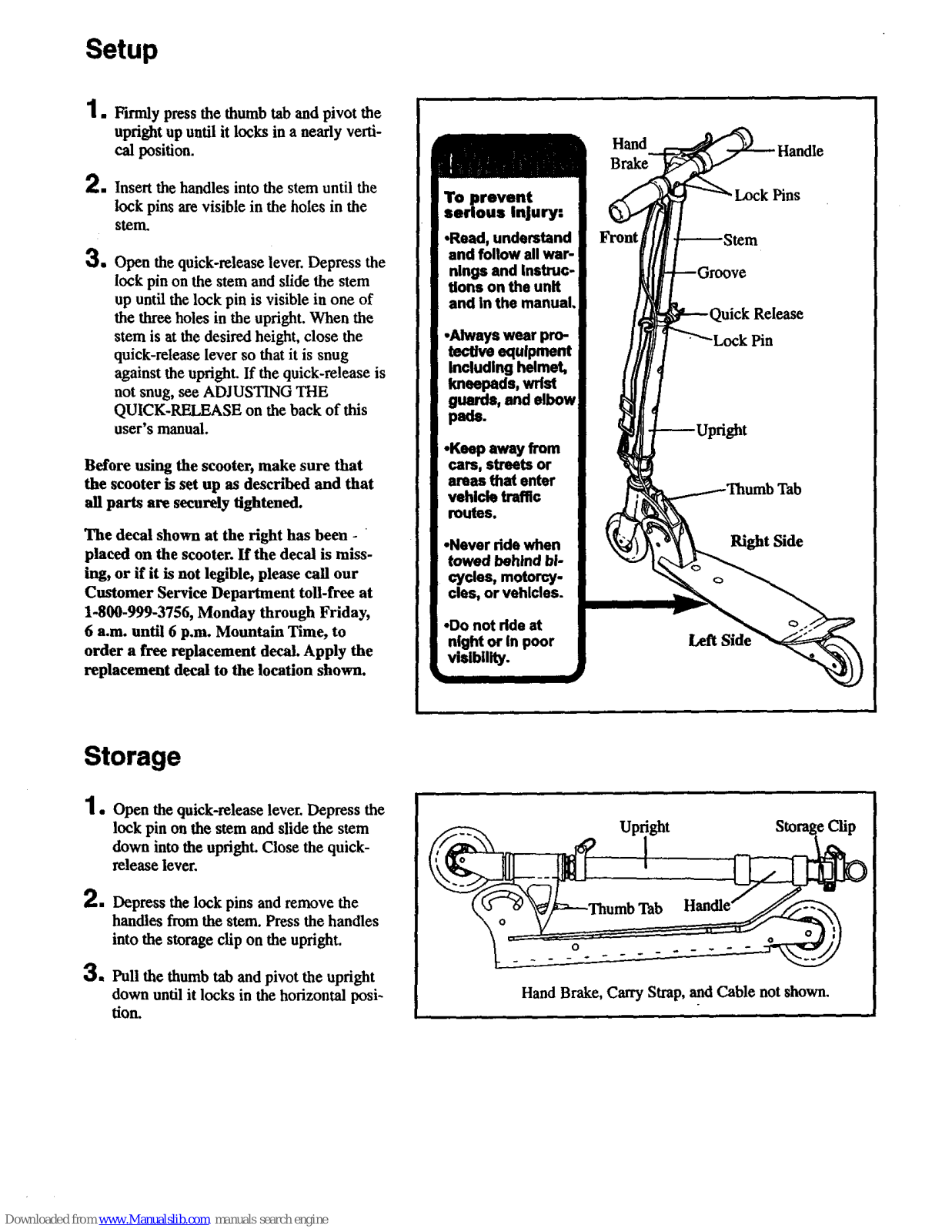

Setup
1. Firmly press the thumb tab and pivot the
upright up until it locks in a nearly verti- cal position.
2. Insert the handles into the stem until the
lock pins are visible in the holes in the stern.
3. Open the quick-release lever. Depress the lock pin on the stem and slide the stem
up until the lock pin is visible in one of
the three holes in the upright. When the stem is at the desired height, close the quick-release lever so that it is snug
against the upright. If the quick-release is
not snug, see ADJUSTING THE QUICK-_SE on the back of this
user's manual.
Before using the scooter, make sure that the scooter is set up as described and that all parts are securely tightened.
The decal shown at the right has been - placed on the scooter. If the decal is miss- ing, or if it is not legible, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time, to order a free replacement decal. Apply the replacement decal to the location shown.

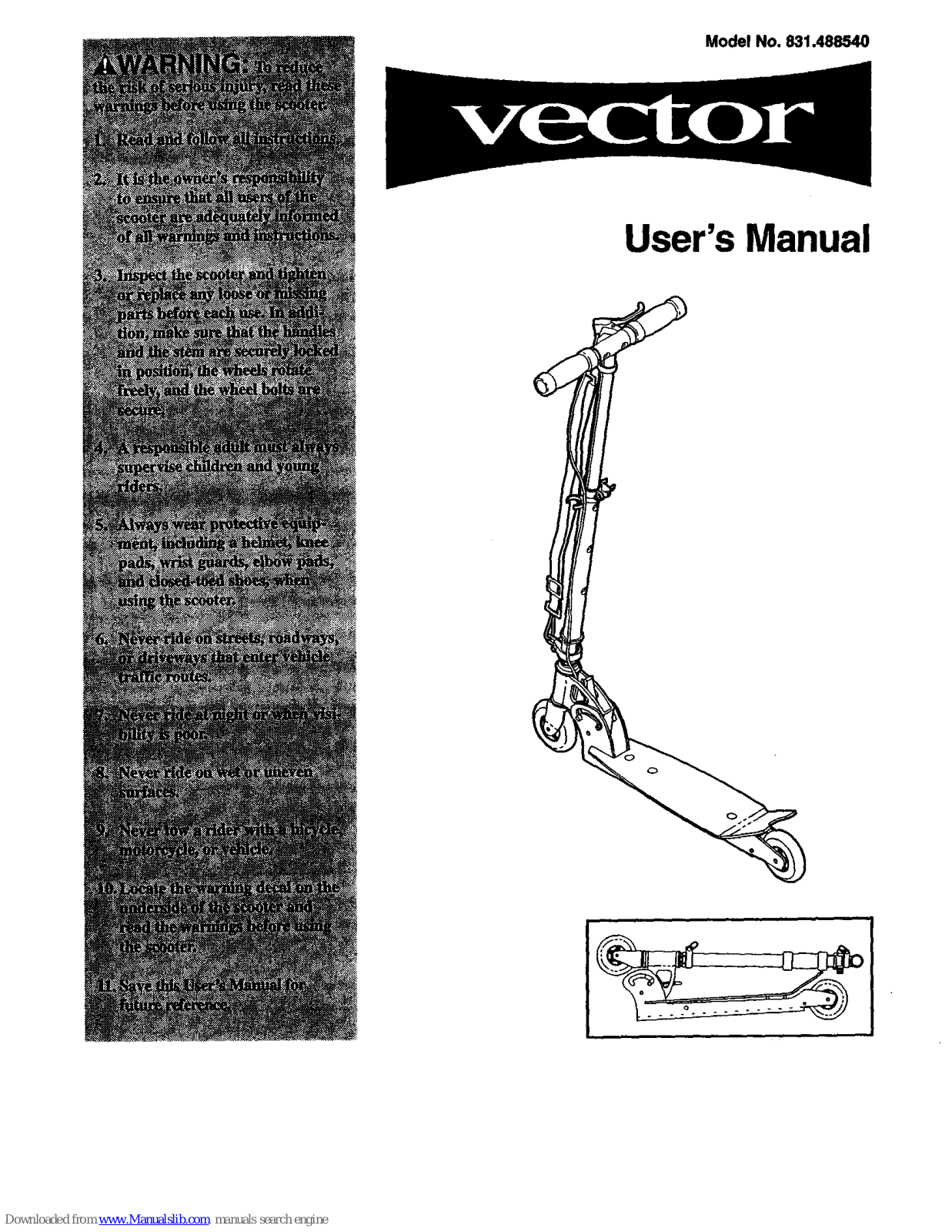

To prevent serious Injury:
Read, understand
and follow all war-
nlngs and Instruc-
tions on the unit and in the manual,
Always wear pro- tecllve equipment Including helmet, kneapads, wrlst guards, and elbow pads.
Keep away from cars, streets or areas that enter vehicle traffic mutes.
Never ride when towed behind bi-
cycles, motorcy- cles, or vehicles
Do not ride at night or In poor
visibility
Hand
Right Side
Storage
1. Openthequick-release lever. Depress the
lock pin on the stem and slide the stem
down into the upright. Close the quick- release lever.
2 Depress the lock pins and remove the
handles from the stem. Press the handles into the storage clip on the upright.
3 Pull the thumb tab and pivot the upright
down until it locks in the horizontal posi- tion.
Hand Brake, Carry Strap, and Cable not shown.

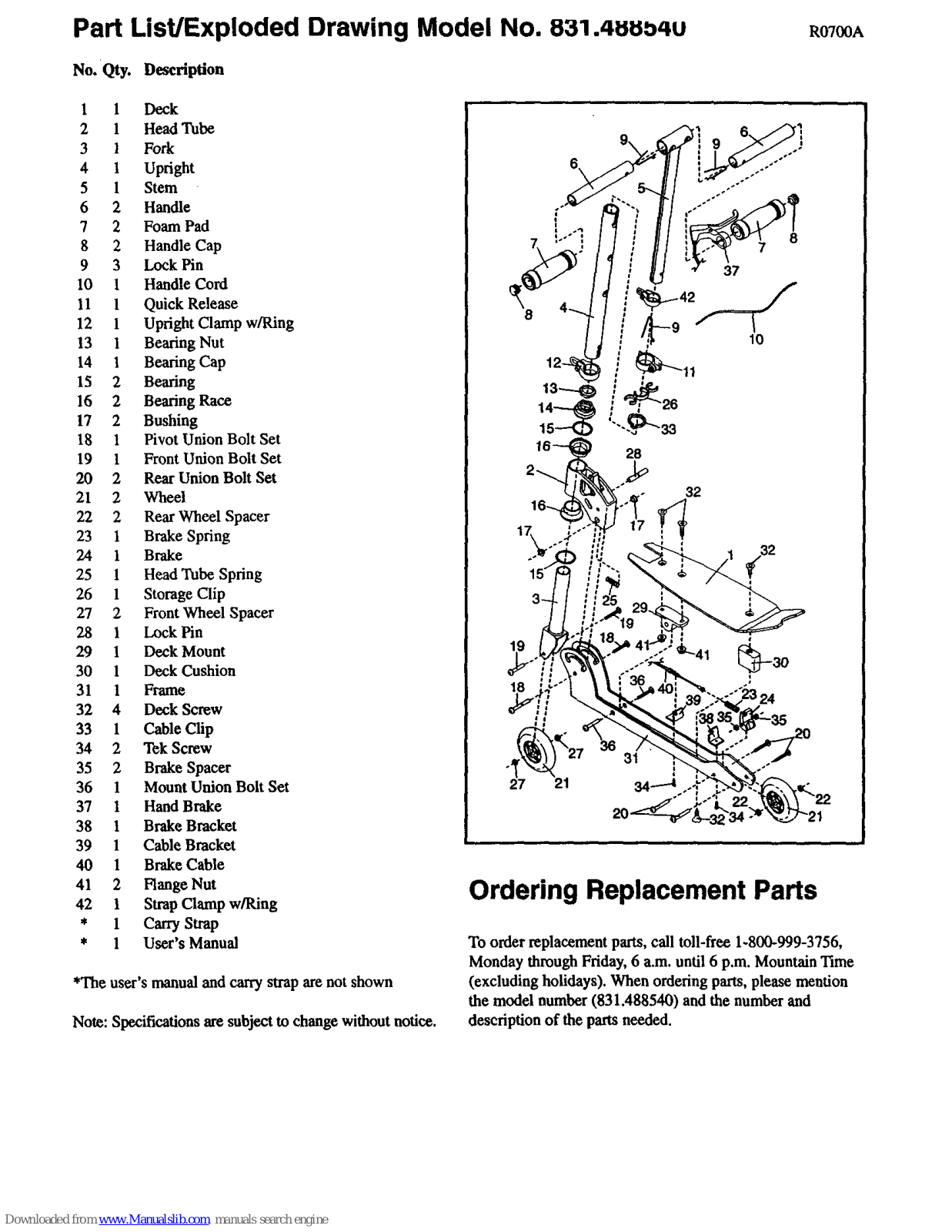

Part List/Exploded Drawing Model No. 831.4ui:i )4u R0700A
No. Qty. Description
1 1 Deck 2 1 Head Tube 3 1 Fork
4 1 Upright
5 1 Stem 6 2 Handle
7 2 Foam Pad 8 2 Handle Cap
9 3 Lock Pin
10 1 Handle Cord 11 1 Quick Release
12 1 Upright Clamp w/Ring
13 1 Bearing Nut
14 1 Bearing Cap 15 2 Bearing 16 2 Bearing Race 17 2 Bushing
18 1 Pivot Union Bolt Set
19 1 Front Union Bolt Set 20 2 Rear Union Bolt Set
21 2 Wheel 22 2 Rear Wheel Spacer
23 1 Brake Spring 24 1 Brake
25 1 Head Tube Spring 26 1 Storage Clip 27 2 Front Wheel Spacer
28 1 Lock Pin
29 1 Deck Mount
30 1 Deck Cushion 31 1 Frame 32 4 Deck Screw 33 1 Cable Clip 34 2 Tek Screw 35 2 Brake Spacer
36 1 Mount Union Bolt Set 37 1 Hand Brake 38 1 Brake Bracket
39 1 Cable Bracket
40 1 Brake Cable
41 2 Flange Nut 42 1 Strap Clamp w/Ring
* 1 Carry Strap * 1 User's Manual
*The user's manual and carry strap are not shown
Note: Specifications are subject to change without notice.
28
19
27
Ordering Replacement Parts
To order replacement parts, call toll-free 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please mention
the model number (831.488540) and the number and description of the parts needed.

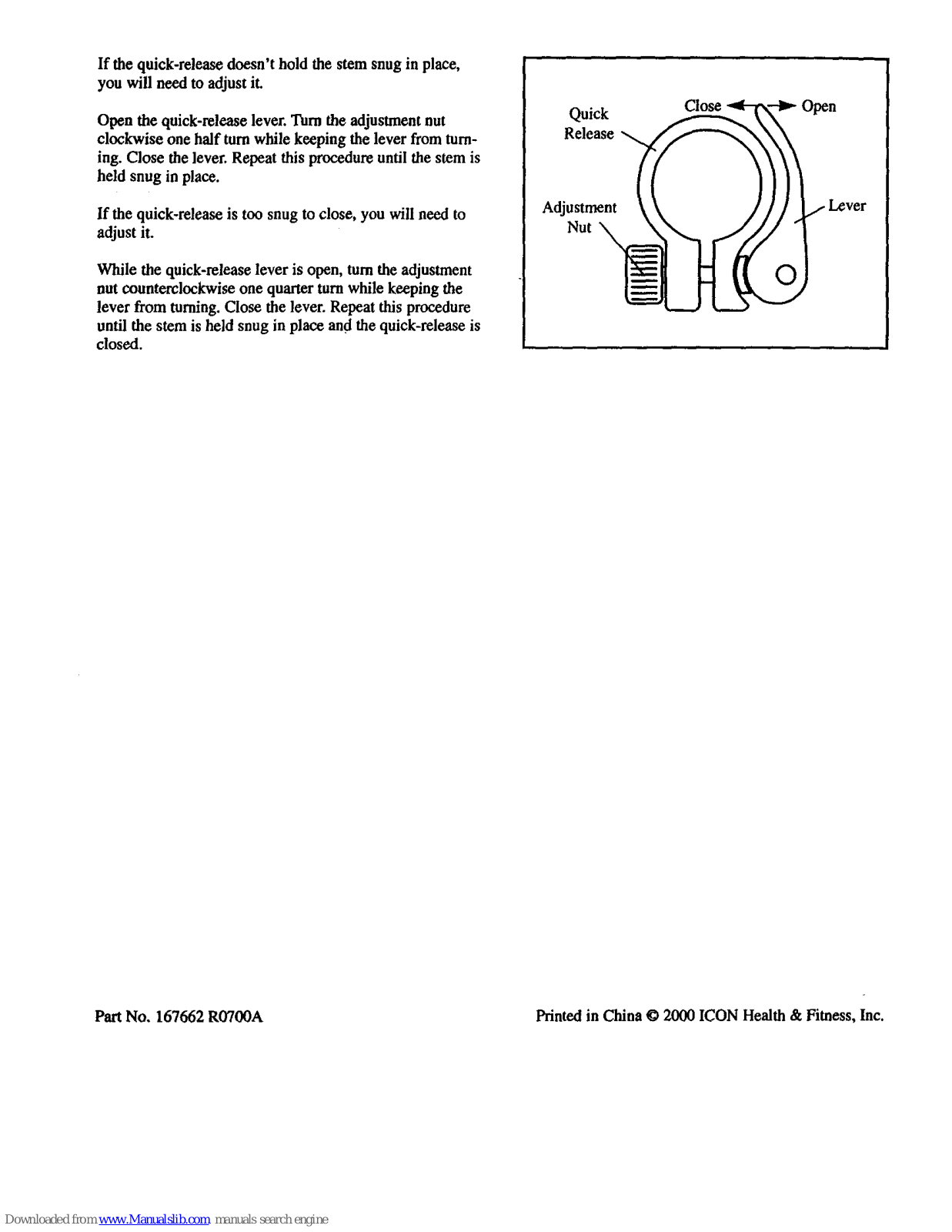

If the quick-releasedoesn't hold the stem snug in place, you will need to adjustit.
Open the quick-release lever. Turn the adjustment nut clockwise one half turn while keeping the lever from turn-
ing. Close the lever. Repeat this procedure until the stem is
held snug in place.
If the quick-release is too snug to close, you will need to
adjust it.
While the quick-release lever is open, turn the adjustment nut counterclockwise one quarter tern while keeping the lever from turning. Close the lever. Repeat this procedure until the stem is held snug in place and the quick-release is
closed.
Quick
Release
Adjustment
Nut
Close Open
Part No. 167662 R0700A Printed in China © 2000 ICON Health & Fitness, Inc.
