RCX-1000
Intel® Xeon®/Core™ i7/i5/i3 Expandable Robust Computing System
Workstation-grade, Flexible, Fanless, Extended Temperature
USER
USER
Manual
Manual
1.1.0 Edition 20190418
Record of Revision
Version Date
0.10 2019/03/26 All Preliminary Release
1.00 2019/04/17 Ocial Release
1.1 2019/04/18 48, 49 Update
Page Description
Remark
©Vecow RCX-1000 User Manual
ii
Disclaimer
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product oerings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Declaration of Conformity
FCC
CE
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
Copyright and Trademarks
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
©Vecow RCX-1000 User Manual
iii
Order Information
Part Number Description
RCX-1430FR
RCX-1430F
RCX-1421FR
RCX-1421F
RCX-1412FR
RCX-1412F
RCX-1440R
RCX-1440
RCX-1000, 2 GigE LAN, 4 Front-access SSD Tray, 1 PCIe x16,
1 PCIe x4, 1 PCIe x1, 4 COM, 6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x16, 1 PCIe x4, 1 PCIe x1, 4 COM,
6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 4 Front-access SSD Tray, 1 PCIe x16,
1 PCIe x4, 1 PCI, 4 COM, 6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x16, 1 PCIe x4, 1 PCI, 4 COM,
6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 4 Front-access SSD Tray, 1 PCIe x16,
2 PCI, 4 COM, 6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x16, 2 PCI, 4 COM, 6 USB 3.0, 2
SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 4 Front-access SSD Tray, 1 PCIe x8,
3 PCIe x4, 4 COM, 6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x8, 3 PCIe x4, 4 COM, 6 USB 3.0,
2 SIM, 32 Isolated DIO
RCX-1422R
RCX-1422
RCX-1404R
RCX-1404
RCX-1220A
RCX-1220
RCX-1211
RCX-1000, 2 GigE LAN, 4 Front-access SSD Tray, 1 PCIe x8,
1 PCIe x4, 2 PCI, 4 COM, 6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x8, 1 PCIe x4, 2 PCI, 4 COM,
6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 4 Front-access SSD Tray, 4 PCI, 4 COM,
6 USB 3.0, 2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 4 PCI, 4 COM, 6 USB 3.0, 2 SIM,
32 Isolated DIO
RCX-1000, 2 GigE LAN, 2 PCIe x8, 4COM, 6 USB 3.0, 2 SIM,
32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x16, 1 PCIe x4, 4COM, 6 USB 3.0,
2 SIM, 32 Isolated DIO
RCX-1000, 2 GigE LAN, 1 PCIe x16, 1 PCI, 4COM, 6 USB 3.0,
2 SIM, 32 Isolated DIO
©Vecow RCX-1000 User Manual
iv
Order Accessories
Part Number Description
E-2176G Intel® Xeon® E-2176G Processor, 12M Cache, up to 4.6GHz, 80W
E-2124G Intel
i7-8700 Intel
i7-8700T Intel
i5-8500 Intel
i5-8500T Intel
i3-8100 Intel
i3-8100T Intel
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certied DDR4 8GB 2666/2400/2133 MHz RAM
®
Xeon® E-2124G Processor, 8M Cache, up to 4.5GHz, 71W
®
Core™ i7-8700 Processor, 12M Cache, up to 4.6GHz, 65W
®
Core™ i7-8700T Processor, 12M Cache, up to 4.0GHz, 35W
®
Core™ i5-8500 Processor, 9M Cache, up to 4.1GHz, 65W
®
Core™ i5-8500T Processor, 9M Cache, up to 3.5GHz, 35W
®
Core™ i3-8100 Processor, 6M Cache, 3.6GHz, 65W
®
Core™ i3-8100T Processor, 6M Cache, 3.1GHz, 35W
DDR4 4G Certied DDR4 4GB 2666/2400/2133 MHz RAM
PWA-160WB-WT
PWA-280WB-WT
160W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin Terminal
Block (7.62mm pitch), Wide Temperature -30°C to +70°C
280W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin Terminal
Block (7.62mm pitch), Wide Temperature -30°C to +70°C
PWS-480W-WT 480W, 24V, 90V AC to 305V AC Power Supply, Wide-Temp, IP65
PWS-600W 600W, 24V, 90V AC to 305V AC Power Supply
PWS-600W-WT
600W, 28.8V, 90V AC to 305V AC Power Supply, Wide
Temperature -40°C to +70°C
FAN Module Fan Module for RCX-1000 Series
FAN Sink Fan Sink for RCX-1000 Series
PCIE HOLD-DOWN Kit Hold Down Module for PCIe Card
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P
Terminal Board with One 20-pin Terminal Block Connector and
DIN-Rail Mounting
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
©Vecow RCX-1000 User Manual
v
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of RCX-1430FR 3
1.3.2 Specications of RCX-1430F 5
1.3.3 Specications of RCX-1421FR 7
1.3.4 Specications of RCX-1421F 9
1.3.5 Specications of RCX-1412FR 11
1.3.6 Specications of RCX-1412F 13
1.3.7 Specications of RCX-1440R 15
1.3.8 Specications of RCX-1440 17
1.3.9 Specications of RCX-1422R 19
1.3.10 Specications of RCX-1422 21
1.3.11 Specications of RCX-1404R 23
1.3.12 Specications of RCX-1404 25
1.3.13 Specications of RCX-1220A 27
1.3.14 Specications of RCX-1220 29
1.3.15 Specications of RCX-1211 31
1.3.16 Specications of RCX-1430FR RTX2080 33
1.3.17 Specications of RCX-1430F RTX2080 35
1.3.18 Specications of RCX-1421FR RTX2080 37
1.3.19 Specications of RCX-1430F RTX2080 39
1.3.20 Specications of RCX-1412FR RTX2080 41
1.3.21 Specications of RCX-1412F RTX2080 43
1.4 Supported CPU List 45
1.5 Mechanical Dimension 45
1.5.1 Dimensions of RCX-1400FR/RCX-1000FR RTX 45
1.5.2 Dimensions of RCX-1400F/RCX-1000F RTX 46
©Vecow RCX-1000 User Manual
1.5.3 Dimensions of RCX-1440R/RCX-1422R/RCX-1404R 46
1.5.4 Dimensions of RCX-1440/RCX-1422/RCX-1404 47
1.5.5 Dimensions of RCX-1220A/RCX-1220/RCX-1211 47
vi
CHAPTER 2 GETTING TO KNOW YOUR RCX-1000 48
2.1 Packing List 48
2.2 Front Panel I/O Functions 50
2.3 Main Board Expansion Connectors 61
2.4 Main Board Jumper Settings 81
2.5 Ignition Control 85
CHAPTER 3 SYSTEM SETUP 88
3.1 How to open your RCX-1000 88
3.2 Installing CPU 89
3.3 Installing DDR4 SO-DIMM Modules 90
3.4 Installing Mini PCIe Card 91
3.5 Installing M.2 (Key E/Key M) 91
3.6 Installing Antenna Cable 92
3.7 Installing Sim Card 93
3.8 Installing PCI/PCIe Card 94
3.9 Installing SSD/HHD 96
3.10 Mounting Your RCX-1000 100
3.11 Cleaning the Air lter of RCX-1400FR/1400F 101
3.12
Installing the hold down bar for RCX-1400F/1400 Series 102
CHAPTER 4 BIOS SETUP 103
4.1 Entering BIOS Setup 103
4.2 Main 104
4.3 Advanced 104
4.4 Chipset 115
4.5 Security 121
4.6 Boot 123
4.7 Save & Exit 124
©Vecow RCX-1000 User Manual
vii
APPENDIX A : Isolated DIO Guide 125
APPENDIX B : Software Functions 130
APPENDIX C : RAID Functions 133
APPENDIX D : Power Consumption 139
APPENDIX E : Supported Memory & Storage List 144
APPENDIX F : How to Install Power Supply 148
©Vecow RCX-1000 User Manual
viii
1
GENERAL INTRODUCTION
1.1 Overview
RCX-1000 is a high-performance, flexible and rugged computing engine for
AIoT and Industry 4.0 applications. LGA1151 Socket supports 6-core 8th
Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Coee Lake-S) running with
workstation-grade Intel® C246 chipset; 4 SO-DIMM support dual channel DDR4
2666MHz up to 128GB ECC memory; advanced Intel® UHD Graphics P630/630
supporting DirectX 12, OpenGL 4.5 and OpenCL 2.0 API, multiple DVI, HDMI
and DisplayPort display interfaces, up to Ultra HD 4K resolution; USB 3.1 Gen
2 (10Gbps), PCIe 3.0 (8GT/s), Multiple SATA III (6Gbps), USB 3.0 (5Gbps),
PoE (1Gbps) LAN and multiple wireless connections make seamless realtime high-speed data conveying possible; optimized power budget for optional
independent graphics or any PCI/PCIe expansion functions. Vecow RCX-1000
Series Fanless Robust Computing System serves leading system performance,
power productivity, and system-oriented integration for demanding workloads in
real-time embedded applications.
Fanless -40°C to 75°C operating temperature, onboard multiple DVI, HDMI and
DisplayPort display interfaces support triple independent displays, 2 GigE LAN
ports support iAMT 12.0, 6 external USB 3.1 Gen 2 connections up to 10Gbps
SuperSpeed data rate, 4 front-access 2.5" SSD/HDD trays with RAID 0, 1, 5, 10
data protection, multiple WiFi/4G/3G/LTE/GPRS/UMTS for seamless wireless
data transfer, 4 COM RS-232/422/485, 2 M.2 expansions, 32 Isolated DIO, 6V
to 36V wide range power input with 80V surge protection, congurable ignition
power control, remote management functions, remote power switch, EN50155
and EN50121-3-2 compliant, 4 PCI/PCIe expansion slots with optimized power
budget, exible support NVIDIA® GeForce® RTX series graphics, Vecow RCX1000 Series Fanless Robust Computing System features integrated functions
for AI-oriented Computer Vision applications in harsh environment.
With leading performance, system-oriented integration, versatile conguration,
smart manageability and industrial-grade reliability, Vecow RCX-1000 series
expandable embedded workstation is your powerful solution for Machine Vision,
Factory Automation, Robotic Control, Intelligent Surveillance, Machine Learning,
Deep Learning, and any Articial Intelligence (AI) edge computing applications
in harsh environments.
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
1
1.2 Features
• 6 cores 8th generation Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake-S) processor
with workstation-grade Intel
• 4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)
• 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
• Rugged & Fanless design, -40°C to 75°C operating temperature
• Multiple DVI-I and DisplayPort display interface, up to 3 independent HD displays
• Powered by advanced NVIDIA Turing™ GPU architecture and all-new RTX
®
platform, NVIDIA
GeForce RTX™ series graphics engine supports up to 6X the
performance of previous generation graphics cards for real-time AI computing
(RCX-1000 RTX Series only)
• 7 displays : 1 DVI, 1 HDMI, and 5 DisplayPort, up to 8K resolution (RCX-1000
RTX Series only)
• 2 independent GigE LAN, iAMT 12.0 supported
• 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
®
C246 chipset
• 4 front-access 2.5" SSD trays, RAID 0, 1, 5, 10 supported
• 3 PCI/PCIe slots, max 300W Power Budget for independent graphics operation
• 32 Isolated DIO, 4 COM RS-232/422/485
• 2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E
• 6V to 36V DC Power Input with 80V Surge Protection
• 24V to 36V DC Power Input with 80V Surge Protection (RCX-1000 RTX Series only)
• Configurable Ignition Power Control
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
2
1.3 Product Specication
1.3.1 Specications of RCX-1430FR
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel® C246 Chipset
BIOS AMI
SIO IT8786E
• DDR4 2666MHz (ECC/Non-ECC)
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
• 1 PCIe x16 Slot
PCI/PCIe
M.2 1 M.2 Key E Socket
• 1 PCIe x4 Slot
• 1 PCIe x1 Slot
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
3
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 5.3 kg (11.7 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
4
1.3.2 Specications of RCX-1430F
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
• 1 PCIe x16 Slot
PCI/PCIe
• 1 PCIe x4 Slot
• 1 PCIe x1 Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
5
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 4.9 kg (10.8 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
6
1.3.3 Specications of RCX-1421FR
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
• 1 PCIe x16 Slot
PCI/PCIe
• 1 PCIe x4 Slot
• 1 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
7
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 5.3 kg (11.7 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
8
1.3.4 Specications of RCX-1421F
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
• 1 PCIe x16 Slot
PCI/PCIe
• 1 PCIe x4 Slot
• 1 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
9
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 4.9 kg (10.8 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
10
1.3.5 Specications of RCX-1412FR
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
• 1 PCIe x16 Slot
• 2 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
11
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 5.3 kg (11.7 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
12
1.3.6 Specications of RCX-1412F
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
• 1 PCIe x16 Slot
• 2 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
13
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 4.9 kg (10.8 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
14
1.3.7 Specications of RCX-1440R
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory • DDR4 2666MHz (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB • 6 USB 3.1 Gen 2 (External)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
C246 Chipset
• Up to 128GB
• 4 260-pin SO-DIMM Socket
• 1 USB 2.0 (Internal)
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe • 1 PCIe x8 Slot
• 3 PCIe x4 Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface • 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
®
I210 Gigabit LAN
GENERAL INTRODUCTION
15
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 5.0 kg (11 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature 35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
16
1.3.8 Specications of RCX-1440
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
• 1 PCIe x8 Slot
• 3 PCIe x4 Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
17
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 4.6 kg (10.1 b)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
18
1.3.9 Specications of RCX-1422R
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory • DDR4 2666MHz (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB • 6 USB 3.1 Gen 2 (External)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
®
C246 Chipset
• Up to 128GB
• 4 260-pin SO-DIMM Socket
• 1 USB 2.0 (Internal)
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe • 1 PCIe x16 Slot
• 1 PCIe x4 Slot
• 2 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface • 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
®
I210 Gigabit LAN
GENERAL INTRODUCTION
19
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 5.0 kg (11 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature 35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
20
1.3.10 Specications of RCX-1422
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
• 1 PCIe x16 Slot
PCI/PCIe
• 1 PCIe x4 Slot
• 2 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
21
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 4.6 kg (10.1 b)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
22
1.3.11 Specications of RCX-1404R
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 4 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
23
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 5.0 kg (11 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
24
1.3.12 Specications of RCX-1404
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 4 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
25
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight 4.6 kg (10.1 b)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
26
1.3.13 Specications of RCX-1220A
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 2 PCIe x8 Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
27
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 131.4mm (9.86" x 8.27" x 5.17")
Weight 4.3 kg (9.5 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
28
1.3.14 Specications of RCX-1220
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
• 1 PCIe x16 Slot
• 1 PCIe x4 Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
29
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 131.4mm (9.86" x 8.27" x 5.17")
Weight 4.3 kg (9.5 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
30
1.3.15 Specications of RCX-1211
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
• 1 PCIe x16 Slot
• 1 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor Intel® UHD Graphics P630/630
Interface
• 1 DVI-I : Up to 1920 x 1200 @ 60Hz
• 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
®
I210 Gigabit LAN
GENERAL INTRODUCTION
31
Power
Input Voltage 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 250.4mm x 210.0mm x 131.4mm (9.86" x 8.27" x 5.17")
Weight 4.3 kg (9.5 lb)
Mounting Wallmount by mounting bracket
Environment
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
Operating Temperature
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
GENERAL INTRODUCTION
32
1.3.16 Specications of RCX-1430FR RTX2080
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
M.2 1 M.2 Key E Socket
• 1 PCIe x4 Slot
• 1 PCIe x1 Slot
Graphics
Graphics Processor
Interface
• Intel® UHD Graphics P630/630
• NVIDIA® GeForce® RTX™ 2080
• 1 DVI : Up to 1920 x 1200 @60Hz
• 3 DisplayPort : Up to 7680 x 3840 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
©Vecow RCX-1000 User Manual
• 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
GENERAL INTRODUCTION
33
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
®
LAN 2 Intel
I210 Gigabit LAN
Power
Input Voltage
• 24V to 36V, DC-in
• 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 6.8 kg (15 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
34
1.3.17 Specications of RCX-1430F RTX2080
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe
M.2 1 M.2 Key E Socket
• 1 PCIe x4 Slot
• 1 PCIe x1 Slot
Graphics
Graphics Processor
Interface
• Intel® UHD Graphics P630/630
• NVIDIA® GeForce® RTX™ 2080
• 1 DVI : Up to 1920 x 1200 @60Hz
• 3 DisplayPort : Up to 7680 x 3840 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
GENERAL INTRODUCTION
35
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
®
LAN 2 Intel
I210 Gigabit LAN
Power
Input Voltage
• 24V to 36V, DC-in
• 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 6.4 kg (14.1 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
36
1.3.18 Specications of RCX-1421FR RTX2080
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory • DDR4 2666MHz (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB • 6 USB 3.1 Gen 2 (External)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
C246 Chipset
• Up to 128GB
• 4 260-pin SO-DIMM Socket
• 1 USB 2.0 (Internal)
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe • 1 PCIe x4 Slot
• 1 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor • Intel® UHD Graphics P630/630
• NVIDIA® GeForce® RTX™ 2080
Interface • 1 DVI : Up to 1920 x 1200 @60Hz
• 3 DisplayPort : Up to 7680 x 3840 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 4 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
©Vecow RCX-1000 User Manual
• 1 M.2 Key M Socket
GENERAL INTRODUCTION
37
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
®
LAN 2 Intel
I210 Gigabit LAN
Power
Input Voltage • 24V to 36V, DC-in
• 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 6.8 kg (15 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
38
1.3.19 Specications of RCX-1430F RTX2080
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
®
Chipset Intel
BIOS AMI
SIO IT8786E
Memory • DDR4 2666MHz (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB • 6 USB 3.1 Gen 2 (External)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
C246 Chipset
• Up to 128GB
• 4 260-pin SO-DIMM Socket
• 1 USB 2.0 (Internal)
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe • 1 PCIe x4 Slot
• 1 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor • Intel® UHD Graphics P630/630
• NVIDIA® GeForce® RTX™ 2080
Interface • 1 DVI : Up to 1920 x 1200 @60Hz
• 3 DisplayPort : Up to 7680 x 3840 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 4 2.5" SSD/HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
©Vecow RCX-1000 User Manual
• 1 M.2 Key M Socket
GENERAL INTRODUCTION
39
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
®
LAN 2 Intel
I210 Gigabit LAN
Power
Input Voltage • 24V to 36V, DC-in
• 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 6.4 kg (14.1 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
40
1.3.20 Specications of RCX-1412FR RTX2080
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 2 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor
Interface
• Intel® UHD Graphics P630/630
• NVIDIA® GeForce® RTX™ 2080
• 1 DVI : Up to 1920 x 1200 @60Hz
• 3 DisplayPort : Up to 7680 x 3840 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
©Vecow RCX-1000 User Manual
• 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket
GENERAL INTRODUCTION
41
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
®
I210 Gigabit LAN
Power
Input Voltage
• 24V to 36V, DC-in
• 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 6.8 kg (15 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
42
1.3.21 Specications of RCX-1412F RTX2080
System
Processor 6 cores Intel®Xeon®/Core™ i7/i5/i3 Processor (Coee Lake-S)
Chipset Intel
BIOS AMI
SIO IT8786E
Memory
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
®
C246 Chipset
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
USB
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
• 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 2 PCI Slot
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor
Interface
• Intel® UHD Graphics P630/630
• NVIDIA® GeForce® RTX™ 2080
• 1 DVI : Up to 1920 x 1200 @60Hz
• 3 DisplayPort : Up to 7680 x 3840 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
©Vecow RCX-1000 User Manual
• 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
GENERAL INTRODUCTION
43
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel
®
I210 Gigabit LAN
Power
Input Voltage
• 24V to 36V, DC-in
• 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 330.0mm x 210.0mm x 172.0mm (12.99" x 8.27" x 6.77")
Weight 6.4 kg (14.1 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock
Vibration
EMC CE, FCC, EN50155, EN50121-3-2
• IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
44
1.4 Supported CPU List
R2.5 (0.10”)
Processor No. TDP Cache Max. Frequency ECC Memory
®
Xeon® E-2176G 80W 12M Up to 4.6GHz Yes
Intel
®
Xeon® E-2124G 71W 8M Up to 4.6GHz Yes
Intel
®
Core™ i7-8700 65W 8M Up to 4.6GHz Yes
Intel
®
Core™ i7-8700T 35W 8M Up to 4.0GHz Yes
Intel
®
Core™ i5-8500 65W 6M Up to 4.1GHz Yes
Intel
®
Core™ i5-8500T 35W 6M up to 3.5GHz Yes
Intel
®
Core™ i3-8100 65W 3M up to 3.6GHz Yes
Intel
®
Core™ i3-8100T 35W 4M up to 3.1GHz Yes
Intel
1.5 Mechanical Dimension
1.5.1 Dimensions of RCX-1400FR/RCX-1000FR RTX
210.0 (8.27”)
160.0 (6.30”)
330.0 (12.99”)
362.0 (14.25”)
382.0 (15.04”)
Unit : mm (inch)
©Vecow RCX-1000 User Manual
172.0 (6.77”)
179.3 (7.06”)
GENERAL INTRODUCTION
45
1.5.2 Dimensions of RCX-1400F/RCX-1000F RTX
R2.5 (0.10”)
R2.5 (0.10”)
210.0 (8.27”)
160.0 (6.30”)
330.0 (12.99”)
362.0 (14.25”)
382.0 (15.04”)
Unit : mm (inch)
172.0 (6.77”)
179.3 (7.06”)
1.5.3 Dimensions of RCX-1440R/RCX-1422R/RCX-1404R
210.0 (8.27”)
160.0 (6.30”)
Unit : mm (inch)
250.4 (9.86”)
282.4 (11.12”)
302.4 (11.91”)
©Vecow RCX-1000 User Manual
172.0 (6.77”)
179.3 (7.06”)
GENERAL INTRODUCTION
46
1.5.4 Dimensions of RCX-1440/RCX-1422/RCX-1404
R2.5 (0.10”)
R2.5 (0.10”)
210.0 (8.27”)
160.0 (6.30”)
250.4 (9.86”)
282.4 (11.12”)
302.4 (11.91”)
172.0 (6.77”)
179.3 (7.06”)
Unit : mm (inch)
1.5.5 Dimensions of RCX-1220A/RCX-1220/RCX-1211
210.0 (8.27”)
160.0 (6.30”)
Unit : mm (inch)
250.4 (9.86”)
282.4 (11.12”)
302.4 (11.91”)
131.4 (5.17”)
138.7 (5.46”)
©Vecow RCX-1000 User Manual
GENERAL INTRODUCTION
47
2
GETTING TO KNOW YOUR RCX-1000
2.1 Packing List
Item Description Qty
1
2
RCX-1000 Fanless Robust Computing System (According to the
conguration you order, the RCX-1000 series may contain SSD/HDD
and DDR4 SO-DIMM. Please verify these items if necessary.)
RCX-1400FR Series Accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• F Head #6-32x6 screw (for wall-mounting bracket)
• PH Head M2.5x6 screw (for Mini PCIe Slot)
• PH Head M3x6 screw (for M.2 Slot)
• Terminal block plug pitch 2.54mm 2x10pin
• Terminal block 3-pin (7.62mm)
• Terminal block 3-pin (3.5mm)
• Foot Pad
• EPE
• Plastic Bag
1
1
2
4
2
2
2
1
1
4
2
1
RCX-1400F Series Accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• F#6-32x6 screw for wall-mounting bracket
• PH-M2.5x6 screw for Mini PCIe Slot
• PH-M4x16.5 for Din Rail
• M3x11 Spring screws for CPU
3
• Terminal block plug pitch 2.54mm 2x10pin
• Terminal block 3-pin (7.62mm)
• Terminal block 3-pin (3.5mm)
• Foot Pad
• EPE
• Plastic Bag
• F-M3x4 for SSD/HDD with bracket
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
1
2
4
6
4
5
2
1
1
4
2
1
16
48
Item Description Qty
RCX-1400R Series Accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• F#6-32x6 screw for wall-mounting bracket
• PH-M2.5x6 screw for Mini PCIe Slot
• PH-M4x16.5 for Din Rail
• M3x11 Spring screws for CPU
4
• Terminal block plug pitch 2.54mm 2x10pin
• Terminal block 3-pin (7.62mm)
• Terminal block 3-pin (3.5mm)
• Foot Pad
• EPE
• Plastic Bag
• Removable HDD Tray Key
1
2
4
6
4
5
2
1
1
4
2
1
2
RCX-1400 Series Accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• F#6-32x6 screw for wall-mounting bracket
• PH-M2.5x6 screw for Mini PCIe Slot
• PH-M4x16.5 for Din Rail
• M3x11 Spring screws for CPU
5
• Terminal block plug pitch 2.54mm 2x10pin
• Terminal block 3-pin (7.62mm)
• Terminal block 3-pin (3.5mm)
• Foot Pad
• EPE
• Plastic Bag
• Removable HDD Tray Key
• F-M3x4 for SSD/HDD with bracket
1
2
4
6
4
5
2
1
1
4
2
1
2
16
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
49
2.2 Front Panel I/O Functions
In Vecow's RCX-1000 series family, all I/O connectors are located on the front
panel. Most of the general connections to the computer device, such as audio,
USB, DVI-I, COM Port, Isolated DIO, Display Port, and any additional storage, are
placed on the front panel.
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
2.2.1 Reset Tact Switch
DC-IN
-
V+ V
The item circled red is a hardware reset switch. Use this switch to reset the
system without powering o the RCX-1000. Press and hold the reset switch for a
few seconds, then reset will be enabled.
©Vecow RCX-1000 User Manual
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
SIM 2
10
|
LAN 1
10
10
|
LAN 2
SIM 1
GETTING TO KNOW YOUR RCX-1000
RST
50
2.2.2 Power Button
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
The power button is a non-latched switch with dual color LED indication. It
indicates power statuses : S0, S3 and S5. More details on the LED indications
are listed in the following chart :
LED Color Power Status System Status
Solid Blue S0 System working
Solid Orange S3, S5 Suspend to RAM, System o with standby power
To power on RCX-1000, press the power button which will light the blue LED.
To power off RCX-1000, you can either command shutdown by OS operation
or simply press the power button. If system error appears, press and hold the
power button for four seconds to shut down the machine directly.
Please do note that a four-second interval between each two power-on/power-off
operation is necessary in normal working status. (For example, once turning o the
system, you have to wait for four seconds to initiate another power-on operation).
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
51

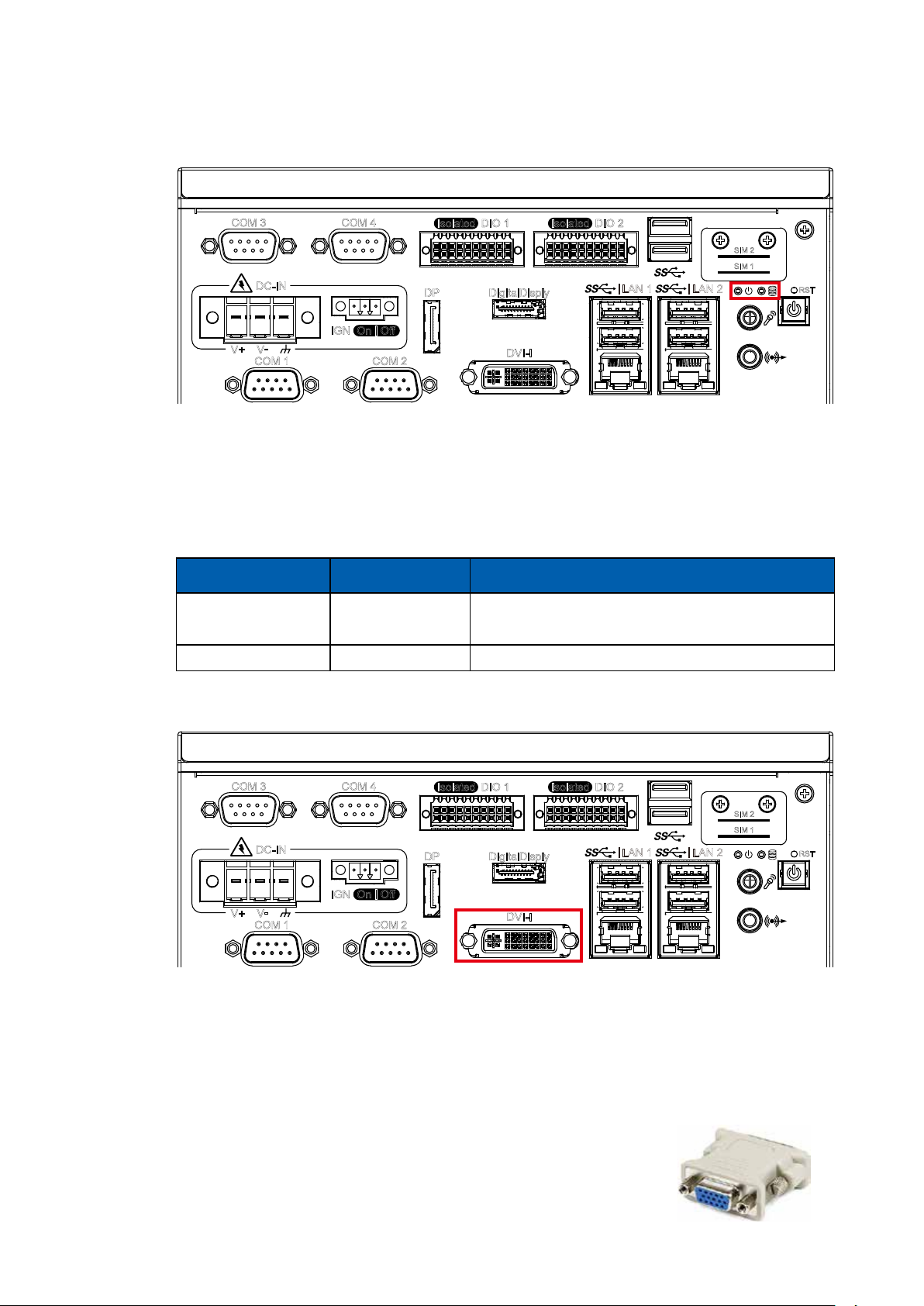

2.2.3 PWR & HDD LED Indicator
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
Yellow-HDD LED : A hard disk LED. If the LED is on, it indicates that the
system's storage is functional. If it is o, it indicates that the system's storage is
not functional. If it is ashing, it indicates data access activities are in progress.
Green-Power LED : If the LED is solid green, it indicates that the system is
powered on.
LED Color Indication System Status
Yellow HDD
• On/Off : Storage status, function or not.
• Twinkling : Data transferring.
Green Power System power status (on/o)
2.2.4 DVI-D Connector
COM 4COM 3
DC-IN
On | Off
IGN
-
V+ V
COM 2COM 1
The DVI-I connector on the front panel supports both DVI and VGA display
modes. This connector can output DVI signals. The DVI output mode supports
up to 1920x1200 resolution. The DVI mode is automatically selected according
to the display device connected. You will need a DVI-I cable when connecting to
a display device. The VGA output mode supports up to 1920x1200 resolution. If
use VGA function will need a DVII to VGA module connecting to DVI-I device.
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
Right is the DVII to VGA module picture
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
52
2.2.5 DisplayPort
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
Onboard Display Port support auxiliary channel dual mode, connection supports
up to 4096x2304 resolution at 60 Hz.
2.2.6 USB 3.1
COM 4COM 3
DC-IN
Isolated DIO 1
DP DigitalDisply
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
On | Off
IGN
-
V+ V
COM 2COM 1
DVI-I
There are 6 USB 3.1 connections available supporting up to 10GB per second data
rate in the front side of RCX-1000 series. It also compliant with the requirements of
Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS).
2.2.7 SIM 1, SIM 2
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
53
m-PCIE SIM
MPCIE1 SIM1
MPCIE2
mSATA
MPCIE1
mSATA
2.2.8 10/100/1000 Mbps Ethernet Port
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
MPCIE2 SIM2
SIM 2
|
LAN 1
10
10
|
LAN 2
SIM 1
RST
There are two 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet
connections on the front side of RCX-1000. LAN 1 is powered by Intel® I219LM
Ethernet engine, and LAN 2 is powered by Intel® I210 Ethernet engine. When LAN
1 works in normal status, iAMT 11.0 function is enabled. When LAN 2 works in
normal status, iAMT 8.0 function is enabled.
Using suitable RJ-45 cable, you can connect the RCX-1000 system to a computer
or to any other devices with Ethernet connection, for example, a hub or a switch.
Moreover, both LAN 1 and LAN 2 support "Wake" on LAN and pre-boot functions.
The pinouts of LAN 1 and LAN 2 are listed in the following chart :
Pin No. 10/100 Mbps 1000Mbps
1 E_TX+ MDI0_P
2 E_TX- MDI0_N
3 E_RX+ MDI1_P
4 ------ MDI2_P
5 ------ MDI2_N
6 E_RX- MDI1_N
7 ------ MDI3_P
8 ------ MDI3_N
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
54
Each LAN port is supported by a standard RJ-45 connector with LED indicators
to present active/link/speed statuses of the connection.
The LED indicator on the right bottom corner becomes solid green when the
cable is properly connected to a 100Mbps Ethernet network; it becomes solid
orange when the cable is properly connected to a 1000Mbps Ethernet network.
The left LED will keep blinking off when Ethernet data packets are being
transmitted or received.
LED Location LED Color 10Mbps 100Mbps 1000Mbps
Right
Green/
Orange
Left Yellow
O
Blinking
Yellow
Solid
Green
Blinking
Yellow
Solid
Orange
Blinking
Yellow
2.2.9 Audio Connector
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
1 8
SIM 2
SIM 1
RST
There are two audio connectors, mic-in and line-out, on the front side of RCX-
1000. Onboard Realtek ALC892 audio codec supports 5.1 channel HD audio
and fully complies with Intel® High Denition Audio (Azalia) specications.
To utilize the audio function on the Windows platform, you need to install
corresponding drivers for both Intel
Please refer to chapter four for more details on driver installation.
©Vecow RCX-1000 User Manual
®
C246 chipset and Realtek ALC892 codec.
GETTING TO KNOW YOUR RCX-1000
55
2.2.10 Front-access SSD/HDD Tray
Isolated DIO 1
DVI-I
DP DigitalDisply
|
LAN 1
10
COM 4COM 3
COM 2COM 1
Isolated DIO 2
DC-IN
V+ V
-
SIM 2
SIM 1
RST
|
LAN 2
10
10
On
|
Off
IGN
There are four front-access 2.5" SSD/HDD trays on the front side of RCX-1000.
Press the trigger to open the SSD/HDD tray which has up to 8TB available.
2.2.11 Power Terminal Block
COM 4COM 3
DC-IN
-
V+ V
IGN
On | Off
COM 2COM 1
RCX-1000 supports 6V to 36V DC power input.
RCX-1000-12 only 12V DC power input.
Pin No. Denition
1 Earth GND
2 V-
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
3 V+
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
56

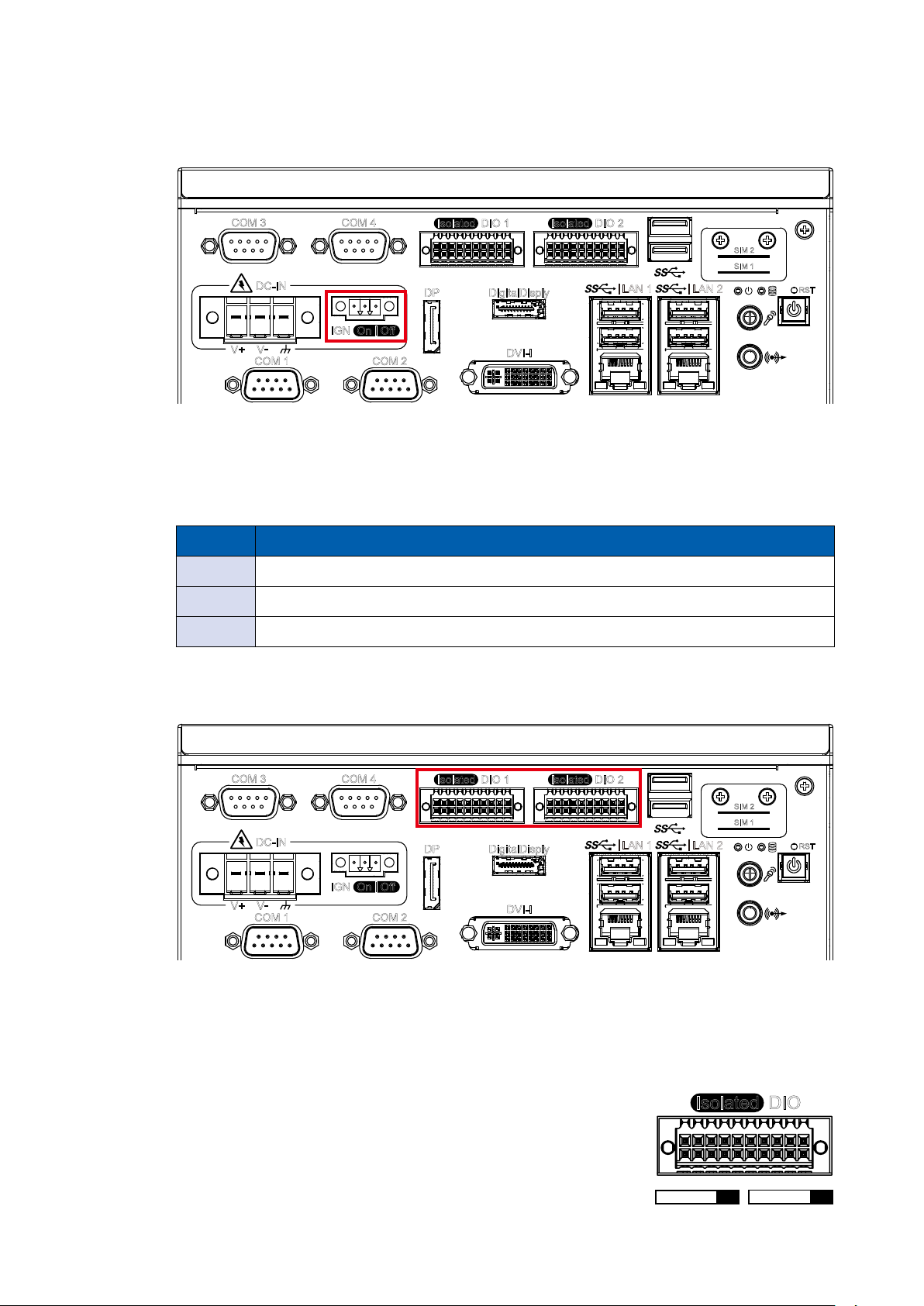

2.2.12 Remote Power On/O Switch
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
It is a 2-pin power-on/power-o switch through Phoenix Contact terminal block.
You could turn on or o the system power by using this contact. This terminal
block supports dual function on soft power-on/power-o (instant o or delay four
seconds), and suspend mode.
Pin No. Denition
1 IGNITION
2 SW+
3 SW-
2.2.13 Isolated DIO
COM 4COM 3
DC-IN
On | Off
IGN
-
V+ V
COM 2COM 1
There is a 16-bit (8-bit DI, 8-bit DO) connectors in the rear side. DI/DIO support NPN
(sink) and PNP (Source) mode, Each DI channel is equipped with a photocouper
for isolated protection. Each DO with isolator chip, Cong by a Jumper for each DIO
connector.
DO Safety-Related Certications :
• 4242-VPK Basic Isolation per DIN V VDE V 0884-10
and DIN EN 61010-1
• 3-KVRMS Isolation for 1 minute per UL 1577
• CSA Component Acceptance Notice 5A, IEC 60950-1
and IEC 61010-1 End Equipment Standards
• GB4943.1-2011 CQC Certified
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
SIM 2
10
10
1 10
12 20
SIM 1
|
LAN 2
Isolated DIO
D IPIN 1 ~ 8 DOPIN 11 ~ 18
RST
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
57
DIO1 Connectors pin out :
DIO Pin No. Denition Function
1 INPUT 0 SIO_GPI80
2 INPUT 1 SIO_GPI81
3 INPUT 2 SIO_GPI82
4 INPUT 3 SIO_GPI83
5 INPUT 4 SIO_GPI84
6 INPUT 5 SIO_GPI85
7 INPUT 6 SIO_GPI86
8 INPUT 7 SIO_GPI87
9 +VDI_COM1
10 GND_ISO_DIO1
DIO 1
11 OUTPUT 0 SIO_GPO70
12 OUTPUT 1 SIO_GPO71
13 OUTPUT 2 SIO_GPO72
14 OUTPUT 3 SIO_GPO73
15 OUTPUT 4 SIO_GPO74
16 OUTPUT 5 SIO_GPO75
17 OUTPUT 6 SIO_GPO76
18 OUTPUT 7 SIO_GPO77
19 GND_ISO_DIO1
20
External 6-40VDC (NPN)
External 6-48VDC (PNP)
DIO2 Connectors pin out :
DIO Pin No. Denition Function
1 INPUT 8 SIO_GPI0
2 INPUT 9 SIO_GPI1
3 INPUT 10 SIO_GPI2
4 INPUT 11 SIO_GPI3
5 INPUT 12 SIO_GPI4
6 INPUT 13 SIO_GPI5
7 INPUT 14 SIO_GPI6
8 INPUT 15 SIO_GPI7
9 +VDI_COM2
10 GND_ISO_DIO2
DIO 2
11 OUTPUT 8 SIO_GPO0
12 OUTPUT 9 SIO_GPO1
13 OUTPUT 10 SIO_GPO2
14 OUTPUT 11 SIO_GPO3
15 OUTPUT 12 SIO_GPO4
16 OUTPUT 13 SIO_GPO5
17 OUTPUT 14 SIO_GPO6
18 OUTPUT 15 SIO_GPO7
19 GND_ISO_DIO2
20
External 6-40VDC (NPN)
External 6-48VDC (PNP)
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
58
DI reference circuit :
Sink Mode
(NPN)
Source Mode
(PNP)
DO reference circuit :
Sink Mode (NPN, Default)
Power
Supply
6-48V DC
Power
Supply
6-48V DC
V+
V-
V+
V-
DIO Connector
DI_COM (Pin 9)
DI (Pin 1-8)
DIO Connector
DI_COM (Pin 9)
DI (Pin 1-8)
LDO
VCCI VEXT
X
IN
GNDI GNDO
ISOLATION
OUTX
ENX
LOGIC
Internal Circuit External Device
Driver
OCP
OTP
DO Signal circuit in SINK mode (NPN)
DIO_VDC (20)
OUT (11)
(300mA)
GNDO (10.19)
P
R
I
N
LOAD
Source (PNP)
LDO
20K
VCCI VEXT
X
IN
ISOLATION
GNDI GNDO
Internal Circuit External Device
OUTX
ENX
GNDO
7.2K
3K
1.5K
DO Signal circuit in source mode (PNp)
DIO_VDC (20)
OUT (11)
(300mA)
GNDO (10.19)
LOAD
P
R
I
N
VDD
+
6-40V
VDC
-
VDD
+
6-40V
VDC
-
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
59
2.2.14 Serial Port COM
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RST
Serial port can be configured for RS-232, RS-422, or RS-485 with auto flow
control communication. The default definition is RS-232, but if you want to
change to RS-422 or RS-485, you can nd the settings in BIOS.
BIOS Setting Function
COM 1
COM 2
COM 3
RS-232
RS-422 (5-wire)
RS-422 (9-wire)
RS-485
COM 4
RS-485 w/z auto-ow control
The pin assignments are listed in the table as follows :
Serial
Port
1, 2
3, 4
Pin No. RS-232
1 DCD TXD- TXD- DATA-
2 RXD TXD+ TXD+ DATA+
3 TXD RXD+ RXD+ -----------
4 DTR RXD- RXD- -----------
5 GND GND GND GND
6 DSR ----------- RTS- -----------
7 RTS ----------- RTS+ -----------
8 CTS ----------- CTS+ -----------
9 RI ----------- CTS- -----------
RS-422
(5-wire)
RS-422
(9-wire)
RS-485
(3-wire)
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
60
2.3 Main Board Expansion Connectors
2.3.1 Front View of RCX-1000 Main Board With Connector Location
SODIMM 2 SODIMM 1
SODIMM 4 SODIMM 3
JUSB1
JBAT1
BIOS
CN6
TPM
CN8
JDEBUG1
SYS_FAN2
CN9
CN10
SATA4 SATA3
SATA1 SATA2
HDD_PWR1
JCOM2
JCOM1
J2
HDD_PWR2
M2_KEYE_CN1
MPCIE2 MPCIE1
SYS_FAN1
Super I/O
M2_KEYM_CN1
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
61
2.3.2 Rear View of RCX-1000 Main Board With Connector Location
CPU
PCH
CN17
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
62
2.3.3 SYS_FAN1, SYS_FAN2
The fan power connector is for additional thermal requirements. The pin
assignments of SYS_FAN1 and SYS_FAN2 are listed in the following table :
SYS_FAN2
SYS_FAN1
Pin No. Denition Pin No. Denition
1 GND 3 Fan speed sensor
2 +12V (up to 2A) 4 Fan PWM
2.3.4 JBAT1 : Battery
The RCX-1000's real-time clock is powered by a lithium battery. It is equipped
with Panasonic BR2032 190mAh lithium battery. It is recommended that you do
not replace the lithium battery on your own. If the battery needs to be changed,
please contact the Vecow RMA service team.
JBAT1
Pin No. Denition Pin No. Denition
1 GND 2 +3V_BAT
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
63
2.3.5 CN10 : One PCIe x4 Slot (PCH)
CN10
The pin assignments of CN10 are listed in the following table :
Pin No. Denition Pin No. Denition
A1 Reserved B1 +V12S
A2 +V12S B2 +V12S
A3 +V12S B3 +V12S
A4 GND B4 GND
A5 CLKOUT_100M_X4_P2 B5 SM_SLOT_CLK
A6 CLKOUT_100M_X4_N2 B6 SM_SLOT_DAT
A7 CLKOUT_100M_X4_P3 B7 GND
A8 CLKOUT_100M_X4_N3 B8 +V3.3S
A9 +V3.3S B9 Reserved
A10 +V3.3S B10 +V3.3A
A11 PLTRST_PCIE# B11 WAKE#
A12 GND B12 Reserved
A13 CLKOUT_100M_X4_P0 B13 GND
A14 CLKOUT_100M_X4_N0 B14 PCIE_TXP21
A15 GND B15 PCIE_TXN21
A16 PCIE_RXP21 B16 GND
A17 PCIE_RXN21 B17 Reserved
A18 GND B18 GND
A19 Reserved B19 PCIE_TXP22
A20 GND B20 PCIE_TXN22
A21 PCIE_RXP22 B21 GND
A22 PCIE_RXN22 B22 GND
A23 GND B23 PCIE_TXP23
A24 GND B24 PCIE_TXN23
A25 PCIE_RXP23 B25 GND
A26 PCIE_RXN23 B26 GND
A27 GND B27 PCIE_TXP24
A28 GND B28 PCIE_TXN24
A29 PCIE_RXP24 B29 GND
A30 PCIE_RXN24 B30 CLKOUT_100M_X4_P1
A31 GND B31 CLKOUT_100M_X4_N1
A32 Reserved B32 GND
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
64
2.3.6 CN9 : One PCIe x16 Slot (CPU)
CN9
Pin No. Denition Pin No. Denition
A1 Reserved B1 +V12S
A2 +V12S B2 +V12S
A3 +V12S B3 +V12S
A4 GND B4 GND
A5 CLKOUT_100M_X16_P2 B5 SM_SLOT_CLK
A6 CLKOUT_100M_X16_N2 B6 SM_SLOT_DAT
A7 USB_P8_DP B7 GND
A8 USB_P8_DN B8 +V3.3S
A9 +V3.3S B9 GND
A10 +V3.3S B10 +V3.3A
A11 PLTRST_PCIE# B11 WAKE#
A12 GND B12 Reserved
A13 CLKOUT_100M_X16_P0 B13 GND
A14 CLKOUT_100M_X16_N0 B14 PEG_TXP_0
A15 GND B15 PEG_TXN_0
A16 PEG_RXP_0 B16 GND
A17 PEG_RXN_0 B17 Reserved
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
65
Pin No. Denition Pin No. Denition
A18 GND B18 GND
A19 Reserved B19 PEG_TXP_1
A20 GND B20 PEG_TXN_1
A21 PEG_RXP_1 B21 GND
A22 PEG_RXN_1 B22 GND
A23 GND B23 PEG_TXP_2
A24 GND B24 PEG_TXN_2
A25 PEG_RXP_2 B25 GND
A26 PEG_RXN_2 B26 GND
A27 GND B27 PEG_TXP_3
A28 GND B28 PEG_TXN_3
A29 PEG_RXP_3 B29 GND
A30 PEG_RXN_3 B30 PCIE_RXP7
A31 GND B31 PCIE_RXN7
A32 CLKOUT_100M_X16_P1 B32 GND
A33 CLKOUT_100M_X16_N1 B33 PEG_TXP_4
A34 GND B34 PEG_TXN_4
A35 PEG_RXP_4 B35 GND
A36 PEG_RXN_4 B36 GND
A37 GND B37 PEG_TXP_5
A38 GND B38 PEG_TXN_5
A39 PEG_RXP_5 B39 GND
A40 PEG_RXN_5 B40 GND
A41 GND B41 PEG_TXP_6
A42 GND B42 PEG_TXN_6
A43 PEG_RXP_6 B43 GND
A44 PEG_RXN_6 B44 GND
A45 GND B45 PEG_TXP_7
A46 GND B46 PEG_TXN_7
A47 PEG_RXP_7 B47 GND
A48 PEG_RXN_7 B48 Reserved
A49 GND B49 GND
A50 Reserved B50 PEG_TXP_8
A51 GND B51 PEG_TXN_8
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
66
Pin No. Denition Pin No. Denition
A52 PEG_RXP_8 B52 GND
A53 PEG_RXN_8 B53 GND
A54 GND B54 PEG_TXP_9
A55 GND B55 PEG_TXN_9
A56 PEG_RXP_9 B56 GND
A57 PEG_RXN_9 B57 GND
A58 GND B58 PEG_TXP_10
A59 GND B59 PEG_TXN_10
A60 PEG_RXP_10 B60 GND
A61 PEG_RXN_10 B61 GND
A62 GND B62 PEG_TXP_11
A63 GND B63 PEG_TXN_11
A64 PEG_RXP_11 B64 GND
A65 PEG_RXN_11 B65 GND
A66 GND B66 PEG_TXP_12
A67 GND B67 PEG_TXN_12
A68 PEG_RXP_12 B68 GND
A69 PEG_RXN_12 B69 GND
A70 GND B70 PEG_TXP_13
A71 GND B71 PEG_TXN_13
A72 PEG_RXP_13 B72 GND
A73 PEG_RXN_13 B73 GND
A74 GND B74 PEG_TXP_14
A75 GND B75 PEG_TXN_14
A76 PEG_RXP_14 B76 GND
A77 PEG_RXN_14 B77 GND
A78 GND B78 PEG_TXP_15
A79 GND B79 PEG_TXN_15
A80 PEG_RXP_15 B80 GND
A81 PEG_RXN_15 B81 PCIE_TXP7
A82 GND B82 PCIE_TXN7
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
67

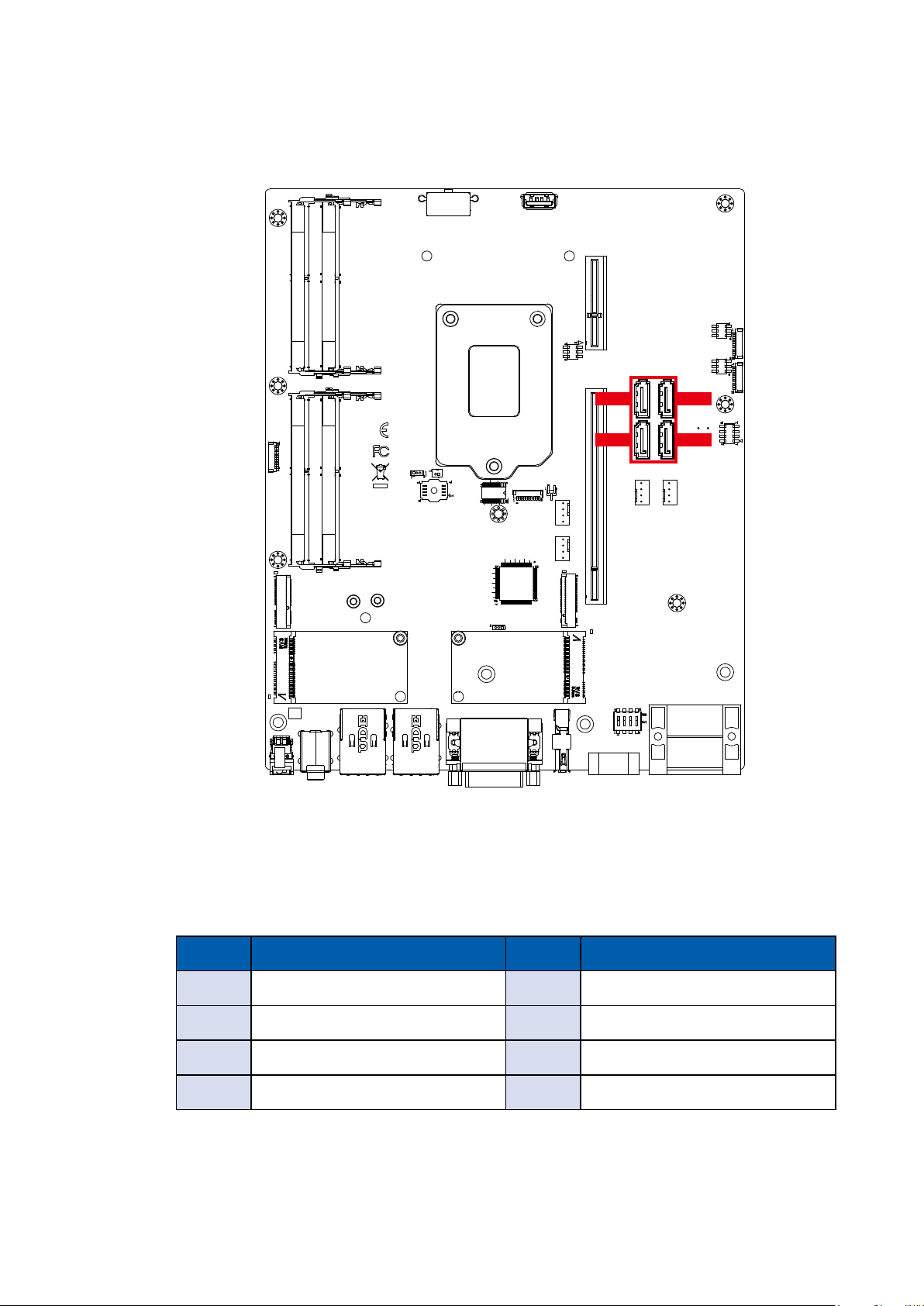

2.3.7 SATA1, SATA2, SATA3, SATA4 : SATA III Connector
SATA4
SATA1
SATA3
SATA2
There are four onboard high performance Serial ATA III's (SATA III) on RCX-
1000. It supports higher storage capacity with less cabling effort and smaller
required space. The pin assignments of SATA1, SATA2, SATA3, and SATA4 are
listed in the following table :
Pin No. Denition Pin No. Denition
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
68
2.3.8 JDEBUG1 : LPC Port 80 Debug Port
JDEBUG1
Pin No. Denition Pin No. Denition
1 +V3.3S 2 LPC_SERIRQ
3 LPC_AD0 4 LPC_AD1
5 LPC_AD2 6 LPC_AD3
7 LPC_FRAME# 8 CLK_LPC_80
9 BUF_PLTRST_N_B 10 GND
2.3.9 HDD_PWR1, HDD_PWR2 : SATA Power Connector
HDD_PWR1
The RCX-1000 is also equipped with two SATA power connectors. It supports
5V (Up to 3A) and 12V (Up to 3A) currents to the hard drive or SSD. The pin
assignments of HDD_PWR1 and HDD_PWR2 are listed in the following table :
Pin No. Denition Pin No. Denition
1 +12V 2 GND
3 GND 4 +5V
HDD_PWR2
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
69
2.3.10 CN8 : Internal USB 2.0 Port
CN8
The USB 2.0 connections available supporting up to 480Mbps. It also compliant
with the requirements of high speed (HS), full speed (FS) and low speed (LS).
The pin assignments of CN8 are listed in the following table :
Pin No. Denition Pin No. Denition
1 +V5_USB7_PWR 2 USB_D_11N
3 USB_D_11P 4 GND
2.3.11 JUSB1 : Internal Dual Port USB 2.0
JUSB1
The RCX-1000 main board provides up to two expansion USB ports using
plug-and-play for Dongle Key or LCD touch panel. The USB interface supports
480Mbps transfer rate which complies with high speed USB specication Rev.
2.0 and are fuse protected.
The USB interface is accessed through one 1x10-pin JST 1.0mm connector. You
will need an adapter cable if you use a standard USB connector. The adapter
cable has a 1x10-pin connector on one end and a USB connector on the other.
The pin assignments of JUSB1 are listed in the following table :
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
70
Pin No. Denition Pin No. Denition
1 +V5_USB8_PWR 2 +V5_USB8_PWR
3 +V5_USB8_PWR 4 USB_D_13N
5 USB_D_13P 6 USB_D_14N
7 USB_D_14P 8 GND
9 GND 10 GND
2.3.12 MPCIE1, MPCIE2 : Mini PCIe, mSATA
MPCIE2
mSATA
MPCIE1
mSATA
Both mSATA and mini PCIe share the same form factor and similar electrical
pinout assignments on their connectors. There was no clear mechanism to
distinguish if an mSATA drive or a Mini PCIe device is plugged into the socket until
recently that SATA I/O issued an ECN change (ECN #045) to redene pin-43 on
mSATA connector as "no connect" instead of "return current path" (or GND).
When an mSATA drive is inserted, its pin-43 is "no connect", and the respective
pin on the socket is being pulled-up to logic 1. When a mini PCIe device is
inserted, its pin-43 forces the respective pin on the socket to ground, or logic 0.
The pin assignments of MPCIE1, MPCIE2 are listed in the following table :
Pin No. Denition Pin No. Denition
51 Reserved 52 +3.3Vaux
49 Reserved 50 GND
47 Reserved 48 +1.5V
45 Reserved 46 Reserved
43 Status 44 Reserved
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
71
Pin No. Denition Pin No. Denition
41 +3.3Vaux 42 Reserved
39 +3.3Vaux 40 GND
37 GND 38 USB_D+
35 GND 36 USB_D-
33 PETp0 34 GND
31 PETn0 32 SMB_DATA
29 GND 30 SMB_CLK
27 GND 28 +1.5V
25 PERp0 26 GND
23 PERn0 24 +3.3Vaux
21 GND 22 PERST#
19 Reserved 20 reserved
17 Reserved 18 GND
Mechanical Key
15 GND 16 Reserved
13 REFCLK+ 14 Reserved
11 REFCLK- 12 Reserved
9 GND 10 Reserved
7 CLKREQ# 8 Reserved
5 Reserved 6 1.5V
3 Reserved 4 GND
1 WAKE# 2 3.3Vaux
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
72
2.3.13 CN6 : 8Pin ATX Power Connector (Max 300W)
CN6
V+ V
DC-IN
-
IGN
COM 4COM 3
On | Off
COM 2COM 1
Isolated DIO 1
DP DigitalDisply
DVI-I
Isolated DIO 2
10
|
LAN 1
10
10
|
LAN 2
SIM 2
SIM 1
RCX-1000-12 only 12V DC power input, CN6 support 12V output.
RCX-1000 24V to 36V DC power input, CN6 support 12V output.
The pin assignments of CN6 are listed in the following table :
Pin No. Denition Pin No. Denition
1 GND 2 GND
3 GND 4 GND
5 +V12_ATX 6 +V12_ATX
7 +V12_ATX 8 +V12_ATX
RST
2.3.14 J2 : Miscellaneous Pin Header
©Vecow RCX-1000 User Manual
J2
GETTING TO KNOW YOUR RCX-1000
73
2.0mm 2x4p header
This pin header can be used as a backup for following functions, hard drive LED
indicator, reset button, power LED indicator, and power-on/o button.
The pin assignments of J2 are listed in the following table :
Group Pin No. Denition
1 HDD_LED_P
HDD LED
3 HDD_LED_N
5 FP_RST_BTN_N
RESET BUTTON
7 Ground
2 PWR_LED_P
POWER LED
4 PWR_LED_N
6 FP_PWR_BTN_IN
POWER BUTTON
8 Ground
2.3.15 SODIMM1, SODIMM2, SODIMM3, SODIMM4
SODIMM2 SODIMM1
SODIMM4 SODIMM3
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
74
SODIMM_2 SODIMM_2
SODIMM_4
SODIMM_2 SODIMM_1
SODIMM_4
SODIMM Quantity Location
1 SODIMM_2
2 SODIMM_2, SODIMM_4
3 SODIMM_2, SODIMM_4, SODIMM_1
SODIMM_2 SODIMM_1
SODIMM_4 SODIMM_3
4 SODIMM_2, SODIMM_4, SODIMM_1, SODIMM_3
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
75
2.3.16 M2_KEYE_CN1 : USB, PCIex2 support
M2_KEYE_CN1
M.2 key E connector is suitable for applications that use wireless connectivity
including Wi-Fi, Bluetooth, NFC of GNSS. Module card types include 1630, 2230
and 3030.
Pin Out :
Pin No. Denition Pin No. Denition
74 3.3V 75 GND
72 3.3V 73 RESERVED/REFCLKn1
70 NC 71 RESERVED/REFCLKp1
68 NC 69 GND
66 NC 67 RESERVED/PETn1
64 NC 65 RESERVED/PETp1
62 ALERT# (O)(0/3.3V) 63 GND
60 12C_CLK (I)(0/3.3V) 61 RESERVED/PERn1
58 12C_DATA (I/O)(0/3.3V) 59 RESERVED/PERp1
56 NC 57 GND
54 NC 55 PEWAKE0# (I/O) (0/3.3V)
52 PERST0# (I)(0/3.3V) 53 CLKREQ0# (I/O) (0/3.3V)
50 NC 51 GND
48 NC 49 REFCLKn0
46 NC 47 REFCLKp0
44 NC 45 GND
42 NC 43 PETn0
40 NC 41 PETp0
38 NC 39 GND
36 NC 37 PERn0
34 NC 35 PERp0
32 NC 33 GND
©Vecow RCX-1000 User Manual
Module Key Module Key
Module Key Module Key
GETTING TO KNOW YOUR RCX-1000
76
Pin No. Denition Pin No. Denition
Module Key Module Key
Module Key Module Key
22 NC 23 NC
20 NC 21 NC
18 GND 19 NC
16 NC 17 NC
14 NC 15 NC
12 NC 13 NC
10 NC 11 NC
8 NC 9 NC
6 LED1# (O)(od) 7 GND
4 3.3V 5 USB_D-
2 3.3V 3 USB_D+
1 GND
2.3.17 M2_KEYM_CN1 : PCIe x4/SATA Support
M2_KEYM_CN1
M.2 key M connector is suitable for applications that use Host I/Fs supported by
either PCIe or SATA, or Solid State Storage Devices (SSD). Module card types
include 2242, 2260, 2280
Pin Out :
Pin No. Denition Pin No. Denition
74 3.3V 75 GND
72 3.3V 73 GND
70 3.3V 71 GND
68
©Vecow RCX-1000 User Manual
SCUSCLK (3.2KHz)(O)
(0/3.3V)
Connector Key 67 N/C
69
GETTING TO KNOW YOUR RCX-1000
PEDET (NC-PCIe/GND-
SATA)
77
Pin No. Denition Pin No. Denition
Connector Key Connector Key
Connector Key Connector Key
Connector Key Connector Key
58 N/C Connector Key
56 N/C 57 GND
54
52
50
PEWAKE# (I/O)(O)
(0/3.3V) or N/C
CLKREQ# (I/O)(O)(0/3.3V)
or N/C
PERST# (I/O)(O)(0/3.3V)
or N/C
55 REFCLKp
53 REFCLKn
51 GND
48 N/C 49 PETp0/SATA-A+
46 N/C 47 PETn0/SATA-A-
44 N/C 45 GND
42 N/C 43 PERp0/SATA-B-
40 N/C 41 PERp0/SATA-B+
38 DEVSLP (O) 39 GND
36 N/C 37 PETp1
34 N/C 35 PETn1
32 N/C 33 GND
30 N/C 31 PERp1
28 N/C 29 PERn1
26 N/C 27 GND
24 N/C 25 PETp2
22 N/C 23 PETn2
20 N/C 21 GND
18 3.3V 19 PERp2
16 3.3V 17 PERn2
14 3.3V 15 GND
12 3.3V 13 PETp3
10
DAS/DDS# (I/O)/LED1# (I)
(0/3.3V)
11 PETn3
8 N/C 9 GND
6 N/C 7 PERp3
4 3.3V 5 PERn3
2 3.3V 3 GND
1 GND
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
78
2.3.18 CN17 : IO Board Connector
CN17
The pin assignments of CN17 are listed in the following table :
Pin Out :
Pin No. Denition Pin No. Denition
1 UIM_PWR_1 2 UIM_PWR_2
3 UIM_DATA_1 4 UIM_DATA_2
5 UIM_CLK_1 6 UIM_CLK_2
7 UIM_RESET_1 8 UIM_RESET_2
9 UIM_VPP_1 10 UIM_VPP_2
11 SIO_GPI80 12 DIO2_GPI0
13 SIO_GPI81 14 DIO2_GPI1
15 SIO_GPI82 16 DIO2_GPI2
17 SIO_GPI83 18 DIO2_GPI3
19 SIO_GPI84 20 DIO2_GPI4
21 SIO_GPI85 22 DIO2_GPI5
23 SIO_GPI86 24 DIO2_GPI6
25 SIO_GPI87 26 DIO2_GPI7
27 SIO_GPO70 28 DIO2_GPO0
29 SIO_GPO71 30 DIO2_GPO1
31 SIO_GPO72 32 DIO2_GPO2
33 SIO_GPO73 34 DIO2_GPO3
35 SIO_GPO74 36 DIO2_GPO4
37 SIO_GPO75 38 DIO2_GPO5
39 SIO_GPO76 40 DIO2_GPO6
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
79
Pin No. Denition Pin No. Denition
41 SIO_GPO77 42 DIO2_GPO7
43 GND 44 GND
45 UART3_DCD# 46 UART4_DCD#
47 UART3_RXD 48 UART4_RXD
49 UART3_TXD 50 UART4_TXD
51 UART3_DTR# 52 UART4_DTR#
53 UART3_DSR# 54 UART4_DSR#
55 UART3_RTS# 56 UART4_RTS#
57 UART3_CTS# 58 UART4_CTS#
59 UART3_RI# 60 UART4_RI#
61 UART3_MODE0 62 UART4_MODE0
63 UART3_MODE1 64 UART4_MODE1
65 UART3_MODE2 66 UART4_MODE2
67 SP338E_TERM_COM3 68 SP338E_TERM_COM4
69 +V3.3S 70 +V3.3S
71 +V3.3S 72 +V3.3S
73 GND 74 GND
75 SIO_GP60 76 SIO_GP47
77 SIO_GP61 78 SIO_GP62
79 GND 80 GND
81 USB3_PCH_RXN1 82 USB3_PCH_RXN2
83 USB3_PCH_RXP1 84 USB3_PCH_RXP2
85 GND 86 GND
87 USB3_PCH_TXN1 88 USB3_PCH_TXN2
89 USB3_PCH_TXP1 90 USB3_PCH_TXP2
91 GND 92 GND
93 USB_P1_DP 94 USB_P2_DP
95 USB_P1_DN 96 USB_P2_DN
97 +V5A 98 +V5A
99 +V5A 100 +V5A
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
80
2.4 Main Board Jumper Settings
2.4.1 Board top view of the system main board with jumper and deep switch
COM2_RI
COM1_RI
SW1
JCMOS1
JCFG1
FAN2
JUSB_PWR1
The figure below is the top view of the system main board which is the main
board. It shows the location of the jumpers and the switches.
You may configure your card to match the needs of your application by setting
jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two
metal pins and a small metal clip (often protected by a plastic cover) that slides over
the pins to connect them. To "close" a jumper, you connect the pins with the clip.
To "open" a jumper, you remove the clip. Sometimes a jumper will have three pins,
labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.
You may configure your card to match the needs of your application by DIP
switch. As below show the deep switch on and o.
1 2
©Vecow RCX-1000 User Manual
ON
Open
1 : OFF
2 : OFF
Closed Closed 2-3
ON
1 : ON
2 : OFF
1 2
1 2
GETTING TO KNOW YOUR RCX-1000
ON
1
3
2
1 : ON
2 : ON
81
2.4.2 COM1_RI, COM2_RI
Pin Header Pin No. Denition
1 - 2 +5V (1A max.)
COM2_RI
COM1_RI
COM1_RI
3 - 4 +12V (0.5A max.)
5 - 6 RI (Default)
Pin Header Pin No. Denition
1 - 2 +5V (1A max.)
COM2_RI
3 - 4 +12V (0.5A max.)
5 - 6 RI (Default)
2.4.3 JP1 : CPU PCIe x 16 (CN9) Conguration
CPU PCIe x 16 (CN9) conguration table as follows :
PCIe Conguration Header
©Vecow RCX-1000 User Manual
JCFG1
1 x8, 2 x4 (3-5) (4-6)
2 x 8 (3-5) (2-4)
1 x16 (1-3) (2-4)
GETTING TO KNOW YOUR RCX-1000
82
2.4.4 JP2 : Clear CMOS
JCMOS1
CMOS Header
1-2 Normal (Default)
2-3 Clear CMOS
2.4.5 JUSB_PWR1 Pin Header : USB Wake Up
JUSB_PWR1
Isolated DIO 2
SIM 2
SIM 1
10
10
|
RST
LAN 2
|
LAN 1
10
DVI-I
Isolated DIO 1
DP DigitalDisply
COM 4COM 3
DC-IN
On | Off
IGN
COM 2COM 1
-
V+ V
Pin No. Denition
(1-2) USB 3.0 and USB 2.0 Wake Up Enable (Default)
(2-3) USB 3.0 and USB 2.0 Wake Up Disable
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
83
2.4.6 FAN2 Header
FAN2
Pin No. Denition
(1-2) SYS_FAN2 : PCH PWM Control (Default)
(2-3) SYS_FAN2 : Full Speed
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
84
2.5 Ignition Control

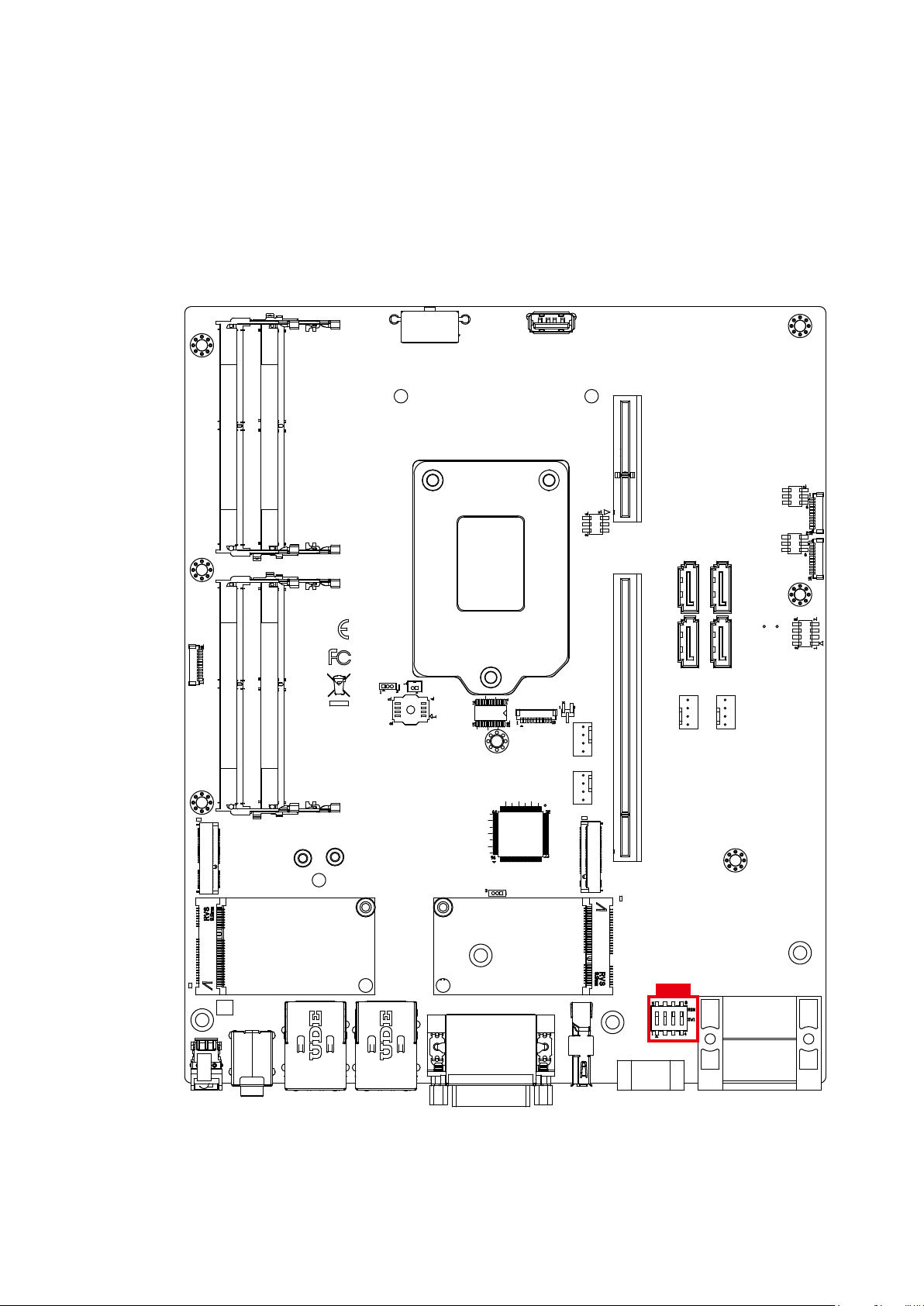

2.5.1 SW1 : Ignition Control
The RCX-1000 series provide ignition power control feature for in-vehicle
applications. The built-in MCU monitors the ignition signal and turns on/o the
system according to pre-dened on/o delay period.
©Vecow RCX-1000 User Manual
SW1
GETTING TO KNOW YOUR RCX-1000
85
2.5.2 Adjust Ignition Control Modes
The RCX-1000 series provide sixteen modes of different power on/off delay
periods adjustable via rotary switch. The default rotary switch is set to 0 in ATX/
AT power mode.
The modes are listed in the following table :
Deep Switch
Position
Power on delay Power o delay Switch Position
0 ATX/AT mode (Default)
1 No delay No delay
2 No delay 5 seconds
3 No delay 10 seconds
4 No delay 20 seconds
5 5 seconds 30 seconds
6 5 seconds 60 seconds
7 5 seconds 90 seconds
8 5 seconds 30 minutes
9 5 seconds 1 hour
A 10 seconds 2 hours
B 10 seconds 4 hours
C 10 seconds 6 hours
D 10 seconds 8 hours
E 10 seconds 12 hours
F 10 seconds 24 hours
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
86
2.5.3 Ignition Control Wiring
To activate ignition control, you need to provide IGN signal via the 3-pin plugable
terminal block located on the front panel. Please use the following pictures to
nd the general wiring conguration.
IGN
V+ V-
Pin No. Denition
1 Ignition
2 SW+
3 SW-
IGN
For testing purpose, you can refer to the picture blow to simulate ignition signal
input controlled by a latching switch.
Note :
1. DC power source and IGN share the same ground.
2. RCX-1000 supports 6V to 36V wide range DC power input in ATX/AT
mode. In Ignition mode, the input voltage is xed to 12V/24V for car battery
scenario.
3. For proper ignition control, the power button setting should be "Power Down"
mode.
In Windows for
example, you need
to set "When I press
the power button" to
Shut down.
©Vecow RCX-1000 User Manual
GETTING TO KNOW YOUR RCX-1000
87
3
SYSTEM SETUP
3.1 How to open your RCX-1000
3.1.1 RCX-1400FR/1400F
Remove F-Head 6#-32 screws (circled in red) on the top cover. (12 places)
3.1.2 RCX-1400R/1400
Remove F-Head 6#-32 screws (circled in red) on the top cover. (9 places)
©Vecow RCX-1000 User Manual
SYSTEM SETUP
88
3.1.3 RCX-1200
3.2 Installing CPU
Step 1 Remove PH M3x6L screws (10 places)
©Vecow RCX-1000 User Manual
SYSTEM SETUP
89
Step 2 Open the CPU slot.
(Other side)
Step 3 Push the slot key.
Step 4 Check CPU and CPU slot
lock pin.
Step 5 Close the slot key and make
sure the key is in the screw.
3.3 Installing DDR4 SO-DIMM Modules
Step 1 Install DDR4 RAM module
into SO-DIMM slot.
Step 2 Make sure the RAM module
is locked by the memory
slots (red).
©Vecow RCX-1000 User Manual
SYSTEM SETUP
90
3.4 Installing Mini PCIe Card
Step 1 Install Mini PCIe card into
the Mini PCIe slot.
Step 2 Fasten one M2.5 screws.
3.5 Installing M.2 (Key E/Key M)
Step 1 Install M.2 card into the Mini PCIe slot.
Step 2 Fasten one M3 screws.
©Vecow RCX-1000 User Manual
SYSTEM SETUP
91
3.6 Installing Antenna Cable
Step 1 Remove one rubber cork from the rear panel (pick the location
you want).
RCX-1400FR/1400F/1400R/1400
RCX-1200
©Vecow RCX-1000 User Manual
SYSTEM SETUP
92
Loading...
