USER Manual

1.0.0 Edition 20150713

PE-2000

PCI Express x4, 2-channel/ 4-channel Gigabit LAN,

IEEE 802.3at Compliant Intel

I210 PoE+ Expansion Card

Version Date Page Description Remark

1.0 07/13/2015 All Ofcial Release

Record of Revision

iii

This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation, nor for any infringements upon the rights of third parties, which may result from such use.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC

The product (s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

This document contains proprietary information protected by copyright. No part of this publication may be reproduced in any form or by any means, electric, photocopying, recording or otherwise, without prior written authorization by Vecow Co., Ltd. The rights of all the brand names, product names and trademarks belong to their respective owners.

Declaimer

Declaration of Conformity

Part Number Description

PE-2002 Intel® I210 2-CH PCI Express PoE+ Expansion Card

PE-2004 Intel

I210 4-CH PCI Express PoE+ Expansion Card

Order Information

Table of Contents

CHAPTER 1 GENERAL INTRODUCTION 1

1.1 Overview 1

1.2 Features 1

1.3 Product Specication 2

1.3.1 Specications of Vecow PE-2002 2

1.3.2 Specications of Vecow PE-2004 3

1.4 Mechanical Dimension 4

1.4.1 PE-2002 4

1.4.2 PE-2004 4

CHAPTER 2 GETTING TO KNOW YOUR PE-2000 5

2.1 Packing List 5

2.2 I/O and Indication 6

2.2.1 LED1 CN3 CN4 CN5 CN6 6

2.2.2 CN1 7

2.2.3 CN2

CHAPTER 3 GETTING START 9

3.1 Installing PE-2002/ PE-2004 9

CHAPTER 4 DRIVER INSTALLATION AND SETTING 11

4.1 Driver Installation 11

4.2 Jumbo Frame 14

4.3 Link Aggregation 17

GENERAL INTRODUCTION

PE-2000 is a series of gigabit Ethernet (GigE) card, up to 4 independent channels, and compatible with IEEE 802.3at PoE+ for power sourcing equipment (PSE) devices. Just simply by RJ45 connection, Vecow PE2000 is enabled to provide not only 10/ 100/ 1000 Mbps gigabit data rate but also up to 25.5W at 48V DC power delivery.

Supporting link aggregation (LAG), 9.5KB Jumbo Frame, IEEE 1588 Precision Time Protocol (PTP) and easy maintenance, PE-2000 is a great solution for Gigabit Ethernet Intelligent Surveillance, Machine Vision, Intelligent Transportation System (ITS), Industrial Automation, Logistic System and any real-time video analytics applications.

1.1 Overview

1.2 Features

• PCI Express x4 Interface

• IEEE 802.3at compliant for PoE

• IEEE 1588 Precision Time Protocol (PTP)

• Up to 4 Independent Intel

I210 Gigabit LAN

• Up to 25.5W Power Output at 48V DC per port

• -25°C to 70°C Operating Temperature

• 9.5KB Jumbo Frame

• Link Aggregation

• 16 Isolated DIO for 8 DI & 8 DO (Optional)

• Software Programmable PoE Power Switch (Optional)

GENERAL INTRODUCTION

©Vecow PE-2000 User Manual

1.3 Product Specication

1.3.1 Specications of Vecow PE-2002

Ethernet

Interface PCI Express x4

Chipset 2 Intel

I210 Gigabit LAN

Data Rate 10/ 100/ 1000 Mbps (Vary by attached Ethernet device)

Jumbo Frame 9.5KB

Link Aggregation (LAG) Present

Connector 8-pin RJ45

PoE Standard IEEE 802.3at compliant

Power Requirements

Output 2 PoE Ports, up to 25.5W Power Output at 48V DC per port

Power Connector 1 4-pin ATX 12V Power Connector

DIO

Isolated

DIO for 8 DI & 8 DO (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Certications FCC, CE, RoHS compliant

Mechanical

Dimension (W x D x H) 168mm x 121mm x 21mm (6.6" x 4.8" x 0.8")

GENERAL INTRODUCTION

1.3.2 Specications of Vecow PE-2004

Ethernet

Interface PCI Express x4

Chipset 4 Intel

I210 Gigabit LAN

Data Rate 10/ 100/ 1000 Mbps (Vary by attached Ethernet device)

Jumbo Frame 9.5KB

Link Aggregation (LAG) Present

Connector 8-pin RJ45

PoE Standard IEEE 802.3at compliant

Power Requirements

Output 4 PoE Ports, up to 25.5W Power Output at 48V DC per port

Power Connector 1 4-pin ATX 12V Power Connector

DIO

Isolated

DIO for 8 DI & 8 DO (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Certications FCC, CE, RoHS compliant

Mechanical

Dimension (W x D x H) 168mm x 121mm x 21mm (6.6" x 4.8" x 0.8")

GENERAL INTRODUCTION

©Vecow PE-2000 User Manual

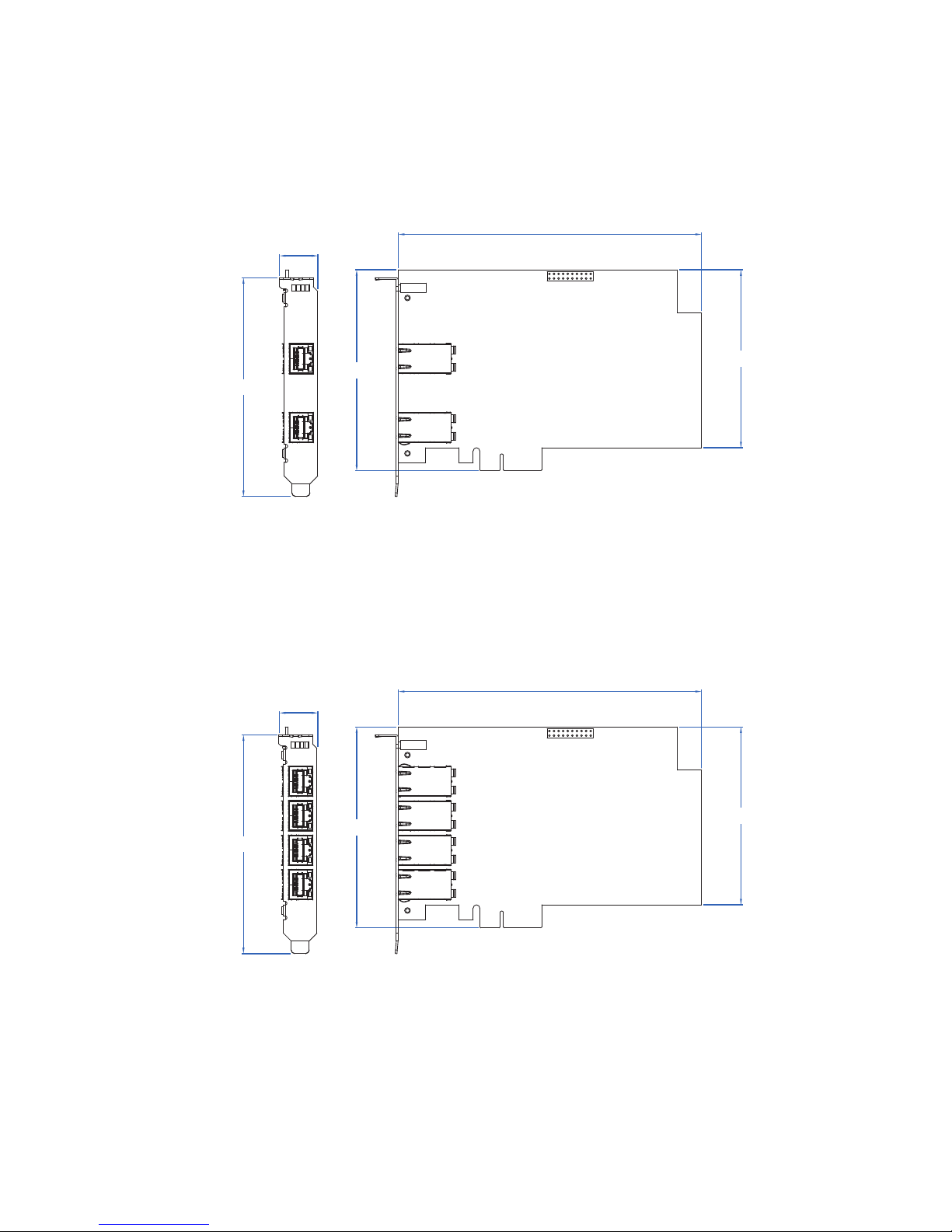

1.4 Mechanical Dimension

1.4.1 PE-2002

168 (6,6”)

98 (3,9”)

111 (4,4”)

121 (4,8”)

21 (0,8”)

Unit: mm (inch)

1.4.2 PE-2004

168 (6,6”)

98 (3,9”)

111 (4,4”)

121 (4,8”)

21 (0,8”)

Unit: mm (inch)

GETTING TO KNOW YOUR PE-2000

2.1 Packing List

Item Description Qty

1 PE-2000, PCI Express x4 PoE+, 2-Channel/ 4-Channel,

Gigabit, IEEE 802.3at Compliant Intel® I210 PCI Express Expansion Card (According to the conguration you order.)

2 • Accessory box, which contains

• Vecow Drivers & Utilities DVD

GETTING TO KNOW YOUR PE-2000©Vecow PE-2000 User Manual

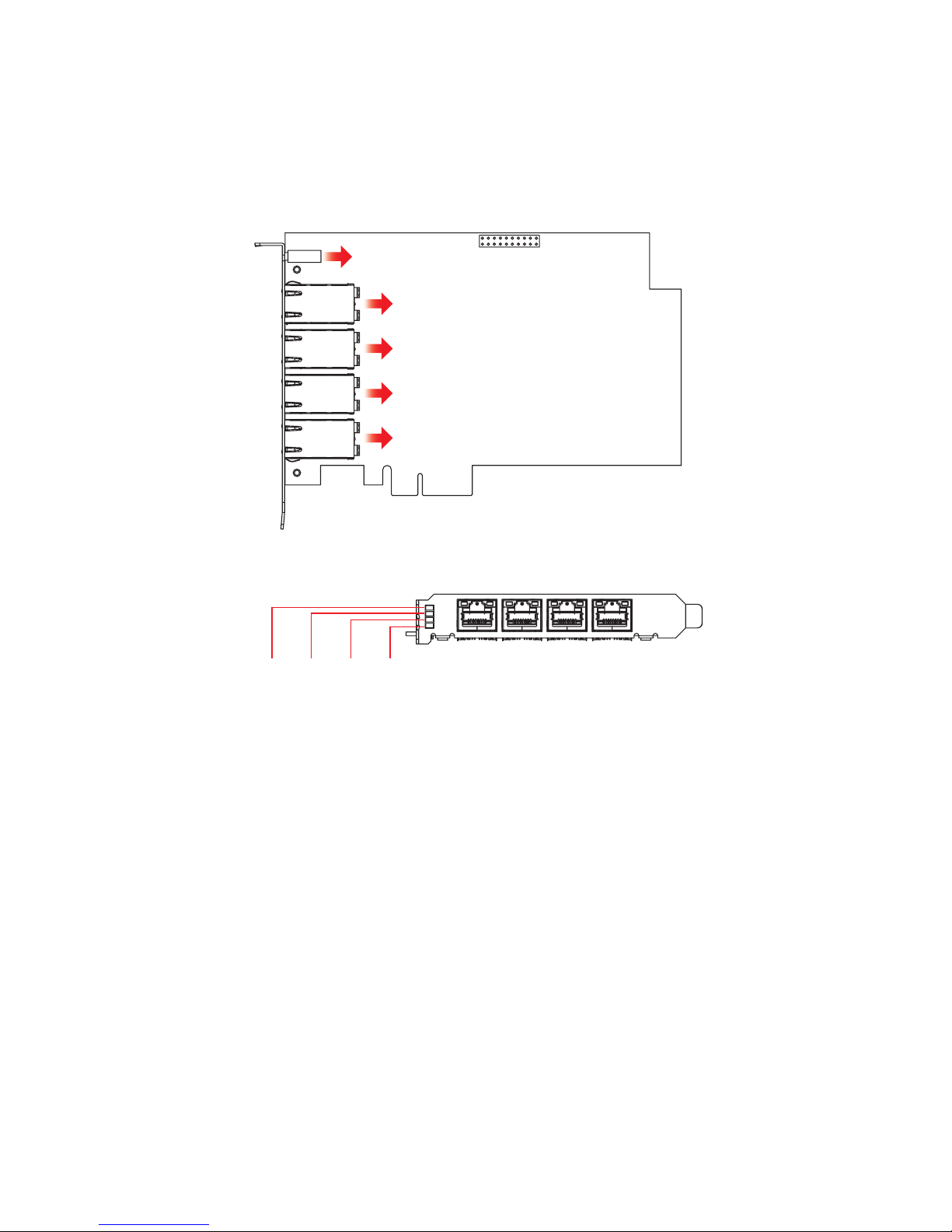

2.2.1 LED1 CN3 CN4 CN5 CN6

PE-2000 equipped with 4 IEEE 802.3at PoE+ ports for transmitting power as much as 25.5W / 48V per port and 1000BASE-T gigabit data signals over standard Ethernet CAT-5/CAT-6 cable. Every PoE port applies one Intel® I210 Gigabit Ethernet controller and independent PCI express interface to connect with multi-core processor for network and data transmit optimization. Only when PoE port starts to supply power to power devices, the dedicated LED will be light on.

2.2 I/O and Indication

CN 3

CN 4

CN 5

CN 6

LED 1

LAN 4

LAN 3

LAN 2

LAN 1 PoE Power LED

LAN 4

LAN 3

LAN 2

LAN 1

GETTING TO KNOW YOUR PE-2000

2.2.2 CN1

The PE-2000 offers a 16-bit Isolated DIO (8-DI / 8-DO) connector. Each bit of DI and DO equipped with a photo-coupler for protection.

A power buffer device TPD2007F integrated in 8-DO circuit for industrial applications.

CN1

2 1

Pin No. Denition

1 INPUT 0

2 INPUT 1

3 INPUT 2

4 INPUT 3

5 INPUT 4

6 INPUT 5

7 INPUT 6

8 INPUT 7

9 DI_COM

10 GND

Pin No. Denition

11 OUTPUT 0

12 OUTPUT 1

13 OUTPUT 2

14 OUTPUT 3

15 OUTPUT 4

16 OUTPUT 5

17 OUTPUT 6

18 OUTPUT 7

19 N.C.

20 External 24VDC Input

2.2.3 CN2

The PE-2000 also equipped with one 4-pin power plug (12V, 6A max) for additional power supply. For most cases, the power obtained from PCIe bus is sufcient for the PoE devices, and you do not need to supply extra power to the card.

In case the external power is needed, you can use 4-pin ATX power connector (+5V/Red, GND/Black, GND/Black, +12V/Yellow) inside the host computer. Please always confirm the polarity before you plug into the onboard 4-pin power plug.

Pin No. Denition

1 +12V

2 GND

3 GND

4 X

CN 2

4 Pin X 3 Pin GND 2 Pin GND 1 Pin +12V

GETTING START

3.1 Installing PE-2002/ PE-2004

Step 1. Insert PE-2000 golden nger and PCI bracket into PCIe socket carefully.

Step 2. Make sure golden nger and PCI bracket was inserted smoothly.
