USER Manual

1.1.0 Edition 20171103

ECS-9200/9100 GTX1050

Quad Core Intel® Xeon®/ Core™ i7 Processor Embedded System

with Intel

C236 Chipset & NVIDIA GEFORCE® GTX 1050 Ti/1050 Graphics

High Performance, Independent Graphics, EN50155

Version Date Page Description Remark

1.0 07/25/2017 All Ofcial Release

1.1 11/03/2017 46-66 Update

Record of Revision

iii

This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation or any infringements upon the rights of third parties, which may result from such use.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC

The products described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

This document contains proprietary information protected by copyright. No part of this publication may be reproduced in any form or by any means, electric, photocopying, recording or otherwise, without prior written authorization by Vecow Co., Ltd. The rights of all the brand names, product names, and trademarks belong to their respective owners.

Disclaimer

Declaration of Conformity

Part Number Description

ECS-9240-

GTX1050T

ECS-9200, NVIDIA GeForce

GTX 1050 Ti, 6 GigE LAN w/4

PoE

, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M.2, 1 M2DOM, 3 SIM,

32 Isolated DIO

ECS-9240-

GTX1050

ECS-9200, NVIDIA GeForce

GTX 1050, 6 GigE LAN w/4 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M.2, 1 M2DOM, 3 SIM, 32 Isolated DIO

ECS-9100-

GTX1050T

ECS-9100, NVIDIA GeForce

GTX 1050 Ti, 2 GigE LAN, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M.2, 1 M2DOM, 3 SIM, 16 GPIO

ECS-9100-

GTX1050

ECS-9100, NVIDIA GeForce

GTX 1050, 2 GigE LAN, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M.2, 1 M2DOM, 3 SIM, 16 GPIO

Order Information

Part Number Description

E3-1275 v6 7th Generation Intel® Xeon® E3-1275 v6 Processor

(8M Cache, up to 4.20 GHz, 80W)

E3-1275 v5 6th Generation Intel

Xeon® E3-1275 v5 Processor

(8M Cache, up to 4.00 GHz, 80W)

E3-1225 v5 6th Generation Intel

Xeon® E3-1225 v5 Processor

(6M Cache, up to 3.70 GHz, 80W)

E3-1268L v5 6th Generation Intel

Xeon® E3-1268L v5 Processor

(8M Cache, up to 3.40 GHz, 35W)

i7-7700 7th Generation Intel

Core™ i7-7700 Processor

(8M Cache, up to 4.20 GHz, 65W)

i7-7700T 7th Generation Intel

Core™ i7-7700T Processor

(8M Cache, up to 3.80 GHz, 35W)

i7-6700 6th Generation Intel

Core™ i7-6700 Processor

(8M Cache, up to 4.00 GHz)

i7-6700TE 6th Generation Intel

Core™ i7-6700TE Processor

(8M Cache, up to 3.40 GHz)

DDR4 16G

Certied DDR4 16GB 2133MHz RAM

DDR4 8G

Certied DDR4 8GB 2133MHz RAM

DDR4 4G

Certied DDR4 4GB 2133MHz RAM

PWA-280WB-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin

Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C

PWA-160WB-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin

Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C

VESA Mount

VESA Mounting Kit

DIN-RAIL

DIN Rail Kit

Rack Mount

2U Rackmount Kit

TMK2-20P-100

Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm

TMK2-20P-500

Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm

TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector

and DIN-Rail Mounting

3G Module

Mini PCIe 3G/GPS Module with Antenna

4G Module

Mini PCIe 4G/GPS Module with Antenna

WiFi & Bluetooth Module

Mini PCIe WiFi & Bluetooth Module with Antenna

Order Accessories

Table of Contents

CHAPTER 1 GENERAL INTRODUCTION 1

1.1 Overview 1

1.2 Features 2

1.3 Product Specication 2

1.3.1 Specications of ECS-9240 GTX1050 2

1.3.2 Specications of ECS-9100 GTX1050 5

1.4 Supported CPU List 7

1.5 Mechanical Dimension 8

1.5.1 Dimensions of ECS-9240 GTX1050 8

1.5.2 Dimensions of ECS-9100 GTX1050 8

CHAPTER 2 GETTING TO KNOW YOUR ECS-9200/9100 GTX1050 9

2.1 Packing List 9

2.2 Front Panel I/O & Functions 10

2.3 Rear Panel I/O & Functions 18

2.4 Main Board Expansion Connectors 26

2.5 Main Board Jumper & Deep Switch Settings 38

2.6 Ignition Control 42

CHAPTER 3 SYSTEM SETUP 46

3.1 How to Open Your ECS-9200/9100 GTX1050 46

3.2 Installing CPU 50

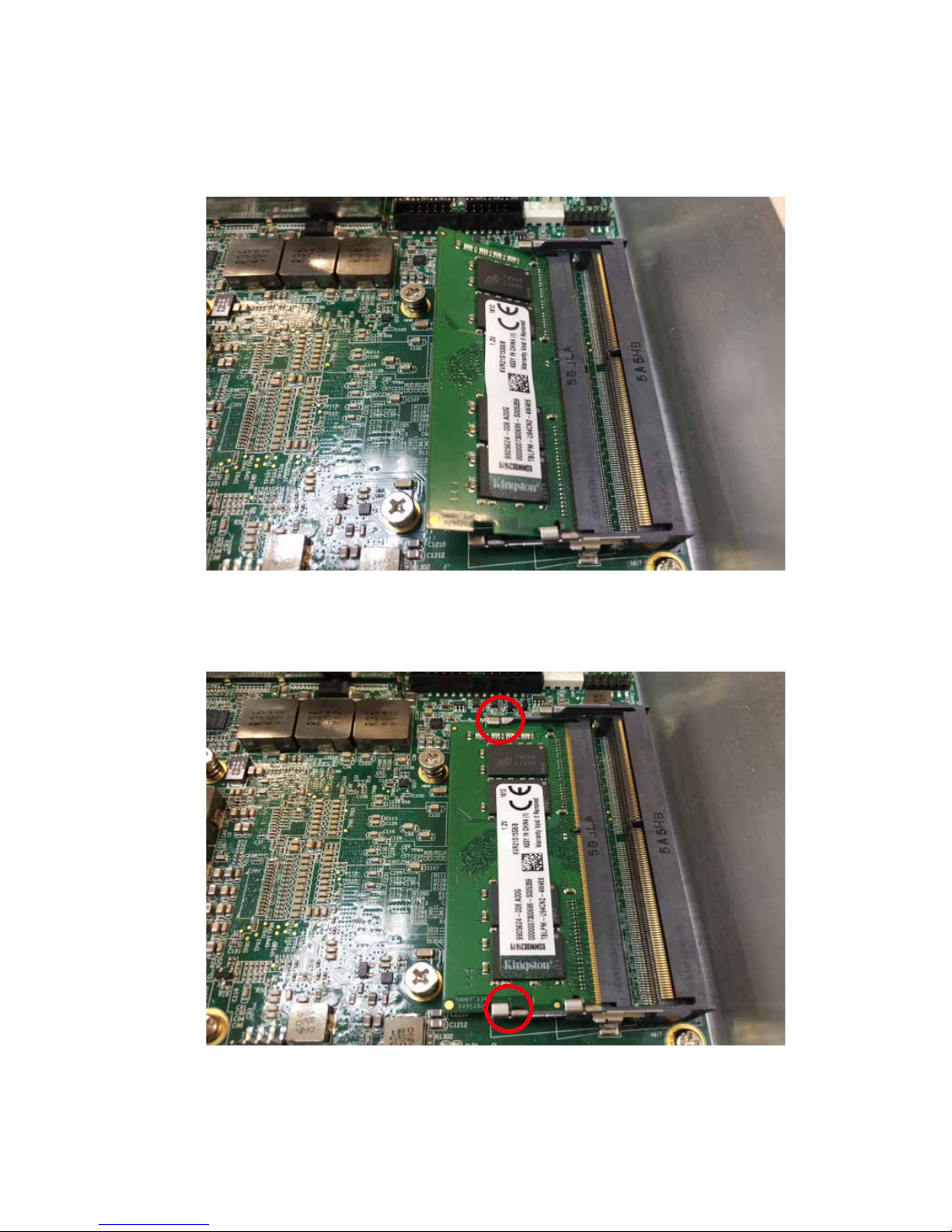

3.3 Installing DDR4 SO-DIMM Modules 53

3.4 Installing Mini PCIe Card 54

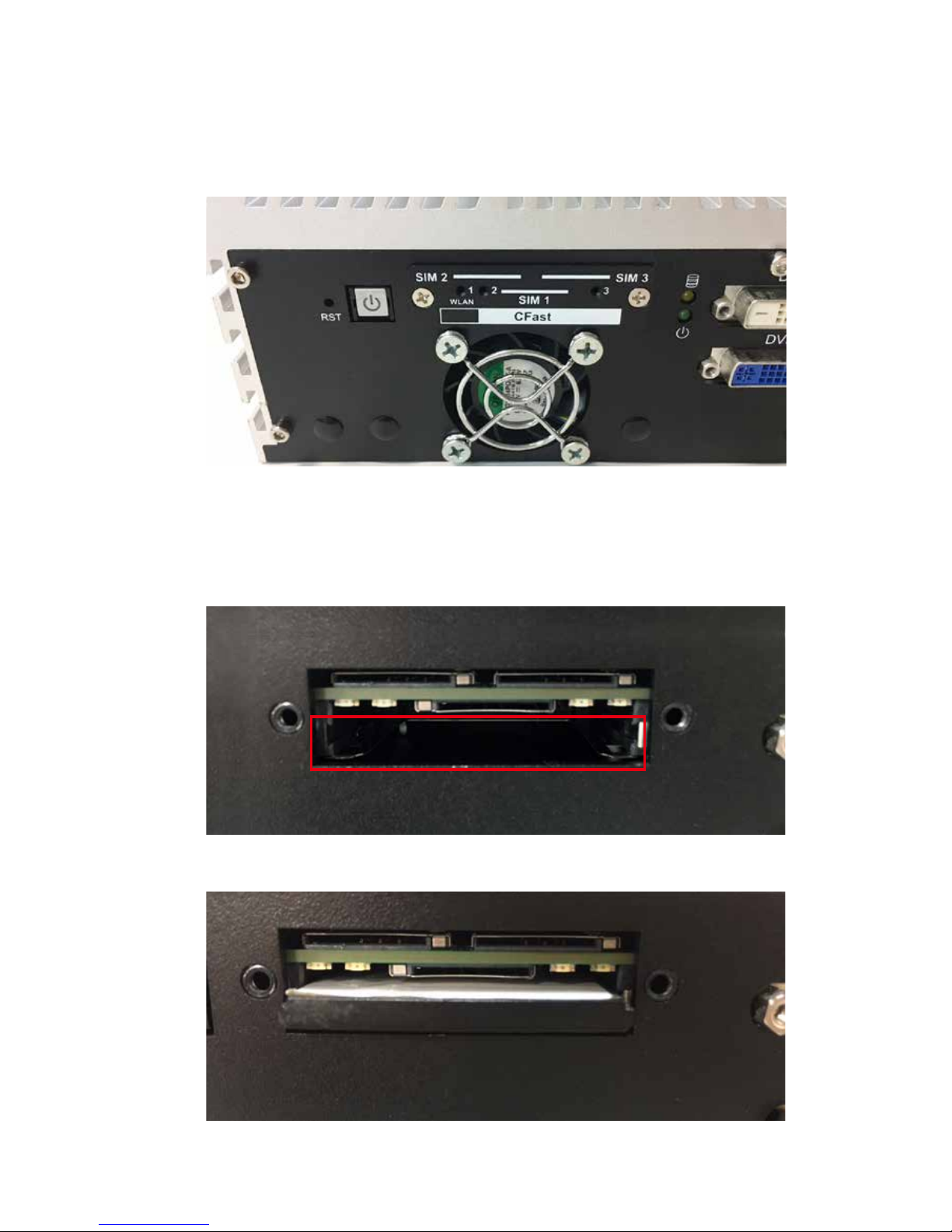

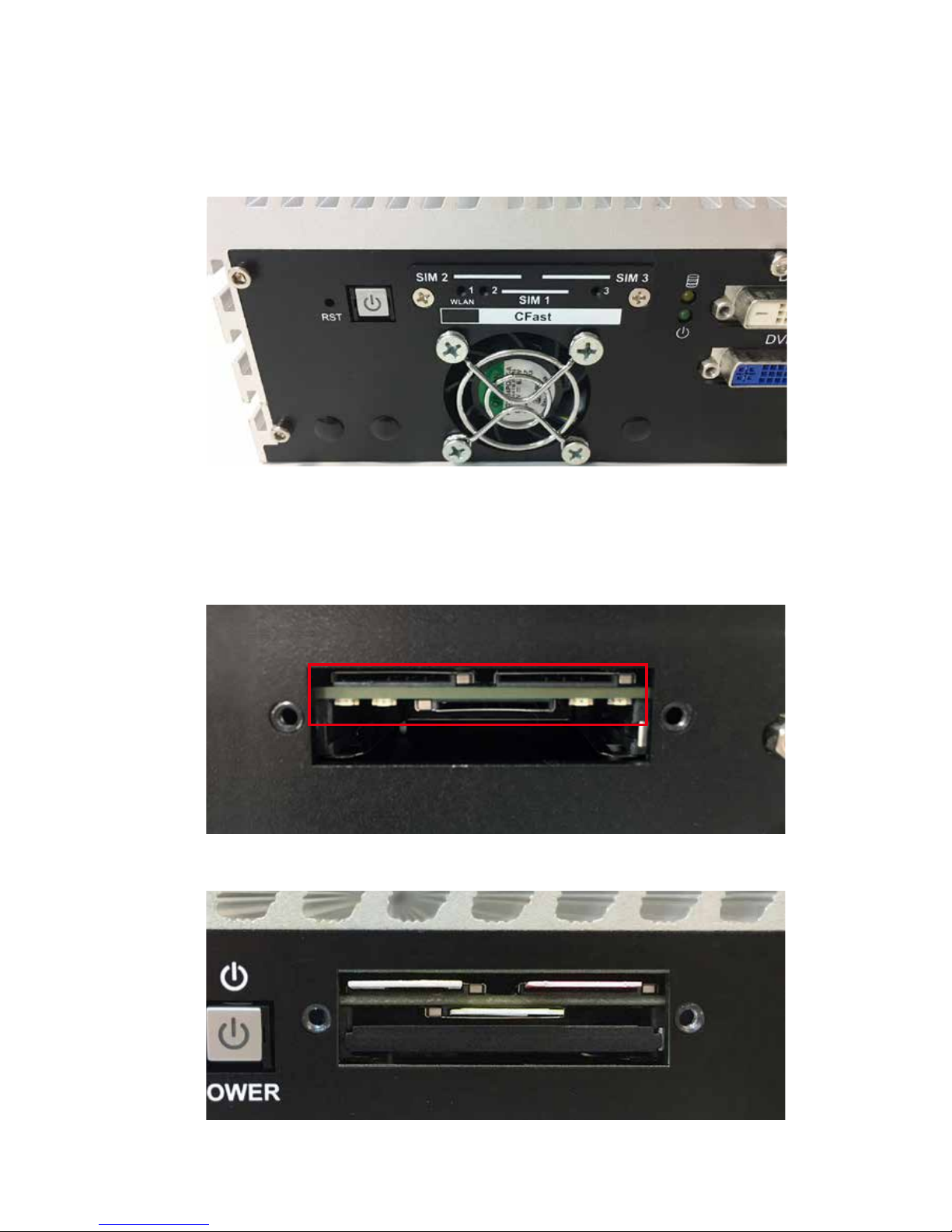

3.5 Installing CFast Card 55

3.6 Installing SIM Card 56

vii

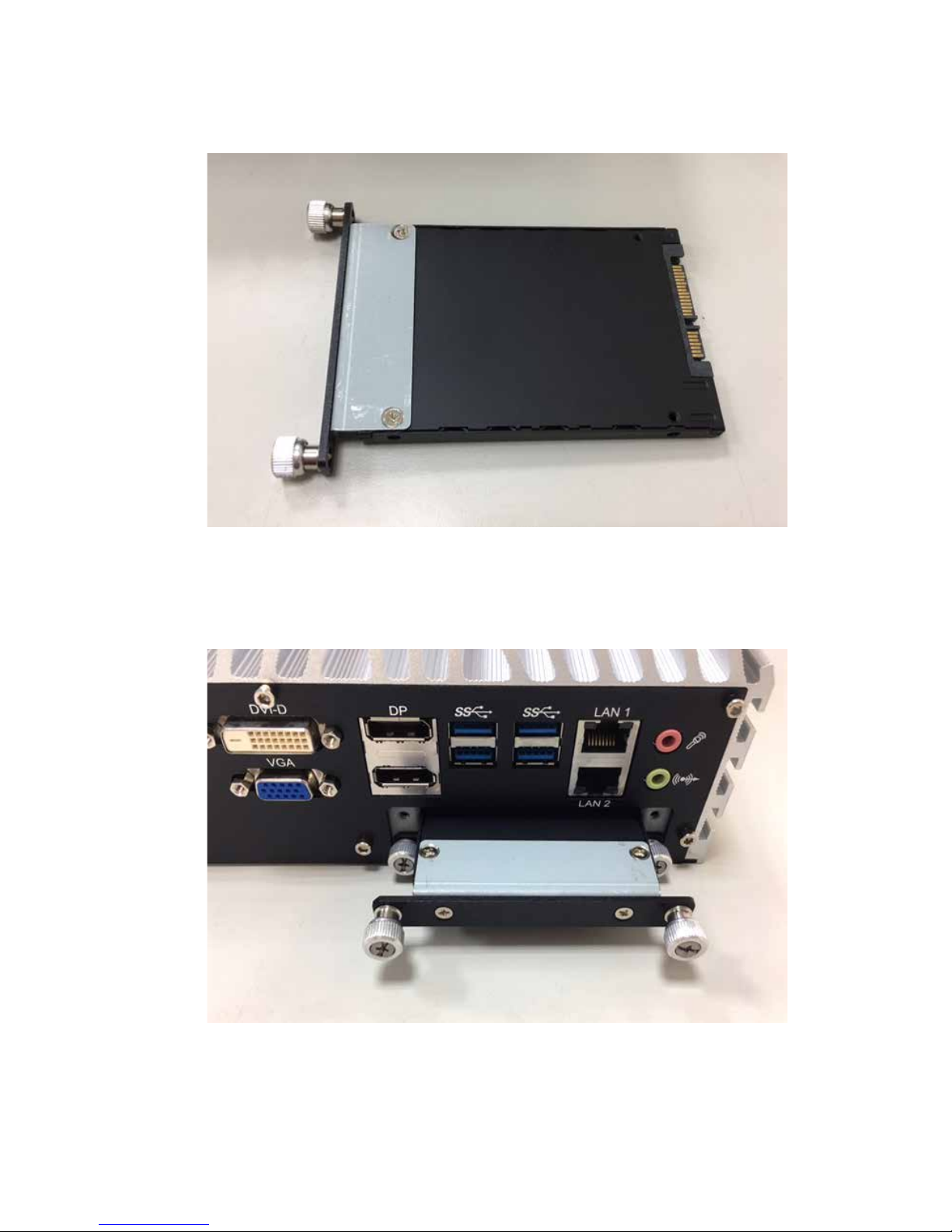

3.7 Installing SSD/HDD 57

3.8 Installing M.2 59

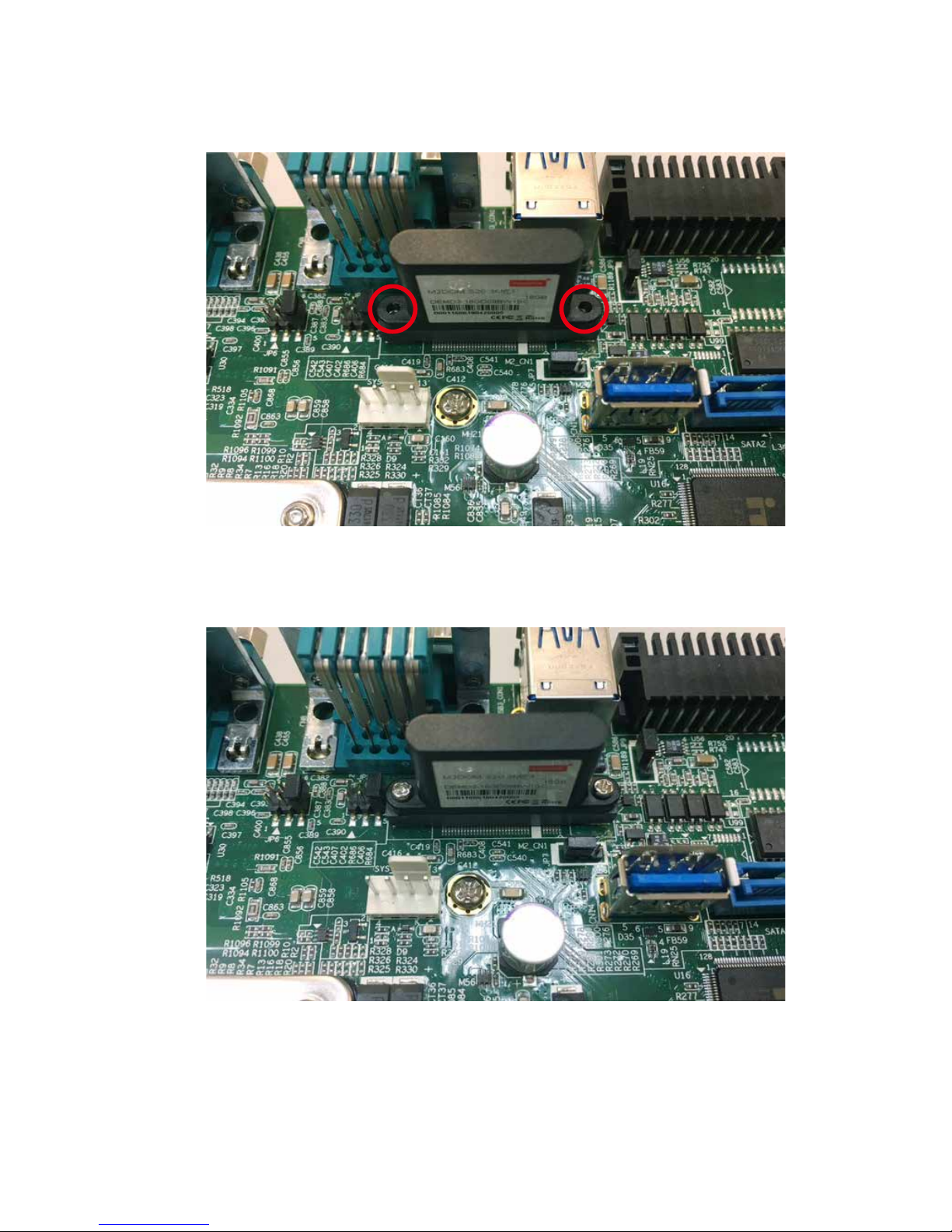

3.9 Installing M2DOM 60

3.10 Mounting Your ECS-9200/9100 GTX1050 62

CHAPTER 4 BIOS SETUP 67

4.1 Entering BIOS SETUP 67

4.2 Main 68

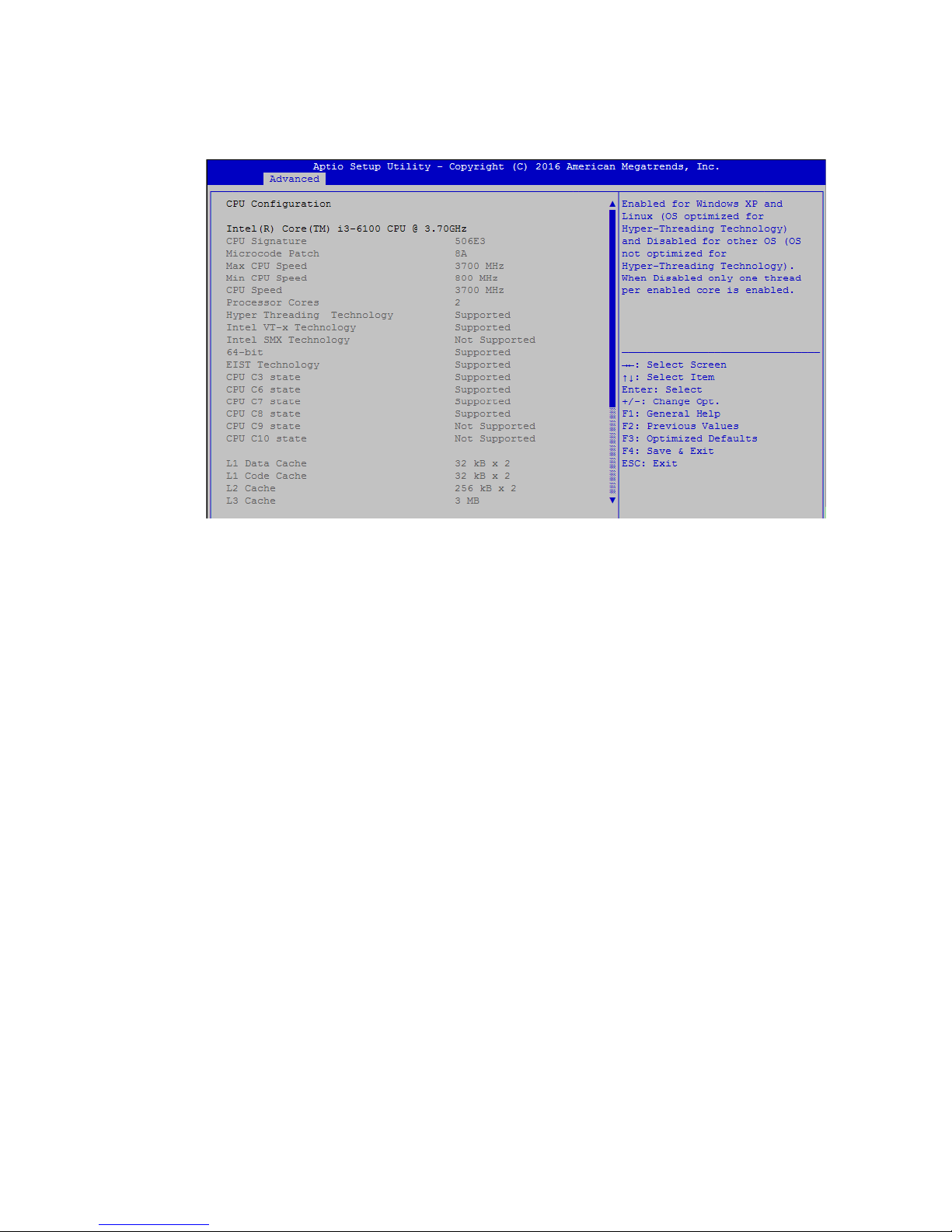

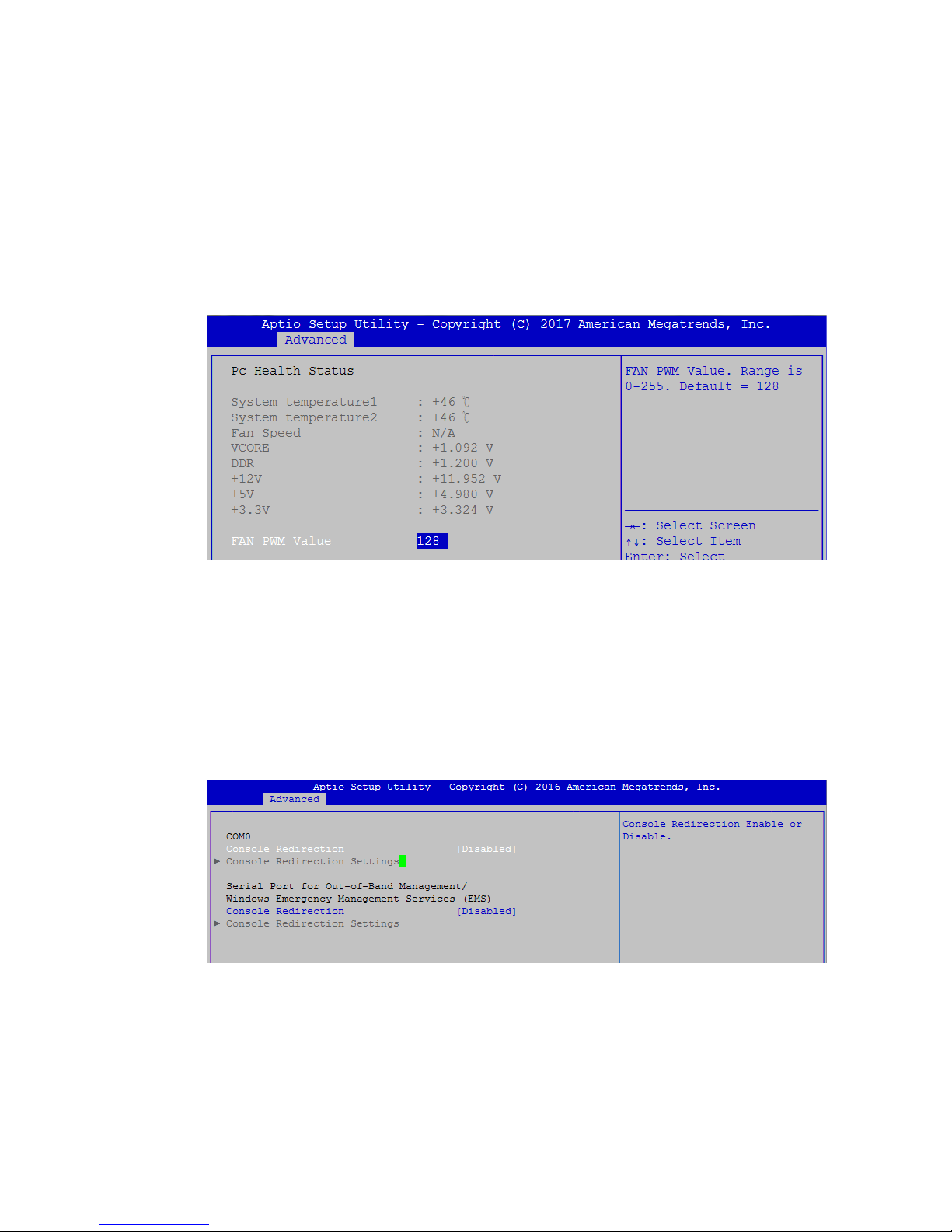

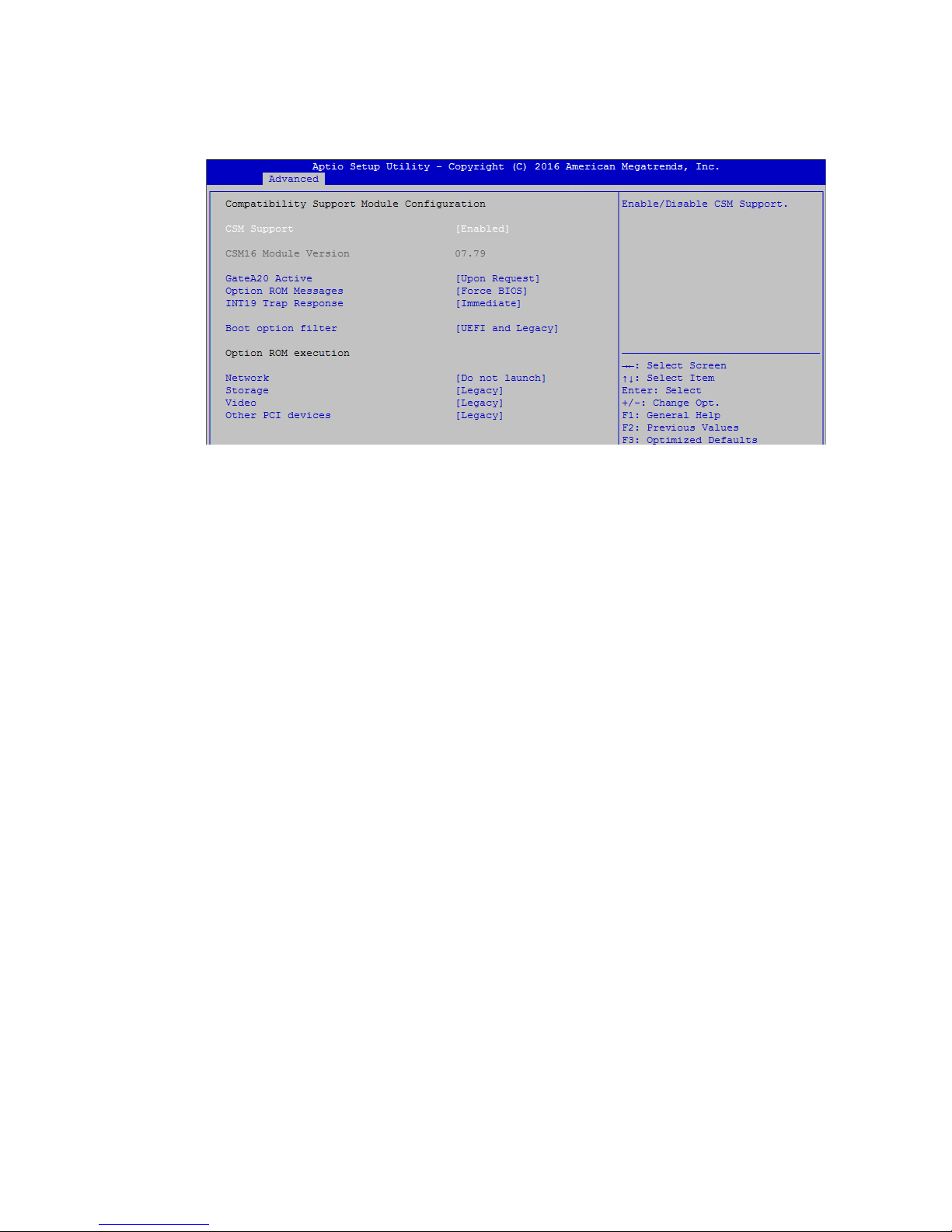

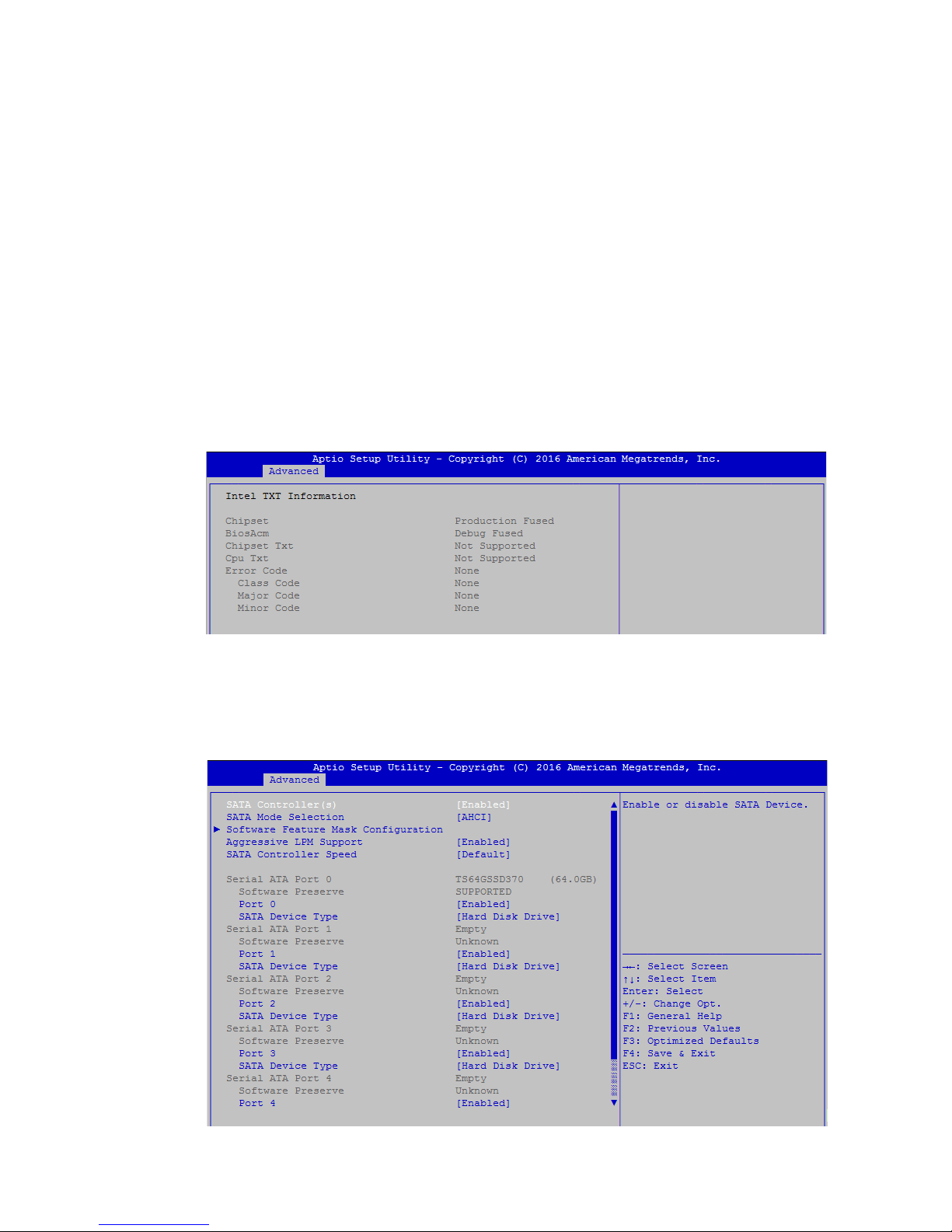

4.3 Advanced 68

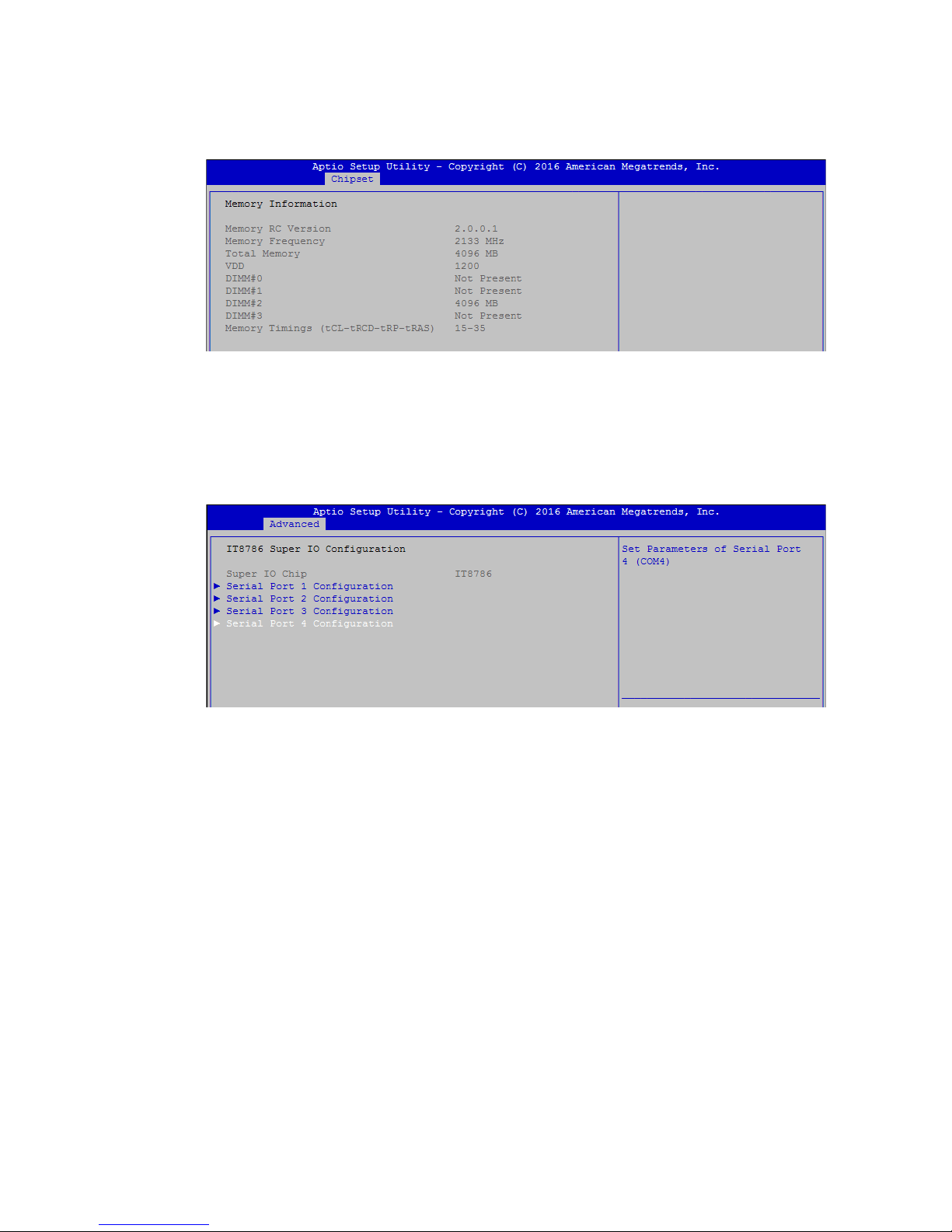

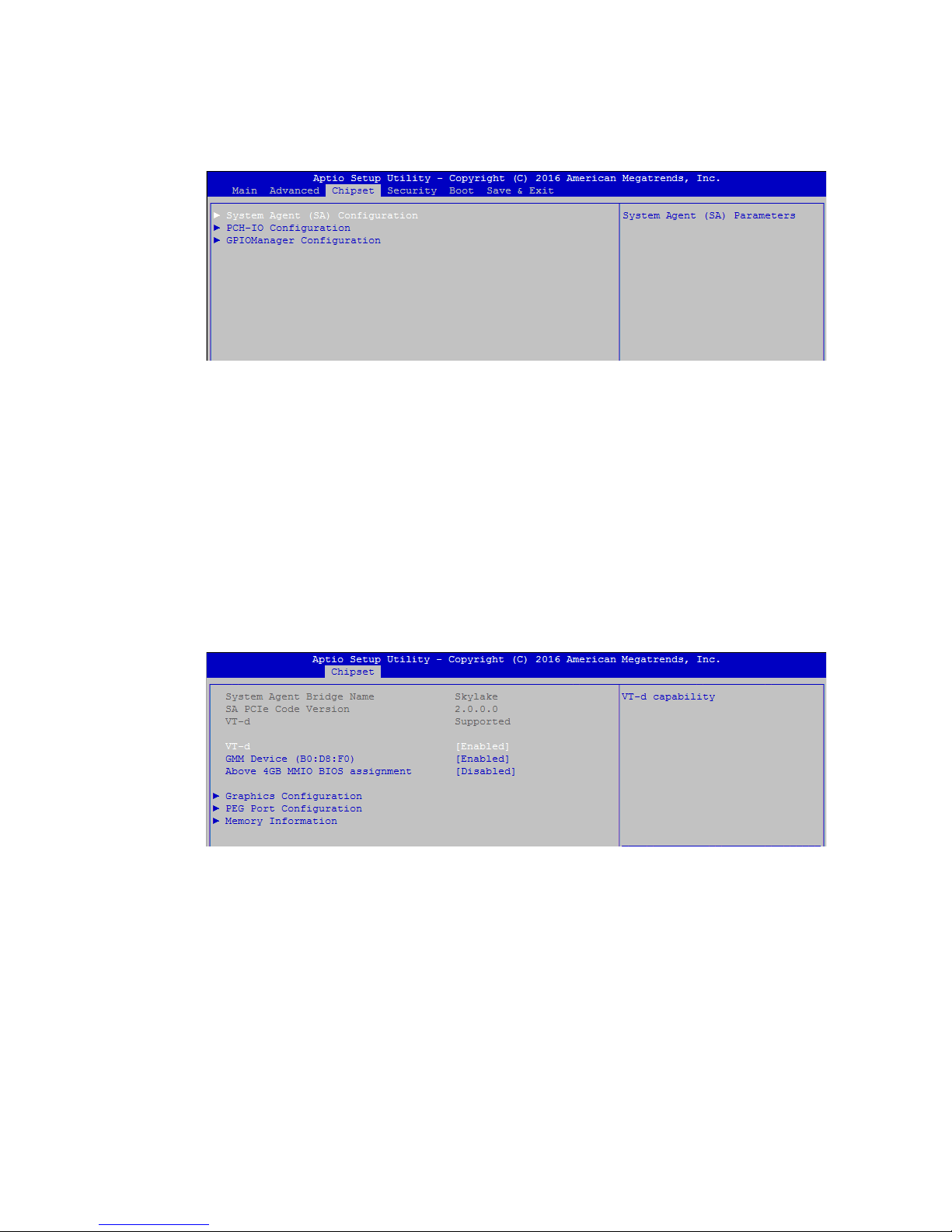

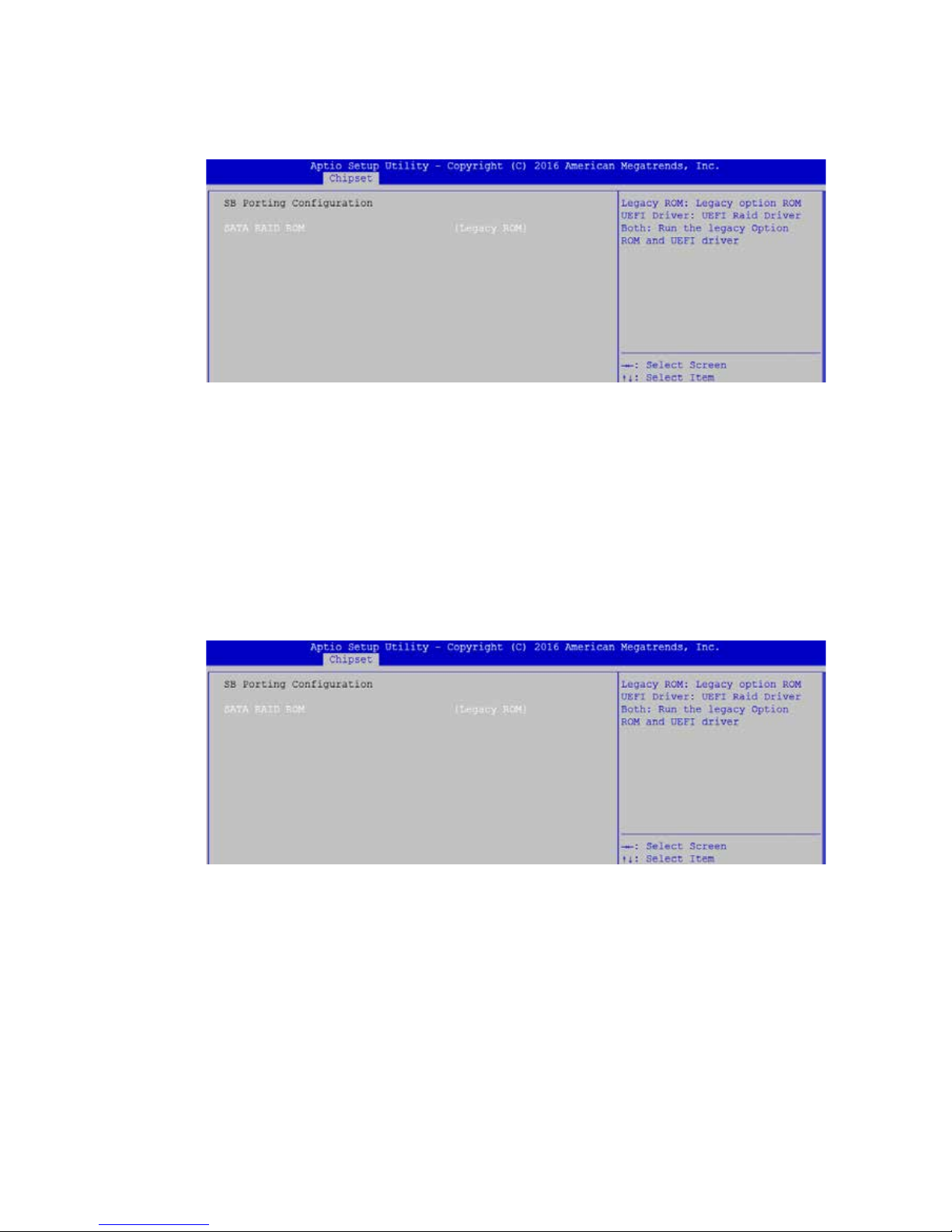

4.4 Chipset 77

4.5 Security 82

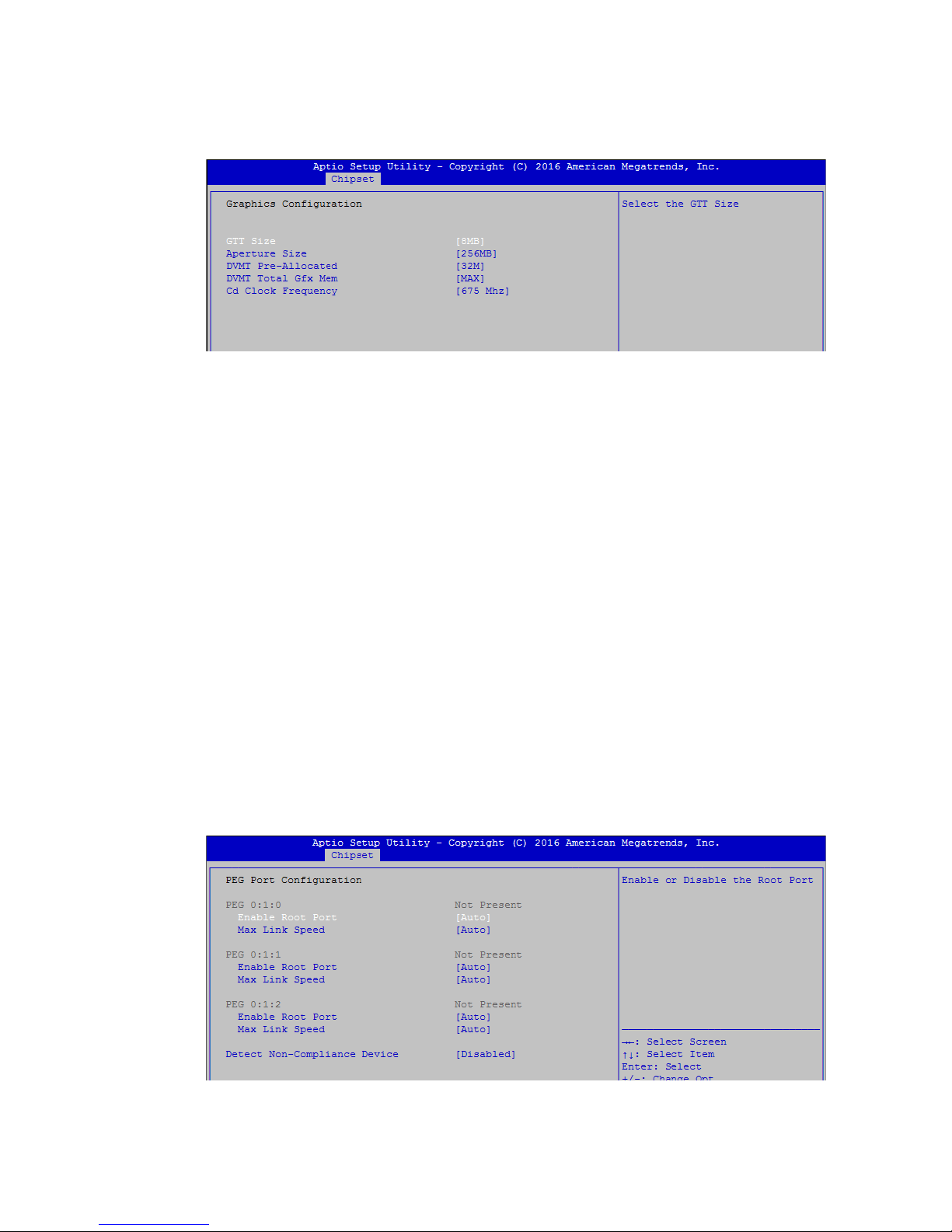

4.6 Boot 83

4.7 Save & Exit 84

APPENDIX A : Isolated DIO Guide 85

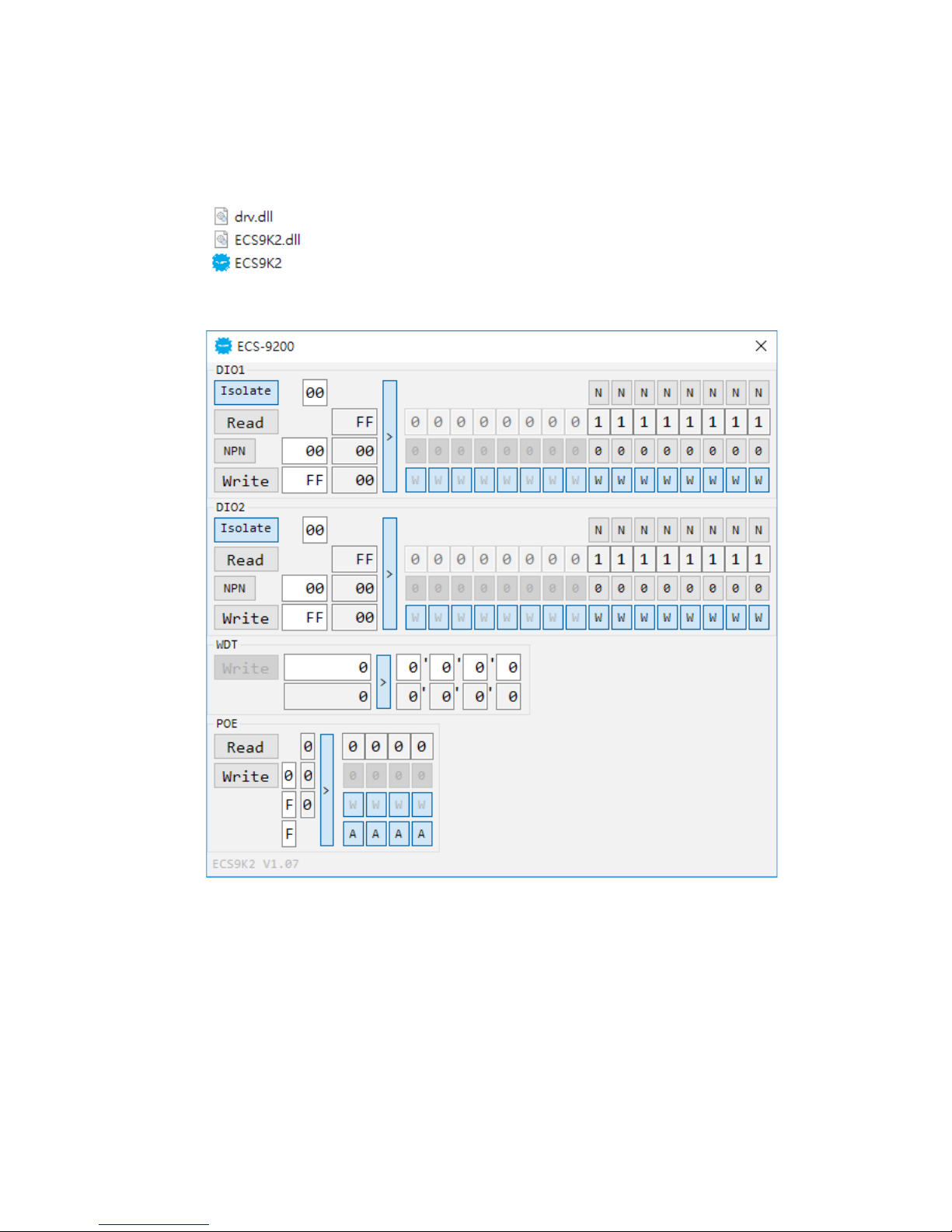

APPENDIX B : Software Functions 91

APPENDIX C : RAID Installation Guide 95

APPENDIX D : Power Consumption 99

APPENDIX E : Supported Memory & Storage List 101

APPENDIX F : Graphics Performance 104

GENERAL INTRODUCTION

1.1 Overview

Vecow ECS-9200/9100 GTX1050 series is a workstation-grade compact integrated embedded system. Flexible LGA1151 Socket supports the workstationgrade Intel

Xeon®/Core™ i7 processor (Kaby Lake-S/Skylake-S) running with

advanced Intel

C236 chipset and dual-channel DDR4 2133MHz ECC memory, up

to 32GB capacity, independent NVIDIA GeForce

GTX 1050Ti/GTX 1050 graphics engine computing with advanced NVIDIA Pascal™ architecture, ECS-9200/9100 GTX1050 delivers up to 28% system performance improved than the one without an independent CUDA graphics engine; Advanced Intel® HD Graphics 630/530 and independent NVIDIA GeForce

GTX 1050 graphics engine supporting DirectX

12.1, OpenGL 4.5 and OpenCL 2.0 API, featuring multiple VGA, DVI-D, DVI-I, DisplayPort and HDMI display interfaces, up to 8K resolution and 6 independent HD displays, Vecow ECS-9200/9100 GTX1050 offers more than 400% improved graphics performance than the one without an independent graphics engine; Multiple SATA III (6Gbps), USB 3.0 (5Gbps), PoE (1Gbps) LAN and WiFi/4G/3G/ LTE/GPRS/UMTS wireless connections make high-speed data conveying possible. Vecow ECS-9200/9100 GTX1050 Series GPU Computing System brings you new generation workstation-grade system performance with enhanced power productivity for demanding workloads in real-time embedded applications.

All-in-one integrated features, -20°C to 60°C operating temperature, 6 GigE LAN ports with 4 IEEE 802.3at (25.5W/48V) PoE+ without additional power connections, 3 external SIM sockets for WiFi/3G/4G/LTE/GPRS/UMTS, 2 Front-access 2.5” SSD trays, 1 Front-access CFast socket, 2 SATA III supports software RAID function, 8 external USB 3.0, 4 COM RS-232/422/485, M.2 expansion, M2DOM expansion, 3 Mini PCIe/mSATA sockets, 32 Isolated DIO for smart circuit protection, 10V to 36V wide range power input with 80V Surge protection, congurable ignition power control, smart remote management features, remote power switch, EN50155 and EN50121 compliant, Vecow ECS-9200/9100 GTX1050 Series GPU Computing System features multiple I/O, all-in-one integrated functions and industrial-grade reliability for any performance-driven real-time applications.

With workstation-grade system performance, leading integrated features, smart manageability, outstanding mobile availability, secure power protection and rugged reliability, Vecow ECS-9200/9100 GTX1050 Series GPU Computing System is your great choices for Machine Vision, Embedded Workstation, Vehicle Computing, Mobile DVR/NVR, Deep Learning, Articial Intelligence and any Industry 4.0/IIoT graphics performance-driven real-time embedded computing applications.

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 GTX1050 User Manual

1.2 Features

• LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7 Processor

(Kaby Lake/Skylake) with C236 chipset

• NVIDIA GeForce

GTX 1050 Graphics engine supports NVIDIA Pascal™ GPU

architecture, up to 8K resolution

• Multiple DVI-D, DVI-I, DisplayPort and HDMI display interfaces, up to

6 independent HD displays

• 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)

• 6 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported

• 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS

• Storage : 2 2.5" SSD Tray, 1 CFast, 1 M2DOM, 2 SATA III

• Expansion : 1 M.2 Socket, 3 Mini PCIe/mSATA

• 8 External USB 3.0, 4 COM

• 32 Isolated DIO, 3 Mini PCIe/mSATA

• 10V to 36V DC power input with 80V Surge Protection

• Configurable Ignition Power Control

• -20°C to 60°C Operating Temperature

1.3 Product Specication

1.3.1 Specications of ECS-9240 GTX1050

System

Processor Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7

Processor (Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket (ECC/Non-ECC)

I/O Interface

Serial 4 COM RS-232/422/485 w/auto flow control (ESD 8KV)

USB • 8 USB 3.0 (External)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless, PoE

SIM Card 3 External SIM Card Socket

GENERAL INTRODUCTION

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

M.2 1 M.2 Socket (Key ID : M)

Graphics

Processor • Intel® HD Graphics 630/530

• NVIDIA® GeForce® GTX 1050 Ti/GTX 1050

Interface 6 Display interfaces :

• 3 DVI : Up to 1920 x1200 @ 60 Hz

• 1 DisplayPort : Up to 7680 x 3840 @ 60Hz

• 1 DisplayPort : Up to 4096 x 2304 @ 60Hz

• 1 HDMI : Up to 4096 × 2160 @ 60Hz

Storage

SATA 2 SATA III support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219 GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

PoE (ECS-9200)

LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

Power

Input Voltage 10V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 GTX1050 User Manual

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.3 kg (9.48 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

Xeon

E3-1268L v5, Core™ i7 : -20°C to 60°C (-4°F to 140°F)

65W TDP CPU :

Core™ i7 : -20°C to 55°C (-4°F to 131°F)

80W TDP CPU :

Xeon

E3-1275 v6, E3-1275 v5, E3-1225 v5 : -20°C to 45°C (-4°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 60°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

GENERAL INTRODUCTION

1.3.2 Specications of ECS-9100 GTX1050

System

Processor Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7

Processor (Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket (ECC/Non-ECC)

I/O Interface

Serial 4 COM RS-232/422/485 w/auto flow control (ESD 8KV)

USB • 8 USB 3.0 (External)

• 1 USB 2.0 (Internal)

DIO 16 GPIO

LED Power, HDD, Wireless

SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

M.2 1 M.2 Socket (Key ID : M)

Graphics

Processor • Intel® HD Graphics 630/530

• NVIDIA

GeForce® GTX 1050 Ti/GTX 1050

Interface 6 Display interfaces :

• 3 DVI : Up to 1920 x1200 @ 60 Hz

• 1 DisplayPort : Up to 7680 x 3840 @ 60Hz

• 1 DisplayPort : Up to 4096 x 2304 @ 60Hz

• 1 HDMI : Up to 4096 × 2160 @ 60Hz

Storage

SATA 2 SATA III support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 GTX1050 User Manual

LAN 1 Intel® I219 GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

Power

Input Voltage 10V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.3 kg (9.48 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

Xeon® E3-1268L v5, Core™ i7 : -20°C to 60°C (-4°F to 140°F)

65W TDP CPU :

Core™ i7 : -20°C to 55°C (-4°F to 131°F)

80W TDP CPU :

Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -20°C to 45°C (-4°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 60°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

GENERAL INTRODUCTION

1.4 Supported CPU List

Processor No. TDP Cache Max. Frequency Embedded

Xeon

E3-1575M v5 45W 8M Up to 3.00 GHz

Xeon

E3-1545M v5 45W 8M Up to 2.90 GHz

Xeon

E3-1535M v5 45W 8M Up to 2.80 GHz

Xeon

E3-1515M v5 45W 8M Up to 2.80 GHz

Xeon

E3-1505M v5 45W 8M Up to 2.80 GHz Yes

Xeon

E3-1505L v5 25W 8M Up to 2.00 GHz

Core i7-6970HQ 45W 8M Up to 3.70 GHz

Core i7-6920HQ 45W 8M Up to 3.80 GHz

Core i7-6870HQ 45W 8M Up to 3.60 GHz

Core i7-6820HQ 45W 8M Up to 3.60 GHz

Core i7-6770HQ 45W 6M Up to 3.50 GHz

Core i7-6700HQ 45W 6M Up to 3.50 GHz

Core i7-6820EQ 45W 8M Up to 3.50 GHz Ye s

Core i7-6822EQ 25W 8M Up to 2.80 GHz

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 GTX1050 User Manual

1.5 Mechanical Dimension

1.5.1 Dimensions of ECS-9240 GTX1050

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

155.0 (6.10”)

215.0 (8.46”)

79.1 (3.11”)

99.1 (3.90”)

Unit: mm (inch)

1.5.2 Dimensions of ECS-9100 GTX1050

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

155.0 (6.10”)

215.0 (8.46”)

79.1 (3.11”)

99.1 (3.90”)

Unit: mm (inch)

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.1 Packing List

Item Description Qty

1 ECS-9200/9100 GTX1050 Embedded System (According to the

conguration you order, ECS-9200/9100 GTX1050 series may contain SSD/HDD and DDR4 SO-DIMM. Please verify these items if necessary.)

ECS-9240 GTX1050 Accessory box, which contains

● Vecow Drivers & Utilities DVD

● Wall-mounting bracket

● KHS#6-32x6 screw for wall-mounting bracket

● M2.5x6 screw for Mini PCIe Slot

● Din-Rail-PH-M4x16.5-S Ni

● 3-pin pluggable terminal block

● 20-pin pluggable terminal block

● M3x6 screw for M.2

● Foot Pad

● F-M3x4 for SSD/HDD screws

1 2 4 3 4 2 2 1 4 4

ECS-9100 GTX1050 Accessory box, which contains

● Vecow Drivers & Utilities DVD

● Wall-mounting bracket

● KHS#6-32x6 screw for wall-mounting bracket

● M2.5x6 screw for Mini PCIe Slot

● Din-Rail-PH-M4x16.5-S Ni

● 3-pin pluggable terminal block

● 20-pin pluggable terminal block

● M3x6 screw for M.2

● Foot Pad

● F-M3x4 for SSD/HDD screws

1 2 4 3 4 2 1 1 4 4

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.2 Front Panel I/O & Functions

In Vecow ECS-9200/9100 GTX1050 series family, all I/O connectors are located on the front panel and the rear panel. Most of the general connections to computer device, such as USB, LAN Jack, Audio, Display Port, DVI-I, DVI-D and other additional storage, are placed on the front panel.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.1 Power Button

The Power Button is a non-latched switch with dual color LED indications. It indicates power status: S0, S3 and S5. More detail LED indications are listed as follows:

To power on the system, press the power button and then the blue LED is lightened. To power off the system, you can either command shutdown by OS operation, or just simply press the power button.

If system error, you can just press the power button for 4 seconds to shut down the machine directly. Please do note that a 4-second interval between each 2 power-on/power-off operation is necessary in normal working status. (For example, once turning off the system, you have to wait for 4 seconds to initiate another power-on operation.)

LED Color Power Status System Status

Solid Blue S0 System working

Solid Orange S3, S5 Suspend to RAM, System off with standby power

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

Pin No. Description Pin No. Description

S1 GND PC6 NC

S2 SATA_TXP4 PC7 GND

S3 SATA_TXN4 PC8 CFAST_LED

S4 GND PC9 NC

S5 SATA_RXN4 PC10 NC

S6 SATA_RXP4 PC11 NC

S7 GND PC12 NC

2.2.3 CFast Card

There is a CFast socket on the front panel supporting Type-I/II Compact Flash card. It is implemented by a SATA III Port from C236 PCH. Be sure to disconnect the power source and unscrew the CFast socket cover before installing a CFast card. ECS-9200/9100 GTX1050 does not support the CFast hot swap and PnP (Plug and Play) functions. It is necessary to remove power source rst before inserting or removing the CFast card.

The pinouts of CFast port are listed as follows:

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.2 Reset Tact Switch

It is a hardware reset switch. Use this switch to reset the system without power off the system. Press the Reset Switch for a few seconds, and then reset will be enabled.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Pin No. Description Pin No. Description

PC1 GND PC13 +3.3V

PC2 GND PC14 +3.3V

PC3 NC PC15 GND

PC4 NC PC16 GND

PC5 NC PC17 NC

2.2.4 PWR and HDD LED Indicator

HDD LED/Yellow : A Hard Disk/ CFast LED. If the LED is on, it indicates that the system’s storage is functional. If it is off, it indicates that the system’s storage is not functional. If it is ashing, it indicates data access activities. Power LED/Green : If the LED is solid green, it indicates that the system is powered on.

LED Color Power Status System Status

Yellow HDD/CFast

• On/Off : Storage status, function or not.

• Twinkling : Data transferring.

Green Power System power status (on/off)

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.5 DVI-D Connector

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

The DVI-D connector on the front panel supports DVI display. This connector can output DVI signal. The DVI output mode supports up to 1920 x 1200 resolution and the DVI is automatically selected according to the display device connected. You will need a DVI-D cable when connecting to a display device.

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.2.7 DisplayPort

Onboard Display Port supports auxiliary channel dual mode and the connection supports up to 4096 x 2304 resolution at 60 Hz. Multi-Stream Transport Display Resolutions Table as follows:

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.6 DVI-I Connector

The DVI-I connector on the front panel supports both DVI and VGA display modes. This connector can output DVI signals. The DVI output mode supports up to 1920x1200 resolution. The DVI mode is automatically selected according to the connected display and you will need a DVI-I cable when connecting to a display device. The VGA output mode supports up to 1920x1200 resolution. If using VGA function, you will need a DVI-I to VGA module connected to DVI-I device. Below is the DVI-I to VGA dongle image:

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Multi-Stream Transport Display Max. Resolution

One panel Display 4096x2304@60Hz

Two panel Displays concurrently 2880x1800@60Hz

Three panel Displays concurrently 2304x1440@60Hz

2.2.8 USB 3.0

There are 4 USB 3.0 connections available supporting up to 5GB per second data rate in the front side of ECS-9200/9100 GTX1050. It is also compliant with the requirements of Super Speed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS).

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.9 Ethernet Port

There are dual 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet connections in the front side. LAN 1 is powered by Intel I219 Ethernet Phy and LAN 2 is powered by Intel I210 Ethernet engine. When both LAN 1 and LAN 2 work in normal status, iAMT 11.0 function is enabled. When using suitable RJ-45 cable, you can connect the system to other computers or to any other devices with Ethernet connection; for example, a hub or a switch. Moreover, both of LAN 1 and LAN 2 support Wake on LAN and Pre-boot functions. The pin-outs of LAN 1 and LAN 2 are listed as follows:

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.2.10 Audio Jack

There are 2 audio connectors, Mic-in and Line-out, in the front side of ECS9200/9100 GTX1050. Onboard Realtek ALC892 audio codec supports 5.1 channel HD audio and fully complies with Intel High Definition Audio (Azalia) specifications. To utilize the audio function in Windows platform, you need to install the corresponding drivers for both Intel C236 chipset and Realtek ALC892 codec.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

Each LAN port is supported by standard RJ-45 connector with LED indicators to present Active/ Link/ Speed status of the connection. The LED indicator on the right bottom corner lightens in solid green when the cable is properly connected to a 100 Mbps Ethernet network, and it lightens in solid orange when the cable is properly connected to a 1000Mbps Ethernet network. The left LED will keep twinkling/ off when Ethernet data packets are being transmitted or received.

1 8

10Mbps 100Mbps 1000Mbps

Right

Bottom Led

Off

Solid

Green

Solid

Orange

Left

Bottom Led

Flash

Yellow

Flash

Yellow

Flash

Yellow

Pin No. 10/ 100Mbps 1000Mbps

1 E_TX+ MDI0_P

2 E_TX- MDI0_N

3 E_RX+ MDI1_P

4 ---- MDI2_P

Pin No. 10/ 100Mbps 1000Mbps

5 ----- MDI2_N

6 E_RX- MDI1_N

7 ----- MDI3_P

8 ------ MDI3_N

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.2.11 WLAN LED, Mini PCIe, SIM Card Comparison

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

Mini PCIe SIM LED

Mini PCIe 1 SIM 1 (CN12) 1

Mini PCIe 2 SIM 2 (CN13) 2

Mini PCIe 3 SIM 3 (CN11) 3

Mini PCIe Slot/SIM Slot/WLAN LED Mapping Table :

Mini PCIe 2

Mini PCIe 3

Mini PCIe 1

CN11

CN12 CN13

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.2.12 SSD/HDD Tray

There are 2 front-access 2.5” SSD/HDD trays in the front side of ECS9200/9100 GTX1050. Just trigger to open the SSD/ HDD tray, up to 4TB is available.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

HDD 1

HDD 2

2.2.13 System FAN

There is a system FAN on front side for airow direction outward. You can adjust the FAN Speed from Vecow BIOS Setting. (refer to 4.3.6_Hardware Monitor_FAN PWM Value)

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.3 Rear Panel I/O & Functions

2.3.1 Power Terminal Block

It is a 3-pin power-on or power-off switch through Phoenix Contact terminal block. You could turn on or off the system power by using this contact. This terminal block supports dual functions of soft power-on/power-off (instant off or delay 4 second) and suspend mode.

Pin No. Denition Pin No. Denition

1 Ignition 2 External Power Button V+

3 External Power Button V-

This system supports 6V to 36V DC power input by terminal block in the rear side. In normal power operation, power LED lightens in solid green. It supports up to 80V surge protection.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Pin No. Denition Pin No. Denition

1 V+ 2 V-

3 Chassis Ground

2.3.2 Remote Power On/O Switch & Ignition

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

Serial

Port

Pin No. RS-232 RS-422

(5-wire)

RS-422 (9-wire)

RS-485 (3-wire)

1 to 4

1 DCD TXD- TXD- DATA -

2 RXD TXD+ TXD+ D ATA+

3 TXD RXD+ RXD+ -----------

4 DTR RXD- RXD- -----------

5 GND GND GND GND

6 DSR ----------- RTS- -----------

7 RTS ----------- RTS+ -----------

8 CTS ----------- CTS+ -----------

9 RI ----------- CTS- -----------

The pin assignments are listed in the table as below:

BIOS Setting Function

COM 1

COM 2

COM 3

COM 4

RS-232

RS-422 (5-wire)

RS-422 (9-wire)

RS-485

RS-485 w/z auto-ow control

2.3.3 COM Ports

Serial port 1 to 4 (COM 1 to 4) can be congured for RS-232, RS-422, or RS485 with auto ow control communication. The default denition of COM 1 and COM 2 is RS-232. If you want to change to RS-422 or RS-485, you can nd the setting in BIOS.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

COM 3 & COM 4 MB connector table:

COM Port MB Connector COM Port MB Connector

COM 3 CN9 COM 4 CN10

CN Pin No. Signal Name

CN9 (COM3)

CN10 (COM4)

1 Chassis GND

2 GND

3 RI

4 DTR

5 CTS

6 TXD

7 RTS

8 RXD

9 DSR

10 DCD

COM 3 & COM 4 MB connector pin out:

CN10

CN9

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.3.4 Rear USB 3.0

There are 4 USB 3.0 connections available supporting up to 5GB per second data rate in the rear side of ECS-9200/9100 GTX1050. It is also compliant with the requirements of Super Speed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS).

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

2.3.5 PoE Ethernet Port

There are 4 RJ45 connectors in the rear side of ECS-9200 GTX1050. It supports IEEE 802.3at (PoE+) Power over Ethernet (PoE) connection delivering up to 30.4W/54V per port and 1000BASE-T GigE data signals over standard Ethernet Cat 5/Cat 6 cable. Each PoE connection is powered by Intel® I210 GigE Ethernet controller and independent PCI express interface to connect with multi-core processor for network and data transmit optimization. Only when PoE port starts to supply power to power devices, the dedicated LED will be lightened.

PS. Suggest to use PoE function when power input is over 12V.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Pin No. 10/ 100 Mbps 1000 Mbps PoE

1 E_TX+ MDI0_P PoE+

2 E_TX- MDI0_N PoE+

3 E_RX+ MDI1_P PoE-

4 ---- MDI2_P ----

5 ----- MDI2_N ----

6 E_RX- MDI1_N PoE-

7 ----- MDI3_P ----

8 ------ MDI3_N ----

Each LAN port is supported by standard RJ-45 connector with LED indicators to present Active/Link/Speed status of the connection & PoE status LED.

The LED indicator on the right bottom corner lightens in solid green when the cable is properly connected to a 100 Mbps Ethernet network. The LED indicator on the right bottom corner lightens in solid orange when the cable is properly connected to a 1000Mbps Ethernet network. The left LED will keep twinkling/off when Ethernet data packets are being transmitted/received.

1 8

LED Status 10Mbps 100Mbps 1000Mbps

Right

Bottom Led

Off

Solid

Green

Solid

Orange

Left

Bottom Led

Flash

Yellow

Flash

Yellow

Flash

Yellow

LED Location LED Color Status

LAN3 Green

Green Light: PD installed & powered green

Off: Non PD

LAN4 Green

Green Light: PD installed & powered green

Off: Non PD

LAN5 Green

Green Light: PD installed & powered green

Off: Non PD

LAN6 Green

Green Light: PD installed & powered green

Off: Non PD

PoE LED indicator:

The pin-outs of LAN 3 to LAN 6 are listed as follows:

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.3.6 Isolated DIO

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

There is a 32-bit (16-bit DI, 16-bit DO) with 2 DIO connectors in the rear side. DI/DIO supports NPN(sink) and PNP(Source) mode, and each DI channel is equipped with a photocouper for isolated protection. Each DO with isolator chip is congured by a Jumper for each DIO connector. DO Safety-Related Certications:

• 4242-VPK Basic Isolation per DIN V VDE V 0884-10 and DIN EN 61010-1

• 3-KVRMS Isolation for 1 minute per UL 1577

• CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards

• GB4943.1-2011 CQC Certied

Isolated

DIO

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

DIO Pin No. Denition Function

DIO1

1 INPUT 0 SIO_GPI80

2 INPUT 1 SIO_GPI81

3 INPUT 2 SIO_GPI82

4 INPUT 3 SIO_GPI83

5 INPUT 4 SIO_GPI84

6 INPUT 5 SIO_GPI85

7 INPUT 6 SIO_GPI86

8 INPUT 7 SIO_GPI87

9 DI1_COM -

10 DIO1_GND -

11 OUTPUT 0 SIO_GPO70

12 OUTPUT 1 SIO_GPO71

13 OUTPUT 2 SIO_GPO72

14 OUTPUT 3 SIO_GPO73

15 OUTPUT 4 SIO_GPO74

16 OUTPUT 5 SIO_GPO75

17 OUTPUT 6 SIO_GPO76

18 OUTPUT 7 SIO_GPO77

19 DIO1_GND -

20 DIO1_VDC (6~48V Input) -

DIO Connectors pin out:

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

DIO Pin No. Denition Function

DIO2

1 INPUT 0 SIO_GPI37

2 INPUT 1 SIO_GPI56

3 INPUT 2 SIO_GPI57

4 INPUT 3 SIO_GPI15

5 INPUT 4 SIO_GPI16

6 INPUT 5 SIO_GPI35

7 INPUT 6 SIO_GPI46

8 INPUT 7 SIO_GPI11

9 DI2_COM -

10 DIO2_GND -

11 OUTPUT 0 SIO_GPO22

12 OUTPUT 1 SIO_GPO26

13 OUTPUT 2 SIO_GPO64

14 OUTPUT 3 SIO_GPO65

15 OUTPUT 4 SIO_GPO41

16 OUTPUT 5 SIO_GPO40

17 OUTPUT 6 SIO_GPO52

18 OUTPUT 7 SIO_GPO27

19 DIO2_GND -

20 DIO2_VDC (6~48V Input) -

DI reference circuit:

Sink Mode (NPN)

V+

V-

Power Supply

6-48V DC

DI_COM (Pin 9)

DI (Pin1-8)

DIO Connector

Source Mode (PNP)

V+

V-

Power Supply

6-48V DC

DI_COM (Pin 9)

DI (Pin1-8)

DIO Connector

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.3.7 3 of 3 Independent Displays

You could have all independent displays from these 3 display ports. Furthermore, you could have an 8K resolution display from the DP1.4 port.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

Isolated

DIO 1

DVI

HDMI

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

DO reference circuit:

V+

V-

Device

6-48V DC

DIO_VDC (Pin 20)

DO (Pin11-18)

DIO_GND (Pin10,19)

DIO Connector

Source Mode (PNP)

Sink Mode (NPN, Default)

V+

V-

Device

6-48V DC

DIO_VDC (Pin 20)

DO (Pin11-18)

DIO_GND (Pin10,19)

DIO Connector

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.4 Main Board Expansion Connectors

2.4.1 Inside View of ECS-9200/9100 GTX1050 Main Board With Connector Location

SATA 2 SATA 1

CN15

FAN2

JP10

CN3

CN6

CN18

JP1

JP3

Battery

BIOS

CN10

JP5

JP6

JP9

J9 J8 J7 J6

JP4

SW2

CN25

CN9

FAN1

JP2 Mini PCIe 3Mini PCIe 2

Mini PCIe 1

SODIMM 2 SODIMM 1

M2_CN2

M2_CN1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.4.2 UPS Power Connector

For UPS module optional, we use 4.2mm 2x2p power connector. This system has a UPS power input connector for Optional part UPS Module.

Pin No. Denition Pin No. Denition

1 Ground 2 Ground

+VDC_IN

(6~36V, Max.8A)

+VDC_IN

(6~36V, Max.8A)

CN25

2.4.3 Miscellaneous Pin Header

2.0mm 2x4p header This pin header can be used as a backup for following functions, such as hard drive LED indicator, reset button, power LED indicator, and power-on/ off button, which already can be accessed by front panel and top panel. The pin-outs of Miscellaneous port are listed in following table:

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Group Pin No. Description

HDD LED

1 HDD_LED_P

3 HDD_LED_N

RESET BUTTON

5 FP_RST_BTN_N

7 Ground

POWER LED

2 PWR_LED_P

4 PWR_LED_N

POWER BUTTON

6 FP_PWR_BTN_IN

8 Ground

2.4.4 DDR4 Slot

There are 2 DDR4 channel onboard supporting DDR4 2133/1866 and up to 32GB. (Each channel 16GB)

Slot Description Slot Description

SODIMM_1 DDR4 Channel A SODIMM_2 DDR4 Channel B

SODIMM 2 SODIMM 1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.4.5 BIOS Socket

If the BIOS needs to be changed, please contact the Vecow RMA service team.

2.4.6 SATA Connector

Standard 7 PIN SATA Connector There are 2 onboard high performance Serial ATA III. It supports higher storage capacity with less cabling effort and smaller required space.

SATA 1

SATA 2

Pin No. Denition

1 Ground

2 TX DP

3 TX DN

4 Ground

Pin No. Denition

5 RX DN

6 RX DP

7 Ground

BIOS

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.4.7 SATA Power Header

Standard, all form factor 1x4p power header There are 2 HDD power header on board and each power header supports two

2.5” SATA HDD.

Pin No. Description Pin No. Description

1 +V5 (Max. 4A) 2 Ground

3 Ground 4 +V12 (Max. 1.5A)

2.4.8 Internal USB2.0

Standard Vertical USB2.0 Connector The ECS-9200/9100 GTX1050 main board provides one expansion USB port using plug-and-play for Dongle Key or LCD touch Panel. The USB interface supports 480 Mbps transfer rate complied with high speed USB specification Rev. 2.0.

The USB interface is accessed through one standard USB 2.0 connector. This USB 2.0 does not support wake up function.

CN18

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

Pin No. Denition Pin No. Denition

1 USB +VCC (+V5/Max. 0.5A) 2 D ATA-

3 D ATA+ 4 Ground

2.4.9 M2DOM

Innodisk M2DOM S20/S30 3ME3 is a M.2 based disk module with vertical type form factor. Its mechanical design can help board maker to release up to 90% space of motherboard as well as improve system reliability by its fixed mechanism. M2DOM series product will offer with multiple interfaces, including both SATA III and PCIe. The SSD supports hot plug function and can be removed or plugged-in during operating. User has to avoid hot plugging the SSD which is congured as boot device and installed operation system.

Support hot plug: The insertion of a SATA device into a backplane (signal and power combined) that has power present. The device powers up and initiates an OOB sequence. Support hot removal: The removal of a SATA device from a powered backplane, without rst being placed in a quiescent state.

M2_CN1

Model No. Denition

M2DOM

S20

3ME3

8GB

S20 / S30 16GB

S20 / S30 32GB

S20 / S30 64GB

S30 128GB

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Pin No. Function Pin No. Function

75 GND

73 GND 74 +3.3V

71 GND 72 +3.3V

PEDET (NC-PCIe/GND-

SATA)

70 +3.3V

67 N/C 68 N/C

Mechanical Key

57 GND 58 N/C

55 REFCLKp 56 N/C

53 REFCLKn 54 WAKE#

51 GND 52 CLKREQ#

49 PETp0 /SATA-A+ 50 PERST#

47 PETn0 /SATA-A- 48 N/C

45 GND 46 N/C

43 PERp0 /SATA-B- 44 N/C

41 PERn0 /SATA-B+ 42 N/C

39 GND 40 N/C

37 PETp1 38 DEVSLP

35 PETn1 36 N/C

33 GND 34 N/C

Pin Out:

2.4.10 M.2

Standard Type 2280 M.2 (M key) slot:

M2_CN2

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

31 PERp1 32 N/C

29 PERn1 30 N/C

27 GND 28 N/C

25 PETp2 26 N/C

23 PETn2 24 N/C

21 GND 22 N/C

19 PERp2 20 N/C

17 PERn2 18 +3.3V

15 GND 16 +3.3V

13 PETp3 14 +3.3V

11 PETn3 12 +3.3V

9 GND 10

DAS/DSS# (I/O)/LED1#

(I)(0/3.3V)

7 PERp3 8 N/C

5 PERn3 6 N/C

3 GND 4 +3.3V

1 GND 2 +3.3V

2.4.11 Mini PCIe

Mini PCIe 3Mini PCIe 2

Mini PCIe 1

Standard full length Mini PCIe slot:

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Pin No. function Pin No. function

51 Reserved 52 +3.3Vaux

49 Reserved 50 GND

47 Reserved 48 +1.5V

45 Reserved 46 Reserved

43 GND 44 Reserved

41 +3.3Vaux 42 Reserved

39 +3.3Vaux 40 GND

37 GND 38 USB_D+

35 GND 36 USB_D-

33 PETp0 34 GND

31 PETn0 32 SMB_DATA

29 GND 30 SMB_CLK

27 GND 28 +1.5V

25 PERn0 26 GND

23 PERp0 24 +3.3Vaux

21 GND 22 PERST#

19 Reserved 20 reserved

17 Reserved 18 GND

Mechanical Key

15 GND 16 UIM_VPP

13 REFCLK+ 14 UIM_RESET

11 REFCLK- 12 UIM_CLK

9 GND 10 UIM_DATA

7 CLKREQ# 8 UIM_PWR

5 Reserved 6 1.5V

3 Reserved 4 GND

1 WAKE# 2 3.3Vaux

Pin Out:

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.4.12 RTC Battery

The system’s real-time clock is powered by a lithium battery. It is equipped with Panasonic BR2032 190mAh lithium battery. It is recommended that you do not have to get the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team.

Battery

2.4.13 FAN Header

Fan power connector supports for additional thermal requirements. The pin assignments of FAN 1 and FAN 2 are listed in the following table:

Pin No. Function Pin No. Function

1 GND 2 +12V (1.5A max)

3 Fan speed sensor 4 Fan PWM

Pin out:

FAN2

FAN1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

Pin No. Function Pin No. Function

1 SERIRQ 7 LFRAME#

2 +3.3V 8 LAD0

3 LA3 9 N/C

4 RESET# 10 Ground

5 LAD1 11 CLOCK

6 LAD2 12 Ground

Pin out:

2.4.14 LPC Port 80 Header

ECS-9200/9100 GTX1050 provides a LPC Port 80 Header for Debug Card.

CN3

2.4.15 LAN IEEE 1588 Header

ECS-9200 GTX1050 provides a LAN header for IEEE 1588.

LAN No. Function Function

Rear POE LAN3 Intel I210 J6

Rear POE LAN4 Intel I210 J7

Rear POE LAN5 Intel I210 J8

Rear POE LAN6 Intel I210 J9

J9 J8 J7 J6

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

Pin No. Function Pin No. Function

1 SPD0 2 SPD1

3 SPD2 4 SPD3

5 Ground 6 Ground

Pin out:

2.4.16 COM Port Header

ECS-9200/9100 GTX1050 provides 4 COM port headers for internal COM port cable.

Pin No. Description Port

1 Ground_Frame COM3

2 Ground COM3

3 RI COM3

4 DTR COM3

5 CTS COM3

6 TXD COM3

7 RTS COM3

8 RXD COM3

9 DSR COM3

10 DCD COM3

CN9:

Pin No. Description Port

1 Ground_Frame COM4

2 Ground COM4

3 RI COM4

4 DTR COM4

5 CTS COM4

6 TXD COM4

7 RTS COM4

8 RXD COM4

9 DSR COM4

10 DCD COM4

CN10:

Pin out:

CN10

CN9

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.5 Main Board Jumper & Deep Switch Settings

2.5.1 Top View of ECS-9200/9100 GTX1050 Main Board With Jumper and DIP Switch

The gure below is the top view of ECS-9200/9100 GTX1050 main board which is the main board. It shows the location of the jumpers and the switches.

You may congure your card to match the needs of your application by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper, you connect the pins with the clip. To “open” a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

SATA 2 SATA 1

CN15

FAN2

JP10

CN3

CN6

CN18

JP1

JP3

Battery

BIOS

CN10

JP5

JP6

JP9

J9 J8 J7 J6

JP4

SW2

CN25

CN9

FAN1

JP2 Mini PCIe 3Mini PCIe 2

Mini PCIe 1

SODIMM 2 SODIMM 1

M2_CN2

M2_CN1

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

You may configure your card to match the needs of your application by DIP switch. As below show the DIP switch on and off.

1 2

1 : OFF 2 : OFF

1 2

1 : ON 2 : OFF

1 2

1 : ON 2 : ON

2.5.2 USB Power Jumper

Jumper Setting Function

JP9 1:2 Supported Wake Up(Default)

JP9 2:3 Non Wake Up support

JP9

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050©Vecow ECS-9200/9100 GTX1050 User Manual

2.5.3 COM Port RI pin Select

Pin Header Pin No. Description

COM1

JP3

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

Pin Header Pin No. Description

COM2

JP4

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

Pin Header Pin No. Description

COM3

JP5

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

Pin Header Pin No. Description

COM4

JP6

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

JP6

JP5

JP3 JP4

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.5.4 PoE Power ON Select

Jumper Setting Function

JP10 1:2 POE power on at standby power ready

JP10 2:3 POE power on after system power on (Default)

JP10

2.5.5 Clear CMOS/ME Switch

Jumper Setting Function

JP1 1:2 *Normal(Default)

JP1 2:3 Clear CMOS

Jumper Setting Function

JP2 1:2 *Normal(Default)

JP2 2:3 Clear ME

JP1

JP2

2.6 Ignition Control

2.6.1 Adjust Ignition Control Modes

ECS-9200/9100 GTX1050 series provides ignition power control feature for invehicle applications. The built-in MCU monitors the ignition signal and turns on/ off the system according to pre-dened on/off delay period.

ECS-9200/9100 GTX1050 series provides 16 modes of different power on/off delay periods adjustable via SW2 switch. The default rotary switch is set to 0 in ATX/AT power mode.

SW2

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

The modes are listed in the following table:

Item Power on delay Power off delay Switch Position

0 ATX mode

1 No delay No delay

2 No delay 5 seconds

3 No delay 10 seconds

4 No delay 20 seconds

5 5 seconds 30 seconds

6 5 seconds 60 seconds

7 5 seconds 90 seconds

8 5 seconds 30 minutes

9 5 seconds 1 hour

A 10 seconds 2 hours

B 10 seconds 4 hours

C 10 seconds 6 hours

D 10 seconds 8 hours

E 10 seconds 12 hours

F 10 seconds 24 hours

1 2 3 4

2.6.2 Ignition Control Wiring

To activate ignition control, you need to provide IGN signal via the 3-pin pluggable terminal block located in the back panel. It is below the general wiring conguration.

For testing purpose, you can refer to the picture blow to simulate ignition signal input controlled by a latching switch.

Note:

1. DC power source and IGN share the same ground.

2. ECS-9200/9100 GTX1050 supports 6V~36V wide range DC power input in ATX/AT mode. In Ignition mode, the input voltage is xed to 12V/24V for car battery scenario.

3. For proper ignition control, the power button setting should be “Power down” mode.

In Windows, for example, you need to set “When I press the power button” to "Shut down."

Pin No. Denition

1 Ignition (IGN)

2 External Power S/W +

3 External Power S/W +

IGN

V+

GETTING TO KNOW YOUR ECS-9200/9100 GTX1050

2.6.3 Smart Battery Protection

The system with “Ignition Control” can perform Smart Battery Protection, namely Low Battery Detection.

When the system is running on a battery and its voltage drops below the threshold, the system will automatically shut down. The Low Battery Detection is implemented in the ignition control MCU FW and as a default function.

Battery Voltage Thresholds

12V 10.5~15V

24V 21.5~30V

Note:

SYSTEM SETUP

3.1 How to Open Your ECS-9200/9100 GTX1050

Step 1

Remove hole plugs.

Step 2

Remove two F#6-32 screws (circled in red) and two F-M3 screws (circled in yellow) on the bottom side.

HARDWARE INSTALLATION

Step 3

Finish Step1 and 2.

Step 4

Remove one KHS#6-32x6 screw.

Step 5

Open the module.

Step 7

Remove two F-#6-32 screws at the bottom side.

Step 8

Remove the cover. Remove one screw KHS-#6-32 and SSD/ HDD tray at front panel.

Step 6

Finish.

HARDWARE INSTALLATION

Step 9

Remove SSD/HDD module.

Step 10

Be careful pulling out SATA(yellow), power SATA(blue) and COM cables(red).

Step 11

Remove four KHS-#6-32 screws at the rear panel.

Step 12

Finish.

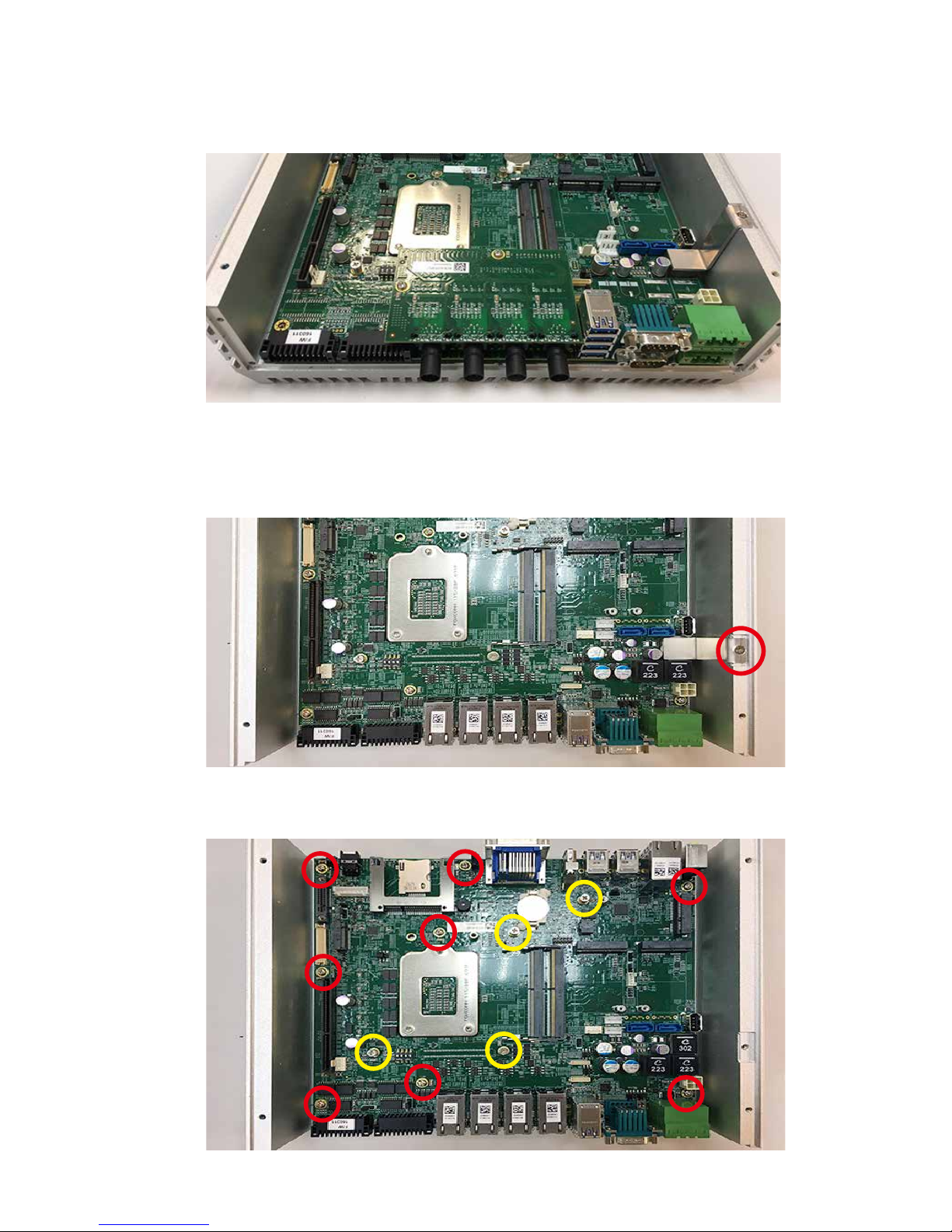

3.2 Installing CPU

Step 1 Remove one F #6-32 and pick up chock bracket.

Step 2

Remove eight PH-M3 and four M3x11 spring screws and pick up mother board.

HARDWARE INSTALLATION

Step 4 Open the CPU socket. (Be careful CPU pins)

Step 3 CPU socket.

Step 6 Finish.

Step 5 Install CPU on the socket.

Step 7 Close CPU socket and nish.

HARDWARE INSTALLATION

3.3 Installing DDR4 SO-DIMM Modules

Step 1 DDR4 RAM module into SO-DIMM slot.

Step 2 Make sure the RAM module is locked by the memory slot.

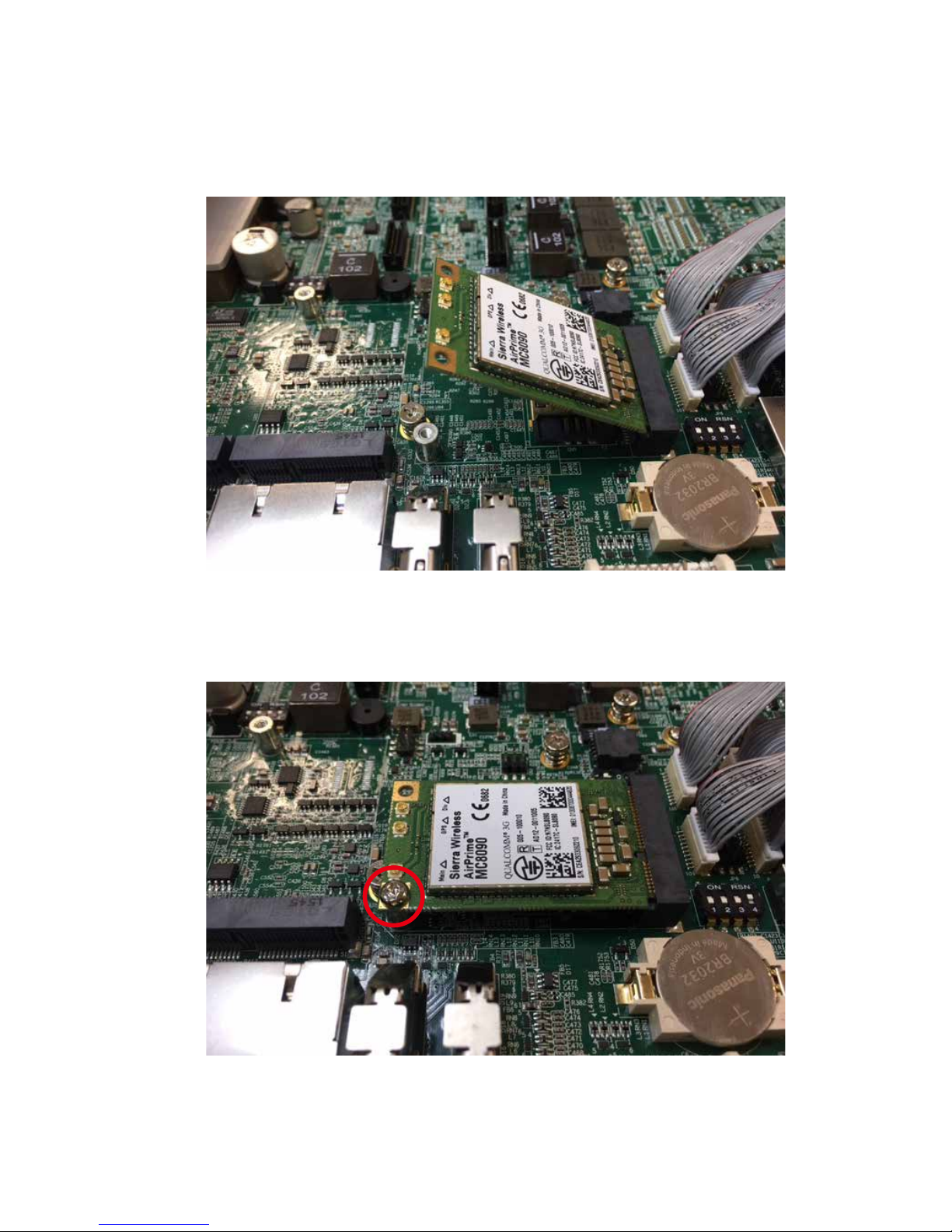

3.4 Installing Mini PCIe Card

Step 1 Install Mini PCIe card into the Mini PCIe socket.

Step 2 Fasten one M2.5 screw.

HARDWARE INSTALLATION

3.5 Installing CFast Card

Step 1 Remove 2 pcs F-M3x4 screws on CFast & SIM cover.

Step 2

Before inserting CFast & SIM Cards, make sure the system power is not plugged.

Step 3 Insert CFast card and push to lock.

Step 4 Finish.

3.6 Installing SIM Card

Step 2

Before inserting CFast & SIM Cards, make sure the system power is not plugged.

Step 4 Finish.

Step 1 Remove 2 pcs F-M3x4 screws on CFast & SIM cover.

Step 3 Insert SIM card and push to lock.

HARDWARE INSTALLATION

3.7 Installing SSD/HDD

Step 1 Trigger and open SSD/HDD tray.

Step 2 Insert 2.5” SSD/HDD in the tray and fasten two F-M3x4 screws.

Step 3 Finish.

Step 4 Install SSD/HDD.

HARDWARE INSTALLATION

3.8 Installing M.2

Step 2 Fasten one M3 screw.

Step 1 M.2 slot.

3.9 Installing M2DOM

Step 2 M2DOM module.

Step 1 M2DOM slot.

HARDWARE INSTALLATION

Step 4 Lock two M2 screws with slot.

Step 3 Install M2DOM module with slot.

3.10 Mounting Your ECS-9200/9100 GTX1050

Step 1 Ensure the screw holes on the right and left sides of the upper case match the ones on ECS-9200/9100 GTX1050 wall mount bracket.

3.10.1 Wall Mount Bracket

Step 2 Fasten 4pcs KHS#6-32 screws and then nish.

HARDWARE INSTALLATION

3.10.2 VESA Mount

Step 1 ECS-9200/9100 GTX1050 and VESA Mount.

Step 2

Take ECS-9200/9100 GTX1050 and VESA Mount with fasten 4pcs KHS#6-32 screws.

Step 3 Fasten four KHS#6-32 screws and then nish.

Step 4 Finish.

Step 5 There are two sizes of VESA, 75x75mm(red) and 100x100mm(yellow).

HARDWARE INSTALLATION

3.10.3 Din Rail Kit

Step 1 ECS-9200/9100 GTX1050 and Din Rail Kit.

Step 2 Take ECS-9200/9100 GTX1050 and Din Rail Kit and fasten four

KHS#6-32 screws in the four marked corners.

Step 3 Fasten four KHS#6-32 screws and then nish.

Step 4 Finish.

Step 5 ECS-9200/9100 GTX1050 With Din Rail.

BIOS AND DRIVER SETTING

BIOS SETUP

4.1 Entering BIOS SETUP

BIOS provides an interface for users to check and change system conguration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown.

Figure 4-1: Entering Setup Screen

4.2 Main

The main menu displays BIOS version and system information. There are two options on Main menu, system date and system time.

System Date

Set the date. Use <Tab> to switch between date elements.

System Time

Set the time. Use <Tab> to switch between time elements.

Figure 4-2: BIOS Main Menu

4.3 Advanced

Figure 4 3: BIOS Advanced Menu

Select advanced tab to enter advanced BIOS setup options such as CPU conguration, SATA conguration, and USB conguration.

BIOS AND DRIVER SETTING

4.3.1 ACPI Settings

Enable Hibernation

Enables or disables system's ability to hibernate (OS/S4 sleep state). This option may not be effective with some OS.

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

S3 Video Repost

Enables or disables S3 video repost.

ACPI Low Power S0 Idle

Enables or disables ACPI low power S0 idle support.

Figure 4 3-1: ACPI Settings

4.3.2 AMT Conguration

Intel AMT

Enables/disables Intel (R) Active Management Technology BIOS extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional rmware in the SPI device.

Figure 4 3-2: Intel AMT Settings

4.3.3 PCH-FW Conguration

ME Uncong on RTC Clear State

Disabling this option will cause ME not to uncongure on RTC clear.

ME State

Set ME to Soft temporarily disabled.

Figure 4 3-3: PCH-FW Settings

4.3.4 SMART Settings

SMART Self Test

Run SMART self test on all HDDs during POST.

Figure 4 3-4: SMART Settings

4.3.5 IT8786 Super IO Conguration

Figure 4-3-5: Super IO Settings

Serial Port 1 Conguration

Set parameters of serial port 1 (COM 1).

Serial Port 2 Conguration

Set parameters of serial port 2 (COM 2).

BIOS AND DRIVER SETTING

4.3.7 Serial Port Console Redirection

Console Redirection

Console redirection enable or disable.

Console Redirection Settings

The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Figure 4 3-7: Serial Port Console Redirection Settings

4.3.6 Hardware Monitor

The IT8786 SIO features an enhanced hardware monitor providing thermal, fan speed, and system voltages' status monitoring.

FAN PWM Value

FAN PWM Value Range is from 0 to 255. (Default at128)

Figure 4 3-6: Hardware Monitor Settings

Serial Port 3 Conguration

Set parameters of serial port 3 (COM 3).

Serial Port 4 Conguration

Set parameters of serial port 4 (COM 4).

Hyper-threading

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology). When disabled, only one thread per core is enabled.

Active Processor Cores

Number of cores to enable in each processor package.

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Hardware Prefetcher

To turn on/off the MLC streamer prefetcher.

Adjacent Cache Line Prefetch

To turn on/off prefetching of adjacent cache lines.

CPU AES

Enable/disable CPU Advanced Encryption Standard instructions.

Boot performance mode

Select the performance state that the BIOS will set before OS handoff.

Intel(R) SpeedStep(tm)

Allows more than two frequency ranges to be supported.

Turbo Mode

Turbo Mode.

4.3.8 CPU Conguration

Figure 4 3-8: CPU Function Settings

BIOS AND DRIVER SETTING

4.3.9 Intel TXT Information

Display Intel TXT information.

Figure 4 3-9: Intel TXT Information

4.3.10 SATA Conguration

Figure 4 3-10: SATA Devices Settings

CPU C state

Enable or disable CPU C states.

Enhanced C-states

Enable/disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State.

Package C State limit

Package C State limit.

Intel TXT(LT) Support

Enables or disables Intel (R) TXT (LT) support.

SATA Controller(s)

Enable or disable SATA Device.

SATA Mode Selection

Determines how SATA controller(s) operate.

Software Feature Mask Conguration

RAID OROM/RST driver will refer to the SWFM configuration to enable or disable the storage features.

Aggressive LPM Support

Enable PCH to aggressively enter link power state.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support.

Options for each SATA port:

Port 0 Enable or disable SATA Port.

Spin Up Device

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

Identies that the SATA port is connected to solid state drive or hard disk drive.

4.3.11 Acoustic Management Conguration

Acoustic Management Conguration

Option to enable or disable automatic acoustic management.

Figure 4 3-11: Acoustic Management Settings

BIOS AND DRIVER SETTING

4.3.12 CSM Conguration

CSM Support

Enable/disable CSM support

GateA20 Active

UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow GA20 to be disabled; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

Set display mode for Option ROM.

INT19 Trap Response

BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE - execute the trap right away; POSTPONED - execute the trap during legacy boot.

Boot option lter

This option controls Legacy/UEFI ROM's priority.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Allows more than two frequency ranges to be supported.

Other PCI devices

Determines OpROM execution policy for devices other than network, storage, or video.

Figure 4 3-12: CSM Settings

4.3.13 USB Conguration

Legacy USB Support

Enables Legacy USB support. AUTO option disables Legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OS-es without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

USB Mass Storage Driver Support

Enable/disable USB mass storage driver support.

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OS-es.

USB transfer time-out

The time-out value for control, bulk, and interrupt transfers.

Device reset time-out

USB mass storage device start unit command time-out.

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value, for a root port it is 100 ms, for a hub port the delay is taken from the hub descriptor.

Figure 4 3-13: USB Settings

BIOS AND DRIVER SETTING

VT-d

VT-d capability.

GMM Device (B0:D8:F0)

Enable/disable SA GMM device.

Above 4GB MMIO BIOS assignment

Enable/disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when aperture size is set to 2048MB.

4.4.1 System Agent (SA) Conguration

Figure 4-4-1: System Agent Settings

4.4 Chipset

Figure 4-4: BIOS Chipset Menu

System Agent (SA) Conguration

System Agent (SA) parameters.

PCH-IO Conguration

PCH parameters.

GPIOManager Conguration

GPIOManager parameters.

4.4.2 Graphics Conguration of System Agent (SA)

GTT Size

Select the GTT Size.

Aperture Size

Select the Aperture Size. Note: Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

DVMT Total Gfx Mem

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

Cd Clock Frequency

Select the highest Cd Clock frequency supported by the platform.

Figure 4-4-2: Graphics Settings

4.4.3 PEG Port Conguration (SA)

PEG port options for PCIe device.

Figure 4-4-3: PEG Port Conguration

BIOS AND DRIVER SETTING

4.4.4 Memory Information of System Agent (SA)

Displays memory information.

Figure 4-4-4: Memory Information

4.4.5 PCH-IO Conguration

Figure 4-4-5: PCH-IO Settings

PCH LAN Controller

Enable or disable onboard NIC.

Wake on LAN

Enable or disable integrated LAN to wake the system. (The wake On LAN cannot be disabled if ME is on at Sx state.)

Serial IRQ Mode

Congure serial IRQ mode.

State After G3

Specify what state to go to when power is re-applied after a power failure (G3 state). S0 State: Always turn-on the system when power source plugged-in. S5 State: Always turn-off the system when power source plugged-in.

4.4.6 PCI Express Conguration of PCH-IO

Figure 4-4-6: PCH-IO Settings

DMI Link ASPM Control

Enable/Disable the control of Active State Power Management on SA side of the DMI Link.

Native PCIE Enable

PCI Express Native Support Enable/Disable. This feature is available in vista and beyond Windows OS.

4.4.7 BIOS Security Conguration of PCH-IO

BIOS Lock

Enable/disable the PCH BIOS Lock Enable (BLE bit) feature.

Figure 4-4-7: BIOS Security Settings

BIOS AND DRIVER SETTING

4.4.8 SB Porting Conguration of PCH-IO

SATA RAID ROM

Legacy ROM: Legacy option ROM UEFI Driver: UEFI Raid Driver Both: Run the Legacy Option ROM and UEFI driver.

Figure 4-4-8: RAID ROM Settings

4.4.9 GPIO Manager Conguration

VGA Enable

Enable: VGA display output enabled Disable: VGA display output disabled

Figure 4-4-9: GPIO Manager Settings

Set User Password

Set HDD user password. *** Advisable to power cycle system after setting hard disk passwords *** Discard or save changes option in setup does not have any impact on HDD when password is set or removed. If the 'Set HDD User Password' option is gray, do power cycle to enable the option again.

4.5.1 HDD Security Conguration

Figure 4-5-1: HDD Security Settings

4.5 Security

Figure 4-5: BIOS Security Menu

Administrator Password

Set administrator password.

User Password

Set user password.

BIOS AND DRIVER SETTING

4.6 Boot

Figure 4-6: BIOS Boot Menu

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indenite waiting.

Bootup NumLock State

Select the keyboard NumLock state.

Quiet Boot

Enables or disables Quiet Boot option.

Boot Option

Sets the system boot order.

New Boot Option Policy

Controls the placement of newly detected UEFI boot options.

Hard Drive BBS Priorities

Set the order of the Legacy devices in this group.

4.7 Save & Exit

Figure 4-7: Bios Save and Exit Menu

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Changes

Save changes done so far to any of the setup options.

Discard Changes

Discard changes done so far to any of the setup options.

Default Options:

Restore Defaults

Restore/load default values for all the setup options.

Save as User Defaults

Save the changes done so far as user defaults.

Restore User Defaults

Restore the user defaults to all the setup options.

Appendix A

APPENDIX A : Isolated DIO Guide

A.1 Function Description

ECS-9200 GTX1050 offers two 16-bit DIO (Isolated / Non-Isolated) 20-pin terminal block connector, a watchdog timer, and a 4-port POE. Isolated DIO pins are x by Hardware design that cannot change in / out direction in runtime process. DIO denition is shown below:

No.

DIO

Denition

GPIO

Denition

No.

DIO

Denition

GPIO

Denition

1 DI0 DIO0 11 DO0 DIO8

2 DI1 DIO1 12 DO1 DIO9

3 DI2 DIO2 13 DO2 DIO10

4 DI3 DIO3 14 DO3 DIO11

5 DI4 DIO4 15 DO4 DIO12

6 DI5 DIO5 16 DO5 DIO13

7 DI6 DIO6 17 DO6 DIO14

8 DI7 DIO7 18 DO7 DIO15

9 DI COM NC 19 DIO GND NC

10 DIO GND NC 20 External VDC NC

Appendix A

A.2 Isolated DIO Signal Circuit

DI reference circuit:

Sink Mode (NPN)

V+

V-

Power Supply

6-48V DC

DI_COM (Pin 9)

DI (Pin1-8)

DIO Connector

Source Mode (PNP)

V+

V-

Power Supply

6-48V DC

DI_COM (Pin 9)

DI (Pin1-8)

DIO Connector

DO reference circuit:

V+

V-

Device

6-48V DC

DIO_VDC (Pin 20)

DO (Pin11-18)

DIO_GND (Pin10,19)

DIO Connector

Source Mode (PNP)

Sink Mode (NPN, Default)

V+

V-

Device

6-48V DC

DIO_VDC (Pin 20)

DO (Pin11-18)

DIO_GND (Pin10,19)

DIO Connector

Port No. Denition Port No. Denition

LAN 3 POE 0 LAN 5 POE 2

LAN 4 POE 1 LAN 6 POE 3

POE denition is shown below:

Do NOT use these functions in below:

1. PE-2000: DIO1 (ID = 0), POE

2. SE-1000: POE

3. UE-1000: USB (ID = 0)

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Appendix A

A.3 Software Package Contain

Distribution folder include x32 and x64 versions, use batch le for installation. There are included as fallowed: Win7_32.bat: Installation for 32-bit driver Win7_64.bat: Windows update package which driver required (need to restart), and Installation for 64-bit driver Win8_32.bat, Win8_64.bat: Installation for driver, and guideline to Framework 3.5 distribution for sample Win10_32.bat, and Win10_64.bat: Installation for driver, and installation to Framework 3.5 distribution for sample Uninstall_32.bat, and Uninstall_64.bat: Uninstallation for driver Run batch le as Administrator. Support Windows 7 above. Make sure Windows version before installation. Runtime folder include head le for software developer or System Integration. Sample folder include sample program, driver library, and API library. Source folder include sample program source code that compile on Visual Studio 2008.

Appendix B

Sample ECS9K2.exe, shown as below:

A.4 Sample

Sample folder includes x32 and x64 versions, shown as below:

Appendix B

DIO1 / DIO2 group:

Isolate check button: DIO type of DIO conguration, isolated / non-isolated, dened in ECS-9000 series user manual. Read button: Set DIO conguration to get DI / DIO input state. DO type check button: User setting, DO type of DIO conguration to setup 8 pins - Source / Sink. Use for Write (DO) button activate. Write button: Set DIO conguration to set DO / DIO output state. DI preference text: User setting, DI type of DIO conguration by hexadecimal bitmask - Source / Sink. Use for Read (DI) button activate. DO / DIO output text: User setting, DO / DIO output state by hexadecimal bitmask - on / off. Use for Write button activate. DO / DIO writable text: User setting, DO / DIO writable of DIO conguration by hexadecimal bitmask - yes / no. Use for Read (DIO) / Write button activate. DI / DIO input text (read only): DI / DIO input state by hexadecimal bitmask – on /off. Use for Read button activate. DO / DIO text (read only): DO / DIO output state with input state (DIO) and conguration. Use for Write button activate. DO / DIO output text (read only): DO / DIO output state with conguration. Use for Write button activate. DI type pin texts (pin 8 ~ pin 1): User setting, DI pin type of DIO conguration - Source / Sink. DI / DIO input pin texts (read only, pin 8 ~ pin 1 / pin 18 ~ pin 11, pin 8 ~ pin 1): DI / DIO input pin state Use for Read button activate. DO / DIO output pin texts (pin 18 ~ pin 11 / pin 18 ~ pin 11, pin 8 ~ pin 1): User setting, DO / DIO output pin state Use for Write button activate. DO / DIO pin writable texts (pin 18 ~ pin 11 / pin 18 ~ pin 11, pin 8 ~ pin 1): User setting, DO / DIO pin writable of DIO conguration. Use for Read (DIO) / Write button activate.

WDT group:

Write button: Set WDT when WDT setup text is valid. Stop button: Cancel WDT and counting. Use after Write button action.

Appendix B

WDT setup text: User setting, WDT value, unit: second. Use for Write button activate. WDT counting text (read only): WDT counting by program timer after set WDT. Shown after Write button action. WDT setup day format texts (user setting): User setting, WDT value, format: day‘hour’minute’second. WDT counting day format text (read only): WDT counting, format: day‘hour’minute’second.

POE group:

Read button: Set POE conguration to get POE state. Write button: Set POE conguration to set POE state. POE output text: User setting, POE output state by hexadecimal bitmask - on / off. Use for Write button activate. POE writable text: User setting, POE writable of POE conguration by hexadecimal bitmask yes / no. Use for Write button activate. POE mode text: User setting, POE mode of POE conguration by hexadecimal bitmask Auto / Manual. Use for Write button activate. POE input text (read only): POE input state by hexadecimal bitmask - on / off. Use for Read button activate. POE text (read only): POE output state with input state and conguration. Use for Write button activate. POE output text (read only): POE output state with conguration. Use for Write button activate. POE input port texts (read only, port 4 ~ port 1): POE input port state Use for Read button activate. POE output port texts (port 4 ~ port 1): User setting, POE output port state Use for Write button activate. POE port writable texts (port 4 ~ port 1): User setting, POE port writable of POE conguration. Use for Write button activate. POE port mode texts (port 4 ~ port 1): User setting, POE port mode of POE conguration. Use for Write button activate.

Appendix B

APPENDIX B : Software Functions

B.1 Driver API Guide

In Runtime folder, on ECS9K2.h: _DLL_IMPORT_ denition is used on LoadLibrary API for ECS9K2.dll. ECS9K_EXPORTS denition is used on ECS9K2.dll building. Otherwise, that is used to compile with ECS9K2.lib.

BOOL Initial(BYTE Isolate_Type, BYTE DIO_NPN) Initial machine for DIO, watchdog timer, and POE Isolate_Type: DIO type 1: Isolated DIO; 0: Non-Isolated DIO DIO_NPN: DI / DO type 1: PNP (Source) mode for European rule; 0: NPN (Sink) mode for Japanese rule Return: TRUE (1): Success; FALSE (0): Fail (Driver not exists, or initial error (version is too old, or machine not match))

BOOL GetDIO1Cong(BYTE *Isolate_Type, BYTE *DI_NPN, WORD *Mask) BOOL GetDIO2Cong(BYTE *Isolate_Type, BYTE *DI_NPN, WORD *Mask) Get DIO conguration (by variable) Isolate_Type: DIO type 1: Isolated DIO; 0: Non-Isolated DIO DI_NPN ([7:0]): DI type, pin setting by hexadecimal bitmask 1: PNP (Source) mode for European rule; 0: NPN (Sink) mode for Japanese rule DO_NPN: DO type 1: PNP (Source) mode for European rule; 0: NPN (Sink) mode for Japanese rule Mask ([15:0]): In / Out, pin setting by hexadecimal bitmask 1: Output; 0: Input Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or call by pointer error, or hardware problem)

Appendix B

BOOL SetDIO1Cong(BYTE *Isolate_Type, BYTE *DI_NPN, BYTE *DO_NPN, WORD *Mask) BOOL SetDIO2Cong(BYTE *Isolate_Type, BYTE *DI_NPN, BYTE *DO_NPN, WORD *Mask) Set DIO conguration Isolate_Type: DIO type 1: Isolated DIO; 0: Non-Isolated DIO DI_NPN ([7:0]): DI type, pin setting by hexadecimal bitmask 1: PNP (Source) mode for European rule; 0: NPN (Sink) mode for Japanese rule DO_NPN: DO type 1: PNP (Source) mode for European rule; 0: NPN (Sink) mode for Japanese rule Mask ([15:0]): In / Out, pin setting by hexadecimal bitmask 1: Output; 0: Input Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or hardware problem)

BOOL GetDI1(BYTE *DI) BOOL GetDI2(BYTE *DI) Get isolated DIO input (DI) DI ([7:0]): Input state, pin setting by hexadecimal bitmask 1: High; 0: Low Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or call by pointer error, or hardware problem)

BOOL GetDO1(BYTE *DO) BOOL GetDO2(BYTE *DO) Get isolated DIO output (DO) DO ([7:0]): Output state, pin setting by hexadecimal bitmask 1: High; 0: Low Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or call by pointer error, or hardware problem)

BOOL SetDO1(BYTE DO) BOOL SetDO2(BYTE DO) Set isolated DIO output (DO) DO ([7:0]): Output state, pin setting by hexadecimal bitmask 1: High; 0: Low Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or hardware problem)

Appendix B

BOOL GetDIO1(WORD *DI) BOOL GetDIO2(WORD *DI) Get non-isolated DIO input (DIO input) DI ([15:0]): Input state, pin setting by hexadecimal bitmask 1: High; 0: Low Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or call by pointer error, or hardware problem)

BOOL SetDIO1(WORD DO) BOOL SetDIO2(WORD DO) Set non-isolated DIO output (DIO output) DO ([15:0]): output state, pin setting by hexadecimal bitmask 1: High; 0: Low Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or hardware problem)

BOOL GetWDT(DWORD *WDT) Get watchdog timer setup WDT: watchdog timer setup Unit: second. (Range: 0 ~ 65535 sec, 1093 ~ 65535 min (=65580 ~ 3932100 sec)) Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or call by pointer error, or hardware problem)

BOOL SetWDT(DWORD WDT) Set watchdog timer setup WDT: watchdog timer setup Unit: second. (Range: 1 ~ 65535 sec, 1093 ~ 65535 min (=65580 ~ 3932100 sec)) Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or setup 0 error, or hardware problem)

BOOL CancelWDT() Cancel watchdog timer Return: TRUE (1): Success; FALSE (0): Fail (Initial error, or hardware problem)

BOOL GetPOECong(BYTE *Auto, BYTE *Mask) Get POE conguration (by variable) Auto ([3:0]): Auto mode, pin setting by hexadecimal bitmask 1: Auto; 0: Manual Mask ([3:0]): DC Enable / Disable, pin setting by hexadecimal bitmask

Vecow ECS-9240-GTX1050T, ECS-9100-GTX1050, ECS-9240-GTX1050, ECS-9100-GTX1050T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
