Vecow ECS-9210, ECS-9210M, ECS-9201, ECS-9201M, ECS-9101 User Manual

...

Download

USER Manual

1.1.0 Edition 20170509

ECS-9200/9100

Quad Core Intel® Xeon®/ Core™ i7/ i5/ i3 Fanless Embedded System

High Performance, Rugged, Expandable, -40°C to 75°C Extended Temp

Version Date Page Description Remark

1.0 03/24/2017 All Ofcial Release

1.1 05/09/2017 92 Update

Record of Revision

iii

This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation or any infringements upon the rights of third parties, which may result from such use.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC

The products described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

This document contains proprietary information protected by copyright. No part of this publication may be reproduced in any form or by any means, electric, photocopying, recording or otherwise, without prior written authorization by Vecow Co., Ltd. The rights of all the brand names, product names, and trademarks belong to their respective owners.

Disclaimer

Declaration of Conformity

Part Number Description

ECS-9210M

ECS-9200, 6 GigE LAN w/4 M12 PoE+, 2 SSD Tray, 1 PCIe x16, 8 USB 3.0, 4 COM, 3 SIM, 32 Isolated DIO

ECS-9210

ECS-9200, 6 GigE LAN w/4 PoE

, 2 SSD Tray, 1 PCIe x16,

8 USB 3.0, 4 COM, 3 SIM, 32 Isolated DIO

ECS-9201M

ECS-9200, 6 GigE LAN w/4 M12 PoE

, 2 SSD Tray, 1 PCI,

8 USB 3.0, 4 COM, 3 SIM, 32 Isolated DIO

ECS-9201

ECS-9200, 6 GigE LAN w/4 PoE+, 2 SSD Tray, 1 PCI, 8 USB 3.0, 4 COM, 3 SIM, 32 Isolated DIO

ECS-9110

ECS-9100, 2 GigE LAN, 2 SSD Tray, 1 PCIe x16, 8 USB 3.0, 4 COM, 3 SIM, 16 GPIO

ECS-9101

ECS-9100, 2 GigE LAN, 2 SSD Tray, 1 PCI, 8 USB 3.0, 4 COM, 3 SIM, 16 GPIO

Order Information

Part Number Description

E3-1275 v6

7th Gen Intel® Xeon® E3-1275 v6 Processor (8M Cache, up to

4.20 GHz, 80W)

E3-1275 v5

6th Gen Intel

Xeon® E3-1275 v5 Processor (8M Cache, up to

4.00 GHz, 80W)

E3-1225 v5

6th Gen Intel

Xeon® E3-1225 v5 Processor (6M Cache, up to

3.70 GHz, 80W)

E3-1268L v5

6th Gen Intel

Xeon® E3-1268L v5 Processor (8M Cache, up

to 3.40 GHz, 35W)

i7-7700

7th Gen Intel

Core™ i7-7700 Processor (8M Cache, up to

4.20 GHz, 65W)

i7-7700T

7th Gen Intel

Core™ i7-7700T Processor (8M Cache, up to

3.80 GHz, 35W)

i7-6700

6th Gen Intel

Core™ i7-6700 Processor (8M Cache, up to

4.00 GHz)

i7-6700TE

6th Gen Intel

Core™ i7-6700TE Processor (8M Cache, up to

3.40 GHz)

Order Accessories

Part Number Description

i5-7500

7th Gen Intel

Core™ i5-7500 Processor (6M Cache, up to

3.80 GHz, 65W)

i5-7500T

7th Gen Intel

Core™ i5-7500T Processor (6M Cache, up to

3.30 GHz, 35W)

i5-6500

6th Gen Intel

Core™ i5-6500 Processor (6M Cache, up to

3.60 GHz)

i5-6500TE

6th Gen Intel

Core™ i5-6500TE Processor (6M Cache, up to

3.30 GHz)

i3-7101E

7th Gen Intel

Core™ i3-7101E Processor (3M Cache, up to

3.90 GHz, 65W)

i3-7101TE

7th Gen Intel

Core™ i3-7101TE Processor (3M Cache, up to

3.40 GHz, 35W)

i3-6100

6th Gen Intel

Core™ i3-6100 Processor (3M Cache, 3.70

GHz)

i3-6100TE

6th Gen Intel

Core™ i3-6100TE Processor (4M Cache, 2.70

GHz)

DDR4 16G Certied DDR4 16GB 2133MHz RAM

DDR4 8G Certied DDR4 8GB 2133MHz RAM

DDR4 4G Certied DDR4 4GB 2133MHz RAM

PWA-280WB-WT

280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C

PWA-160WB-WT

160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C

PWA-120W

120W, 24V, 90V AC to 264V AC Power Adapter with 4-pin Mini-DIN Connector

VESA Mount VESA Mounting Kit

DIN-RAIL DIN Rail Kit

Rack Mount 2U Rackmount Kit

TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm

TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm

TMB-TMBK-20P

Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting

3G Module Mini PCIe 3G/GPS Module with Antenna

4G Module Mini PCIe 4G/GPS Module with Antenna

WiFi & Bluetooth Module

Mini PCIe WiFi & Bluetooth Module with Antenna

Table of Contents

CHAPTER 1 GENERAL INTRODUCTION 1

1.1 Overview 1

1.2 Features 2

1.3 Product Specication 2

1.3.1 Specications of ECS-9210M 2

1.3.2 Specications of ECS-9210 4

1.3.3 Specications of ECS-9201M 7

1.3.4 Specications of ECS-9201 9

1.3.5 Specications of ECS-9110 12

1.3.6 Specications of ECS-9101 14

1.4 Supported CPU List 16

1.5 Mechanical Dimension 17

1.5.1 Dimensions of ECS-9210M 17

1.5.2 Dimensions of ECS-9210 17

1.5.3 Dimensions of ECS-9201M 18

1.5.4 Dimensions of ECS-9201 18

1.5.5 Dimensions of ECS-9110 19

1.5.6 Dimensions of ECS-9101 19

CHAPTER 2 GETTING TO KNOW YOUR ECS-9200/9100 20

2.1 Packing List 20

2.2 Front Panel I/O & Functions 21

2.3 Rear Panel I/O & Functions 28

2.4 Main Board Expansion Connectors 36

2.5 Main Board Jumper & Deep Switch Settings 48

2.6 Ignition Control 52

CHAPTER 3 SYSTEM SETUP 56

3.1 How to Open Your ECS-9200/9100 56

3.2 Installing CPU 60

vii

3.3 Installing DDR4 SO-DIMM Modules 63

3.4 Installing Mini PCIe Card 64

3.5 Installing CFast Card 65

3.6 Installing SIM Card 66

3.7 Installing PCI/ PCIe Card 67

3.8 Installing SSD/ HDD 69

3.9 Installing M.2 71

3.10 Installing M2DOM 72

3.11 Mounting Your ECS-9200/9100 74

CHAPTER 4 BIOS SETUP 80

4.1 Entering BIOS SETUP 80

4.2 Main 81

4.3 Advanced 81

4.4 Chipset 90

4.5 Security 95

4.6 Boot 96

4.7 Save & Exit 97

APPENDIX A : Isolated DIO Guide 98

APPENDIX B : Software Functions 101

APPENDIX C : RAID Installation Guide 104

APPENDIX D : Power Consumption 108

APPENDIX E : Supported Memory & Storage List 112

GENERAL INTRODUCTION

Vecow ECS-9200/9100 Series is a high-performance, all-in-one integrated, expandable Fanless Embedded Workstation System. LGA1151 Socket supports Quad Core 7th/6th Generation Intel

Xeon®/Core™ i7/i5/i3 processor

(Kaby Lake-S/Skylake-S) running with workstation-grade Intel

C236 chipset,

dual channel DDR4 2133MHz up to 32GB ECC memory, advanced Intel

HD Graphics 630/530 supporting DirectX 12, OpenGL 4.4 and OpenCL 2.0 API, onboard DVI-I, DVI-D and DisplayPort display interface for Ultra HD 4K resolution, ECS-9200/9100 offers leading CPU performance, power efciency, and graphics performance; PCIe 3.0 (8GT/s), Multiple SATA III (6Gbps), USB 3.0 (5Gbps), PoE (1Gbps) LAN and multiple wireless connections make seamless high-speed data conveying possible. Vecow ECS-9200/9100 Series Expandable Fanless Embedded System delivers outstanding system performance, power productivity and flexible manageability for performance-driven embedded computing applications.

All-in-one and cable-less designs, fanless -40°C to 75°C extended operating temperature, 6 GigE LAN ports with 4 IEEE 802.3at (25.5W/48V) PoE+ without additional power connections, 2 Front-access 2.5” SSD/HDD trays, 1 patented easy-swap PCI/PCIe slot, 3 external SIM card sockets for 3G/4G/LTE/WiFi/ GPRS/UMTS, 1 onboard M.2 socket, 1 M2DOM socket for up to 8GT per second data transfer, 1 front-access CFast socket, 2 SATA III supports software RAID functions, 8 external USB 3.0, 4 COM RS-232/422/485, 32 Isolated DIO, 6V to 36V wide range power input with 80V surge protection, configurable ignition power control, PCIe x16 expansion supports up to 160W power budget, smart remote management features, remote power switch, EN50155 and EN50121-3-2 compliant, Vecow ECS-9200/9100 Series Expandable Rugged Embedded System serves outstanding system performance, versatile I/O functions, flexible expansion features, and rugged reliability for embedded applications.

With outstanding system performance, all-in-one integrated features, smarter manageability, flexible expandability, great mobile availability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and more rugged reliability, Vecow ECS-9200/9100 Series Expandable Fanless Embedded System is your superb solution for Machine Vision, Rolling Stock, Intelligent Surveillance, Smart Manufacturing, ITS, Intelligent Automation, Vehicle Computing, and any Industry 4.0 performancedriven real-time embedded computing applications.

1.1 Overview

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

1.2 Features

• LGA 1151 Socket supports Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) with Intel

C236 Chipset

• Fanless, -40°C to 75°C Extended Operating Temperature

• 2 DDR4 2133MHz Memory, up to 32GB

• 6 Independent GigE LAN with 4 M12 IEEE 802.3at PoE

, iAMT 11.0 supported

• Expansion : 1 PCI/PCIe x16, 3 Mini PCIe/mSATA, 1 M.2

• PCIe x16 expansion supports up to 160W Power Budget

• Storage : 2 Front-access 2.5" SSD Tray, 1 CFast Socket, 1 M2DOM, 2 SATA III

• DVI-I, DVI-D and DisplayPort display interfaces, up to 4K display

• 32 Isolated DIO, 8 USB 3.0, 4 COM

• 3 External SIM Card Socket support 3G/4G/LTE/WiFi/GPRS/UMTS

• M2DOM supports up to 8GT/s data rate

• 6V to 36V DC Power Input with 80V Surge Protection

• Configurable Ignition Power Control

1.3 Product Specication

1.3.1 Specications of ECS-9210M

System

Processor Quad Core 7th/6th Intel® Xeon®/Core™ i7/i5/i3 Processor

(Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/422/485 with auto flow control (ESD 8KV)

USB • 8 External USB 3.0 (4 Front, 4 Rear)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless, PoE

SIM Card 3 External SIM Card Socket

GENERAL INTRODUCTION

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

PCI/PCIe 1 PCIe x16 Slot supports up to 160W Power Budget

M.2 1 M.2 Socket (Key ID : M)

Graphics

Graphics Processor Intel® HD Graphics 630/530

Interface • DVI-I : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1200 @ 60Hz

• DisplayPort : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps) support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

PoE (M12)

LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12

Connector

LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210, M12

Connector

LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210, M12

Connector

LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210, M12

Connector

Power

Input Voltage 6V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.2 kg (9.26 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

• Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

• Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 :

-40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 75°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

1.3.2 Specications of ECS-9210

System

Processor Quad Core 7th/6th Intel® Xeon®/Core™ i7/i5/i3 Processor

(Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

GENERAL INTRODUCTION

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/422/485 with auto flow control (ESD 8KV)

USB • 8 External USB 3.0 (4 Front, 4 Rear)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless, PoE

SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

PCI/PCIe 1 PCIe x16 Slot supports up to 160W Power Budget

M.2 1 M.2 Socket (Key ID : M)

Graphics

Graphics Processor Intel® HD Graphics 630/530

Interface • DVI-I : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1200 @ 60Hz

• DisplayPort : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps) support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

PoE

LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

Power

Input Voltage 6V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.2 kg (9.26 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

• Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

• Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 :

-40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 75°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

GENERAL INTRODUCTION

1.3.3 Specications of ECS-9201M

System

Processor Quad Core 7th/6th Intel® Xeon®/Core™ i7/i5/i3 Processor

(Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/422/485 with auto flow control (ESD 8KV)

USB • 8 External USB 3.0 (4 Front, 4 Rear)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless, PoE

SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

PCI/PCIe 1 PCI Slot

M.2 1 M.2 Socket (Key ID : M)

Graphics

Graphics Processor Intel® HD Graphics 630/530

Interface • DVI-I : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1200 @ 60Hz

• DisplayPort : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps) support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

PoE (M12)

LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12

Connector

LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210, M12

Connector

LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210, M12

Connector

LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210, M12

Connector

Power

Input Voltage 6V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.2 kg (9.26 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

• Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

• Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 :

-40°C to 45°C (-40°F to 113°F)

GENERAL INTRODUCTION

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 75°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

1.3.4 Specications of ECS-9201

System

Processor Quad Core 7th/6th Intel® Xeon®/Core™ i7/i5/i3 Processor

(Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/422/485 with auto flow control (ESD 8KV)

USB • 8 External USB 3.0 (4 Front, 4 Rear)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless, PoE

SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

PCI/PCIe 1 PCI Slot

M.2 1 M.2 Socket (Key ID : M)

Graphics

Graphics Processor Intel® HD Graphics 630/530

Interface • DVI-I : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1200 @ 60Hz

• DisplayPort : Up to 4096 x 2304 @ 60Hz

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

Storage

SATA 2 SATA III (6Gbps) support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

PoE

LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

Power

Input Voltage 6V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.2 kg (9.26 lb)

GENERAL INTRODUCTION

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

• Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

• Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 :

-40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 75°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

1.3.5 Specications of ECS-9110

System

Processor Quad Core 7th/6th Intel® Xeon®/Core™ i7/i5/i3 Processor

(Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/422/485 with auto flow control (ESD 8KV)

USB • 8 External USB 3.0 (4 Front, 4 Rear)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless

SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

PCI/PCIe 1 PCIe x16 Slot supports up to 160W Power Budget

M.2 1 M.2 Socket (Key ID : M)

Graphics

Graphics Processor Intel® HD Graphics 630/530

Interface • DVI-I : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1200 @ 60Hz

• DisplayPort : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps) support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

GENERAL INTRODUCTION

Power

Input Voltage 6V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.2 kg (9.26 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

• Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

• Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 :

-40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 75°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

1.3.6 Specications of ECS-9101

System

Processor Quad Core 7th/6th Intel® Xeon®/Core™ i7/i5/i3 Processor

(Kaby Lake-S/Skylake-S)

Chipset Intel

C236

BIOS AMI

SIO IT8786E

Memory • DDR4 2133MHz

• Up to 32GB

• 2 260-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/422/485 with auto flow control (ESD 8KV)

USB • 8 External USB 3.0 (4 Front, 4 Rear)

• 1 USB 2.0 (Internal)

Isolated DIO 32 Isolated DIO (16 DI, 16 DO)

LED Power, HDD, Wireless

SIM Card 3 External SIM Card Socket

Expansion

Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA

PCI/PCIe 1 PCI Slot

M.2 1 M.2 Socket (Key ID : M)

Graphics

Graphics Processor Intel® HD Graphics 630/530

Interface • DVI-I : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1200 @ 60Hz

• DisplayPort : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps) support software RAID 0, 1

mSATA 3 SATA III (Mini PCIe Type, 6Gbps)

M2DOM 1 PCIe 3.0 (8GT/s)

Storage Device • 1 CFast Socket, Push-in/Push-out Ejector

• 2 Front-access 2.5" SSD/HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2 Intel

I210 GigE LAN

GENERAL INTRODUCTION

Power

Input Voltage 6V to 36V, DC-in

Power Interface 3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 10, Windows 8.1, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")

Weight 4.2 kg (9.26 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount (Optional)

• 2U Rackmount (Optional)

Environment

Operating Temperature 35W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)

• Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)

65W TDP CPU :

• Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)

80W TDP CPU :

• Xeon

E3-1275 v6, E3-1275 v5, E3-1225 v5 :

-40°C to 45°C (-40°F to 113°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% Humidity, non-condensing

Relative Humidity 95% at 75°C

Shock • IEC 60068-2-27

• SSD : 50G @ Wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN50155, EN50121-3-2

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

1.4 Supported CPU List

Processor No. TDP Cache Max. Frequency Embedded

Xeon

E3-1575M v5 45W 8M Up to 3.00 GHz

Xeon

E3-1545M v5 45W 8M Up to 2.90 GHz

Xeon

E3-1535M v5 45W 8M Up to 2.80 GHz

Xeon

E3-1515M v5 45W 8M Up to 2.80 GHz

Xeon

E3-1505M v5 45W 8M Up to 2.80 GHz Yes

Xeon

E3-1505L v5 25W 8M Up to 2.00 GHz

Core i7-6970HQ 45W 8M Up to 3.70 GHz

Core i7-6920HQ 45W 8M Up to 3.80 GHz

Core i7-6870HQ 45W 8M Up to 3.60 GHz

Core i7-6820HQ 45W 8M Up to 3.60 GHz

Core i7-6770HQ 45W 6M Up to 3.50 GHz

Core i7-6700HQ 45W 6M Up to 3.50 GHz

Core i7-6820EQ 45W 8M Up to 3.50 GHz Yes

Core i7-6822EQ 25W 8M Up to 2.80 GHz

Core i5-6440HQ 45W 6M Up to 3.50 GHz

Core i5-6350HQ 45W 6M Up to 3.20 GHz

Core i5-6300HQ 45W 6M Up to 3.20 GHz

Core i5-6440EQ 45W 6M Up to 3.40 GHz Yes

Core i5-6442EQ 45W 6M Up to 2.70 GHz

GENERAL INTRODUCTION

1.5 Mechanical Dimension

1.5.1 Dimensions of ECS-9210M

155.0 (6.10”)

215.0 (8.46”)

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

79.1 (3.11”)

Unit: mm (inch)

1.5.2 Dimensions of ECS-9210

155.0 (6.10”)

215.0 (8.46”)

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

79.1 (3.11”)

Unit: mm (inch)

GENERAL INTRODUCTION

©Vecow ECS-9200/9100 User Manual

1.5.3 Dimensions of ECS-9201M

155.0 (6.10”)

215.0 (8.46”)

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

79.1 (3.11”)

Unit: mm (inch)

1.5.4 Dimensions of ECS-9201

155.0 (6.10”)

215.0 (8.46”)

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

79.1 (3.11”)

Unit: mm (inch)

GENERAL INTRODUCTION

1.5.5 Dimensions of ECS-9110

155.0 (6.10”)

215.0 (8.46”)

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

79.1 (3.11”)

Unit: mm (inch)

1.5.6 Dimensions of ECS-9101

155.0 (6.10”)

215.0 (8.46”)

260.0 (10.24”)

282.0 (11.10”)

297.0 (11.69”)

79.1 (3.11”)

Unit: mm (inch)

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

GETTING TO KNOW YOUR ECS-9200/9100

2.1 Packing List

Item Description Qty

1 ECS-9200/9100 Expandable Fanless Embedded System

(According to the conguration you order, the ECS-9200/9100 series may contain SSD/HDD and DDR4 SO-DIMM. Please verify these items if necessary.)

2 ECS-9200-Accessory box, which contains

● Vecow Drivers & Utilities DVD

● Wall-mounting bracket

● KHS#6-32x6 screw for wall-mounting bracket

● M2.5x6 screw for Mini PCIe Slot

● Din-Rail-PH-M4x16.5-S Ni

● PH-M3x6 screw for M.2 slot

● 3-pin pluggable terminal block

● 20-pin pluggable terminal block

● Foot Pad

● F-M3x4 for SSD/HDD screws

1 2 4 3 4 1 2 2 4 4

3 ECS-9100-Accessory box, which contains

● Vecow Drivers & Utilities DVD

● Wall-mounting bracket

● KHS#6-32x6 screw for wall-mounting bracket

● M2.5x6 screw for Mini PCIe Slot

● Din-Rail-PH-M4x16.5-S Ni

● PH-M3x6 screw for M.2 slot

● 3-pin pluggable terminal block

● 20-pin pluggable terminal block

● Foot Pad

● F-M3x4 for SSD/HDD screws

1 2 4 3 4 1 2 1 4 4

GETTING TO KNOW YOUR ECS-9200/9100

2.2 Front Panel I/O & Functions

In Vecow ECS-9200/9100 series family, all I/O connectors are located on front panel and rear panel. Most of the general connections to computer device, such as USB, LAN Jack, Audio, Display Port, DVI-I, DVI-D and any additional storage, are placed on the front panel.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.1 Power Button

The Power Button is a non-latched switch with dual color LED indication. It indicates power status: S0, S3 and S5. More detail LED indications are listed as follows:

To power on the system, press the power button and then the blue LED is lightened. To power off the system, you can either command shutdown by OS operation, or just simply press the power button.

If system error, you can just press the power button for 4 seconds to shut down the machine directly. Please do note that a 4-second interval between each 2 power-on/ power-off operation is necessary in normal working status. (For example, once turning off the system, you have to wait for 4 seconds to initiate another power-on operation.)

LED Color Power Status System Status

Solid Blue S0 System working

Solid Orange S3, S5 Suspend to RAM, System off with standby power

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

Pin No. Description Pin No. Description

S1 GND PC6 NC

S2 SATA_TXP4 PC7 GND

S3 SATA_TXN4 PC8 CFAST_LED

S4 GND PC9 NC

S5 SATA_RXN4 PC10 NC

S6 SATA_RXP4 PC11 NC

S7 GND PC12 NC

2.2.3 CFast Card

There is a CFast socket on the front panel supporting Type-I/II Compact Flash card. It is implemented by a SATA III Port from C236 PCH. Be sure to disconnect the power source and unscrew the CFast socket cover before installing a CFast card. The ECS-9200/9100 does not support the CFast hot swap and PnP (Plug and Play) functions. It is necessary remove power source rst before inserting or removing the CFast card.

The pinouts of CFast port are listed as follows:

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.2 Reset Tact Switch

It is a hardware reset switch. Use this switch to reset the system without power off the system. Press the Reset Switch for a few seconds, and then reset will be enabled.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100

Pin No. Description Pin No. Description

PC1 GND PC13 +3.3V

PC2 GND PC14 +3.3V

PC3 NC PC15 GND

PC4 NC PC16 GND

PC5 NC PC17 NC

2.2.4 PWR and HDD LED Indicator

HDD LED/Yellow : A Hard Disk/ CFast LED. If the LED is on, it indicates that the system’s storage is functional. If it is off, it indicates that the system’s storage is not functional. If it is ashing, it indicates data access activities.

Power LED/Green: If the LED is solid green, it indicates that the system is powered on.

LED Color Power Status System Status

Yellow HDD/ CFast

• On/ Off : Storage status, function or not.

• Twinkling : Data transferring.

Green Power System power status (on/ off)

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.5 DVI-D Connector

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

The DVI-D connector on the front panel supports DVI display. This connector can output DVI signal. The DVI output mode supports up to 1920 x 1200 resolution and output mode supports up to 1920 x 1200 resolution. The DVI is automatically selected according to the connected display. You will need a DVI-D cable when connecting to a display device.

2.2.6 DVI-I Connector

The DVI-I connector on the front panel supports both DVI and VGA display modes. This connector can output DVI signals. The DVI output mode supports up to 1920x1200 resolution. The DVI mode is automatically selected according to the connected display and you will need a DVI-I cable when connecting to a display device. The VGA output mode supports up to 1920x1200 resolution. If using VGA function, you will need a DVI-I to VGA module connected to DVI-I device. Below is the DVI-I to VGA dongle image :

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

Onboard Display Port supports auxiliary channel dual mode and the connection supports up to 4096x2304 resolution at 60 Hz.

2.2.7 DisplayPort

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

GETTING TO KNOW YOUR ECS-9200/9100

2.2.8 USB 3.0

There are 4 USB 3.0 connections available supporting up to 5GB per second data rate in the front side of ECS-9200/9100. It is also compliant with the requirements of Super Speed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS).

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

2.2.9 Ethernet Port

There are dual 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet connections in the front side. LAN 1 is powered by Intel i219 Ethernet Phy and LAN 2 is powered by Intel I210 Ethernet engine. When both LAN 1 and LAN 2 work at normal status, iAMT 11.0 function is enabled.

Using suitable RJ-45 cable, you can connect the system to a computer or to any other devices with Ethernet connection; for example, a hub or a switch. Moreover, both LAN 1 and LAN 2 support Wake on LAN and Pre-boot functions. The pin-outs of LAN 1 and LAN 2 are listed as follows:

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

Multi-Stream Transport Display Max. Resolution

One panel Display 4096x2304@60Hz

Two panel Displays concurrently 2880x1800@60Hz

Three panel Displays concurrently 2304x1440@60Hz

Multi-Stream Transport Display Resolutions Table:

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

There are 2 audio connectors, Mic-in and Line-out, in the front side of ECS-9200. Onboard Realtek ALC892 audio codec supports 5.1 channel HD audio and fully complies with Intel® High Denition Audio (Azalia) specications.

2.2.10 Audio Jack

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

Each LAN port is supported by standard RJ-45 connector with LED indicators to present Active/ Link/ Speed status of the connection.

The LED indicator on the right bottom corner lightens in solid green when the cable is properly connected to a 100 Mbps Ethernet network,and it lightens in solid orange when the cable is properly connected to a 1000Mbps Ethernet network. The left LED will keep twinkling/ off when Ethernet data packets are being transmitted/ received.

1 8

10Mbps 100Mbps 1000Mbps

Right

Bottom Led

Off Solid

Green

Solid

Orange

Left

Bottom Led

Flash

Yellow

Flash

Yellow

Flash

Yellow

Pin No. 10/ 100Mbps 1000Mbps

1 E_TX+ MDI0_P

2 E_TX- MDI0_N

3 E_RX+ MDI1_P

4 ---- MDI2_P

5 ----- MDI2_N

6 E_RX- MDI1_N

7 ----- MDI3_P

8 ------ MDI3_N

GETTING TO KNOW YOUR ECS-9200/9100

2.2.11 WLAN LED, Mini PCIe, SIM Card Comparison

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

Mini PCIe SIM LED

Mini PCIe 1 SIM 1 (CN12) 1

Mini PCIe 2 SIM 2 (CN13) 2

Mini PCIe 3 SIM 3 (CN11) 3

Mini PCIe Slot/SIM Slot/WLAN LED Mapping Table :

Note: The SIM card sockets do not support hot-plug. Please make sure to unplug the system power before inserting the SIM card(s).

Mini PCIe 3

CN11

Mini PCIe 2

Mini PCIe 1

CN12 CN13

To utilize the audio function in Windows platform, you need to install corresponding drivers for both Intel C236 chipset and Realtek ALC892 codec.

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

2.2.12 SSD/ HDD Tray

There are 2 front-access 2.5” SSD/ HDD trays in the front side of ECS9200/9100. Just trigger to open the SSD/ HDD tray, up to 4TB is available.

RST

DP LAN 1

LAN 2

DVI-D

DVI-I

CFast

SIM 2 SIM 3

SIM 1

1 2 3

WLAN

HDD 1

HDD 2

2.3 Rear Panel I/O & Functions

2.3.1 Power Terminal Block

This system supports 6V to 36V DC power input by terminal block in the rear side. In normal power operation, power LED lightens in solid green and supports up to 80V surge protection.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Pin No. Denition Pin No. Denition

1 V+ 2 V-

3 Chassis Ground

GETTING TO KNOW YOUR ECS-9200/9100

2.3.2 Remote Power On/ O Switch & Ignition

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

It is a 3-pin power-on or power-off switch through Phoenix Contact terminal block. You could turn on or off the system power by using this contact. This terminal block supports dual function of soft power-on/ power-off (instant off or delay 4 second), and suspend mode.

Pin No. Denition Pin No. Denition

1 Ignition 2 External Power Button V+

3 External Power Button V-

BIOS Setting Function

COM 1

COM 2

COM 3

COM 4

RS-232

RS-422 (5-wire)

RS-422 (9-wire)

RS-485

RS-485 w/z auto-ow control

2.3.3 COM Ports

Serial port 1 to 4 (COM 1 to 4) can be congured for RS-232, RS-422, or RS485 with auto ow control communication. The default denition of COM 1 and COM 2 is RS-232. If you want to change to RS-422 or RS-485, you can nd the setting in BIOS.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

Serial

Port

Pin No. RS-232 RS-422

(5-wire)

RS-422 (9-wire)

RS-485 (3-wire)

1 to 4

1 DCD TXD- TXD- DATA-

2 RXD TXD+ TXD+ DATA+

3 TXD RXD+ RXD+ -----------

4 DTR RXD- RXD- -----------

5 GND GND GND GND

6 DSR ----------- RTS- -----------

7 RTS ----------- RTS+ -----------

8 CTS ----------- CTS+ -----------

9 RI ----------- CTS- -----------

The pin assignments are listed in the table as below:

COM3 & COM 4 MB connector table:

COM Port MB Connector COM Port MB Connector

COM 3 CN9 COM 4 CN10

CN Pin No. Signal Name

CN9(COM3)

CN10(COM4)

1 Chassis GND

2 GND

3 RI

4 DTR

5 CTS

6 TXD

7 RTS

8 RXD

9 DSR

10 DCD

COM 3 & COM 4 MB connector pin out:

CN9

GETTING TO KNOW YOUR ECS-9200/9100

2.3.4 Rear USB 3.0

There are 4 USB 3.0 connections available supporting up to 5GB per second data rate in the rear side of ECS-9200/9100. It is also compliant with the requirements of Super Speed (SS), High Speed (HS), Full Speed (FS) and Low Speed (LS).

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

2.3.5 PoE (Power over Ethernet) Ports

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

There are 4 RJ45 connectors or 4 M12 connectors in the rear side of ECS9200/9200M. It supports IEEE 802.3at (PoE+) Power over Ethernet (PoE) connection delivering up to 30.4W/54V per port and 1000BASE-T GigE data signals over standard Ethernet Cat 5/Cat 6 cable. Each PoE connection is powered by Intel® I210 GigE Ethernet controller and independent PCI express interface to connect with multi-core processor for network and data transmit optimization. Only when PoE port starts to supply power to power devices, the dedicated LED will be lightened.

PS. Suggest to use PoE function when power input is over 12V.

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

Each LAN port is supported by standard RJ-45 connector with LED indicators to present Active/Link/Speed status of the connection & PoE status LED.

The LED indicator on the right bottom corner lightens in solid green when the cable is properly connected to a 100 Mbps Ethernet network. The LED indicator on the right bottom corner lightens in solid orange when the cable is properly connected to a 1000Mbps Ethernet network. The left LED will keep twinkling/off when Ethernet data packets are being transmitted/received.

1 8

LED Status 10Mbps 100Mbps 1000Mbps

Right

Bottom Led

Off

Solid

Green

Solid

Orange

Left

Bottom Led

Flash

Yellow

Flash

Yellow

Flash

Yellow

LED Location LED Color Status

LED 3 - 6 Solid Green POE ON

POE LED indicator:

Pin No. 10/ 100 Mbps 1000 Mbps PoE

1 E_TX+ MDI0_P PoE+

2 E_TX- MDI0_N PoE+

3 E_RX+ MDI1_P PoE-

4 ---- MDI2_P ----

5 ----- MDI2_N ----

6 E_RX- MDI1_N PoE-

7 ----- MDI3_P ----

8 ------ MDI3_N ----

The pin-outs of LAN3 to LAN6 are listed as follows:

GETTING TO KNOW YOUR ECS-9200/9100

2.3.6 Isolated DIO

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

There is a 32-bit (16-bit DI, 16-bit DO) with 2 DIO connectors in the rear side. DI/ DIO support NPN(sink) and PNP(Source) mode, Each DI channel is equipped with a photocouper for isolated protection. Each DO with isolator chip is congured by a software for each DIO connector. DO Safety-Related Certications:

• 4242-VPK Basic Isolation per DIN V VDE V 0884-10 and DIN EN 61010-1

• 3-KVRMS Isolation for 1 minute per UL 1577

• CSA Component Acceptance Notice 5A, IEC 60950-1 and IEC 61010-1 End Equipment Standards

• GB4943.1-2011 CQC Certied

Isolated

DIO

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

DIO Pin No. Denition Function

DIO1

1 INPUT 0 SIO_GPI80

2 INPUT 1 SIO_GPI81

3 INPUT 2 SIO_GPI82

4 INPUT 3 SIO_GPI83

5 INPUT 4 SIO_GPI84

6 INPUT 5 SIO_GPI85

7 INPUT 6 SIO_GPI86

8 INPUT 7 SIO_GPI87

9 DI1_COM -

10 DIO1_GND -

11 OUTPUT 0 SIO_GPO70

12 OUTPUT 1 SIO_GPO71

13 OUTPUT 2 SIO_GPO72

14 OUTPUT 3 SIO_GPO73

15 OUTPUT 4 SIO_GPO74

16 OUTPUT 5 SIO_GPO75

17 OUTPUT 6 SIO_GPO76

18 OUTPUT 7 SIO_GPO77

19 DIO1_GND -

20 DIO1_VDC (6~48V Input) -

DIO Connectors pin out:

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

DIO Pin No. Denition Function

DIO2

1 INPUT 0 SIO_GPI37

2 INPUT 1 SIO_GPI56

3 INPUT 2 SIO_GPI57

4 INPUT 3 SIO_GPI15

5 INPUT 4 SIO_GPI16

6 INPUT 5 SIO_GPI35

7 INPUT 6 SIO_GPI46

8 INPUT 7 SIO_GPI11

9 DI2_COM -

10 DIO2_GND -

11 OUTPUT 0 SIO_GPO22

12 OUTPUT 1 SIO_GPO26

13 OUTPUT 2 SIO_GPO64

14 OUTPUT 3 SIO_GPO65

15 OUTPUT 4 SIO_GPO41

16 OUTPUT 5 SIO_GPO40

17 OUTPUT 6 SIO_GPO52

18 OUTPUT 7 SIO_GPO27

19 DIO2_GND -

20 DIO2_VDC (6~48V Input) -

DI reference circuit:

Sink Mode (NPN)

V+

V-

Power Supply

6-48V DC

DI_COM (Pin 9)

DI (Pin1-8)

DIO Connector

Source Mode (PNP)

V+

V-

Power Supply

6-48V DC

DI_COM (Pin 9)

DI (Pin1-8)

DIO Connector

GETTING TO KNOW YOUR ECS-9200/9100

2.3.7 Add Card

Optional for PCIex16 FHHL add on card or PCI card.

COM 1

COM 2

COM 3COM 4

V+ V

On | Off

DC-IN

IGN

LAN6

PoE

LAN5

PoE

LAN4

PoE

LAN3

PoE

Isolated

DIO 2

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

Isolated

DIO 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

20 11

10 1

DO reference circuit:

V+

V-

Device

6-48V DC

DIO_VDC (Pin 20)

DO (Pin11-18)

DIO_GND (Pin10,19)

DIO Connector

Source Mode (PNP)

Sink Mode (NPN, Default)

V+

V-

Device

6-48V DC

DIO_VDC (Pin 20)

DO (Pin11-18)

DIO_GND (Pin10,19)

DIO Connector

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

2.4 Main Board Expansion Connectors

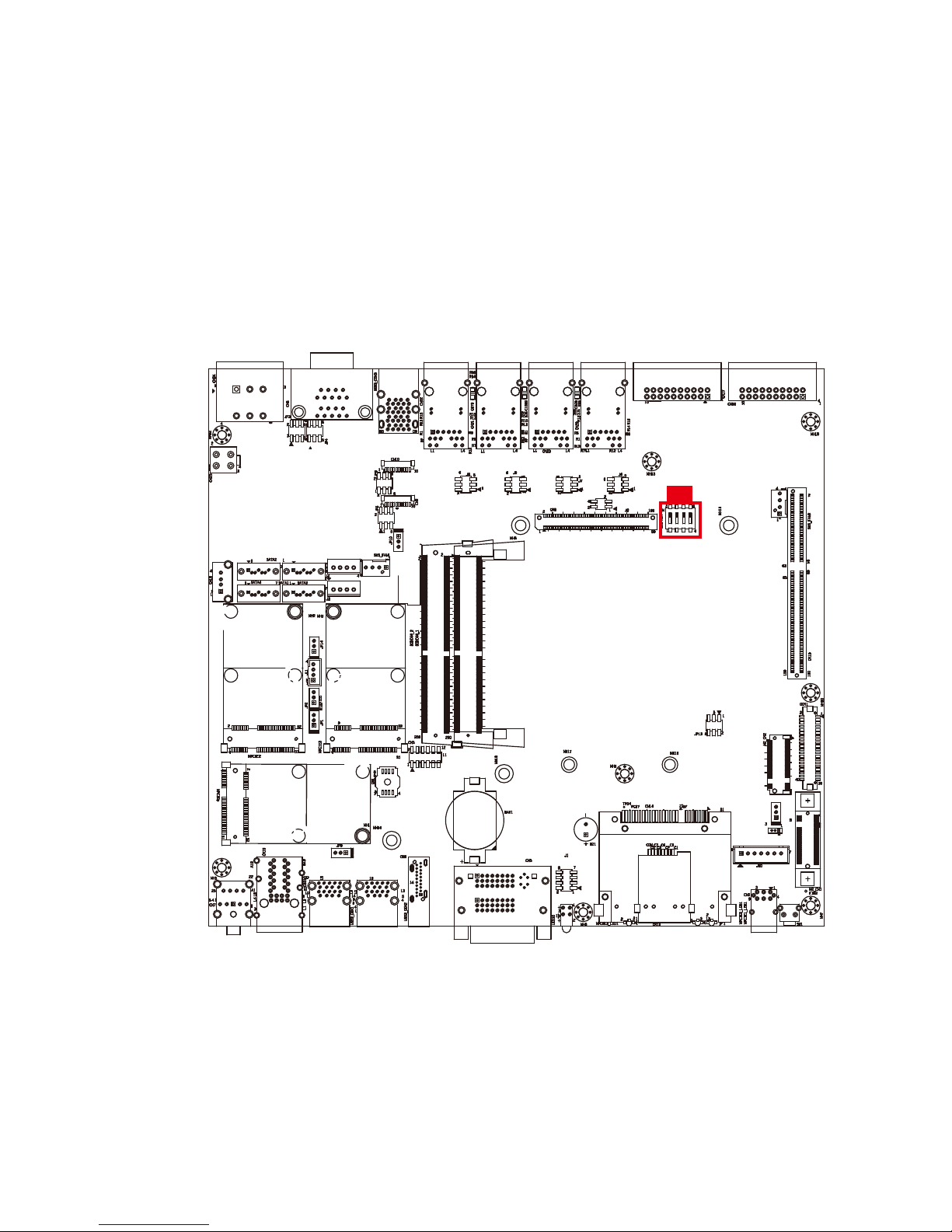

2.4.1 Inside View of ECS-9200/9100 Main Board with Connector Location

SATA 2 SATA 1

CN15

FAN2

JP10

CN3

CN6

CN18

JP1

JP3

Battery

BIOS

CN10

JP5

JP6

JP9

J9 J8 J7 J6

JP4

SW2

CN25

CN9

FAN1

JP2 Mini PCIe 3Mini PCIe 2

Mini PCIe 1

SODIMM 2 SODIMM 1

M2_CN2

M2_CN1

GETTING TO KNOW YOUR ECS-9200/9100

2.4.2 UPS Power Connector

For UPS module optional, we use 4.2mm 2x2p power connector. This system has a UPS power input connector for Optional part UPS Module.

Pin No. Denition Pin No. Denition

1 Ground 2 Ground

+VDC_IN

(6~36V, Max.8A)

+VDC_IN

(6~36V, Max.8A)

CN25

2.4.3 Miscellaneous Pin Header

2.0mm 2x4p header This pin header can be used as a backup for following functions, such as hard drive LED indicator, reset button, power LED indicator, and power-on/ off button, which already can be accessed by front panel and top panel. The pin-outs of Miscellaneous port are listed in following table:

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

Group Pin No. Description

HDD LED

1 HDD_LED_P

3 HDD_LED_N

RESET BUTTON

5 FP_RST_BTN_N

7 Ground

POWER LED

2 PWR_LED_P

4 PWR_LED_N

POWER BUTTON

6 FP_PWR_BTN_IN

8 Ground

2.4.4 DDR4 Slot

There are 2 DDR4 channel onboard supporting DDR4 2133/1866 and up to 32GB. (Each channel 16GB)

Slot Description Slot Description

SODIMM_1 DDR4 Channel A SODIMM_2 DDR4 Channel B

SODIMM 2 SODIMM 1

GETTING TO KNOW YOUR ECS-9200/9100

2.4.5 BIOS Socket

If the BIOS needs to be changed, please contact the Vecow RMA service team.

2.4.6 SATA Connector

Standard 7 PIN SATA Connector There are 2 onboard high performance Serial ATA III. It supports higher storage capacity with less cabling effort and smaller required space.

SATA 1

SATA 2

Pin No. Denition

1 Ground

2 TX DP

3 TX DN

4 Ground

Pin No. Denition

5 RX DN

6 RX DP

7 Ground

BIOS

GETTING TO KNOW YOUR ECS-9200/9100©Vecow ECS-9200/9100 User Manual

2.4.7 SATA Power Header

Standard, all form factor 1x4p power header There are 2 HDD power header on board and each power header supports two

2.5” SATA HDD.

Pin No. Description Pin No. Description

1 +V5 (Max. 4A) 2 Ground

3 Ground 4 +V12 (Max. 1.5A)

2.4.8 Internal USB2.0

Standard Vertical USB2.0 Connector The ECS-9200/9100 main board provides one expansion USB port using plugand-play for Dongle Key or LCD touch Panel. The USB interface supports 480 Mbps transfer rate complied with high speed USB specication Rev. 2.0.

The USB interface is accessed through one standard USB 2.0 connector. This USB 2.0 does not support wake up function.

CN18

GETTING TO KNOW YOUR ECS-9200/9100

Pin No. Denition Pin No. Denition

1 USB +VCC (+V5/Max. 0.5A) 2 DATA-

3 D ATA+ 4 Ground

2.4.9 M2DOM

Innodisk M2DOM S20/S30 3ME3 is a M.2 based disk module with vertical type form factor. Its mechanical design can help board maker to release up to 90% space of motherboard as well as improve system reliability by its fixed mechanism. M2DOM series product will offer with multiple interfaces, including both SATA III and PCIe. The SSD supports hot plug function and can be removed or plugged-in during operating. User has to avoid hot plugging the SSD which is congured as boot device and installed operation system.

Support hot plug: The insertion of a SATA device into a backplane (signal and power combined) that has power present. The device powers up and initiates an OOB sequence. Support hot removal: The removal of a SATA device from a powered backplane, without rst being placed in a quiescent state.

M2_CN1

Model No. Denition

M2DOM

S20

3ME3

8GB

S20 / S30 16GB

S20 / S30 32GB

S20 / S30 64GB

S30 128GB

Pin No. Function Pin No. Function

75 GND

73 GND 74 +3.3V

71 GND 72 +3.3V

PEDET (NC-PCIe/GND-

SATA)

70 +3.3V

67 N/C 68 N/C

Mechanical Key

57 GND 58 N/C

55 REFCLKp 56 N/C

53 REFCLKn 54 WAKE#

51 GND 52 CLKREQ#

49 PETp0 /SATA-A+ 50 PERST#

47 PETn0 /SATA-A- 48 N/C

45 GND 46 N/C

43 PERp0 /SATA-B- 44 N/C

41 PERn0 /SATA-B+ 42 N/C

39 GND 40 N/C

37 PETp1 38 DEVSLP

35 PETn1 36 N/C

33 GND 34 N/C

Pin Out:

2.4.10 M.2

Standard Type 2280 M.2 (M key) slot:

M2_CN2

GETTING TO KNOW YOUR ECS-9200/9100

31 PERp1 32 N/C

29 PERn1 30 N/C

27 GND 28 N/C

25 PETp2 26 N/C

23 PETn2 24 N/C

21 GND 22 N/C

19 PERp2 20 N/C

17 PERn2 18 +3.3V

15 GND 16 +3.3V

13 PETp3 14 +3.3V

11 PETn3 12 +3.3V

9 GND 10

DAS/DSS# (I/O)/LED1#

(I)(0/3.3V)

7 PERp3 8 N/C

5 PERn3 6 N/C

3 GND 4 +3.3V

1 GND 2 +3.3V

2.4.11 Mini PCIe

Mini PCIe 3Mini PCIe 2

Mini PCIe 1

Standard full length Mini PCIe slot:

Pin No. function Pin No. function

51 Reserved 52 +3.3Vaux

49 Reserved 50 GND

47 Reserved 48 +1.5V

45 Reserved 46 Reserved

43 GND 44 Reserved

41 +3.3Vaux 42 Reserved

39 +3.3Vaux 40 GND

37 GND 38 USB_D+

35 GND 36 USB_D-

33 PETp0 34 GND

31 PETn0 32 SMB_DATA

29 GND 30 SMB_CLK

27 GND 28 +1.5V

25 PERn0 26 GND

23 PERp0 24 +3.3Vaux

21 GND 22 PERST#

19 Reserved 20 reserved

17 Reserved 18 GND

Mechanical Key

15 GND 16 UIM_VPP

13 REFCLK+ 14 UIM_RESET

11 REFCLK- 12 UIM_CLK

9 GND 10 UIM_DATA

7 CLKREQ# 8 UIM_PWR

5 Reserved 6 1.5V

3 Reserved 4 GND

1 WAKE# 2 3.3Vaux

Pin Out:

GETTING TO KNOW YOUR ECS-9200/9100

2.4.12 RTC Battery

The system’s real-time clock is powered by a lithium battery. It is equipped with Panasonic BR2032 190mAh lithium battery. It is recommended that you do not have to get the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team.

Battery

2.4.13 FAN Header

Fan power connector supports for additional thermal requirements. The pin assignments of FAN 1 and FAN 2 are listed in the following diagram:

Pin No. Function Pin No. Function

1 GND 2 +12V (1.5A max)

3 Fan speed sensor 4 Fan PWM

Pin out:

FAN2

FAN1

Pin No. Function Pin No. Function

1 SERIRQ 7 LFRAME#

2 +3.3V 8 LAD0

3 LA3 9 N/C

4 RESET# 10 Ground

5 LAD1 11 CLOCK

6 LAD2 12 Ground

Pin out:

2.4.14 LPC Port 80 Header

ECS-9200/9100 provides a LPC Port 80 Header for Debug Card.

CN3

2.4.15 LAN IEEE 1588 Header

ECS-9200 provides a LAN header for IEEE 1588.

LAN No. Function Function

Rear POE LAN3 Intel I210 J6

Rear POE LAN4 Intel I210 J7

Rear POE LAN5 Intel I210 J8

Rear POE LAN6 Intel I210 J9

J9 J8 J7 J6

GETTING TO KNOW YOUR ECS-9200/9100

Pin No. Function Pin No. Function

1 SPD0 2 SPD1

3 SPD2 4 SPD3

5 Ground 6 Ground

Pin out:

2.4.16 COM Port Header

ECS-9200/9100 provides 4 COM port headers for internal COM port cable.

Pin No. Description Port

1 Ground_Frame COM3

2 Ground COM3

3 RI COM3

4 DTR COM3

5 CTS COM3

6 TXD COM3

7 RTS COM3

8 RXD COM3

9 DSR COM3

10 DCD COM3

CN9:

Pin No. Description Port

1 Ground_Frame COM4

2 Ground COM4

3 RI COM4

4 DTR COM4

5 CTS COM4

6 TXD COM4

7 RTS COM4

8 RXD COM4

9 DSR COM4

10 DCD COM4

CN10:

Pin out:

CN10

CN9

2.5 Main Board Jumper & Deep Switch Settings

2.5.1 Top View of ECS-9200/9100 With Jumper and DIP Switch

The figure below is the top view of ECS-9200/9100 main board which is the main board. It shows the location of the jumpers and the switches.

You may congure your card to match the needs of your application by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper, you connect the pins with the clip. To “open” a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

SATA 2 SATA 1

CN15

FAN2

JP10

CN3

CN6

CN18

JP1

JP3

Battery

BIOS

CN10

JP5

JP6

JP9

J9 J8 J7 J6

JP4

SW2

CN25

CN9

FAN1

JP2 Mini PCIe 3Mini PCIe 2

Mini PCIe 1

SODIMM 2 SODIMM 1

M2_CN2

M2_CN1

GETTING TO KNOW YOUR ECS-9200/9100

You may configure your card to match the needs of your application by DIP switch. As below show the DIP switch on and off.

1 2

1 : OFF 2 : OFF

1 2

1 : ON 2 : OFF

1 2

1 : ON 2 : ON

2.5.2 USB Power Jumper

Jumper Setting Function

JP9 1:2 Supported Wake Up(Default)

JP9 2:3 Non Wake Up support

JP9

2.5.3 COM Port RI pin Select

Pin Header Pin No. Description

COM1

JP3

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

Pin Header Pin No. Description

COM2

JP4

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

Pin Header Pin No. Description

COM3

JP5

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

Pin Header Pin No. Description

COM4

JP6

1-2 +5V (1A max.)

3-4 +12V (0.5A max.)

5-6 RI (Default)

JP6

JP5

JP3 JP4

GETTING TO KNOW YOUR ECS-9200/9100

2.5.4 POE Power ON Select

Jumper Setting Function

JP10 1:2 POE power on at standby power ready

JP10 2:3 POE power on after system power on (Default)

JP10

2.5.6 Clear CMOS/ME Switch

Jumper Setting Function

JP1 1:2 *Normal(Default)

JP1 2:3 Clear CMOS

Jumper Setting Function

JP2 1:2 *Normal(Default)

JP2 2:3 Clear ME

JP1

JP2

2.6 Ignition Control

2.6.1 Adjust Ignition Control Modes

ECS-9200/9100 series provides ignition power control feature for in-vehicle applications. The built-in MCU monitors the ignition signal and turns on/off the system according to pre-dened on/off delay period.

ECS-9200/9100 series provides 16 modes of different power on/off delay periods adjustable via SW2 switch. The default rotary switch is set to 0 in ATX/ AT power mode.

SW2

GETTING TO KNOW YOUR ECS-9200/9100

The modes are listed in the following table:

Item Power on delay Power off delay Switch Position

0 ATX mode

1 No delay No delay

2 No delay 5 seconds

3 No delay 10 seconds

4 No delay 20 seconds

5 5 seconds 30 seconds

6 5 seconds 60 seconds

7 5 seconds 90 seconds

8 5 seconds 30 minutes

9 5 seconds 1 hour

A 10 seconds 2 hours

B 10 seconds 4 hours

C 10 seconds 6 hours

D 10 seconds 8 hours

E 10 seconds 12 hours

F 10 seconds 24 hours

1 2 3 4

2.6.2 Ignition Control Wiring

To activate ignition control, you need to provide IGN signal via the 3-pin pluggable terminal block located in the back panel. It is below the general wiring conguration.

For testing purpose, you can refer to the picture blow to simulate ignition signal input controlled by a latching switch.

Note:

1. DC power source and IGN share the same ground.

2. ECS-9200/9100 supports 6V~36V wide range DC power input in ATX/AT mode. In Ignition mode, the input voltage is xed to 12V/24V for car battery scenario.

3. For proper ignition control, the power button setting should be “Power down” mode.

In Windows, for example, you need to set “When I press the power button” to "Shut down."

Pin No. Denition

1 Ignition (IGN)

2 External Power S/W +

3 External Power S/W +

IGN

V+

HARDWARE INSTALLATION

2.6.3 Smart Battery Protection

The system with “Ignition Control” can perform Smart Battery Protection, namely Low Battery Detection.

When the system is running on a battery and its voltage drops below the threshold, the system will automatically shut down. The Low Battery Detection is implemented in the ignition control MCU FW and as a default function.

Battery Voltage Thresholds

12V 10.5~15V

24V 21.5~30V

Note:

SYSTEM SETUP

3.1 How to Open Your ECS-9200/9100

Step 1

Remove hole plugs.

Step 2

Remove two F#6-32 screws (circled in red) and two F-M3 screws (circled in yellow) on the bottom side.

HARDWARE INSTALLATION

Step 3

Finish Step1 and 2.

Step 4

Remove one cover.

Step 5

Open the module.

Step 6

Finish.

Step 7

Remove two F-#6-32 screws at bottom side.

Step 8

Remove one cover.Remove one screw KHS-#6-32 and SSD/ HDD tray at front panel.

HARDWARE INSTALLATION

Step 9

Remove SSD/HDD module.

Step 10

Be careful pull out SATA(yellow) , power SATA(blue) and COM cable(red) .

Step 11

Remove four KHS-#6-32 screws at rear panel.

Step 12

Finish.

3.2 Installing CPU

Step 1 Remove one F #6-32 and pick up chock bracket.

Step 2

Remove eight PH-M3 and four M3x11 spring screws and pick up mother board.

HARDWARE INSTALLATION

Step 4 Open CPU slot. (Be careful CPU pins)

Step 3 CPU slot.

Step 6 Finish.

Step 5 Install CPU on the slot.

Step 7 Close CPU slot and nish.

HARDWARE INSTALLATION

3.3 Installing DDR4 SO-DIMM Modules

Step 1 Install DDR4 RAM module into SO-DIMM slot.

Step 2 Make sure the RAM module is locked by the memory slot.

3.4 Installing Mini PCIe Card

Step 1 Install Mini PCIe card into the Mini PCIe socket.

Step 2 Fasten one M2.5 screw.

HARDWARE INSTALLATION

3.5 Installing CFast Card

Step 1 Remove 2 pcs F-M3x4 screws on CFast & SIM Card.

Step 2

Before Inserting CFast & SIM Card, make sure ECS-9200 power is not plugged.

Step 3 Insert CFast card and push to lock.

3.6 Installing SIM Card

Step 1 Remove two F-M3x4 screws on CFast & SIM cover.

Step 2

Before Inserting SIM Card, make sure the system power is not plugged.

Step 3 Insert SIM card and push to lock.

HARDWARE INSTALLATION

3.7 Installing PCI/ PCIe Card

Step 2 Remove the bracket.

Step 1 Remove the M3 screw.

Step 4 Fasten M3 screw.

Step 3 Install PCI/PCIe card.

HARDWARE INSTALLATION

3.8 Installing SSD/ HDD

Step 1 Trigger and open SSD/HDD tray.

Step 2 Insert 2.5” SSD/HDD in the tray and fasten two F-M3x4 screws.

Step 3 Finish.

Step 4 Install SSD/HDD.

HARDWARE INSTALLATION

3.9 Installing M.2

Step 2 Fasten one M3 screws.

Step 1 M.2 slot.

3.10 Installing M2DOM

Step 2 M2DOM module.

Step 1 M2DOM slot.

HARDWARE INSTALLATION

Step 4 Lock two M2 screws with slot.

Step 3 Install M2DOM module with slot.

3.11 Mounting Your ECS-9200/9100

Step 1 Ensure the screw holes on the right and left side of the upper case match the ones on ECS-9200/9100 wall mount bracket.

3.11.1 Wall Mount Bracket

HARDWARE INSTALLATION

Step 2 Fasten 4pcs KHS#6-32 screws then nish.

3.11.2 VESA Mount

Step 1 ECS-9200/9100 and VESA Mount.

Step 2

Take ECS-9200/9100 and VESA Mount with fasten 4pcs KHS#6-32 screws.

HARDWARE INSTALLATION

Step 3 Fasten four KHS#6-32 screws and then nish.

Step 4 Finish.

Step 5 VESA size have 75x75mm(red) and 100x100mm(yellow).

3.11.3 Din Rail Kit

Step 1 ECS-9200/9100 and Din Rail Kit.

Step 2 Take ECS-9200/9100 and Din Rail Kit and fasten four KHS#6-32

screws in the four marked corners.

HARDWARE INSTALLATION

Step 3 Fasten four KHS#6-32 screws and then nish.

Step 4 Finish.

Step 5 ECS-9200/9100 With Din Rail.

BIOS SETUP

4.1 Entering BIOS SETUP

BIOS provides an interface for users to check and change system conguration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown.

Figure 4-1: Entering Setup Screen

BIOS AND DRIVER SETTING

4.2 Main

The main menu displays BIOS version and system information. There are two options on Main menu, system date and system time.

System Date

Set the date. Use <Tab> to switch between date elements.

System Time

Set the time. Use <Tab> to switch between time elements.

Figure 4-2: BIOS Main Menu

4.3 Advanced

Figure 4 3: BIOS Advanced Menu

Select advanced tab to enter advanced BIOS setup options such as CPU conguration, SATA conguration, and USB conguration.

4.3.1 ACPI Settings

Enable Hibernation

Enables or disables system's ability to hibernate (OS/S4 sleep state). This option may not be effective with some OS.

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

S3 Video Repost

Enables or disables S3 video repost.

ACPI Low Power S0 Idle

Enables or disables ACPI low power S0 idle support.

Figure 4 3-1: ACPI Settings

4.3.2 AMT Conguration

Intel AMT

Enables/disables Intel (R) Active Management Technology BIOS extension. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional rmware in the SPI device.

Figure 4 3-2: Intel AMT Settings

BIOS AND DRIVER SETTING

4.3.3 PCH-FW Conguration

ME Uncong on RTC Clear State

Disabling this option will cause ME not to uncongure on RTC clear.

ME State

Set ME to Soft temporarily disabled.

Figure 4 3-3: PCH-FW Settings

4.3.4 SMART Settings

SMART Self Test

Run SMART self test on all HDDs during POST.

Figure 4 3-4: SMART Settings

4.3.5 IT8786 Super IO Conguration

Figure 4-3-5: Super IO Settings

Serial Port 1 Conguration

Set parameters of serial port 1 (COM 1).

Serial Port 2 Conguration

Set parameters of serial port 2 (COM 2).

Serial Port 3 Conguration

Set parameters of serial port 3 (COM 3).

Serial Port 4 Conguration

Set parameters of serial port 4 (COM 4).

4.3.7 Serial Port Console Redirection

Console Redirection

Console redirection enable or disable.

Console Redirection Settings

The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Figure 4 3-7: Serial Port Console Redirection Settings

4.3.6 Hardware Monitor

The IT8786 SIO features an enhanced hardware monitor providing thermal, fan speed, and system voltages' status monitoring.

Figure 4 3-6: Hardware Monitor Settings

BIOS AND DRIVER SETTING

Hyper-threading

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology). When disabled, only one thread per core is enabled.

Active Processor Cores

Number of cores to enable in each processor package.

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Hardware Prefetcher

To turn on/off the MLC streamer prefetcher.

Adjacent Cache Line Prefetch

To turn on/off prefetching of adjacent cache lines.

CPU AES

Enable/disable CPU Advanced Encryption Standard instructions.

Boot performance mode

Select the performance state that the BIOS will set before OS handoff.

Intel(R) SpeedStep(tm)

Allows more than two frequency ranges to be supported.

Turbo Mode

Turbo Mode.

4.3.8 CPU Conguration

Figure 4 3-8: CPU Function Settings

4.3.9 Intel TXT Information

Display Intel TXT information.

Figure 4 3-9: Intel TXT Information

4.3.10 SATA Conguration

Figure 4 3-10: SATA Devices Settings

CPU C state

Enable or disable CPU C states.

Enhanced C-states

Enable/disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State.

Package C State limit

Package C State limit.

Intel TXT(LT) Support

Enables or disables Intel (R) TXT (LT) support.

BIOS AND DRIVER SETTING

SATA Controller(s)

Enable or disable SATA Device.

SATA Mode Selection

Determines how SATA controller(s) operate.

Software Feature Mask Conguration

RAID OROM/RST driver will refer to the SWFM configuration to enable or disable the storage features.

Aggressive LPM Support

Enable PCH to aggressively enter link power state.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support.

Options for each SATA port:

Port 0 Enable or disable SATA Port.

Spin Up Device

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

Identies that the SATA port is connected to solid state drive or hard disk drive.

4.3.11 Acoustic Management Conguration

Acoustic Management Conguration

Option to enable or disable automatic acoustic management.

Figure 4 3-11: Acoustic Management Settings

4.3.12 CSM Conguration

CSM Support

Enable/disable CSM support

GateA20 Active

UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow GA20 to be disabled; this option is useful when any RT code is executed above 1MB.

Option ROM Messages

Set display mode for Option ROM.

INT19 Trap Response

BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE - execute the trap right away; POSTPONED - execute the trap during legacy boot.

Boot option lter

This option controls Legacy/UEFI ROM's priority.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Allows more than two frequency ranges to be supported.

Other PCI devices

Determines OpROM execution policy for devices other than network, storage, or video.

Figure 4 3-12: CSM Settings

BIOS AND DRIVER SETTING

4.3.13 USB Conguration

Legacy USB Support

Enables Legacy USB support. AUTO option disables Legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OS-es without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

USB Mass Storage Driver Support

Enable/disable USB mass storage driver support.

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OS-es.

USB transfer time-out

The time-out value for control, bulk, and interrupt transfers.

Device reset time-out

USB mass storage device start unit command time-out.

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value, for a root port it is 100 ms, for a hub port the delay is taken from the hub descriptor.

Figure 4 3-13: USB Settings

VT-d

VT-d capability.

GMM Device (B0:D8:F0)

Enable/disable SA GMM device.

Above 4GB MMIO BIOS assignment

Enable/disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when aperture size is set to 2048MB.

4.4.1 System Agent (SA) Conguration

Figure 4-4-1: System Agent Settings

4.4 Chipset

Figure 4-4: BIOS Chipset Menu

System Agent (SA) Conguration

System Agent (SA) parameters.

PCH-IO Conguration

PCH parameters.

GPIOManager Conguration

GPIOManager parameters.

BIOS AND DRIVER SETTING

4.4.2 Graphics Conguration of System Agent (SA)

GTT Size

Select the GTT Size.

Aperture Size

Select the Aperture Size. Note: Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

DVMT Total Gfx Mem

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

Cd Clock Frequency

Select the highest Cd Clock frequency supported by the platform.

Figure 4-4-2: Graphics Settings

4.4.3 PEG Port Conguration (SA)

PEG port options for PCIe device.

Figure 4-4-3: PEG Port Conguration

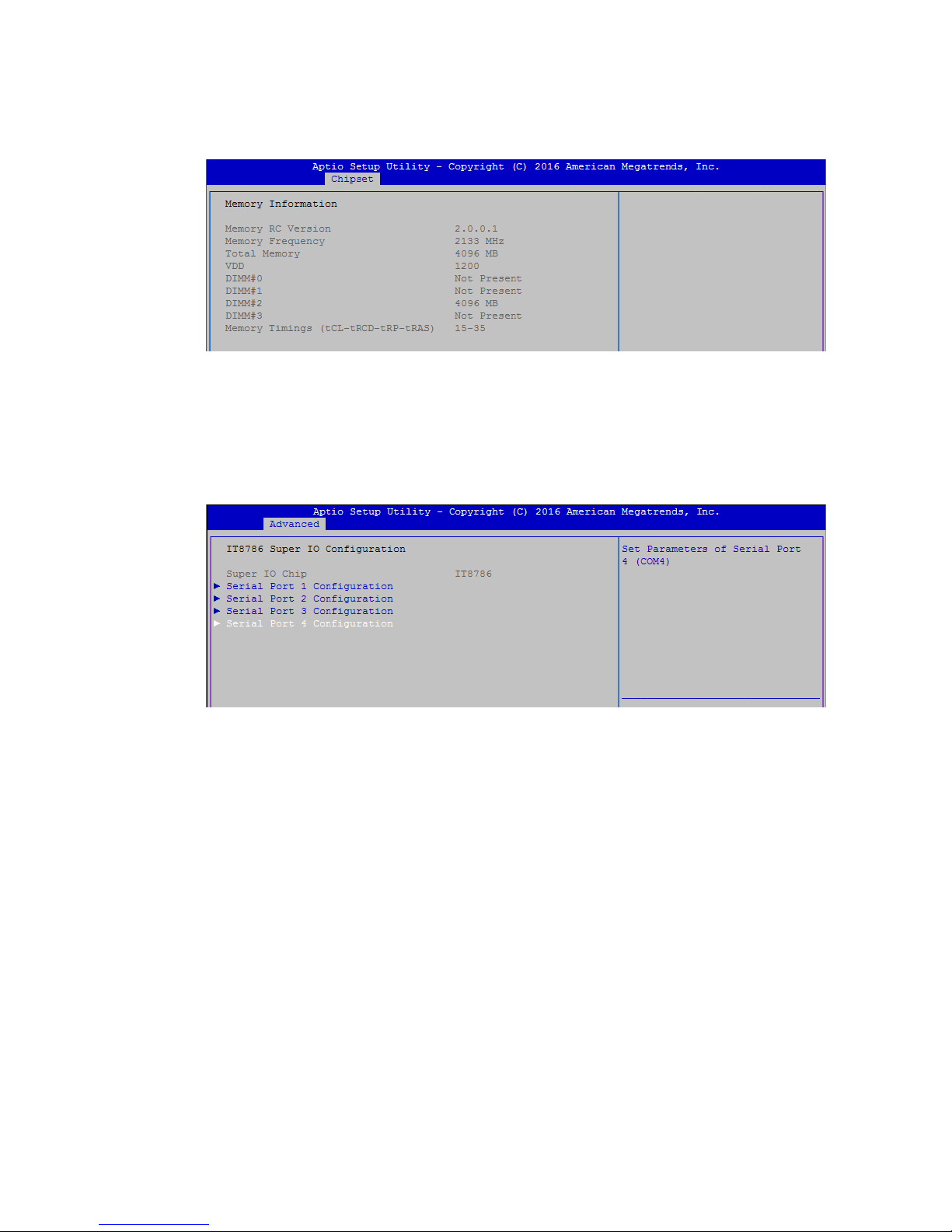

4.4.4 Memory Information of System Agent (SA)

Displays memory information.

Figure 4-4-4: Memory Information

4.4.5 PCH-IO Conguration

Figure 4-4-5: PCH-IO Settings

PCH LAN Controller

Enable or disable onboard NIC.

Wake on LAN

Enable or disable integrated LAN to wake the system. (The wake On LAN cannot be disabled if ME is on at Sx state.)

Serial IRQ Mode

Congure serial IRQ mode.

State After G3

Specify what state to go to when power is re-applied after a power failure (G3 state). S0 State: Always turn-on the system when power source plugged-in. S5 State: Always turn-off the system when power source plugged-in.

BIOS AND DRIVER SETTING

4.4.6 PCI Express Conguration of PCH-IO

Figure 4-4-6: PCH-IO Settings

DMI Link ASPM Control

Enable/Disable the control of Active State Power Management on SA side of the DMI Link.

Native PCIE Enable

PCI Express Native Support Enable/Disable. This feature is available in vista and beyond Windows OS.

4.4.7 BIOS Security Conguration of PCH-IO

BIOS Lock

Enable/disable the PCH BIOS Lock Enable (BLE bit) feature.

Figure 4-4-7: BIOS Security Settings

Vecow ECS-9210, ECS-9210M, ECS-9201, ECS-9201M, ECS-9101 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
