Vecom ECS-8000 User Manual

Download

Page 1

USER Manual

1.0.0 Edition 20160311

ECS-8000

Intel® Quad Core™ i7 (Broadwell-H) Fanless Embedded System

High Performance, Rugged, Extended Temp, Power Protection

Page 2

Version Date Page Description Remark

0.1 02/26/2016 All Preliminary Release

1.0 03/11/2016 All Ofce Release

Record of Revision

Page 3

iii

This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation, nor for any infringements upon the rights of third parties, which may result from such use.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC

The product (s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

This document contains proprietary information protected by copyright. No part of this publication may be reproduced in any form or by any means, electric, photocopying, recording or otherwise, without prior written authorization by Vecow Co., Ltd. The rights of all the brand names, product names and trademarks belong to their respective owners.

Declaimer

Declaration of Conformity

Page 4

Part Number Description

ECS-8000PoER850Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel® Core™ i7-5850EQ Processor (Broadwell-H), 6 GbE LAN with 4 PoE+, 2 Front-access SSD Tray, 4 COM, 7 USB, 2 SIM, Isolated DIO, 16 GPIO

ECS-8000PoER700Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5700EQ Processor (Broadwell-H), 6 GbE LAN with 4 PoE+, 2 Front-access SSD Tray, 4 COM, 7 USB, 2 SIM, Isolated DIO, 16 GPIO

ECS-8000PoE850Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5850EQ Processor (Broadwell-H), 6 GbE LAN with 4 PoE

, 4 COM, 7 USB, 2 SIM, Isolated DIO, 16 GPIO

ECS-8000PoE700Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5700EQ Processor (Broadwell-H), 6 GbE LAN with 4 PoE+, 4 COM, 7 USB, 2 SIM, Isolated DIO, 16 GPIO

ECS-80002G850Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5850EQ Processor (Broadwell-H), 2 GbE LAN, 4 COM, 7 USB, 2 SIM, 32 GPIO

ECS-80002G700Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5700EQ Processor (Broadwell-H), 2 GbE LAN, 4 COM, 7 USB, 2 SIM, 32 GPIO

ECS-80002R850Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5850EQ Processor (Broadwell-H), 2 GbE LAN, 2 Frontaccess SSD Tray, 4 COM, 7 USB, 2 SIM, 32 GPIO

ECS-80002R700Q

ECS-8000 Fanless Embedded System, Quad Core 5th Gen Intel

Core™ i7-5700EQ Processor (Broadwell-H), 2 GbE LAN, 2 Frontaccess SSD Tray, 4 COM, 7 USB, 2 SIM, 32 GPIO

Order Information

Page 5

Part Number Description

M340L-W28M1 Vecow DDR3L 4GB 1333/1066 MHz RAM, Wide Temperature

-40°C to +85°C

DDR3L8G

Certied DDR3L-1600 8G RAM

DDR3L4G

Certied DDR3L-1600 4G RAM

PWA-120W 120W, 24V, 90VAC to 264VAC Power Adapter with 3-pin

Terminal Block

PWA-120WM4P 120W, 24V, 90VAC to 264VAC Power Adaptor with 4-pin

Mini-DIN Connector

PWA-160W-WT 160W, 24V, 85VAC to 264VAC Power Adaptor with 3-pin

Terminal Block, Wide Temperature -30°C to +70°C

TMBK-20P-100

Terminal Block 20-pin to SCSI, 100cm

TMBK-20P-500

Terminal Block 20-pin to SCSI, 500cm

TMB-SCSI-20P Terminal Board with One 20-pin SCSI Connector and DIN-

Rail Mounting

VESA Mount

VESA Mounting Kit

DIN-RAIL

DIN Rail Kit

Rack Mount

2U Rackmount Kit

3G Module

Mini PCIe 3G/GPS Module with Antenna

4G Module

Mini PCIe 4G/GPS Module with Antenna

WiFi & Bluetooth Module

Intel

Mini PCIe WiFi & Bluetooth Module with Antenna

Optional Accessories

Page 6

Table of Contents

CHAPTER 1 GENERAL INTRODUCTION 1

1.1 Overview 1

1.2 Features 2

1.3 Product Specication 2

1.3.1 Specications of ECS-8000-PoER 2

1.3.2 Specications of ECS-8000-PoE 4

1.3.3 Specications of ECS-8000-2G 6

1.3.4 Specications of ECS-8000-2R 9

1.4 Supported CPU List 11

1.5 Mechanical Dimensions 12

1.5.1 Dimensions of ECS-8000-PoER 12

1.5.2 Dimensions of ECS-8000-PoE 12

1.5.3 Dimensions of ECS-8000-2G 13

1.5.4 Dimensions of ECS-8000-2R 13

CHAPTER 2 GETTING TO KNOW YOUR ECS-8000 14

2.1 Packing List 14

2.2 Front Panel I/O Functions 14

2.3 Rear Panel I/O and Functions 22

2.4 Main Board Expansion Connectors 27

2.5 Main Board Jumper Settings 50

2.6 Ignition Control 56

CHAPTER 3 SYSTEM SETUP 59

3.1 How to Open Your ECS-8000 59

3.1.1 ECS-8000-PoER/ ECS-8000-2R 59

3.1.2 ECS-8000-PoE/ ECS-8000-2G 61

Page 7

vii

3.2 Installing DDR3L SO-DIMM Modules 64

3.3 Installing Mini PCIe Cards 65

3.4 Installing Antenna Cable 66

3.5 Installing CFast Card and SIM Card 68

3.6 Installing SSD/HDD 70

3.6.1 ECS-8000-PoER/ ECS-8000-2R 70

3.6.2 ECS-8000-PoE/ ECS-8000-2G 71

3.7 Mounting ECS-8000 74

CHAPTER 4 BIOS AND DRIVER SETTING 75

4.1 BIOS Settings 75

4.2 Main Menu 75

4.3 Advanced Function 76

4.4 Chipset Function 83

4.5 Boot Function 84

4.6 Save & Exit 85

APPENDIX A : ISOLATED DIO GUIDE 86

APPENDIX B : GPIO and WDT Functions 90

APPENDIX C : Power Consumption 91

Page 8

GENERAL INTRODUCTION

ECS-8000 Series Fanless Embedded System is a perfect integrated high performance embedded engine in the market. Powerful quad-core 5th generation Intel

Core™ i7 (Broadwell-H) engine running with 15% enhanced

productivity than former generation, Intel

QM87 chipset, dual channel DDR3L

memory at 1600MHz, up to 32GB. Advanced Intel

Iris™ Pro Graphics 6200/

Intel

HD Graphics 5600 supports DirectX 11.2, OpenGL 4.3 and OpenCL 2.0 API, onboard VGA, DVI-D, dual DisplayPort, and eDP display interface, up to 3 independent 4K Ultra HD displays.

Featured with 2 front-access 2.5” SSD/ HDD trays, 6 Gigabit LAN ports with 4 IEEE 802.3at PoE+ ports, 3 Mini PCIe sockets for PCIe/ USB/ External SIM Card/ mSATA, 2 External SIM Card sockets support 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS, 1 External CFast socket, 4 USB 3.0, 3 USB 2.0, 4 COM, 2 SATA III, 16 Isolated DIO, 6V to 36V wide range power input with up to 80V smart surge protection, 16-mode congurable ignition power control, all-in-one, cable-less, single board design, fanless design and -25°C to 70°C operating temperature, optional supports SUMIT expansion, ECS-8000 is ready to meet your project requirements.

Vecow ECS-8000 Series high performance Fanless Embedded System delivers leading performance, superb integration, intelligent manageability, smart protection functions and rugged reliability for your machine vision, intelligent control, smart manufacturing, intelligent transportation, energy management, intelligent surveillance, Industry 4.0 and any Internet of Thing (IoT) applications.

1.1 Overview

Page 9

GENERAL INTRODUCTION

©Vecow ECS-8000 User Manual

1.3 Product Specication

1.3.1 Specications of ECS-8000-PoER

System

Processor Quad Core Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)

Chipset Intel

QM87

BIOS AMI

SIO IT8786E

Memory • DDR3L 1600 MHz SO-DIMM, up to 32GB

• 2 204-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 4 USB 3.0 (External)

• 3 USB 2.0 (2 External, 1 Internal)

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO

LED Power, HDD, PoE

SIM Card 2 SIM Card Socket (External)

Expansion

Mini PCIe 3 Mini PCIe Socket :

• 2 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

• 1 Mini PCIe for PCIe/ USB

SUMIT A, B 2 SUMIT Slot (Optional)

Graphics

Graphics Processor • Intel® Iris Pro Graphics 6200 (5850EQ)

• Intel® HD Graphics 5600 (5700EQ)

1.2 Features

• Quad Core 5th generation Intel® Core™ i7 Mobile Processor (Broadwell-H)

• VGA/ DVI-D/ DisplayPort/ eDP Interface, up to 3 independent 4K displays

• Fanless, -25°C to 70°C Operating Temperature

• 6 Gigabit LAN with 4 IEEE 802.3at PoE

• 16 Isolated DIO (8 DI, 8 DO)

• 3 Mini PCIe for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS

• 2 External SIM Card Socket

• 2 Front-access 2.5" HDD/ SSD Tray

• 4 COM RS-232/ 422/ 485, 4 USB 3.0, 3 USB 2.0

• 6V to 36V DC-in with 80V Surge Protection

• Configurable Ignition Power Control

Page 10

GENERAL INTRODUCTION

Interface • VGA : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 4096 x 2304 @ 60Hz

• DisplayPort 2 : Up to 4096 x 2304 @ 60Hz

• eDP : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 2 SATA III (Mini PCIe Type, 6Gbps)

SATA DOM 1 SATA II (3Gbps)

Storage Device • 1 CFast Socket, Push-in/ Push-out Ejector

• 2 Front-access 2.5” SSD/ HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN supports iAMT

LAN 2 Intel

I210 Gigabit LAN

PoE

LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, IGN, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 8, Windows 7, Linux

Page 11

GENERAL INTRODUCTION

©Vecow ECS-8000 User Manual

Mechanical

Dimensions (WxDxH) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)

Weight 2.8 kg (6.2 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

• 2U Rackmount (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

1.3.2 Specications of ECS-8000-PoE

System

Processor Quad Core Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)

Chipset Intel

QM87

BIOS AMI

SIO IT8786E

Memory • DDR3L 1600 MHz SO-DIMM, up to 32GB

• 2 204-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 4 USB 3.0 (External)

• 3 USB 2.0 (2 External, 1 Internal)

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO

LED Power, HDD, PoE

SIM Card 2 SIM Card Socket (External)

Expansion

Mini PCIe 3 Mini PCIe Socket :

• 2 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

• 1 Mini PCIe for PCIe/ USB

SUMIT A, B 2 SUMIT Slot (Optional)

Page 12

GENERAL INTRODUCTION

Graphics

Graphics Processor • Intel® Iris Pro Graphics 6200 (5850EQ)

• Intel® HD Graphics 5600 (5700EQ)

Interface • VGA : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 4096 x 2304 @ 60Hz

• DisplayPort 2 : Up to 4096 x 2304 @ 60Hz

• eDP : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 2 SATA III (Mini PCIe Type, 6Gbps)

SATA DOM 1 SATA II (3Gbps)

Storage Device • 1 CFast Slot, Push-in/ Push-out Ejector

• 2 2.5” SSD/ HDD Bracket (Internal)

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN supports iAMT

LAN 2 Intel

I210 Gigabit LAN

PoE

LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE

by Intel® I210

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, IGN, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Page 13

GENERAL INTRODUCTION

©Vecow ECS-8000 User Manual

Software Support

OS Windows 8, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)

Weight 2.8 kg (6.2 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

• 2U Rackmount (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

1.3.3 Specications of ECS-8000-2G

System

Processor Quad Core Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)

Chipset Intel

QM87

BIOS AMI

SIO IT8786E

Memory • DDR3L 1600 MHz SO-DIMM, up to 32GB

• 2 204-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 4 USB 3.0 (External)

• 3 USB 2.0 (2 External, 1 Internal)

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO

LED Power, HDD, PoE

SIM Card 2 SIM Card Socket (External)

Page 14

GENERAL INTRODUCTION

Expansion

Mini PCIe 3 Mini PCIe Socket :

• 2 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

• 1 Mini PCIe for PCIe/ USB

SUMIT A, B 2 SUMIT Slot (Optional)

Graphics

Graphics Processor • Intel® Iris Pro Graphics 6200 (5850EQ)

• Intel® HD Graphics 5600 (5700EQ)

Interface • VGA : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 4096 x 2304 @ 60Hz

• DisplayPort 2 : Up to 4096 x 2304 @ 60Hz

• eDP : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 2 SATA III (Mini PCIe Type, 6Gbps)

SATA DOM 1 SATA II (3Gbps)

Storage Device • 1 CFast Slot, Push-in/ Push-out Ejector

• 2 2.5” SSD/ HDD Bracket (Internal)

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Ethernet

LAN 1 Intel® I218 Gigabit LAN supports iAMT

LAN 2 Intel

I210 Gigabit LAN

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, IGN, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Page 15

GENERAL INTRODUCTION

©Vecow ECS-8000 User Manual

Software Support

OS Windows 8, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)

Weight 2.8 kg (6.2 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

• 2U Rackmount (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

Software Support

OS Windows 8, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)

Weight 2.8 kg (6.2 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

• 2U Rackmount (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

Page 16

GENERAL INTRODUCTION

1.3.4 Specications of ECS-8000-2R

System

Processor Quad Core Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)

Chipset Intel

QM87

BIOS AMI

SIO IT8786E

Memory • DDR3L 1600 MHz SO-DIMM, up to 32GB

• 2 204-pin SO-DIMM Socket

I/O Interface

Serial 4 COM RS-232/ 422/ 485

USB • 4 USB 3.0 (External)

• 3 USB 2.0 (2 External, 1 Internal)

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO

LED Power, HDD, PoE

SIM Card 2 SIM Card Socket (External)

Expansion

Mini PCIe 3 Mini PCIe Socket :

• 2 Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA

• 1 Mini PCIe for PCIe/ USB

SUMIT A, B 2 SUMIT Slot (Optional)

Graphics

Graphics Processor • Intel® Iris Pro Graphics 6200 (5850EQ)

• Intel® HD Graphics 5600 (5700EQ)

Interface • VGA : Up to 1920 x 1200 @ 60Hz

• DVI-D : Up to 1920 x 1080 @ 60Hz

• DisplayPort 1 : Up to 4096 x 2304 @ 60Hz

• DisplayPort 2 : Up to 4096 x 2304 @ 60Hz

• eDP : Up to 4096 x 2304 @ 60Hz

Storage

SATA 2 SATA III (6Gbps)

mSATA 2 SATA III (Mini PCIe Type, 6Gbps)

SATA DOM 1 SATA II (3Gbps)

Storage Device • 1 CFast Socket, Push-in/ Push-out Ejector

• 2 Front-access 2.5” SSD/ HDD Tray

Audio

Audio Codec Realtek ALC892, 5.1 Channel HD Audio

Audio Interface 1 Mic-in, 1 Line-out

Page 17

GENERAL INTRODUCTION

©Vecow ECS-8000 User Manual

Ethernet

LAN 1 Intel® I218 Gigabit LAN supports iAMT

LAN 2 Intel

I210 Gigabit LAN

Power

Power Input 6V to 36V, DC-in

Power Interface • 3-pin Terminal Block : V+, V-, IGN, Frame Ground

• Mini-DIN 4-pin

Ignition Control 16 Mode (Internal)

Remote Switch 3-pin Terminal Block : On, Off, IGN

Surge Protection Up to 80V/1ms Transient Power

Others

TPM Optional Inneon SLB9665 supports TPM 2.0, LPC

Interface

Watchdog Timer Reset : 1 to 255 sec./min. per step

Smart Management Wake on LAN, PXE supported

HW Monitor Monitoring temperature, voltages. Auto throttling control

when CPU overheats.

Software Support

OS Windows 8, Windows 7, Linux

Mechanical

Dimensions (WxDxH) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)

Weight 2.8 kg (6.2 lb)

Mounting • Wallmount by mounting bracket

• DIN Rail Mount

• 2U Rackmount (Optional)

Environment

Operating Temperature -25°C to 70°C (-13°F to 158°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Humidity 5% to 95% humidity, non-condensing

Relative Humidity 95% at 70°C

Shock • IEC 60068-2-27

• SSD : 50G @ wallmount, Half-sine, 11ms

Vibration • IEC 60068-2-64

• SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC CE, FCC, EN 50155, EN 50121-3-2

Page 18

GENERAL INTRODUCTION

1.4 Supported CPU List

CPU Name TDP Cache Max. Frequency Embedded

i7-5950HQ 47 W 6MB Up to 3.80 GHz

i7-5850HQ 47 W 6MB Up to 3.60 GHz

i7-5850EQ 47 W 6MB Up to 3.40 GHz Yes

i7-5750HQ 47 W 6MB Up to 3.50 GHz

i7-5700HQ 47 W 6MB Up to 3.50 GHz

i5-5700EQ 47 W 6MB Up to 3.40 GHz Yes

Page 19

GENERAL INTRODUCTION

©Vecow ECS-8000 User Manual

1.5 Mechanical Dimensions

1.5.1 Dimensions of ECS-8000-PoER

1.5.2 Dimensions of ECS-8000-PoE

260,0 (10,2)

297,0 (11,7)

115,0 (4,5)

175,0 (6,9)

282,0 (11,1)

79,1 (3,1)

297,0 (11,7)

Unit: mm (inch)

260,0 (10,2]

297,0 (11,7)

115,0 (4,5)

175,0 (6,9)

282,0 (11,1)

297,0 (11,7)

79,1 (3,1)

Unit: mm (inch)

Page 20

GENERAL INTRODUCTION

1.5.3 Dimensions of ECS-8000-2G

1.5.4 Dimensions of ECS-8000-2R

260,0 (10,2)

297,0 (11,7)

115,0 (4,5)

175,0 (6,9)

282,0 (11,1)

79,1 (3,1)

297,0 (11,7)

Unit: mm (inch)

260,0 (10,2)

297,0 (11,7)

115,0 (4,5)

175,0 (6,9)

282,0 (11,1)

79,1 (3,1)

297,0 (11,7)

Unit: mm (inch)

Page 21

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

GETTING TO KNOW YOUR ECS-8000

2.1 Packing List

Item Description Qty

1 ECS-8000 Fanless Embedded System (According to the

conguration you order, the ECS-8000 series may contain SSD/HDD and DDR3L SO-DIMM. Please verify these items if necessary.)

2 Accessory box, which contains

● Vecow Drivers & Utilities DVD

● Wall-mounting bracket

● KHS#6-32x6 screw for wall-mounting bracket

● M2.5x6 screw for Mini PCIe Slot

● 3-pin Pluggable terminal block

● 20-pin pluggable terminal block

● Foot Pad

● HDD Tray Key

1 2

6 2 1

2.2 Front Panel I/O Functions

In Vecow ECS-8000 series family, all I/O connectors are located on front panel and rear panel. Most of the general connections to computer device, such as USB, DVI-D, DisplayPort and any additional storage, are placed on the front panel.

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

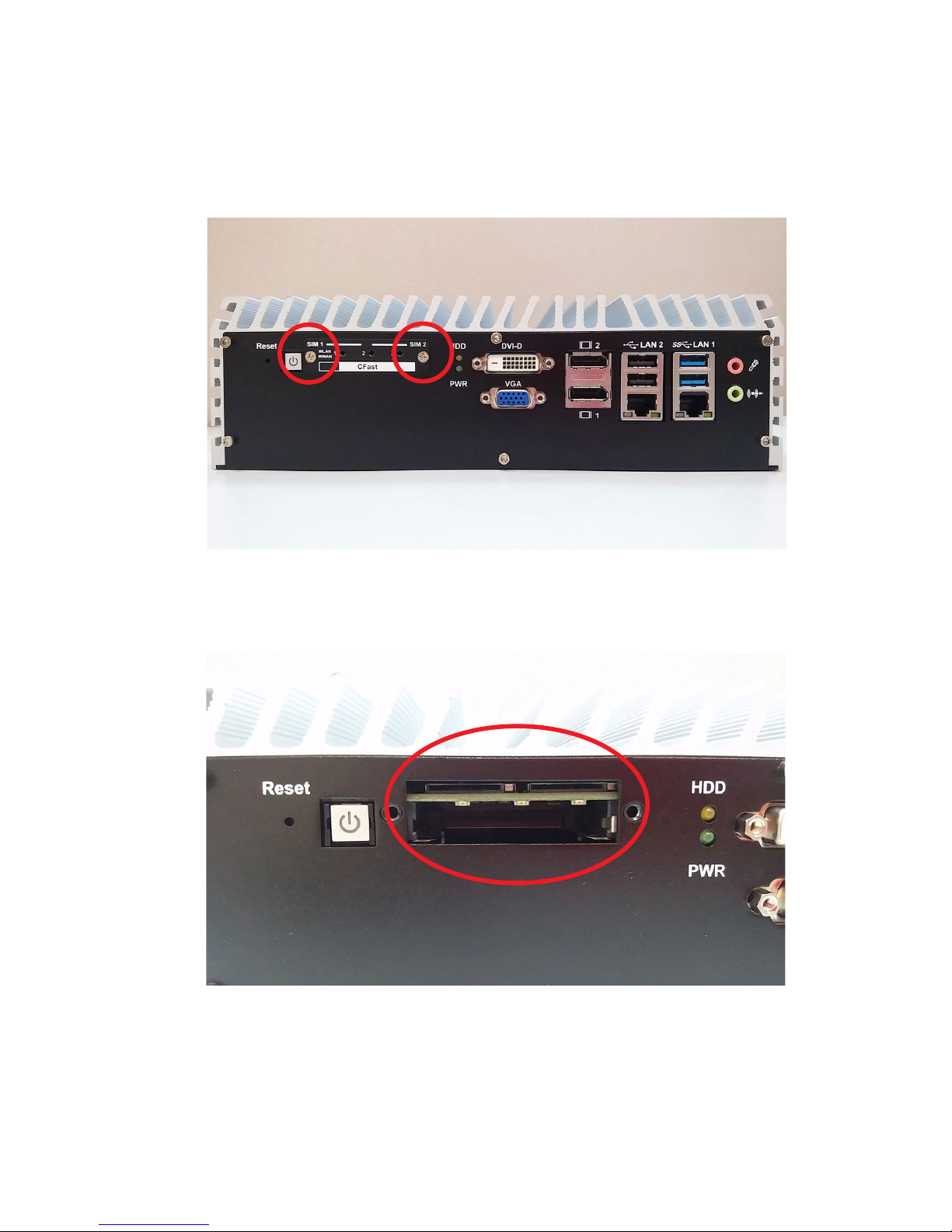

SIM 1 SIM 2

1 2 3

WLAN WWAN

Page 22

GETTING TO KNOW YOUR ECS-8000

2.2.1 Reset Tact Switch

It is a hardware reset switch. Use this switch to reset the system without power off the ECS-8000. Press the Reset Switch for a few seconds, then reset will be

enabled.

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

2.2.2 Power Button

The Power Button is a non-latched switch with dual color LED indication. It indicates power status: S0, S3 and S5. More detail LED indications are listed as follows:

To power on ECS-8000, press the power button and then the blue LED is lightened. To power off ECS-8000, you can either command shutdown by OS operation, or just simply press the power button. If system error, you can just press the power button for 4 seconds to shut down the machine directly.

Please do note that a 4-second interval between each 2 power-on/ power-off operation is necessary in normal working status. (For example, once turning off the system, you have to wait for 4 seconds to initiate another power-on operation).

LED Color Power Status System Status

Solid Blue S0 System working

Solid Orange S3, S5

Suspend to RAM, System off with standby power

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

Page 23

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

Pin No. Description Pin No. Description

S1 GND PC6 NC

S2 SATA_TXP PC7 GND

S3 SATA_TXN PC8 CFAST_LED

S4 GND PC9 NC

S5 SATA_RXN PC10 NC

S6 SATA_RXP PC11 NC

S7 GND PC12 NC

PC1 GND PC13 +3.3V

PC2 GND PC14 +3.3V

PC3 NC PC15 GND

PC4 NC PC16 GND

PC5 NC PC17 NC

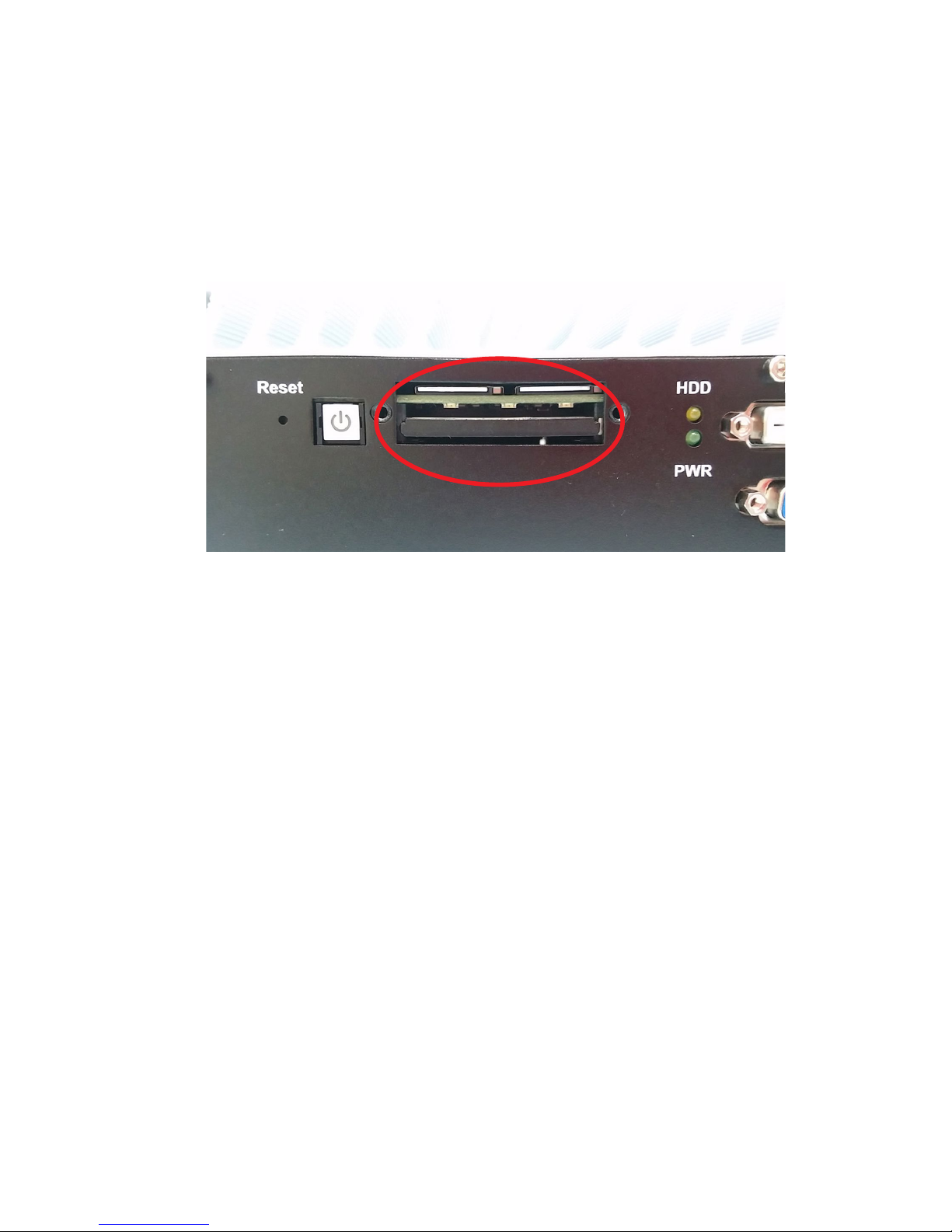

There is a CFast socket on the front panel supporting Type-I/ Type-II Compact Flash card.

It is implemented by a SATA II Port from Broadwell-H PCH. Be sure to disconnect the power source and unscrew the CFast socket cover before installing a CFast card. The ECS-8000 does not support the CFast hot swap and PnP (Plug and Play) functions. It is necessary to remove power source rst before inserting or removing the CFast card.

The pinouts of CFast port are listed as follows:

2.2.3 CFast Card

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

Page 24

GETTING TO KNOW YOUR ECS-8000

2.2.4 PWR and HDD LED Indicator

LED Color Power Status System Status

Yellow HDD/ CFast

• On/ Off : Storage status, function or not.

• Twinkling : Data transferring.

Green Power System power status (on/ off)

Yellow-HDD LED: A hard disk/ CFast LED. If the LED is on, it indicates that the system’s storage is functional. If it is off, it indicates that the system’s storage is not functional. If it is ashing, it indicates data access activities.

Green-Power LED: If the LED is solid green, it indicates that the system is powered on.

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

2.2.5 DVI-D Connector

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

The DVI-D connector on the front panel supports DVI display modes. The DVI output mode supports up to 1920 x 1080 resolutions.

Page 25

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.2.7 DisplayPort

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

Onboard DisplayPort connection supports up to 4096 x 2304 resolutions at 60 Hz.

2.2.6 VGA Connector

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

The VGA output mode supports up to 1920x1200 resolution. The pin assignments of the VGA connector are shown below.

Pin No. Description Pin No. Description

1 Red Color Signal 9 VCC

2 Green Color Signal 10 Ground

3 Blue Color Signal 11 NC

4 NC 12 DDC-DATA

5 Ground 13 H-Sync.

6 VGA Detect 14 V-Sync.

7 Ground 15 DDC-CLK

8 Ground

5 10 15

1 6

Page 26

GETTING TO KNOW YOUR ECS-8000

2.2.8 External USB

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

There are 2 USB 3.0 connections available supporting up to 5GB per second data rate in the front side of ECS-8000. It also compliant with the requirements of SuperSpeed (SS), high speed (HS), full speed (FS) and low speed (LS).

Note: The SIM card sockets do not support hot-plug. Please make sure to unplug the system power before inserting the SIM card(s).

CN33 CN34

Mini PCIe SIM LED

CN27 CN33 (SIM 1) 1

CN15 CN34 (SIM 2) 2

CN19 CN22 (SIM3) 3

2.2.9 Wireless LED Indicator, Mini PCIe & SIM card

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN WWAN

CN22

CN19

CN27

CN15

Page 27

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

Pin No. 10/ 100Mbps 1000Mbps

1 E_TX+ MDI0_P

2 E_TX- MDI0_N

3 E_RX+ MDI1_P

4 ---- MDI2_P

5 ----- MDI2_N

6 E_RX- MDI1_N

7 ----- MDI3_P

8 ------ MDI3_N

Each LAN port is supported by standard RJ-45 connector with LED indicators to present Active/ Link/ Speed status of the connection. The LED indicator on the right bottom corner lightens in solid green when the cable is properly connected to a 100Mbps Ethernet network; The LED indicator on the right bottom corner lightens in solid orange when the cable is properly connected to a 1000Mbps Ethernet network; The left LED will keep twinkling/ off when Ethernet data packets are being transmitted/ received.

2.2.10 10/ 100/ 1000 Mbps Ethernet Port

There are 2 8-pin RJ-45 jacks supporting 10/ 100/1000 Mbps Ethernet connections in the front side and rear side of ECS-8000. LAN 1 is powered by Intel® I218LM Ethernet engine; LAN 2 is powered by Intel I210 Ethernet engine. When both LAN 1 and LAN 2 work in normal status, basic iAMT function is enabled. Using suitable RJ-45 cable, you can connect ECS-8000 system to a computer, or to any other devices with Ethernet connection, for example, a hub or a switch. Moreover, both of LAN 1 and LAN 2 supports Wake on LAN and Pre-boot functions. The pinouts of LAN 1 and LAN 2 are listed as follows:

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN

WWAN

Page 28

GETTING TO KNOW YOUR ECS-8000

1 8

LED 10Mbps 100Mbps 1000Mbps

Right

Bottom Led

Off

Solid

Green

Solid

Orange

Left

Bottom Led

Twinkling

Yellow

Twinkling

Yellow

Twinkling

Yellow

2.2.11 Audio Connector

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN

WWAN

There are 2 audio connectors, Mic-in and Line-out, in the front side of ECS-

8000. Onboard Realtek ALC892 audio codec supports 5.1 channel HD audio and fully complies with Intel® High Denition Audio (Azalia) specications.

To utilize the audio function in Windows platform, you need to install corresponding drivers for both Intel Broadwell-H chipset and Realtek ALC892 codec.

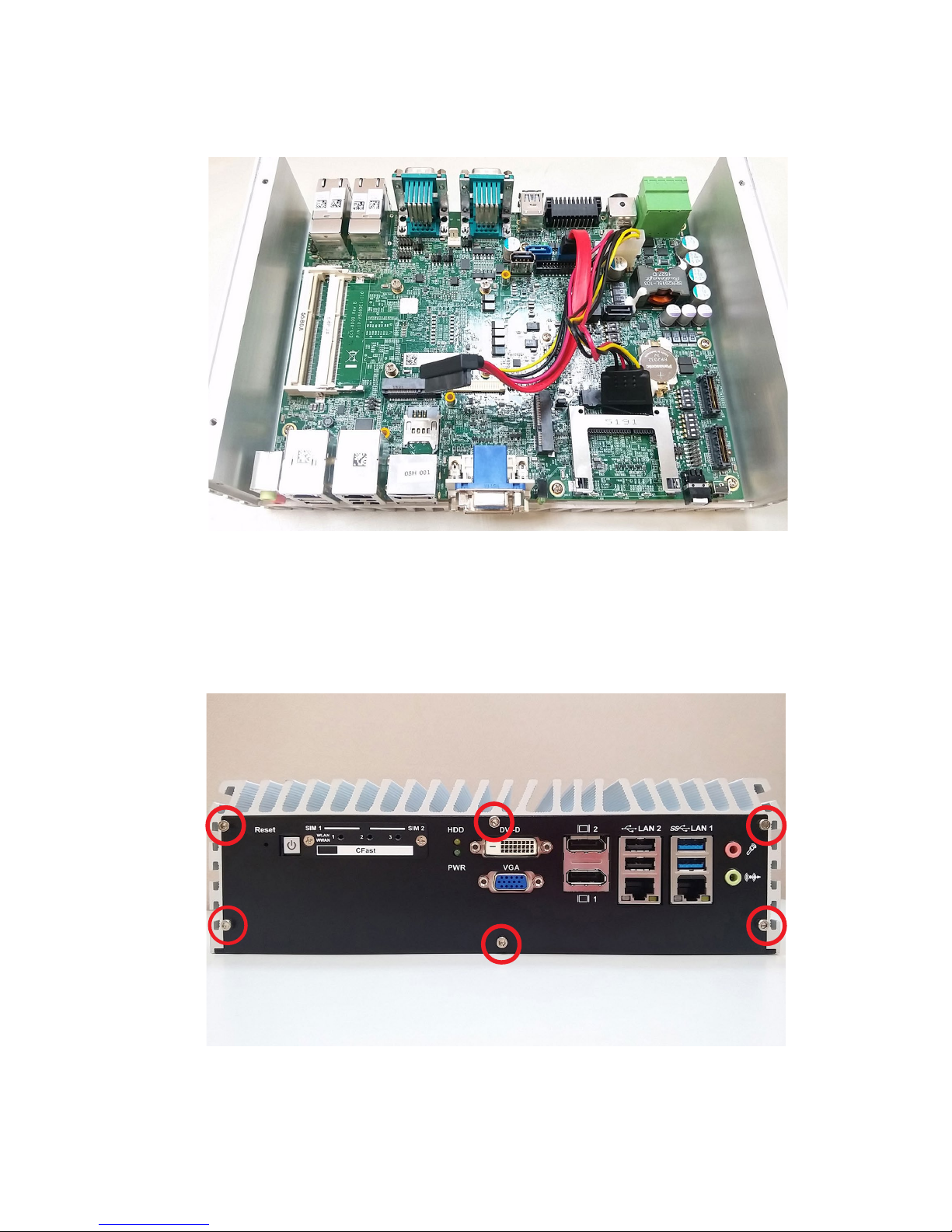

2.2.12 Front-access SSD/ HDD Tray

Reset HDD

PWR

DVI-D

VGA

LAN 2 LAN 1

CFast

SIM 1 SIM 2

1 2 3

WLAN

WWAN

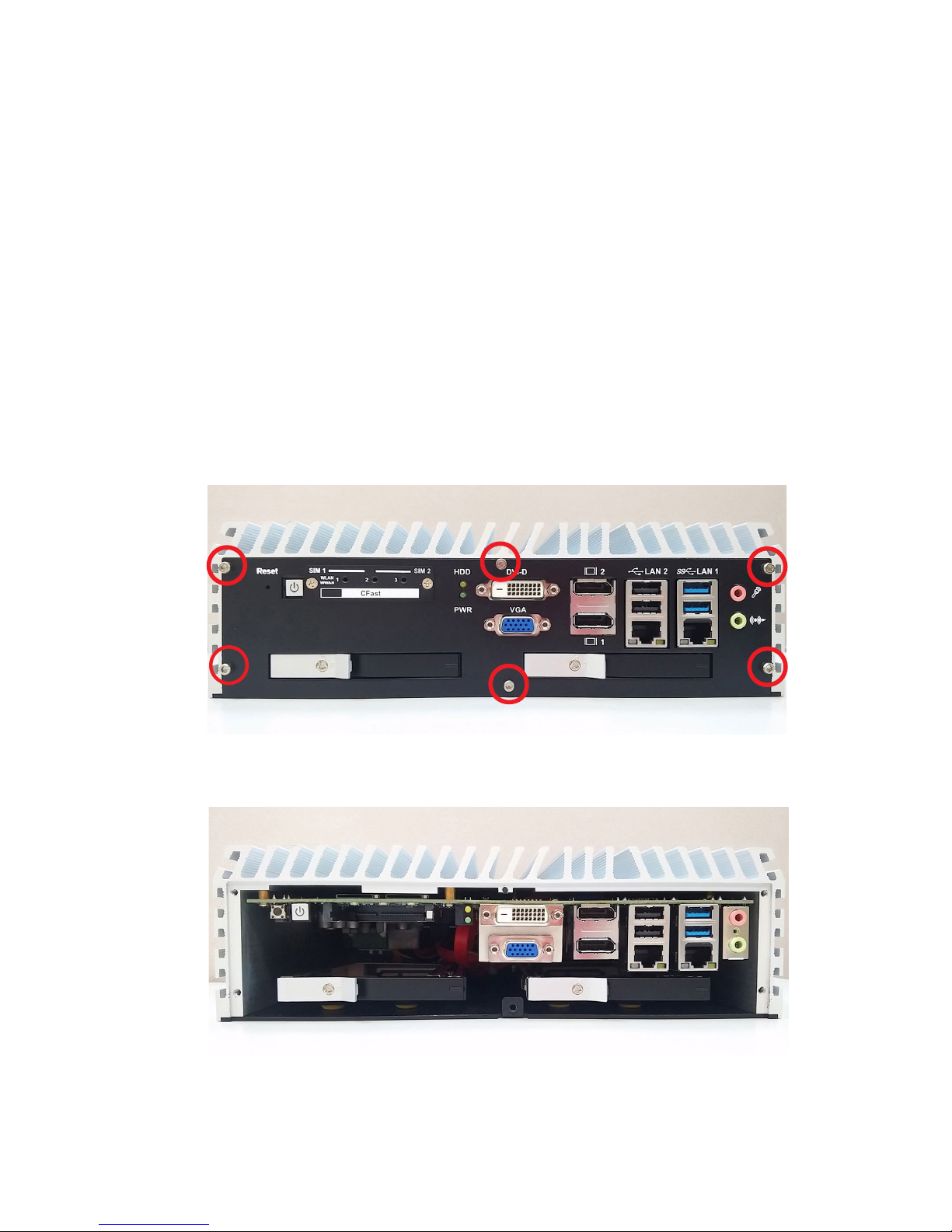

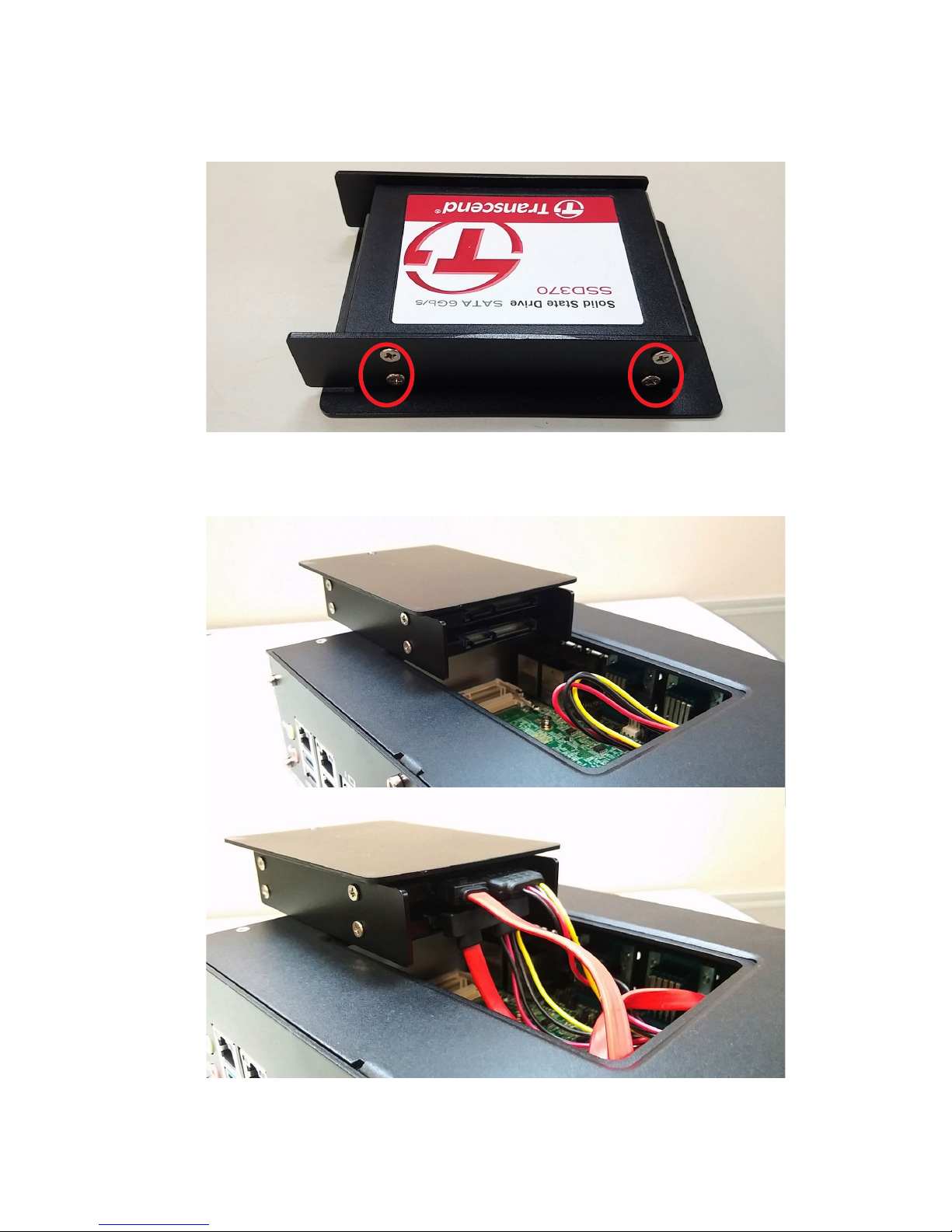

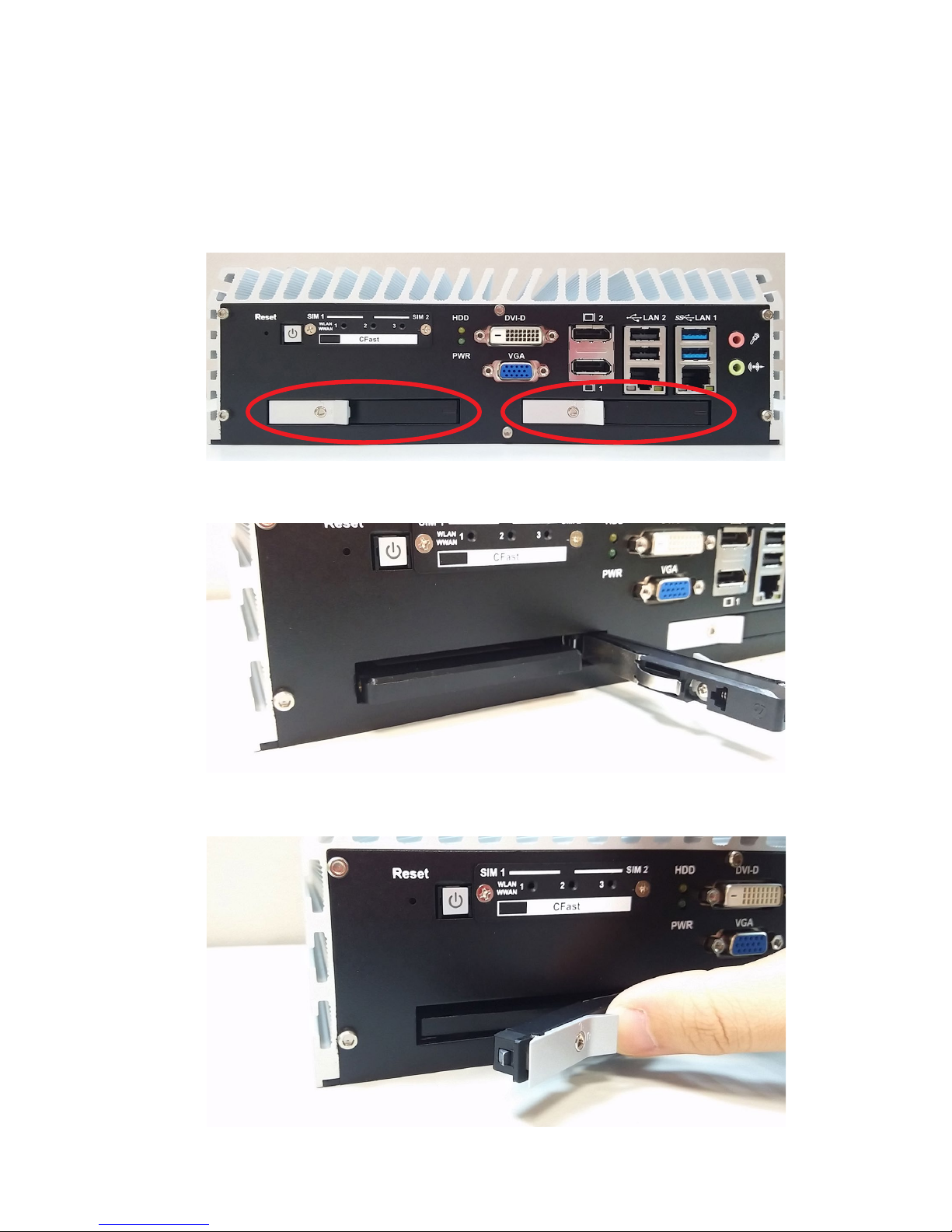

There are 2 front-access 2.5” SSD/ HDD trays in the front side of ECS-8000. Just trigger to open the SSD/ HDD tray, up to 4TB is available.

Page 29

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.3 Rear Panel I/O and Functions

2.3.1 Power Terminal Block

Pin No. Denition

1 V+

2 V-

3 Earth GND

ECS-8000 supports 6V to 36V DC power input by terminal block in the rear side. In normal power operation, power LED lightens in solid green. ECS-8000 supports up to 80V surge protection.

COM 1

COM 2

COM 3

COM 4

USB 3.0

DC-IN

Isolated

DIO

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

Power Switch

On / OffIGN

LAN 4

LAN 3

LAN 6

LAN 5

3 4

PoE+

5 6

PoE+

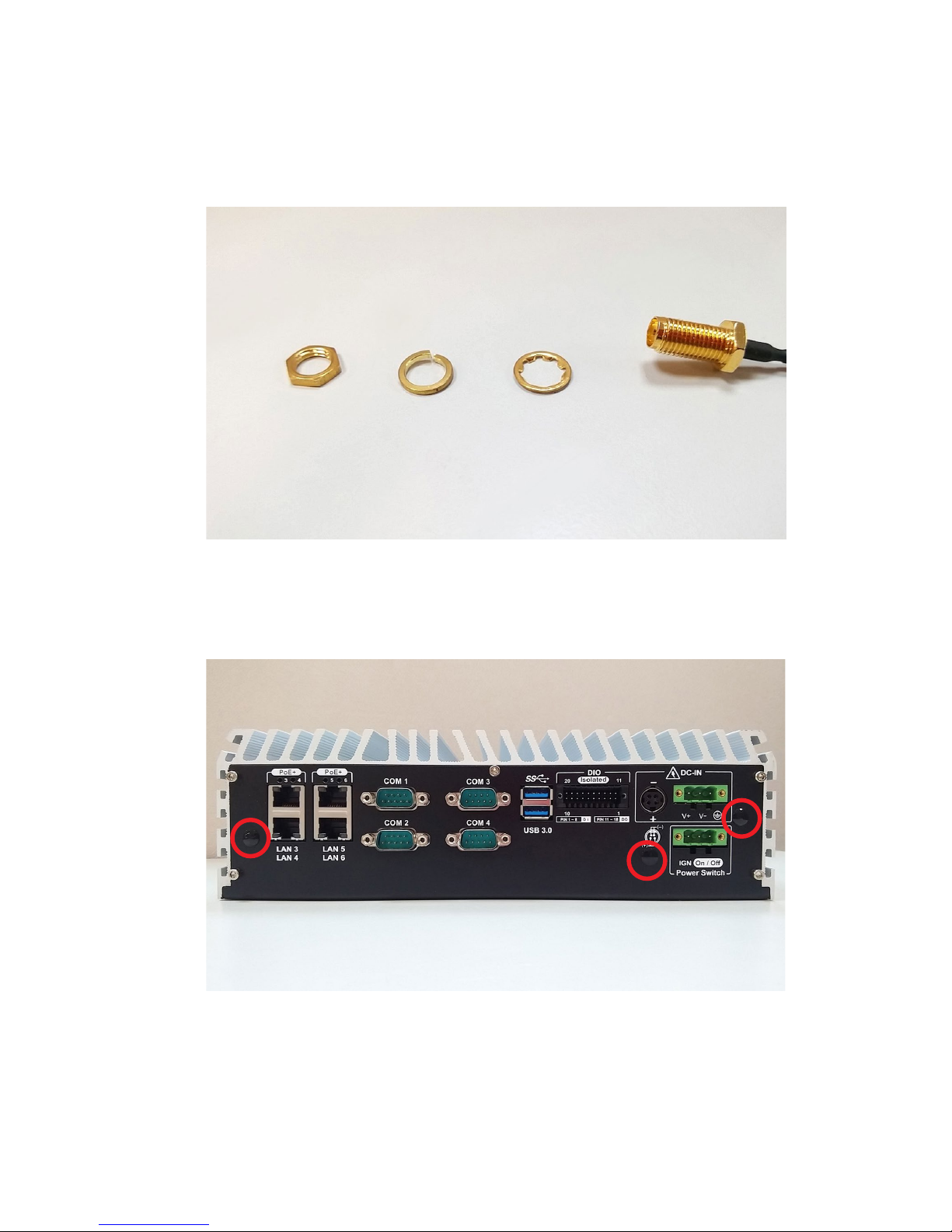

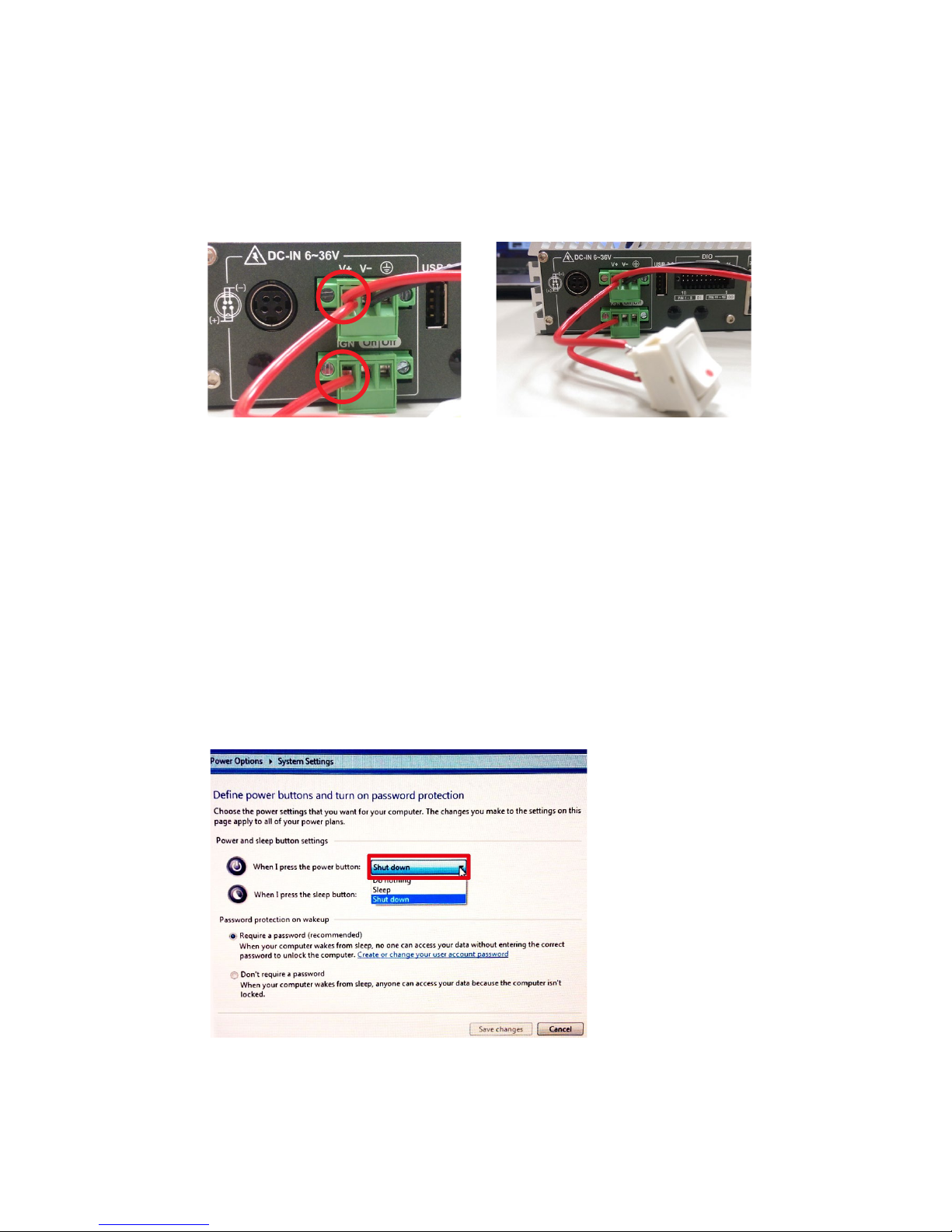

2.3.2 Remote Power On/ O Switch

It is a 2-pin power-on or power-off switch through Phoenix Contact terminal block. You could turn on or off the system power by using this contact. This terminal block supports dual function of soft power-on/ power-off (instant off or delay 4 second), and suspend mode.

COM 1

COM 2

COM 3

COM 4

USB 3.0

DC-IN

Isolated

DIO

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

Power Switch

On / OffIGN

LAN 4

LAN 3

LAN 6

LAN 5

3 4

PoE+

5 6

PoE+

Page 30

GETTING TO KNOW YOUR ECS-8000

Pin No. Denition

1 IGNITION

2 SW+

3 SW-

2.3.3 Isolated DIO

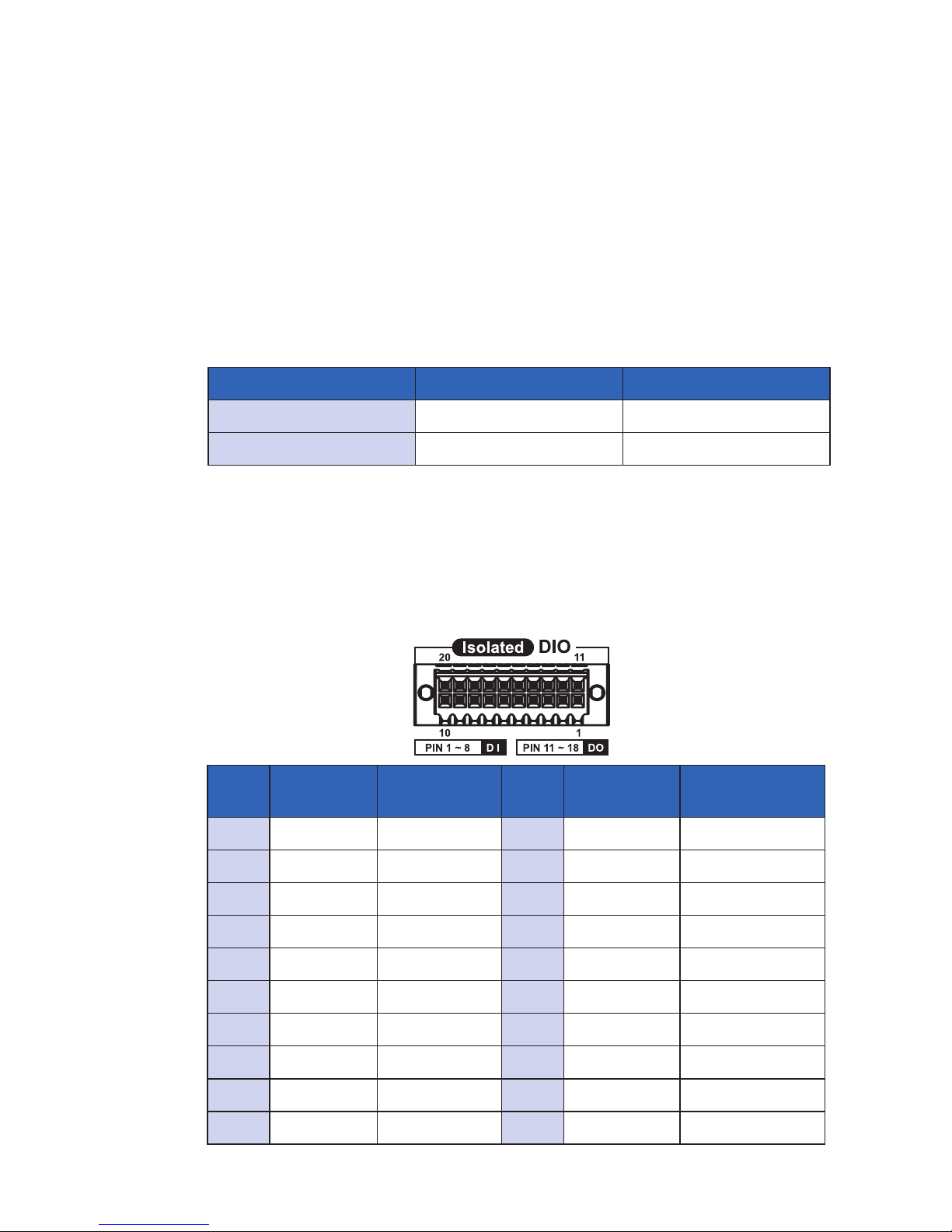

There is a 16-bit DIO (8-bit DI, 8-bit DO) connector in the rear side. Each DIO channel is equipped with a photocoupler for isolated protection. A power buffer device TPD2007F integrated in 8-DO circuit for motors, solenoids, and lamp driver applications. Please refer to Appendix A for more details.

Pin No. Denition Pin No. Denition

1 INPUT 0 11 OUTPUT 0

2 INPUT 1 12 OUTPUT 1

3 INPUT 2 13 OUTPUT 2

4 INPUT 3 14 OUTPUT 3

5 INPUT 4 15 OUTPUT 4

6 INPUT 5 16 OUTPUT 5

7 INPUT 6 17 OUTPUT 6

8 INPUT 7 18 OUTPUT 7

9 DI_COM 19 DIO_GND

10 DIO_GND 20 External 24~78VDC Input

COM 1

COM 2

COM 3

COM 4

USB 3.0

DC-IN

Isolated

DIO

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

Power Switch

On / OffIGN

LAN 4

LAN 3

LAN 6

LAN 5

3 4

PoE+

5 6

PoE+

Page 31

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

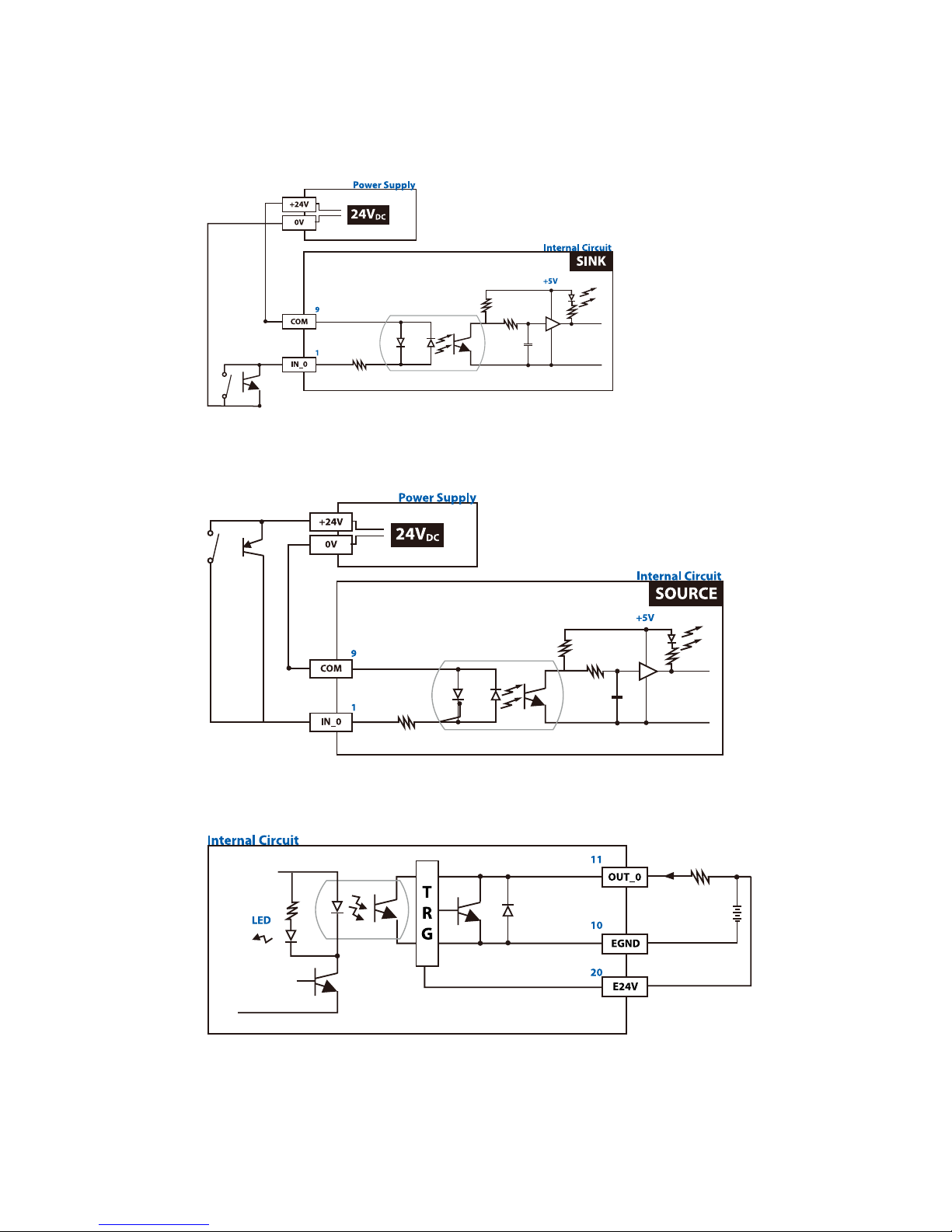

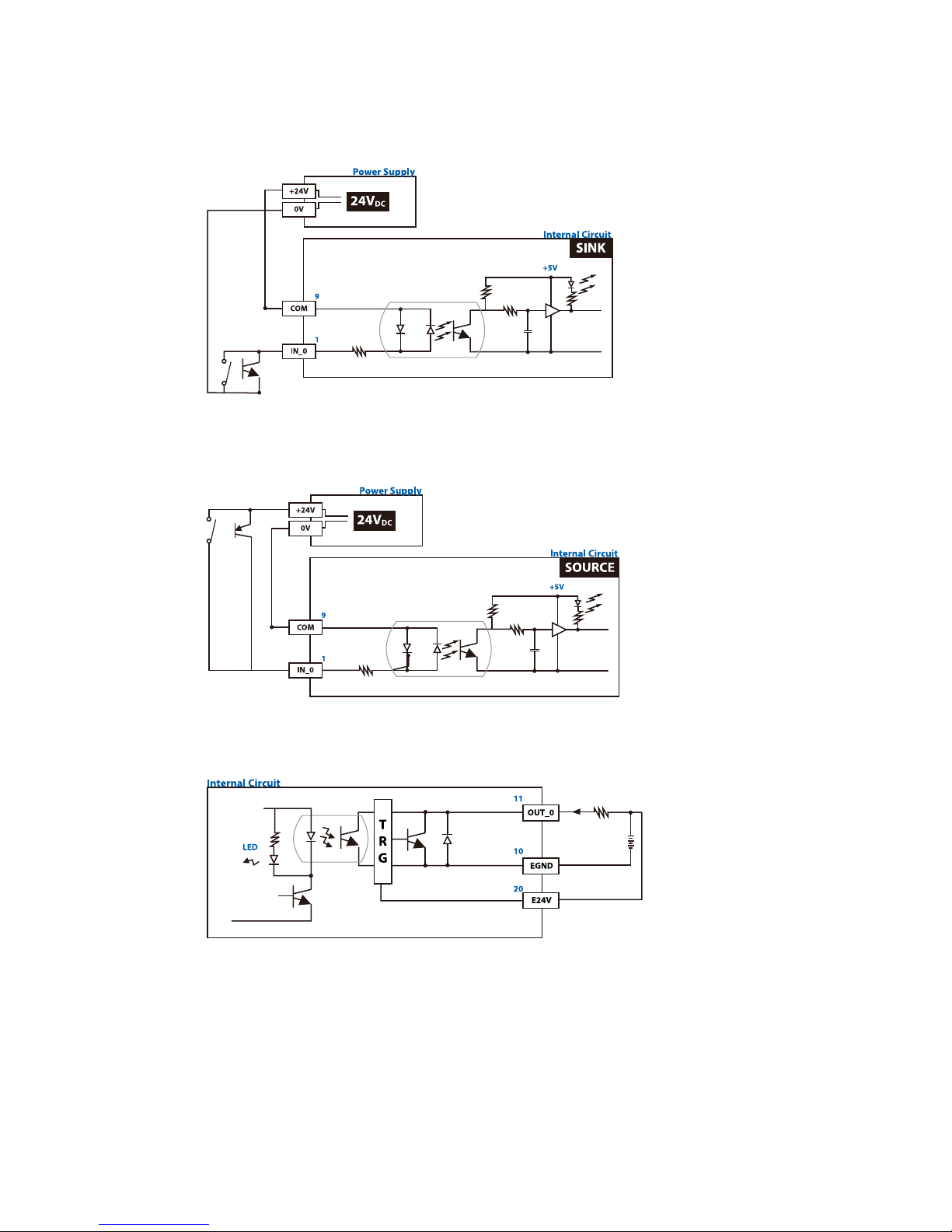

GPI SOURCE Mode

Digital GPI input signal circuit in SOURCE mode (PNP) is illustrated as follow :

GPO SINK Mode

Digital GPO output circuit in SINK mode (NPN) is illustrated as follow :

GPI SINK Mode

Isolated GPI input circuit in SINK mode (NPN) is illustrated as follow :

Page 32

GETTING TO KNOW YOUR ECS-8000

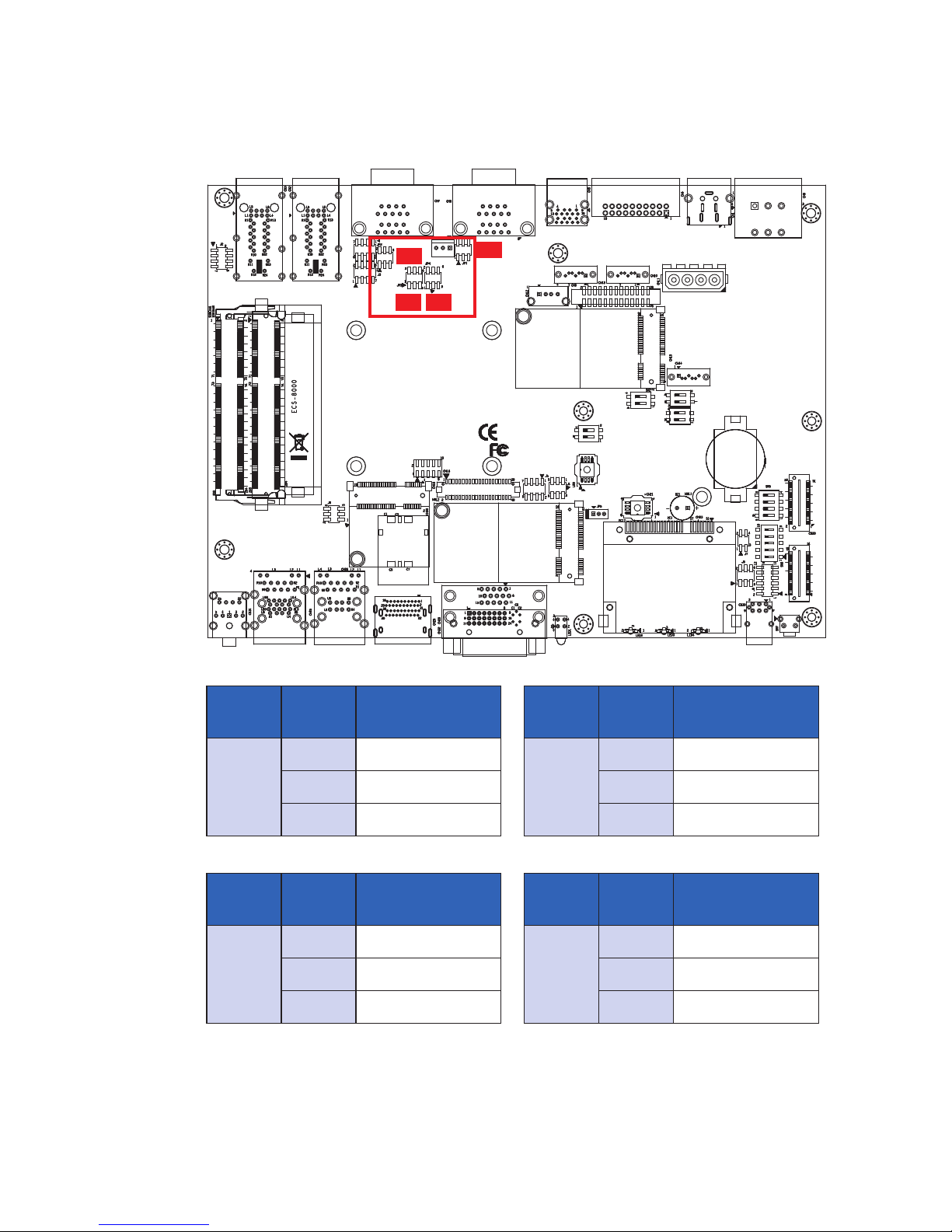

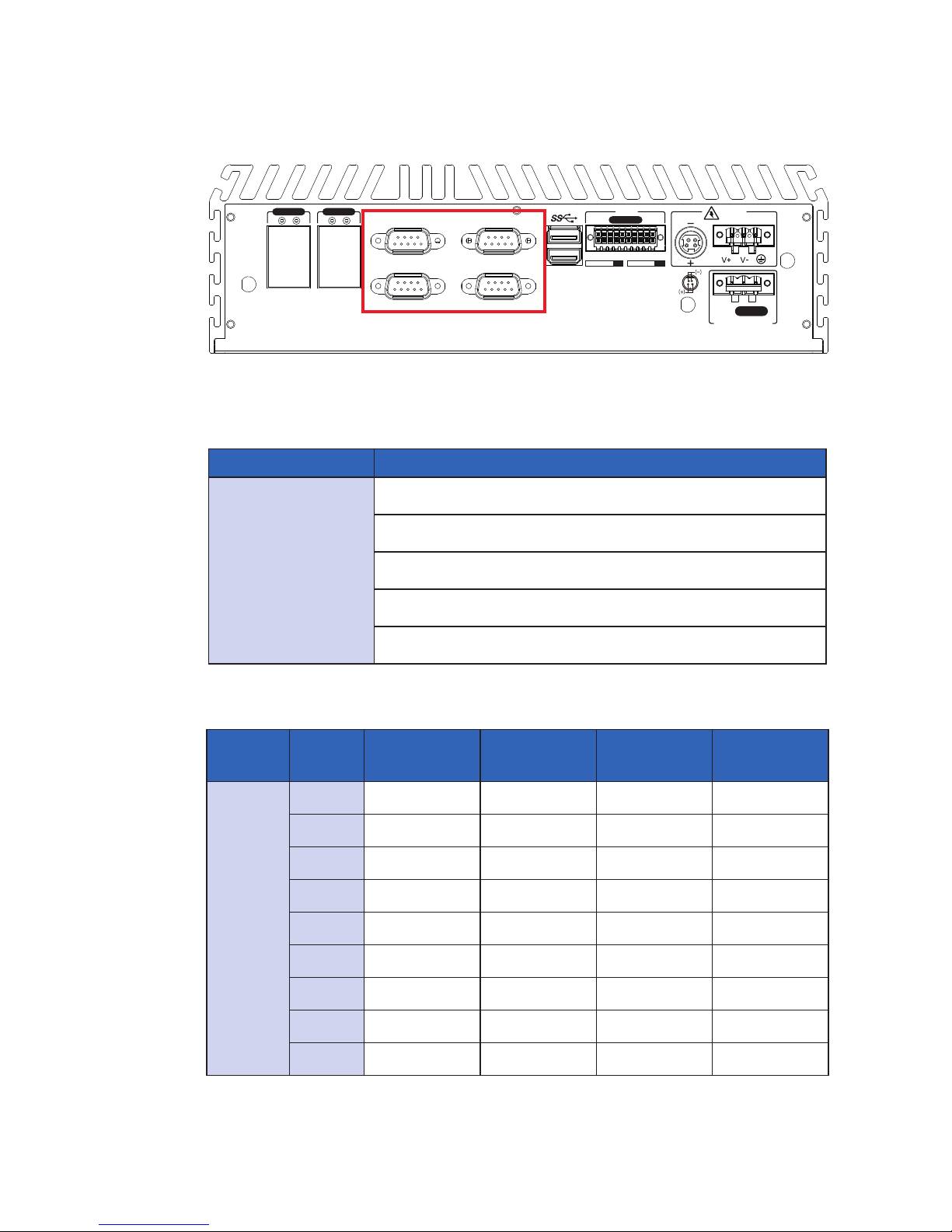

2.3.4 Serial Port COM

Serial

Port

Pin No. RS-232 RS-422

(5-wire)

RS-422 (9-wire)

RS-485 (3-wire)

1, 2

3, 4

1 DCD TXD- TXD- DATA-

2 RXD TXD+ TXD+ DATA+

3 TXD RXD+ RXD+ -----------

4 DTR RXD- RXD- -----------

5 GND GND GND GND

6 DSR ----------- RTS- -----------

7 RTS ----------- RTS+ -----------

8 CTS ----------- CTS+ -----------

9 RI ----------- CTS- -----------

The pin assignments are listed in the table as follow :

BIOS Setting Function

COM 1 (CN7) /

COM 2 (CN8) /

COM 3 (CN11) /

COM 4 (CN12)

RS-232

RS-422 (5-wire)

RS-422 (9-wire)

RS-485

RS-485 w/z auto-ow control

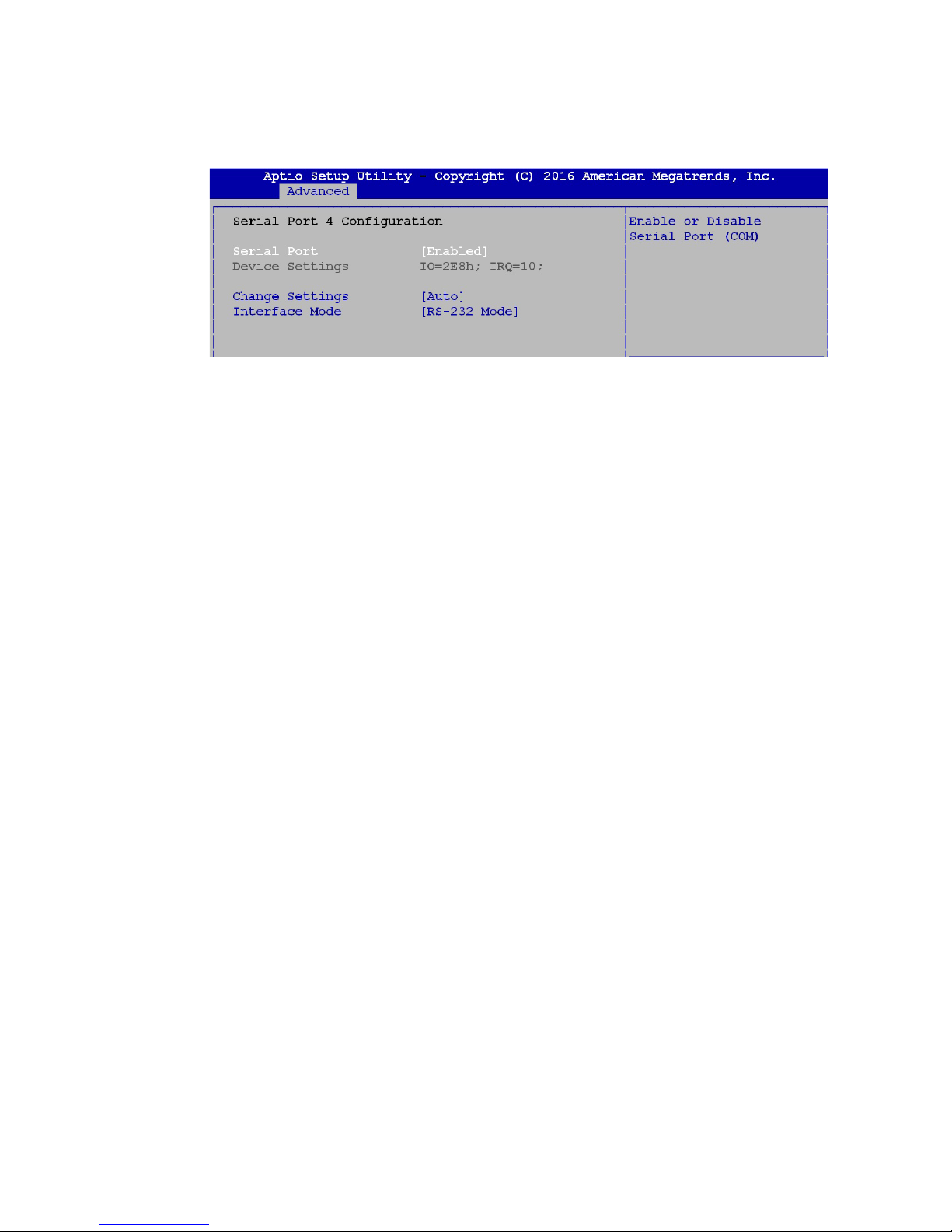

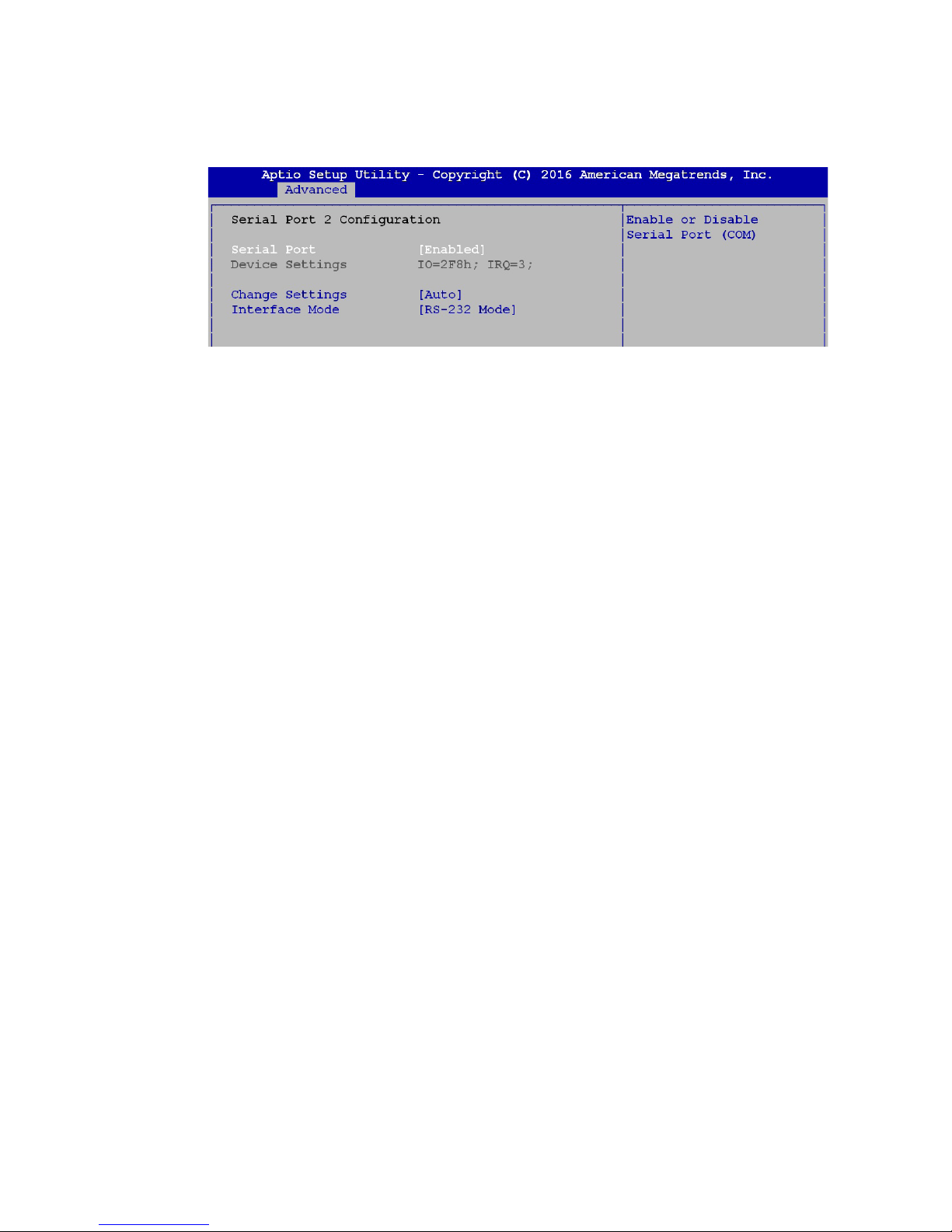

Serial port can be configured for RS-232, RS-422, or RS-485 with auto flow control communication. The default denition is RS-232, if you want to change to RS-422 or RS-485, you can nd the setting in BIOS.

COM 1

COM 2

COM 3

COM 4

USB 3.0

DC-IN

Isolated

DIO

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

Power Switch

On / OffIGN

LAN 4

LAN 3

LAN 6

LAN 5

3 4

PoE+

5 6

PoE+

Page 33

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.3.5 PoE (Power over Ethernet) Ports

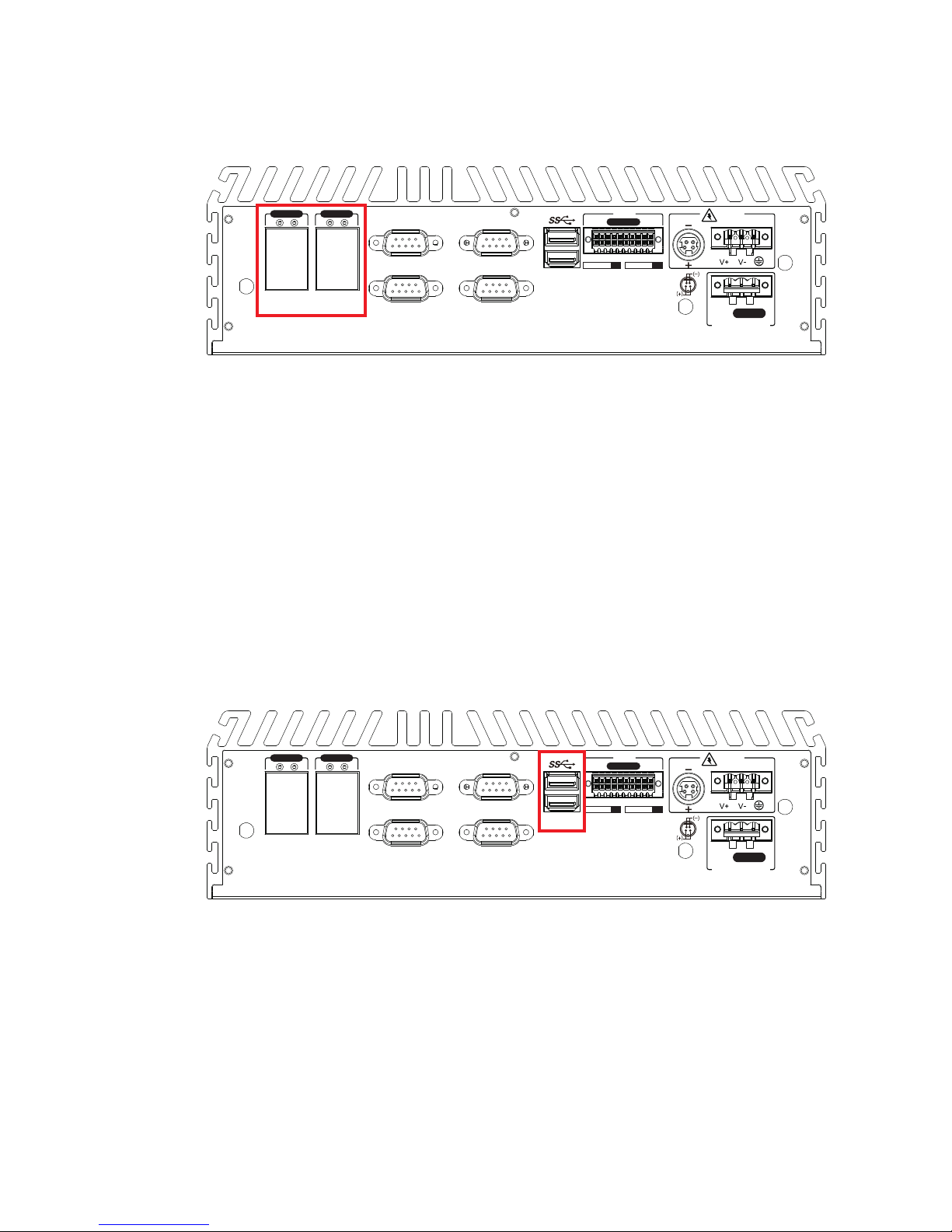

There are 4 RJ45 connectors in the rear side of ECS-8000. It supports IEEE

802.3at (PoE

) Power over Ethernet (PoE) connection delivering up to 25.5W/ 48V per port and 1000BASE-T gigabit data signals over standard Ethernet Cat 5/ Cat 6 cable.

Each PoE connection is powered by Intel

I210 Gigabit Ethernet controller and independent PCI express interface to connect with multi-core processor for network and data transmit optimization. Only when PoE port starts to supply power to power devices, the dedicated LED will be lightened.

PS. Suggest to use PoE when power input is over 11V

COM 1

COM 2

COM 3

COM 4

USB 3.0

DC-IN

Isolated

DIO

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

Power Switch

On / OffIGN

LAN 4

LAN 3

LAN 6

LAN 5

3 4

PoE+

5 6

PoE+

2.3.6 External USB

COM 1

COM 2

COM 3

COM 4

USB 3.0

DC-IN

Isolated

DIO

20 11

10 1

D IPIN 1 ~ 8 DOPIN 11 ~ 18

Power Switch

On / OffIGN

LAN 4

LAN 3

LAN 6

LAN 5

3 4

PoE+

5 6

PoE+

Page 34

GETTING TO KNOW YOUR ECS-8000

2.4 Main Board Expansion Connectors

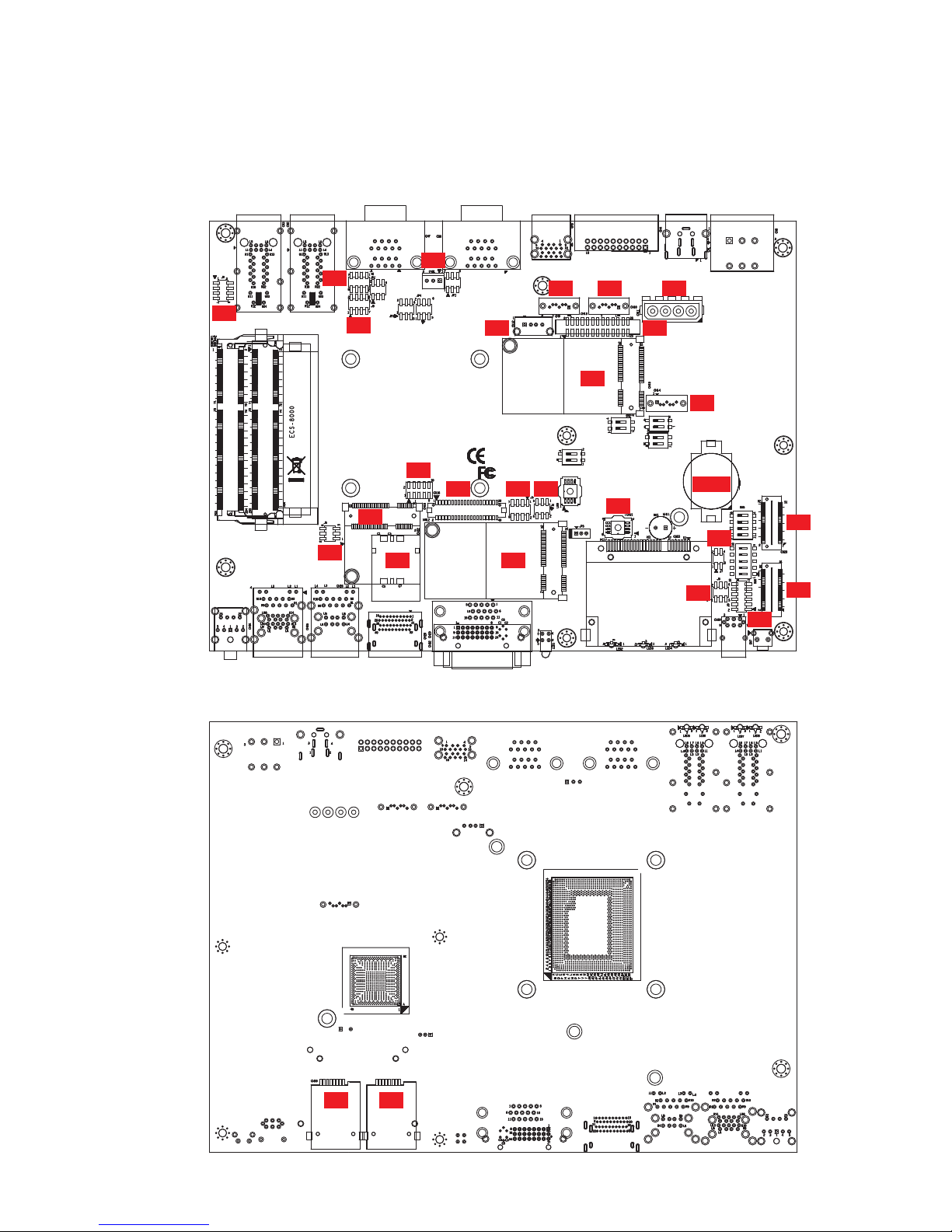

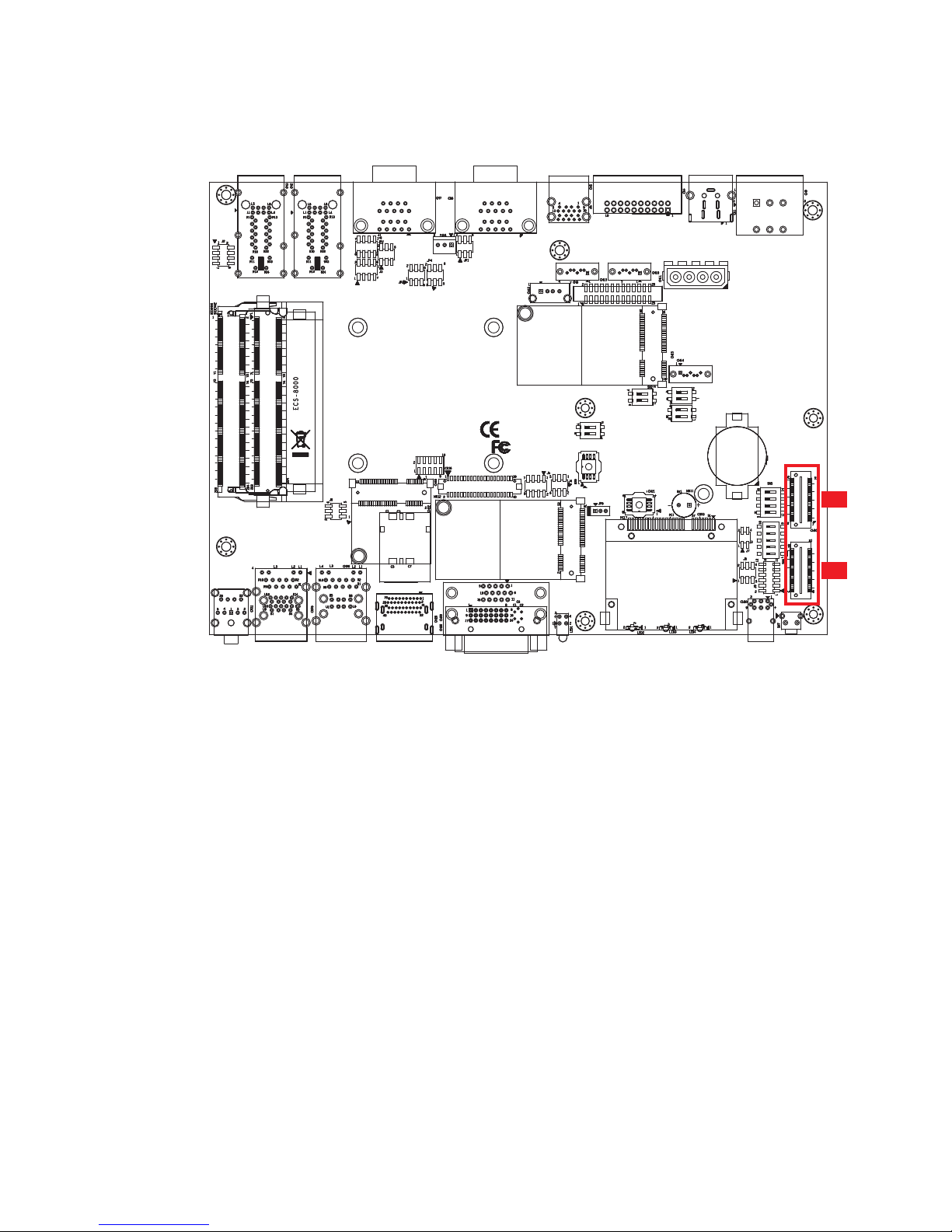

2.4.2 Bottom View of ECS-8000 Main Board With Connector Location

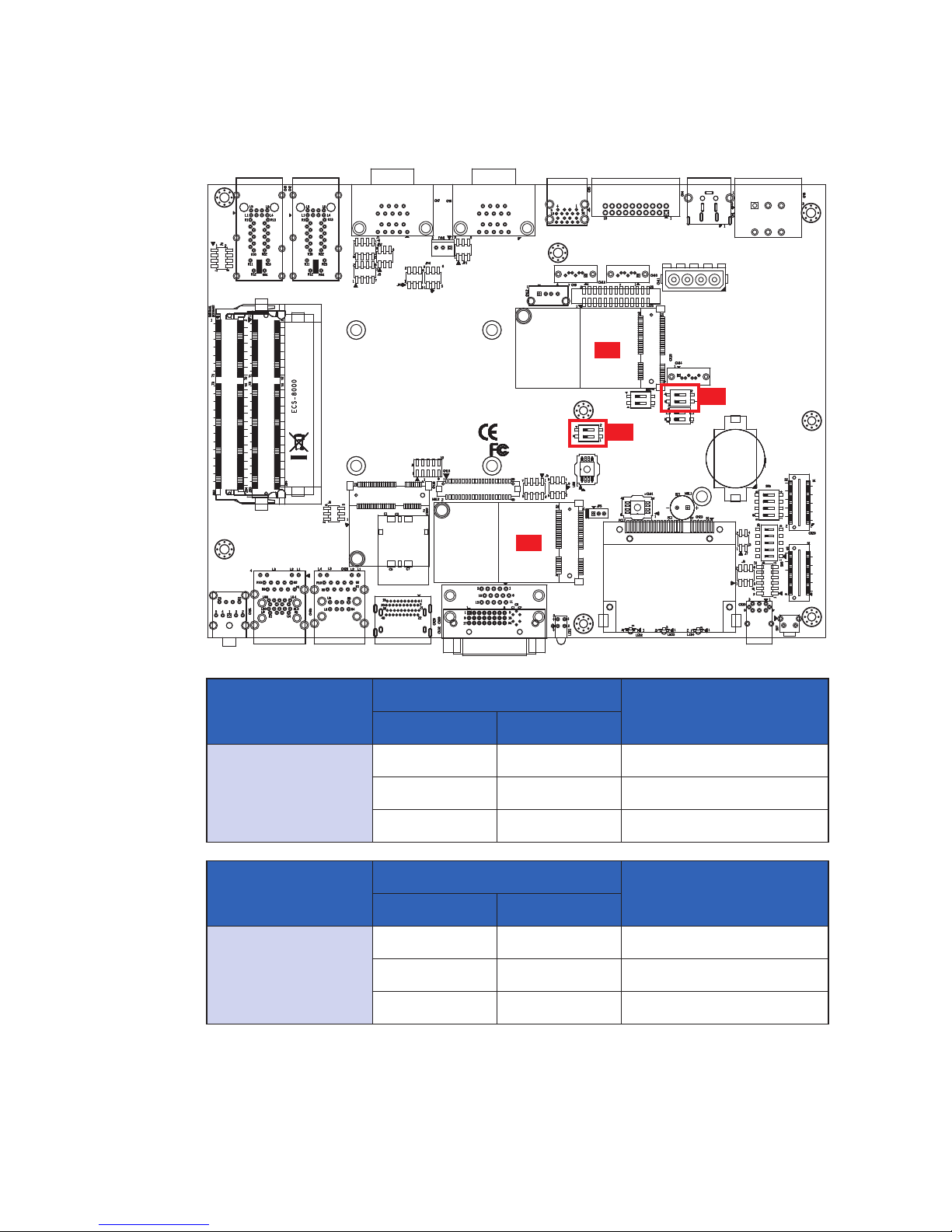

2.4.1 Top View of ECS-8000 Main Board With Connector Location

J5J6J4

BIOS

CN16

CN18

CN10

CN19

Battery

CN15

CN9 CN11

CN12 CN13

CN14

FAN1

CN22 CN27

CN20

CN24

CN33 CN34

Page 35

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

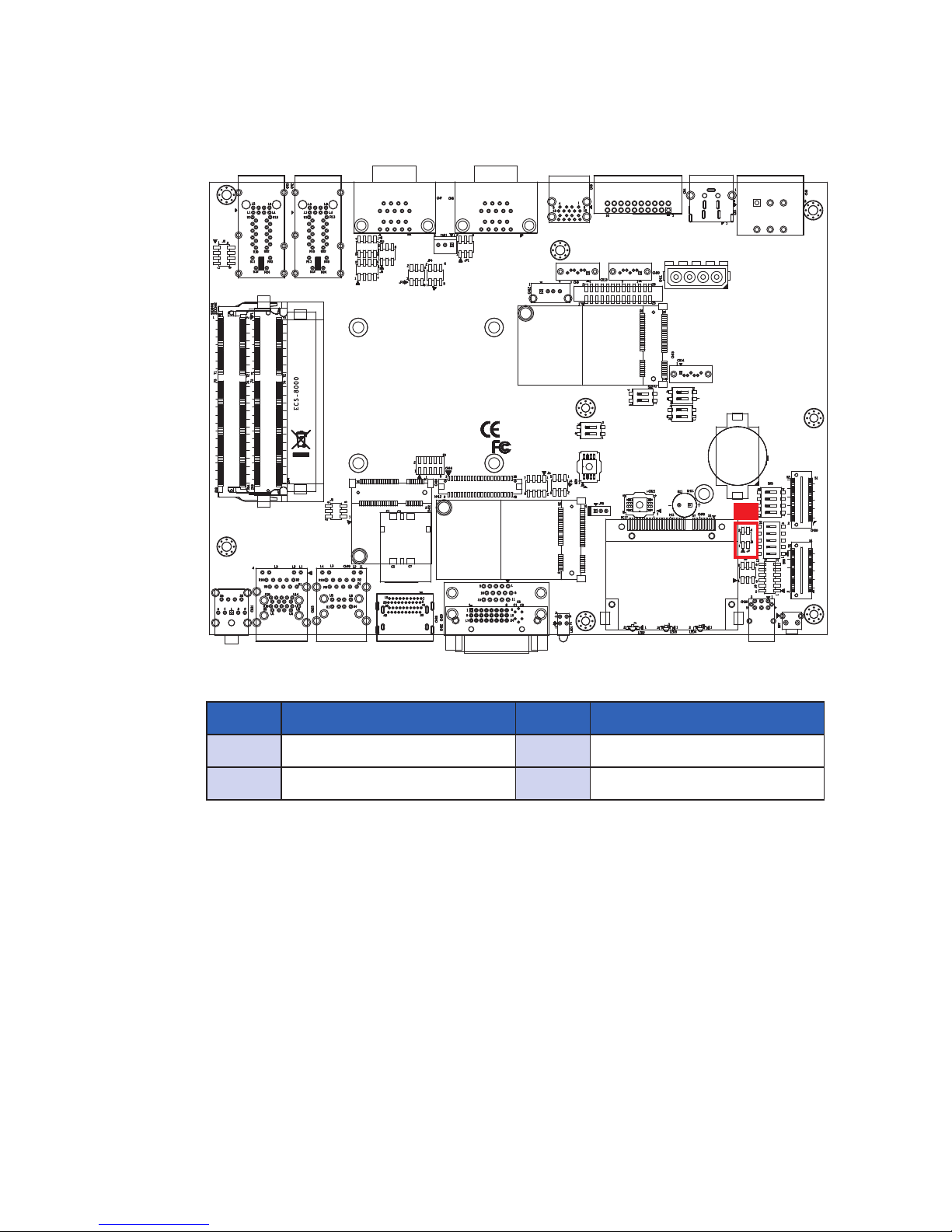

2.4.3 J5 Miscellaneous Pin Header

This pin header can be used as a backup for following functions, hard drive LED indicator, reset button, power LED indicator, and power-on/ off button, which already can be accessed by front panel and top panel. The pinouts of Miscellaneous port are listed in following table:

Group Pin No. Description

HDD LED

1 HDD_LED_P

3 HDD_LED_N

RESET BUTTON

5 FP_RST_BTN_N

7 GND

POWER LED

2 PWR_LED_P

4 PWR_LED_N

POWER BUTTON

6 FP_PWR_BTN_IN

8 GND

Page 36

GETTING TO KNOW YOUR ECS-8000

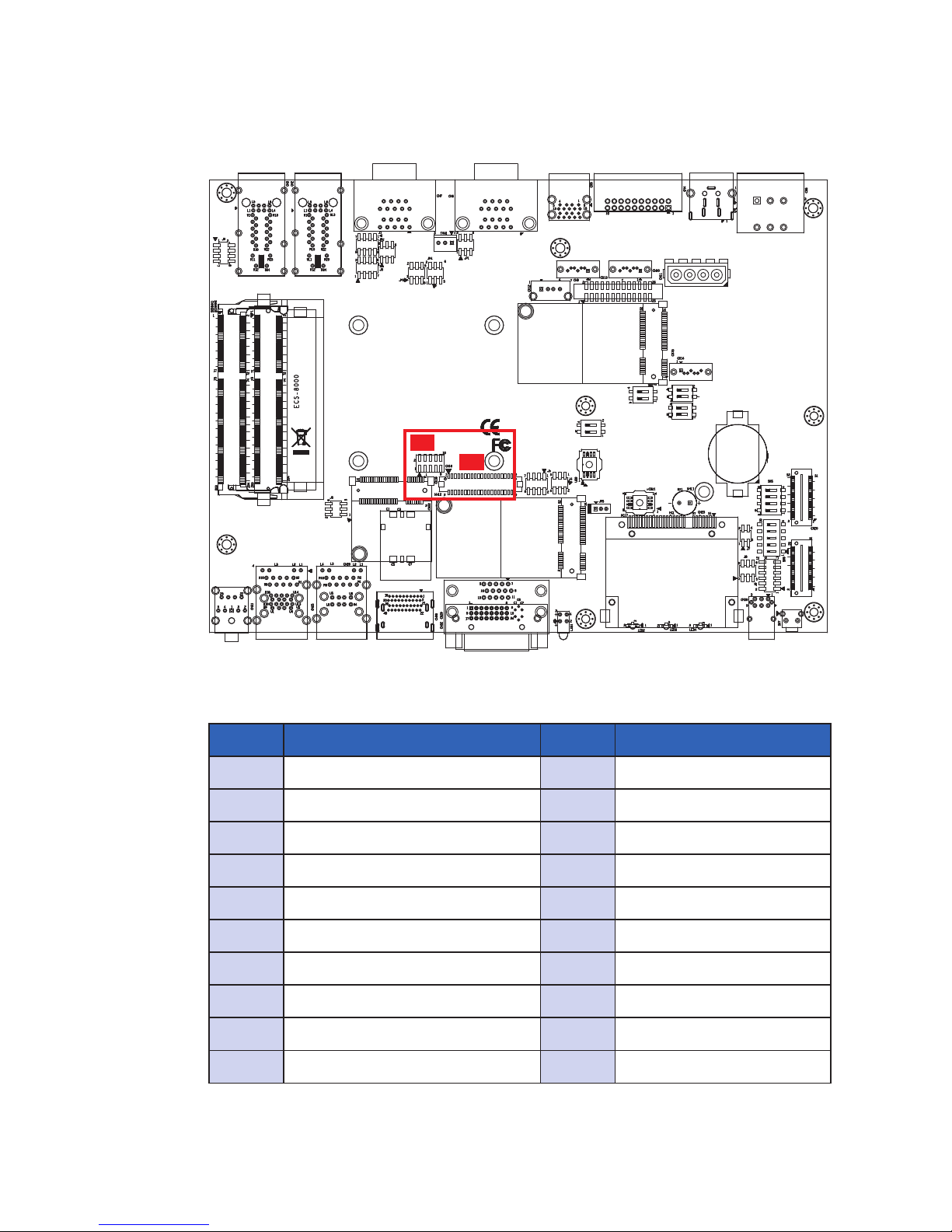

ECS-8000 supports eDP display, up to 4096 x 2304 pixels resolution. The pin assignments of CN18 are listed in the following table:

2.4.4 CN16, CN18 eDP

CN16

CN18

Pin No. Denition Pin No. Denition

1 GND 11 GND

2 +V3P3S_DP_EMB (+5V / +3.3V) 12 VSS_EDP_AMOLED

3 GND 13 N.C.

4 +V3P3S_DP_EMB (+5V / +3.3V) 14 VSS_EDP_AMOLED

5 GND 15 N.C.

6 +V3P3S_DP_EMB (+5V / +3.3V) 16 +VCC_EDP_BKLT (+12V)

7 GND 17 GND

8 +V3P3S_DP_EMB (+5V / +3.3V) 18 +VCC_EDP_BKLT (+12V)

9 EDP_HPD 19 N.C.

10 +V3P3S_DP_EMB (+5V / +3.3V) 20 GND

Page 37

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

The LCD inverter is connected to CN16 via a 2x5-pin, 2.0mm pin header providing backlight control. The pin assignments are listed in the following table:

Pin No. Denition Pin No. Denition

1 +5V 6 LVDS_VDD_EN

2 L_BKLT_EN 7 GND

3 N.C. 8 GND

4 L_BRIGHTNESS 9 EDP_UTIL_LS

5 N.C. 10 N.C.

Pin No. Denition Pin No. Denition

21 N.C. 31 EDP_TXN0

22 +V5S_LVDS_BKLT (+5V) 32 +3.3V

23 GND 33 EDP_TXP0

24 N.C. 34 GND

25 EDP_TXN1 35 GND

26 L_BRIGHTNESS 36 N.C.

27 EDP_TXP1 37 EDP_AUXP

28 L_BKLT_EN 38 N.C.

29 GND 39 EDP_AUXN

30 +3.3V 40 N.C.

Page 38

GETTING TO KNOW YOUR ECS-8000

2.4.5 CN9, CN10 : SATA III Connector

There are 2 onboard high performance Serial ATA III (SATA III) on ECS-8000. It supports higher storage capacity with less cabling effort and smaller required space. The pin assignments of CN9 and CN10 are listed in the following table:

Pin No. Denition Pin No. Denition

1 GND 5 RXN

2 TXP 6 RXP

3 TXN 7 GND

4 GND

CN10CN9

Page 39

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.4.6 CN14 : SATA II Connector

There is a onboard high performance Serial ATA II (SATA II) on ECS-8000. It supports higher storage capacity with less cabling effort and smaller required space. The pin assignments of CN14 are listed in the following table:

CN14

Pin No. Denition Pin No. Denition

1 GND 5 RXN

2 TXP 6 RXP

3 TXN 7 GND

4 GND

Page 40

GETTING TO KNOW YOUR ECS-8000

2.4.7 CN11 : SATA Power Connector

The ECS-8000 also equip with a SATA power connector. It supports 5V (Up to 4A) and 12V (Up to 2A) current to the hard drive or SSD. The pin assignments of CN11 are listed in the following table:

Connector Pin No. Description Pin No. Description

CN11

1 +12V 3 GND

2 GND 4 +5V

CN11

Page 41

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.4.8 CN12 : Internal USB

The ECS-8000 main board provide one expansion USB port using plug-andplay for Dongle Key or LCD touch Panel. The USB interface supports 480 Mbps transfer rate which comply with high speed USB specication Rev. 2.0.

The USB interface is accessed through one standard USB 2.0 connector. This USB 2.0 does not support wake up function.

The pin assignments of CN12 are listed in the following table:

CN12

Connector Pin No. Description Pin No. Description

CN12

1 USB_VCC 3 USBD+

2 USBD- 4 GND

Page 42

GETTING TO KNOW YOUR ECS-8000

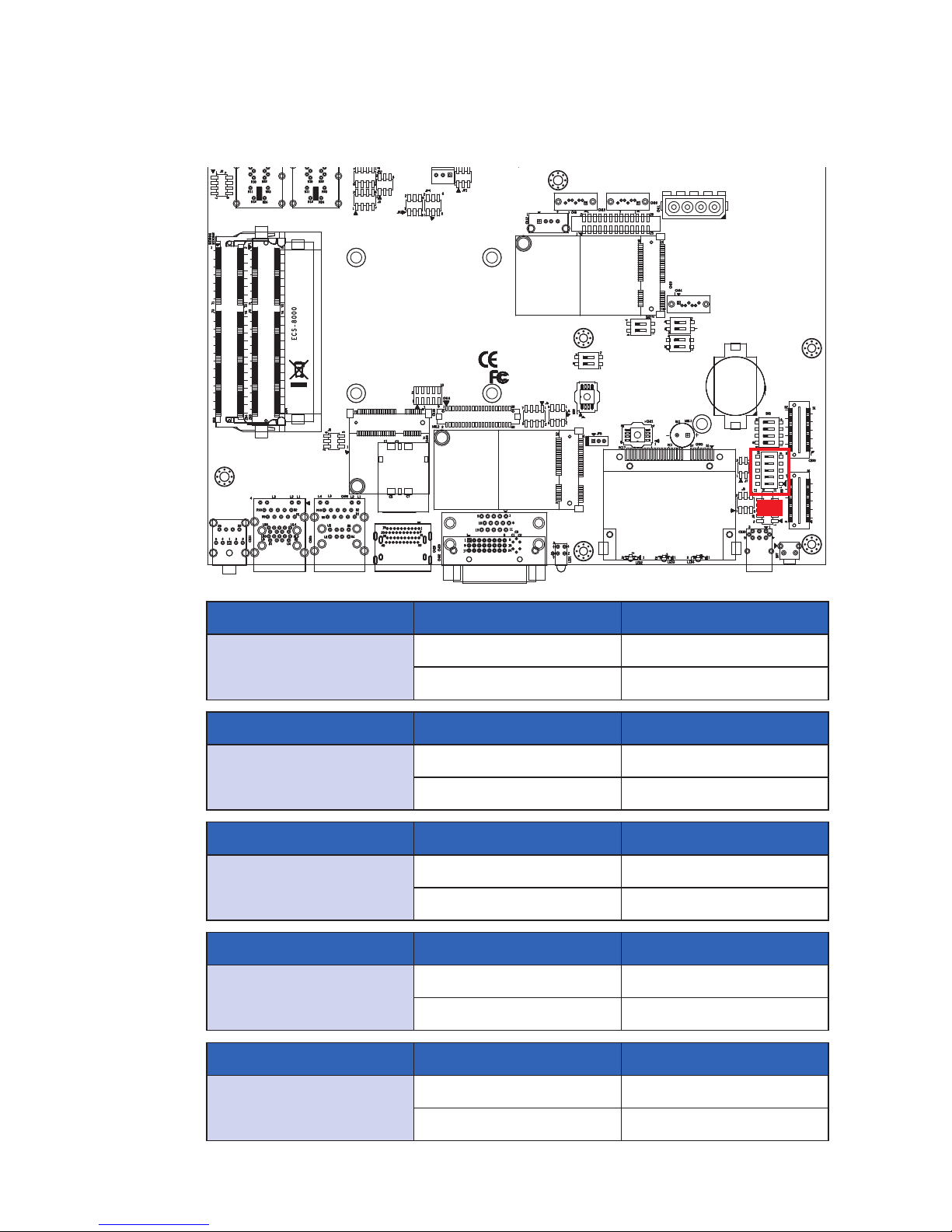

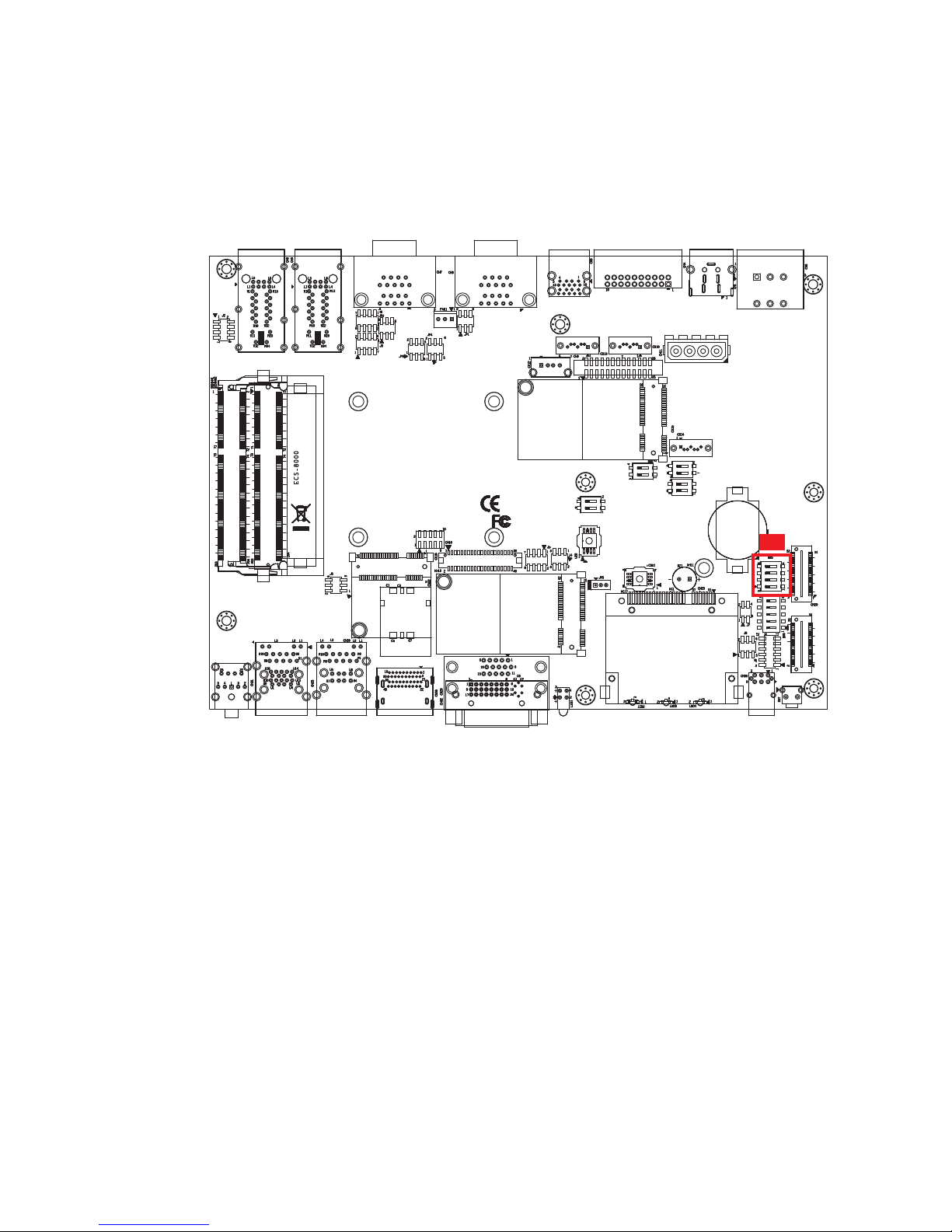

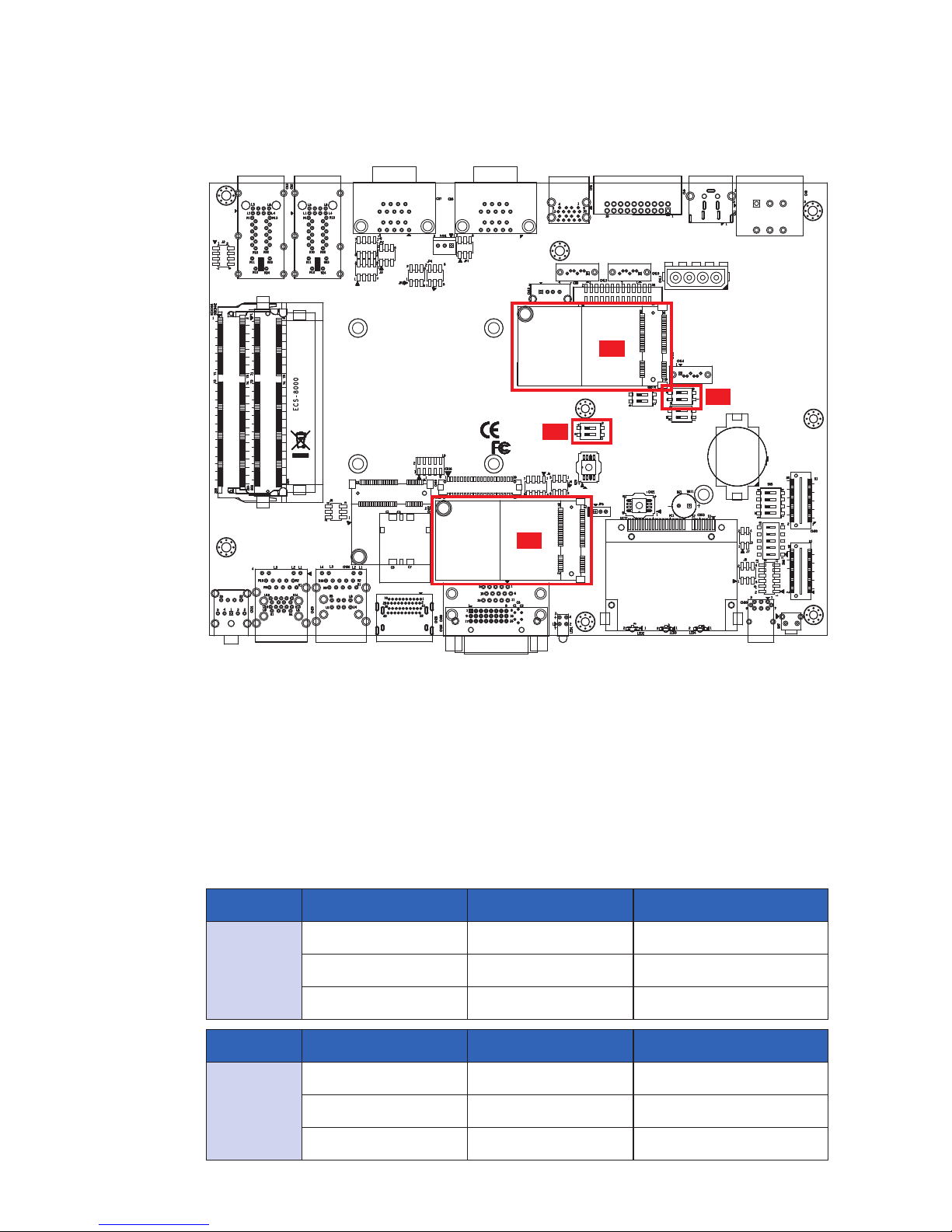

2.4.9 CN27, CN15 : Mini PCIe, mSATA

Both mSATA and Mini PCIe share the same form factor and similar electrical pinout assignments on their connectors. There was no clear mechanism to distinguish if a mSATA drive or a Mini PCIe device is plugged into the socket until recently that SATA I/O issued an ECN change (ECN #045) to redene pin43 on mSATA connector as “no connect” instead of “return current path” (or GND). When an mSATA drive is inserted, its pin-43 is “no connect”, and the respective pin on the socket is being pulled-up to logic 1. When a Mini PCIe device is inserted, its pin-43 forces the respective pin on the socket to ground, or logic 0. SW4, SW1 Pin-43 are designed for switching mSATA drive and Mini PCIe device.

Mini PCIe DIP Switch SW 4-1 DIP Switch SW 4-2 Interface

CN27

ON OFF *Auto Detection

OFF ON Mini PCI-E (Forced)

OFF OFF mSATA (Forced)

CN15

SW4

SW1

CN27

Mini PCIe DIP Switch SW 1-1 DIP Switch SW 1-2 Interface

CN15

ON OFF *Auto Detection

OFF ON Mini PCI-E (Forced)

OFF OFF mSATA (Forced)

Page 43

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

Pin No. Signal Name Pin No. Signal Name

51 Reserved 52 +3.3Vaux

49 Reserved 50 GND

47 Reserved 48 +1.5V

45 Reserved 46 Reserved

43 Status 44 Reserved

41 +3.3Vaux 42 Reserved

39 +3.3Vaux 40 GND

37 GND 38 USB_D+

35 GND 36 USB_D-

33 PETp0 34 GND

31 PETn0 32 SMB_DATA

29 GND 30 SMB_CLK

27 GND 28 +1.5V

25 PERp0 26 GND

23 PERn0 24 +3.3Vaux

21 GND 22 PERST#

19 Reserved 20 reserved

17 Reserved 18 GND

Mechanical Key

15 GND 16 UIM_VPP

13 REFCLK+ 14 UIM_RESET

11 REFCLK- 12 UIM_CLK

9 GND 10 UIM_DATA

7 CLKREQ# 8 UIM_PWR

5 Reserved 6 1.5V

3 Reserved 4 GND

1 WAKE# 2 3.3Vaux

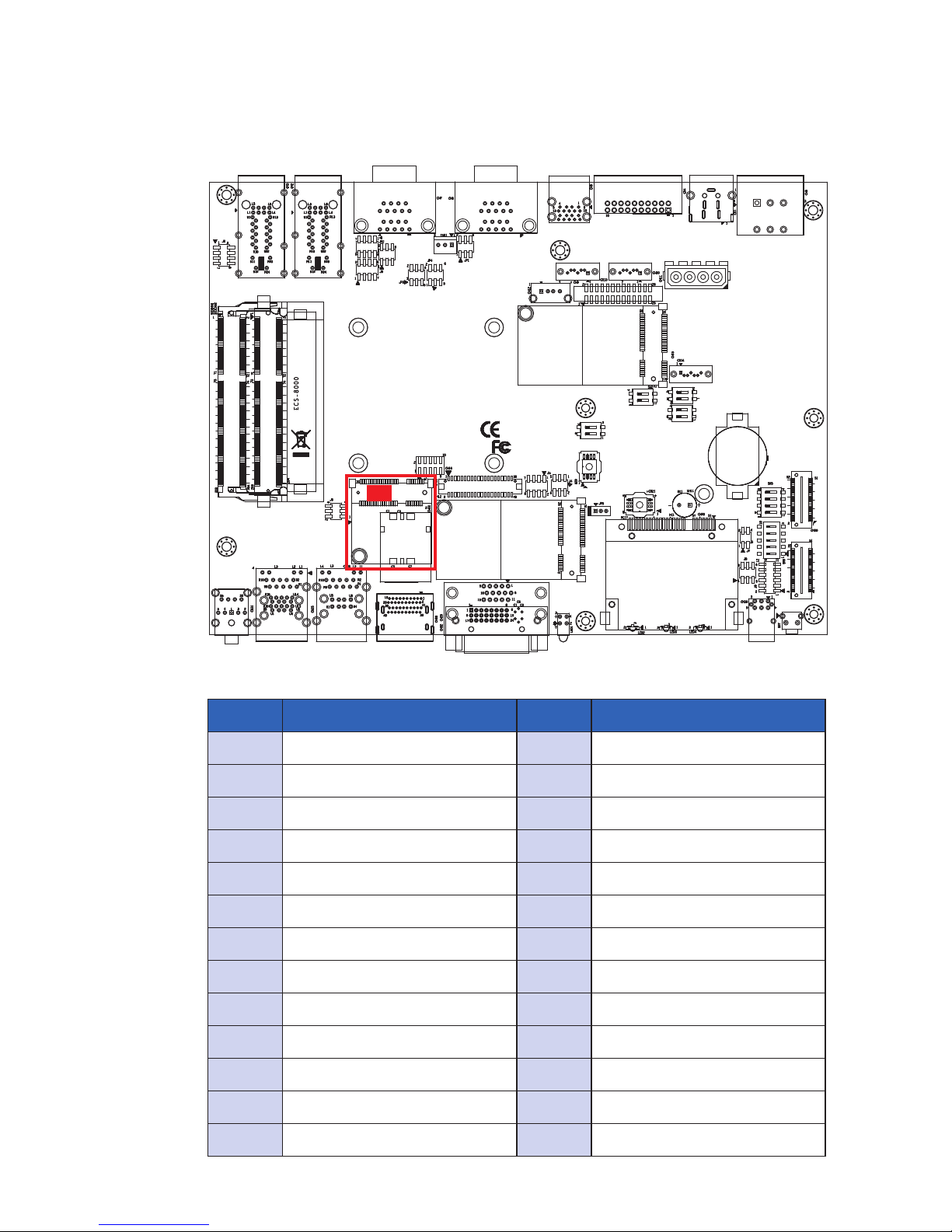

The pin assignments of CN27, CN15 are listed in the following table:

Page 44

GETTING TO KNOW YOUR ECS-8000

2.4.10 CN19 : Mini PCIe

Pin No. Signal Name Pin No. Signal Name

51 Reserved 52 +3.3Vaux

49 Reserved 50 GND

47 Reserved 48 +1.5V

45 Reserved 46 Reserved

43 GND 44 Reserved

41 +3.3Vaux 42 Reserved

39 +3.3Vaux 40 GND

37 GND 38 USB_D+

35 GND 36 USB_D-

33 PETp0 34 GND

31 PETn0 32 SMB_DATA

29 GND 30 SMB_CLK

27 GND 28 +1.5V

The pin assignments of CN19 are listed in the following table:

CN19

Page 45

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

25 PERp0 26 GND

23 PERn0 24 +3.3Vaux

21 GND 22 PERST#

19 Reserved 20 reserved

17 Reserved 18 GND

Mechanical Key

15 GND 16 UIM_VPP

13 REFCLK+ 14 UIM_RESET

11 REFCLK- 12 UIM_CLK

9 GND 10 UIM_DATA

7 CLKREQ# 8 UIM_PWR

5 Reserved 6 1.5V

3 Reserved 4 GND

1 WAKE# 2 3.3Vaux

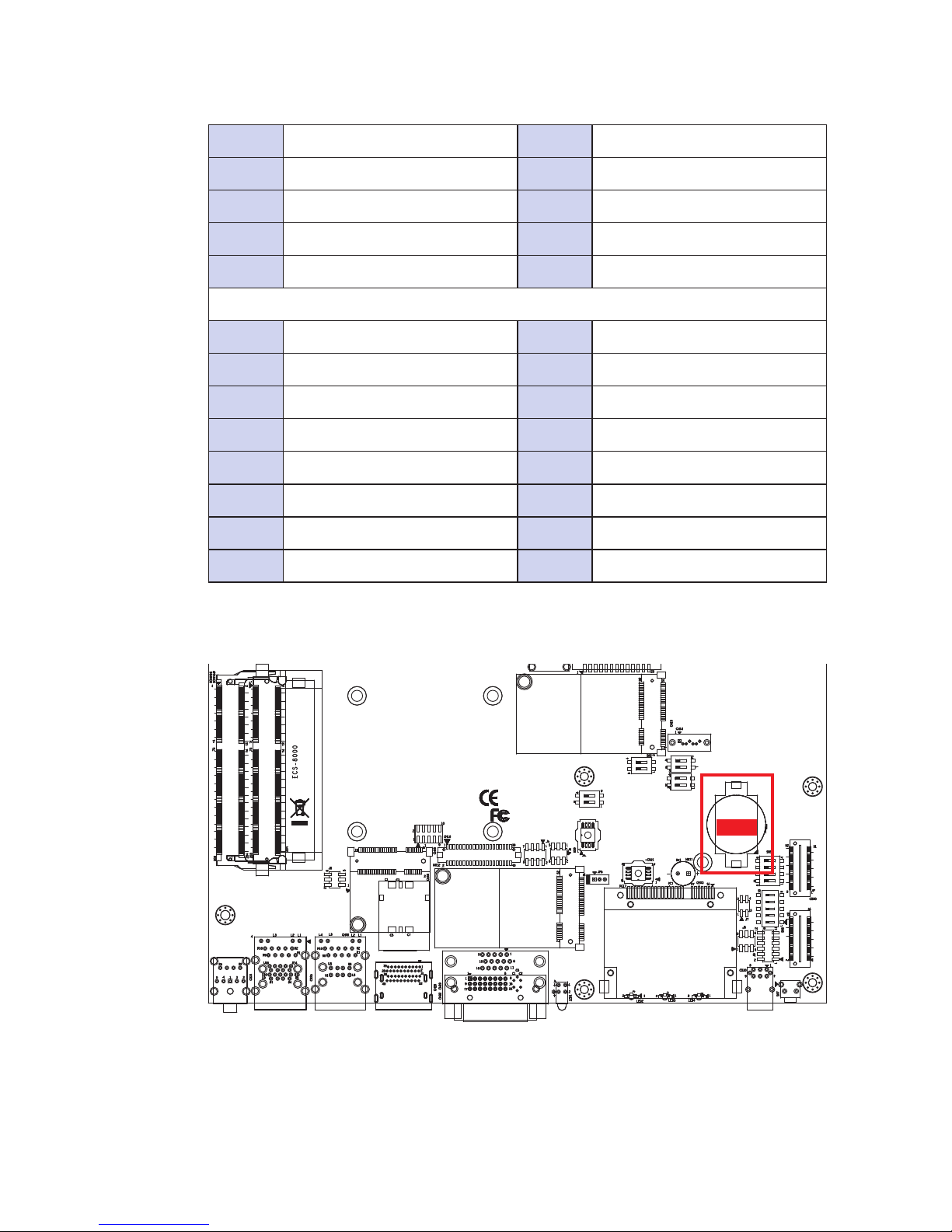

2.4.10 Battery

The ECS-8000’s real-time clock is powered by a lithium battery. It is Equipped with Panasonic BR2032 190mAh lithium battery. It is recommended that you not replace the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team.

Battery

Page 46

GETTING TO KNOW YOUR ECS-8000

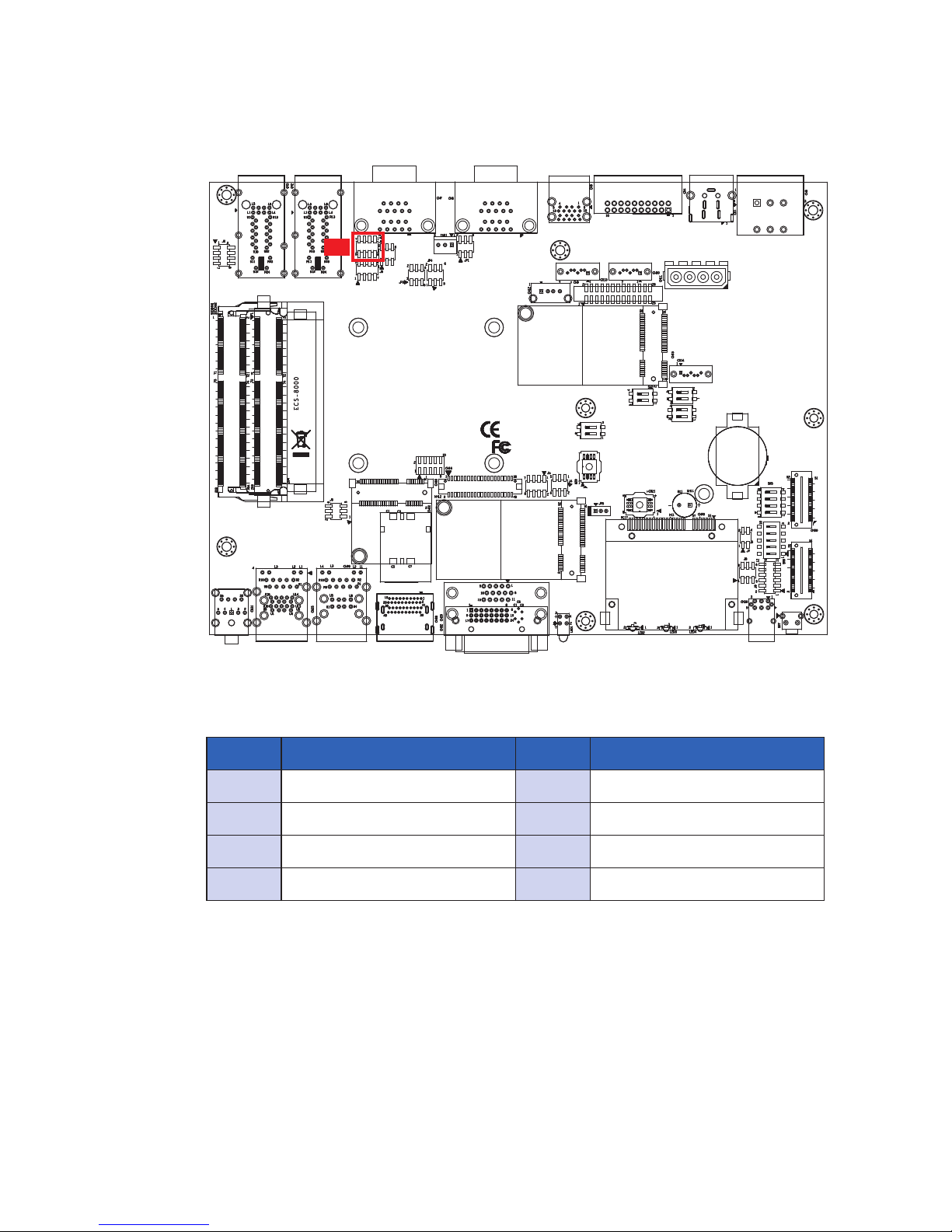

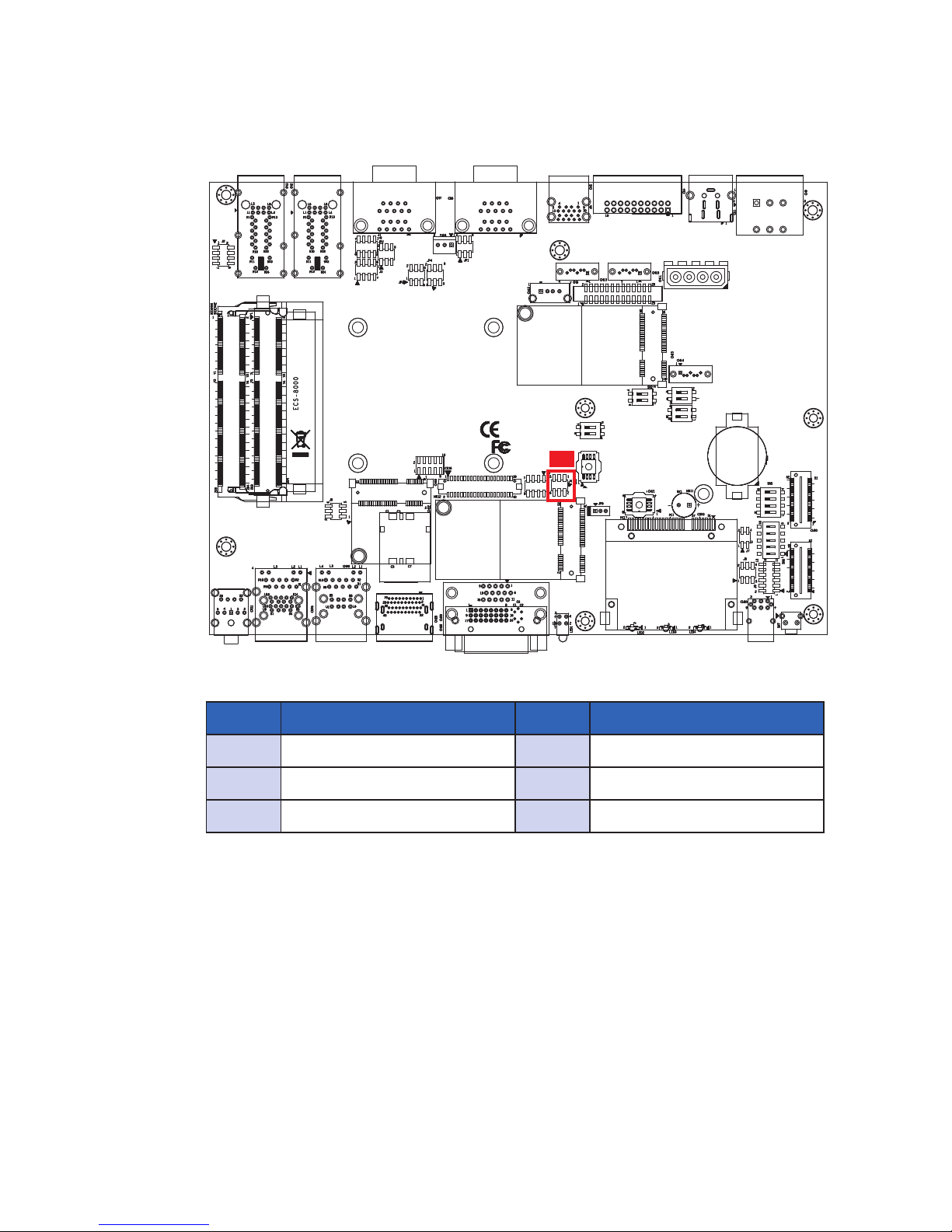

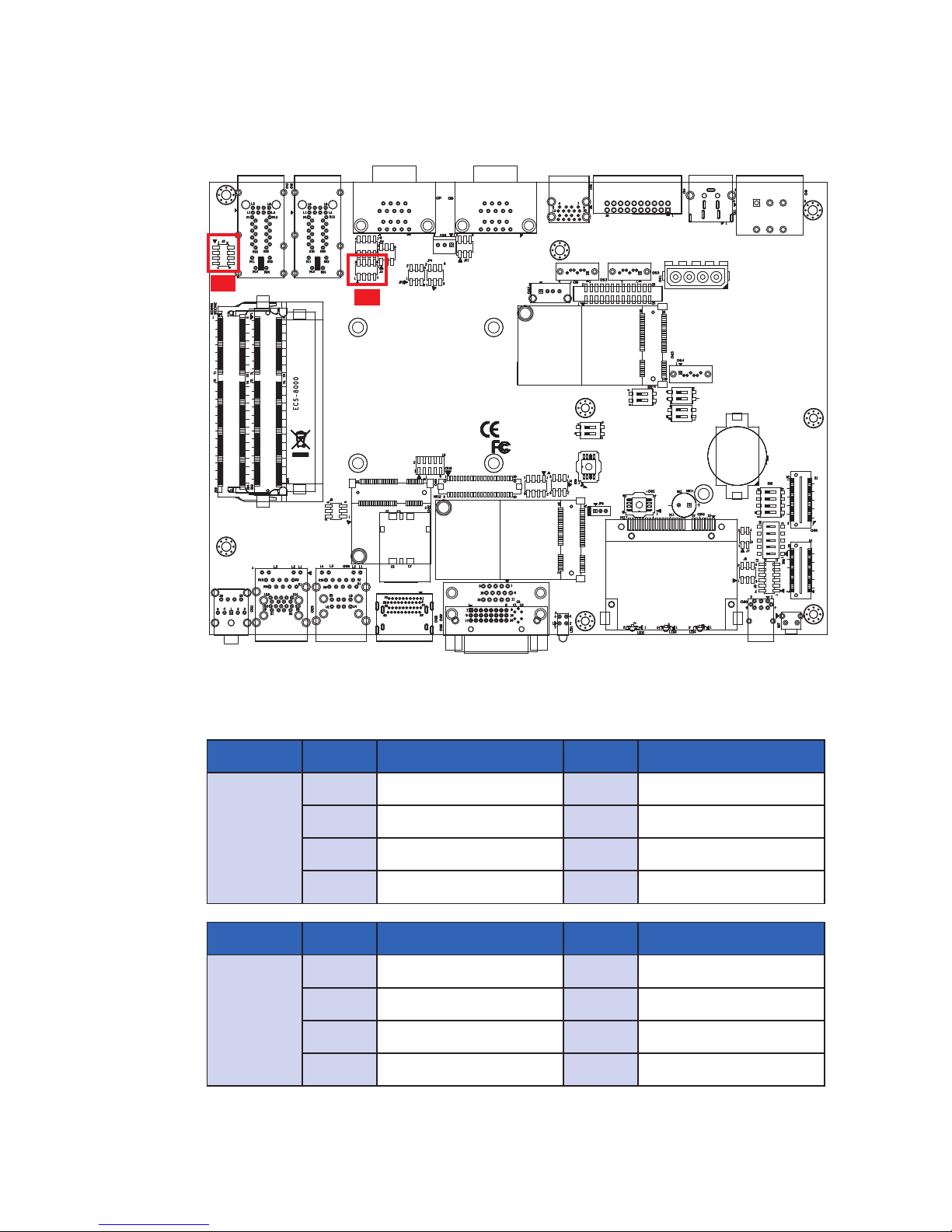

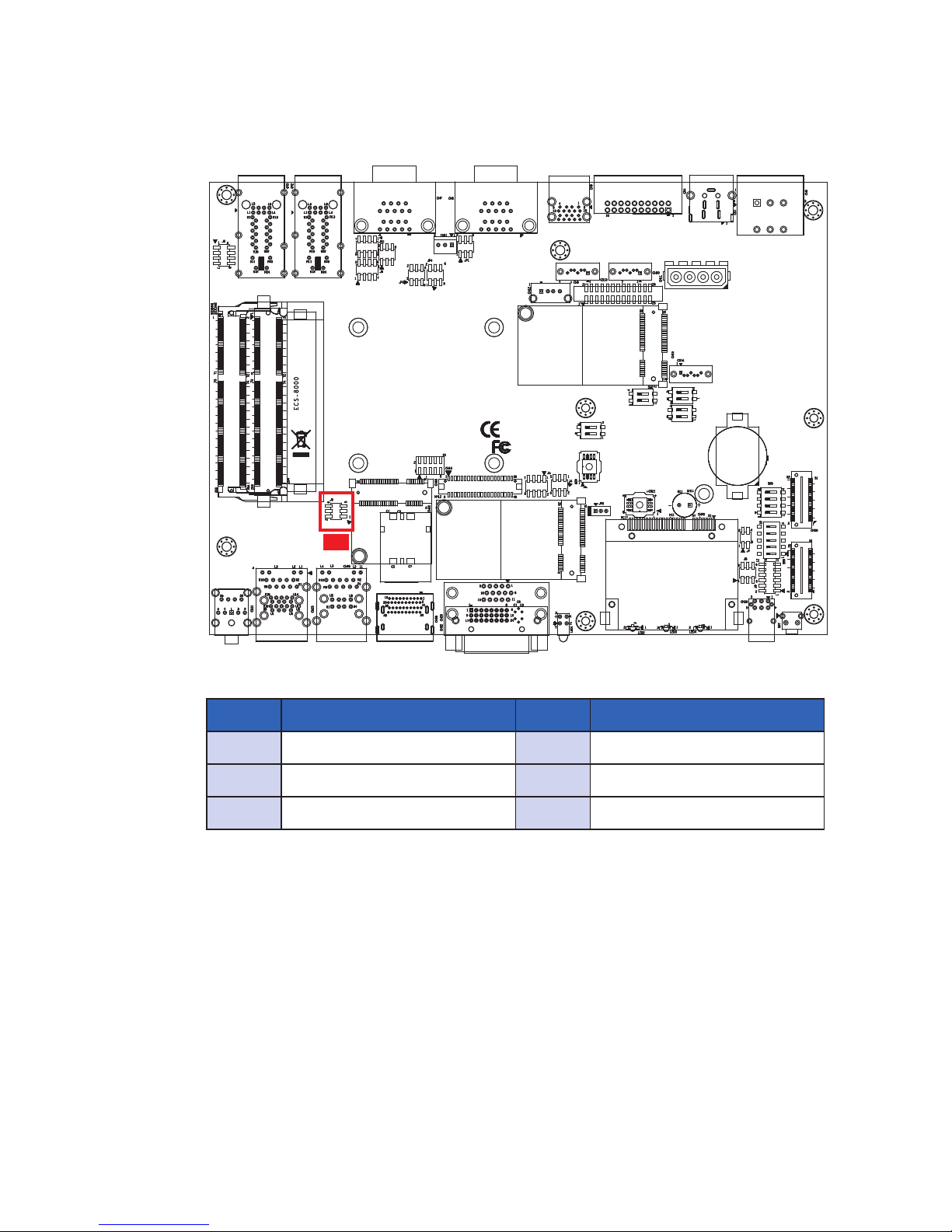

2.4.12 J6 : LAN2 I210 SDP

The pin assignments of J6 are listed in the following table:

Pin No. Function Pin No. Function

1 LAN2_SDP0 4 LAN2_SDP3

2 LAN2_SDP1 5 GND

3 LAN2_SDP2 6 GND

Page 47

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

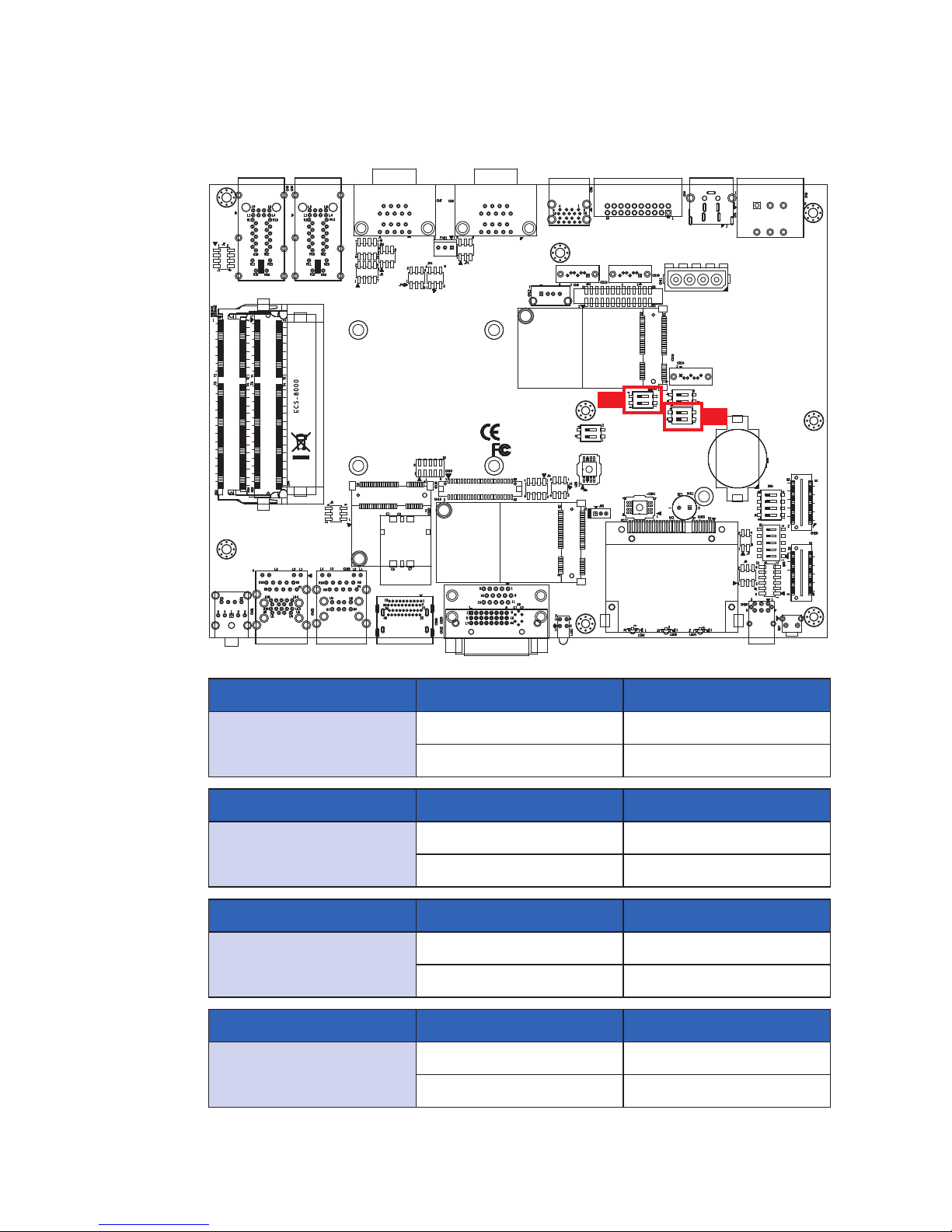

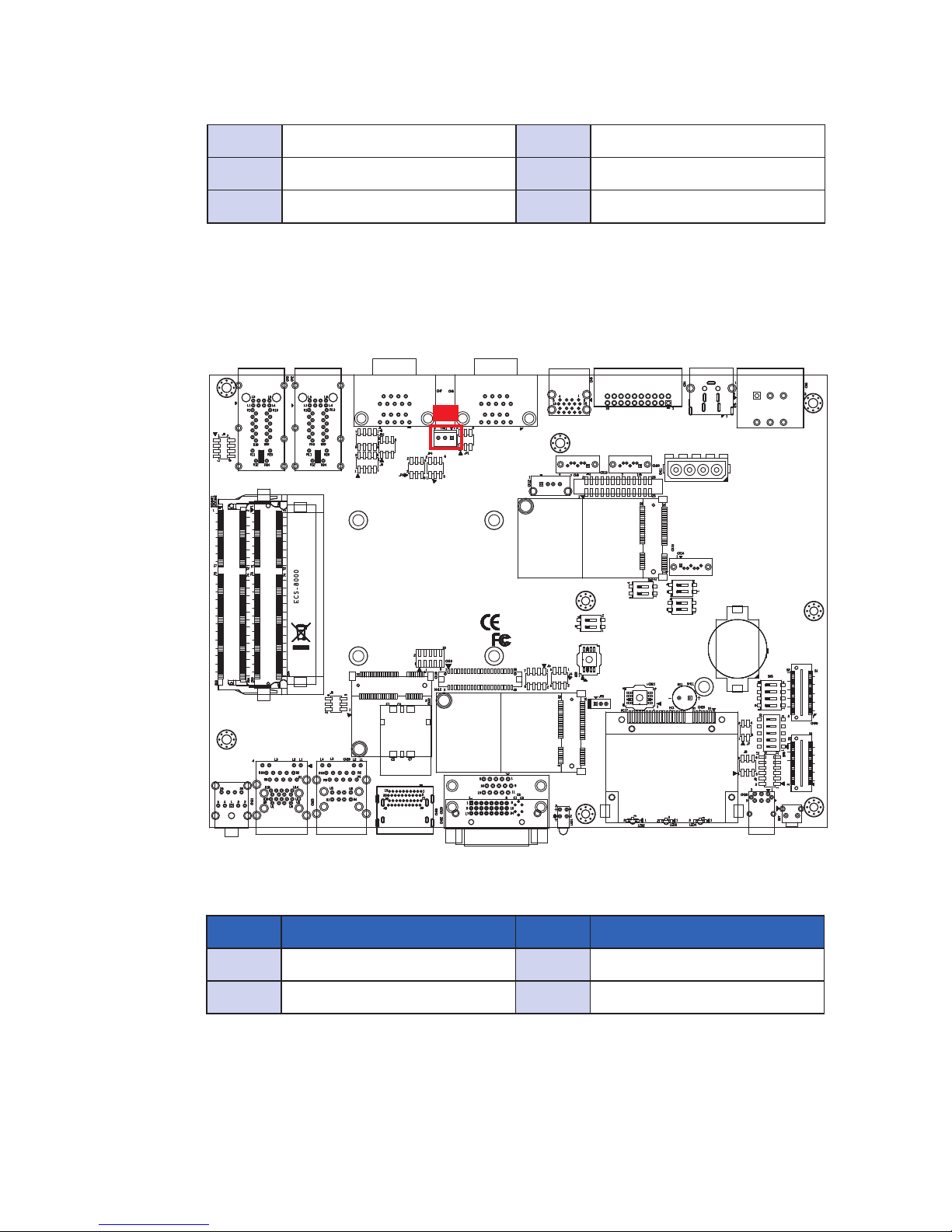

2.4.13 CN13 : GPIO

The ECS-8000 offers 16 programmable I/O within TTL 5V (1mA max. /pin) tolerance. If the GPIO is logic high, it indicates that the mapping SIO GPIO pin is logic high level. If the GPIO is logic low, it indicates that the mapping SIO GPIO pin is logic low level.

Pin No. Function Pin No. Function

1 GND 14 GND

2 SIO_GP11 15 SIO_GP37

3 SIO_GP12 16 SIO_GP50

4 SIO_GP15 17 SIO_GP51

5 SIO_GP16 18 SIO_GP52

6 GND 19 GND

7 SIO_GP32 20 SIO_GP56

8 SIO_GP33 21 SIO_GP57

9 SIO_GP35 22 SIO_GP64

10 SIO_GP36 23 SIO_GP65

CN13

Page 48

GETTING TO KNOW YOUR ECS-8000

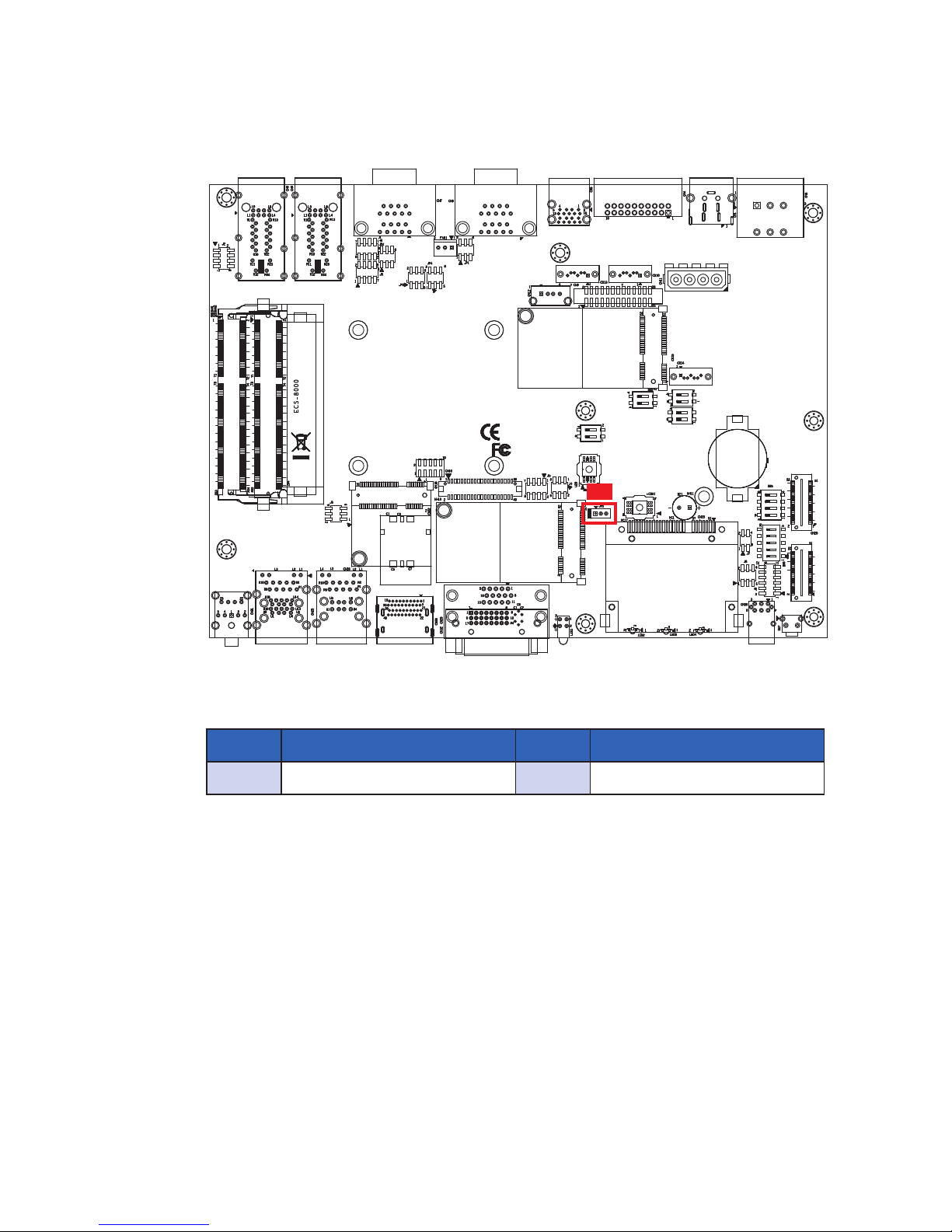

2.4.14 FAN 1

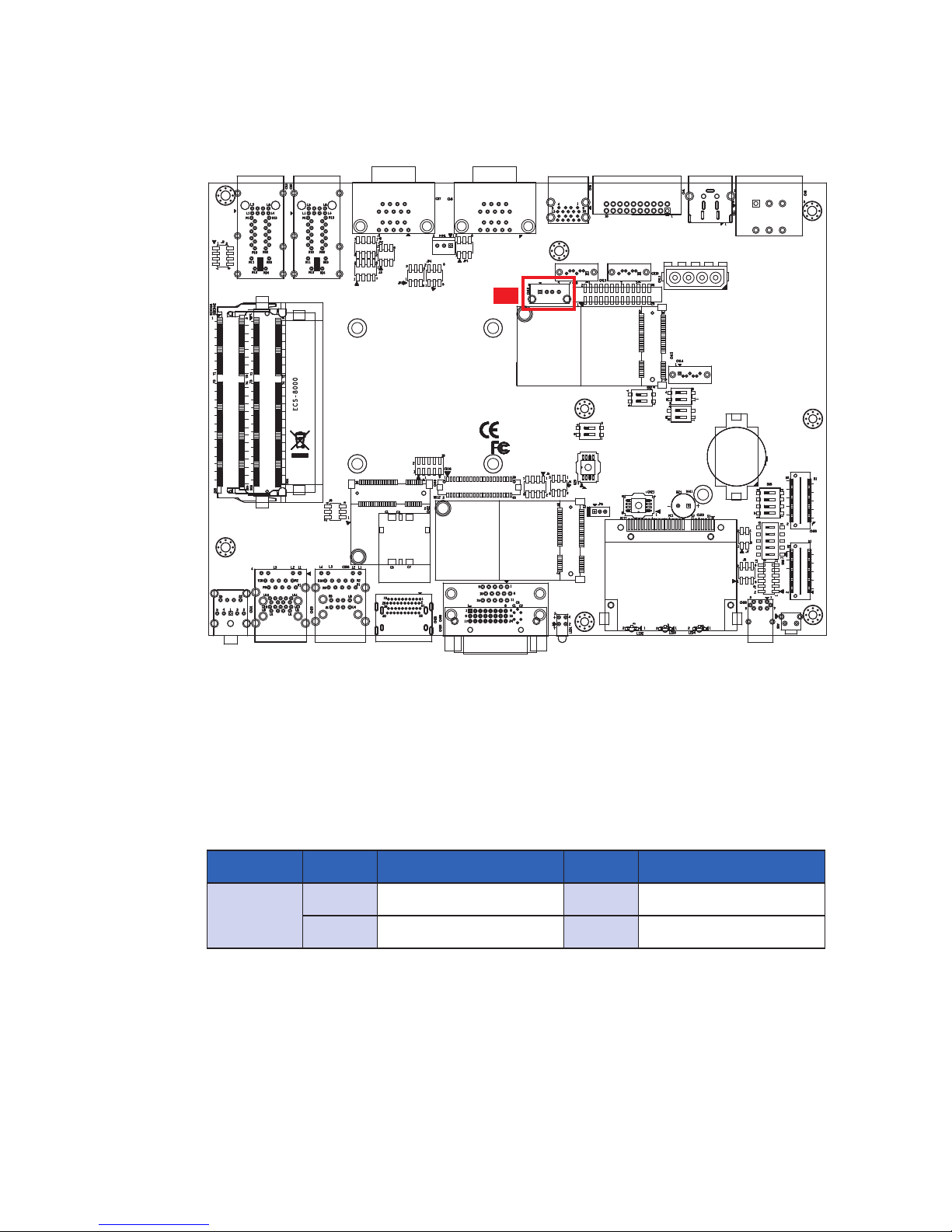

Fan power connector supports for additional thermal requirements. The pin assignments of FAN 1 are listed in the following table:

Pin No. Function Pin No. Function

1 GND 3 Fan speed sensor

2 +12V (1.5A max)

FAN1

11 GND 24 GND

12 SMB_DATA 25 +5V

13 SMB_CLK 26 +5V

Page 49

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

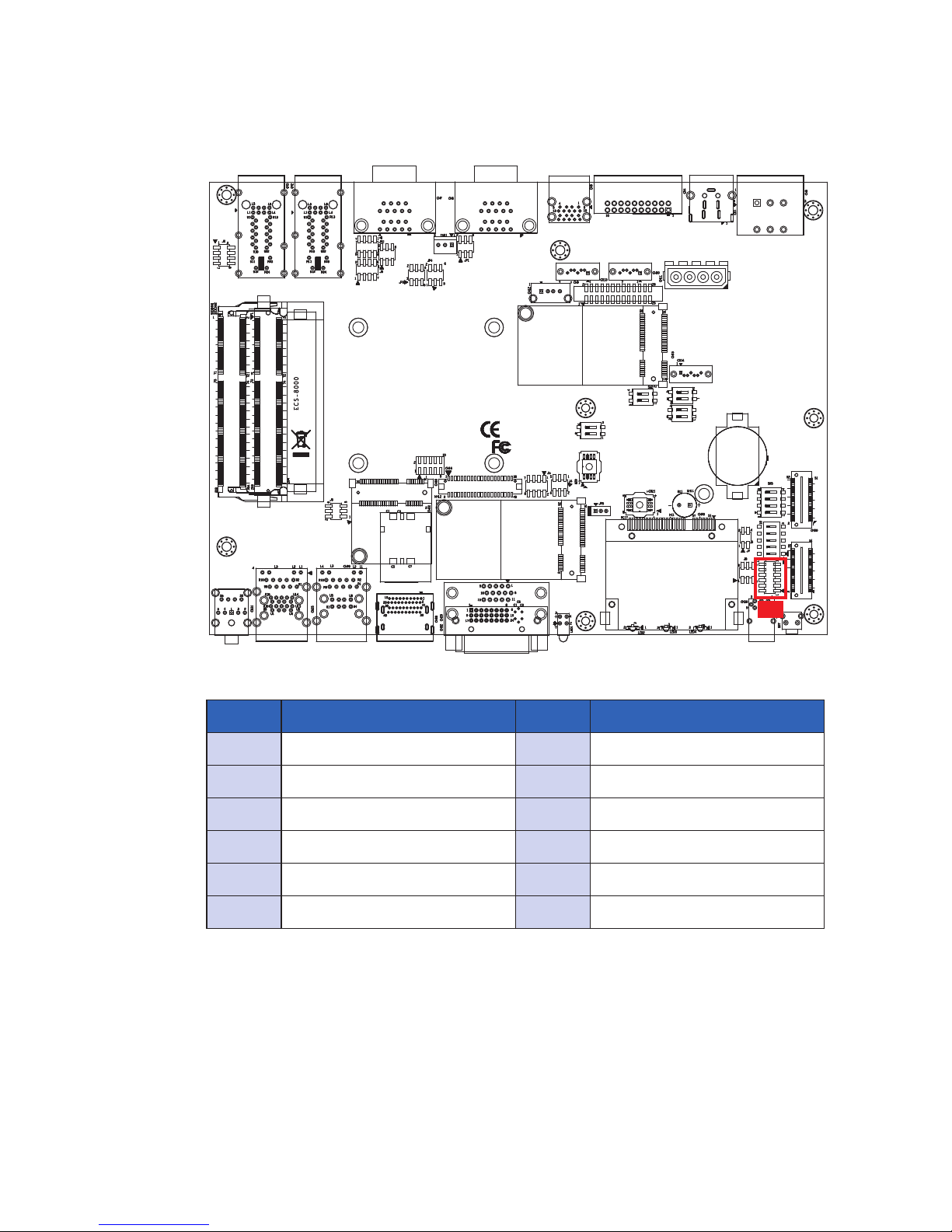

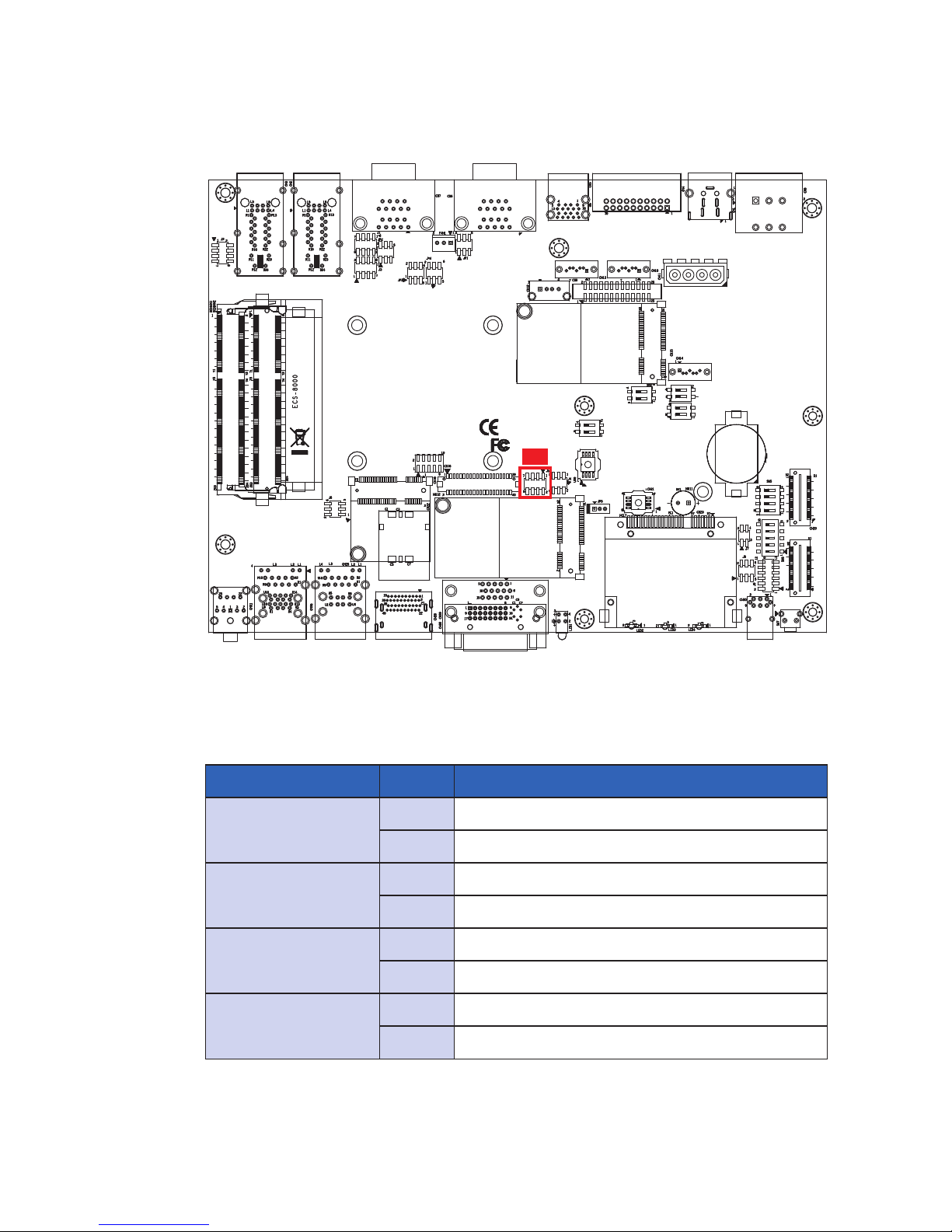

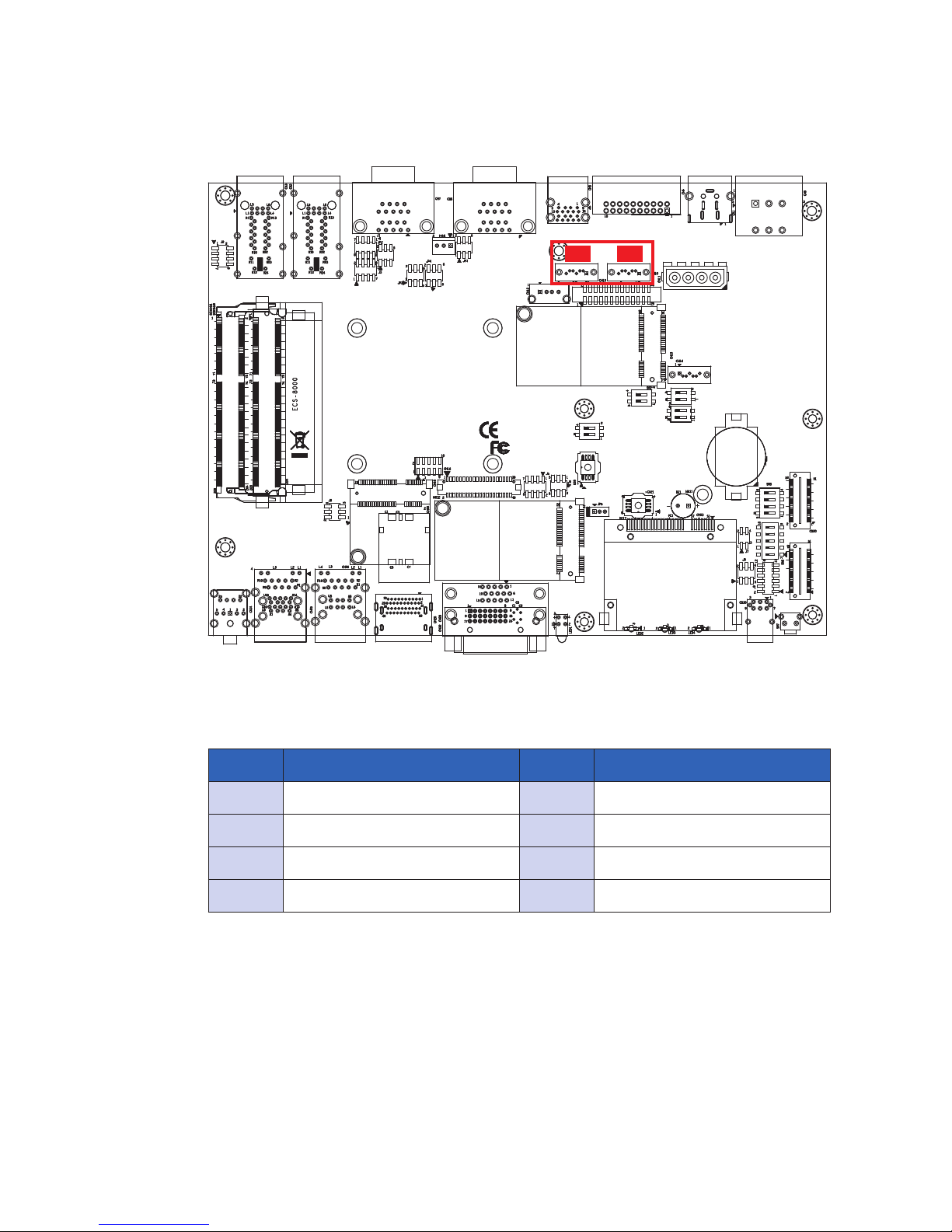

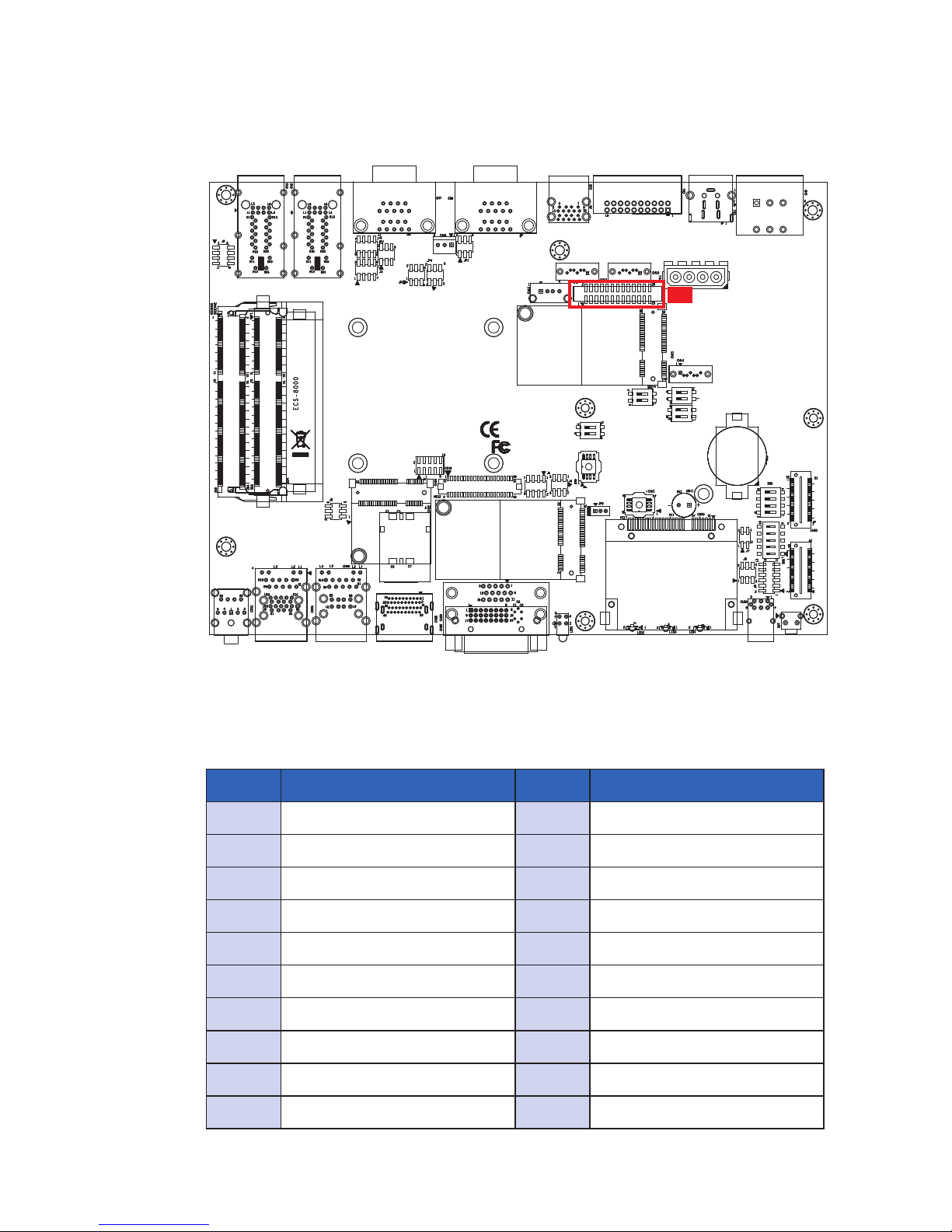

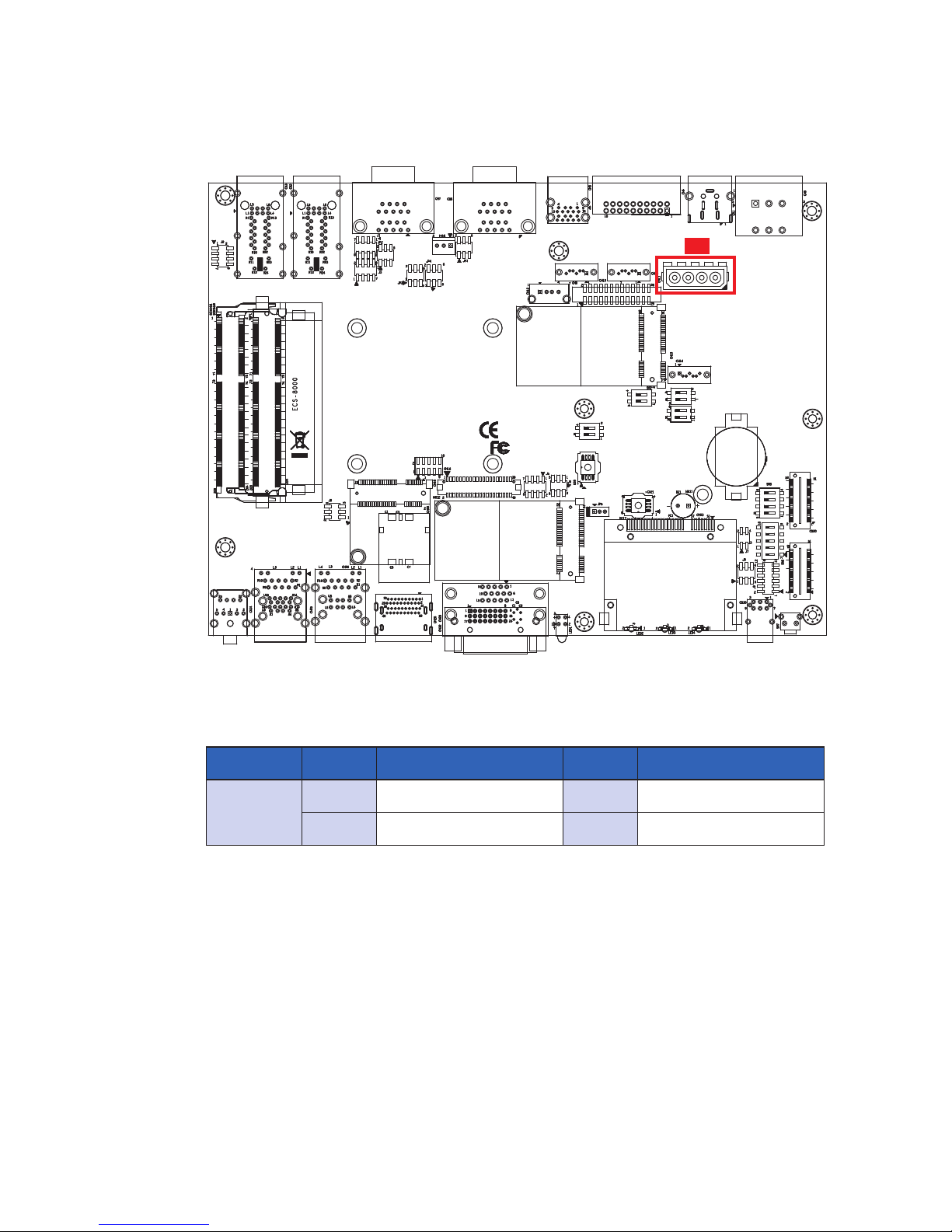

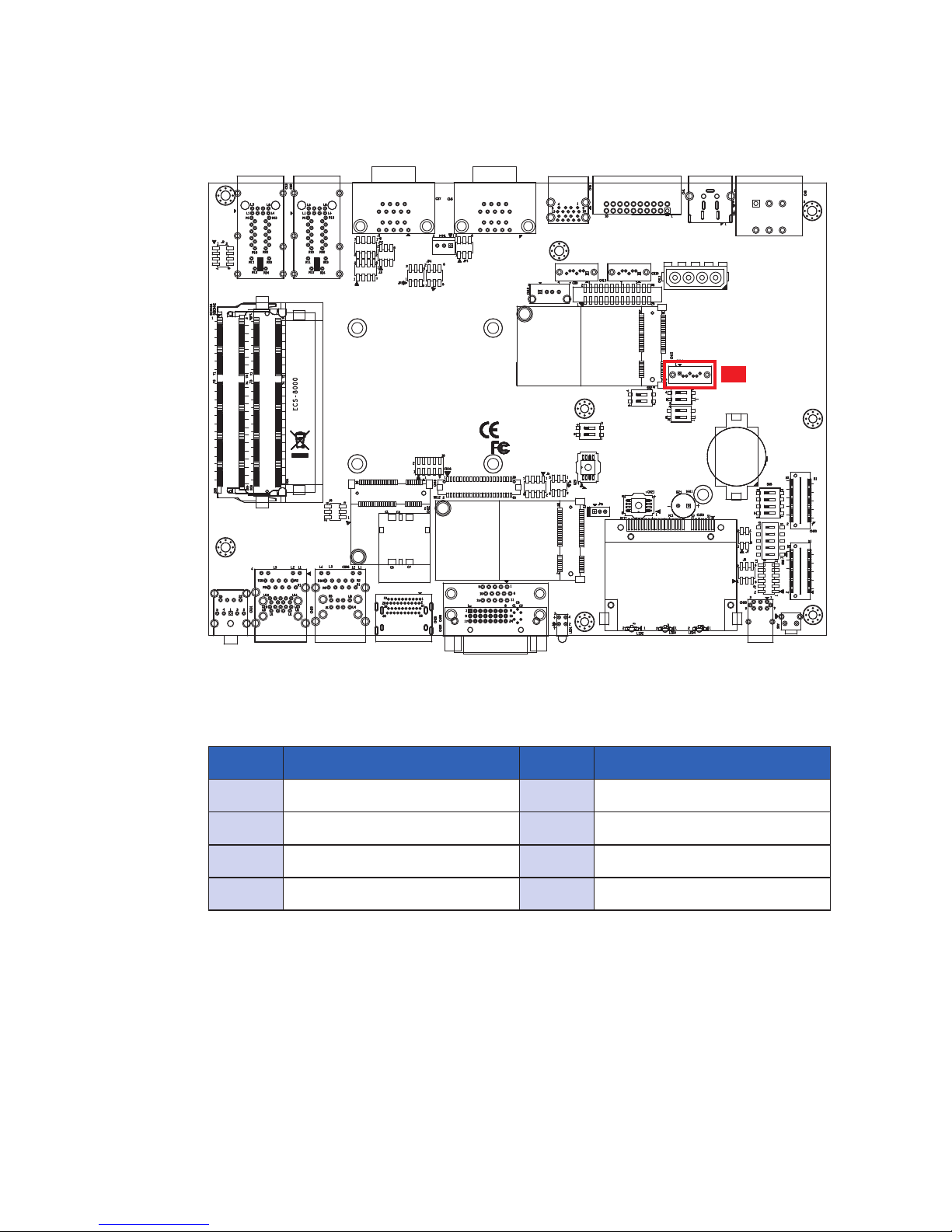

2.4.15 J4 : SGPIO

The pin assignments of J4 are listed in the following table:

Pin No. Function Pin No. Function

1 SCLOCK 4 GND

2 SDATA_OUT0 5 SDATA_OUT1

3 SLOAD 6 GND

Page 50

GETTING TO KNOW YOUR ECS-8000

2.4.16 J7 : MCU Spy-bi wire Interface For download FW

The pin assignments of J7 are listed in the following table:

Pin No. Function Pin No. Function

1 GND 4 3.3V_MCU

2 MCU_RST# 5 MCU_PRG

Page 51

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.4.17 CN20, CN24 SUMMIT

CN20

CN24

Page 52

GETTING TO KNOW YOUR ECS-8000

Pin No. function Pin No. function

1 +5V_AUX 2 +12V

3 +3.3V 4 SMB_DATA

5 +3.3V 6 XMB_CLK

7 Reserved 8 Reserved

9 Reserved 10 SPI_MISO

11 USB_OC# 12 SPI_MOSI

13 Reserved 14 SPI_CLK

15 +5V 16 SPI_CS10

17 USB_3+ 18 SPI_CS1#

19 USB_3- 20 Reserved

21 +5V 22 LPC_DRQ1#

23 USB_2+ 24 LPC_AD0

25 USB_2- 26 LPC_AD1

27 +5V 28 LPC_AD2

29 USB_1+ 30 LPC_AD3

31 USB_1- 32 LPC_FRAME#

33 +5V 34 SERIRQ#

35 USB_0+ 36 Reserved

37 USB_0- 38 CLK_33MHz

39 GND 40 GND

41 A_PET_P0 42 A_PER_P0

43 A_PET_N0 44 A_PER_N0

45 GND 46 APRSNT#/A_PE_CLKREQ#

47 PERST# 48 A_CLKP

49 WAKE# 50 A_CLKN

51 +5V 52 GND

CN24 Pin out

Page 53

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

Pin No. function Pin No. function

1 GND 2 GND

3 B_PET_P0 4 B_PER_P0

5 B_PET_N0 6 B_PER_N0

7 GND 8 GND

9 C_CLKP 10 B_CLKP

11 C_CLKN 12 B_CLKN

13 CPRSNT#/C_PE_CLKREQ# 14 GND

15 C_PET_P0 16 C_PER_P0

17 C_PET_N0 18 C_PER_N0

19 GND 20 GND

21 C_PET_P1 22 C_PER_P1

23 C_PET_N1 24 C_PER_N1

25 GND 26 GND

27 C_PET_P2 28 C_PER_P2

29 C_PET_N2 30 C_PER_N2

31 GND 32 GND

33 C_PET_P3 34 C_PER_P3

35 C_PET_N3 36 C_PER_N3

37 GND 38 GND

39 PERST# 40 WAKE#

41 Reserved 42 Reserved

43 +5V 44 Reserved

45 +5V 46 +3.3V

47 +5V 48 +3.3V

49 +5V 50 +3.3V

51 +5V 52 +5V_AUX

CN20 Pin out

Page 54

GETTING TO KNOW YOUR ECS-8000

2.4.18 J1: PoE Power LED Indicator Pin Header

This pin header can be used as a backup for PoE power LED indicator, which already can be accessed by rear panel and bottom panel. The pinouts of LEDs port are listed in following table:

Pin No. Function Pin No. Function

1 POE_LED_LAN6 5 POE_LED_LAN4

2 GND_POE 6 GND_POE

3 POE_LED_LAN5 7 POE_LED_LAN3

4 GND_POE 8 GND_POE

Note: Do not connect GND_POE to Digital Ground (GND)

Page 55

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.4.19 J2, J3: LAN3~LAN6 GbE LED Pin Header

These pin headers can be used as a backup forLAN3~LAN6 GbE LED indicator, which already can be accessed by rear panel. The pinouts of LEDs port are listed in following table:

Connector Pin No. Description Pin No. Description

1 LAN3_LINK100# 5 LAN3_ACT#

2 LAN4_LINK100# 6 LAN4_ACT#

3 LAN3_LINK1000# 7 +V3P3_SB

4 LAN4_LINK1000# 8 +V3P3_SB

Connector Pin No. Description Pin No. Description

1 LAN5_LINK100# 5 LAN5_ACT#

2 LAN6_LINK100# 6 LAN6_ACT#

3 LAN5_LINK1000# 7 +V3P3_SB

4 LAN6_LINK1000# 8 +V3P3_SB

Page 56

GETTING TO KNOW YOUR ECS-8000

2.4.20 J9: LPC Port 80 Debug Port

The pin assignments of J9 are listed in the following table:

Pin No. Function Pin No. Function

1 INT_SERIRQ 7 PCH_LFRAME_N

2 +3.3V (0.5A max.) 8 PCH_LPC_LAD0

3 PCH_LPC_LAD3 9 Mechanical Key

4 PLTRST_SIO# 10 GND

5 PCH_LPC_LAD1 11 CLK_PORT80_33M

6 PCH_LPC_LAD2 12 GND

Page 57

GETTING TO KNOW YOUR ECS-8000©Vecow ECS-8000 User Manual

2.5 Main Board Jumper Settings

2.5.1 Front View of ECS-8000 Main Board with Jumper Location

You may congure your card to match the needs of your application by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To “close” a jumper, you connect the pins with the clip. To “open” a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

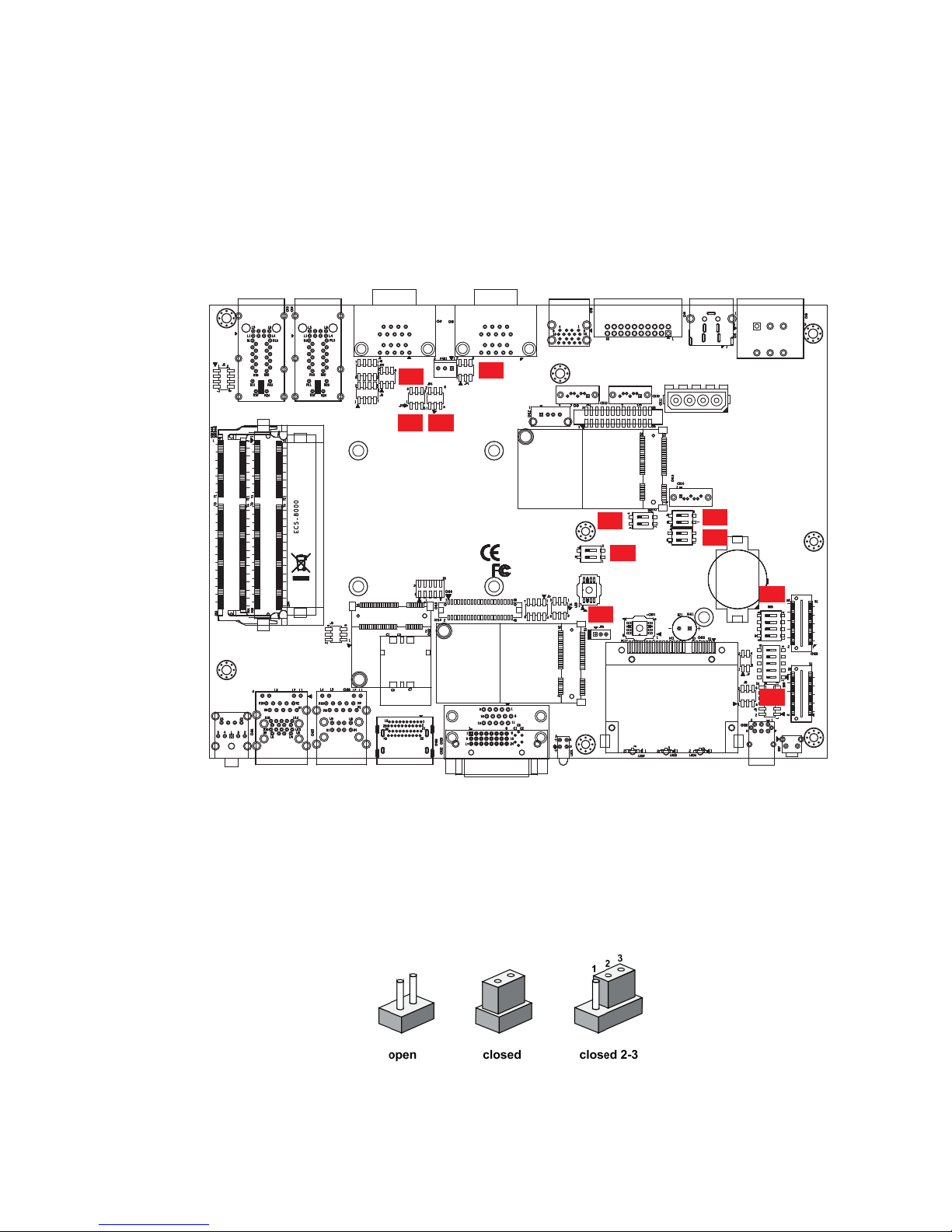

The figure below is the top view of the ECS-8000 main board which is the main board used in the ECS-8000 Series system. It shows the location of the jumpers.

JP1

JP4

JP5

JP3

SW1

SW3

SW5

SW6

SW2

SW4

JP2

Page 58

GETTING TO KNOW YOUR ECS-8000

2.5.2 JP1, JP2, JP3, JP4: COM Port Pin-9 RI/+5V/+12V Selection

JP1

JP4JP3

JP2

Header

Pin No. Description

COM1

JP3

1 - 2 +5V (1A max.)

3 - 4 +12V (0.5A max.)

5 - 6 *RI

Header

Pin No. Description

COM2

JP2

1 - 2 +5V (1A max.)

3 - 4 +12V (0.5A max.)

5 - 6 *RI

Header

Pin No. Description

COM3

JP4

1 - 2 +5V (1A max.)

3 - 4 +12V (0.5A max.)

5 - 6 *RI

Header

Pin No. Description

COM4

JP1

1 - 2 +5V (1A max.)

3 - 4 +12V (0.5A max.)

5 - 6 *RI

Page 59

2.5.3 JP5 : LVDS Backlight, Power Selection

JP5 provides LVDS voltage selection function, closing Pin 1, 2 is for 3.3V LVDS power input; closing Pin 2, 3 is for 5V LVDS power input.

Pin No. Function Pin No. Function

1-2 +3.3V (Default) 2-3 +5V

JP5

Page 60

GETTING TO KNOW YOUR ECS-8000

2.5.4 SW6: CMOS / ME / eDP / USB Wake Up

SW6

Function DIP Switch SW 6-1 Description

CMOS Clear Setting

ON Clear CMOS

OFF *Normal

Function DIP Switch SW 6-2 Description

ME Clear Setting

ON Clear ME

OFF *Normal

Function DIP Switch SW 6-3 Description

eDP Enable

ON Enable

OFF *Disable

Function DIP Switch SW 6-4 Description

Front USB3.0 / USB2.0

Wake Up

ON Disable

OFF *Enable

Function DIP Switch SW 6-5 Description

Rear USB3.0 Wake Up

ON Disable

OFF *Enable

Page 61

2.5.5 SW2, SW3: RS-422/485 Receiver Terminator

SW3

SW2

Function DIP Switch SW 2-1 Description

COM1 RS-422/485

Receiver Terminator

ON *Enable

OFF Disable

Function DIP Switch SW 2-2 Description

COM2 RS-422/485

Receiver Terminator

ON *Enable

OFF Disable

Function DIP Switch SW 3-1 Description

COM3 RS-422/485

Receiver Terminator

ON *Enable

OFF Disable

Function DIP Switch SW 3-2 Description

COM4 RS-422/485

Receiver Terminator

ON *Enable

OFF Disable

Page 62

GETTING TO KNOW YOUR ECS-8000

2.5.6 SW1, SW4: mini PCIe / mSATA Selection

Internal USB PWR Select:

Mini PCIe / mSATA

DIP Switch

Description

SW 4-1 SW 4-2

CN27

ON OFF *Auto Detection

OFF ON Mini PCI-E (Forced)

OFF OFF mSATA (Forced)

Mini PCIe / mSATA

DIP Switch

Description

SW 1-1 SW 1-2

CN15

ON OFF *Auto Detection

OFF ON Mini PCI-E (Forced)

OFF OFF mSATA (Forced)

SW1

SW4

CN15

CN27

Page 63

2.6 Ignition Control

ECS-8000 series provides ignition power control feature for in-vehicle applications. The built-in MCU monitors the ignition signal and turns on/ off the system according to pre-dened on/ off delay period.

SW5

Page 64

GETTING TO KNOW YOUR ECS-8000

2.6.1 Adjust Ignition Control Modes

ECS-8000 series provides 16 modes of different power on/ off delay periods adjustable via rotary switch. The default rotary switch is set to 0 in ATX/ AT power mode.

DIP-Switch

Position

Power on delay Power off delay Switch Position

0 ATX/AT mode

1 No delay No delay

2 No delay 5 seconds

3 No delay 10 seconds

4 No delay 20 seconds

5 5 seconds 30 seconds

6 5 seconds 60 seconds

7 5 seconds 90 seconds

8 5 seconds 30 minutes

9 5 seconds 1 hour

A 10 seconds 2 hours

B 10 seconds 4 hours

C 10 seconds 6 hours

D 10 seconds 8 hours

E 10 seconds 12 hours

F 10 seconds 24 hours

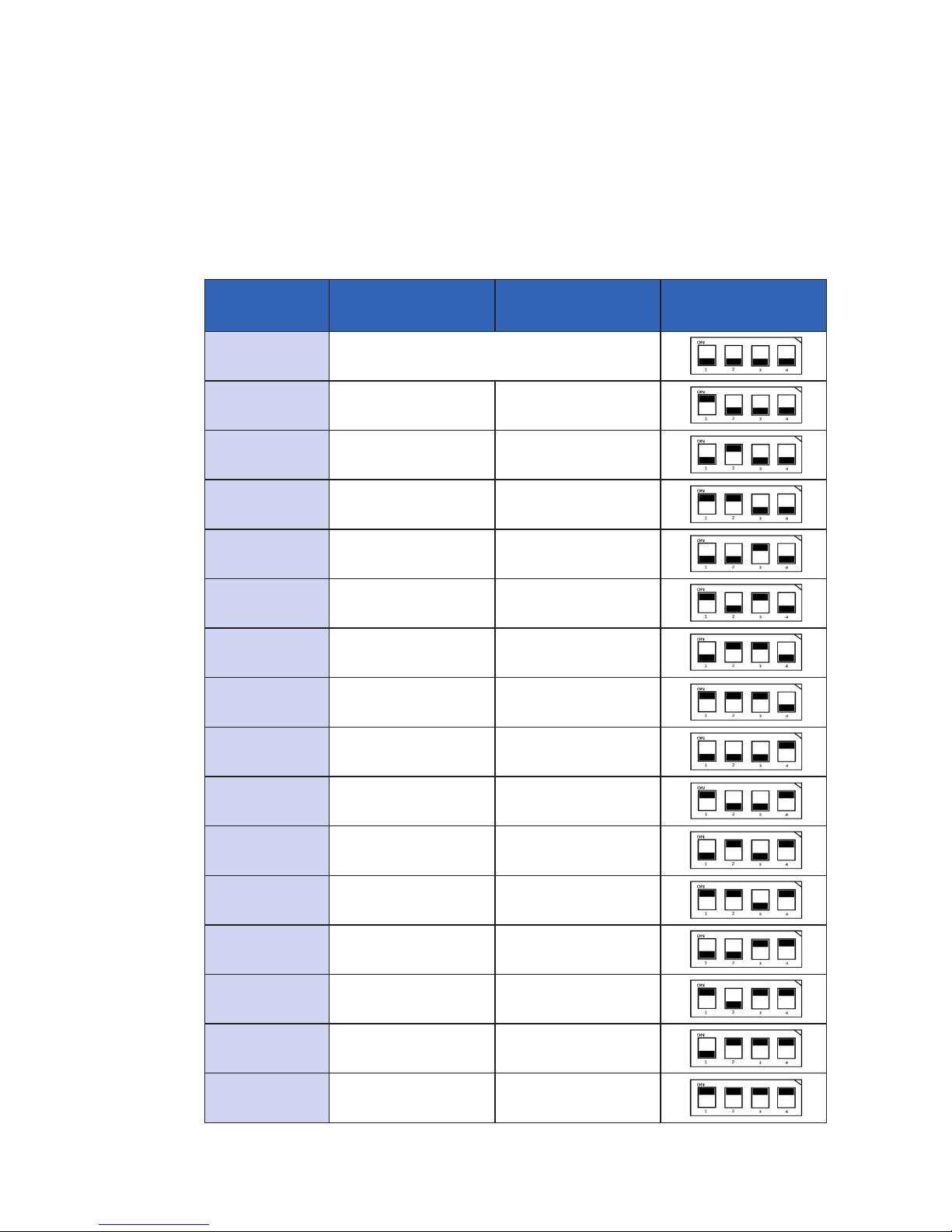

The modes are listed in below table:

Page 65

2.6.2 Ignition Control Wiring

To activate ignition control, you need to provide IGN signal via the 3-pin pluggable terminal block locates in the back panel. Please find below the general wiring conguration.

V+ : Positive polarity of DC power input (Car battery+ for 12/24/36V) V- : Ground of DC power input (Car battery -/GND line to GND) IGN : Ignition signal input (ACC power of vehicle)

For testing purpose, you can refer to the picture blow to simulate ignition signal input controlled by a latching switch.

Note:

1. DC power source and IGN share the same ground.

2. ECS-8000 supports 6V to 36V wide range DC power input in ATX/AT mode.

In Ignition mode, the input voltage is fixed to 12/24/36V for car battery scenario.

3. For proper ignition control, the power button setting should be “Power Down” mode.

In Windows for example, you need to set “When I press the power button” to Shut down.

IGN

V+

Page 66

HARDWARE INSTALLATION

SYSTEM SETUP

“Please make sure to assemble the system in an anti-static environment.”

3.1 How to Open Your ECS-8000

3.1.1 ECS-8000-PoER/ ECS-8000-2R

Step 2 Take off the front panel.

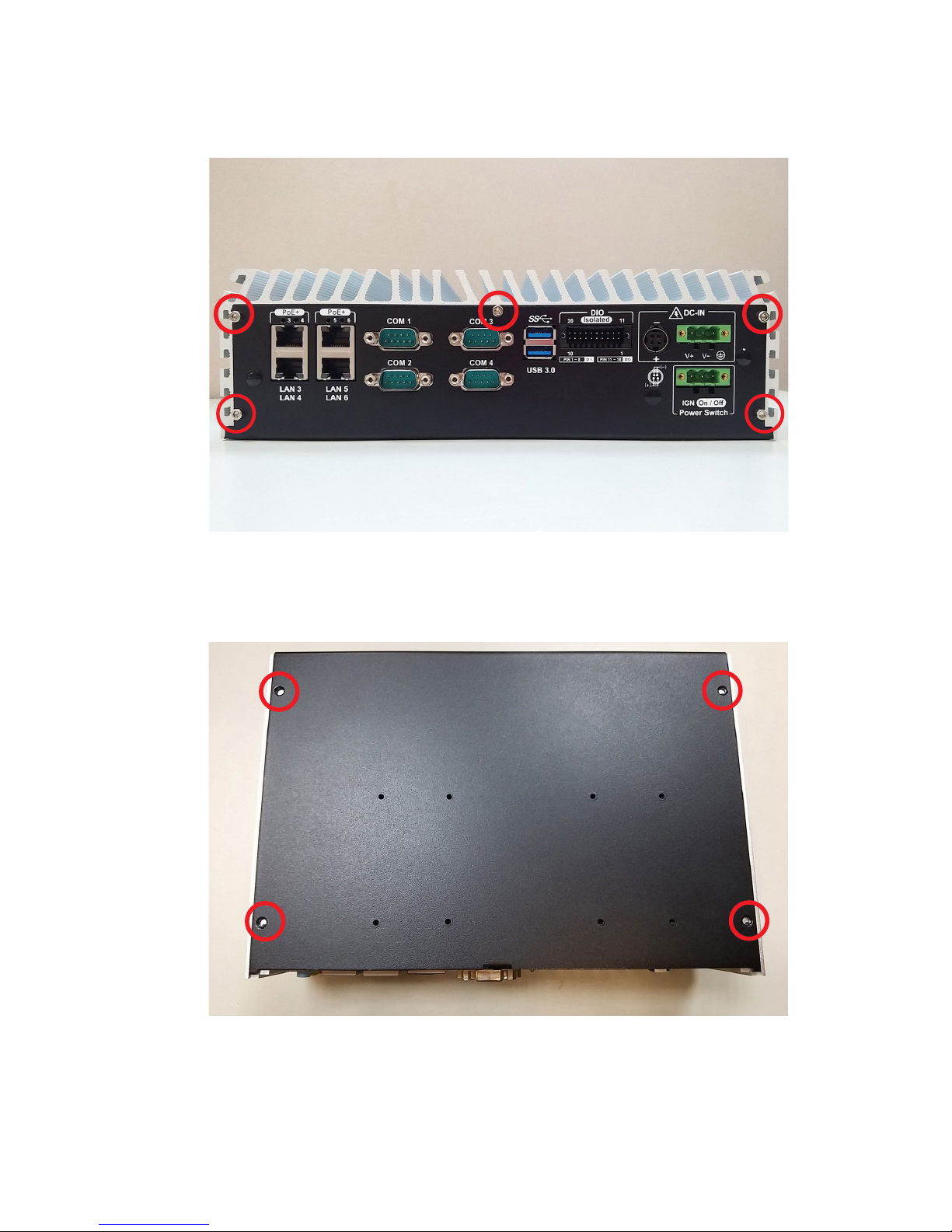

Step 1 Remove 6 pcs KHS #6-32 screws with front panel.

Page 67

Step 3 Remove 5 pcs KHS #6-32 screws with rear panel.

Step 4 Remove 4pcs F#6-32(red) screws.

Page 68

HARDWARE INSTALLATION

3.1.2 ECS-8000-PoE/ ECS-8000-2G

Step 1 Remove 6 pcs KHS #6-32 screws with front panel.

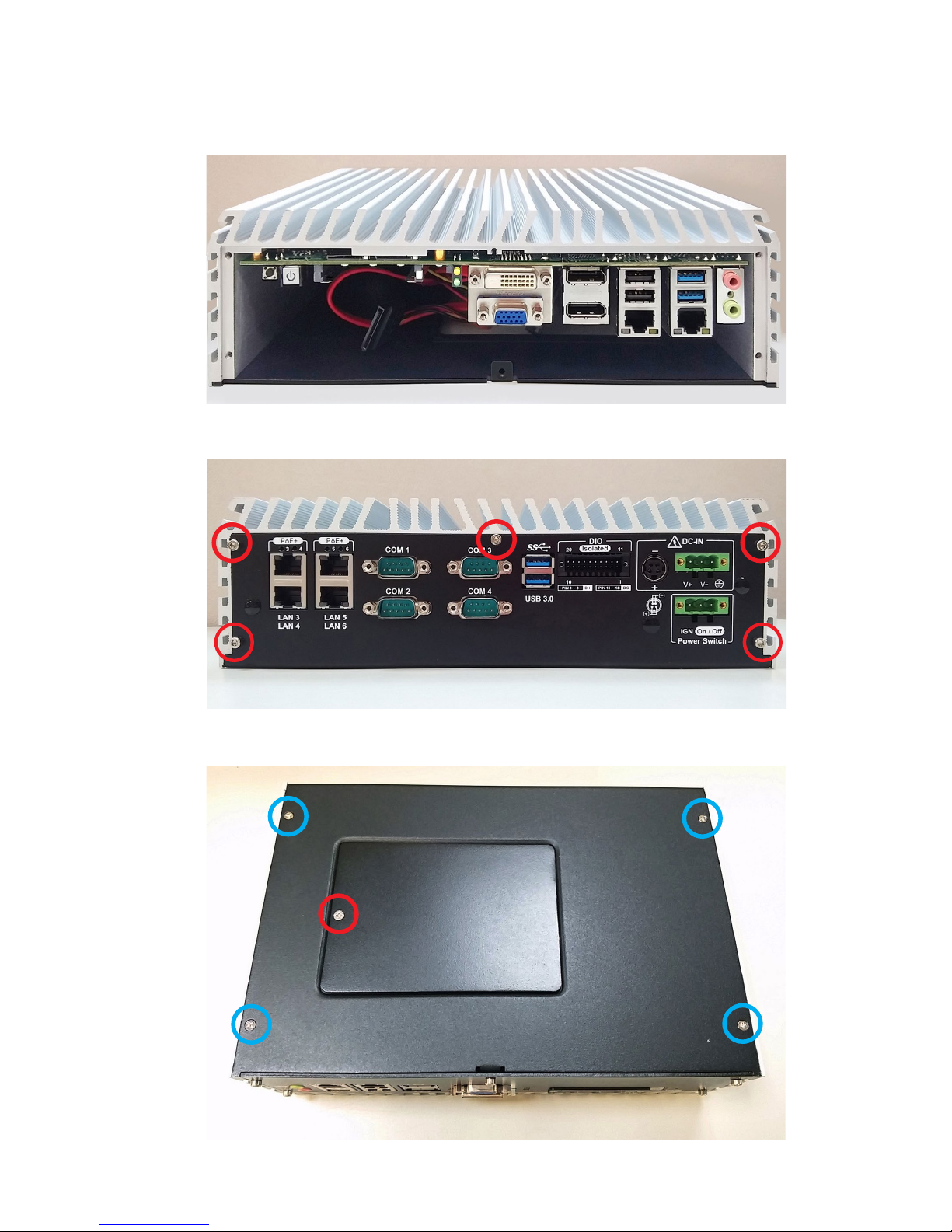

Step 5 Finish.

Page 69

Step 4 Remove 1 pcs M3x6 (red) and 4 pcs F#6-32 (blue) screws.

Step 3 Remove 5 pcs KHS #6-32 screws with rear panel.

Step 2 Take off the front panel.

Page 70

HARDWARE INSTALLATION

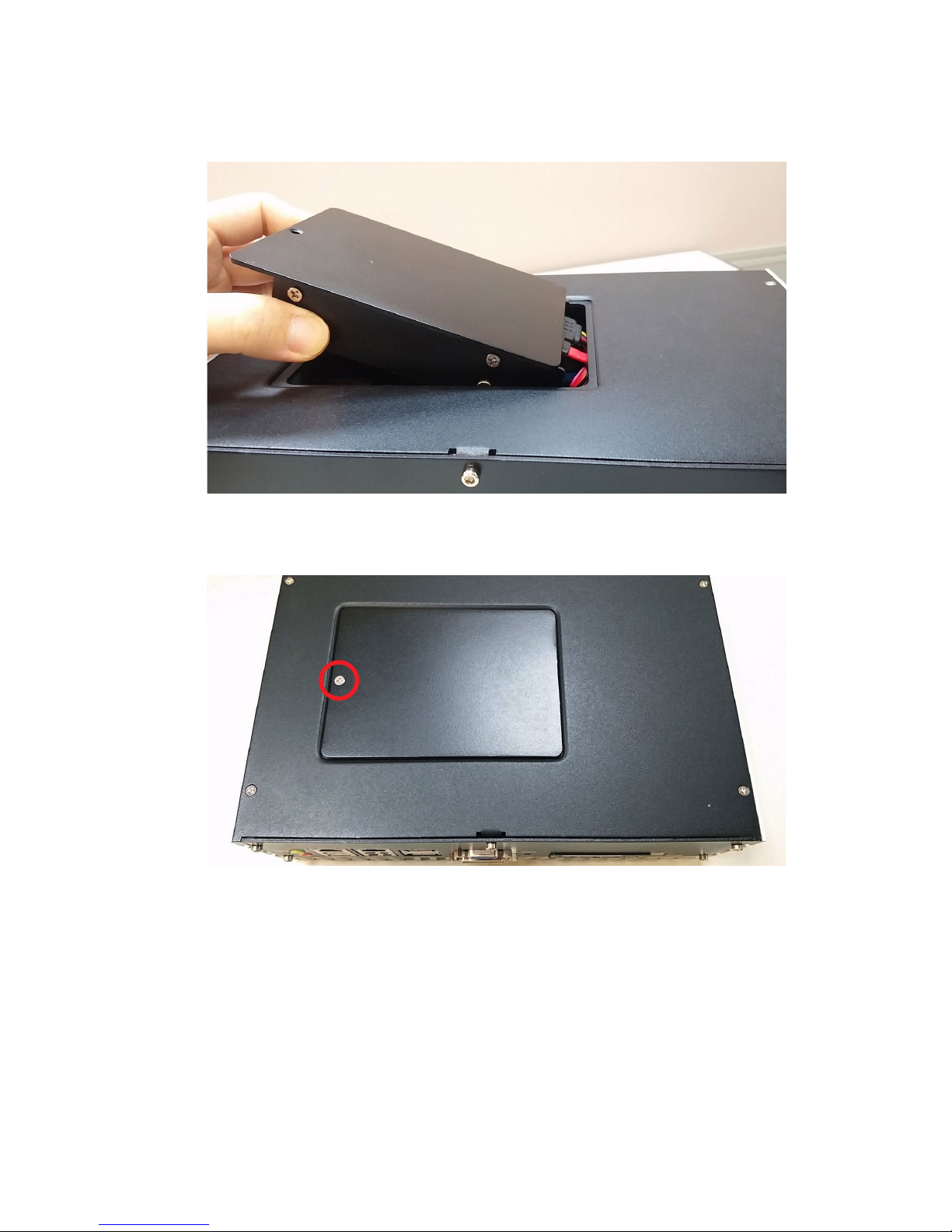

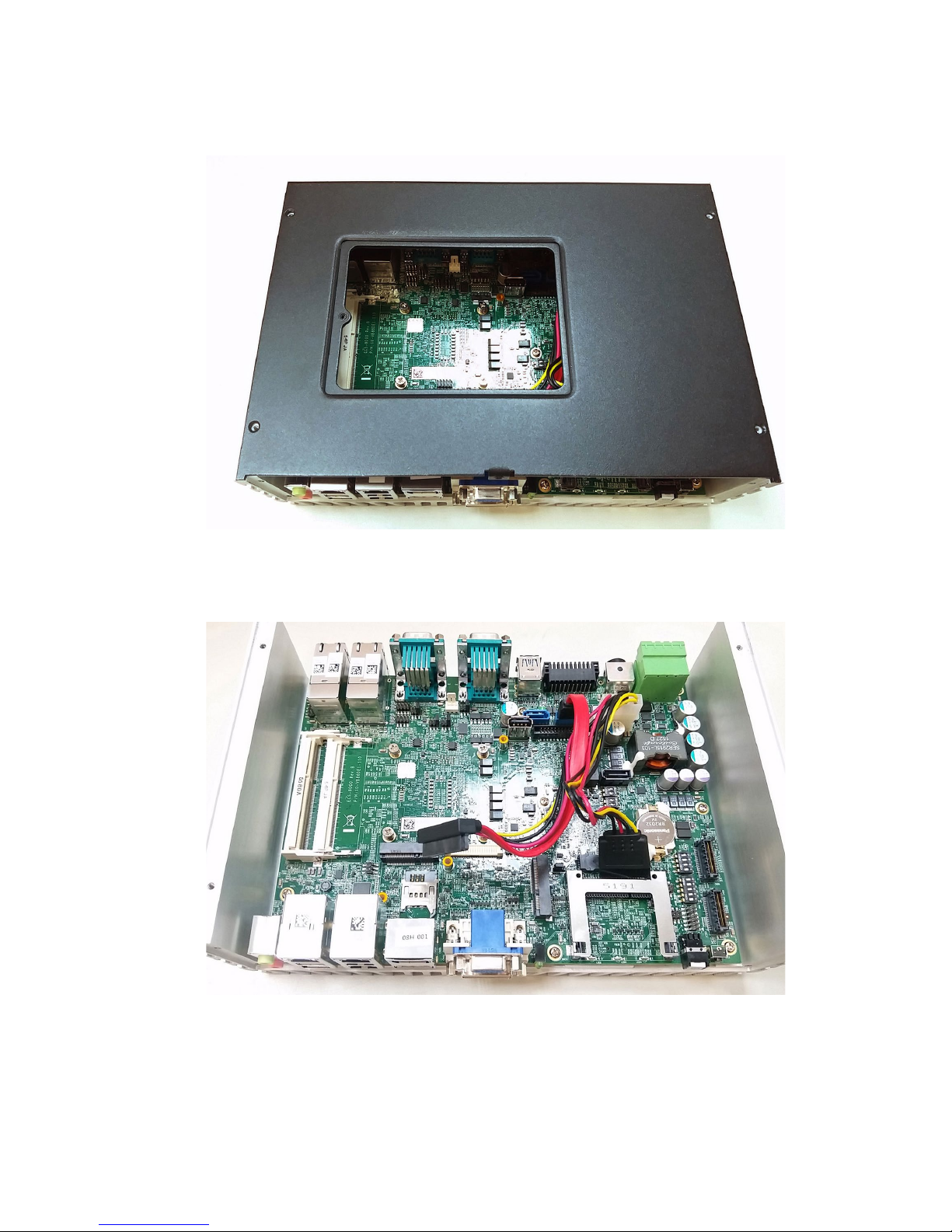

Step 5 Take off SSD/HDD cover and bottom cover, be careful SATA cable.

Step 6 Finish.

Page 71

3.2 Installing DDR3L SO-DIMM Modules

Step 1 Install DDR3L RAM module into SO-DIMM slot.

(ECS-8000-PoER/ ECS-8000-PoE/ ECS-8000-2G/ ECS-8000-2R)

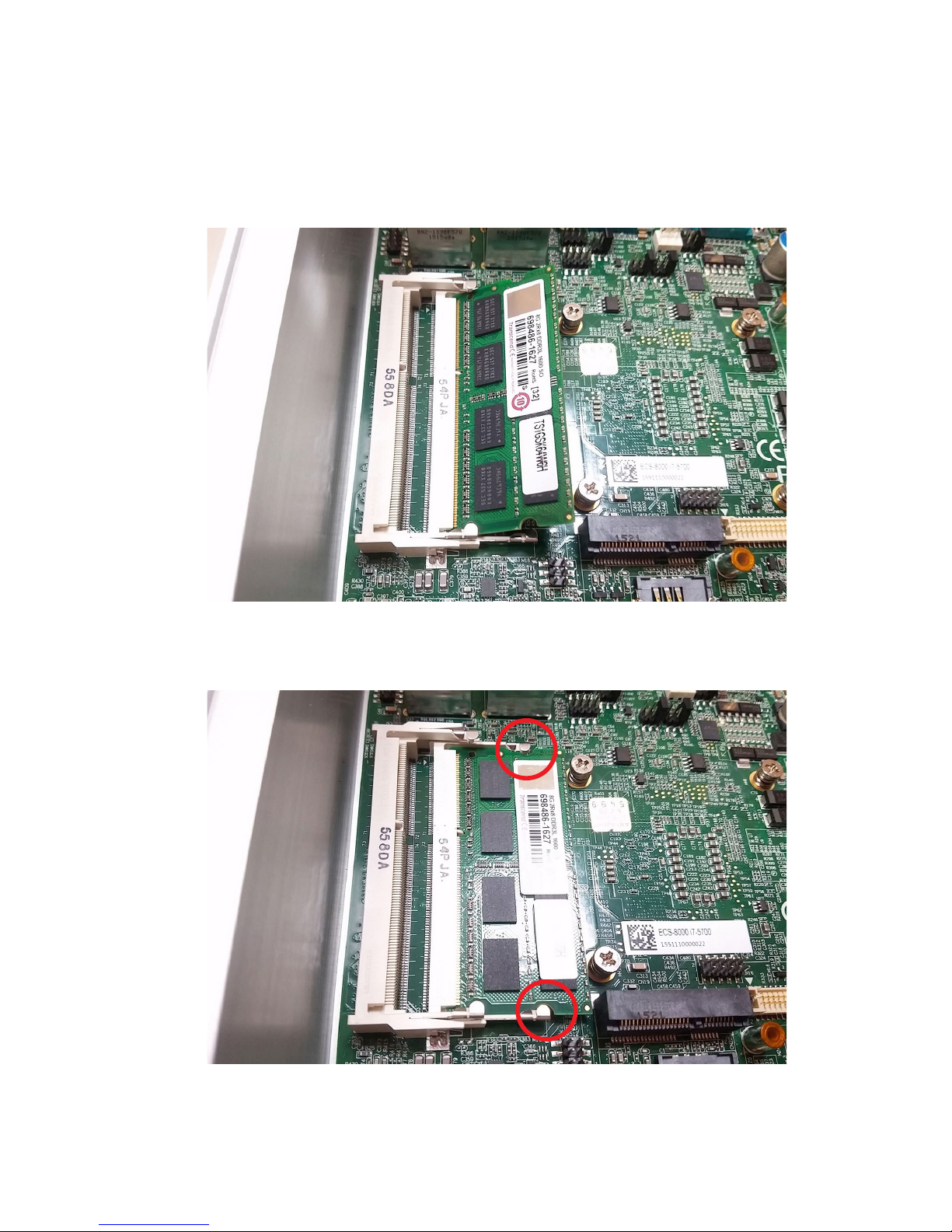

Step 2 Make sure the RAM module is locked by the memory slot.

(ECS-8000-PoER/ ECS-8000-PoE/ ECS-8000-2G/ ECS-8000-2R)

Page 72

HARDWARE INSTALLATION

3.3 Installing Mini PCIe Cards

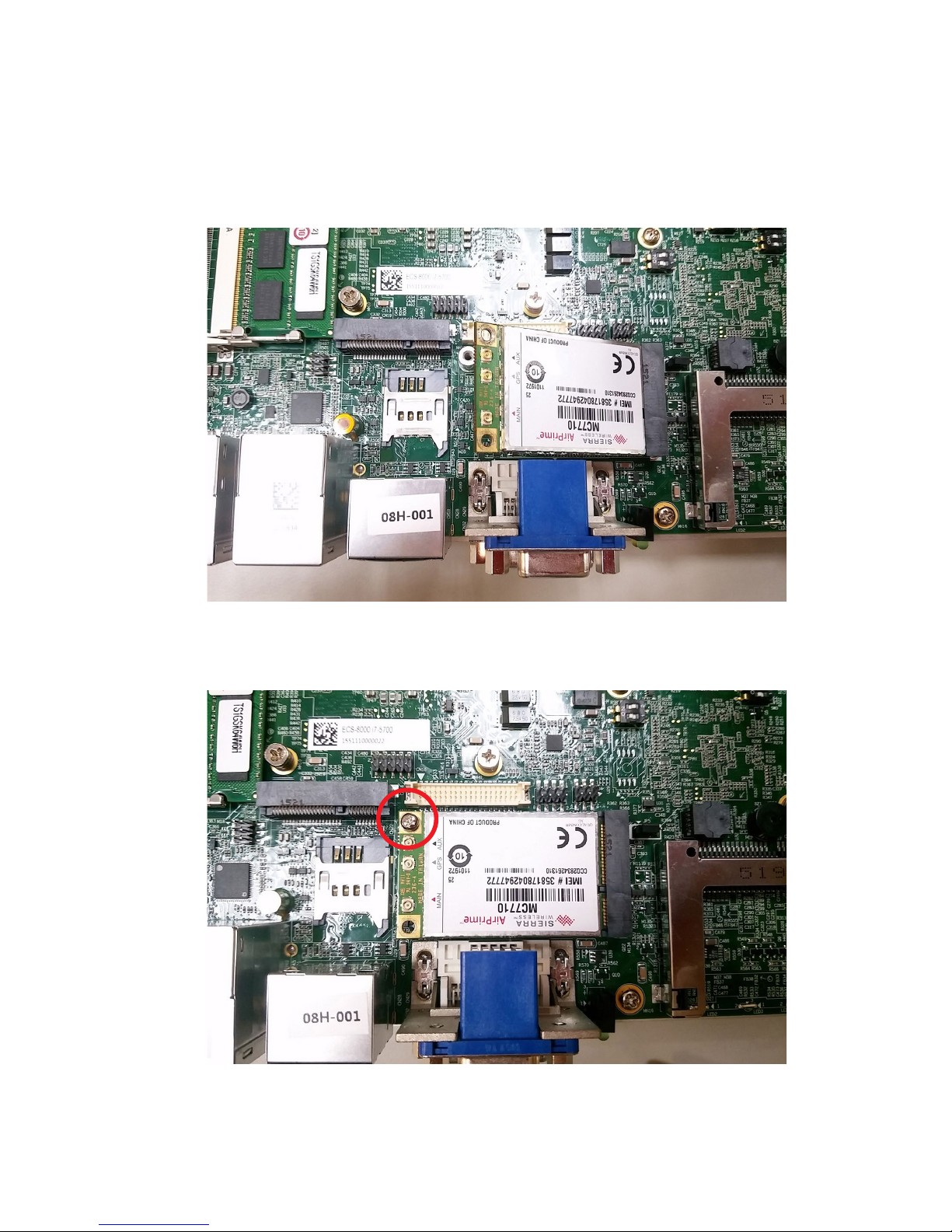

Step 1 Install Mini PCIe card into the Mini PCIe slot.

(ECS-8000-PoER/ ECS-8000-PoE/ ECS-8000-2G/ ECS-8000-2R)

Step 2 Fasten M2.5 screws.

(ECS-8000-PoER/ ECS-8000-PoE/ ECS-8000-2G/ ECS-8000-2R)

Page 73

3.4 Installing Antenna Cable

Step 1 Check Antenna cable and washers.

3 2 1

Step 2 Remove 3pcs rubber cork on rear panel. (Pick up the location you want)

Page 74

HARDWARE INSTALLATION

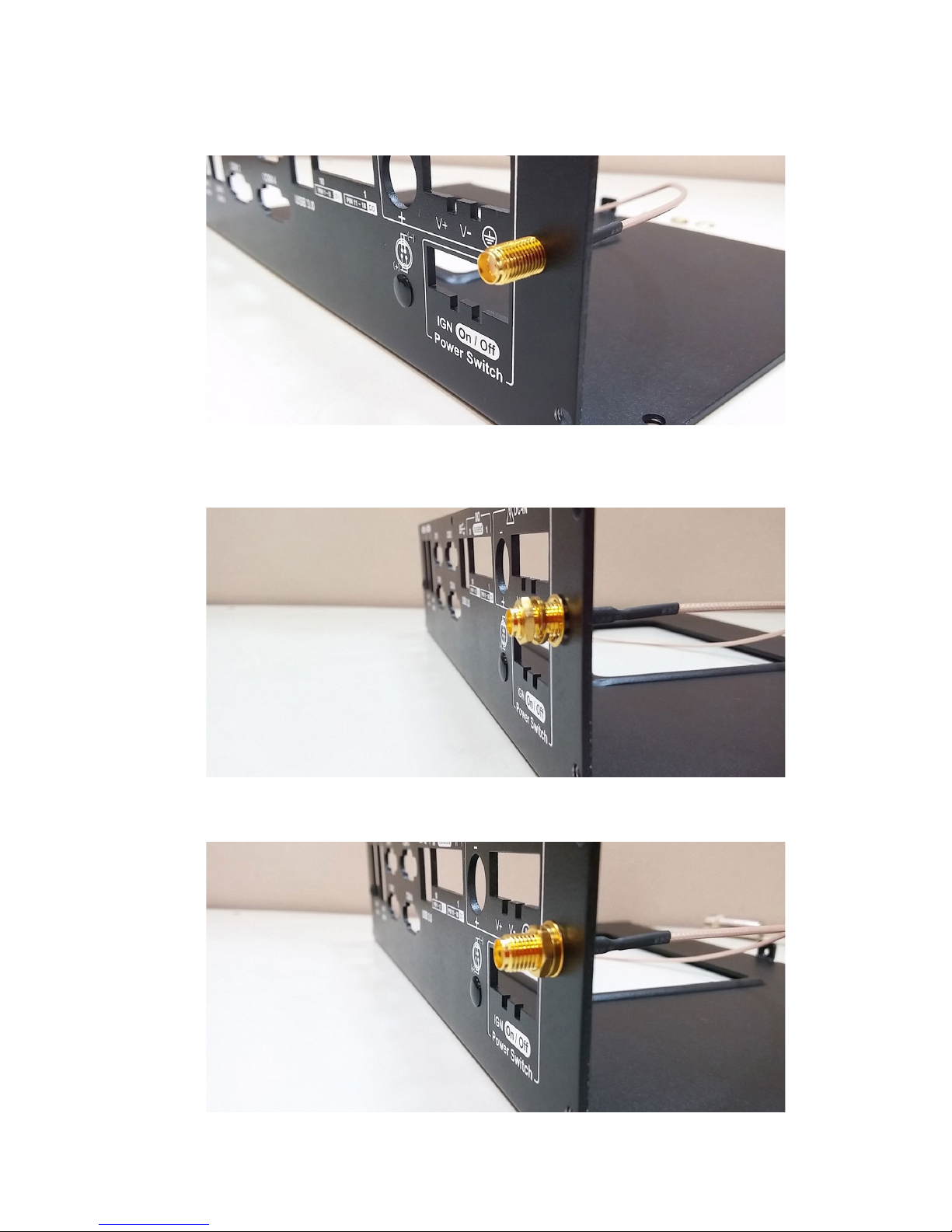

Step 3 Put Antenna cable connector into the hole on rear panel.

Step 5 Antenna cable is installed ready.

Step 4 Fasten the washer 1, washer 2 and washer 3 on Antenna cable

connector.

Page 75

3.5 Installing CFast Card and SIM Card

Step 2 Remove CFast Card and SIM Card cover from front panel.

Step 1 Remove 2pcs M3x4 Flat head screws on CFast & SIM Card cover

on front panel.

Page 76

HARDWARE INSTALLATION

Step 3 Before Inserting CFast & SIM Card, make sure the system power is not plugged.

Step 4 Insert CFast & SIM Card, push to lock.

Page 77

3.6 Installing SSD/HDD

3.6.1 ECS-8000-PoER/ ECS-8000-2R

Step 2 Put on the SSD/HDD.

Step 1 Open the SSD/ HDD tray on the ECS-8000 front panel.

Step 3 Push the tray panel with locked.

Page 78

HARDWARE INSTALLATION

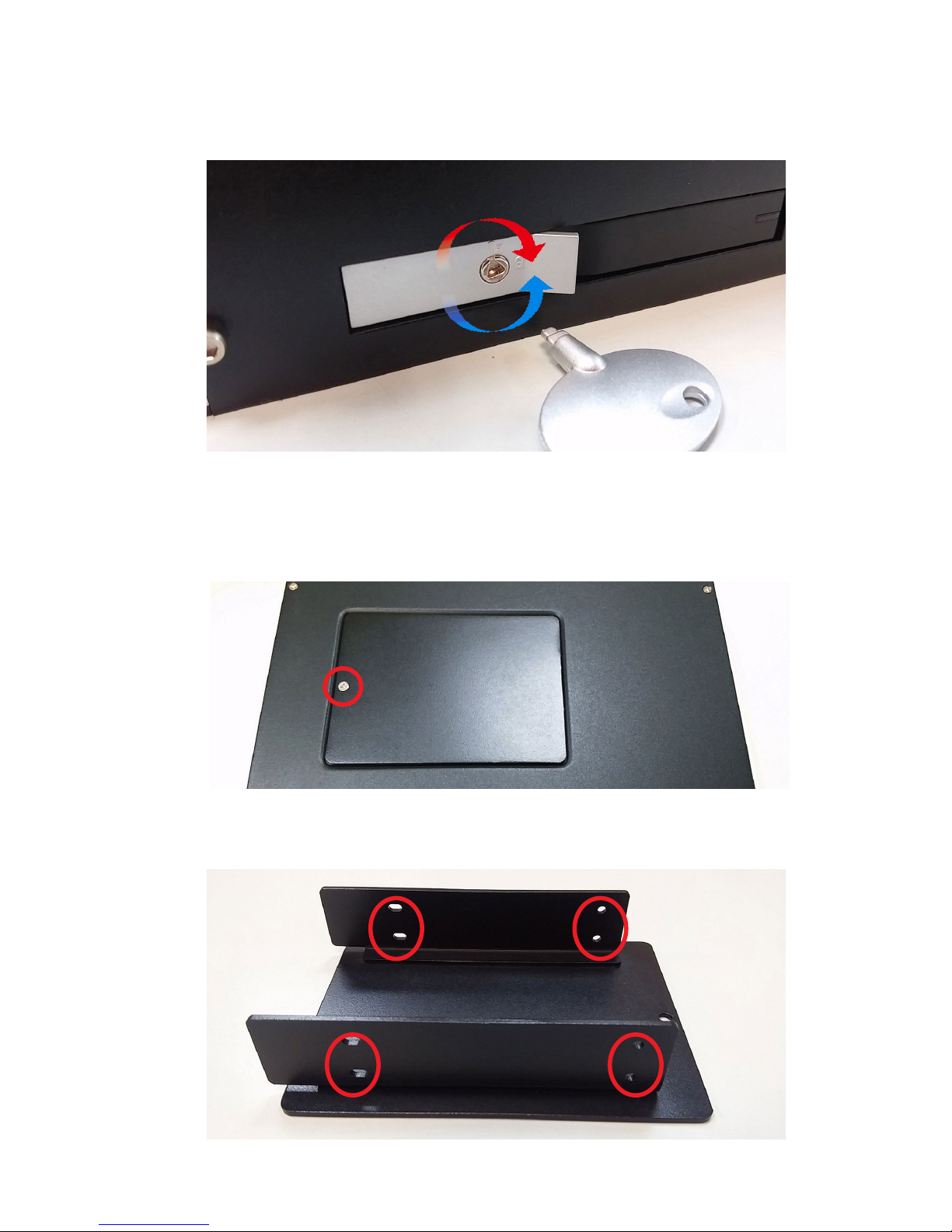

Step 4 Have a key can fasten the tray.

Open

3.6.2 ECS-8000-PoE/ ECS-8000-2G

Step 1 Remove M3x6 screws for SSD/ HDD cover.

Step 2 Insert 2.5” SSD/ HDD in the tray then match SSD/ HDD bracket

with screw hole.

Page 79

Step 4 Insert SATA cable with SSD/ HDD.

Step 3 Locked 8 pcs M3 screws in SSD/ HDD screw hole.

Page 80

HARDWARE INSTALLATION

Step 6 Fasten M3x6 screw with SSD/HDD cover.

Step 5 Close the SSD/ HDD cover.

Page 81

3.7 Mounting ECS-8000

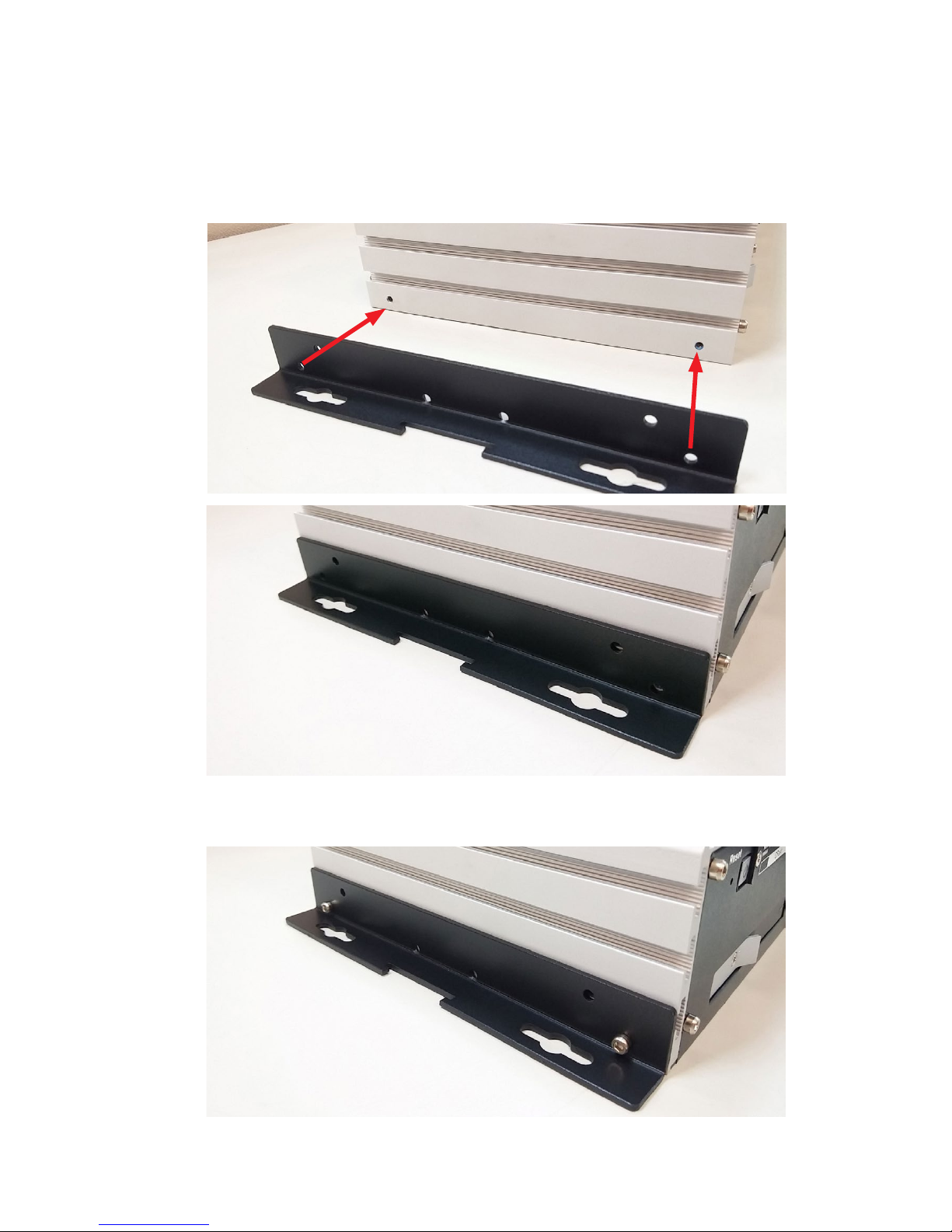

Step 1 Ensure the screw holes on the right and left side of upper case

match the ones on ECS-8000 wallmount bracket.

Step 2 Fasten 4pcs KHS#6-32 screws.

Page 82

BIOS AND DRIVER SETTING

4.1 BIOS Settings

The board uses UEFI BIOS that is use Serial Peripheral Interface (SPI) Flash. The SPI Flash contains the BIOS Setup program, POST, the PCI autoconfiguration utility, LAN, EEPROM information, and Serial port support. The BIOS setup program is accessed by pressing the <Del> key after the PowerOn Self-Test (POST) memory test begins and before the operating system boot begins. The menu bar is shown below.

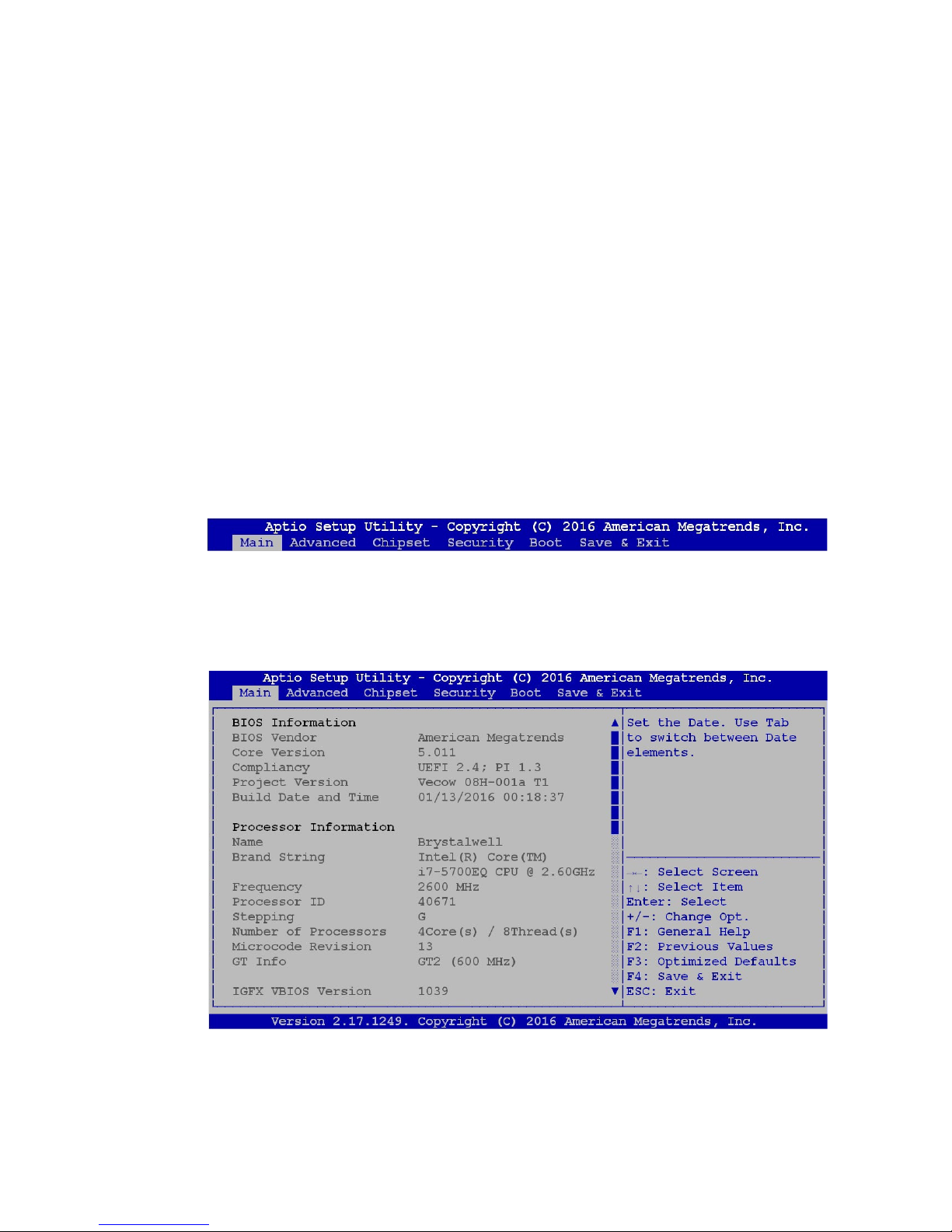

Figure 4-1-1: BIOS Menu Bar

4.2 Main Menu

Figure 4 2: BIOS Main screen

In this page, you could make sure you CPU type and DRAM type that you are install into this system.

Page 83

BIOS AND DRIVER SETTING

System Time/ Date

Press “TAB” key to switch sub-items of value .Then press “+” key or “-“ key number key for modify value.

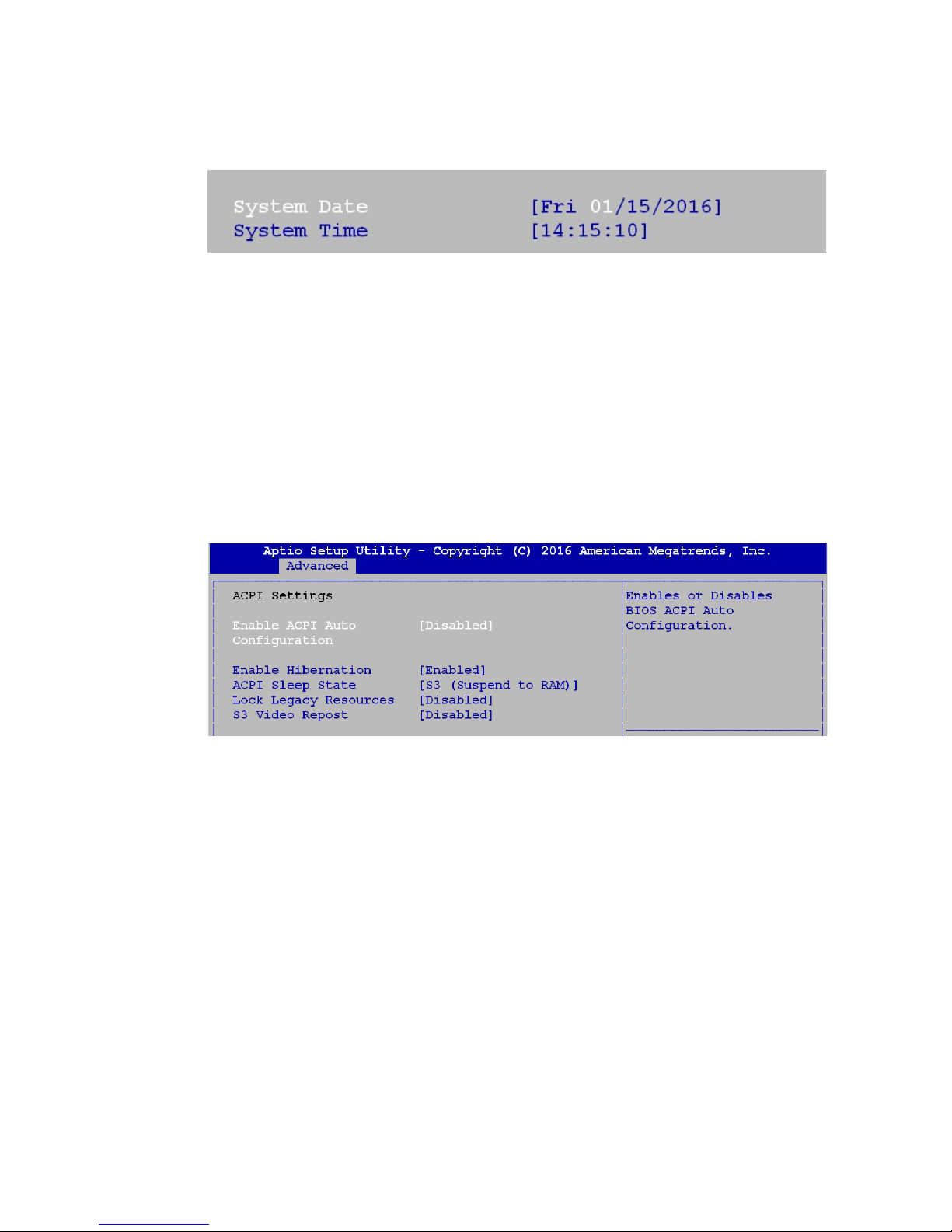

Figure 4-2-1: System Time / Date setting

4.2.1 System Time/Date Setting

4.3 Advanced Function

4.3.1 ACPI Setting

Enable ACPI Auto Conguration

This system support ACPI function as auto process. You should Enable/ Disable that depend as your OS.

Enable Hibernation

It is able to use Hibernate function if OS support. But some OS may not be effective with this function.

Figure 4-3-1: ACPI Setting setup screen

Page 84

BIOS AND DRIVER SETTING

4.3.2 CPU Conguration

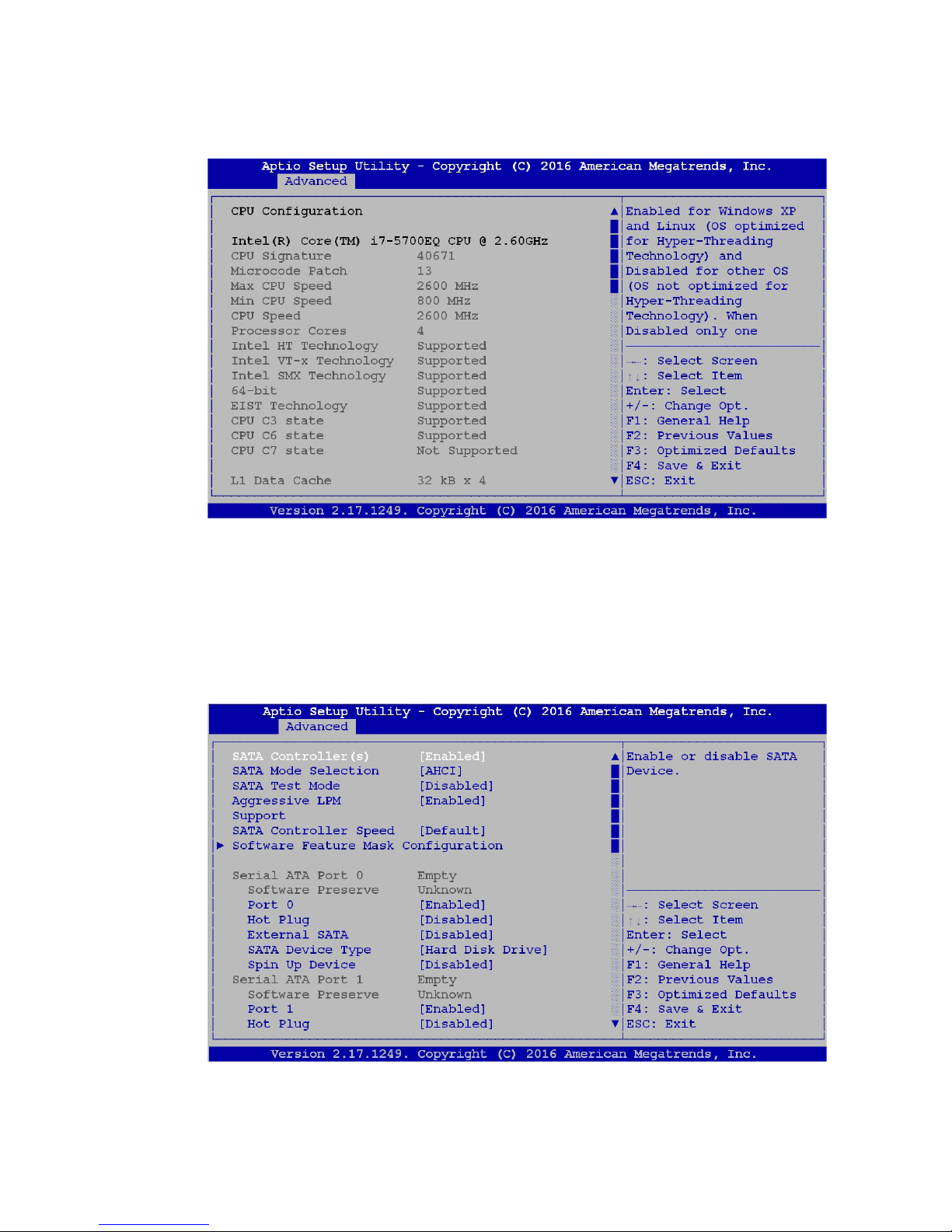

Intel Virtualization Technology

This for Virtualization Application or platform usage, when enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Figure 4-3-2: CPU Conguration setup screen

4.3.3 SATA Conguration

Figure 4-3-3 : SATA Conguration setup screen

Page 85

BIOS AND DRIVER SETTING

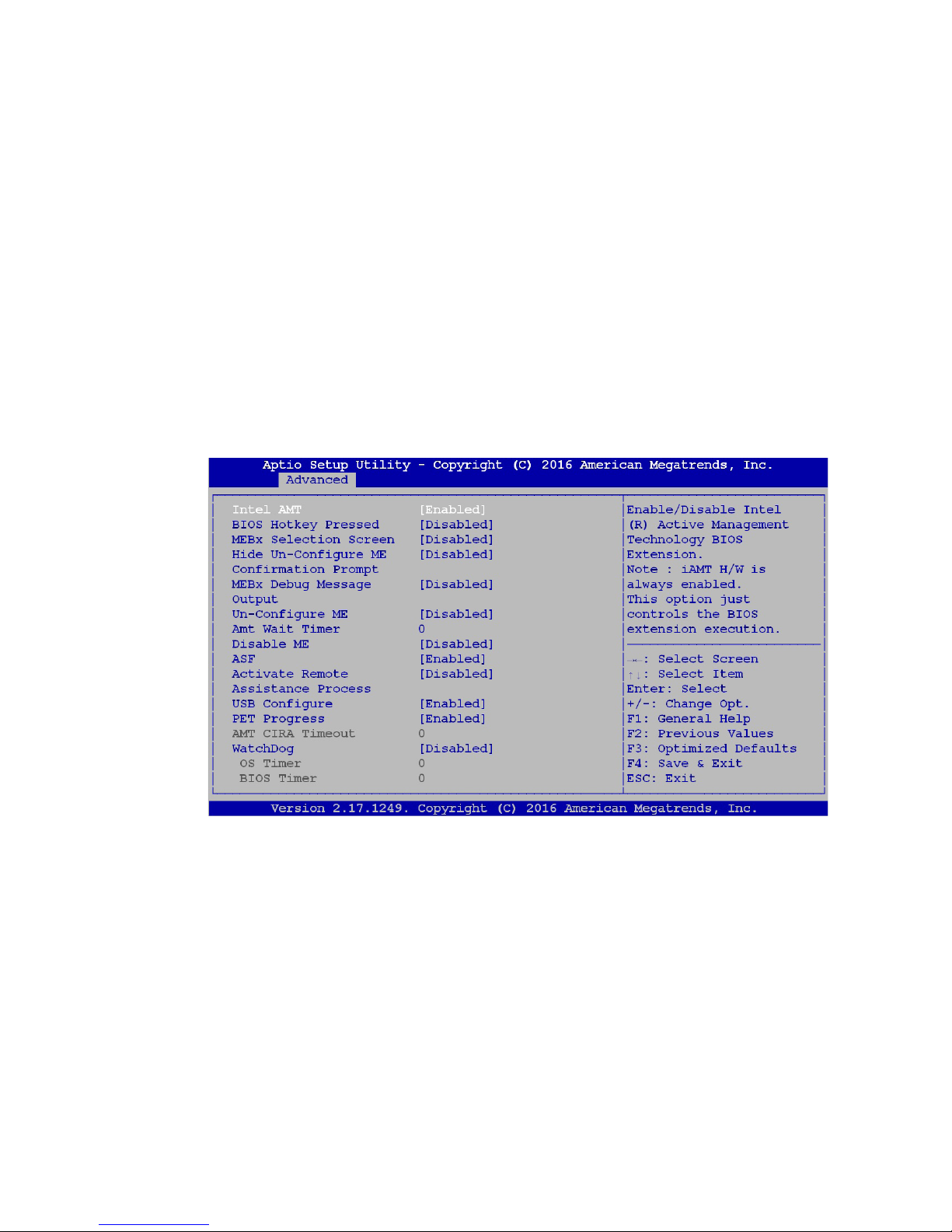

4.3.4 AMT Conguration

Intel AMT

Enables or Disables Intel

Active Management Technology BIOS extension.

This option just controls the BIOS extension executes.

Figure 4-3-4: AMT Setup screen

SATA Controller(s)

Enables or Disables integrate SATA controller for Storage device use.

SATA Mode Selection

Determines how the SATA transfer mode for operate. Here have three option for choice [IDE] / [AHCI] / [RAID]. For the RAID mode operate, please see appendix E. for detail information.

Serial ATA Port 0 to Port 3

This system offers six SATA ports for connection SATA device.

Page 86

BIOS AND DRIVER SETTING

4.3.5 Serial Port 1 Conguration

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO address and interrupt resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=3F8h; IRQ=4;

• IO=3F8h; IRQ=3,4,10,11;

• IO=2F8h; IRQ=3,4,10,11;

• IO=3E8h; IRQ=3,4,10,11;

• IO=2E8h; IRQ=3,4,10,11;

Interface Mode

There are 4 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

• Loop Back

Figure 4-3-5 : Serial Port 1 Setup screen

Page 87

BIOS AND DRIVER SETTING

4.3.6 Serial Port 2 Conguration

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO addresses and interrupts resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=2F8h; IRQ=3;

• IO=3F8h; IRQ=3,4,10,11;

• IO=2F8h; IRQ=3,4,10,11;

• IO=3E8h; IRQ=3,4,10,11;

• IO=2E8h; IRQ=3,4,10,11;

Interface Mode

There are 4 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

• Loop Back

Figure 4-3-6 : Serial Port 2 Setup screen

Page 88

BIOS AND DRIVER SETTING

4.3.7 Serial Port 3 Conguration

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO address and interrupt resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=3E8h; IRQ=11;

• IO=3E8h; IRQ=3,4,10,11;

• IO=2E8h; IRQ=3,4,10,11;

• IO=2F0h; IRQ=3,4,10,11;

• IO=2E0h; IRQ=3,4,10,11;

Interface Mode

There are 4 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

• Loop Back

Figure 4-3-7 : Serial Port 3 Setup screen

Page 89

BIOS AND DRIVER SETTING

4.3.8 Serial Port 4 Conguration

Serial Port

Enable or Disable Serial Port.

Device Setting

Current IO address and interrupt resource of Serial Port.

Change Settings

Select another device setting. There are 6 options as follow :

• Auto

• IO=2E8h; IRQ=10;

• IO=3E8h; IRQ=3,4,10,11;

• IO=2E8h; IRQ=3,4,10,11;

• IO=2F0h; IRQ=3,4,10,11;

• IO=2E0h; IRQ=3,4,10,11;

Interface Mode

There are 4 options as follow :

• RS-232 Mode

• RS-422 Mode

• RS-485 Mode

• Loop Back

Figure 4-3-8 : Serial Port 4 Setup screen

Page 90

BIOS AND DRIVER SETTING

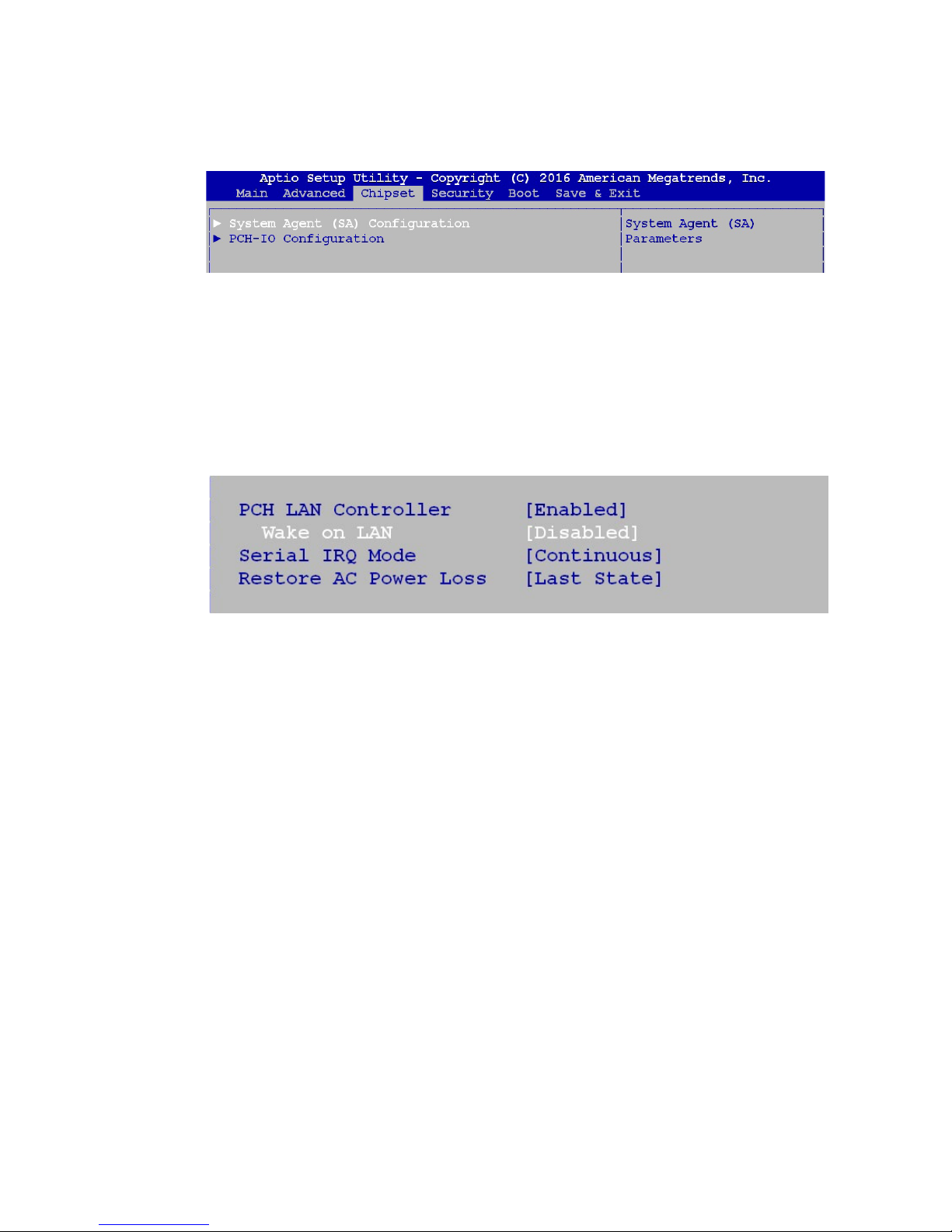

4.4 Chipset Function

4.4.1 WOL Conguration

PCH LAN Controller

Enable or Disable on board network device.

Wake on LAN

Enable or Disable integrated LAN to wake the system.

Figure 4-4-1 : Network Setup screen

Figure 4-4: Chipset Function Setup screen

Chipset related options for this platform.

Page 91

BIOS AND DRIVER SETTING

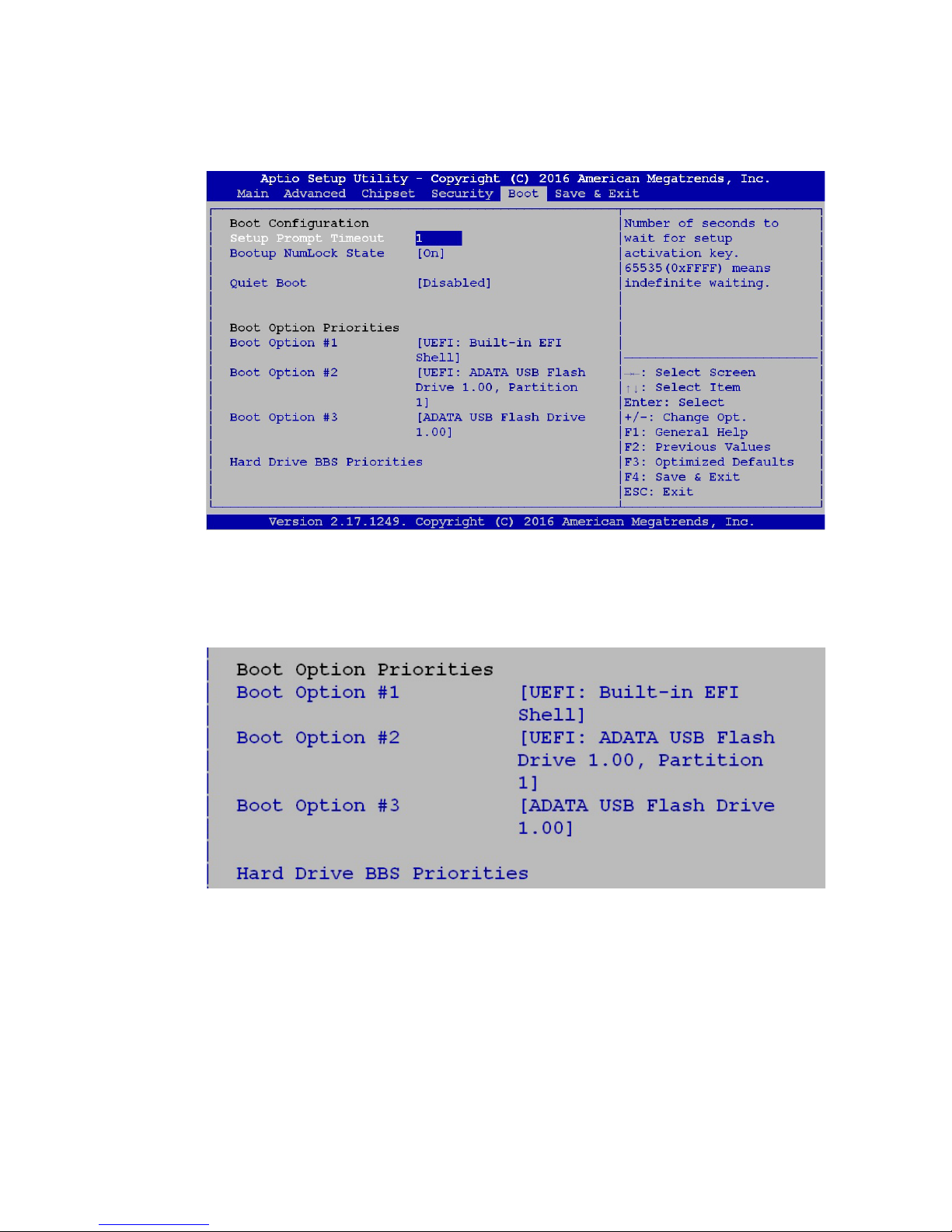

4.5 Boot Function

4.5.1 Boot Option

Boot option

You can select boot device priority in this page.

Figure 4-5-1 Boot Option Setup screen

Figure 4-5: Boot function Setup screen

Page 92

BIOS AND DRIVER SETTING

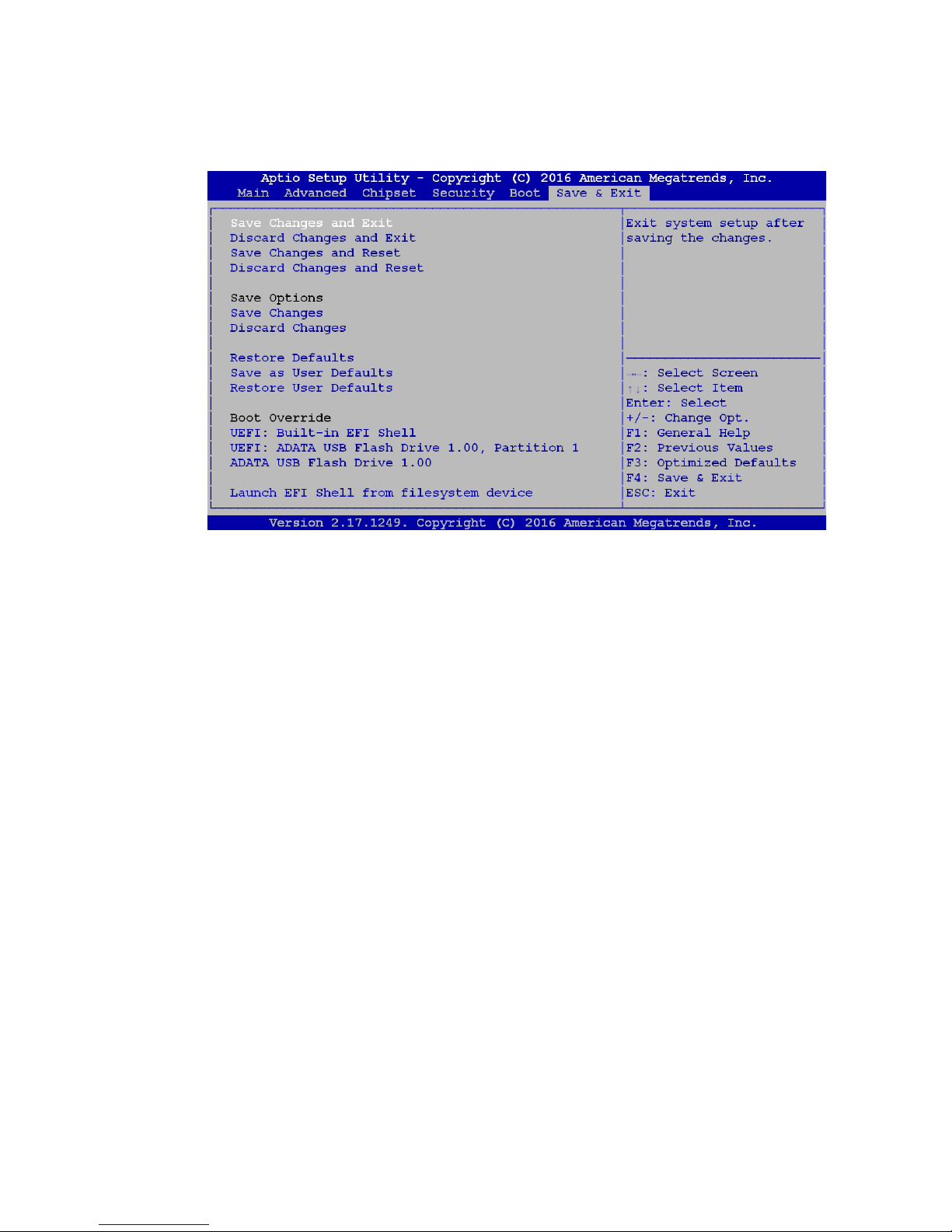

4.6 Save & Exit

Figure 4-6: Save & Exit Setup screen

Save Changes and Exit / Save Changes and Reset

Choose this setting to exit the BIOS setup program and save changes to the BIOS NVRAM memory. Make sure you select this in order to keep your changes.

Discard Changes and Exit / Discard Changes and Reset

Choose this setting to exit the BIOS SETUP program discarding all changes

made.

Page 93

Appendix A

A.1 I/O Pin Denition

I/O Pin Base Adr Usage

GPIO 70~77 0xA06 CN16-GPIO

GPIO 80~87 0xA07 DIO Output

APPENDIX A : ISOLATED DIO GUIDE

A.2 Function Description

The ECS-8000 offers a 16-bit DIO (8-DI / 8-DO) 20-pin terminal block connector. Each bit of DI and DO equipped with a photo-coupler for isolated protection. All IO pins are xed by Hardware design and cannot change in/out direction in runtime process. The denition is shown below:

No.

Denition Description

No.

Denition Description

1 EXT_IN0 GPIO Input 0 11 EXT_OUT0 GPIO Output 0

2 EXT_IN1 GPIO Input 1 12 EXT_OUT1 GPIO Output 1

3 EXT_IN2 GPIO Input 2 13 EXT_OUT2 GPIO Output 2

4 EXT_IN3 GPIO Input 3 14 EXT_OUT3 GPIO Output 3

5 EXT_IN4 GPIO Input 4 15 EXT_OUT4 GPIO Output 4

6 EXT_IN5 GPIO Input 5 16 EXT_OUT5 GPIO Output 5

7 EXT_IN6 GPIO Input 6 17 EXT_OUT6 GPIO Output 6

8 EXT_IN7 GPIO Input 7 18 EXT_OUT7 GPIO Output 7

9 DI_COM GPIO COM 19 Reserved NC

10 EGND GPIO GND 20 E24V External 24V DC

Page 94

Appendix A

Digital GPIO input signal circuit in SINK mode (NPN) is illustrated as follow.

Digital GPIO input signal circuit in SOURCE mode (PNP) is illustrated as follow.

Digital GPIO output signal circuit in SINK mode (NPN) is illustrated as follow.

Page 95

Appendix A

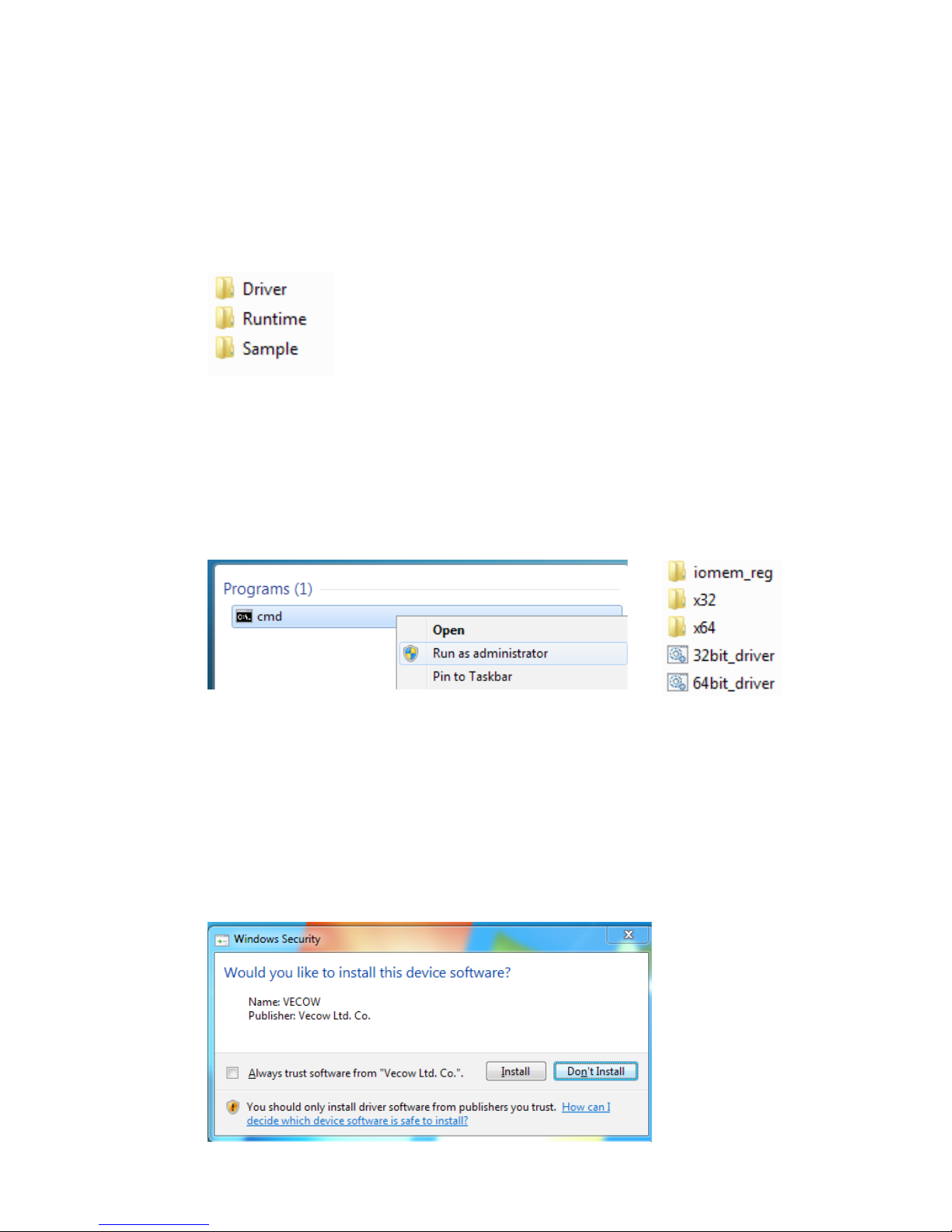

A.3 Software Package contain

Here have two folders inside :

1. Driver folder include x86 and x64 version.

2. DLL and head le for software developer or System Integration.

3. C# and C++ sample program.

A.4 Driver Install

This driver only support to 32bit version that are WinXP and Win7 32bit version. Please make sure you O.S before you install it.

Open Console Window as Administrator

WinXP :

Please execute “32bit_driver.bat” on console window as administrator.

Windows 7 32bit :

Please execute “32bit_driver.bat” on console window as administrator.

Windows 7 64bit :

Please execute “64bit_driver.bat” on console window as administrator.

While execute the driver install process, here shows the Security window popup. Please checked “Always trust software from : Vecow Ltd. Co” and click Install bottom go to next step.

Page 96

Appendix A

In 64bit version, here have another Window for driver certied. Please agree this license to nish the install process.

After driver install process complete , you must restart system to get DIO driver actived.

Page 97

Appendix B

APPENDIX B : GPIO and WDT Functions

B.1 Function Description

The WDT are using internal Super I/O function. However, you must entry super I/O conguration mode to set it.

Super I/O special address port = 0x2E Super I/O special data port = 0x2F GPIO Logical device is 0x07

B.2 Entry Functions

WDT_TimeOut_MSB,SPECIAL WDT_TimeOut_LSB,SPECIAL

1. Entry MB PnP Mode.

//write twice 0x87 value.

outportb(Super I/O special address port, 0x87); outportb(Super I/O special address port, 0x01); outportb(Super I/O special address port, 0x55); outportb(Super I/O special address port, 0x55);

2. Located on Logical Device 7(LOGIC_DEVICE_WDT)

//write 0x07 on Reg [0x07] , this setup must follow Step A. that can be workable.

outportb(Super I/O special address port, 0x07); outportb(Super I/O special data port, 0x07);

3. Cong the WDT Register

outb(WDT_Cong,SPECIAL_ADDRESS_PORT); outb(WDT_As_Second|WDT_Pin_PWRGD,SPECIAL_DATA_PORT);

4. Start WDT TimeOut Value

Here have 2 Byte for WDT timing count, MSB and LSB should be write the value separate.

outb(WDT_TimeOut_LSB,SPECIAL_ADDRESS_PORT); outb(WDT_TimeOutValue,SPECIAL_DATA_PORT);

Page 98

Appendix C

APPENDIX C : Power Consumption

Testing Board ECS-8000

RAM 2 x Innodisk 16GB

USB-1 USB Keyboard Logitech K120

USB-2 USB Mouse Microsoft 1113

USB-3 USB Flash Transcend 3.0 8GB

USB-4 USB Flash Transcend 3.0 8GB

USB-5 USB Flash Transcend 2.0 16GB

USB-6 USB Flash Kingston 3.0 8GB

CFAST Memoright J600 32G

SATA 0 Transcend SSD370 SATA SSD 64GB

SATA 1 Seagate HDD 160GB

LAN 1 (I218) 1.0 Gbps

LAN 2 (I210) 1.0 Gbps

Graphics Output DVI

Power Plan Balance (Windows7 Power Plan)

Power Source Chroma 62006P-100-25

Page 99

Appendix C

CPU

Power

Input

Idle Status :

CPU usage less 3%

Run 100% CPU usage

Max

Current

Max

Consumption

Max

Current

Max

Consumption

i7-5850EQ 06V 2.680A 16.08W 6.220A 37.32W

i7-5850EQ 09V 1.730A 15.57W 3.960A 35.64W

i7-5850EQ 12V 1.370A 16.44W 2.970A 35.64W

i7-5850EQ 24V 0.720A 17.28W 1.500A 36.00W

i7-5850EQ 28V 0.610A 17.08W 1.280A 35.84W

i7-5850EQ 36V 0.490A 17.64W 1.040A 37.44W

Power-on and boot to Win7 64-bit

Standby Mode

CPU Input Power Max Current Max Consumption

i7-5850EQ 06V 0.390A 02.34W

i7-5850EQ 09V 0.270A 02.43W

i7-5850EQ 12V 0.290A 03.48W

i7-5850EQ 24V 0.150A 03.60W

i7-5850EQ 28V 0.140A 03.92W

i7-5850EQ 36V 0.120A 04.32W

C.1 CPU : Intel® Core™ i7-5850EQ (6M Cache, 2.70GHz)

Page 100

Standby Mode

CPU Input Power Max Current Max Consumption

i7-5700EQ 06V 0.390A 02.34W

i7-5700EQ 09V 0.270A 02.43W

i7-5700EQ 12V 0.230A 02.76W

i7-5700EQ 24V 0.150A 03.60W

i7-5700EQ 28V 0.130A 03.64W

i7-5700EQ 36V 0.120A 04.32W

CPU

Power

Input

Idle Status :

CPU usage less 3%

Run 100% CPU usage

Max

Current

Max

Consumption

Max

Current

Max

Consumption

i7-5700EQ 06V 2.820A 16.92W 5.830A 34.98W

i7-5700EQ 09V 1.850A 16.65W 3.680A 33.12W

i7-5700EQ 12V 1.350A 16.20W 2.870A 34.44W

i7-5700EQ 24V 0.690A 16.56W 1.380A 33.12W

i7-5700EQ 28V 0.590A 16.52W 1.190A 33.32W

i7-5700EQ 36V 0.470A 16.92W 0.930A 33.48W

Power-on and boot to Win7 64-bit

For ignition control, the standby mode consume less than 4mA.

C.2 CPU : Intel® Core™ i7-5850EQ (6M Cache, 2.60GHz)
