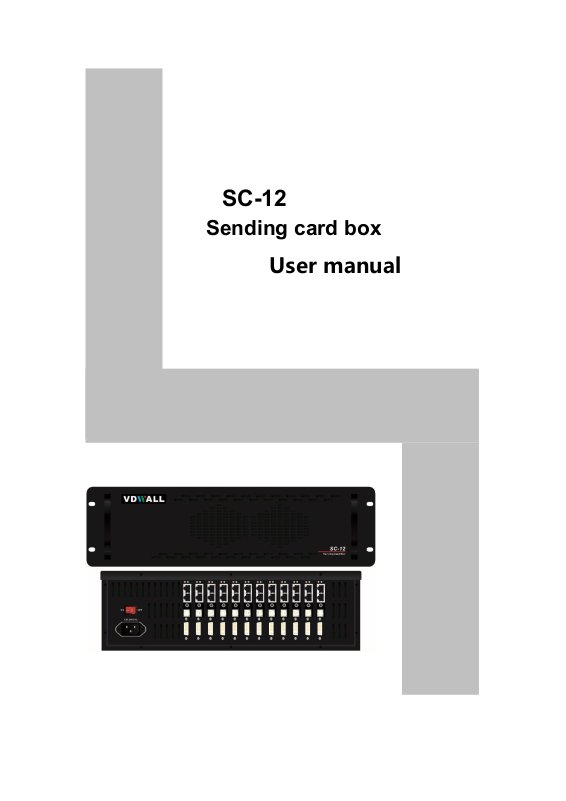

SC-12
Sending card box
User manual
SC-12
Catalogue
Chapter 1: Safety precautions ...............................................03
Chapter 2: Item list .................................................04
Chapter 3: Product brief introduction .........................05
Chapter 4: Hardware connection ........................................06
4-1Rear view ...... ..... .. ... .. ... .. ... .. ..... ..... ..... ....0 6
4-2 Application diagram ................................................06
4-3 Sending card installation .....................................07
4-4 Specifications ........................................................09
4-5 Product dimensions ................................................10
Appendix: modify the record table ---------------------- 11
Sending card box User manual
2
SC-12
Sending card box User manual
Chapter 1: Safety precautions
Danger
There is high voltage in the processor, to prevent any unexpected
hazard, unless you are maintenance, please do not open the cover
of the device.
Warning
1. This device shall not encounter water sprinkle or splash,
please do not place anything containing water on this device.
2. To prevent fire, keep this device far from any fire source.
3. If this device gives out any strange noise, smoke or smell,
please immediately unplug the power cord from receptacle, and
contact local dealer.
4. Signal cables are not hot swappable.
Caution
1. Please thoroughly read this manual before using this device,
and keep it well for future reference.
2. In the event of lighting or when you are not going to use the
device for a long time, please pull the power plug out of
receptacle.
3. To prevent equipment damage or electric shock, please don’t
fill in anything in the vent of the device.
4. Do not place the device near any water source or anywhere damp.
5. Do not place the device near any radiator or anywhere under
high temperature.
6. To prevent rupture or damage of power cords, please handle and
keep them properly.
3
SC-12
1.5m power cord*1
User manual*1
Sending card box User manual
7. Please immediately unplug power cord and have the device
repaired, when
1) Liquid splashes to the device.
2) The device is dropped down or cabinet is damaged.
3) Obvious malpractice is found or performance degrades.
Chapter 2 Item list
Please unpack the product carefully, then check whether all the following
things are included in the package. If anything is found missing, please contact
the dealer.
Standard accessories
The accessories supplied with this DVI Distributor may differ from
the figures contained in the User’s Manual, but they are applicable for the
regions where you live.
4
SC-12
Sending card box User manual
Chapter 3 Product brief introduction
SC-12 is a high 3U sending card box, which including PCI
or PCI-E slot internally and is compatible with different kinds
of mainstream sending card. SC-12 owns high density of
installation which can be installed with 12 pieces of 2 port
access sending card or 6 pieces of 4 port sending card.
Therefore, SC-12 is perfectly suitable for large LED splice
equipment such as LVP86XX, VF2000 etc.
5
SC-12
Image 4-1 Rear view
Sending card box User manual
Chapter 4 Hardware connection
4-1 Rear view
4-2 Application diagram
6
SC-12
Image 4-2 Application diagram
1. Take down upper cover
It requires to take down 10 pieces of
screws including upper cover, lower cover
and top side
Sending card box User manual
4-3 Sending card installation
7
SC-12
2. Make sure the consistence between the label of tighten screw
This image shows the installation method of PCI slot sending card
bottom board, PCI slot towards the tapping of back board
3. Take down the baffle of back board, install sending card and
Sending card box User manual
besides sending card bottom board and the PCI or PCI-E slot of
sending card waiting for installation. If it is not, then you need to
re-tighten sending card bottom board.
tighten it into back board via bolt. For example, if the sending
card is PCI-E slot, it also require to connect supply cable(5V).
8
SC-12
Tighten via bolt
PCI slot sending card can power supply via
PCI, or it requires to connect supply cable
(5V)
For PCI-E slot sending card, due to the
difference of PCI-E slot length, if it isn’t insert in
place, please power supply via 5V supply cable
Sending card box User manual
9
SC-12
Specifications relates to sending card
Sending card
installation quantity
12 pieces of 2 port access sending card or 6
pieces of 4 port sending card
Supply voltage
5V DC
Power supply mode
Big 4pin（P5.08mm）
Small 4pin（P2.54mm）
PC or PCI-E
Others
Input voltage
100-240VAC 50/60Hz
Power consumption
≤100W
Environment
temperature
0-45 ℃
Environment humidity
15-85%
Size
483(L)X270(W)X133.5（H）mm
Weight
G.W.：5.6Kg, N.W.：4.3Kg
Sending card box User manual
4-4 Specifications
10
SC-12
Image 4-4 installation size image
Sending card box User manual
4-5 Product dimensions
11
SC-12
Version
Time
Description
Draft
V1.0
2018.1.02
First release
Lts
Sending card box User manual
Appendix：modify the record table
