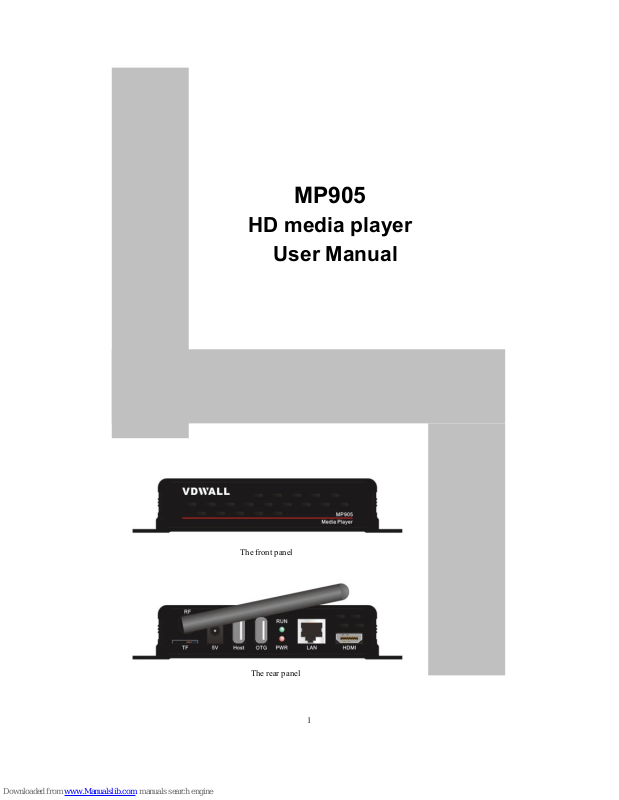

MP905
HD media player
User Manual
The front panel
The rear panel
MP905
User Manual
2
Contents
Chapter 1:Safety precautions.............................................................03
Chapter 2:Item list..................................................................................04
Chapter 3: Product introduction.........................................05
Chapter 4:Hardware connection introduction..........................06
4-1 Rear panel effect diagram.....................................06
4-2 Typical application connection diagram..............06
4-3 Specifications..........................................................09
4-4 Installation dimension diagram.............................10
Appendix: modify the record table .................................................11
Chapter 1:Safety Precautions
MP905
User Manual
3
Warning
1. This device shall not encounter water sprinkle or splash, please do not place
anything containing water on this device.
2. To prevent fire, keep this device far from any fire source.
3. If this device gives out any strange noise, smoke or smell, please
immediately unplug the power cord from receptacle, and contact local dealer.
4. Signal cables are not hot swapping.
Caution
1.Please thoroughly read this manual before using this device,
and keep it well for future reference.
2.In the event of lighting or when you are not going to use the device for a long
time, please pull the power plug out of receptacle.
3.Nobody other than professional technicians can operate the device, unless
they have been appropriately trained or under guidance of technicians.
4. To prevent equipment damage or electric shock, please don’t fill in anything
in the vent of the device.
5.Do not place the device near any water source or anywhere damp.
6.Do not place the device near any radiator or anywhere under high
temperature.
7.To prevent rupture or damage of power cords, please handle and keep them
properly.
MP905
User Manual
4
Chapter 2 Item List
Please unpack the product carefully, then check whether all the following
things are included in the package. If anything is found missing, please contact
the dealer.
Standard Accessories
The accessories supplied with this Media Player may differ from
the figures contained in the User’s Manual, but they are applicable for the
regions where you live.
5V2A power adapter*1, cable*1
User manual *1
MP905
User Manual
5
Chapter 3: Product Introduction
The MP905 is a high-performance media player that supports up to @4K
60Hz output. It supports two-way USB input and USB plug and play function
(automatically play video files in the root directory of the U-disk after inserting
the U-disk).
The MP905 supports 4K@60fps hardware decoding, supports H.265
10-bit, H.264 and AVS+ and many other formats, and can achieve excellent
video and picture play capabilities.
MP905 supports WIFI, Bluetooth and other features,while because the
Android system is open,it’s convenient for user to play video and remote
control with the third-party APK and other operations.
The operation interface of the MP905 is similar to the operation interface
of the Android mobile phone or PAD. It is easy to use, and it can achieve
playing PPT,pictures and other functions through the built-in or installed APP.
For detailed operations, please refer to the “The Common Functions
Implement Description Of Network Intelligent Modules” in the product CD.
MP905
User Manual
6
Chapter 4:Hardware Connection Introduction

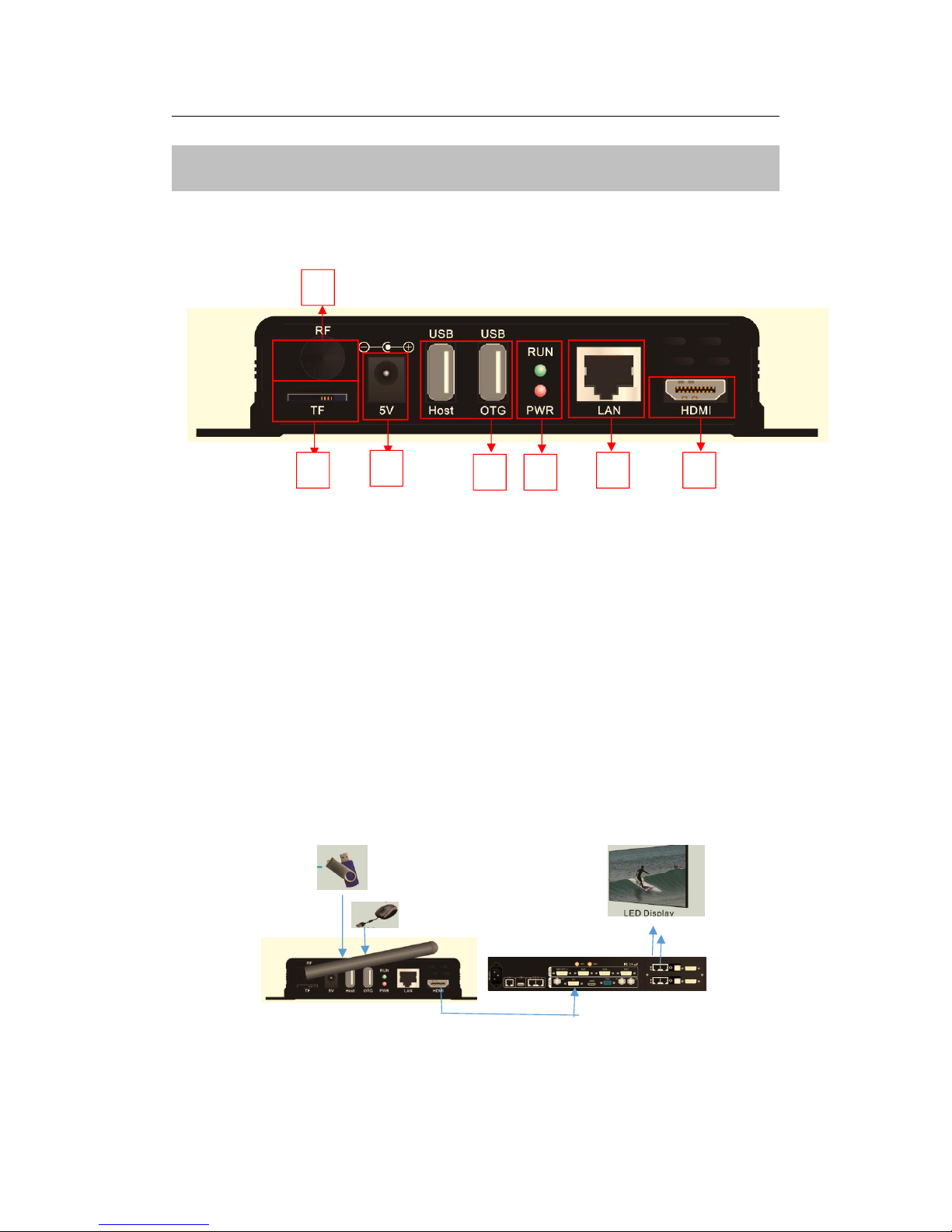

4-1Rear panel effect diagram
167
5
4
2
3
diagram 4-1 Rear panel effect diagram
(1)TF card slot
(2)
Power input
(3)
WIFI antenna (4) Two-way USB input
(5) Operation indicator light (6) Wired network interface
(7)HDMI output
4-2 Typical application connection diagram
MP905
User Manual
7
diagram 4-2 Typical application connection diagram
4-3 Specifications
Functional
characteristics
CPU
Amlogic S905
RAM
DDRIII 1G
operating
system
android 5.1
format
Output
resolution
4K（3840*2160 @60Frame/s）；
1080p/720p/576p/480p/PAL/NTSC
Video
compressi
on format
H.265 AVC HD、VC-1(WMV HD)、
MPEG-2 HD、MPEG-1、MPEG-4、Xvid
Video file
format
MKV/TS/M2TS/TP/TRP/AVI/WMV/RM/RMVB/MPEG/MPG
/MP4/VOB/MOV/ISO/DAT/ASF
Format
JPG、BMP、GIF、PNG and other file formats
memory
MP905
8G High-speed flash memory
Memory
card type
TF Mini-card
interface
Video
interface
HDMI1.4
Other
interfaces
USB2.0x2；Wired networkx1；TF card slotx1
specification
size
Product Size：155.8（length）x123（width）x30.5（height）
mm
Package Size：249（length）x206（width）x55（height）
mm
MP905
User Manual
8
weight
G.W.：0.38Kg
N.W.：0.58Kg
Accessories and
other parameters
5V2A Power Adapter；Cable; Quick Operation Guide; CD
MP905
User Manual
9
4-4 Installation Dimensions
diagram 4-4 Installation dimension diagram
MP905
User Manual
10
Appendix：modify the record table
Version
Time
Description
Draft
V1.0
2018.2.08
MP905 first release
