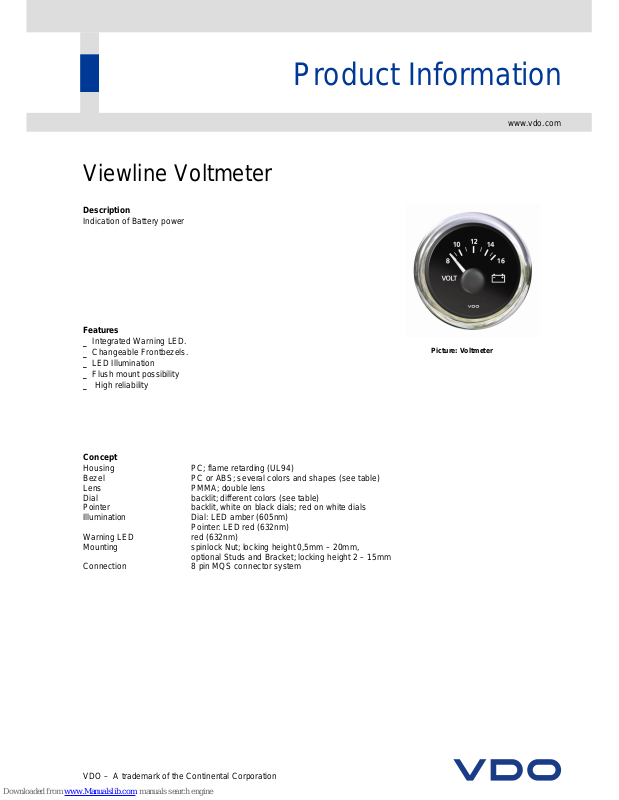

Page 1
VDO – A trademark of the Continental Corporation
Product Information
www.vdo.com
Viewline Voltmeter
Description
Indication of Battery power
Features
_
Integrated Warning LED.

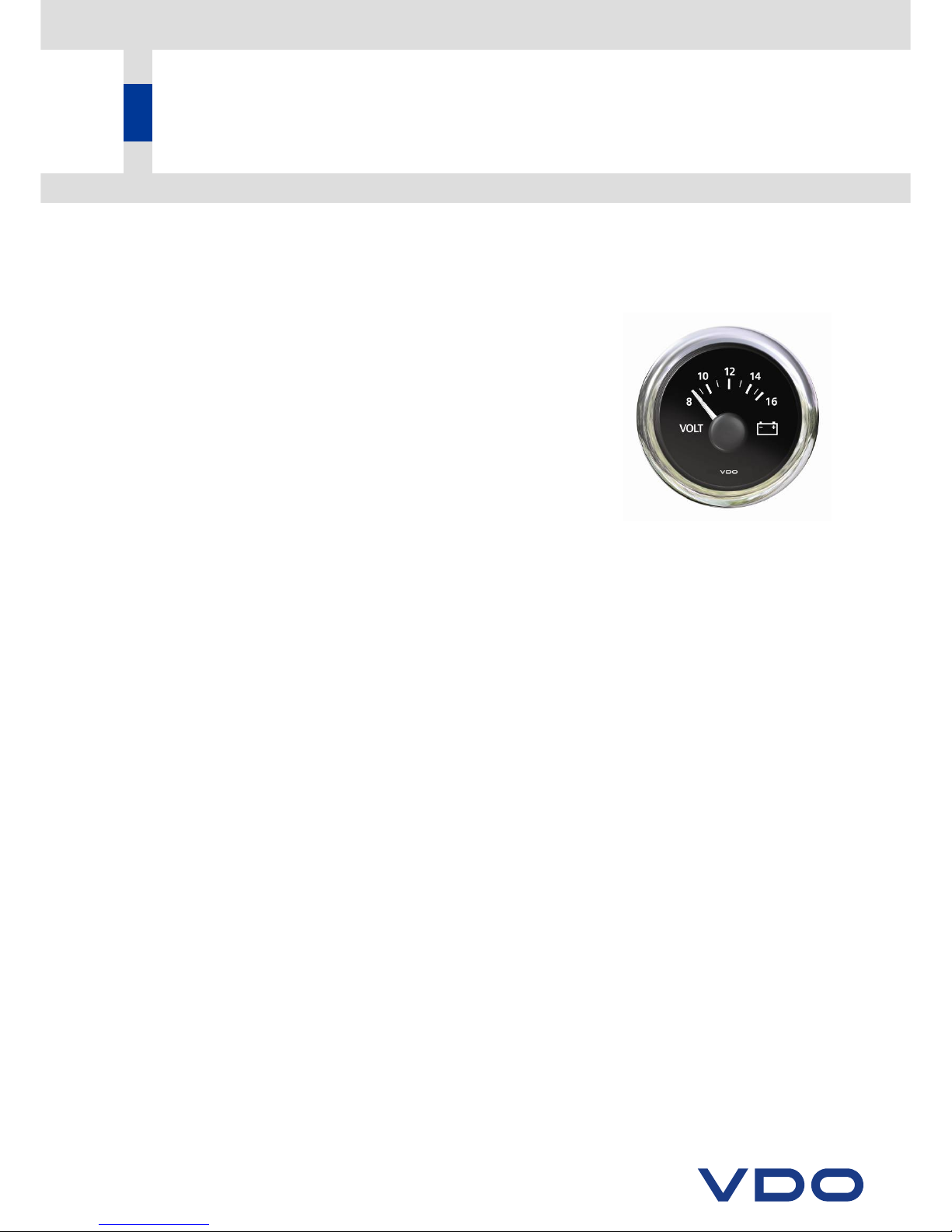

Picture: Voltmeter
_
Changeable Frontbezels.
_
LED Illumination
_
Flush mount possibility
_
High reliability
Concept
Housing PC; flame retarding (UL94)
Bezel PC or ABS; several colors and shapes (see table)
Lens PMMA; double lens
Dial backlit; different colors (see table)
Pointer backlit, white on black dials; red on white dials
Illumination Dial: LED amber (605nm)
Pointer: LED red (632nm)
Warning LED red (632nm)
Mounting spinlock Nut; locking height 0,5mm – 20mm,
optional Studs and Bracket; locking height 2 – 15mm
Connection 8 pin MQS connector system
Page 2
Viewline Voltmeter
Technische Änderungen vorbehalten 12/09 Technical details subject to change 2 - 3
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express
authorization is prohibited. Offenders will be held liable for the paymen t of damages. All right reserved in the event of the grant of a patent,
utility model or design
.
Technical Data
Installation depth 50mm
Installation diameter 52mm
Deflection angle 90°
Operating Voltage 8 – 16 Volt, (18-32V)
Accuracy < 3,6 angular degrees
Current consumption < 140 mA, including Warning LED
Operating temperature -30°C to +80°C; plated bezels (chrome) -30°C to +70°C
Storage temperature -40°C to +80°C for 48h; plated bezels (chrome) -40°C to +70°C
+90°C for 1h
Temperature shock Range -40°C to +85°C; plated bezels (chrome) -40°C to +70°C
Transformation time 10 seconds
Retention time 2h
Climatic test Range +25°C to +55°C
Rel. Humidity 95%
EMC in conformity with DIN_EN 61000-6-3
DIN_EN 61000-6-1
DIN_EN 61000-6-4
DIN_EN 61000-6-2
Standards EN 60945
GL, Category C, F (under preparation)
Vibration Sinus 2g; 10-500Hz; duration 16h
Noise 3g; 10-1000Hz, duration 8h
Mechanical shock continuous 25g; 6ms; 1Hz
Single shock 100g; 11ms
Free fall 1m; 3 times
Chemical resistance against - preservative agent
- preservative agent remover
- cold cleaner
- methylated spirit
- interior cleaner
- drinks containing caffeine and tannin
Nominal position NL 0 to NL 85 (DIN16257)
Protection class according to IEC 60529
Front: IP67 (in Nominal position)
Rear: IP52 (in Nominal position)
Reverse polarity protection yes, 5 minute
Over voltage protection yes, 24V for1 minute (12V Gauges)
Page 3
Viewline Voltmeter
available Gauges:
No. packed
No.
unpacked
colour
Double
Scale
Measurement
range
ISO
Symbol
Voltage
Double
lens
A2C60100076 A2C53191475 black no 18 - 32V
24V no
A2C60100077 A2C53191478 white no 18 - 32V
24V no
A2C60100078 A2C53191767 black no 18 - 32V
24V yes
A2C60100079 A2C53191769 white no 18 - 32V
24V yes
A2C60100176 A2C53191474 black no 8 - 16V
12V no
A2C60100177 A2C53191476 white no 8 - 16V
12V no
A2C60100178 A2C53191766 black no 8 - 16V
12V yes
A2C60100179 A2C53191768 white no 8 - 16V
12V yes
Accessories:
A2C59510854 VL Mounting Kit (studs and brackets) 52, 85, 110mm
A2C59510864 VL Mounting bracket flush mount
A2C53215640 VL Sealing Ring 52mm flush mount
A2C59510847 Bush housing, 8-pin
A2C53324664 Protective connector cap, 8-pin
Tyco No. 539635-1 Hand pliers
Tyco No. 539682-2 Tool for hand pliers.
Tyco No. 1355718-1 Single contacts 0.14 – 0.22 mm² tin plated
Tyco No. 963729-1 Single contacts 0.5 – 0.75 mm² tin plated
Tyco No. 1355717-1 Strip 0.14 – 0.22 mm² tin plated
Tyco No. 928999-1 Strip 0.25 – 0.5 mm² tin plated
Tyco No. 963715-1 Strip 0.5 – 0.75 mm² tin plated
Bezels 52mm
black black nickel* brush aluminum* chrome gold* white
flat A2C53186040 A2C53293468 A2C53293480 A2C53186023 A2C53293482 A2C53186022
round A2C53186027 A2C53293494 A2C53293495 A2C53186029 A2C53293496 A2C53186028
triangle A2C53186024 A2C53293545 A2C53293546 A2C53186026 A2C53293548 A2C53186025
* Only on request, no part off standard portfolio
