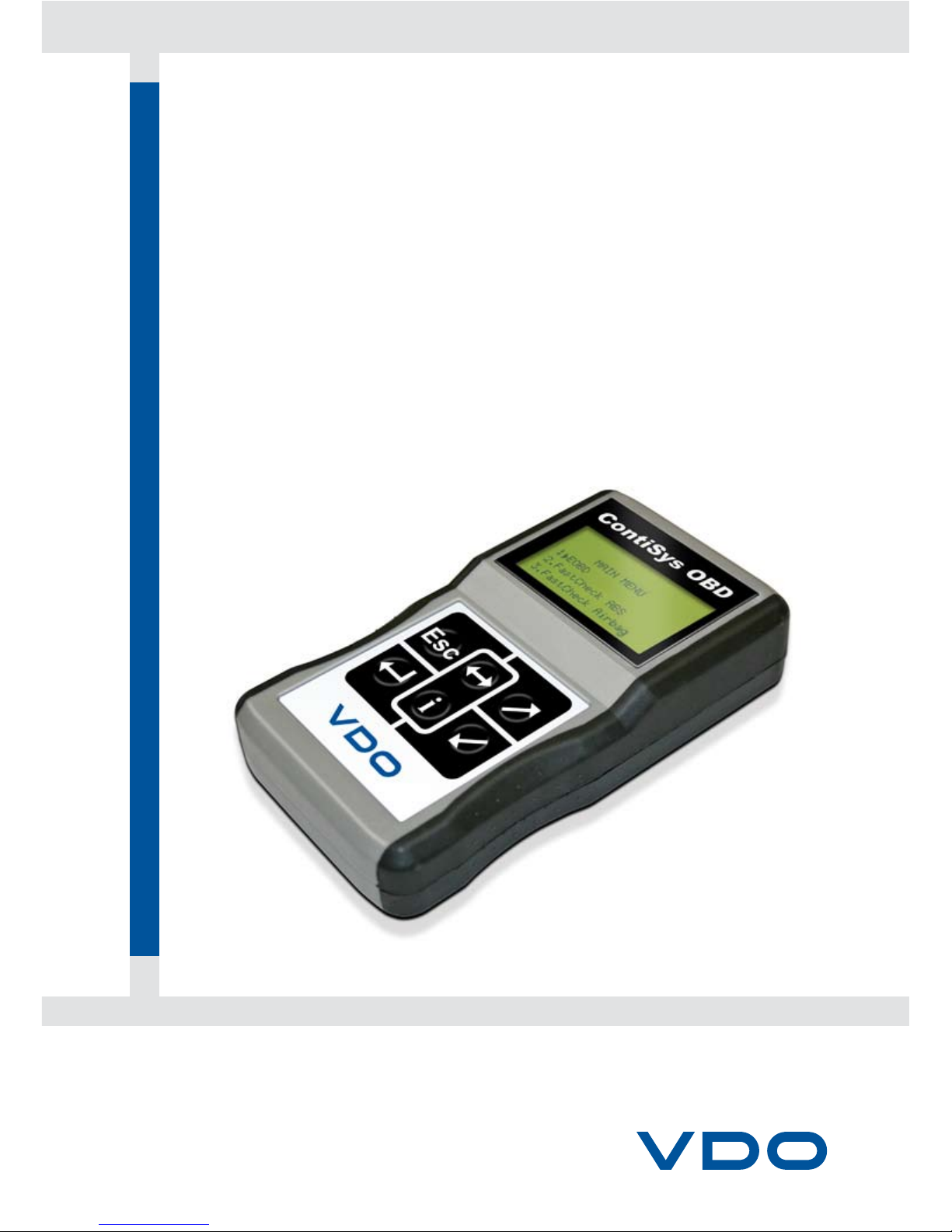

VDO CONTISYS OBD - V3.0, ContiSys OBD Instruction Manual

Instruction Manual

ContiSys OBD

02/2010 (3.0) - EN

Contents

Introduction

Overview.................................................................... 3

Kit contents ............................................................... 6

Display screen ........................................................... 8

Keypad ...................................................................... 8

Connection ................................................................ 9

Safety precautions ................................................... 10

Communication problems........................................ 10

EOBD Application

What is EOBD?........................................................ 11

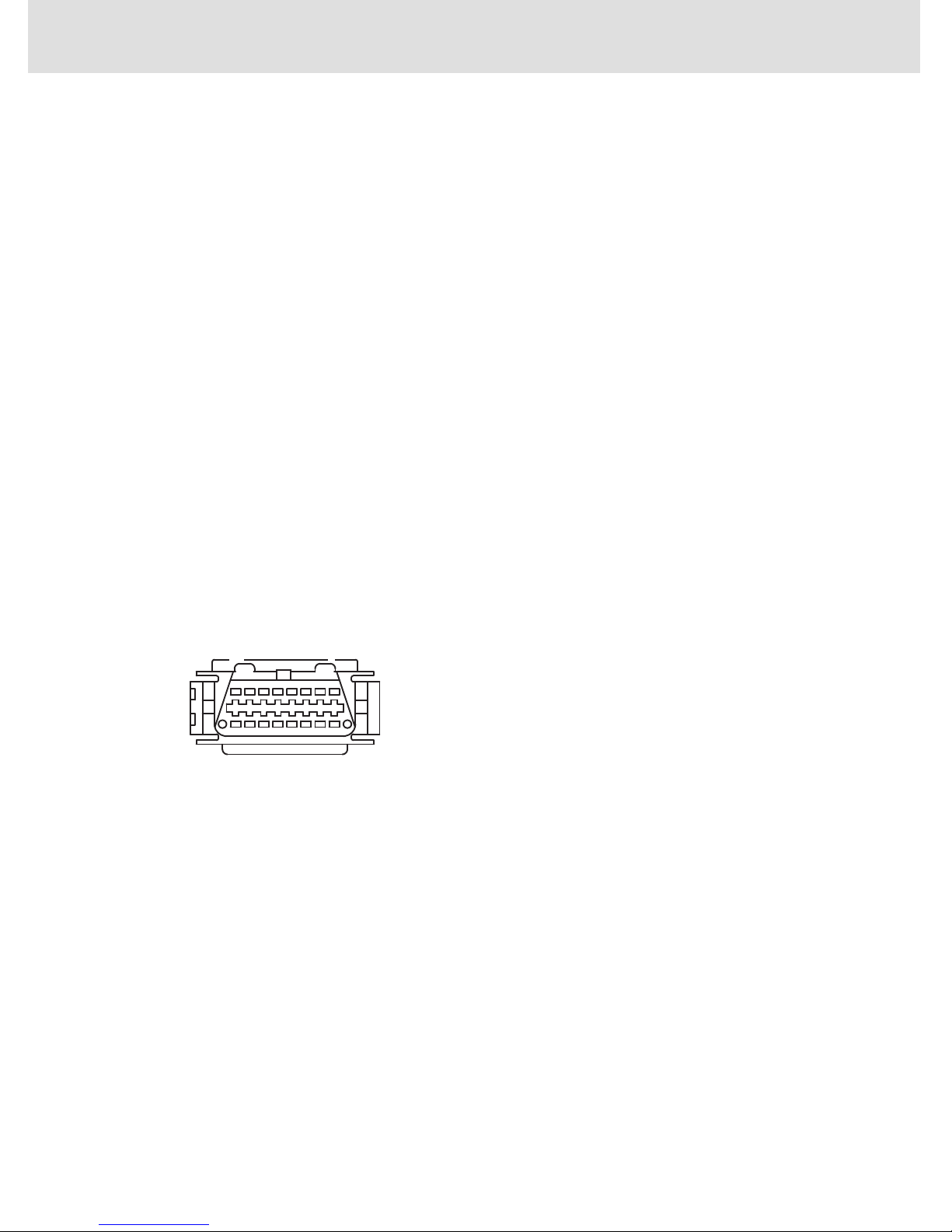

Identifying compliant vehicles................................... 12

Diagnostic Trouble Codes........................................ 13

Interpreting EOBD fault codes.................................. 14

Using EOBD application........................................... 15

Menu options........................................................... 17

FastCheck

Introduction ............................................................. 20

Safety instructions.................................................... 21

FastCheck ABS ....................................................... 23

FastCheck Airbag .................................................... 26

FastCheck Climate................................................... 31

FastCheck EPB........................................................ 34

FastCheck SAS........................................................ 49

FastCheck Service................................................... 53

Service reset adaption channels and values............. 69

FastCheck TPMS..................................................... 72

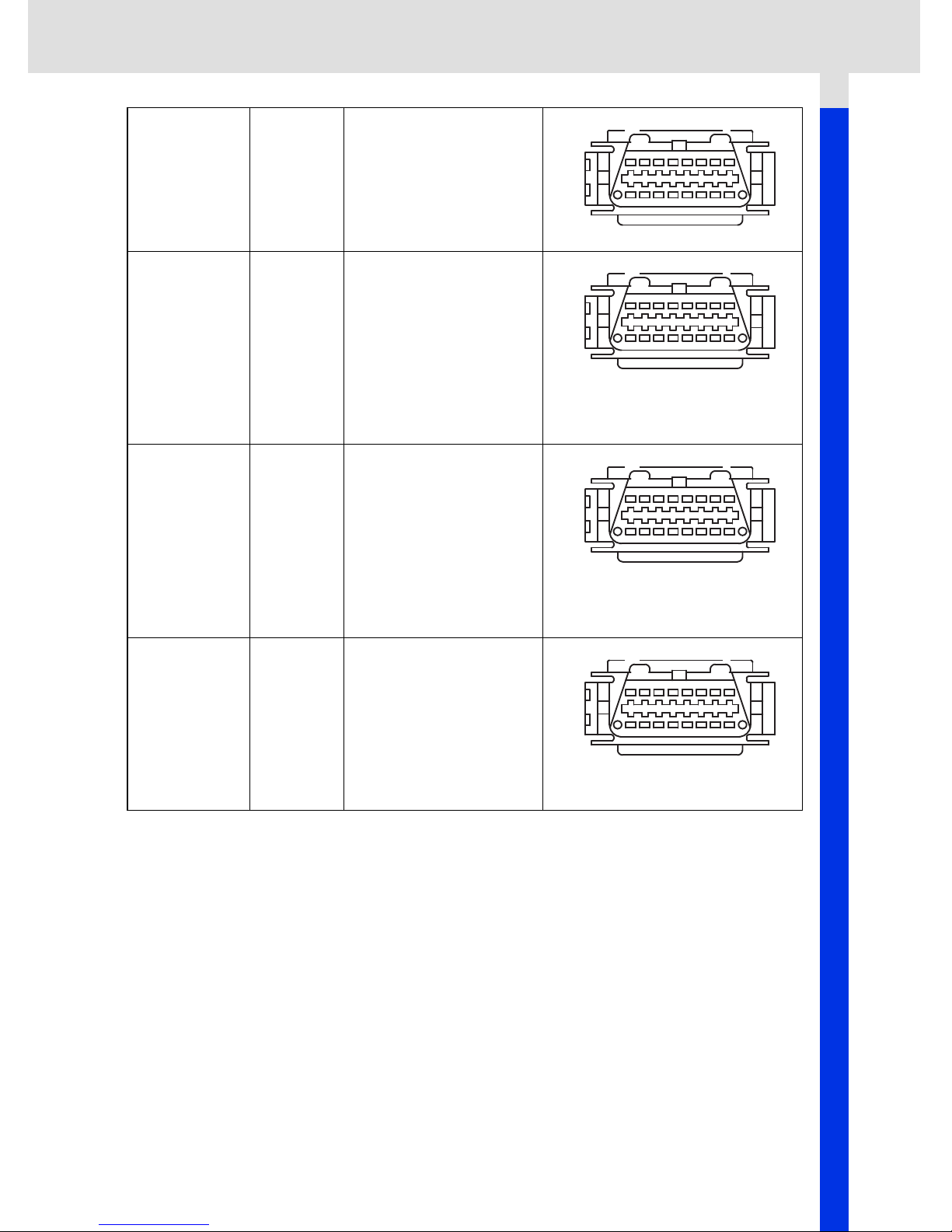

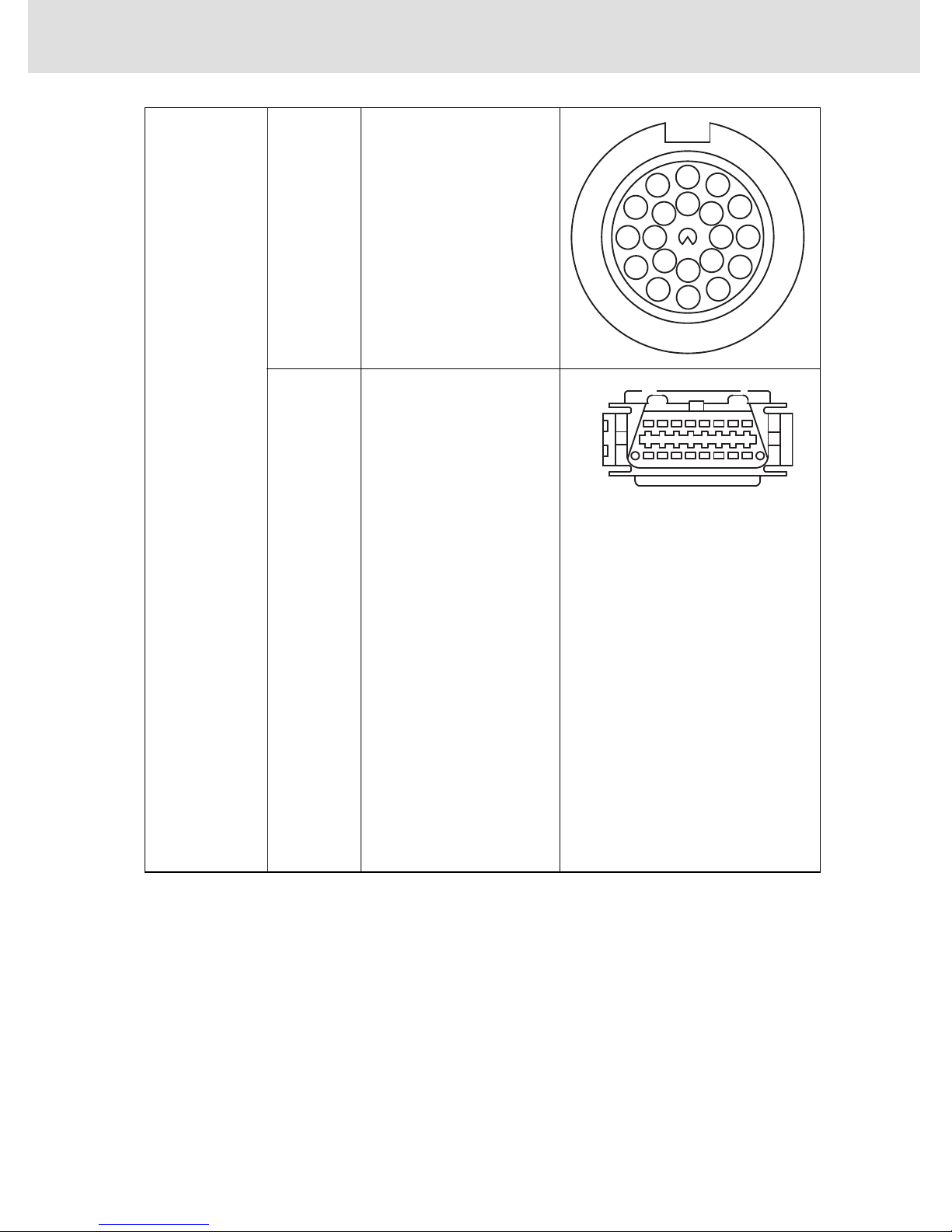

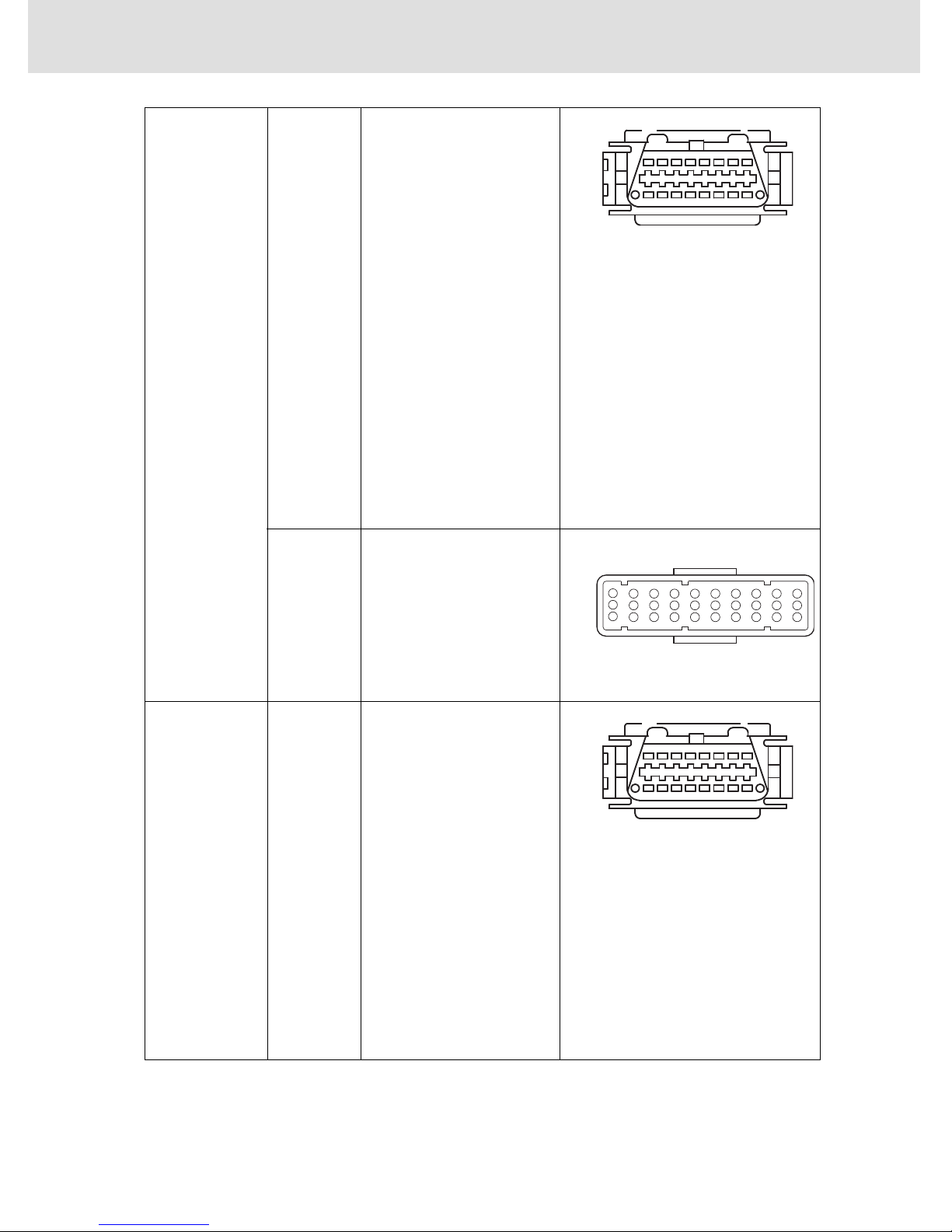

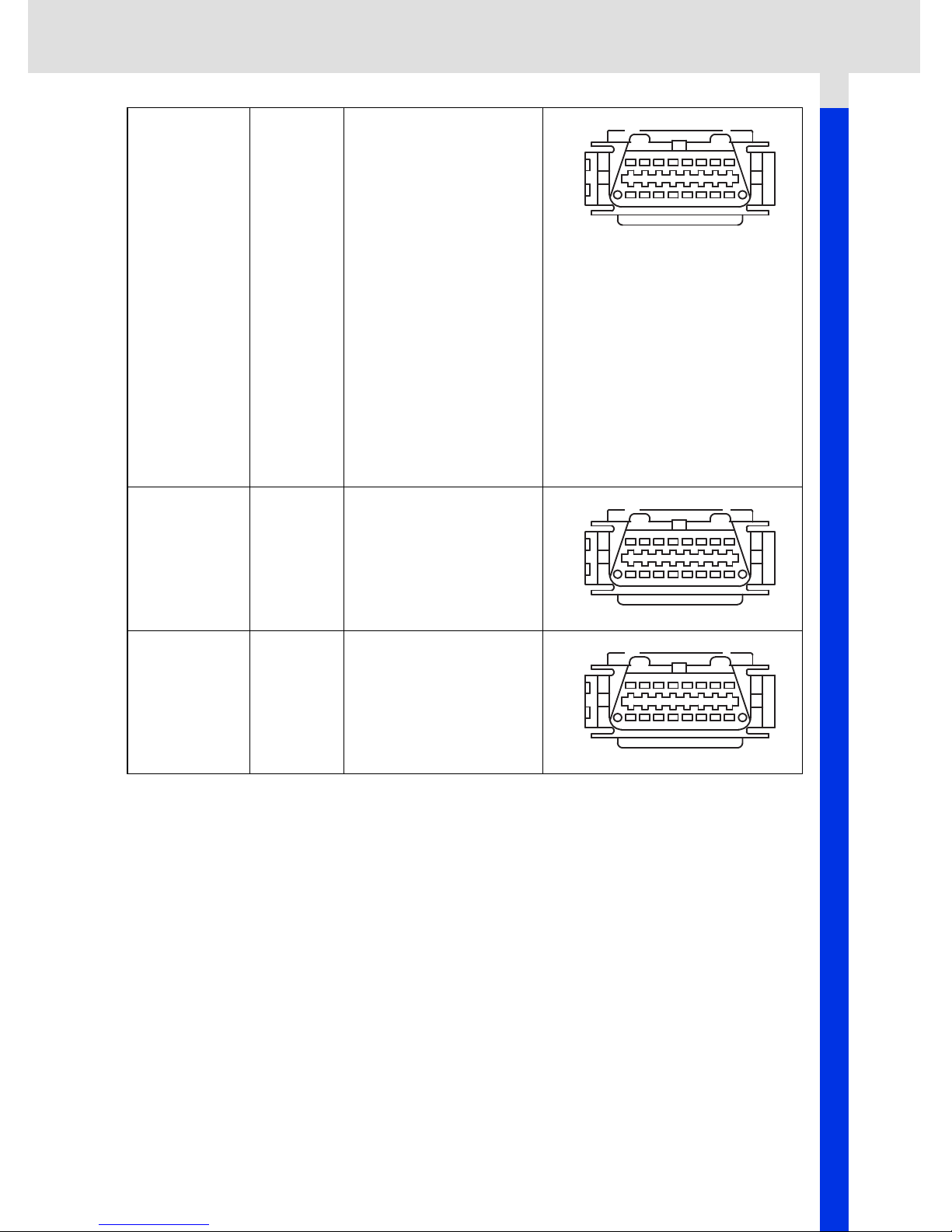

Diagnostic connector locations ................................ 79

User Menu

Overview.................................................................. 89

Security ................................................................... 91

CAN Converter (Firmware update)............................ 92

iMUX Harness (Firmware update) ............................. 93

General information

Cleaning .................................................................. 94

Software updates..................................................... 94

Specification ............................................................ 95

Declaration of Conformity......................................... 95

i

Appendix A: Glossary

Glossary of terms ..................................................... 96

Appendix B: Cables

Cable identification ................................................. 100

Appendix C: Manufacturer Compatibility

EOBD Application................................................... 106

FastCheck Applications .......................................... 106

Appendix D: Manual service reset

Service Reminder Indicator (SRI)............................. 107

Alfa Romeo............................................................. 107

Audi........................................................................ 108

BMW ...................................................................... 109

Citroen ................................................................... 110

Fiat ......................................................................... 117

Ford........................................................................ 118

GM Vauxhall/Opel................................................... 119

Lancia..................................................................... 120

Land Rover............................................................. 121

Mercedes ............................................................... 122

Peugeot.................................................................. 123

Renault................................................................... 129

Smart ..................................................................... 133

Volkswagen ............................................................ 134

Volvo ...................................................................... 135

ii

Introduction

CON0015

Esc

Introduction

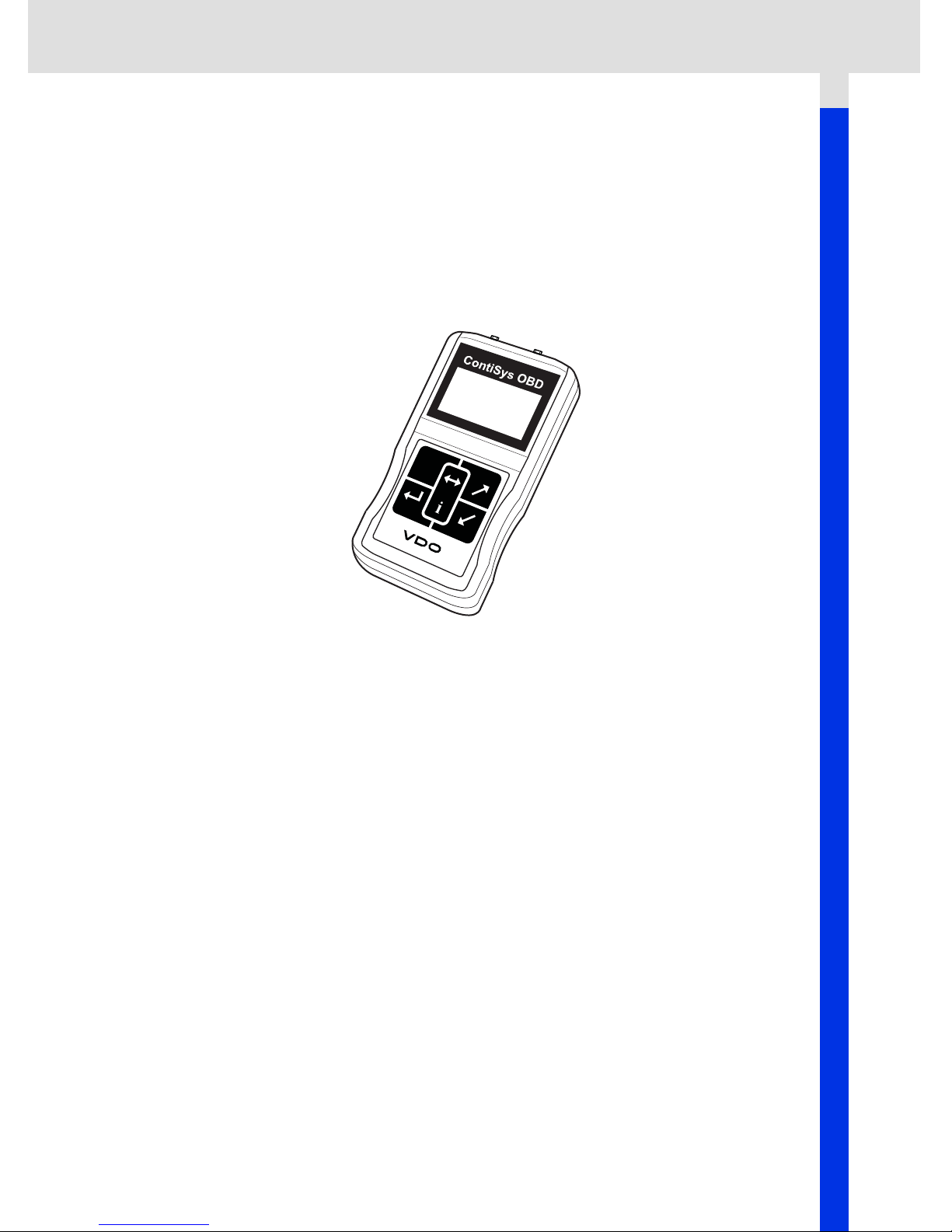

Overview

Nearly every new road vehicle, and many older vehicles, have multiple control modules
that monitor and control different aspects of the vehicle (e.g. Engine, Transmission,
Body, Suspension, etc.). The ContiSys OBD service tool has been specifically
designed to connect to, and communicate with, a number of these control modules
and allow the user to extract information (e.g. Diagnostic Trouble Codes) which may
aid in the diagnosis of system problems.

The applications available on the ContiSys OBD service tool is dependent on the tool
purchased.

There are currently eight applications available.

EOBD

• The EOBD (European On-Board Diagnostic) Scan application allows you to access
the vehicles emission related data through the OBD functionality. This includes MI
(Malfunction Indicator) status, read and clear faults, live data, O2 sensor tests,
freeze frame data and more.

FastCheck ABS

• FastCheck ABS allows you to read and clear any fault codes stored by the selected
system

FastCheck Airbag

• FastCheck Airbag allows you to read and clear any fault codes stored by the
selected system.

FastCheck Climate

• FastCheck Climate allows you to read and clear any fault codes stored by the
selected system.

3

Introduction

FastCheck EPB

• FastCheck EPB (Electronic Parking Brake) allows you to read and clear any fault
codes stored by the selected system, and in addition can be used during brake
operation checks or brake pad replacement.

FastCheck SAS

• FastCheck SAS (Steering Angle Sensor) allows you to read and clear any fault
codes stored by the selected system, and in addition can be used to calibrate the
steering angle sensor.

FastCheck Service

• FastCheck Service allows you to reset, dependent upon vehicle, the oil service
interval indicator, service and inspection warning lights.

FastCheck TPMS

• The FastCheck TPMS (Tyre Pressure Monitoring System) function can be used to
reprogram tyre valves fitted with TPMS valves.

If you are using the service tool for the first time, it is recommended that you read these
instructions and safety guidelines fully, prior to commencing any testing on a vehicle.

Getting started

Connect the Multiplexer cable (A2C59512985) or the EOBD cable (A2C59512072) to
the service tool and the vehicle's diagnostic connector. Once connected, the current
software version number is displayed.

Registration

To ensure that your ContiSys OBD Service-Tool is up to date you must register on the
website www.contisys-service.com. Select registration and follow the on screen
instruction.

If your language is not available on this website, go to www.contisys-service.com
where your specific language can be selected.

The software version of the ContiSys OBD is checked and if there is a newer version
available the tool will be updated. This is a one time service at no cost. Further updates
will be available by purchasing the ContiSys Update Plus package.

Serial Number

To avoid delay always quote the serial number of the diagnostic unit when requesting
product support.

Service Hotline

For product support please visit our website: www.contisys-service.com or telephone
[phone].

E-mail support

For product support via e-mail please send details of your query to:
[e-mail]

4

Introduction

Call Costs

The cost of calls to the ContiSys telephone hotline is dependent on your telephone
service provider. The cost can vary between 0.0 (Euro Cent) pence (Euro) per minute
to 0.40 Pence (Euro cent) per minute from landlines, depending on where you are
calling from. Calls from Mobiles may be significantly higher. For full details of cost, refer
to your service provider.

There is no cost to access the Contisys e-mail support system.

5

Introduction

CON0016

1

2

3

4

5

6

7

1

12

4
3

2

10

11

A

L

D
C

B

I
J

K

Esc

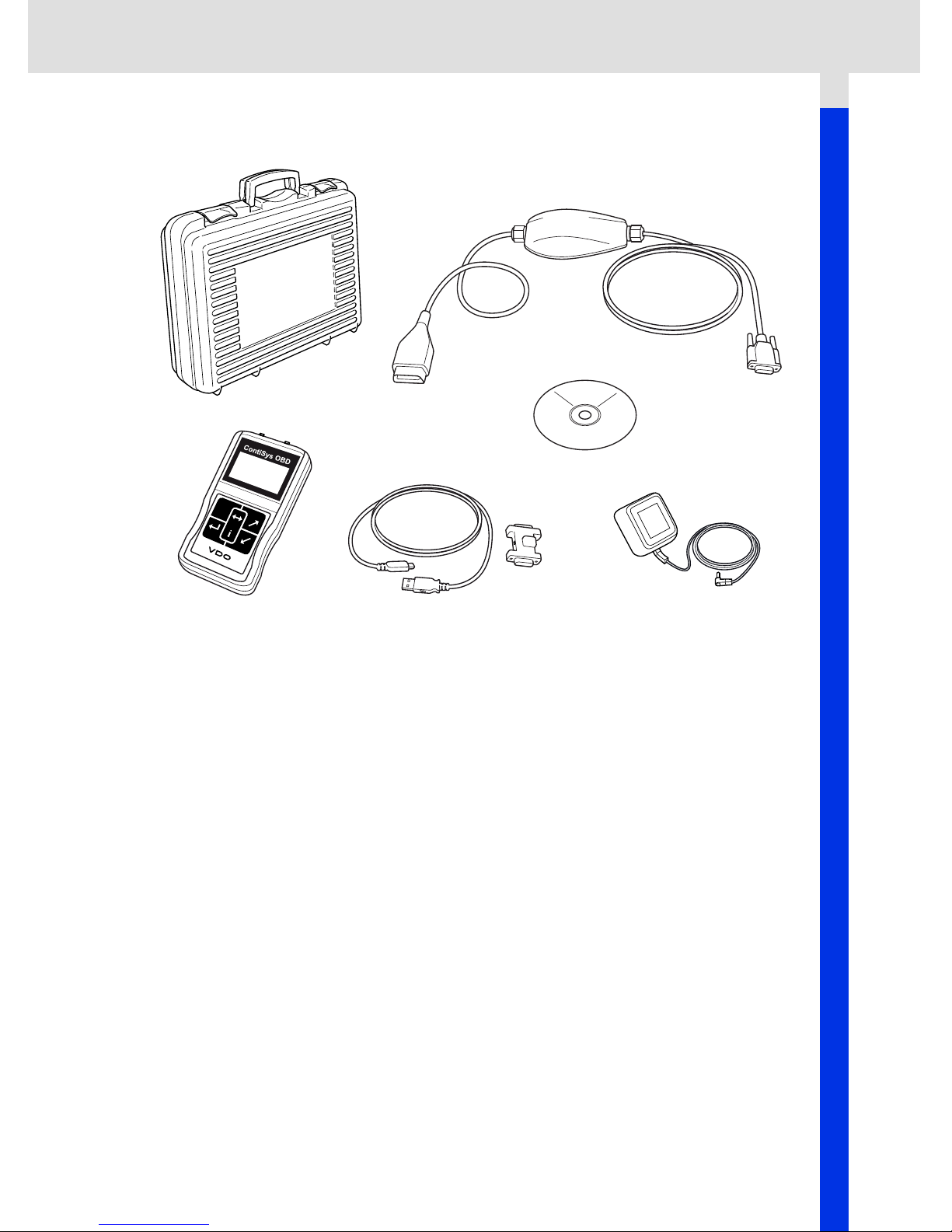

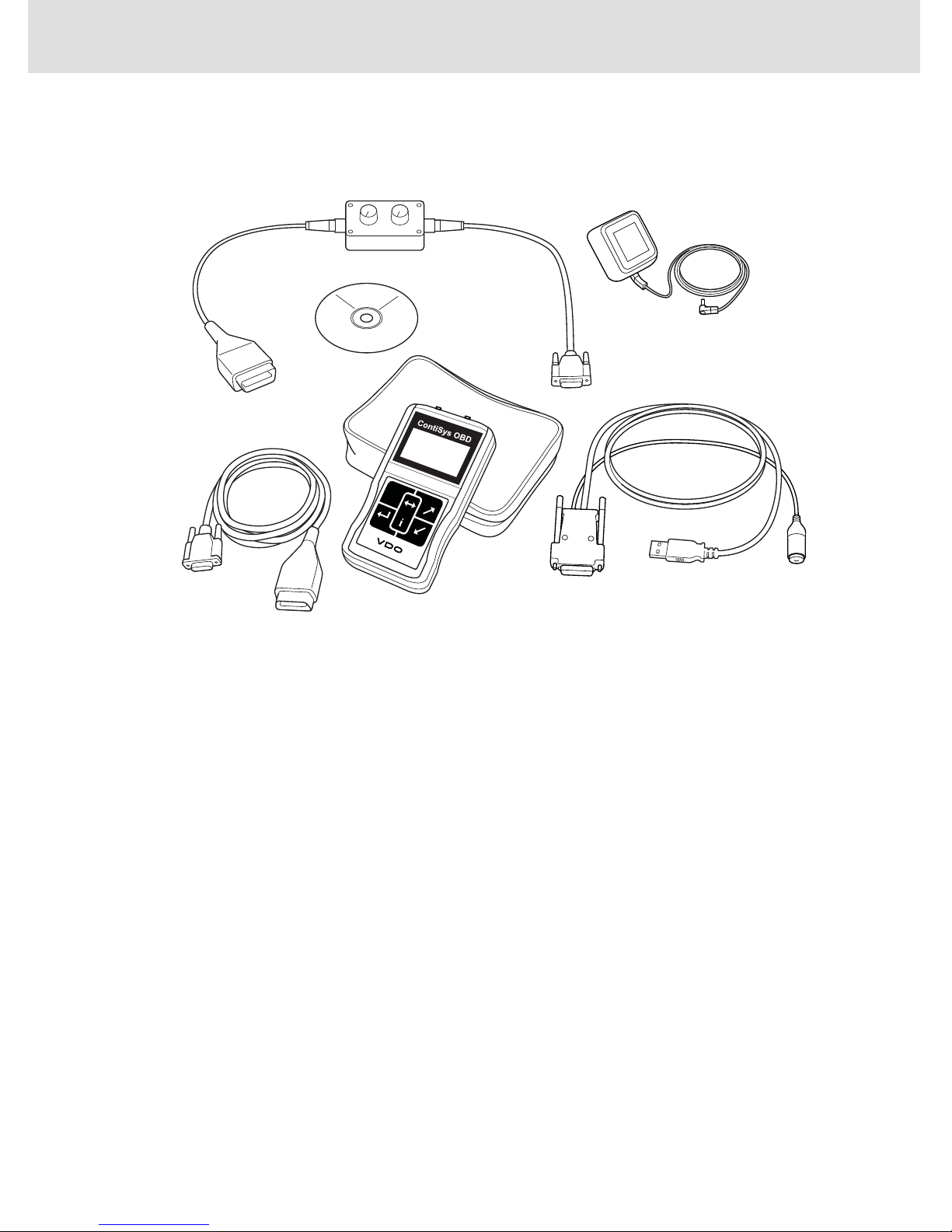

Kit contents

ContiSys OBD - Kit

ContiSys OBD kit

1. Service tool

2. EOBD cable

3. Carry case

4. CD ROM containing the Operating Instructions

5. EOBD pin-switchable cable

6. EU power supply

7. USB software update cable

6

Introduction

1

3

2

6

5

4

Esc

CON0098

ContiSys OBD Professional - Kit

ContiSys OBD Professional kit

1. Service tool

2. Multiplexer cable

3. Carry case

4. CD ROM containing the Operating Instructions

5. EU power supply

6. USB software update cable

7

Introduction

Esc

CON0018

Display screen

The service tool screen is a backlit LCD capable of displaying four rows of text
containing up to twenty characters.

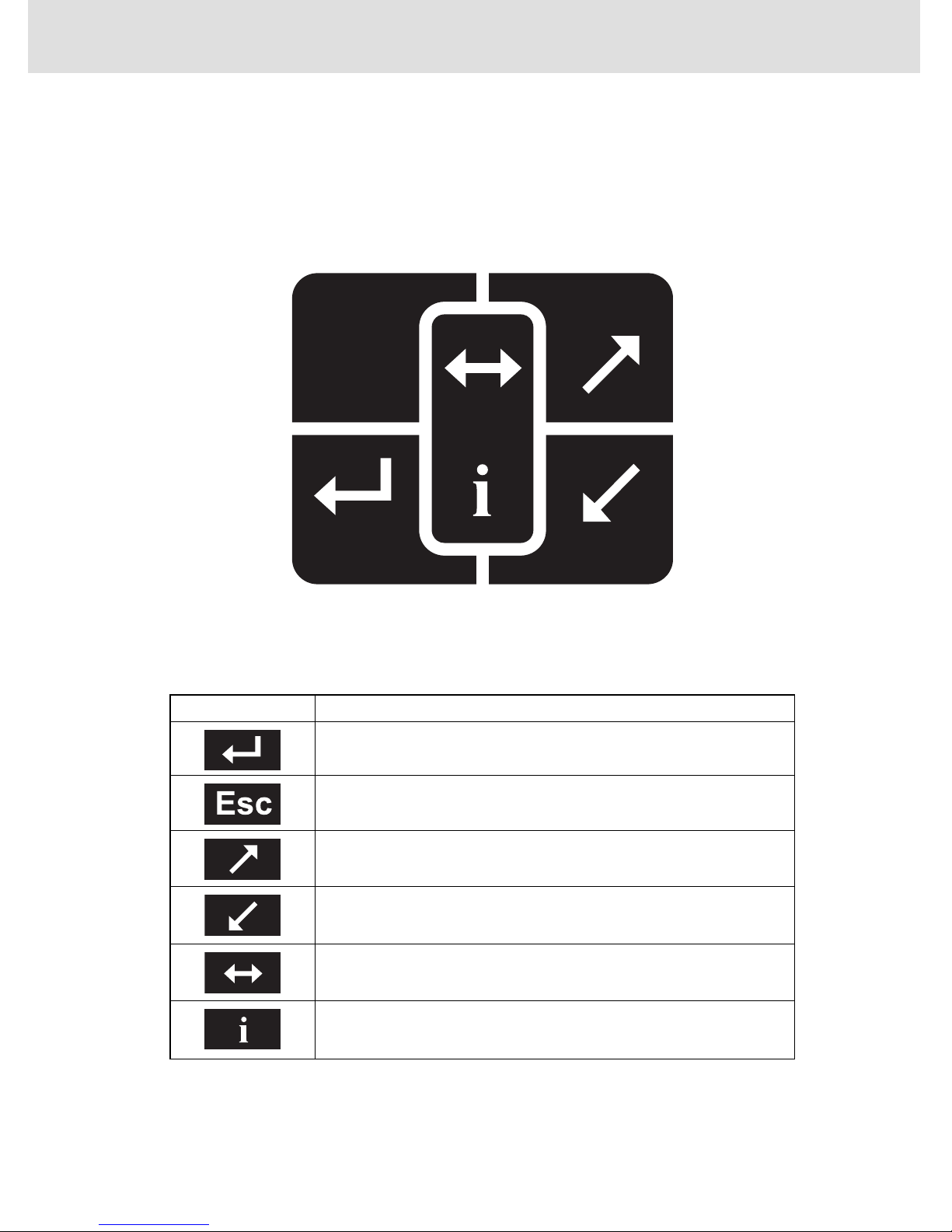

Keypad

The service tool is operated via the 6-button keypad.

The table below details the keypad buttons and their functionality.

Key Function

Select a menu option, Continue or Yes.

Exit a menu or No.

Scroll up within a menu or text.

Scroll down within a menu or text.

Scroll left and right.

Provide context sensitive help (where available).

8

Introduction

CON0014

Esc

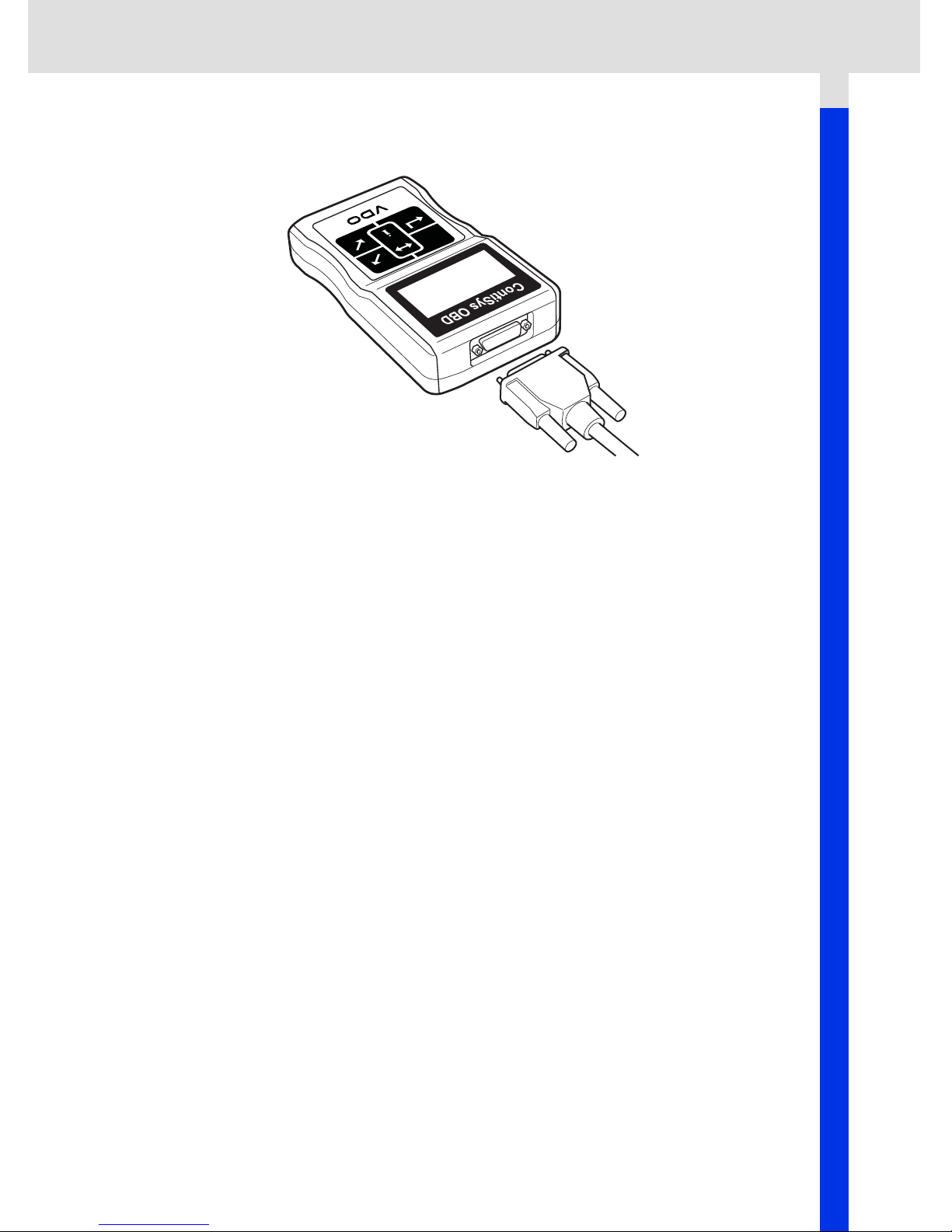

Connection

The service tool has a 15-way connector through which it can communicate to the
vehicle via various interface cables. Connection to the specific system is via either the

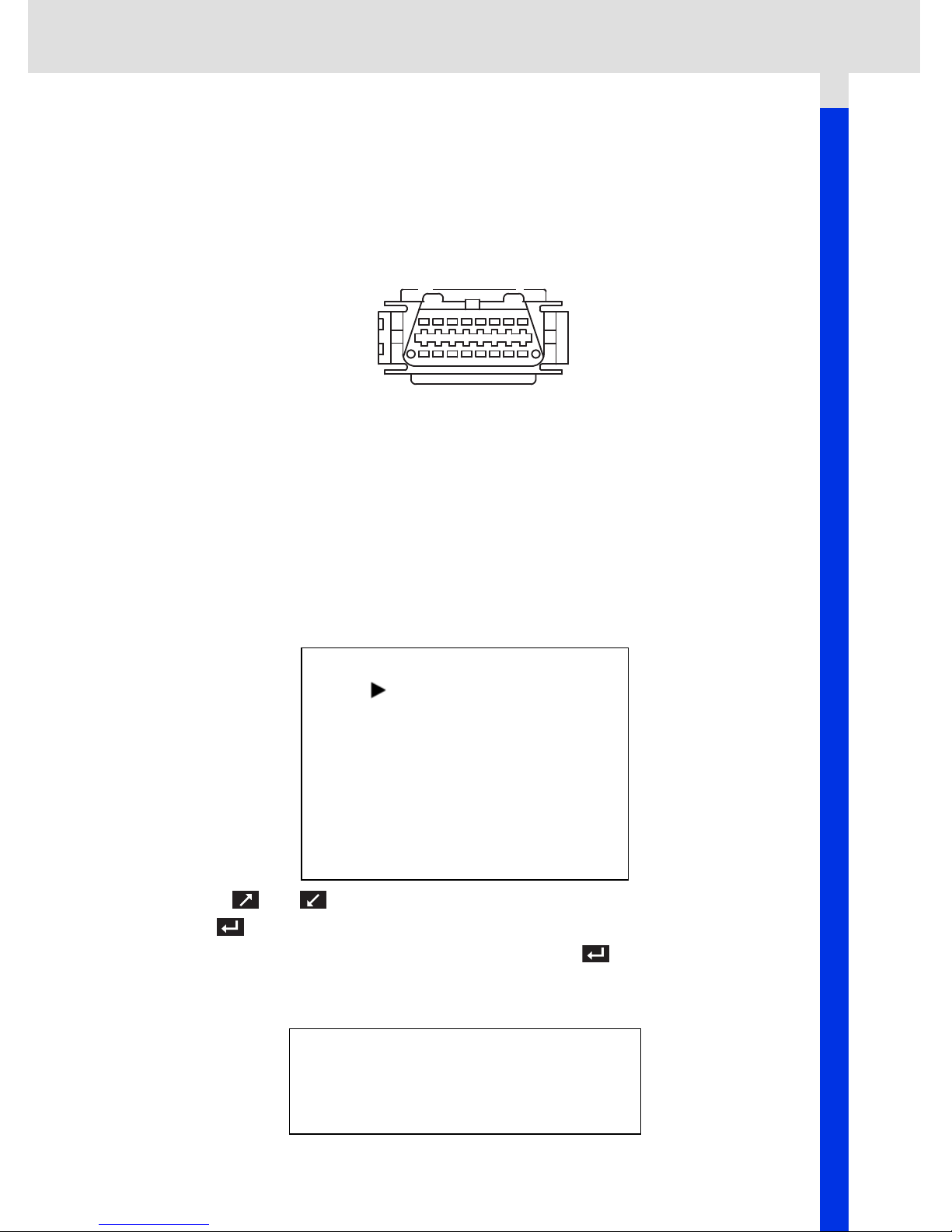

vehicle's EOBD (J1962) diagnostic socket or by a system specific connector. Refer to
the 'Vehicle Application List' to determine the correct cable.

When connecting the cable to the service tool, always secure the cable with the fixing
screws to prevent accidental disconnection of the service tool during use.

9

Introduction

Safety precautions

The following guidelines are intended to ensure the safety of the operator whilst
preventing damage to the electrical and electronic components fitted to the vehicle.

Equipment - prior to commencing any test procedure on the vehicle, ensure that the
service tool, its harnesses and connectors are in good condition.

Polarity - always observe the correct polarity when connecting the service tool to the
vehicle battery

Before carrying out testing on a vehicle, the following procedure should always be
observed:

• Check the handbrake/parking brake is on.

• Check that neutral or park is selected.

• Keep test equipment and harnesses away from HT leads.

• Be aware of moving engine parts.

• Do not run engine in a confined space without adequate ventilation.

Communication problems

If communications cannot be established with the vehicle, follow the procedure below:

1. Check the correct system was selected from the menu.

2. Check the correct cable was used against the application list.

3. Disconnect both ends of the cable and ensure that no pins are bent or snapped.

4. Reset the control module on the vehicle by turning the ignition OFF and ON,
reconnect the service tool and try again.

If communications still cannot be established, contact the Product Support Team for
further assistance.

10

EOBD Application

EOBD Application

What is EOBD?

The American Environmental Protection Agency and the European government have
set targets for reducing the levels of pollution produced by passenger and commercial
vehicles. In order to ensure that these targets can be met, manufacturers are required
to build new vehicles which meet increasingly stiff emissions standards. The
manufacturers must further maintain these emission standards for the useful life of the
vehicle. In order to meet and maintain these standards the vehicles are fitted with On­Board Diagnostic systems which monitor the integrity and effectiveness of all emission
related components.

As vehicles are becoming more and more complex, many of the systems fitted to
them are being controlled by electronic control modules. Most vehicles now have
multiple control modules (e.g. Engine, Transmission, Body, Suspension, etc.) located
at different locations on the vehicle. The On-Board Diagnostic systems are integrated
into the vehicle control modules.

With so many different vehicle and component manufacturers, a common interface
was required to communicate with these control modules. In 1988, the SAE (Society
of Automotive Engineers) created a standard that defined a standard diagnostic
socket (J1962) and a set of diagnostic test signals.

With the diagnostic socket and diagnostic signals agreed, another standard was
produced that defined a universal inspection and diagnosis method to ensure that a
vehicle is performing to Original Equipment Manufacturer (OEM) specifications. This
standard is known as EOBD (European On-Board Diagnostics).

The fundamental requirement for an EOBD system is that in the event of an emissions
related component fault, a DTC (Diagnostic Trouble Code) will be stored in the
memory of the control module responsible for that component, and a Malfunction
Indicator (MI) lamp will illuminate on the vehicle's instrument pack to alert the driver.
The DTC can then be retrieved using diagnostic equipment to determine the type and
status of the fault.

11

EOBD Application

Identifying compliant vehicles

All petrol engine vehicles manufactured since 2000 should be EOBD compliant. Some
manufacturers began incorporating On-Board Diagnostic systems as early as 1994,
however not all are 100% compliant. All diesel engine vehicles are expected to have
support from 2004. This means that diagnostic information, related to vehicle
emissions, may be extracted from the vehicle via the J1962 diagnostic socket using
the service tool.

The service tool can communicate with any EOBD compliant vehicle using one of the
five diagnostic communication protocols defined in the standard.

These are

• ISO 9141.

• Keyword 2000 (originally a European protocol).

• J1850 PWM (pulse width modulated) protocol used by Ford.

• J1850 VPW (variable pulse width modulated) used by General Motors in USA
designed vehicles.

• CAN (controller area network) currently being legislated for and likely to be a
principle diagnostic communication system in the future. A European protocol.

It is normally possible to tell which is used on a specific vehicle by examining the
diagnostic socket (as below), however the service tool's software will automatically
detect the protocol used on the vehicle to which it is connected.

If the diagnostic socket has a pin in the '7' or '15'

16 9

•

position, then the vehicle uses either the ISO
9141 or Keyword 2000 protocol.

• If the diagnostic socket has a pin in the '2' or '10'

CON0019

18

position, then the vehicle uses one of the SAE
J1850 protocols.

• If the diagnostic socket has a pin in the '6' or '14'

position, then the vehicle uses the CAN protocol.

Although there are different EOBD electrical connection protocols, the command set
is fixed according to the SAE J1979 standard.

12

EOBD Application

Diagnostic Trouble Codes

Diagnostic Trouble Codes (DTCs) are divided into mandatory and voluntary codes.
Mandatory codes are allocated by the ISO (International Standards Organisation) /
SAE (Society of Automotive Engineers). Voluntary codes are allocated by various
vehicle manufacturers and are manufacturer specific and in some instances, vehicle
specific.

ISO/SAE controlled diagnostic trouble codes are those codes where industry
uniformity has been achieved. These codes were felt to be common enough across
most manufacturer's applications that a common number and fault message could be
assigned. All unspecified numbers in each grouping have been reserved for future
growth. Although service procedures may differ widely amongst manufacturers, the
fault being indicated is common enough to be assigned a particular fault code. Codes
in this area are not to be used by manufacturers until they have been approved by ISO/
SAE.

Areas within each of the fault code blocks have been allocated for manufacturer
controlled DTCs. These are fault codes that will not generally be used by the majority
of the manufacturers due to basic system differences, implementation differences, or
diagnostic strategy differences.

13

EOBD Application

Interpreting EOBD fault codes

Use the following rules to determine the basic meaning of an EOBD fault code.

P Powertrain

BBody

C Chassis

UNetwork

The first character indicates which area of the vehicle the code applies to.

0 Standard (SAE) code

1 Manufacturer's own code

The second character specifies the type of code:

1 Fuel and air metering

2 Fuel and air metering, specifically injector circuit

3 Ignition system and misfire detection

4 Auxiliary emission controls

5 Vehicle speed control and idle control system

6 Computer output circuit

7 Transmission related faults

8 Transmission related faults

If the first character was 'P' (Powertrain) then the third character identifies the specific
Powertrain system concerned:

The last two characters identify the specific fault as seen by the on-board systems.

14

EOBD Application

CON0019

16 9

18

Using EOBD application

Connection and basic operation

1. Connect the Multiplexer cable (A2C59512985) or the EOBD (J1962) cable
(A2C59512072) to the service tool and secure the fixing screws.

2. Ensure the vehicle's ignition switch is in the '0' position.

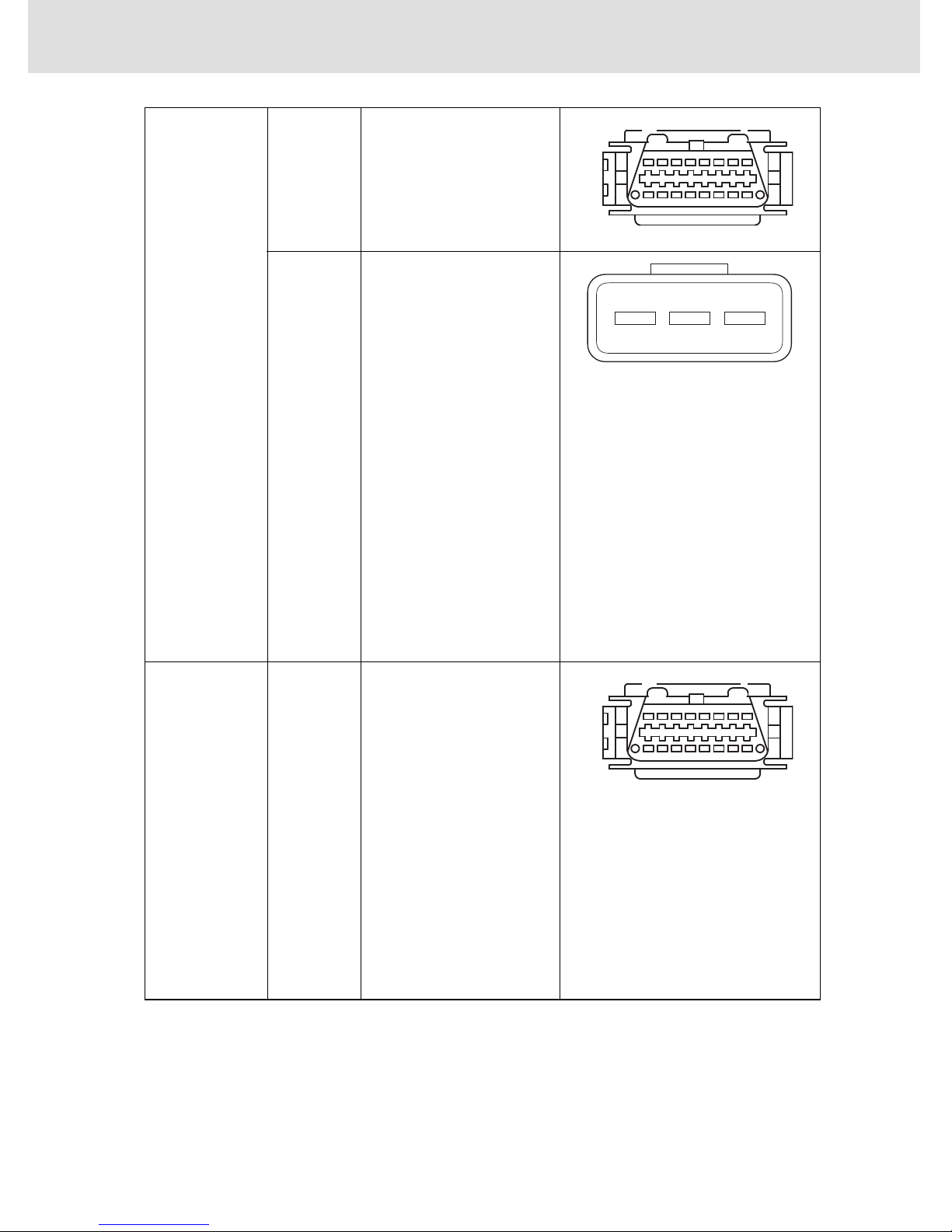

J1962 Diagnostic socket

3. Connect the service tool to the vehicle via the J1962 diagnostic socket. This
socket is usually located inside the passenger compartment in the vicinity of the
driver's footwell. Refer to vehicle manufacturer's information for the exact
location.

Power for the service tool is provided by the diagnostic socket. When connected
to the diagnostic socket, the service tool will perform an internal self test and then
the screen will display the date of the current software version before displaying
the main menu.

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

4. Use the and keys to select the EOBD menu function.
Press to confirm the selection.

5. Turn the ignition on when prompted, then press the key to confirm. The
service tool will then attempt to establish communication with the vehicle's On­Board Diagnostics.

Establishing Data
Link with Vehicle CMs -

Please Wait......

15

EOBD Application

6. If the vehicle system is not EOBD compliant or there is a connection problem, the
“Please Wait" screen will be replaced with help screens.

If communication with the On-Board Diagnostics is successful, then the display
will report that the service tool is checking the vehicle's System Readiness tests.

Note: The vehicles ignition MUST be on for successful communication with the

vehicle control modules.

7. The service tool checks to see which of the System Readiness tests have been
run and successfully completed and then the screen will inform you of the status.
Press the key to continue.

Note: The service tool will always check the status of the System Readiness tests

before displaying the EOBD Operations menu.

8. The screen will then give you the option of viewing the status of the tests
performed on the emission related systems and their components.

Press the key to display the results.
Press the key to bypass the results and go to the EOBD Operations menu.

EOBD OPERATIONS

1. MI Status

2. View DTCs

3. Erase DTCs

4. Live Data

5. O2 Sensor Tests

6. View Freeze Frame

7. Non-Continuous

8. Continuous Tests

9. System Control

10. Vehicle Info

11. OBD Status

12. System Readiness

13. General Info

14. Tester Setup

9. Use the and keys to select the required function and press to confirm
the selection.

Easy reset facility

To reset the service tool without disconnecting from the vehicle, hold down the ,

, & keys simultaneously.

16

EOBD Application

Menu options

Not all vehicle control modules will support all of the options available from the menu.
If an option is not supported the service tool will display either “Not supported” or “Not
available”. This is a limitation of the software on the vehicle control modules and NOT
a fault with the service tool.

MI Status/MIL Status

'MI Status' or 'MIL Status' displays the status of the malfunction indicator lamp for
each emissions related control module. If the status of the MI is set to On, one or more
DTCs will be stored in the vehicle's control modules and the instrument panel MI will
be illuminated.

View DTCs

This option allows any 'Stored' or 'Continuous' emission related DTCs (Diagnostic
Trouble Codes) to be viewed. If any DTC is present, it will be displayed along with the
identity of the Control Module (CM) that registered the fault.

If more than one DTC is displayed, the required DTC can be selected by using the
and keys. Press to select the DTC and display the description of the code.

Dependent upon the DTC and the vehicle manufacturer, it may be necessary to select
the manufacturer and possibly also the model of the vehicle to enable the correct
description to be displayed. This setting will be retained while the service tool is being
used for EOBD operations but can be redefined or cleared under the 'Manufacturer'
menu option.

Erase DTCs

This option will clear all 'Stored' and 'Continuous' emission related DTCs, clear
'Freeze Frame' DTCs and associated data, clear 'O2 Sensor Test' data, clear 'Non­Continuous' test results and reset the status of the 'System Readiness' tests on the
control modules on the vehicle. The service tool will then perform a 'Read DTCs'
operation to verify that the DTCs have been erased.

Live Data

This option allows the user to view the current status of the emission system
components on the vehicle and can provide a quick way of telling if a component is
working correctly.

The list of components monitored under 'Live Data' can vary between manufacturers
and even between model.

17

EOBD Application

O2 Sensor Tests

EOBD has an optional mode for monitoring the oxygen sensor test results depending
on the method used by the vehicle manufacturer to comply with the requirement for
oxygen sensor monitoring. If the manufacturer does use this mode not all tests need
to be supported. The service tool will display the supported tests and the data
associated with those tests e.g. Maximum sensor voltage for a test cycle (calculated).

View Freeze Frame

Freeze frame data is a snap-shot of live data that was stored in the control module at
the moment a Diagnostic Trouble Code was recognised. If a number of faults
occurred, then the freeze frame data stored is associated with the last fault to occur.
The DTC that generated the freeze frame data is also displayed in the data.

Non-Continuous

Some vehicle systems are not monitored continuously during normal running
conditions, e.g. catalysts and evaporative systems. These tests are manufacturer
specific, so while the results of the test will be shown, the meaning of the results
cannot.

Continuous Tests (Pending Codes)

When the 'continuous monitor' detects a failure condition in an emission-related
powertrain component or system, only once in a drive cycle, it stores a 'Continuous'
code in the control module's memory. If the continuous monitor detects the same
failure condition during the next drive cycle, it registers a DTC and illuminates the MI.

System Control

Components on the vehicle may be turned on and off, or pulsed to test their operation.
These tests are manufacturer specific and are currently seldom supported in
controllers.

Vehicle Info

Information is displayed relating to the vehicle. This may be the VIN, controller version
numbers etc., but is not supported by all vehicles.

OBD Status

Indicates to the user whether or not the controller supports OBD requirements. Not all
vehicles support this.

18

EOBD Application

System Readiness

When the ignition is turned on the vehicles control modules perform a number of tests
on the system (System Readiness tests). If the conditions are not correct for the
controller to perform the test e.g. if the engine is too cold, "Not Ready" status will be
reported. Readiness test status is also offered for inspection after communications
have been established. These may be reviewed or ignored until later.

The service tool allows the user to do continual reads of the status of the System
Readiness tests i.e. whether the test is not supported, waiting to complete or has
completed. This status can help a technician verify a repair in that they can check that
the readiness tests that may have generated a DTC have run to completion. The
following sub menu will let the user display the results in two ways.

SYSTEM READINESS

1. Show As A List

2. All On One Screen

The option 'Show As A List' will give the user the options of 'DTCs Last Cleared' and
'Current Drive Cycle'. The selection 'DTCs Last Cleared' is normally found on all
EOBD vehicles and shows the status since the last clearing of DTCs, but it may not
be valid for the current drive cycle. The option 'Current Drive Cycle' will display the
status of the tests for the current drive cycle, but this is rarely supported on vehicles
at this time.

The option 'All On One Screen' will show an abbreviated text version of the status for
all the tests since 'DTCs Last Cleared'.

In both cases the service tool is continually updating the status displayed for each test.

Tester Setup

This allows the user to select the units displayed in Live Data and Freeze Frame from
either metric or imperial. The user may also select from abbreviated text or full text
phrases. For more information, see ‘Diagnostic connector locations’, page 79.

19

FastCheck

FastCheck

Introduction

The 'FastCheck' applications allow the service tool to communicate with other system
control modules on the vehicle.

Connection to the specific system is via either the vehicle's EOBD (J1962) diagnostic
socket or by a system specific connector. Refer to the 'Vehicle Application List' to
determine the correct cable.

There are currently seven applications available.

FastCheck ABS

• FastCheck ABS allows you to read and clear any fault codes stored by the selected
system

FastCheck Airbag

• FastCheck Airbag allows you to read and clear any fault codes stored by the
selected system.

FastCheck Climate

• FastCheck Climate allows you to read and clear any fault codes stored by the
selected system.

FastCheck EPB

• FastCheck EPB (Electronic Parking Brake) allows you to read and clear any fault
codes stored by the selected system, and in addition can be used during brake
operation checks or brake pad replacement.

FastCheck SAS

• FastCheck SAS (Steering Angle Sensor) allows you to read and clear any fault
codes stored by the selected system, and in addition can be used to calibrate the
steering angle sensor.

FastCheck Service

• FastCheck Service allows you to reset, dependent upon vehicle, the oil service
interval indicator, service and inspection warning lights.

FastCheck TPMS

• The FastCheck TPMS (Tyre Pressure Monitoring System) function can be used to
reprogram tyre valves fitted with TPMS valves.

20

FastCheck

Safety instructions

WARNING: General safety

• All operations must be carried out in a well ventilated area away from open
flame and heat sources.

• Ensure the vehicle is stationary and the handbrake (parking brake) is applied
before carrying out any maintenance/diagnostic work.

WARNING: Air conditioning safety

• Servicing must only be carried out if you are familiar with both the vehicle
system and the test equipment.

• Air conditioning refrigerant is a hazardous liquid and when handled incorrectly
can cause serious injury. Suitable protective clothing, consisting of face
protection, heat proof gloves, rubber boots and rubber apron or waterproof
overalls, must be worn when carrying out operations on the air conditioning
system.

• Danger of asphyxiation, refrigerant gas is heavier than air and will collect in
vehicle inspection pits or confined spaces, always recover all refrigerant from a
damaged system before commencing work.

WARNING: Airbag safety

• All work on vehicle restraint systems should be carried out by trained personnel.
NEVER install accessories in the vicinity of driver, passenger or side airbags.

• Observe component manufacturers instructions for safety, handling and
installation of components.

• Airbags are classed as explosive devices and as such are subject to national
laws which must be followed. This includes storage and transportation.

• ALWAYS store removed airbags in a secure area away from other hazardous
materials.

• DO NOT connect or disconnect any wiring with the ignition ON. ALWAYS turn
the ignition switch to the 'OFF' position and allow at least 1 minute for the
system to discharge.

• NEVER expose system components to temperatures above 176°F (80°C).

• ONLY use approved diagnostic testers to diagnose faults, NEVER use multi­meters or test lamps etc.

• ALWAYS disconnect all airbags and seat belt pre-tensionless before using a
multi-meter to check the wiring.

21

FastCheck

WARNING: Electronic Parking Brake (EPB) safety

• Ensure that you are fully familiar with the braking system and its operation
before commencing any work.

• The EPB control system may be required to be deactivated before carrying out
any maintenance/diagnostic work on the brake system. This can be done from
the service tool menu.

• Only carry out maintenance work when the vehicle is stationary and on level
ground.

• Ensure that the EPB control system is reactivated after the maintenance work
has been completed.

Note: Continental Trading GmbH accept no responsibility for any accident or injury

arising from the maintenance of the Electronic Parking Brake system.

22

FastCheck

FastCheck ABS

Important information

Mercedes vehicles with Sensotronic Brake Control

• Ensure that you are fully familiar with the braking system and its operation before

commencing any work.

• The Sensotronic Brake Control system must be deactivated before carrying out any

maintenance/diagnostic work on the brake system. This can be done from the
service tool menu.

• Only commence work after the system has been deactivated. Upon deactivation, a

warning message should appear in the instrument panel and maybe accompanied by
an audible warning signal until the system is reactivated. If the warning message does
not occur, assume that the system is not fully deactivated and DO NOT commence
work.

• Ensure that the Sensotronic Brake Control system is reactivated after the

maintenance work has been completed.

Note: The manufacturer of the service tool accept no responsibility for any accident or

injury arising from the maintenance of the Sensotronic Brake Control system.

Connection

Using the Vehicle Application List on the CD-ROM, identify the required interface cable
for the vehicle system to be tested. Connect the cable to the service tool and secure
the fixing screws.

Note: If the vehicle being tested is a BMW with a 20 pin connector and an EOBD

(J1962) connector, you must only use the 20 pin connector.

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used for any diagnostics on the following vehicles:

• BMW 1 series (E81/E87)

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

• GM Opel/Vauxhall - Corsa D

• GM Opel/Vauxhall - Signum

• GM Opel/Vauxhall - Vectra C

• GM Opel/Vauxhall - Zafira B

23

FastCheck

G

F

E

D
C

B

A

CON0017

If using the EOBD (J1962) pin-switchable cable (A2C59512073), ensure the settings
on the switch box correspond to the settings listed for the vehicle and system being
tested.

WARNING: Incorrect settings on the switch box may cause irreparable damage to
the vehicle's electrical system.

Ensure the vehicle's ignition is OFF.

Connect the service tool to the required vehicle connector, refer to ‘Diagnostic

connector locations’, page 79, for further information.

Power for the service tool is provided by the vehicle connector. Once connected, the
service tool will perform an internal self test and then the screen will display the version
of the current software before displaying the main menu.

H

I

J

K

L

5

4
3

2

7

6

8

9

10

11

1

12

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

Use the and keys to select the 'FastCheck ABS' application and press to
confirm the selection. To return to the previous menu, press the key.

Turn the vehicle's ignition ON.

Use the and keys to select the vehicle manufacturer and press to confirm
the selection.

Dependent upon the vehicle and application being run, you may be asked to choose
the particular system fitted to the vehicle. Select the correct system using the and

keys and press to confirm.

24

FastCheck

1. Read DTCs

2. Clear DTCs

Select the required menu option using the and keys and press to confirm.

The service tool will attempt to establish communication with the vehicle system. If
communication is unsuccessful, refer to ‘Communication problems’, page 10.

Read DTCs

If any DTC codes are present in the system, a screen will be displayed informing you
how many codes were found. This will then be replaced by the first DTC code. DTC
codes are generated according to the vehicle and system manufacturer.

DTC 1 - 38 Right Low
Pressure Sensor
Circuit Signal High{ }

A typical DTC code

The fault number is displayed first, followed by the DTC code. In this example the fault
displayed is DTC number 38 - Right Low Pressure Sensor Circuit Signal High or Open
Circuit. If the description text is too long to fit on the display, '[...]' appears in the
bottom right corner of the screen. This indicates that the text can be scrolled using the

and keys to view the rest of the description.

To view the next DTC (if more than 1 was found), scroll to the end of the text and press
the key.

To return to the menu, scroll to the end of the text and press the key.

Clear DTCs

Diagnostic trouble codes can be cleared using the 'Clear DTCs' option. When using
the option you will be prompted to turn the ignition off. Wait until prompted before
switching the ignition back on.

Start the engine to force the control module to run a system check. Verify that the
code(s) have been cleared by selecting 'Read DTCs'.

Note: Reading DTC(s) without first starting the engine will only confirm that the stored

DTC(s) have been cleared. Faults may still be present in the system causing a DTC to
be stored next time the engine is started.

BMW/MINI vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

25

FastCheck

FastCheck Airbag

Connection

Using the Vehicle Application List on the CD-ROM, identify the required interface cable
for the vehicle system to be tested. Connect the cable to the service tool and secure
the fixing screws.

G

F

E

D
C

B

A

CON0017

If using the EOBD (J1962) pin-switchable cable (A2C59512073), ensure the settings
on the switch box correspond to the settings listed for the vehicle and system being
tested.

WARNING: Incorrect settings on the switch box may cause irreparable damage to
the vehicle's electrical system.

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used for any diagnostics on the following vehicles:

• Alfa-Romeo MiTo

• BMW 1 series (E81/E87)

H

I

J

K

L

5

4
3

2

7

6

8

9

10

11

1

12

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

• GM Opel/Vauxhall - Corsa D

• GM Opel/Vauxhall - Signum

• GM Opel/Vauxhall - Vectra C

• GM Opel/Vauxhall - Zafira B

• Fiat 500

• Fiat Grande Punto (05)

•Ford Ka II

• Volvo S40 (04-06)

• Volvo V50 (03-08)

• Volvo S60 (01-05)

• Volvo V70 (00-07)

• Volvo XC70 (00-06)

26

FastCheck

• Volvo S80 (99-06)

• Volvo XC90 (02-06)

Ensure the vehicle's ignition is OFF.

Connect the service tool to the required vehicle connector, refer to ‘Diagnostic

connector locations’, page 79, for further information.

Power for the service tool is provided by the vehicle connector. Once connected, the
service tool will perform an internal self test and then the screen will display the version
of the current software before displaying the main menu.

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

Use the and keys to select the 'FastCheck Airbag' application and press
to confirm the selection. To return to the previous menu, press the key.

Turn the vehicle's ignition ON.

Use the and keys to select the vehicle manufacturer and press to confirm
the selection.

Dependent upon the vehicle and application being run, you may be asked to choose
the particular system fitted to the vehicle. Select the correct system using the and

keys and press to confirm.

1. Read DTCs

2. Clear DTCs

Select the required menu option using the and keys and press to confirm.

The service tool will attempt to establish communication with the vehicle system. If
communication is unsuccessful, refer to ‘Communication problems’, page 10.

Read DTCs

If any DTC codes are present in the system, a screen will be displayed informing you
how many codes were found. This will then be replaced by the first DTC code. DTC
codes are generated according to the vehicle and system manufacturer.

The fault number is displayed first, followed by the DTC code. If the description text is
too long to fit on the display, '[...]' appears in the bottom right corner of the screen.

27

FastCheck

This indicates that the text can be scrolled using the and keys to view the rest
of the description.

To view the next DTC (if more than 1 was found), scroll to the end of the text and press
the key.

To return to the menu, scroll to the end of the text and press the key.

Clear DTCs

Diagnostic trouble codes can be cleared using the 'Clear DTCs' option. When using
the option you will be prompted to turn the ignition off. Wait until prompted before
switching the ignition back on.

Verify that the code(s) have been cleared by selecting 'Read DTCs'.

BMW vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

Some BMW vehicles are equipped with multiple airbag systems, one for each airbag
fitted to the vehicle.

Applicable Vehicles:

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

•BMW Z4 (E85)

If on selecting the Read DTCs or Clear DTCs and a multiple airbag system is detected,
then a menu containing a list of airbag systems fitted to the vehicle will be displayed.

Use the and keys to select the required system from the menu shown. Press
the key to select the system required the Read DTCs or Clear DTCs will be
performed. Press the key while the system menu is displayed to return back to
the Read DTCs and Clear DTCs menu.

All airbag ECU’s

If the All airbag ECU’s was selected then the Read DTCs or Clear DTCs function will
be performed on ALL detected airbag systems on the vehicle.

MINI vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

28

FastCheck

Ford Galaxy (2006 -), Mondeo (2007-), S-Max (2006-), Transit (2006-)

Crash Reset

This option is necessary on vehicles where airbags have been deployed following a
crash. The routine clears the crash flag in the Body Control Module to enable normal
operation after repair of the vehicle and installation of a new airbag.

Land Rover Freelander 2 (2007-)

Restraints Build Mode Entry/Exit

This function can be used to place the Airbag/Restraint system in to build mode, to
enable safe maintenance and repairs to be performed without risk of airbag or
pretensioner detonation. When work has been completed on the system, the Airbag/
Restraints system can be taken out of build mode to enable normal operation.

Crash Reset

This option is necessary on vehicles where airbags have been deployed following a
crash. The routine clears the crash flag in the Body Control Module to enable normal
operation after repair of the vehicle and installation of a new airbag.

Renault vehicles

Select the airbag system then select either 12-pin or 16-pin according to which
connector is fitted to the vehicle under test.Then follow the on screen instructions.

The following functions are available for the airbag system:

1. Read DTCs: Displays all diagnostic trouble codes associated with the airbag
system

2. Clear DTCs: Clears all faults codes from the airbag system.

3. Renault Arm/Disarm for Driver/Passenger Airbag:

The Disarm CM (LOCK) menu option allows the driver airbag to be disabled preventing
accidental deployment while working on the car.

The Arm CM (UNLOCK) menu option causes the driver airbag to become active.

The Disarm Passenger (LOCK) menu option allows the passenger airbag to be
disabled preventing accidental deployment while working on the car.

The Arm Passenger (UNLOCK) menu option causes the passenger airbag to become
active.

Note: Not all vehicles will have a passenger airbag and some vehicles with a

passenger airbag cannot be armed/disarmed using a diagnostic tool (they require a
key to be inserted into the arm/disarm lock located next to the passenger airbag).

Vehicle notification methods for a locked airbag

Method 1 - Fault Code present:

If the user reads airbag diagnostic codes after an airbag has been locked some
models will produce an 'Airbag locked' fault code. After unlocking, this fault code will
not appear, this can be confirmed by reading the diagnostic codes again.

29

FastCheck

Method 2 - Airbag MIL stays ON:

After an airbag has been locked the Airbag Malfunction Indicator on the dash panel
display will remain on, when the airbag is unlocked the MIL will switch off.

Method 3 - Airbag MIL flashes for several seconds when turning the ignition on:

After an airbag has been locked the Airbag Malfunction Indicator on the dash panel
display will flash for several seconds when the ignition is turned on, when the airbag
is unlocked the MIL will switch off.

30

FastCheck

FastCheck Climate

Connection

Using the Vehicle Application List on the CD-ROM, identify the required interface cable
for the vehicle system to be tested. Connect the cable to the service tool and secure
the fixing screws.

G

F

E

D
C

B

A

CON0017

If using the EOBD (J1962) pin-switchable cable (A2C59512073), ensure the settings
on the switch box correspond to the settings listed for the vehicle and system being
tested.

WARNING: Incorrect settings on the switch box may cause irreparable damage to
the vehicle's electrical system.

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used for any diagnostics on the following vehicles:

• Alfa Romeo MiTo

• BMW 1 series (E81/E87)

H

I

J

K

L

5

4
3

2

7

6

8

9

10

11

1

12

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

• GM Opel/Vauxhall - Corsa D

• GM Opel/Vauxhall - Signum

• GM Opel/Vauxhall - Vectra C

• GM Opel/Vauxhall - Zafira B

• Fiat 500

• Fiat Grande Punto (05)

•Ford Ka II

• Volvo S40/V40 (01-06)

• Volvo V50 (03-08)

• Volvo S60 (01-05)

• Volvo V70 (99-07)

• Volvo XC70 (00-06)

31

FastCheck

• Volvo S80 (99-06)

• Volvo XC90 (02-06)

• Volvo S70 (99-00)

• Volvo C70 Convertible/Coupe (99-05)

Ensure the vehicle's ignition is OFF.

Connect the service tool to the required vehicle connector, refer to ‘Diagnostic

connector locations’, page 79, for further information.

Power for the service tool is provided by the vehicle connector. Once connected, the
service tool will perform an internal self test and then the screen will display the version
of the current software before displaying the main menu.

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

Use the and keys to select the 'FastCheck Climate' application and press
to confirm the selection.To return to the previous menu, press the key.

Turn the vehicle's ignition ON.

Use the and keys to select the vehicle manufacturer and press to confirm
the selection.

Dependent upon the vehicle and application being run, you may be asked to choose
the particular system fitted to the vehicle. Select the correct system using the and

keys and press to confirm.

1. Read DTCs

2. Clear DTCs

Select the required menu option using the and keys and press to confirm.

The service tool will attempt to establish communication with the vehicle system. If
communication is unsuccessful, refer to ‘Communication problems’, page 10.

Read DTCs

If any DTC codes are present in the system, a screen will be displayed informing you
how many codes were found. This will then be replaced by the first DTC code. DTC
codes are generated according to the vehicle and system manufacturer.

32

FastCheck

The fault number is displayed first, followed by the DTC code. If the description text is
too long to fit on the display, '[...]' appears in the bottom right corner of the screen.
This indicates that the text can be scrolled using the and keys to view the rest
of the description.

To view the next DTC (if more than 1 was found), scroll to the end of the text and press
the key.

To return to the menu, scroll to the end of the text and press the key.

Clear DTCs

Diagnostic trouble codes can be cleared using the 'Clear DTCs' option. When using
the option you will be prompted to turn the ignition off. Wait until prompted before
switching the ignition back on.

Start the engine to force the control module to run a system check. Verify that the
code(s) have been cleared by selecting 'Read DTCs'.

Note: Reading DTC(s) without first starting the engine will only confirm that the stored

DTC(s) have been cleared. Faults may still be present in the system causing a DTC to
be stored next time the engine is started.

BMW/MINI vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

33

FastCheck

FastCheck EPB

Connection

Using the Vehicle Application List, identify the required interface cable for the vehicle
system to be tested. Connect the cable to the service tool and secure the fixing
screws.

G

F

E

D
C

B

A

CON0017

If using the EOBD (J1962) pin-switchable cable (A2C59512073), ensure the settings
on the switch box correspond to the settings listed for the vehicle and system being
tested.

WARNING: Incorrect settings on the switch box may cause irreparable damage to
the vehicle's electrical system.

Ensure the vehicle's ignition is OFF.

Connect the service tool to the required vehicle connector, refer to ‘Diagnostic

connector locations’, page 79, for further information.

Power for the service tool is provided by the vehicle connector. Once connected, the
service tool will perform an internal self test and then the screen will display the version
of the current software before displaying the main menu.

H

I

J

K

L

5

4
3

2

7

6

8

9

10

11

1

12

Use the and keys to select the 'FastCheck EPB' application and press to
confirm the selection. To return to the previous menu, press the key.

Turn the vehicle's ignition ON.

Use the and keys to select the vehicle manufacturer and press to confirm
the selection.

34

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

FastCheck

Dependent upon the vehicle manufacturer and model different menu options will then
be available. Function such as read and Clear DTCs will be available along with service
functions.

BMW vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used for any diagnostics on the following vehicles:

BMW 7 series (E65)

BMW 7 Series (E65)

Parking Brake Bedding-in

If the brake shoes of the ‘Duo Servo Brake’ are replaced then the bedding process
must be performed to ensure correct operation of the system. The procedure may be
performed on a roller test rig or on a road test drive.

Automatic hold

The Automatic hold function applies the brakes when the vehicle is stationary and
applies the brakes and parking brake when the engine is switched off. This function
can be disabled / enabled.

Assembly mode

Unintentional operation of the parking brake button before the Bowden cables have
engaged in the wheel carrier can lead to assembly problems. Assembly mode
suppresses the activation of the parking brake.

Positioning travel check

If excessive travel has been detected then a warning is displayed and fault stored. This
procedure is used to determine the cause of the problem detected by the system.

BMW X5 (E70) / X6 (E71)

Workshop mode

While in workshop mode the parking brake is placed into the opened position and the
system is disabled.

Parking Brake Bedding-in

If the brake shoes of the ‘Duo Servo Brake’ are replaced then the bedding process
must be performed to ensure correct operation of the system. The procedure may be
performed on a roller test rig or on a road test drive.

35

FastCheck

Ford – Electronic Parking Brake (EPB) system

Two Electronic Parking Brake systems are currently supported on the service tool:

Ford Focus C-Max 2003 - present:

There are two test functions available under the calibration section of the EPB menu
these are described below.

Electronic Parking Brake (EPB) calibration function test

Checks the EPB is working correctly. This test should be performed after work has
been completed on the EPB or vehicles braking system.

The test removes any air gap from the brake pads and checks the EPB pressure.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The brake fluid level is correct

The operator will be asked to perform a number of actions before applying the EPB.
The service tool reads and displays the EPB pressure. With the EPB applied the EPB
pressure should be approximately 1100 Newtons.

The operator will then be asked to unlock/release the EPB. The service tool reads and
displays the EPB pressure. With the EPB released the EPB pressure should be 0
Newtons.

If either of the above tests fail (pressure reading not correct) the EPB assembly should
be removed and re-assembled.

Electronic Parking Brake (EPB) emergency release calibration

Checks the EPB emergency release is working correctly. This test should be
performed after work has been completed on the EPB or vehicles braking system.

Pre-test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The brake fluid level is correct

The operator will be asked to perform a number of actions before applying the EPB.
The service tool reads and displays the EPB pressure. With the EPB applied the EPB
pressure should be approximately 1100 Newtons.

The operator will then be prompted to pull manually on the emergency release. The
service tool reads and displays the EPB pressure. With the emergency release
activated the EPB pressure should be 0 Newtons and the vehicle should be able to
move freely.

If either of the above tests fail then the EPB assembly should be inspected and
repaired as described by the manufacturer’s instructions.

36

FastCheck

Ford Galaxy (2006-), Mondeo (2007-), S-Max (2006-):

There are three options in the PBM/EPB function menu which can be used to access
various functions:

Service Brakes

There are three functions available under the ‘Service Brakes’ menu option:

Enter Maintenance Mode

This function is used to put the system into a state that enables work to be carried out
by the technician.

The Control Module puts the calipers into a state where normal operation is inhibited
and the callipers can not be closed by any means.This function must be used if
replacement of the brakes, discs or brake pads is to be carried out.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The vehicle must be secured with wheel locks

This function takes 30 seconds to complete.

Note: After this function has been performed the EPB calipers can not be closed and

are inhibited until exit maintenance mode is run. Cycling the ignition, disconnecting the
battery or diagnostics tester does not exit maintenance mode.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Exit Maintenance Mode

This function is used to put the system back into an operational state after work has
been carried out by the technician. Calipers are closed to the applied position, and
normal operation is available again.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The vehicle must be secured with wheel locks

This function takes 35 seconds to complete.

This function also automatically performs an 'Assembly Check', which carries out
internal tests on the Parking Brake system and reports the status (see below). Ensure
the on screen instructions on the service tool are followed precisely and in the correct
order.

37

FastCheck

Assembly Check

This function is used to check the operation of the parking brake system after any
work has been completed on the system.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The vehicle must be secured with wheel locks

This function takes 25 seconds to complete.

Note: This test is automatically run as part of the 'Exit Maintenance Mode' function. It

is not necessary to perform this function if the 'Exit Maintenance Mode' function
reported no problems

Note:This function can not be performed while the parking brake system is in

maintenance mode. It should only be performed when the system is in normal
operating mode.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Actuators

The following is available under the ‘Actuators’ menu option:

Static Apply

This function is used to test the operation of the actuators which operate the calipers.
This function closes the actuators to the nominal parking brake apply position.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The vehicle must be secured with wheel locks

It should be used if it is suspected that there is a fault with the Control Module, wiring,
or the actuators (if the parking brake will not engage/disengage when manually
operated).

Note: This function can not be performed while the parking brake system is in

maintenance mode. It should only be performed when the system is in normal
operating mode.

Configuration

There are two functions available under the ‘Configuration’ menu option:

Inclination Sensor Calibration

This function is used to reset the stored zero value of the inclination sensor. It should
be used when a new Parking Brake module has been fitted or a new Inclination sensor
has been fitted.

38

FastCheck

Pre-Test conditions:

• The operator must NOT be inside the vehicle

• The vehicle must be stationary

• The vehicle must be on level ground

• Ensure the vehicle is not subject to any vibration (closing boot, bonnet, etc.)

• The vehicle must be secured with wheel locks

Note: This function cannot be performed while the parking brake system is in

maintenance mode. It should be performed when the system is in normal operating
mode.

Clear Stored Clutch Engagement Point

This function is used to reset the stored value of the clutch engagement point. It
should be used when a new Parking Brake module has been fitted or a new clutch
has been fitted. This function is only applicable to vehicles with manual transmission.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

When this function has been performed successfully the Parking Brake module will re­learn a new clutch engagement point when the vehicle is next driven.

Note: This function cannot be performed while the parking brake system is in

maintenance mode. It should be performed when the system is in normal operating
mode.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Notes on Use of Functions

The four functions are designed to be used in several different situations. Here are a
few situations which may occur and the correct use of the functions to rectify the
situation:

Rear Brake Pad, Brake Disc or Caliper Replacement:

1. If the vehicle requires any of the above components to be replaced the 'Enter
Maintenance Mode' function should be performed.

2. The system will be disabled to allow maintenance work to be carried out easily
and safely.

3. After the work has been carried out the 'Exit Maintenance Mode' function should
be performed.

Inclination Sensor Replacement:

1. After the new sensor has been installed perform the ‘Inclination Sensor
Calibration’ function.

39

FastCheck

Clutch Replacement (manual transmission):

1. After a new clutch has been installed perform the ‘Clear Clutch Engagement
Point’ function.

2. The vehicle will then learn the new clutch engagement point as the vehicle is
driven.

Parking Brake Module Replacement:

1. After the Parking Brake Module has been replaced perform the ‘Inclination
Sensor Calibration’ function.

2. If the vehicle has manual transmission perform the ‘Clear Clutch Engagement
Point’ function.

3. The vehicle will then learn the new clutch engagement point as the vehicle is
driven.

Any other EPB system component has been replaced:

1. DTCs should be read and cleared.

2. The 'Assembly Check' function should be performed to check the operation of
the parking brake system.

3. If the 'Assembly Check' function fails, DTCs should be read again and the
problem investigated.

The Parking Brake will not engage when manually operated via the button:

1. Ensure that the system is NOT in 'Maintenance Mode'. If it is, then perform the
'Exit Maintenance Mode' function.

2. Read DTCs, there may be a DTC stored which will indicate the area of the fault.

3. Clear DTCs, there may be an intermittent fault on the system which needs to be
cleared.

4. Perform the 'Static Apply' function. This will send a command directly to the
Control Module which will then close the actuators to the nominal 'engaged'
position.

5. Check the switch/button.

6. Check the actuators themselves or the wiring from the ‘Control Module’ to the
actuators.

40

FastCheck

Land Rover - Electronic Parking Brake (EPB) System

Discovery III (L319) (2005 - 2009), Range Rover Sport (L320) (2005 - 2009),
Range Rover (L322) (2006 - 2009):

There are four functions available under the PBM/EPB ‘Service Brakes’ menu:

Unjam Electronic Parking Brake

This procedure should be used if one of the Parking Brake cables becomes detached
or breaks whilst the vehicle is being driven.

Pre-Test conditions:

• The vehicle must be stationary

• The engine must be running and at idle speed

After performing the procedure it is necessary for the technician to carry out checks
on the condition of the rear brake shoes and drums. If both are OK the technician
should then refer to the Land Rover technical information.

Note: Part of this procedure is to place the Parking brake into ‘Mounting Position’; in

order for the checks of the rear brake shoes and drums to be carried out. When the
vehicle is in the 'Mounting Position' a red flashing light will appear on the instrument
cluster. This indicates that the parking brake actuator is in the 'Mounting Position'. It
does not indicate a vehicle fault.

Mounting Position

The park brake must be driven to the Mounting Position if any of the following
procedures are to be performed:

• Parking Brake Shoes - Removal/Installation.

• Parking Brake Shoe and Lining Adjustment.

This procedure must be carried out if, new parking brake shoes are fitted, new rear
brake discs are fitted or if the vehicle has been mud wading (not water) for more
than 50 miles. Or if one of the brake cables has broken or become detached during
the vehicle being driven (in this case the Park brake is driven to the Mounting
Position as part of the ‘Park Brake Unjam’ procedure above).

• Changing of Parking Brake Cables (RH and LH).

If the parking brake system has completed less than 50,000 cycles it is permissible
to replace the parking brake cables. If over 50,000 cycles have been completed,
then the cables can only replaced as part of the parking brake actuator and cable
assembly. If a cable breaks or becomes detached whilst the vehicle is being driven,
the 'parking brake unjam procedure' may be required.

• Parking Brake Actuator - Removal/Installation
The purpose is to allow the brake cables to be connected or disconnected to the

brakes.

41

FastCheck

Pre-Test conditions:

• The vehicle must be stationary.

• The ignition must be on (position II).

• An approved battery charger must be connected to ensure consistent power
supply.

Note: To remove the parking brake from Mounting Position; switch the parking brake

switch on and off twice.

Note: When the vehicle is in the 'Mounting Position' a red flashing light will appear on

the instrument cluster. This indicates that the parking brake actuator is in the
'Mounting Position'. It does not indicate a vehicle fault.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Latching Position

This procedure may be necessary if the Parking Brake emergency release has been
activated, in order to re-latch the Parking brake.

Pre-Test conditions:

• The vehicle must be stationary.

• The ignition must be on (position II).

• An approved battery charger must be connected to ensure consistent power
supply.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Longitudinal Accelerometer Calibration

This procedure may be necessary if the Longitudinal Accelerometer has been
replaced.

Pre-Test conditions:

• The ignition must be on (position II).

• An approved battery charger must be connected to ensure consistent power
supply.

• Ensure the vehicle is placed on a level surface and that it remains stationary
throughout the whole procedure.

• Ensure the vehicle is stationary (0 km/h) on a level surface & no apply or release
command has been received.

• Make sure the parking brake module is correctly secured to the vehicle and that
the parking brake is applied.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

42

FastCheck

MANUAL FUNCTIONS

The following can be performed manually without the scan tool:

Disable Parking Brake for Rear Brake Disc Change

This procedure is necessary before carrying out work on the rear brake discs. When
performed correctly the brake callipers are wound back by the control module:

Manual Routine:

• Turn the ignition key to position II.

• Apply, and hold, the footbrake,

• Apply, and hold, the parking brake switch to the RELEASE position.

• Turn the ignition key to position 0 and remove the key.

• Release the footbrake.

• Release the parking brake switch.

• Remove fuse number 8 from the BJB (to isolate the parking brake electrical circuit).

This will ensure safe working conditions and eradicate the threat of the parking brake
accidentally coming on while the technician is working on it.

To Re-enable Normal Operation:

• Re-install fuse number 8 into the BJB (to re-enable the parking brake electrical
circuit).

Parking Brake Shoes Bedding-in Procedure

This procedure must be carried out if, new parking brake shoes are fitted, new rear
brake discs are fitted or if the vehicle has been mud wading (not water) for more than
50 miles:

Manual Routine:

• Start and run the engine.

• Apply the footbrake 3 times within 10 seconds and hold applied after the 3rd
application.

• Apply the electronic parking brake switch 4 times, followed by 3 release
applications within 10 seconds.

Once the Service Bedding-in procedure mode has been entered, the electronic
parking brake linings can be bedded-in by conducting 10 repeated stops from 30

- 35 km/h (19 - 22 mph), followed by a 500 metre (547 yard) interval between each
stop to allow the brakes to cool, using the electronic parking brake control switch.

• The electronic parking brake force will be increased up to the dynamic maximum
so long as the switch is held in the applied position.

• If the switch is released to either the NEUTRAL or OFF positions, the electronic
parking brake will be released,

• The electronic parking brake MUST be allowed to cool between applications, either
by driving at 19 mph (30 km/h) for 500 metres (547 yards) or remaining stationary
for 1 minute between each application.

43

FastCheck

Note: The electronic parking brake 'Service Bedding-in Procedure mode' will be

active for the remainder of the ignition cycle, or until the vehicle speed exceeds 31
mph (50 km/h). If the procedure needs to be re-entered, the entry actions must be
repeated.

Renault - handbrake

There are test functions available under the circuit tests section of the handbrake
menu these are described below.

Release brakes

Pre-test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The engine must not be running

The test requests the handbrake is released. The brakes will be released during this
test once this test has been completed then the apply brakes function should be
performed.

Apply brakes

Pre-test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The engine must not be running

The test requests the handbrake is applied. The brakes will be applied during this test.

VAG – Electro-mechanic Parking Brake (EPB) system

VW/Audi EPB system integrates two electro-mechanical actuators (right and left
parking brake motors) into the rear disc brake callipers. The EPB system replaces the
traditional handbrake system.

When the vehicle is stationary or when the EPB/Auto hold button is pressed the EPB
control module activates the parking bake motors on the rear wheels holding the
vehicle in place.

Pre-test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The brake fluid level is correct

• The parking brake is off

Note: During the process of releasing and resetting the brake pistons the ECM may

store DTCs in the EPB or ABS control modules. After completing the calibration
procedure the EPB and ABS DTC memory must be cleared.

44

FastCheck

EPB for Audi A4/A5/A6 & VW Passat/Tiguan

Select the required option from the Maintenance menu either 'Replace Pads' or
'Service Brakes' then follow described sequence.

Brake pad replacement/service sequence

The EPB system must be deactivated and completely released and the ignition must
be on.

Note: The sequence must be performed in the correct order else the braking system

maybe left in a non-operational state.

Release brakes

Select the 'Release Brakes' option from the menu. The brake pistons will now be
moved to their released position. Wait until the service tool displays the release brakes
now complete message before continuing.

Replace/service the brake pads

The brake pads can now be replaced or serviced following the manufacturer’s
instructions.

Close brakes

Select the 'Close Brakes' option from the menu. The brake pistons will now be moved
to their reset position. Wait until the service tool displays the close brakes now
complete message before continuing.

Calibrate brakes

Select the 'Calibrate Brakes' option from the menu. The brake pistons will now be
moved in and out to calibrate their position. Wait until the service tool displays the
calibrate brakes now complete message before continuing.

EPB for Audi A8

Select the required option from the Maintenance menu either 'Replace Pads' or
'Service Brakes' then follow the required sequence.

Brake pad replacement sequence (only)

The EPB system must be deactivated and completely released and the ignition must
be on then follow the sequence described below.

Note: The sequence must be performed in the correct order otherwise the braking

system maybe left in a non-operational state.

Replace pads

Select the 'Replace Pads' option from the 'Replace Pads' menu. The brake pistons
will now be moved to their released position. Wait until the service tool displays the
release brakes now open for pad change message before continuing.

45

FastCheck

Replace the brake pads

Make a note of the new pad thickness (3-14mm) it is required for the next stage. The
brake pads can now be replaced following the manufacturer’s instructions.

Pad thickness

The brake pad thickness must now be entered by selecting Pad Thickness from the
Replace Pads menu. The current value is displayed on screen. Press the key to
change value then enter the new value between 3-14mm. Press the key to test
the new value message will be displayed. Press the key to move to the store new
value screen. Now press the key again to store the new value to the control
module.

Close brakes

Select the 'Close Brakes' option from the Replace Pads menu. The brake pistons will
now be moved to their reset position. Wait until the service tool displays the close
brakes now complete message before continuing.

Calibrate brakes

Select the 'Calibrate Brakes' option from the Replace Pads menu. The brake pistons
will now be moved in and out to calibrate their position. Wait until the service tool
displays the calibrate brakes now complete message before continuing.

Brakes service sequence (only)

The EPB system must be deactivated and completely released and the ignition must
be on then follow the sequence described below.

Note: The sequence must be performed in the correct order else the braking system

maybe left in a non-operational state.

Release brakes

Select the 'Release Brakes' option from the Service Brakes menu. The brake pistons
will now be moved to their released position. Wait until the service tool displays the
release brakes now complete message before continuing.

Service the brakes

The brakes can now be serviced following the manufacturer’s instructions.

Close brakes

Select the 'Close Brakes' option from the Service Brakes menu. The brake pistons will
now be moved to their reset position. Wait until the service tool displays the close
brakes now complete message before continuing.

Calibrate brakes

Select the 'Calibrate Brakes' option from the Service Brakes menu. The brake pistons
will now be moved in and out to calibrate their position. Wait until the service tool
displays the calibrate brakes now complete message before continuing.

46

FastCheck

Volvo - Electronic Parking Brake (EPB) System

Volvo S80 (2007 -), V70 (2008 -), XC60 (2009-), XC70 (2008 -)

There are three options in the PBM/EPB function menu which can be used to access
various functions:

There are three functions available under the ‘Service Brakes’ menu option:

Enter Service Mode

This function is used to put the system into a state that enables work to be carried out
by the technician. The Control Module puts the callipers into a state where normal
operation is inhibited and the callipers cannot be closed by any means. This function
must be used if replacement of the brakes, discs or brake pads is carried out.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The vehicle must be secured with wheel locks.

This function takes 30 seconds to complete.

Note: After this function has been performed the EPB callipers cannot be closed and

are inhibited until exit service mode is run. Cycling the ignition, disconnecting the
battery or diagnostics tester does not exit maintenance mode.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Exit Service Mode

This function is used to put the system back into an operational state after work has
been carried out by the technician. Callipers are closed to the applied position, and
normal operation is available again.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

• The vehicle must be secured with wheel locks.

This function takes 10 seconds to complete.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

Installation Check

This function is used to check the operation of the parking brake system after any
work has been completed on the system.

Pre-Test conditions:

• The vehicle must be stationary

• The vehicle must be on level ground

47

FastCheck

• The vehicle must be secured with wheel locks.

Three internal tests are performed, each will report the status. If any of these tests fail
to perform the Read DTCs function to detect the possible fault with the system.

This function takes 25 seconds to complete.

Note: This function cannot be performed while the parking brake system is in service

mode. It should only be performed when the system is in normal operating mode.

Ensure the on screen instructions on the service tool are followed precisely and in the
correct order.

48

FastCheck

FastCheck SAS

Connection

Using the Vehicle Application List on the CD-ROM, identify the required interface cable
for the vehicle system to be tested. Connect the cable to the service tool and secure
the fixing screws.

Note: If the vehicle being tested is a BMW with a 20 pin connector and an EOBD

(J1962) connector, you must only use the 20 pin connector.

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used for any diagnostics on the following vehicles:

• BMW 1 series (E81/E87)

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

G

F

E

D
C

B

A

CON0017

If using the EOBD (J1962) pin-switchable cable (A2C59512073), ensure the settings
on the switch box correspond to the settings listed for the vehicle and system being
tested.

WARNING: Incorrect settings on the switch box may cause irreparable damage to
the vehicle's electrical system.

Ensure the vehicle's ignition is OFF.

Connect the service tool to the required vehicle connector, refer to ‘Diagnostic

connector locations’, page 79, for further information.

Power for the service tool is provided by the vehicle connector. Once connected, the
service tool will perform an internal self test and then the screen will display the version
of the current software before displaying the main menu.

H

I

J

K

L

5

4
3

2

7

6

8

9

10

11

1

12

49

FastCheck

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

Use the and keys to select the 'FastCheck SAS' application and press to
confirm the selection. To return to the previous menu, press the key.

Turn the vehicle's ignition ON.

Use the and keys to select the vehicle manufacturer and press to confirm
the selection.

Dependent upon the vehicle and application being run, you may be asked to choose
the particular system fitted to the vehicle. Select the correct system using the and

keys and press to confirm.

1. Read DTCs

2. Clear DTCs

3. SAS Calibration

Select the required menu option using the and keys and press to confirm.

The service tool will attempt to establish communication with the vehicle system. If
communication is unsuccessful, refer to ‘Communication problems’, page 10.

Read DTCs

If any DTC codes are present in the system, a screen will be displayed informing you
how many codes were found. This will then be replaced by the first DTC code. DTC
codes are generated according to the vehicle and system manufacturer.

A typical DTC code

The fault number is displayed first, followed by the DTC code. In this example the fault
displayed is DTC number 38 - Right Low Pressure Sensor Circuit Signal High or Open
Circuit. If the description text is too long to fit on the display, '[...]' appears in the

50

DTC 1 - 38 Right Low
Pressure Sensor
Circuit Signal High{ }

FastCheck

bottom right corner of the screen. This indicates that the text can be scrolled using the

and keys to view the rest of the description.

To view the next DTC (if more than 1 was found), scroll to the end of the text and press
the key.

To return to the menu, scroll to the end of the text and press the key.

Clear DTCs

Diagnostic trouble codes can be cleared using the 'Clear DTCs' option. When using
the option you will be prompted to turn the ignition off. Wait until prompted before
switching the ignition back on.

Start the engine to force the control module to run a system check. Verify that the
code(s) have been cleared by selecting 'Read DTCs'.

Note: Reading DTC(s) without first starting the engine will only confirm that the stored

DTC(s) have been cleared. Faults may still be present in the system causing a DTC to
be stored next time the engine is started.

SAS (Steering Angle Sensor) Calibration

The steering angle sensor can be calibrated using the ‘SAS Calibration’ option. The
on screen instructions must be performed to ensure the calibration process is
correctly completed.

Note: The steering angle sensor should be calibrated after performing the wheel

alignment or suspension adjustments.

Alfa Romeo/Fiat/Lancia vehicles

Steering angle sensor calibration

On some vehicles there may be a steering angle sensor calibration routine available
on both the ABS/TC/ESP control module and the Power Steering control module. If
this is the case the technician should always perform the routine via the Power
Steering control module. It will only be necessary to perform a steering angle sensor
calibration via the ABS/TC/ESP module on these vehicles if the sensor itself or/and the
ABS/TC/ESP control module have been replaced.

Longitudinal acceleration sensor calibration

This routine is necessary in the following situations:

1. The Longitudinal Acceleration Sensor has been replaced.

2. The ABS/TC/ESP control module has been replaced.

3. The ESP system is not behaving as it should. Resetting of this sensor can
sometimes cure strange ESP behaviour.

BMW/MINI vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

51

FastCheck

Ford vehicles

Steering angle sensor calibration
Ka II (2008 -):

On these vehicles there may be a steering angle sensor calibration routine available
on both the ABS/TC/ESP control module and the Power Steering control module. If
this is the case the technician should always perform the routine via the Power
Steering control module. It will only be necessary to perform a steering angle sensor
calibration via the ABS/TC/ESP module on these vehicles if the sensor itself or/and the
ABS/TC/ESP control module have been replaced.

Fiesta (2008 -), Fusion/B-Max (2008 -):

On these vehicles steering angle sensor calibration is performed via the Power
Steering control module only.

Ford Galaxy (2006 -), Mondeo (2007 -), S-Max (2006 -), Transit (2006 -):

On these vehicles steering angle sensor calibration is performed via the ABS/TC/ESP
control module only.

Longitudinal acceleration sensor calibration:

This routine is necessary in the following situations:

1. The Longitudinal Acceleration Sensor has been replaced.

2. The ABS/TC/ESP control module has been replaced.

3. The ESP system is not behaving as it should. Resetting of this sensor can
sometimes cure strange ESP behaviour.

Land Rover vehicles

Longitudinal acceleration sensor calibration:

This routine is necessary in the following situations:

1. The Longitudinal Acceleration Sensor has been replaced.

2. The ABS/TC/ESP control module has been replaced.

3. The ESP system is not behaving as it should. Resetting of this sensor can
sometimes cure strange ESP behaviour.

52

FastCheck

FastCheck Service

Connection

Using the Vehicle Application List on the CD-ROM, identify the required interface cable
for the vehicle system to be tested. Connect the cable to the service tool and secure
the fixing screws.

Note: If the vehicle being tested is a BMW fitted with both a 20 pin connector and an

EOBD (J1962) connector, you must only use the 20 pin connector.

Note: If the vehicle being tested is a Mercedes fitted with both a 38 pin connector and

an EOBD (J1962) connector, you must only use the 38 pin connector.

G

F

E

D
C

B

A

CON0017

If using the EOBD (J1962) pin-switchable cable (A2C59512073), ensure the settings
on the switch box correspond to the settings listed for the vehicle and system being
tested.

WARNING: Incorrect settings on the switch box may cause irreparable damage to
the vehicle's electrical system.

Ensure the vehicle's ignition is OFF.

Connect the service tool to the required vehicle connector, refer to ‘Diagnostic

connector locations’, page 79, for further information.

Power for the service tool is provided by the vehicle connector. Once connected, the
service tool will perform an internal self test and then the screen will display the version
of the current software before displaying the main menu.

H

I

J

K

L

5

4
3

2

7

6

8

9

10

11

1

12

MAIN MENU

1. EOBD

2. FastCheck ABS

3. FastCheck Airbag

4. FastCheck Climate

5. FastCheck EPB

6. FastCheck SAS

7. FastCheck Service

8. FastCheck TPMS

9. User Menu

53

FastCheck

Use the and keys to select the 'FastCheck Service' application and press
to confirm the selection. To return to the previous menu, press the key.

Turn the vehicle's ignition ON.

Use the and keys to select the vehicle manufacturer and press to confirm
the selection.

Dependent upon the vehicle manufacturer and model different menu options will then
be available.

Alfa Romeo/Fiat/Lancia vehicles

There are potentially three options in the FastCheck Service menu for these
manufacturers:

Service Interval

This option resets the conventional service interval indicator. This function is to be
used AFTER a full service (18000 miles for petrol or 21000 miles for diesel) has been
completed on the vehicle.

Note: The Multiplexer cable (A2C59512985) or CAN converter (A2C59512664)

harness must be used for any diagnostics on the following vehicles:

Alfa-Romeo MiTo

Fiat 500

Fiat Grande Punto (05)

All other vehicles require the Multiplexer cable (A2C59512985) or FAL LS CAN
(A2C59512070) harness.

Oil Change Reset

This option is currently only applicable to the new Fiat Ducato van (Ducato III MY2006
onwards). This function is to be used AFTER an Oil Change has been completed on
the vehicle.

Oil Degradation Counter Reset

This option is necessary on vehicles which have Diesel Particulate Filters (DPF) fitted.
This is NOT necessary on vehicles with petrol or LPG engines or diesel engines if DPF
is not fitted. When selected the scan tool will interrogate the vehicle to determine the
applicability of the function.

This function allows the resetting of the Oil Degradation Counter and viewing of the Oil
Degradation parameters (number of resets, Oil Degradation Counter %, km until next
reset required, odometer at last reset). The counter should only be reset AFTER the
Oil has been changed. When reset the Counter will be reset to 100%, the number of
resets will increase by 1.

54

FastCheck

Alfa Romeo vehicles- Mannesman VDO Dashboard (147 and GT - UK only)

For Alfa Romeo vehicles with the Mannesman VDO Dashboard (147 and GT) there is
a problem with the Dashboard which causes the 'Number of miles to Service' value
to be set to zero when a Service Reset is performed using the service tool.

When the Service Reset is performed the Dashboard stores the current mileage (or
kilometre) value, read from the Odometer, in order to calculate when the next service
is required.

However, when the Odometer is shown in miles the calculation for the distance to the
next service fails. This results in distance to the next service being displayed as zero
and the Service Reset fails to be completed.

To reset the Service Interval the following procedure must be performed:

1. Switch the Ignition ON.

2. Press the [MODE] button on the dashboard to enter the dashboard functions
menu.

3. Use the [+] and [-] buttons on the dashboard to navigate to the UNITS option and
press [MODE] to select.

4. Use the [MODE], [+] and [-] buttons to set the units to Kilometres. All other
settings should be left unchanged.

5. Use the [+] and [-] buttons on the dashboard to navigate to the END MENU option
and press [MODE] to exit the functions menu.

6. Plug the service tool into the Diagnostic Socket (using the 16-pin FAL LS CAN
harness) and perform a Service Reset by selecting FastCheck Service, Alfa
Romeo, Mannesman then Service Reset.

7. Disconnect the service tool, leaving the ignition on.

8. Press the [MODE] button on the dashboard to enter the dashboard functions
menu.

9. Use the [+] and [-] buttons on the dashboard to navigate to the UNITS option and
press [MODE] to select.

10. Use the [MODE], [+] and [-] buttons to set the units back to Miles. All other
settings should be left unchanged.

11. Use the [+] and [-] buttons on the dashboard to navigate to the SERVICE option
and press [MODE] to select.

12. 'Number of Miles to Service' should now read approximately 12500 miles.

13. Use the [+] and [-] buttons on the dashboard to navigate to the END MENU option
and press [MODE] to exit the functions menu.

14. Switch Ignition OFF.

This procedure is necessary to ensure that the value read from the Odometer by the
dashboard, when a Service Reset is performed by the service tool, is in Kilometres.
The Dashboard can then calculate the 'Number of Miles to Service' correctly.

On the European Continent this procedure is not necessary as all dashboards are in
Kilometres.

55

FastCheck

BMW/MINI vehicles

Note: To switch the ignition ON for vehicles fitted with a start/stop button, insert the

remote key-fob fully into the ignition slot then press the start/stop button once (without
any foot pedals depressed).

Manufacturer Option 1 Option 2

BMW CBS Service options

Digital reset Oil reset

Distance reset

Time reset

Analogue reset Oil

Inspection service

Use the and keys to select the required menu option and press to confirm
the selection. To return to a previous menu, press the key.

The screen will display the message “BMW Reset” to confirm the reset process was
completed successfully.

Select Condition Based Service (CBS):

Note: All required work must be carried out before service indicators are reset. Failure

to do so may result in incorrect service values and cause DTCs to be stored by the
relevant control module.

Note: The DSC module will not recognise the replacement of the brake pads before

a brake pad wear indicator change has taken place. As such the DSC module will not
allow reset of the brake pad service items.

It is recommended that the brake pads are replaced with OE equivalent parts. The
DSC module may not recognise a terminal change if using non-genuine brake pads.

Select CBS for vehicles only fitted with a J1962 16 pin connector and support CBS.

Applicable vehicles:

• BMW 1 series (E81/E87)

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

•BMW X5 (E70)

•BMW X6 (E71)

• MINI (R55/R56/R57)

Note: Refer to the ‘Vehicle Application List’ to determine the correct cable.

CBS is a system in which the vehicle calculates and monitors the status of serviced
components and fluid levels as well as time and mileage based services.

56

FastCheck

The following table displays possible service options together with the control module
used to reset each option.

Service option Control module

Engine oil Engine (DME/DDE)

Particulate filter Engine (DDE)

Diesel additive Engine (DDE) Engine (DDE)

Front brake pads Dynamic stability control (DSC)

Rear brake pads Dynamic stability control (DSC)

Micro filter Climate control (IHKA)

Brake fluid Instrument cluster (INSTR)

Coolant Instrument cluster (INSTR)

Spark plugs Instrument cluster (INSTR)

Vehicle check Instrument cluster (INSTR)

Statutory vehicle inspection Instrument cluster (INSTR)

Statutory exhaust emission inspection Instrument cluster (INSTR)

The service tool will automatically identify all control modules required during the reset
process. If an unknown control module is found or communications cannot be
established, the operator is prompted to either continue or abort.

Note: If the process is continued service options applicable to the unknown control

module will not be available (see service option table).

The current date and time information will be displayed by the service tool. Press the

key if the information is correct and continue or press key to correct the

information.

Note: If date and time used during the reset process is incorrect, this will result in

incorrect service intervals.

To change the date and time:

Use the and keys to change the value of the selected information indicated
by '/ \'.

Use the key to change the selected date/time field.

Use the key to complete the information entry.

The screen will display a final confirmation of the new data entered. Press the key
to program the new information to the vehicle.

Pressing the key at any point during the date and time change to will return to the
initial date and time confirmation screen. No information will have been changed.

The service options available on the vehicle are displayed as a list. Each option is
displayed with the service data:

The percentage reset value.

57

FastCheck

The estimated distance too or the next service date.

The service counter.

Note: The vehicle inspection and exhaust emission inspection only display the date of

the next service.

The service option list is displayed in priority order, with the most urgent first.

To reset an option scroll to the required option using the and keys. The current
option will be indicated by the . Press the key to confirm the selection.

Two possible options maybe displayed on the lower half of the display:-

Reset option

Correct option

Use the and keys to select the required menu option

Use the key to confirm the selection.

Use the key to cancel the selection and return to the service option list.

Reset option:

The Reset option is used to set the selected service option’s reset value to 100%. The
estimated distance or date of next service and the service counter are updated.

The vehicle inspection and exhaust emission inspection service options are statutory
inspections that store the date of the next inspection.

Upon selecting either of these options the service tool will display the screen to
change the next service date.

Upon selecting either of these options the service tool will display the screen to
change the next service date.

Use the and keys to change the value of the selected information indicated by
'>' or '<'.

Use the key to change the selected field.

Use the key to complete and store the information.

Use the key to cancel the reset and return to the service option list.

Correct Option:

The Correct Option is used to correct a service option which has been reset in error.

Note: Reset correction is only available for service options with service counter not

zero, and is not available for vehicle and exhaust emission inspections. The original
service option values are lost during reset.

Use the and keys to change the reset value.

Use the key to complete the information entry.

58

FastCheck

A final confirmation of the new data entered is displayed. Press the key to store
the new information. To cancel the correction and return to the service option list
press the key.

Note: The maximum reset value will be the current value of the selected service

option. The service counter will be decremented by 1.

Digital Reset:

Select Digital Reset for vehicles only fitted with a J1962 16 pin connector and do not
support Condition Based Service (CBS).

The service tool will display a message to confirm the reset process was successful.

Applicable vehicles:

• BMW 3 Series (E46)

• BMW 5 Series (E39)

• BMW 7 Series (E38)

•BMW X3 (E83)

•BMW X5 (E53)

•BMW Z4 (E85)

Note: A manual procedure for service reset is possible for some Digital Reset

applicable vehicles. Refer to Manual Service Reset section for instructions.

Analogue reset:

Select Analogue Reset for vehicles fitted with a 20 pin round diagnostic connector
within the engine bay.

The service tool will display the message “Reset complete” to confirm the reset
process was completed.

Note: The service tool indicates the completion of the process only. Visual

confirmation via the Service Interval Indicator (SIA) located on the vehicle’s dash panel
is required.

Annual distance:

The average annual distance travelled is required for the calculation of various
Condition Based Service (CBS) functions.

The annual distance is based on the distance travelled after approximately six to eight
weeks from being reset. It is advised to reset the annual distance after any changes
in the driving pattern of the vehicle.

Note: Incorrect annual distance will affect the CBS intervals.

The value will be set to a default (approximately 30,000 km / 18,640 miles) until the
new value has been calculated.

59

FastCheck

Applicable vehicles:

• BMW 1 series (E81/E87)

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

•BMW X5 (E70)

•BMW X6 (E71)

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used.

Battery change:

After fitting a new battery, the battery change function should be run. The battery
change function registers the replacement of a battery with the power management
system. Failure to do so may cause the power management system to operate
incorrectly.

The battery change application determines the required battery capacity and type
from the Car Access System (CAS) module. The replacement battery must be same
capacity and type as displayed.

Note: Certain vehicles require the use of an Absorbent Glass Mat (AGM) battery.

Applicable vehicles:

• BMW 1 series (E81/E87)

• BMW 3 series (E90/E91/E92/E93)

• BMW 5 series (E60/E61)

• BMW 6 series (E63/E64)

• BMW 7 series (E65)

•BMW X5 (E70)

•BMW X6 (E71)

Note: The Multiplexer cable (A2C59512985) or the CAN converter (A2C59512664)

harness must be used.

Ford vehicles

Oil Degradation Counter Reset

This option is necessary on vehicles which have Diesel Particulate Filters (DPF) fitted.
This is not necessary on vehicles with petrol or LPG engines or diesel engines if DPF
is not fitted. The counter should only be reset AFTER the oil has been changed.

60

FastCheck

GM vehicles

Service interval reset

CAN vehicles - (Astra-H, Corsa-D, Signum, Vectra-C and Zafira-B)

For these vehicles the Multiplexer cable (A2C59512985) or the CAN converter cable
(A2C59512664) must be used for Service interval reset.

This function should be used after a vehicle has been serviced.

The vehicle is programmed with the number of miles and days until the next service
and the Service indicator light is turned off.

The Service indicator will come on again when either the number of programmed
miles is reached or the number of programmed days is reached, whichever occurs
first.

The reset is started by selecting the 'Service' option.

To return to a previous menu, press the key.

The operator must then select the 'CAN Converter cable' if requested.

The service tool will communicate with the Instrument pack to determine the vehicle
model. If the vehicle model is unknown the operator must manually select the vehicle.

Note: Vehicle must NOT be moving during this procedure and all doors must be

closed. The service tool will check the vehicle speed to ensure that the vehicle is not
moving before starting the procedure.

Security key

To perform the reset the operator must enter a 4-digit security key into the service tool.
This code will be programmed into the vehicle to allow a Reset to be performed.

The 4-digit security key is found in the owner’s handbook on a card with the other
important codes and numbers for the vehicle (such as the VIN number and Radio
code etc.).

Corsa D

The number of miles until the next service can be selected by the user, 9000 miles or
18000 miles can be selected. The number of days until the next service is always set
at 364 days (1 year).

Astra-H / Zafira-B

The number of miles until the next service and number of days until the next service
are calculated by the service tool depending on the operators selections of the
following:

1. Country - The miles and days until next service are set to values pre-determined
by GM, depending on the Country the vehicle is being used in.

The operator must first select the Continent and then the Country.

For core European Countries (UK, Ireland, France, Belgium, Germany, Spain,
Italy, Portugal, Holland, Austria etc.) select 'Other European Countries'.

61

FastCheck

2. ECO service, ECO service flex - For most core European countries the Operator
can set the vehicle to either 'ECO Service' (the standard GM service plan which
used standard GM values for miles and days until next service) or 'ECO Service
Flex' (the values for miles and days until next service are dynamically set by the
vehicle’s onboard computers, which monitor how the vehicle is being driven and
set the Service Intervals accordingly).

For ECO Service Flex Petrol vehicles the service tool will program the vehicle with
the maximum number of miles allowed by the Flex system (22000 miles) and the
maximum number of days allowed (728, or 2 years).

For ECO Service Flex Diesel vehicles the service tool will program the vehicle with
the maximum number of miles allowed by the Flex system (31000 miles) and the
maximum number of days allowed (728, or 2 years).

These are default values which ensure that the Service Indicator will come on in
either 22000 or 31000 miles or 2 years, whichever occurs first, if the ECO Service
Flex system fails for any reason.

Vectra-C / Signum

Only a straight reset is available on these vehicles. The programmed Service Interval
values of miles and days until the next service cannot be altered.

Note: The engine oil used on these vehicles is 'Long-life Oil'. When the engine oil is

changed the technician must use the 'Long-life Oil' reset option on the service tool
(see below) to reset the Engine Control Module. The technician must then select
'Service' again to restart the Service Interval Reset.

CAUTION: It is important to depress, and release, the brake pedal when prompted by
the service tool during the Reset procedure. If this is not done correctly the Reset will
not be successful.

Pre-CAN vehicles

The Multiplexer cable (A2C59512985) or the EOBD (J1962) pin-switchable cable
(A2C59512073), with switch position J2, must be used for pre-CAN vehicles

This function should be used after a vehicle has been serviced.

The vehicle is programmed with the number of miles and days (which ever one occurs
first) until the next service and the Service Indicator light is turned off.

The reset is started by selecting the 'Service' option.

To return to a previous menu, press the key.

The operator must then select the 'switchable' cable.

Please ensure that the vehicle is stationary and check that all the vehicle's doors are
closed.

Press on the service tool to reset the Service Interval.

If successful the service tool will display 'Service Reset Passed'.

62

FastCheck

Long-Life oil reset

CAN Vehicles - (Vectra-C and Signum)

For these vehicles the Multiplexer cable (A2C59512985), the EOBD (J1962) cable
(A2C59512072) or the CAN converter cable (A2C59512664) can be used for Long­Life Oil Reset.

Note: The engine must NOT be running when performing this procedure.

This function must be used when an engine oil change has been performed on the
vehicle.

The Long-Life Oil Reset is started by selecting the 'Long-Life Oil' option.

The Technician must then select the cable to be used.

The service tool will check the Engine Control Module to ensure that the function is
supported for the current engine. This function is not supported and not necessary on
Astra-H, Corsa-D or Zafira-B.

The service tool will check the engine speed to ensure that the engine is not running
then read the current value of 'Remaining Oil Life' from the Engine Control Module and
display. If the value is less than 15% the Oil must be changed and a reset performed.

The service tool will then perform the Reset. The 'Remaining Oil Life' parameter will be
read from the Engine Control Module and displayed again. It will read 100% if the reset
has been successful.

Land Rover vehicles

There are two options available for Land Rover.

Service Interval Reset

This option resets the conventional service interval indicator. This function is to be
used AFTER a full service has been completed on the vehicle.

Oil Degradation Counter Reset

This option is necessary on vehicles which have Diesel Particulate Filters (DPF) fitted.
This is not necessary on vehicles with petrol or LPG engines or diesel engines if DPF
is not fitted. The counter should only be reset AFTER the oil has been changed.

63

FastCheck

Mercedes vehicles

There are two different types of servicing for Mercedes, Assyst Plus and Flexible
Service System. The service type will automatically be determined from the vehicle.

Assyst Plus:

Note: Any DTCs (Diagnostic trouble codes) present on the Assyst Plus control module

may lead to incorrect servicing information and services to be preformed incorrectly.
Different variants of Assyst Plus have different service functions available.

Assyst Plus service functions

• Reset indicator

• Additional work

• Service status

• Service history

•Undo reset

• Undo additional

• Read DTCs

• Clear DTCs

Reset Indicator

This function is used to reset the overall maintenance of the vehicle. The current
service status information will be displayed.

To abort the reset, press the key. Confirmation of the service being aborted will
be displayed, press any key for this point to return to the Assyst Plus menu. To
proceed with the reset press .

The oil quality must be selected before the reset can be completed. To abort the reset,
press the key. Confirmation the reset has aborted will be displayed, press any key
to return to the Assyst Plus menu. To select the oil quality used for the service from
the menu use the and keys and press to confirm the selection.

The result of the reset will be displayed, press any key to return to the Assyst Plus
menu.

Additional Work

This function is used to add additional service options to the latest service held within
the service memory.

The application will display a menu of all available additional work options applicable
for the vehicle.

Press the and keys to scroll through the available list.

Press the key to select/deselect an item. Multiple items can be selected and any
items selected are highlighted by .

Press the key to abort and return to the Assyst Plus menu. Press to add these
selected options to the last service memory. The result of the reset will be displayed,
press any key to return to the Assyst Plus menu.

64

FastCheck

Service Status

This function displays the current service status information.

Use the and keys to scroll through the status information. Press the key
to exit and return to the Assyst Plus menu.

Note: It can take some time for the control unit to update the service status

information after a change in state (e.g. Resetting the service indicator).

Service History

This function allows the operator to review the entries held within the service memory.
The application will display the number of service entries currently stored within the
service memory.

Press the key to return to the Assyst Plus menu. Select the desired entry using
the and keys and press to confirm the selection.

Press the key to return to the Assyst Plus menu. Press and keys to scroll
through the service information stored in memory.

Undo Reset

This function cancels the latest service stored in the service history (i.e. the last
performed service).

A warning will be displayed before the cancel process is performed. This option is only
intended for resetting a service that has accidentally been reset.

Press to return to the Assyst Plus menu. Press to cancel the last service.
Confirmation of the cancellation will be displayed. Press any key for this point to return
to the Assyst Plus menu.

Note: Services which have been cancelled remain in the service history. The Entry will

be marked as irrelevant and with data held within will be reset. The Undo Reset is only
possible if there is an existing service held within the service memory.

Undo Additional

This function cancels any additional work applied the latest service stored in the
service history the last preformed service.

A warning will be displayed before the undo process is performed. This option is only
intended for resetting an additional service option that has accidentally been reset.

A menu of all the additional work available from the vehicle’s last service.

Press and keys to scroll through the available list.

Press the key to select/deselect an item. Multiple items can be selected and any
items selected are highlighted by .

Press to return to the Assyst Plus menu. Press to remove the selected
options from the service memory. The result of the undo will be displayed, press any
key to return to the Assyst Plus menu.

65

FastCheck

Note: Undo is only possible if there is an existing service held within the service

memory and the selected service options are applicable to the latest service.

Flexible Service System:

Select Service Reset and press to confirm the selection. To return to a previous
menu, press the key.

When prompted to, check that all the vehicle's doors are closed, then press any
button on the service tool to have the oil or service light reset.

WARNING: Be sure to close all the vehicle's doors before sending the reset
command. Not doing so can result in permanent damage to the vehicle's
instrument panel.

You will receive the message "Mercedes Reset" to confirm the reset process was
completed successfully.

MG Rover vehicles

Scroll through the list of available vehicle models and press to confirm the
selection. To return to a previous menu, press the key.

When prompted to, check that all the vehicle's doors are closed, then press any
button on the service tool to have the oil or service light reset.

You will receive the message "MG Rover Reset" to confirm the reset process was
completed successfully.

Saab vehicles

Select 'Interval and Oil' and press to confirm the selection. To return to a previous
menu, press the key.

You will receive the message "Saab Reset" to confirm the reset process was
completed successfully.

Volvo vehicles

Select 'Service' and press to confirm the selection. To return to a previous menu,
press the key.

You will receive the message "Volvo Reset" to confirm the reset process was
completed successfully.

66

FastCheck

VAG (Volkswagen and Audi) vehicle

Manufacturer Option 1 Option 2 Option 3 Option 4 Option 5

Adaptation - Refer to Variable Service Reset section

VAG Service

Reset

Service
Reset

Long Life Oil Service Reset N/A

Set Oil Type Diesel

V6 TDI

Petrol

Non Long
Life Oil

View Oil Type N/A

Non Long
Life Oil

Service Inspection 1 N/A

Service Reset N/A

Inspection 2 N/A

Use the and keys to select the required menu option and press to confirm
the selection. To return to a previous menu, press the key.

You will receive the message 'VAG Reset' to confirm the reset process was
completed successfully.

67

FastCheck

Variable Service Reset (VAG)

For some VAG (Audi and VW) vehicles manufactured since 2000, the variable service
reset option must be used. Refer to the Vehicle Application List.

WARNING: Changing the baseline / learn values of any channel could have
adverse effects on engine performance and running. If you have any doubt please
consult somebody familiar with the system.

Service

Ty pe

Service Service Reset 2 Reset service counters

Adaptation Channel Counter Contents Value to

Reset

00000

(distance and time)

40 Distance travelled since last

service ÷ 100.

41 Time elapsed (in days) since

last service

42 Lower limit for distance to

next inspection

43 Upper limit for distance to

next inspection

44 Upper limit for time to next

inspection

45 Quality of engine oil -----

00000

00000

-----

-----

-----

To reset the service interval, use the and keys to select channel 2 and press

to confirm the selection.

Change the value of the channel to 00000 to reset the both the time and distance
service counters. Use the and keys to change each digit to 0 and press
to confirm.

Note: Channels 40, 41, 42, 43, 44 and 45 are used when installing a new instrument

pack.Values from the original instrument pack must be entered into the new
instrument pack to ensure that vehicle servicing is carried out at the correct intervals.

68

FastCheck

Service reset adaption channels and values

Model Adaption

channel

Audi 100 Oil 05 00015

1991 on Service 1 (distance) 06 00030

Service 1 (time) 07 00036

Service 2 08 00073

Audi A8 Oil 05 15000

1994 - 1995 Service 1 (distance) 06 30000

Service 1 (time) 07 00365

Service 2 08 00730

Audi A8 Oil 05 00015

1995 on Service 1 (distance) 06 00030

Service 1 (time) 07 00036

Service 2 08 00073

Audi A6 Oil + Service 02 00000

1998 on Oil 02 00010

Service 02 00001

Adaption
reset

Polo Oil 05 00150

1995 Service 06 00300

Service 07 00360

Caddy 1996 on

Polo Classic 1996 on See Golf Mark III

Polo variant 1996 on

Passat Oil 10 00015

1997 on 11 00030

12 00037

Golf Oil 10 00015

1998 on 11 00030

12 00036

Sharan Oil 05 00000

1996 on Oil 06 00000

Navigation with
multifunction

Service
Service

01-07
02-08

00000
00000

69

FastCheck

Model Adaption

channel

Lupo 10 00150

1999 on 11 00300

12 00360

Audi A4 Oil 05 00015

1995 - 1998 Service 1 (distance) 06 00030

Service 1 (time) 07 00036

Service 2 08 00073

Audi A4 Oil + Service 02 00000

1998 on Oil 02 00010

Service 02 00001

Audi A3 Oil + Service 02 00000

1997 on Oil 02 00000

Service 02 00000

Adaption
reset

70

FastCheck

for long life service

No long life oil required

service

Time or condition based

used at service

Vehicles equipped for long life service Vehicles not equipped

If long life oil is used at service If long life oil is not

based service

Long life service Time or condition

Petrol 4/5 cyl. Diesel 6 cyl. Diesel Petrol Diesel Petrol Diesel

required

Time or condition

Service variant No long life oil

Information on

No. of data carrier QGO QG1 QG2

life service

equipped for long

Vehicle equipment Vehicles not

Marking and coding service intervals

based service

service label

Coding of adaption channels

Channel 02 0 0 0 0

Channel 40 0 0 0 0

Channel 41 0 0 0 0

Channel 42 - 15 15 15

Channel 43 15 30 50 35 15 15 15 15

Channel 44 365 730 730 730 365 365 365 365

Channel 45 - 2 4 3 1 1 1 1

Channel 46 - 0 - - 0 - 0 -

Channel 47 - - 0 0 - 0 - 0

Channel 48 - - 0 0 - 0 - 0

71

FastCheck

FastCheck TPMS

The TPMS (Tyre Pressure Monitoring System) function can be used to re-program tyre
valves on vehicles fitted with TPMS valves, refer to the coverage in the table below:

Manufacturer Vehicle - Type 1 Vehicle - Type 2

Citroen C4

C5

C5 II

C6

C8

Peugeot 307 II

407

607

607 II

807

Fiat Ulysse

Lancia Phedra

Renault Megane II

Scenic II

Laguna II

Espace IV

Vel Satis

Citroen, Peugeot, Fiat and Lancia (Type 1)

For Citroen, Peugeot, Fiat and Lancia, the only option is to program all valves using
the following procedure:

1. When requested activate each TPMS valve in turn starting with the front left
wheel, front right wheel, rear right then rear left wheel. In order to activate the
valves, a TPMS Valve Activator Tool should be used. When activated, the valve
is forced to transmit its valve code and status to the vehicle’s body control
module.

2. When the body control module receives the transmission, it stores the tyre valve
code for the current wheel which is also indicated by the service tool.

3. When each valve code has been programmed, the service tool will show a
confirmation message, at which point you can confirm programming or abort.

Citroen, Peugeot, Fiat and Lancia (Type 2)

With these vehicles all tyres need to be inflated to 3.7 bar for programming to be
successful. In order for the valves to transmit their codes a TPMS Valve Activator Tool
should be used.

72

FastCheck

Follow the on screen instructions which indicate the order the wheels are to be
programmed in. The spare wheel is included along with the other wheels, but if this
option is not supported by the vehicle, a message will appear after a few seconds to
indicate this.

Note: Remember to reset the correct tyre pressures when finished.

Renault
General

Note: For Renault vehicles which use the ‘Renault Card Keyless Ignition System’ and

the ‘START’ button (Megane II, Scenic II etc.):

To switch the ignition on WITHOUT starting the engine:

1. Unlock the car with the remote (card).

2. Insert the card into the card reader.

3. Without pressing the brake or clutch pedal push and hold the ‘START’ button for
at least 5 seconds. The dash should illuminate and the button should be released.

All diagnostics can now be carried out.

TPMS is the Tyre Pressure Monitoring System.

Each valve sensor has a unique code and is matched to a particular wheel. This is
programmed into the UCH control module. This enables a faulty wheel to be identified
(given that the receiver can identify which wheel is transmitting). The sensor emits an
RF (Radio Frequency) signal containing the valve code, status and tyre pressure. If
wheels are to be swapped around then reprogramming will need to be carried out to
identify the new position of the wheel.

Each valve sensor has a coloured ring attached to the valve nut, each colour
corresponds to a particular wheel position:

Front Left: Green

Front Right: Yellow

Rear Left: Red

Rear Right: Black

It is recommended that if tyres are moved around that the coloured rings are replaced
in the correct wheel position.

Each valve sensor will emit a signal every hour if stationary, and every 15 minutes if a
leak is present. If moving it will emit a signal every minute if no leak is present, and
every 10 seconds if a leak is present.

Note: In the live data the tyre pressures will display a default value of 3.5 bar until the

valves have been forced to transmit.

73

FastCheck

Renault (Type 1)

This feature allows the user to read and clear faults, view live data, test the TPMS
display lights and reprogram the unit via the Command Menu.

The Command Menu features are:

1. Program tyre valves - This allows the user to program 1 valve or 4 valves by

a. Manually entering the valve code from the keypad. The code is written on a

label if the sensor is new, or if the sensor is used then remove the tyre and
read the code on the sensor

b. Automatically forcing the valve to emit the code by using a TPMS Valve

Activator Tool, or deflating the tyre pressure by at least 1 bar, or rotating the
wheel by more than 20 km/h. When deflating the tyre the valve will not
transmit until 15 minutes has elapsed.

Note: If fault code 0007 is present, automatic coding will not be possible.

When using the TPMS Valve Activator Tool it should be placed resting on the
tyre under the appropriate valve. When the sensor has been excited and the
transmitted code has been received the service tool will indicate a successful
read. The option is then given to program the new code.

2. Select the winter tyre option - This is used during the winter in some countries
where the weather conditions require winter tyres.

3. Select the summer tyre option - This is used as default or during the summer
when winter tyres are changed.

4. Set control module with TPMS option - Programs the control module with the
TPMS option.

5. Set control module without TPMS option - Disables the TPMS option.

6. Set tyre pressure limits - Enables the setting of maximum and minimum tyre
pressure limits.

7. Change trigger limit.

8. Drive the actuator - Tests the TPMS display lights.

Renault (Type 2)

With these vehicles all tyres need to be inflated to 3.7 bar for programming to be
successful. In order for the valves to transmit their codes a TPMS Valve Activator Tool
should be used.

An option is given as to select the current tyre set (Summer/Winter). Follow the on
screen instructions which indicate the order the wheels are to be programmed in. After
operating the TPMS Valve Activator Tool alongside the requested wheel, if successful
a message will be displayed on the screen indicating that the valve code has been
detected and displaying the valve code. After all 4 wheel codes have been
successfully detected then an option is given to program the codes.

Note: Remember to reset the correct tyre pressures when finished.

74

FastCheck

TPMS Trouble shooting

If a valve appears to not respond when stimulated with a TPMS Valve Activator Tool,
check the following:

• The tyre valve is a TPMS valve.

• The TPMS activator tool is not pointing directly at the valve stem. The valve stem
is metal and will prevent a good RF signal. On low profile tyres, the area for the RF
to penetrate the tyre sidewall is small, carefully aim the TPMS Valve Activator Tool
half-way between the tyre rim and the tread.

• Check the batteries are not low in the TPMS Valve Activator Tool and the TPMS
valve.

• If there is no response from the valve after the checks have been made then it could
be that the TPMS valve itself is faulty.

Manual TPMS Process

BMW

Run-flat Reset (RPA – Tyre Deflation Detection)

The run-flat system monitors the pressure in the four mounted tyres while the vehicle
is being driven.

The system will provide an alert whenever the inflation pressure in a tyre drops
significantly in relation to the pressure of another tyre.

The following BMW vehicles have the RPA system fitted:

BMW 3 Series (E90/E91/E92/E93)

BMW 5 Series (E60/E61)

BMW 7 Series (E65/E66/E67/E68)

BMW X3 (E83)

BMW X5 (E53)

It is necessary to initiate the RPA reset process IMMEDIATELY after every tyre
pressure correction, after a tyre or wheel change or after a trailer has been attached
or detached. The reset MUST be started before driving the vehicle for the first time
after one of the above events.

When a reset is required (due to a pressure change in one of the tyres) the vehicle will
inform the driver by turning on the RPA Warning Lamp, which will glow red, and
sounding an acoustic signal.

When the RPA Warning Lamp is on but the colour is yellow this indicates that the RPA
system has failed or is malfunctioning. In this case the system must be diagnosed
using the scan function of the service tool.

The RPA reset process can be started in two different ways depending on the model.

75

FastCheck

For vehicles with an iDrive (BMW 5 Series (E60/E61), BMW 7 Series (E65/E66/
E67/E68)):

• On iDrive open the menu.

• Select ‘Vehicle Settings’.

• Select ‘FTM’.

• Start the Engine but do NOT start driving.

• Select ‘Set Tyre Pressure’.

• Select ‘Yes’.

• Start to drive the vehicle, the message ‘initialising’ should be displayed on the iDrive
screen.

• The Reset process will terminate shortly after the vehicle beings to move. The
message ‘Status: Active’ should be displayed on the iDrive screen when the Reset
process has terminated correctly.

• If the vehicle is stopped while the reset is occurring the reset will be interrupted and
will be resumed when the vehicle is driven again.

For BMW 3 Series (E90/E91/E92/E93):

• Start the engine but do NOT start driving.

• Use the menu control button on the indicator stalk to move up or down until the
‘RESET’ menu item appears.

• Press the select button on the end of the indicator stalk to confirm your choice of
the Run Flat Indicator reset option.

• Hold the button down for approximately 5 seconds until the ‘RESET?’ symbol is
shown.

• Drive off. The Reset will terminate without informing the driver of success. If the
Reset has not been carried out correctly however the RPA Warning Lamp will glow
red and the process must be repeated.

• If the vehicle is stopped while the reset is occurring the reset will be interrupted and
will be resumed when the vehicle is driven again.

76

FastCheck

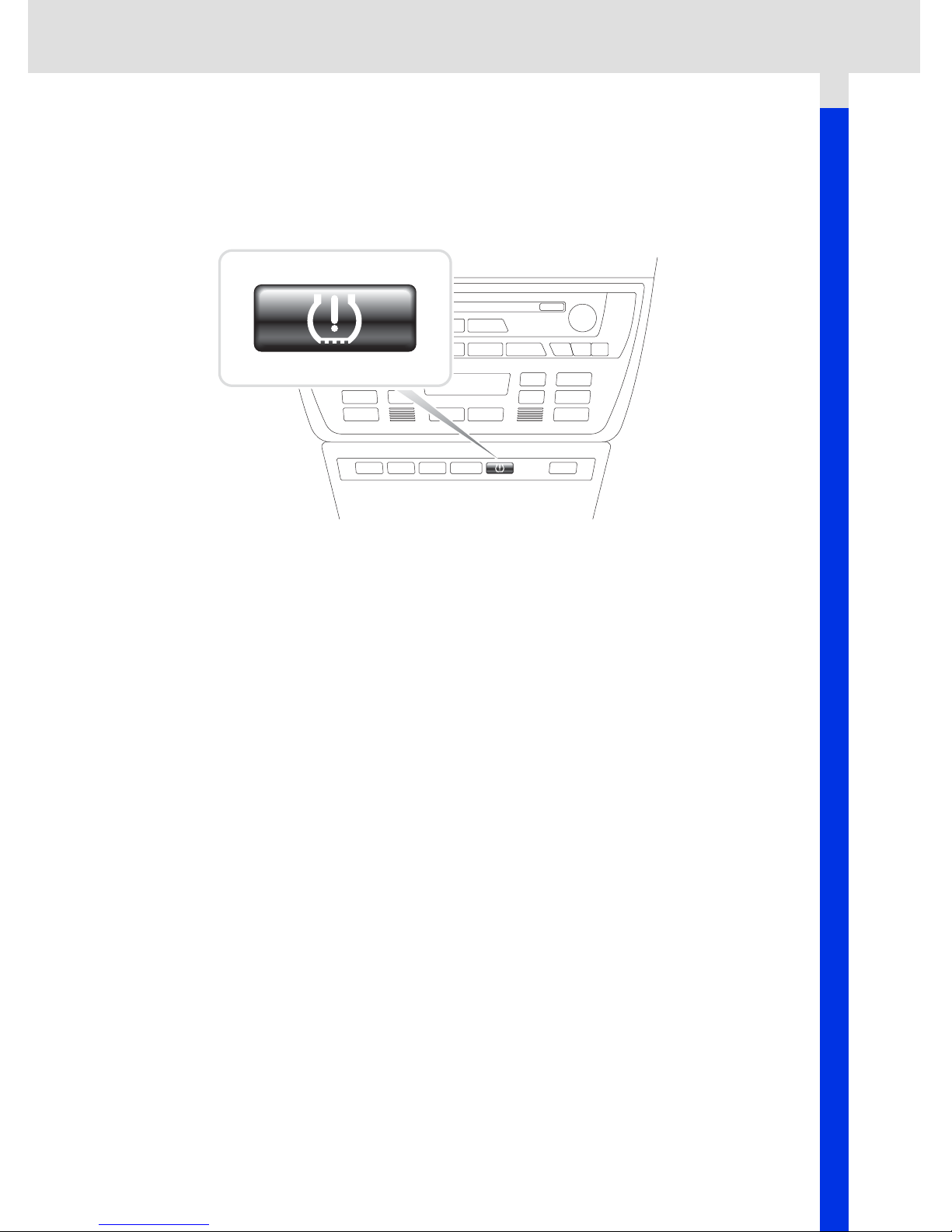

OM1345

For BMW X3 (E83), BMW X5 (E53):

• Start the engine but do NOT start driving.

• Hold down the button (shown in the diagram below) for approximately 5 seconds,
or until the RPA Warning Lamp glows yellow.

• The Warning Lamp should stay yellow for 5 seconds to indicate that the Reset has
started.

• Drive off. The Reset will terminate without informing the driver of success. If the
Reset has not been carried out correctly however the RPA Warning Lamp will glow
red and the process must be repeated.

• If the vehicle is stopped while the reset is occurring the reset will be interrupted and
will be resumed when the vehicle is driven again.

Mini

Run-flat Reset (RPA – Tyre Deflation Detection)

The run-flat system monitors the pressure in the four mounted tyres while the vehicle
is being driven.

The system will provide an alert whenever the inflation pressure in a tyre drops
significantly in relation to the pressure of another tyre.

It is necessary to initiate the RPA reset process IMMEDIATELY after every tyre
pressure correction, after a tyre or wheel change or after a trailer has been attached
or detached. The reset MUST be started before driving the vehicle for the first time
after one of the above events.

When a reset is required (due to a pressure change in one of the tyres) the vehicle will
inform the driver by turning on the RPA Warning Lamp, which will glow red, and
sounding an acoustic signal.

77

FastCheck

OM1346

When the RPA Warning Lamp is on but the colour is yellow this indicates that the RPA
system has failed or is malfunctioning. In this case the system must be diagnosed
using a the scan function of the service tool.

The RPA reset process is as follows:

• Start the engine but do NOT start driving.

• Press the RPA Reset button (shown in the diagram below) and hold down for at
least 5 seconds, or until the RPA Warning Lamp on the indicator panel glows
yellow.

• The Warning Lamp should stay yellow for 5 seconds to indicate that the Reset has
started.

• Drive off. The Reset will terminate without informing the driver of success. If the
Reset has not been carried out correctly however the RPA Warning Lamp will glow
red and the process must be repeated.

• If the vehicle is stopped while the reset is occurring the reset will be interrupted and
will be resumed when the vehicle is driven again.

78

FastCheck

1/A 2/B 3/C

CON0029

CON0019

16 9

18

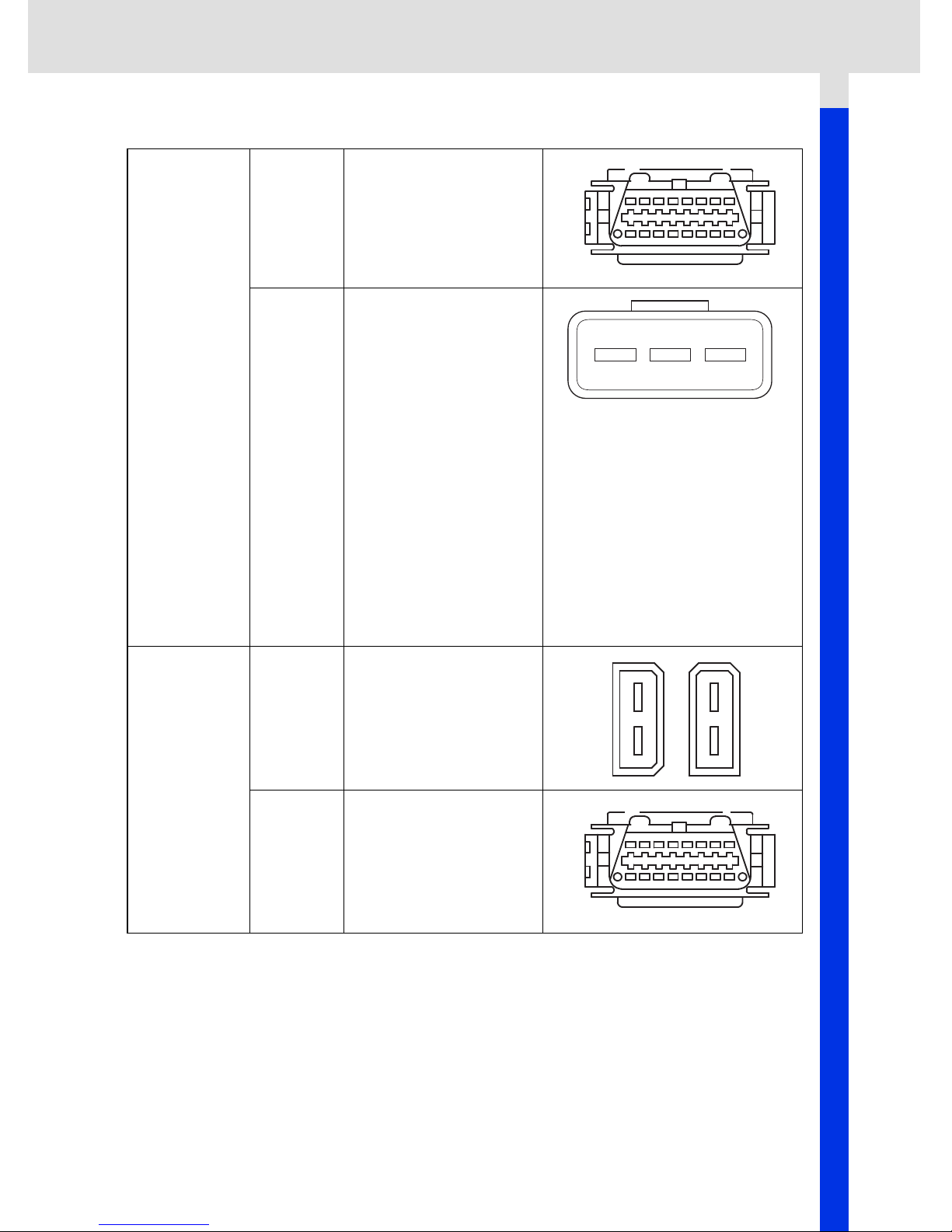

Diagnostic connector locations

Alfa Romeo J1962 Under the driver’s side

dashboard or in the fuse
box.

3-pin Airbag/ABS

• Engine compartment

– normally centre:
145, 146, 155, GTV/

Spider

• Engine compartment

– normally right:
145, 146, 155, 164,

GTV/Spider

• Under dashboard –

driver’s side:

147,156,166,GTV/
Spider

• Passenger glove box:

145, 146, GTV/Spider

16 9

18

CON0019

Audi 2-pin

Engine compartment

ISO 9141

relay box.

J1962 Driver's footwell under

the steering column or
the centre console
beneath a removable
panel.

CON0033

79

FastCheck

CON0019

16 9

18

BMW 20-pin

round
connector

J1962 If the vehicle is fitted with

Engine compartment.

a J1962 diagnostic
connector, this can
usually be located in the
driver's footwell behind a
cover.

Note: If the BMW vehicle

under test has both the
round (20 pin) diagnostic
connector and the J1962
(16 pin) connector, the
round connector should
always be used to
access information via
the BMW application and
the J1962 connector
should be used to
access data via the
EOBD application
(ensure the cap is fitted
to the 20-pin connector).
If the cap is not fitted, the
J1962 connector will not
function correctly.

CON0031

10

11

19

9

1

12 2

13

17

14

16

7

20

18

15

68

3

4

5

80

FastCheck

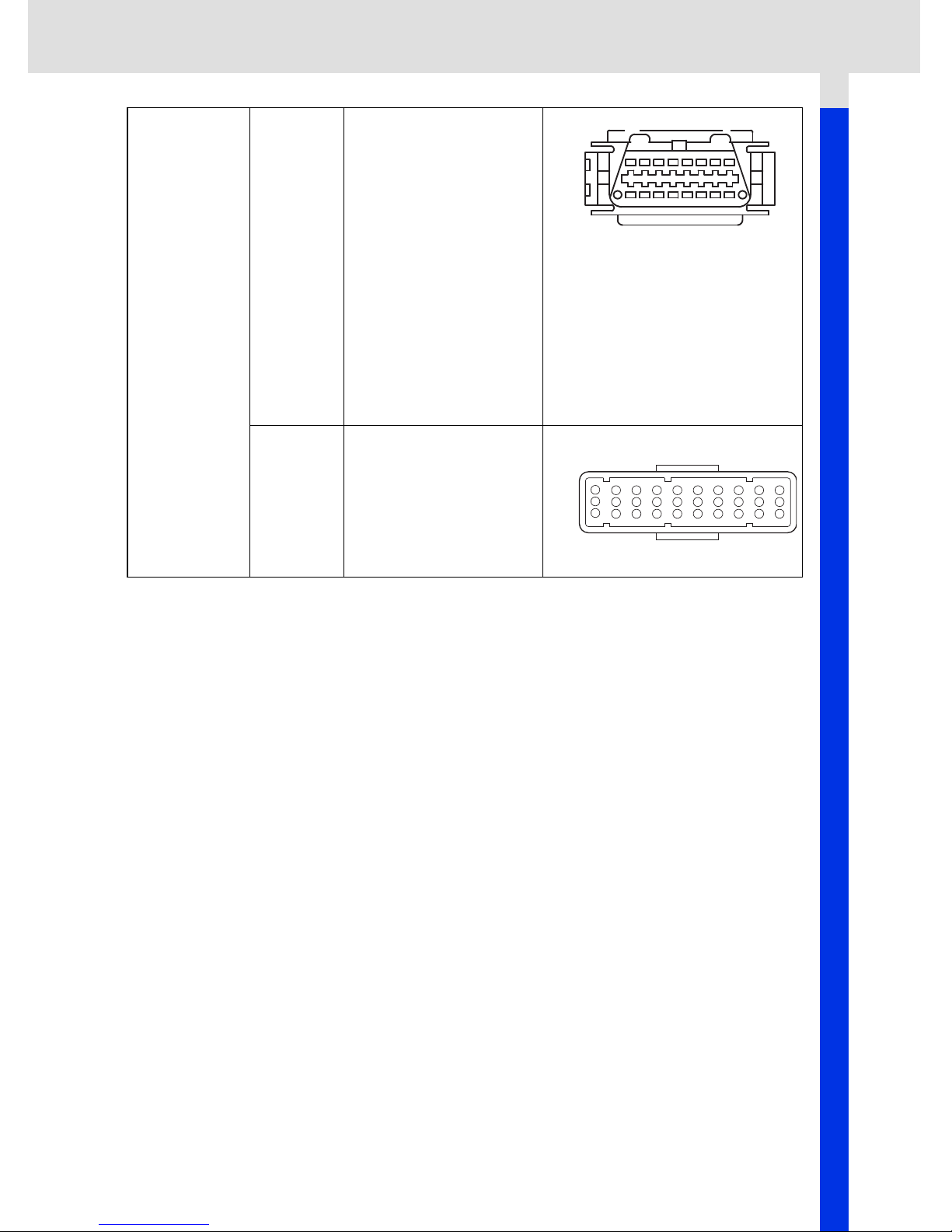

CON0028

Citroen J1962 Saxo: - Under

dashboard - passenger
side.

AX (1997), Berlingo: -

Under dashboard ­driver's side

C3, C6, C8, Xsara,
Picasso, Xantia,
Evasion: - Fascia fuse

box.

C5: - Glove box.
C1: - To left of steering

column.
C6: - Centre console
compartment.

30-pin
connector

Saxo: - Passenger side ­below dash.

Berlingo, Synergie,
Evasion: - Driver's side -

below dashboard.
XM, Xantia: - Fascia
fuse box.

16 9

18

CON0019

81

FastCheck

CON0019

16 9

18

CO

N0019

16 9

18

Fiat J1962 Driver’s side dashboard

or in the fuse box with
the exception of the
Palio/RST where it is in
the centre console,
under the handbrake.

3-pin Airbag/ABS

• Under dashboard –

driver’s side/
passenger glove box:

Barchetta, Bravo­Brava, Coupe, Doblo,
Ducato, Idea, Marea,
Multipla, Palio,
Panda, Punto,
Seicento, Stilo

• Engine compartment

– normally right:
Bravo-Brava, Croma,

Ducato, Marea, Palio,
Punto, Seicento

• Engine compartment

– normally centre:

Bravo-Brava, Croma

CON0029

1/A 2/B 3/C

Ford J1962 Courier, Fiesta, Ka: -

Passenger compartment

- bottom of 'A' pillar.

Focus, Mondeo,
Scorpio: - Central

junction box - below
steering column.
Galaxy: - Behind
ashtray- centre console.
Transi t : - Passenger
compartment fuse box ­behind spare fuse tray.
Puma: - Passenger side

- bottom of 'A' pillar.
Cougar: - Under dash
panel - centre.

82

FastCheck

GM Vauxhall/
Opel

J1962 Corsa C, Astra G, Astra

H, Meriva, Vectra B,
Zafira A, Zafira B: -

Below cover - front of
handbrake.

Agila, Tigra, Speedster/
VX220, Sintra, Vivaro: -

Below dashboard ­driver’s side.

Astra F, Corsa B,
Omega B: - Fuse box -

passenger compartment.
Corsa C, Corsa D: ­Centre console - below
heater controls.

Frontera, Vectra C,
Signum: - Centre

console - under ashtray.

Lancia J1962 Under the driver’s side

dashboard or in the fuse
box with the exception of
the Phedra where it is in
the driver’s side footwell.

16 9

18

CON0019

16 9

18

CON0019

Land Rover J1962 Driver or passenger’s

footwell.
Defender - centre
console behind
removable panel.

16 9

18

CON0019

83

FastCheck

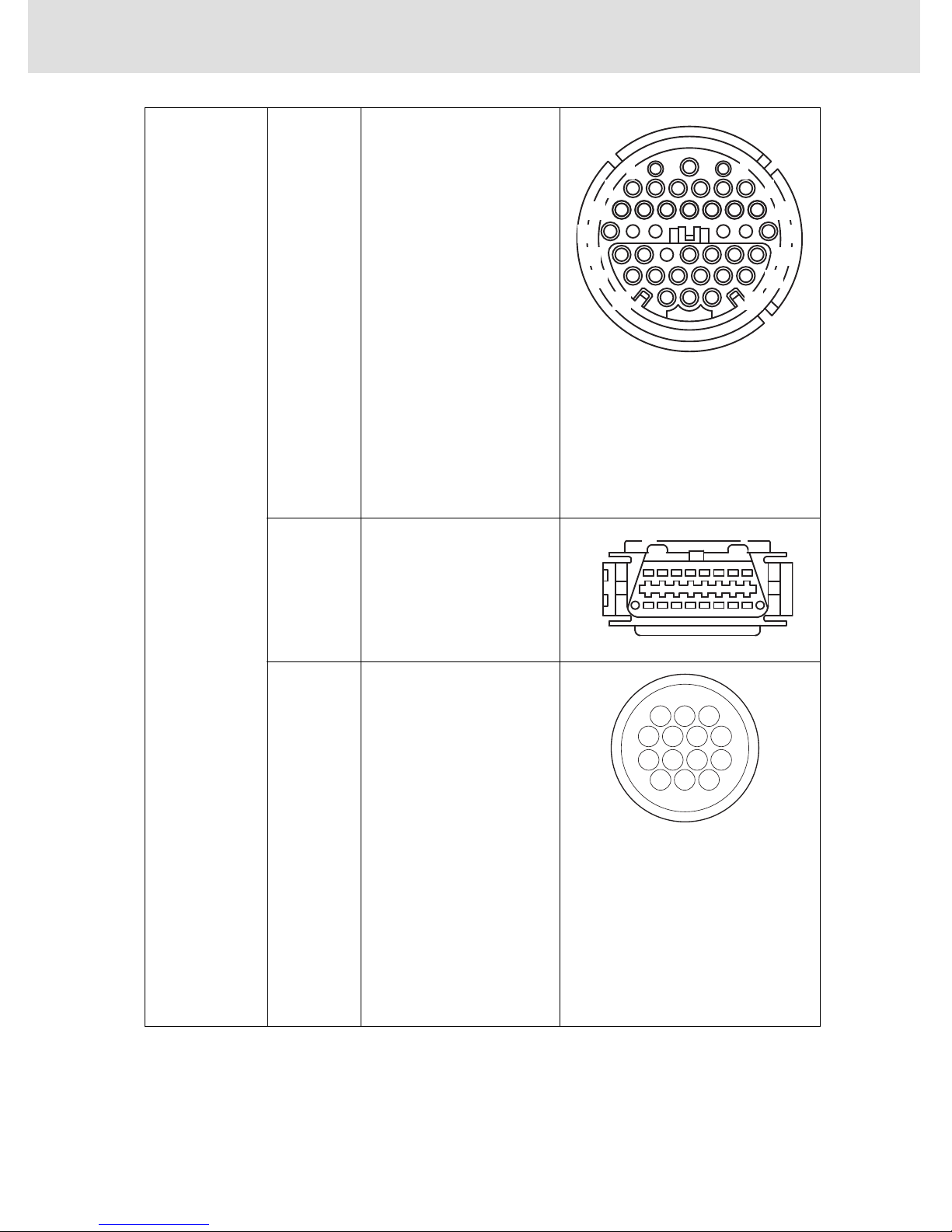

CON0030

31

4

10

17

23

30

36 38

35

29

22

16

9

CON0019

16 9

18

13

47

811

1214

CON0034

Mercedes
Benz

38-pin
round
connector

Engine compartment ­usually along bulkhead,
but the precise location
may vary.

Note: For those vehicles

which have both the
round 38-pin connector
and the OBD II
connector:

• The round 38-pin

connector should
always be used to
retrieve data via the
Mercedes application.

• The OBD II connector

should always be
used only to retrieve
data via the OBD II
application.

J1962 Driver's footwell under

the steering column or
the centre console
beneath a removable
panel.

14-pin
round
connector
(Sprinter)

Passenger’s footwell
under fascia behind
removable cover.
Some Mercedes vans
have a 14-pin round
connector which is
located under the
passenger side
dashboard, other
vehicles may have the
16-pin OBD II connector.

The 14 pin round
connector should always
be used to retrieve data
via the Mercedes
application. It does not
support OBD II.

84

FastCheck

Mercedes
OBD-1

16-pin
connector
block

Engine compartment ­usually on the bulkhead
adjacent to the fusebox.

MG Rover J1962 The diagnostic

connector is located in
one of three positions:

• Behind the 'A' post

lower trim panel in the
driver’s footwell.

• On a bracket inside

the centre console.

The connector is
often mounted on a
bracket so that it
faces into the
console. If this is the
case, the J1962
socket needs to be
removed from the
bracket before
connection can be
made. To remove the
diagnostic socket,
squeeze together the
two wings on the
back of the socket
and carefully pull the
connector free from
the bracket.

• Early MGF: - The

J1962 connector is
located inside a trim
panel by the steering
wheel just above the
internal fuse box.

13

24

CON0032

CON0019

5678

9 101112

13 14 15 16

16 9

18

85

FastCheck

CON0019

16 9

18

CON0028

CON0019

16 9

18

Peugeot J1962 106 (1997 on): - Under

dashboard - passenger
side.

206, 306, 806, Partner
(1997 on): - Under

dashboard - driver's
side.

307 (to 2004), 406 (1997
to 2000), 807: - Fascia

fuse box.
107: - To left of steering
column.
307 (2004 on): - Behind
ashtray in centre
console.
406 (2000 on): - Driver's
side dashboard (remove
small plastic cover).
407, 607: - Centre
console compartment.

30-pin
connector

106 (to 1997): ­Passenger side - below
dash.
806, Partner (to 1997): ­Driver's side - below
dashboard.
406 (to 1997), 605: ­Fascia fuse box.

Renault J1962 Clio: - Under ashtray -

centre console.
Espace: - Passenger
footwell.
Kangoo: - Driver
footwell.
Laguna: - Centre
console - in front of gear
lever.
Laguna 2: - Centre
console - under ashtray.
Megane: - Driver
footwell.
Safrane: - Engine
compartment - Near side
front wing.
Scenic: - Driver footwell.

86

FastCheck

CON0019

16 9

18

Saab J1962 Driver's footwell, under

the steering column.

Seat J1962 Alhambra: - Centre

console/ Footwell ­Passenger.
Arosa: - Fascia - Driver
side.
Ibiza, Cordoba: - Centre
console - Driver side.
To le d o: - Centre
console.

Skoda J1962 Favourit, Felicia (1.3),

Forman: - Under bonnet

- Suspension turret ­Near side.
Felicia (1.6): - Footwell ­Passenger side.
Octavia: - Storage
compartment - Driver’s
side.

16 9

18

CON0019

16 9

18

CON0019

16 9

18

CON0019

Volvo J1962 S/V40: - Under

dashboard - driver’s side.
S/V/C70: - Behind
handbrake.
850: - In front of gear
lever.
960: - Next to hand
brake.

87

FastCheck

CON0019

16 9

18

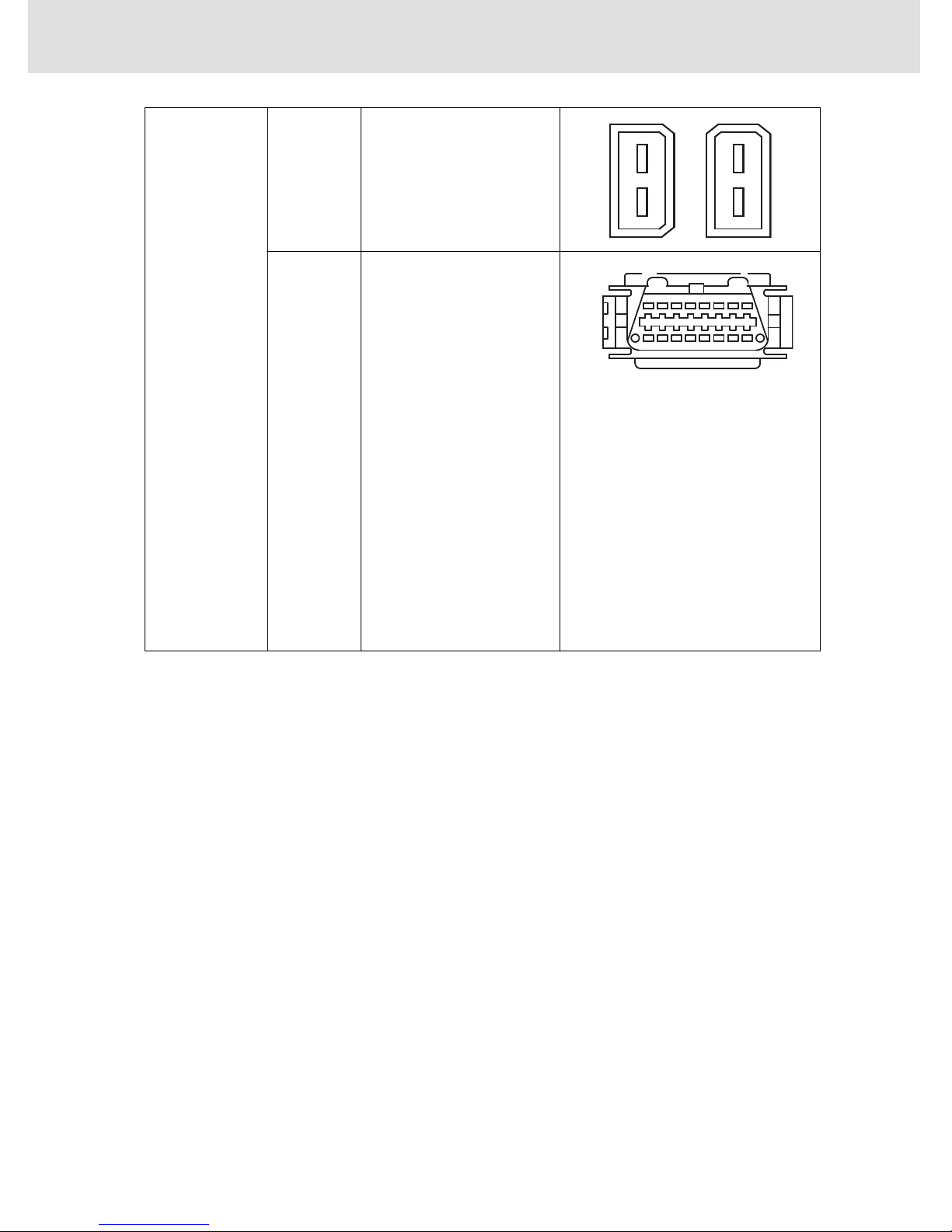

VW 2-pin

ISO 9141

J1962 Bora: - Centre console.

Engine compartment
relay box.

CON0033

Corrado, Passat: ­Dashboard - Centre.
Golf, Vento: ­Dashboard - Centre
(remove ashtray).
Lupo: - Centre console,
Storage compartment or
Front ashtray.

Polo: - Dashboard - RH.
Sharan: - Under gear

lever cover.
Transp o rt e r: - Adjacent
to instrument panel or
Fuse/relay box - Fascia.

Note: For more

information, refer to the
relevant technical
manual.

88

User Menu

User Menu

Overview

USER MENU

1. OBD DTC Lookup

2. Language Menu

3. Tester Setup

4. Self Test

5. Software Version

6. Security

7. CAN Converter

8. iMux Harness

Use the and keys to select the required function and press to confirm the
selection.

Note: Press to return to the Main Menu.

OBD DTC Lookup

This option is used to look up a description of a known DTC.

1. Use the and keys to move the cursor under the required DTC character,
then using the and keys, change the characters as required.

2. Press the key to confirm DTC.

3. Press to return to the User Menu.

If the unit recognises the DTC, the screen will display the full description. i.e. P0100 ­Mass or Volume Air Flow 'A' Circuit.

Where more that one description is available, a separate menu will appear for you to
select the appropriate option.

If a code is not recognised the message 'No Text Allocated for this Code' is displayed.

Note: Press to return to the User Menu.

Language Menu

The language menu allows you to change the software language if available.

1. Use the and keys to select the required language.

2. Press to confirm the selection.

Note: This menu is only enabled when more than one language is installed on the

service tool. If only one language is installed, the message 'Not Enabled' will be
displayed when the Language Menu option is selected and the display will return
to the User Menu.

89

User Menu

Tester Setup

The tester setup allows you to change the live data units, change the way live data is
displayed and adjust the contrast of the screen.

1. Select 'Live Data Units' from the Tester Setup menu.

LIVE DATA UNITS

1. Metric Units

2. Imperial Units

3. American Units

2. The currently selected live data units will be displayed on the screen. e.g. 'Metric
Units set', before displaying the available options.

3. Use the and keys to select the preferred units of measurement and
confirm by pressing the key. After updating, the unit returns to the Tester
Setup menu.

4. Select 'Live Data Display' from the Tester Setup menu.

LIVE DATA DISPLAY

1. Normal Text

2. Abbreviations

5. The currently selected live data display option will appear on the screen. e.g.
'Normal Text Set', before displaying the available options.

6. Use the and keys to select the preferred display option and confirm by
pressing the key. After updating, the unit returns to the Tester Setup menu.

7. Select 'Contrast' from the Tester Setup menu.

8. Use the and keys to adjust the contrast of the screen and confirm by
pressing the key. After updating, the unit returns to the Tester Setup menu.

Note: Press to return to the 'Tester Setup' menu.

Self Test

SELF TEST MENU

1. Run Self Test

2. Flash Test

3. Memory Test

4. IIC Memory Test

5. Vehicle Com Test

6. PWM J1850 Test

7. VPW J1850 Test

8. CAN Comms Test

9. Key Pad Test

10. Display Test

11. Display All Char

1. Use the and keys to select the required test.

90

User Menu

2. Press to confirm selection.

3. Follow on-screen instructions to carry out specified test.

4. Press the or key as appropriate, to return to the Self Test Menu.

Software Version

1. Once selected, the ContiSys OBD version number appears on the screen before
displaying a list all software modules, including version numbers, currently loaded
onto the service tool.

2. Use the and keys to scroll through the software module list.

3. Press the or key to return to the Self Test Menu.

Security

All of the applications on the ContiSys OBD are 'locked' by a security key. To unlock
a particular application the appropriate security key must be obtained from the
Product Support Team and entered into the ContiSys OBD. If the expected
applications are not displayed in the main menu it could be that the security key has
not been entered, or is incorrect.

To examine or enter a security key, enter the Security option. The following menu will
be displayed:

SECURITY

1. Show SecurityKey

2. Enter SecurityKey

3. Unit Serial No.

Show SecurityKey

1. Once selected, the security key is displayed on the screen as 25 characters. If it
is incorrect the message 'Key is Invalid' will be displayed as well, and the key
may be pressed for further information which may be asked for by product
support.

2. Press the or key to return to the User Menu.

Enter SecurityKey

This option is used to enter the security key to unlock the application loaded on the
ContiSys OBD.

1. Select 'Enter SecurityKey' from the security menu.

2. Using the and keys, scroll through the alpha/numerical character list.

3. Confirm each character by pressing the key.

4. If you make a mistake use the key and enter the correct character. To re-enter
the code from the beginning, press the key.

5. When prompted to verify the security key, press to confirm.

91

User Menu

6. Restart the ContiSys OBD either by disconnecting and reconnecting the power
supply or by pressing the outer 4 buttons on the handset at the same time.

Note: The button displays on-screen instructions. The button may be used to

cancel the operation and the original key will be retained.

Unit Serial No.

1. Once selected, the serial number of the ContiSys OBD is displayed on the screen.
This should match the number on the back of the unit. The serial number may be
requested by product support when issuing security numbers. The user cannot
change this number.

2. Press the key to return to the User Menu.

CAN Converter (Firmware update)

The CAN Converter option allows you to check and update the CAN converter cable
(A2C59512664) firmware.

CAN CONVERTER

1. Get FW Version

2. Update FW Version

Note: The CAN converter cable (A2C59512664) must be connected to service tool

before this user menu option can be used.

Get FW Version

1. Select the 'Get FW Version' item to display the current version of the firmware
within the CAN converter cable (A2C59512664).

2. Press to return to the User Menu.

Update Firmware

1. Select the 'Update FW Version' item to check and update the version of the
firmware within the CAN converter cable (A2C59512664).

2. A message will be displayed with the current version and if a later version of the
firmware is available to update the firmware in the CAN converter cable
(A2C59512664). Press to return to the User Menu. Press to continue the
update process.

Note: The update process must be allowed to fully complete once started and the

power must not be interrupted during the update process.

92

User Menu

iMUX Harness (Firmware update)

The iMux harness option allows you to check and update the multiplexer cable
(A2C59512985) firmware.

IMUX HARNESS

1. Get FW Version

2. Update FW Version

Note: The multiplexer cable (A2C59512985) must be connected to service tool before

this user menu option can be used.

Get FW Version / Boot Mode

1. Select the 'Get FW Version' item to display the current version of the firmware
within the Multiplexer cable (A2C59512985).

2. Press to return to the User Menu.

3. Press to return to continue to put the Multiplexer cable into boot mode ready
to be updated. Follow the on screen instructions. The Multiplexer cable must be
reprogrammed once the message to re-power the cable has been displayed.
Disconnected the Multiplexer cable form the power and then reconnect. Now
reprogram by selecting the ‘Update FW version’ option in the Multiplexer menu.

Update Firmware

This process should only be performed after the Multiplexer cable has been placed
into boot mode.

1. Select the 'Update FW Version' item the Multiplexer cable will now be updated.

2. A message will be displayed to show the firmware has been updated. Press
to continue the update process

Note: The update process must be allowed to fully complete once started and

the power must not be interrupted during the update process.

93

General information

General information

Cleaning

To maintain the condition and serviceability of the service tool, it is advisable to follow
the cleaning procedures below:

WARNING: Do not use solvents such as petroleum based cleaning agents,
acetone, petrol, trichlorethylene etc. These types of harsh solvent may seriously
damage the plastic casing. Do not even spray or pour this type of cleaner onto a
cleaning cloth.

WARNING: The service tool is not waterproof. Always dry the unit thoroughly after
cleaning or if it has been subject to accidental spillage.

The manufacturer recommends that you periodically inspect and clean the following
parts of the service tool:

• The case

• The display screen

•The keypad

• Adaptor cables and connectors

To clean the service tool, or any of its cables or connectors, apply a mild detergent
solution to a soft clean cloth that has been suitably dampened.

WARNING: Before cleaning, disconnect the service tool from the vehicle.

Display screen

During normal everyday use, the screen may become dusty or covered in grime. To
clean the screen, always use a soft, clean, antistatic cloth. If any stubborn stains or
marks remain, use a non-abrasive glass cleaner applied to a soft, clean cloth. Gently
wipe the cloth across the display until the marks have been removed.

Software updates

For the latest information on software updates go to: www.contisys-service.com.

94

General information

Specification

ContiSys OBD complies with ISO/DIS 15031 Part 4 as an EOBD service tool.

Voltage requirements - 8.0 volts to 16.0 volts DC

Current requirement - 750mA max.

Display - 20 characters by 4 lines LCD with LED back light

Operating Temperature range - 0°C to 50°C

Declaration of Conformity

The ContiSys OBD is CE marked and complies with the following directives:

EN55022:1998 - ITE Emissions (Class A)

EN50082-1:1998 - Generic EMC Immunity

EN60950:1992 - Safety Requirements

FCC47 Part 15 - Radio Frequency Devices (Class A)

A copy of the Declaration of Conformity certificate is available on request from the
manufacturer or your supplier.

95

Appendix A: Glossary

Glossary

Glossary of terms

Term Description

J1962 The SAE standard that defines the 16-pin connector used for EOBD

ABS anti-lock brake system

A/C air conditioning

AC air cleaner

AIR secondary air injection

A/T automatic transmission or transaxle

AP accelerator pedal

B+ battery positive voltage

BARO barometric pressure

CAC charge air cooler

CARB Californian Air Resources Board

CFI continuous fuel injection

CL closed loop

CKP crankshaft position sensor

CKP REF crankshaft reference

CM control module

CMP camshaft position sensor

CMP REF camshaft reference

CO carbon monoxide

CO2 carbon dioxide

CPP clutch pedal position

CTOX continuous trap oxidizer

CTP closed throttle position

DEPS digital engine position sensor

DFCO decel fuel cut-off mode

DFI direct fuel injection

DLC data link connector

DTC diagnostic trouble code

DTM diagnostic test mode

EBCM electronic brake control module

EBTCM electronic brake traction control module

EC engine control

ECM engine control module

ECL engine coolant level

ECT engine coolant temperature

96

Appendix A: Glossary

EEPROM electrically erasable programmable read only memory

EFE early fuel evaporation

EGR exhaust gas re-circulation

EGRT EGR temperature

EI electronic ignition

EM engine modification

EOBD European On-Board Diagnostics

EPROM erasable programmable read only memory

EVAP evaporative emission system

FC fan control

FEEPROM flash electrically erasable programmable read only memory

FF flexible fuel

FP fuel pump

FPROM flash erasable programmable read only memory

FT f ue l t ri m

FTP federal test procedure

GCM governor control module

GEN generator

GND ground

H2O water

HO2S heated oxygen sensor

HO2S1 upstream heated oxygen sensor

HO2S2 up or downstream heated oxygen sensor

HO2S3 downstream heated oxygen sensor

HC hydrocarbon

HVS high voltage switch

HVAC heating ventilation and air conditioning system

IA intake air

IAC idle air control

IAT intake air temperature

IC ignition control circuit

ICM ignition control module

IFI indirect fuel injection

IFS inertia fuel shut-off

I/M inspection/maintenance

IPC instrument panel cluster

ISC idle speed control

KOEC key on, engine cranking

97

Appendix A: Glossary

KOEO key on, engine off

KOER key on, engine running

KS knock sensor

KSM knock sensor module

LT long term fuel trim

MAF mass airflow sensor

MAP manifold absolute pressure sensor

MC mixture control

MDP manifold differential pressure

MFI multi-port fuel injection

MI malfunction indicator lamp

MPH miles per hour

MST manifold surface temperature

MVZ manifold vacuum zone

MY model year

NVRAM non-volatile random access memory

NOX oxides of nitrogen

O2S oxygen sensor

OBD on-board diagnostics

OBD I on-board diagnostics generation one

OBD-II on-board diagnostics, second generation

OC oxidation catalyst

ODM output device monitor

OL open loop

OSC oxygen sensor storage

PAIR pulsed secondary air injection

PCM powertrain control module

PCV positive crankcase ventilation

PNP park/neutral switch

PROM program read only memory

PSA pressure switch assembly

PSP power steering pressure

PTOX periodic trap oxidizer

RAM random access memory

RM relay module

ROM read only memory

RPM revolutions per minute

SC supercharger

98
