Montage- und Bedienungsanleitung
Installation and Operating Instructions
Compass
VDO Kienzle Vertrieb und Service GmbH
Installation and Operating Instructions
Page 22 - 40
21
CONTENT
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
for installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
for maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
The VDO Ocean Line Compass . . . . . . . . . . . . . . . . . . . . . . 27
System components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
The indicating functions of the VDO Compass . . . . . . . . . 29
Automatic compensation of the VDO Compass . . . . . . . . 30
Setting of the position-dependent variation. . . . . . . . . . . . 32
Adjustment of the compass sensor. . . . . . . . . . . . . . . . . . . 33
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Maintenance of the VDO Compass . . . . . . . . . . . . . . . . . . . 34
Installation of the VDO Compass. . . . . . . . . . . . . . . . . . . . . 35
Installation of the indicating instrument . . . . . . . . . . . . . . . . . . 35
Installation of the compass sensor . . . . . . . . . . . . . . . . . . . . . 36
Electrical installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
System power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

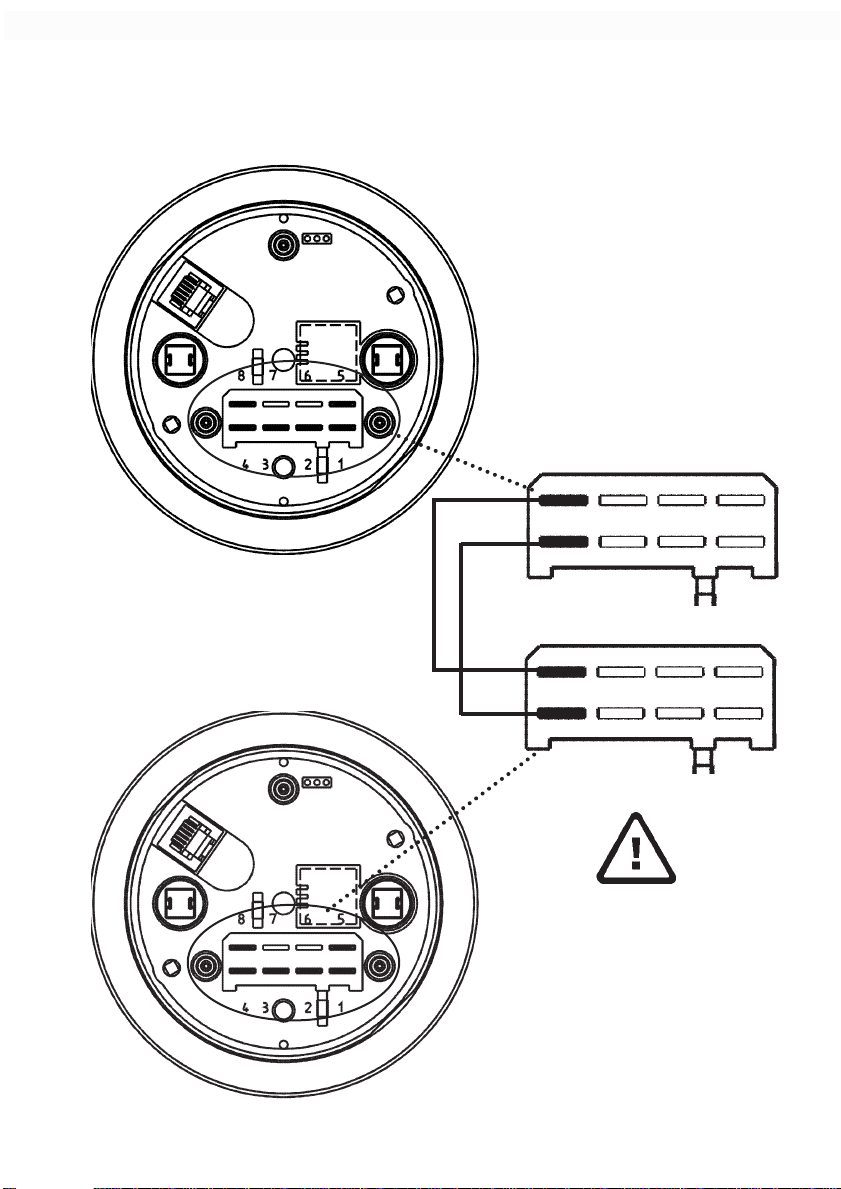

Connection of a secondary indicating instrument . . . . . . . . . . 39
Legend of the circuit schematic. . . . . . . . . . . . . . . . . . . . . . . . 40
Cable lengths. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
22
23
SAFETY
This document should always stay on board
Preface
With the purchase of an instrument of the VDO Marine program you selected a high-quality product, made to the accepted State of the Art.
Advanced production methods and the respect of the applicable quality
assurance standards guarantee that our products are shipped in excellent condition.
Thank you for your sound decision. We are certain that this system will
provide you with valuable assistance and safety at sea.
You should be familiar with all functions of the unit to guarantee easy
and safe use of your VDO Compass.
Please take the time to completely study this manual.
Your VDO Kienzle agent will be pleased to help you if, thereafter, you
still have questions or problems.
Yours sincerely
VDO Kienzle Vertrieb und Service GmbH
© Copyright by VDO Kienzle 1998
All rights reserved
24
SAFETY
Safety instructions
Please respect all instructions of this manual.
All texts marked with this symbol should have your
particular attention.
They are indications of particular importance for the
operation of the system and for your safety.
The use of the compass system does not relieve you of the responsibility for your ship, and requires good seamanship.
Always rely on your nautical experience for the interpretation of the indicated values.
Safety Instructions concerning the installation:
The compass system should be installed by your shipyard or by a specialist.
Use adequate working clothes if you install it yourself. Avoid loose clothing. Use a hair net if you have long hair. Clothing and hair may be
caught by moving parts.
Remove all metallic or electrically conducting jewelry, such as chains,
bracelets, rings, etc. when working on the on-board electrical system.
Disconnect the minus polarity of the battery before starting your work to
prevent the risk of a short-circuit. Short-circuits can cause harness fires,
battery explosions and damages of other electronic memory systems.
Please note that all volatile electronic memories will lose their contents,
and will have to be re-programmed if you disconnect the battery.
VDO instruments are not equipped with volatile memories.
Risk of explosion! Run the engine blower for a certain time before starting work in a gasoline engine compartment.
Check for sufficient clearance behind the mounting hole when selecting
the location for the indicating instrument. Pre-drill the hole and finish with
hole or keyhole saw (respect the safety instructions of the tool manufacturer).
25
SAFETY
Check that no stringers are damaged when selecting the location for the
sensor installation. Check for furniture, floor boards, boxes, cables, etc.
Solvent vapors may be produced when working with sealants. Provide
sufficient ventilation. Respect the recommendations given by the sealant
manufacturer.
Use insulated tools if you must work without disconnecting the power
supply.
The electrical connections of the compass indicating instrument and the
cables connected to the unit must be protected against direct contact or
damage.
Capacitors in the equipment could still be charged, even if the power
supply of the unit has been disconnected.
Use cables with sufficient insulation thickness or voltage rating, and protect the connections against direct contact.
Electrically conducting parts of the connected consumers shall also be
protected against direct contact by adequate measures. The use of noninsulated wires and contacts is strictly forbidden.
Safety instructions concerning the maintenance:
Repairs of the compass system components shall only be made by specialists authorized by VDO Kienzle. The VDO Compass meets the corresponding safety regulations.
26
VDO COMPASS
The VDO Compass
Analog dial
Display
Pushbutton

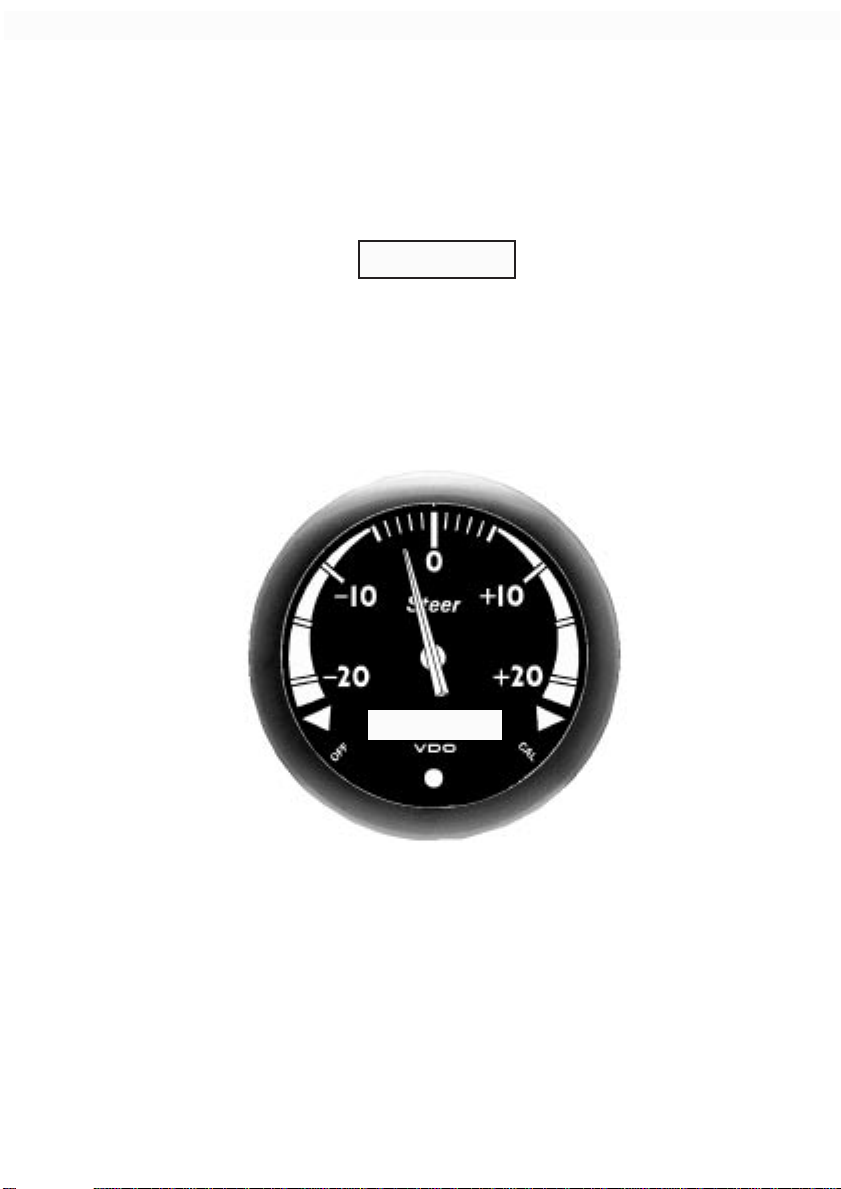

The VDO Compass is an electronic course indicator designed for the
use in sports ships.
The unit has a pushbutton on the front. It serves for the activation of the
operating modes
course indication
In
course indication
mode the display shows the current course, the
pointer is in the OFF position.
and
desired course with deviation
.
desired course with deviation
In
mode the display indicates the desired
course, the pointer indicates the deviation on the analog dial.
The desired mode is selected by pushing the button. The use of the instrument is simple and uncomplicated.
A maximum of two more indicating instruments can be connected.
27
VDO COMPASS

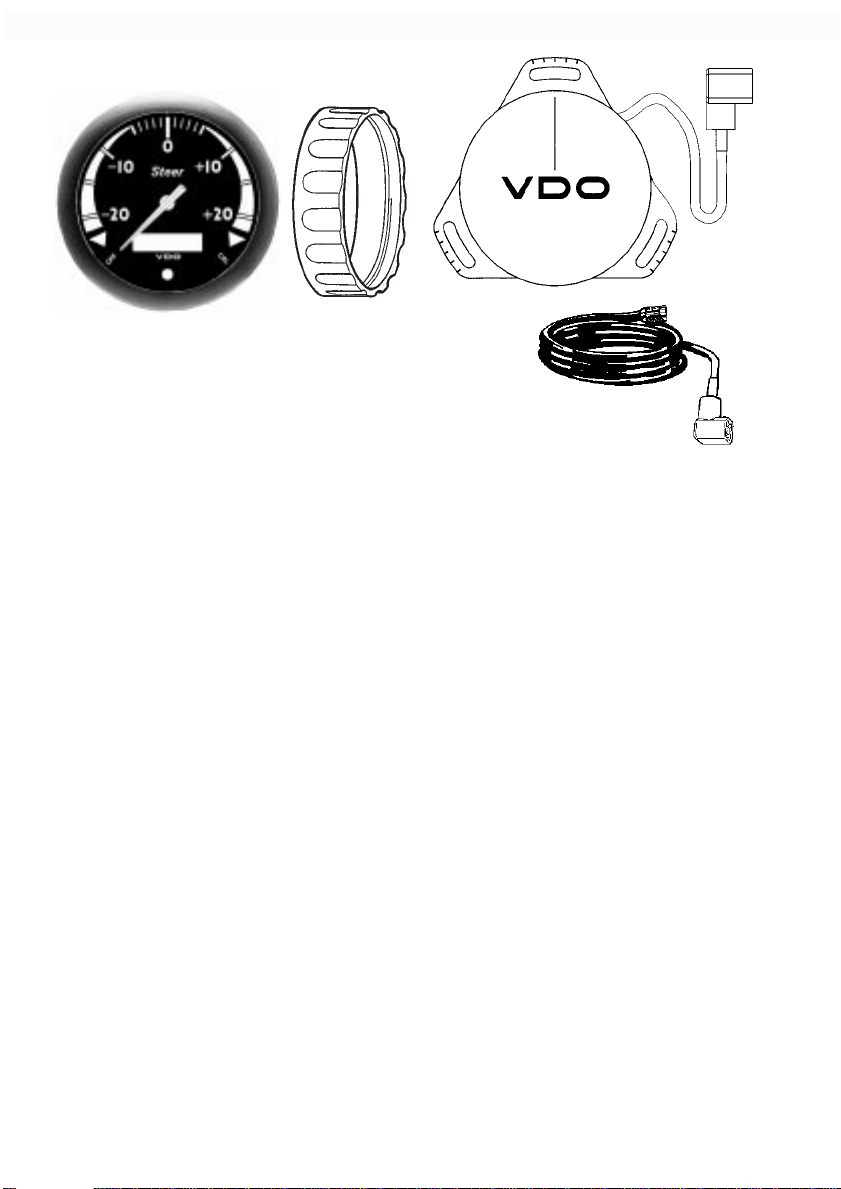

Components of the system
The supplied kit contains:
- Indicating instrument
- Union nut for instrument fixation
- Fluxgate compass sensor with connecting cable, length 1 m
- Warning label
- Red connecting cable compass sensor - indicating instrument,
length 10 m
- Installation and operation manual
Accessories (must be ordered separately):
- Fixation kit (bracket) N05 800 792
- Lighting kit (24 V / 1.2 W) N05 800 550
- 2nd indicating instrument VDO Compass N01 512 002
Spare parts:
- Lighting kit (12 V / 1.2 W) N05 800 552
- Fluxgate compass sensor N01 530 302
Other spare parts are available on request.
28
INDICATING FUNCTIONS
The indicating functions of the VDO Compass
The indicating instrument displays the following course information
when the power is switched on:
Course indication
1.
The display indicates the steered course (267° in the example).
The pointer is in “OFF” position and has no function.
mode
267
or
Desired course with deviation
2.
The display continuously indicates the desired course.
This course indication (270° in the example) is preceded by a „S“.
At the same time the pointer indicates the deviation from the desired course (3° port in this case).
The indication corresponds to the active mode (1 or 2) when the power
S 270
supply was shut off.
The pushbutton toggles between both indicating modes.
The indicating instrument must be in course indication mode to indicate
a specific course as the desired course.
Set the ship to the desired course and push the button. The current
course is stored as the desired course, and the pointer moves to center
position (deviation 0°).
Each deviation from the desired course is indicated by the analog pointer (3° port in this case).
29
COMPENSATION
Automatic compensation of the VDO Compass
All on-board iron masses of a ship are more or less magnetic and influence the compass. This effect must be compensated in a fluid compass
as well as in a fluxgate compass.
On conventional fluid compasses this requires the services of a qualified
specialist. On the VDO Compass with its automatic deviation compensation you can easily and reliably perform this adjustment yourself. As supplied the VDO Compass behaves like a normal, non-compensated fluid
compass.
Perform the automatic compensation during a circular course with calm
sea, at a sufficient distance to port installations and magnetic disturbances (such as steel bridges, sheet piling, other ships). The diameter of
the circle should be five or six times the ship length, the speed adapted
to complete one circle in about 3 minutes.
No valid course is indicated by the instrument during the compensation.
Perform the compensation as follows:
Start the circular course and switch the power supply on while keeping
the button pushed.
The display indicates „
OFFSET
“.
OFFSET
Relase the button when „
local compass deviation is indicated (setting see page 32).
OFFSET
“ is displayed. After some seconds the
OS 000
After another 5 seconds the display automatically changes to „CAL“.
CAL
Push the button during „
The pointer moves to the „CAL“ position.
“ until „
CAL1
“ is displayed.
CAL
Push the button
CAL 1
(Note: you have about 5 seconds to start the “CAL” function, as this function is automatically exited after this time.)
30
COMPENSATION
The automatic compensation runs. Continue the circular route until the
display indicates “ --- “.
---
Now start another circular route in the opposite sense. Push the button
CAL2
until the display indicates „
“.
CAL 2
Continue the circular route until the compensation is automatically ended. After successful compensation the desired course is indicated
(267° or 270° in the example).
267 s 270
For your own safety you should verify the indication by several true observations on various courses (north, east, south, west). Differences
between compass indication and true observation must be corrected by
adjustment of the compass sensor position (see page 33).
FAIL
The display shows „
pass compensation, or if the compass compensation could not be finished.
“ in the case of a failure of the automatic com-
or
FAIL
In this case exit the failed compensation by switching the power supply
off. The pointer returns to its normal operating mode when the power is
switched on again. Repeat the automatic compensation.
The following factors may cause a failure of the automatic compensation:
- Excessive speed during the automatic compensation
- Inadequate installation of the sensor (see page 36)
- Mobile phones or radiophones were used during the compensa-
tion
- Influence of magnetic disturbances (bridges, pile walls, etc.)
or magnetic objects near the sensor.
31
POSITION-DEPENDENT VARIATION
The automatic compensation should be repeated after compass installation, after slipping, prior to long routes, after welding operations, after the installation of electrical consumers,
but at least once a year.
Please also note the „semihard magnetism“ effect on steel
ships, which appears when the ship has been exposed to the
terrestrial magnetic field without position change for a long time
(for instance during winter). After some days in the water this
effect has disappeared. This means that after watering a ship
the compass compensation should be repeated several days
later.
Setting of the position-dependent variation
This operation is necessary to set the valid local variation. The angular
variation is found in the nautical map. Setting the variation eases working with the map, and after compensation (see page 30) the compass
will indicate the true course.
Enter the variation as follows:
Switch the power on while keeping the button pushed. The pointer is in
„OFF“ position, and the display indicates „
OFFSET
“.
OFFSEt
Release the button when „
cated after several seconds. In the system as supplied the indication will
be 0.
OFFSET
“ appears. The local variation is indi-
OS 000
(Note: You have about 5 seconds to start the „OFFSET“ function, after
this time the function is automatically exited). For each button activation
the value is incremented by 1°. Hold the button down; the value will increment at increasing speed up to 100°, then it will decrement from -100°.
Positive setting = variation in eastern direction.
Negative setting = variation in western direction.
Release the button after setting the correct value (3° in the example).
After some seconds the display automatically changes to „CAL“.
After another 5 seconds a normal course indication is shown (in the ex-
32
ADJUSTMENT / TROUBLESHOOTING
ample steered course 267°), taking the variation into account.
OS 003
CAL
267
The set variation value remains stored in the VDO Compass, even when
it is switched off.
Adjustment of the Compass Sensor
A correct adjustment of the compass sensor is necessary if, after compensation and variation setting, differences are found between the true
compass course and the true bearing.
On each course (N, E, S, W) note the measured differences
Difference = true bearing - compass indication.
(e.g. true bearing : 001°, VDO Compass: 002°, difference north: -001°).
Calculate the average of the differences.
The average is the angular value by which the compass sensor must be
turned for correct adjustment.
A positive sign (+) means that the sensor should be turned clockwise, a
negative sign (-) means counterclockwise.
Trouble shooting
Problem: Cause / Correction:
- No compass function - Check electrical connections per
wiring schematic
- Check voltage. Supply voltage is
10.8 to 32 V
- Compensation not possible. - Check probe installation instruc-
FAIL
“ is displayed, or the tions
„
compensation cannot be - Avoid magnetic disturbances (bridconcluded ges, sheet pilings, etc.) during the
circular course
33
MAINTENANCE
- Compensation not possible. - Remove magnetic disturbances
FAIL
“ is displayed, or the near the sensor (cans, tools, etc.)
„
compensation cannot be - Check cable connection between
concluded indicating instrument and sensor
(bad connections ?)
- Wrong indication - Run automatic compensation
- Adjust compass sensor correctly
- Set local variation
- Inclination fault (wrong - Magnetic disturbances above or
indication with heeling ship) below compass sensor
- Remove disturbances
- Select other location of sensor
- Display shows - Connection indicator- sensor is
broken
- Sensor is broken
- Check cable connection between
indicating instrument and sensor
Maintenance of the VDO Compass
Indicating instrument and compass sensor are maintenance-free. Clean
the indicating instrument with a clean, humid or antistatic cloth.
The front lens is plastic. Do not use detergents to prevent scratches and
fisheyes.
34
INSTALLATION
Installation of the VDO Compass
Please read the safety instructions on pages 25 and 26
before starting the installation.

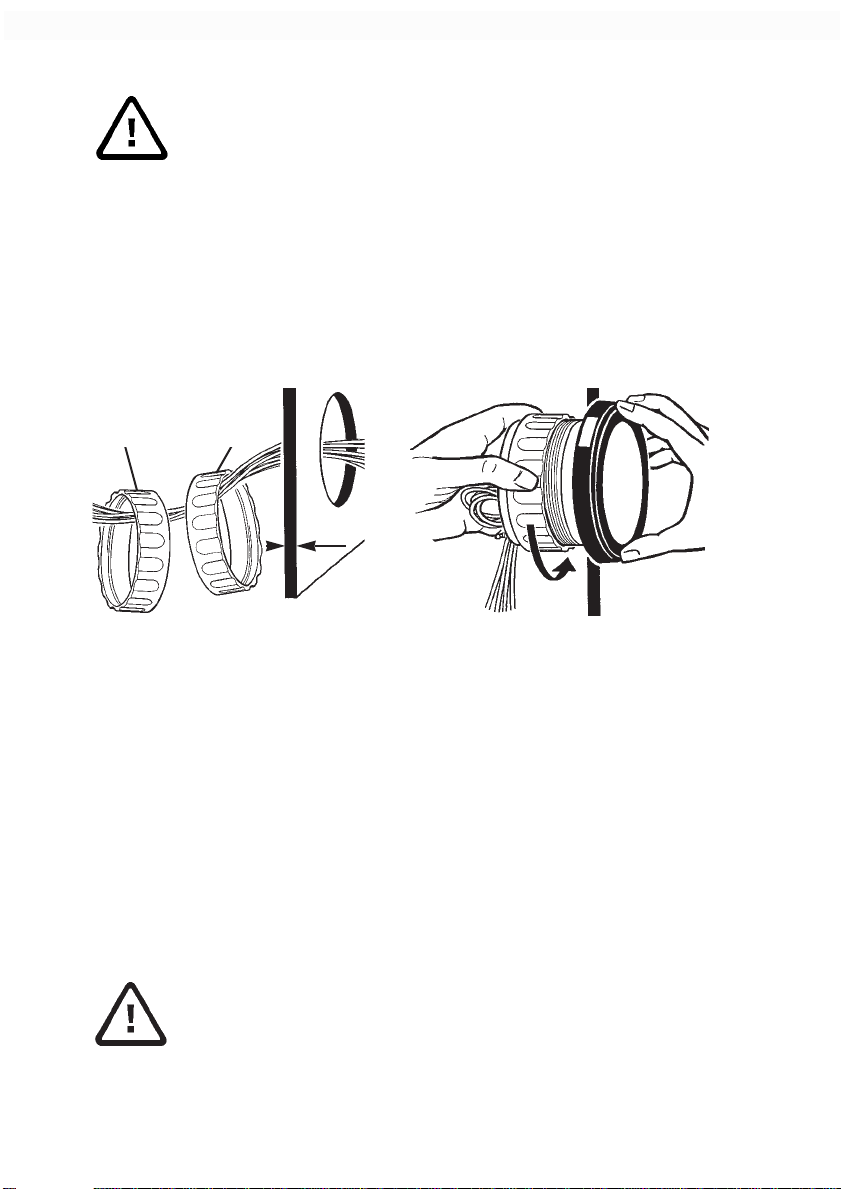

Installation of the indicating instrument
- Make a hole, diameter 86 mm, at an adequate location.
- Clean the surroundings and remove the chips before inserting the
indicating instrument.
- Pass the cable connections to the indicating instrument through
the mounting hole and the union nut.
A
or
B
d
- Place the supplied black rubber washer on the instrument
back
- Connect the cables per wiring schematic to the indicating
instrument and insert the instrument into the mounting hole
(see „the electrical installation“).
- Fix the instrument with the union nut.
Mounting alternative A for wall thicknesses
d = 0.5 mm to 6.5 mm
Mounting alternative B for wall thicknesses
d = 6.5 mm to 16.5 mm
- Check that the union nut is only tightened hand-tight.

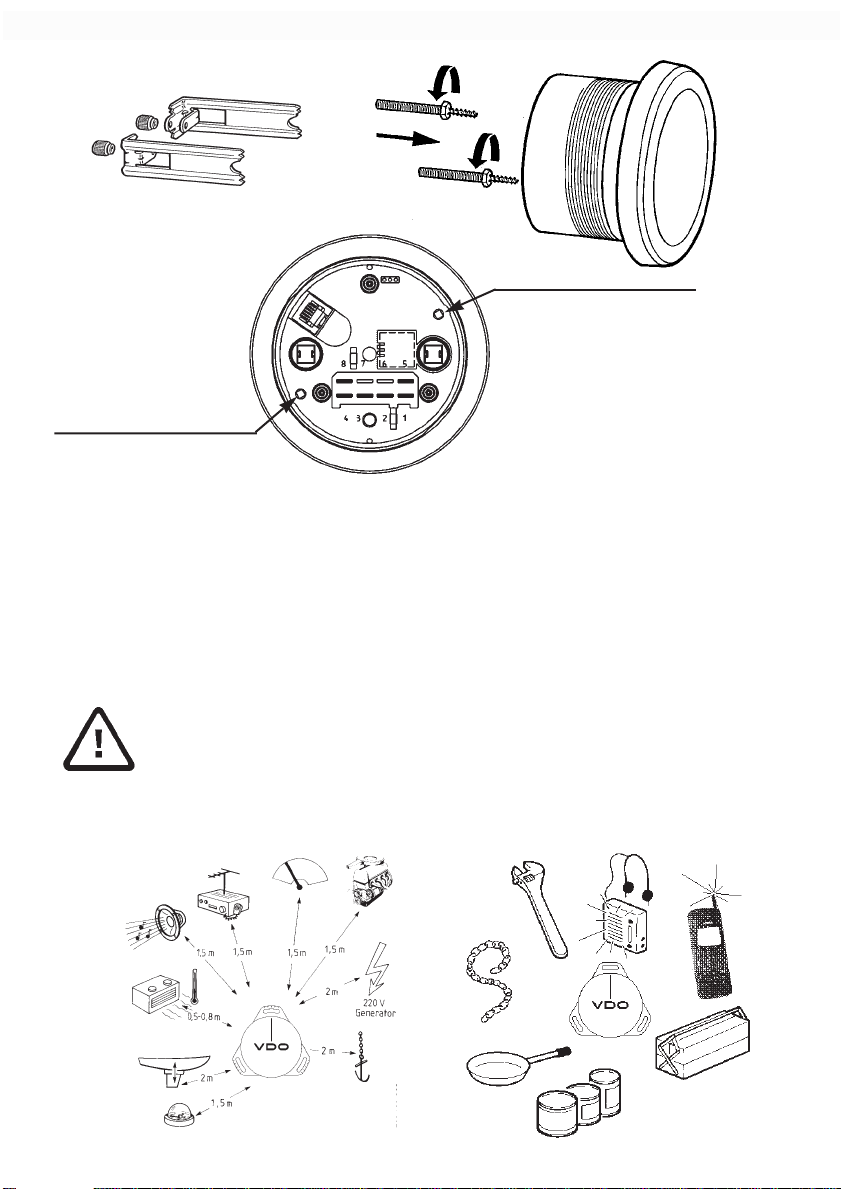

Mount the indicating instrument with threaded studs and
bracket (see page 36, top) if strong vibration must be expected at the location of the installation (for instance high-speed
boats).
35
INSTALLATION
1,5 Nm max.
1,5 Nm max.
Fixation parts kit N05 800 792 (order separately)
Screw threaded stud in here
Screw threaded stud in here
Installation of the compass sensor
Using the fluxgate principle the terrestrial magnetic field direction and
strength are measured by two crossed coils. In the case of hulls made of
wood, reinforced polyester, Kevlar or aluminium the sensor can be installed in the hull; in the case of steel or steel-reinforced concrete the
probe must be installed at least 1 m above deck, but not higher then 5 m.
36
When installing the sensor check for sufficient distance to fixed metal parts, electrical cables and other objects creating
magnetic fields.
Check for sufficient distance to all portable disturbance sources, such as cans, pans, radios, mobile phones in operation,
etc.
INSTALLATION
Temporarily install the sensor and make the first compensation run. A
different location must be selected If several trials are not successful.
After finding an adequate location fix the sensor with three brass or
stainless steel screws to allow a rotation of the sensor for adjustment at
a later time (see page 33).
Mark the location of the sensor with the supplied warning label.

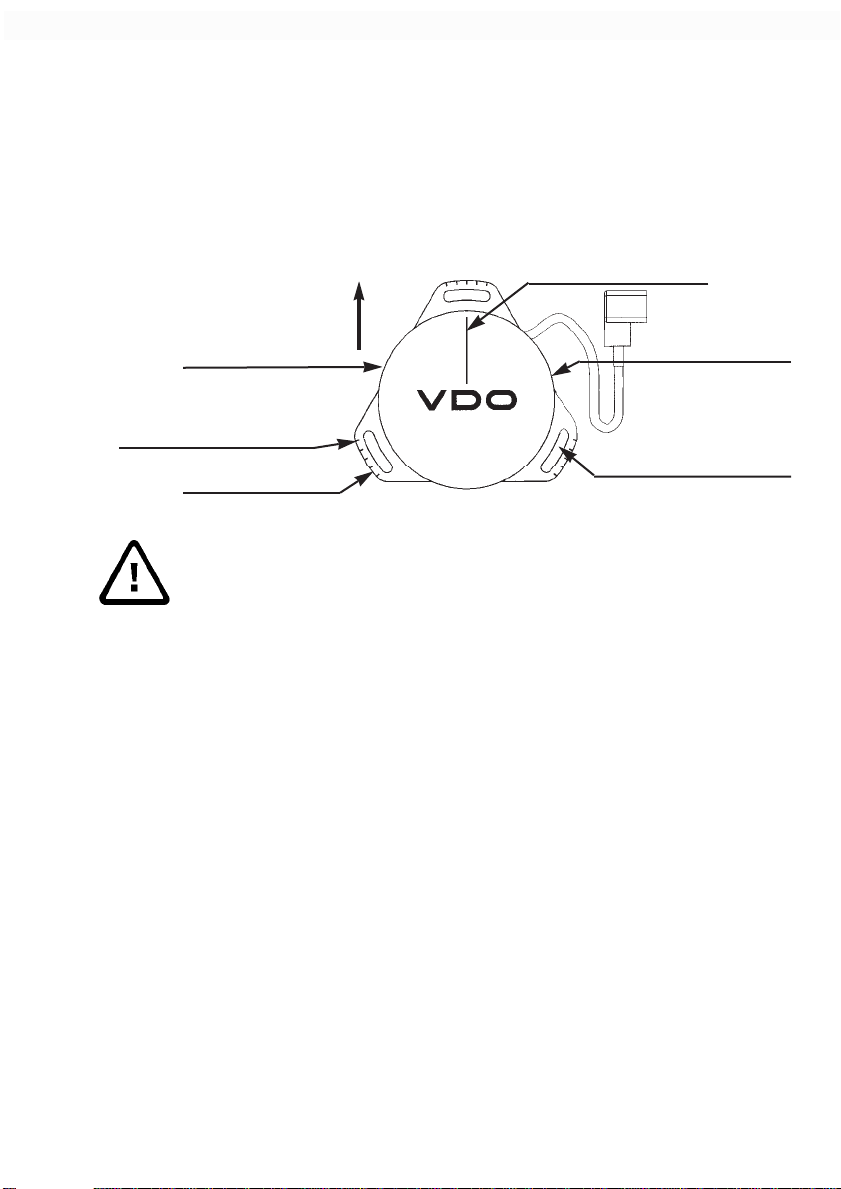

View from above:
Marking bar ship axis
bow
Max. height 40 mm
Angle marks for sensor
positioning (5°)
Max. dia. 120 mm
Max. dia. 90 mm
Hole circle dia. 105 mm
Never use steel screws for the installation (magnetism).
The sensor must be installed on a horizontal surface in horizontal position.
The marking bar must be parallel to the ship axis, directed to
the bow.
The automatic compensation must be repeated after changing the cargo.
37

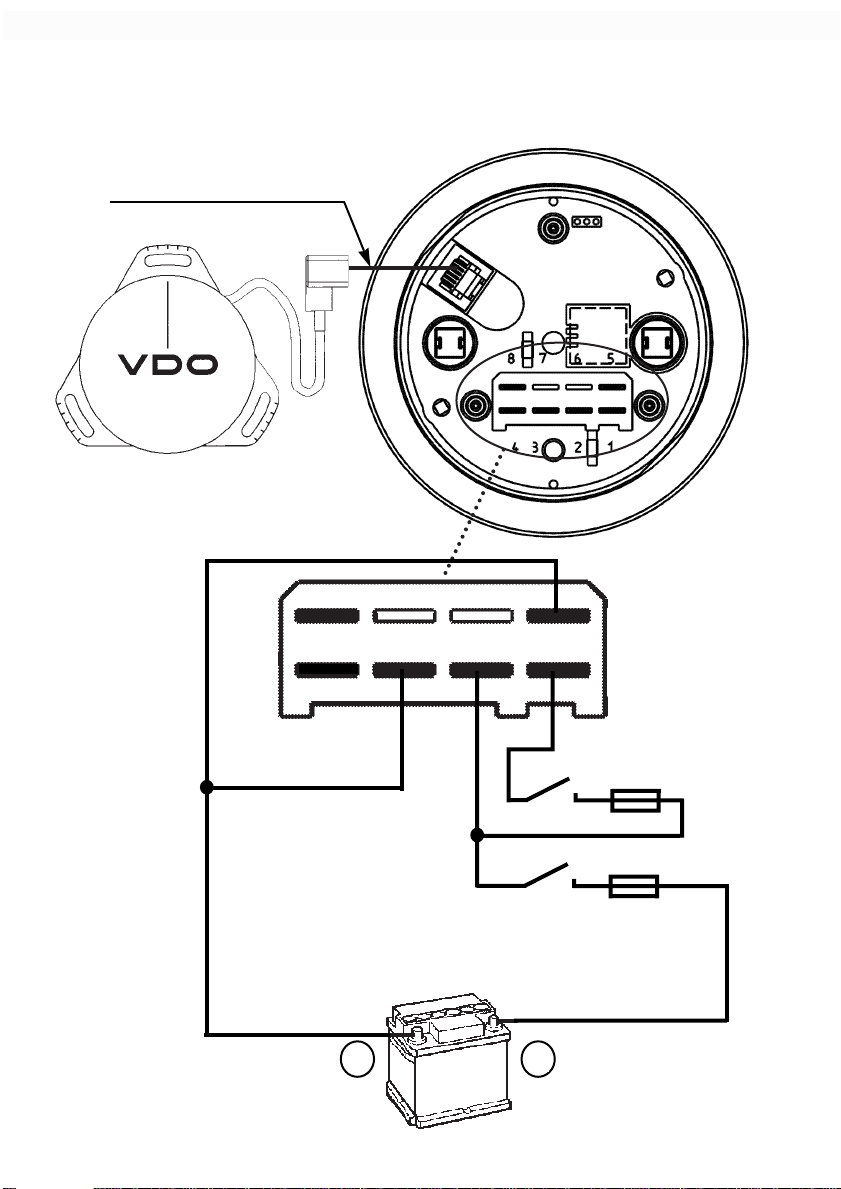

Electrical Installation
System power supply
Connecting cable
Compass sensor - indicator
INSTALLATION
8
4
Legend of the circuit schematic
page 20
38
5
3
12
Illumination
S 2
S 1
-
+
F 2
F 1
INSTALLATION
Connection of a secondary indicating instrument
Install the power supply to the second instrument in the same way as for
the first one (see page 38). The power supply of both indicating instru-
ments must be switched on at
the same time.
The sensor can be connected
to any of both indicating instruments
The connection between main
indicator and secondary indicator is made as shown below.
8
4
Main indicating instrument
Secondary indicating instrument
8
4
Perform the automatic compensation „CAL“ on one indicating instrument only.
This also applies for later installation of a second or a third
instrument.
39
INSTALLATION / DATA
Legend of the circuit schematic
S1 On/Off switch for navigation instruments
S2 On/Off switch for instrument lighting
F1 Fuse for navigation instruments (5 A)
F2 Fuse for instrument lighting (5 A)
Recommended cable section: 1.5 mm
2
Cable lengths
Compass sensor - indicating instrument 20 m max.
Indicating instrument - second instrument 10 m max.
Second instrument - third instrument 10 m max.
Technical data
Measuring principle: Fluxgate magnetic field measurement
liquid-damped coils
Accuracy: + 3° after compensation
Application: Field strength: 8 to 50 A/m
Max. inclination angle: in pitch and roll direction: + 30°
Supply voltage: 10.8 to 32 V DC
Current consumption: Indicating instrument:
about 90 mA at 12 V DC without lighting
about 250 mA with lighting
Sensor:
about 50 mA at 12 V DC
Operating temperature: -10 to + 60 oC
Type of protection: Indicating instrument: DIN 40050 - IP 65 at front
Compass sensor: DIN 40050 - IP 65
EMC protection: CE: EN 50081-1, EN 50082-1
Dimensions: Indicating instrument:
Front ring dia.: 105 mm
Installation dia.: 86 mm
Installation depth (with union nut): 56 mm
Installation depth (with bracket): 90 mm
Compass sensor: See figure page 37
40
Technical modifications reserved.
Compass
08 601 151 12/97-
VDO Kienzle Vertrieb und Service GmbH
Kruppstrasse 105
D-60388 Frankfurt am Main
Tel.: +49 (0)69 40805-0
Fax: +49 (0)69 40805-177
e-mail: vdomarine@vdokienzle.com
Internet: www.vdokienzle.com/marine
Loading...
