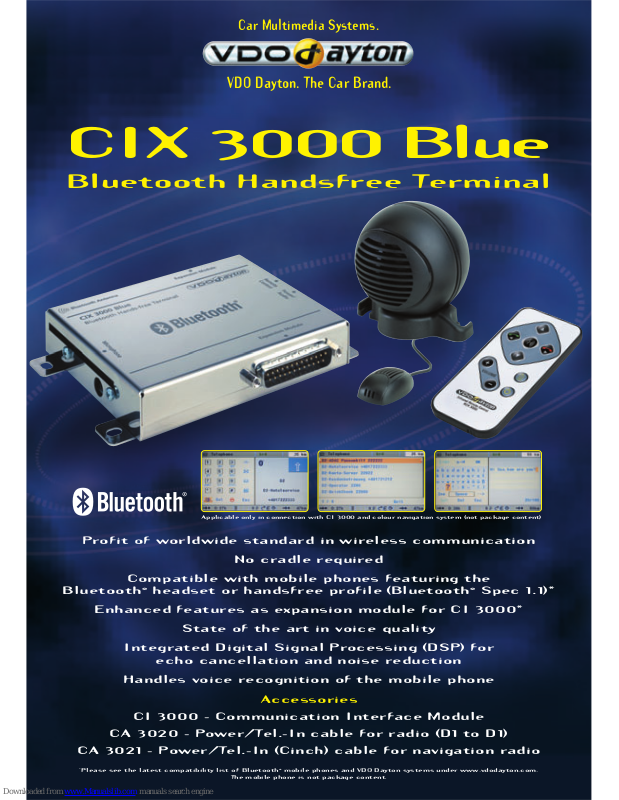

CIX 3000 Blue
Bluetooth Handsfree Terminal
Profit of worldwide standard in wireless communication
No cradle required
Compatible with mobile phones featuring the
Bluetooth
®
headset or handsfree profile (Bluetooth
®
Spec 1.1)*
Enhanced features as expansion module for CI 3000*
State of the art in voice quality
Integrated Digital Signal Processing (DSP) for
echo cancellation and noise reduction
Handles voice recognition of the mobile phone
Accessories
CI 3000 - Communication Interface Module
CA 3020 - Power/Tel.-In cable for radio (D1 to D1)
CA 3021 - Power/Tel.-In (Cinch) cable for navigation radio
*
Please see the latest compatibility list of Bluetooth
®
mobile phones and VDO Dayton systems under www.vdodayton.com.
The mobile phone is not package content
.
VDO Dayton. The Car Brand.
Car Multimedia Systems.
Applicable only in connection with CI 3000 and colour navigation system (not package content)
Page 2
Connection/Interfaces
• Supports GSM/HSCSD
• Data connector (RS-232 serial port)
• Systembus connector for expansion
modules
General
• Handsfree volume up/down
• DTMF tones
• Bluetooth
®
pairing
Telephone access via
• Main menu
• Guidance screen
• Favourite button
Software update of CI 3000
• Download of mobile phone specific
software via GSM/HSCSD
Typewriter
• Small, capital letters,
additional special signs
• Insert, delete function
Telephone book
• Add, search, delete an entry
• Select data from SIM card
and mobile phone
• Start voice recognition of the mobile phone
Messages
• Read, send, edit, answer, delete a SMS
• Use sender number for call/store in phone
book
•A new incoming SMS creates an info screen
with the option to read the SMS
immediately.
Call register
• Last 10 outgoing calls
• Last 10 accepted calls
• Last 10 calls in absence
Direct call activities from
• Navigation address book
• Navigation emergency
• C-IQ menu
• Third party data information
(Varta, Michelin, etc.)
Calling
• Incoming call creates an automatic
switch to the telephone screen
Mailbox
• Quick access button for mailbox
Technical Data CIX 3000 Blue
•Power supply: 9 - 16 V
•Ignition voltage: 4 - 20 V
•Power consumption: 1 mA quiescent current
max. 300 mA
• Loudspeaker: 3W - 0,2% Distortion,
5W - 2% Distortion
•Weight E-Box: 241 g
• E-Box housing: ca. 100 x 137 x 22 mm
• Navigation Software: MO 5595 or higher
(only in connection to VDO Dayton navigation
system and CI 3000)
C-IQ handling
• Direct call: C-IQ call center
•Automated C-IQ code entry for navigation
content via SMS
Package Content CIX 3000 Blue
• CIX 3000 Blue handsfree module
• Microphone incl. mounting material
• Installation and general user manual
• Screws for attachment to car
• Mounting material for attachment to CI 3000
• Loudspeaker incl. mounting material
• IR Remote Control
• IR Receiver
• Power/Signal cable (power, ignition,
ground, audio +/-, mute)
CIX 3000 Blue in connection to CI 3000.
Supported Mobile Phones:*
Siemens S 55, Nokia 6310i,
Sony Ericsson T68i, T610
Support of further models is planned*
Accessories CIX 3000 Blue
• CA 3020
Handsfree Phone In cable for CIX 3000 Blue
(Connectivity: plug & play solution for
CD 4403 and CD 4203 e.g.)
• CA 3021
Power/Tel.-In (cinch) cable between
navigation radio and CIX 3000 Blue
CIX 3000 Blue in stand alone use compatible
with mobile phones* featuring the headset or
handsfree profile (Bluetooth
®
Spec.1.1)
06/04, CIX 3000 Blue,
subject to modification

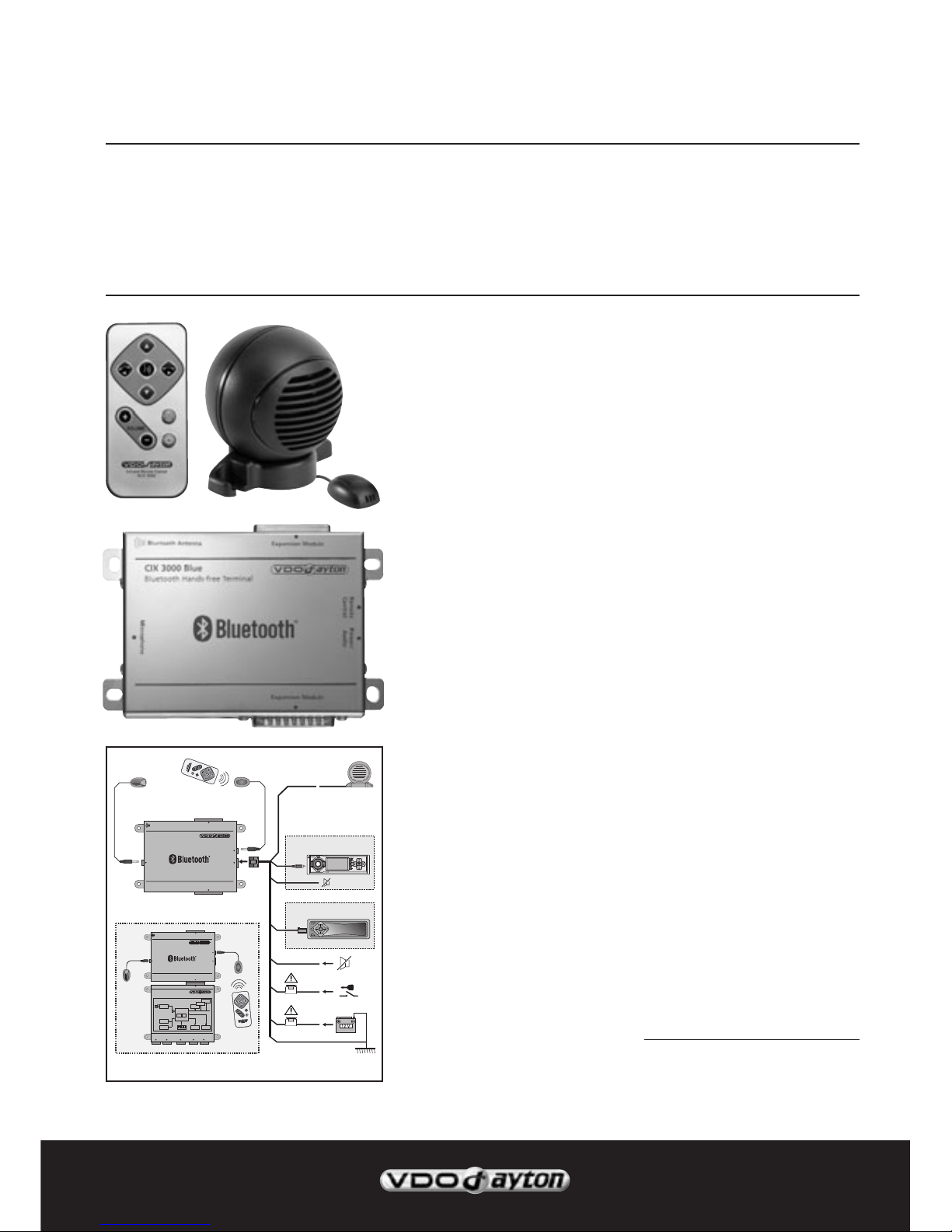

CIX 3000 Blue
Bluetooth Handsfree Terminal
Profit of worldwide standard in
wireless communication
Driving whilst handsfree phoning at the same. The mobile phone can
be located anywhere in the car, e.g. in a briefcase or in a pocket.
Enhanced features as expansion module for CI 3000
This system combination has the same functionality as the CI 3000 in connection with a standard handsfree kit. All main functions of the mobile
phone are controlled and displayed by the VDO Dayton device. Please
see the latest compatibility list of supported Bluetooth®mobile phones
and VDO Dayton systems under www.vdodayton.com.
No cradle required
There is no wire and no cradle needed. Intervisibility between the
devices is not necessary.
High level in voice quality
Due to the integrated Digital Signal Processing (DSP) for acoustic echo
cancellation and noise reduction
Handles voice recognition of the mobile phone
Make phone calls simply by speaking. This feature depends on the
mobile phone.
CIX 3000 Blue with CI 3000
Option 2 CA 3021
Navigation Radio
white-brown
violet
red
brown
Mute
CIX 3000 Blue
Bluetooth Hands-free Terminal
Expansion Module
Microphone
Power/
Audio
Remote
Control
Expansion Module
Bluetooth Antenna
Flash
Navigation
Car Radio
RAM
µCom
CI 3000
Communication Interface Module
Power Supply
Car Kit
Mobile Phone
Expansion Module
Power / NavigationRadio Serial Port Mobile PhoneCar Kit
Expansion 1
Expansion 2
Option 1 CA 3020
Radio
CIX 3000 Blue
Bluetooth Hands-free Terminal
Expansion Module
Microphone
Power/
Audio
Remote
Control
Expansion Module
Bluetooth Antenna
Microphone
IR Receiver
Loudspeaker
CAR RADIO
D1
2.0 A
2.0 A
Mute
white-brown
green
black
green-black
black-white
Connections
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
General Features
• Up to five different mobile phones can be paired and use the kit * individually
• Fully operational with IR Remote Control
• Handles voice recognition of the mobile phone (depends on mobile phone)
• Handsfree and ringing tone volume control
• Easy pairing process between mobile phone and Bluetooth
®
handsfree kit
• Switchable between private and handsfree conversation
• Automatically mutes the radio
• Can use the car speakers via the Tel.-In of the audio system
• Integrated Digital Signal Processing (DSP) for echo cancellation and noise reduction
• Compatible with mobile phones featuring the Bluetooth
®
headset or handsfree profile
(Bluetooth
®
Spec 1.1)*
*
Please see the latest compatibility list of VDO Dayton systems,
Bluetooth
®
mobile phones under www.vdodayton.com.
The mobile phone is not package content.
Features in connection to CI 3000
When connecting the CIX 3000 Blue to it, a VDO Dayton navigation system is able to control
and display all main functions of a mobile phone:
The Bluetooth® word mark and logos are owned
by the Bluetooth®SIG, Inc. and any use of such marks
by VDO Dayton is under license. Other trademarks and
trade names are those of their respective owners.
