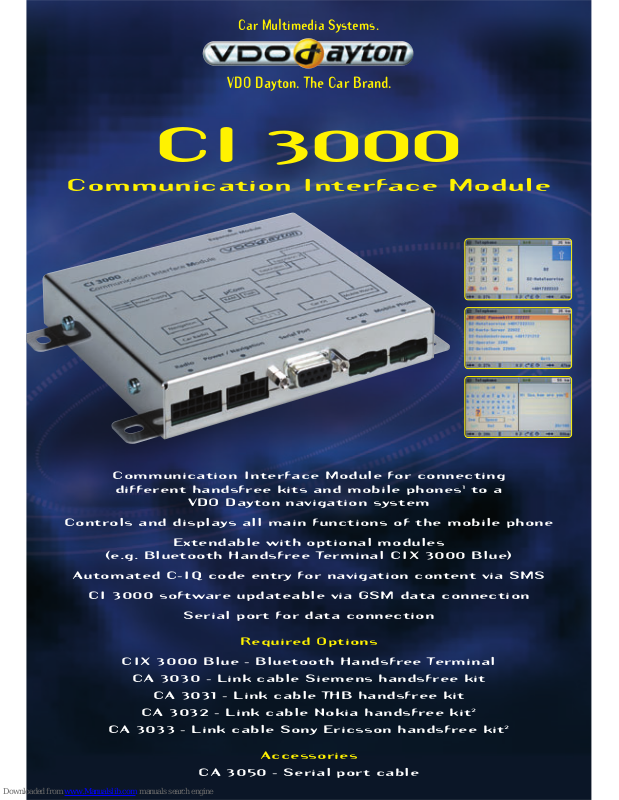

CI 3000
Communication Interface Module
Communication Interface Module for connecting
different handsfree kits and mobile phones
1
to a
VDO Dayton navigation system
Controls and displays all main functions of the mobile phone
Extendable with optional modules
(e.g. Bluetooth Handsfree Terminal CIX 3000 Blue)
Automated C-IQ code entry for navigation content via SMS
CI 3000 software updateable via GSM data connection
Serial port for data connection
Required Options
CIX 3000 Blue - Bluetooth Handsfree Terminal
CA 3030 - Link cable Siemens handsfree kit
CA 3031 - Link cable THB handsfree kit
CA 3032 - Link cable Nokia handsfree kit
2
CA 3033 - Link cable Sony Ericsson handsfree kit
2
Accessories
CA 3050 - Serial port cable
VDO Dayton. The Car Brand.
Car Multimedia Systems.
Page 2
06/04, CI 3000,
subject to modification
CI 3000
Communication Interface Module
Communication Interface Module for connecting
different handsfree kits and mobile phones to a
VDO Dayton navigation system
1
CI 3000 works with new and existing standard handsfree kits. All supported mobile phones in connection to handsfree kits from Siemens, THB
UniSystem 8, THB Compact Talk
2
, Nokia Cark 1262and Sony Ericsson HCA-
20
2
with a special VDO Dayton link cable (optional) are compatible to CI
3000. The latest compatibility list of supported handsfree kits and mobile
phones will be available at www.vdodayton.com.
CI 3000 software updateable via GSM data connection
1
If you like to use the latest phone generation also in the future, you may
get the right software for selected mobile phones via GSM data connection
at anytime and anyplace you want.
Serial port for data connection
Prepared for internet access through connection with MC 5400 or a
standard MS Windows notebook. This function requires the serial port
cable CA 3050.
Automated C-IQ code entry for navigation content
When ordering content through your VDO Dayton dealer, via the internet
or via the C-IQ Service Centre, you may choose to receive the access code
by phone, e-mail or SMS. If you choose SMS, the navigation system can
read it out and enter the access code automatically into your system. The
system will then give you instant access to the desired data.
Controls and displays all main functions of the
mobile phone
The combination of communication and navigation technology allows to
read SMS messages on the monitor of the navigation system, make calls
safely, download the phone book and read displays of caller´s numbers on
the navigation screen.
Extendable with optional modules
(e.g. Bluetooth Handsfree Terminal CIX 3000 Blue)
The CI 3000 is extendable with different expansion modules. The CIX 3000
Blue is a Bluetooth Handsfree Terminal. No additional handsfree kit with
a cradle is necessary.
CIX 3000 Blue
Bluetooth Hands-free Terminal
Expansion Module
Microphone
Power/
Audio
Remote
Control
Expansion Module
Bluetooth Antenna
PC 5510/5500/5400
Siemens HKC-5xx
2,4
1)
Needed option
(one specific link cable is necessary)
2)
Not a VDO Dayton accessory,
not in connection with CIX 3000 Blue
3)
CIX 3000 Blue can be connected instead of
standard handsfree Kit
4)
Selected handsfree Kits from THB, Nokia,
Sony Ericsson are compatible too.
Please see the latest compatibility list of
VDO Dayton systems, handsfree Kits and
mobile phones under www.vdodayton.com
5)
Optional VDO Dayton accessory,
not in connection with CIX 3000 Blue
CA 3030
1
Notebook2 or
MC 5400
5
violet
red
brown
3
CA 3050
5
white-brown
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
1
Please see the latest compatibility list of VDO Dayton systems,
handsfree kits and mobile phones under www.vdodayton.com.
Handsfree kit and mobile phone are not package content.
2
Planned
Features
When connecting the CI 3000, a VDO Dayton navigation system is enabled to control
and display all the main functions of the mobile phone:
Connection/Interfaces
• Supports GSM/HSCSD
• Data connector (RS-232 serial port)
• Systembus connector for expansion
modules
General
• Handsfree volume up/down
• DTMF tones
Telephone access via
• Main menu
• Guidance screen
• Favourite button
Software update of CI 3000
• Download of mobile phone specific
software via GSM/HSCSD
Typewriter
• Small, capital letters,
additional special signs
• Insert, delete function
Telephone book
• Add, search, delete an entry
• Select data from SIM card
and mobile phone
Messages
• Read, send, edit, answer, delete a SMS
• Use sender number for call/store in phone
book
•A new incoming SMS creates an info screen
with the option of reading the SMS
immediately.
Call register
• Last 10 outgoing calls
• Last 10 accepted calls
• Last 10 missed calls
Direct call activities from
• Navigation address book
• Navigation emergency
• C-IQ menu
• Third party data information
(Varta, Michelin, etc.)
Technical Data
•Power supply: 8 - 26 V
• Ignition voltage: 8 - 26 V
•Power consumption: 1 mA quiescent current
max. 200 mA (with Extension Modules upto 2A)
•Weight E-Box: 275 g
• E-Box housing: 117 x 137 x 22 mm
• Navigation Software: MO 5595 or higher
Calling
• Incoming call creates an automatic
switch to the telephone screen
Mailbox
• Quick access button for mailbox
C-IQ handling
• Direct call: C-IQ call center
• Automated C-IQ code entry for navigation
content via SMS
Package Content CI 3000
• CIM Module
•Power/Navigation link cable
(only for colour systems)
•Installation manual
• Screws for attachment to car
Link cable for connecting different handsfree
kits
1
to be available (needed options)
• CA 3030 – Link cable between Siemens
handsfree kit and CI 3000
• CA 3031 – Link cable between
THB handsfree kit and CI 3000
• CA 3032
2
– Link cable between
Nokia handsfree kit and CI 3000
• CA 3033
2
– Link cable between
Sony Ericsson handsfree kit and CI 3000
•CIX 3000 Blue
Bluetooth Handsfree Terminal
Compatible to the following
VDO Dayton navigation computers
1
• PC 5510, PC 5500, PC 5400
• Connection to further VDO Dayton systems
is planned
Supported Handsfree kits
1
Siemens Comfort Car Kit HKC-5xx,
THB UniSystem 8, THB Compact Talk
2
,
Nokia Cark 126
2
, Sony Ericsson HCA-20
2
Supported Mobile Phones
1
Siemens C/M/S/SL 55
Nokia 6100, 6310 i, 6610, 7210(i), 7250(i)
Sony Ericsson T68 i, T610
Accessories CI 3000/00
• CA 3050
Serial port cable for CI 3000
Connections
