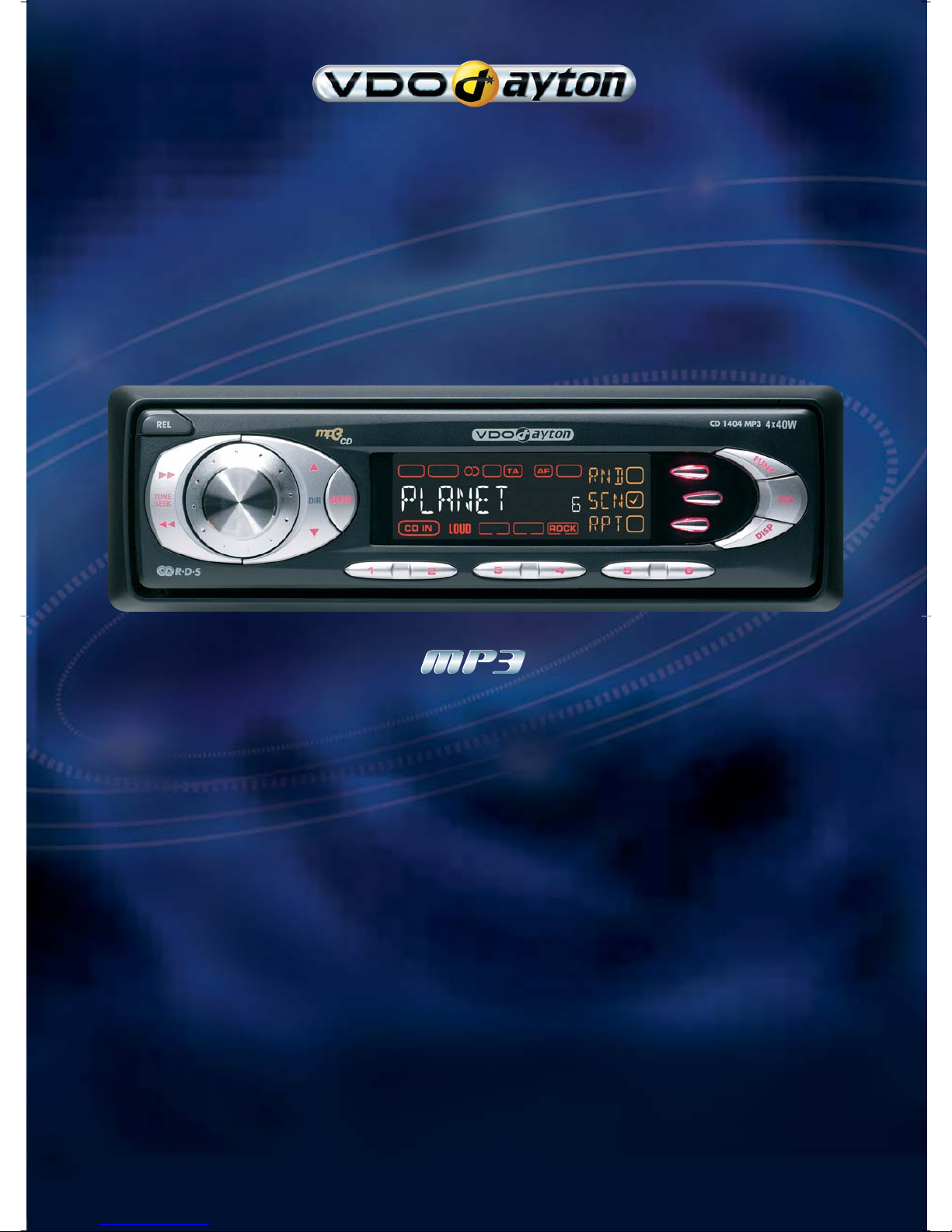

Page 1
VDO Dayton. The Car Brand.
Car Multimedia Systems.
CD 1404 MP3
RDS Tuner
CD MP3 Player
Softkey Operation
Multicolor LCD
Switchable Key Illumination
Software Access Menu (SAM)
4 Sound Presets
Bass Boost System (BBS)
2-Channel 2V Preamp Out
RDS Clock
Telephone Mute
Aux In
Detachable Flipdown Front
Options
Amplifier
Speakers
4 x 40 Watts
Page 2
VDO Dayton. The Car Brand.
Car Multimedia Systems.
www.vdodayton.com
Product Design
•
Black Finish
•
Flipdown Front, detachable
•
Multicolour LCD
•
Switchable Key Illumination
•
Protection LED
Tuner
•
RDS Tuner
•
FM with RDS Traffic, News
•
MW, LW
•
RDS PTY
•
TA EON
•
Preset Buttons
FM-18, MW-6, LW-6
•
RDS Clock
CD Player
•
CD MP3 Player
•
Scan / RandomTracks
•
Previous / Next /
Fast Forward / Fast Rewind
•
CD-R / CD-RW compatible
•
CD-Multisession playback
•
Mounting angle:
+30° / -10°
Internal Amplifier
•
Max. Power: 4 x 40 Watts
•
RMS Power: 4 x 21 Watts
•
2-Channel 2V Preamp Out
•
Aux In
•
Bass Boost System (BBS)
•
4 Sound Presets
•
Volume Mute
General
•
Software Access Menu
(SAM)
•
Telephone Mute
•
Dimensions (w x h x d):
180 x 50 x 155 mm
Options
•
Amplifier
•
Speaker
09/04, CD 1404 MP3,
subject to modification
CD 1404 MP3
RDS Tuner
CD MP3 Player
Softkey Operation
Softkey operation provides an easy way for direct access to the most
important functions. The advanced three-button menu system with
current status and function selection appears on the display for visual
confirmation.
Switchable Key Illumination
For better car integration the user can choose between 3 different key
illuminations (red/green/mixture of red+green).
Software Access Menu (SAM)
"Software Access Menu" is an easy way to personalize your car radio
according to your choice and install all possible optional applications.
Sound Presets
With the 4 different sound presets (Flat-Class-Pop-Rock) the user can
adjust the sound frequency to his preferred music genre.
Bass Boost System (BBS)
Boosts the bass out of the set! This function is selected via a direct key
access. 3 levels of effect can be chosen according to your preference.
2-Channel 2V Preamp Out
The 2-channel line out multiplies the sound power combinations and preamplifier connections. In order to optimize at its maximum the signal to
noise ratio and increase the dynamic, outputs are supplied at 2V.
Telephone Mute
Automatic mutes the set when you receive a call.
Aux In
With the Aux In you can connect additional audio sources to your car hifi
system.
Detachable Flipdown Front
For theft protection, the complete front of this car radio is detachable
and flips down to access the CD drive for inserting and changing a CD.
E
CD 1404 MP3
B
F
A
GHI
Connections
A: General + Power Supply (ISO)
B: Loudspeaker (ISO)
C1:
C2:
C3:
D1:
E: Aerial Plug (ISO)
F: Fuse
G: Telephone Mute (pink & grey wires)
H: Line Out (Cinch)
I: Aux In (Cinch)
