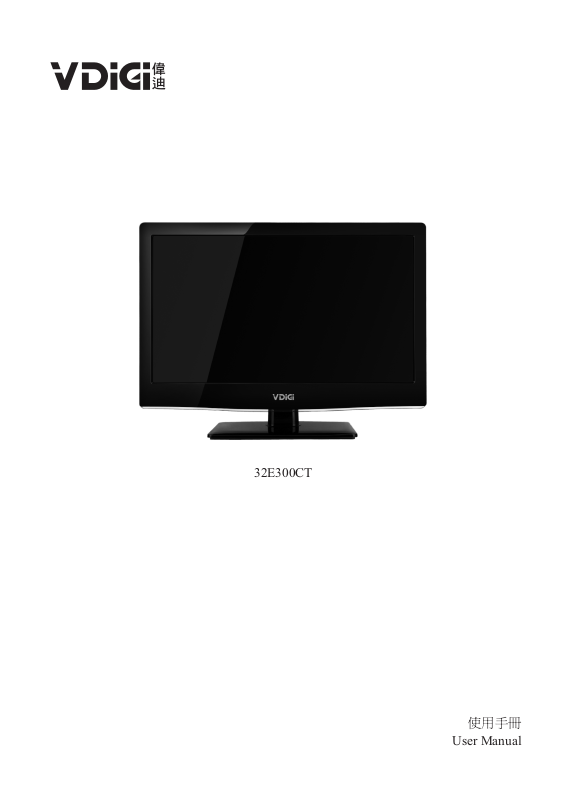

32E300CT
使用手冊
User Manual
Page 2
目錄
目錄……………………………………………………………………
安全資訊………………………………………………………………
預先注意事項…………………………………………………………
底座安裝………………………………………………………………
遙控器…………………………………………………………………
面板功能描述…………………………………………………………
後置端子及功能描述………………………………………………….
基本操作及菜單操作……………………………………………….
1
2
4
5
6
7
8
9-12
錄影機功能操作………………………………………………. ….. 13-16
技術規格…………………………………………………………….. 17..
解決問題………………………………………………………… 18-19...
操作電視機前, 請閱讀”安全資訊”,並保留本說明書以便將來參考。
1
Page 3
2
Page 4
3
Page 5
4
Page 6

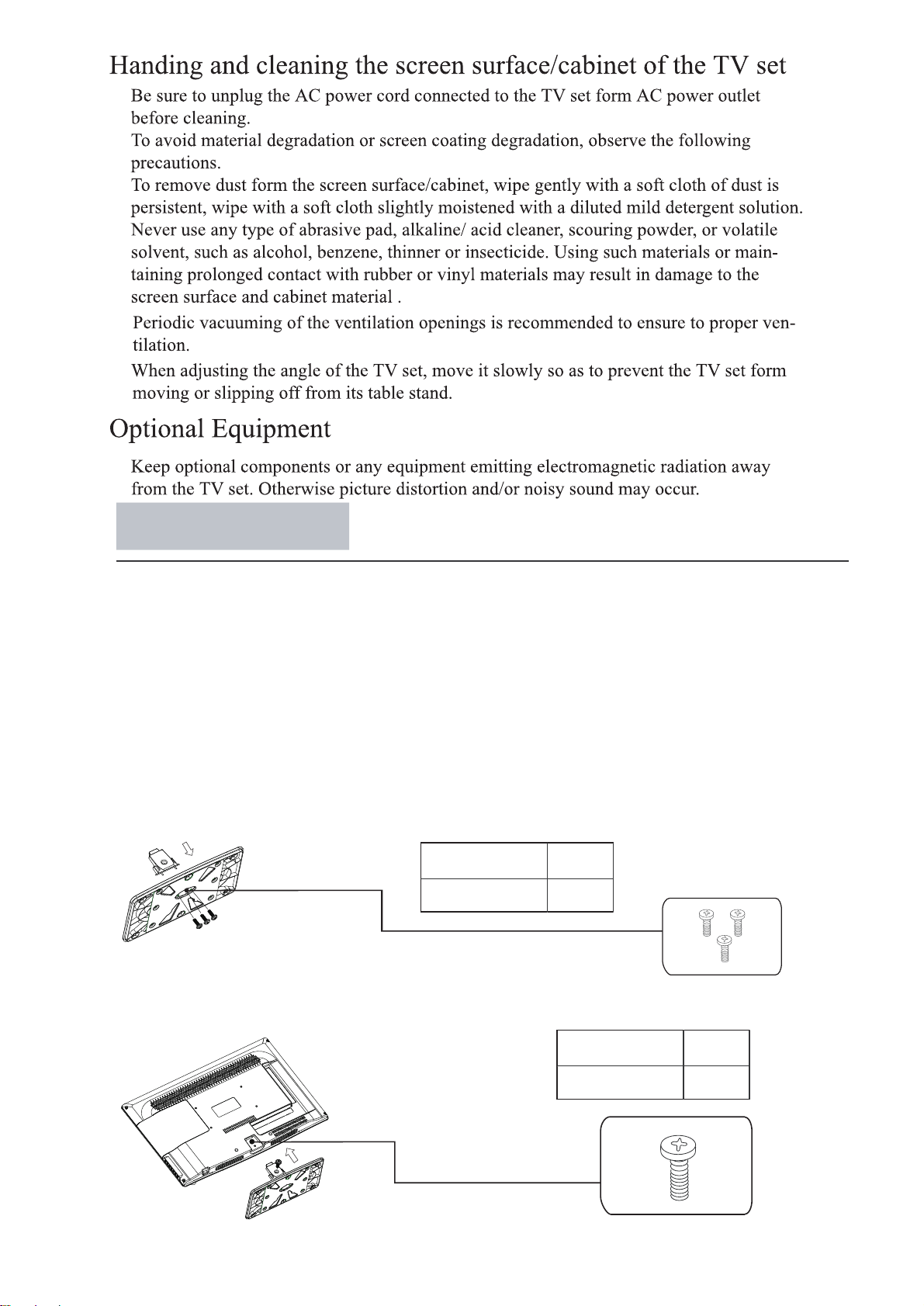

底座安裝
產品為拆底座包裝，底座安裝步驟如下：
步骤1
取一塊護墊或柔軟的桌布放於工作臺上，將電視機屏幕朝下平放於上面。
注：1）避免損壞屏幕，請勿將電視機直接平放於桌面。
2）請將電視機電源線從AC電源插座拔下。
步驟2
按照下圖指示方向用三顆螺絲將底座支撐架與底座連接起來，請確保三顆螺絲被牢牢擰緊。
規格 數量
M4 x 10mm
3pcs
步驟3
將底座放於電視機後殼上。請對齊底座立柱和電視機後殼上的1個螺絲孔。
插入產品附隨的 顆底座螺絲並安裝好。1
規格 數量
M4 x 22mm
5
1pcs
Page 7

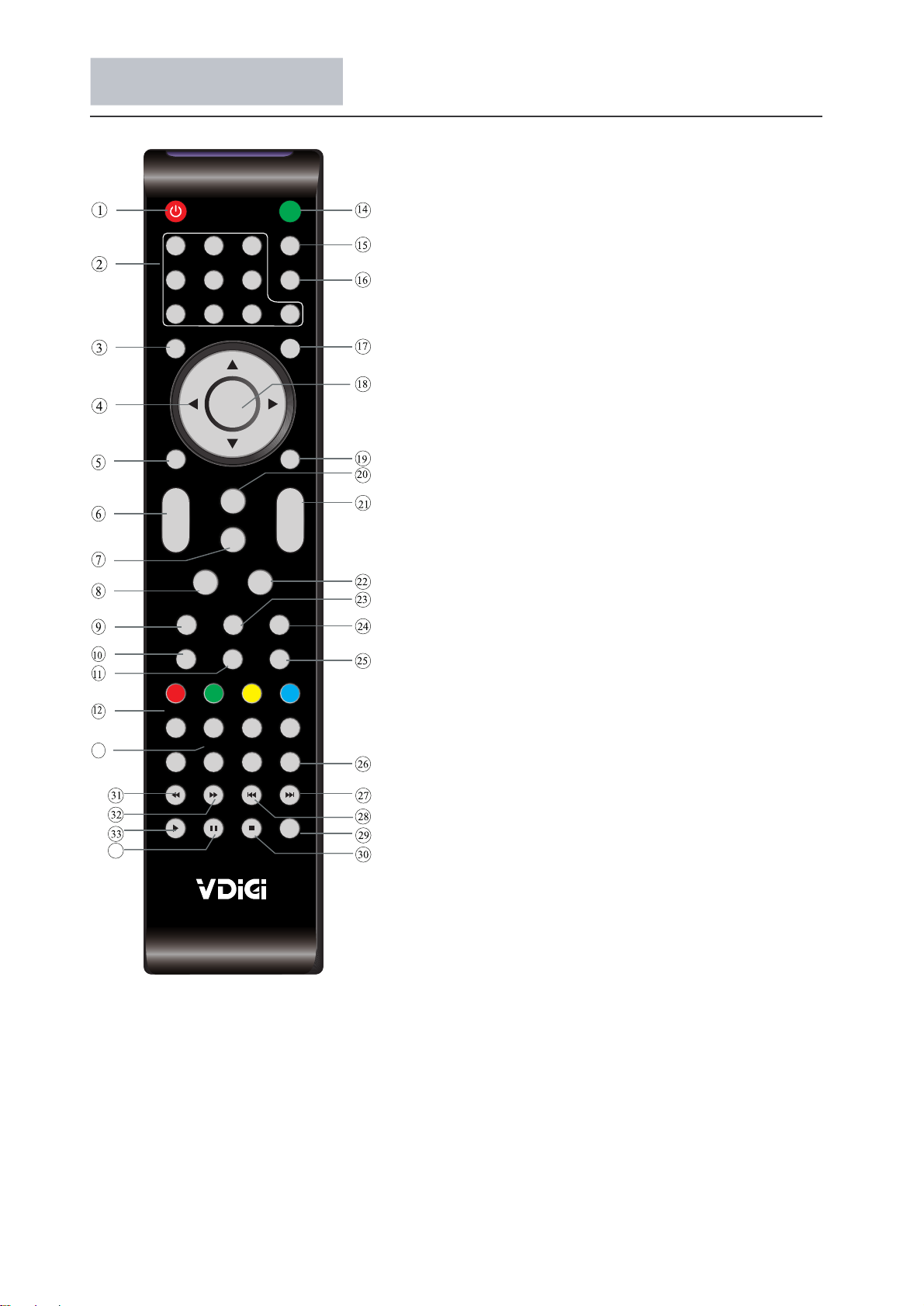

遙控器
1: POWER
开启电视或切换至待机模式
2: NUMERIC KEY
选择频道
3: MENU
显示设置选项表
4: CURSOR
在选项表内移动
5: CH.LIST
显示频道列表
6: VOL+/-
调节音量
7: PIC
改变图像模式
8: SLEEP
定时关机
9: FREEZE
使活动影像静止
10: EPG
显示电子节目指南画面
11: FAV
在ATV模拟电视或DTV数码电视模式下，直接切换
至用户喜欢的频道列表
12: DTV
选择DTV数码电视信号输入源
13: PVR.LIST
显示刻录文件列表
14: MUTE
静音或恢复音量
15: AUDIO
丽音选择
16: RECALL
退回之前观看的频道
17: SOURCE
选择输入源
18: OK
确认选择
19: EXIT
退出键
20: SOUND
切换声音模式
21: CH+ /CH-
选择频道
22: ASPECT
切换画面显示比例
6
LIS T
MUT E
AUD IO
REC ALL
EXI T
+
CH
_
TEX TUSBFRE EZE
INF OFAVEPG
IND EX
REC /REP
POW ER
1
2 3
4 5 6
7 8 9 0
TV ME NU SOU RCE
OK
CH. LIST
+
VOL
_
DTV
13
34
SUB PAGE PVR .LIST MIX SUB TITLE
SOU ND
PIC
SLE EP ASP ECT
HOL D
23: USB
选择多媒体信号输入源
24: TEXT,HOLD,LIST,INDEX,SUBPAGE,MIX
图文按键,如果当地无图文功能，这些按键无效
25: INFO
在DTV数码电视模式下显示当前观看节目的信息以及将要播放的节目信息
26: SUBTITLE.
DTV数码电视模式下,切换字幕
29: REC/REP
录影按键DTV数码电视模式下，切换字幕
27,28,30,31,32,33,34:
多媒体功能按键
Page 8
面板功能描述

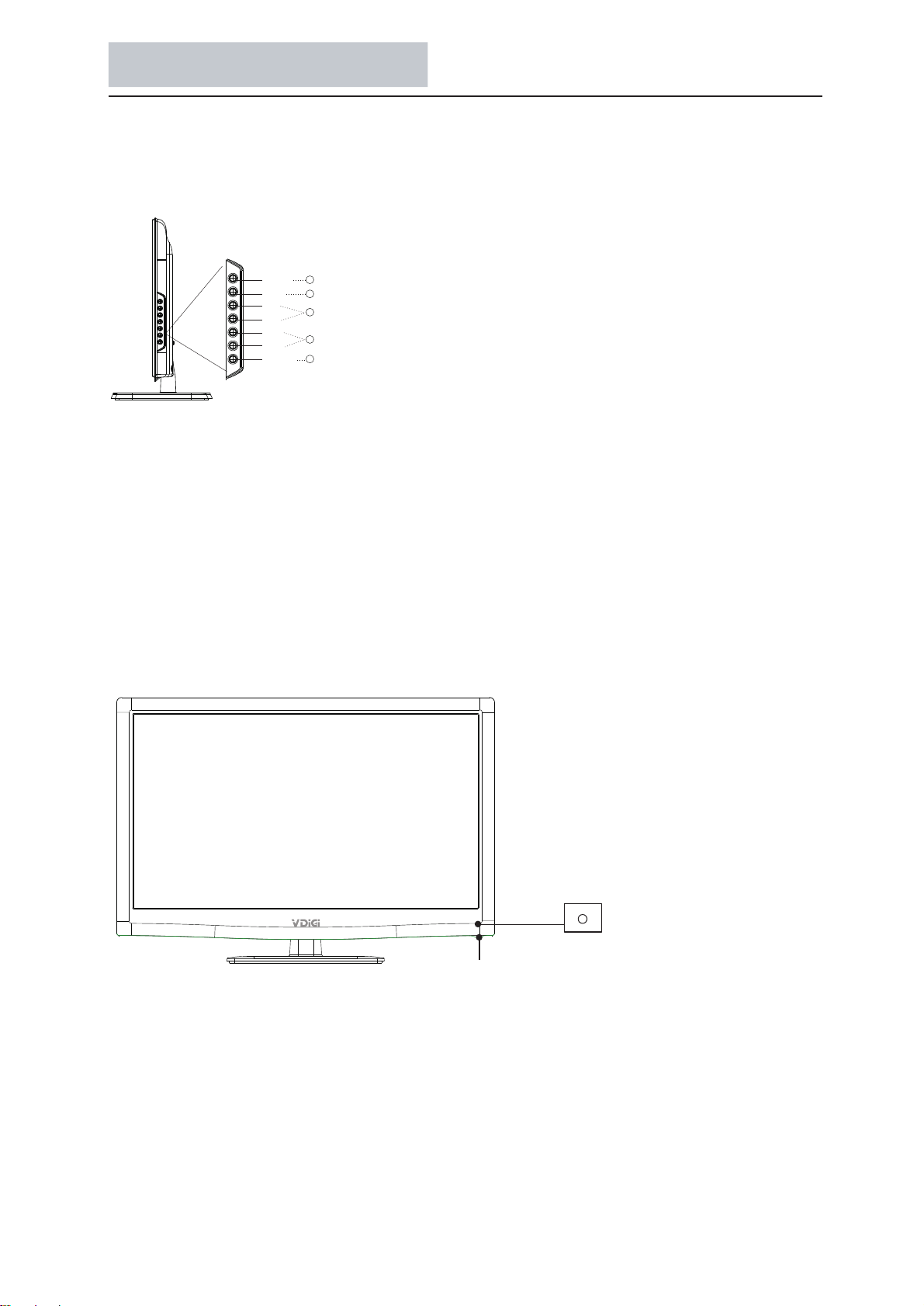

側面按鍵功能描述
圖片僅供參考，請以實物爲準
INPU T
1
MENU
2
< >
CH
3
CH
VOL+
4
VOL-
POWE R
5
INPUT: 顯示輸入信源菜單。
MENU: 按此按鍵顯示主菜單。
CH + / - : 按此按鍵增加或減少頻道號。
VOL + / - : 按此按鍵增加或減小音量。
POWER: 打開或關閉電視機。
遙控感應器
電源指示燈
電源指示燈：電視處於待機模式時亮紅色；電視開啟時點亮藍色。
遙控感應器：接收來自遙控器的紅外線訊號（請不要將任何東西放在感應器上
否則感應器可能會無法正常操作）
7
Page 9

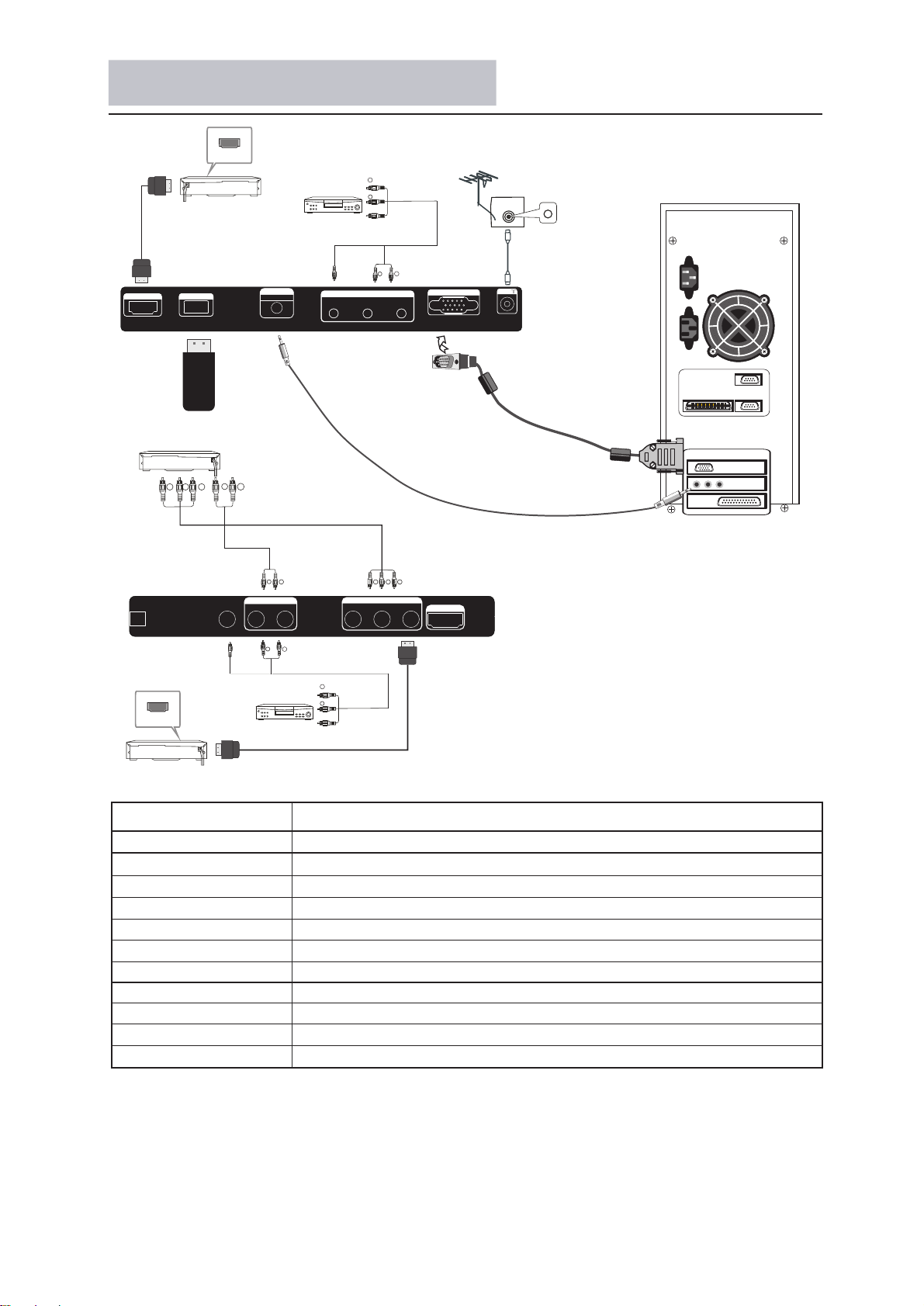

後置端子及功能描述
HDMI
音频(左/右)
HDMI1 INPUT USB
备有色差输出的视频设备
Pb Pr
Y
视频设备
PC/HDMI
AUDIO INPUT
L
R
VIDEO
视频
视频
AV OUTPU T
MONITOR OUT
L R
L
连接音频
输入端子
连接视频
输入端子
音频
R
VGA INPUT
TV
ANT
AC-INPUT
110-240V~ 50/60Hz
HDMI
VIDEO INPUT
端子名稱
USB
HDMI1,HDMI2
VGA
YPbPr
YPbPr音频
AV
AV
音頻
PC AUDIO
RF
AC
MONITOR OUT
视频
L
AUDIO INPUT
L R
L
视频设备
R
R
音频
音频(左/右)
Y
PBP
R
COMPONENT INPUT
Pb
Y
连接音频
输出端子
连接视频
输出端子
视频
功 能描述
保留供外置USB裝置之用
HDMI輸入端子
連接電腦的VGA輸入端子
分量視頻輸入端子
分量音频輸入端子
複合視頻輸入
複合視頻音頻輸入
電腦音頻輸入
天線輸入端子
交流電源輸入
監聽電源輸出
Pr
HDMI2 INPUT
8
Page 10

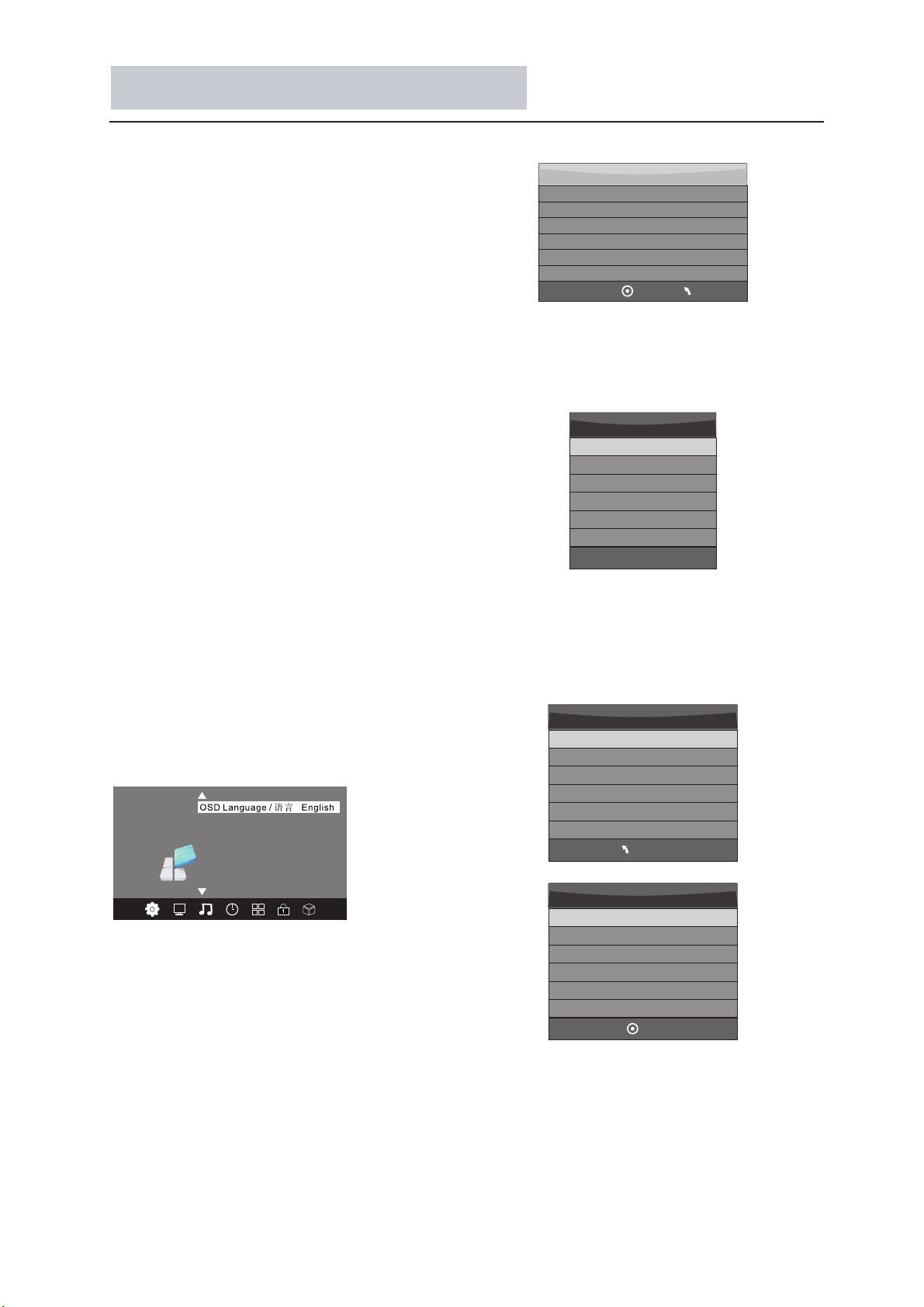

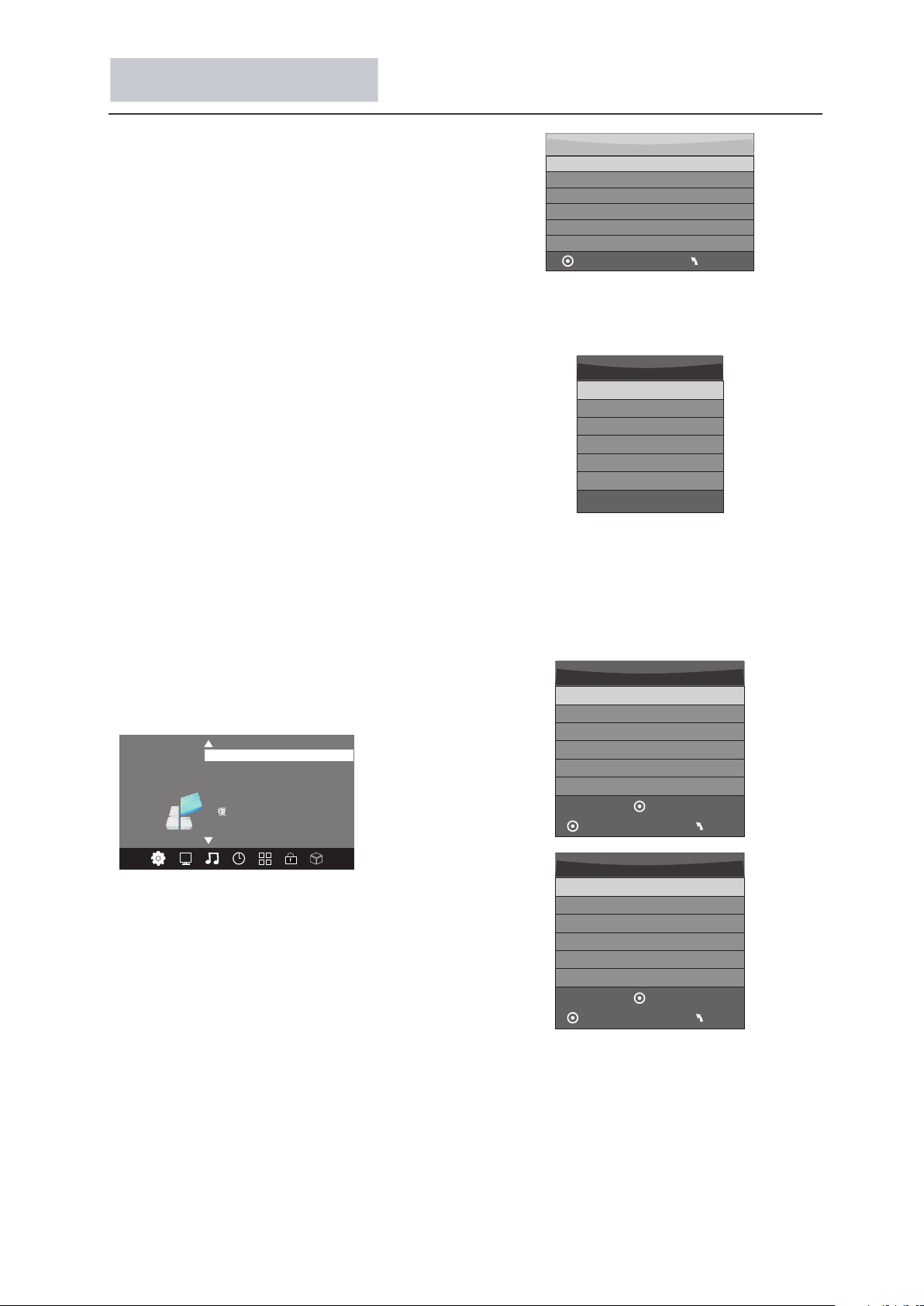

基本操作
安装 指导
Lan guage
中文 （ 繁体 ）
挪威
波兰
葡萄 牙
罗马 尼 亚
塞尔 维 亚
频道
< >
俄罗 斯
斯洛文尼亚
西班 牙
瑞典
自动 搜 台
数位 电 视自 动快 速搜台
数位 电 视手 动搜 台
模拟 电 视手 动搜 台
频道 编 辑
信号 资 讯
软件 升 级(US B)
新西 兰
OK
瑞士
英国
中国 （ 香港 ）
突尼 斯
阿尔 及 利亚
数位电 视 手动搜 台
_
UHF CH 35
按<O K >执行 搜 台
差 一般
3).数 位 电 视自动快速 搜 台
+
好
搜台 种 类 数位+模 拟电 视
中国 （香 港）
突尼 斯
奥尔 尼利 亚
埃及
南非
以色 列
MEN U
伊朗
阿拉伯联合酋长国.
斯洛 伐克
OK
频道搜 索
模拟 电 视 : 0 节目 数
数位 电 视 : 0 节目 数
96% UHF C H 68 DT V
按OK开 始数位电视 的 自 动快速搜台 ， 针
对香港 地 区
4).模 拟 电 视手动搜台
_
保存
存储 至1
系统 伴 音制 式 I
当前 频 道1
搜索
微调
频率 4 24.25 M Hz
+
MENU
9
Page 11

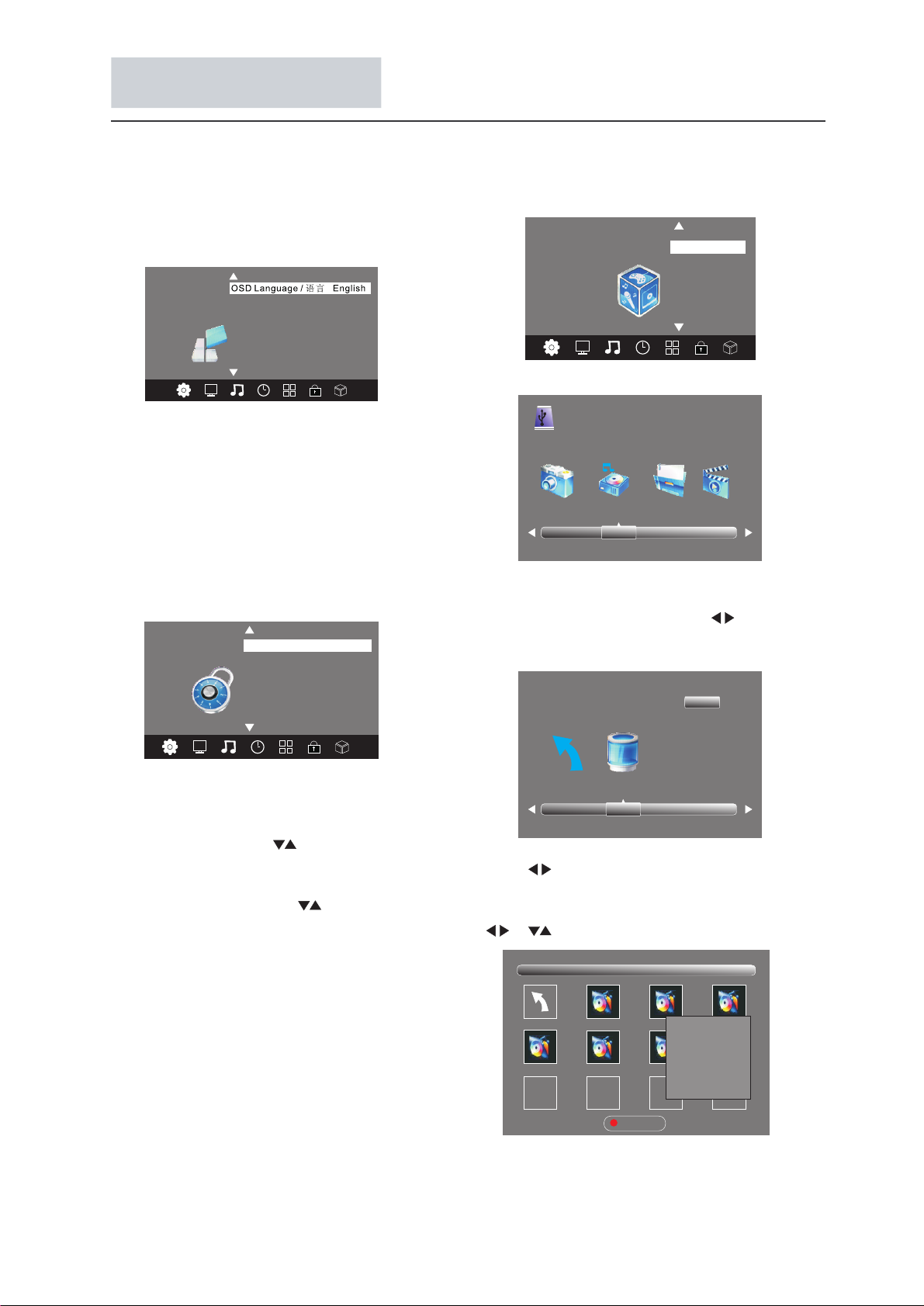

基本操作
跳过
图像 模 式 用户
对比 度 50
亮度 5 0
色彩 5 0
锐度 5 0
色调 5 0
MEN U
色温 用 户
红 40
绿 31
蓝 50
MEN U
FAV最喜爱的频道
图像 模 式 标准
色温
缩放 模 式
影像
< >
降嗓
萤幕
声音 模 式 标准
平衡
声音
< >
时间
< >
自动 音 量
环绕 声
开机 时 间
定时 关 机
自动 休 眠
时区
10
Page 12
基本操作
语言/ Langu age 中 文（繁 体）
声道 选 择
字幕 选 择
刻录 档 系统
设定
< >
恢 工厂 设 置
数码媒 体 接口
应用
< >
USB 2 .0
图片 音 乐 文档 电 影
系统锁 定
设置密 码
频道锁
控管
< >
儿童安 全锁 关
退回 C
01 By My s ide.m p3 02 By My s ide.m p3
退回
04 I Won 't Lase A. .. 05 Just Wh en I... 06 B y My side .mp3
专辑: By M y side
歌曲 名: By My sid e
比特 率: 128K
艺术 家: Chet La m
采标 率： 44K
年份: 20 07
大小: 19 81KBy tes
1/1
1/1
11
Sub M enu
Page 13

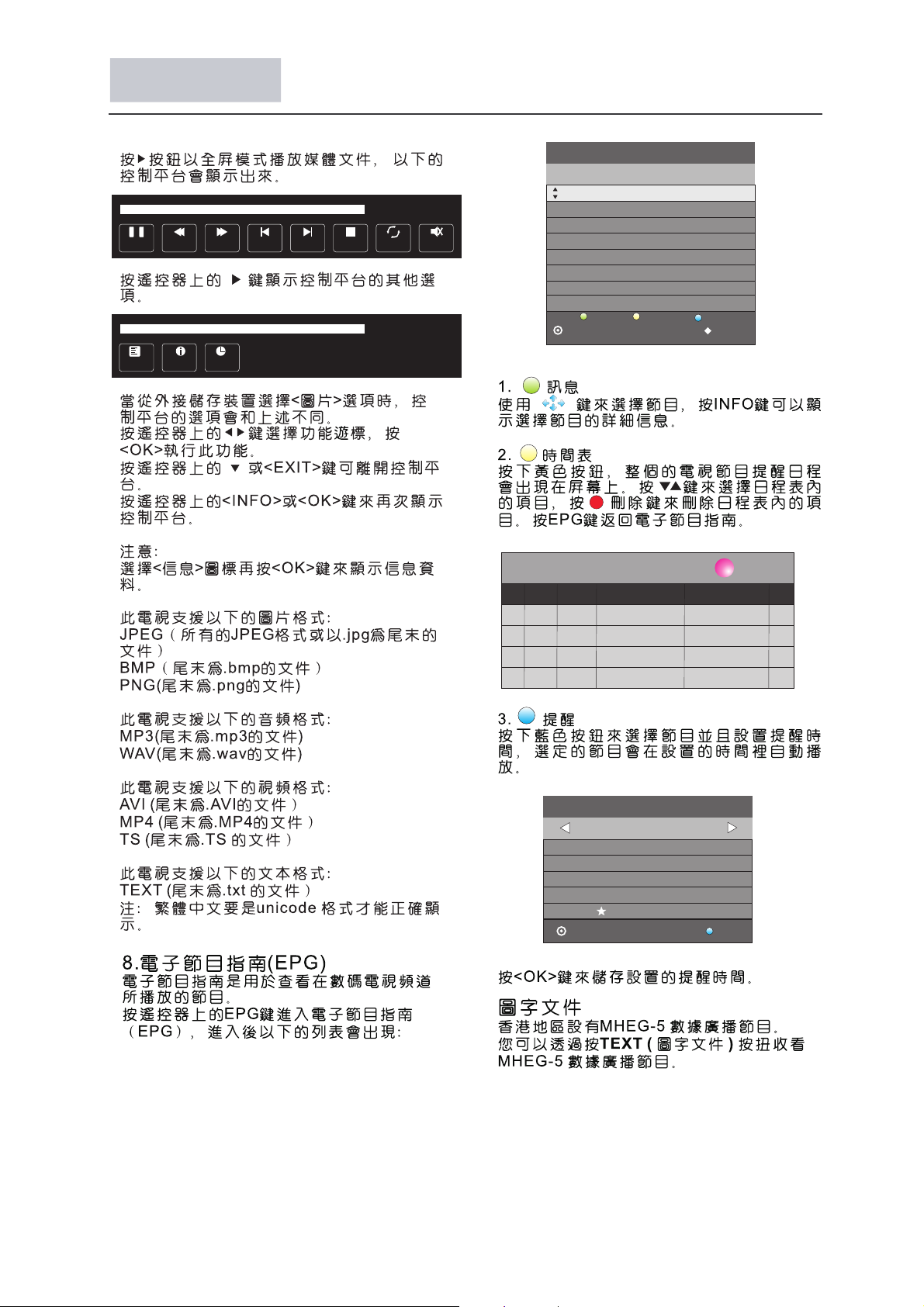

基本操作
暂停 快进 上一 个 下 一 个快退 停止
00:00 :33 /00 :04 :22
Repea t ALL
静音
00:00 :48 /00 :04 :22
电子 节 目指 南 时 间
08/11月 15: 14
11 本港 台 理财 博 客之 投资 多面 睇(粤)
12亚 洲高 清台 理 财 博客 之投 资多 面 睇(HD)
13 南 方卫 视 醒目 生 活至 轻松
14 中 天亚 洲台 新 台 湾星 光大 道
15 中 央4台 电视 剧:郑和 下 西洋
16 国 际台 教 育电 视
81 翡 翠台 今 日VIP
82 J2 东 京o靓模 大作 战(韩)
讯息
OK
时间 表
提醒
IND EX
播放 列表
讯息
跳至 时间点
时间表 0 4:55 28 th 4月 删 除
时间 日 期
节目 表
频道 名
提醒
_
OK
11 台
15 分
16 时
8 月
16 日
仅一 次 模式
+
返回
12
Page 14
录影机功能操作
一.设置录影任务
1、在数码电视通道下，按下EPG按键将显示各个频道的节目列表。
电子节 目 指南 时 间
01/1月 00 :07
800 无信 息
刻录
OK
讯息
时间 表
提醒
IND EX
2、按▲▼按鈕選擇想要錄影的節目，按下REC按鍵，將進入錄影菜單：
刻录
- 800 +
OK
01/1月 00 :07
开始 时 间
10分
00时
01月
01日
结束 时 间
40分
00时
01月
01日
模式 自 动
單 次 十一月 2 008 18：04
返回
3、在EPG菜单下，按 色键可以查看已经置的任务列表：黄
时间表 00:09 01th 1月 删除
时间 日期
00: 10-00 :40 星期 二01/ 01月 无标 题 800
11
节目表
4、在录影菜单下，按ENTER键添加新的任务到任务列表中。
13
频道名
Page 15
录影机功能操作
PVR 功能
1. 錄影程式預設
從選擇功能表進入刻 刻錄檔系
“
統”的選擇功能表內，選擇“檢查刻錄
檔系統”，點擊“OK”，
直到“檢查”跳轉為“成功”。
提示：查詢“速度”一項，如果顯示
“支援HD”, 那麼USB設備支援時移和錄
音。如果不是，請格式化設備以確保該
功能可用。如果磁碟空間夠大，那麼默
認設置“燒錄時間限制”為6小時；如果
磁碟空間不夠，燒錄時間將會縮短，燒
錄時間長短由磁碟空間決定。在“檢查
PVR 檔案系統”期間，請勿進行任何操
作直至檢測完成。
電視機需帶有PVR檔案系統才能使用
燒錄功能。而且只能使用同一種電視機
進行播放，不能使用其他與.TS.不相容
的設備（電腦， DVD等）。
警告：當格式化時，所有您存儲在外
部設備的資料和資訊將會丟失。
從選擇功能表進入PVR檔案系統如下
圖：
语言/ Langu age 中 文（繁 体）
声道 选 择
字幕 选 择
刻录 档 系统
设定
< >
恢 工厂 设 置
选择碟片 C :
检查刻录档系统 开始
USB磁碟
时移磁碟容量
格式化
速度
6 Hr.
刻录时间限制
OK
MENU
选择磁碟： 选择存储刻录文件。
选择磁碟
USB 0
磁碟 C :
檢查PVR檔案系統：檢查USB設備
是否成功安裝PVR檔案系統。
如圖：
Format:
文件系统容量
PVR 文件系统类型 HiSpeedFS
PVR 文件系统容量 All
SD 104 Mins
HD 29 Mins
OK
OK
MENU
14
文件系统容量
PVR 文件系统类型 FAT32
PVR 文件系统容量 All
SD 104 Mins
HD 29 Mins
OK
OK
MENU
Page 16
录影机功能操作
（建議通過“Hi Speed FS”格式化
設備加速燒錄速度）。
格式化磁片
格式化磁片
警告！将丢失所有资料。
开始 退出
格式化磁片
勿拔出USB设备
正在格式化！请等待
格式化结束后会弹出以下菜单：
选择碟片 C :
检查刻录档系统 检查中
USB磁碟
时移磁碟容量
格式化
速度
6 Hr.
刻录时间限制
OK
成功
成功
All
检查中
MENU
2. 錄影節目
在觀看數碼電視時, 只要巳連接磁碟而
磁碟的容量未滿, 按遙控上的
“REC/REP” 會進行錄影“錄影”，
錄影視窗將會彈出。另外，用家也可
按遙控上的 “EPG” 透過電子節目表
進行預錄。
3. 播放燒錄內容
在“USB”裡，錄影的節目將會被保存
到設備的“_MSTPVR”資料夾裡。
1. USD記憶體容量必須達到4GB 到
500GB。
2. 視頻位元速率太低時，視頻播放會
有小格子出現。
3. 並非所有USB設備都相容，建議購
買前查詢偉迪的代理商。
选择碟片 C :
检查刻录档系统 成功
USB磁碟
时移磁碟容量
格式化
速度
6 Hr.
刻录时间限制
OK
成功
成功
All
检查中
MENU
如果您選擇“Hi Speed FS”格式化模
式則可改變時移大小。
时移磁碟容量
时移磁碟容量 512 MB
SB 14 Mins
HD 4 Mins
OK
15
Page 17

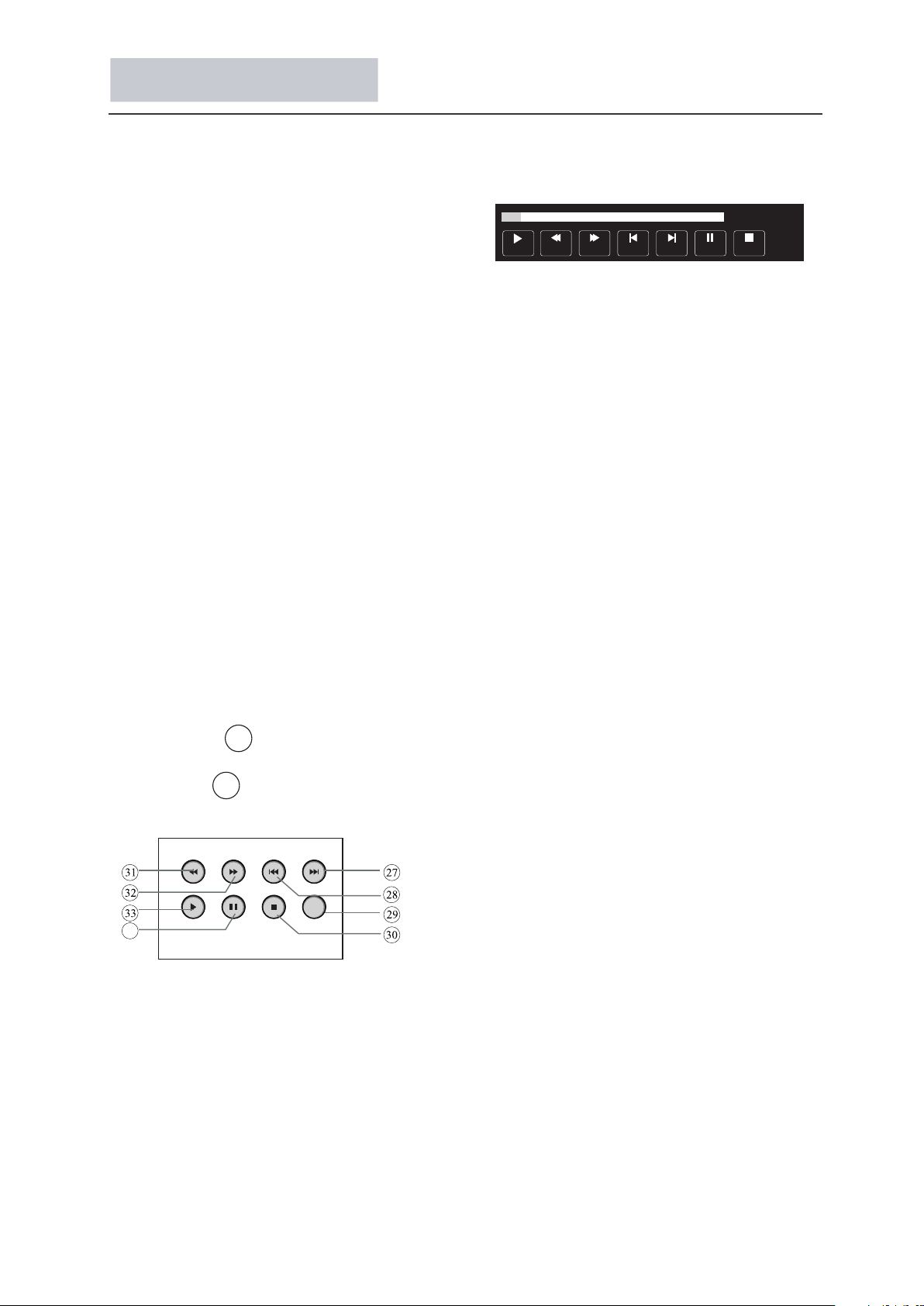

录影机功能操作
時移功能
1. 時移功能
電視機支援暫停以及將正在觀看的數位
節目燒錄到USB存放裝置，以便從暫停
處重新觀看。
[-00:00:08/00:09:00]
s
播放 停止
快进 上一个 下一个快退
暂停
00:06
提示：
· 需要格式化USB2.0記憶體設備.格式
化前請保存您的資料。格式化後所有存
儲在USB設備裡的資料將被清除。
· 時移功能啟動後，睡眠計時器將會被
中止。
USB存儲驅動格式化
· 格式化時長至少2分鐘，請不要在格
式化過程中切斷電源或將USB設備拔
出。
· 格式化過程中， USB設備將會啟動速
度檢測。如果檢測失敗，則USB設備可
能不支援時移功能。
將暫停的DTV節目燒錄到USB存放裝置
中
1. 在DTV的輸入源板面將USB存放裝置
插入電視一側的USB埠。
2. 按PAUSE 34 啟動時移功能。電視節
目暫停。時移介面彈出，開始燒錄。
3. 按STOP 30 停止時移功能，中止節
目燒錄。
提示：
· 請勿在時移功能啟動時拔出USB存放
裝置
· 約4GB緩衝
提供140分鐘燒錄內容
REC /REP
34
16
Page 18
技术规格
1.YPbPr/HDMI
分辨率
480i
480p
720p
1080i
1080P
場頻（Hz）
60
60
60
60
60
2.VGA
分辨率
1440*900
1024*768
800*600
640*480
產品型號
螢幕尺寸
解析度
可視角度
亮度
對比度（標準）
反應時間
電視制式
伴音制式
電源輸入範圍
消耗功率 ≤75W
輸入端子
輸出端子
附件
場頻（Hz）
60
60
60
60
32E300CT
32"
1366X768
H:170° V:160°
300 cd/m
1500:1
6.5 ms
DMB-TH;PAL
BG;DK;I
交流 100~240V/頻率 50/60Hz
天線輸入端×1
HDMI 輸入端×2
YPbPr 輸入端×1
VGA输入端 ×1
PC AUDIO輸入端
USB 輸入端×1
Ac交流電源輸入端×1
AV 輸入端×1 L/R×1
MONITOR 音頻輸出端×1
MONITOR 视頻輸出端×1
說明書×1
遙控器×1
電池×2
保修卡×1
2
×1
17
Page 19

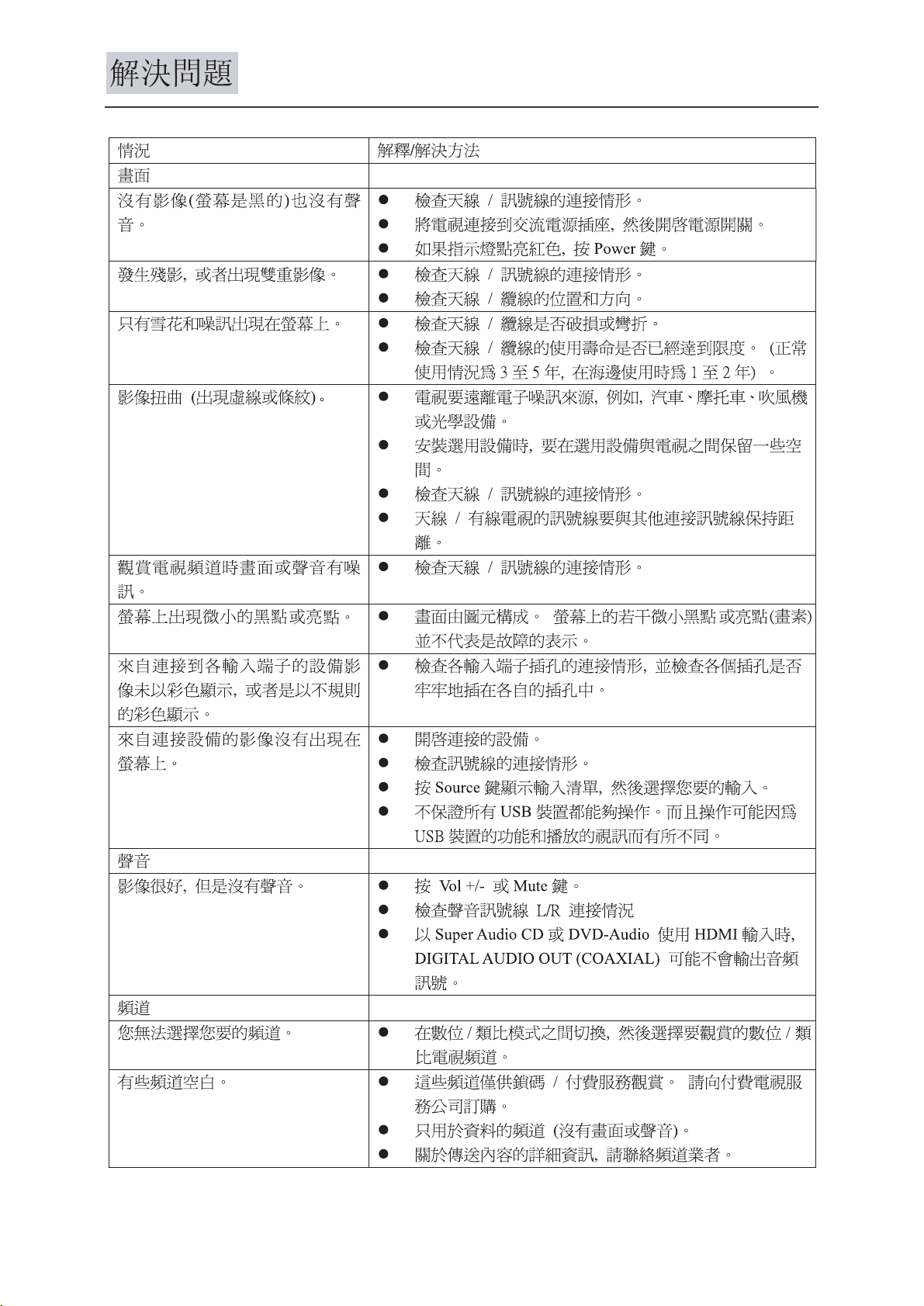

18
Page 20

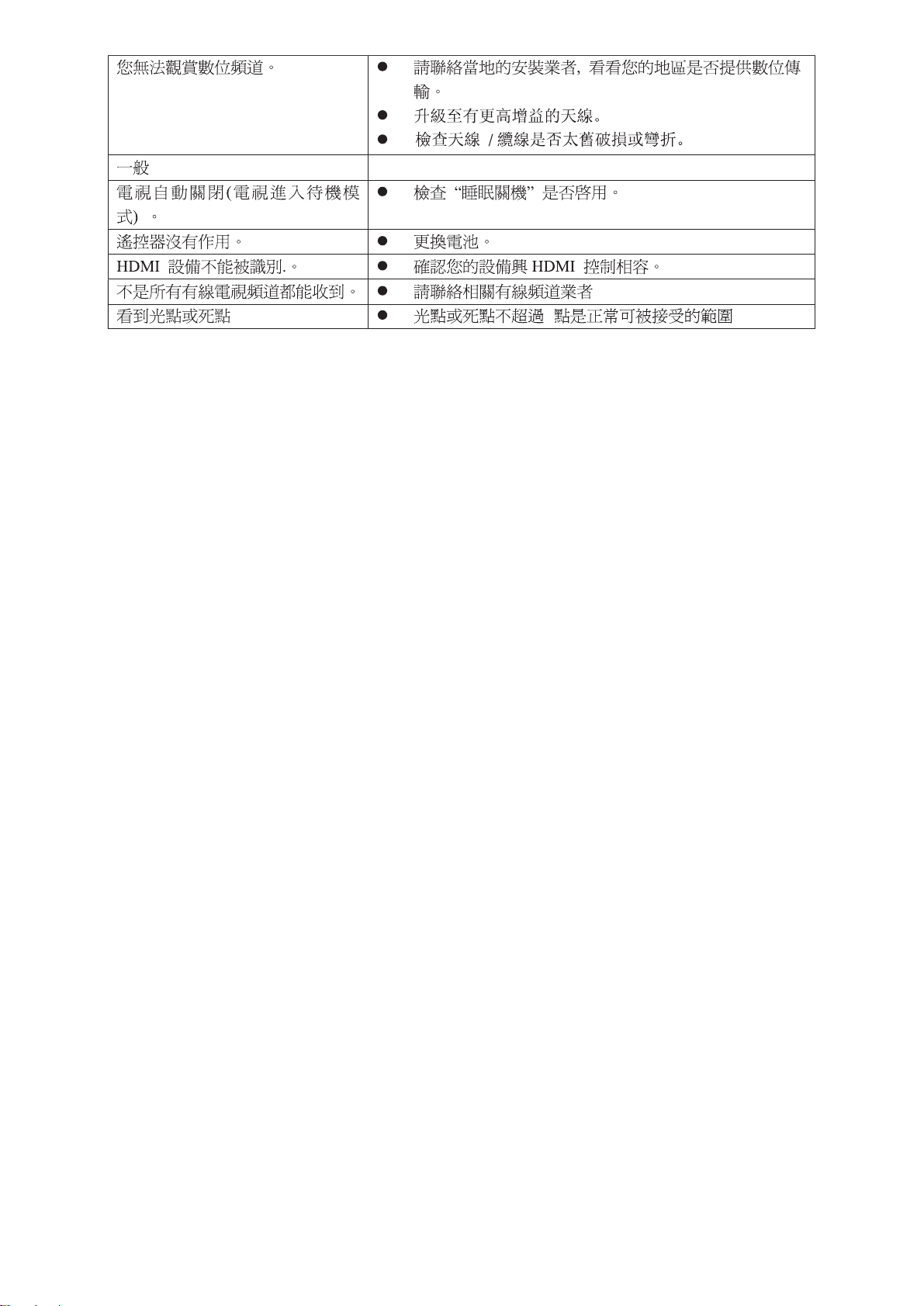

7
19
Page 21
Table of Contents
Table of Contents………………………………………………………
Safety Information……………………………………………………..
Precautions………………………………………………….…….……
Stand Installation..………………………………………….…….……
Remote Control ………………………………………………………..
Functions of the panel…………………………………………………
Rear Panel and Descriptions………………………………………...
Menu Operation ………………………………………………………
Record……................……………………………………………….
Specifications………………………………………………………….
Trouble shooting………………………………………………………..
20
21-23
23-24
24
25
26
27
28-31
32-35
36
37-38
Before operating the TV, please read “Safety Information” and retain
this manual for the future reference.
20

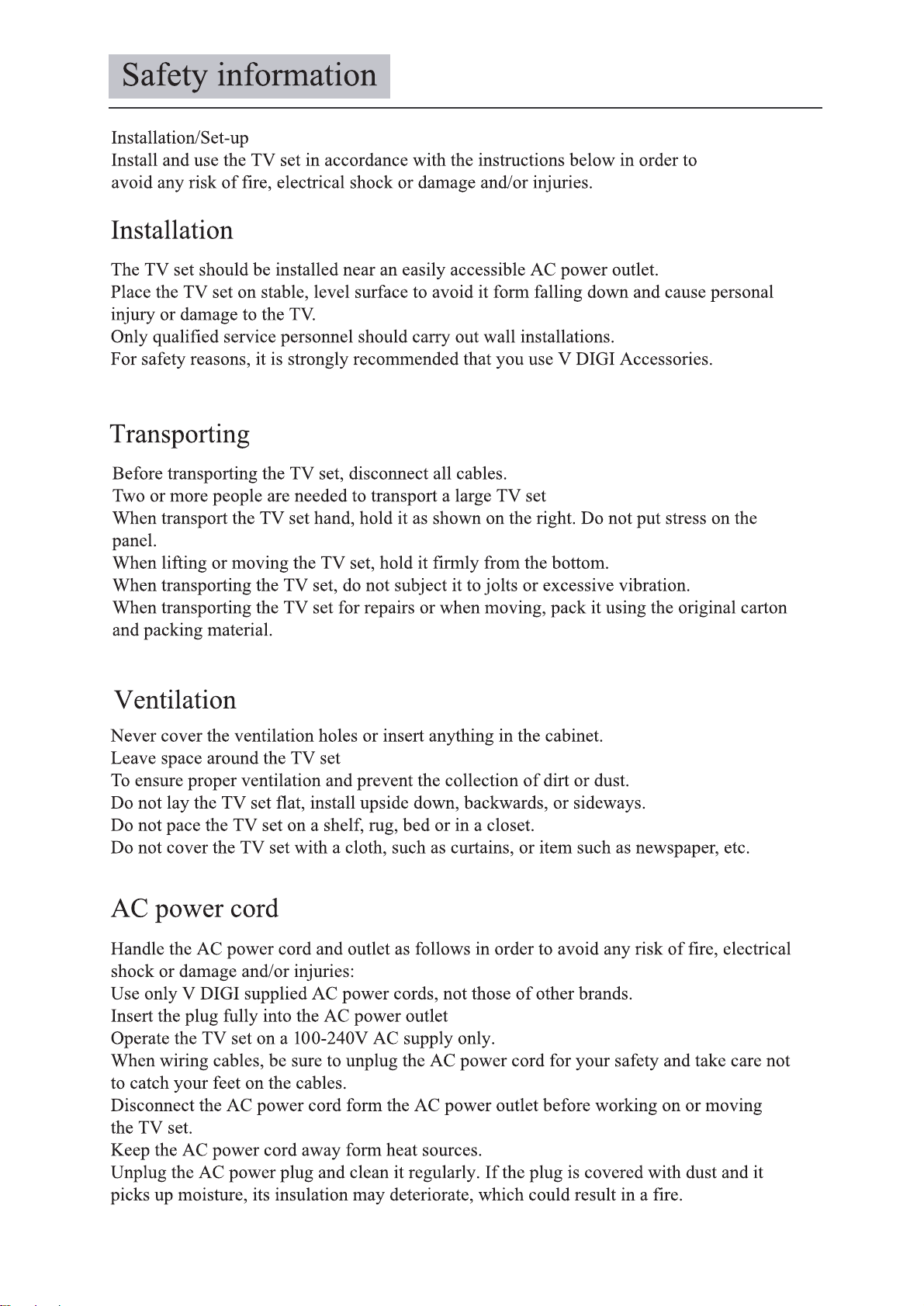

Page 22
21

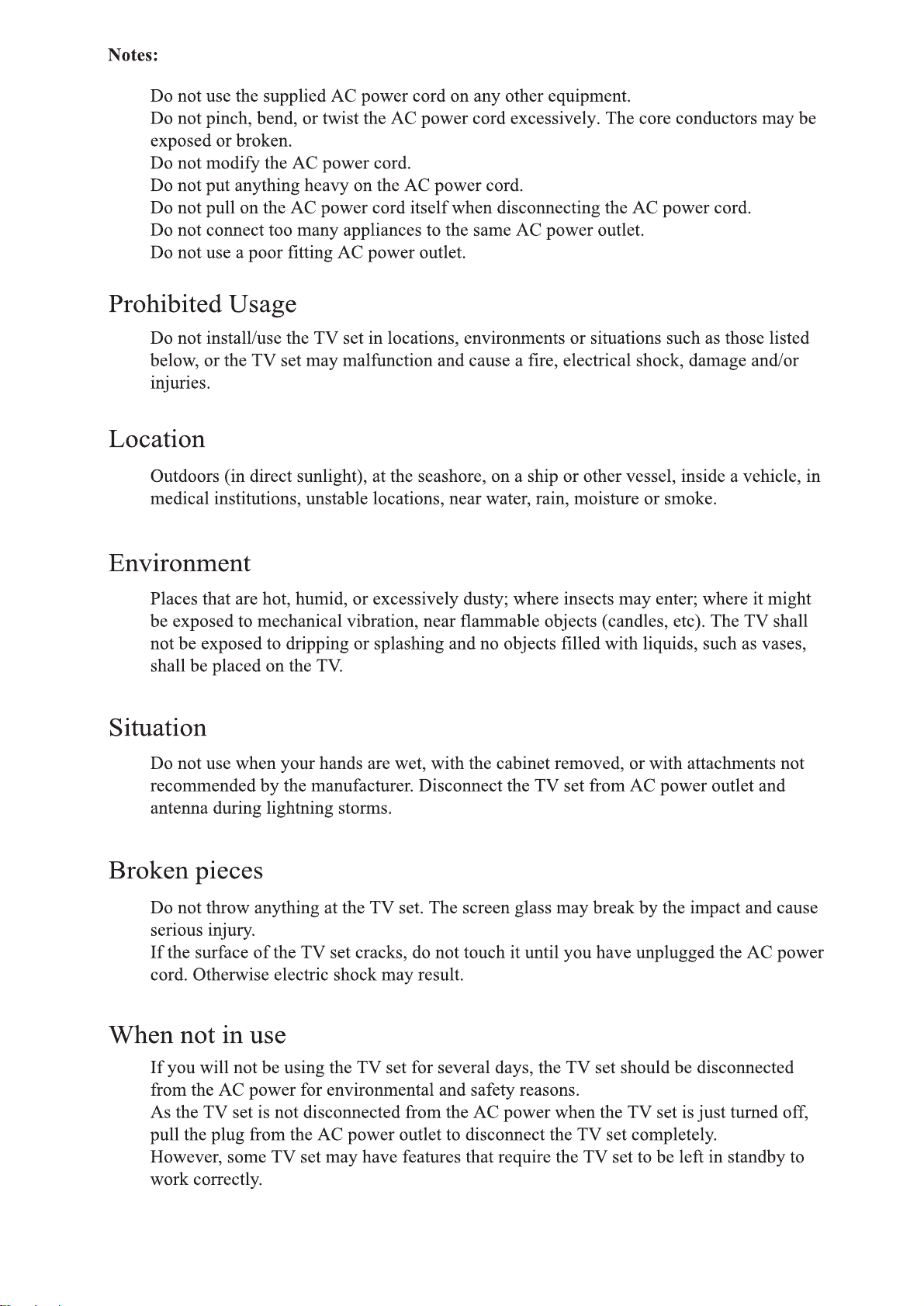

Page 23
22

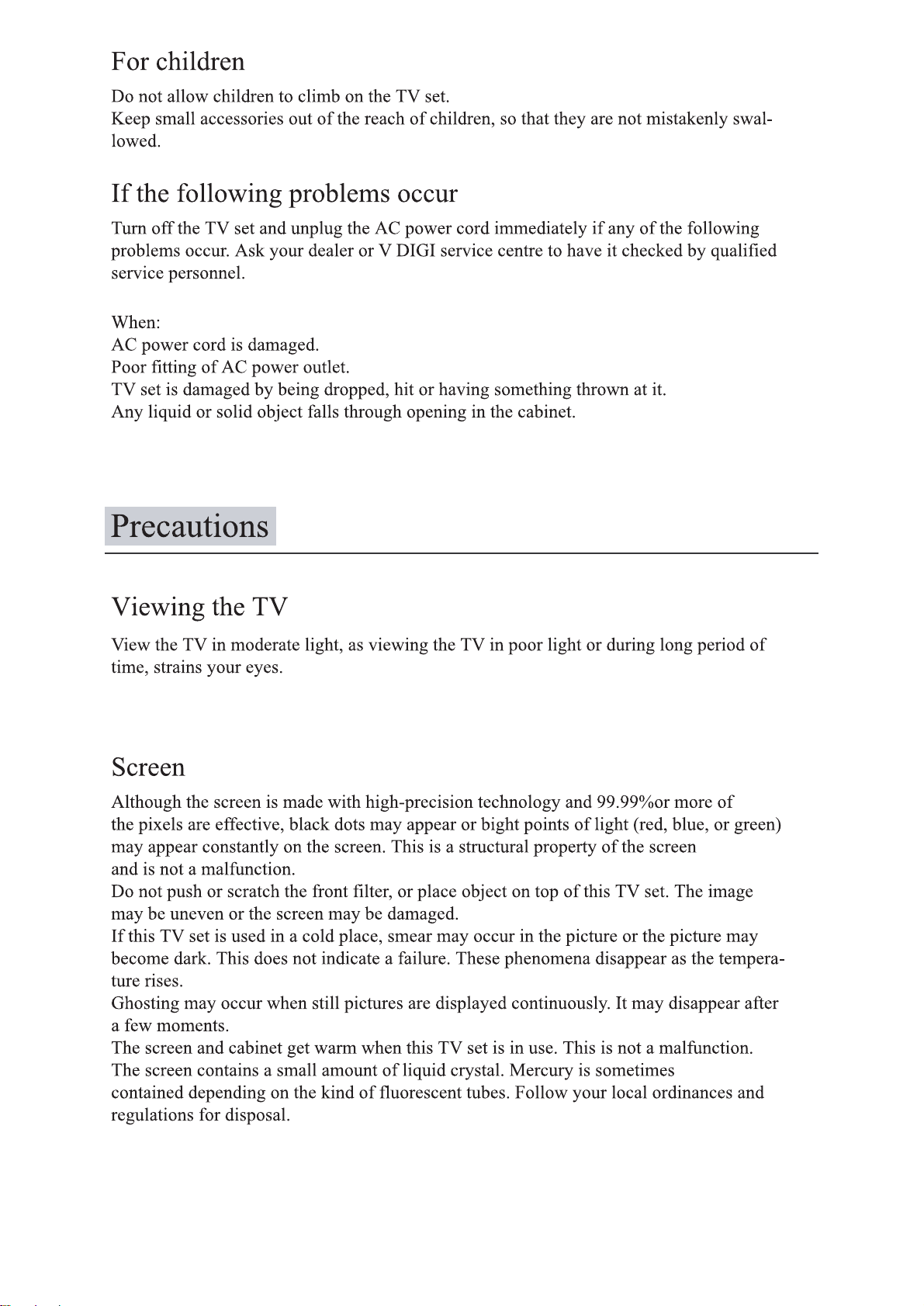

Page 24
23
Page 25
Stand Installation
Your TV is packaged with the TV stand separated from the cabinet. To setup the TV table stand,
please carry out the installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prev
ent the panel from being damaged.
Note:
1. The panel is easy to scratch, so please choose an absolu
tely flat surface to place the
TV, and use soft cloth or cushion to protect the TV panel. Do not put TV on table directly.
2. Always unplug the AC cord first when installing or removing the stand.
Step Two
Insert the stand support pillar into the stand as the arrow indicated direction, and then
fastened with three screws.
Pedestal Screws Quantity
M4 x 10mm
3pcs
Step Three
Take the sta
Insert the sc
nd. Please align the screw holes of the stand and TV.
rews (which are totally the same) and tighten them.
Pedestal Screws Quantity
M4 x 22mm
1pcs
24
Page 26
Remote Control
LIS T
MUT E
AUD IO
REC ALL
EXI T
+
CH
_
TEX TUSBFRE EZE
INF OFAVEPG
IND EX
REC /REP
POW ER
1
2 3
4 5 6
7 8 9 0
TV ME NU SOU RCE
OK
CH. LIST
+
VOL
_
DTV
13
34
SUB PAGE PVR .LIST MIX SUB TITLE
SOU ND
PIC
SLE EP ASP ECT
HOL D
1: POWER
To set the TV to standby or power on.
2: NUMERIC KEY
For direct access to channels.
3: TV MENU
To display TV menu.
4: CURSOR
To move within the menu.
5: CH.LIST
To display the channel list.
6: VOL+/-
To adjust sound level.
7: PIC
To switch picture mode.
8: SLEEP
Set timer to turn off the TV.
9: FREEZE
To freeze the picture.
10: EPG
To display the Electronic Program Guide Screen.
11: FAV
To access your favourite channels list in ATV or
DTV mode.
12: DTV
Select DTV source input.
13: PVR.LIST
Show the PVR list.
14: MUTE
To disable or enable the sound output.
15: AUDIO
Select audio output.
16: RECALL
To access the previously viewed channel.
17: SOURCE
To select input source.
18: OK
To confirm selection.
19: EXIT
To return to the previous menu or exit menu.
20: SOUND
To switch sound mode.
21: CH+ /CH-
To access the next or previous channels.
22: ASPECT
Adjust image display proportion.
23: USB
Select USB source input.
24: TEXT,HOLD,LIST,INDEX,SUBPAGE,MIX
Teletext switching,if the local don’t have teletext swithing,
these keys is not valid.
25: INFO
To display information of current and next program
in DTV mode.
26: SUBTITLE
To switch between different subtitles in DTV mode.
29: REC/REP
Personal video record button.
27,28,30,31,32,33,34: Available in multimedia.
25
Page 27
Functions of the panel
Top Panel Buttons
INPU T
1
MENU
2
< >
CH
3
CH
VOL+
4
VOL-
POWE R
5
INPUT:
Displays the Source Select List.
MENU: Displays the TV Main Menu.
CH-: Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control and can
be used to select menu options.
CH+: Scans up through the channel list. In
the TV menu system, it acts like the up arrow on the remote control and can be
used to select menu options.
VOL-: Decreases the volume. In the TV m
enu system, it acts like the left arrow on the remote control and can be used to
select menu options.
VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used to
select menu options.
POWER: Turns the TV on and off.
Remote control sensor
Power indicator
Power Indicator: Light up in red when the TV is in standby mode. Light up in blue when the TV is on.
Remote control sensor: Receives IR signals from the remote.(Do not put anything over the sensor,
otherwise, the sensor may not operate property.)
26
Page 28
Rear Panel and Descriptions
HDMI
R
Audio L/R
L
Video
AV OUTPU T
MONITOR OUT
L R
L
To audio input
equipment
To video input
equipment
R
Audio L/R
VGA INPUT
HDMI1 INPUT USB
AUDIO INPUT
Video e qu ipment wi th
compone nt o utput ter mi nal
Pb Pr
L
Y
R
PC/HDMI
Video equipment
Video
VIDEO
TV
ANT
L
AC-INPUT
110-240V~ 50/60Hz
HDMI
VIDEO INPUT
Vide o Audi o
R
AUDIO INPUT
L R
L
R
Video equipment
R
L
Audio L/R
Video
COMPONENT INPUT
Y
To audio output
equipment
To video output
equipment
Y
P
bPr
Pb
Name Function Description
USB1
HDMI1,HDMI2
VGA video
VGA audio
YPbPr
AV
AV audio L/R
RF IN
AC
PC AUDIO
MONITOR OUTPUT
Reserve for external USB device
HDMI input
VGA video input
VGA audio input
Component input
Composite video input
Composite audio input
Antenna input
Power input
PC audio input
MONITOR output
Pr
HDMI2 INPUT
27
Page 29
Menu Operation
Installation Guide
OSD L angua ge
Nor way
Pol and
Por tugal
Rum ania
Rus sian
Ser bia
Slo venia
Spa in
Swe den
Swi tzerl and
UK
New Zeala nd
OK
Eng lish
Chi na(HK )
Tun is
Alg eria
This screen only appear when the TV is
turn on for first time or reset to factory setting.
Press OK key to start auto tuning .
And after tuning, the screen will show the first
DTV program.
1.CHANNEL MENU
The first item of the MENU is channel menu (for
ATV or DTV only).
Aut o Tun ing
DTV Q uick Tun ing
DTV M anual Tu ning
ATV Ma nua l Tuni ng
CHA NNEL
< >
Pro gramm e Edit
Sig nal Inf ormat ion
Sof tware U pdate (USB)
NOTE:
All the channels including ATV and DTV
can be tuned at one time,if the Tune Type is
DTV+ATV .
All the stored channels will be disappeared after
auto tuning .
After auto tuning , the TV will s ho w th e co nt en ts
of the first DTV channel.
2).DTV Manual tuning
You can select a DTV channel, then find the program
in this channel.
Press to change the channel number or input the
channel number. Press OK to search the programs .
NOTE:
Bad, Normal and Good means signal intensity.
DTV Manua l Tuning
_
UHF CH 35
+
You can search channels and edit programs here.
1).Auto tuning
Search all the channels automatically(you can
select ATV, DTV or DTV+ATV)
Tun e Type DT V+ATV
Chi na(HK )
Tun is
Alg eria
Egy pt
Sou th Afric a
Isr ael
MEN U
Ira n
United Arab Emirat..
Slo vak
OK
Press to select ATV and DTV at first ,
then press OK to start auto tuning .
Channel Tu ning
ATV : 0 Pr ogr amme(s)
DTV : 0 Pro gra mme (s)
96% UHF C H 68 DT V
Press O K to se arc h
Bad No rma l
Good
3).DTV Quick Tuning
Press “OK” button to enter into DTV Quick
Tuning,it is only for HONGKONG.
4). ATV Manual tuning
Press to select the channel number
for manual tuning. Press to select
"Search" or "Fine tune" ,confirm the
execution by pressing .
ATV Ma nua l Tuning
_
Stora ge To 1
Syste m I
Curre nt CH 1
Searc h
Fine- Tune
Frequ enc y 424 .25 M Hz
Sav e MENU
+
28
Page 30

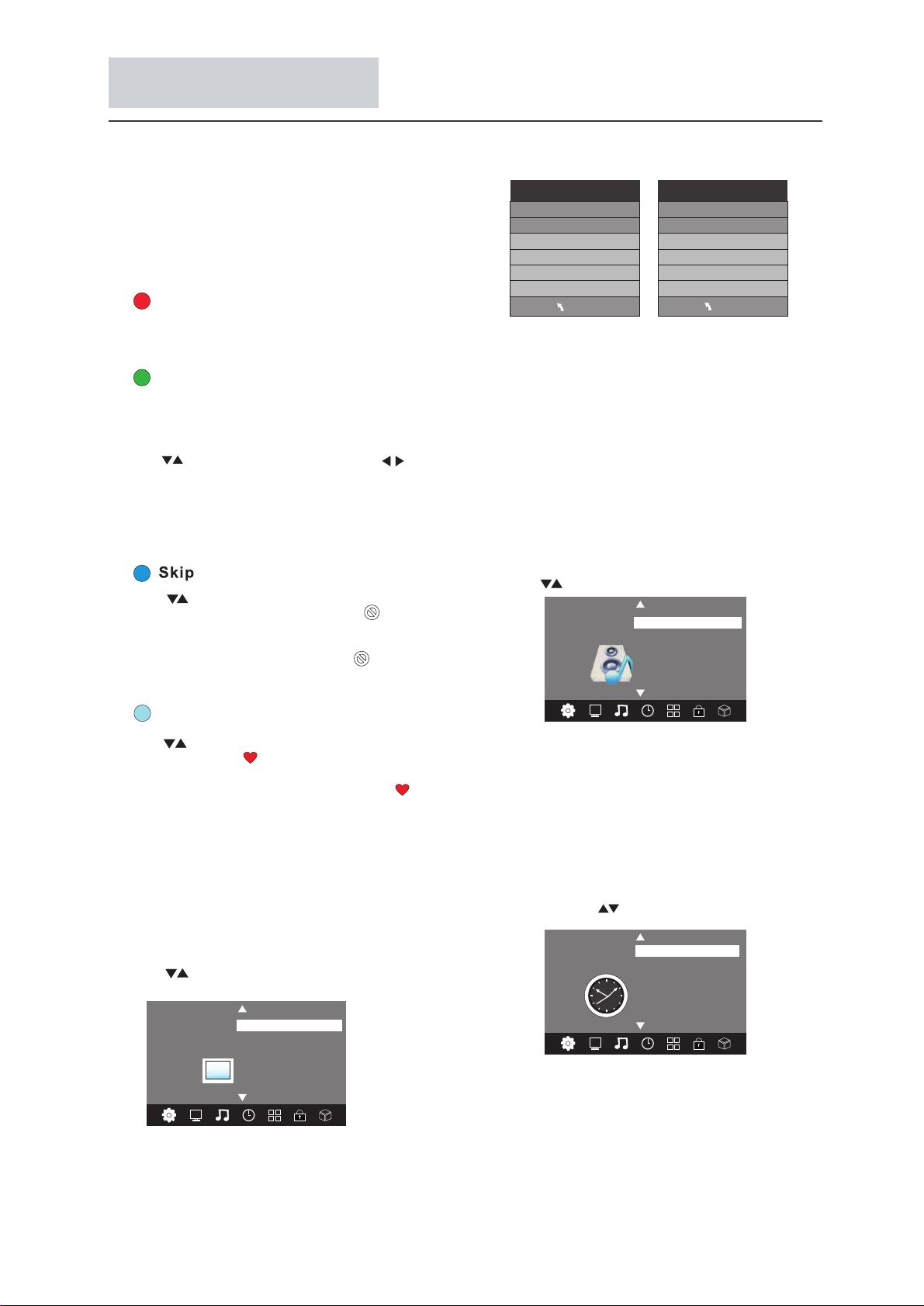

Menu Operation
NOTE:
Press red button to store the channels after manual
tuning .
4). Program edit
You can Delete, Rename, Skip, or assign any
programs as your favourite programs.
Dele te
Press red button, the highlighted program will be
deleted.
Rena me
Only ATV programs can be renamed.
Move the cursor to the program, press green
button to rename the program.
Press to choose the character. Press to
move the cursor.
Press MENU button to exit edit. Press EXIT to
exit the menu.
Note: ATV programs name can only contain 5
characters.
Press to choose the program, press
blue button to skip this program, The will
show on the right side of the program.
Choose the skipped program, press blue button
again, you can cancel the skip,The will
disappear.
Pic ture Mo de User
Contr ast 5 0
Brigh tne ss 50
Color 5 0
Sharp nes s 50
Tin t 50
MEN U
Col or Temper ature U ser
Red 40
Green 3 1
Blue 50
MEN U
NOTE:
1).There are 4 picture modes: Standard, Mild, User
and Dynamic.You can only adjust the picture effect
when "User" mode is selected.
2).Tint is available in NTSC system only.
3).There are 4 colors temperature modes:
Cool,Medium, Warm and User.
4).Screen is available in PC mode only which,
you can adjust horizontal position, vertical
position, size and phase.
3.SOUND MENU
The third item of the MENU is the SOUND
MENU.
You can adjust the sound effect here such as
treble, bass, balance etc.
Press to move, press OK to adjust.
Sound M ode S tan dar d
Balan ce
SOU ND
< >
Auto Vol ume
Surro und S oun d
Favourite
Press to choose the program, press FAV
button, it will show on the right side of the
program.Choose the FAV program, press
FAV button again, you can cancel the FAV,
will disappear.
Once your favorite group is created, you can
press the FAV key to quickly access your favorite
channel.
2. PICTURE MENU
The second item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as
contrast, brightness, etc.
Press to move, press OK to adjust.
Pic ture Mo de Stan dard
Col or Tem per atu re
Asp ect Rat io
PIC TURE
< >
Noi se Redu ction
Scr een
Note:
1).There are 5 sound modes:
Standard, Music, Movie, Sports and User.You
can only adjust the sound effect when "User"
mode is selected.
2).Auto volume: only available when the input
signal volume is too large or with distortion.
4.TIME MENU
The forth item of the menu is the TIME MENU.
You can adjust the power on/off time, sleep
time etc. Press to move, press OK to adjust.
Clock - - -- -- - -
Off Ti me
On Time
TIM E
< >
NOTE:
1.If "Auto Sleep" is set to on, the TV will be
automatically powered off if there is no signal
within 15 minutes.
2.The clock time will be set automatically after the
DTV channels are tuned.
Sleep Ti mer
Auto Sl eep
Tim e Zon e
29
Page 31
Menu Operation
5.OPTION MENU
The fifth item of the MENU is the OPTION
MENU. You can adjust the Menu language,
Audio language,Subtitle language etc (only
for DTV).
Audio L ang uag es
Subti tle L ang uag es
Count ry Ch ina (HK )
OPT ION
< >
PVR Fil e Sys tem
Resto re Fa cto ry De fau lt
NOTE:
Restore factory default will clear all the programs .
6.LOCK MENU
The sixth item of the MENU is the LOCK MENU.
You can lock system, set password, block program
and set parental guidance. Once you set the lock
system on, you cannot search the channels or
change any programs.
Lock Sy stem
Set Pas sword
Block P rogra m
LOC K
< >
Paren tal Gui dan ce Off
7. AP PL IC ATIONS MENU
The seventh item of the MENU is the APPLIC ATIONS
MENU.
DMP
APP LICATI ONS
< >
Press OK to enter the DMP menu.
USB 2 .0
PHO TO MUSI C TEXT MO VIE
You ca n en jo y vi ew in g ph otos, listening music and
watching video and text from external USB device.
Select the media type by pressing , press OK
to enter the next selection menu.
1/1
NOTE:
1) When "Lock system" is highlighted, press
OK and enter the default password "0000" to
activate it.
2) Block program: Press to choose the
program, press green button to block the
program. If you want to unblock the program,
simply repeat steps mentioned in 1 and 2.
3) Parental guidance: Press to choose
4~18 years.
If you forget your password, you can clear it
with the following steps:
1) Enter into the "Lock" menu.
2) Enter the super code: 9527.
3) Select "Set Password".
4) Input "9527" as old password.
5) Enter the new password, then the setting
process is finished and the new password
will be enabled.
Ret urn C
Press to select the right drive and press
OK to display media files and folder list or
choose "Return" to back to the media type
selection menu. Select the media file by pressing
or , then the preview frame will pop up.
1/1
01 By My s ide.m p3 02 By My s ide.m p3
Retu rn
04 I Won 't Lase A. .. 0 5 Just Wh en I... 06 B y My side .mp3
Sub M enu
Albu m: By My si de
Titl e: By My si de
Bit Ra te: 128 K
Arti st: Che t Lam
Samp ling: 4 4K
Year:
Size : 1981K Bytes
30
Page 32
Menu Operation

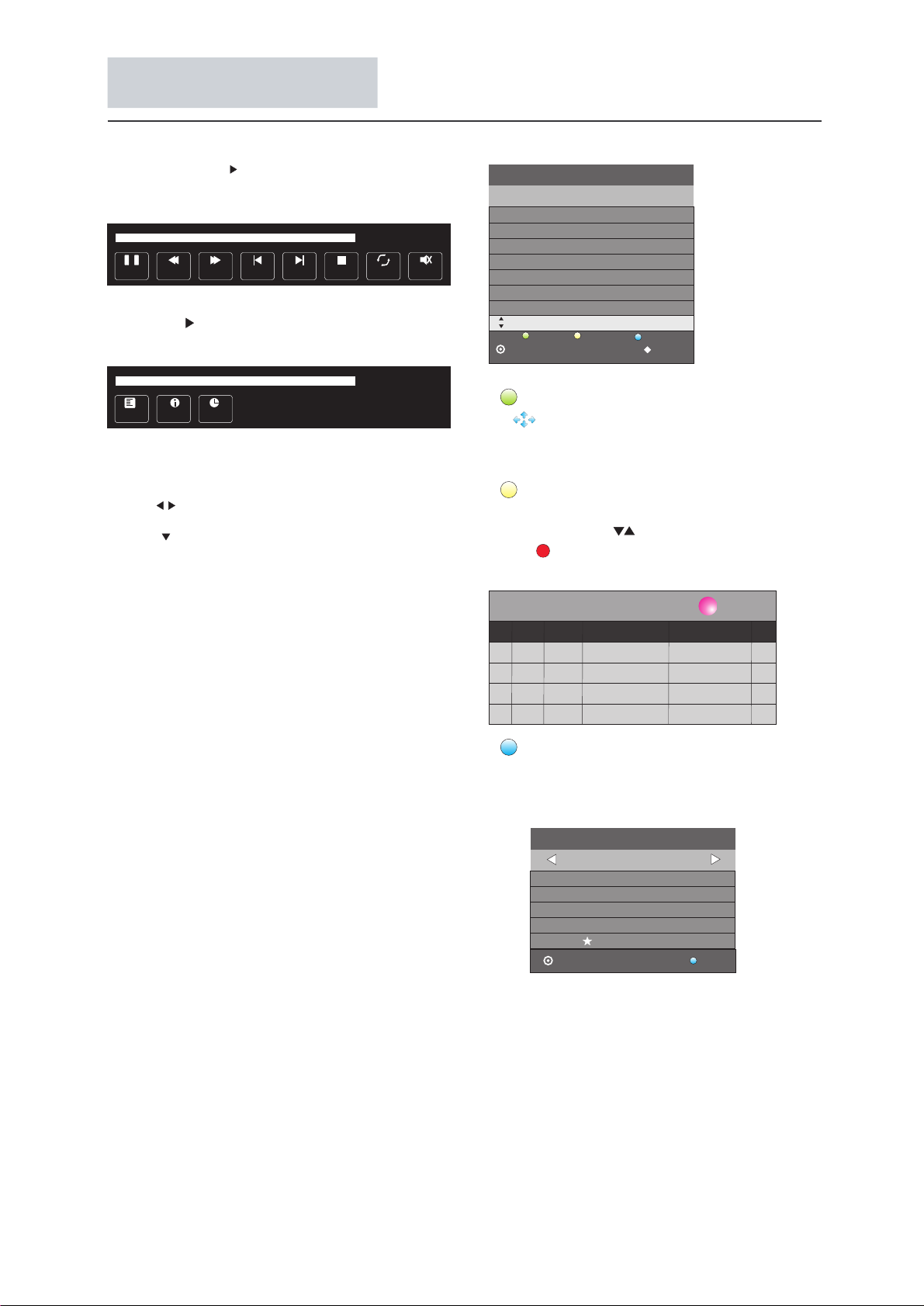

Press the button to play the me di a fi le i n full
screen, the following contr ol b ar w il l be
displayed on the screen.
00:00:33 /00 :04 :22
Pause FF Prev. N extFB Sto p
Repeat ALL
MUTE
Press the cursor on the remot e co nt ro l to display
the other options on the contro l ba r.
00:00:48 /00 :04 :22
Pla ylist
Inf o.
Goto Ti me
The options available in the co nt ro l ba r will be
different whe n "P ho to " is selected from the external
USB device.
Press to select the functio n ic on , pr ess OK
to confirm the function.
Press or EXIT to ex it t he c on trol bar.
Press "INFO" or "OK" to displ ay t he c on trol bar again.
NOTE:
Choose the Info icon and press OK
to display the Info MENU.
Below photo formats are suppo rt ed :
—JPEG(JPEG format, files w it h th e ex tension ".jpg" )
—BMP (files with t he e xt en sion ".bmp")
—PNG (files with the extension " .p ng ")
Below music formats are suppo rt ed :
—MP3 (files with the extension " .m p3 ")
—WAV (files with the extension ".w av ")
Below video formats are suppo rt ed :
—AVI (files with th e ex te ns ion ".AVI")
—MP4 (files with the extension " .M P4 ")
—TS (files with the extension ". TS ")
Below text formats are suppor te d:
—TEXT (files wit h th e ex te nsion ".txt")
Note:Only supported the tra di ti onal
Chinese with Unicode format .
8.EPG Menu(Electronic Program
Guide)
The EPG menu is used to look at what is being
broadcasted on DTV channel.
To access the EPG menu, press EPG button,
the following menu will be displayed:
PRO GRAMM E GUIDE T IME
24 / Sep 15:12
11 Hom e Weal th Blog (C)
12 HD a T V Weal th Blog (HD)( C)
13 TV S Afte rno onte a time sh ow
14 CT I-Asi a New Talwa n Sta r Avenu e
15 CC TV 4 TV Dra ma
16 Wo rld E TV
81 Ja de The Gr een R oom
82 J2 L ovey Do vey My Fi ji
OK
INFO
1.
Sch eduleInf o
Rem inder
IND EX
Use to choose the programs , Press
INFO key, you can display the highlighted program's
information.
Schedule
2.
Press yellow key, the entire reminder schedule
will be listed. Press to choose the list, press
red key to delete the schedule list.
DELETE
Press EPG to return to EPG menu.
Sched ul e List 04 :55 28t h Apr Dele te
Tim e D ate
3.
Reminder
Programm e Titl e
Channel Na me
Press the blue key to choose one program
and set up one reminder time, the TV screen will
show the selected program in the reminder time
automatically.
Remin der
_
OK
11 Hom e
15 Minute
16 Hour
Aug Month
16 Date
Once Mode
+
BAC K
Press OK to save the reminder.
TEXT
MHEG-5 data broadcast is scheduled in Hong Kong.
You can watch a MHEG-5 data broadcast after
pressing the TEXT button.
31
Page 33
Standby Record (Only in DTV mode)
Set EPG record task
1.In DTV mode, press EPG button to show programme list within 7 days.
PROGR AMME GU ID E TIM E
01/JA N 00:32
800 NO In for mat ion
inf o.
2.Press
rec ord
OK
▲▼ buttons to select programme, press REC button to enter recording
page:
RECOR DER
- 800 +
OK
01/1月 00 :07
Start Ti me
30 Minu te
00 Hour
Jan Mon th
01 Date
End Time
40 Minu te
00 Hour
Jan Mon th
01 Date
Mode AU TO
3.When in recording page, press button to enter recording task list:yellow
Schedule List 00:03 01th J an Delete
sch edule
rem inder
IND EX
19：00 ce 十 一月 2008 18：0 4
On
BAC K
Tim e D at e
00: 34-01 :04 Tu e.01 /Jan N o Infor matio n 800
Programme Title
11
Channel Name
4.When in recording page, press ENTER button will add a new task to recording
task list.
32
Page 34
Standby Record (Only in DTV mode)
PVR function
1.Prepare to record the program
From OPTION MENU enter into PVR File
System In “OPTION MENU”, please
choose “check PVR File System”. Click
“OK”, until “checking”change into
“Success”.
Note: please check the term “speed”. If it
is “HD support”, that means the speed of
USB device is available for time shift and
record. If not, please format the device, to
make sure the device available. The default
“Free Record Limit” is 6 hour, if the space
on the disk is big enough. If the space is not
big enough, the record time should be
shorter, depends on the room on the
device. During the “check PVR File
System” checking, please do not take any
other operation until it finished.
The recordings have to be done with TV PVR
system. It can only be played in the same TV,
not in other kind of devices (computer, DVD,
etc...) which doesn't be compatible with .TS.
Format.
See that in order to carry out any kind of
recording, the TV will oblige you to format the
connected device to store the recording.
WARNING. WHEN YOU FORMAT, THE
EXTERNAL DEVICE WILL LOSE ALL THE
FILES AND INFORMATION YOU STORAGE
IN THE DEVICE.
From OPTION MENU enter into PVR File
System as below:
Audio L ang uag es
Subti tle L ang uag es
Count ry Ch ina (HK )
OPT ION
< >
PVR Fil e Sys tem
Resto re Fa cto ry De fau lt
Select Disk C :
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 H r.
OK
MENU
Select Disk:select which disc to save the
record file.
Select Disk
USB 0
Disk C :
Check PVR File System: check if the PVR File
System set up in the USB device or not.
Format:
File System Size
PVR File System Type Hi Speed FS
PVR File System Size All
SD 104 Mins
HD 29 Mins
MENU
File System Size
PVR File System Type FAT32
PVR File System Size All
SD 104 Mins
HD 29 Mins
33
OK
Page 35
Standby Record (Only in DTV mode)
(Suggest to format the format the device by
“High Speed Fs...”, which can speed up
the record.)
Format disk
Format disk
Warning! All data will be lost.
Start Exit
Format disk
Do not unplug USB device.
Formatting,please wait
below menu appear after Format finish:
Select Disk C :
Check PVR File System Checking
USB Disk P ass
Format P ass
Time Shift Size All
Speed C hecking
Free Record Limit 6 H r.
MENU
2.Record the program
As playing the DTV source, choose the
channel and click “record”, the record
frame will pop up. Click “record” again,
the record frame will disappear and the
“REC” icon still on the left top. It will
disappear until you click “stop”.
3.Play the record
In “USB”, the record program will be
saved in the folder “_MSTPVR” on the
device.
1. The USB storage size needs to be the
size between 4GB to 500GB.
2. Video may become pixelated when Video
bit rate is too low.
3. Not all USB devices are compatible.
Below is a list of recommended USB
drvies.Models that are not listed may be
compatible, but it is not guaranteed to work.
User is highly recommended to consulting
us before purchasing USB Device.
Select Disk C :
Check PVR File System SUCCESS
USB Disk P ass
Format P ass
Time Shift Size All
Speed HD support 2048 KB/s
Free Record Limit 6 H r.
MENU
If you select the “Hi Speed FS ”format mode,
then you can change the time shift size:
Time Shift Size
Time Shift Disk Size 512 MB
SB 14 Mins
HD 4 Mins
34

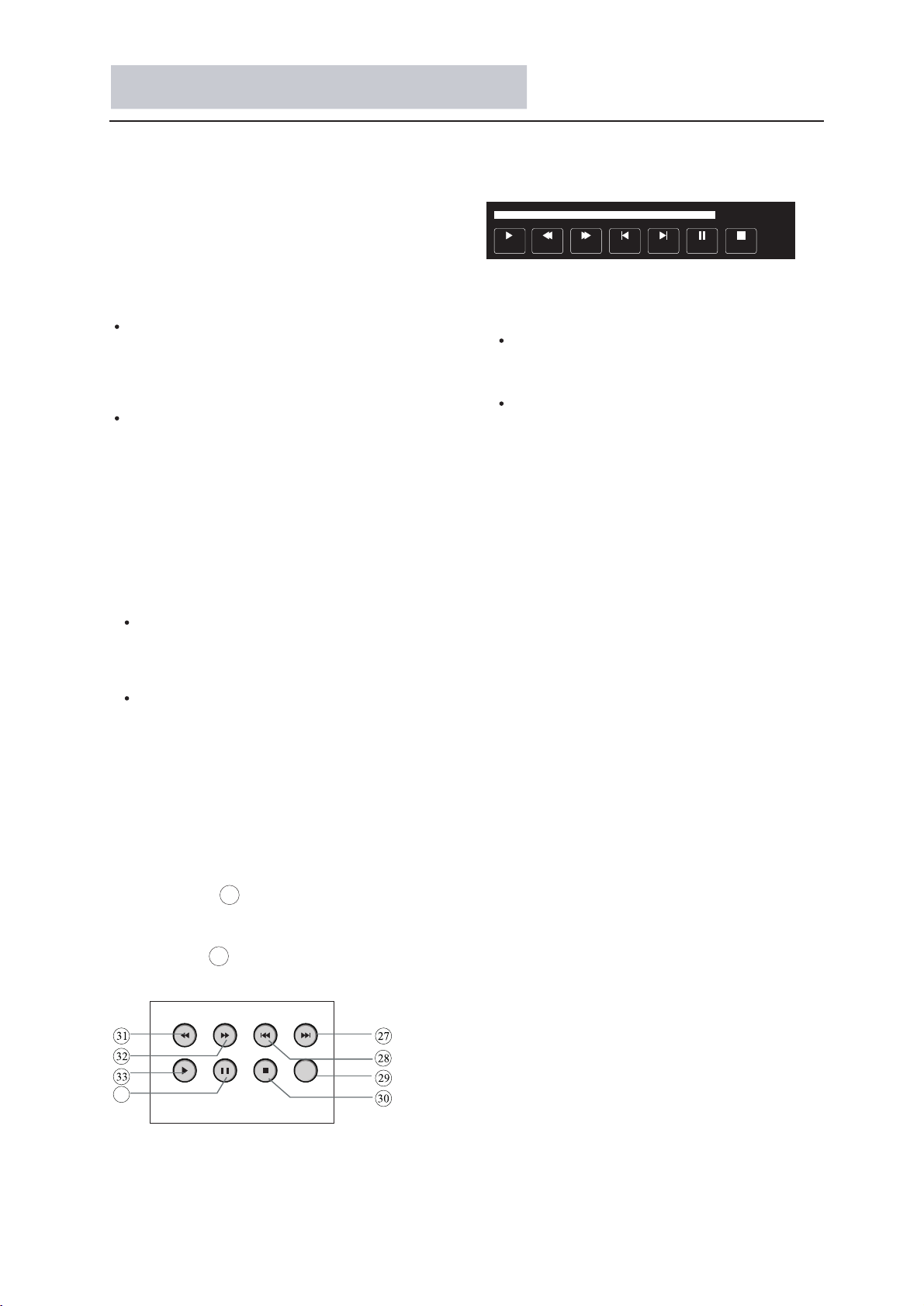

Page 36
Standby Record (Only in DTV mode)
Timeshift function
1.Prepare to record the program
This TV allows you to pause and record the
currently watched digital program to a USB
storage device, and to resume to the point
where it was paused.
NOTE:
Formatting a USB 2.0 storage device will
be needed. Save your original data
before formatting. All the data stored in
the USB device will be erased after
formatting.
Sleep timer will be suspended if it had
been set before activating the Time Shift
function.
USB Drive Storage Format
Select to format the USB device and
allocate the amount of space for the Time
Shift function.
NOTE:
The format process will take at least 2
minutes. Please do not turn off the power
or remove the USB device during
formatting.
Play Stop
FF Prev. NextFB
Pause
NOTE:
Please do not unplug the USB storage
device when the Time Shift function is
activated.
Approximately 4GB of memory buffers
about offer 140 minutes.
00:00:33/00:04:22
During formatting, a speed test will be
done on the USB device. If it fails, it
means the USB device may not support
the Time Shift function.
Record a paused DTV program to
USB storage device
1. While in the DTV input source, insert
USB storage device to the USB port on the
side of your TV.
2. Press PAUSE 34 to start Time Shift
function. The TV program paused. The Time
Shift OSD appears, and starts recording.
3. Press STOP 30 to stop Time Shift
function and stop recording program.
34
REC /REP
35
Page 37
Specifications
1.YPbPr/HDMI
Resolution
480i
480p
720p
1080i
1080P
Vert.Freq.(Hz)
60
60
60
60
60
2.VGA
Resolution Vert.Freq.(Hz)
1440* 9 00
1024* 7 68
800* 6 00
640* 4 80
Model 32E300CT
Panel Size
Resolution
Viewing Angle
Brightness
Contrast Ratio(Typ.)
Response Time 6.5ms
TV System DMB-TH;PAL
Audio System BG;DK;I
Power Consumption
60
60
60
60
32inch
1366(H)×768(V)
H:170° V:160°
300 cd/m2
1500:1
AC 100~240V/Frequency 50/60Hz Power Input
≤75W
Tuner In×1
HDMI×2
PC AUDIO×
1
Input Terminal
Output Termianl
Accessories
YPbPr In×
VGA Video×1
VGA Audio×1
USB×1
AC×1
AV In×1 L / R×1
MONITOR 1VIDEO×
MONITOR 1AUDIO×
User Manual×1
Remote Controller×1
Battery×2
Warranty Card×1
36
1

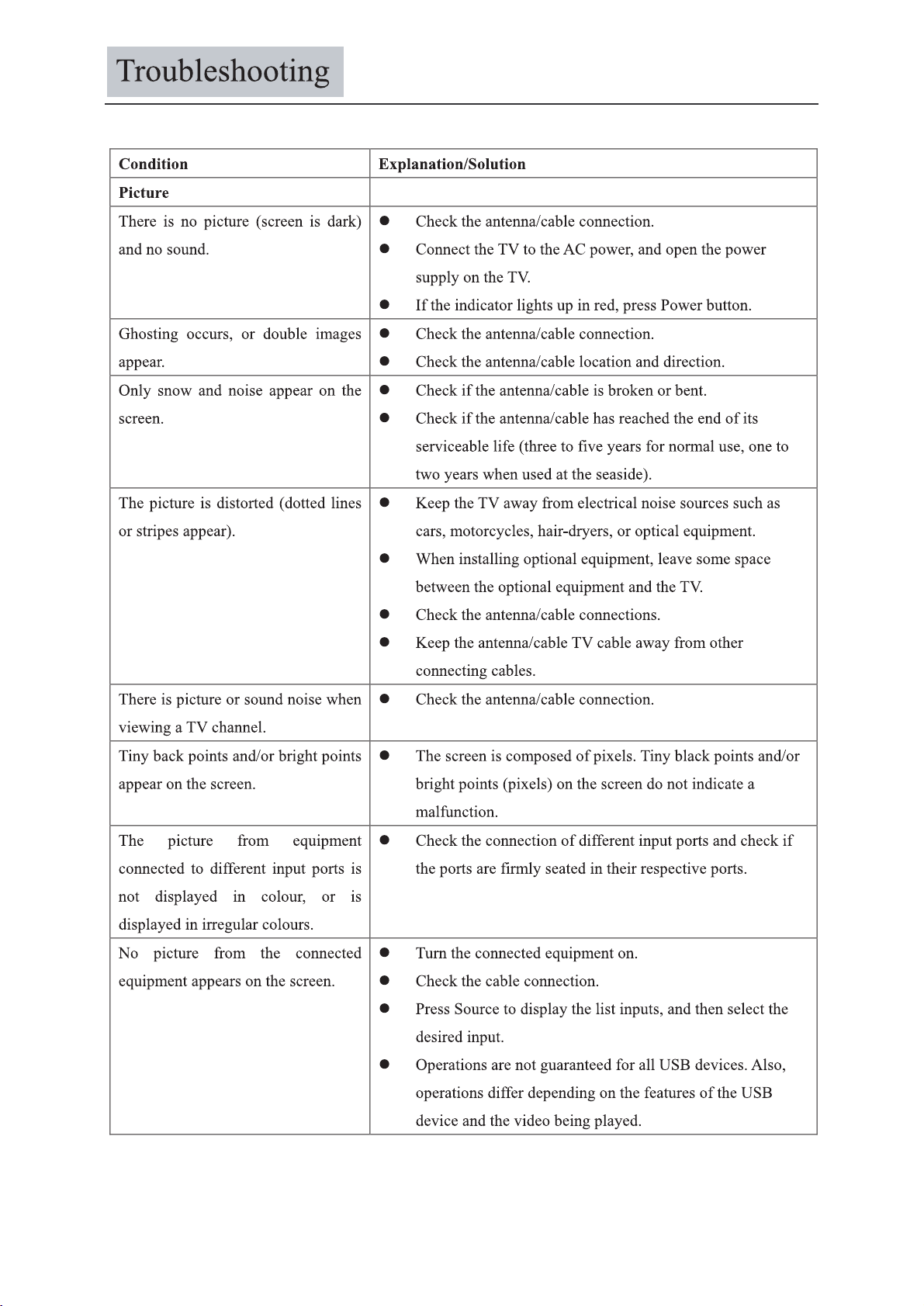

Page 38
37
Page 39

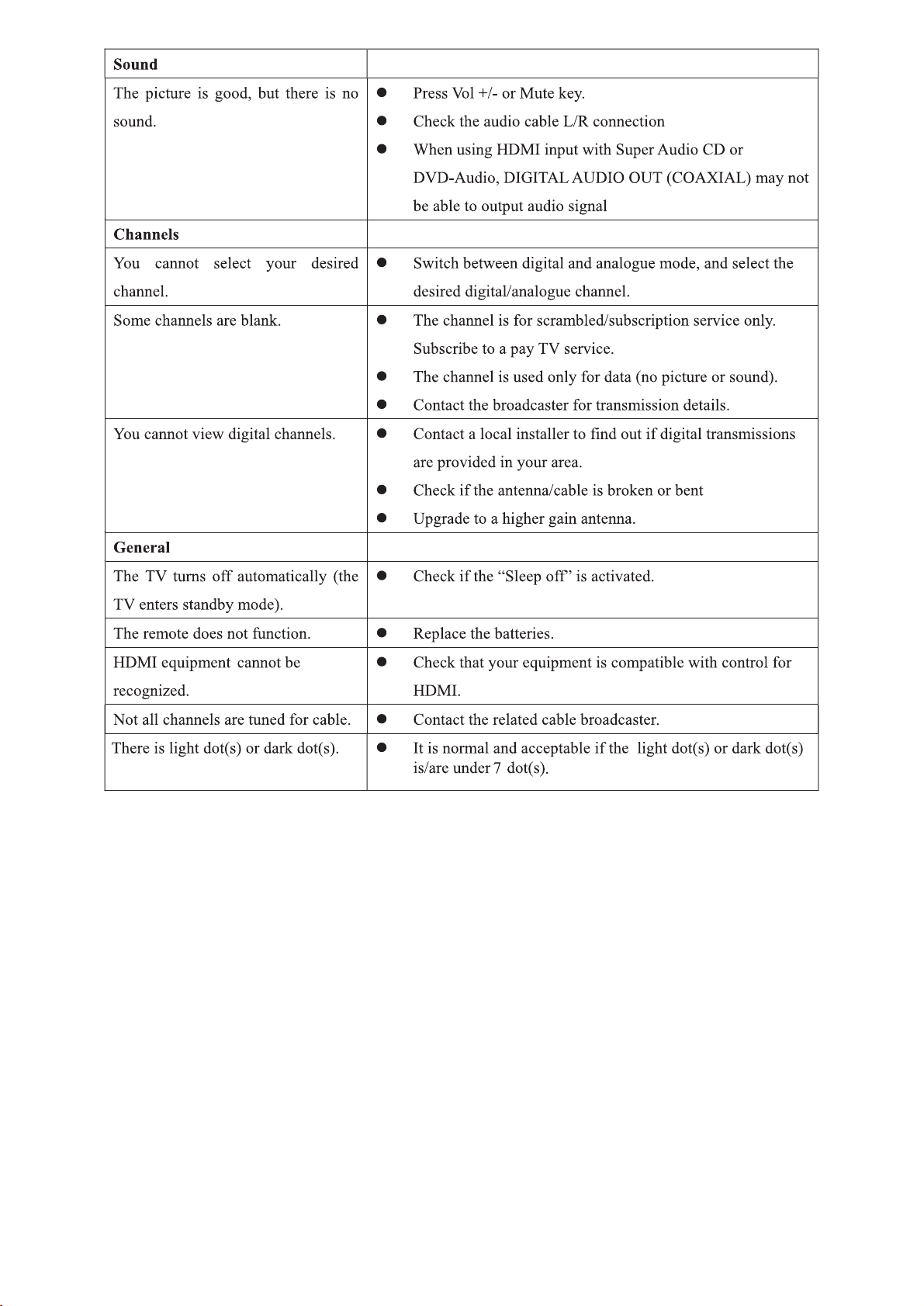

38
Page 40
弘毅有限公司
Winning Perfect Limited
香港九龍長沙灣道833號長沙灣廣場二期506室
Room 506, Tower 2, Cheung Sha Wan Plaza, 833 Cheung Sha Wan Roa
Kowloon, Hong Kong
Tel: 852-28611109
Fax: 852-83437386
Email: [email protected]
Web site: www.vdigi.com.hk
d,
Loading...
