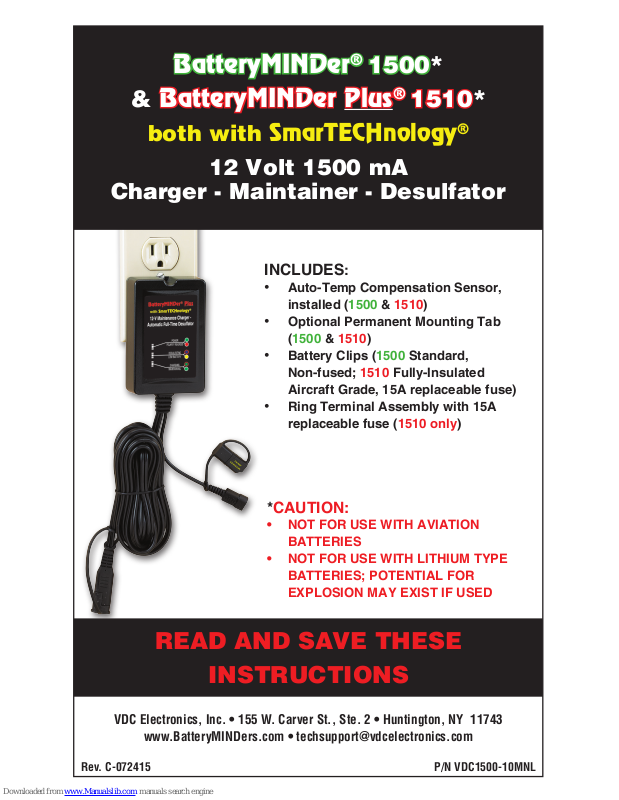

VDC Electronics BatteryMINDer Plus 1510, BatteryMINDer 1500 Instructions Manual

READ AND SAVE THESE

INSTRUCTIONS

INCLUDES:

• Auto-Temp Compensation Sensor,

installed (1500 & 1510)

• Optional Permanent Mounting Tab

(1500 & 1510)

• Battery Clips (1500 Standard,

Non-fused; 1510 Fully-Insulated
Aircraft Grade, 15A replaceable fuse)

• Ring Terminal Assembly with 15A

replaceable fuse (1510 only)

*CAUTION:

• NOT FOR USE WITH AVIATION
BATTERIES

• NOT FOR USE WITH LITHIUM TYPE
BATTERIES; POTENTIAL FOR
EXPLOSION MAY EXIST IF USED

VDC Electronics, Inc. • 155 W. Carver St., Ste. 2 • Huntington, NY 11743

www.BatteryMINDers.com • [e-mail]

Rev. C-072415 P/N VDC1500-10MNL

12 Volt 1500 mA

Charger - Maintainer - Desulfator

BatteryMINDer® 1500*

&

BatteryMINDer Plus® 1510*

both with SmarTECHnology

®

Rev. C-072415 Page 2 P/N VDC1500-10MNL

BatteryMINDer® & Plus with SmarTECHnology® Model 1500 Series

TABLE of CONTENTS

REQUIRED SAFETY INSTRUCTIONS ....................................................... 3

WIRE GAUGE TABLE ................................................................................. 3

PREPARING TO CHARGE .......................................................................... 5

CHARGER LOCATION ................................................................................ 5

DC CONNECTION PRECAUTIONS ............................................................ 6

LED INDICATION TABLE ........................................................................... 8

START-UP OPERATING INSTRUCTIONS ................................... 9

SPECIFICATIONS ....................................................................................... 9

CHARGING STATUS ................................................................................... 9

SPECIFICATIONS ....................................................................................... 9

CHARGING STAGES ................................................................................ 10

ADDITIONAL FEATURES ......................................................................... 10

VOLTAGE TABLE ..................................................................................... 10

12-V PARALLEL CONNECTION DIAGRAM ............................................ 10

12-V SERIES-PARALLEL USING 6-V BATTERIES ................................. 10

6-V SERIES CONNECTION DIAGRAM .................................................... 10

TROUBLESHOOTING ............................................................................... 11

MAINTAINING MULTIPLE BATTERIES ................................................... 11

MODEL CALL-OUTS ................................................................................. 12

CHARGING CURVE .................................................................................. 13

SAFETY & PROTECTION ......................................................................... 14

ELECTRICAL CABLE & PHYSICAL PARAMETERS .............................. 14

FOR REPAIR OR REPLACEMENT ........................................................... 15

YOUR NOTES ............................................................................................ 15

GUARANTEE ............................................................................................. 16

WARRANTY ............................................................................................... 16

WARRANTY REGISTRATION .................................................................. 16

Rev. C-072415 Page 3 P/N VDC1500-10MNL

BatteryMINDer® & Plus with SmarTECHnology® Model 1500 Series

REQUIRED IMPORTANT SAFETY INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSON, OBSERVE THE FOLLOWING:

1. SAVE THESE INSTRUCTIONS

This manual contains important safety and operating instructions for

BatteryMINDer1500 and BatteryMINDer Plus 1510.

2. Do not expose charger to rain or snow.

3. Use of an attachment not recommended or sold by VDC Electronics

may result in a risk of fire, electric shock, or injury to persons.

4. To reduce risk of damage to electric plug and cord, pull by plug rather

than cord when disconnecting charger.

5. An extension cord should not be used unless absolutely necessary.

Use of improper extension cord could result in a risk of fire and electric

shock. If an extension cord must be used, make sure:

a) That pins on plug of extension cord are the same number, size, and

shape as those of plug on charger;

b) That extension cord is properly wired and in good electrical condition;

and

c) That wire size is large enough for ac ampere rating of charger as

specified in Table below.

Recommended minimum AWG size for

extension cords for battery chargers

AC input rating,

amperes

a

AWG size of cord

Equal to

or

greater

than

But less

than

Length of cord, feet (m)

25

(7.6)

50

(15.2)

100

(30.5)

150

(45.6)

0 2 18 18 18 16

a

If the input rating of a charger is given in watts rather than in amperes, the

corresponding ampere rating is to be determined by dividing the wattage rating by

the voltage rating - for example: 1250 watts/125 volts = 10 amperes

TABLE 1

Rev. C-072415 Page 4 P/N VDC1500-10MNL

BatteryMINDer® & Plus with SmarTECHnology® Model 1500 Series

6. Do not operate charger with damaged cord or plug – replace the cord

or plug immediately.

7. Do not operate charger if it has received a sharp blow, been dropped,

or otherwise damaged in any way; call VDC Electronics Tech

Support Dept. 800.379.5579 x6 (ET) for advice.

8. Do not disassemble charger; call VDC Electronics Tech Support

Dept. 800.379.5579 x6 (ET) for advice when service or repair is

required. Incorrect reassembly may result in a risk of electric shock

or fire.

9. To reduce risk of electric shock, unplug charger from outlet before

attempting any maintenance or cleaning.

10. WARNING – RISK OF EXPLOSIVE GASES

a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS

DANGEROUS. BAT TERIES GENERATE EXPLOSIVE GASES DURING

NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF

UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS

EACH TIME YOU USE THE CHARGER.

b) To reduce risk of battery explosion, follow these instructions and

those published by manufacturer of any equipment you intend to use

in vicinity of battery. Review cautionary marking on these products

and on engine.

11. PERSONAL PRECAUTIONS

a) Consider having someone close enough by to come to your aid

when you work near a lead-acid battery.

b) Have plenty of fresh water and soap nearby in case battery acid

contacts skin, clothing, or eyes.

c) Wear complete eye protection and clothing protection. Avoid

touching eyes while working near battery.

d) If battery acid contacts skin or clothing, wash immediately with soap

and water. If acid enters eye, immediately flood eye with running cold

water for at least 10 minutes and get medical attention immediately.

e) NEVER smoke or allow a spark or flame in vicinity of battery or

engine.

f) Be extra cautious to reduce risk of dropping a metal tool onto battery.

Rev. C-072415 Page 5 P/N VDC1500-10MNL

BatteryMINDer® & Plus with SmarTECHnology® Model 1500 Series

It might spark or short-circuit battery or other electrical part that may

cause explosion.

g) Remove personal metal items such as rings, bracelets, necklaces,

and watches when working with a lead-acid battery. A lead-acid

battery can produce a short-circuit current high enough to weld a ring

or the like to metal, causing a severe burn.

h) Use charger for charging a LEAD-ACID battery only. It is not

intended to supply power to a low voltage electrical system. Do not

use battery charger for charging dry-cell batteries that are commonly

used with home appliances. These batteries may burst and cause

injury to persons and damage to property.

i) NEVER charge a frozen battery or a battery at a temperature above

123 ° F.

12. PREPARING TO CHARGE

a) If necessary to remove battery from vehicle to charge, always remove

grounded terminal from battery first. Make sure all accessories in the

vehicle are off, so as not to cause an arc.

b) Be sure area around battery is well ventilated while battery is being

charged.

c) Clean battery terminals. Be careful to keep corrosion from coming

in contact with eyes.

d) Add distilled water in each cell until battery acid reaches level

specified by battery manufacturer. Do not overfill. For a battery without

removable cell caps, such as valve regulated lead acid batteries,

carefully follow manufacturer’s recharging instructions.

e) Study all battery manufacturer’s specific precautions while charging

and recommended rates of charge.

f) Determine voltage of battery by referring to car owner’s manual and

make sure it matches output rating of battery charger.

13. CHARGER LOCATION

a) Locate charger as far away from battery as D.C. cables permit.

b) Never place charger directly above battery being charged; gases

from battery will corrode and damage charger.

c) Never allow battery acid to drip on charger when reading electrolyte
