VCS VideoJet 1000 User Manual

VideoJet 1000

Manual

This manual is the intellectual property of VCS and is protected by copyright. All rights are reserved. No part of this document may be reproduced or transmitted for any purpose, by whatever means, be they electronic or mechanical, without the express written permission of VCS.

Edition: May 2003 (Version 2.5)

Note

Trade m arks

This manual was compiled with the greatest of care and all information double checked. At the time of printing the description was complete and correct. Because of the further development of products, the content of the manual might change without prior notice. VCS will not be liable for damage which is directly or indirectly due to errors, incompleteness, or discrepancies between the manual and the product described.

All names used in this manual for hardware and software are very probably registered trade marks and must be treated as such.

Chapter 1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chapter 2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 3 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

EU Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rating plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Electrical shock hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Repairs and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Supplied components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Configuration requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Operational requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Functional overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Rear panel connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Chapter 4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

VideoJet 1000

Rack mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Switching on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Contents

Setup using a terminal program . . . . . . . . . . . . . . . . . . . . . . . . 26

Chapter 5 Configuration with

Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Establishing the connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Selecting the configuration mode . . . . . . . . . . . . . . . . . . . . . . . 30

Installation wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Expert Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Function test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Chapter 6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Operation with

MS Internet Explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Storing snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Storing MPEG sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Harddisk activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Playback of recorded sequences . . . . . . . . . . . . . . . . . . . . . . 127

Back-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Hardware connections

between VideoJet Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Operation with Software-Decoder . . . . . . . . . . . . . . . . . . . . . . 132

Chapter 7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Network check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Passing on, Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Chapter 8 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Faults – possible causes and remedy . . . . . . . . . . . . . . . . . . . 135

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

VideoJet 1000

Contents

Chapter 9 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

VideoJet 1000

Contents

VideoJet 1000

Preface

Conventions

These installation and operating instructions are intended for persons authorised to install and operate the VideoJet 1000. International, national and any relevant regional regulations relating to electronics must be observed at all times. The operating instructions explain the installation and operation of the VideoJet 1000.

In this manual, the following symbols and notations are used to draw attention to special situations:

Warning! or Attention!

This symbol indicates that failure to follow the safety instructions given may directly endanger people, cause damage to the system or to other equipment. The symbol represents a direct threat of danger.

VideoJet 1000

Note

This symbol indicates tips and notes that make using the device easier and more convenient.

Note

This symbol indicates that you might have to find out special information to be able to make the settings or start up the system correctly.

Preface

The following typographic conventions are used in this manual:

Intended use

Configuration

[Enter], [C] Key names

[Ctrl] + [C] Two or more keys that are pressed simul-

ping

The Network Video Server VideoJet 1000 serves to transmit video, audio and control signals via data networks (Ethernet LAN, Internet). Due to the integrated hard disk the device provides DVR functionality. It is designed for use in CCTV systems. The connection of an external alarm generator allows various functions to be triggered automatically. Other applications are not permitted.

In the event of questions concerning the use of the server which are not answered in this manual, please contact:

VCS Video Communication Systems AG

Forchheimer Strasse 4 90425 Nuremberg/Germany Phone +49 (0) 911 9 34 56-0 Fax +49 (0) 911 9 34 56-66

info@vcs.com

Window and menu names, parameters and buttons

taneously.

Command line input and output

EU Guidelines

The Network Video Server VideoJet 1000 complies with the specifications of European Guidelines 89/336 (Electromagnetic Compatibility) and 73/23, amended by 93/68 (Low-Voltage Guideline).

VideoJet 1000

Rating plate

Preface

For exact identification, you will find the model designation and serial number on the rating plate on the bottom of the housing. Please note this information here before installation in order to have it to hand in the event of queries or spare parts orders.

VideoJet 1000

Preface

VideoJet 1000

Safety Information

Electrical shock hazard

Never attempt to connect the unit to any power network other than the one for which it was intended.

Do not open the housing of the unit.

Disconnect the unit from the mains power supply and from all other devices if a fault occurs.

Install the unit only in a dry place protected against the elements.

If you are uncertain about the safe operation of the unit, shut it down immediately and secure it to prevent any unauthorised start-up. Safe operation is no longer possible, for example,

– if damage is visible to the unit or the cables,

– if the unit no longer operates correctly,

– if the server has been exposed to rain or moisture,

– if objects have penetrated inside the unit,

– after long storage under improper conditions or

– after heavy demands during transport.

Have the system checked by VCS in such cases.

VideoJet 1000

Safety Information

Installation and operation

All applicable electrical codes and regulations must be observed and followed at all times during the installation.

Before installing or operating the system, ensure that you have read and understood the documentation for other equipment connected to the unit, e.g. cameras. These contain important safety notices and information concerning permissible applications.

Perform only the installation and operating work described in this manual. All other work beyond this may lead to injuries to persons and damage to the system or other equipment.

Repairs and maintenance

Never open the housing of the VideoJet 1000. The unit contains no parts which you can repair or replace.

Ensure that only qualified, specialist personnel (electrical technicians) are permitted to carry out maintenance or repair work.

VideoJet 1000

Product Description

Supplied components

Network Video Server VideoJet 1000 incl. mains cable

RS232 Null modem cable

Brief description “First Steps” German/English

German/English handbook on CD-ROM

VCS software on CD-ROM

3.5’’ hard drive

System requirements

Computer with Windows 98/2000/XP operating system and access to network and

Web browser Microsoft Internet Explorer (version 5 or higher) or free serial interface port and terminal program

Configuration requirements

Computer with Windows 98/2000/XP operating system and access to network and

Web browser Microsoft Internet Explorer (version 5 or higher) or decoder software, e.g. VIDOS from VCS

VideoJet 1000

Product Description

Operational requirements

Computer with Windows 98/2000/XP operating system and access to network and

Web browser Microsoft Internet Explorer (Version 5 or higher) or decoder software, e.g. VIDOS from VCS

VideoJet 1000 acting as receiver and video monitor

Functional overview

Network video server

Receiver

DVR

The VideoJet 1000 is a network video server. Its primary function is to decode and encode video, audio and control data for transmission over an IP network. Because it uses existing networks, rapid and simple integration into CCTV installations via local networks can be achieved.

The VideoJet 1000 is designed either as a desktop unit or for building into equipment cabinets. Using the appropriate mounting frame, installation of a single unit or two units alongside each other on a 19“ shelf is possible.

Two units, i.e. a VideoJet 1000 as transmitter and a VideoJet 1000 as receiver, can form a stand alone system for data transfer without a PC. The system can be extended to include additional transmitters and receivers so that video images from one transmitter can be simultaneously received on a number of receivers.

The appropriate VideoJet 1000 or a computer with installed decoding software, e.g. VIDOS from VCS or with the installed web browser Microsoft Internet Explorer, can be used as a receiver.

Due to the integrated hard disk the VideoJet 1000 can also function as a digital video recorder allowing for local long-time recording.

VideoJet 1000

Product Description

Video encoding/ Multicast

Remote control

Configuration

Snapshots

The VideoJet 1000 operates with the video compression standards MPEG-2 and MPEG-4. Thanks to efficient MPEG-2 encoding, the data bit rate remains low even with high image quality and, in addition, can be matched into the local environment within wide limits. In this process, simultaneous encoding of the video signal according to MPEG-4 is supported, so that concurrent transmission using low bandwidth, e.g for Internet streaming, is possible.

In suitably configured networks, simultaneous transmission in real time to a number of receivers is possible using the Multicast function. A requirement here is the implementation of the UDP and IGMP protocols on the network.

For the remote control of external equipment, e.g. remote pan and tilt heads or motorized zoom lenses, the control data are transmitted via the bidirectional serial interface of the VideoJet 1000. This interface is also available for the transmission of transparent data.

Configuration of the VideoJet 1000 can be carried out using a browser via the local network (Intranet) or from the Internet.

Similarly, firmware updates and rapid loading of equipment configurations are also possible.

Individual video frames (snapshots) can be called up in JPEG format by the VideoJet 1000, stored on the computer hard drive or can be displayed in a separate browser window.

Back-up

VideoJet 1000

Can be accomplished from either the livepage or directly from the HDD-Replay mode through a simple mouse click.

Product Description

Summary

The main functions of the VideoJet 1000 can be summarized as follows:

Video, audio and data transmission via IP data nets

Multicast function for simultaneous transmission to a number of receivers

Analog BNC composite video input (PAL/NTSC)

Analog BNC composite video output (PAL/NTSC)

Audio input and output (Stereo)

Video and audio encoding to the international standards MPEG- 4, MPEG-2 and MPEG-1

Integrated Ethernet interface (10/100 Base-T)

Two transparent bidirectional data channels via serial interface ports RS232/RS422/RS485 and RS232

Local long-term recording on integrated 3,5“ hard disk

Remote control of all internal functions via TCP/IP

Password protection to prevent unauthorized connection or alterations to configuration

Closed contact input for external sensor (e.g. door contact)

Closed contact output for external equipment (e.g. lights or acoustic alarms)

Event driven automatic connection setup (e.g. on switch-on and with alarms)

Integrated video sensor for motion alarms

Video signal monitoring

Rapid and user friendly configuration via web browser

Firmware update through flash memory

VideoJet 1000

Rear panel connectors

Product Description

Video input BNC socket for video source

Video output BNC socket for an analog video monitor

Audio connectors

3.5 mm stereo jack sockets for connection of a loudspeaker and microphone

Screw connectors for external sensors or switches and for switching external equipment (e.g. lights or acoustic alarms)

Serial interface port 9-pin sub-D socket (m) for control data transmissions (protocols RS232, RS422 and RS485) and for configuration using terminal software

Serial interface port 9-pin sub-D socket (m) for control data transmissions (protocol RS232) and for configuration using terminal software

RJ45 for connecting to the network

Socket mains cable connector

Video In

Video Out

Ethernet

Power

Audio Out

Output

COM1: RS232/485

COM2: RS232

connector

and

Input

Audio In

VideoJet 1000

Product Description

Front panel

Additional information on the LEDs can be found on page 137.

Diode Infrared receiver (for future development)

HDD

LED flashes red during data transmissions to/from the hard drive

VIDEO

LED lights up green if a video signal is present on the input

LED lights up red to indicate active alarm, green to indicate alarm ready

OUT

LED lights up green to indicate switched relay

COM

LED flashes yellow during active data transmissions on the serial interface ports

ETHERNET

LEDs green LED lights up with physical network connection red LED flashes when data packets are being transmitted

POWER

LED lights up green to indicate operationally ready

VideoJet 1000

Installation

Due to its compact design and small footprint, the VideoJet 1000 can be used as a desk top unit occupying minimum space.

Using the mounting shelf unit, Accessory Kit 19“ Rack, it is also possible to mount the unit into a standard 19“ equipment cabinet.

Warning!

The unit is intended for internal use. Select a suitable location for installation where the equipment is not subjected to either extreme temperatures nor to extreme humidity. The ambient temperature must be between 0 and +50 °C, the relative humidity may not exceed 80% (non-condensing).

The equipment becomes warm in normal operation. Ensure that ventilation is adequate and also that there is sufficient clearance between it and heat sensitive objects or equipment.

The following installation requirements must be satisfied:

Do not mount the equipment in close proximity to heaters or other sources of heat. Avoid locations subject to direct sunlight.

Allow sufficient space for laying of cables.

Ensure adequate ventilation of the equipment. When installing in equipment cabinets with other equipment, make allowances for the total heat load.

Only use the cables supplied when connecting up the equipment or, if necessary, use cables suitably screened for interference.

Position and lay all cables where they will not be subject to damage and ensure strain relief is provided where necessary.

VideoJet 1000

Installation

Rack mounting

The VideoJet 1000 is adapted for installation into a standard 19“ equipment rack. Either a single unit or two units secured together alongside each other can be mounted on a single shelf.

For rapid and secure installation, use the appropriate mounting set from VCS:

Accessory Kit 19“ Rack order no. 1412, Mounting set for one or two units

Warning!

In the case of rack mounting ensure adequate ventilation for all units: free space around the equipment must be at least 5 cm left and right and must be at least 10 cm to the rear.

The ambient temperature must be between 0 and +50°C, the relative humidity may not exceed 80%.

The equipment generates heat during normal operation. Make sure there is sufficient clearance where necessary to heat sensitive objects or equipment.

When installing additional equipment, direct contact with the VideoJet 1000 is only permitted if the surface temperature of the neighboring equipment does not exceed +50 °C.

VideoJet 1000

Installation

Single unit

Two units

For the installation of a single unit, one short and the long angle bracket from the Mounting Kit are required.

Screw the two brackets to the sides of the unit housing.

If necessary, remove the rubber feet from the base of the unit if any other equipment is to be mounted directly underneath.

Mount the unit into the rack and secure the angle brackets using four screws.

Plug the supplied mains cable into the the unit.

For the installation of two units, the two short angle brackets and the two rails from the Mounting Kit are required.

The two units must first of all be bolted together.

Lay the two units alongside each other on their backs and secure the two rails to the units using four screws for each unit.

Screw the two short angle brackets to the outsides of the two units.

If necessary, remove the rubber feet from the base of the unit if any other equipment is to be mounted directly underneath.

Mount the units into the rack and secure the angle brackets using four screws.

Plug the supplied mains cables into the of the two units.

Power

socket on the rear of

Power

sockets on the rear

VideoJet 1000

Installation

Mounting of a single unit

Mounting of twin units

VideoJet 1000

Connections

Installation

Camera

Monitor

Network

Any standard video source (CCTV camera) can be connected to the VideoJet 1000. All cameras and any video source which delivers a standard PAL or NTSC signal are suitable.

Connect the camera or other video source using video cable

Ethernet.

Video In

(75 Ohm, BNC connector) to the BNC socket

Note

For information on the setting of the video input termination please see page 38 or page 86.

The VideoJet 1000 has an analog monitor output for connection to a suitable PAL or NTSC monitor when the unit is to be used as a receiver.

Connect the video monitor using video cable (75 Ohm, BNC connector) to the BNC socket

The VideoJet 1000 can be connected to a 10/100 Base-T network either directly or via a hub. For this purpose use standard UTP Cat 5 cable with RJ45 connectors.

Connect the network cable to the socket

Video Out

Alarm input

VideoJet 1000

The alarm input is provided for switching an external alarm generator, e.g. a door contact or sensor. Using the appropriate configuration an alarm generator, for example, can activate the automatic connection setup between the VideoJet 1000 and a remote location.

A voltage free closing contact or switch can be used as activator.

Installation

Note

Where possible, a switch with minimum contact bounce should be used as activator.

Switched output

Remove connector block from

Insert conductor into connector and secure tightly – check that screws are securely tightened.

Replace the connector firmly back onto the

The VideoJet 1000 is provided with a relay output for switching external equipment, e.g. lamps or acoustic alarms. This switched output can be manually activated during an active connection with the VideoJet 1000. In addition, when suitably configured the output can be activated as a response to an alarm signal, for example, to automatic acoustic alarms or to other devices.

Warning!

The maximum rating of the relay contact is 40 V and 0.8 A.

Remove connector block from

Insert conductor into connector and secure tightly – check that screws are securely tightened.

Replace the connector firmly back onto the

Input

Output

socket.

Input

Output

socket.

VideoJet 1000

Installation

Microphone/ loudspeaker

Data interfaces

The VideoJet 1000 is provided with an audio interface via the two stereo jack sockets.

The bidirectional audio signals are simultaneously transmitted along with the video signals. This can be used to drive a loudspeaker or door communication system as required.

Connect the microphone to the jack socket

Connect the loudspeaker to the jack socket

The bidirectional data interface ports are intended as control ports for equipment connected to the VideoJet 1000, e.g. a dome camera with motorized lens.

The port transmission protocols.

The availability of equipment which can be controlled in this way is constantly being extended. Specific information for the installation and control of such units can be obtained from the manufacturer of the equipment involved.

Warning!

Pay particular attention to any associated documentation relating to the installation and operation of equipment being controlled. These documents contain important safety instructions and information regarding permitted applications.

COM1: RS232/485

supports RS232, RS422 and RS485

Audio In

Audio Out

VideoJet 1000

Note

The transmission of transparent data is only possible when a connection has been established.

Installation

Pin assignment

COM1 COM2

RS232 RS422/485 RS232

---

RxD

(receive data)

TxD

(transmit data)

RxD+

(receive data plus)

TxD-

(transmit data

RxD

(receive data)

TxD

(transmit data)

minus)

---

GND (ground) GND (ground) GND (ground)

---

RTS

(ready to send)

CTS

(clear to send)

TxD+

(transmit data plus)

RxD-

(receive data

minus)

---

VideoJet 1000

Switching on/off

Installation

Mains connection

" "

Included with the VideoJet 1000 is a power cable with the correct matching plug.

Warning!

Ensure that the mains supply is free from interference such as over voltages, spikes, or brownouts by using suitable mains conditioners where necessary.

Only connect the VideoJet 1000 to the power source after all other connections have been established.

The VideoJet 1000 is not provided with a power switch. The unit is ready for operation as soon as the unit is connected to the power and has rebooted.

Insert the mains socket into the connector

Connect the mains cable into an earthed socket. The green LED lights up, the unit is ready for operation.

If the network connection has also been established correctly, the

Ethernet

green transport of data packages over the network.

Power

on the front panel of the VideoJet 1000

LED also lights up. A flashing red LED signals the

Power

VideoJet 1000

Installation

Setup using a terminal program

Data terminal

Terminal configuration

A data terminal may be connected to the VideoJet 1000 for setup and local control. The data terminal usually consists of a computer with suitable terminal software. A standard serial cable is required for the connection.

HyperTerminal, which comes with Windows, can be used as the terminal program.

Note

Information on the installation and use of HyperTerminal can be found in the documentation or in the Online Help for MS Windows.

Before working with the terminal program, isolate the unit from the data network.

Connect the sub-D socket COM1 to a free serial port on the computer.

To establish communications between the Terminal program and the VideoJet, the transmission parameters must be correctly setup. The following parameters should be selected in the Terminal program:

19,200 Baud

8 Data bits

No parity check

1 Stop bit

No protocol

RS232/485

of the VideoJet 1000

VideoJet 1000

Installation

Command entry

IP address

After the connection has been established and the username

vice

has been entered, call up the main menu. Additional sub-

menus and functions are called up using the onscreen commands.

Switch local echo off so that values entered are not repeated.

Enter only one command at a time.

When a value is entered (e.g. IP address) recheck the characters entered and only then press the [ENTER] key to transmit the value to the VideoJet 1000.

To operate the VideoJet 1000 on a network, an IP Address valid for the network must be provided.

The following address has been preset at the factory:

192.168.0.1

Start up the terminal programm, e.g. HyperTerminal.

" " " "

service

Enter

Enter ?. The main menu will be displayed.

Enter 1. The submenu for network configuration will be displayed.

Enter 1 a second time. The current IP address will be displayed; you will be required to enter a new IP address.

Enter the new IP address and press [ENTER]. The new IP address will be displayed.

The new IP address (as the subnet mask and the gateway, too) will only be valid after a reboot! Therefore realize it immediately by

entering or

disconnecting temporarily the power supply of the VideoJet 1000 (pull out the plug for a few seconds)

as username.

#reset

in the HyperTerminal and pressing [ENTER]

ser-

VideoJet 1000

Installation

Additional parameters

Using the terminal program, additional basic parameters can be checked and modified where necessary. The onscreen commands displayed in the various submenus are used for this purpose.

VideoJet 1000

Configuration with

Web Browser

Establishing the connection

The integrated HTTP Server provides the option of configuration of the unit with a web browser over the network. This option offers considerably more possibilities and is more user friendly than configuration using terminal software. In addition, live video images may be displayed.

Note

In order to decode live video images, the required special ActiveX control must be installed on the computer. The latest version of the ActiveX control can be obtained from VCS customer service or from the Internet via the download site under www.vcs.com.

In addition, for decoding MPEG encoded video and audio data, a suitable MPEG decoder must be installed in the computer where it can also be used, for example, to replay DVD material. If not present, such a decoder may be installed from the supplied software CD.

Instructions for the operation of the web browser will be found under the online help of the web browser.

System requirements

VideoJet 1000

Microsoft Internet Explorer (version 5 or higher)

Monitor resolution 1024 × 768 pixels

Access to network (Intranet or Internet)

Configuration with Web Browser

MPEG decoder installation

Establishing the connection

If no video images are displayed when MPEG-2 or MPEG-4 is selected, installation of a current MPEG decoder is probably necessary. Suitable software for this can be found on the supplied program CD from VCS.

Insert the CD into the ROM drive of the computer. The CD runs automatically. If the CD does not start automatically, open the CD folder in Windows Explorer and double click on

Follow the onscreen instructions.

To use the VideoJet 1000 on a network, it must be provided with an IP address.

The following address has been preset at the factory:

192.168.0.1

Start up the web browser.

For the URL, enter the IP address of the VideoJet 1000. The livepage with the video image will be displayed (see page 122).

Selecting the configuration mode

A variety of possibilities are provided for configuration of the VideoJet 1000 or to check the current setup:

the Installation Wizard

the System Overview

the Expert Mode.

All settings are retained in VideoJet 1000 memory, so that they remain stored even with power interruptions.

mpegax.exe

Installation Wizard

For initial setup of the unit, operation with the installation wizard is recommended. This takes you step by step through the necessary stages. Important settings for correct operation will not be passed to see. In addition, at each stage short instructions are given to help with the setup process.

VideoJet 1000

Configuration with Web Browser

System Overview

Expert Mode

Configuration start-up

To obtain a rapid overview, the most important parameters can be displayed in related groups. Setup parameters can also be changed here. However, a particular sequence is not specified.

The Expert Mode is only recommended for experienced operators or for system administrators. All unit parameters can be accessed. Operations which fundamentally affect the operation of the unit (e.g. software updates) can only be carried out in this Expert Mode.

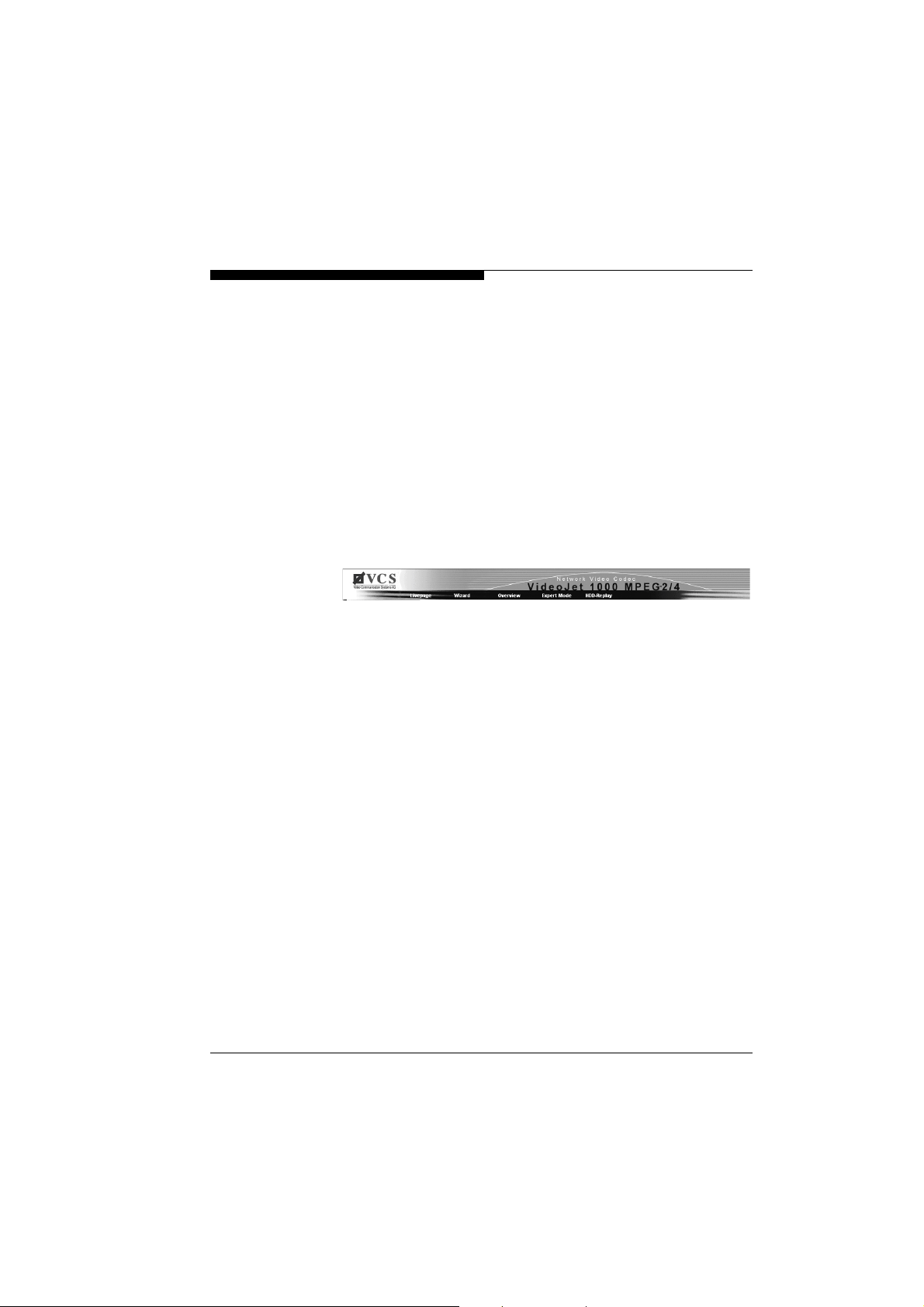

On the livepage, click on the top of the window on the link

Settings

. A new page will be opened and the required installation

mode can be selected on the menu line:

VideoJet 1000

Configuration with Web Browser

Installation wizard

The installation wizard of the VideoJet 1000 guides you step by step through the necessary procedures.

Wizard start-up

The installation wizard can be started by clicking on the link

Settings

Click on the link

On the installation wizard field click on the button with the wizard symbol. The Wizard window will open up.

Click on the button

on the livepage.

Wizard

Start

. A new page will be displayed.

to call up the Wizard.

General procedures

When the installation wizard has been started, a new window will open up which contains information and in which settings can be made.

Always read first the information in the upper section of the window.

Click in the text boxes to enter values or else use the other elements which are available such as buttons, check boxes or list fields.

VideoJet 1000

Configuration with Web Browser

Store changes

Click on the button

To return to a previous screen to check a previous setting click on the button

Click on the button installation wizard.

Changes called up in the installation wizard are only effective when the button

The original settings are retained if the button

<< Back

Finish

Next >>

Cancel

on the last page is clicked.

to continue to the next stage.

, to interrupt the process and close the

Cancel

is clicked.

VideoJet 1000

Warning!

Carry on with the installation wizard to the final screen if possible. This is the only location where all of the changes made can be stored by clicking on the button

Finish

Configuration with Web Browser

Additional settings

On the last page of the installation wizard you are presented with the option of directly starting a further wizard for configuration of the livepage (application wizard).

Select the option

Click on the button setup changes are stored and the application wizard is started immediately.

The application wizard behaves in a similar manner to that of the installation wizard.

Yes

to start the application wizard.

Finish

to close the installation wizard. The

VideoJet 1000

System Overview

Configuration with Web Browser

With the system overview it is possible to go directly to specific areas to check unit configurations. The individual configuration parameters are grouped together and displayed in separate windows.

Overview start-up

General procedures

" "

The graphic display can be called up by clicking on the link

Settings

Click on the link displayed.

From the graphical overview page it is possible to call up the individual areas directly.

Click on one of the graphic symbols. A new window will open up.

Click in one of the text fields to enter a value or use any of the other entry methods, e.g. buttons, check boxes or list fields.

To close a window without storing any of the changes entered, click on the Symbol X in the title bar of the window.

, on the livepage.

Overview

. The page with the graphical overview is

VideoJet 1000

Configuration with Web Browser

Store changes

When all changes have been entered in a window click on the

Set

button

to transmit the new settings to the unit where they are

saved.

Warning!

Store the changes entered in each window using the button Clicking on the

Set

button only stores the changes made in that par-

Set

ticular window.

The individual windows, which can be opened by means of the graphical symbols, are described below.

VideoJet 1000

Camera settings

Configuration with Web Browser

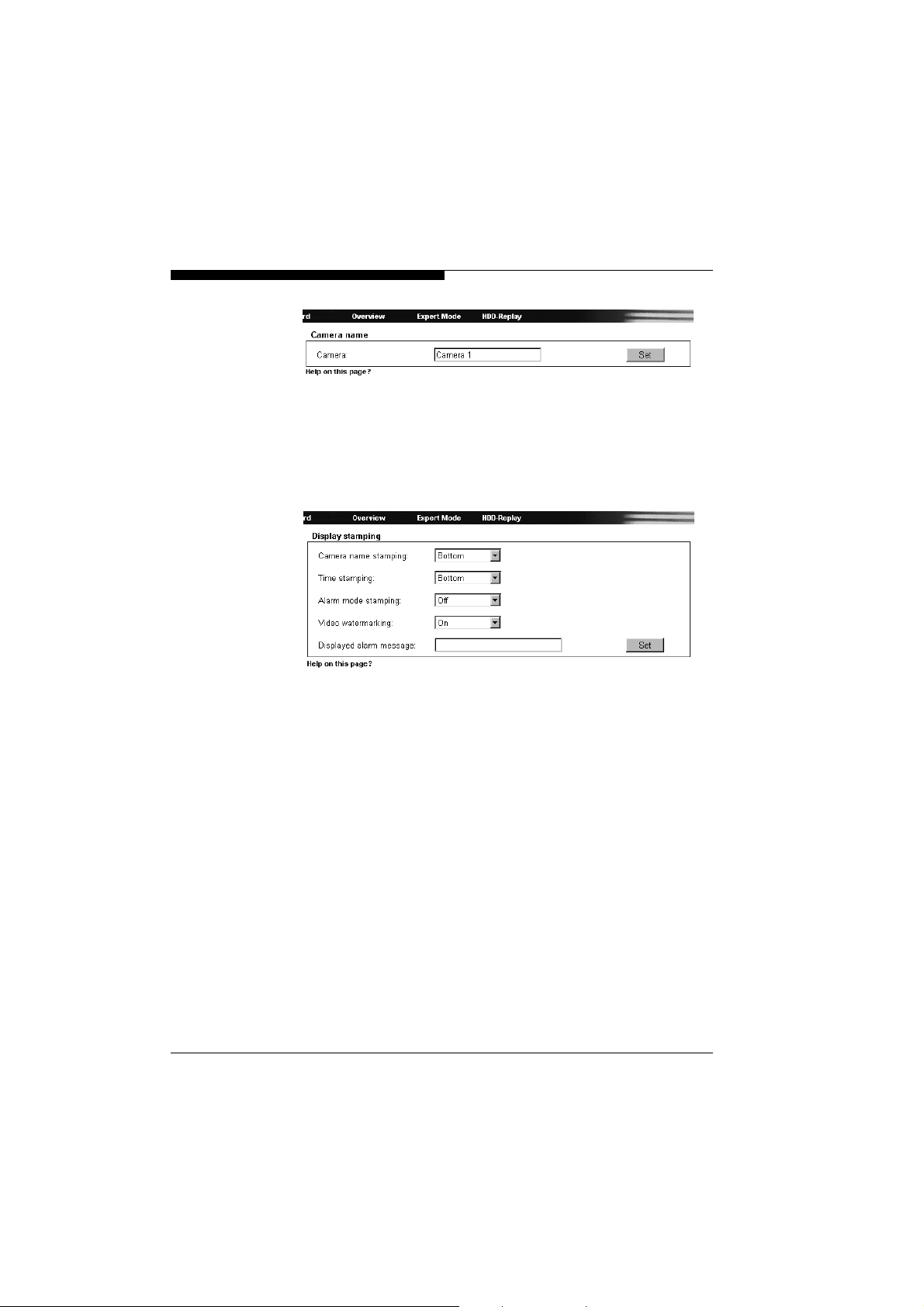

Camera name:

Enter here the required camera name. The camera name is used for easier remote identification of the camera location, e.g. on an alarm call. Enter here an unambiguous and clear name.

VideoJet 1000

Controllable device:

Make a selection here from one of the controllable devices. If it is required to use the serial port for the transmission of transparent data, select the entry

Transparent

Note

When a device is selected, the settings for the serial port 1 are recalled and the parameters are automatically entered in the window

COM 1 settings

and should not be changed.

Configuration with Web Browser

Video loss alarm:

Select the option source (camera). If the signal drops out an alarm is generated on the VideoJet 1000.

Alarm on min. contrast:

The VideoJet 1000 can trigger an alarm in case the camera picture shows only little contrasts, e.g. when the lens was sprayed with color or covered. Choose the option On to activate this function.

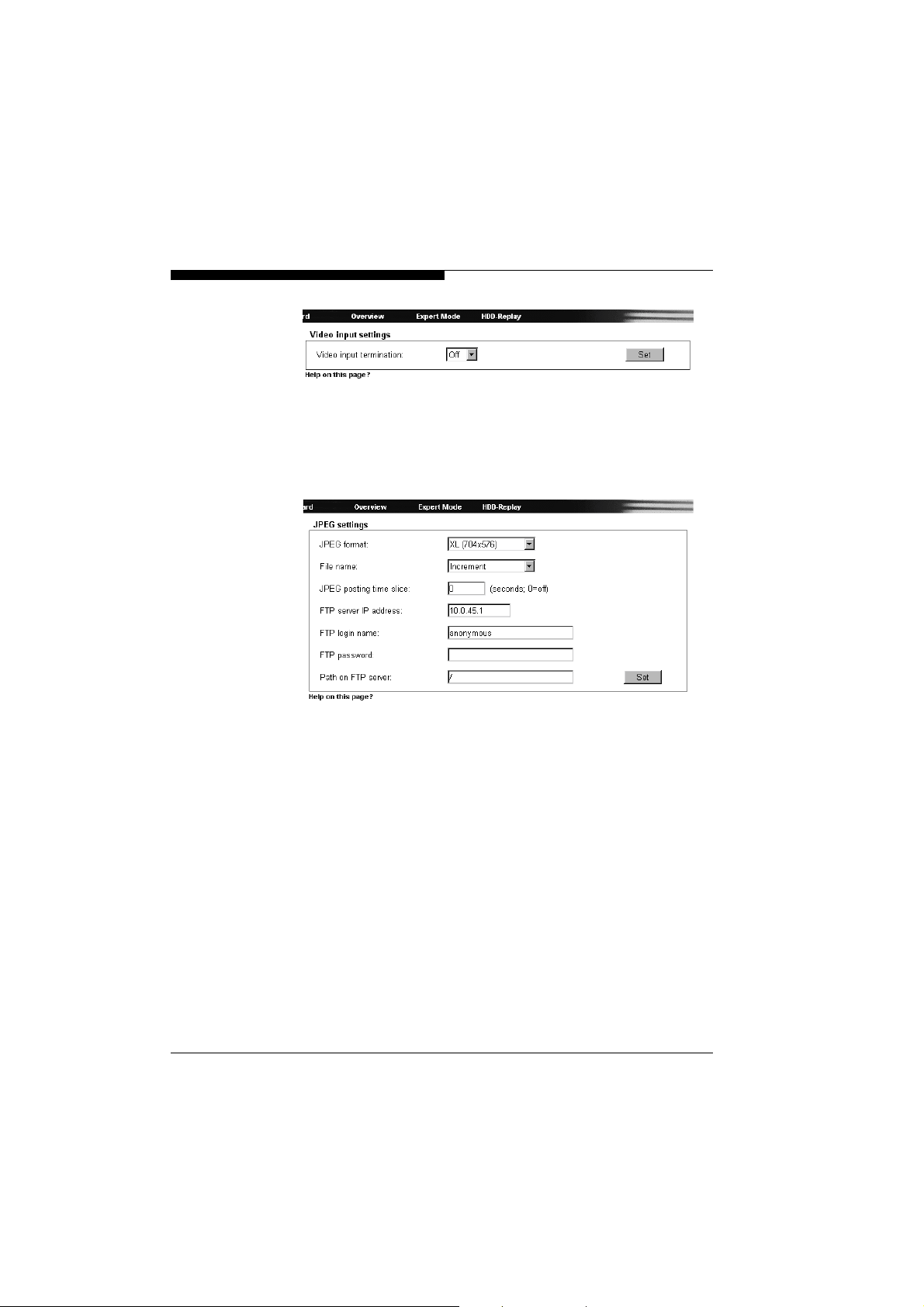

Video input termination:

Select her the option On, to terminate the video input if the video signal is not to be looped through (e.g. with a T-plug).

Camera name stamping:

Here you can set the position of the camera name stamping. It can be displayed on a position yourself via the Hyperterminal and activate it choosing the option select

Time & date stamping:

Here you can set the position of the time and date stamping. It can be displayed on a position yourself via the Hyperterminal and activate it choosing the option played, select

Off

Custom

Off

to monitor the input signal from the video

Top

or on

Bottom

of the image or you can define

. If you do not wish the name to be displayed,

Top

or on

Bottom

of the image or you can define

. If you do not wish time and date to be dis-

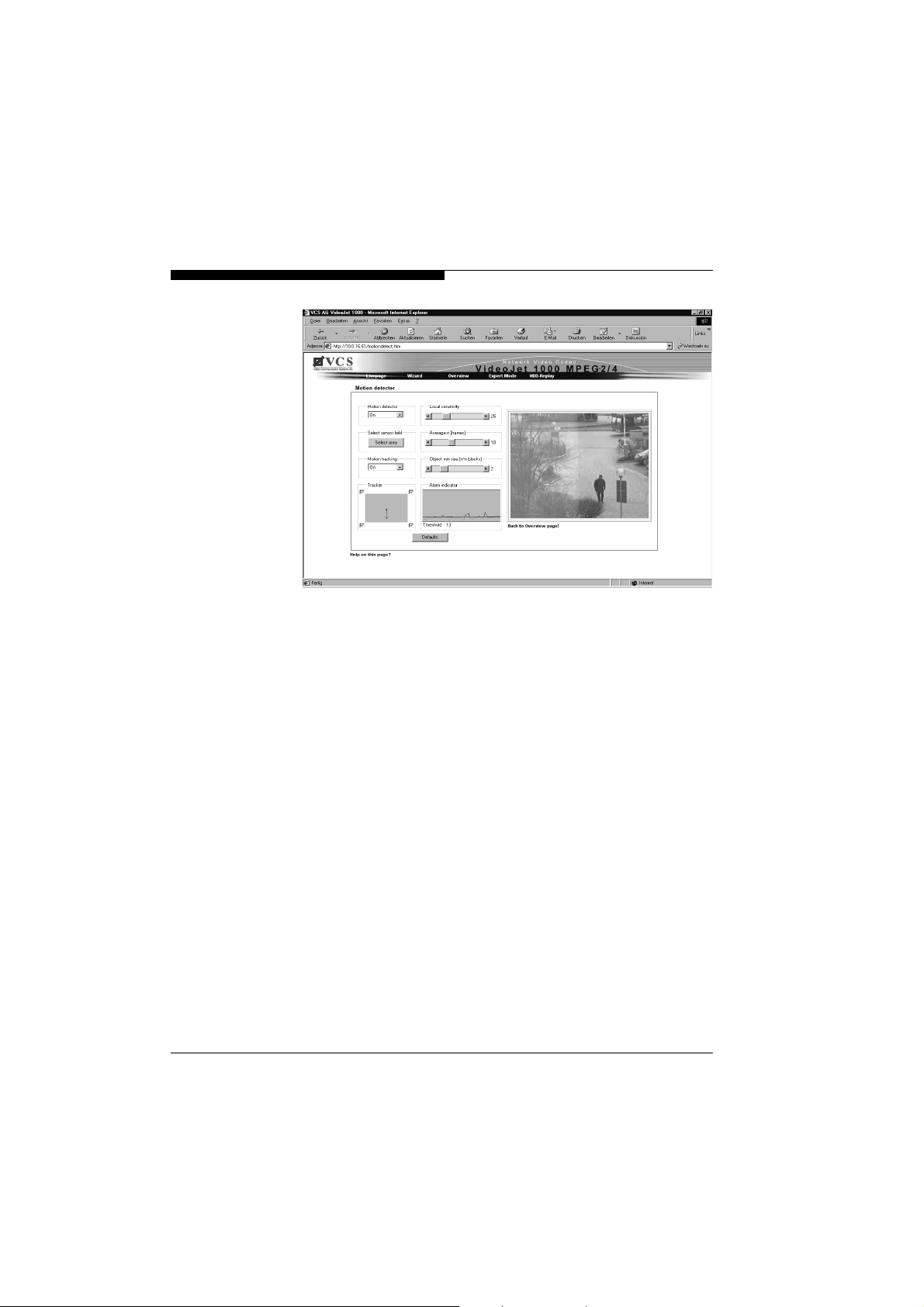

Motion detector

The VideoJet 1000 contains an integrated video sensor, which on the basis of the video processing can register changes in the video signal. These changes are primarily initiated by movement in the field of view of the camera.

The sensitivity of the video sensor can be adjusted, so that an alarm is generated only if a given threshold is exceeded.

In order for the alarm to operate, the following conditions must be fulfilled:

The motion detection must be activated.

At least one cell must be activated.

VideoJet 1000

Configuration with Web Browser

Individual parameters must be matched to the environmental conditions and to the required responses.

The sensitivity must be set to a value >0.

Warning!

Light reflections (e.g. in glass facades), switching on or off of floodlights or light level changes caused by cloud movement in bright daylight can cause undesirable responses from the video sensor and thereby generate false alarms. Carry out a number of tests for different day and night time conditions in order to ensure correct operation of the video sensor.

For surveillance of indoor areas, ensure a constant lighting of the areas during the day and at night.

Uniform surfaces without contrast can trigger false alarms even with uniform lighting.

VideoJet 1000

Click on the button figuration of the video sensor.

If required, click on the button page to standard values.

When configuration of the video sensor is complete, click on the link

Overview

on the navigation bar to return to the graphical overview.

Motion detector

Defaults

, to open the page for the con-

, to reset all values on this

Configuration with Web Browser

Motion detector

Select here the option

Select sensor field

The areas of the image to be monitored by the video sensor are selected here. The video frame is subdivided into 396 quadratic cells. Each of these cells can be activated or deactivated. If it is necessary to exclude particular regions of the camera field of view from the monitoring process because of, say, continuous movement (e.g. due tree movement in a wind), the relevant cells can be deactivated.

Click on the button new window is opened up.

If necessary, click on the button current selection (cells indicated in red).

Using the left mouse button, click in those cells which are to be activated. Activated cells are indicated in red.

If required, click on the button frame.

to activate the video sensor.

Select area

, to configure the sensor cells. A

Clear all

Select all

first in order to clear the

to monitor the entire video

VideoJet 1000

Configuration with Web Browser

Using the right mouse button, click on those cells which are to be deactivated. Inactivated cells are indicated in white.

Click on the button

Click on the title bar of the window on the symbol X to close the window without storing any of the changes entered.

Local sensitivity

The basic sensitivity of the video sensor can be adapted for the ambient camera conditions.

The sensor reacts to brightness variations in the video image. The darker the observation range, the greater the value that must be selected here.

Adjust the sensitivity by moving the slider to the desired setting with the mouse key held down.

Average n [frames]

It is possible to define the number of frames during which a movement is monitored in order to generate an alarm. In this way, it is possible to prevent generating a false alarm, e.g. by a bird flying across the surveillance area.

Select the desired value by moving the slider to the desired position with the mouse key held down.

Set

to store the configuration.

VideoJet 1000

Object min size [n*n blocks]

The number of sensor cells, which a moving object must cover in order to generate an alarm, can be specified. In this way it is possible to prevent too small objects from producing an alarm.

For this, the minimum recommended value is 2 (2 × 2 sensor fields).

Select the desired value by moving the slider to the desired position with the mouse key held down.

Alarm indicator

To prevent false alarms, a motion signal can be matched to a given alarm threshold. In this way, for example, it is possible to filter out effects caused by the background noise generated in the camera itself.

Configuration with Web Browser

The blue line indicates the alarm threshold. Any value greater than this will produce an alarm signal. The components of the motion signal generating the alarm are indicated in red.

The alarm threshold can be varied to suit individual requirements.

Take note of the amplitude of the movement signal displayed in the window over a long period and at all light levels likely to be encountered in practice.

Move the mouse pointer onto the blue line.

Holding the left mouse button pressed, move the blue line to the required position.

Motion tracking

For certain applications, it can make sense to generate an alarm only if movement takes place in a particular direction. You can activate the motion detection and select the direction of movement required to generate an alarm.

Select here the option On, in order to activate the motion tracking feature of the video sensor.

Tracker

In the motion in the video image. By means of check boxes in the four corners, the desired direction can be activated. If, for example, all movements to the “left” and “upwards” are to activate an alarm, then mark the top left corner. If all movement to the “left” is to activate the alarm, then check the left upper and the lower left corners.

Note the movements indicated by the arrow in the video image over a long period and at all light levels likely to be encountered in practice.

Click the check box in order to activate the corresponding directional component.

Tracker

field you see an arrow, which indicates the current

VideoJet 1000

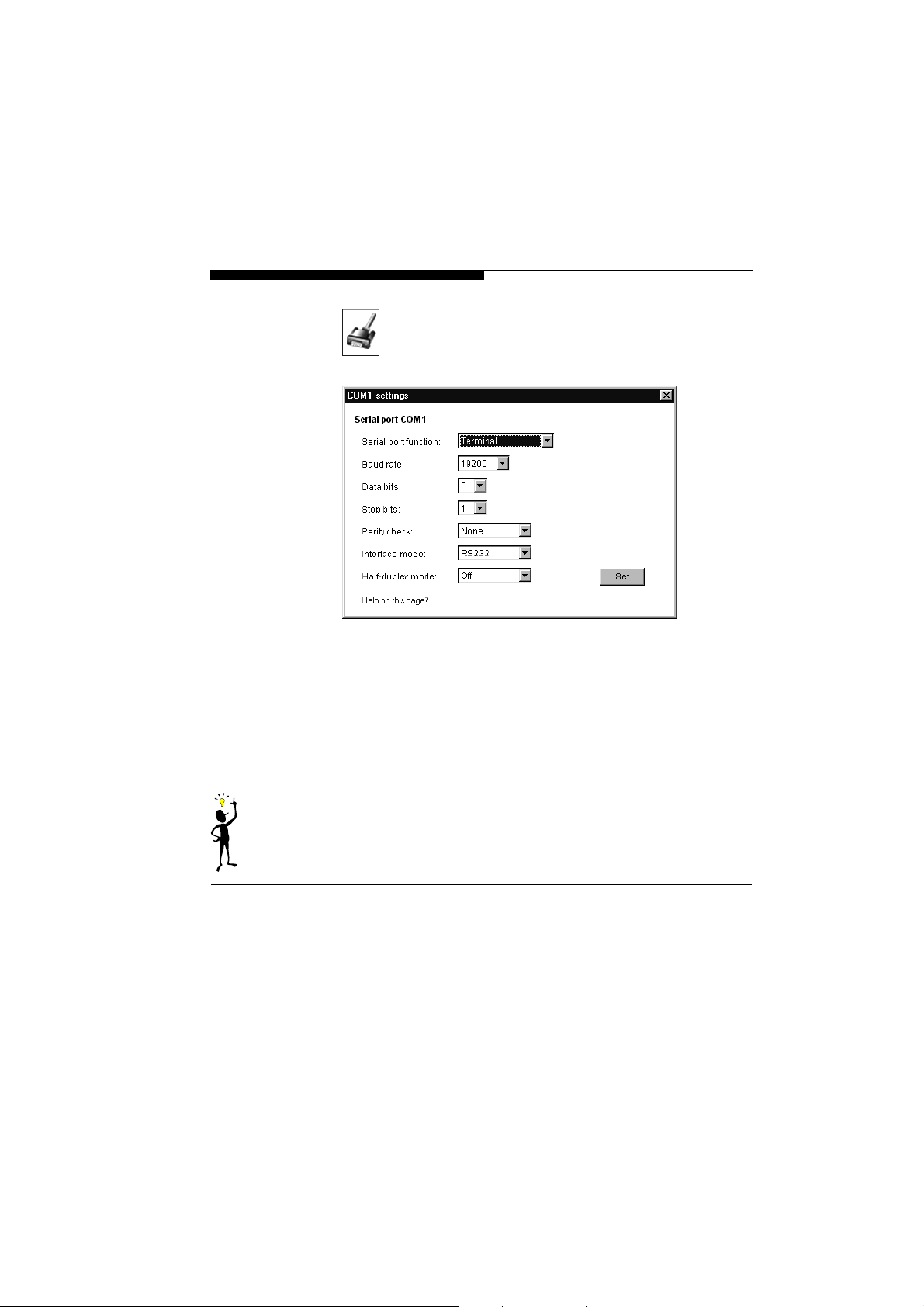

COM1 settings

Configuration with Web Browser

VideoJet 1000

The parameters for the serial interface port

COM1: RS232/485

can

be configured to suit individual requirements.

Serial port function:

Select one of the controllable devices from the list. If the port is required to transmit data transparently, select the entry

ent

Transpar-

Note

After selection of a device, the remaining parameters in the window are automatically set and should not be altered.

Baud rate:

Select the value for the Transmission rate in bits/s.

Data bits:

Select the number of data bits per character.

Configuration with Web Browser

Stop bits:

Select the number of stop bits per character.

Parity check:

Select the type of parity check.

Interface mode:

Select the desired protocol for the serial port.

Half-duplex mode:

Select here to suit the individual application.

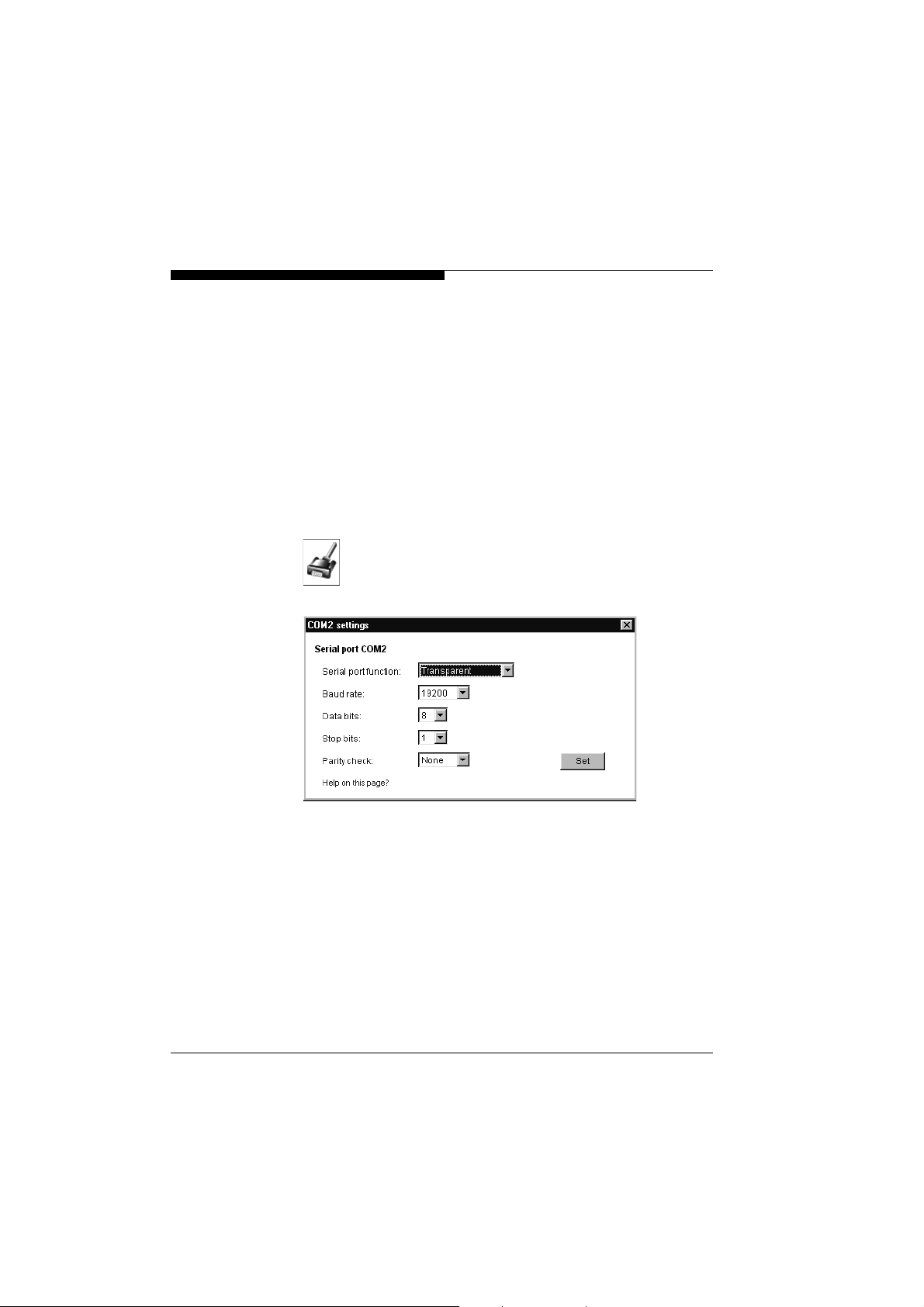

COM2 settings

The parameters for the serial interface port

COM2: RS232

can be

configured to suit individual requirements.

Serial port function:

Select the function for serial port 2. Select

Terminal

if the unit is to be operated from a terminal. If the port is required to transmit transparent data, select the entry

Transparent

Baud rate:

Select the value for the Transmission rate in bits/s.

VideoJet 1000

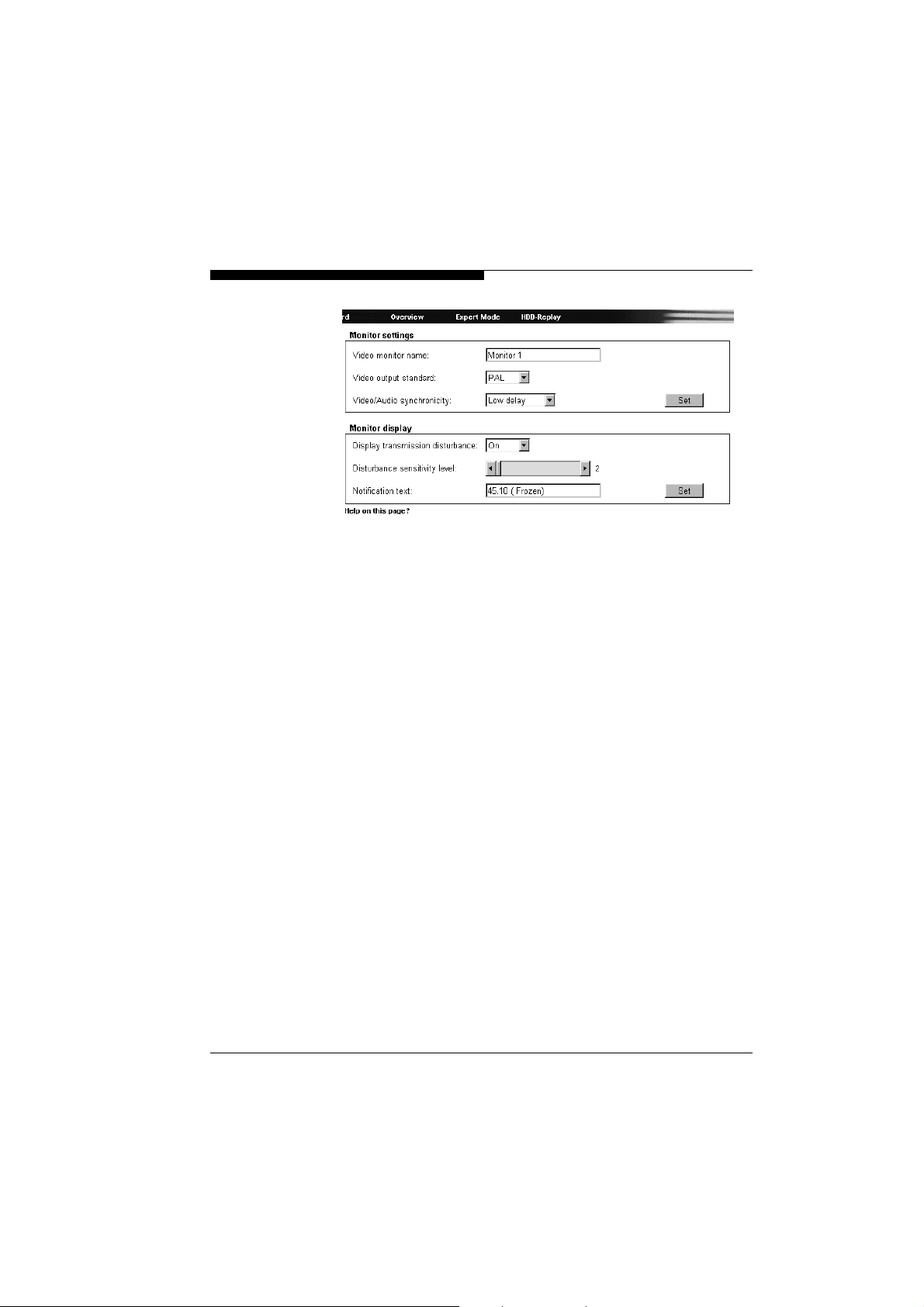

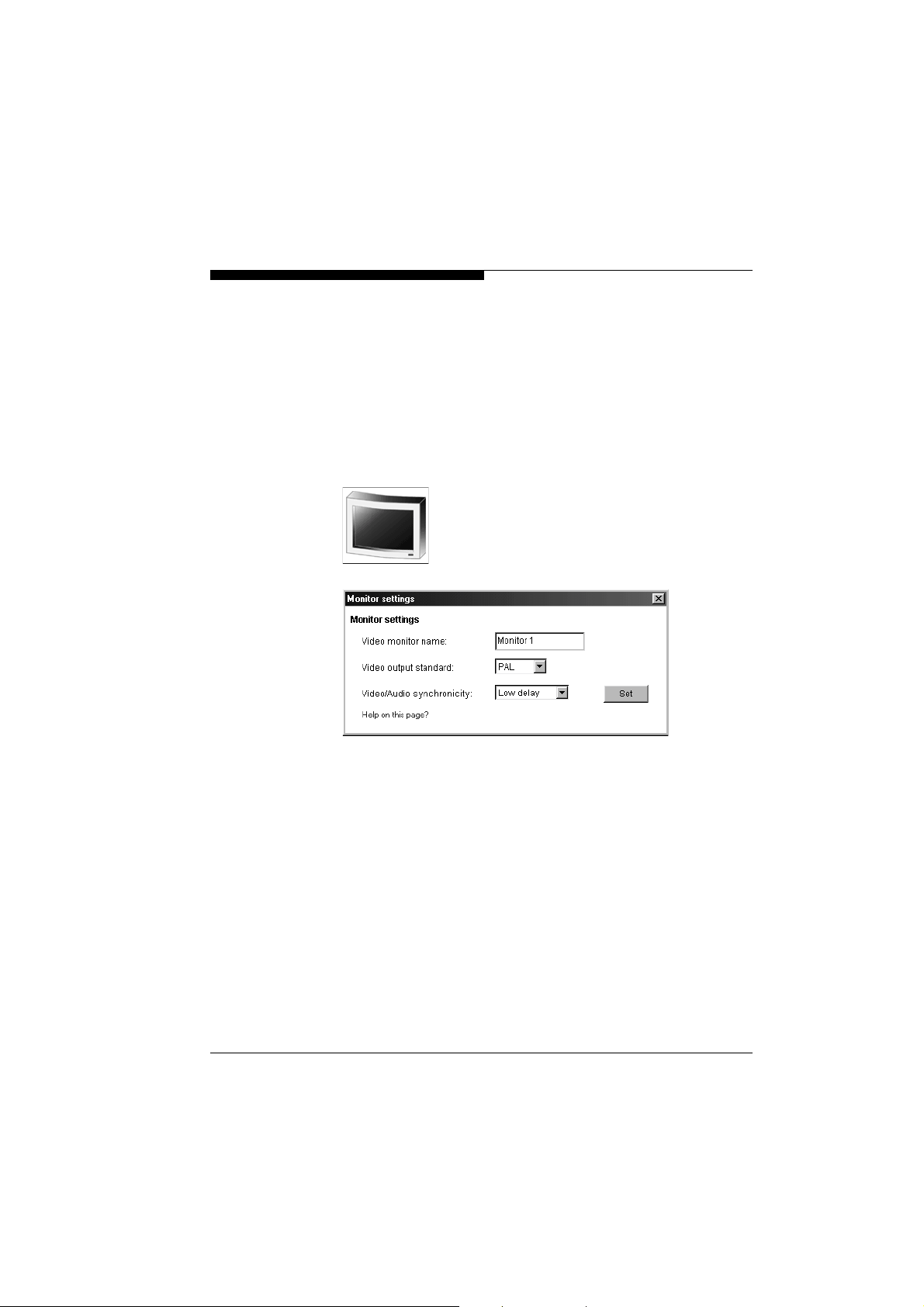

Monitor settings

Configuration with Web Browser

Data bits:

Select the number of data bits per character.

Stop bits:

Select the number of stop bits per character.

Parity check:

Select the type of parity check.

VideoJet 1000

Video monitor name:

Enter here the required monitor name.

Video output standard:

For devices which also function as a receiver, select the video standard for monitor output (

PAL

NTSC

Video/Audio synchronicity:

Choose audio resp.

Synchron

Low delay

when you emphasize synchronicity of video and

when the main focus is on quickest possible

transmission.

Configuration with Web Browser

Relay output settings

The switching conditions for the relay output can be configured. The function of an open switching relay (normally closed contact) or a closed switching relay (normally open contact) can be specified.

It is also possible to specify whether the output should operate as a bistable or as a monostable. In bistable operation, the activated state of the relay remains as switched. In monostable operation, the time can be selected after which the relay is to revert to its steady state.

Various events can be selected to automatically activate the output. In this way, for example, it is possible to switch on a floodlight when a motion alarm has been detected and to switch the light off again at the end of the alarm.

Idle state:

Open

Select

Closed

if the relay is to operate as a normally open contact or

if it is to operate as a normally closed contact.

Operating mode:

Select the operating mode for the relay.

If, for example, a lamp is switched on by an alarm and is to remain on when the alarm has ended, select

Bistable

. If an acoustic signal activated by an alarm is to remain on for a period of, for example, 10 sec, select

Monostable 10 s

VideoJet 1000

Configuration with Web Browser

Relay follows:

Select a particular event by which the relay is to be activated as required. The following events can activate the relay:

Off

: No relay triggering by events

Connection

Video alarm

Motion alarm

Local input

Remote input

: Triggering if any connection is established

: Triggering caused by loss of the video signal

: Triggering by the motion alarm

: Triggering caused by an external alarm sensor

: Triggering by a switching contact from a remote

location

Relay name:

The relay can be assigned a name from here. The name will be shown on the Overview page and, dependent upon configuration, also on the livepage.

Trigger relay:

Click on the button

Relay

to manually switch the relay (e.g. for test

purposes or to operate a door opener).

VideoJet 1000

Configuration with Web Browser

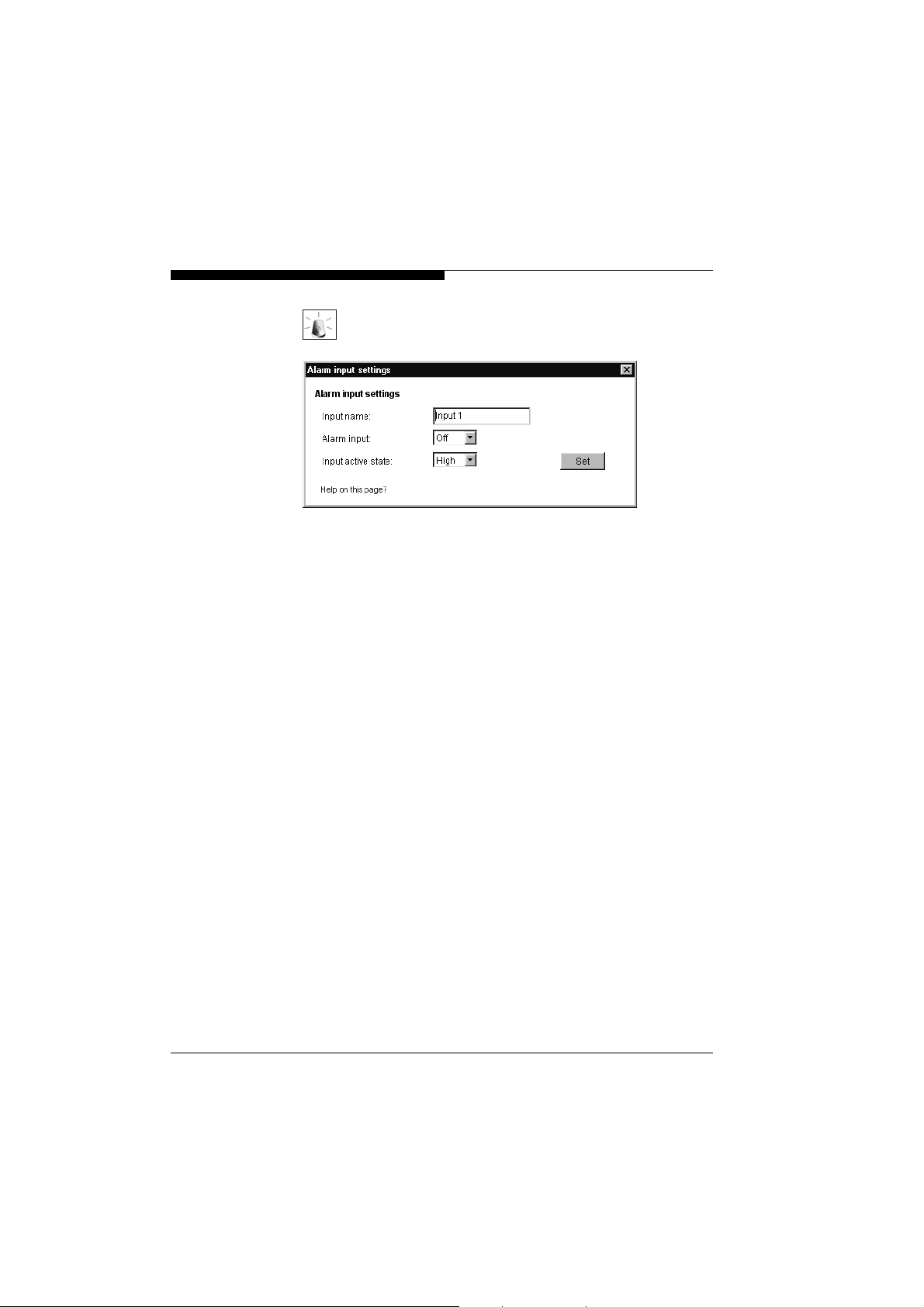

Alarm input settings

Input name:

A designation can be assigned here for the alarm input which will appear onscreen on the livepage on alarm activation.

Alarm input:

Select here the option means of an external alarm sensor. Otherwise select

Input active state:

Here can be specified whether the alarm is to be activated by a

High

Low

voltage level

in order to activate the alarming by

Off

VideoJet 1000

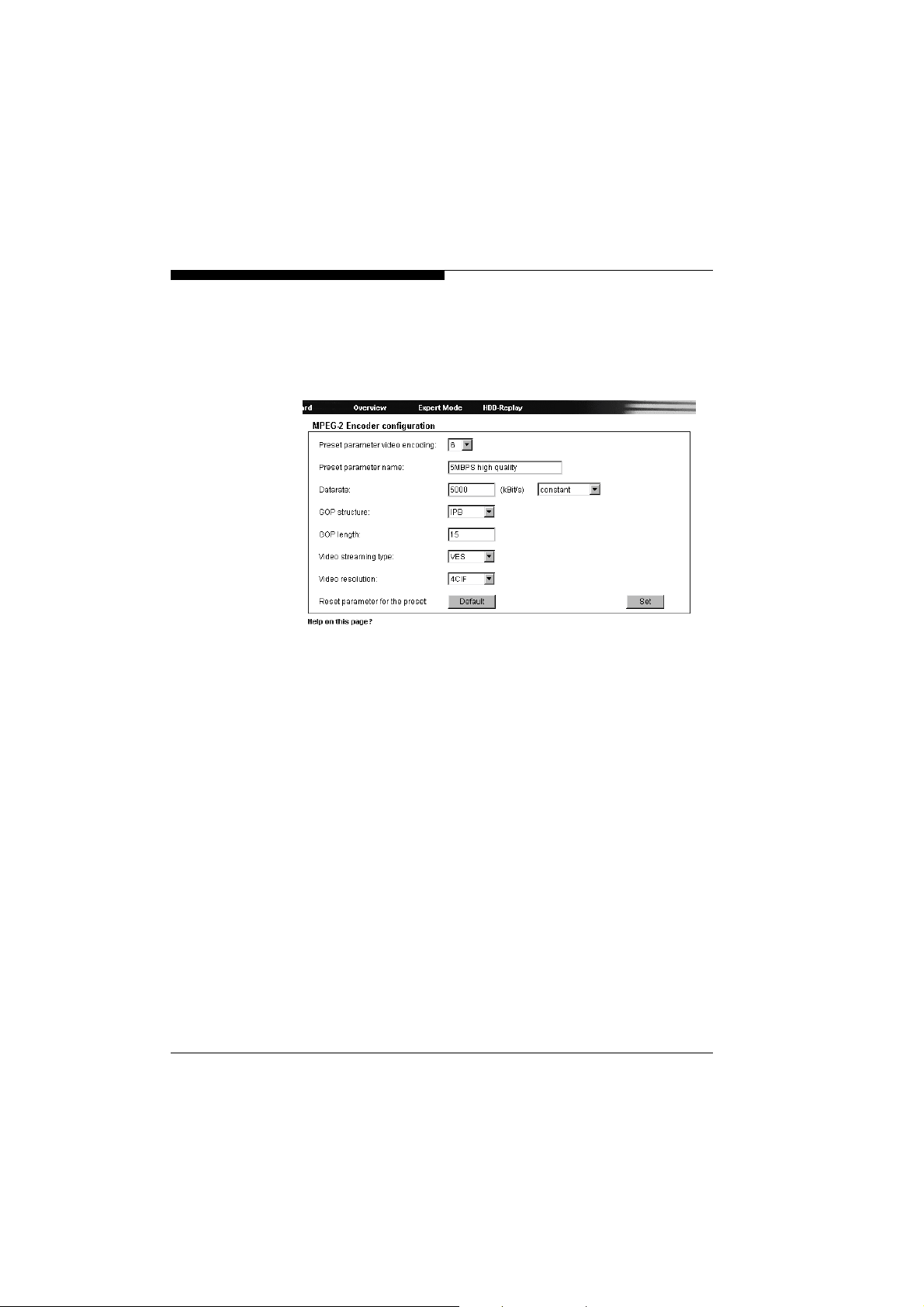

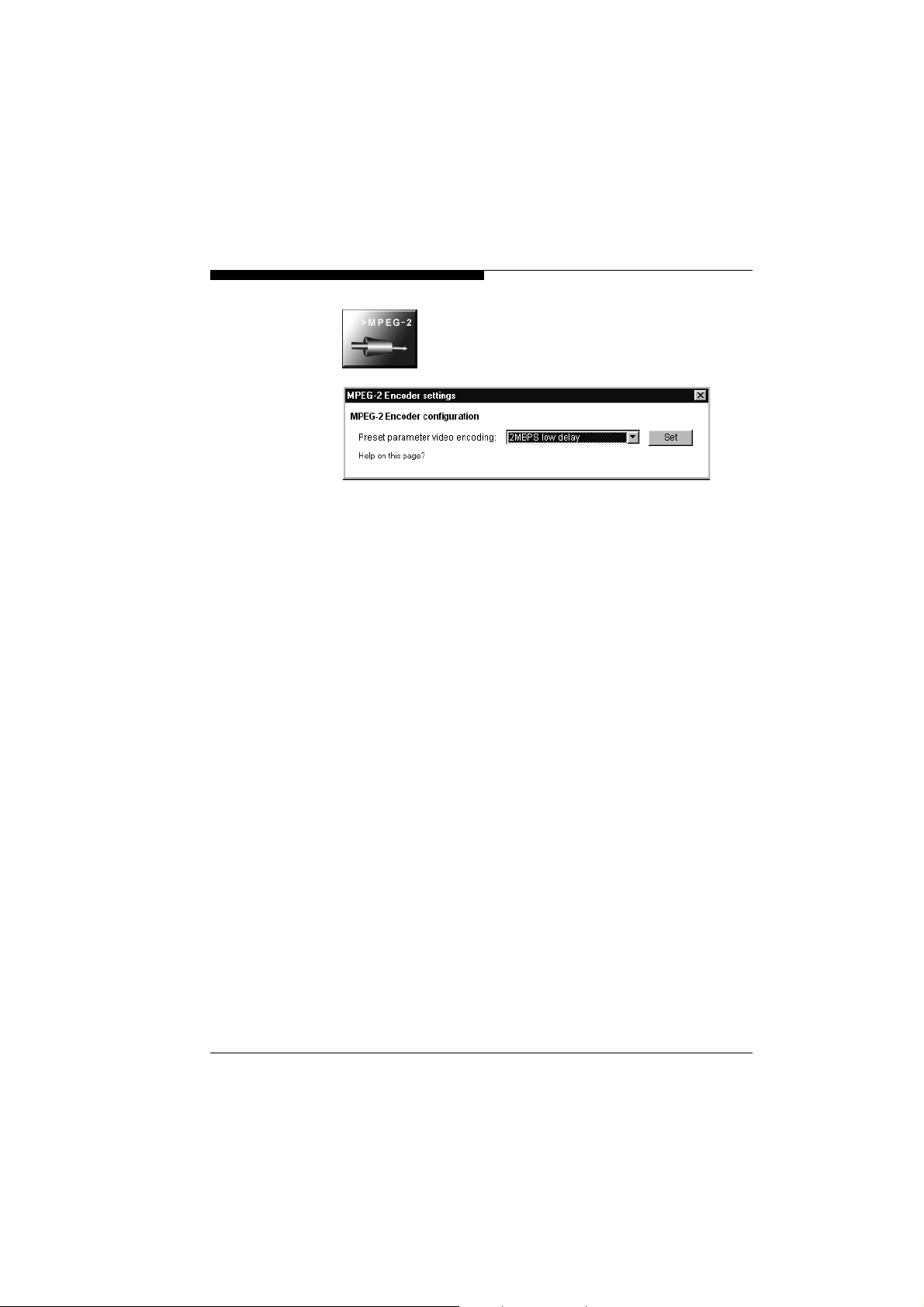

MPEG-2 Encoder settings

Configuration with Web Browser

Preset parameter video encoding:

MPEG-2 data transmissions can be configured to suit the local operating environment (e.g. network architecture, bandwidth, data structures).

As an aid for this purpose, pre-programmed profiles are provided, each with different features emphasized.

2MBPS low delay

2 MBit/s transmission rate with low delay on image refresh

3.5MBPS low delay

3.5 MBit/s transmission rate with low delay on image refresh

5MBPS low delay

5 MBit/s transmission rate with low delay on image refresh

2MBPS high quality

2MBit/s transmission rate with high picture quality

3.5MBPS high quality

3.5 MBit/s transmission rate with high picture quality

5MBPS high quality

5 MBit/s transmission rate with high picture quality

2MBPS with audio

2 MBit/s transmission rate with associated audio recording

3.5MBPS with audio

3.5 MBit/s transmission rate with associated audio recording

Select the desired option from the list.

VideoJet 1000

Configuration with Web Browser

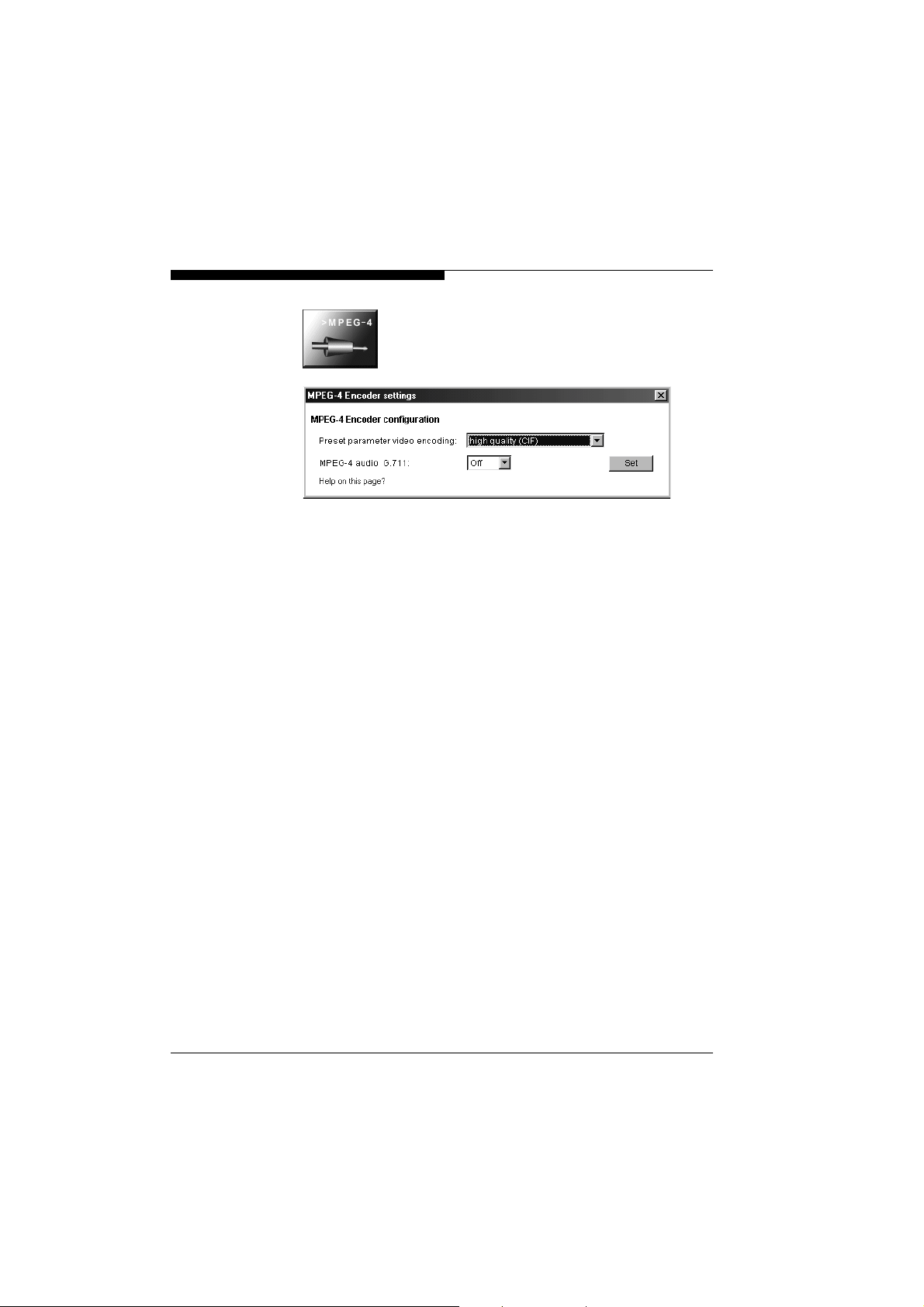

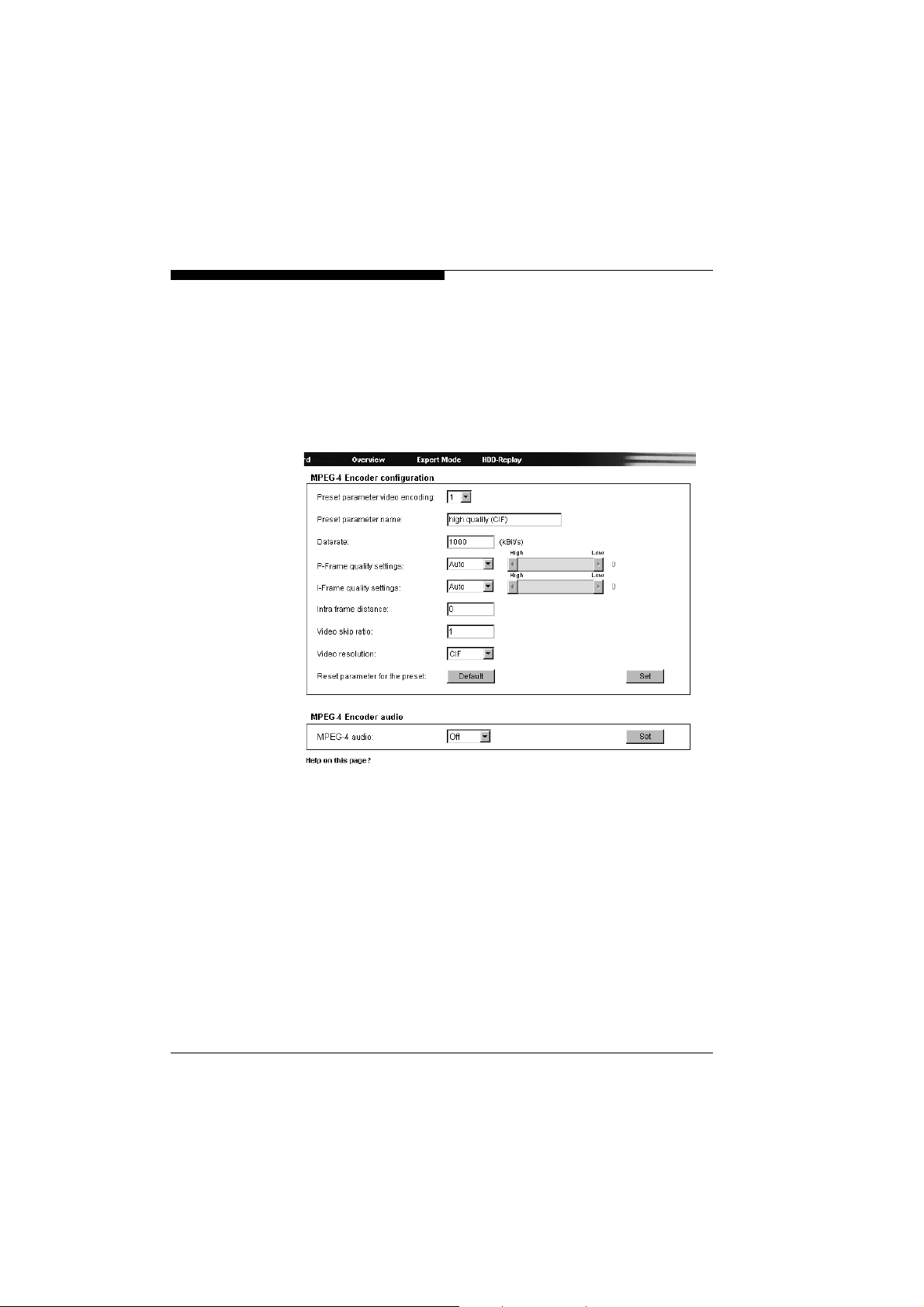

MPEG-4 Encoder settings

Preset parameter video encoding:

MPEG-4 data transmissions can be configured to suit the local operating environment (e.g. network architecture, bandwidth, data structures).

As an aid for this purpose, several pre-programmed profiles are provided, each optimized for different transmission paths.

high quality (CIF)

high quality for connections with high bandwidth

high resolution (2CIF)

high resolution for connections with high bandwidth

small resolution (QCIF)

low resolution for connections with high bandwidth

DSL

for DSL connections

ISDN (2B)

for ISDN connections over two B channels

ISDN (1B)

for ISDN connections over one B channel

MODEM

for analoge modem connections

GSM

for GSM connections

Select the desired option from the list.

VideoJet 1000

Alarm connections

Configuration with Web Browser

MPEG-4 audio G.711:

Choose On if you wish for transmission of audio data.

VideoJet 1000

Options are provided to specify the behavior of the VideoJet 1000 in the event of an alarm.

The VideoJet 1000, for example, can establish the connection to a predefined IP address (VideoJet 1000 receiver or PC with receiver software) automatically. You can enter up to 10 IP addresses to be contacted in turn in case of an alarm until a connection has been established.

Connect on alarm:

Select On, to automatically establish the connection to a predefined IP address in the event of an alarm.

Configuration with Web Browser

Connection type:

Depending upon the operating environment (network configuration), select here the transmission standard for the alarm connection to the defined IP address.

Note here the selections for MPEG-2 and MPEG-4 (see previous section).

Click here the radio button for the desired standard.

No. of video receiver address:

Here you can assign the numbering for the IP addresses that shall be contacted in case of an alarm. The device contacts the addresses in the order of the numbering until a connection has been established.

Live video receiver IP address:

Enter here the IP address to which a connection is to be established in the event of an alarm.

Remote receiver password:

Here you can enter the receiver password in case the receiver is protected by one.

Live video auto-connect:

Select here the option nection to the previously specified IP address after each restart, e.g. after a connection breakdown or network dropout.

Direction of alarm connection:

Select here if an outgoing, incoming or bidirectional connection is to be established in case of an alarm.

Display alarm stamping:

Select here the option On if it is required to display a text in case of an alarm.

Displayed alarm message:

Enter the text that is to be displayed in case of an alarm. It can contain up to 31 characters.

if it is required to re-establish a con-

VideoJet 1000

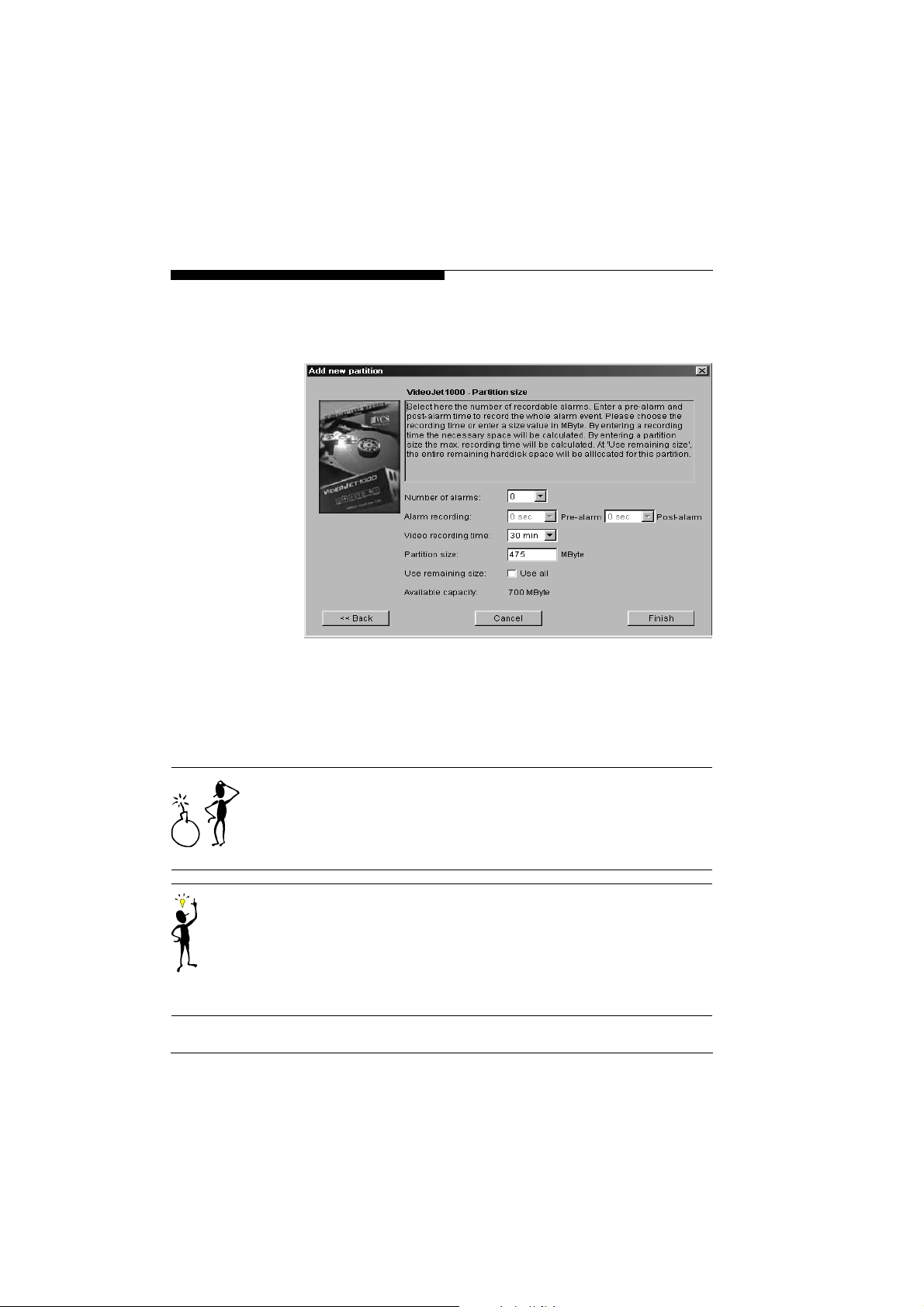

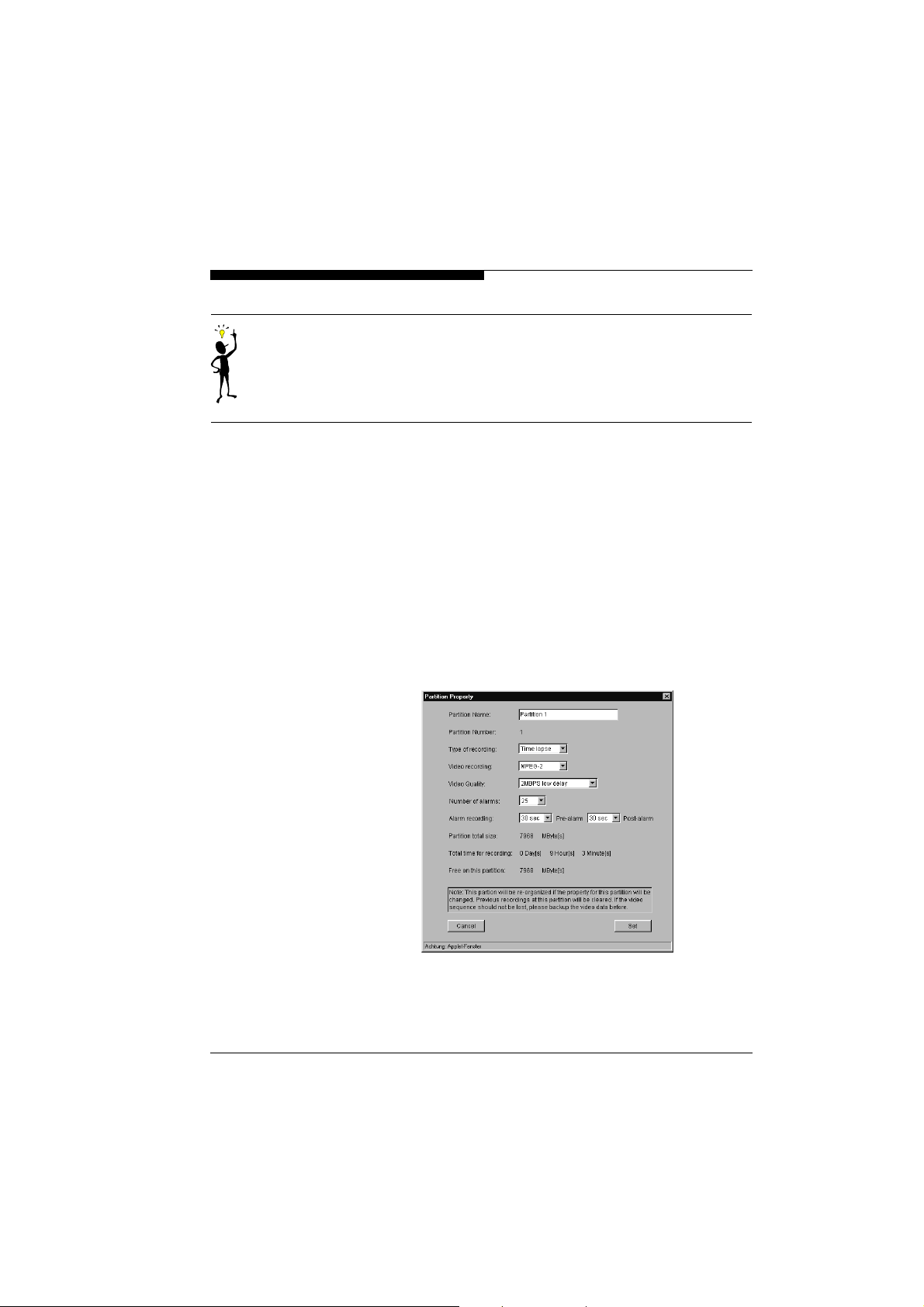

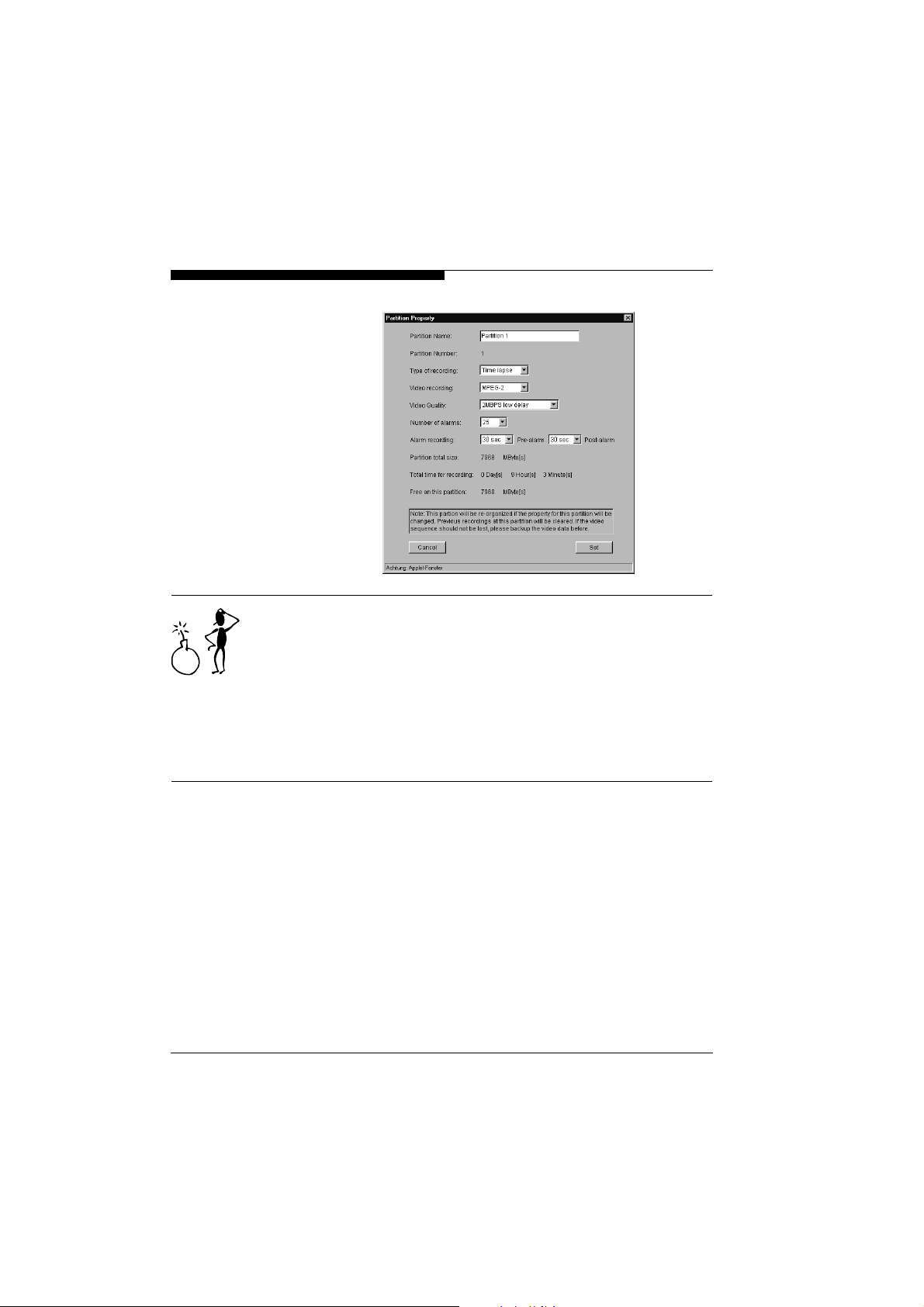

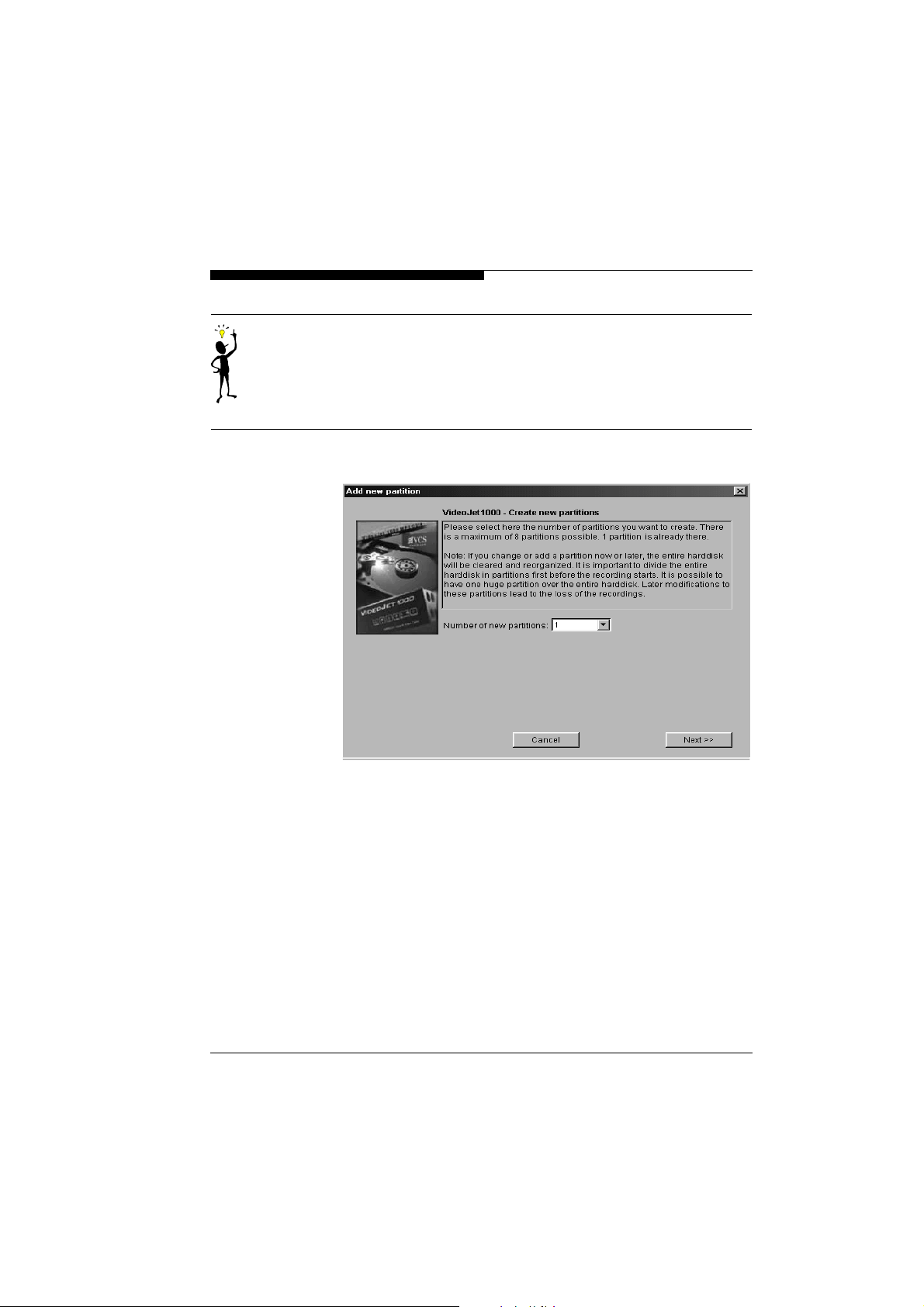

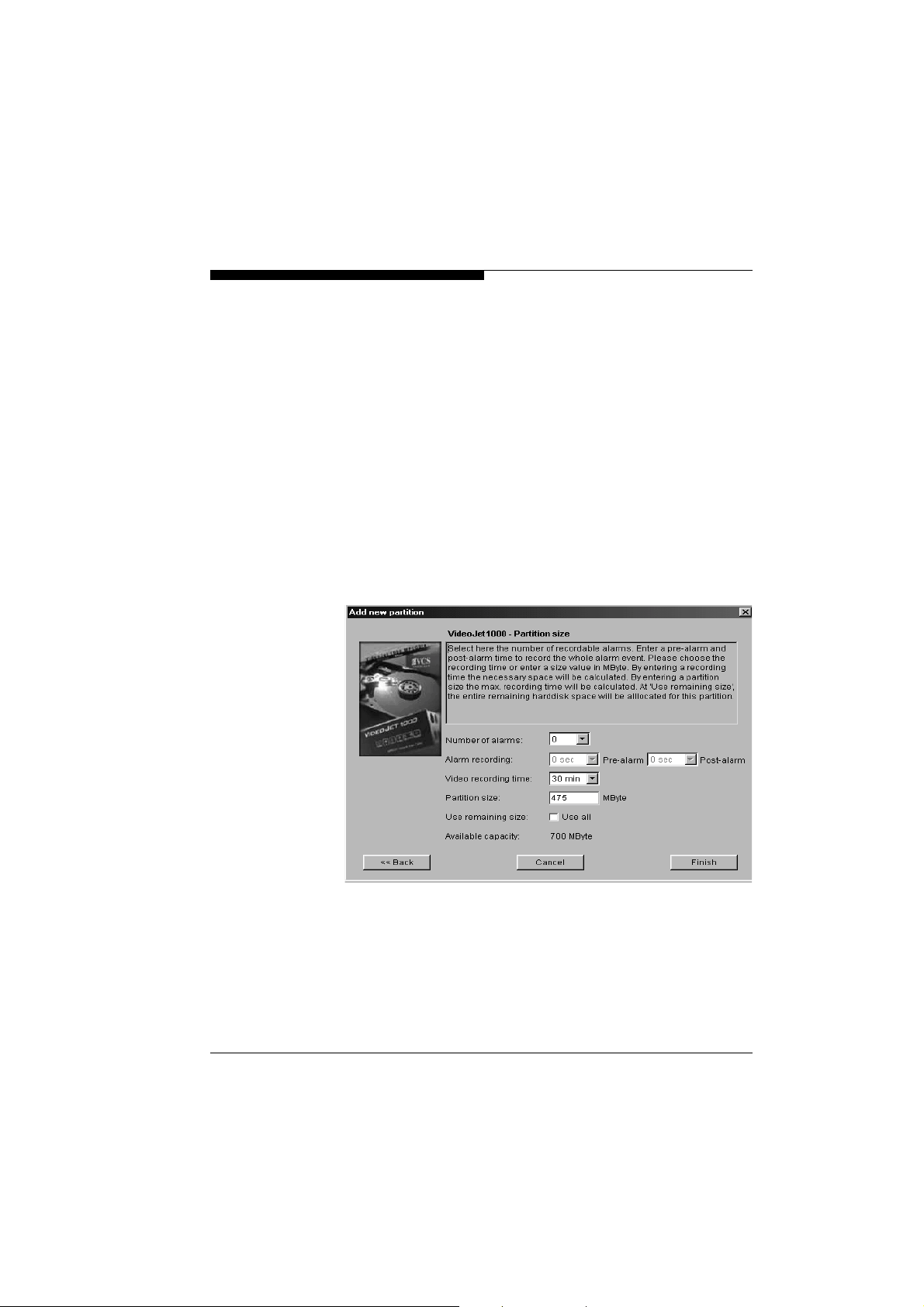

Partition

Configuration with Web Browser

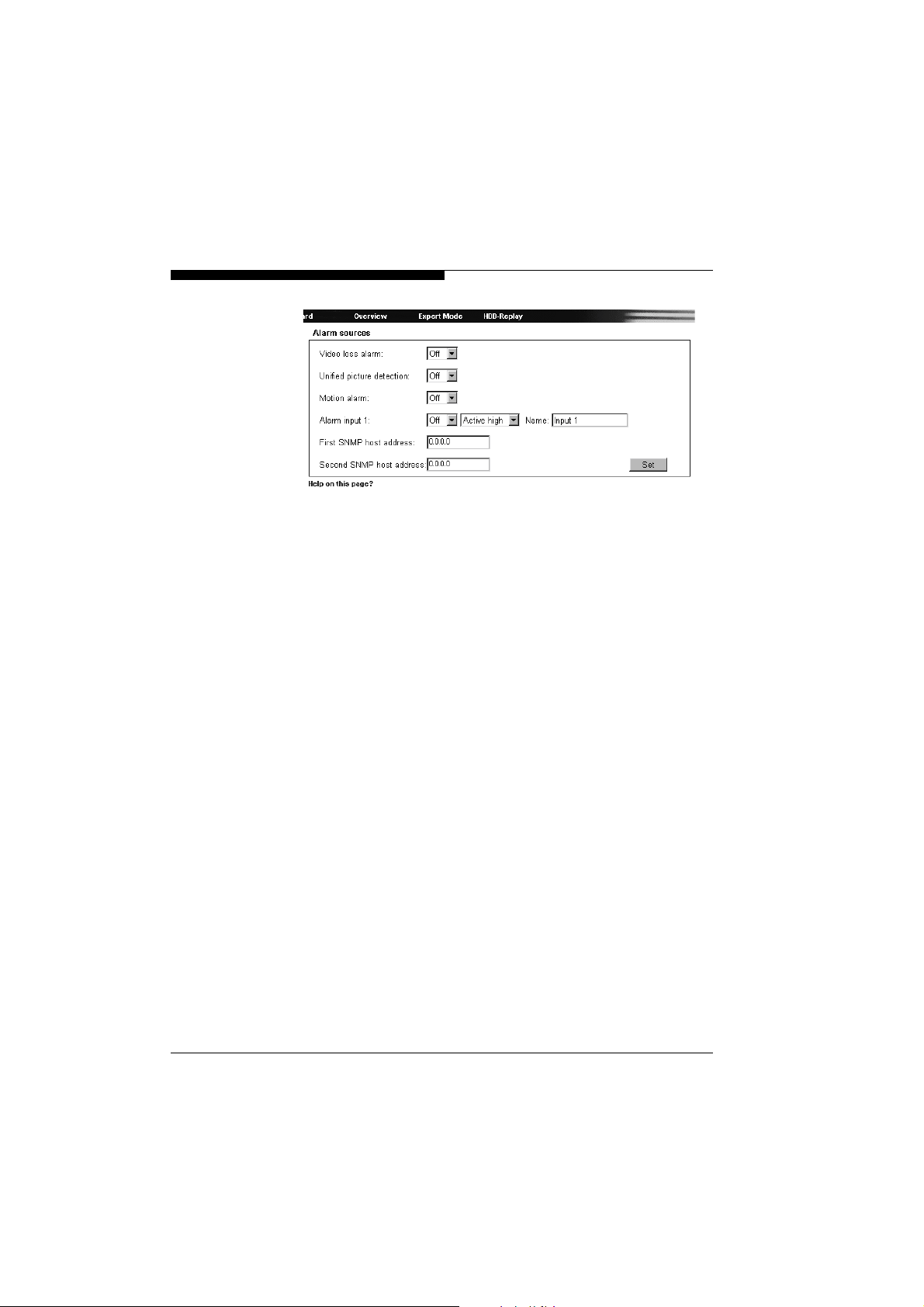

First/Second SNMP destination address:

Enter the IP addresses of up to two chosen receivers here if the alarm message is to be sent via SNMP-traps.

VideoJet 1000

In the basic setup the hard disk is configurated as one single partition which is adequate for most of the applications.

If permanent storage of video sequences on the hard disk is necessary the setup of more than one partition is crucial because after recording of the regarding sequences another partition can be activated to eliminate any possibility of overwriting.

The hard disk of the VideoJet 1000 can handle up to 8 partitions, configured in the same way a typical hard disk for a computer is. With each partition the parameters can be individually defined in ways like size, quality, type of video recording and compression standard. Changes in these parameters result in a complete reorganization and as a result previously saved data on the partition will be deleted.

Configuration with Web Browser

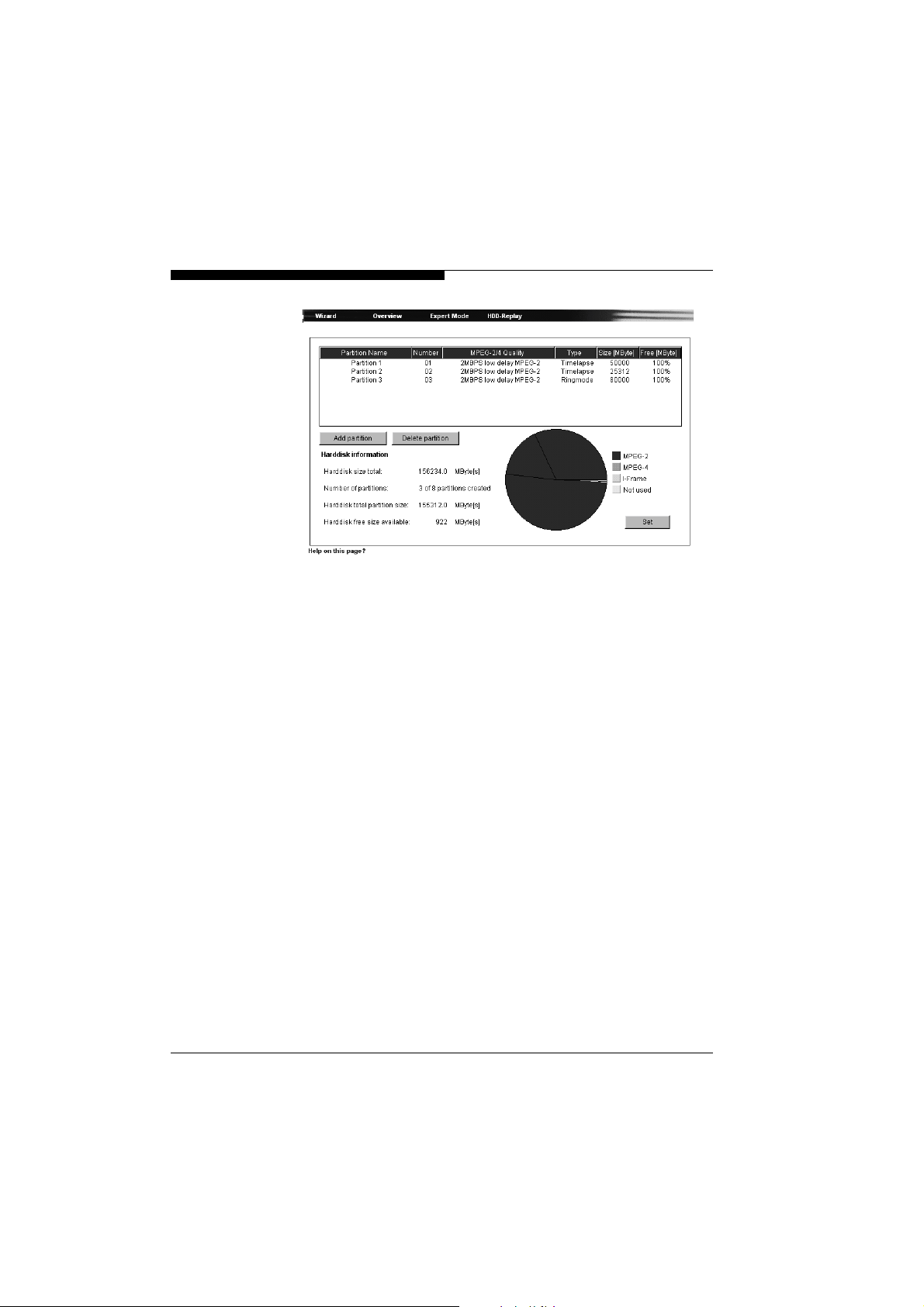

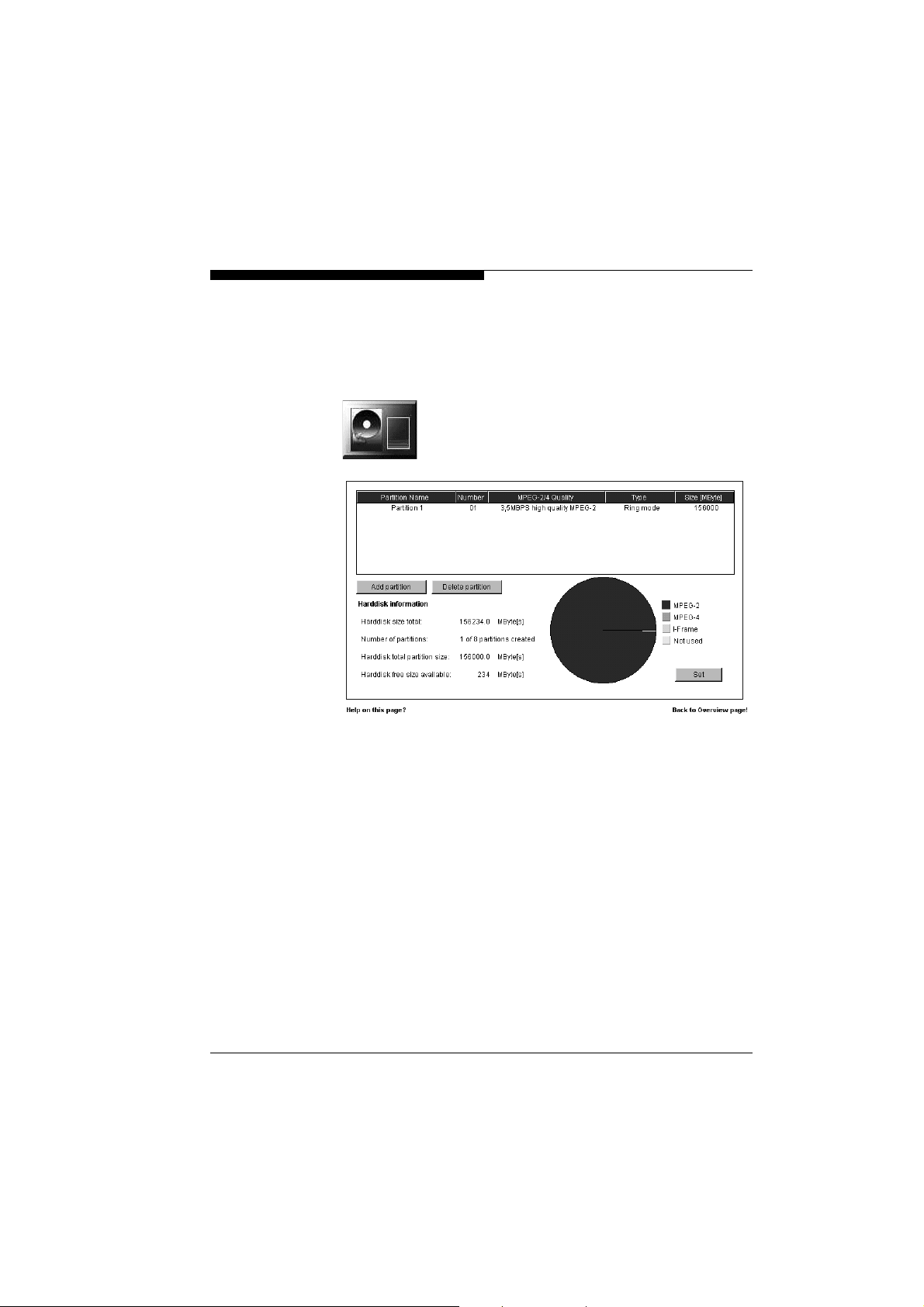

All the partitions can be viewed in the table on the page listed by name, order number, recording format/video quality, recording type and partition size.

This page also provides a complete overview of the hard disk information. It provides the total size of the hard disk, total number of partitions created on the hard disk, how much space has been used for partitions, and the size of idle hard disk memory in MBytes.

A pie chart is also provided giving a visual graphic of how the hard disk has been allocated. It differentiates between MPEG-2, MPEG4, I-Frame and free space.

Note

You can only activate one partition on the hard disk at a time for recording.

Activation of another partition is not automatic, it must be done manually.

Click on the button

Add partition

to start the wizard.

Partition

VideoJet 1000

Configuration with Web Browser

General procedures

Once the wizard is started you will see a new pop-up window appear. In this window you will get information and make the choices as to how the new partition should be configured.

Always read the information listed at the top of the window before making your choices.

Click on the text field to insert values or use other available controls as buttons, scrollbars or check boxes.

Once you have made your choice click the the next page.

Click the

Click on the changes.

<< Back

Cancel

button to return and view the previous page.

button to end the wizard without accepting the

Next >>

button to go to

VideoJet 1000

Making changes

To activate the changes made with the wizard you have to click the

Finish

button on the last page.

If you click the fected.

Cancel

button the previous settings will remain unaf-

Configuration with Web Browser

Attention!

Complete the wizard to the last page. Only then you have the possibility to save all the changes that have been made on previous pages by clicking the

Note

For every partition that is created on the hard disk the wizard must be completed from beginning to end.

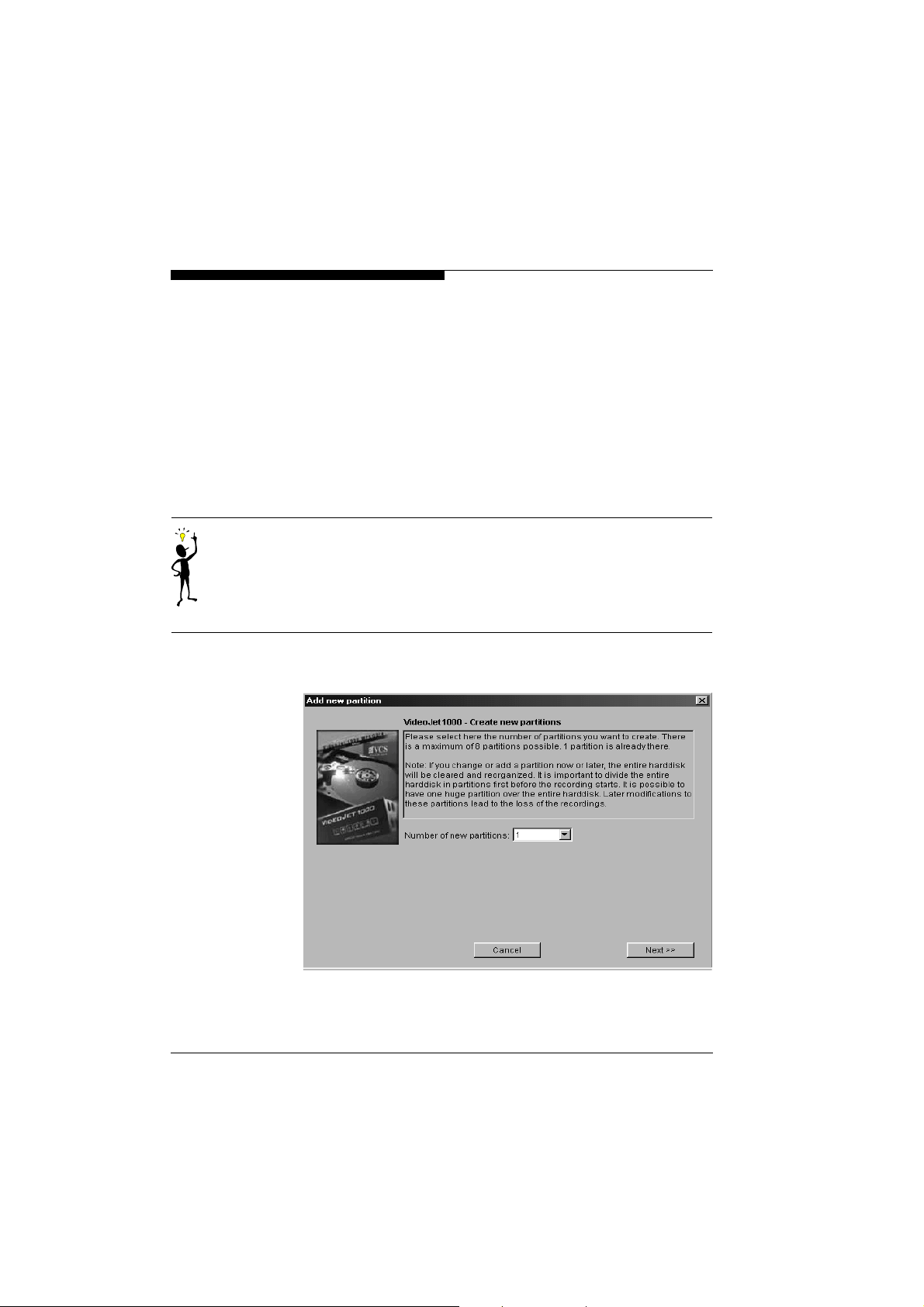

Therefore after starting the wizard you are asked for the total number of partitions you want to install. The wizard will be restarted automatically until all partitions are configurated.

Parameters

For each partition a variety of parameters can be chosen.

Partition name:

Input the chosen name for your partition. When creating more than one partition it would be helpful to choose a unique name that will help you in finding specific recordings later.

Finish

button at the end.

Recording format:

Here you choose the recording format of the partition: MPEG-2, MPEG-4 or I-Frames.

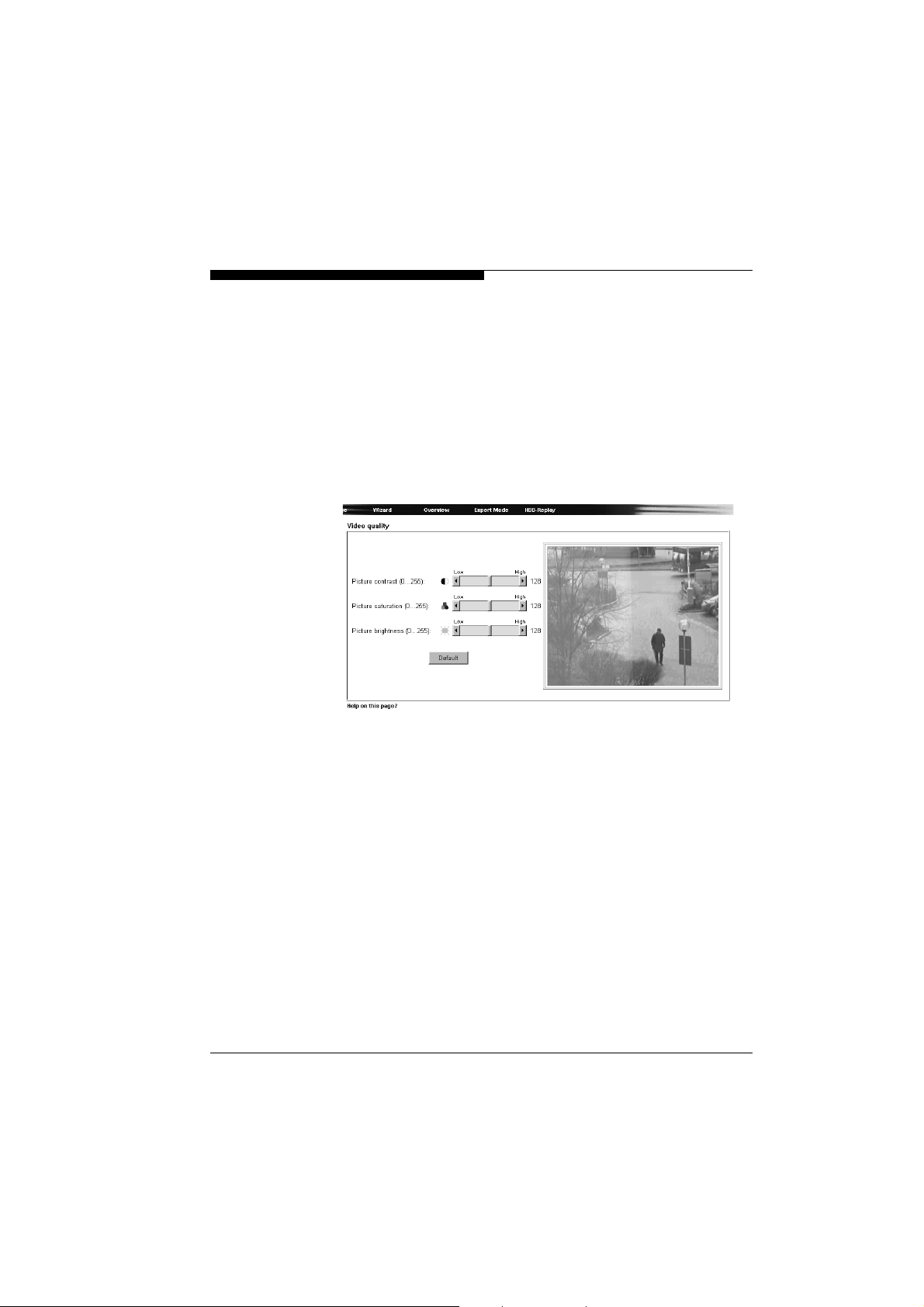

Video quality:

You can choose for each compression format between several different transfer rates thereby deciding what level of video quality you desire.

VideoJet 1000

Configuration with Web Browser

For recordings in MPEG-2 format the following profiles can be selected:

2MBPS low delay

2 MBit/s transmission rate with low delay on image refresh

3.5MBPS low delay

3.5 MBit/s transmission rate with low delay on image refresh

5MBPS low delay

5 MBit/s transmission rate with low delay on image refresh

2MBPS high quality

2MBit/s transmission rate with high picture quality

3.5MBPS high quality

3.5 MBit/s transmission rate with high picture quality

5MBPS high quality

5 MBit/s transmission rate with high picture quality

2MBPS with audio

2 MBit/s transmission rate with associated audio recording

3.5MBPS with audio

3.5 MBit/s transmission rate with associated audio recording

For recording in MPEG-4 format the following profiles can be selected:

high quality (CIF)

high quality for connections with high bandwidth

high resolution (2CIF)

high resolution for connections with high bandwidth

small resolution (QCIF)

low resolution for connections with high bandwidth

DSL

for DSL connections

ISDN (2B)

for ISDN connections over two B channels

ISDN (1B)

for ISDN connections over one B channel

MODEM

for analoge modem connections

VideoJet 1000

Configuration with Web Browser

GSM

for GSM connections

Partition type:

Choose here in which mode the recordings will be saved on the partition.

Time lapse mode:

The recordings will be saved to the partition as planned in the recording scheduler. However once the maximum storing capacity has been met for the partition the recording process will stop. In that case further recording on this partition is only possible if the partition is reorganised.

Ring mode:

In Ring mode the newest recordings are recorded over the oldest recordings once the maximum storage capacity has been achieved. E.g. if the maximum storage capacity of the partition allows for a recording of 24 hours to be saved the recordings will then run in a continues 24 hour loop. Only the last 24 hours of recordings will be able to be viewed.

Partition size:

Here is where you need to choose how many alarms can be recorded on the partition (max. 128) and the alarm pre- and postrecording time lengths.

Also here you can select the partition size either by choosing how long of a recording time you require or by setting the amount of MBytes you would like to use in this partition - in both cases the missing value will automatically be set.

If you have chosen to use the entire hard disk as one partition or you are configuring the last partition you require just click the

all

check box. The rest of the hard disks capacity will then be con-

figured into that partition for use.

Use

VideoJet 1000

Configuration with Web Browser

Note

When dividing the hard disk into the maximum of 8 partitions, then the complete hard disk space should be utilized. Otherwise the remaining space can not be utilized without reorganization of the hard disk.

Changing the configuration

The configuration of the partitions can be changed any time.

Double click in the list on the partition you wish to make changes to. This will open the on the partition selected.

Make the necessary changes.

Save the changes you have made by clicking the

Stop any changes from being activated by clicking on the button.

Partition Property

window with the information

Set

button

Cancel

VideoJet 1000

Configuration with Web Browser

Warning!

Any changes made on a partition regarding name, type of recording, video recording and quality, the number of alarms and alarmrecording will result in a complete reorganization of that partition and all previously saved recordings will be deleted.

Before making any changes to a partition first check to see if any important information has been previously saved to it and make a back-up recording of those sequences to the hard disk of your computer.

In the name, the type of recording, the video recording and quality, the number of alarms and the alarmrecording.

The complete recording time or the partition size can only be changed using the wizard. However all data stored on the partition will be lost.

Note

In the event the maximum of 8 partitions has been reached the wizard can only be restarted once one of the partitions has been deleted.

Partition Property

window changes can be made to the

Warning!

Changes to the size or number of partitions will result in a reorganization of the complete hard disk and the deletion of all saved information on it.

Before every change to any parameter a check should first be made for all important information saved to the hard disk and if necessary a back-up of the regarding sequences should be made to the local hard disk of your computer.

Changes to the partition settings are saved by clicking on the

Set

button. Only then are they transmitted to the VideoJet 1000.

VideoJet 1000

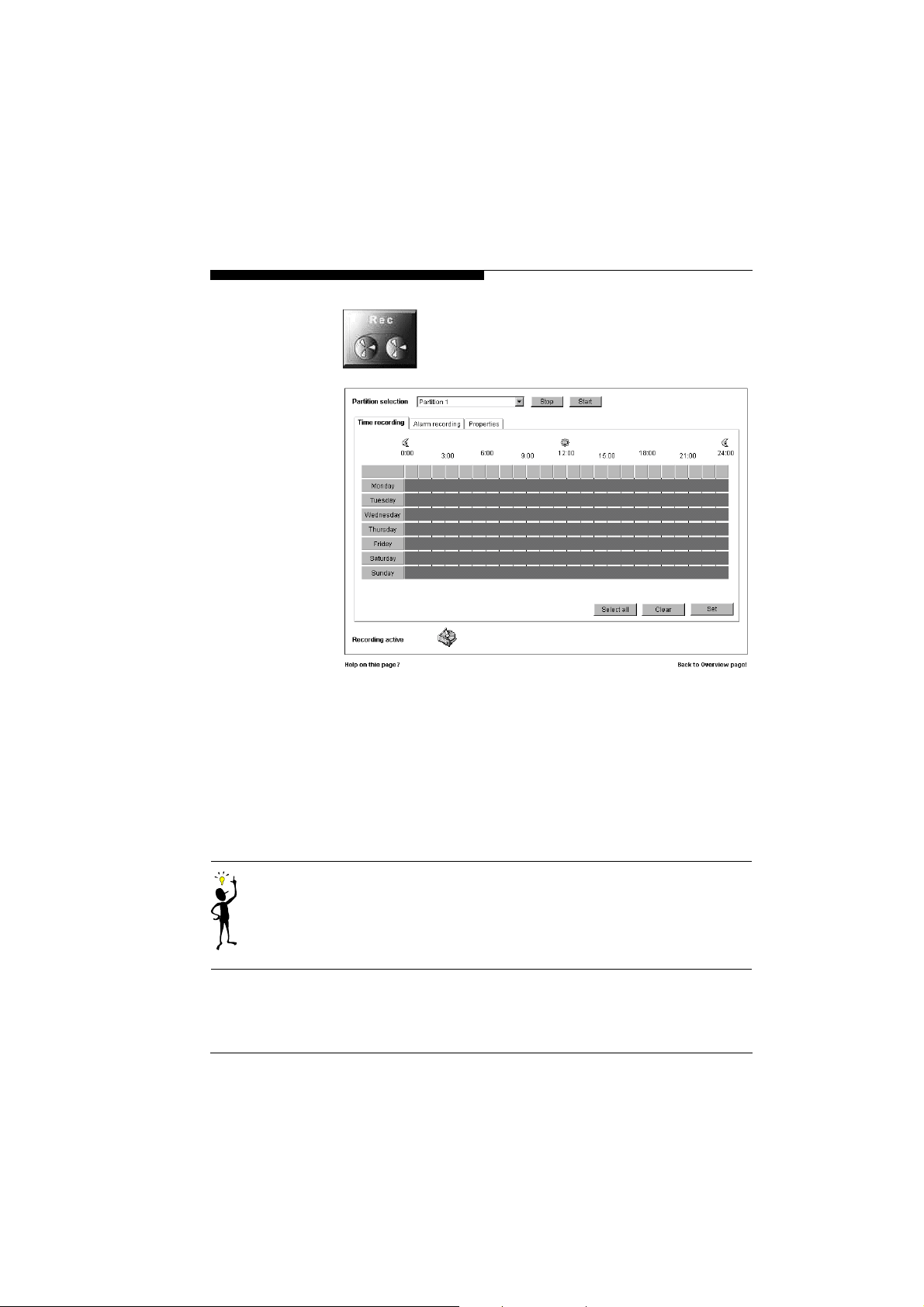

Record

Configuration with Web Browser

Here you setup the parameters for local recording onto the hard disk. Recordings can be predefined to take place uninterruptedly over specified periods or only in case of an alarm.

VideoJet 1000

Partition selection:

First choose the partition that shall be active, i.e. on which the recordings shall be stored. Once you have completed setting your recording times this partition can then be activated by clicking on

Start

the

button.

Note

You can only activate one partition on the hard drive at a time.

The activation of a different partition is not possible automatically. Only manual activation is possible.

Configuration with Web Browser

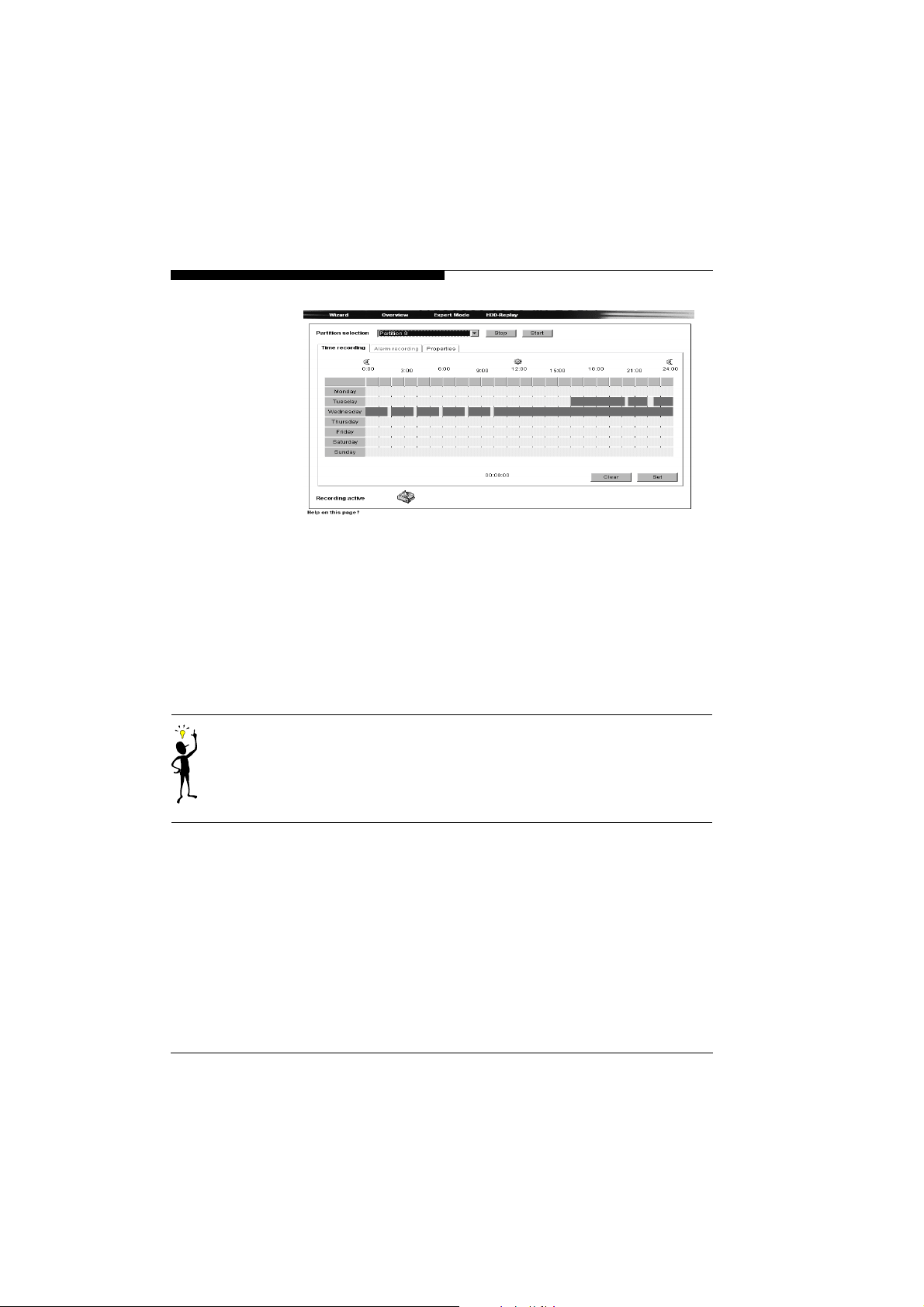

Time recording:

This is where the periods will be set for the continuous recordings to the hard drive. To do so mark one or more time slots for each day by dragging with the depressed mouse button.

By clicking on the cancelled, clicking on the VideoJet 1000.

Alarm recording:

This is where you program the time spans where the alarm triggered recordings will be active.

The VideoJet 1000 disposes of a special recording mode for alarm recording to optimize storage capacity utilization: with the beginning of a respective time slot continuous recording starts on a segment the size of a complete alarm sequence (pre- and post-alarm). This segment on the partition works like a ring buffer and is overwritten again and again until an alarm is actually triggered. After that recording on this segment will go on for the time predefined for post-alarm recording and then a new segment will be used in the same way.

For this reason the recorded alarm file is always complete in length when saved to the hard drive and the recording space necessary for each alarm recording can be calculated easily. A partition can record up to 128 alarm activations; when the partition is in ring mode it will always contain the most recent alarm recordings in the predefined number.

Clear

button all previously set time slots will be

Set

button will transmit the data to the

Note

When the time slots for time recording and alarm recording overlap each other the time recording schedule will always take priority.

Alarm activations that occurred during time recording are specially marked on the playback bar for easy identification when playing back recorded sequences.

VideoJet 1000

Configuration with Web Browser

Properties:

For a quick overview you have access to the properties of the active partition directly from the recoding scheduler.

Recording activ:

This is a quick way to know if currently recording on the hard drive is active. In this case the symbol for the hard drive is animated. If it is not animated no recording is taking place.

VideoJet 1000

Configuration with Web Browser

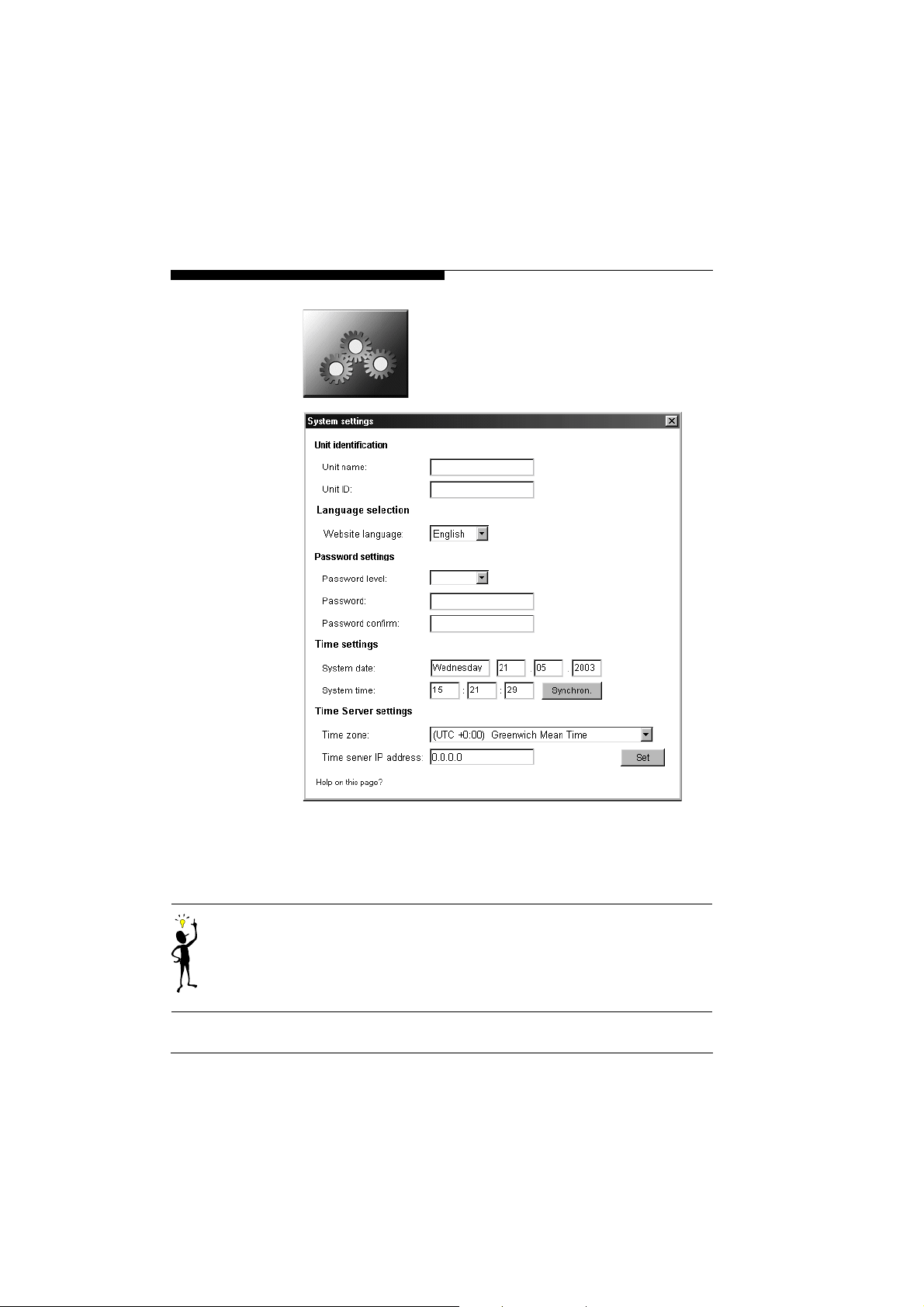

System settings

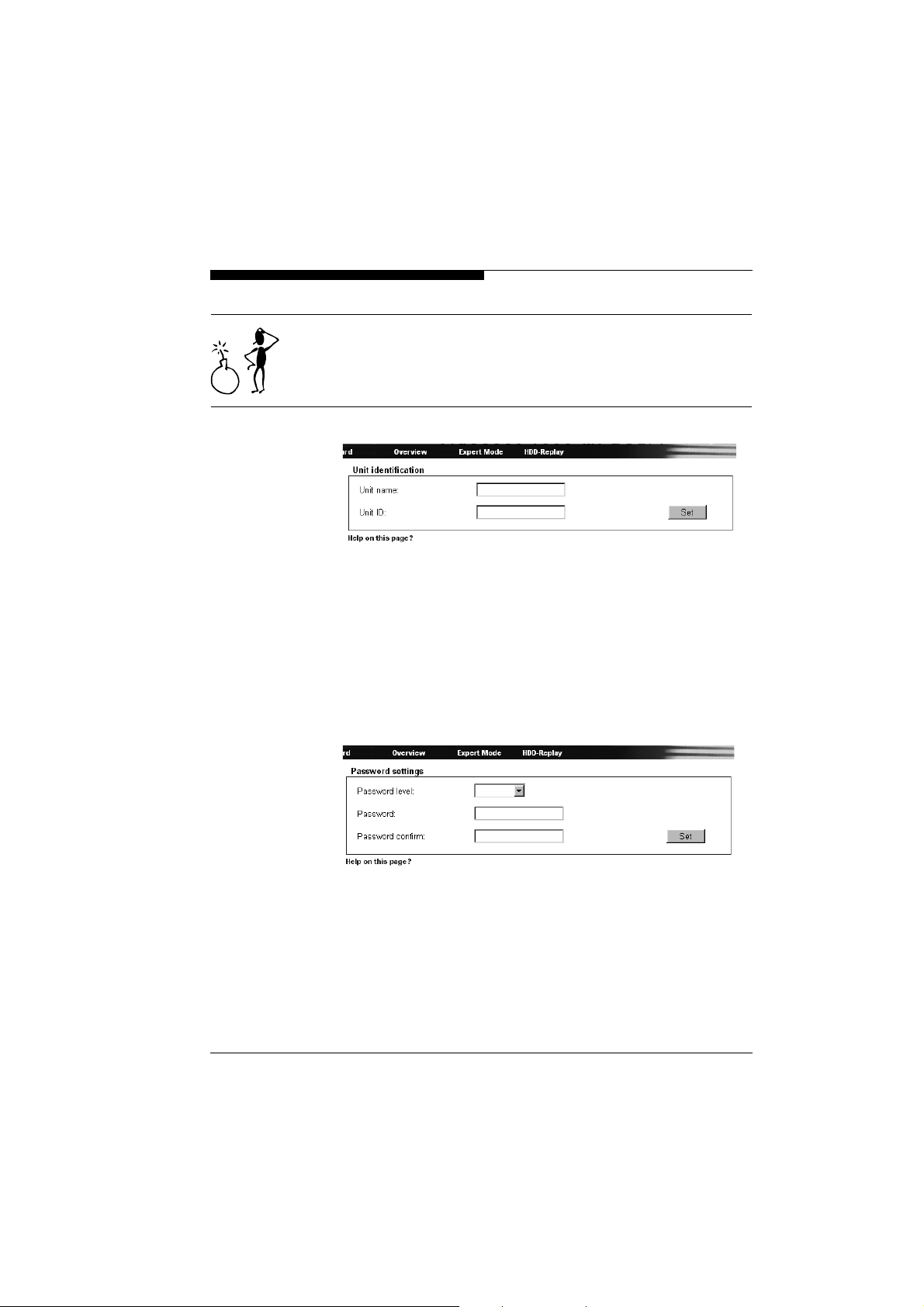

Unit name:

Enter here a name for the unit to facilitate identification in major installations. This name will be displayed in the video image, depending on the configuration.

Note

The unit name is used to identify the device remotely, for example, in the event of an alarm. Assign a designation which easily and unambiguously identifies the unit location.

VideoJet 1000

Configuration with Web Browser

Unit ID:

Each VideoJet 1000 should be assigned a unique identifier which can be additionally used to identify the unit.

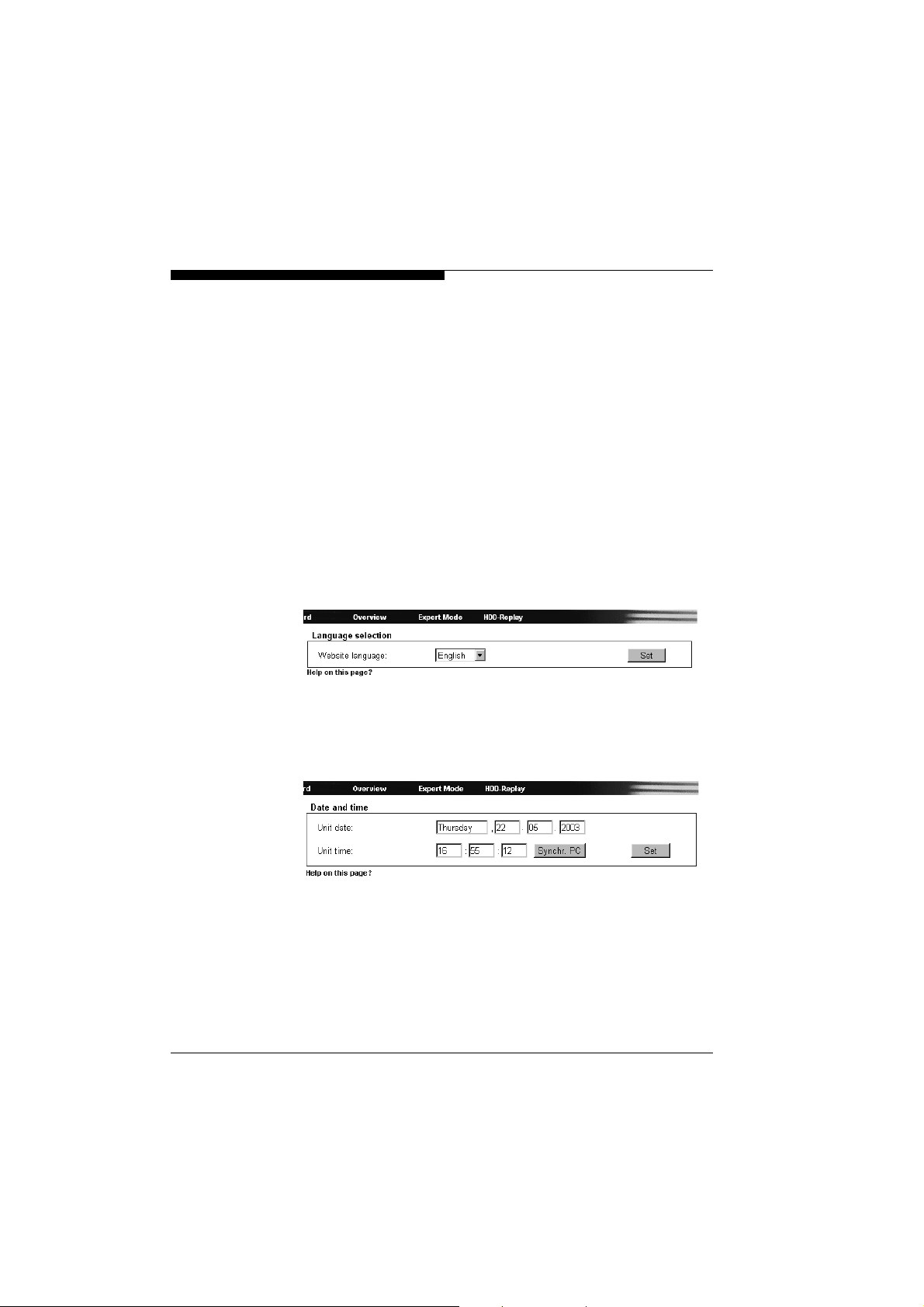

Website language:

Here you select the desired language of the HTML pages.

Password level:

The access to a VideoJet 1000 is generally protected with a password in order to prevent unauthorised use of the device. The transmitters operate with three authorisation levels:

User

In the authorisation level

Service

, you can change all the configu-

Live, Service

and

ration settings after entering the corresponding password.

With the authorisation level

User

you can operate but not configure the device. You can have a live picture or the configuration settings displayed, but you cannot change them.

Live

With

you can display a live video but neither change the con-

figuration nor for example control a camera.

Password:

You can define and change passwords for access to the device when you are working with the authorisation level Service or if the device is not protected with a password. You can change only one of the three passwords at a time. In order to change the password of another level, you have to call up this configuration page again.

VideoJet 1000

Password confirm:

Enter the new password again to rule out the risk of typing errors.

System date

System time:

and

If a number of VideoJet 1000 units are combined in a system, it is important that the internal clocks of the separate units are all synchronized. Only if all units operate with the same time it is possible, for example, to correctly identify and evaluate events which have occurred simultaneously.

Enter the current date and time. As the system time is controlled by the internal calendar clock, the day of the week does not have to be entered. It is added automatically.

Configuration with Web Browser

Click on the button

Synchron.

to transfer the system time of the

computer to the VideoJet 1000.

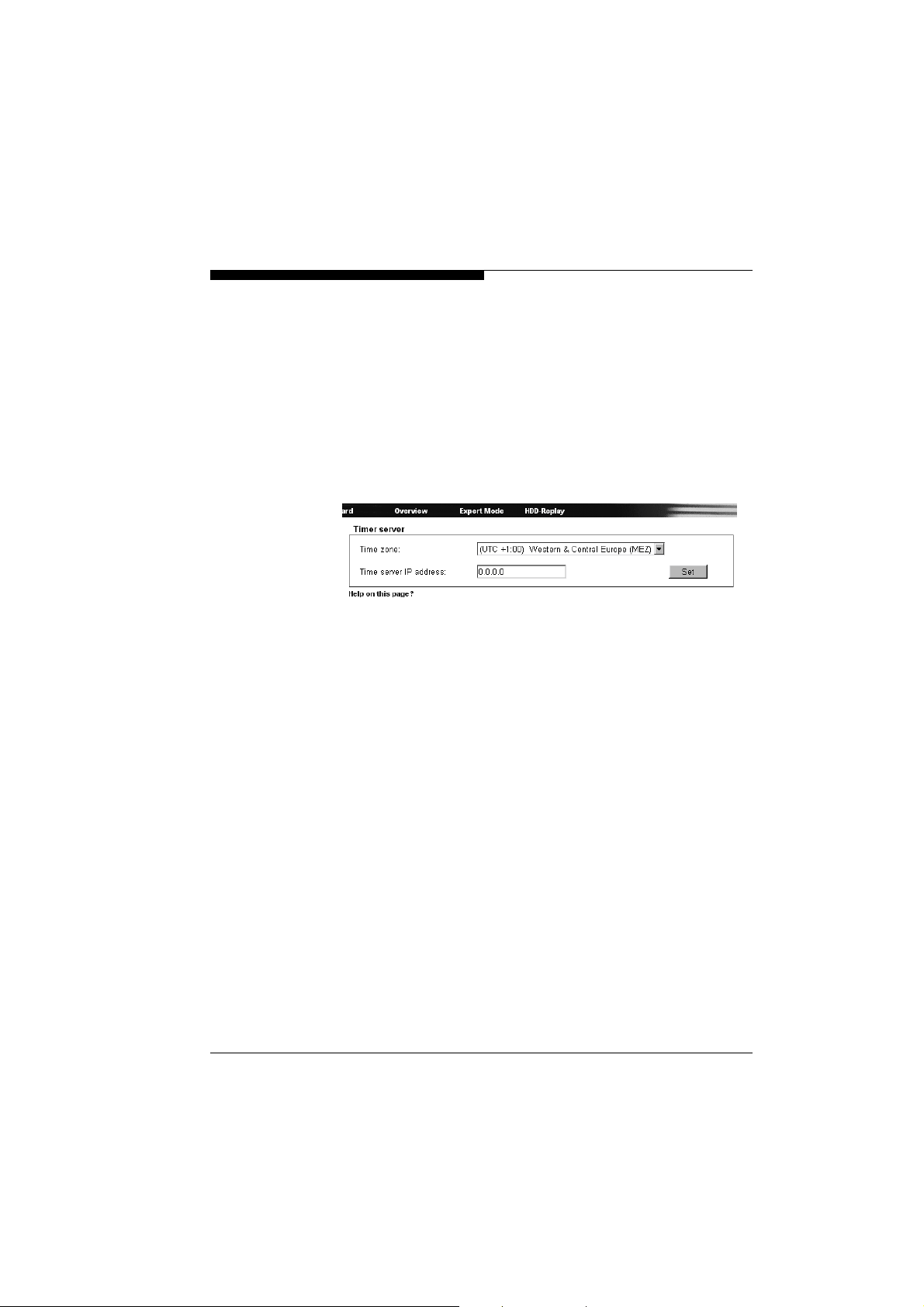

Time zone

Time server IP address:

and

The VideoJet 1000 can receive a time signal from a TIME server (NTP server) and use it to set the internal clock. The device calls up the time signal automatically every two hours.

Here you select the current time zone your device is situated in and enter the IP address of a TIME server.

VideoJet 1000

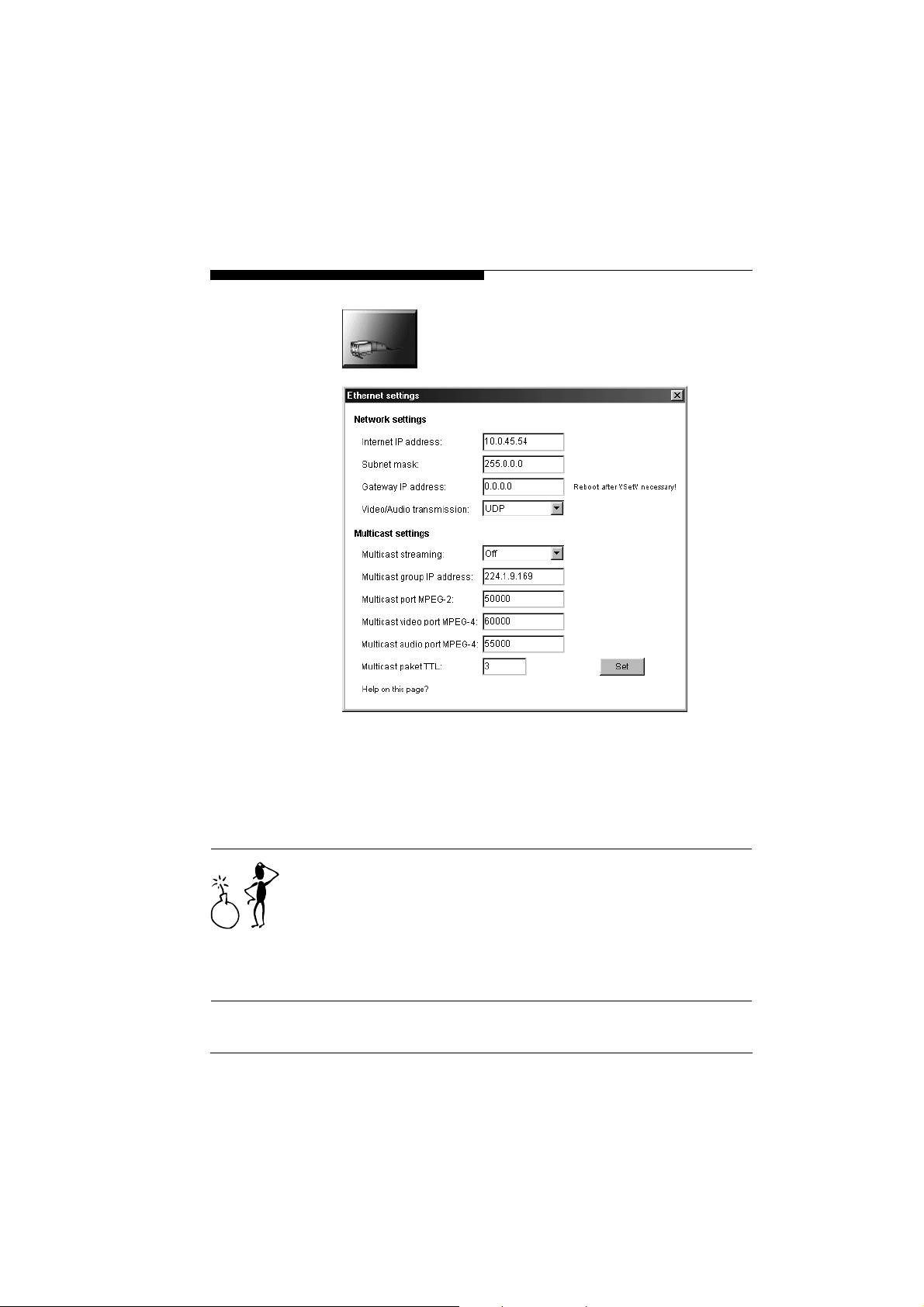

Ethernet settings

Configuration with Web Browser

VideoJet 1000

The settings on this page are used to integrate the unit into an existing network.

Internet IP address:

Enter here the required IP address for the VideoJet 1000. The IP address must be valid for the network.

Warning!

Changes in IP address, subnet mask and/or gateway IP address are transferred to the device by clicking on the button

Set

, but they

are only valid after a reboot!

For a reboot simply enter the old IP address into the address bar of the Browser followed by

/reset

, after that the unit can only be

accessed via the new IP address.

Configuration with Web Browser

Subnet mask:

Enter here the corresponding subnet address if the unit is to communicate via a subnet.

Gateway IP address:

Enter here the appropriate IP address if the unit is to independently establish a connection outside of the local network. This field can otherwise remain empty (0.0.0.0).

Video/Audio transmission:

If the device is used in front of a firewall, transmission over

(Port 80)

Warning!

Multicast operation is only possible using the UDP protocol. The TCP protocol does not support any multicast connection.

Multicast streaming:

Along with a 1:1 connection between a transmitter and a receiver, (unicast) the VideoJet 1000 provides the option of connecting a number of receivers to simultaneously receive the video signal. This is achieved either by a duplication of the data stream in the unit with subsequent distribution to a number of receivers (multi-unicast) or by distribution of a single data stream on the network itself to a number of receivers in a defined group (multicast).

Select here the option

TCP

should be selected. If used in a local network select

in order to activate the multicast function.

UDP

Note

Requirement for multicast operation is a multicast compliant network with implementation of the UDP protocol and the IGMP protocol. Other group management protocols are not supported. The TCP protocol does not support any multicast connection.

VideoJet 1000

Configuration with Web Browser

The VideoJet 1000 supports for MPEG-4 the multi-unicast operation up to a maximum of 5 simultaneously connected receivers. For MPEG-2 only one multi-unicast connection is possible.

The transparent data connection is maintained from the first unit. However, after 15 seconds of inactivity the data connection is automatically suspended and another unit can exchange transparent data with the transmitter.

For multilink operation, the network is not required to be multicast compatible as the VideoJet 1000 is also multi-unicast compatible. Duplication of the data in the unit requires considerable processor power and, under certain circumstances, leads to limitations in the picture quality.

With the settings

address: 0.0.0.0

Multicast streaming: On

the VideoJet 1000 operates in the multi-unicast

Multicast group IP

and

mode (duplication of the data stream in the unit).

With the settings

Multicast streaming: On

and a valid multicast group IP address, the unit operates in the multicast mode (duplication of the data stream over the network).

Multicast group IP address:

A precondition for the multicast mode in a multicast-compatible network is the establishment of a special IP address (class D address).

The network must support the establishment of a group IP address and the Internet Group Management Protocol (IGMP). The address range is from 224.0.1.0 to 238.255.255.255.

VideoJet 1000

Multicast port MPEG-2:

With simultaneous data streams in the MPEG-2 format and in the MPEG-4 format, the data streams must be assigned for different ports.

Enter here the port address for the MPEG-2 data stream.

Multicast video port MPEG-4:

With simultaneous data streams in the MPEG-2 format and in the MPEG-4 format, the data streams must be assigned for different ports.

Enter here the port address for the MPEG-4 video stream.

Configuration with Web Browser

Multicast audio port MPEG-4:

In MPEG-4 format, the streams for video and audio are transmitted over separate ports. If you want to transmit MPEG-4 with audio you must assign a dedicated audio port.

Enter here the port address for the MPEG-4 audio stream.

Note

For MPEG-4 audio transmission the option in the MPEG-4 Encoder settings must be activated (see page 51).

Multicast packet TTL:

By setting the parameter you determine the life span of the data packets in the network. If multicast is operated over a router the value must be greater than 1 to guarantee transmission of the packets.

MPEG-4 audio G.711

VideoJet 1000

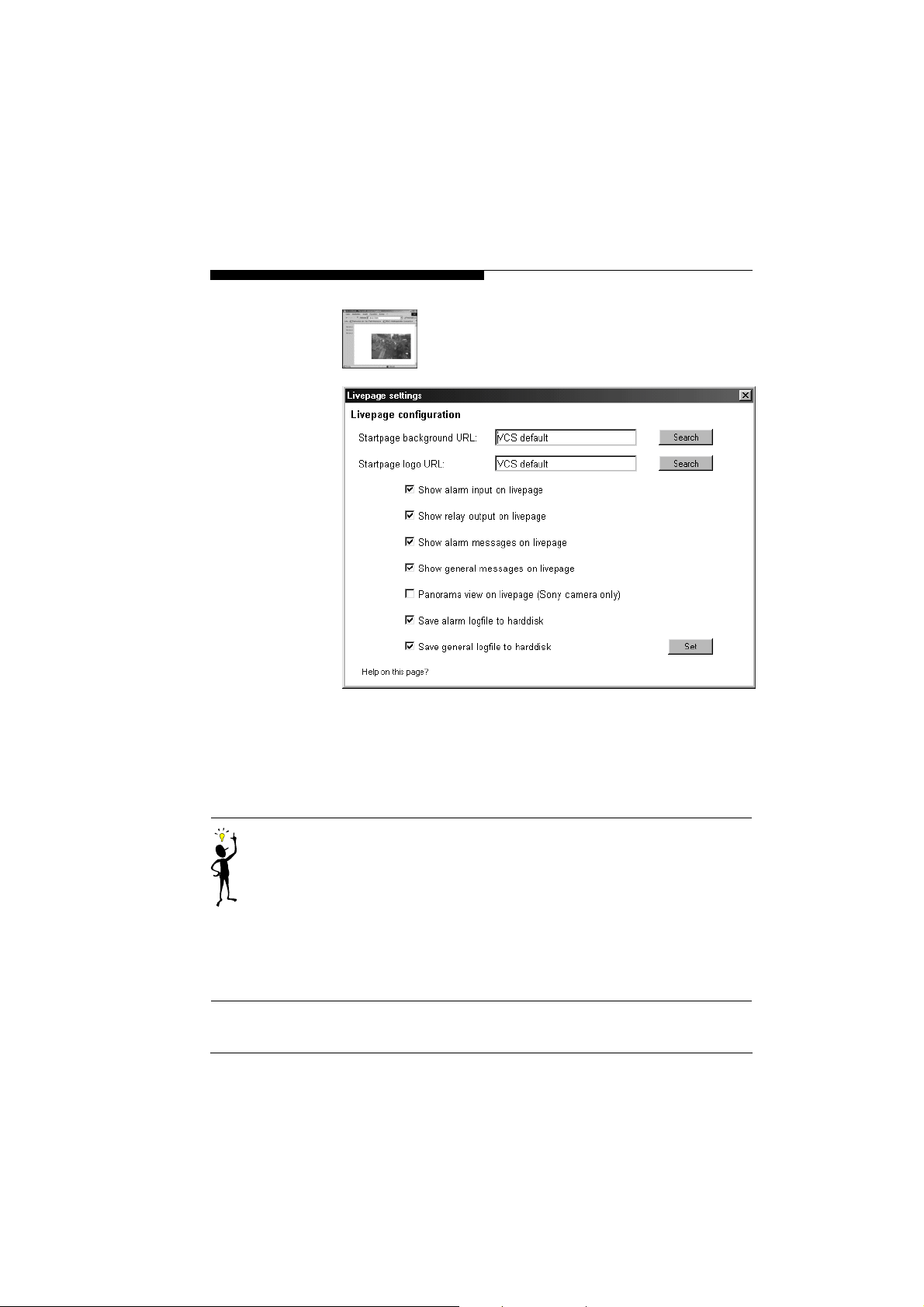

Livepage settings

Configuration with Web Browser

VideoJet 1000

In this window, the livepage can be setup to suit individual requirements. Options are provided here to display different information and operating elements along with the video picture.

In addition, individual background images for the main window and for the upper screen area (banner) can be used.

Note

For the background image you can use the file types GIF and JPEG. The file paths must correspond to the type of access (for access to a locally stored file, for example, C:\Images\Logo.gif, for access to an Internet/Intranet file, for example, http://www.vcs.com/ images/logo.gif).

Note that with Internet/Intranet access, the connection must be maintained in order to continually display the image. The image files are not stored in the VideoJet 1000.

Configuration with Web Browser

Click in the check boxes of those elements which are to be displayed on the livepage. The selected elements are marked with a tick.

Check on the livepage to see if and how the required elements are displayed.

Startpage background URL:

Enter here the file path to a suitable background image. The image can be stored on a local computer, on a local network or at an Internet address.

If necessary, click on the button image on the local network.

Startpage logo URL:

Enter here the file path to a suitable image for the upper screen area (banner). The image can be stored on a local computer, on a local network or at an Internet address.

If necessary, click on the button image on the local network.

Note

If it is required to recall the original image, simply delete the entries in the fields

URL

Startpage background URL

, in order to find a suitable

Startpage logo

and

Panorama (Sony camera only):

If you are using a Sony camera EVI-D100 or EVI-D30/31 by clicking into this check box you can activate the display of a panorama on the video livepage that is generated automatically each time the livepage is called up and can be updated any time (see page 124).

Save alarm logfile to harddisk:

Select this option to store alarm data in a text file on the local computer.

These text files can be viewed in the usual Office programs (for example, MS Word or MS Excel), and printed out.

VideoJet 1000

Configuration with Web Browser

Save general logfile to harddisk:

Select this option to store the logfile in a text file on the local computer.

These text files can be viewed in the usual Office programs (for example, MS Word or MS Excel), and printed out.

Note

When you activate the option to store log files (e. g.

logfile to harddisk

), these are placed on the Desktop as text files

Save alarm

in the basic setup. In the Expert Mode the path for storing can be changed (see page 116).

VideoJet 1000

Configuration with Web Browser

Expert Mode

In the Expert Mode, all parameters of the VideoJet 1000 can be configured. If any of the configuration pages are called up, the current settings will be displayed. The settings can be altered by entering new values or by selecting from a predefined value in a list field.

Navigation

Store changes

The Expert Mode is selected by clicking on the link displaying the Live Image screen.

Click on the link

Click on one of the links on the left border of the window. The corresponding page will be opened up.

When a change has been entered, click on the associated button

Set

in order to store the change.

Expert Mode

. The start page is opened.

Settings

while

VideoJet 1000

Unit identification

Configuration with Web Browser

Warning!

Store all changes with the associated button

Set

button

only the changes in the relevant field are stored (blue

Set

. By clicking on the

frame). Changes in any of the other fields are ignored.

Unit name:

Enter here a name for the unit to facilitate identification in major installations. This name will be displayed in the video image, depending on the configuration.

Unit ID:

Each VideoJet 1000 should be assigned a unique identifier which can be additionally used to identify the unit.

Password settings

VideoJet 1000

Password level:

The access to a VideoJet 1000 is generally protected with a password in order to prevent unauthorised use of the device. The transmitters operate with three authorisation levels:

User

In the authorisation level

Service

, you can change all the configu-

Live, Service

and

ration settings after entering the corresponding password.

Configuration with Web Browser

Language selection

With the authorisation level

User

you can operate but not configure the device. You can have a live picture or the configuration settings displayed, but you cannot change them.

Live

With

you can display a live video but neither change the con-

figuration nor for example control a camera.

Password:

Password confirm:

Enter the new password again to rule out the risk of typing errors.

Website language:

Here you select the desired language of the HTML pages.

Date and time

If a number of VideoJet units are combined in a system, it is important that the internal clocks of the separate units are all synchronized. Only if all units operate with the same time it is possible, for example, to correctly identify and evaluate events which have occurred simultaneously.

VideoJet 1000

Time server

Configuration with Web Browser

Unit date:

Enter the current date here. As the system time is controlled by the internal calendar clock, the day of the week does not have to be entered. It is added automatically.

Unit time:

Enter the current time here or click the button

Synchr. PC

to synchronize the VideoJet 1000 with the system time of your computer.

The VideoJet 1000 can receive a time signal from a TIME server (NTP server) and use it to set the internal clock. The device calls up the time signal automatically every two hours.

Time zone:

Here you select the current time zone.

VideoJet 1000

Time server IP address:

Enter the IP address of a TIME server here. If a valid IP address has been entered then the date and time are automatically synchronised every two hours.

Configuration with Web Browser

Camera name

Camera:

Enter here the required camera name. The camera name is used for easier remote identification of the camera location, e.g. on an alarm call. Enter here an unambiguous and clear name.

Display stamping

Camera name stamping:

Here you can set the position of the camera name stamping. It can be displayed on a position yourself via the Hyperterminal and activate it choosing the option select

Off

Custom

Top

or on

Bottom

of the image or you can define

. If you do not wish the name to be displayed,

Time stamping:

Here you can set the position of the time and date stamping. It can be displayed on

Top

or on

Bottom

of the image or you can define a position yourself via the Hyperterminal and activate it choosing the option played, select

Custom

Off

. If you do not wish time and date to be dis-

Alarm mode stamping:

Select here the option On if it is required to display a text in case of an alarm.

VideoJet 1000

Camera name

Configuration with Web Browser

Video watermarking:

Select here the option On if the transmitted video pictures are to be watermarked. When activated all pictures are signed with a green

. A red W indicates that the displayed sequence (live or recorded)

has been manipulated.

Displayed alarm message:

Enter the text that is to be displayed in case of an alarm. It can contain up to 31 characters.

VideoJet 1000

You can set up the video picture to meet your own particular requirements. To enable you to control the current video picture it is shown in a small window beside the sliders. The changes are effective immediately.

If necessary click the back to the standard settings.

Picture contrast:

You can adjust the contrast of the video picture to suit the working environment.

Picture saturation:

You can use this function to set the color saturation and achieve the most realistic color reproduction on the monitor.

Default

button to return the configuration

Configuration with Web Browser

Picture brightness:

You can use this function to adjust the brightness of the video picture to suit the working environment.

MPEG-2 Encoder configuration

The data transmission parameters can be configured to suit the local operating environment (e.g. network architecture, bandwidth, data structures). For MPEG-2 eight pre-programmed profiles are available with emphasis on different features.

You can change these profils individually by inserting the parameter values wanted. It is advisable to give a new name to the modified profile to facilitate recognition. The profile is active when the parameter values have been transmitted to the VideoJet 1000 clicking on the button

If necessary click the back to the standard settings.

Set

Default

button to return the configuration

VideoJet 1000

Configuration with Web Browser

Preset parameter video encoding

Preset parameter name:

and

Depending on the selected number a special parameter setting is chosen which name is displayed automatically in the field

parameter name

Number

is equivalent to

2MBPS low delay

2 MBit/s transmission rate with low delay on image refresh

Number

is equivalent to

3.5MBPS low delay

3.5 MBit/s transmission rate with low delay on image refresh

Number

is equivalent to

5MBPS low delay

5 MBit/s transmission rate with low delay on image refresh

Number

is equivalent to

2MBPS high quality

2MBit/s transmission rate with high picture quality

Number

is equivalent to

3.5MBPS high quality

3.5 MBit/s transmission rate with high picture quality

Number

is equivalent to

5MBPS high quality

5 MBit/s transmission rate with high picture quality

Number

is equivalent to

2MBPS with audio

2 MBit/s transmission rate with associated audio recording

Number

is equivalent to

3.5MBPS with audio

3.5 MBit/s transmission rate with associated audio recording

Select the desired option from the list.

Datarate:

The datarate value is displayed automatically when the profile is selected. You can insert a value individually and choose if it is to be constant or variable.

Preset

VideoJet 1000

GOP structure:

Enter here the desired structure for the Group of Pictures. You can

IPB

choose between I, IP,

, or

IPBB

depending on whether you emphasize low delay (I- and P-frames) or low use of bandwidth (Bframes, too).

GOP length:

If not only I-frames are transmitted here you can define how many frames a group shall include up to the proximate I-frame.

Configuration with Web Browser

Video streaming type:

Here you can choose if a video elementary stream gram stream

Video resolution:

Select the desired resolution.

MPEG-4 Encoder configuration

PRG

is transmitted.

VES

or a pro-

The data transmission parameters can be configured to suit the local operating environment (e.g. network architecture, bandwidth, data structures). For MPEG-4 eight pre-programmed profiles are available with emphasis on different features.

If necessary click the back to the standard settings.

Set

Default

button to return the configuration

VideoJet 1000

Configuration with Web Browser

Preset parameter video encoding

Preset parameter name:

and

Depending on the selected number a special parameter setting is chosen which name is displayed automatically in the field

parameter name

Number

is equivalent to

high quality (CIF)

high quality for connections with high bandwidth

Number

is equivalent to

high resolution (2CIF)

high resolution for connections with high bandwidth

Number

is equivalent to

small resolution (QCIF)

low resolution for connections with high bandwidth

Number

is equivalent to

DSL

for DSL connections

Number

is equivalent to

ISDN (2B)

for ISDN connections over two B channels

Number

is equivalent to

ISDN (1B)

for ISDN connections over one B channel

Number

is equivalent to

MODEM

for analoge modem connections

Number

is equivalent to

GSM

for GSM connections

Select the desired option from the list.

Preset

VideoJet 1000

Datarate:

The datarate value is displayed automatically when the profile is selected. You can insert a value individually and choose if it is to be constant or variable.

P-Frame quality settings:

You can define the P-frame quality by choosing the option

Manual

and moving the slider to the desired setting, or by activating the

Auto

option

for automatic quality setting.

I-Frame quality settings:

You can define the I-frame quality by choosing the option

Manual

and moving the slider to the desired setting, or by activating the

Auto

option

for automatic quality setting.

Configuration with Web Browser

Intra frame distance:

Here you can define the number of frames up to the proximate Iframe.

Warning!

If recordings are to be made a value greater than 0 must be chosen here.

Video skip ratio:

The chosen number defines which frames are encoded and transmitted. Choosing 4 e.g. only every fourth frame is encoded, the following three frames are skipped. Especially with narrow bandwidth this can be of advantage.

Video resolution:

Select the desired resolution.

MPEG-4 audio:

Choose On if you wish for transmission of audio data.

VideoJet 1000

Monitor settings/ Monitor display

Configuration with Web Browser

Video monitor name:

Enter here the required monitor name.

Video output standard:

For devices which also function as a receiver, select the video standard for monitor output (

PAL

NTSC

Video/Audio synchronicity:

Choose audio resp.

Synchron

Low delay

when you emphasize synchronicity of video and

when the main focus is on quickest possible

transmission.

VideoJet 1000

Display transmission disturbance:

Choose On to display a text in case of transmission disturbances.

Disturbance sensitivity level:

Here you can define at what level the text display is triggered.

Notification text:

Enter the text that is to be displayed on the monitor. It can contain up to 31 characters.

Configuration with Web Browser

Video input settings

Video input termination:

Select her the option On, to terminate the video input if the video signal is not to be looped through (e.g. with a T-plug).

JPEG settings

You can store video images in JPEG format at certain intervals on an FTP server. These images can be called up again later, thus enabling for example alarm events to be reconstructed.

JPEG format:

Here you can choose the format of the JPEG pictures:

S 176 × 144 pixel M 352 × 288 pixel L 704 × 288 pixel XL 704 × 576 pixel

VideoJet 1000

Configuration with Web Browser

File name:

You can set what file names are to be generated for the transmitted snapshots.

Overwrite

: The same file name is always used. The existing file

is continuously over-written with current data.

Increment

: A number from 000 to 255 is attached to the filename. This automatically increases by 1 every time a new file is created. When 255 is reached the numbers begin again at 000.

Date/Time suffix

: A date and time code are automatically incorporated into the file name. When choosing this setting take care that the device’s date and time are set correctly.

Example

: the file snap120401_114530.jpg was saved on

12th April 2001 at 11.45 and 30 seconds.

JPEG posting time slice:

Enter the time interval here at which the single images are to be sent. Enter zero, if no single images are to be sent.

FTP server IP address:

Enter here the IP address of the FTP server on which the images are to be stored.

VideoJet 1000

FTP login name:

Enter your login name for the FTP server here.

FTP password:

Enter the password for the access to the FTP server here.

Path on FTP server:

Enter the exact path here under which the images are to be stored on the FTP server.

Configuration with Web Browser

Partition settings

In the basic setup the hard disk is configurated as one single partition which is adequate for most of the applications.

All the partitions can be viewed in the table on the page

settings

quality, recording type and partition size.

A pie chart is also provided giving a visual graphic of how the hard disk has been allocated. It differentiates between MPEG-2, MPEG4, I-Frame and free space.

Partition

listed by name, order number, recording format/video

VideoJet 1000

Configuration with Web Browser

Note

You can only activate one partition on the hard disk at a time for recording.

Activation of another partition is not automatic, it must be done manually.

Click on the button

General procedures

Once the wizard is started you will see a new pop-up window appear. In this window you will get information and make the choices as to how the new partition should be configured.

Always read the information listed at the top of the window before making your choices.

Click on the text field to insert values or use other available controls as buttons, scrollbars or check boxes.

Once you have made your choice click the the next page.

Click the

<< Back

Add partition

button to return and view the previous page.

to start the wizard.

Next >>

button to go to

VideoJet 1000

Configuration with Web Browser

Click on the changes.

Making changes

To activate the changes made with the wizard you have to click the

Finish

If you click the fected.

Cancel

button to end the wizard without accepting the

button on the last page.

Cancel

button the previous settings will remain unaf-

Attention!

Complete the wizard to the last page. Only then you have the possibility to save all the changes that have been made on previous pages by clicking the

Note

For every partition that is created on the hard disk the wizard must be completed from beginning to end.

Therefore after starting the wizard you are asked for the total number of partitions you want to install. The wizard will be restarted automatically until all partitions are configurated.

Finish

button at the end.

VideoJet 1000

Configuration with Web Browser

Parameters

For each partition a variety of parameters can be chosen.

Partition name:

Input the chosen name for your partition. When creating more than one partition it would be helpful to choose a unique name that will help you in finding specific recordings later.

Recording format:

Here you choose the recording format of the partition: MPEG-2, MPEG-4 or I-Frames.

Video quality:

You can choose for each compression format between several different transfer rates thereby deciding what level of video quality you desire.

For recordings in MPEG-2 format the following profiles can be selected:

2MBPS low delay

2 MBit/s transmission rate with low delay on image refresh

3.5MBPS low delay

3.5 MBit/s transmission rate with low delay on image refresh

5MBPS low delay

5 MBit/s transmission rate with low delay on image refresh

2MBPS high quality

2MBit/s transmission rate with high picture quality

3.5MBPS high quality

3.5 MBit/s transmission rate with high picture quality

5MBPS high quality

5 MBit/s transmission rate with high picture quality

2MBPS with audio

2 MBit/s transmission rate with associated audio recording

3.5MBPS with audio

3.5 MBit/s transmission rate with associated audio recording

VideoJet 1000

Configuration with Web Browser

For recording in MPEG-4 format the following profiles can be selected:

high quality (CIF)

high quality for connections with high bandwidth

high resolution (2CIF)

high resolution for connections with high bandwidth

small resolution (QCIF)

low resolution for connections with high bandwidth

DSL

for DSL connections

ISDN (2B)

for ISDN connections over two B channels

ISDN (1B)

for ISDN connections over one B channel

MODEM

for analoge modem connections

GSM

for GSM connections

Partition type:

Choose here in which mode the recordings will be saved on the partition.

Time lapse mode:

Ring mode:

VideoJet 1000

Configuration with Web Browser

Partition size:

Here is where you need to choose how many alarms can be recorded on the partition (max. 128) and the alarm pre- and postrecording time lengths.

If you have chosen to use the entire hard disk as one partition or you are configuring the last partition you require just click the

all

check box. The rest of the hard disks capacity will then be con-

figured into that partition for use.

Note

Changing the configuration

The configuration of the partitions can be changed any time.

Double click in the list on the partition you wish to make changes to. This will open the on the partition selected.

Make the necessary changes.

Save the changes you have made by clicking the

Stop any changes from being activated by clicking on the button.

Partition Property

window with the information

Set

button

Use

Cancel

VideoJet 1000

Configuration with Web Browser

Warning!

Partition Property

In the

window changes can be made to the name, the type of recording, the video recording and quality, the number of alarms and the alarmrecording.

The complete recording time or the partition size can only be changed using the wizard. However all data stored on the partition will be lost.

VideoJet 1000

Configuration with Web Browser

Note

In the event the maximum of 8 partitions has been reached the wizard can only be restarted once one of the partitions has been deleted.

Warning!

Changes to the size or number of partitions will result in a reorganization of the complete hard disk and the deletion of all saved information on it.

VideoJet 1000

Changes to the partition settings are saved by clicking on the button. Only then are they transmitted to the VideoJet 1000.

Set

Configuration with Web Browser

Recording scheduler

Here you setup the parameters for local recording onto the hard disk. Recordings can be predefined to take place uninterruptedly over specified periods or only in case of an alarm.

Partition selection:

First choose the partition that shall be active, i.e. on which the recordings shall be stored. Once you have completed setting your recording times this partition can then be activated by clicking on

Start

the

button.

Note

You can only activate one partition on the hard drive at a time.

The activation of a different partition is not possible automatically. Only manual activation is possible.

Time recording:

This is where the periods will be set for the continuous recordings to the hard drive. To do so mark one or more time slots for each day by dragging with the depressed mouse button.

By clicking on the cancelled, clicking on the

Clear

button all previously set time slots will be

Set

button will transmit the data to the

VideoJet 1000.

VideoJet 1000

Configuration with Web Browser

Alarm recording:

This is where you program the time spans where the alarm triggered recordings will be active.

Note

When the time slots for time recording and alarm recording overlap each other the time recording schedule will always take priority.

Alarm activations that occurred during time recording are specially marked on the playback bar for easy identification when playing back recorded sequences.

VideoJet 1000

Properties:

For a quick overview you have access to the properties of the active partition directly from the recoding scheduler.

Recording activ:

This is a quick way to know if currently recording on the hard drive is active. In this case the symbol for the hard drive is animated. If it is not animated no recording is taking place.

Configuration with Web Browser

Alarm sources

The possible alarm activators of the VideoJet 1000 (alarm input and video signal monitoring) can be configured.

Video loss alarm:

Select here the option video signal is interrupted.

Alarm on min. contrast:

The VideoJet 1000 can trigger an alarm in case the camera picture shows only little contrasts, e.g. when the lens was sprayed with color or covered. Choose the option On to activate this function.

if the unit is to activate an alarm when the

Motion alarm:

Select here the option

if the unit is to activate an alarm when the

motion alarm is triggered.

The configuration of the motion detector can be done on a separate page (see page 101).

Alarm input 1:

Select here the option means of an external alarm sensor. Otherwise select

in order to activate the alarming by

Off

In addition, it is also possible to select if the alarm is to be activated

Active high

by a

Active low

voltage level.

Enter into the text field a designation for the alarm input which will then be displayed onscreen if an alarm is activated.

VideoJet 1000

VCS VideoJet 1000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Preface

Conventions

Intended use

EU Guidelines

Rating plate

Safety Information

Electrical shock hazard

Installation and operation

Repairs and maintenance

Product Description

Supplied components

System requirements

Configuration requirements

Operational requirements

Functional overview

Network video server

Receiver

Video encoding/ Multicast

Remote control

Configuration

Snapshots

Back-up

Summary

Rear panel connectors

Front panel

Installation

Rack mounting

Single unit

Two units

Connections

Camera

Monitor

Network

Alarm input

Switched output

Microphone/ loudspeaker

Data interfaces

Pin assignment

Switching on/off

Mains connection

Setup using a terminal program

Data terminal

Terminal configuration

Command entry

IP address

Additional parameters

Establishing the connection

System requirements

MPEG decoder installation

Establishing the connection

Selecting the configuration mode

Installation Wizard

System Overview

Expert Mode

Configuration start-up

Installation wizard

Wizard start-up

General procedures

Store changes

Additional settings

System Overview

Overview start-up

General procedures

Store changes

Camera settings

Motion detector

COM1 settings

COM2 settings

Monitor settings

Relay output settings

Alarm input settings

MPEG-2 Encoder settings

MPEG-4 Encoder settings

Alarm connections

Partition
