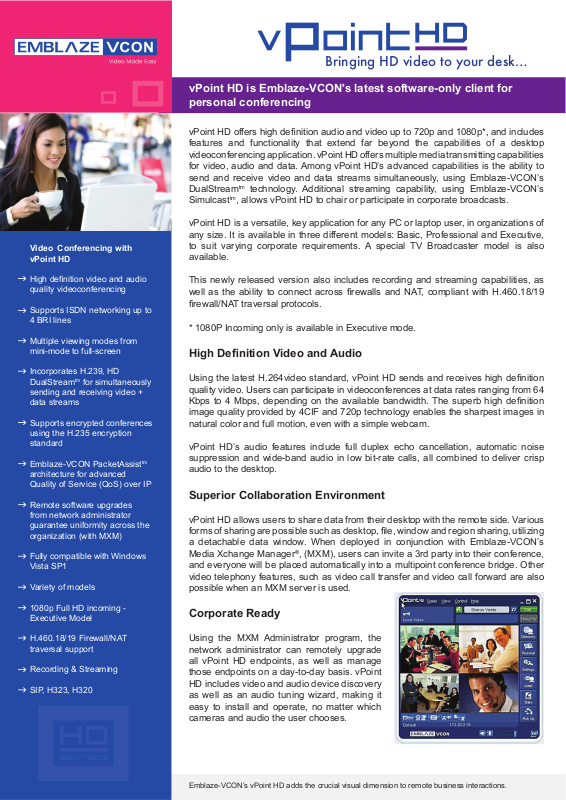

Vcon VPOINTHD User Manual

Video Conferencing with
vPoint HD

Bringing HD video to your desk…

vPoint HD is Emblaze-VCON's latest software-only client for
personal conferencing

vPoint HD offers high definition audio and video up to 720p and 1080p*, and includes
features and functionality that extend far beyond the capabilities of a desktop
videoconferencing application. vPoint HD offers multiple media transmitting capabilities
for video, audio and data. Among vPoint HD’s advanced capabilities is the ability to
send and receive video and data streams simultaneously, using Emblaze-VCON’s
DualStreamtm technology. Additional streaming capability, using Emblaze-VCON’s
Simulcasttm, allows vPoint HD to chair or participate in corporate broadcasts.

vPoint HD is a versatile, key application for any PC or laptop user, in organizations of
any size. It is available in three different models: Basic, Professional and Executive,
to suit varying corporate requirements. A special TV Broadcaster model is also
available.

High definition video and audio
quality videoconferencing

Supports ISDN networking up to
4 BRI lines

Multiple viewing modes from
mini-mode to full-screen

Incorporates H.239, HD
DualStreamtm for simultaneously
sending and receiving video +
data streams

Supports encrypted conferences
using the H.235 encryption
standard

Emblaze-VCON PacketAssisttm
architecture for advanced
Quality of Service (QoS) over IP

Remote software upgrades
from network administrator
guarantee uniformity across the
organization (with MXM)

Fully compatible with Windows
Vista SP1

Variety of models

This newly released version also includes recording and streaming capabilities, as
well as the ability to connect across firewalls and NAT, compliant with H.460.18/19

firewall/NAT traversal protocols.

* 1080P Incoming only is available in Executive mode.

High Definition Video and Audio

Using the latest H.264video standard, vPoint HD sends and receives high definition
quality video. Users can participate in videoconferences at data rates ranging from 64
Kbps to 4 Mbps, depending on the available bandwidth. The superb high definition
image quality provided by 4CIF and 720p technology enables the sharpest images in
natural color and full motion, even with a simple webcam.

vPoint HD’s audio features include full duplex echo cancellation, automatic noise
suppression and wide-band audio in low bit-rate calls, all combined to deliver crisp
audio to the desktop.

Superior Collaboration Environment

vPoint HD allows users to share data from their desktop with the remote side. Various
forms of sharing are possible such as desktop, file, window and region sharing, utilizing
a detachable data window. When deployed in conjunction with Emblaze-VCON’s
Media Xchange Manager®, (MXM), users can invite a 3rd party into their conference,
and everyone will be placed automatically into a multipoint conference bridge. Other
video telephony features, such as video call transfer and video call forward are also
possible when an MXM server is used.

1080p Full HD incoming ­Executive Model

H.460.18/19 Firewall/NAT
traversal support

Recording & Streaming

SIP, H323, H320

Corporate Ready

Using the MXM Administrator program, the
network administrator can remotely upgrade
all vPoint HD endpoints, as well as manage
those endpoints on a day-to-day basis. vPoint
HD includes video and audio device discovery
as well as an audio tuning wizard, making it
easy to install and operate, no matter which
cameras and audio the user chooses.

Emblaze-VCON’s vPoint HD adds the crucial visual dimension to remote business interactions.

Video Made Easy

High-Definition Desktop Videoconferencing

Emblaze-VCON Ltd.
Headquarters

Beit Rakefet
1 Emblaze Square
POB 2220
Ra’anana 43662
Israel
Tel: [phone]
Fax: [phone]

Emblaze-VCON, Inc.
Americas

2 University Plaza, Suite 201
Hackensack , NJ 07601
USA
Tel: [phone]
Fax: [phone]

Emblaze-VCON
UK and Middle East

27 Old Gloucester Street
London WC1N 3XX
United Kingdom
Tel: [phone]

Emblaze-VCON India

4/1201 Sagar Darshan Towers
Sector 18, Nerul
Navi Mumbai 400706
India
Tel: [phone]

Emblaze-VCON Korea

#622 Prime yeouido center, Korea
husing Bldg.45-11 Yeouido-dong
Yeongdeungpo-gu ,Seoul
Tel: [phone]
Fax: [phone]

Emblaze-VCON Russia

5/1 Bolshoy Suharevsky Per
Moscow 127051
Russia
Tel: [phone]
Fax: [phone]

Emblaze-VCON Sweden

Avtronix Sweden AB
Sanda Hbn, 153 93 Mörkö
Sweden
Tel: [phone]
Fax: [phone]

Emblaze-VCON Italy

Satnet S.r.l.
Via Abegg, 43 - 10050 - Borgone
Susa (TO)
Tel: [phone]
Fax: [phone]

Minimum PC Requirements

Pentium IV 2.4 Ghz PC
H.264 4CIF and above requires Core 2 Duo or Dual Core 3Ghz or
faster CPU, or AMD equal to, or faster than Athlon 64x2 Dual
256MB 400 MHz RAM
25 MB available disk space
Windows XP, Vista
Graphic display that supports DirectX 9.0
Two available USB Ports (one for video device and one for a USB
protection key if used).

Specifications

Video Specifications

Transmission Speed
H.323: 64 Kbps - 4Mbps
SIP: 64 Kbps – 4Mbps
ISDN 64 Kbps - 512 Kbps (4BRI)

SIP protocols

RFC 3261 2396, 2543, 2617, 2822,
2833, 2976, 3264, 3960, 5168, 3262,
3550, 3984, 4961
Secure Authentication: MD5

Video Standards

H.261, H.263, H.263+/++
H.264 - up to 2Mbps outgoing

HD Video Resolution

1080p (1920 x 1080 pixels) incoming
720p (1280 x 720 pixels)

Other Video Resolution

4CIF (704 x 576 pixels)
4SIF (704 x 480 pixels)
VGA (640 x 480 pixels)
Interlaced CIF (352 x 576 pixels)
CIF (352 x 288 pixels)
SIF (352 x 240 pixels)
QVGA (320 x 240 pixels)
QCIF (176 x 144 pixels)

Video Frame Rate

Up to 15 fps: 64 - 128 Kbps
Up to 20 fps: 192 Kbps
Up to 30 fps: 256 Kbps +

Video Features

Video device discovery
Automatic NTSC/PAL detection
Unlimited number of video devices
supported
HD Simulcast™
Chair or Participant in any Interactive
Multicast session
Integrated Broadcast Viewer
Uses bandwidth-efficient IP multicast

Audio Specifications

Full duplex echo cancellation
Automatic noise suppression (ANS)
Automatic gain control (AGC)
Audio device discovery
Audio tuning wizard
Unlimited number of audio devices
supported
Headset and speaker profiles
Voice Activity Detection (VAD)

Audio Standards

AAC-LD – 20Khz
G.722.1- Annex C – 14Khz
G722,G722.1 – 7Khz,
G.711, G.723.1, G.728,G.729 - 3.4 Khz

Data Specifications

HD DualStream™
File, region, and window sharing ­(Detachable data view)
Windows desktop sharing
H.239 support in both live video and
multicast
Tandberg DuoVideo support
Sending and receiving capability
1 live video source + 1 data source
Resolutions supported:
XGA, SVGA, 4CIF, VGA, CIF, QVGA

Networking Specifications
Standards Supported

ITU-T: H.323 v5.5
H.281 Annex Q (FECC)
H.460 17,18,19 (FW traversal)
ISDN: H.320, H.221, H.242, H.230

H.323 QoS Features

DiffServ
IP Precedence
Firewall port sync
NAT IP address mask
Port pinholing
Adaptive Bandwidth Adjustment
Packet loss recovery (FEC)
Packet ordering
Packet duplication control
Jitter correction
Lip sync correction
Overhead prediction
Max packet size adjustment

Recording/Streaming

WMV format
Low – CIF resolution
HIGH – 4CIF resolution
Only in executive version

Viewing Modes

Mini screen
Regular screen
Large screen
Full screen
Support for 16:9 aspect ratio in wide
screen

Dialing Modes

Manual
Speed dial
Personal address book
Online directory
Multicast chair
Broadcast viewer

Security

Encryption using H.235 (AES)

Directory Services

1000+ local number directory
10,000+ global number directory
H.350 support (MXM mode)
LDAP online directory support
OpenLDAP
Microsoft ILS, SiteServer, Active
Directory and Exchange
Sun iPlanet
Netscape Directory
Search and filter queries

Language Support

English, French, German, Italian,
Spanish, Chinese, Polish, Turkish,
Norwegian, Korean, Russian, Indonesian

©2009 Emblaze-VCON. All rights reserved.

05/2009.
