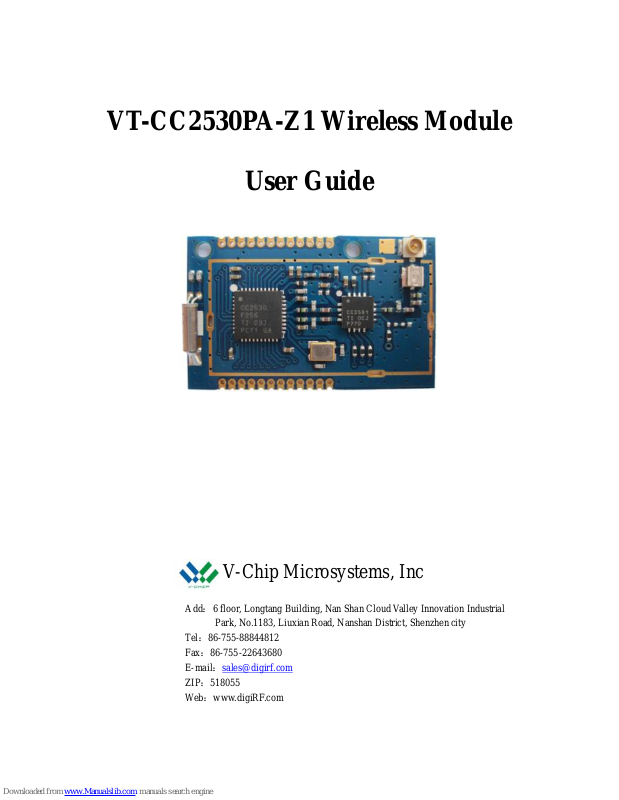

VT-CC2530PA-Z1 Wireless Module
User Guide
V-Chip Microsystems, Inc
Add：6 floor, Longtang Building, Nan Shan Cloud Valley Innovation Industrial
Park, No.1183, Liuxian Road, Nanshan District, Shenzhen city
Tel：86-755-88844812
Fax：86-755-22643680
E-mail：[email protected]
ZIP：518055
Web：www.digiRF.com
Page 2
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1
General Description
VT-CC2530-M1 is based on RF Transceiver CC2530 of TI Chipcon, it’s a small size and ultra low power UHF
wireless module. CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE
applications. It combines RF transceiver with an industry-standard enhanced 8051 MCU , in-system
programmable flash memory, 8-KB RAM and many other powerful features. Customer can use it conveniently
and reducing your development time.
Features
Radio and Power
2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
Excellent receiver sensitivity and robustness to
Interference, receiver sensitivity reach to -97dBm
Programmable output power up to 20dBm
Suitable for systems targeting compliance with worldwide radio-frequency : ETSI EN 300 328 and EN
300 440 Class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)
Accurate digital RSSI/LQI support
Data rate: 250kBaud
Modulation: O-QPSK
Integrated PCB antenna, other antenna are optional with an IPX connector
Active-Mode RX (CPU Idle): 24 mA
Active Mode TX at 20 dBm (CPU Idle): 160 mA
Power Mode 1 (4 uS Wake-Up): 0.2 mA
Power Mode 2 (Sleep Timer Running): 1 uA
Power Mode 3 (External Interrupts): 0.4 uA
Wide Supply-Voltage Range (2 V–3.6 V)
8051 MCU and Peripherals
Powerful five-channel DMA
128KB in-system programmable flash, customization 32-,64-,256-KB
8KB RAM with retention in all power modes
CSMA/CA hardware support
AES security coprocessor
Page 3
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1
Battery monitor and temperature sensor
12-Bit ADC with eight channels and configurable resolution
Two powerful USARTs with support for several serial protocols
IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit)
32-kHz sleep timer with capture
Watchdog timer
21 general-purpose I/O pins (19× 4 mA, 2×20 mA)
Hardware debug support
Applications
2.4-GHz IEEE 802.15.4 Systems
RF4CE Remote Control Systems (64-KB Flash and Higher)
ZigBee Systems (256-KB Flash)
Home/Building Automation
Lighting Systems
Industrial Control and Monitoring
Low-Power Wireless Sensor Networks
Consumer Electronics
Health Care
Page 4
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1
General Characteristics
Test operating conditions：Ta=25°C，VCC=3.3V if nothing else stated.
Parameter
Type
Condition/Note
Operating supply voltage
DC 2.4～3.6V
Central frequency
2394－2507MHz
Programmable
Frequency accuracy
±30KHz
Modulation format
O-QPSK
Transmit power
≤20dBm
Programmable
TX current consumption
<160mA
Po=20dBm
Receiver sensitivity
-108dBm
RX current consumption
<24mA
Sleep State current consumption
<0.4uA
Power Mode3
Data rate
250kBaud
Programmable
Communication distance
1000m
At open area
Antenna impedance
50ohm
Operating temperature
-20～+85 °C
Storage temperature range
-40～+125°C
Dimension
20 mm×33mm×2.4mm
See more in PCB description
Note：
1． The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the
distance, and the lower the receiving sensitivity.
2． The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the
voltage, the lower the TX power.
3． The module central frequency will change as the operating temperature change, use it under suggest temperature,
the module can work well.
4． The antenna will strongly affect the communication distance, please select matched antenna and connect it
correctly.
5． The module mount will affect the communication distance.
Page 5
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1

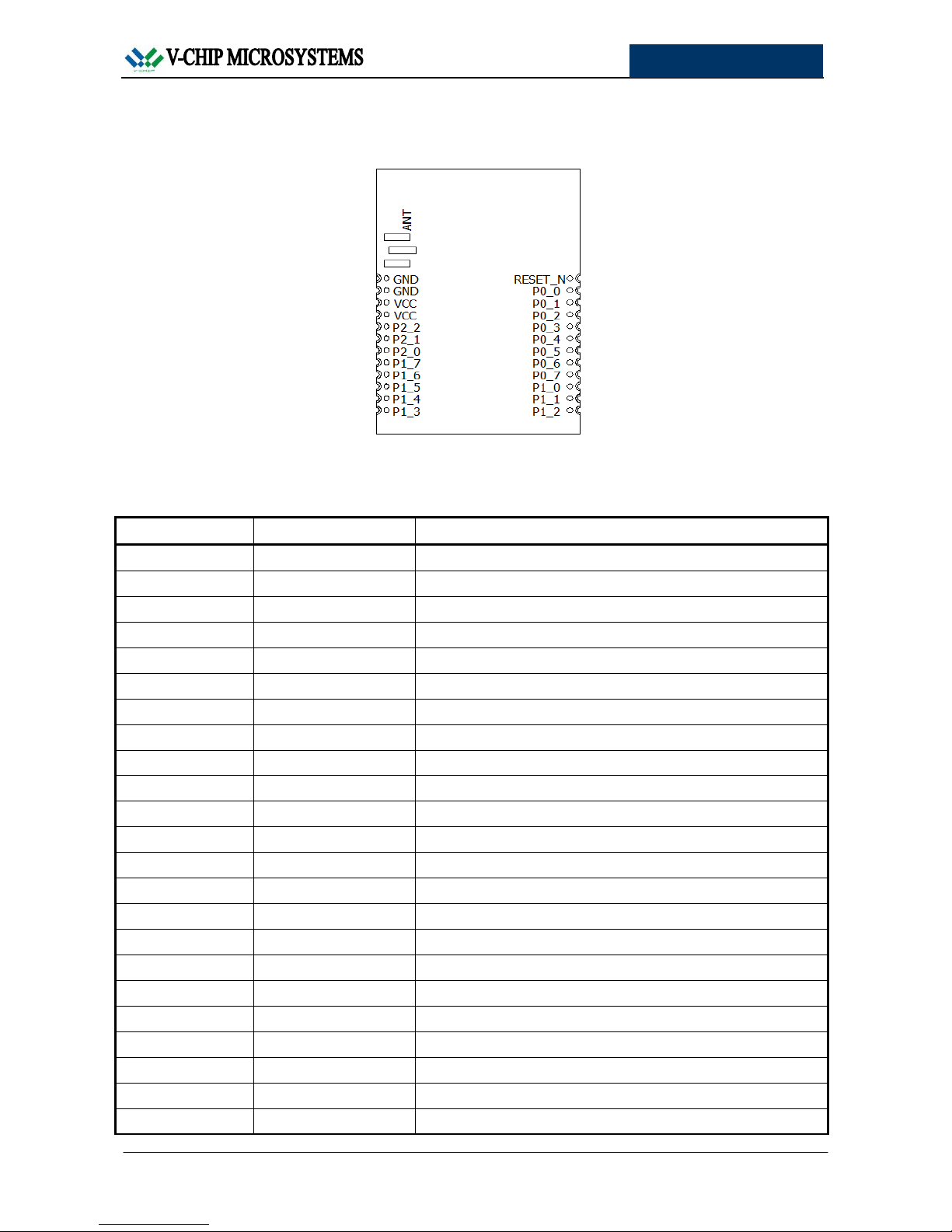

PCB Description

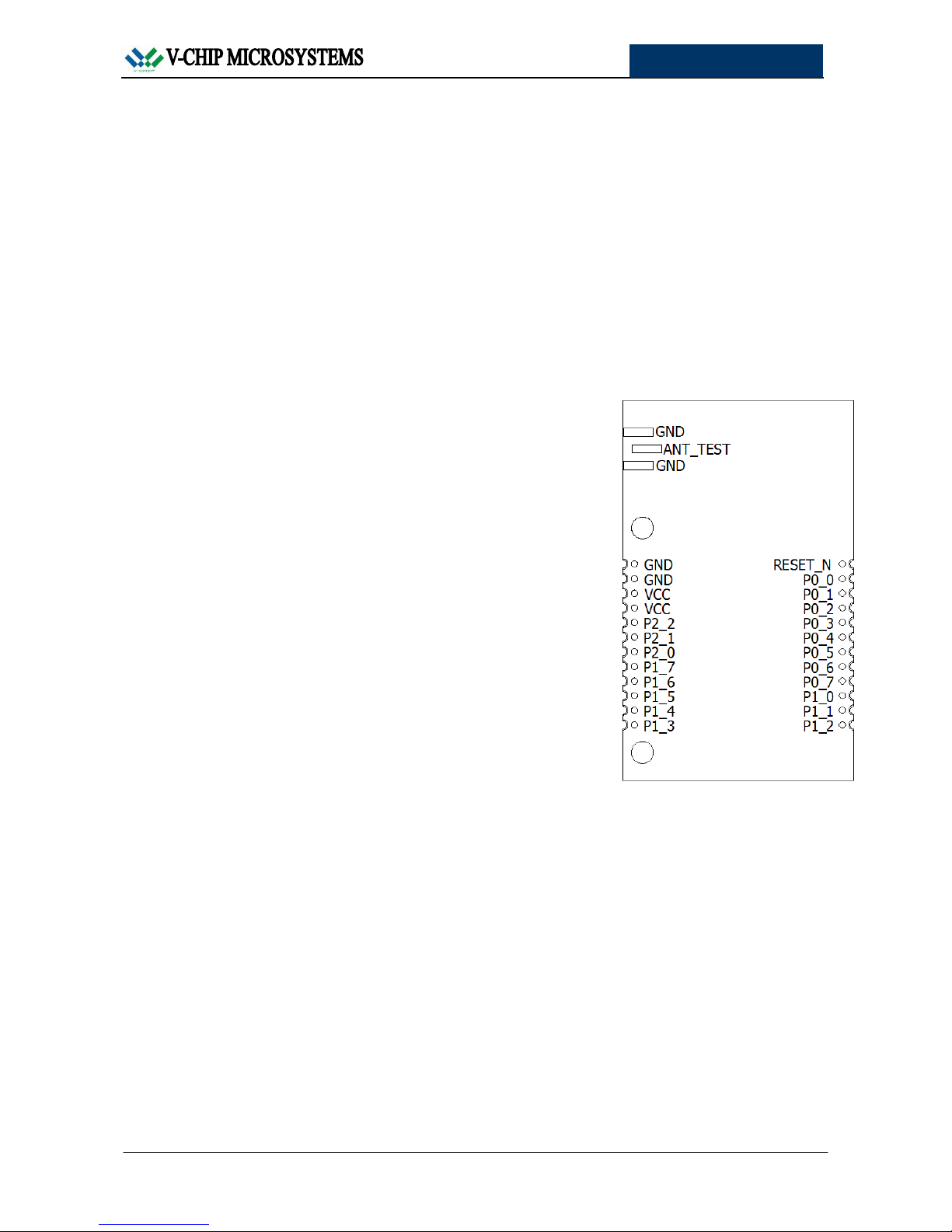

Pin Configuration
Pin name
Pin type
Description
VCC
Power(Analog)
2.0 V - 3.6 V analog power supply connection.
GND
Ground
Connect to the system ground.
RESET_N
Digital Input
Reset, active low
P0_0
Digital I/O
CC2530 digital I/O pin P0_0
P0_1
Digital I/O
CC2530 digital I/O pin P0_1
P0_2
Digital I/O
CC2530 digital I/O pin P0_2
P0_3
Digital I/O
CC2530 digital I/O pin P0_3
P0_4
Digital I/O
CC2530 digital I/O pin P0_4
P0_5
Digital I/O
CC2530 digital I/O pin P0_5
P0_6
Digital I/O
CC2530 digital I/O pin P0_6
P0_7
Digital I/O
CC2530 digital I/O pin P0_7
P1_0
Digital I/O
CC2530 digital I/O pin P1_0
P1_1
Digital I/O
CC2530 digital I/O pin P1_1
P1_2
Digital I/O
CC2530 digital I/O pin P1_2
P1_3
Digital I/O
CC2530 digital I/O pin P1_3
P1_4
Digital I/O
CC2530 digital I/O pin P1_4
P1_5
Digital I/O
CC2530 digital I/O pin P1_5
P1_6
Digital I/O
CC2530 digital I/O pin P1_6
P1_7
Digital I/O
CC2530 digital I/O pin P1_7
P2_0
Digital I/O
CC2530 digital I/O pin P2_0
P2_1
Digital I/O
CC2530 digital I/O pin P2_1
P2_2
Digital I/O
CC2530 digital I/O pin P2_2
ANT
RF IO
Antenna impedance 50 ohm
Page 6
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1
Configuration Registers
The configuration of CC2530 can be done with software SmartRF Studio7. Complete descriptions of the registers
are given in the CC2530 datasheet. We can provide evaluation board and demo code to the customer to develop
and evaluate the module’s capability.

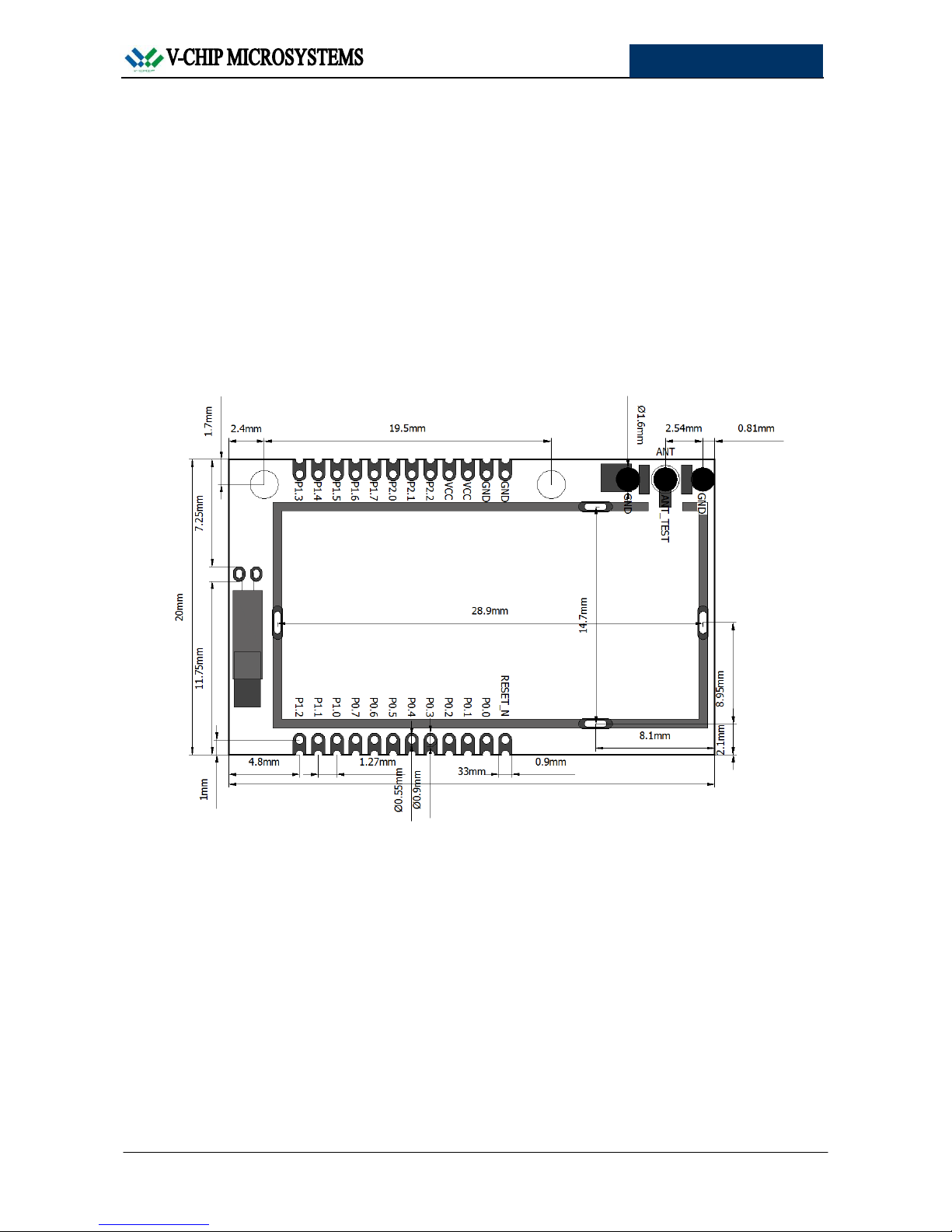

Dimension
Page 7
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1

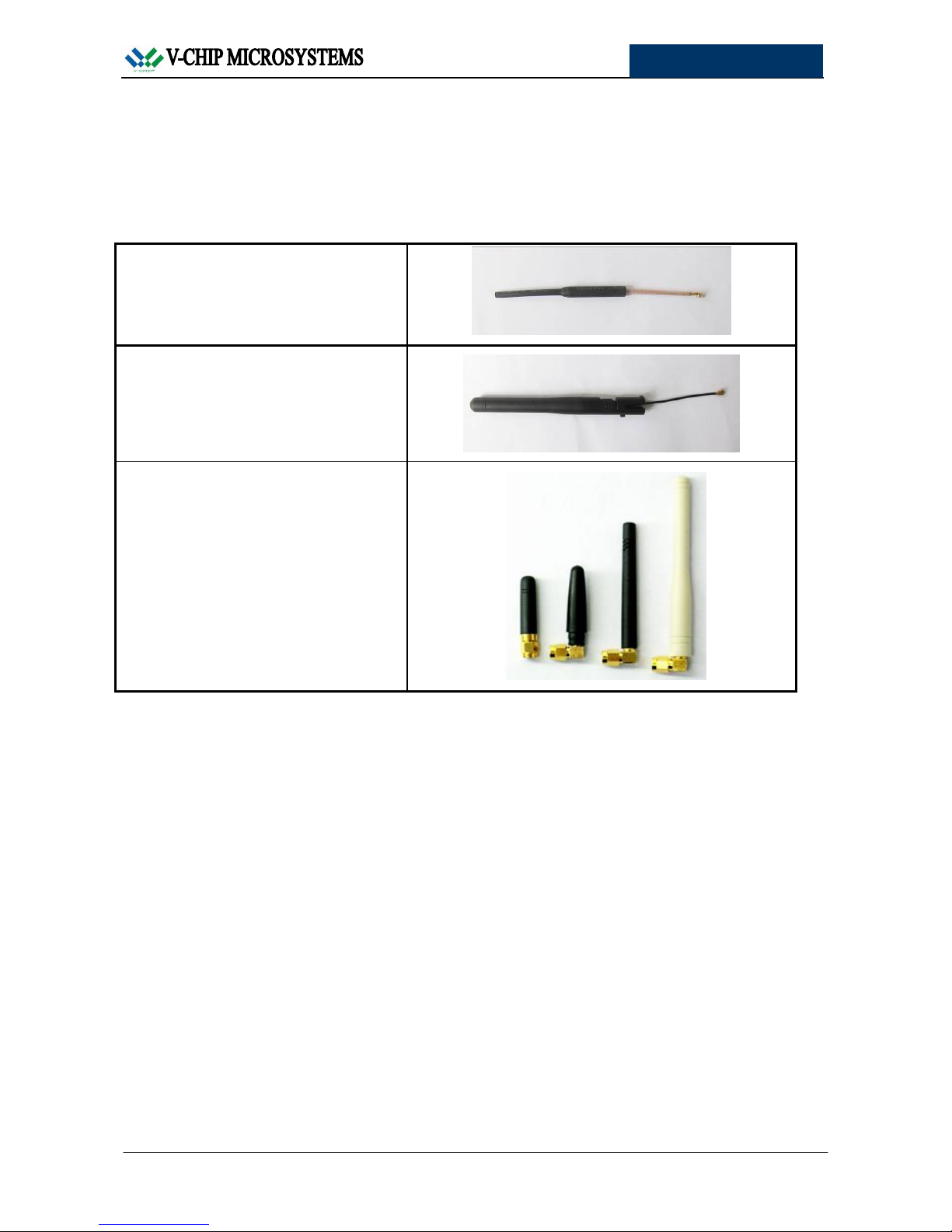

Antenna
VT-CC2530PA-Z1 support connect an antenna with an IPEX connector. If there is some more requirement about
use outer antenna, please contact with the sales. Additionally we can coordinate with you to select antenna, match
antenna to the module in order to make the product work well.
Some recommend antennas as the table below.
2.4G antenna（Optional）
Characteristic：small size, good direction,
low cost, embed convenient.
Rubber Duck and Tenon Antenna and IPEX
connector（Optional）
Characteristic：High gain, IPX connector
extending with ultra coaxial cable, easy to
fix.
SMA rubber antenna（Optional）
Characteristic：used with IPX-SMA coaxial
cable, medium-scale, low cost, high gain。
Suit for equipment with iron crust.
Note: optional need another payment and the cost refer to the antenna price. It is not recommend to DIY
soft cable antenna. Because the impedance is difficult to control, and the soft cable’s shape is not fixed to
make it lack of consistency.
Page 8
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1
Questions and Answers
Description
Reason and Solution
Can’t
communication
1．The power supply connect not well, check the module VCC whether it is out of maximum
rating.
2．The signal line connect not well, check the module SPI interface.
3．The settings of the transmitter module and receiver module are not the same. Check these
modules’ register configuration.
4．Signal block. If the transmitter work with a high TX power, and the receiver was put at a short
distance(<0.5m), maybe there is a signal block to make no communication.
Communication
distance is too
short
1．The application environment is too bad or the antenna is shield. Put the antenna to a better place
outside or higher throw a coaxial line , replace it with a higher gain antenna.
2．The work space contains a same frequency interference source, or a strong magnetic field
interference, power source disturbance. Try to change the carrier frequency or get far away from
the source of the disturbance.
3．The power supply is not strong. Check the voltage and the current whether it is enough.
High data error
1．The power supply ripple is too big, Change the power supply.
2．Check the module register configuration, it is recommended to set as the CC2530-datasheet.
3．There is a carrier frequency interference, change the channel.
4．The antenna unmatched to the module RF interface, change another matched antenna.
Development Package:
1. CC2530 datasheet（CC2530.pdf）
2. CC2530 register configuration tool（SmartRF Studio 7 v1.4.9.zip）
3. CC2530 demo code (CC2530 Demo Code.rar）
4. Hard ware tools（TI Chipcon Evaluation Board）
Note：
1． You can get the development package above from the salesman when you order the module.
2． As version update，please refer to our latest development materials.
Page 9
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012
VT-CC2530PA-Z1
IMPORTANT NOTICE
V-CHIP MICROSYSTEMS Co. Ltd (below called V-CHIP) reserve the right to make corrections,
modifications, enhancements, improvements, and other changes to its products and services at any time and
to discontinue any product or service without notice. Customers should obtain the latest relevant information
before placing orders and should verify that such information is current and complete.
V-CHIP warrants performance of its hardware products to the specifications applicable at the time of sale
in accordance with V-CHIP’s standard warranty.
V-CHIP does not warrant or represent that any license, either express or implied, is granted under any
V-CHIP patent right, copyright, mask work right, or other V-CHIP intellectual property right relating to any
combination, machine, or process in which V-CHIP products or services are used. Reproduction of V-CHIP
information in V-CHIP data books or data sheets is permissible only if reproduction is without alteration and
is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this
information with alteration is an unfair and deceptive business practice. V-CHIP is not responsible or liable
for such altered documentation. Information of third parties may be subject to additional restrictions. Resale
of V-CHIP products or services with statements different from or beyond the parameters stated by V-CHIP
for that product or service voids all express and any implied warranties for the associated V-CHIP product or
service and is an unfair and deceptive business practice. V-CHIP is not responsible or liable for any such
statements.
