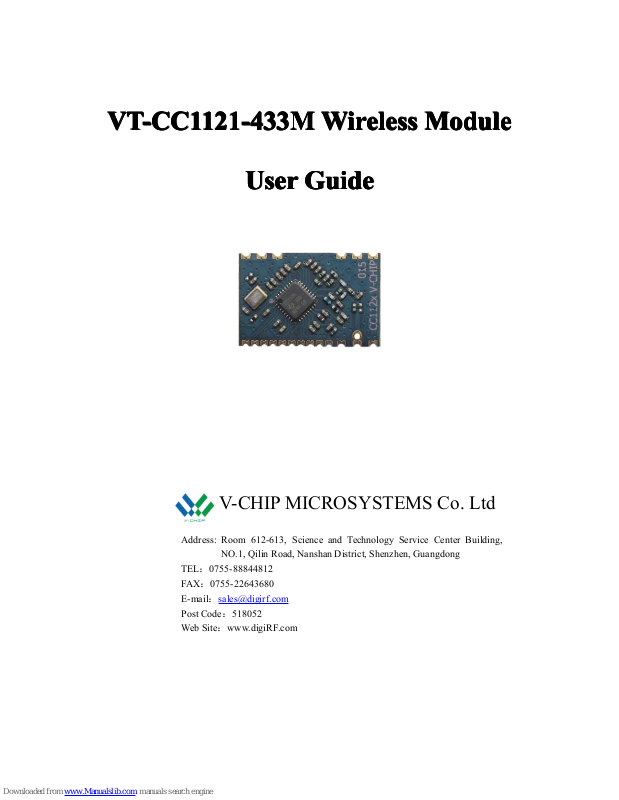

VT-CC1121-433M
VT-CC1121-433M
VT-CC1121-433M
VT-CC1121-433M Wireless
Wireless
Wireless
Wireless Module
Module
Module
Module
User
User
User
User Guide
Guide
Guide
Guide
V-CHIP MICROSYSTEMS Co. Ltd
Address: Room 612-613, Science and Technology Service Center Building,
NO.1, Qilin Road, Nanshan District, Shenzhen, Guangdong
TEL ： 0755-88844812
FAX ： 0755-22643680
E-mail ： sales@digirf.com
Post Code ： 518052
Web Site ： www.digiRF.com
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:
VT-CC1121-APR-2012
VT-CC1121-433M
VT-CC1121-433M
VT-CC1121-433M
VT-CC1121-433M
General
General
General
General Description
Description
Description
Description
VT-CC1121-433M is based on RF Transceiver CC1121 of TI Chipcon ， it’s a small size and ultra low power UHF
wireless module. CC1121 is fully integrated single-chip radio transceiver designed for high performance at very
low power and low voltage operation in cost effective wireless systems. The circuit is mainly intended for the
ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 164-192 MHz,
410-480 MHz and 820-960 MHz . The MAX RF output power can be set as high as +15dBm, with data rate as
high as 200Kbps. The module integrated many RF functions thus you can use it conveniently and reducing your
development time.
Features
Features
Features
Features
�
433MHz wireless transceiver,
Frequency bands
at 170M/868M/915M/950MHz are customized
� Programmable baseband modulator with 2-FSK/2-GFSK/4-FSK/4-GFSK/MSK/OOK/ASK
� Programmable output power from -11 to +15dBm
� High receiver sensitivity down to -123dBm while 1.2kbps data rate
� Programmable data rate 1.2 ～ 200Kbps
�
Low power consumption and operating supply voltage ： 2.0 ～ 3.6V DC
�
Point to point and point to multi-point communication.
�
Support carrier sense and digital RSSI output.
� Separate 128-byte RX and TX FIFOs
� High stability and industrial reliability
� Small dimension ： 23.05mm × 15.06mm × 1.8 mm
Applications
Applications
Applications
Applications
�
Wireless Metering and Wireless Smart Grid (AMR and AMI)
�
Logistics Tracking System, Warehouse patrol, Electronic label
� Industrial monitoring and control
� AMR – Automatic Meter Reading
� Home and building automation
� Consumer Electronics products of wireless control
�
Wireless alarm and security systems
�
Wireless sensor networks
COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION:
VT-CC1121-APR-2012
VT-CC1121-433M
VT-CC1121-433M
VT-CC1121-433M
VT-CC1121-433M
General
General
General
General Characteristics
Characteristics
Characteristics
Characteristics
Test operating conditions ： Ta=25 ° C ， VCC=3.3V if nothing else stated.
Parameter
Parameter
Parameter
Parameter Type
Type
Type
Type Condition/Note
Condition/Note
Condition/Note
Condition/Note
Operating supply voltage DC 2.0 ～ 3.6V
Frequency range 410-480MHz Programmable
Frequency accuracy ± 10ppm
Modulation format
2-FSK/4-FSK/2-GFSK/4-FSK/
MSK/OOK
Programmable
Transmit power -11 ～ +15dBm Programmable
TX current consumption <50mA
Receiver sensitivity
-118dBm (1.2kbps)
Refer to data rate
RX current consumption <22mA
Sleep State current consumption <1uA
Data rate 0 ～ 200Kbps Programmable
Antenna impedance 50ohm
Operating voltage 2.0~3.6V
Operating temperature -20 ～ +75 ° C
Storage temperature range -40 ～ +125 ° C

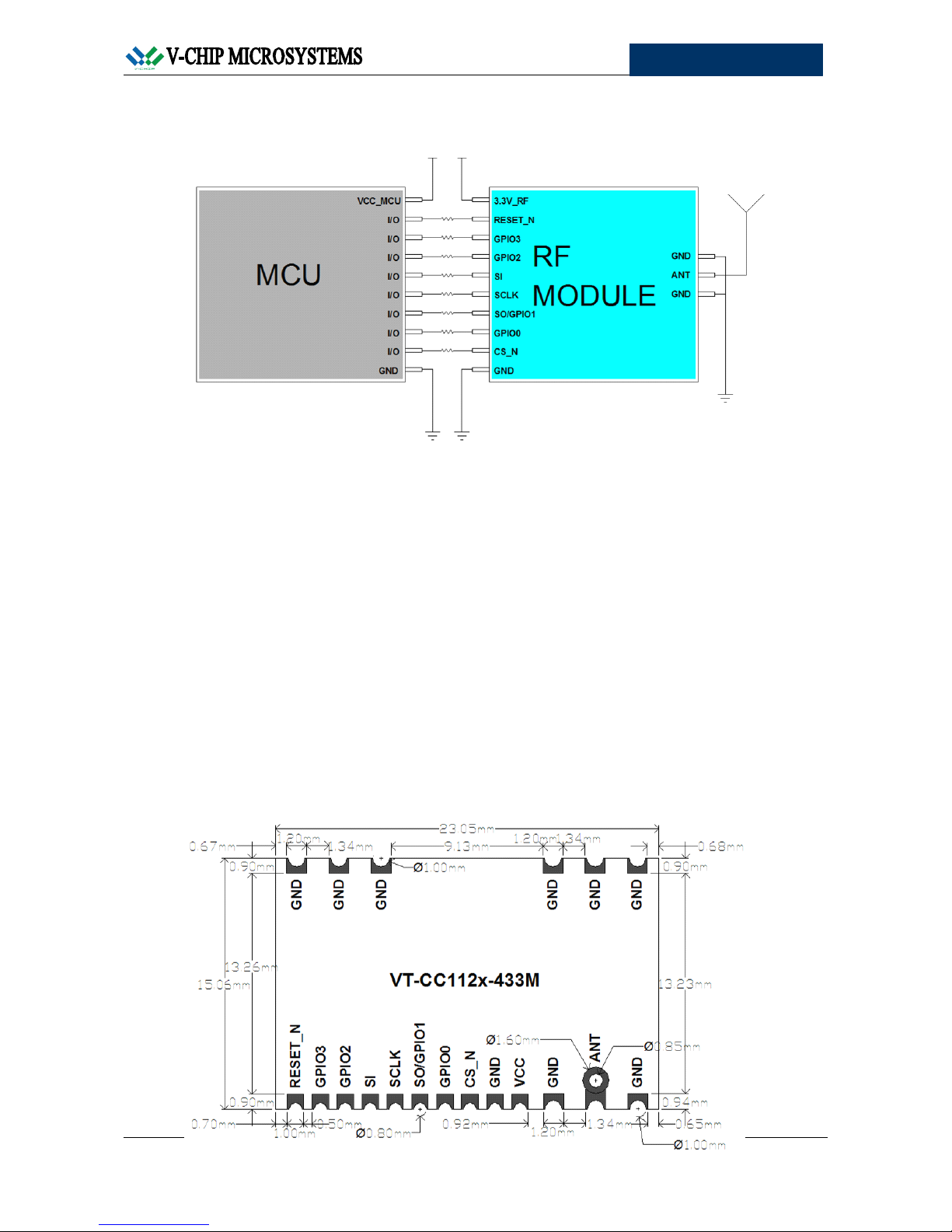

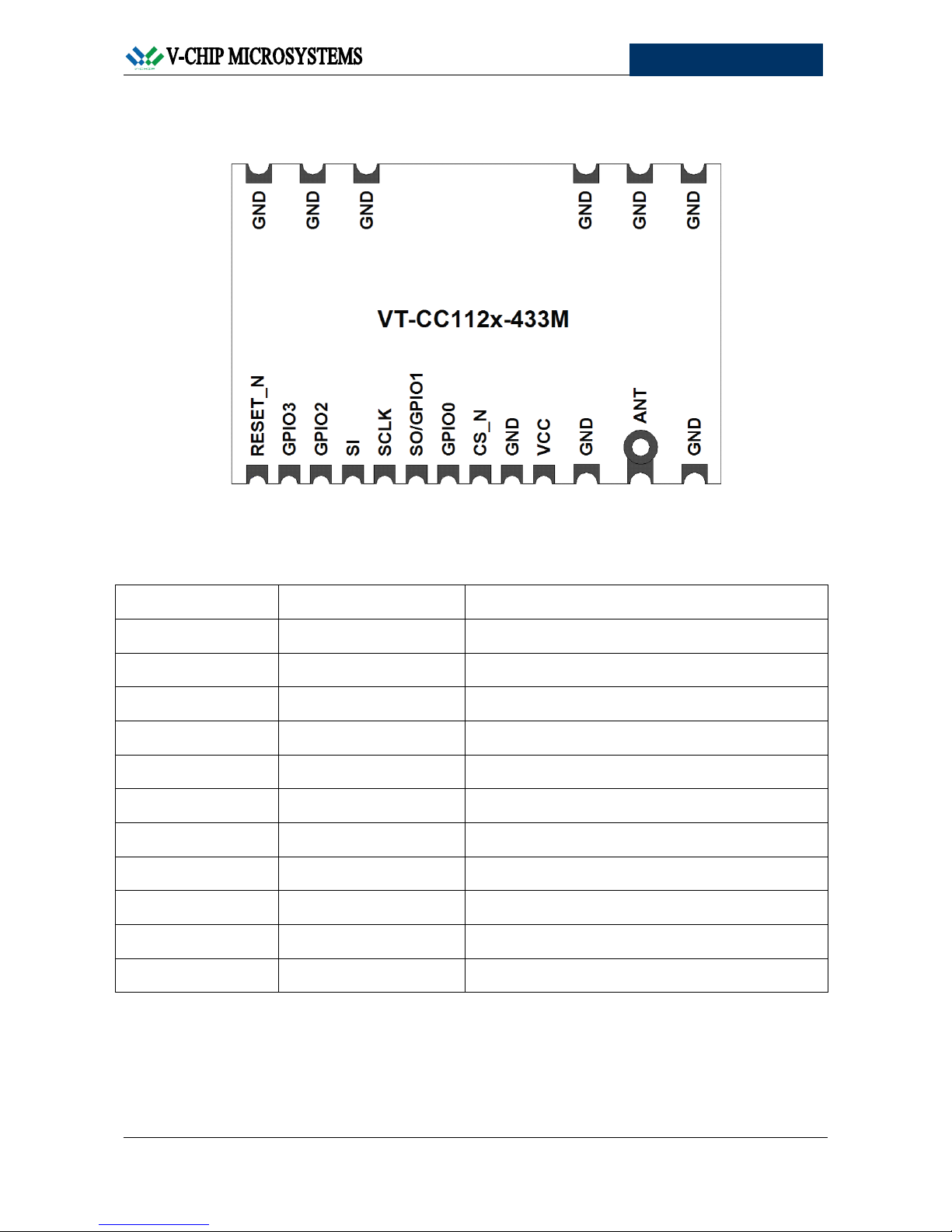

Dimension 23.05 mm × 15.06 mm × 1.8mm See more in PCB description
Note
Note
Note
Note ：
1 ． The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the
distance, and the lower the receiving sensitivity .
2 ． The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the
voltage, the lower the TX power.
3 ． The module central frequency will change as the operating temperature change, use it under suggest temperature,
the module can work well.

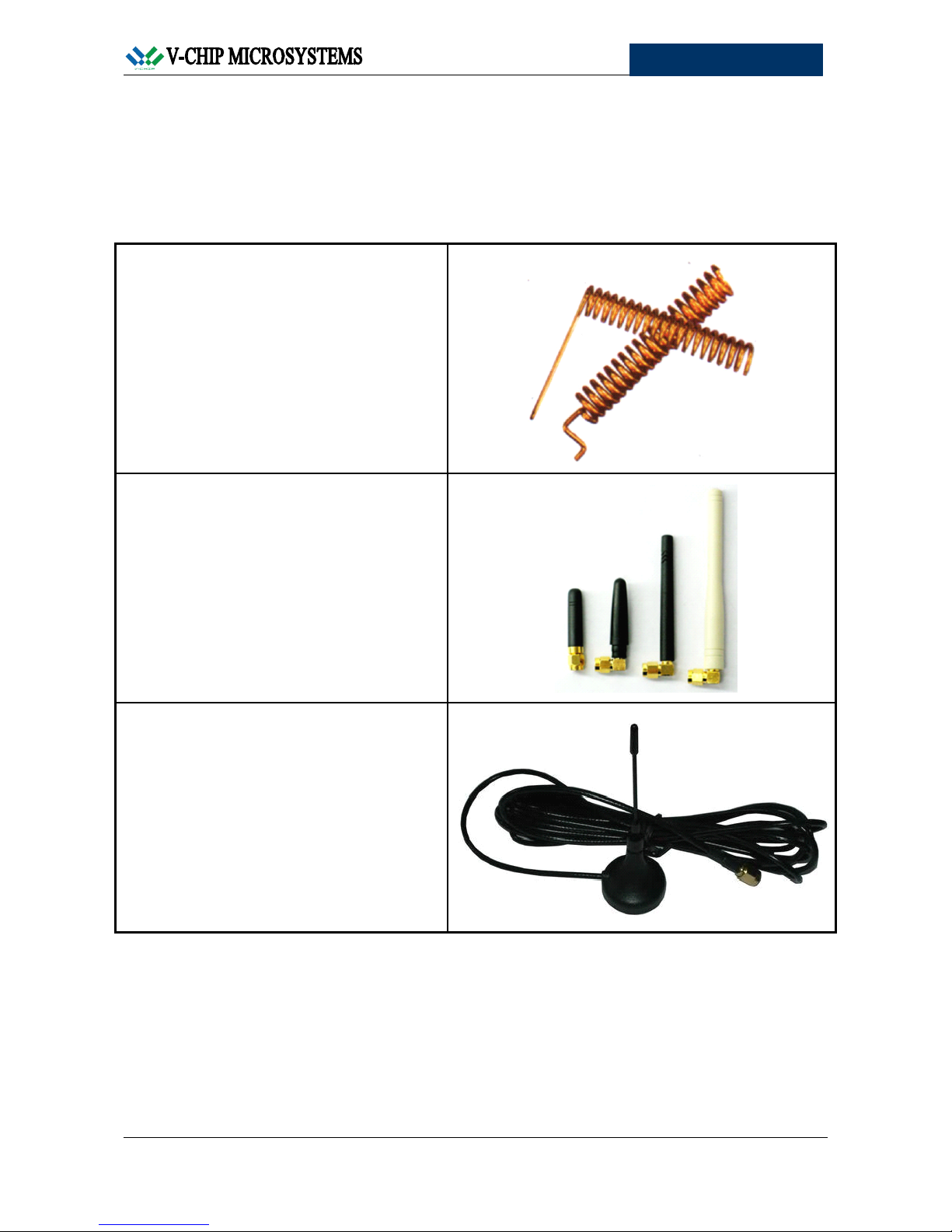

4 ． The antenna will strongly affect the communication distance, please select matched antenna and connect it
correctly.
5 ． The module mount will affect the communication distance.
