1 General Information
VCSBC64XX Single Board Camera with two mounted sensor boards
The VCSBC64XX is an extremely fast and innovative intelligent Stereo single board camera series and one of the fastest intelligent cameras all over with a computational power of 7200 MIPS. It has 256 MB DDR-RAM, 32 MB Flash EPROM for program and data storage and can be equipped with multiple head options.
Like with all VC Smart Cameras with Texas Instruments DSP, the operation system VCRT allows multitasking. This means for instance that user interface commands can execute in parallel without stopping the inspection process.
The VCSBC64XX has a video output onto a PC via 1 Gigabit Ethernet interface and also a High­Speed Trigger input with absolute constant capture delay, which allows absolutely jitter-free image acquisition and high precise synchronizations of the two heads even at very high-speed processes. 12-24 V digital IOs, additional IO ports and an RS232 serial interface are available as well.
Whereas a standard progressive scan camera gets a trigger, starts exposure and then reads out the pixel data, the VCSBC64XX has optimized the image acquisition process so that exposure, image transfer into memory and image processing can be done in parallel. This means if exposure time and image processing time is not longer than the transfer time, the full frame rate can be maintained.
The VCSBC64XX offers thus an extremely inexpensive entrance into the world of smart 3D applications.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 6
2 Basic Structure
The image is formed by a high-resolution progressive scan CCD sensor. One channel of video input is digitized. The image is stored in SDRAM memory using one of the 64 DMA channels (EDMA).
Unlike most other Vision Component Smart Cameras, the VCSBC64XX does not have a direct video output. However if monitoring of the camera image is required, this can be done by downloading via Fast Ethernet port to PC and display on screen.
The TMS320C64+ DSP is one of the fastest 32bit DSPs. It features a RISC-like instruction set, up to 8 instructions can be executed in parallel, a L1 cache memory (32 Kbytes) and a 256 Kbytes L2 cache on chip. Its high speed 64-channel DMA controller gives additional performance. The DSP uses fast external DDR-SDRAM as main memory. A flash EPROM provides non-volatile memory.
Block diagram VCSBC64XX Smart Camera
CCD -
Sensor
PGA CDS
A/D Con-
verter
RS232C
256 MB
DDR-SDRAM
Trigger In/ Out,
Encoder, PLC
I/Os
RS232
FPGA
DM648
DSP
Ethernet
Ethernet
32 MB Flash
EPROM
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 7
3 Technical Specifications
3.1 Technical specifications VCSBC6438
Component / Feature Specification
Sensor: 1/3 “ SONY ICX424AL - also available with color sensor (Bayer Filter) eff. no. of pixels: 640(H) x 480(V) Pixel size: 7.4 µm (H) x 7.4 µm (V) Chip size: 5.79 mm (H) x 4.89 mm (V) Integration: full-frame progressive scan Picture taking: program-controlled or triggered externally; full-frame /
63 frames per second Binning 2 times binning, 126 frames/s, 640(H) x 240(V) Shutter 5µs, 10 µs, 15 µs, 19 µs, … + steps of 31 µs up to 8s Clamping: zero offset digital clamping A/D conversion: 1 x 25 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 8
3.2 Technical specifications VCSBC6458
Component / Feature Specification
Sensor: 1/3”Kodak KAI-0340 eff. no. of pixels: 640(H) x 480(V) Pixel size: 7.4 µm (H) x 7.4 µm (V) Chip size: 5.87mm (H) x 4.71mm (V) Integration: full-frame progressive scan Picture taking: program-controlled or triggered externally; full-frame /
180 frames per second Binning 2 times binning, 360 frames/s, 640(H) x 240(V) Shutter 5µs, 10 µs, 15 µs, 19 µs, … + steps of 8.5 µs up to 2,2s Clamping: zero offset digital clamping A/D conversion: 2 x 50 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 9
3.3 Technical specifications VCSBC6465
Component / Feature Specification
Sensor: 1/2" SONY ICX415AL - also available with color sensor (Bayer Filter) eff. no. of pixels: 768(H) x 582(V) Pixel size: 8.3(H) x 8.3(V) µm Chip size: 7.48(H) x 6.1 5(V) mm Integration: full-frame progressive scan Picture taking: program-controlled or triggered externally; full-frame /
55 frames per second Binning 2 times binning, 110 frames / s, 782(H) x 291(V) Shutter 5µs, 10 µs, 15 µs, 20 µs,… + steps of 28.5 µs up to 7.4s Clamping: zero offset digital clamping A/D conversion: 1 x 33 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 10
3.4 Technical specifications VCSBC6466
Component / Feature Specification
Sensor: 1/3" SONY ICX204AL - also available with color sensor (Bayer Filter) eff. no. of pixels: 1024(H) x 768(V) Pixel size: 4.65(H) x 4.65(V) µm Chip size: 5.8(H) x 4.92(V) mm Integration: full-frame progressive scan Picture taking: program-controlled or triggered externally; full-frame /
20 frames per second Binning 2 times binning, 40 frames/s, 1024(H) x 384(V) Shutter 10 µs, 15 µs, 20 µs, …+ steps of 61.5 µs up to 16,2s Clamping: zero offset digital clamping A/D conversion: 1 x 20 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 11
3.5 Technical specifications VCSBC6467
Component / Feature Specification
Sensor: 2/3" SONY ICX285AL EXview HAD CCD eff. no. of pixels: 1280(H) x 1024 (V) Pixel size:
6,45(H) x 6.45(V) µm Chip size:
10,2(H) x 8,3(V) mm Integration: full-frame progressive scan
Picture taking: program-controlled or triggered externally; full-frame /
14 frames per second Binning 2 times binning, 28 frames/s, 1280(H) x 1024(V) Shutter 5 µs, 10µs, 15 µs,20 µs + steps of 67 µs up to 17.59s Clamping: zero offset digital clamping A/D conversion: 1 x 25 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 12
3.6 Technical specifications VCSBC6468
Component / Feature Specification
Sensor: 1/2" SONY ICX205A eff. no. of pixels: 1280(H) x 1024 (V) Pixel size: 4.65(H) x 4.65(V) µm Chip size: 7.6mm (H) x 6.2 (V) Integration: full-frame progressive scan Picture taking: program-controlled or triggered externally; full-frame /
14 frames per second Binning 2 times binning, 28 frames/s, 1280(H) x 1024(V) Shutter 5 µs, 10µs, 15 µs,20 µs + steps of 67 µs up to 17.59s Clamping: zero offset digital clamping A/D conversion: 1 x 25 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 13
3.7 Technical specifications VCSBC6472
Component / Feature Specification
Sensor: 1/1.8” (8,923mm) SONY ICX274AL eff. no. of pixels: 1550(H) x 1200 (V) Pixel size: 4.4µm (H) x 4.4µm (V) Chip size: 8.5mm (H) x 6.8mm (V) Integration: full-frame progressive scan Picture taking: program-controlled or triggered externally; full-frame /
10 frames per second Binning 2 times binning, 20 frames/s, 1550(H) x 600(V) Shutter 5 µs, 10µs, 15 µs,20 µs + steps of 48 µs up to 12.5s Clamping: zero offset digital clamping A/D conversion: 1 x 40 MHz / 10 bit Input LUT none Image display: Via Gigabit Ethernet onto PC Processor: Texas Instruments 900 MHz TMS320DM648 DSP RAM: 256 MB DDR SDRAM Flash EPROM: 32 MB SD card Not available Process interface: 4 inputs / 4 outputs, optically decoupled 24 V, outputs 4x400 mA Trigger input: Fast 5 V CMOS input and output, jitter free image acquisition Additional IO ports: 8 I/O ports CMOS 3.3V, I2C Clock and Data signals Ethernet interface: Gigabit Ethernet Serial Interface: 115,200 bd serial RS232 communication port CE certification: No CE Certification from Vision Components as the OEM customer is
required to certify entire system (including housing, cabling, etc.)
Storage Conditions Temperature: -20 to 60 deg C, Max. humidity: 90%, non cond. Operating Conditions Temperature: 0… +50 deg C (housing temperature), Max. humidity:
80%, non condensing.
Power Supply / Consumption
12 - 24V / max 8,5 W, digital IOs supplied additional
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 14
4 Camera Interfaces
ST7
ST3
ST4
ST5 ST6
The VCSBC64XX camera board incorporates the following connector interfaces:
ST3: Emulator (JTAG) Connect or ST4: Ethernet Connector ST5: VCSBC64XX/VCSBC40XX/ VCSBC50 Power and PLC IO Connector ST6: Trigger & Encoder Connector ST7: Extension Connector (I2C, RS232, IO Ports)
The pin assignments, electrical specifications as well as available accessories are sho wn for each interface connector in the following sections.
Please refer to
Appendix D: Drawing Circuit Board VCSBC64XX for the pin 1 orientation of the
camera board sockets.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 15
4.1 ST4: Ethernet connector
The connector ST4 is a standard Ethernet connector for an RJ45 cable.
Please use at least Category 5 cables!
4.2 ST5: Power Supply and IO Interface
The ST5 connector includes the camera power supply and the digital IOs.
4.2.1 Pin Assignments ST5 camera socket

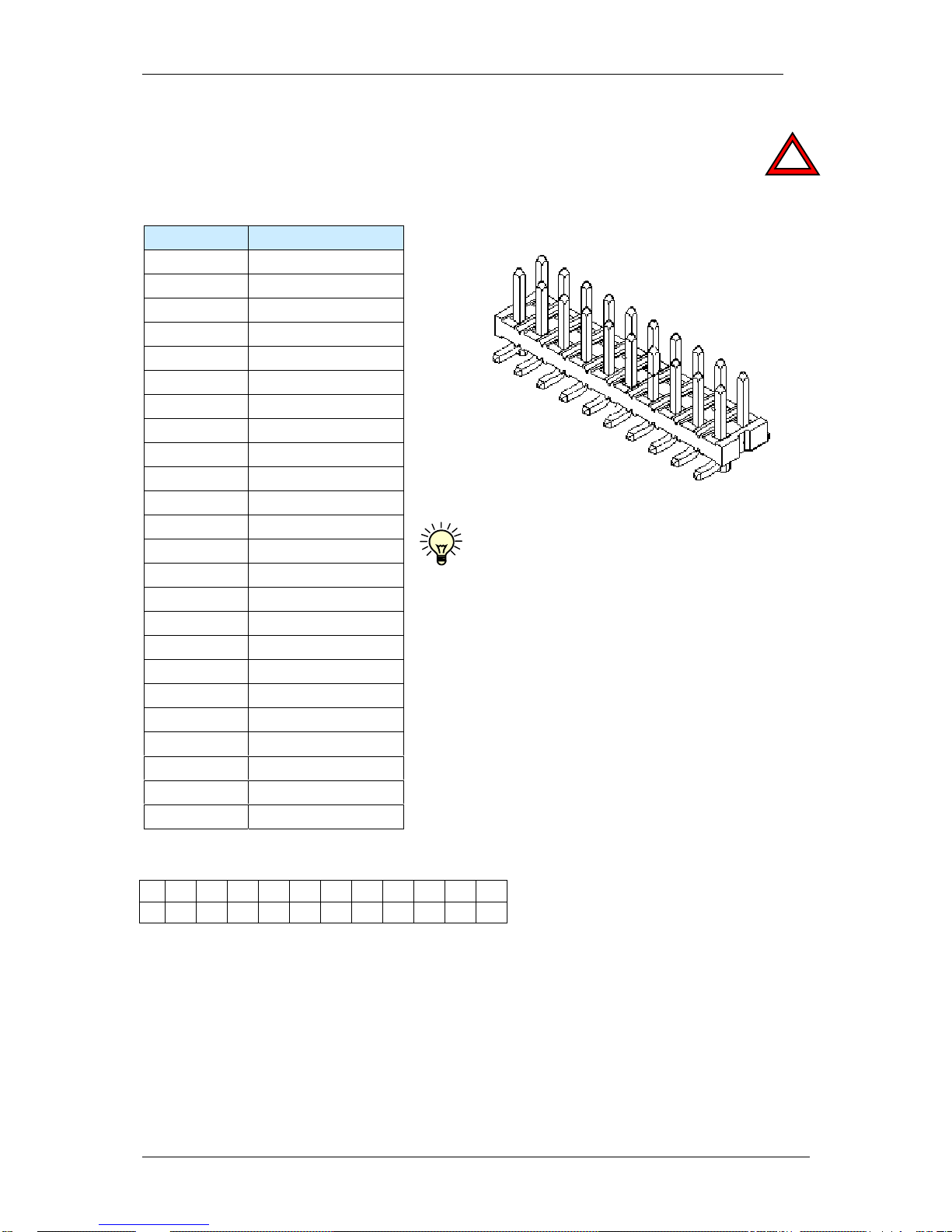

ST5 Standard VCSBC64XX socket: Molex: 8783212-20 with center polarization slot
Pin Number Signal
1 Out0 2 Power (12-24V) 3 Out1 4 Power GND 5 Out2 6 In3 7 Out3 8 GND
9 In0 10 In2 11 In1 12 GND
Pin Locations
2 4 6 8 10 12 1 3 5 7 9 11
Please refer to Appendix D: Drawing Circuit Board VCSBC64XX for the pin 1 orientation on the camera board socket.
4.2.2 Electrical specifications digital IO s ST5 interface
The camera has 4 PLC compatible inputs and 4 PLC compatible high-current outputs for controlling machines and processes.
!
Inputs and outputs are not galvanically decoupled from the supply voltage.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 16
A protective diode ensures that the poles of the supply voltage from the power supply of the PLC can not be swapped. The outputs are floating when low - pull down resistor required.

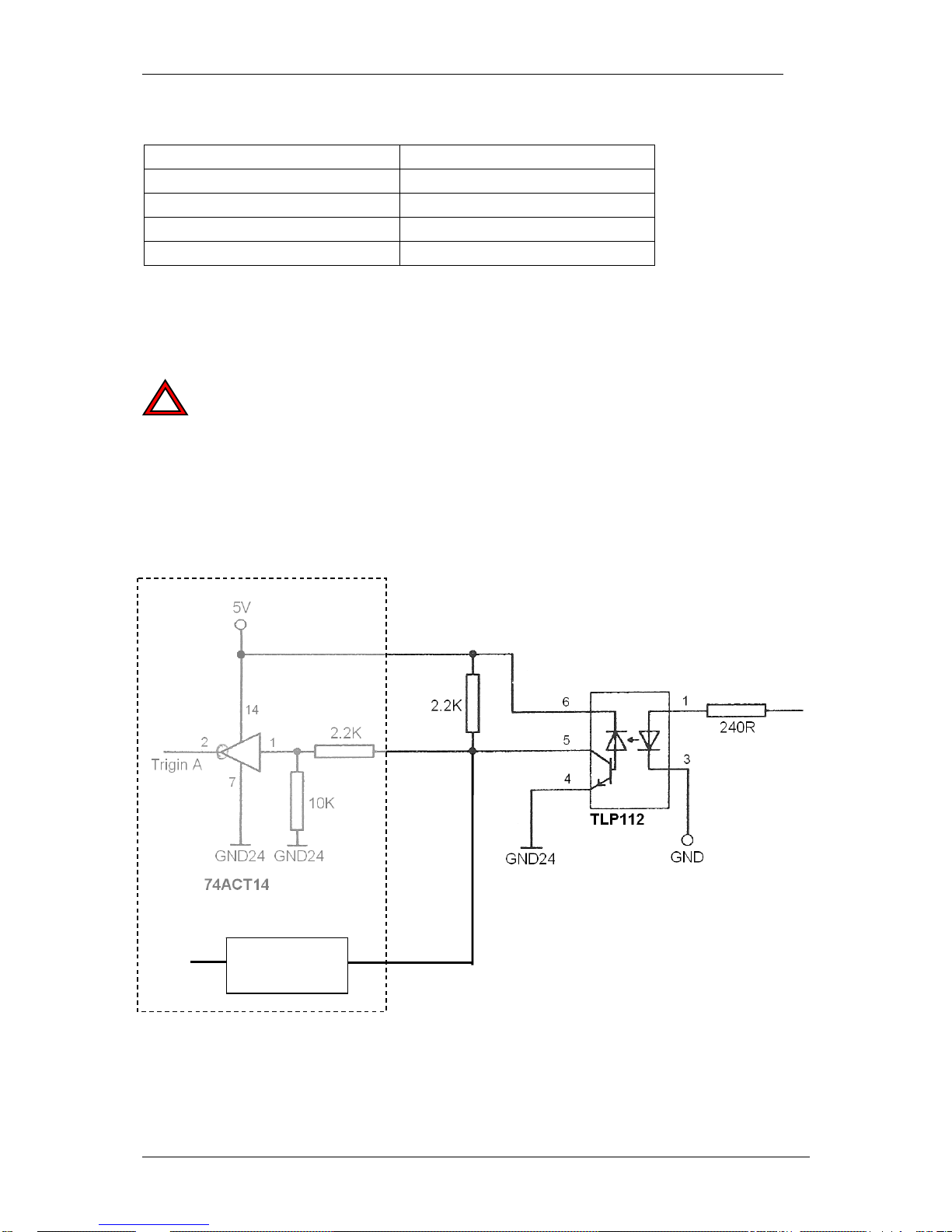

Input Signals IO interface
Nominal voltage: 12 – 24 V Absolute maximum voltage: voltages greater than 40 V can destroy the inputs Type: Circuit GND directly connected Input current: 1 mA @ 24V Threshold value: 10 V Internal signal delay: No delay for direct IO access
The PLC-compatible inputs (24-V level, the positive signal is connected) include input protection circuits. A minimum voltage of 10V is required to reliably sense a logic high signal.
Output Signals IO Interface
Operating voltage: external source 12 – 24 V Absolute maximum voltage: voltages greater than 40 V can destroy the outputs Type: Circuit GND directly connected Switching voltage: positive switching (PNP) Current: max. 400 mA per output Absolute maximum current:
total currents greater than 1000 mA can destroy plugs and cables Always consider the total sum of all output currents
Switching power: max. 9.6 W (24 V * 400 mA) per output Reverse voltage protection yes, for external voltage Protection against inductive
loads:
yes
Resistance when switched on: 0.2 - 0.8 Ohm Short circuit protection: full protection
The PLC outputs feature a highly integrated MOSFET, high-side switch with built-in protection. It is possible to switch inductive or capacitive loads. The protective feature of the outputs will produce pulses on the outputs, if the limiting values are exceeded. Output drivers feature short circuit end thermal overload protection
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 17
4.2.3 Electrical specifications of the VCSBC64XX Power Supply ST5 interface
Nominal Voltage: 12V – 24V Maximum Power Consumption with one head1: 8.5 W Minimum operational voltage (including ripple): 9V Minimum Operating voltage and corresponding
current:
12V 700mA
2
Maximum Operating voltage and corresponding current:
24V 350mA
3
Maximum operational Voltage (including ripple): 30V
Power must be connected to the 12 pin ST5 I/O connector.
Camera power is regulated inside the camera, so only an unregulated power source of 12 V to 24V is required. The camera is, however, very sensitive to power supply interruption. Please make sure, that the voltage never exceeds the limits of < 9V, > 30V even for a short period of time. In case of trouble it is recommended to backup the power supply by a capacitor or a battery large enough to prevent power interruptions.
1
Maximum power consumption without using the PLC output or onboard 3.3V supply.
2
Current drawn for PLC outputs and the 3.3V on board signal needs to be added to these figures.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 18
4.2.4 Matching connector and cable for ST5 camera socket
ST5 Standard VCSBC64XX socket: Molex: 8783212-20 with center polarization slot (see above)
The wall socket with polarization slot has been used for this camera in order to avoid camera damage caused by shifted or reversed plug connections. The standard VCSBC50 cable can be used to prevent shifted plug mounting:
Color code VCSBC50/ VCSBC40XX/VCSBC64XX Power / PLC Cable VK000173:
Pin Number Signal
1 Out0 Blue
2 Power (24V) Red
3 Out1 Purple
4 Power GND Black
5 Out2 Grey / Red
6 In3 Green
7 Out3 Blue / Red
8 GND Yellow
9 In0 Grey 10 In2 White 11 In1 Pink 12 GND Brown
Pin arrangement (looking down on circuit board socket):
2 4 6 8 10 12 1 3 5 7 9 11
Please refer to
Appendix D: Drawing Circuit Board VCSBC64XX for the pin 1 orientation on the
camera board socket.
For additional safety against reversed connections (using the with center polarization slot of the socket), please order one of the following connectors from the manufacturer Molex (www.molex.com):
Part numbers: 87568-1263, 87568-1264, 87568-1273, 87568-1274
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 19
4.3 ST6: Trigger and Encoder Interface
4.3.1 Pin Assignments ST6 camera socket
Pin Number Signal
1
5V out
2
Trig_in_A
3
Trig_out_A
4
Trig_in_B
5
Trig_out_B
6
Enc_A
7
Enc_B
8
GND
Pin locations:
2 4 6 8 1 3 5 7
Please refer to
Appendix D: Drawing Circuit Board VCSBC64XX for the pin 1 orientation on the
camera board socket.
4.3.2 Electrical specifications ST6 camera interface
Trigger IO Specifications:
The board features two fast CMOS trigger inputs (for use as image capture trigger) and two corresponding CMOS trigger outputs (as strobe-light trigger). Since the signals are fast at a very low noise margin, it is recommended to keep the cable as short as possible. Use twisted pair or even coaxial cable for this purpose. The trigger input assures a constant image capture delay without jitter.
The SBC64XX features at the time only synchronized triggering (both images triggered simultaneously). Trigin A and trigin B must be triggered together (pins 2 and 4 have to be connected), otherwise triggering will not work!!
!
This limitation will be removed with a software update (future version of VCRT).
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 20
Electrical Specification of trigger and encoder inputs:
input voltage: Signal LOW -0.3V – 0.8V Input voltage: Signal HIGH 2.2V – 5V input current: N/A limiting resistor: none reverse voltage protection: none
Image trigger on rising or falling input signal works as before – see section 6.5.3 for details.
The trigger inputs and outputs are very sensitive and not galvanically separated. Opto isolation of the driving circuit is therefore strongly recommended. The following page shows suitable circuits for trigger inputs and outputs.
!
Please note that inputs and outputs are not protected against over current. The outputs are neither protected against short circuit nor reverse voltage spikes from inductive loads.
Recommended driving circuit for the trigger inputs:
Trigin B
ST6.2 (Trigin A)
Same circuit
as for Trigin A
ST6.1 (5V)
ST6.4 (Trigin B)
Pins 2 and 4 have to be connected!
Inside camera
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 21
Electrical Specification of trigger outputs:
output voltage signal LOW: 0.45 V with 20mA output current output voltage signal HIGH: 4.5 V with 20mA output current Maximum output current: max. 20 mA pull-up resistor: none, LVTTL push-pull output
Caution: Place the connectors at the correct position – not reversed or shifted. The position of Pin 1 for each connector is marked in
Appendix D: Drawing Circuit Board VCSBC64XX.
Recommended circuit for trigger outputs:
or 6.5 (Trigout A or B)
ST6.3
Inside camera
4.3.3 Matching connector and cable for ST6 camera socket
Socket ST6 on circuit board: Part number: 87759-0850, manufacturer: Molex Matching connector: Part number: 51110-0850, manufacturer: Molex
Pin assignment Trigger / Encoder cable VK001034:
PIN (J4) Signal Cable Color
1 5V out Blue 2 Trig_in_A Red 3 Trig_out_A Purple 4 Trig_in_B Black 5 Trig_out_B Pink / Black 6 Enc_A Green 7 Enc_B Red / Blue 8 GND Yellow
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 22
4.4 ST7: Extension Connector
Note that the CMOS IOs are very sensitive. Only use driving electronics suitable for CMOS IOs!
!
4.4.1 Pin Assignments ST7 camera socket
In order to use this serial interface as a RS232 interface, a line driver / receiver circuit is required. A sample circuit is documented in section 4.4.4.
Pin Number Signal
1
5V
2
I2C_Data
3
I2C_Clock
4
GND
5
3,3 V
6
IO_0
7
IO_1
8
GND
9
IO_2
10
IO_3
11
nReset_out
12
GND
13
25 MHz Out
14
GND
15
IO_4
16
GND
17
IO_5
18
IO_6
19
IO_7 20 GND 21 RS232_RX 22 RS232_TX 23 RS232_RTS 24 RS232_CTS
Pin Locations
2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 7 9 11 13 15 17 19 21 23
Please refer to
Appendix D: Drawing Circuit Board VCSBC64XX for the pin 1 orientation on the
camera board socket.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 23
IO_0 – IO_7 Digital CMOS IO ports 5V and 3,3V 5V and 3.3V board main voltage, Imax = 50mA I2C_Clock and I2C_Data I2C serial Bus Interface for additional peripherals (Refer to the Texas
Instruments documentation
3
for further details)
RS232_RX, TX, RTS, CTS Serial interface
4.4.2 Electrical specifications ST7 camera socket
All signals are Low Level CMOS (3.3V), not opto-isolated.
The following signals have a 4k7 pull up resistor to 3.3V on board:
-
I2C_Clock
- I2C_Data
4.4.3 Matching connector and cable for ST7 camera socket
The socket ST7 has the following part number: 8775967-2050, manufacturer Molex (
www.molex.com)
Two 12-pin cables VK000173 (same as ST5 connector) are needed.
Pin 1-12 first ST7 cable Pin 13-24 second ST7 cable (pin number of connector given here) 2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 7 9 11 13 15 17 19 21 23
Color code first Cable VK000173 (left socket side):
Pin Number Signal Color
1
5V
Blue
2
I2C_Data
Red
3
I2C_Clock
Purple
4
GND
Black
5
3,3 V
Grey / Red
6
IO_0
Green
7
IO_1
Blue / Red
8
GND
Yellow
9
IO_2
Grey
10
IO_3
White
11
nReset_out
Pink
12
GND
Brown
3
“TMS320C6000 DSP Inter-Integrated Circuit (I2C) Module Reference Guide”, Literature Number:
SPRU175A, Oct. 2002 © 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 24
Color code second Cable VC000173 (right socket side):
Pin Number Signal Color
13
25 MHz Out
Blue
14
GND
Red
15
IO_4
Purple
16
GND
Black
17
IO_5
Grey / Red
18
IO_6
Green
19
IO_7
Blue / Red 20 GND Yellow 21 RS232_RX Grey 22 RS232_TX White 23 RS232_RTS Pink 24 RS232_CTS Brown
4.4.4 Recommended external Line Driver / Receiver Circuit for use of the RS232 interface
ST7
ROUTen
19
Vcc
pin5
3
2
C1+
V+
(3.3V)
100n
100n
7
4
C1-
V-
100n
5
C2+
100n
GND
GND
100n
6
C2-
GND
13
17
T1in
ST7 pin22
T1out
RS232_TX cable
12
8
T2in
T2out
ST7 pin23
RS232_RTS cable
16
15
ST7 pin21
R1out
R1in
RS232_RX cable
9
10
ST7 pin24
R2out
R2in
RS232_CTS cable
1
SHDN
20
18
Gnd
MAX3222ECUP
GND
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 25
5 Accessories
For interface cables and connectors available also consult the corresponding section in chapter 4 of this manual.
The VCSBC64XX can be used with 12mm threaded micro lenses or C-mount lens holder. Due to the different options these lens holders have to be ordered separately to the camera, as well as the mounting service. If ordered together, VC ships the camera fully assembled.
!
The C-mount flange distance can then be accurately adjusted. Please remove the protective foil on the CCD in case the camera has been ordered and delivered without lens holder!
!
The VCSBC64XX are delivered with one sensor head! For a second sensor head, please order it separately (see table).
Camera, lens holder and head order numbers:
Cameras
(one sensor head, no lens holder)
Order
Number
VCSBC6438 Single Board Smart Camera without lens holder, b/w CCD VK000429 VCSBC6438C Single Board Smart Camera without lens holder, Bayer CCD VK001023 VCSBC6458 Single Board Smart Camera without lens holder, b/w CCD VK001060 VCSBC6465 Single Board Smart Camera without lens holder, b/w CCD VK001030 VCSBC6465C Single Board Smart Camera without lens holder, Bayer CCD VK001033 VCSBC6466 Single Board Smart Camera without lens holder, b/w CCD VK001025 VCSBC6466C Single Board Smart Camera without lens holder, Bayer CCD VK001055 VCSBC6467 Single Board Smart Camera without lens holder, b/w CCD Contact us VCSBC6468 Single Board Smart Camera without lens holder, b/w CCD VK001028 VCSBC6472 Single Board Smart Camera without lens holder, b/w CCD VK001018
Lens holders Order
Number
Lens holder C Mount (IR-Cut Filter EK000625 included) VK000409 Lens holder C Mount (Clear glass window EK000628 included) VK000237 Lens holder 12mm VK000091 Mounting of lens holder VK000233
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 26
Second sensor head
(with flat cable 80mm)
Order
Number
VCBSC6438 sensor head, without lens holder VK001038 VCBSC6438C sensor head, without lens holder VK001040 VCBSC6458 sensor head, without lens holder VK001063 VCBSC6465 sensor head, without lens holder VK001042 VCBSC6465C sensor head, without lens holder VK001044 VCBSC6466 sensor head, without lens holder VK001045 VCBSC6466C sensor head, without lens holder VK001049 VCBSC6467 sensor head, without lens holder Contact us VCBSC6468 sensor head, without lens holder VK001050 VCBSC6472 sensor head, without lens holder VK001052
Further accessories available for the VCSBC64XX:
Product description Order
Number
12-pin cable for Expansion Port ST7 (2 cables needed, as 24-pin connector). It is recommended to manufacture matching circuit board
VK000173
Power Supply and IO Interface 12-pin cable for ST5 VK000173 Trigger and encoder 8-pin cable for ST6 (0.5m length) VK001034
Flex cables for detached Camera Head mounting: 30mm x 20
80mm x 20 core
1
1
The 80mm flex cable is part of standard delivery. 200mm x 20 core
EK000321 EK000322
EK000629 Clear glass protective sensor window (replaces IR filter in camera head) EK000628 IR cut filter (camera is shipped with this filter mounted) refer to Appendix B EK000625
All cable lengths are 0.5m unless stated otherwise.
Please also refer to the VC website
www.vision-components.com for an up to date list of
accessories.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 27
6 Programming VCSBC64XX Cameras
The VCSBC64XX operating system includes some additional functions, mainly for the control of the additional interfaces. Without direct VGA output some video control functions are not implemented for this camera. This manual describes the differences between the standard VCRT 5 operating system functions and the special function library of the VCSBC64XX. For programming please also consult the
VCRT 5 and
VCLIB 2.0 and VCLIB 3.0 manuals (see the list of references at the beginning of this manual).
6.1 Special Software requirements for the VCSBC64XX
The following table shows the minimum compatible setup options using the VCSBC64XX camera:
Code Composer Studio Version
VCRT PC Lib Version VCLIB Version VCRT Camera OS
Version: CCS 3.3 or CCS 4.x (C6000)
VCRT 5.29 VCLIB 3.10 VCRT 5.29.2
Refer to the “Tech News” section, under “Support and Download” on the VC website for an overview of the latest compatible set up.
The VCRT PC lib Operation System PC library, the VCLIB Image Processing Library as well as the VCRT Camera Operation System can be downloaded from Support section of the Vision Components Website. Software manuals are located in the “Registered User Area”. This download area can be a ccessed after registration and log in on the VC Website. Software updates are available from the “Customer Area”. For access to the customer area please register your Vision Components development software for VC cameras with TI processor. Software registration can be done after logging in using the license key code shipped with each development bundle. For this please follow the “Register your Software” link under the “User Menu”.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 28
6.2 Ethernet Communication
The default camera IP address is 192.168.0.65 – as with all Ethernet cameras from VC. The IP address can be changed to a different loading a #IP file into camera memory. Refer to the “Getting Started VC Smart Cameras” guide for further details.
The camera supports DHCP server IP address allocation. In order to use DHCP allocation, the entry “DHCP” needs to be added to the #IP file as shown:
DHCP IP: 192.168.0.81 MSK: 255.255.255.0 GTW: 192.168.0.1
The camera uses the specified IP address if DHCP allocation is not successful. If no IP address is specified in the #IP file, the camera falls back to the default address:
192.168.0.65
Please use DHCP server functions to determine the IP address allocated to the camera. Most server show a list of mac addresses and corresponding IP addresses or allow to allocate fixed IP addresses to a certain mac address. Determine the mac address of the camera using the shell command “type #ID” to prior to using DHCP IP address allocation!
The “Getting Started VC Smart Cameras” and section 6.4.1 include advice on re-setting a camera with unknown or invalid IP Address.
6.3 Using FTP with the VCSBC64XX
The use of any standard ftp client is now possible. The following server commands have been added: SYSTEM,PWD,CWD,LIST,DEL Programs have to be uploaded as “out” files into the camera flash memory. Ascii files like the autoexec or #IP files can be uploaded as “*.txt” files – the conversion into *.msf” files is not required.
6.4 Preventing Autoexec Execution / IP number reset
Preventing the execution of an Autoexec file by attempting a connection with the camera (as described in the programming tutorial) does not work, due to the increased proc essor speed. Resetting the camera using a keypad as with the VC20XX cameras is also not possible.
There are three ways of preventing the Autoexec execution and resetting the IP address:
Option 1:
1. Upload an empty autoexec/ #IP file via FTP into the camera memory, overwriting the existing file(s).
2. Hardware reset of camera.
Option 2: CPU reset with help of an Emulator.
Option 3: Resetting the camera with help of the “VCnet Recovery Tool” as described in the following
section.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 29
6.4.1 Resetting the Camera with help of the VCnet Recovery Tool
A new tool – the “Vcnet Recovery Tool” is provided for resetting the IP address of the TI-based VC Smart Cameras from VC4XXX. Vcnet Recovery is supported from camera OS VCRT 5.21.
In order to use the VCnet Recovery tool, follow the steps below:
1. Download and install the “
Java(TM) 2 Runtime Environment, Standard Edition 1.4.XX” on
your PC (Download from
www.sun.com - > Downloads - > J2SE v 1.4.2_11 JRE ).
2. Download VCnet Recovery Tool for VC40XX and VCSBC40XX from www.vision–
comp.com -> Service & Support.
3. Unpack the “vcnet1.2.zip” folder a directory on your hard drive (for instance C:\ti\Util…).
4. Open the Dos command line window and change to the directory containing “vcnet.jar”.
5. Execute the following command from the DOS Window "java -jar vcnet.jar -snr 5912345" , by specifying the camera serial number as shown. This command sends vcp packets via UDP broadcast for the next 15 seconds. Sending this command resets the corresponding camera to the default IP address and bypasses Autoexec execution. Further options below.
6. Boot the corresponding camera (power on) during the next 15 seconds. During start up the camera listens 0.5 seconds for cvp pac ket s send with vcnet.jar.
7. If a valid vcp packet is received from camera an answer packet is sent (see example below). The camera continues booting in standard configuration:
Default IP address: 192.168.0.65 Mask: 255.255.255.0 Gateway: none
An autoexec in flash memory is not executed.
Example of resetting a VCSBC40XX, S/N 0100151:
C:\Programme\VCnet>java -jar vcnet.jar -snr 0100151 VCnet Recovering Tool Version 1.2 - Copyright Vision Components 2005
Recovering Serial Number = 100151
Listening on port 67 for incoming packets!
Packet 2 from: /0.0.0.0
===Data as Text:===
model: VC4018E S/N: 0100151 DC: 06/10/05 09:23:06 MAC: 00-06-1F-01-87-37 IP: 192.168.0.81 MSK: 255.255.255.0 GTW: 192.168.0.1
….
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 30
6.5 Special VCRT functions for programming VCSBC64XX cameras
This section explains the
specifics of programming VCSBC64XX cameras.
6.5.1 General settings
Programming the VCSBC64XX requires at least the VCRT library version 5.29.6.
To ensure proper functioning of all features of the VCSBC64XX, the following define is needed (has to be defined BEFORE vcrt.h and register.h.
!
#define DM648
6.5.2 Compiling and linking with the VCSBC64XX
It is advised to build your C-code as relocatable code (standard setting in the VC template Code Composer project files from VCRT 5.29). In this case VCRT manages the program memory allocation by itself (see Programming Tutorial for more details).
For customers who prefer absolute linking, please pay attention to the fact that the memory start address has changed in comparison to previous VC cameras. In your link file, replace the memory section with this one:
MEMORY { PMEM: o = 0E0100000h l = 100000h /* intended for initialization */ BMEM: o = 0E0090000h l = 40000h /* .bss, .system, .stack, .cinit */ }
6.5.3 Image capture with VCSBC64XX cameras
Picture taking with the SBC64XX camera works using the same functions as for other VC Smart Cameras (tpict(), tenable(), capture_request()…).
The difference is that a second image buffer is allocated at startup, for the image of the second sensor head. This second buffer is situated directly after the first image buffer in memory.
When a capture function is called, the VCSBC64XX automatically takes two images, synchronously.
This second image buffer is defined by its start address CAPT_START2. This system variable has been added to VCRT and can be read or modified the same way as CAPT_START (first image buffer).
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 31
6.5.4 IO Ports Functions
The SCB64XX camera features 8 IO ports on the Extension Connector ST7. These ports can be programmed with the following functions.
io_port_init intialize io ports to all input
synopsis I32 io_port_init (void)
description The function io_port_init() initializes all IO ports and sets them all to
INPUT. This function is called automatically at camera startup.
io_port_in read inputs
synopsis I32 io_port_in (void)
description The function io_port_in() returns the input values. Only the 8 last bits of
the integer value are relevant. IO_0 corresponds to the least significant bit. Input is high when bit set to 1, low when bit set to 0.
io_port_dir set port direction (input or output)
synopsis I32 io_port_dir (int direction)
description The function io_port_dir() sets the direction of the IOs. Only the 8 last
bits of the integer value are relevant. IO_0 corresponds to the least significant bit. The IO is an input when bit set to 0, and an output when bit set to 1.
io_port_out set outputs
synopsis I32 io_port_out (int out)
description The function io_port_out() sets or resets the outputs. Only the 8 last bits
of the integer value are relevant. IO_0 corresponds to the least significant bit. The output is low when bit set to 0, and high when bit set to 1.
io_port_int_enable enable IOPORT interrupt
synopsis I32 io_port_int_enable (void)
description The function
io_port_int_enable()enables the IOPORT
interrupt.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf – Hardware Documentation VCSBC64XX Smart Cameras 32
io_port_int_disable disable IOPORT interrupt
synopsis I32 io_port_int_disable (void)
description The function io_port_int_disable()disables the IOPORT
interrupt. This is the default state, due to floating IOs which would constantly trigger interrupts.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX_HW.pdf VCSBC64XX Smart Cameras Operating Manual
A
Appendix A: New VCRT Functions VCSBC64XX
New VCRT functions (see section 6 and vcrt.h):
int io_port_init(void); /* initialize io ports to all input */ int io_port_in(void); /* returns result - lowest 8 bits - 0=LOW 1=HIGH */ int io_port_dir(int direction); /* returns result - lowest 8 bits - 0=INP 1=OUT */ int io_port_out(int out); /* set output - lowest 8 bits - 0=LOW 1=HIGH */ int io_port_int_enable(); /* IOPORT interrupt enable */ int io_port_int_disable(); /* IOPORT interrupt disable */
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC40XX.pdf – Hardware Documentation VCSBC40XX Smart Cameras B

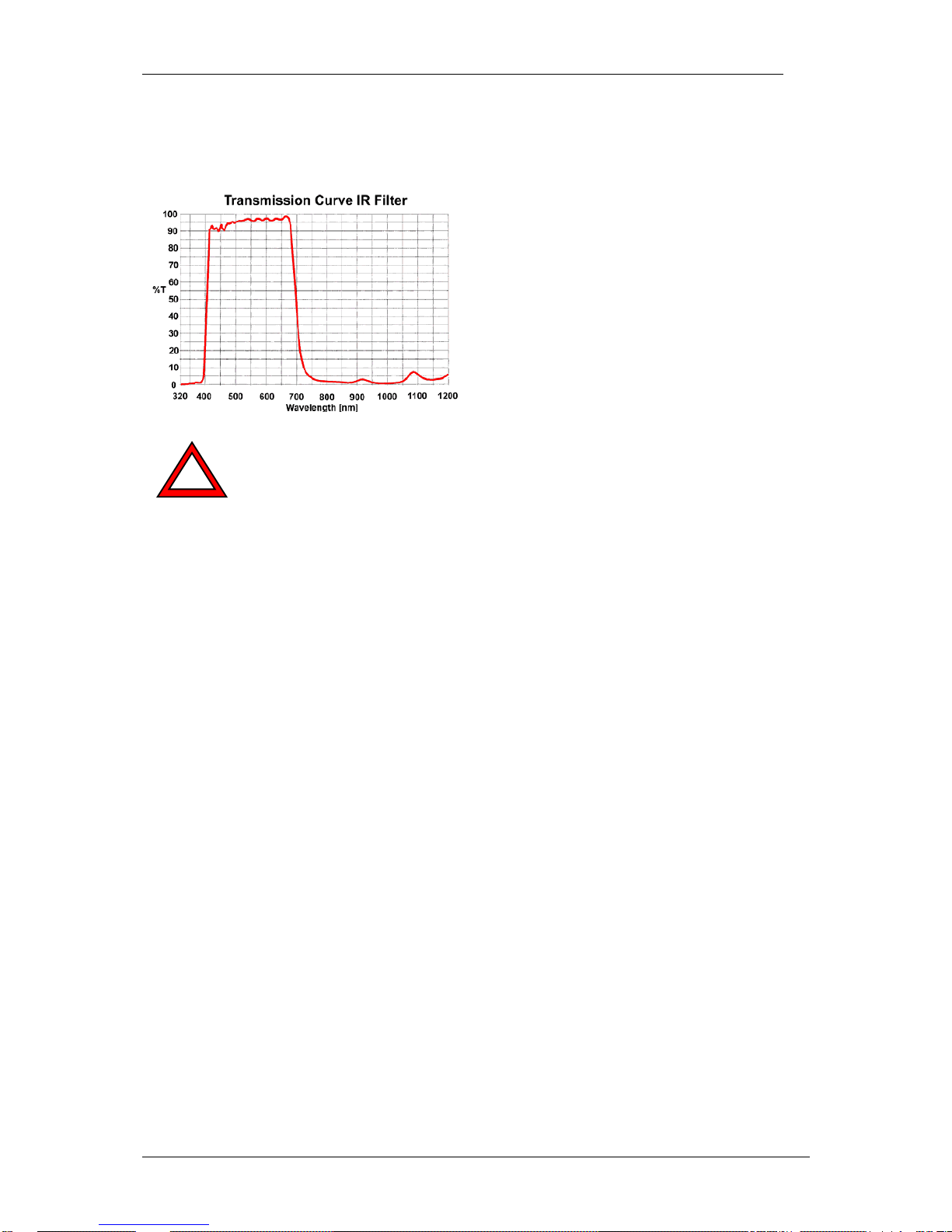

Appendix B: Spectral Transmission of IR Filter
This IR cut filter is incorporated in every VCSBC64XX camera with C- mount lens holder. The IR filter can be removed if required. In this case, special care must be taken not to damage the CCD sensor. If the camera is used without IR filter it is important to replace it by a clear glass filter of the same size. The C-mount flange distance from the CCD is accurately adjusted for the use of the IR filter – removing the filter decreases the length of the optical path and it may become impossible to focus some lenses to a larger working distance.
If the IR filter is not to be used, please order your camera with a clear glass filter or contact Vision Components for obtaining a glass filter.
!
The order numbers for the clear glass window is: EK000624 The order number for the IR cut filter (standard) is: EK000625
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX.pdf – Hardware Documentation VCSBC64XX Smart Cameras C
Appendix C: Overall Dimensions VCSBC64XX
6
17,5
3
40
63.2
81.3
80
77
31
40.4
18
15
!
Note: the sensor head protrudes the circuit board slightly when mounted as sho wn! Tolerances: All vertical dimensions: +/- 0.5mm. All horizontal dimensions: +/- 0.1mm.
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX.pdf – Hardware Documentation VCSBC64XX Smart Cameras D
Appendix D: Drawing Circuit Board VCSBC64XX
The red dot marks the Pin 1 position of each connector.
2.5mm
for M2
ST6
ST5
ST7
M2
Tolerances: All circuit board dimensions: +/- 0.1mm
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX.pdf – Hardware Documentation VCSBC64XX Smart Cameras E

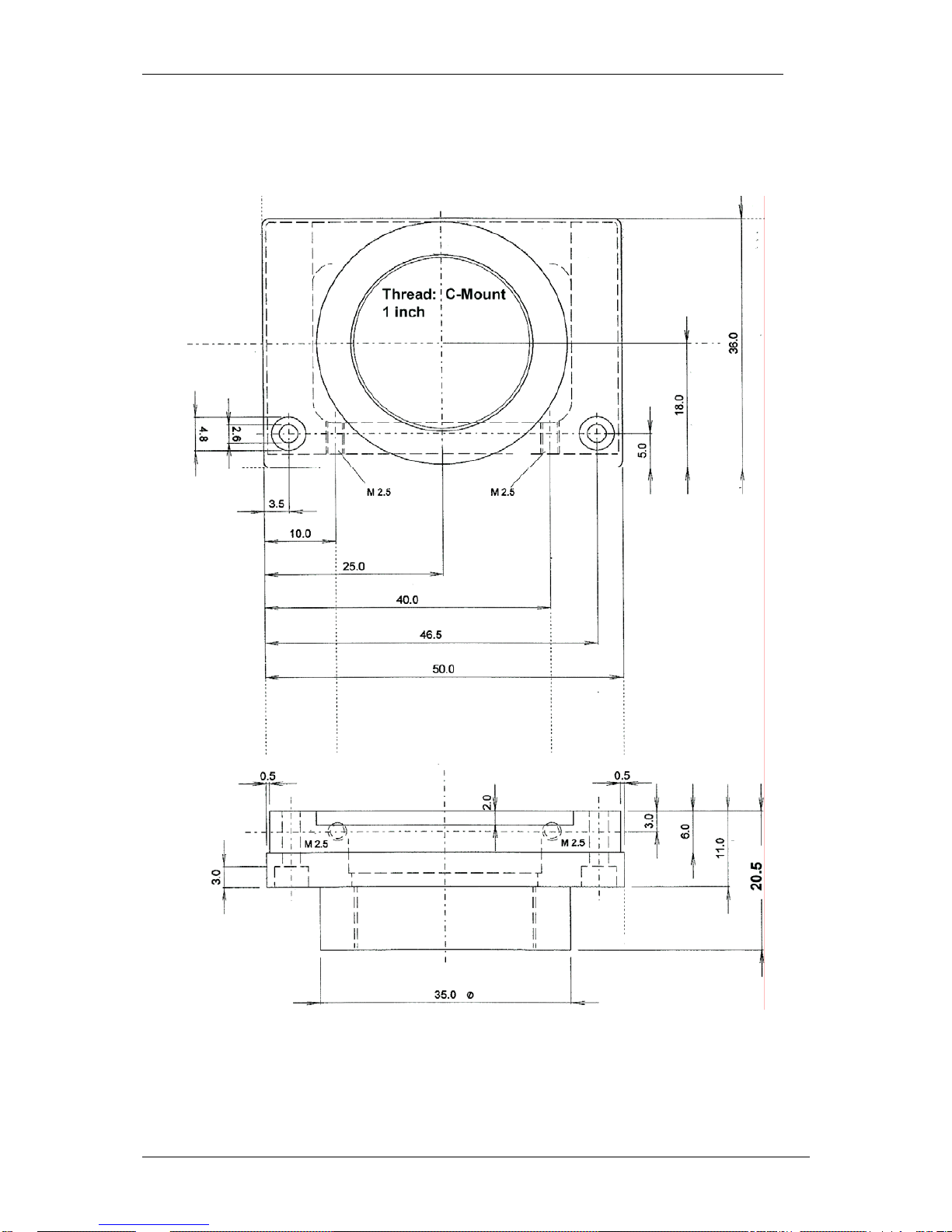

Appendix E: Drawing C-mount Camera Head VCSBC64XX
Tolerances: All dimensions: +/- 0.1mm
© 1996-2011 Vision Components GmbH Ettlingen, Germany
VCSBC64XX.pdf – Hardware Documentation VCSBC64XX Smart Cameras F
Appendix F: Drawing heatsink VCSBC64XX
© 1996-2011 Vision Components GmbH Ettlingen, Germany
G
Visit the Vision Components site www.vision-components.com for further information, documentation and software downloads:
Web Site Menu Links Content
Home
Latest News from VC
Competences
VC Company Information VC Network
Solutions
Applications Industry
Products
VC Smart Cameras
Product Overview:
VC Base
VC Professional VC Optimum VC Line Visicube VC Board Cameras VC Customized Accessories
VC Smart Camera Software
VC Software Development Kit Ti: VCRT Operating System
VCLIB Image Processing Library
VC Special Libraries: Color Lib
Extension Lib VCOCR Text Recognition Library VC Smart Reader VC Smart Finder VC Solar Solution
News and Events VC News
Trade Show dates VC Seminars & Workshops
Service & Support:
Contact Contact Vision Components Download Center Download of:
Documentation (User Registration required)
- Product Brochures
- Camera Manuals
-
Getting Started
- Programming Manuals
- Tr aining Manuals and Demo Code
Software (User- and SW License Registration required)
- Software Updates (VCRT & Libs)
- Demo Code
- Software utilities
Tech News Tech News – new SW and Documentation Knowledge Base / FAQ FAQ Database with programming Examples and
Demo Code
Return / Repair Service Form for Allocation of Repair Numbers. Loan systems Info about VC loan cameras
Loading...
