XTi–VBox TV Gateway
33xx family Quick Installation
Product Version: 1.0
Release Date: Jan 2014
Document Revision: 1.3
Error! No text
of specified style in document.
Contents
1 Introduction to XTi–VBox TV Gateway ...............................................................................................................2
1.1 XTi-VBox TV Gateway 33XX family Product Line ........................................................................................2
2 Quick Installation for XTi ....................................................................................................................................3
3 Front and Rear Panels ........................................................................................................................................4
3.1 Front Panel .................................................................................................................................................4
2.3 Rear Panels .................................................................................................................................................5
3.2.1 XTi-3330 Dual Tuner Rear Panel .........................................................................................................6
3.2.2 XTi-3332/3332 CI Unicable Rear Panel ...............................................................................................7
3.2.3 XTi-3340-50/3340-50 CI Rear Panel ...................................................................................................8
3.2.4 XTi-3342-52 CI Rear Panel ..................................................................................................................9
1
1 Introduction to XTi–VBox TV Gateway
Product Name
33XX family
Model Name
Supported Broadcasts
serve users
simultaneously
RF Connectors
CI
XTi-3330
Dual Tuner 2S
2 Satellite
2
2 - XTi-3332
Unicable 4S
4 Satellite
4
1 - XTi-3332 CI
Unicable 4S
4 Satellite
4
1 + XTi-3340
2S-2T/2C
2 DVB-T & 2 Satellite
4
3 - XTi-3340 CI
2S-2T/2C
2 DVB-T & 2 Satellite
4
3 + XTi-3342 CI
Dual Tuner 2T/2C
2 DVB-T
2
1 + XTi-3350
2S-2C
2 DVB-C & 2 Satellite
4
3 - XTi-3350 CI
2S-2C
2 DVB-C & 2 Satellite
4
3 + XTi-3352 CI
Dual Tuner 2C
2 DVB- C
2
1
+
XTi-VBox TV Gateway is a set-top box that gives you the freedom to consume all types of television broadcasts satellite (DVB-S), cables (DVB-T) and terrestrial (DVB-T), as well as video - through a single media gateway.
XTi-VBox TV Gateway eliminates the constraints to physical cables, by using an IP infrastructure.
You can receive different types of media from various sources, and share them with any computer, laptop,
tablet, Smartphone, or IP-STB device connected to your Local Area Network (LAN).
1.1 XTi-VBox TV Gateway 33XX family Product Line
XTi-VBox TV Gateway includes several products: XTi-3330, XTi-3332, XTi-3340 and XTi-3342. Each product is
available in one or more models. Table 1 lists the products and their models and summarizes their specifications.
Table 1: XTi-VBox TV Gateway Product List and Specifications
2 Quick Installation for XTi Using Tablet or PC
Tablet
PC
Connect the devise
Connect the devise Wired to your Home router
Connect antenna Cable see rear panel option 3.2
Connect power Cable
Power On the device
Connect the devise
Connect the devise Wired to your Home router
Connect antenna Cable see rear panel option 3.2
Connect power Cable
Power On the device
Download VBox Apps on our website
Open the apps on you Tablet.
The apps will find the device
Click on the device
Go to “ My Computer”
- Network
- right click on the device Name
Select first option : “ view device webpage”
Click on TV Gateway Settings
Click on Quick Setup and follow the instruction.
Click on Quick setup
Follow the instruction
Players- reopen VBox Apps and enjoy
Additional information regarding the possible can
be found at VBox site or in full user guide
Players-
Additional information regarding the possible can
be found at VBox site or in full user guide
3 Front and Rear Panels
Item
Description
1
Power LED– indicates whether the system is ready:
Orange–indicates the system is connected to electricity
but is still in the process of being started.
Green– indicates the XTi device is ready for use.
2-5
Tuner LEDs – indicate the traffic status in tuners 1-4:
Steady green light– indicates a locked frequency.
Blinking green light– indicates this tuner is transmitting data.
1
2 3 4
5
This section describes the front and rear panels of the XTi-VBox TV Gateway set-top box.
3.1 Front Panel

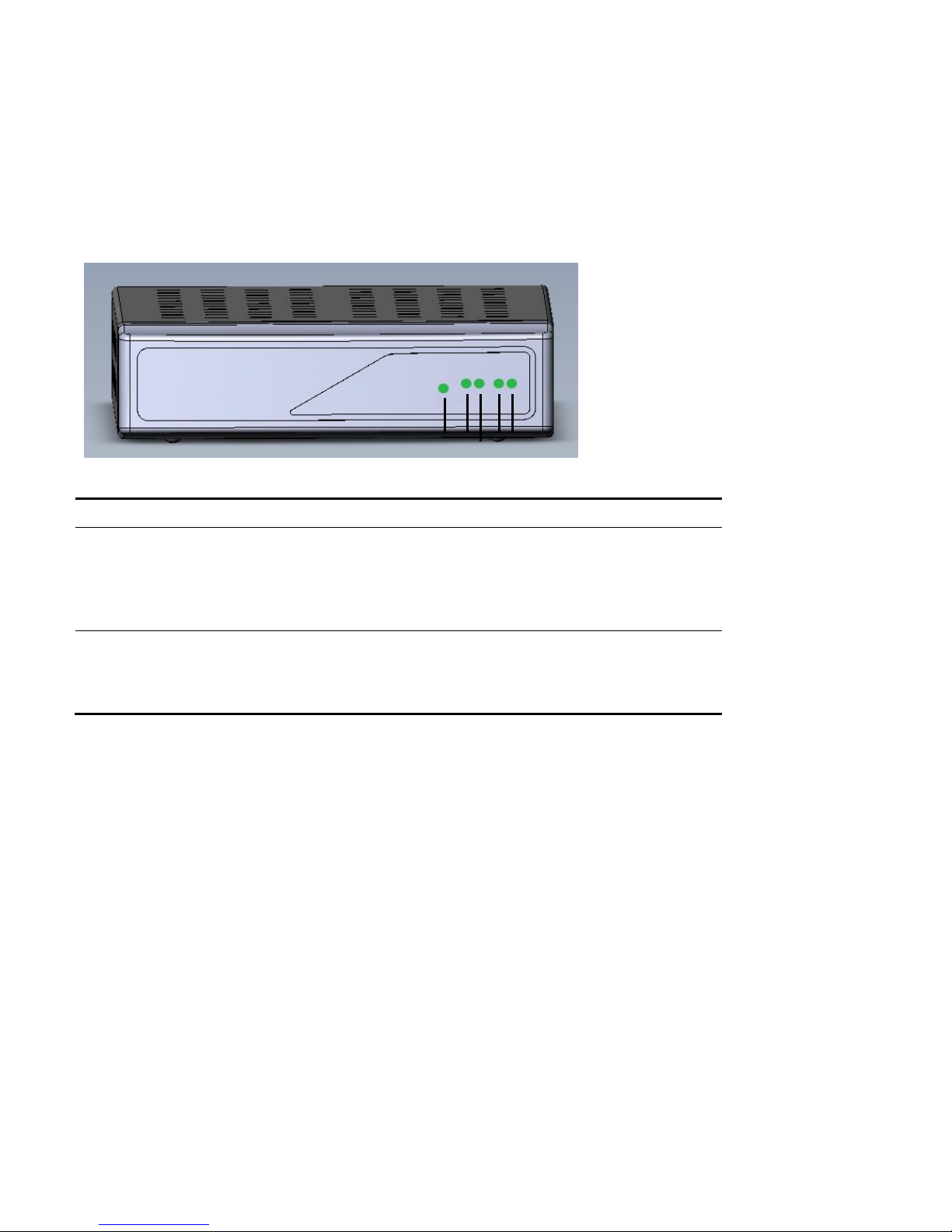

All XTi-VBox TV Gateway products share the same front panel, illustrated in Figure 1.
Figure 1: XTi Front Panel
Table 2: XTi Front Panel
3.2 Rear Panels
Item
Description
1
RF1– Connector for Tuner-1 DVB-S/S2
2
RF2–Connector for Tuner-2 DVB-S/S2
3
5V–power adapter connector
4
ON/OFF– Power button
5
LAN– RJ45 1 GB (Ethernet cable) connector
6
USB – USB Connector
This section describes the rear panel of each XTi-VBox TV Gateway product:
XTi-3330 Dual Tuner Rear Panel
XTi-3330 Dual Tuner Rear Panel
TheXTi-3330 Dual Tuner 2Smodel includes two active RF connectors: one for each satellite tuners.

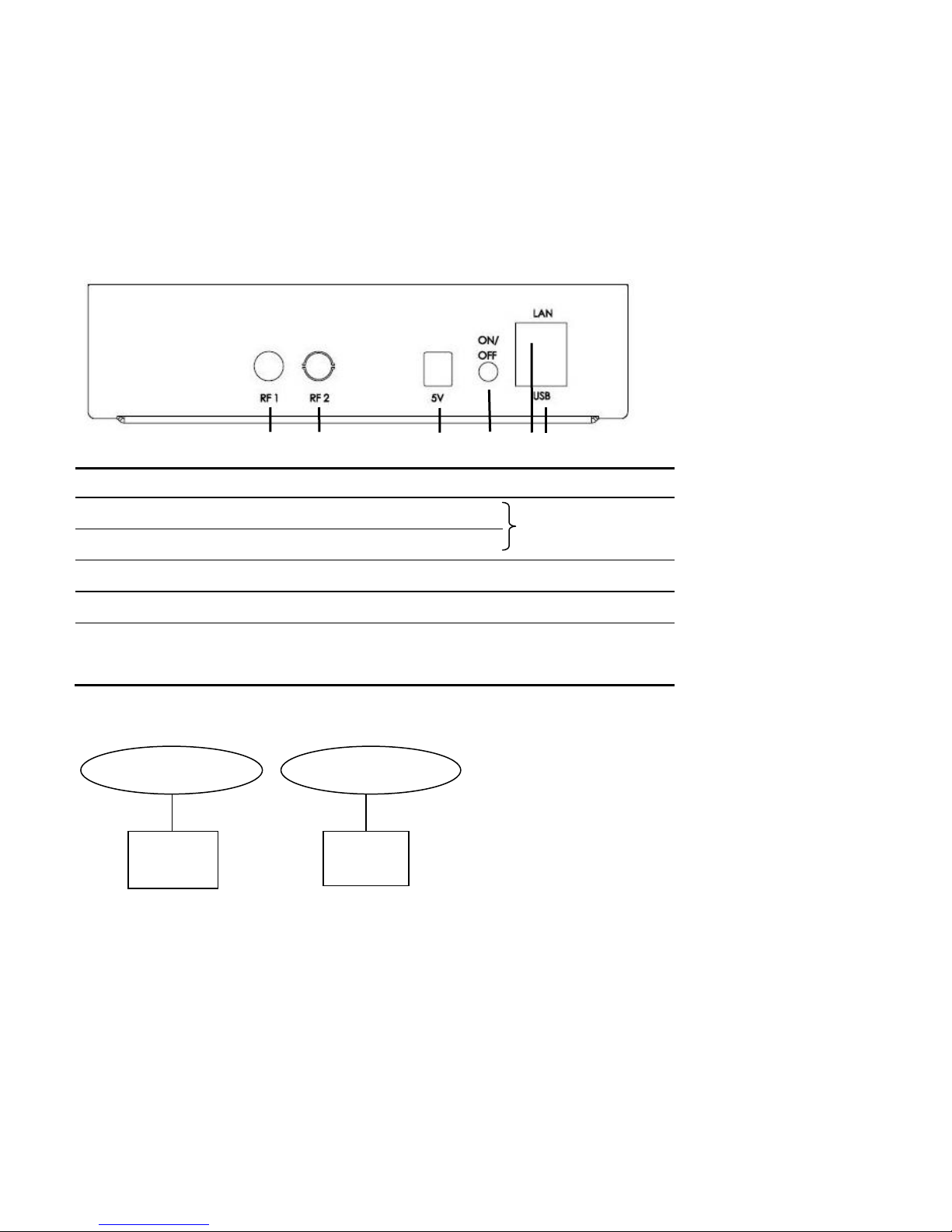

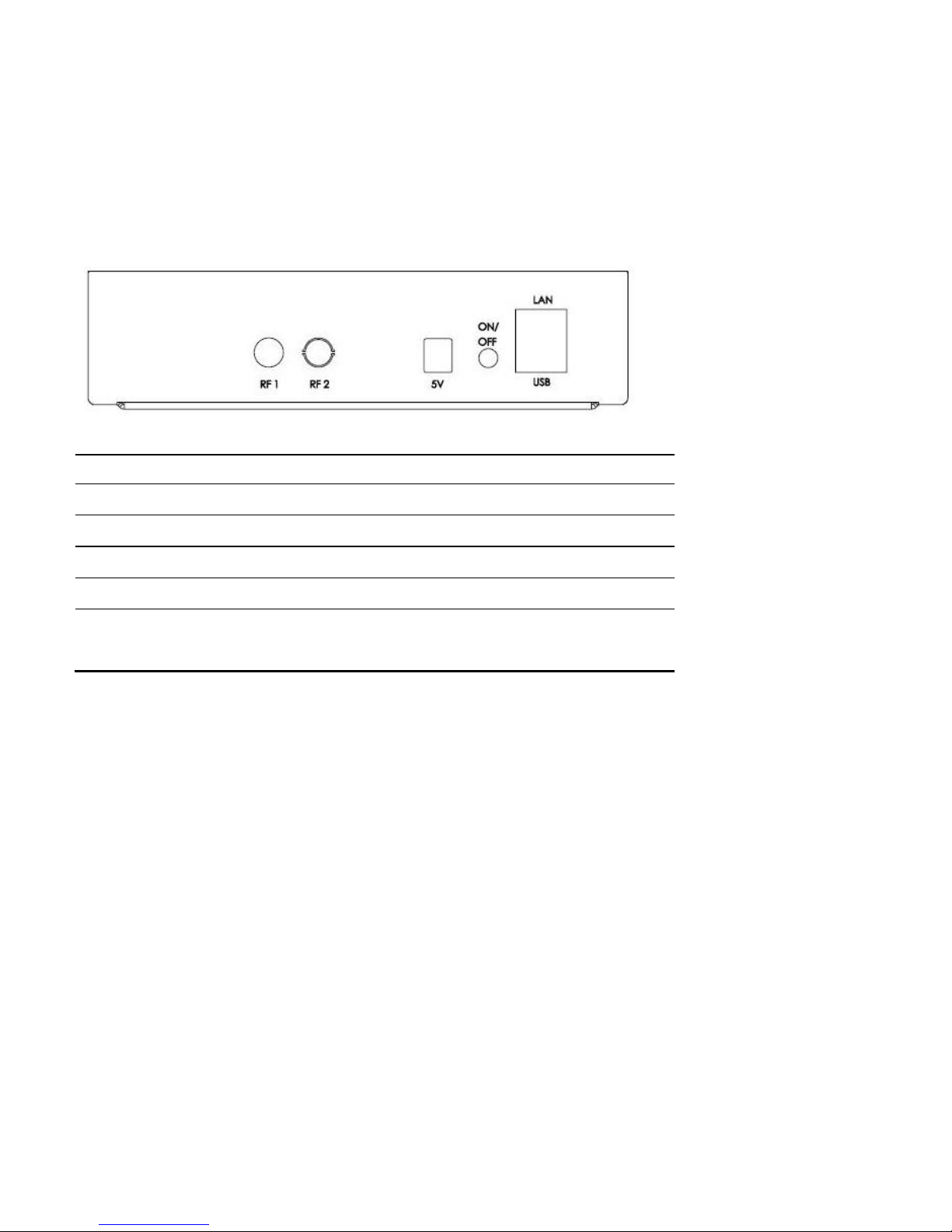

Figure 2: XTi 3330 Dual Tuner (Model Dual Tuner 2S) – Rear Panel
Diagram 1: XT1 3330 Dual Tuner – Two Connectors: One for Each Satellite Tuner
XTi-3332/3332 CI Unicable Rear Panel
Item
Description
1
RF1– Connector for Tuner-1 DVB-S/S2
2
RF2–Connector for Tuner-2 DVB-S/S2
3
5V–power adapter connector
4
ON/OFF– Power button
5
LAN– RJ45 1 GB (Ethernet cable) connector
6
USB – USB Connector
See diagram2 bellow
RF2 Connector
Tuner 2
DVB-S2
RF1 Connector
Tuner 1
DVB-S2
3
4 5 6
1
2
XTi-3340-50/3340-50 CI Rear Panel
XTi-3340-50/3340-50 CI Rear Panel
3.2.1 XTi-3330 Dual Tuner Rear Panel
TheXTi-3330 Dual Tuner 2Smodel includes two active RF connectors: one for each satellite tuners.
Figure 2: XTi 3330 Dual Tuner (Model Dual Tuner 2S) – Rear Panel
Diagram 1: XT1 3330 Dual Tuner – Two Connectors: One for Each Satellite Tuner
3.2.2 XTi-3332/3332 CI Unicable Rear Panel
Item
Description
1
CI –Optional 2 CAM slot * 3332 CI
2
RF1–Connector for tuner-1 DVB-S2 (see diagram 1 below)
3
RF2–Connector for tuner-2 DVB-S2, NOT IN USE
4
5V–Power adapter connector
5
ON/OFF–Power button
6
LAN–RJ45 1 GB (Ethernet cable) connector
7
USB –USB Connector
2 3 4 5 6 7 1
XTi Unicable
RF1 Connector
Tuner 1
DVB-S2
Tuner 2
DVBS
Tuner 3
DVB-S2
Tuner 4
DVB-S2
Unicable
Multiswitch
XTi-3332 Unicable models (4S and 4S CI) have a rear panel with one RF connector for all satellite tuners.
Note that the second RF connector is not in use.

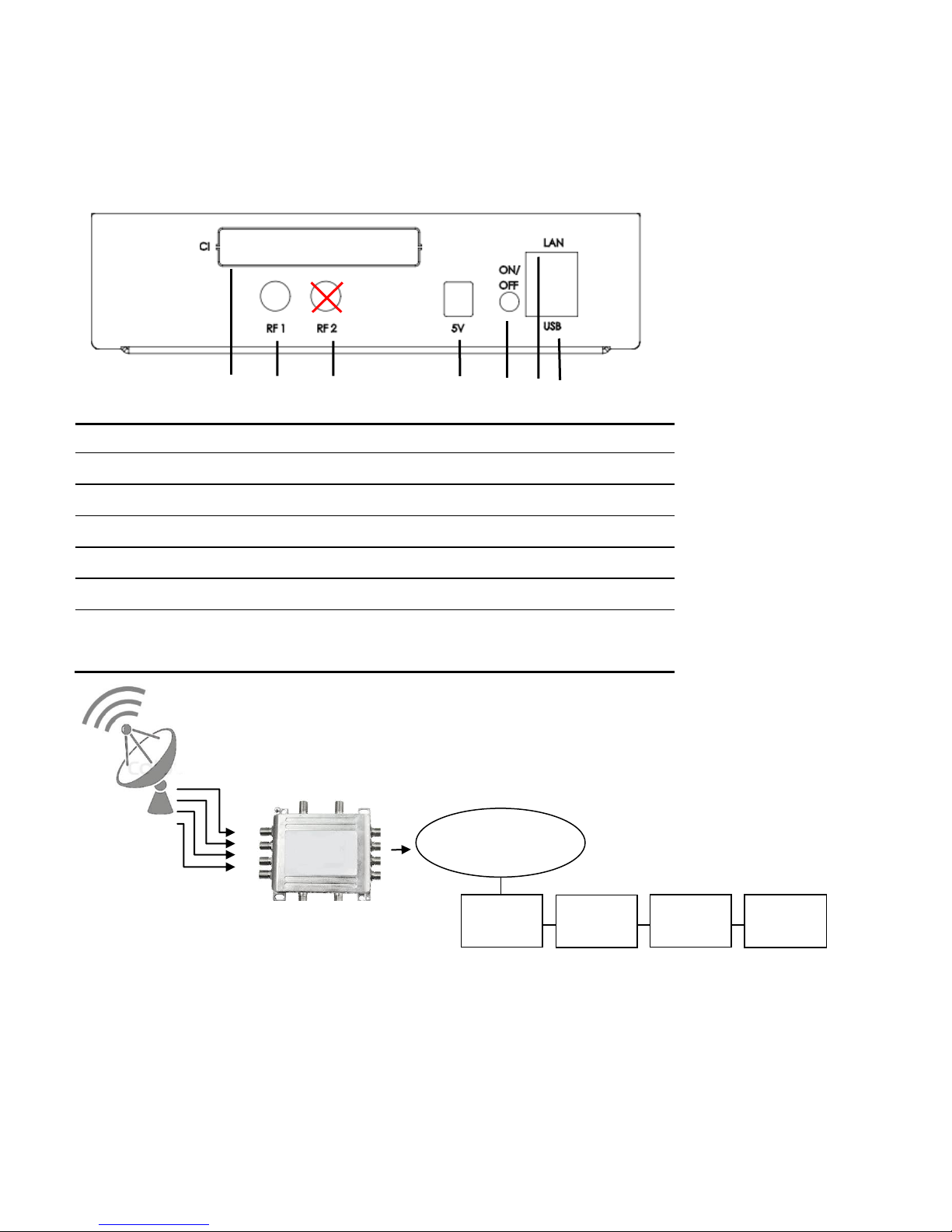

Figure 3: XTi 3332 Unicable (Models Unicable 4S CI & Unicable 4S)–Rear Panel
Diagram 2: XT1 3332 Unicable – Single Connector for Multiple Tuners
3.2.3 XTi-3340-50/3340-50 CI Rear Panel
Item
Description
1
CAM/CI – Optional CI slot for DVB-T/C RF-3 only
2
RF1– Connector for Tuner-1 DVB-S2
3
RF2–Connector for Tuner-2 DVB-S
4
RF 3 – Connector for Tuner-3 DVB-T/C and tuner 4 DVB-T/C
5
5V– DC power adapter connector
6
ON/OFF– Power button
7
LAN– RJ45 1 GB (Ethernet cable) connector
8
USB – USB Connector
8 4 7 2 3 1 5
6
See diagram3 bellow
Tuner 4
DVB-T/C
Tuner 3
DVB-T/C
Tuner 2
DVBS
RF2 Connector
RF1 Connector
Tuner 1
DVB-S2
The XTi-3340 rear panel includes two satellite tuners and two DVB-T or two DVB-C tuners.

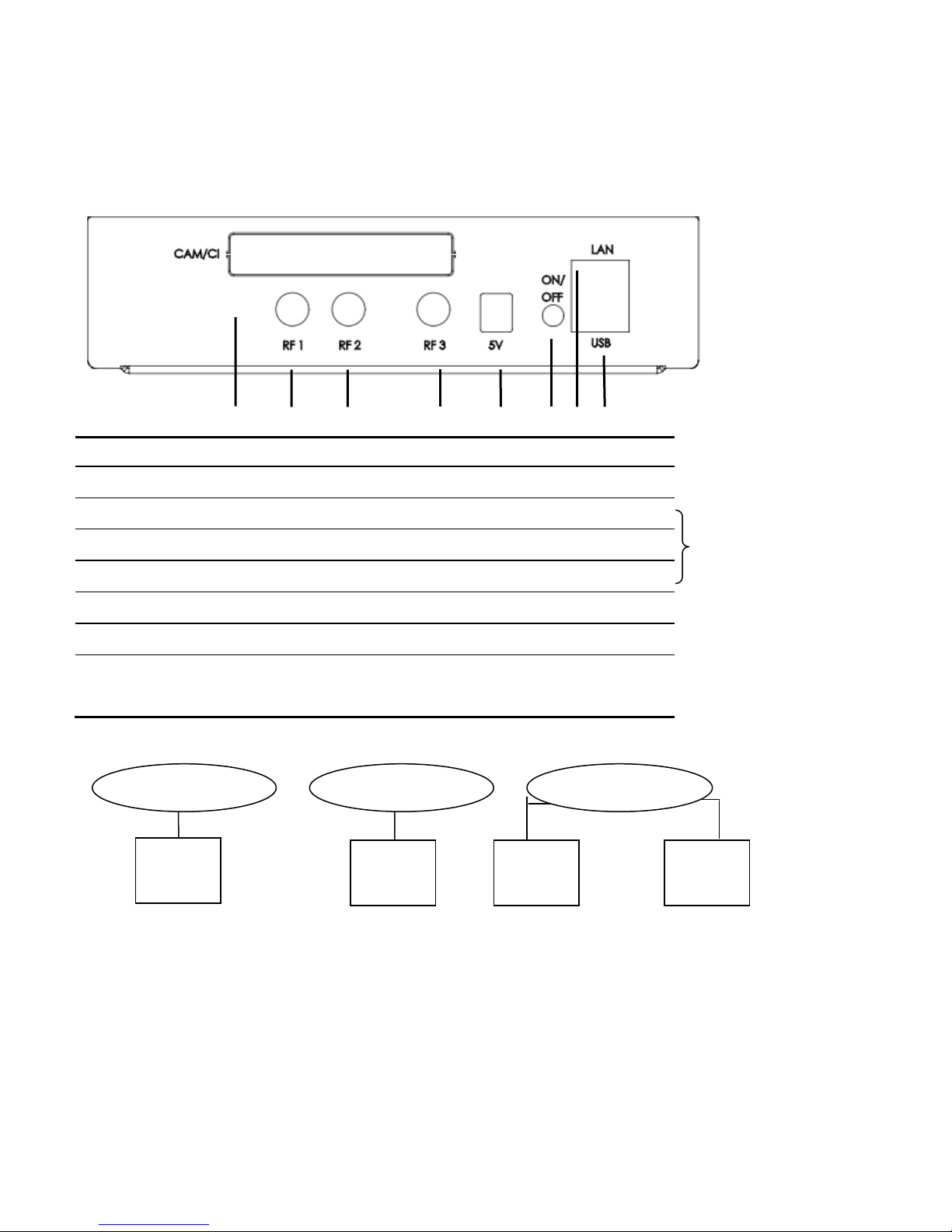

Figure 4: XTi 3340-50 (Models 2S-2T/2C CI & 2S-2T/2C) – Rear Panel
Diagram 3: XT1 3340 Connectors and Tuners
3.2.4 XTi-3342-52 CI Rear Panel
Item
Description
1
RF– Connector for 2* Tuner (DVB-T/C)
(See diagram 3 below)
2
5V–power adapter connector
3
ON/OFF– Power button
4
LAN– RJ45 1 GB (Ethernet cable) connector
5
USB – USB Connector
6
CAM/CI – Optional CI slot for DVB-T/C
Tuner
DVB-T/C
Tuner
DVB-T/C
RF
4
5
1
26 3
XTi-3342-52 Dual Tuner 2T/2C has a rear panel with a single connector (RF3) for either two DVB-T tuners or
two DVB-C tuners (Figure 5). (See How to switch between DVB-T and DVB-C Configuration Paragraph 14.1)

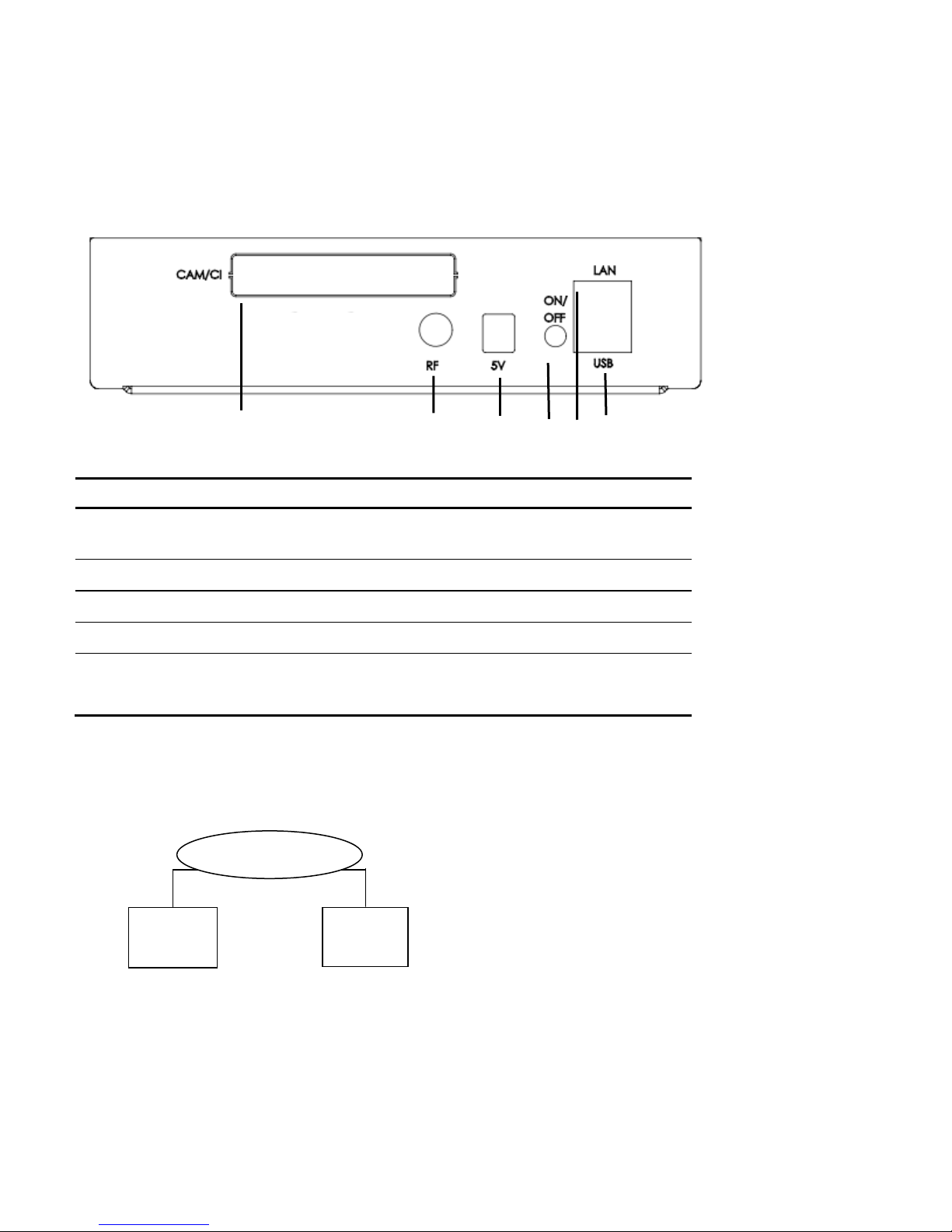

Figure 5: XTi 3342 Dual Tuner (Model 2T/2C) – Rear Panel
Diagram 4: XT1 3342 - Dual Tuner 2T/2C: Single Connector for Two DVB-T or DVB-C Tuners
