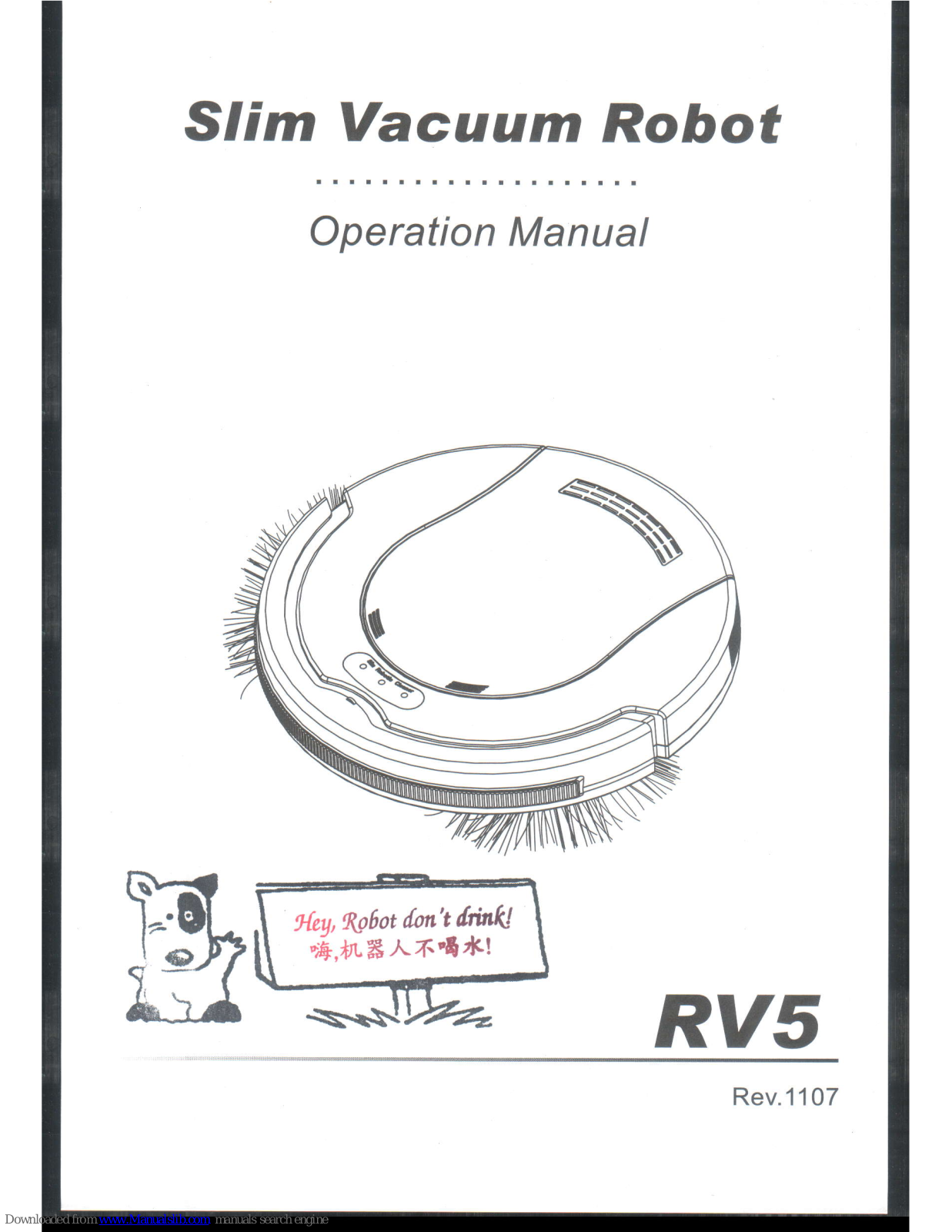

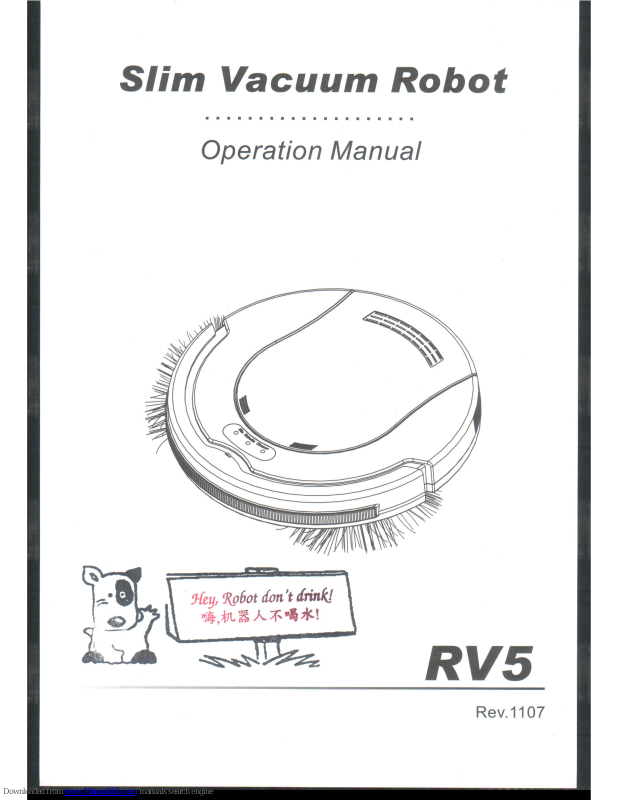

SIim Vacuum
Robot
Operation Manual
RV5
t{ea,
fu6ot
{nfl't
t
*llk!
+6,+tu*z\f.'[tF!
Rev.1107

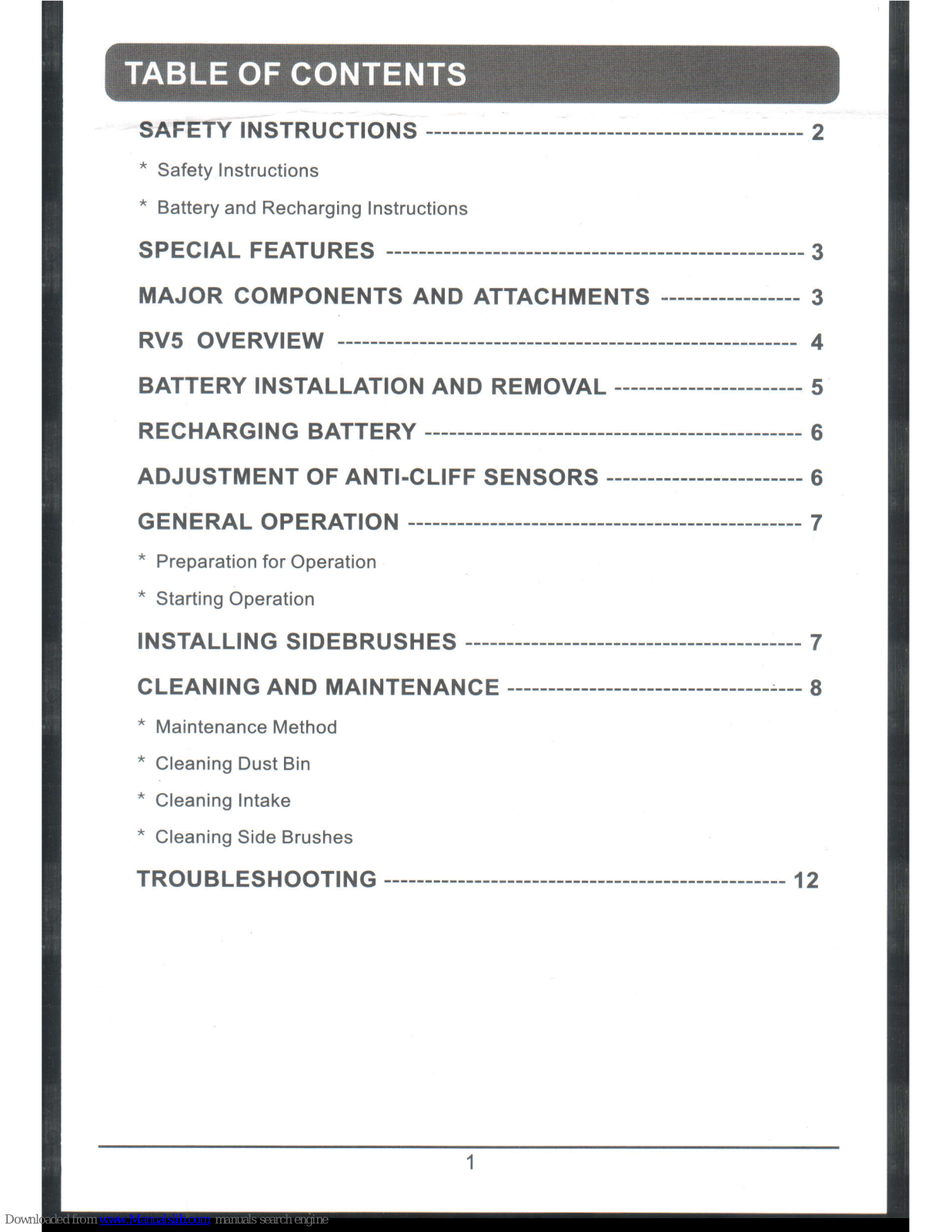

SAFETY
INSTRUCTIONS
-------
2
*
Safety
Instructions
*
Battery
and
Recharging
Instructions
SPECIAL FEATURES
----------
MAJOR
COMPONENTS
AND ATTACHMENTS
RVs
OVERVIEW
BATTERY INSTALLATION
AND REMOVAL
RECHARGTNG
BATTERY
-------
-------------
6
ADJUSTMENT
OF
ANTI.CLIFF
SENSORS
.-...-.-----------------
6
GENERAL OPERATION
-----------
7
*
Preparation
for
Operation
*
Starting Operation
INSTALLING
SIDEBRUSHES
---------------
7
CLEANING AND
MAINTENANCE
----.-;.--
$
*
Maintenance
Method
*
Cleaning Dust Bin
*
Cleaning Intake
*
Cleaning
Side Brushes

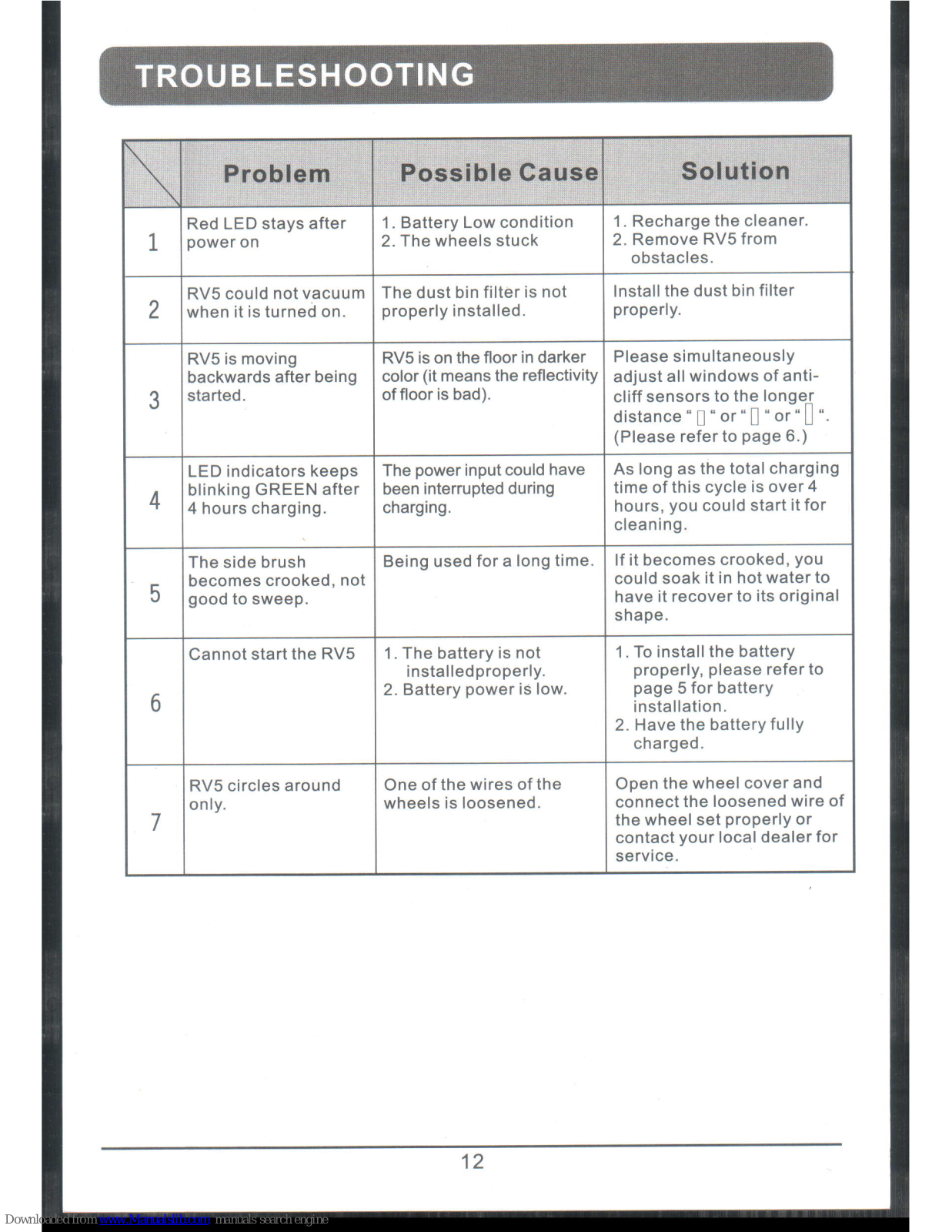

TROUBLESHOOTING
3
3
4
5
12

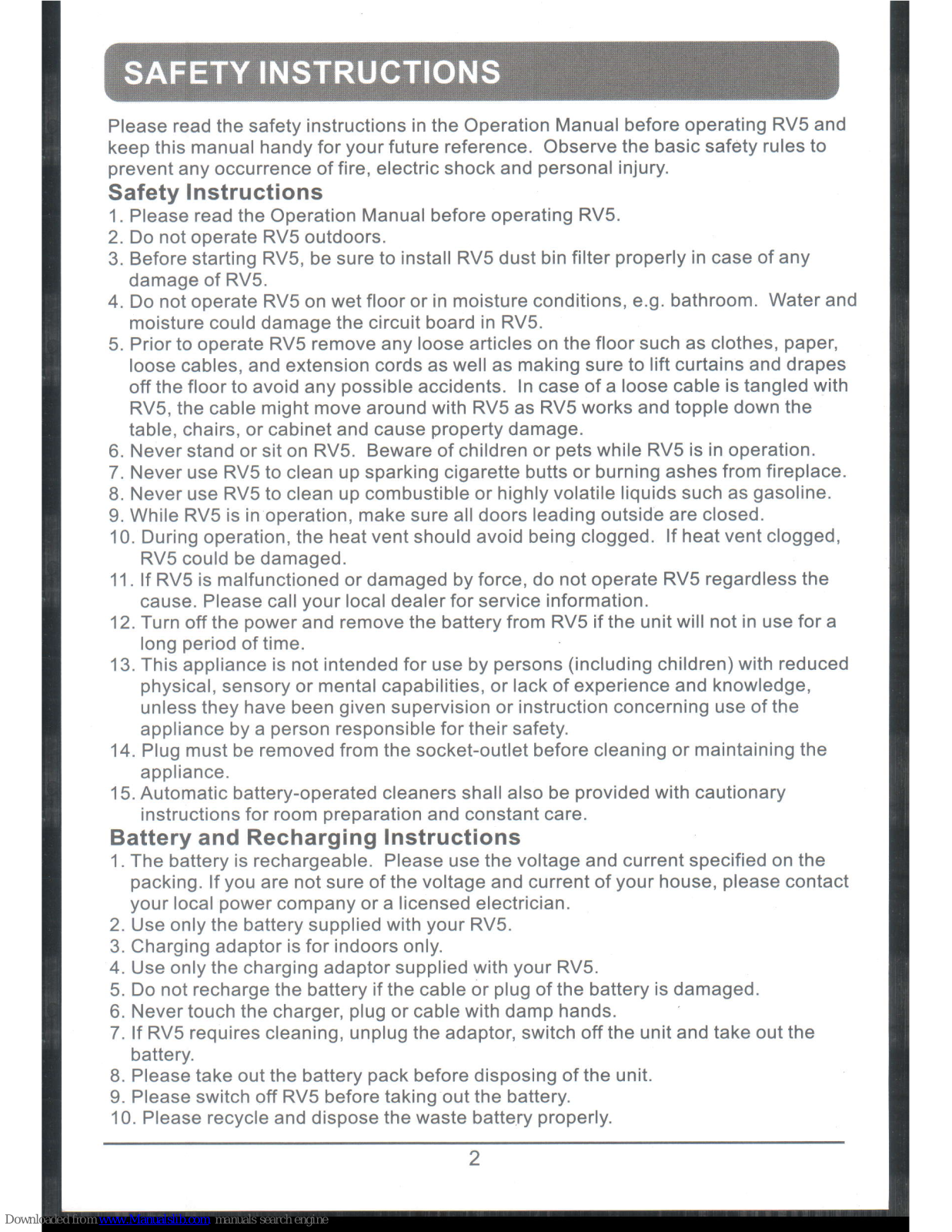

Please
read
the
safety instructions
in the Operation
Manual before operating
RV5 and
keep
this manual handy for
your
future reference. Observe
the basic safety
rules to
prevent
any occurrence of
fire, electric shock and
personal
injury.
Safety
Instructions
1. Please read the Operation
Manual before operating
RVS.
2. Do not operate RVS outdoors.
3. Before starting
RV5, be sure
to install RVS dust bin
filter
properly
in case of any
damage of
RV5.
4. Do not operate
RV5 on wet floor or in moisture
conditions, e.g. bathroom.
Water and
moisture could damage
the circuit board
in RV5.
5. Prior
to operate RVS remove any
loose articles on the floor such
as clothes,
paper,
loose cables, and extension
cords as well as
making sure to lift curtains
and drapes
off the
floor to
avoid
any
possible
accidents.
In
case
of a loose cable
is tangled
with
RV5, the cable
might move around with RV5 as
RV5 works and
topple
down
the
table, chairs,
or cabinet and cause
property
damage.
6. Never stand
or sit on RVS. Beware of children or
pets
while
RV5 is in
operation.
7. Never use RV5 to clean up
sparking cigarette butts or burning
ashes from
fireplace.
8.
Never use RV5 to clean up combustible
or highly
volatile liquids such as
gasoline.
9. While
RV5 is in operation, make sure all doors
leading outside are closed.
10. During operation, the heat
vent
should
avoid being clogged.
lf heat vent clogged,
RV5
could
be damaged.
11
. lf RVs is malfunctioned or damaged by
force, do not operate
RVS regardless the
cause.
Please call
your
local dealer
for
service
information.
12.furn off the
power
and
remove the battery from RV5
if the
unit
will not in use
for
a
long
period
of time.
13. This appliance is not intended
for
use by
persons
(including
children)
with reduced
physical,
sensory or mental capabilities, or
lack of experience and
knowledge,
unless
they have been
given
supervision or
instruction concerning use of
the
appliance by a
person
responsible for their safety.
14. Plug must be removed
from
the socket-outlet
before cleaning or
maintaining the
appliance.
15. Automatic battery-operated
cleaners shall also be
provided
with cautionary
instructions
for room
preparation
and constant care.
Battery and
Rechargi ng Instructions
1. The battery is rechargeable.
Please
use
the voltage and current specified on
the
packing.
lf
you
are not sure of the
voltage
and current
of
your
house,
please
contact
your
local
power
company or a
licensed
electrician.
2. Use only the battery supplied
with
your
RV5.
3. Charging
adaptor is for indoors only.
4. Use only the charging adaptor supplied
with
your
RV5.
5. Do
not recharge
the battery
if the cable or
plug
of the battery
is
damaged.
6. Never touch
the
charger,
plug
or cable with damp hands
7. lf RVs
requires
cleaning, unplug
the
adaptor,
switch off the unit and
take
out
the
battery.
8. Please take out
the
battery
pack
before disposing of the unit.
9. Please switch off RV5 before taking out the battery.
'1
0. Please
recycle
and dispose
the waste battery
properly.

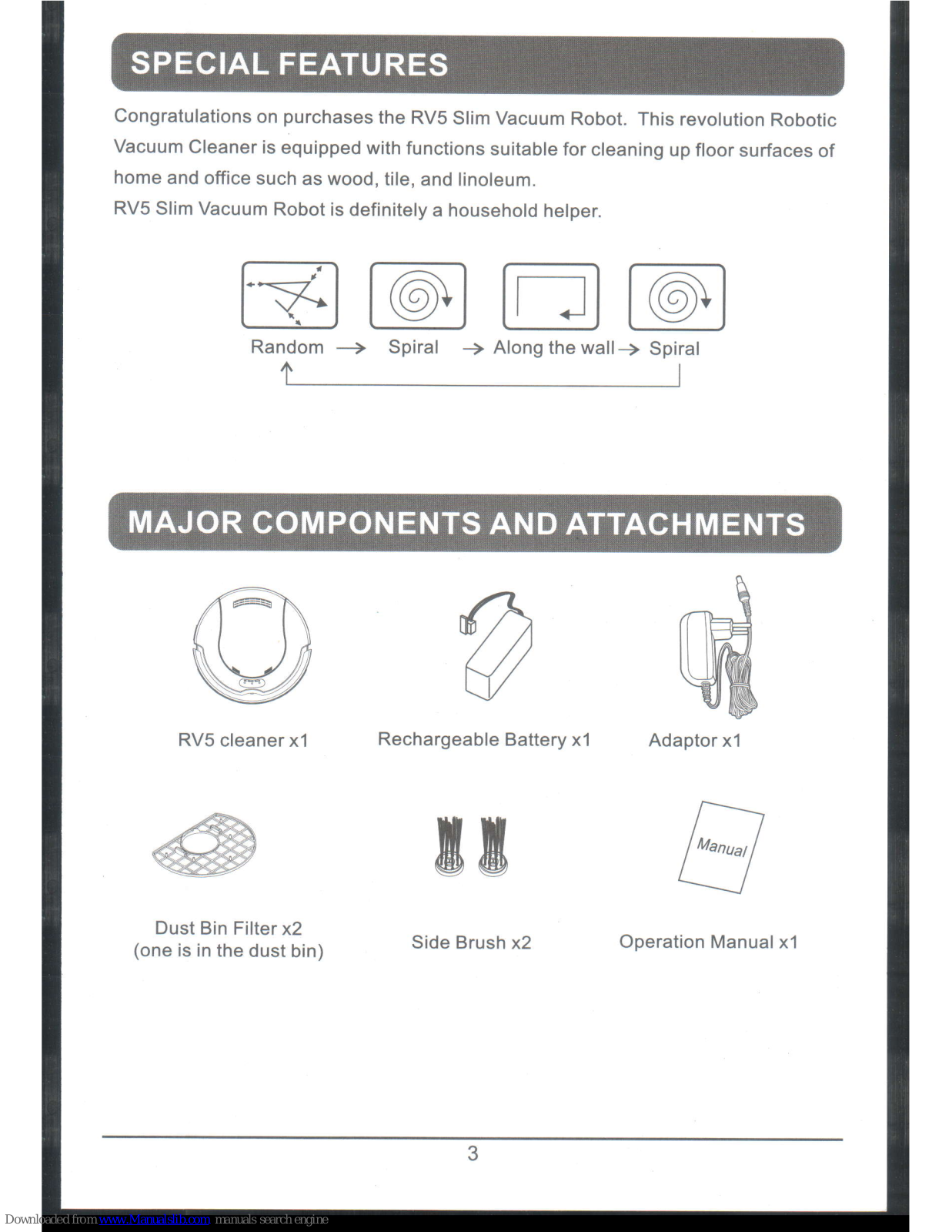

Congratulations
on
purchases
the
RV5
Slim Vacuum
Robot. This
revolution
Robotic
Vacuum
Cleaner is
equipped
with functions
suitable for
cleaning
up floor
surfaces
of
home
and office
such
as wood, tile,
and linoleum.
RVS Slim
Vacuum
Robot is
definitely
a household
helper.
Random
-->
t
B@m@
Spiral
)
Alongthewall->
Spiral
I
th
r#
VW
Rechargeable
Battery xl
Adaptor
x1
UU
Side
Brush x2
Operation Manual
x1
RVS
cleaner x1
Dust Bin Filter
x2
(one
is in
the dust
bin)

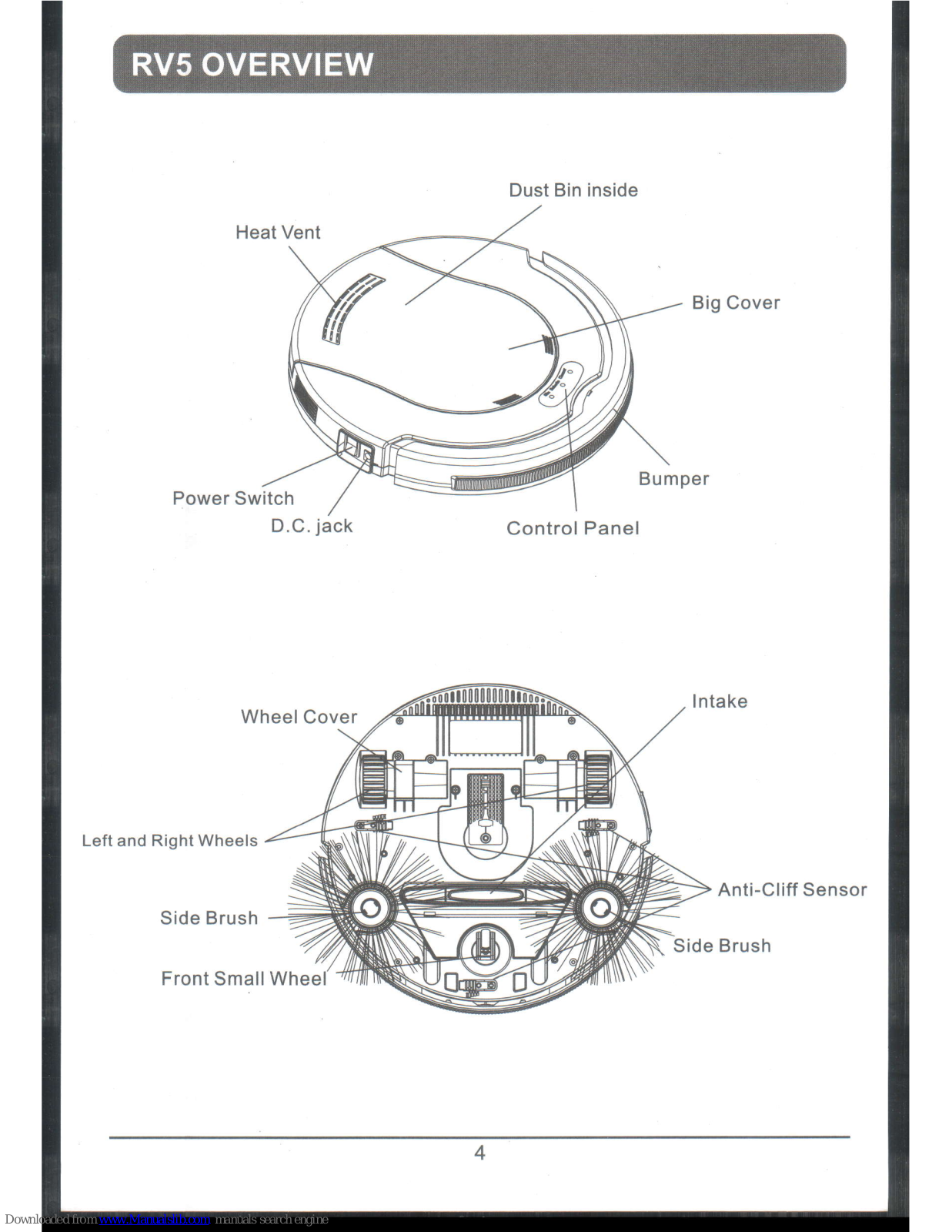

Heat Vent
Power
Switch
Left
and
Right Wheels
Side Brush
Front
Small
D.C.
jack
Control Panel
Big
Cover
lntake
Wheel Cover

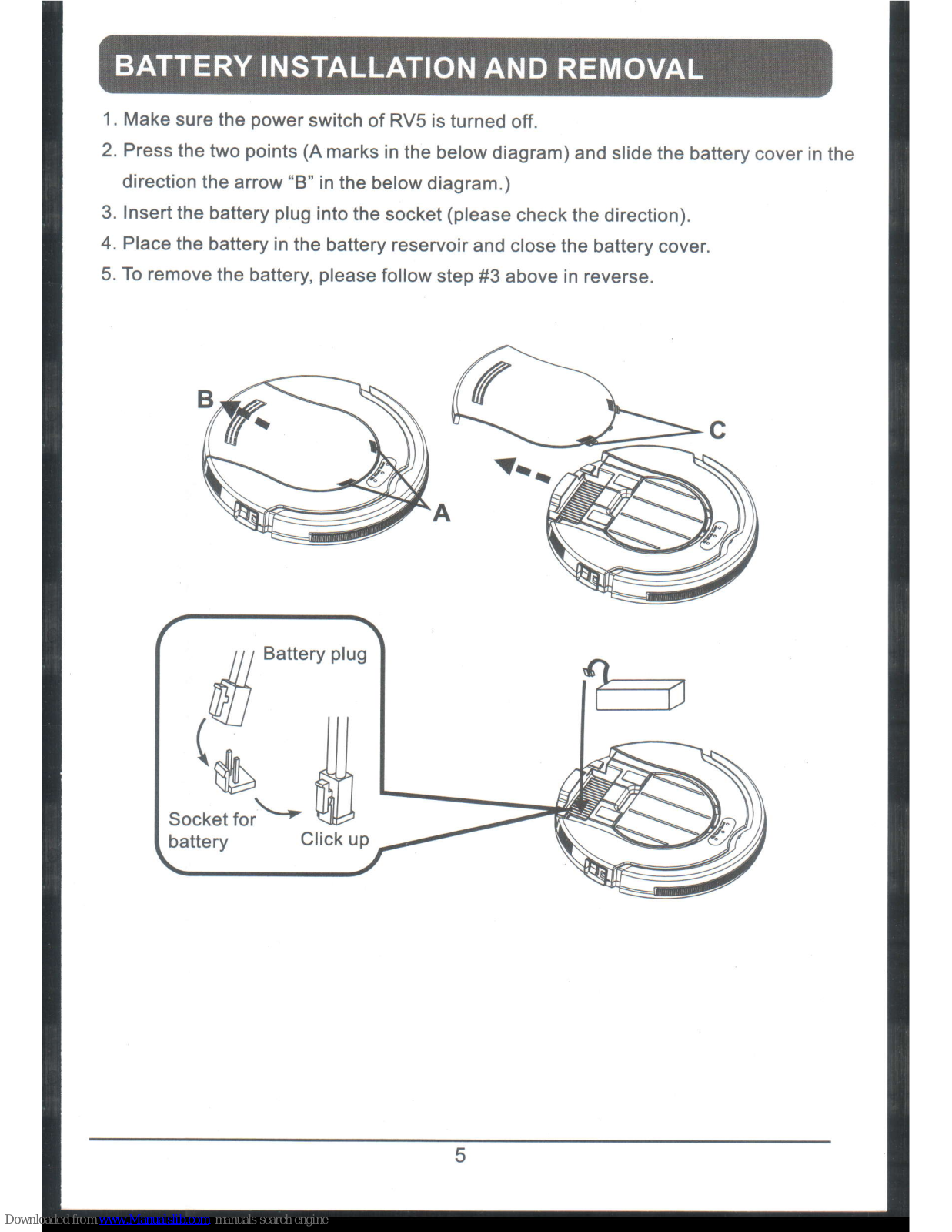

1. Make
sure
the
power
switch
of RV5 is
turned
off.
2. Press
the two
points
(A
marks in
the
below diagram)
and slide
the battery
cover in the
direction
the arrow
"B'
in
the below
diagram.)
3. Insert the
battery
plug
into
the socket
(please
check the direction).
4.
Place
the battery
in the
battery reservoir
and
close the battery
cover.
5.
To
remove
the battery,
please
follow
step #3 above in reverse.
11 1
Batterv
otus
ffi1
/v lll
'M#
Socket"F
UU
battery
Click uP

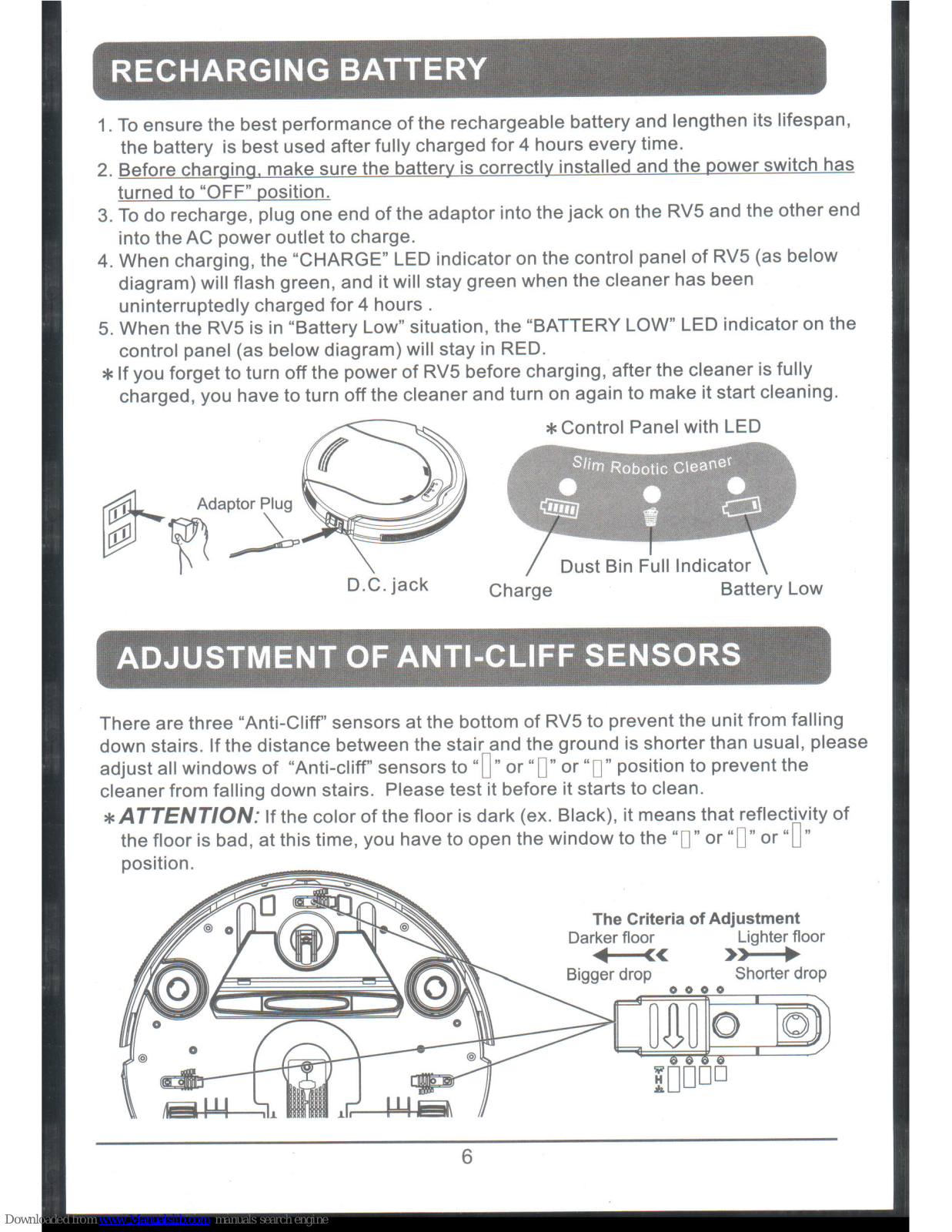

1. To ensure
the
best
performance
of the
rechargeable
battery
and
lengthen
its
lifespan,
the
battery
is best used
after
fully charged
for
4 hours
every
time.
2. Before charging.
make sure
the batterv
is correctly
installed
and the oower
switch
has
turned
to
"OFF"
position.
3.
To do recharge,
plug
one
end
of the adaptor
into the
jack
on the
RVS
and the
other
end
into the AC
power
outlet
to charge.
4. When charging,
the
"CHARGE"
LED
indicator
on the
control
panel
of
RV5
(as
below
diagram)
will flash
green,
and
it will stay
green
when
the cleaner
has
been
uninterruptedly
charged
for
4 hours
.
5.
When the
RVS is
in
"Battery
Low" situation,
the
"BATTERY
LOW"
LED indicator
on
the
control
panel
(as
below
diagram)
will stay
in RED.
* lf
you
forget to turn
off the
power
of
RV5 before
charging,
after
the
cleaner
is fully
charged,
you
have to turn
off the cleaner
and
turn on
again
to make
it start
cleaning.
Charge
Battery
Low
* ATTENTION;
tt the color
of
the floor is dark
(ex.
Black), it
means that
reflectivity
of
the
floor is bad, at
this time,
you
have to open
the
window
to the
"l"
or
"["
or
"ll
"
position.
The Griteria
of
Adjustment
There are
three
"Anti-Cliff"
sensors
at the bottom
of
RVS to
prevent
the unit
from falling
down
stairs.
lf the distance
between
the stailand
the
ground
is
shorter
than
usual,
please
adjust
allwindows
of
"Anti-cliff'
sensors
to
"ll"
or
"l"
or
"!" position
to
prevent
the
cleaner
from falling
down stairs.
Please test
it before
it starts
to clean.
Darker
floor
H<
Bigger drop
Lighter
floor
>H
Shorter
drop
x Control
Panel
with LED
Dust
Bin Full
lndicator
D.C.
jack

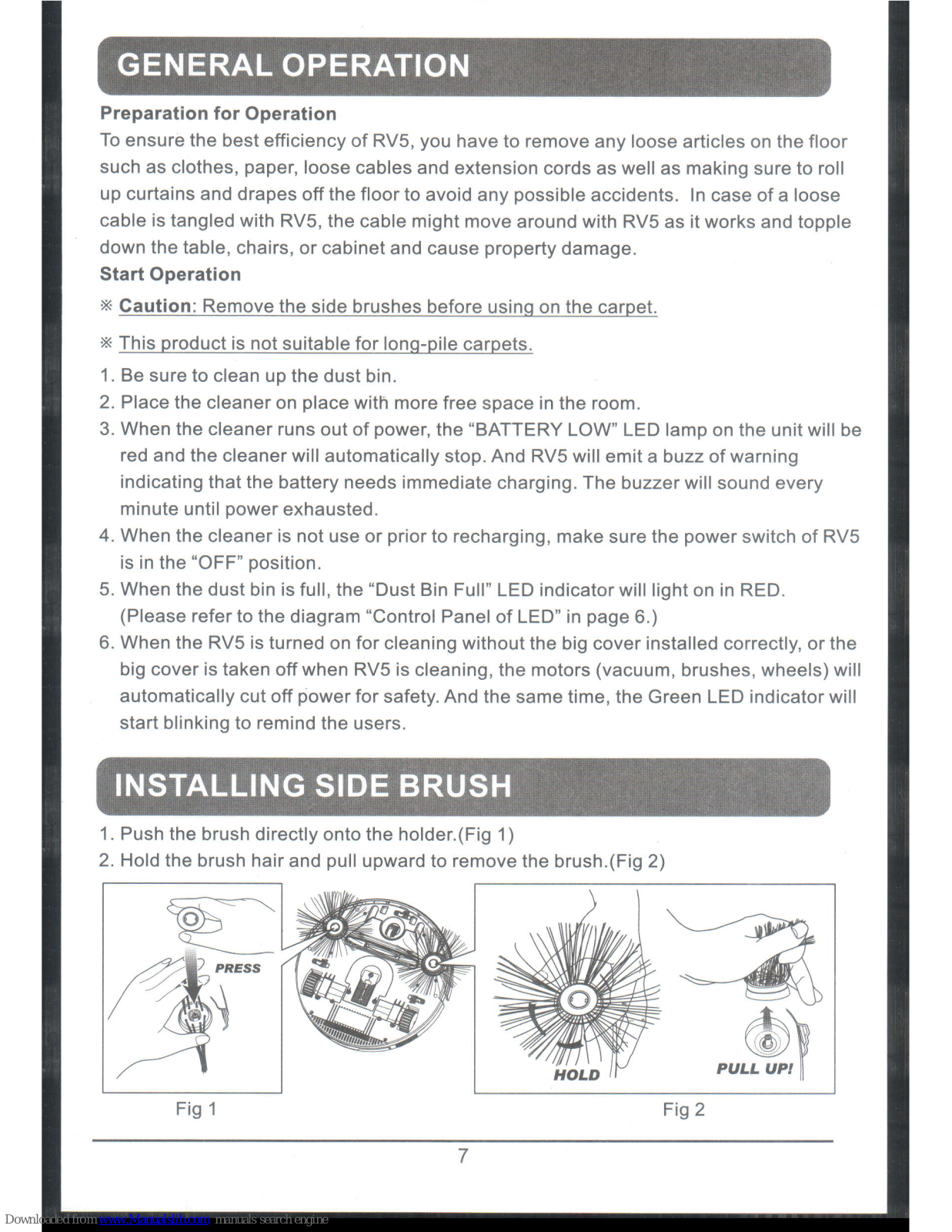

Preparation
for
Operation
To
ensure the best
efficiency of RVS,
you
have to remove any loose
articles on the
floor
such as clothes,
paper,
loose cables and
extension cords as well
as
making
sure to
roll
up
curtains and drapes
off the floor to
avoid any
possible
accidents. In
case of a
loose
cable is
tangled with RV5,
the cable might move
around with RVS
as
it works
and
topple
down the table, chairs,
or cabinet and
cause
property
damage.
Start Operation
x
Gaution: Remove
the side brushes
before usinq on the carpet.
x
This
product
is not
suitable for lonq-pile
carpets.
1. Be
sure to clean up
the dust bin.
2. Place
the cleaner
on
place
with more free
space
in
the room.
3. When the
cleaner runs out of
power,
the
"BATTERY
LOW" LED lamp on the
unit
will
be
red
and the cleaner will
automatically stop. And RV5 will
emit a buzz of
warning
indicating that the
battery needs immediate
charging. The buzzer will sound every
minute
until
oower
exhausted.
4. When the
cleaner is not use
or
prior
to
recharging,
make sure the
power
switch
of
RVS
is in the
"OFF"
position.
5. When the
dust bin is full, the
"Dust
Bin Full"
LED indicator will light on in RED.
(Please
refer to
the diagram
"Control
Panel
of LED"
in
page
6.)
6.
When
the RVS is turned
on
for
cleaning without the big cover installed
correctly, or
the
big cover is taken
off when RV5 is cleaning,
the
motors
(vacuum,
brushes, wheels) will
automatically
cut off
power
for safety. And
the same time, the Green LED indicator will
start blinking
to
remind
the users.
1. Push the brush directly
onto the holder.(Fig 1)
2. Hold the
brush
hair
and
pull
upward to remove
the brush.(Fig 2)
\---@q
:-M\
Vl1 N
6\
euu-uetI
Fig2

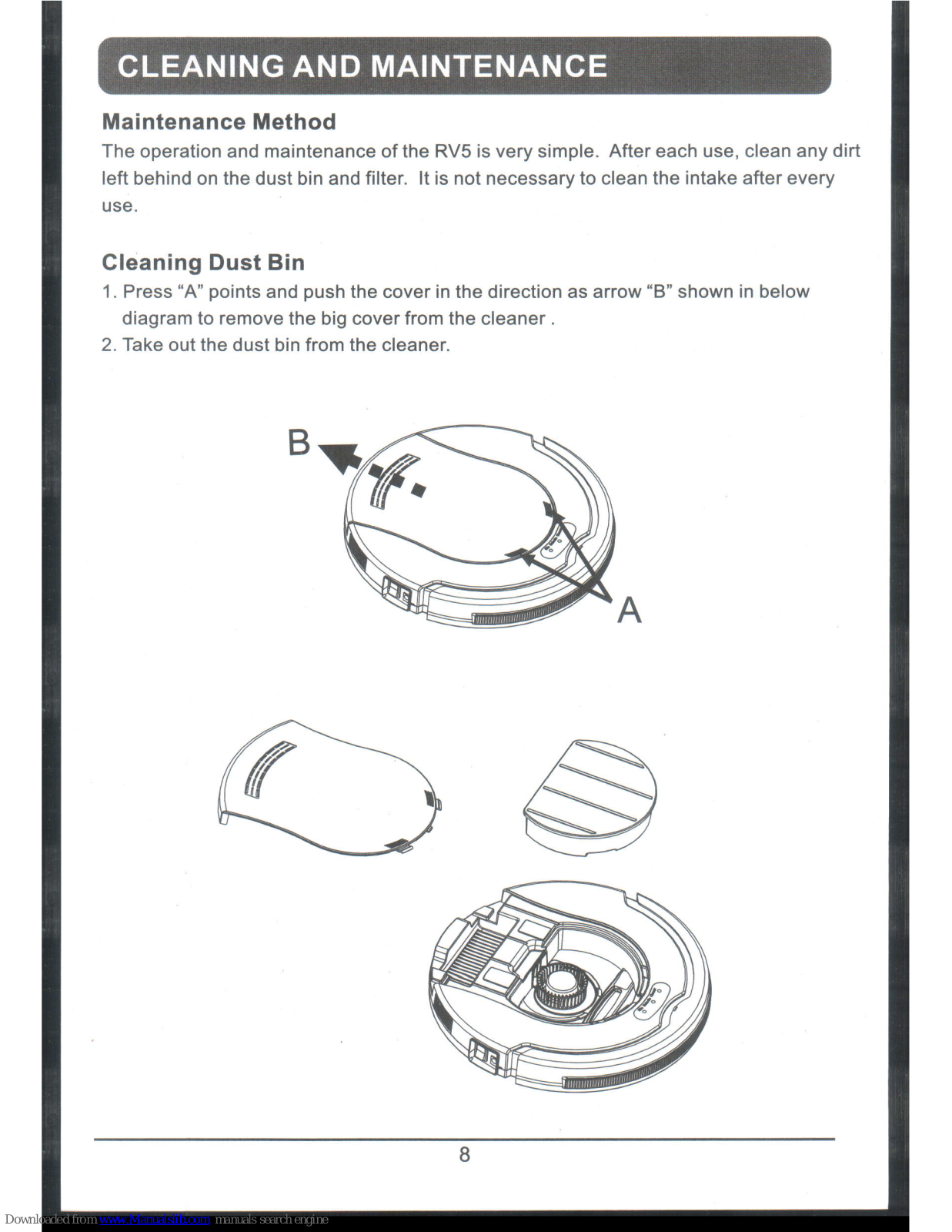

Maintenance Method
The
operation and
maintenance of the RV5 is very simple. After each use, clean any
dirt
left behind on the dust bin and filter. lt is not necessary to clean the
intake
after
every
use.
Gleaning Dust Bin
1. Press
"A"
points
and
push
the cover in the direction as arrow
"B"
shown in below
diagram to remove the big cover from the cleaner .
2. Take out the dust
bin
from the cleaner.

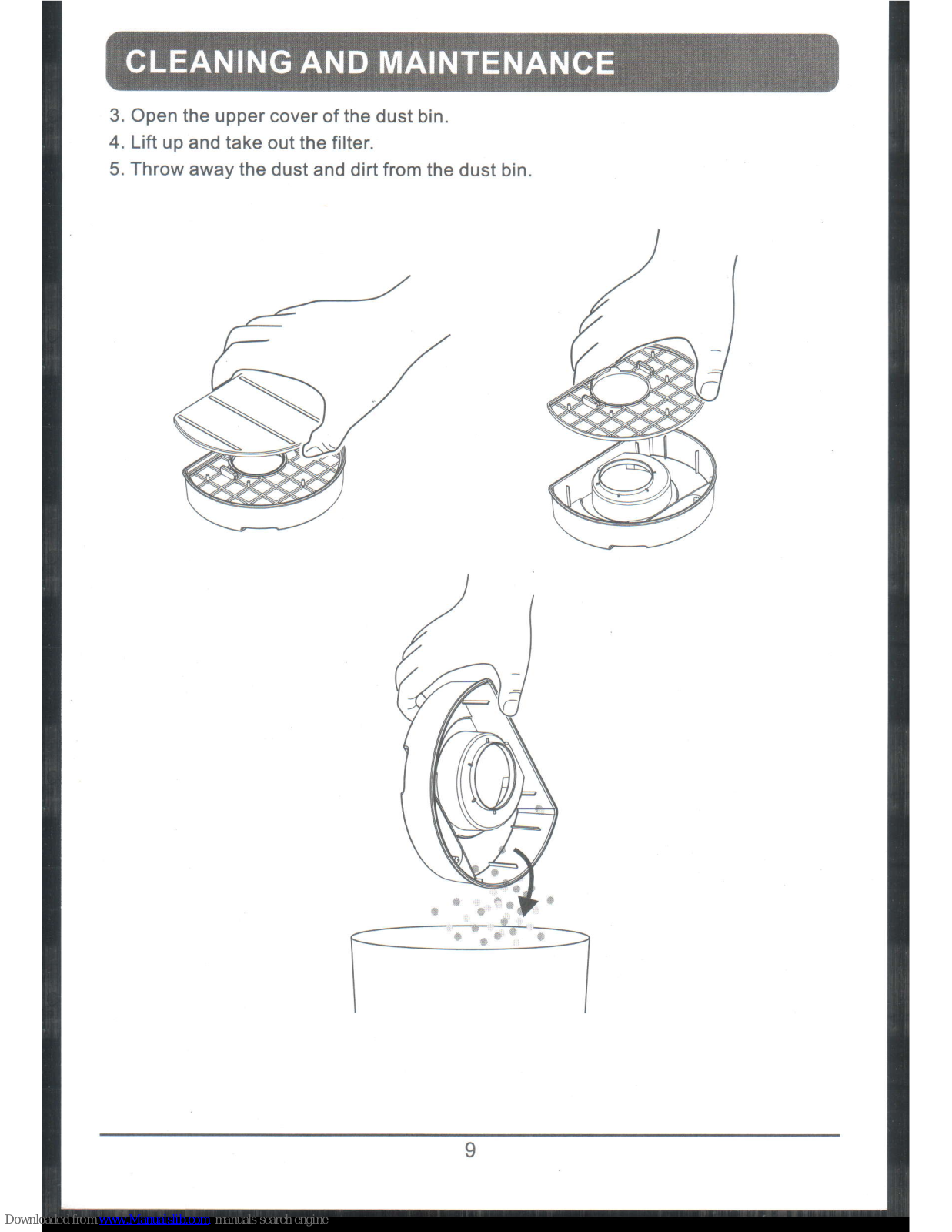

3.
Open the upper
cover of the dust bin.
4. Lift
up and take out
the
filter.
5. Throw
away
the
dust and dirt from
the dust
bin

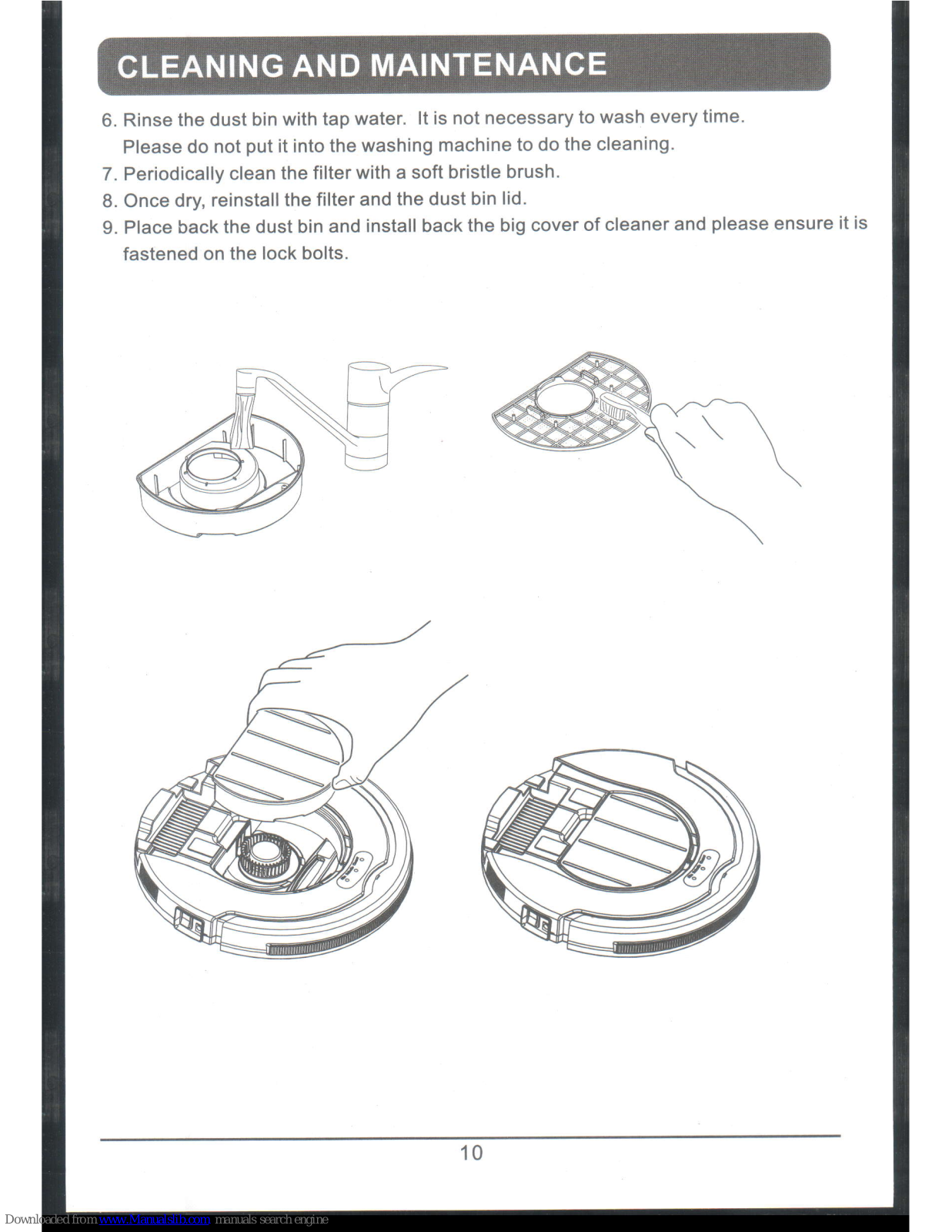

6. Rinse
the dust
bin with
tap water.
lt is
not necessary
to
wash every
time.
Please do
not
put
it into the
washing
machine
to do
the cleaning.
7. Periodically
clean the
filter
with a soft
bristle brush.
8. Once
dry,
reinstall
the filter and
the dust
bin
lid.
9. Place
back the
dust bin and
install
back the
big cover
of cleaner
and
please
ensure
it is
fastened on
the lock bolts.

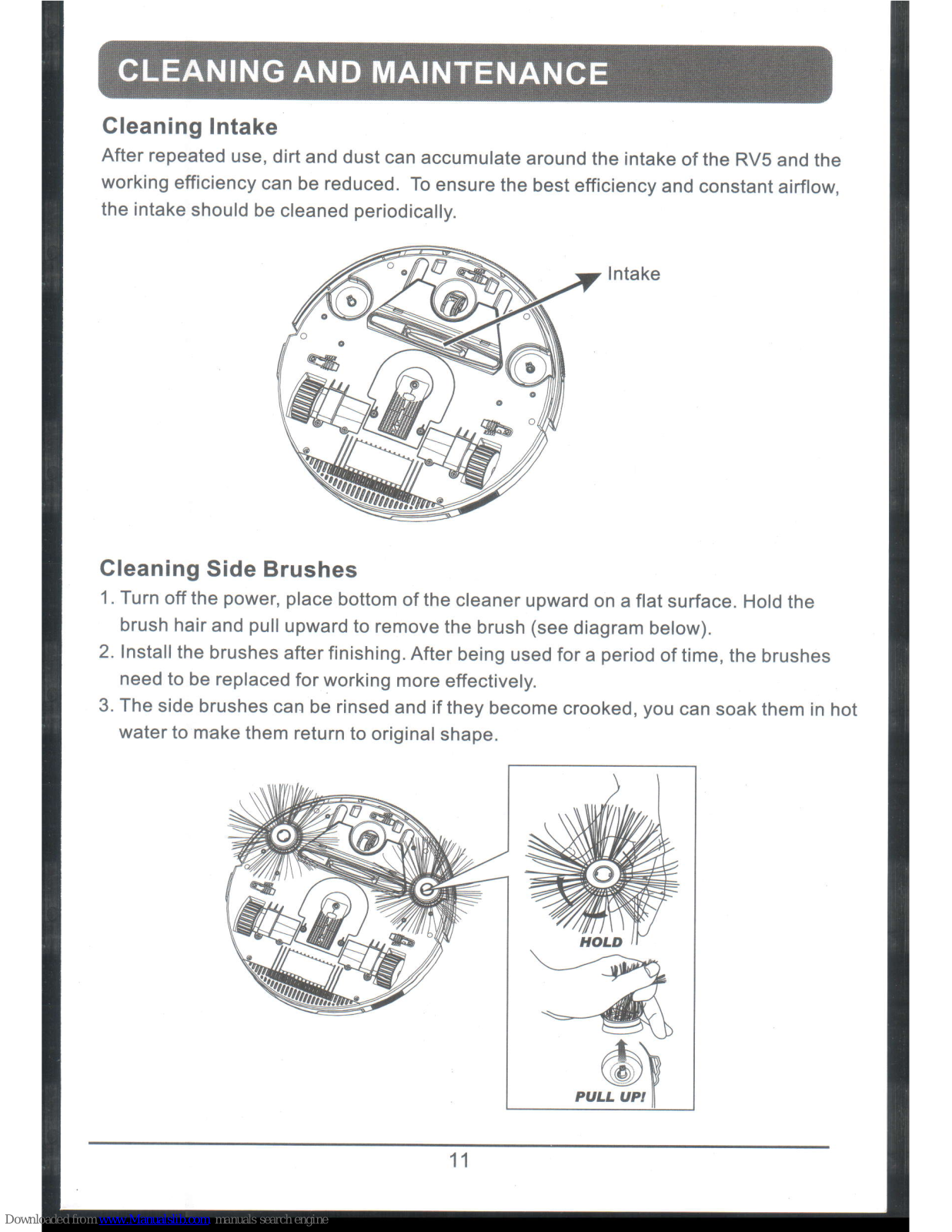

Gleaning
Intake
After repeated
use,
dirt
and dust
can accumulate
around the intake
of the RV5
and the
working
efficiency
can
be
reduced.
To
ensure the
best
efficiency
and constant
airflow,
the intake
should
be
cleaned
periodically.
Intake
Gleaning
Side
Brushes
1 .
Turn off
the
power,
place
bottom of
the cleaner
upward
on a flat
surface. Hold
the
brush
hair and
pull
upward
to remove
the brush
(see
diagram
below).
2. lnstall
the
brushes
after finishing.
After
being used for
a
period
of time, the
brushes
need
to be replaced
for working
more
effectively.
3. The
side
brushes
can be rinsed
and if
they
become crooked,
you
can
soak them in
hot
water
to make
them return
to
original
shape.
1
Red LED
stays after
power
on
1. Battery
Low condition
2.
The wheels stuck
1. Recharge
the cleaner.
2"
Remove RV5
from
obstacles.
2
RVs could
not vacuum
when
it is turned on.
The dust
bin filter
is not
properly
installed.
lnstall
the dust bin
filter
propeny.
3
RV5 is moving
backwards
after being
started.
RVS is on the
floor in darker
color
(it
means the
reflectivity
of
floor is bad).
Please simultaneously
adjust
all windows
of anti-
cliff sensors
to the
longel
distance
" I "
or"
l
"
ot"
Ll
".
(Please
refer to
page
6.)
4
LED
indicators keeps
blinking
GREEN after
4 hours charging.
The
power
input could
have
been
interrupted during
charging.
As long
as the total
charging
time of this
cycle
is over
4
hours,
you
could
start
it for
cleaning.
5
The side brush
becomes
crooked,
not
good
to sweep.
Being used
for a long
time.
lf it becomes
crooked,
you
could soak
it in hot
water to
have
it recover to
its original
snape.
6
Cannot start
the RVs
1.The battery
is not
installed
properly.
Battery
power
is low.
2.
1. To installthe
battery
properly,
please
refer to
page
5 for battery
installation.
2. Hav e the battery
fully
charged.
7
RV5 circles
around
onry.
One of
the wires of
the
wheels
is loosened.
Open
the
wheel cover
and
connect the
loosened
wire of
the
wheel set
properly
or
contact
your
local dealer
for
service.

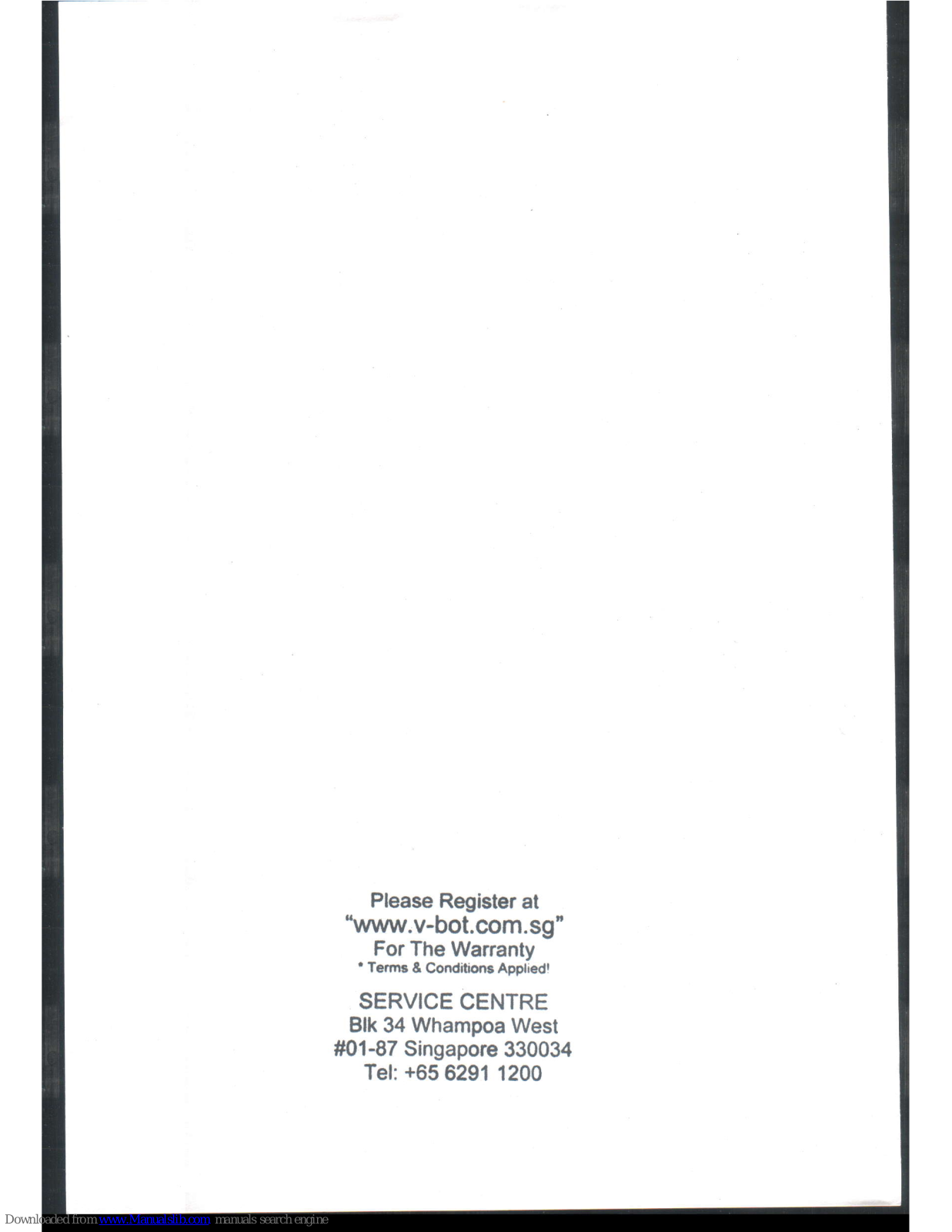

Please
Register
at
\anntw.v-bot.com.sg"
For
The
Warranty
'Termr
&
Conditiom Appti€d!
SERVICE
CENTRE
Blk
34 Whampoa
West
#01-87 Singapore
330034
Tel:
+656291
1200
Loading...
