Page 1
vbk technology
uniquom Manual - uniquom EN 2.04 2017-07
Page 2
Warning
This manual is part of the product.
Please read carefully before the installation or the
application of the product.
Note all safety warning, caution marks incl. all
warning labels placed at the equipment.
Make sure that the warning labels are kept in good
condition and replace missing or damaged labels.
For further Information:
vbk technology GmbH
Verlängerte Goethestraße 9
08209 Auerbach
Tel.: +49 (0)3744 / 22 47 914
Fax: +49 (0)3744 / 22 35 595
[email protected]
www.vbk-technology.de
Page 3
Definitions and Meanings
For all different safety instructions special symbols are used in this manual.
Follow all hints and warnings to avoid any injury or material damage. The user of the
device is fully responsible.
WARNING!
„Warning“ indicates that death, severe personal injury
or extensive property damage can result if proper
precautions are not taken.
DANGER!
„Danger“ indicates an immediate risk of electric shock
which will result in death, injury or serious damage if
the applicable safety regulations are not followed
!
HINT!
The symbol refers to a possible hazardous situation
that could cause material or environmental damage.
Recommendation and Useful information for an
efficient and
Failure-free operation
Qualified personal only
Only qualified person(s) must operate with the present device. This qualified personal
must be familiar to these types of products and associated with danger and risks,
authorized to install, mount, commission and use these types of product.
Intended Use
Use this device only in the manner intended by the manufacturer, according to the manual
and only in combination with the described products only.
Safety Instructions
All Warnings, Cautions and Hints shown in this document are provided for your safety and
as a means of preventing damage to the product. This section lists Warnings, Cautions
and Hints, which apply generally when handling the uniquom, classified as General,
Transport & Storage, Commissioning, Operation and Repair.
Specific Warnings, Cautions and Hints that apply to certain specific chapters are listed at
the beginning of the relevant chapters. Please read the information carefully, since it is
Page 4
provided for your own personal safety and it will also help prolong the service life of your
product.
Warning
This equipment controls potentially dangerous rotating mechanical
parts. Noncompliance with Warnings or a miss to follow the
instructions contained in this manual can result in loss of life,
severe personal injury or serious damage to property.
Only suitable qualified personal should work on this equipment,
and only after becoming familiar with all safety notices, installation,
operation and maintenance procedures contained in this manual.
The successful and safe operation of this equipment is dependent
upon its proper handling, installation, operation and maintenance.
Children and the general public must be prevented from accessing
or approaching the equipment!
Information
Keep these operating instructions within easy reach of the
equipment and make them available to all users. Whenever
measuring or testing has to be performed on live equipment
suitable electronic tools should be used. Before installing and
commissioning, please read these safety instructions and
warnings carefully and all the warning labels attached to the
equipment.
Transport and Storage
Warning
Correct transportation and storage, erection and mounting, as well
as careful operation and maintenance are essential for proper and
safe operation of the equipment. Protect the device against
physical shocks and vibration during transport and storage. Also
be sure to protect it against water (rainfall) and excessive
temperatures.
Operation
Warnung
Use for intended purpose only. The manual of the controlled fan
regardless whether type of fan it is, is unconstrained by
advices in this manual, especially in questions of safety.
Some parameter and settings lead to automatic restart of
controlled fan after switch-on.
Service & Repair
Page 5
Warning
Repairs and Service on the device may only be carried out or
advised by vbk technology.
Warning
Li-Ion chargeable battery inside. The battery may explode when
mistreated. Do not overload, shortcut, disassemble or dispose of
in fire!
Page 6
Table of content
1 Overwiew ................................................................................................................................. 7
2 General Description ................................................................................................................. 7
3 Operation ................................................................................................................................. 7
3.1 Operating conditions ......................................................................................................... 7
3.2 General Properties of the Device ...................................................................................... 8
3.3 Inputs and Outputs ........................................................................................................... 9
3.4 Interface – General Information ........................................................................................ 9
4 Menu Structure ...................................................................................................................... 10
4.1 Software ......................................................................................................................... 10
4.2 Menustructure - Basisvariation ....................................................................................... 10
5 Technical Data ....................................................................................................................... 11
6 Additionnel Hints .................................................................................................................... 12
6.1 Manufacturing ................................................................................................................. 12
6.2 Packing and Shipping ..................................................................................................... 12
6.3 Service ........................................................................................................................... 13
7 Notices ................................................................................................................................... 14
Page 7
1 Overwiew
All devices of brand uniquom are battery-operated, electric handhelds to control special
devices with RR 485-based interfaces (i.e. EC-Drives from different brands).
2 General Description
A clear and simple menu guide has been realised bilingual (English/German). The amber
lighted full graphic display is designed for comfortable use at all lighting conditions. The
Mini-USB-link can be used for Battery charge as well as a data interface. A 5V-Power
supply with a wide selection of variable, removable adapters that fit numerous different AC
outlet sockets. The flexible design offers possibilities for a customized OEM-solution in
front design and software.
3 Operation

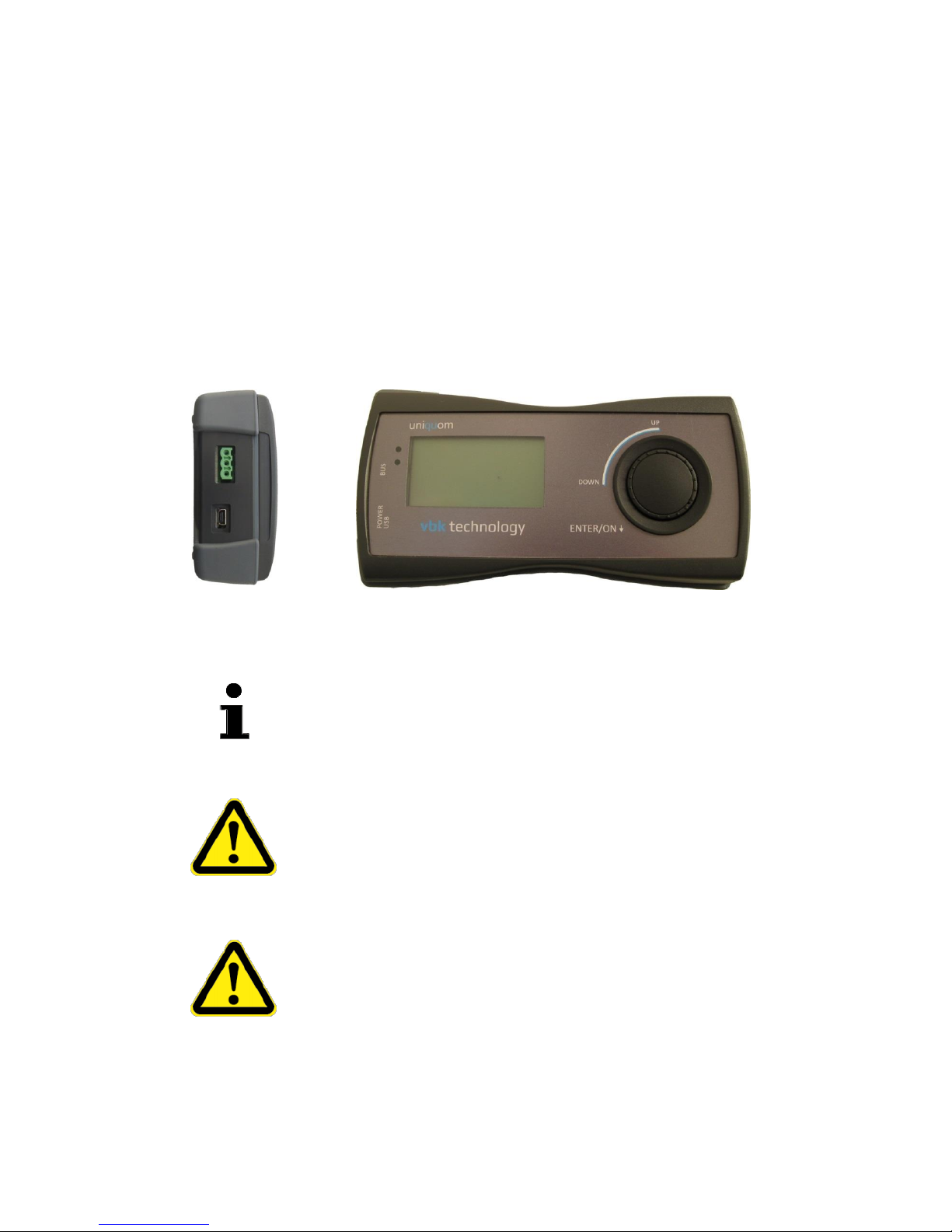

3.1 Operating conditions
All devices of series uniquom are designed for an
indoor usage. Make sure to protect from humidity and
rain if you use it outside.
Shock
Warning
Do not drop the device or expose to sudden shock.
Do not use the device in an area where it is likely to
be exposed to constant vibration higher than
2,5 mm*s-1.
Temperature
Warning
Do not use or store device outside temperature range
of 0°C … 40°C.
Page 8
Electromagnetic Radiation
Warning
Do not use the device near sources of
electromagnetic radiation.
3.2 General Properties of the Device
Voltage Supply
Rechargeable Li-Ion battery; 3,7V – 2300mAh
USB-interface, incl. 5V power supply
automatic charge state detection incl. safety switch-
off
Battery
fully charged
Battery
in charge
Battery
low
Use
Handheld for inside application, protection grade IP20
(acc. EN 60529)
Temperature
0°C … 40°C
ambient temperature at stock and usage
Display
Amber coloured full graphic display
Access
easy access push encoder (IGR)
Time base
Real-time-clock
Page 9

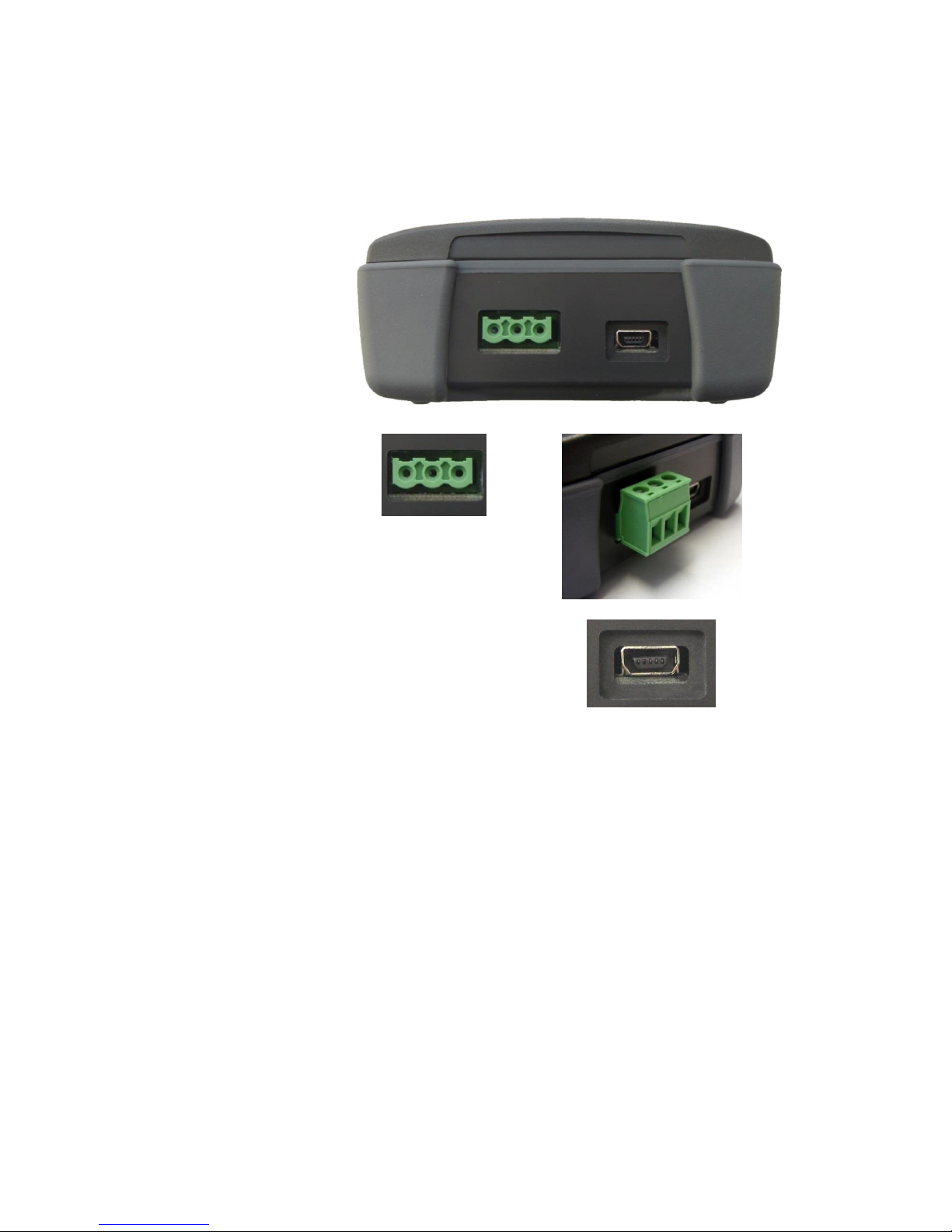

3.3 Inputs and Outputs
I/Os
RS 485 - Fieldbus
USB-Interface
Fieldbus
Phoenix Contact IC 2,5/3
GND
Net A
Net B
USB-Interface
Mini USB Typ B
for battery charge
and as data link
3.4 Interface – General Information
Hardware
Structure according RS485 Specification
(Half duplex – 1/8 Load up to 256 points – max. 400m
wiring length)
Characteristic
Baud rate: 9600, 19200, 38400, 57600
Parity: none, even, odd
Stop bits: 1, 2
Supported Features
According connected device
RS485
Fieldbus
USB-
Interface
Page 10
4 Menu Structure
4.1 Software
Scan Line
Network scan to find all connected devices with the
chosen protocol
Single Monitor
Cyclic scan of single device and monitoring of
requested data
Single Control
Control / Parameterizing of a single addressable
device with feedback
Broadcast
Control / Parameterizing of all connected devices
without feedback (broadcast)
Datalog
Log-function for single device and save in the external
flash
4.2 Menustructure - Basisvariation
Main level
Sublevel 1
description
Properties
Back to main level
Change Language
English / Deutsch
Set Clock
date – rime
Timeout Light
Time to switch off display lighting
Update Firmware
Service feature (coded)
Software variation
(Software) Appendix
Power Off
-
Switch off device
Page 11

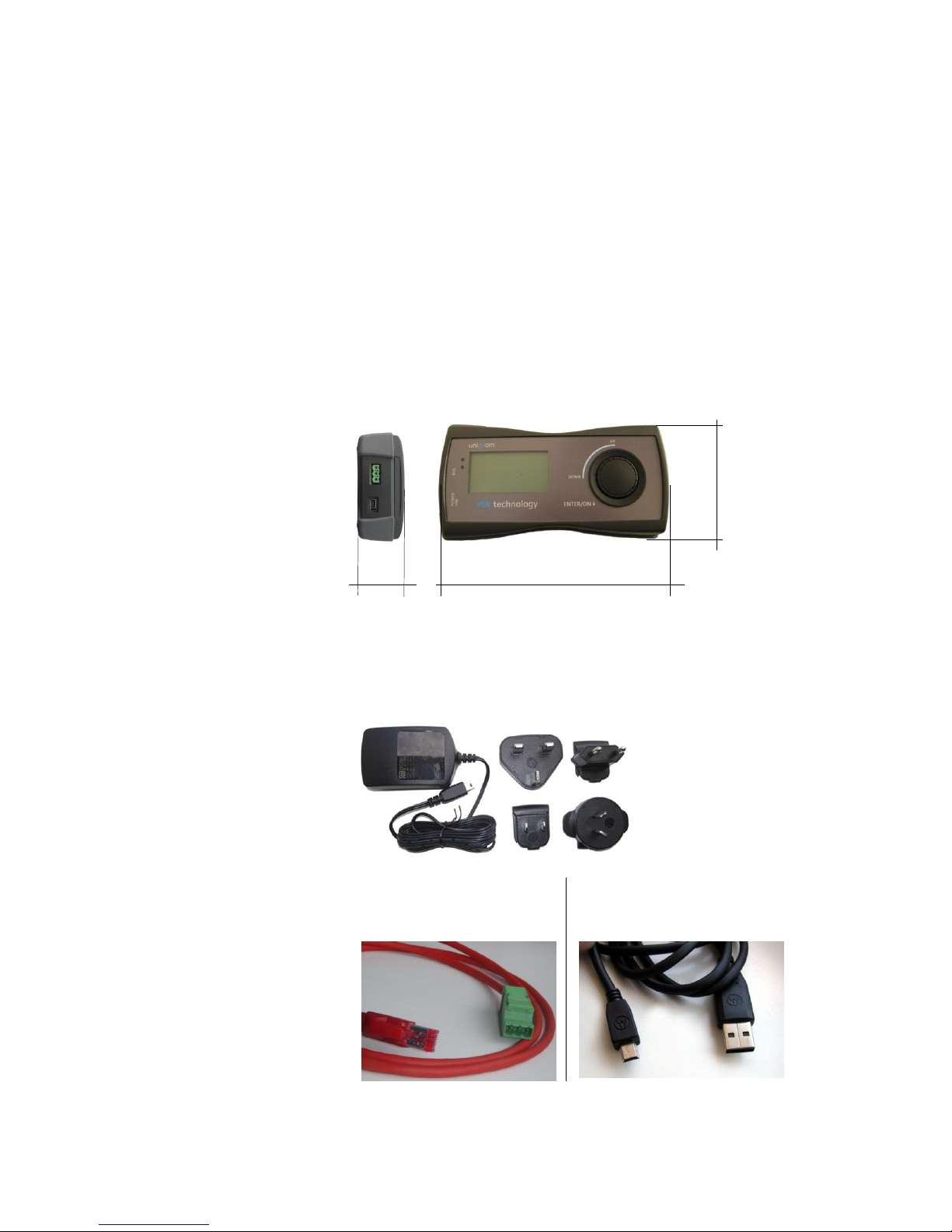

5 Technical Data
Operation Voltage
Li-Ion 3,7V – 2300mAh
USB Interface
Protection Level
IP20 (acc. EN 60529)
Temperature
0°C … 40°C
Storage and Operating
Display
Single colour full graphic display with background
lighting
Access
easy access push encoder (IGR)
Dimensions
in mm
Weight
350g
Accessory (included)
5V-Power supply with a wide selection of variable,
removable adapters that fit numerous different AC
outlet sockets.
Accessory (on demand)
Data cable, 1,50m
Phoenix Contact RJ45
USB Data cable, 1,80m
USB-A mini-USB-B
38
185
98
Page 12
6 Additionnel Hints
6.1 Manufacturing
All devices of uniquom series are manufactured according
DIRECTIVE 2011/65/EU on the restriction of the use of certain hazardous substances
in electrical and electronic equipment

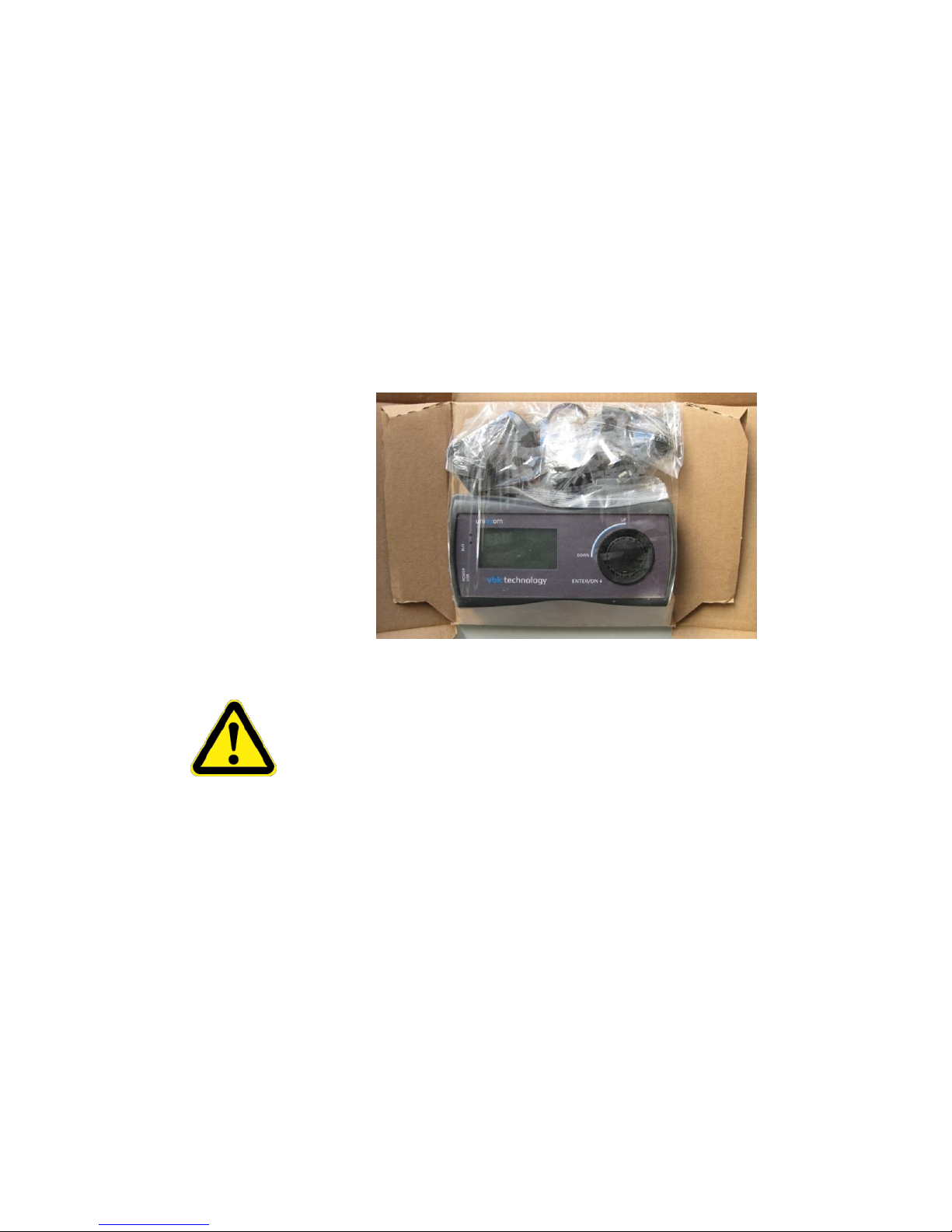

6.2 Packing and Shipping
The shipping is realised inclusive power supply in fitting individual packings.
Individual packing, incl. power
supply
Accessory on demand
- Data cables
Lithium-Ionen-Akku
CAUTION!
This cordless programmer tool contents a single LithiumIonen-Battery (Energy < 100Wh)
For Airfreight of more than 2 devices per package packing
and marking are in accordance to IATA- Dangerous
Goods Transport Regulations required!
Some forwarders/Airlines refuses airfreight of LithiumIonen-Batteries in general!
For Export uniquom is categorized to the following HS code
85176200
Machines for the reception, conversion and transmission or regeneration of voice, images
or other data, incl. switching and routing apparatus (excl. telephone sets, telephones for
cellular networks or for other wireless networks)
All claims for damage must be reported immediately.
Page 13
6.3 Service
Technical queries about uniquom under:
vbk technology GmbH
Verlängerte Goethestraße 9
08209 Auerbach
Tel.: +49 (0)3744 / 22 47 914
Fax: +49 (0)3744 / 22 35 595
www.vbk-technology.de
Page 14
7 Notices
