5
before assembly.

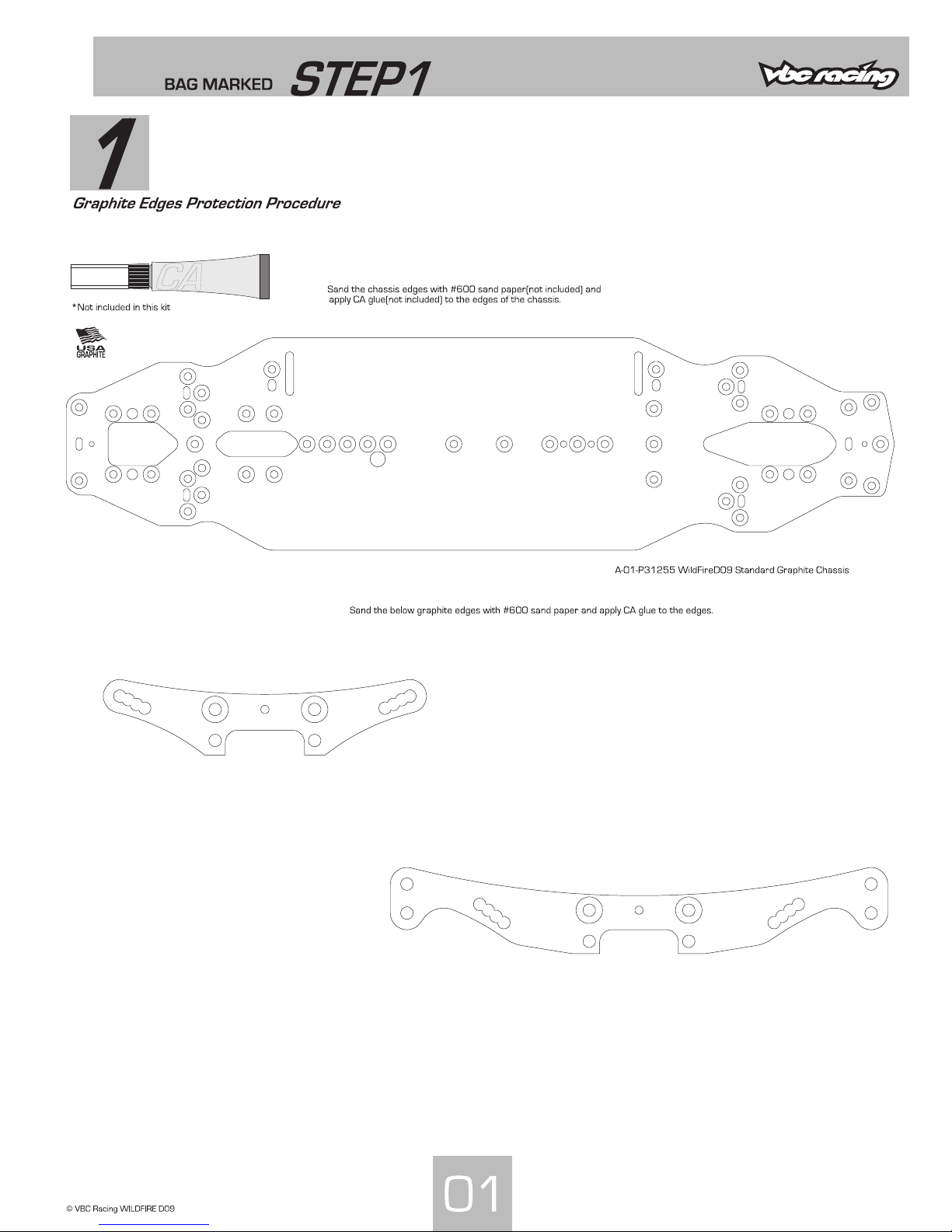

Page 2
CA
A-01-G30982 Graphite Front Shock Tower for TBBS
A-01-G30983 Graphite Rear Shock Tower for TBBS
Page 3
38
BAG MARKED

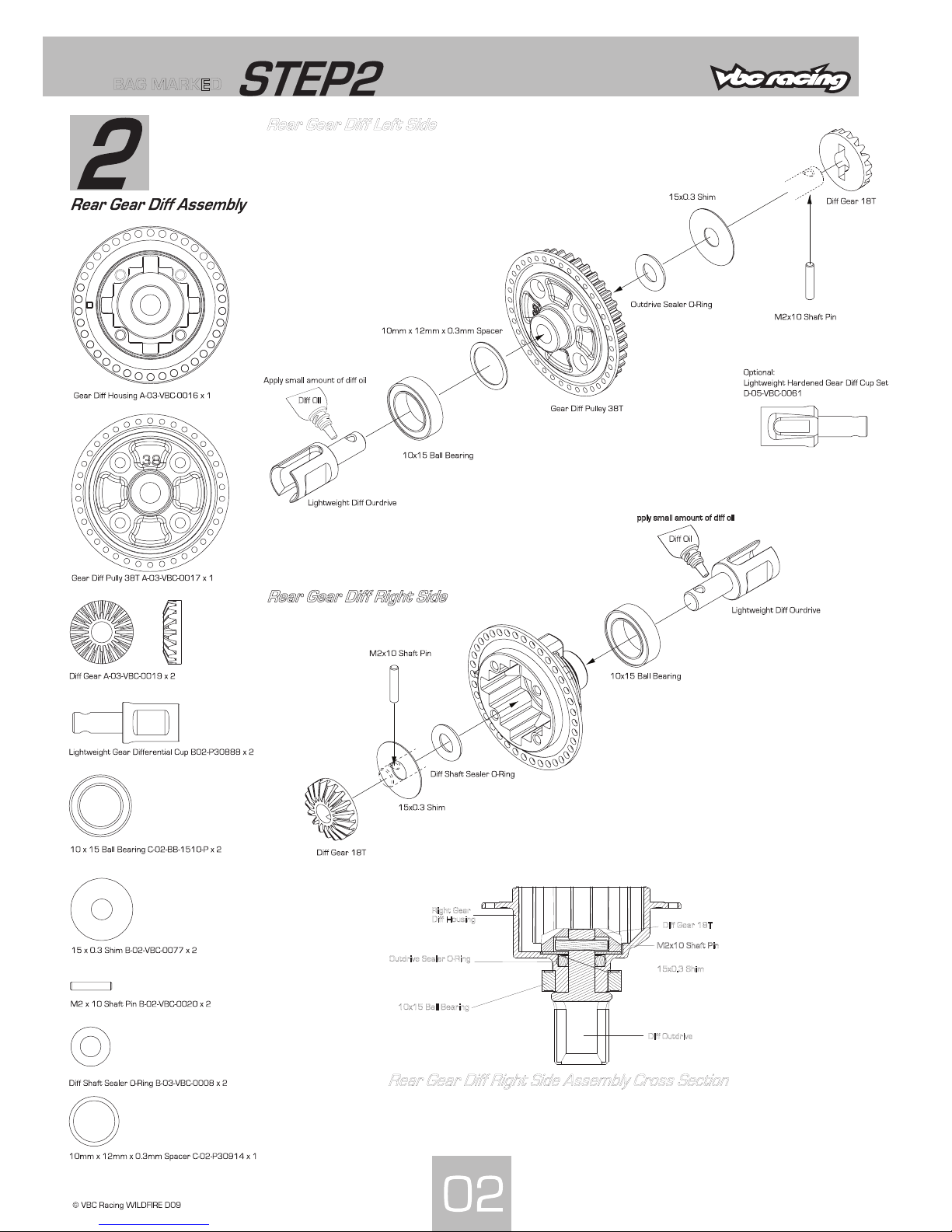

Rear Gear Diff Left Side
Rear Gear Diff Right Side Assembly Cross Section
Diff Gear 18T
Diff Outdrive
Right Gear
Diff Housing
Outdrive Sealer O-Ring
10x15 Ball Bearing
M2x10 Shaft Pin
15x0.3 Shim
Diff Oil
Rear Gear Diff Right Side
Apply small amount of diff oil

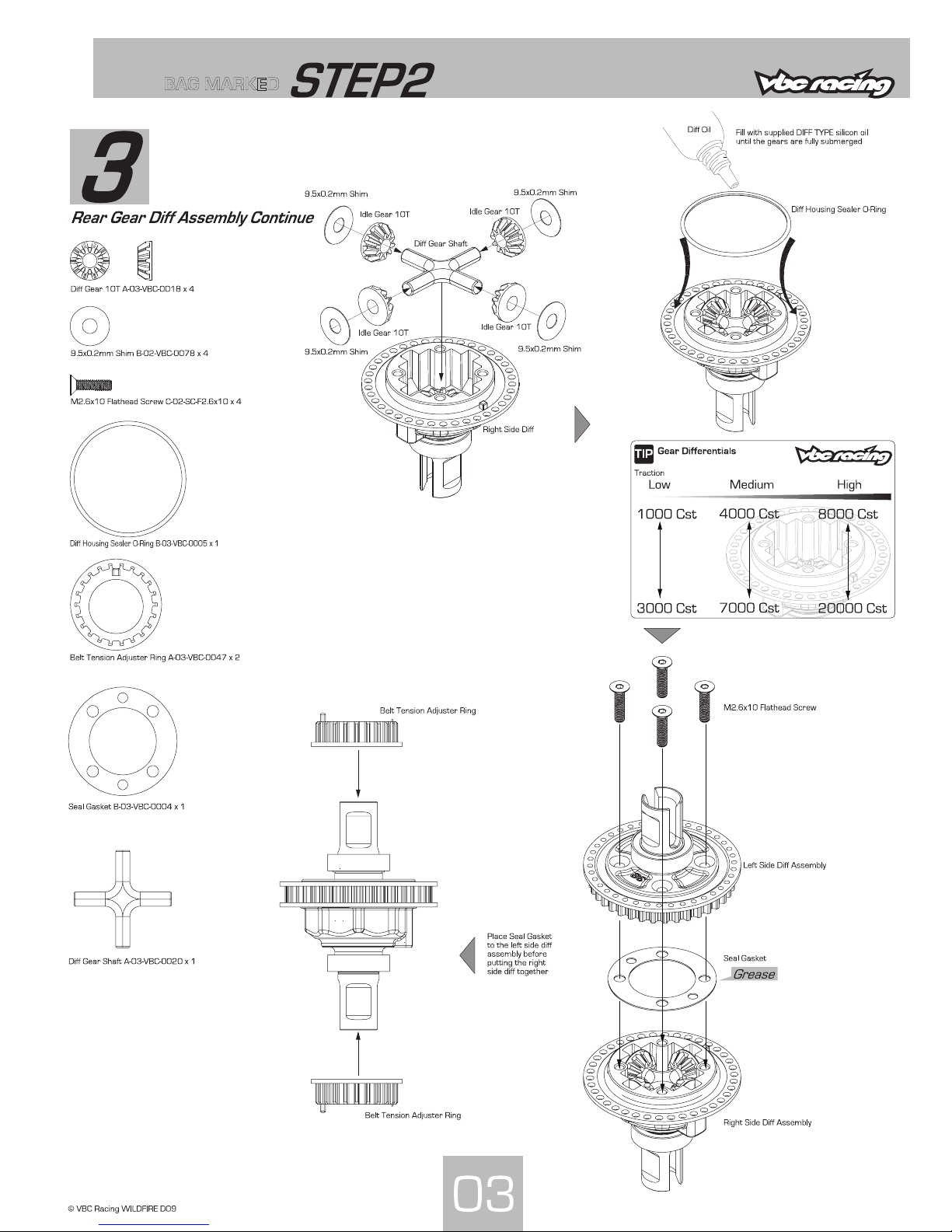

Page 4
BAG MARKED

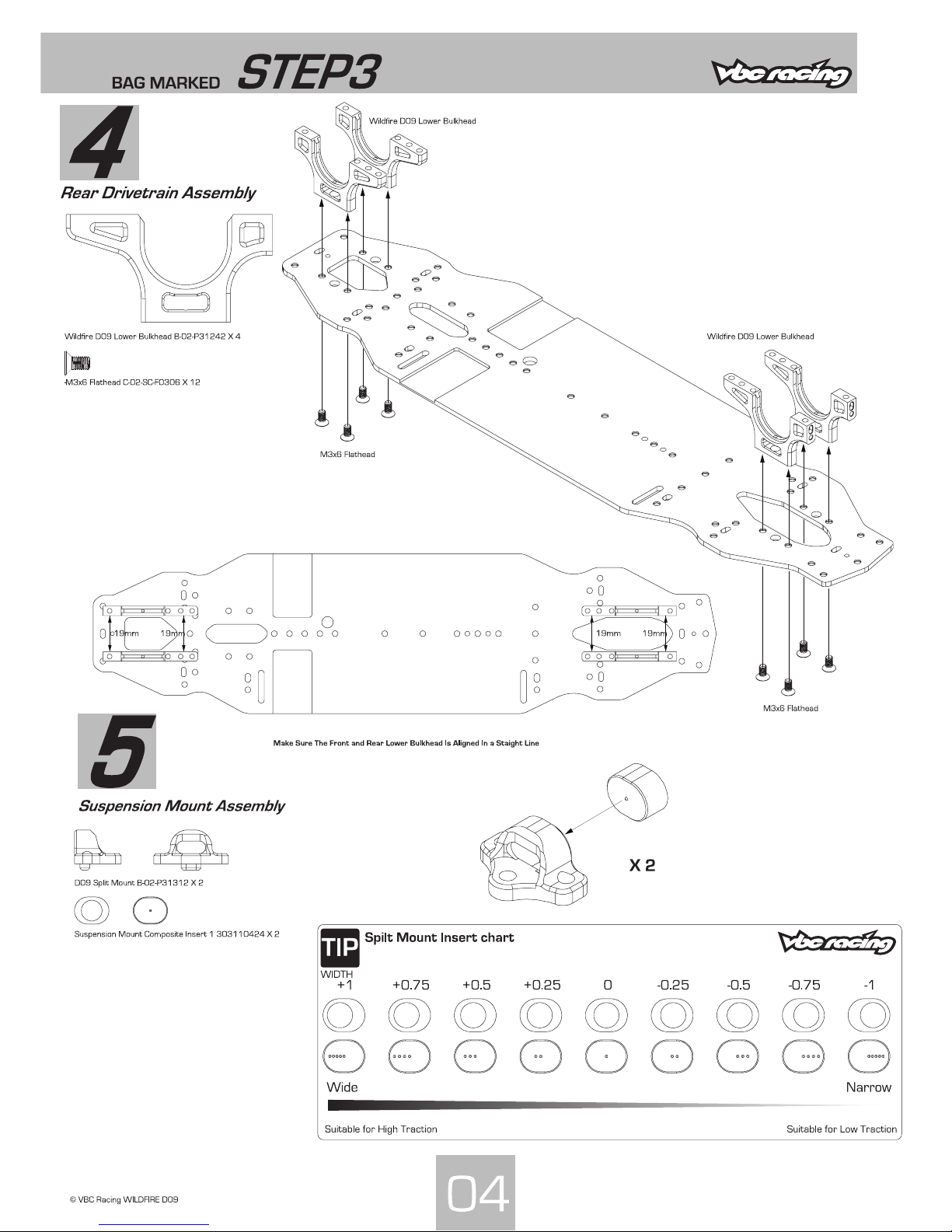

Page 5

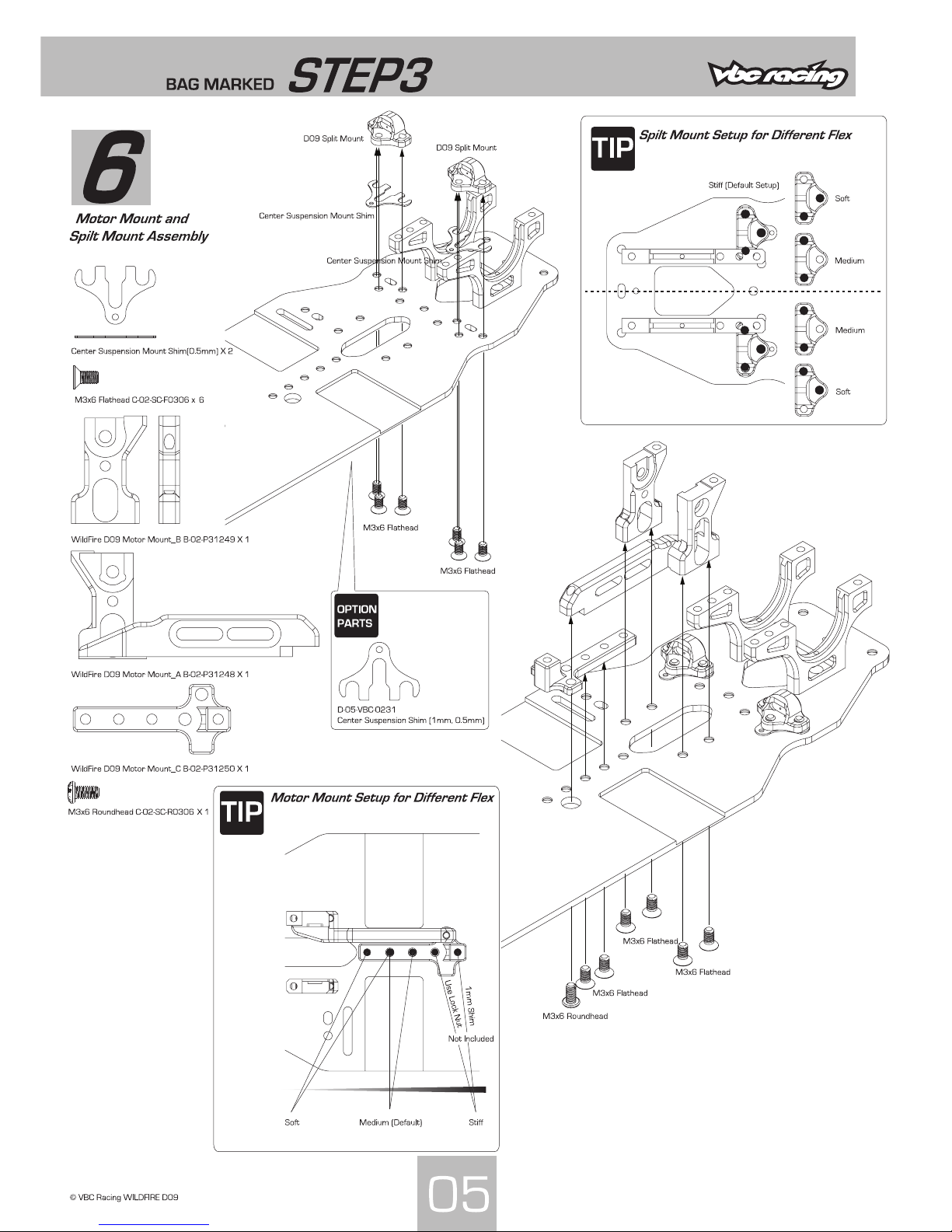

Page 6

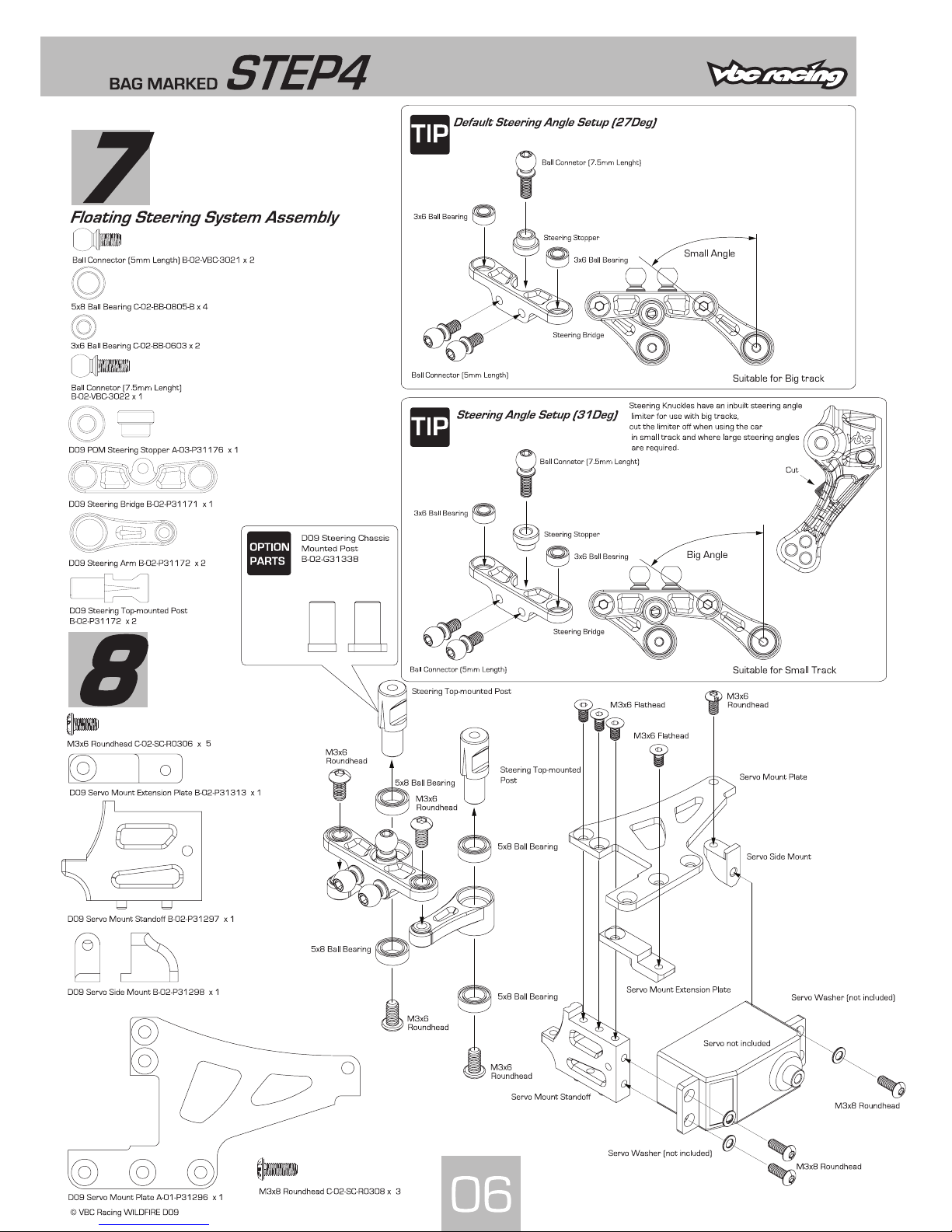

Page 7
06

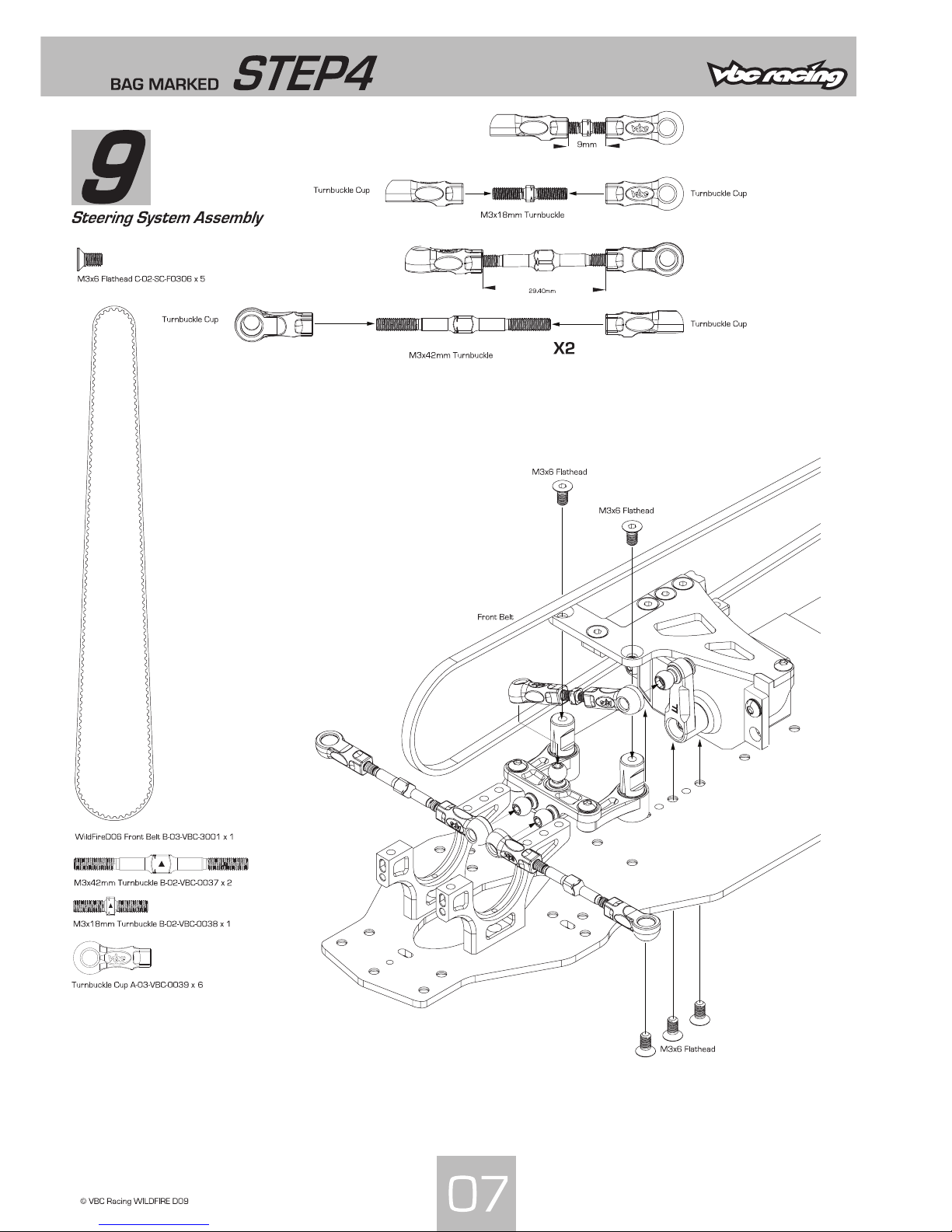

Page 8

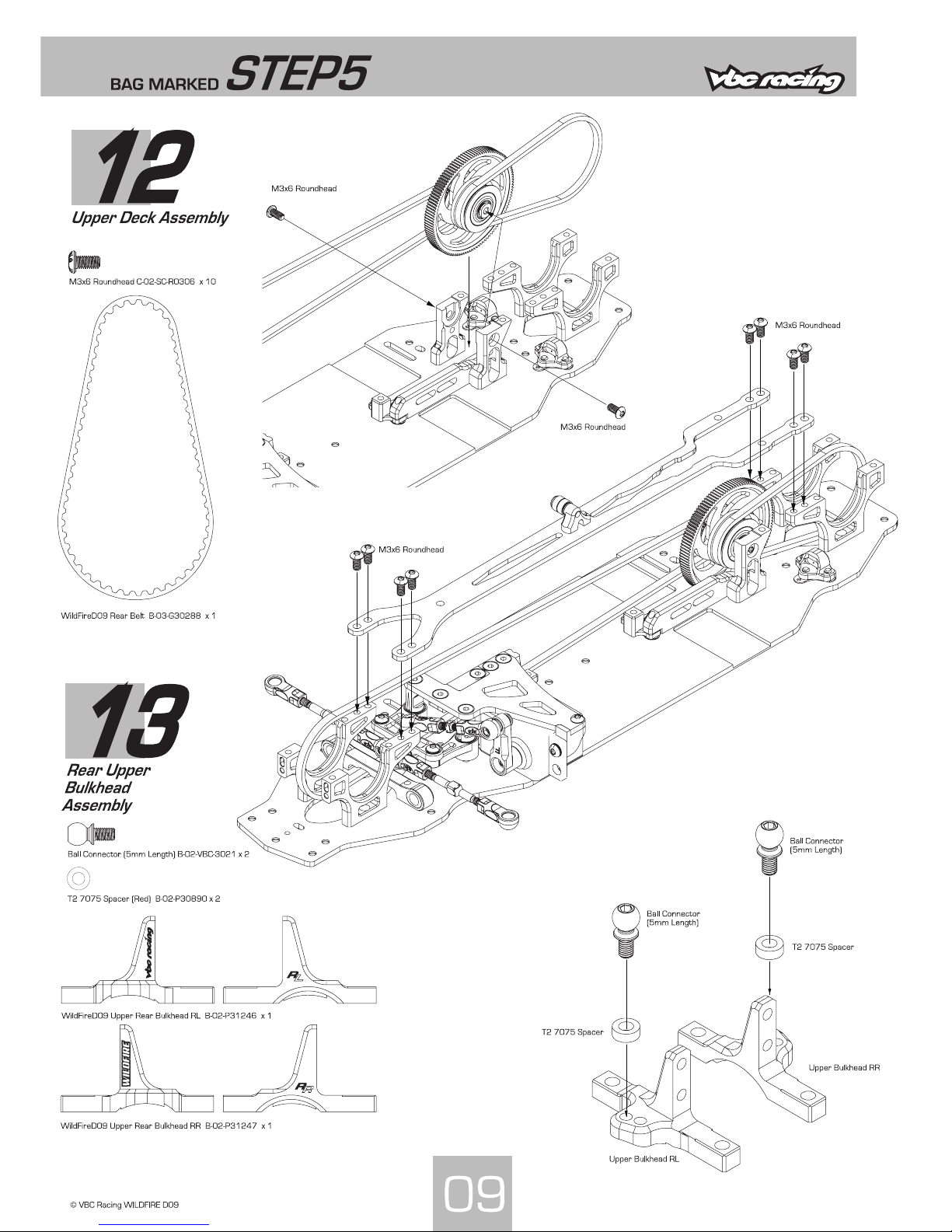

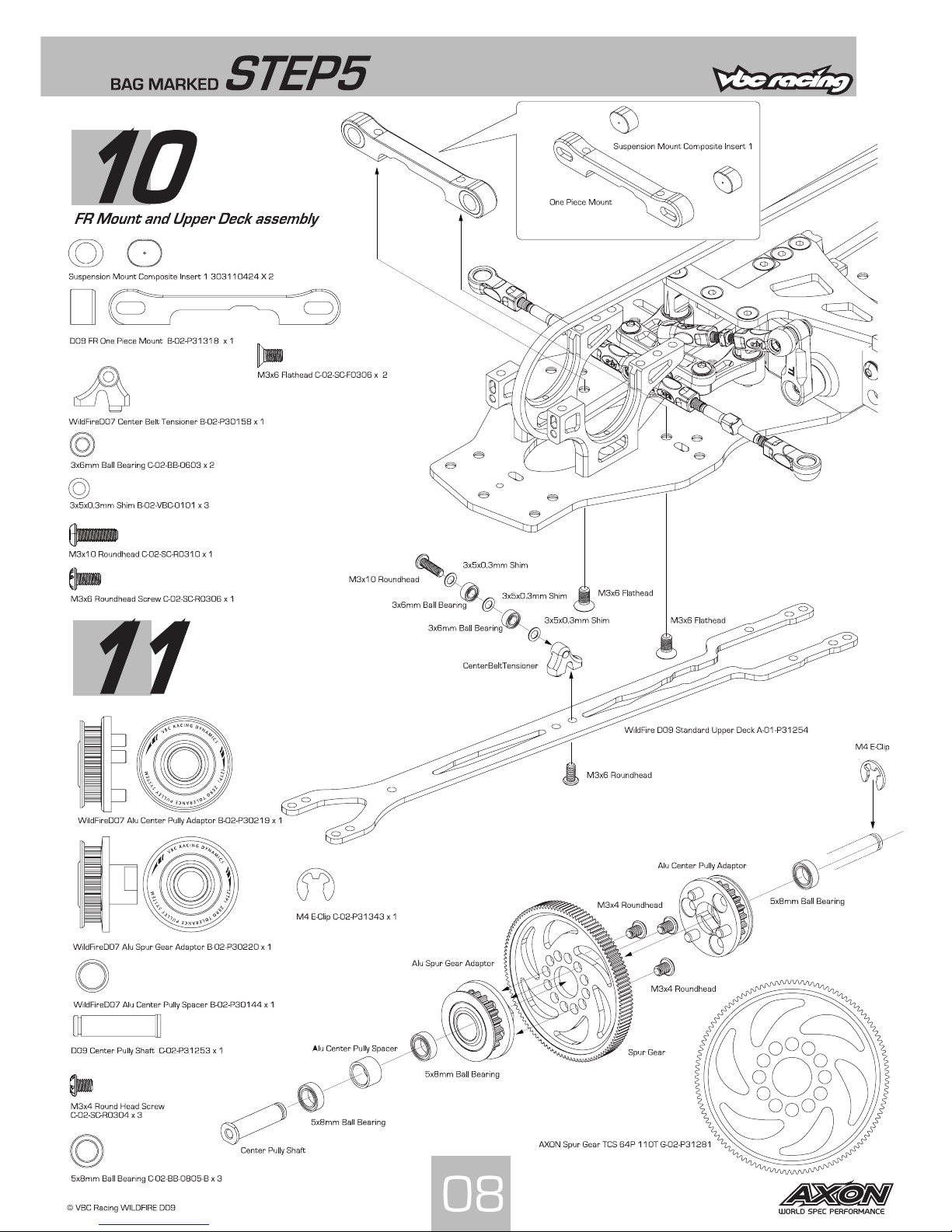

Page 9
Page 10

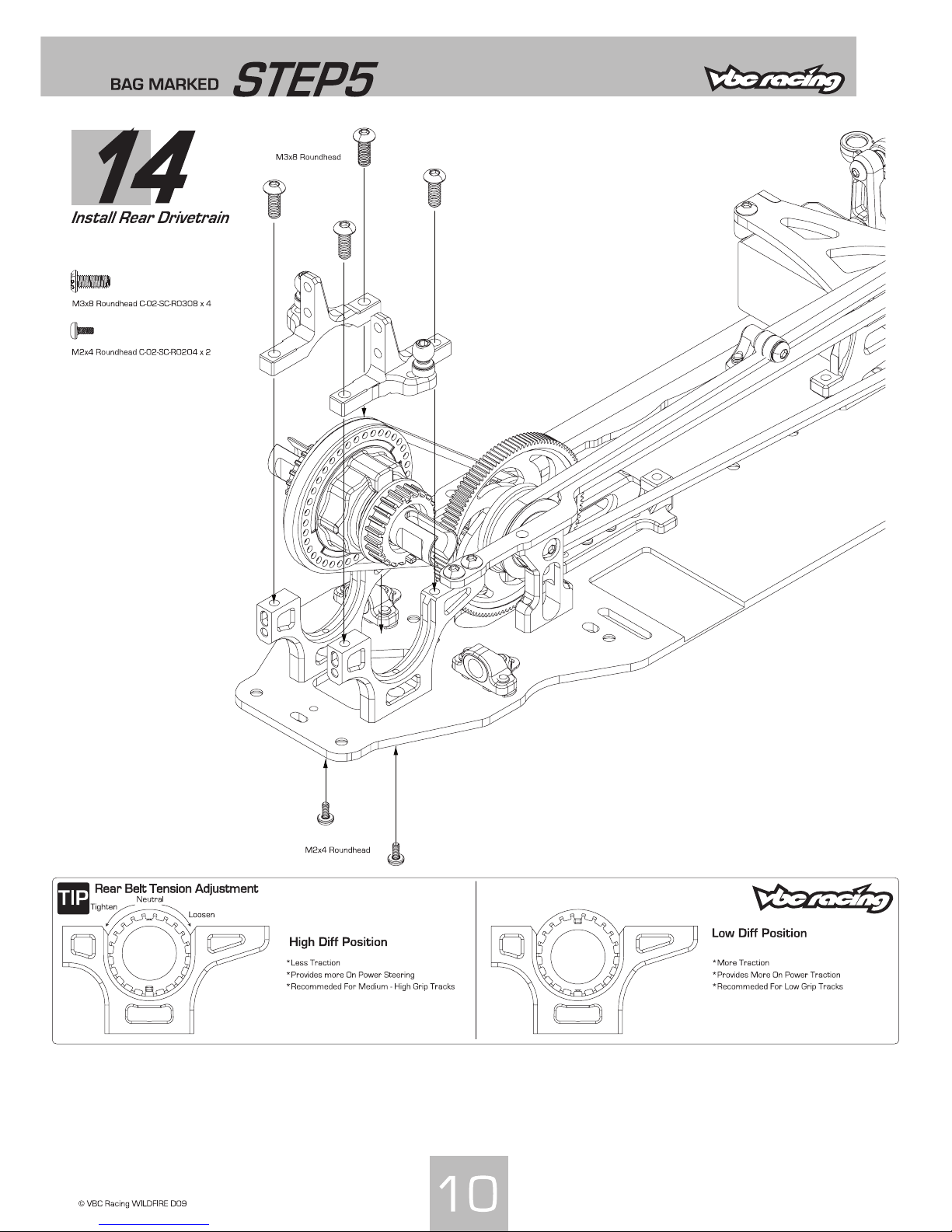

Page 11

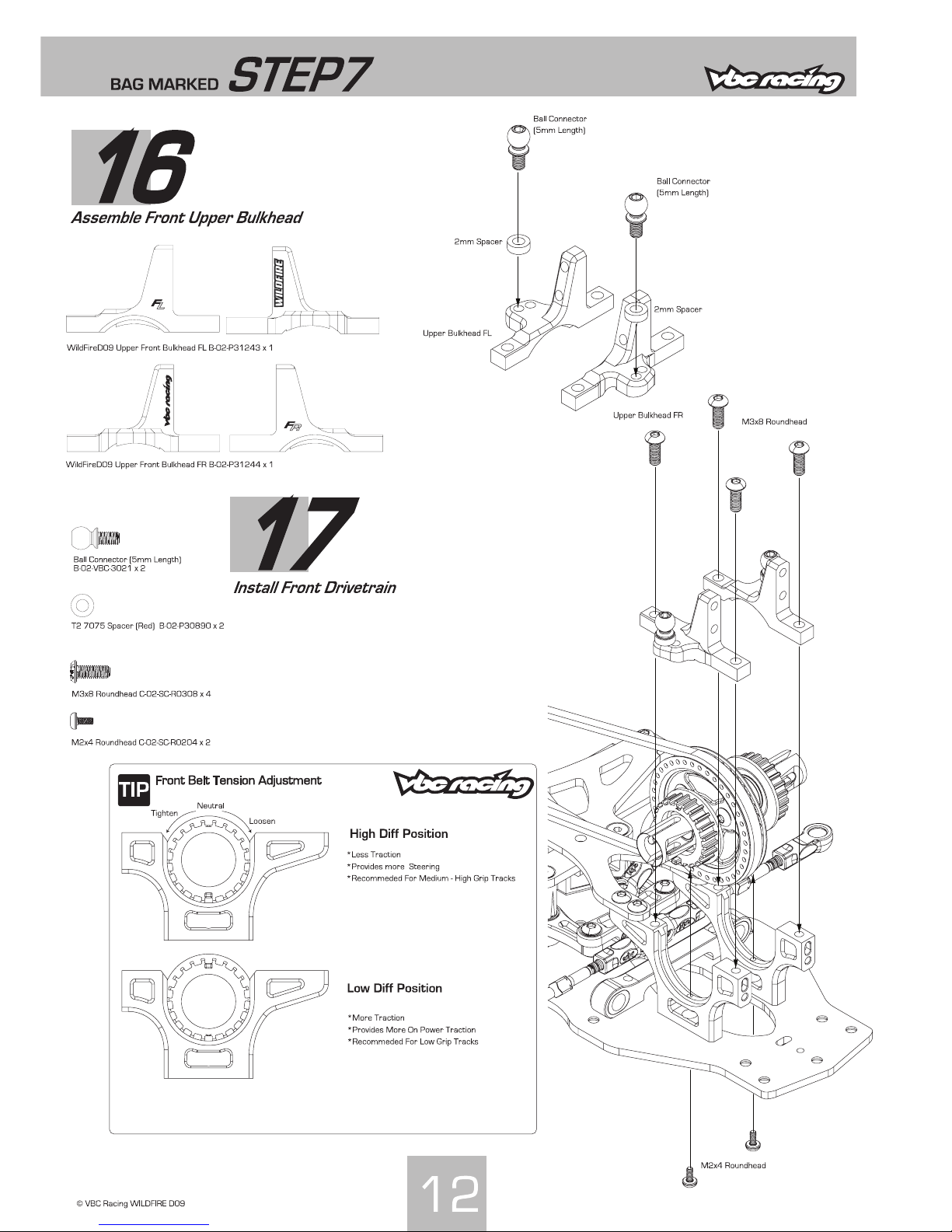

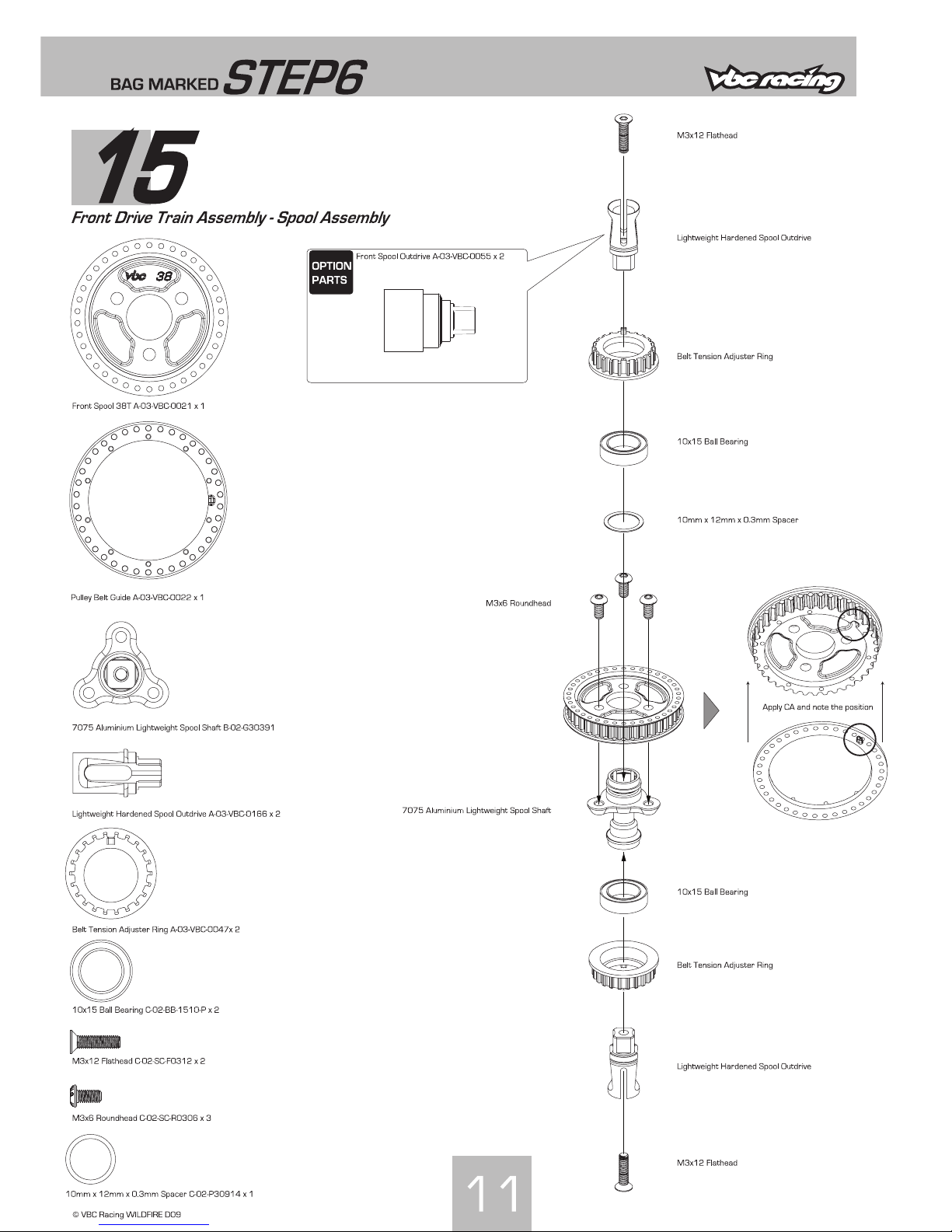

Page 12

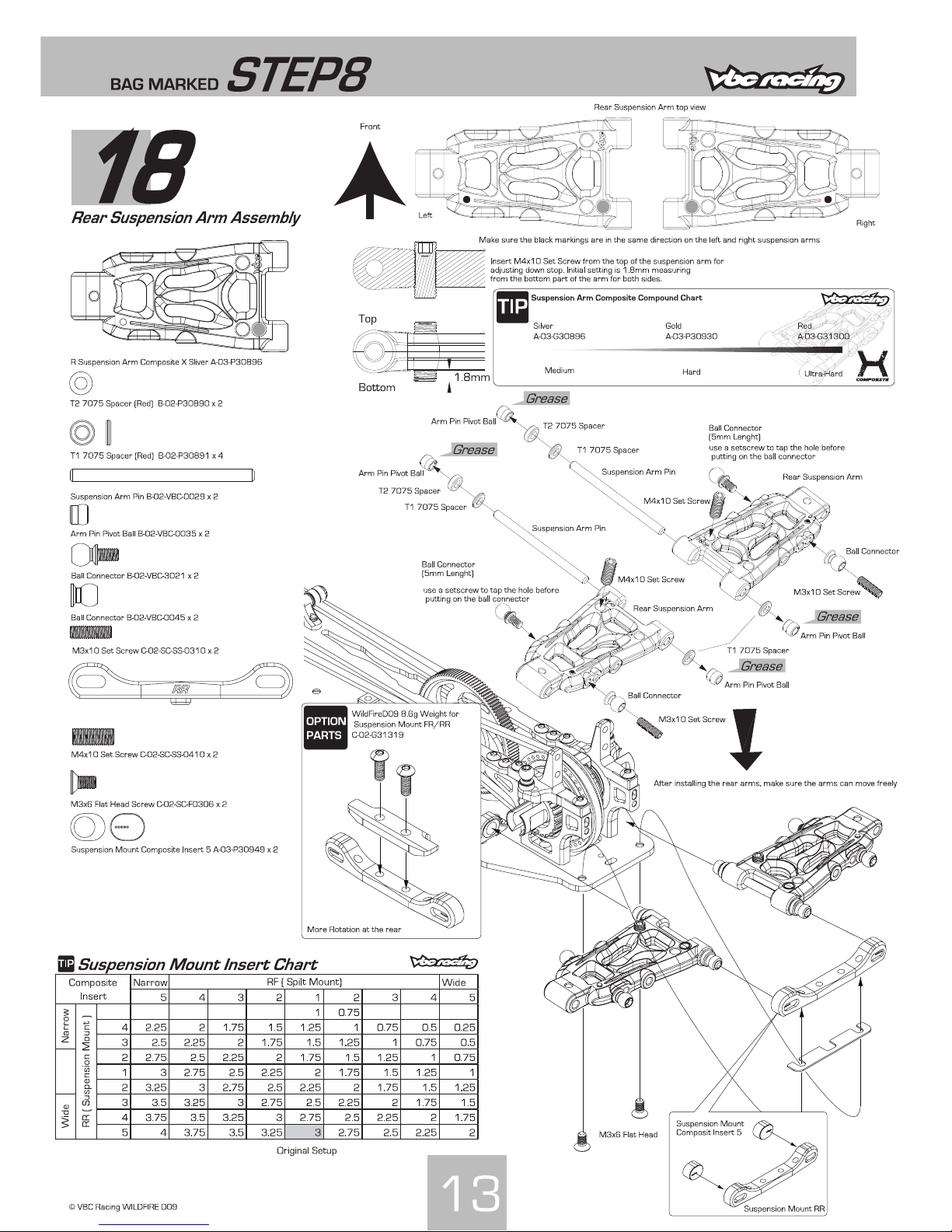

Page 13
Page 14
5 2 1.75 1.5 1.25 0.5 0.25 0

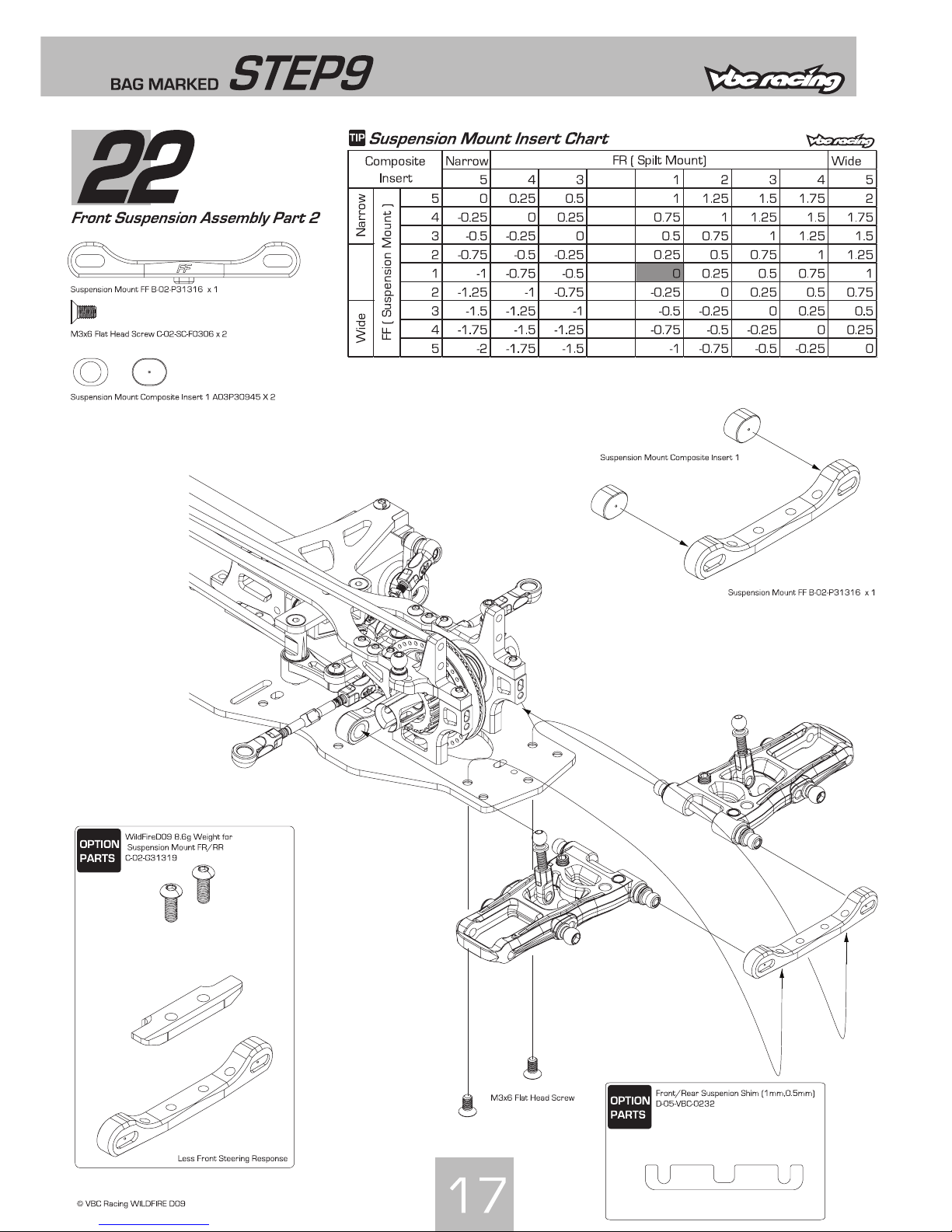

Suspension Mount RR B-02-P31317 x 1

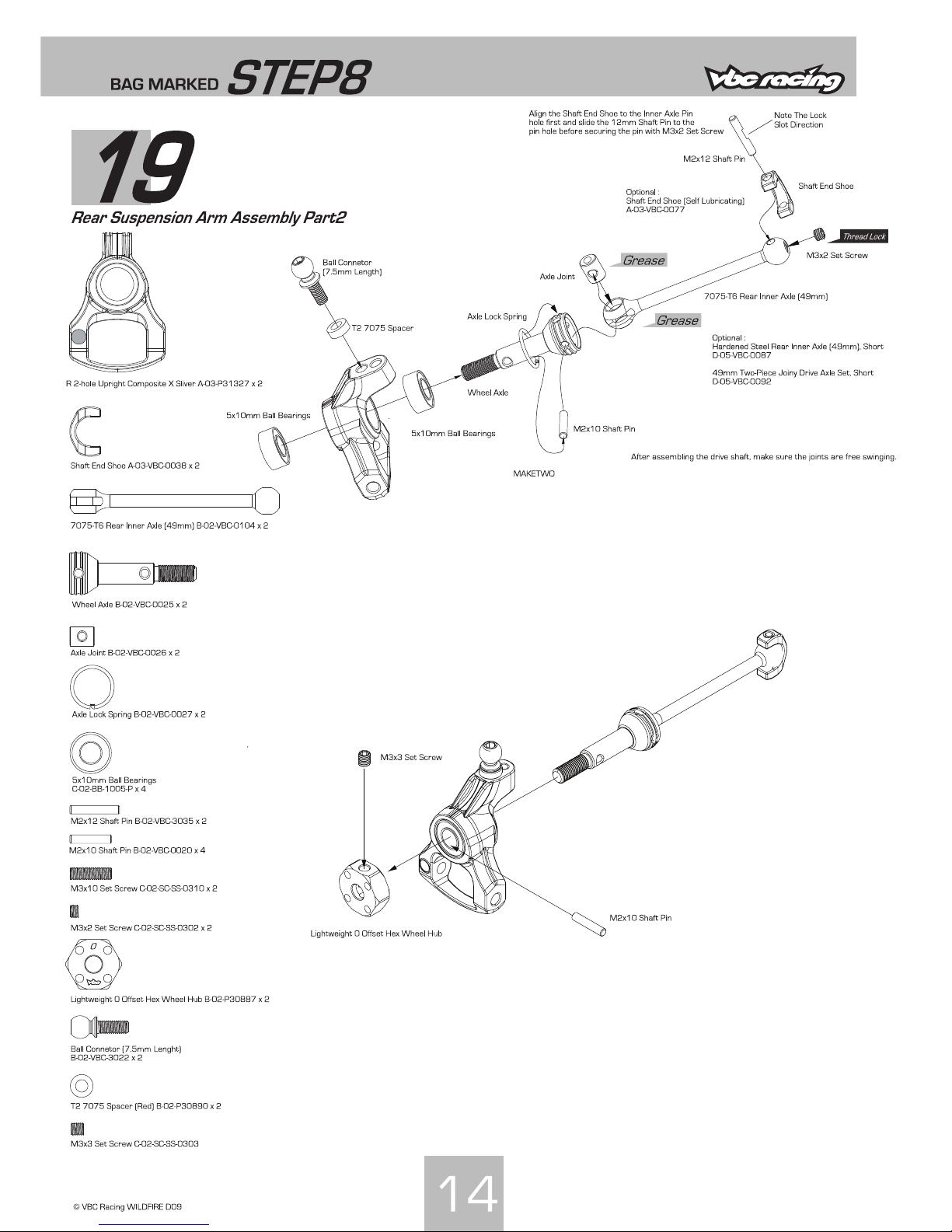

Page 15

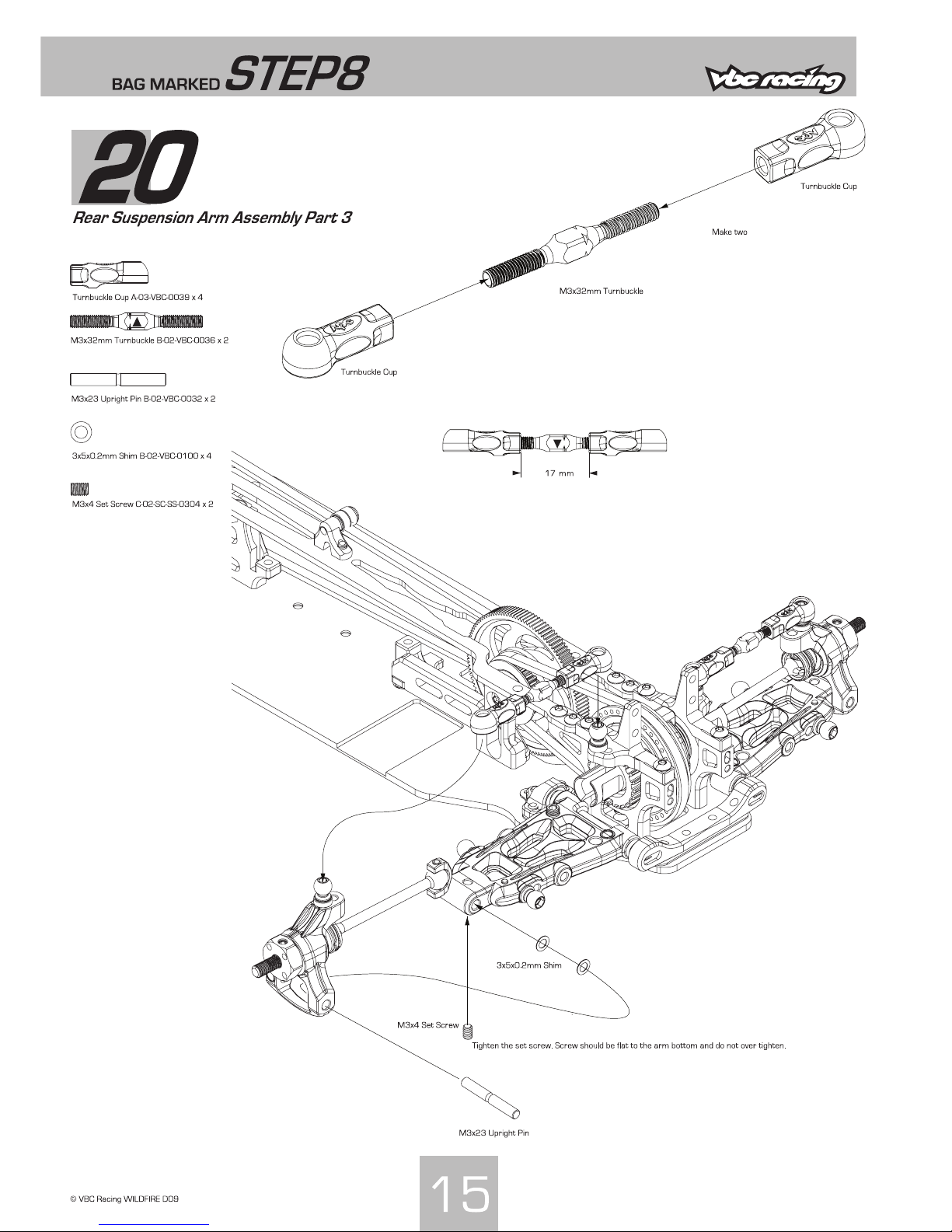

Page 16

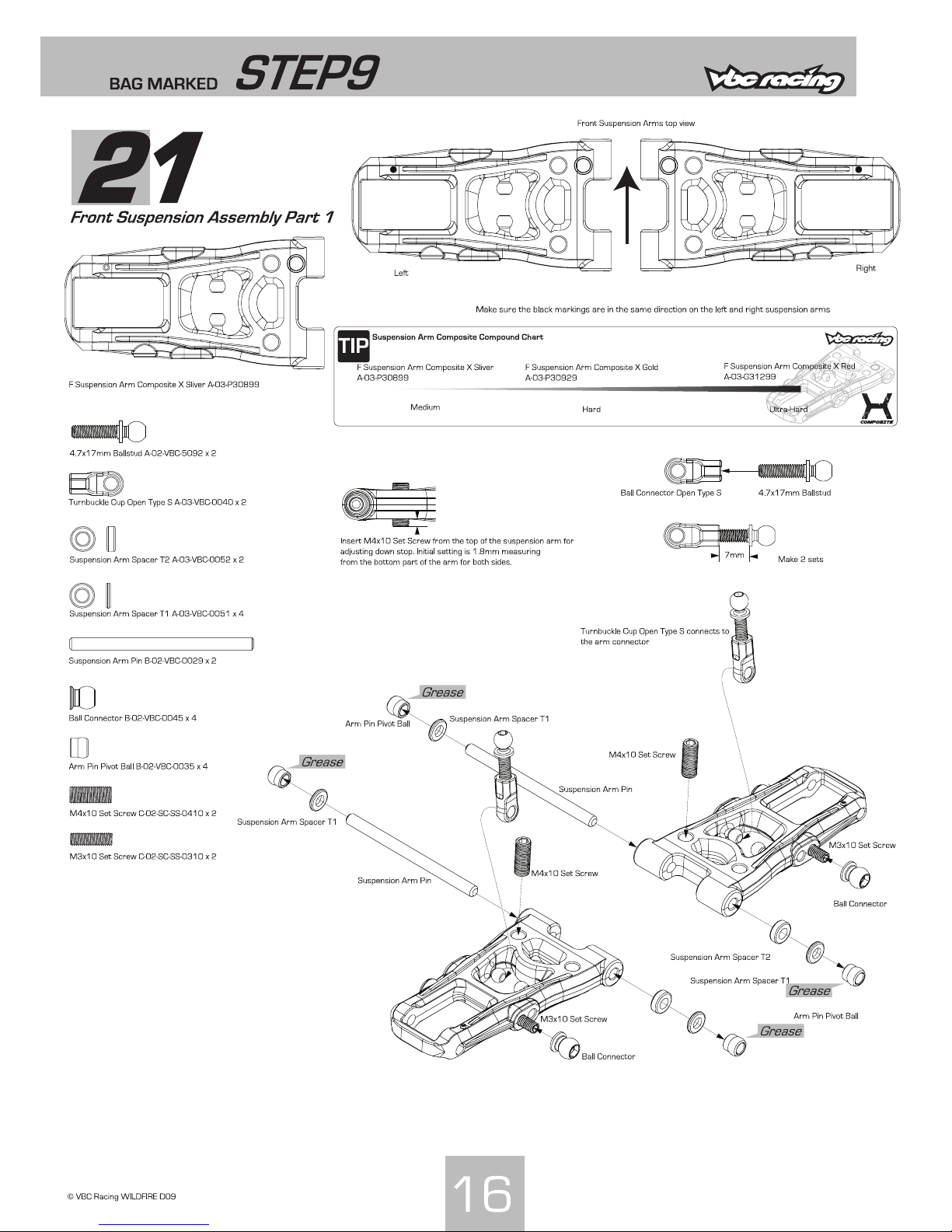

Page 17
1.8mm
Page 18
2
0.75
0.5
0.25
0
-0.25
-0.5
-0.75
-1
-1.25

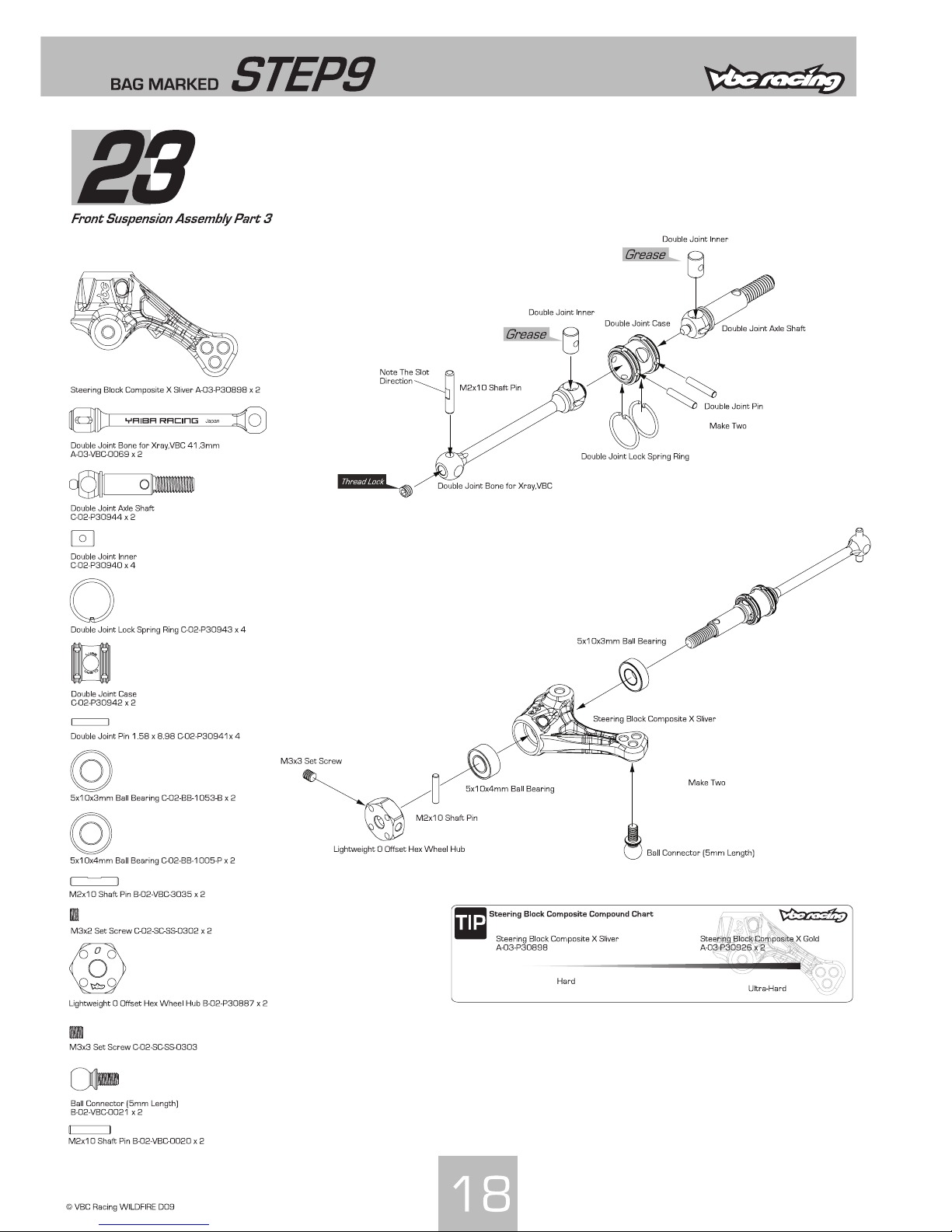

Page 19

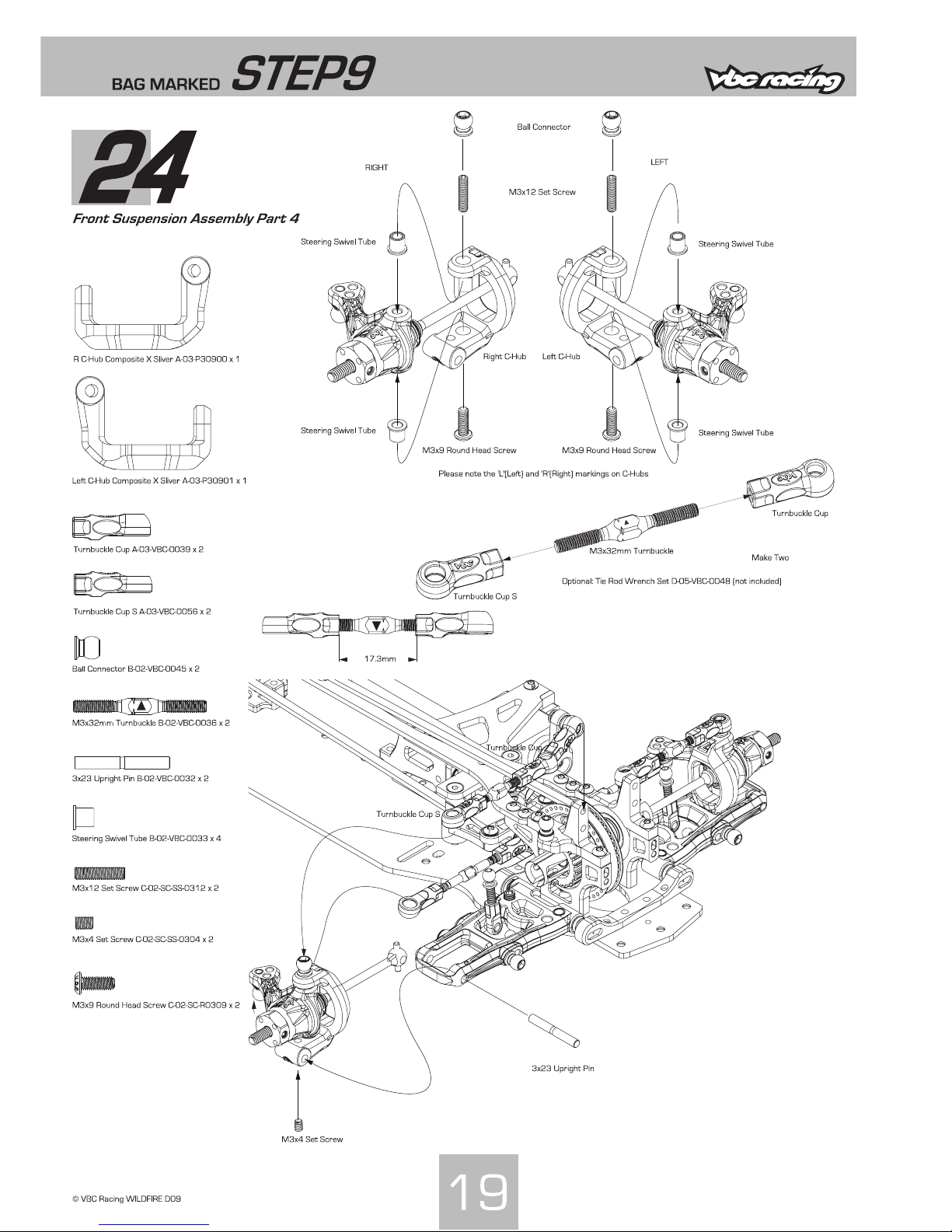

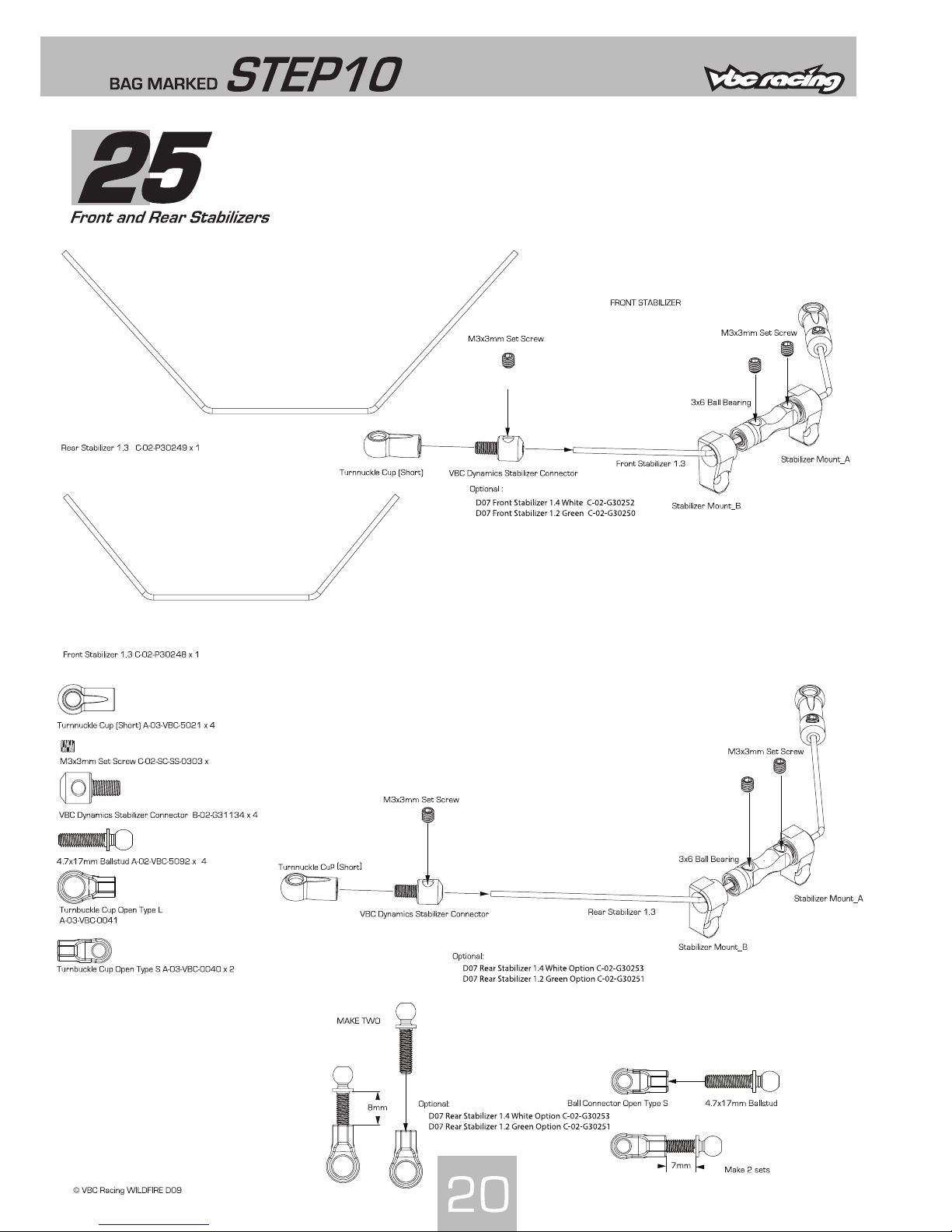

Page 20
Page 21
4

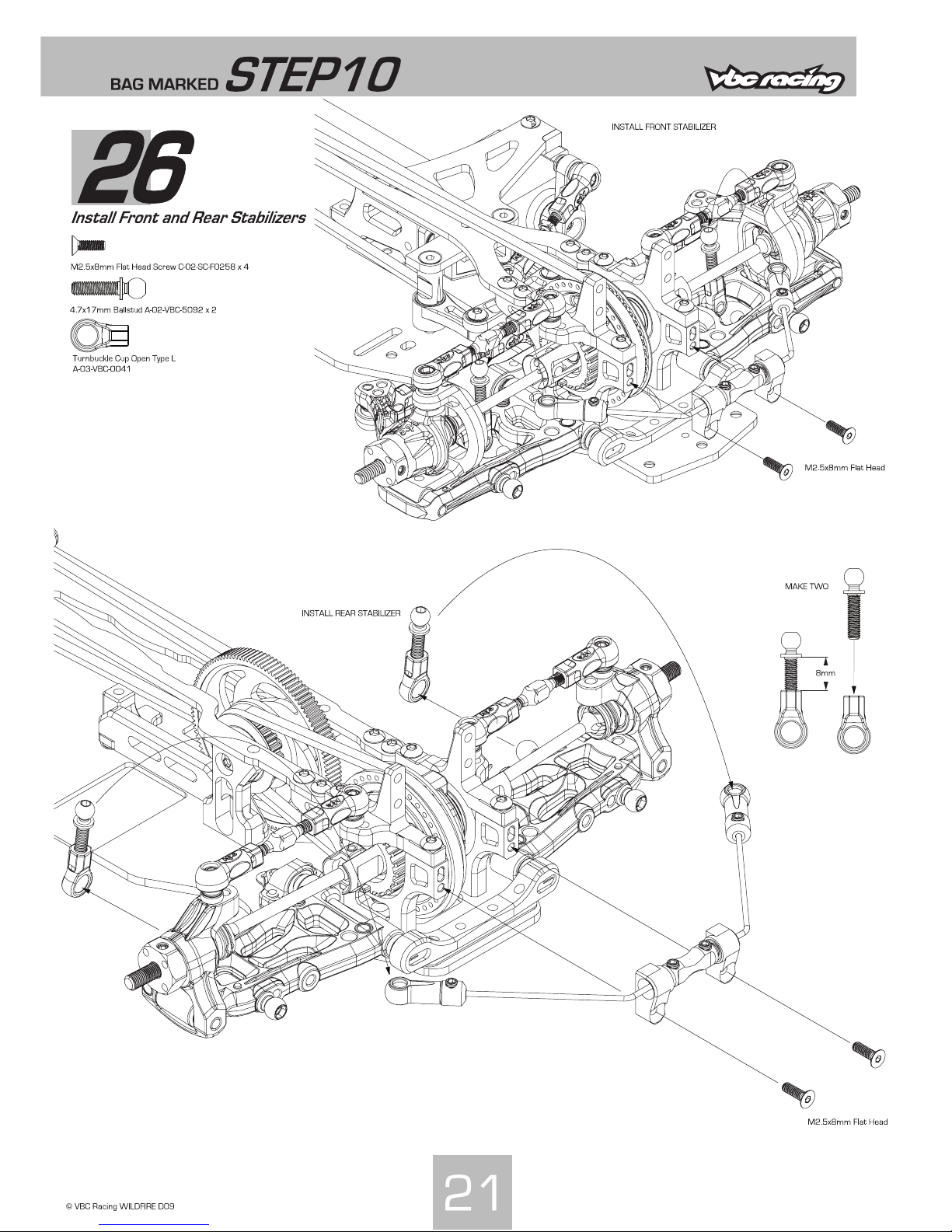

Page 22

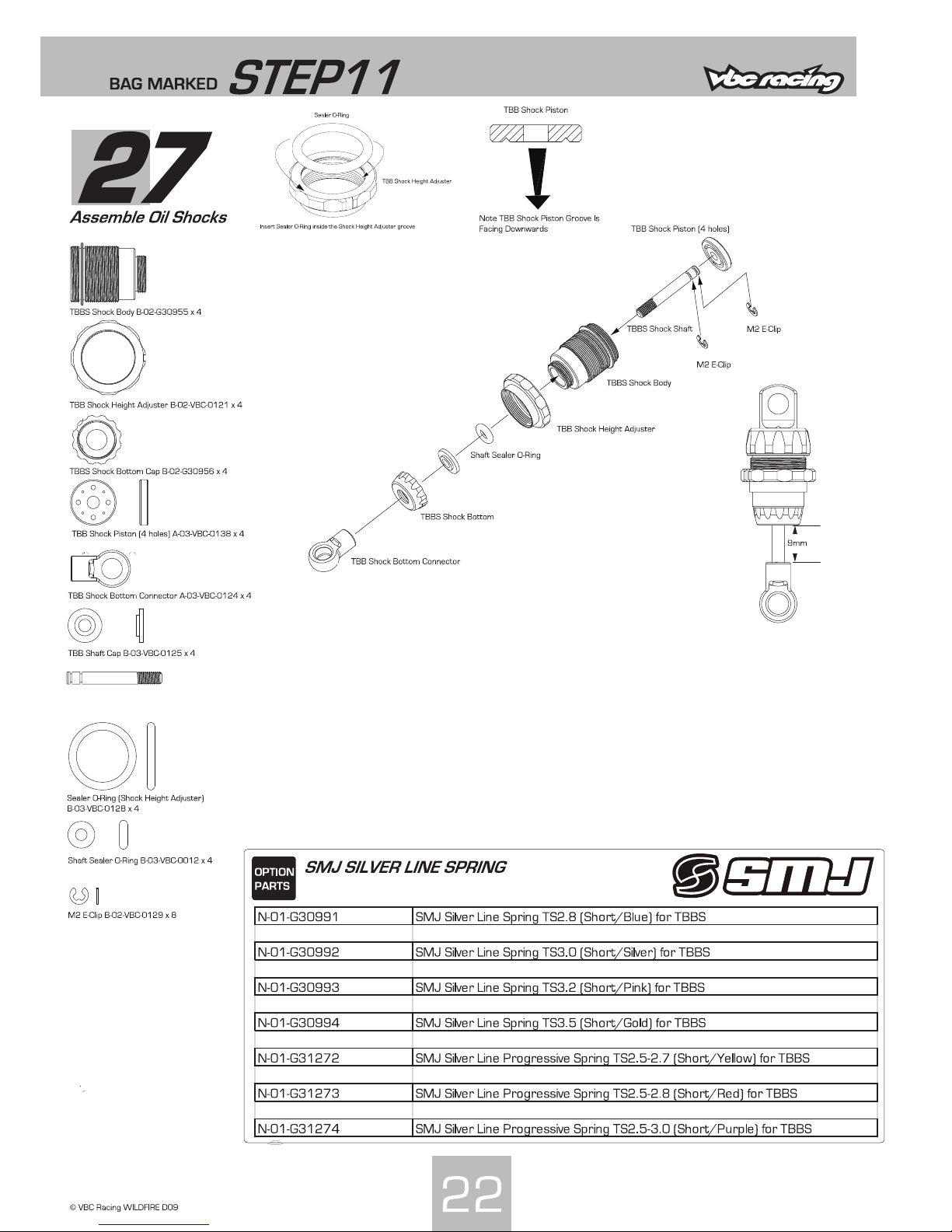

Page 23
TBBS Shock Shaft C-02-G30957 x 4

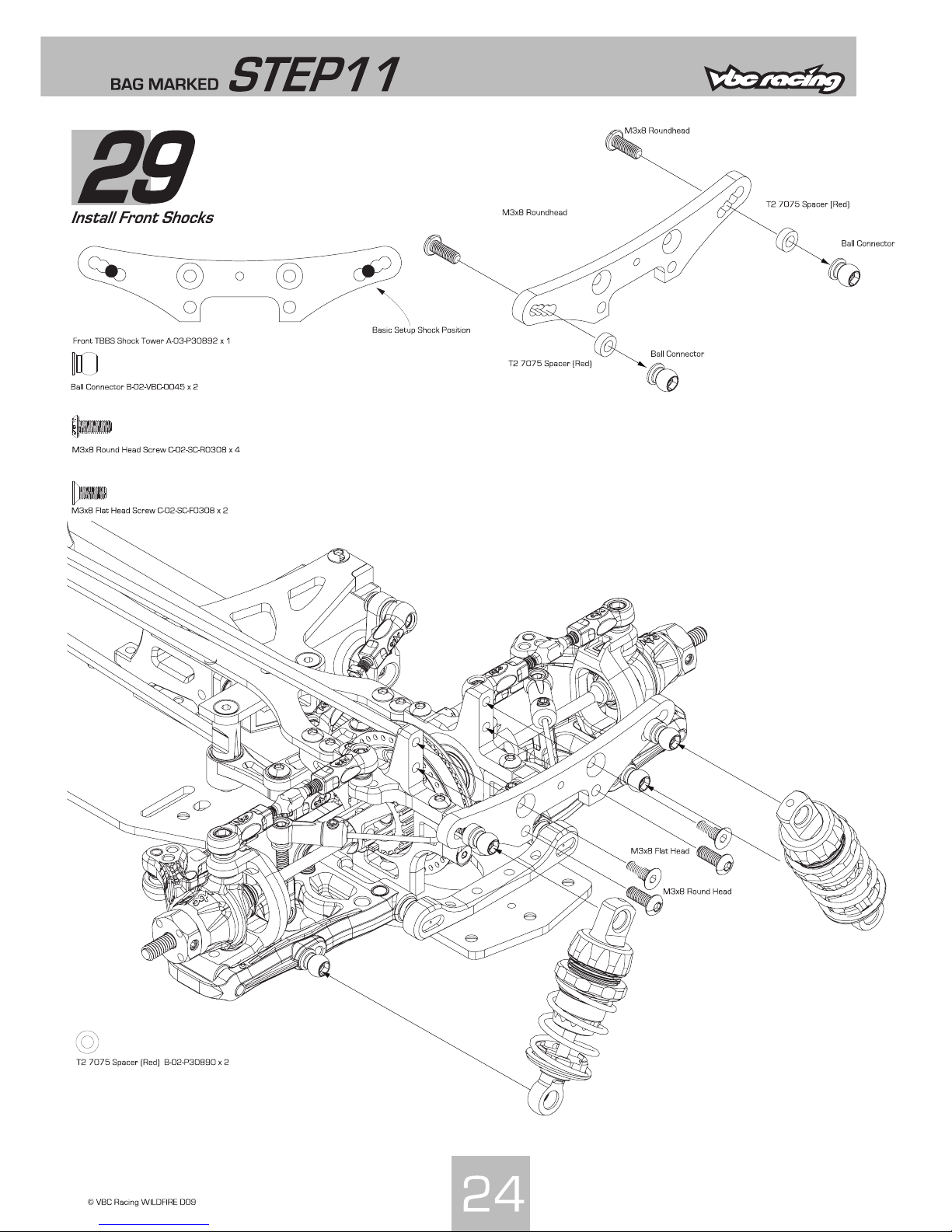

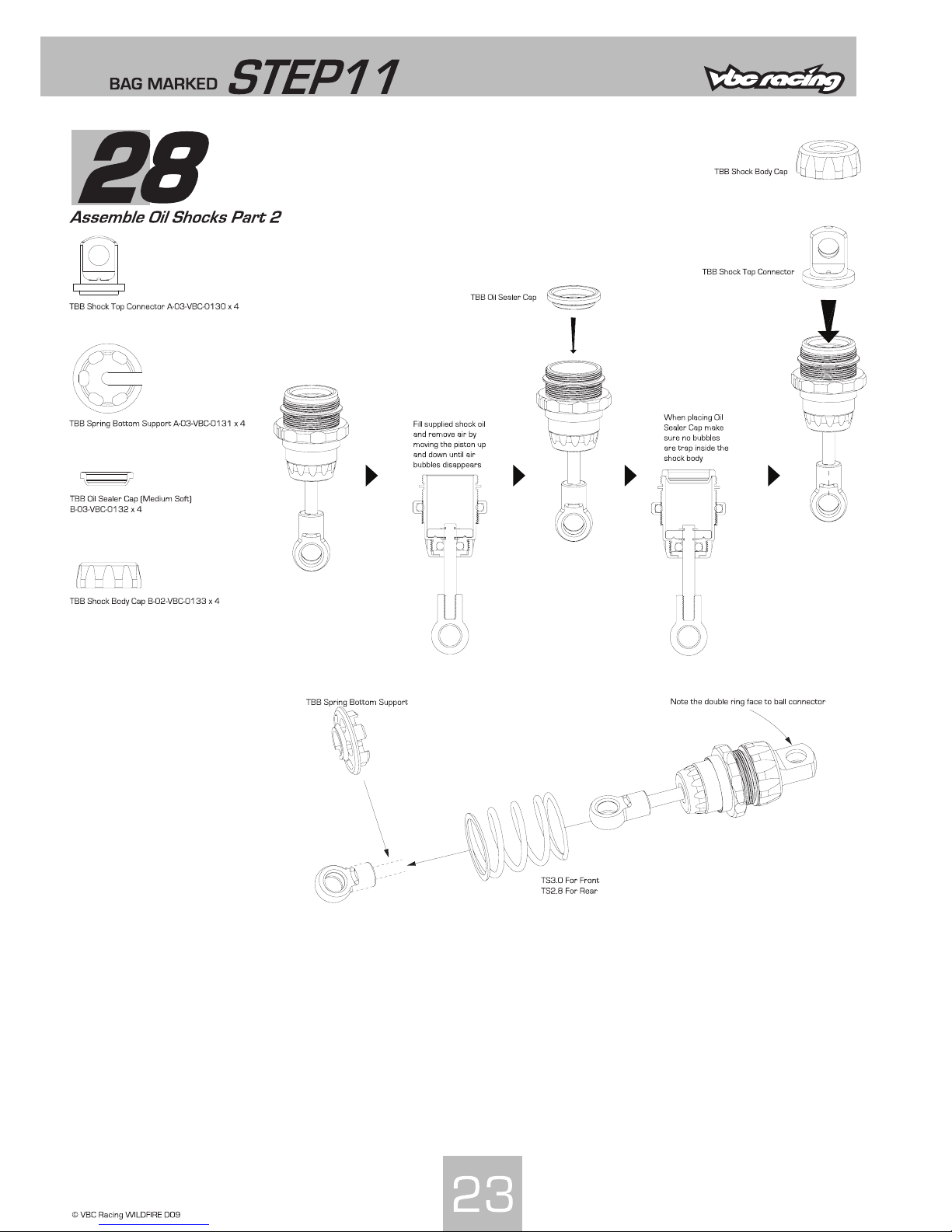

Page 24

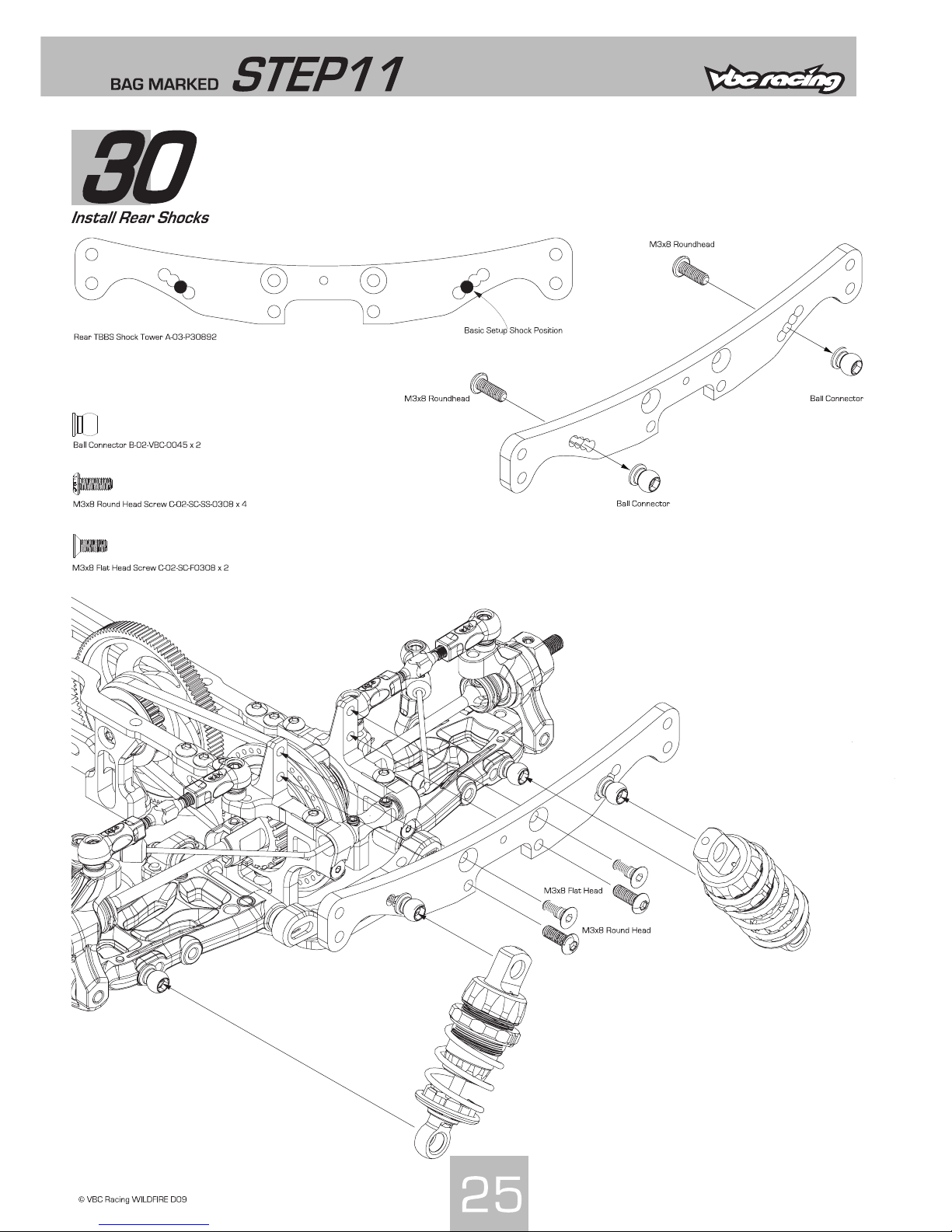

Page 25
Page 26

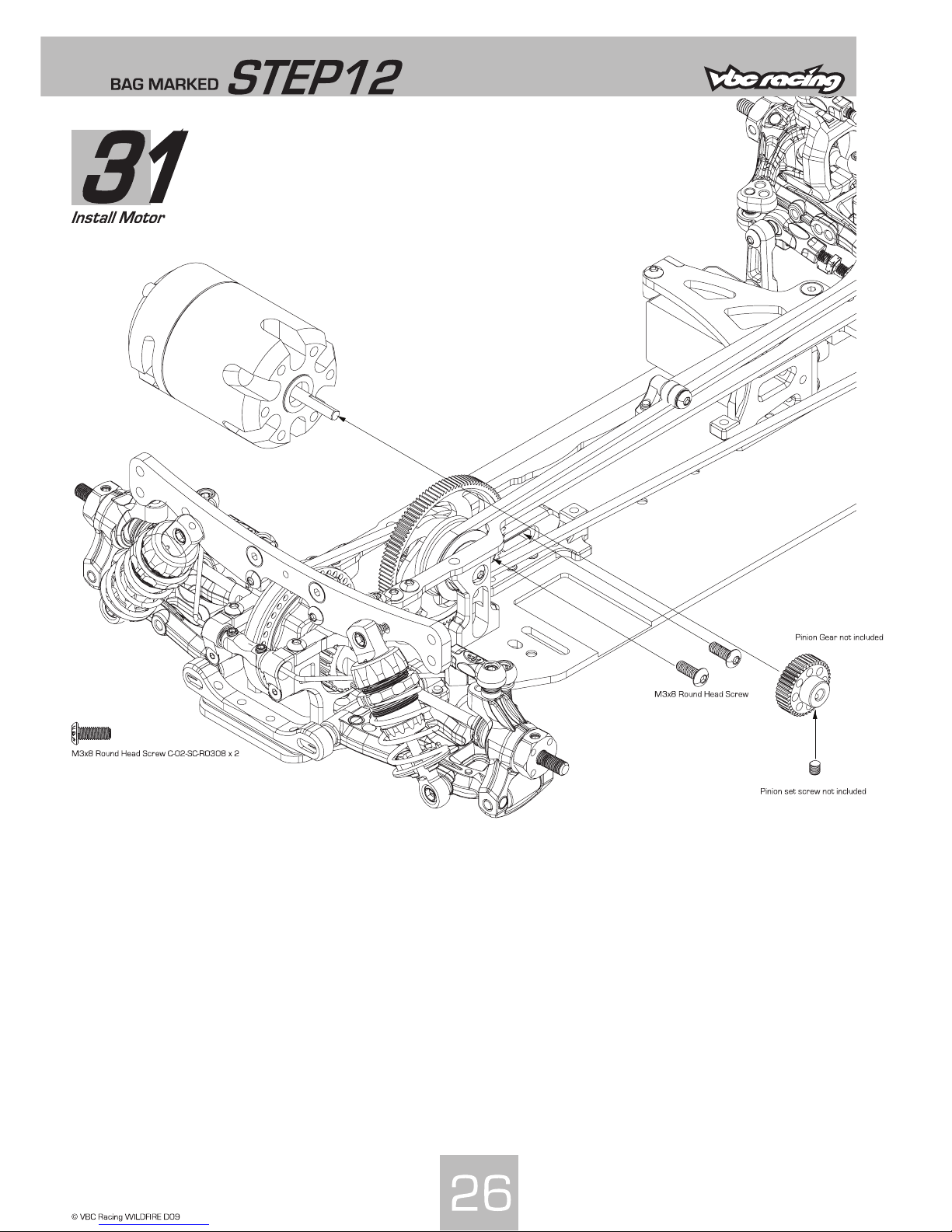

Page 27

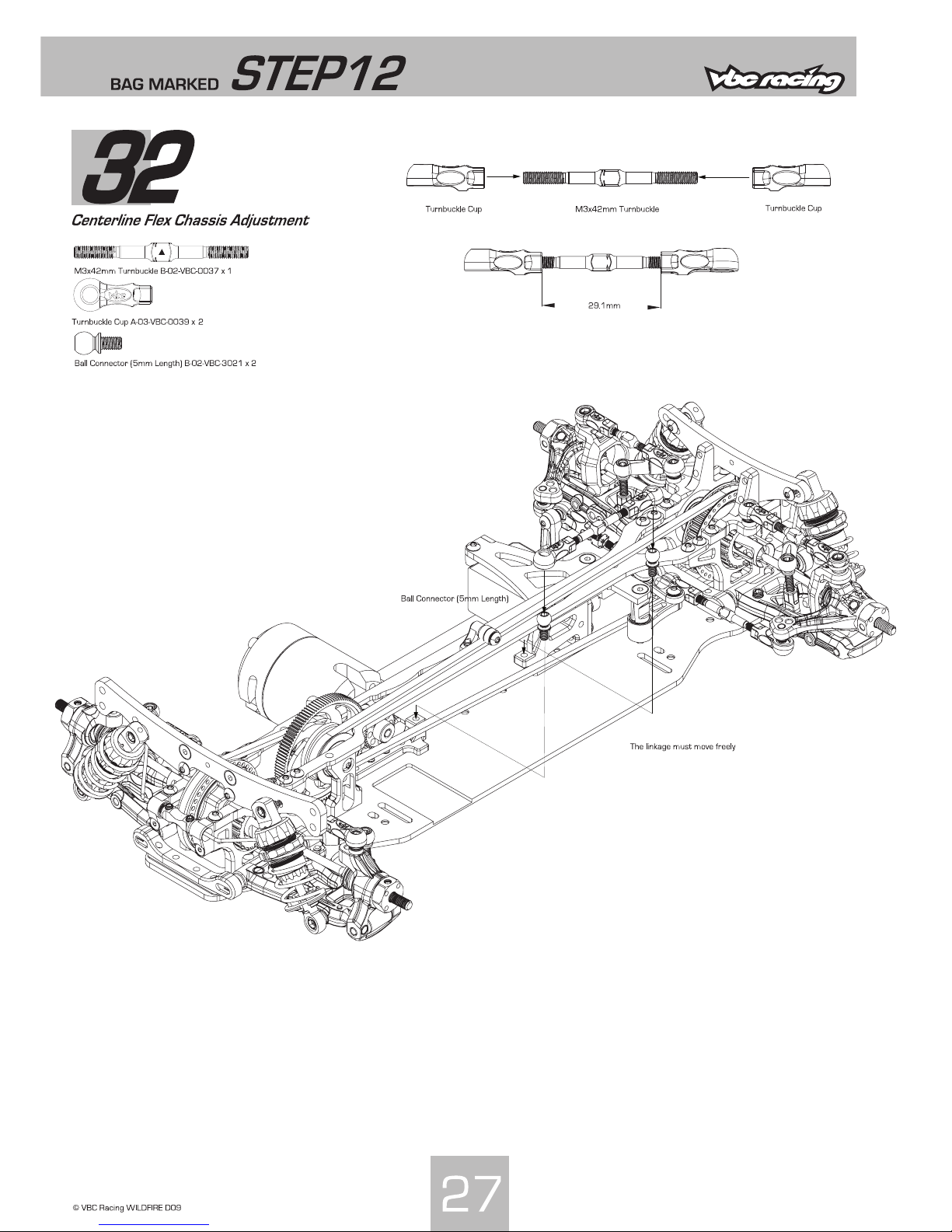

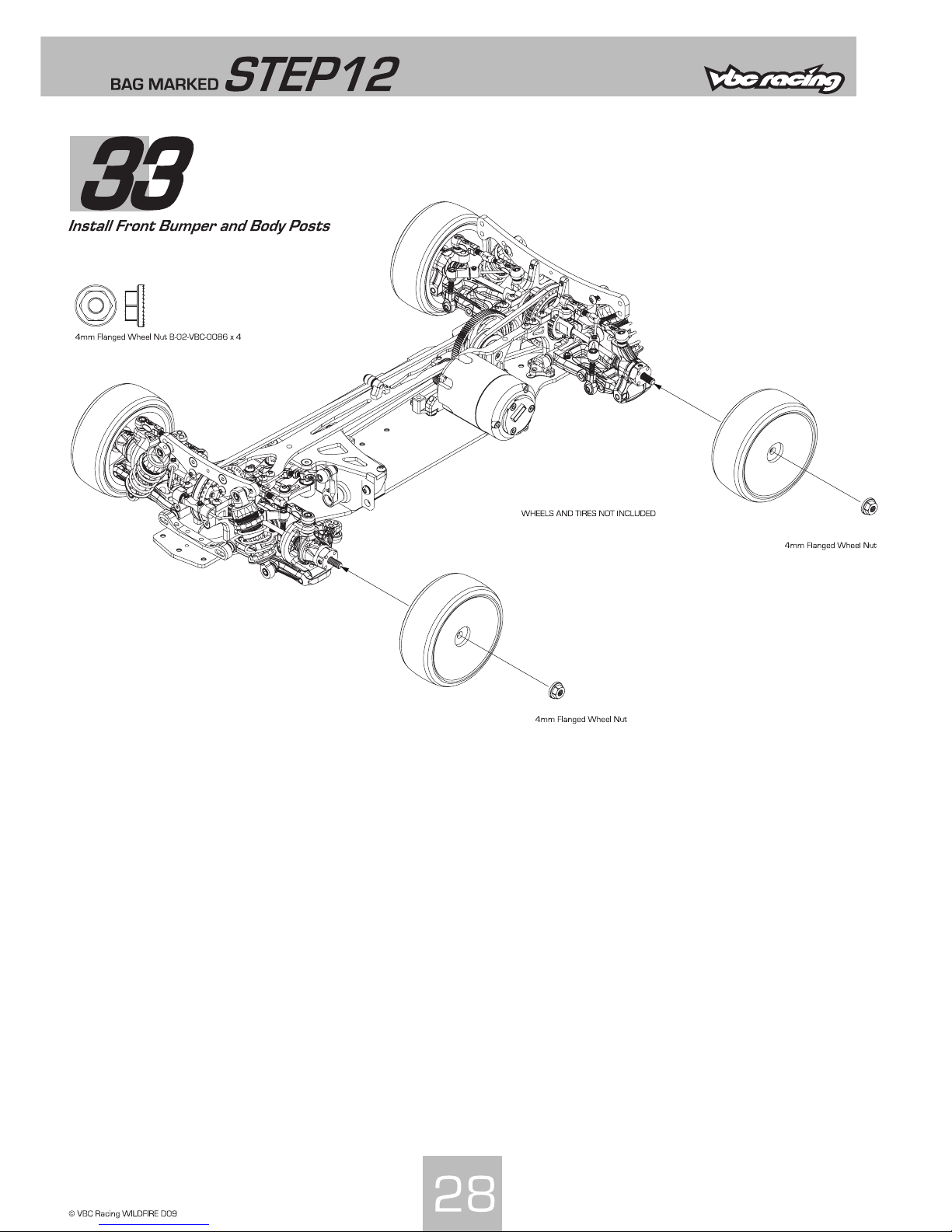

Page 28
Page 29

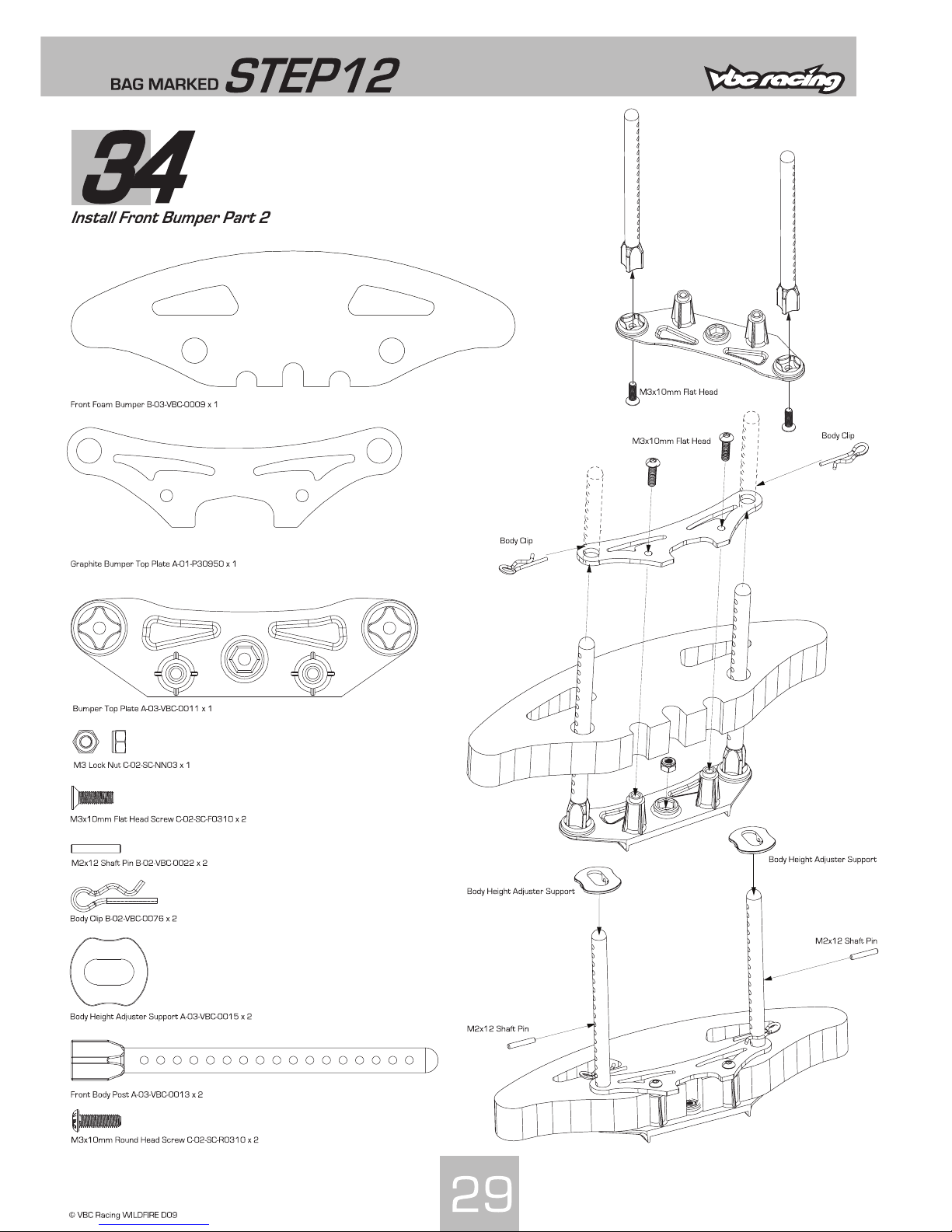

Page 30

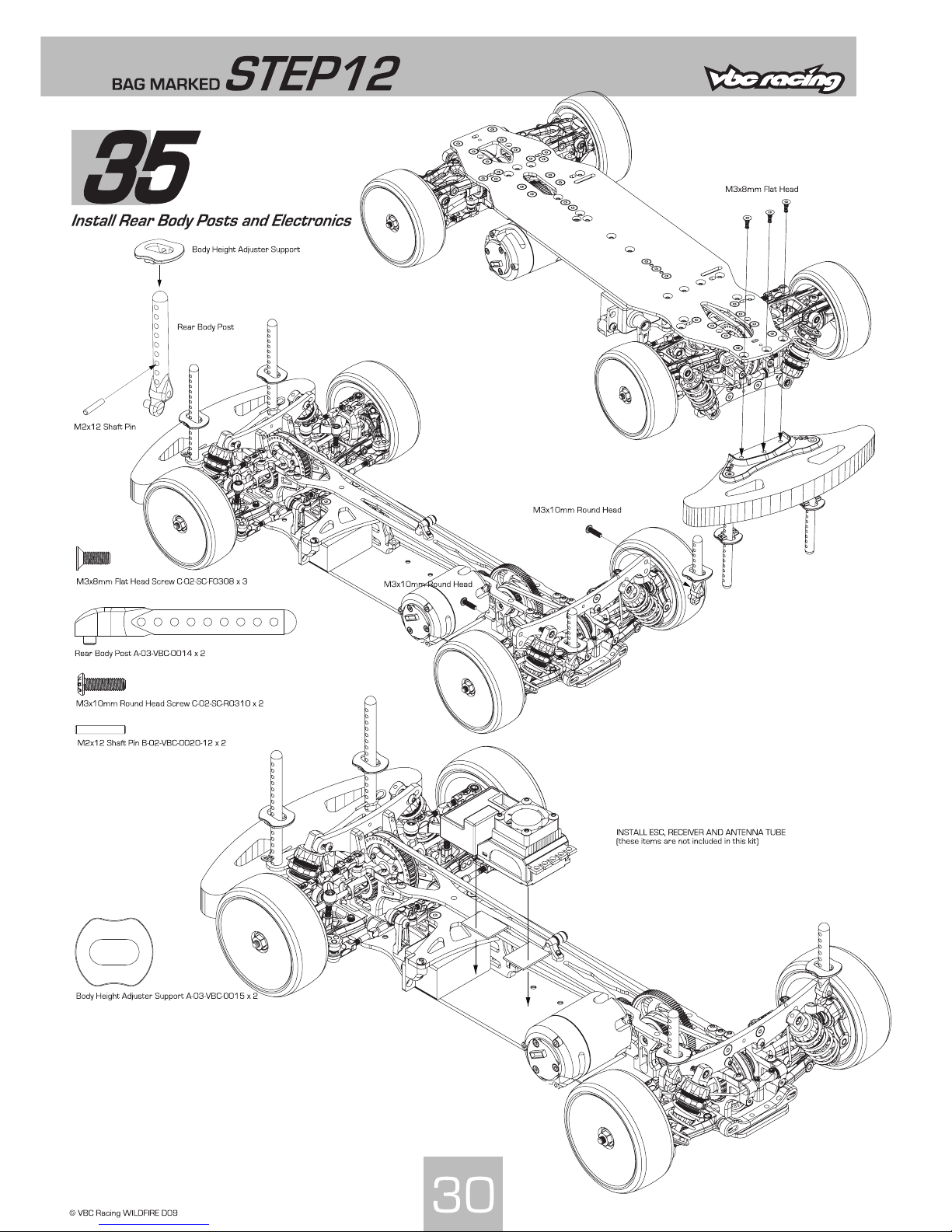

Page 31
Make Two

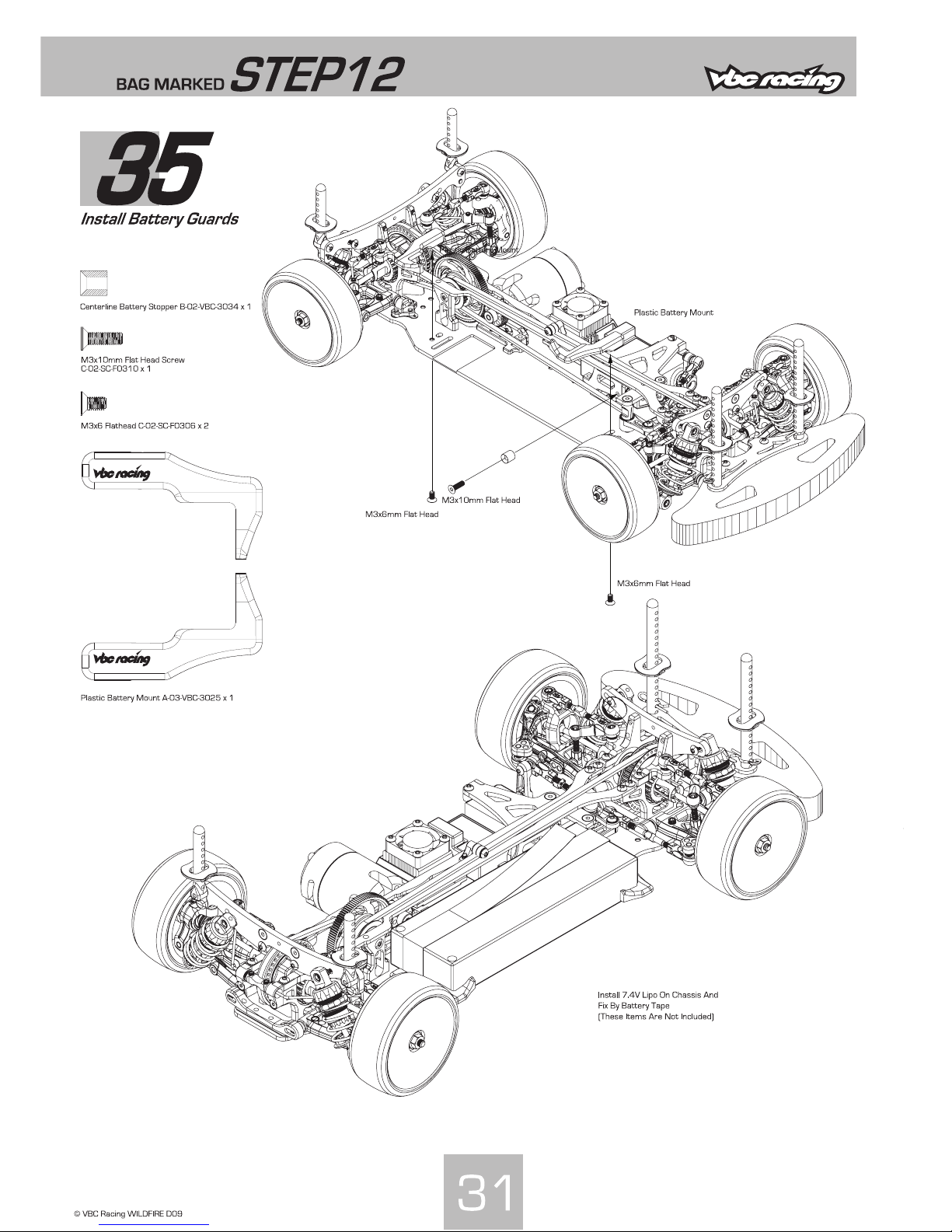

Page 32
Page 33
32
C-02-SC-R030 9 M3x9 Roundhead Screw C-02-SC-R030 9 M3x9 Roundhead Screw
C-02-SC-R031 0
M3x10 Roundhead Screw
C-02-SC-R031 0 M3x10 Roundhead Screw Option
C-02-SC-R- 0312
M3x12 Roundhead Screw
C-02-SC-R- 0312 M3x12 Roundhead Screw
C-02-SC-R- 0316
M3x16 Roundhead Screw
C-02-SC-R- 0316 M3x16 Roundhead Screw Option
C-02-SC-R2. 0x10
M2x10 Roundhead Screw
C-02-SC-R2. 0x10 M2x10 Roundhead Screw
C-02-SC-R1. 6x4 M1.6x4 Screw C-02-SC-R1. 6x4 M1.6x4 Screw
B-02-VBC -0076 Body Clips (20pcs) B-02-VBC -0076 B ody Clip
B-02-VBC -0103 M3 0.1mm shims
B-02-VBC -0100 M3 0.2mm shims
B-02-VBC -0101 M3 0.3mm s hims
C-02-P3 0914
10 x 12 x 0.3mm
Spacer
C02P30914 10 x 12 x 0.3mm Spacer
B-03-VBC -0012 Shaft Sealer O-Ring B-03-VBC -0012 Shaft Sealer O-Ri ng
B-02-VBC -3036
Ball Connect or (5mm Length)
B-02-VBC -3036 Ball Connector (5mm Length)
B-02-VBC -3037
Ball Connect or (7.5mm Length)
B-02-VBC -3037 Ball Connector (7.5m m Length)
B-02-G-30 391
7075 Alumi nium Lightwei ght Spool Shaft
B02G30391
7075 Alumi nium Lightwei ght Spool Shaft
C-02-P3 0941 Double Joint Pi n C02P30941 Double Joint Pi n
D09 Option Parts
A-01-VB C-0044 Turnbuckle Wrench
A-01-VB C-0045 Ball Connector Wrench
B-02-VBC -0095
Titanium Coated Center Shaft Pin
B-02-VBC -0095 Titanium C oated Center Shaft Pin
B-02-VBC -0096
Titanium Coated Upright Shaft
B-02-VBC -0096 Titanium C oated Upright Shaft
B-02-VBC -0098
Titanium Coated Suspension Arm Pin
B-02-VBC -0098 Titanium C oated Suspension Arm Pin
A-03-VB C-0118 Wing Height Adjuster Top Mount
A-03-VB C-0102 Wing Spacer (2.0mm)
A-03-VB C-0103 Wing Spacer (2.5mm)
C-02-SC-R031 0 M3x10 Roundhead Screw Option
C-02-SC-N N03 M3 Lock Nut
A-03-VB C-0110 Front Center Inli ned Battery Mount
A-03-VB C-0109
Rear Center Inlined Adjustabl e Battery Mount
A-03-VB C-0117 Inlined Batt ery Mount Adjuster
C-02-SC-F03 06 M3x6 Fl athead Screw
C-02-SC-SS-0306 M3x6 Set Screw
B-02-VBC -3040
Lightweight Al uminium Damper Ret ainer for TBB Shocks
B-02-VBC -3040
Alumi nium Damper Retainer for TBB Shocks
A-02-VB C-A004G
VBC Racing Personal Neoprene Pit Mat- Grey
A-02-VB C-A004G
VBC Racing Personal Neoprene Pit Mat- Grey
A-02-VB C-A004R
VBC Racing Personal Neoprene Pit Mat- Red
A-02-VB C-A004R
VBC Racing Personal Neoprene Pit Mat- Red
A-02-VB C-A005G
VBC Racing N eoprene XL Pit Mat- Grey
A-02-VB C-A005G VBC Racing Neoprene XL P it Mat-Grey
A-02-VB C-A005R
VBC Racing N eoprene XL Pit Mat- Red
A-02-VB C-A005R VBC Racing Neoprene XL P it Mat-Red
A-02-VB C-A006
VBC Racing Banner (90x180cm)
A-02-VB C-A006 VBC Racing Banner (90x180cm)
X-02-P 00261
VBC Racing Car Prot ection Bag - M (2pcs)
X-02-P 00261
VBC Racing Car Prot ection Bag - M (2pcs)
A01G30935 Center Suspension Mount Shim(0.5mm
)
A01G30936 Center Suspension Mount Shim(1.0mm )
A01G30937 1mm Suspension Shim
A01G30938 0.5mm Suspension Shim O ption
A-03-P30 926
Steering Block Composit e X Gold
A03P30926 Steering Block Composit e X Gold
A03P30927 R C-Hub Composit e X Gold
A03P30928 L C-Hub Composit e X Gold
A03P30929 F Suspension Arm Composi te X Gold
A03P30930 R Suspension Arm Composi te X Gold
B-02-G-30 325 Body Height Adjuster Cone (RED)
B-02-G-30 326 Body Height Adjuster Ri ng (RED)
A-03-VB C-0113 Adjuster O-Ring for BH Adjuster
C-02-SC-R250 8 2.5x8 Cap Screw
R-02-G30601 P5 Oring
A-03-P30 931
R Upright Composi te X Gold
A03P30931 R Upright Composit e X Gold
C-02-G3025 2 D07 Front Stabilizer 1. 4 White Option
C-02-G3025 0 D07 Front Stabilizer 1. 2 Green Option
C-02-G3025 3 D07 Rear Stabilizer 1.4 Whi te Option
C-02-G3025 1 D07 Rear Stabilizer 1.2 Green Opti on
B02G30290 WildFireD07 Fan Mount P artA
B02G30291 WildFireD07 Fan Mount P artB
C-02-SC-R031 4 M3x14 Roundhead Screw
C-02-SC-R- 0306 M3x6 Roundhead Screw
B-02-G31311
WildFi reD09 Aluminum 7075 Chassis
B02G31311 WildFireD09 Al uminum 7075 Chass is
C-02-G3131 9
WildFi reD09 8.6g Weight for Suspension Mount FR/RR
C02G31319
WildFi reD09 8.6g Weight for Suspension Mount FR/RR
A03P30898 Steering Block Composit e X Sliver
A-03-VB C-0039 Turnbuckle Cup
A03P30899 F Suspension Arm Composi te X Sliver
B-02-VBC -0032 M3x23 Upright Pin
B-02-VBC -0033 Steering Swivel Tube
B-02-VBC -0038 M3x18mm Turnbuckle
B-02-VBC -0045 Ball Connector
B-02-VBC -3021 Ball Connector (5mm Lenght)
C-02-SC-F03 08 M3x8 Fl athead Screw
C-02-SC-F03 10 M3x10 Fl athead Screw
C-02-SC-R030 9 M3x9 Roundhead Screw
C-02-SC-SS-0304 M3x4 Set Scre
w
C-02-SC-SS-0312 M3x12 Set Screw
B02G30172 Alum C-Hub 2deg, Left
B02G30173 Alum C-Hub 2deg, Ri ght
B-02-VBC -0019-20 T2 7075 Spacer
C-02-SC-SS-0410 M4x10 Set Screw
D-05-VBC- 0048 Tie Rod Wrench Set
D-05-VBC- 0057 Shims 0.1,0. 2,0.3mm
Pack
D-05-VBC- 0059 Graphite Wing Height A
djuster
D-05-VBC- 0070 Center Inlined Adj Batte
ry Mount for WildFire, 4 17, TCXX, T3/4
D-05-VBC- 0232
Front/Rear Suspenion
Shim (1mm,0 .5mm)
D-05-VBC- 0231 Center Suspension Mou
nt Shim Set
D-05-VBC- 0227 WildFire C- Hub Set Com
posite X G old
D-05-VBC- 0228 WildFire Com posite X
Suspension Arm Set Gold
Front Stabilizer Set
D-05-VBC- 0184 Body Height Adjuster Se
t V2 (RED)
D-05-VBC- 0168 Rear Stabilizer Set
D-05-VBC- 0167
D-05-VBC- 0181 Cooling Fan Mount
D-05-VBC- 0183 WildFire 'ARTS - Acti ve
Rear Toe System' Kit
B-02-G30172
7075 Alu C- Hub 2deg,
Left
B02G30172 Alum C- Hub 2deg, Left
B-02-G30173
7075 Alu C- Hub 2deg,
Right
B02G30173 Alum C- Hub 2deg, Right
N-01-G3 0991
SMJ Silver Line Spring
TS2.8 (Short/Blue) for
TBBS
N01G30991SMJ Silver Line Spring TS2.8
(Short/Blue)
N-01-G3 0992
SMJ Silver Line Spring
TS3.0 (Short/Silver) for
TBBS
N01G30992SMJ Silver Line Spring TS3.0
(Short/Silver)
N-01-G3 0993
SMJ Silver Line Spring
TS3.2 (Short/Pink) for
TBBS
N01G30993SMJ Silver Line Spring TS3.2
(Short/Pink)
N-01-G3 0994
SMJ Silver Line Spring
TS3.5 (Short/Gold) for
TBBS
N01G30994SMJ Silver Line Spring TS3.5
(Short/Gold)
N-01-G3 1272
SMJ Silver Line
Progressive Spring
TS2.5-2.7
(Short/Yellow) for TBBS
N01G3127
2
SMJ Silver Line Progressive
Spring TS2.5-2.7
(Short/Yellow) for TBBS
N-01-G3 1273
SMJ Silver Line
Progressive Spring
TS2.5-2.8 (Short/Red)
for TBBS
N01G3127
3
SMJ Silver Line Progressive
Spring TS2.5-2.8 (Short/Red)
for TBBS
N-01-G3 1274
SMJ Silver Line
Progressive Spring
TS2.5-3.0
(Short/Purple) for TBBS
N01G3127
4
SMJ Silver Line Progressive
Spring TS2.5-3.0
(Short/Purple) for TBBS
C-02-G310 38
Titanium Coated TBBS
Shock Shaft
C02G31038
Titanium Coated TBBS Shock
Shaft
C-02-G310 09
Brass Suspension
Mount (9.5gm)
C02G31009
Brass Suspension Mount
(9.5gm)
C-02-G310 11
Brass Solid FR Mount
(10.9gm)
C02G31011
Brass Solid FR Mount
(10.9gm)
C-02-G310 12
Brass Split Mount
(4.3gm)
C02G31012 Brass Split M ount (4.3gm)
C02G31016
12.5gm LC G Center Balance
Weight
C02G31017
18.5gm LC G Center Balance
Weight
C-02-SC-
R0304
M3x4 Roundhead Screw
B-02-
G31173
WildFi re Battery Holder Front
B-02-
WildFi re Battery Holder Rear
B-02-
WildFi re Battery Holder Rear
C-02-SC-
M3x4 Roundhead Screw
C-02-SC-
M3x6 Flathead Screw
A03G31299
F Suspension Arm Composi te
X Red
A03G31300
R Suspension Arm Composi te
X Red
A-03-P3 0897
R Upright Composi te X
Sliver
A03P30897 R Upright Composi te X Sliver
D-05-VBC- 0246
LCG Center Balance
Weight Set
(12.5+18.5gm )
D-05-VBC- 0249
WildFi re Graphite
Composit e X
Suspension Arm Set
Red
D-05-VBC- 0250
WildFi re Anti-Tweak
Battery Mount
B-02-VBC -0024 Inner Axle
B-02-VBC -0026 Axle Joint
B-02-VBC -0025 Wheel Axle B-02-VBC -0025 Wheel Axle
A-03-VB C-0106
Lightweight Hardened
Spool Outdrive
A-03-VB C-0106 Lightweight Hardened Spool Outdrive
B-02-VBC -0027 Axle Lock Spring B- 02-VBC-0027 Axle Loc k Spring
B-02-VBC -3035 M2x12 Shaft Pin B-02-V BC-3035 M2x12 Shaft Pin
B-02-P308 87 0 Offset Hex Wheel Hub (Lightweight)
C-02-SC-SS-0303 M3x3 Set Screw
B-02-VBC -0036 M3x32mm Turnbuckle B-02-VBC -0036 M3x32mm Turnbuckle
B-02-VBC -0032 M3x23 Upright Pin B-02-VBC- 0032 M3 x23 Upright Pin
A-03-VB C-0040 Turnbuckle Cup Open Type S
A-03-VB C-0041 Turnbuckle Cup Open Type L
B-02-P313 18 One Piece Mount FR B02P31318 One Piece Mount FR
B-02-P313 12 Split Mount C0 B02P31312 Split Mount C0
B-02-P313 17 Suspension Mount RR B02P31317 Suspension Mount RR
B-02-P313 16 Suspension Mount FF B02P31316 Suspension Mount FF
B-02-P308 03 Stabilizer Mount B
B-02-P308 12 Stabilizer Mount A
C-02-BB- 0603 3x6 Bal l Bearing
A-03-P30 898
Steering Block
Composit e X Sliver
A03P30898 Steering Block Composit e X Sliver
A03P30900 R C-Hub Composit e X Sliver
A03P30901 L C-Hub Composit e X Sliver
B-02-VBC -0033 Steering Swivel Tube B-02-VBC -0033 Steeri ng Swivel Tube
Battery Mount Set A-03 -VBC-3025 Wil dFireD06 Battery Mount
Centerline Bat tery
Stopper
B-02-VBC -3034
WildFi reD06 Centerline Battery
Stopper
C02P30248 D07 Front Stabilizer 1. 3 Red
C02P30249 D07 Rear Stabilizer 1.3 Red
A03P30150 Stabilizer Ball Connector
C-02-SC-SS-0303 M3x3 Set Screw
A-03-VB C-3048 Belt Tension Adjuster Ri ng (Black)
C-02-SC-R2. 0x4 M2x4 Roundhead Screw
C-02-SC-R2. 0x10 M2x10 Roundhead Screw
B02G30955 TBBS Shock Body
B-02-VBC -0121 TBB Shock Height Adjuster
B02G30956 TBBS Bottom Cap
A-03-VB C-0138 TBB Shock Piston (4 holes)
A-03-VB C-0124 TBB Shock Bottom Connector
B-02-VBC -0125 TBB Shaft Cap
C02G30957 TBBS Shock Shaft
B-03-VBC -0128
TBB Sealer O-Ring (Shock Height Adjuster)
B-03-VBC -0012 TBB Shaft Sealer O-Ring
B-03-VBC -0129 M2 E-Cli p
A-03-VB C-0130 TBB Shock Top Connector
A-03-VB C-0131 TBB Spring Bottom Support
B-03-VBC -0140 TBB Short Oil Sealer Cap (Medium Soft)
B-02-VBC -0133 TBB Shock Body Cap
N01G30991
SMJ Silver Line Spring TS2.8 (Short/Blue)
N01G30992
SMJ Silver Line Spring TS3.0 (Short/Silver)
A-03-VB C-0123
TBB Shock Piston (3 holes)
A-03-VB C-0123 TBB Shock Piston (3 holes)
A-03-VB C-0138
TBB Shock Piston (4 holes)
A-03-VB C-0138 TBB Shock Piston (4 holes)
C-02-G3095 7 TBBS Shock Shaft C02G30957 TBBS Shock Shaft
A-03-VB C-0130 TBB Shock Top Connector
A-03-VB C-0126 TBB Shaft Guide
B-02-VBC -0125 TBB Shaft Cap
A-03-VB C-0124 TBB Shock Bottom Connector
A-03-VB C-0131 TBB Spring Bottom Support
B-03-VBC -0139 TBB Oil Sealer Cap (Soft)
B-03-VBC -0132 TBB Oil Sealer Cap (Medium Soft)
B-03-VBC -0141 TBB Oil Sealer Cap (Medium Hard)
B-03-VBC -0142 TBB Oil Sealer Cap (Hard)
A-01-G-3 0982
LCG Front Shock Tower for TBBS
A01P30802 LCG Front Shock Tower for TBBS
A-01-G-3 0983
LCG Rear Shock Tower for TBBS
A01P30983 LCG Rear Shock Tower for TBBS
A-03-VB C-0053 Servo Horn Type F (Composite)
A-03-VB C-0054 Servo Horn Type A (Composite)
A-03-VB C-0032 Servo Spacer 1mm
A-03-VB C-0033 Servo Spacer 2mm
A-03-VB C-0011 Front Bumper Bottom Support
A-02-VB C-0062 Bumper Top Plate
A-03-VB C-0013 Front Body Post
A-03-VB C-0014 Rear Body Post
A-03-VB C-0015 Body Height Adjuster Support
B-02-VBC -0076 Body Clip
B-02-VBC -0020-12 M2x12 Shaft Pin
B-03-VBC -0009
WildFi re Front Foam Bumper (Lightweight)
B-03-VBC -0009 Front Foam Bumper
C-02-SC-F02 56 M2. 5x6 Flathead Screw C-02-SC- F0256 M 2.5x6 Flathead Screw
C-02-SC-F03 06 M3x6 Fl athead Screw C-02-SC-F0306 M3x6 Flathead Screw
C-02-SC-F03 08 M3x8 Fl athead Screw C-02-SC-F0308 M3x8 Flathead Screw
C-02-SC-F03 10 M3x10 Fl athead Screw C-02-SC-F03 10 M3x10 Fl athead Screw
C-02-SC-F03 12 M3x12 Fl athead Screw C-02-SC-F03 12 M3x12 Fl athead Screw
C-02-SC-R030 4 M3x4 Roundhead Screw C-02-SC-R030 4 M3x4 Roundhead Screw
C-02-SC-R030 6 M3x6 Roundhead Screw C-02-SC-R030 6 M3x6 Roundhead Screw
C-02-SC-R030 8 M3x8 Roundhead Screw C-02-SC-R030 8 M3x8 Roundhead Screw
D-05-VBC- 0043
Inner Axle/Axle Joint
Set
D-05-VBC- 0222
0 Offset Hex Wheel Hub
(Lightweight)
D-05-VBC- 0044
Turnbuckle Cup Open
Type Set
Stabilizer Mount Set
D-05-VBC- 0224
WildFi re C-Hub Set
Composit e X Sliver
D-05-VBC- 0223
D-05-VBC- 0097
D-05-VBC- 0180 Stabilizer Ball C onnecto
r Set
D-05-VBC- 0176 Standard Stabili zer Set
D-05-VBC- 0153 WildFire Dynamic s Editi
on Adjuster Ring Set
D-05-VBC- 0088 TBB Shocks Parts Set
D-05-VBC- 0095 TBB Oil Sealer Cap Set
D-05-VBC- 0018 WildFire Servo Horn Set
(Composit e)
D-05-VBC- 0013 WildFire Bumper Pack
D-05-VBC- 0012 WildFire Body Post s Pa
ck
D-05-VBC- 0236 True Big Bore Short (TB
BS) Touring Shocks Set
Page 34
Order Number Package Descriptions Parts Number Parts Descriptions
A-03-V BC-0016 Gear Diff Housing
A-03-V BC-0017 Gear Diff Pulley 38T
A-03-V BC-0018 Diff Gear 10T
A-03-V BC-0019 Diff Gear 18T
A-03-V BC-0020 Diff Gear Shaft
B-03-V BC-0004 Seal Gasket
B-03-V BC-0006 Diff Shaft Sealer O-Ri ng
B-03-V BC-0005 Diff Housing Sealer O-Ring
C-02- SC-F2.6 x10 M 2.6x10 Flathead Screw
B-02-P 30888 Lightweight Diff Cup
B-02-V BC-0020 M2x10 Shaft Pin
B-02-V BC-0077 15x0.3mm Shim
B-02-V BC-0078 9.5x0.2m m Shim
A-03-V BC-0018 Diff Gear 10T
A-03-V BC-0019 Diff Gear 18T
A-03-V BC-0020 Diff Gear Shaft
A-03-V BC-0016 Gear Diff Housing
A-03-V BC-0017 Gear Diff Pulley 38T
B-02-P 30888 Li ghtweight Di ff Cup B-02-P30888 Lightweight Diff Cup
B-03-V BC-0005 Diff Housing Sealer O-Ring
B-03-V BC-0006 Diff Shaft Sealer O-Ri ng
B-03-V BC-0004 Seal Gasket B-03-V BC-0004 Seal Gasket
B-02-V BC-0077 15x0.3mm Shim
B-02-V BC-0078 9.5x0.2m m Shim
B-02-V BC-0020 M2x10 Shaft Pin B-02- VBC-0020 M2x10 Shaft Pin
C-02- BB-1510-P 10x15 Bal l Bearing C-02-BB- 1510-P 10x15 Ball Bearing
C02P3125 3 Wil dFireD09 Center Pul ley Shaft
C02P3134 3 M4 E-cl ip
B02P31172 Wil dFireD09 Steering Arm
B02P31171 Wil dFireD09 Steering Bridge
B02P30154
Wil dFireD09 Steering Top-mounted
C-02- BB-0805-B 5x8 Ball B earing
C-02- BB-0603 3x6 Ball B earing
A03P31176 Wil dFireD09 POM Steering Stopper
B-02-V BC-3037 Ball Connect or (7.5mm Length)
B-02-V BC-3036 Ball Connect or (5mm Lenght)
A01P31296 Wil dFire D09 Servo Mount Plate
B02P31313
Wil dFire D09 Servo Mount Extension
Plat e
B02P31297 Wil dFire D09 Servo Standoff
B02P31298 Wil dFire D09 Servo Side Mount
A-01-P 31296
Wil dFire D09 Servo
A01P31296 Wil dFire D09 Servo Mount Plate
B-02-V BC-5015
Ball C onnector
B-02-V BC-5015 Ball Connect or 4.7x12m m (5pcs)
A-03-V BC-5016 Turnbuckle Cup (Long) A-03- VBC-5016 Turnbuckle Cup (Long)
C-02- BB-0603 3x6 Ball Beari ng C -02-BB-0603 3x6 Bal l Bearing
A-03-V BC-0039 Turnbuckle Cup (Grey) A-03-V BC-0039 Turnbuckle Cup
A-03-V BC-0039Y Turnbuckle Cup (Yel low) A-03-V BC-0039Y Turnbuckle Cup
A-03-P 30952
Camber Link Turnbuckle
A03P30952 Camber Link Turnbuckle (Front)
B-02-V BC-0037
M3x42mm Turnbuckle
B-02-V BC-0037 M3x42mm Turnbuckle
B-02-V BC-0038
M3x18mm Turnbuckle
B-02-V BC-0038 M3x18mm Turnbuckle
B-03-V BC-3001 Front Belt B-03-V BC-3001 Front Belt
B-03-G3 0288 Wil dFireD09 Rear Belt B03G30288 WildFi reD09 Rear Belt
B02P30894 Lightweight Center Belt Tensioner
C-02- BB-0603 3x6 Ball B earing
B-02-V BC-0101 M3 0.3mm Shim
C-02- SC-R-0306 M3x6 Roundhead Screw
C-02- SC-R-0310 M3x10 Roundhead Screw
B02P30144 Alu Cent er Pull y Spacer
C-02- BB-0805-B 5x8 Ball B earing
B02P30219 Alumi num Center Pull ey A 20T
B02P30220 Alumi num Center Pull ey B 20T
C-02- SC-R0304 M3x4 Roundhead Screw
C-02- BB-0805-B 5x8 Ball Bearing C-02-BB-0805- B 5x8 Ball Bearing
G02P31281 AXON Spur Gear TCS 64P 110T
C-02- SC-R0304 M3x4 Roundhead Screw
D-05-V BC-0215
Gear Differential wit h
Lightweight Diff Cup
D-05-V BC-0034 Differenti al Gear Set
B-03-V BC-0005
Gear Differentials O-
Ring Set
D-05-V BC-0053
Gear Differentials 38T
Housing Set
D-05-V BC-0035
Gear Differentials Shims
Set
D-05-V BC-0216
Lightweight Mid Belt
Tensioner Set
Center Pul ley Set
D-05-V BC-0257
Wil dFireD09 Servo
Mount Set
D-05-V BC-0258
AXON Spur Gear TCS
64P 110T
D-05-V BC-0161
D-05-V BC-0256
WIldFi reD09 Steering
Set
D-05-V BC-0259
Wil dFireD09 Center
Pull ey Shaft Set
A-01-P 31254
Wil dFireD09 Standard
A01P31254 Wil dFireD09 Standard Upper Deck
A-01-P 31255
Wil dFireD09 Standard
Graphite Chassi s
A01P31255
Wil dFireD09 Standard Graphite
Chassis
A-01-P 30950
Wil dFireD08 Graphite
Bumper Top Plat e
A01P30950
Wil dFireD08 Graphite Bum per Top
Plat e
B02P31244 Wil dFireD09 Upper Front Bulkhead FR
B02P31243 Wil dFireD09 Upper Front Bulkhead FL
B02P31247 Wil dFireD09 Upper Rear Bulkhead RR
B02P31246 Wil dFireD09 Upper Rear Bulkhead RL
B-02-P 31242
Wil dFireD09 Lower
B02P31242 Wil dFireD09 Lower Bulkhead
B-02-P 30813
Wil dFireD08 Stabil izer
B02P30813 Wil dFireD08 Stabil izer Connector
B02P31248 Wil dFireD09 Motor Mount A
B02P31250 Wil dFireD09 Motor Mount C
B-02-P 31249
Wil dFireD09 Center
B02P31249 Wil dFireD09 Center Pul ley Support
C-02- P30249 Rear Stabili zer 1.3
C-02- P30248 Front Stabili zer 1.3
A-03-V BC-5021 Turnbuckle Cup (Short)
C-02- SC-SS-0303 M3x3 Set Screw
B-02-G3 1134 VBC Dynamics Stabil izer Connector
A-02-V BC-5092 4.7x17mm Ballstud
A-03-V BC-0041 Turnbuckle Cup Oprn Type L
A-03-V BC-0040 Turnbuckle Cup Open Type S
B-02-V BC-3034
Centerli ne Battery
B-02-V BC-3034 WildFi reD06 Centerli ne Battery
B-02-V BC-0045 Ball C onnector B-02-V BC-0045 Ball Connect or
B-02-P 31003 T0.5 7 075 Spacer (Red) B-02-P 31003 T0.5 7075 Spacer (Red)
B-02-P 30891 T1 7075 Spacer (Red) B0 2P30891 T1 7075 Spacer (Red)
B-02-P 31004 T1.5 7 075 Spacer (Red) B-02-V BC-0019-15 T1. 5 7075 Spacer
B-02-P 30890 T2 7075 Spacer (Red) B0 2P30890 T2 7075 Spacer (Red)
A-03-V BC-0021 Front Spool Pull ey 38T
A-03-V BC-0022 Pull ey Belt Gui de
A-03-V BC-0049 Spool Drive Shaft
A-03-V BC-0055 Front Spool Outdrive
C-02- SC-R0308 M3x8 Roundhead Screw
C-02- SC-F0312 M3x12 Flathead Screw
A-03-V BC-0055 Front Spool Outdrive A-03-V BC-0055 Front Spool Outdrive
A-03-V BC-0049 Spool Drive Shaft A-03-VBC- 0049 Spool Drive Shaft
A-03-V BC-0021 Front Spool P ull ey 38T
A-03-V BC-0022 P ull ey Belt Guide
A03P30899 F Suspension Arm Com posit e X Sliver
A03P30896 R Suspension Arm Com posite X Sli ver
B-02-V BC-0029 Suspension Arm Pi n B- 02-VB C-0029 Suspension Arm Pi n
B-02-V BC-0035 Arm Pi n Pivot Ball B- 02-VBC-003 5 A rm Pi n Pivot Ball
A-03-P 31327
R 2-hole Upright
A03P31327 R 2-hole Upright Composite X Sli ver
A-03-V BC-0038 Shaft End Shoe A- 03-VBC-0038 Shaft End Shoe
C02P3093 9 Double Joint Bone 41. 3mm
B-02-V BC-3035 M2x12 Shaft Pi n
C-02- SC-SS-0302 M3x2 Set Screw
C02P3094 0 Double Joint I nner
C02P3094 1 Double Joint P in
C02P3094 3 Double Joint Loc k Spring Ring
C02P3094 2 Double Joint C ase
C02P3094 4 Double Joint Axl e Shaft
A03P30945 Suspension Mount Compos ite Insert 1
A03P30946 Suspension Mount Compos ite Insert 2
A03P30947 Suspension Mount Compos ite Insert 3
A03P30948 Suspension Mount Compos ite Insert 4
A03P30949 Suspension Mount Compos ite Insert 5
B-02-V BC-0104 I nner Axle - Al uminum 49mm
B-02-V BC-0025 Wheel Axle
B-02-V BC-0026 Axl e Joint
B-02-V BC-0027 Axl e Lock Spring
B-02-V BC-0020 M2x10 Shaft Pi n
B-02-V BC-3035 M2x12 Shaft Pi n
C-02- SC-SS-0302 M3x2 Set Screw
C-02- BB-1005-B 5x10 Ball Bearing C-02- BB-1005-P 5x10 Ball Bearing
D-05-V BC-0255
D-05-V BC-0260
Wil dFireD09 Rear
Upper Bulkhead Set
D-05-V BC-0261
Wil dFireD09 Front
Upper Bulkhead Set
Wil dFireD09 Motor
Mount Set
D-05-V BC-0015
Wil dFire Front Spool Set
38T
D-05-V BC-0220
Wil dFire Composi te X
Suspension Arm Set
D-05-V BC-0041 Spool Pul ley Set
D-05-V BC-0214
Yaiba Raci ng Double
Universal Joint Axle Set
4130
D-05-V BC-0212
Suspension Mount
Composi te Insert Set
D-05-V BC-0221
WIldFi re ALU 7075
Drive Axle Set
D-05-V BC-0242
VBC Dynami cs
Stabili ser Link System
Page 35
Loading...
