VBC Racing WildFire Instruction Manual

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT

1/10 4WD ELECTRIC COMPETITION TOURING CAR KIT

E

INSTRUCTIONS MANUAL

5

Thank you for purchasing VBC Racing product.

This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality full carbon fiber chassis and high grade 7075 material which will give you a competitive edge over the others. Novice racer should seek advice from more experienced racer before assembly. Always keep this instruction manual handy at all times for quick reference even after completing the assembly.

Before your assembly, sand the chassis edges.

Things that we should remind you.

Sand the chassis edges with #600 sand paper and apply CA glue to the edges and counter sink holes.

Need help or support.

If you need help or you would like to leave us a comment, please email to our support team: [email protected] or visit our web site www.vbcracing.com

BAG MARKED

STEP1

1

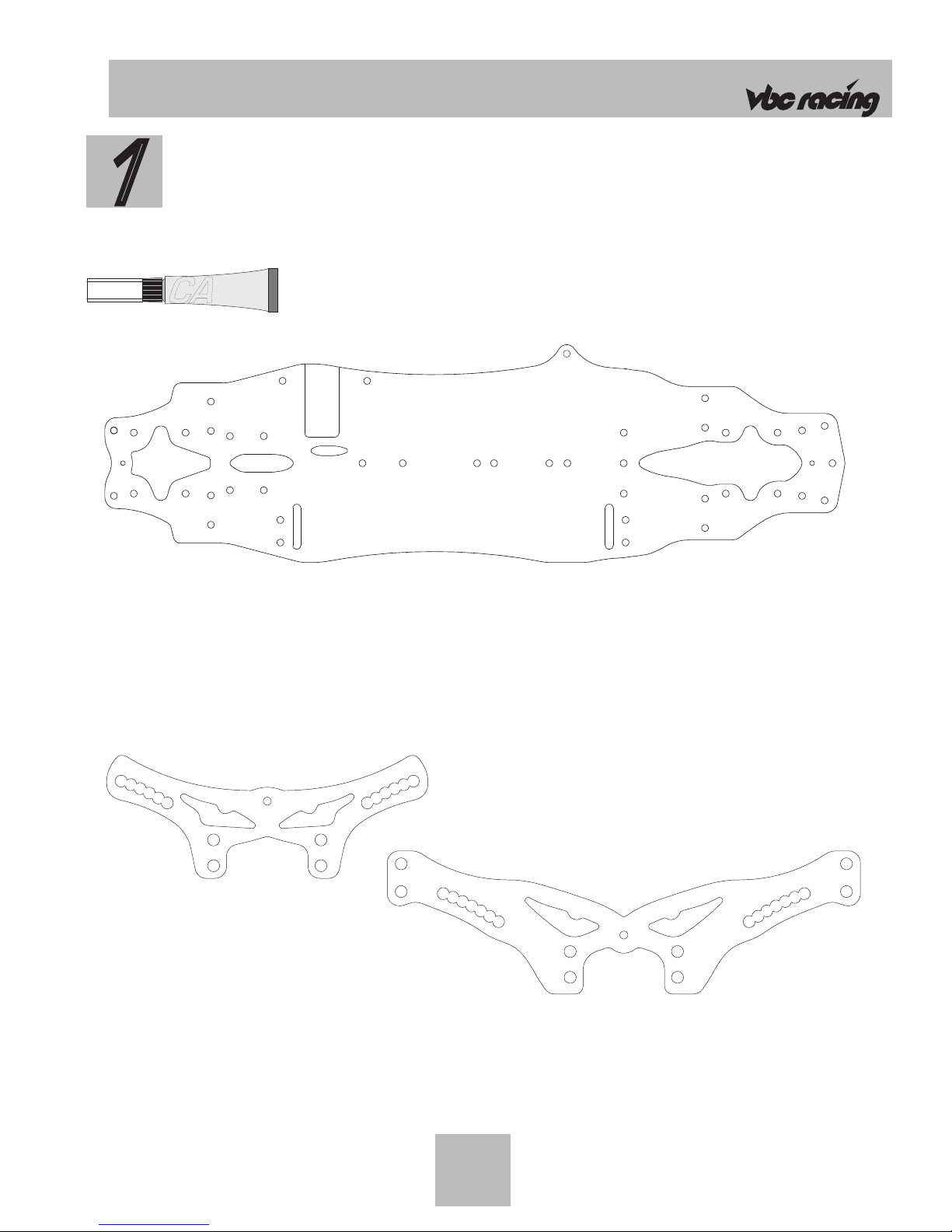

Graphite Edges Protection Procedure

01© VBC Racing WILDFIRE

CA

Sand the chassis edges with #600 sand paper(not included) and apply CA glue(not included) to the edges of the chassis.

Sand the below graphite edges with #600 sand paper and apply CA glue to the edges.

A-01-VBC-0028 WildFire Graphite Rear Shock Tower

A-01-VBC-0027 WildFire Graphite Front Shock Tower

*Not included in this kit

A-01-VBC-0035-25 WildFire Standard Graphite Chassis

38

BAG MARKED

STEP2-3

2

Rear Gear Diff Assembly

Rear Gear Diff Left Side

Rear Gear Diff Right Side

Gear Diff Housing A-03-VBC-0016 x 1

Gear Diff Pulley 38T A-03-VBC-0017 x 1

Diff Gear 18T A-03-VBC-0019 x 2

Diff Cup B-02-VBC-0022 x 2

10x15 Ball Bearing C-02-BB-1510-B x 2

M2x10 Shaft Pin B-02-VBC-0020 x 2

15x0.3 Shim B-02-VBC-0077 x 2

Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2

Rear Gear Diff Right Side Assembly Cross Section

Diff Gear 18T

Diff Outdrive

Right Gear Diff Housing

02

Diff Ourdrive

Gear Diff Pulley 38T

Diff Gear 18T

10x15 Ball Bearing

15x0.3 Shim

M2x10 Shaft Pin

Outdrive Sealer O-Ring

10x15 Ball Bearing

M2x10 Shaft Pin

Diff Oil

Apply small amount of diff oil

Diff Outdrive

Diff Gear 18T

Right Gear Diff Housing

10x15 Ball Bearing

15x0.3 Shim

M2x10 Shaft Pin

Outdrive Sealer O-Ring

Diff Oil

Apply small amount of diff oil

15x0.3 Shim

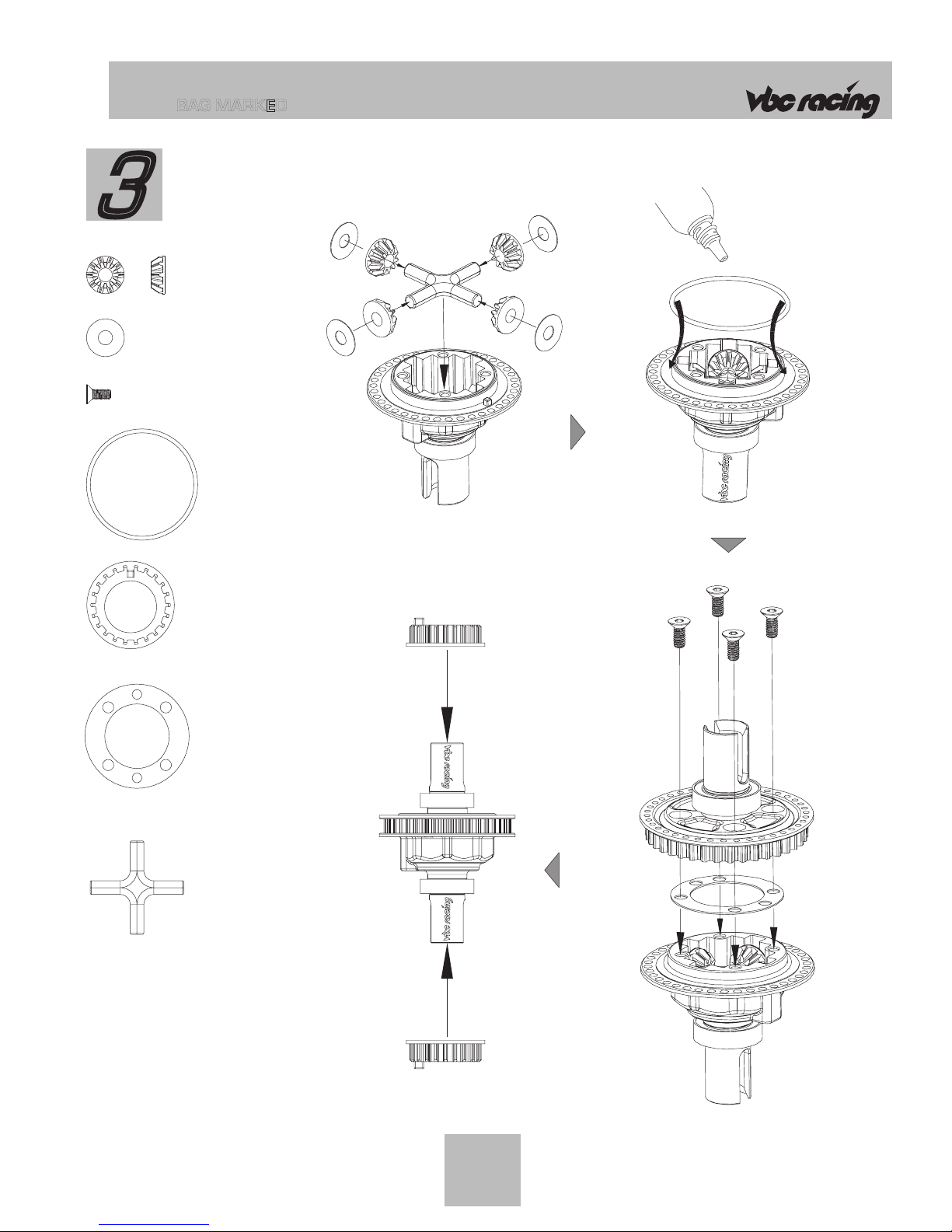

3

Rear Gear Diff Assembly Continue

Diff Gear 10T A-03-VBC-0018 x 4

M2.6x10 Flathead Screw C-02-SC-F2.6x10 x 4

Seal Gasket B-03-VBC-0004 x 1

03© VBC Racing WILDFIRE

9.5x0.2mm Shim B-02-VBC-0078 x 4

Belt Tension Adjuster Ring A-03-VBC-0047 x 2

Idle Gear 10T

Right Side Diff

Right Side Diff Assembly

Left Side Diff Assembly

Belt Tension Adjuster Ring

STEP2-3

Fill with supplied DIFF TYPE silicon oil until the gears are fully submerged

9.5x0.2mm Shim

Diff Gear Shaft A-03-VBC-0020 x 1

Diff Gear Shaft

Diff Housing Sealer O-Ring

Seal Gasket

M2.6x10 Flathead Screw

Place Seal Gasket to the left side diff assembly before putting the right side diff together

Diff Oil

Diff Housing Sealer O-Ring B-03-VBC-0005 x 1

BAG MARKED

4

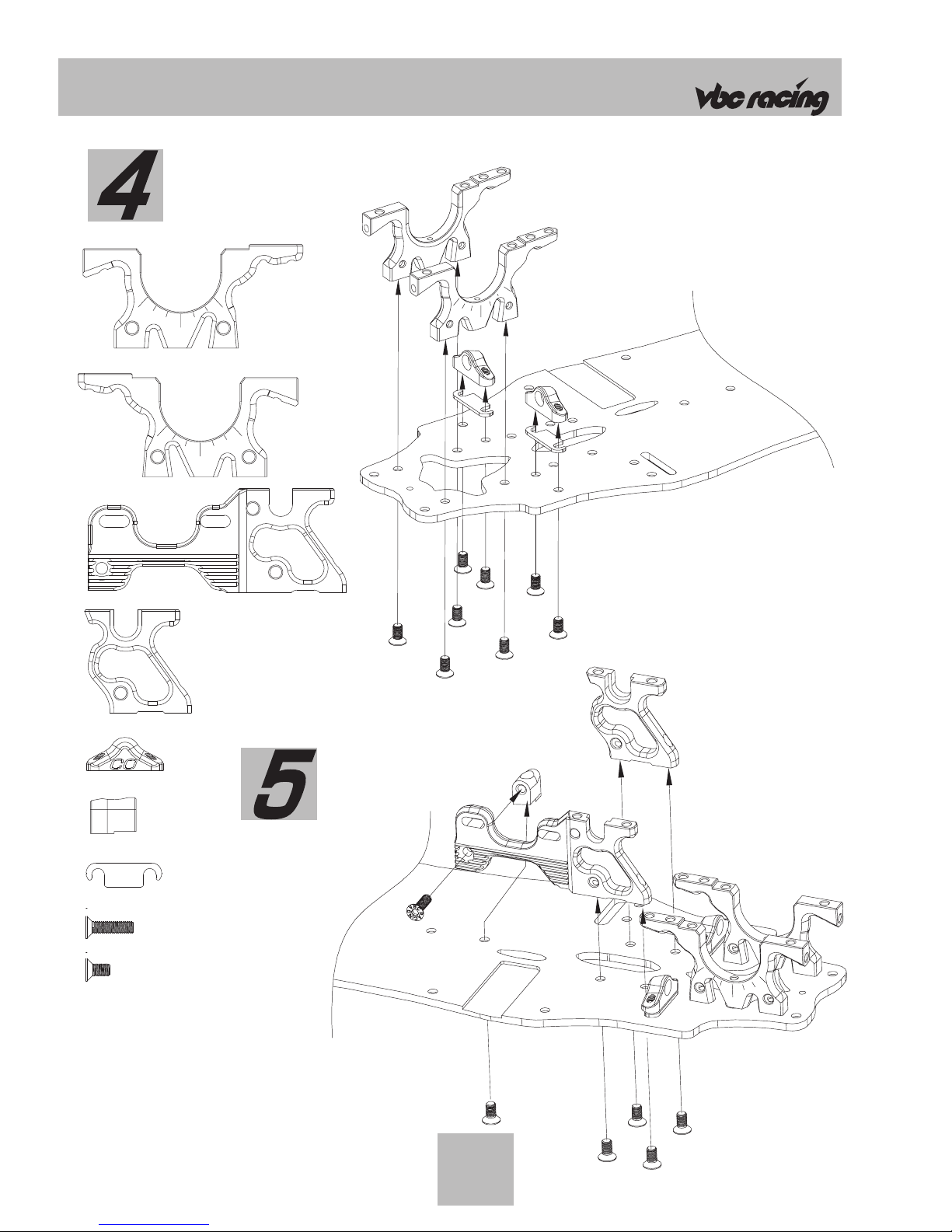

Rear Drivetrain Assembly

04

Lower Bulkhead A B-02-VBC-0057 x 1

Lower Bulkhead B B-02-VBC-0090 x 1

Motor Mount B-02-VBC-0058 x 1

Main Gear Bulkhead B-02-VBC-0059 x 1

Center Suspension Mount x 2 B-02-VBC-0062

Motor Mount Support B-02-VBC-0067 x 1

Center Suspension Mount Shim(1mm) x 2 A-01-VBC-0038

M3x8 Flathead C-02-SC-F0308 x 1

M3x6 Flathead C-02-SC-F0306 x 13

BAG MARKED

STEP4-6

Lower Bulkhead A

Lower Bulkhead B

Motor Mount

Main Gear Bulkhead

M3x6 Flathead

M3x8 Flathead

Motor Mount Support

Center Suspension Arm

1mm Center Suspension Arm Shim

5

BAG MARKED

STEP4-6

6

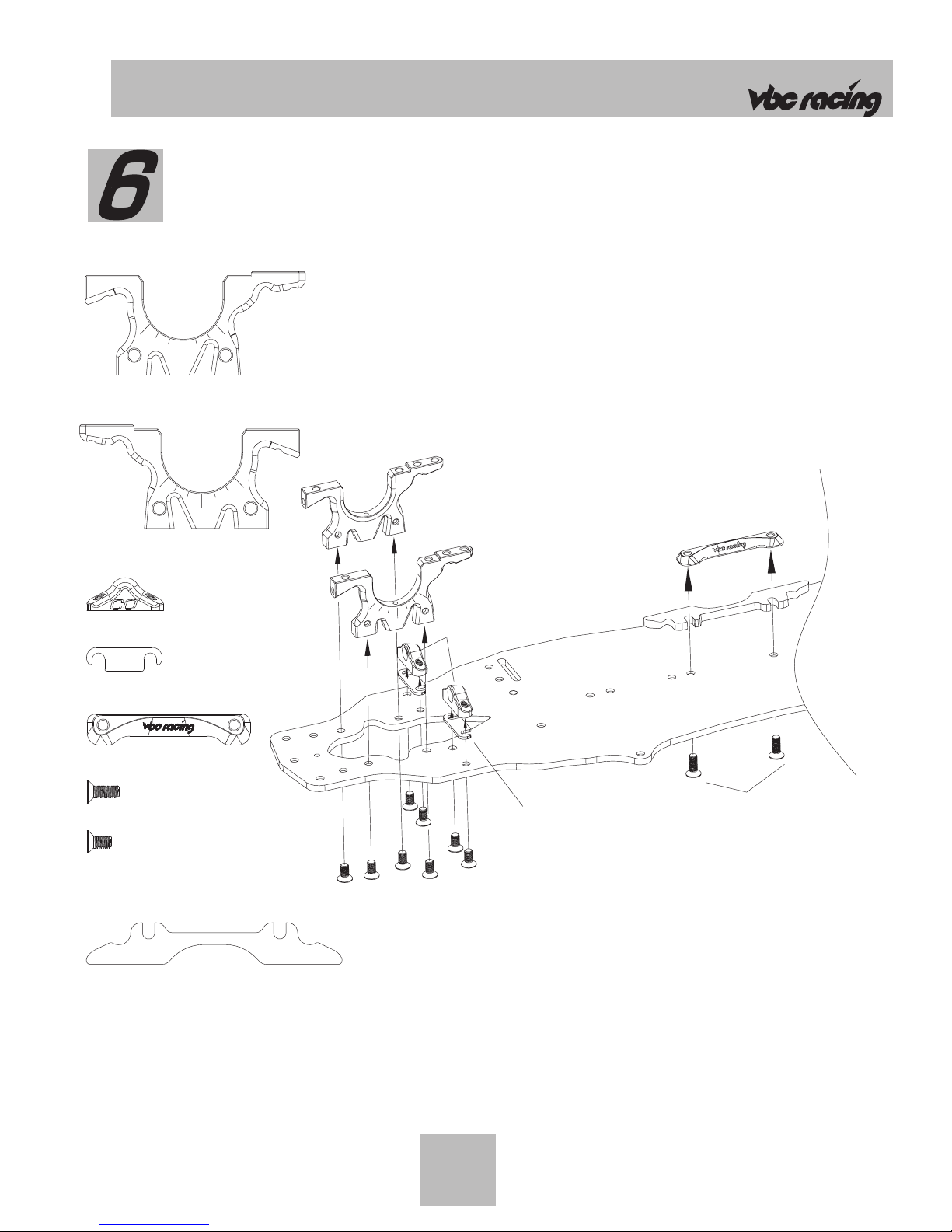

Front Drive Train Assembly

05

Lower Bulkhead A B-02-VBC-0057 x 1

Lower Bulkhead B B-02-VBC-0090 x 1

Center Suspension Arm B-02-VBC-0062 x 2

1mm Center Suspension Arm Shim x 2 A-01-VBC-0038

Battery Position Slider A-01-VBC-0033 x 1

Battery Adjust Top Plate x 1 B-02-VBC-0072

M3x8 Flathead C-02-SC-F0308 x 2

M3x6 Flathead C-02-SC-F0306 x 8

Lower Bulkhead A

Lower Bulkhead B

7075 Center Stopper

Graphite Battery Center Stopper

1mm Center Suspension Arm Shim

Center Suspension Arm

M3x6 Flathead

M3x8 Flathead

BAG MARKED

STEP7-9

7

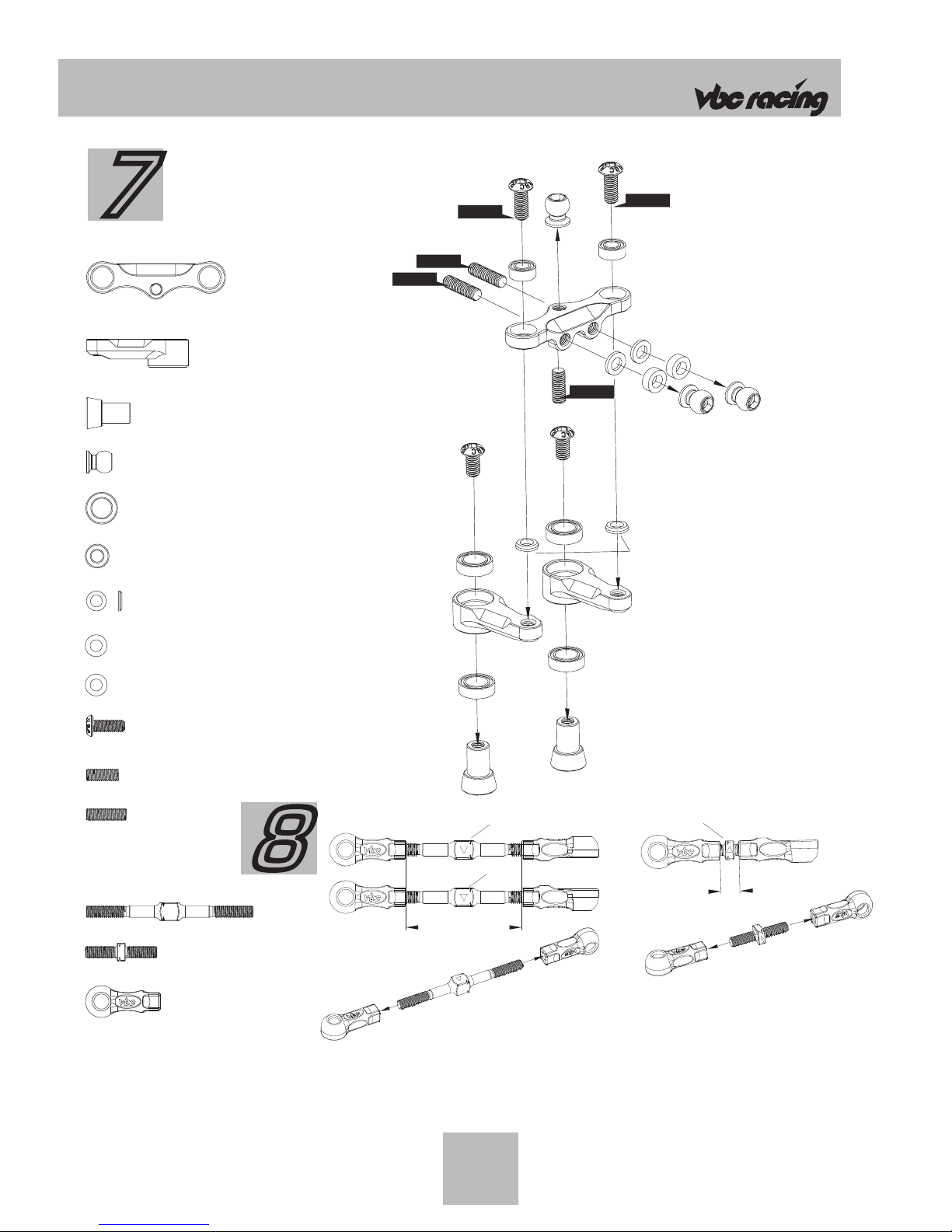

Steering System Assembly

06

Steering Assembly Travel Plate B-02-VBC-0054 x 1

Steering Travel Arm B-02-VBC-0053 x 2

Steering Assembly Pole B-02-VBC-0055 x 2

Ball Connector B-02-VBC-0045 x 3

5x8 Ball Bearing C-02-BB-0805-B x 4

3x6 Ball Bearing C-02-BB-0603 x 2

Steering Cone Washer B-02-VBC-0089 x 2

T2 7075 Spacer B-02-VBC-0019-20 x 2

T1 7075 Spacer B-02-VBC-0019-10 x 2

M3x6 Roundhead C-02-SC-R0306 x 4

M3x6 Set Screw C-02-SC-SS-0306 x 1

Ball Connector

3x6 Ball Bearing

M3x6 Set Screw

M3x10 Set Screw

M3x6 Set Screw

Steering Assembly Travel Plate

M3x2.0mm 7075 Spacer

M3x1.0mm 7075 Spacer

M3x6 Roundhead

Graphite Steering Top Plate

Steering Cone Washer

5x8 Ball Bearing

Steering Travel Arm

Steering Assembly Pole

8

4.50mm

28.30mm

M3x42mm Turnbuckle B-02-VBC-0037 x 2

M3x18mm Turnbuckle B-02-VBC-0038 x 1

Turnbuckle Cup A-03-VBC-0039 x 6

Make 2 steering link tie-rods, follow the connector cups directions as the above diagram. The connector cups edge to edge shall be 28.20mm. Please use a caliper to measure the exact measurement

Make 1 servo link tie-rod, follow the connector cups directions as the above diagram. The connector cups edge to edge shall be 4.50mm. Please use a caliper to measure the exact measurement

M3x42mm Turnbuckle

Turnbuckle Cup

M3x18mm Turnbuckle

Thead Lock

Right Thread

M3x10 Set Screw C-02-SC-SS-0310 x 2

M3x6 Roundhead

Install the steering unit onto the main chassis with two M3x6 Flathead Screws. Then attach the left and right tie rods to the steering unit. Make sure the front belt is between the two Steering Assembly Poles.

BAG MARKED

STEP7-9

9

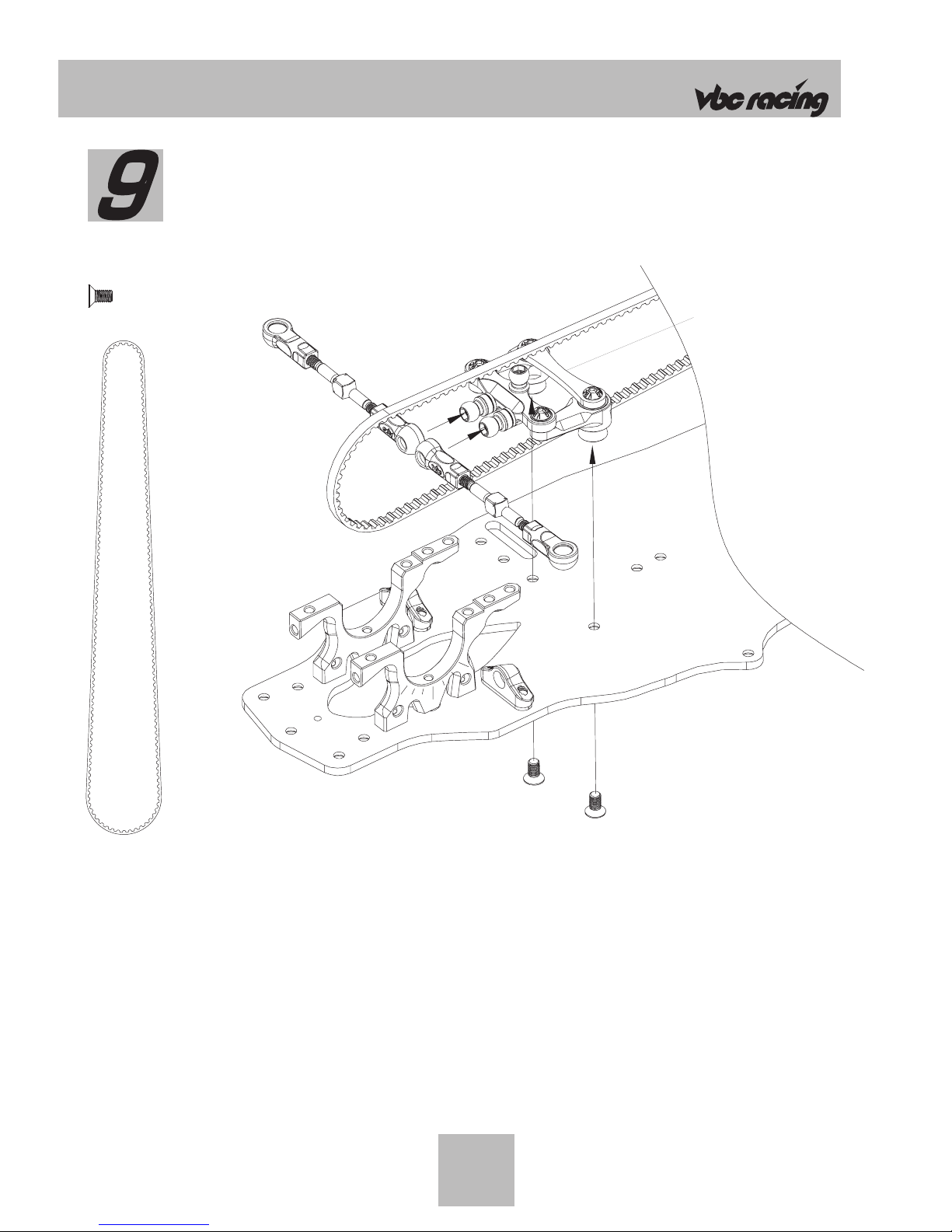

Steering System Assembly

07

M3x6 Flathead C-02-SC-F0306 x 2

Front Belt Type SS A-03-VBC-0048-512 x 1

M3x6 Flathead

Optional Steering Stiffener Bar (A-03-VBC-0078) by VBC Dynamics sold separately

BAG MARKED

STEP10-14

10

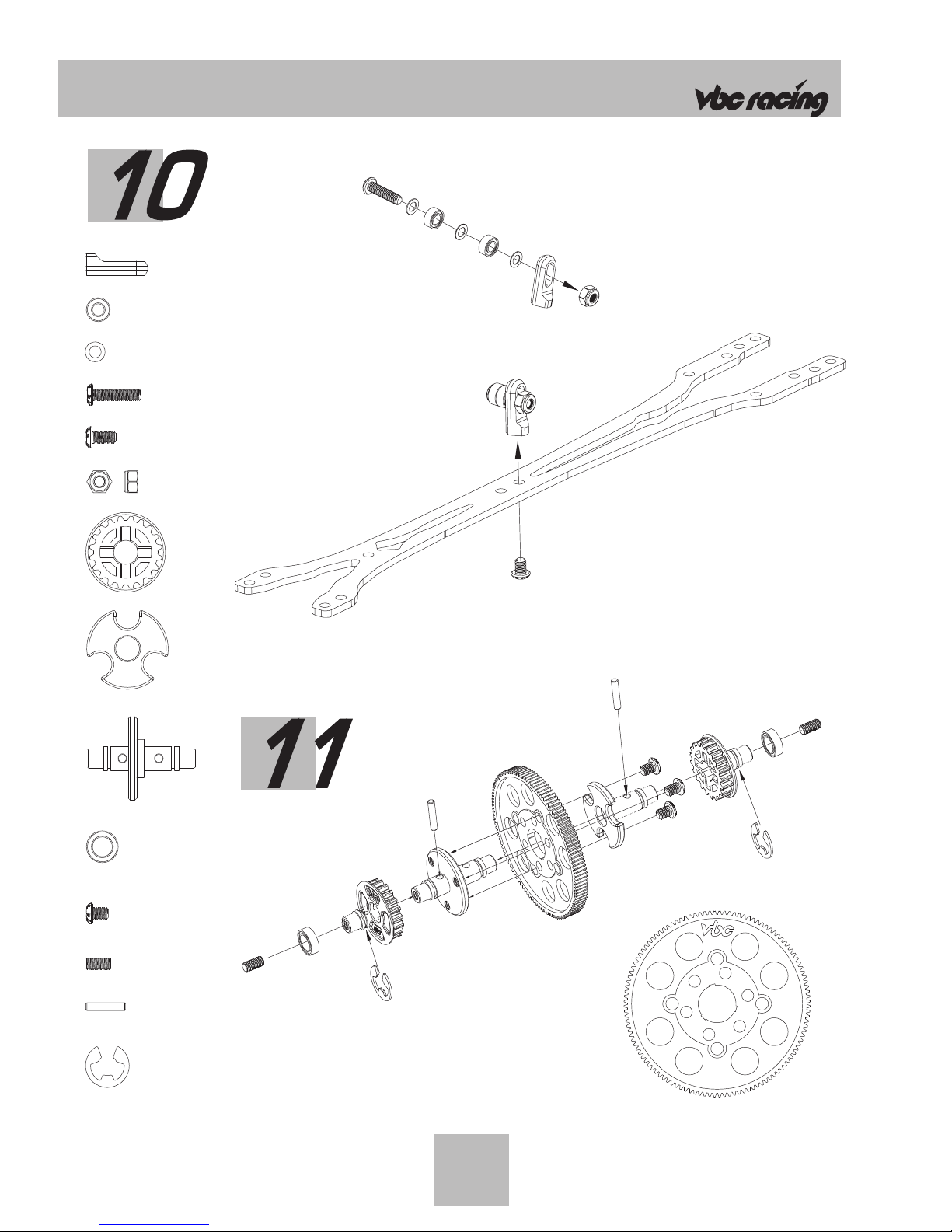

Upper Deck Assembly

08

Belt Tensioner B-02-VBC-0069 x 1

3x6mm Ball Bearing C-02-BB-0603 x 2

3x5x0.5mm Shim B-02-VBC-0093 x 3

M3x12 Roundhead Screw C-02-SC-R-0312 x 1

M3x4 Roundhead Screw C-02-SC-R0304 x 1

64P Spur Gear 116T A-03-VBC-SG-116 x 1

20T Center Pulley A-03-VBC-0023 x 2

Center Pulley Spacer A-03-VBC-0060 x 1

Center Pulley Drive Shaft B-02-VBC-0087 x 1

5x8mm Ball Bearing C-02-BB-0805-B x 2

M3x4 Round Head Screw C-02-SC-R0304 x 3

M3x6 Set Screw x 2 C-02-SC-SS-0306

M2x12 Shaft Pin B-02-VBC-0020 x 2

M5x11 E-Clip B-02-VBC-0085 x 2

11

M3x12 Roundhead

3x6mm Ball Bearing

3x5x0.5mm Shim

3x6mm Ball Bearing

3x5x0.5mm Shim

Belt Tensioner

M3 Lock Nut C-02-SC-NN03 x 1

5x8mm Ball Bearing

M5x11 E-Clip

20T Center Pulley

Center Pulley Drive Shaft

M2x12 Shaft Pin

Center Pulley Spacer

M2x12 Shaft Pin

M3x4 Roundhead

M5x11 E-Clip

5x8mm Ball Bearing

M3x6 Set Screw

Spur Gear

M3x4 Roundhead

116

WildFire Standard Upper Deck A-01-VBC-0026-20

3x5x0.5mm Shim

BAG MARKED

STEP10-14

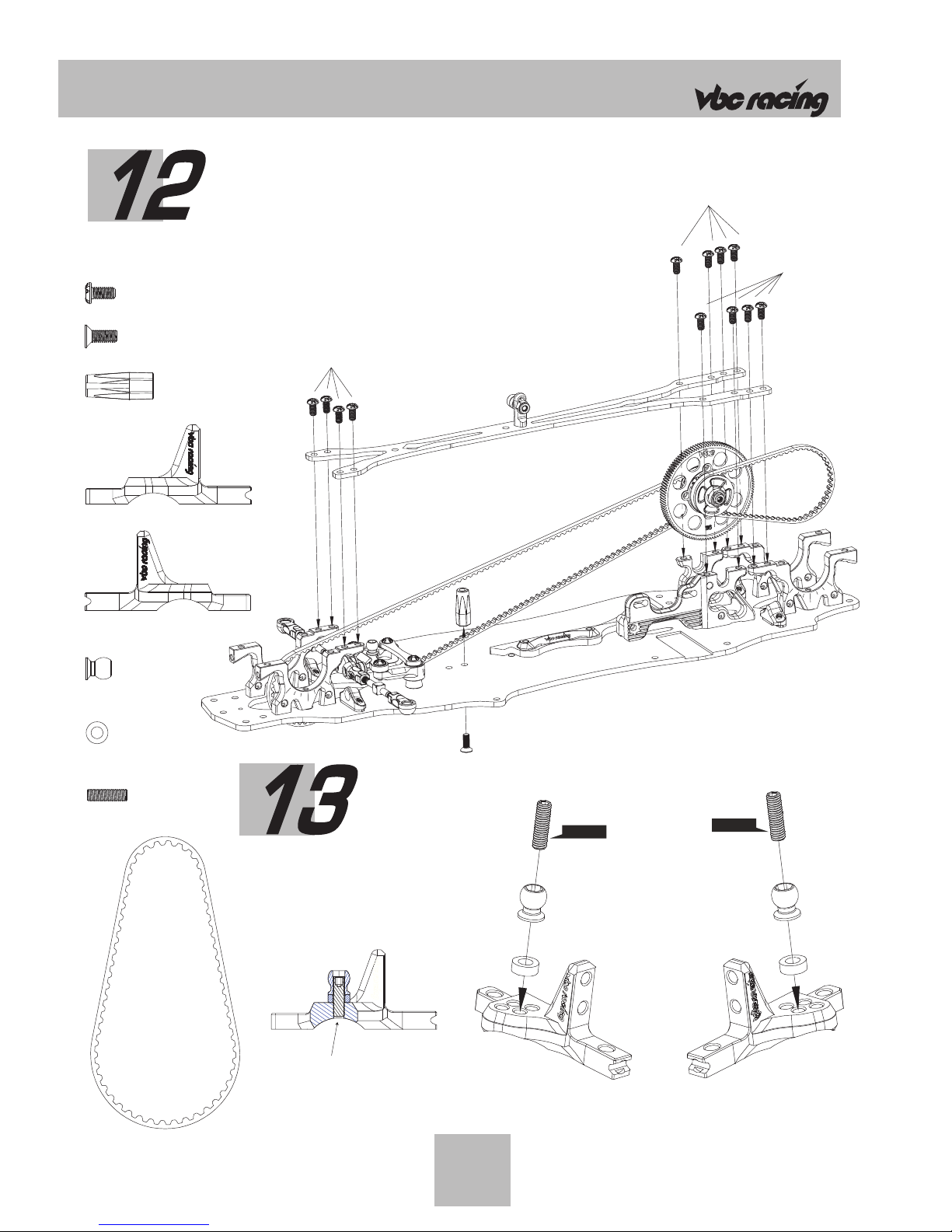

12

Upper Deck Assembly

09

M3x6 Roundhead C-02-SC-R0306 x 12

M3x8 Flathead C-02-SC-F0308 x 1

Antenna Stand A-03-VBC-0059 x 1

Upper Bulkhead A B-02-VBC-0063 x 1

Upper Bulkhead B B-02-VBC-0064 x 1

T2 7075 Spacer B-02-VBC-0019-20 x 2

Ball Connector B-02-VBC-0045 x 2

M3x10 Set Screw C-02-SC-SS-0310 x 2

13

Rear Upper Bulkhead Assembly

M3x6 Roundhead

M3x8 Flathead

M3x10 Set Screw

Ball Connector

2mm Spacer

Upper Bulkhead A

Upper Bulkhead B

Thead Lock

Antenna Stand

Be careful not to overthread the set screw. The set screw should not over the edge of the bottom of Upper Bulkhead. Overtheading may obstruct the drive hub from spinning.

Rear Belt Type SS A-03-VBC-0048-177 x 1

BAG MARKED

STEP10-14

14

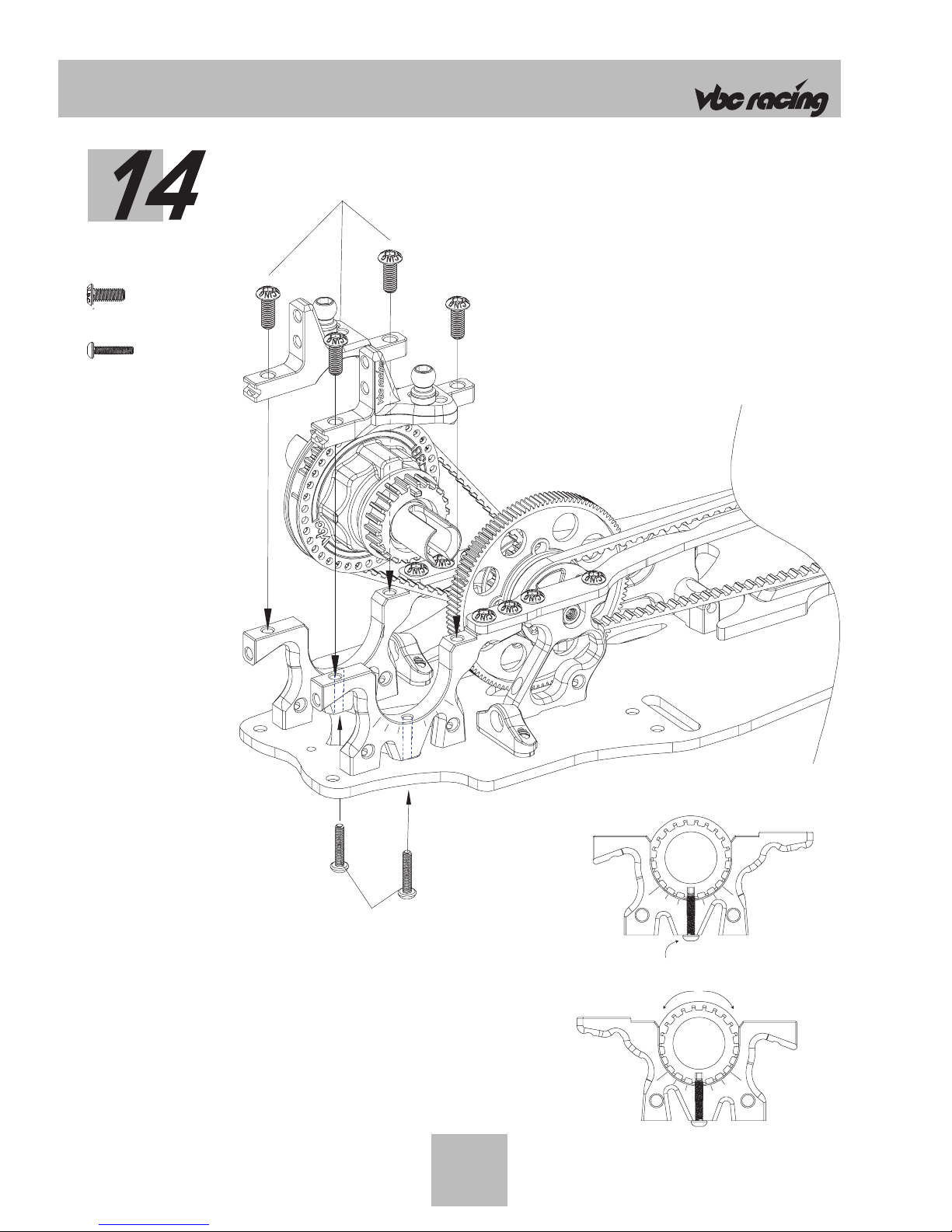

Install Rear Drivetrain

10

M3x8 Roundhead C-02-SC-R0308 x 4

M2x10 Roundhead C-02-SC-R2.0x10 x 2

M3x8 Roundhead

M2x10 Roundhead

Tighten screw to lock the Belt Tension Adjuster Ring position

Neutral

TightenLoosen

Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial

BAG MARKED

STEP15

15

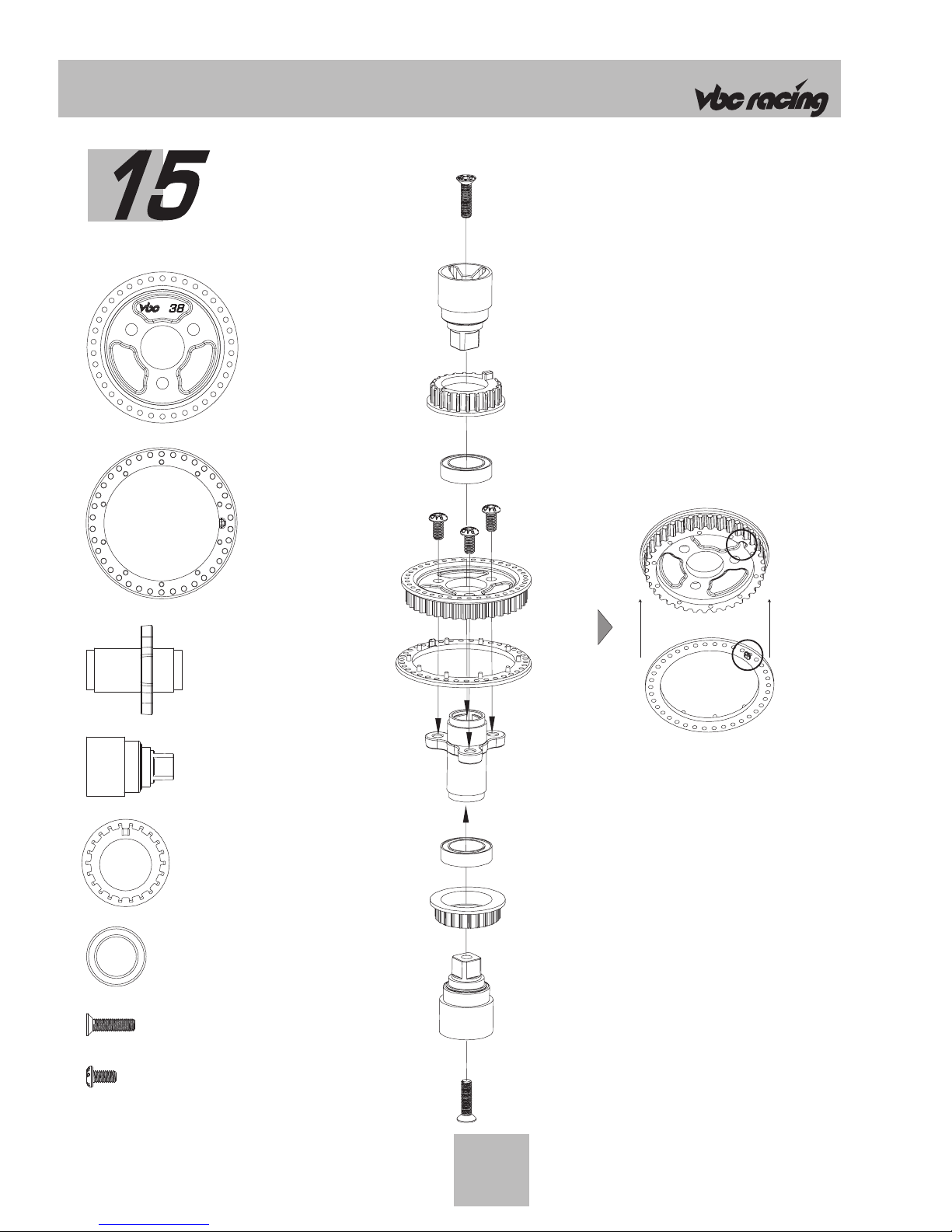

Front Drive Train Assembly - Spool Assembly

11

Front Spool 38T A-03-VBC-0021 x 1

Pulley Belt Guide A-03-VBC-0022 x 1

Spool Drive Shaft A-03-VBC-0049 x 1

Front Spool Outdrive A-03-VBC-0055 x 2

Belt Tension Adjuster Ring A-03-VBC-0047x 2

10x15 Ball Bearing C-02-BB-1510-B x 2

M3x12 Flathead C-02-SC-F0312 x 2

M3x6 Roundhead C-02-SC-R0306 x 3

M3x12 Flathead

Spool Drive Cup

Diff Holder

10x15 Ball Bearing

M3x6 Roundhead

Front Spool 38T

Pulley Guide

Spool Shaft

10x15 Ball Bearing

Diff Holder

Spool Drive Cup

M3x12 Flathead

Apply CA and note the position

Optional: 7075 Aluminum Spool Shaft B-02-VBC-0094 (not included)

Tighten screw to lock the Belt Tension Adjuster Ring position

Neutral

TightenLoosen

Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial

BAG MARKED

STEP16-17

16

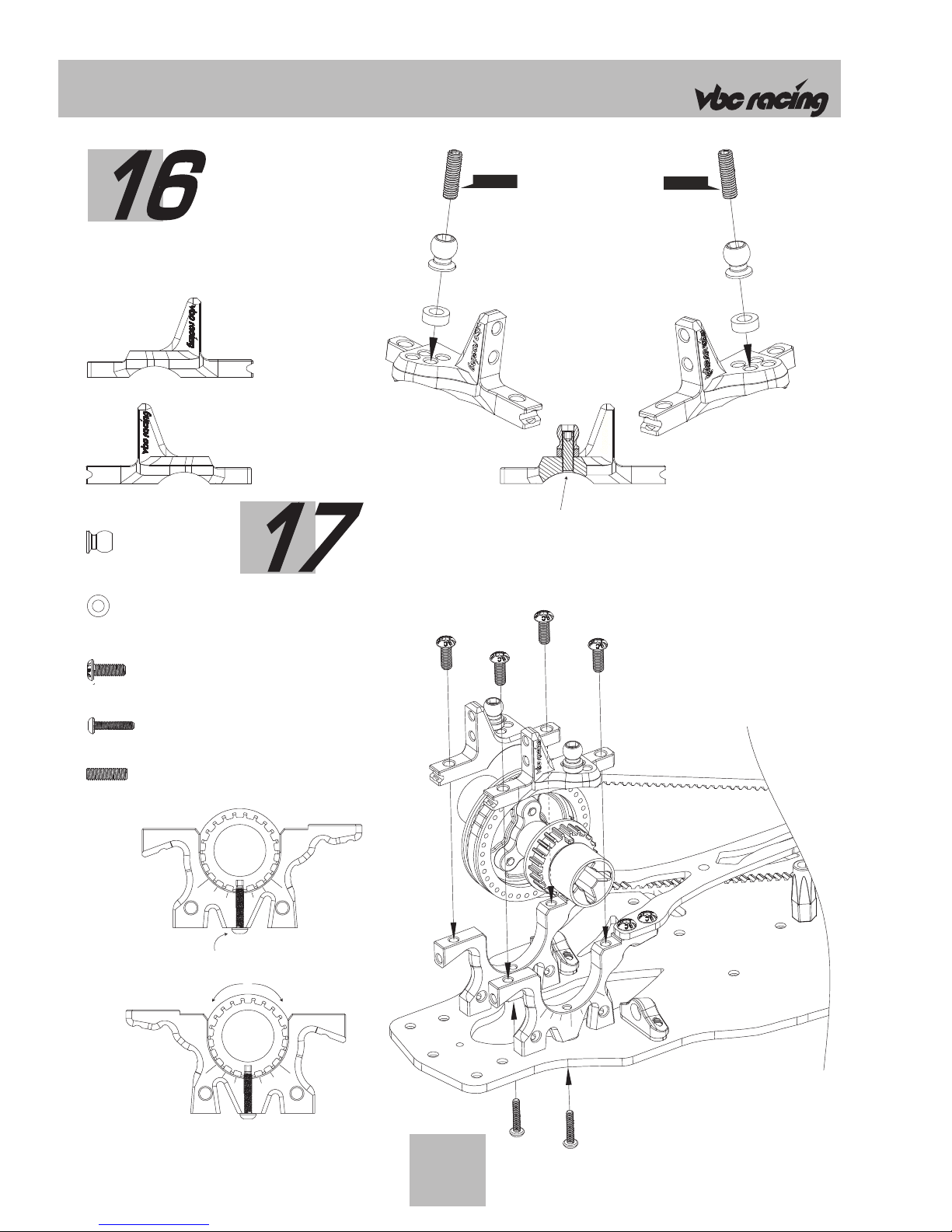

Assemble Front Upper Bulkhead

12

Upper Bulkhead A B-02-VBC-0063 x 1

Upper Bulkhead B B-02-VBC-0064 x 1

Ball Connector B-02-VBC-0045 x 2

17

M3x8 Roundhead

Install Front Drivetrain

M3x8 Roundhead

M2x10 Roundhead

M3x10 Set Screw

Ball Connector

2mm Spacer

Upper Bulkhead A

Upper Bulkhead B

Thead Lock

Be careful not to overthread the set screw. The set screw should not over the edge of the bottom of Upper Bulkhead. Overtheading may obstruct the drive hub from spinning.

T2 7075 Spacer B-02-VBC-0019-20 x 2

M3x6 Roundhead C-02-SC-R0306 x 12

M2x10 Roundhead C-02-SC-R2.0x10 x 2

M3x10 Set Screw C-02-SC-SS-0310 x 2

BAG MARKED

STEP18-20

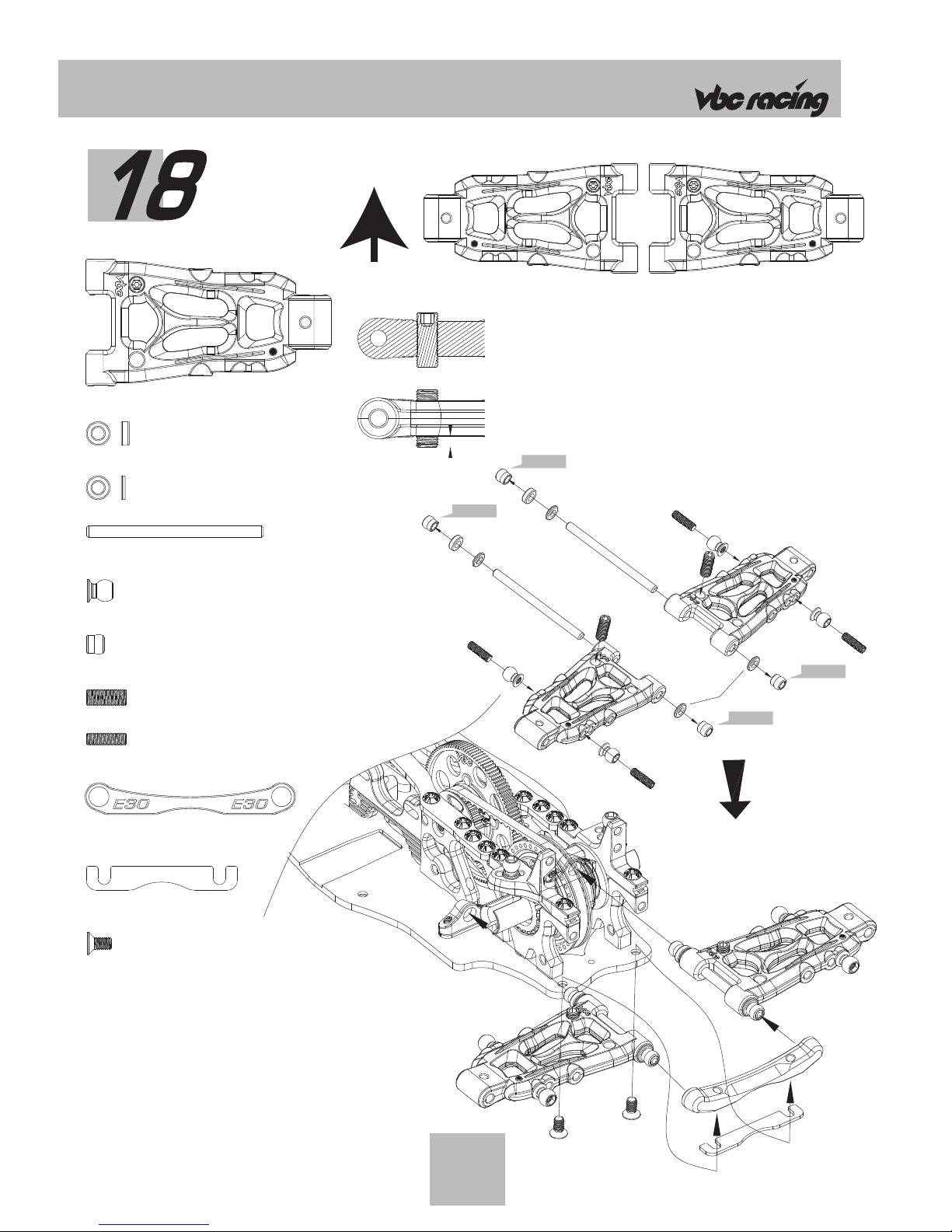

18

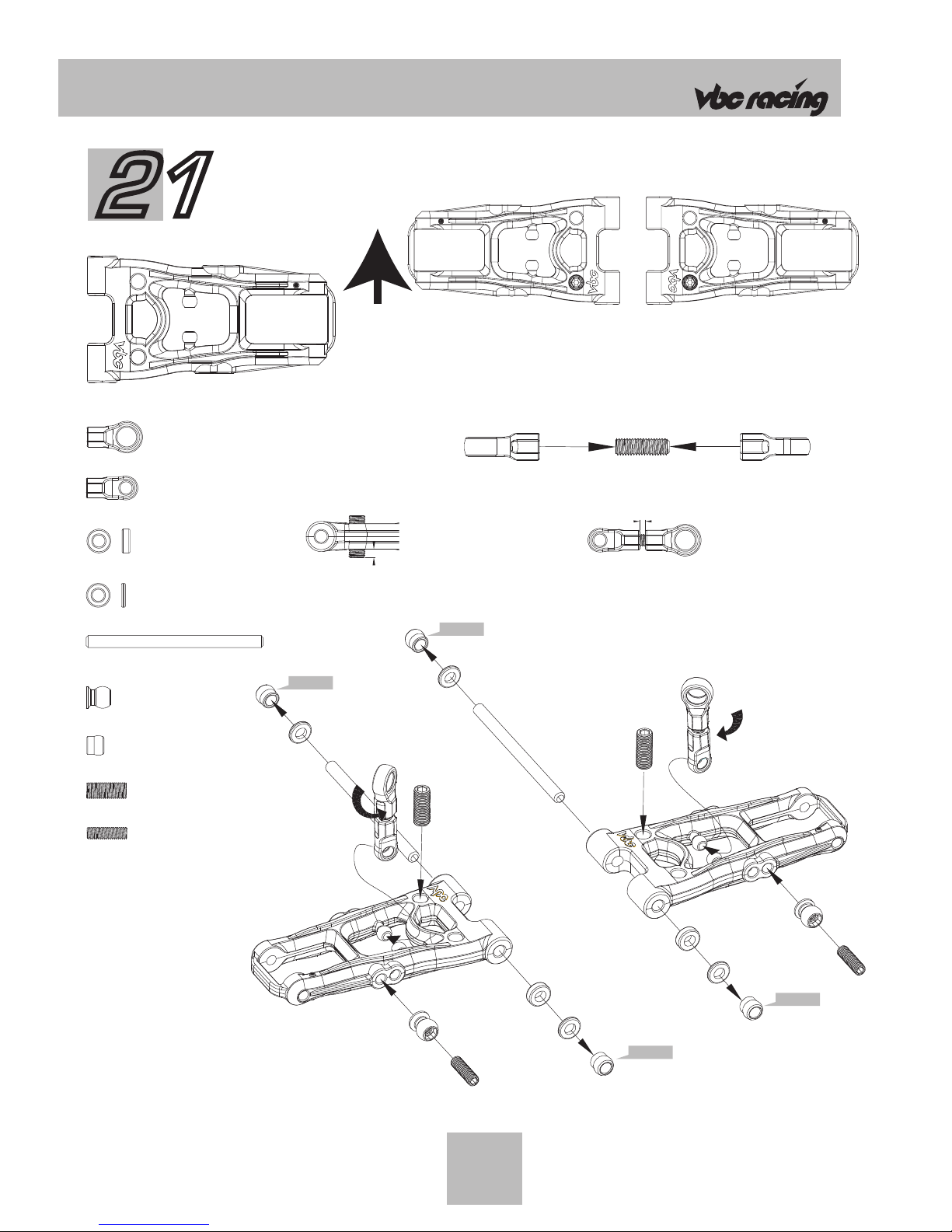

Rear Suspension Arm Assembly

13

Rear Suspension Arm A-03-VBC-0050 x 2

Suspension Arm Spacer T2 Composite A-03-VBC-0052 x 2

Suspension Arm Spacer T1 Composite A-03-VBC-0051 x 4

Suspension Arm Pin B-02-VBC-0029 x 2

Ball Connector B-02-VBC-0045 x 4

Arm Pin Pivot Ball B-02-VBC-0035 x 2

M4x10 Set Screw C-02-SC-SS-0410 x 2

M3x10 Set Screw C-02-SC-SS-0310 x 4

E30 Suspension Mount B-02-VBC-0061-30 x 1

1mm Suspension Shim A-01-VBC-0037 x 1

M3x6 Flat Head Screw C-02-SC-F0306 x 2

2mm

Bottom

Top

Left

Right

Front

Make sure the black markings are in the same direction on the left and right suspension arms

Insert M4x10 Set Screw from the top of the suspension arm for adjusting down stop. Initial setting is 2mm measuring from the bottom part of the arm for both sides.

Grease

After installing the rear arms, make sure the arms can move freely

Rear Suspension Arm

M4x10 Set Screw

Suspension Arm Pin

Arm Pin Pivot Ball

Ball Connector

M3x10 Set Screw

Ball Connector

Arm Pin Pivot Ball

Suspension Arm Spacer T2

Suspension Arm Spacer T1

Rear Suspension Arm top view

M3x6 Flat Head

E30 Suspension Mount

1mm Suspension Shim

BAG MARKED

STEP18-20

19

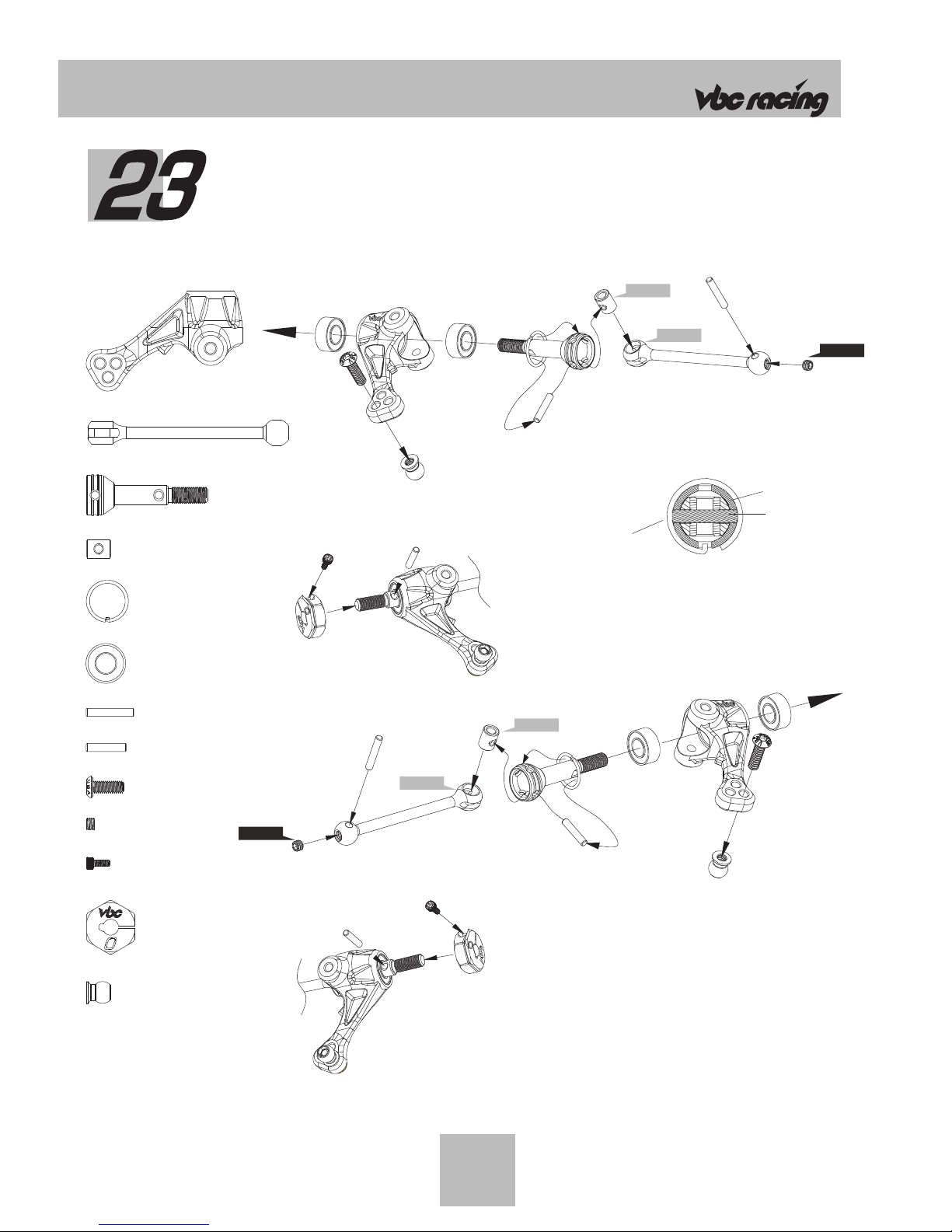

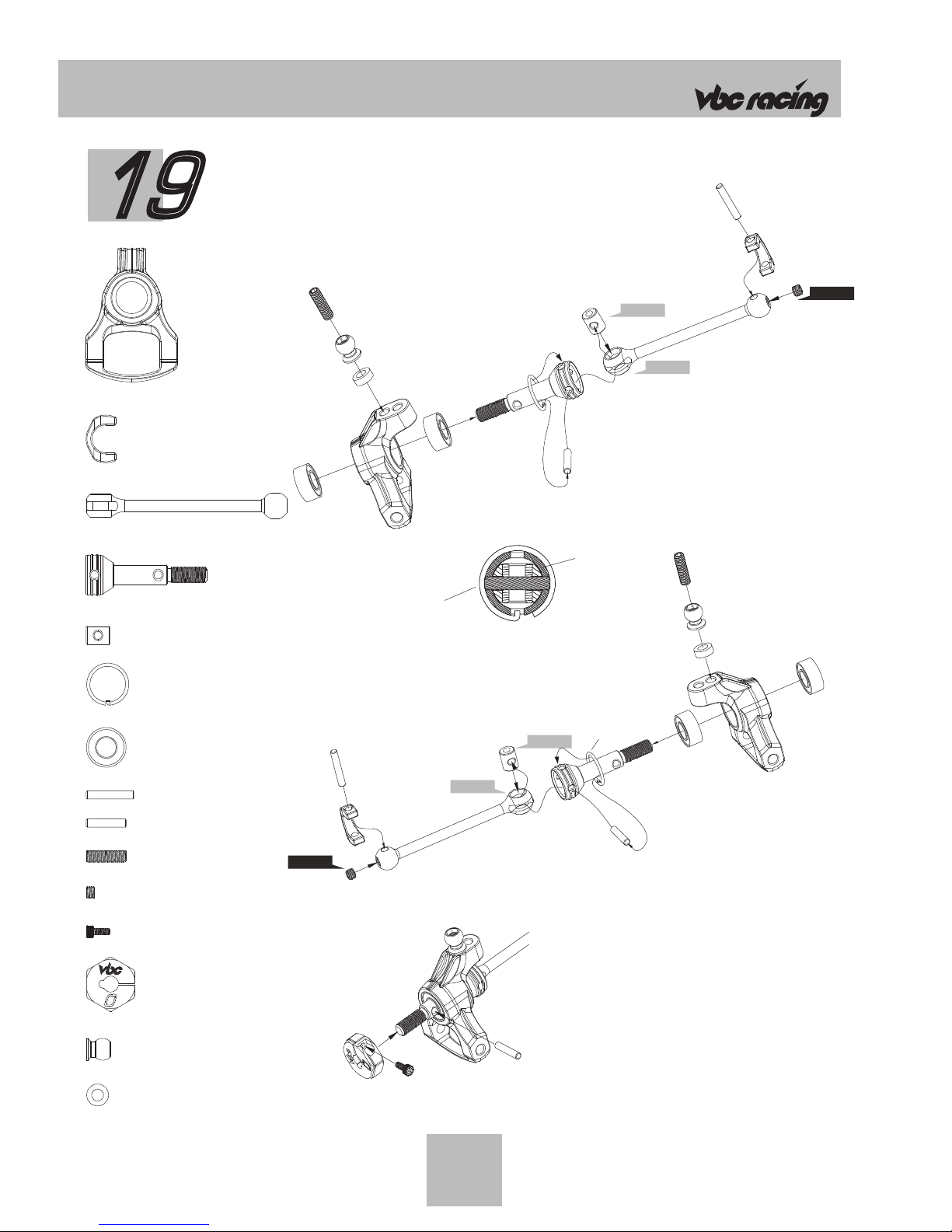

Rear Suspension Arm Assembly Part2

14

Rear Suspension Upright A-03-VBC-0037 x 2

Shaft End Shoe A-03-VBC-0038 x 2

Inner Axle B-02-VBC-0024 x 2

Wheel Axle B-02-VBC-0025 x 2

Axle Joint B-02-VBC-0026 x 2

Axle Lock Spring B-02-VBC-0027 x 2

5x10mm Ball Bearings x 4

M2x12 Shaft Pin B-02-VBC-0020-12 x 2

M2x10 Shaft Pin B-02-VBC-0020 x 4

M3x10 Set Screw C-02-SC-SS-0310 x 2

M3x2 Set Screw C-02-SC-SS-0302 x 2

M1.6x4 Screw C-02-SC-R1.6x4 x 2

0 Offset Hex Wheel Hub B-02-VBC-0051 x 2

Ball Connetor B-02-VBC-0045 x 2

Grease

Thead Lock

After assembling the drive shaft, make sure the joints are free swinging.

Align the Shaft End Shoe to the Inner Axle Pin hole first and slide the 12mm Shaft Pin to the pin hole before securing the pin with M3x2 Set Screw

Do not over tighten the M1.6x4 screw to prevent stripping

T1 7075 Spacer B-02-VBC-0019-10 x 2

Rear Suspension Upright

Shaft End Shoe

M2x12 Shaft Pin

Inner Axle

Wheel Axle

Axle Joint

Axle Lock Spring

M2x10 Shaft Pin

5x10mm Ball Bearings

M2x10 Shaft Pin

M3x2 Set Screw

M1.6x4 Screw

0 Offset Hex Wheel Hub

Ball Connetor

T1 7075 Spacer

M3x10 Set Screw

Axle Lock Spring

Wheel Axle

Make sure the Axle Lock Spring is place correctly onto the Wheel Axle

Joint cross section

18mm

BAG MARKED

STEP18-20

20

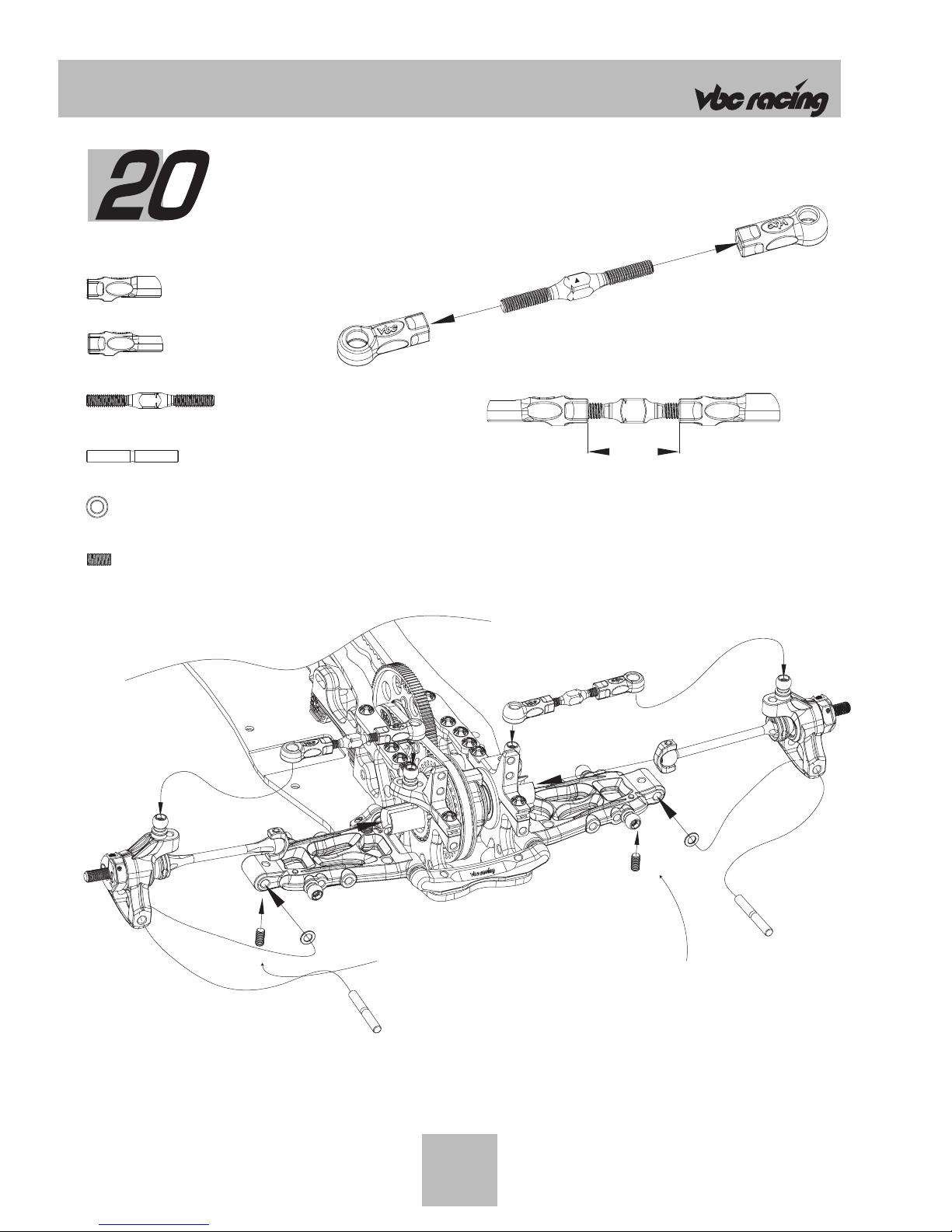

Rear Suspension Arm Assembly Part3

15

M3x32mm Turnbuckle B-02-VBC-0036 x 2

M3x23 Upright Pin B-02-VBC-0032 x 2

3x5x0.5mm Shim B-02-VBC-0093 x 2

M3x6 Set Screw C-02-SC-SS-0306 x 2

Make two

Make sure the turnbuckle caps move freely after snapped to the ball connector

Tighten the set screw. Screw should be flat to the arm bottom and do not over tighten.

Turnbuckle Cup S

Turnbuckle Cup

M3x32mm Turnbuckle

M3x6 Set Screw

M3x23 Upright Pin

3x5x0.5mm Shim

Turnbuckle Cup A-03-VBC-0039 x 2

Turnbuckle Cup S A-03-VBC-0056 x 2

MAKE TWO

Optional: Tie Rod Wrench Set D-05-VBC-0048 (not included)

BAG MARKED

STEP21-24

21

Front Suspension Assembly Part1

16

Front Suspension Arm A-03-VBC-0024 x 2

Turnbuckle Cup Open Type L A-03-VBC-0041 x 2

Turnbuckle Cup Open Type S A-03-VBC-0040 x 2

Suspension Arm Spacer T2 A-03-VBC-0052 x 2

Suspension Arm Spacer T1 A-03-VBC-0051 x 4

Suspension Arm Pin B-02-VBC-0029 x 2

Ball Connector B-02-VBC-0045 x 4

Arm Pin Pivot Ball B-02-VBC-0035 x 4

M4x10 Set Screw C-02-SC-SS-0410 x 2

M3x10 Set Screw C-02-SC-SS-0310 x 4

Left

Right

Front

Make sure the black markings are in the same direction on the left and right suspension arms

2mm

1.5mm

Insert M4x10 Set Screw from the top of the suspension arm for adjusting down stop. Initial setting is 2mm measuring from the bottom part of the arm for both sides.

Make 2 sets

Front Suspension Arms top view

Ball Connector Open Type S

Ball Connector Open Type L

M3x10 Set Screw

Suspension Arm Spacer T1

Arm Pin Pivot Ball

Suspension Arm Pin

M4x10 Set Screw

Suspension Arm Spacer T1

M3x10 Set Screw

Ball Connector

Suspension Arm Spacer T2

M4x10 Set Screw

Suspension Arm Spacer T2

Suspension Arm Spacer T1

Ball Connector

M3x10 Set Screw

Arm Pin Pivot Ball

Grease

Turnbuckle Cup Open Type S connects to the arm connector

BAG MARKED

STEP21-24

22

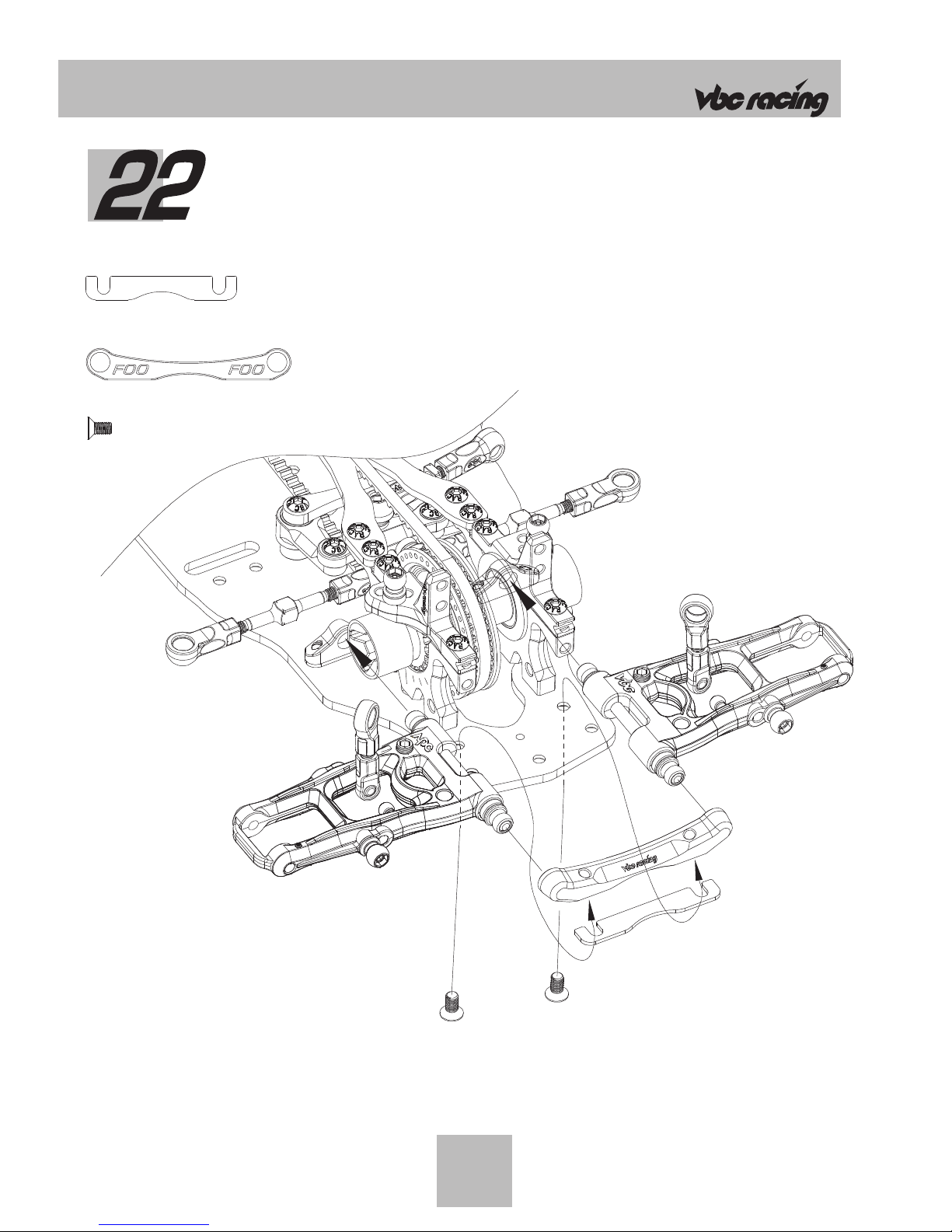

Front Suspension Assembly Part2

17

1mm Suspension Shim A-01-VBC-0037 x 1

F00 Suspension Mount B-02-VBC-0060-00 x 1

M3x6 Flat Head Screw C-02-SC-F0306 x 2

Make sure the dot marking is facing up

M3x6 Flat Head

Optional: WildFire Front/Rear Suspenion Shim (1mm,0.5mm) D-05-VBC-0032

Optional: F05 Suspension Mount B-02-VBC-0060-05

F10 Suspension Mount B-02-VBC-0060-10

Grease

BAG MARKED

STEP21-24

23

Front Suspension Assembly Part3

18

Steering Block A-03-VBC-0034 x 2

Inner Axle B-02-VBC-0024 x 2

Wheel Axle B-02-VBC-0025 x 2

Axle Joint B-02-VBC-0026 x 2

Axle Lock Spring B-02-VBC-0027 x 2

M2x12 Shaft Pin B-02-VBC-0022 x 2

M2x10 Shaft Pin B-02-VBC-0020 x 2

M3x8 Round Head Screw C-02-SC-R0308 x 2

M3x2 Set Screw C-02-SC-SS-0302 x 2

M1.6x4 Screw C-02-SC-R1.6x4 x 2

0 Offset Hex Wheel Hub B-02-VBC-0051 x 2

Ball Connetor B-02-VBC-0045 x 2

5x10mm Ball Bearing C-02-BB-1005-B x 4

Left Steering

Right Steering

Grease

Thead Lock

Do not over tighten the M1.6x4 screw to prevent stripping

Thead Lock

Axle Lock Spring

Wheel Axle

Make sure the Axle Lock Spring is place correctly onto the Wheel Axle

Joint cross section

Shaft Pin

Steering Block

Inner Axle

Wheel Axle

Axle Joint

Axle Lock Spring

5x10mm Ball Bearing

M3x2 Set Screw

M2x12 Shaft Pin

M2x10 Shaft Pin

M3x8 Round Head Screw

M1.6x4 Screw

0 Offset Hex Wheel Hub

Ball Connetor

5x10mm Ball Bearing

M3x8 Round Head Screw

Ball Connetor

5x10mm Ball Bearing

Wheel Axle

Axle Lock Spring

Axle Joint

Inner Axle

M2x12 Shaft Pin

M3x2 Set Screw

M1.6x4 Screw

M2x10 Shaft Pin

0 Offset Hex Wheel Hub

M2x10 Shaft Pin

Turnbuckle Cup A-03-VBC-0039 x 2

Turnbuckle Cup

BAG MARKED

STEP21-24

24

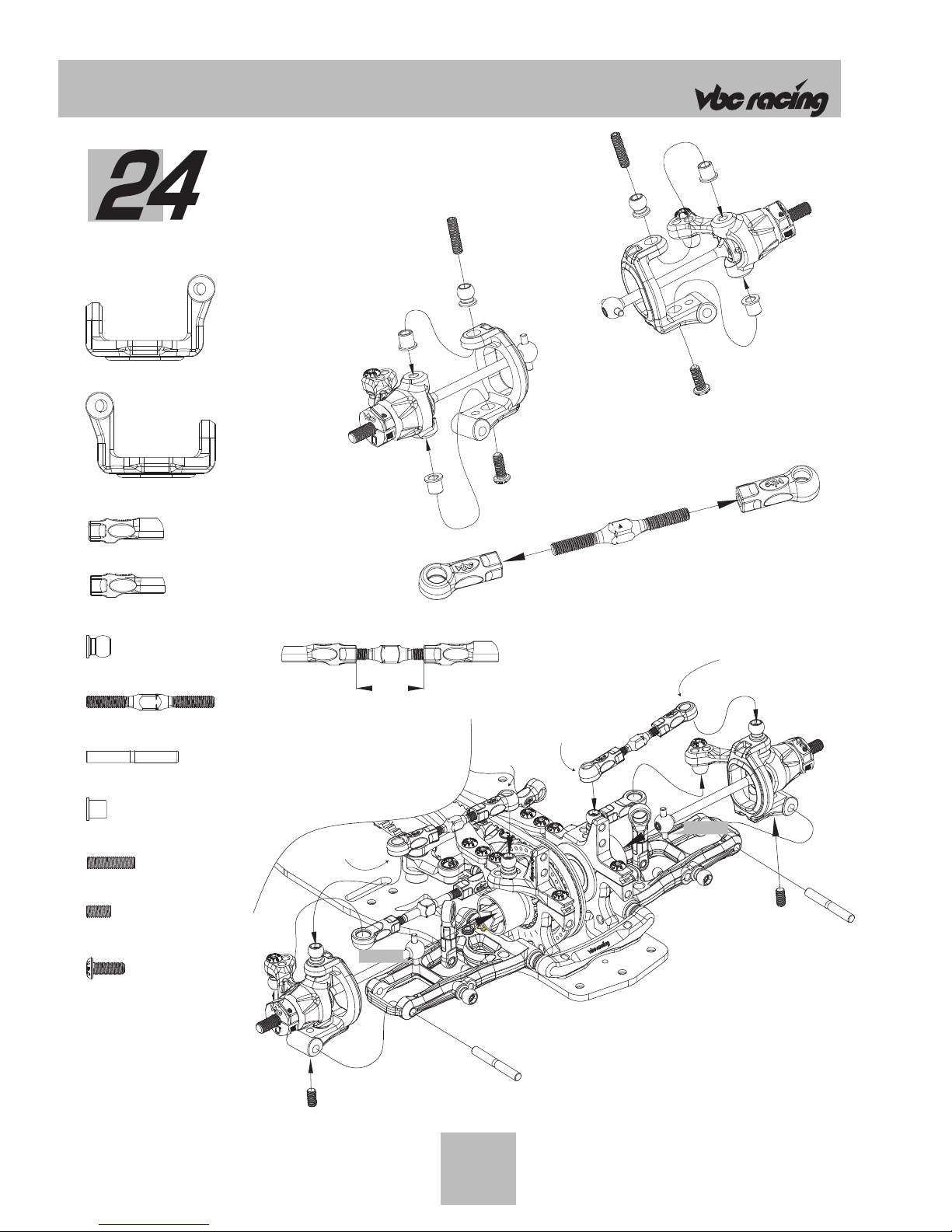

Front Suspension Assembly Part4

19

Right C-Hub A-03-VBC-0031 x 1

Left C-Hub A-03-VBC-0030 x 1

Turnbuckle Cup S A-03-VBC-0056 x 2

M3x32mm Turnbuckle B-02-VBC-0036 x 2

M3x12 Set Screw C-02-SC-SS-0312 x 2

M3x6 Set Screw C-02-SC-SS-0306 x 2

3x23 Upright Pin B-02-VBC-0032 x 2

M3x9 Round Head Screw C-02-SC-R0308 x 2

Ball Connector B-02-VBC-0045 x 2

Steering Swivel Tube B-02-VBC-0033 x 4

Please note the 'L'(Left) and 'R'(Right) markings on C-Hubs

RIGHT

LEFT

17mm

Right C-Hub

Left C-Hub

Turnbuckle Cup S

Ball Connector

M3x32mm Turnbuckle

3x23 Upright Pin

M3x6 Set Screw

Steering Swivel Tube

M3x12 Set Screw

M3x9 Round Head Screw

Turnbuckle Cup S

Grease

Make Two

Optional: Tie Rod Wrench Set D-05-VBC-0048 (not included)

BAG MARKED

STEP25-26

25

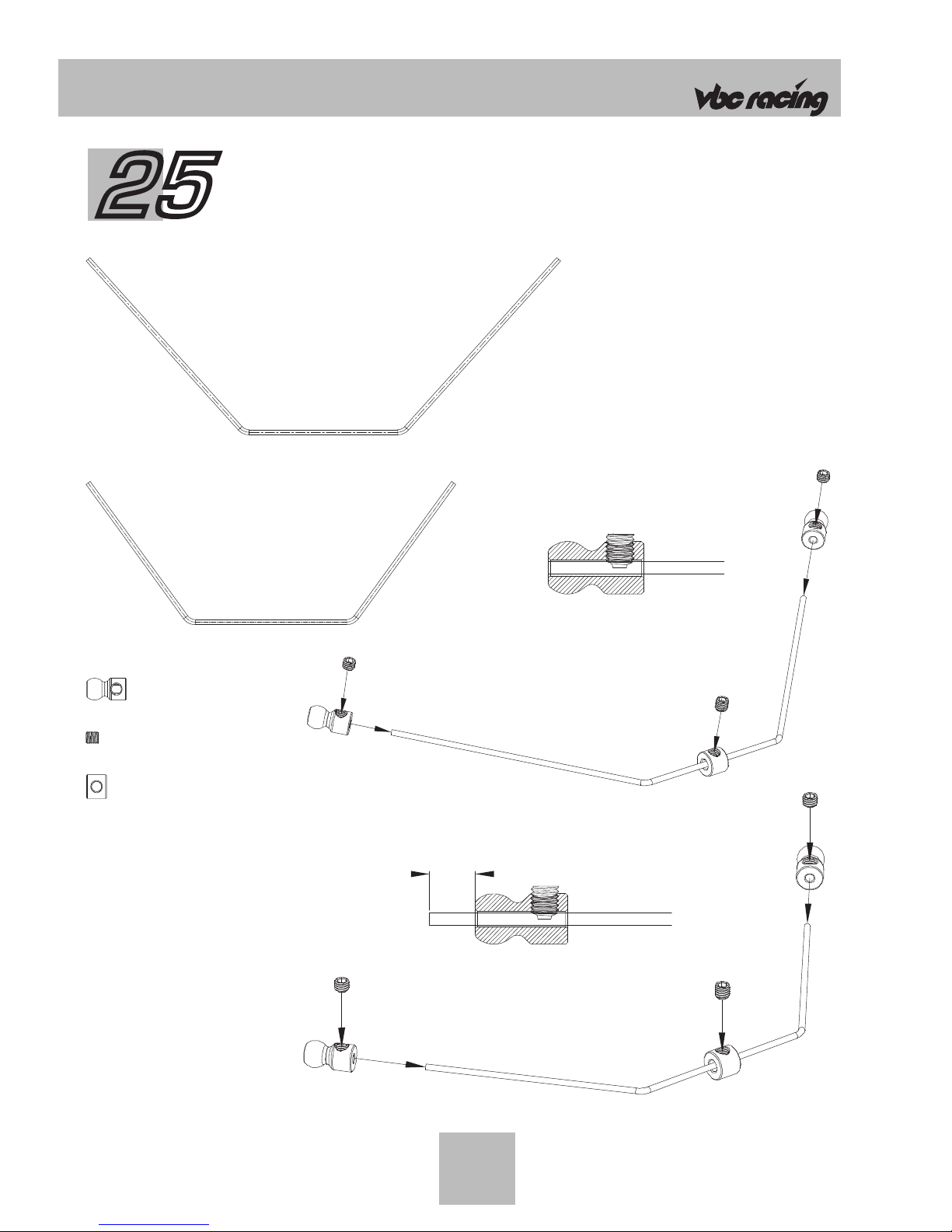

Front and Rear Stabilizers

20

Rear Stabilizer 1.3 B-02-VBC-0075-13 x 1

Front Stabilizer 1.3 B-02-VBC-0074-13 x 1

Stabilizer Connector B-02-VBC-0047 x 4

M3x3mm Set Screw C-02-SC-SS-0303 x 6

Stabilizer Collar B-02-VBC-0070 x 2

4mm

REAR STABILIZER

FRONT STABILIZER

Tighten the set screw 4mm from the edge of the stabilizer

The connector is level with the stabilizer edge

Rear Stabilizer 1.3

Front Stabilizer 1.3

Stabilizer Connector

M3x3mm Set Screw

Stabilizer Collar

M3x3mm Set Screw

Stabilizer Connector

Stabilizer Collar

Optional: Rear Stabilizer 1.4 White B-02-VBC-0075-14

Rear Stabilizer 1.2 Green B-02-VBC-0075-12

Optional: Front Stabilizer 1.4 White B-02-VBC-0074-14

Front Stabilizer 1.2 Green B-02-VBC-0074-12

BAG MARKED

STEP25-26

26

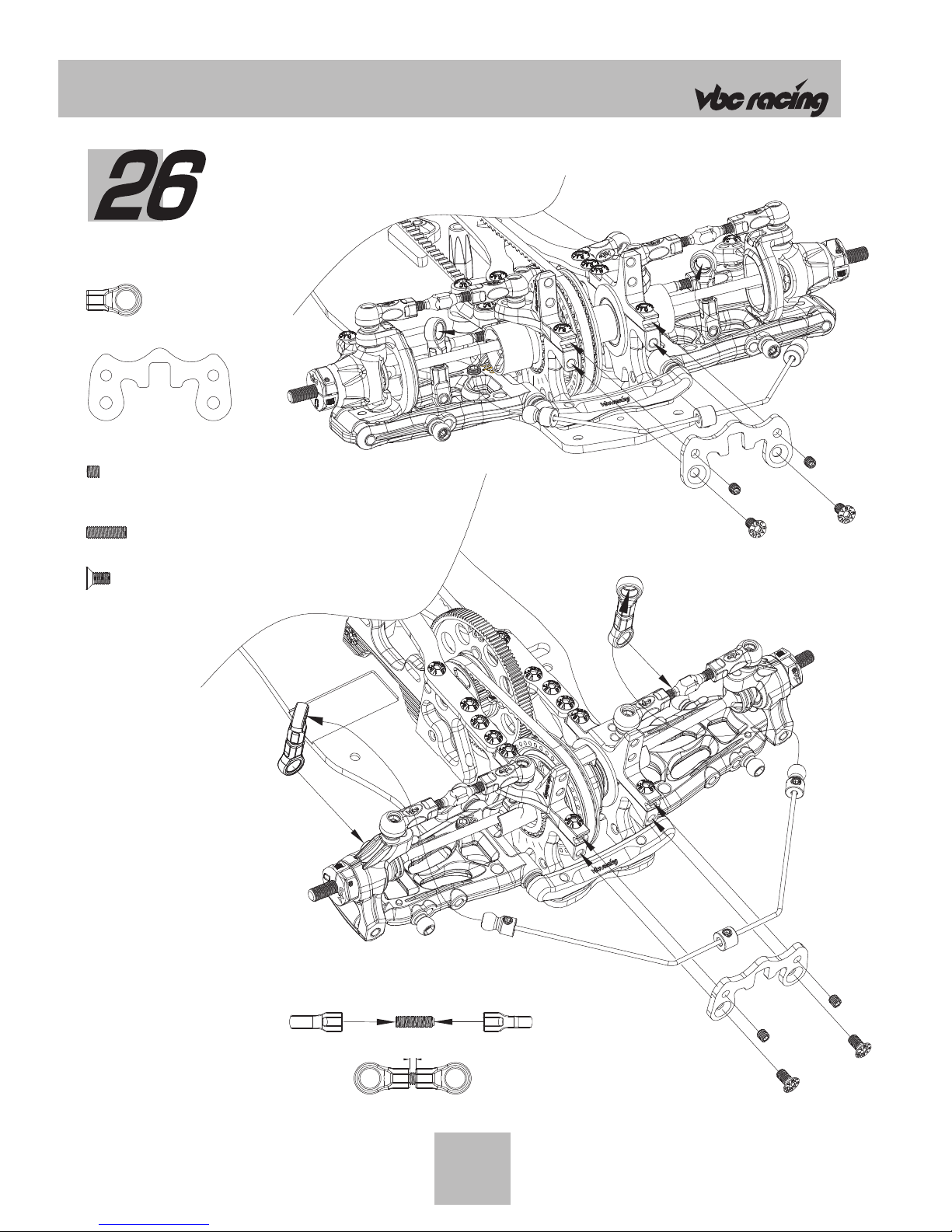

Install Front and Rear Stabilizers

21

Graphite Stabilizer Mount B-02-VBC-0071 x 2

M3x3mm Set Screw C-02-SC-SS-0303 x 4

M3x10mm Set Screw C-02-SC-SS-0310 x 2

M3x6mm Flat Head Screw C-02-SC-F0306 x 4

Turnbuckle Cup Open Type L A-03-VBC-0041 x 4

1.5mm

INSTALL FRONT STABILIZER

Note the double ring face to ball connector

Graphite Stabilizer Mount

M3x6mm Flat Head

M3x3mm Set Screw

MAKE FOUR TIE RODS

Graphite Stabilizer Mount

M3x6mm Flat Head

M3x3mm Set Screw

BAG MARKED

STEP27-28

27

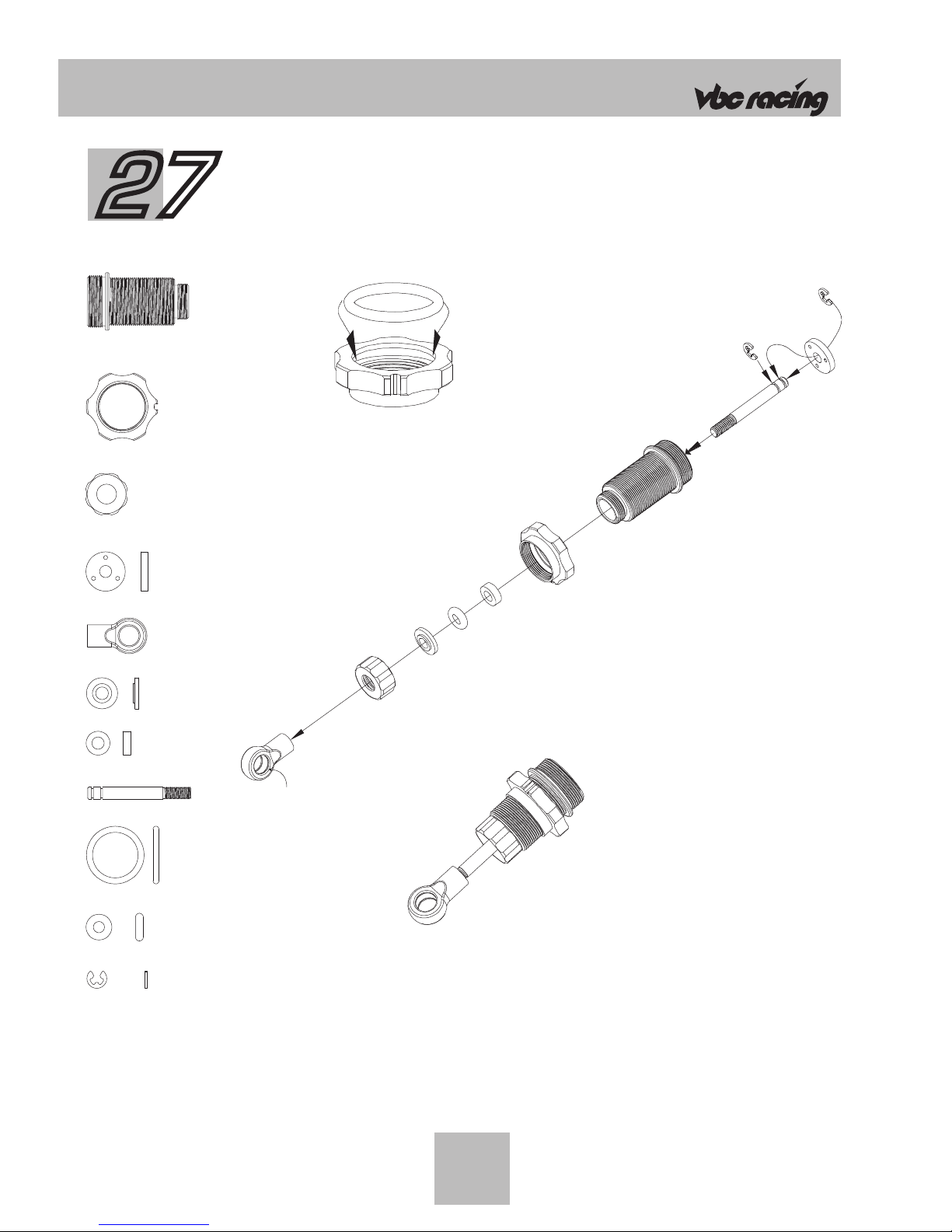

Assemble Oil Shocks

22

Shock Body B-02-VBC-0039 x 4

Shock Height Adjuster B-02-VBC-0042 x 4

Shock Bottom Cap B-02-VBC-0041 x 4

Shock Piston (3 holes) A-03-VBC-0045 x 4

Shock Bottom Connector A-03-VBC-0066 x 4

Shaft Cap A-03-VBC-0046 x 4

Shaft Guide A-03-VBC-0058 x 4

Shock Shaft B-02-VBC-0043 x 4

Sealer O-Ring B-03-VBC-0002 x 4

Shaft Sealer O-Ring B-03-VBC-0012 x 4

M3 E-Clip B-02-VBC-0044 x 8

Insert Sealer O-Ring inside the Shock Height Adjuster groove

Make sure the shock shaft can move up and down freely

MAKE 4 SHOCKS

Wipe small amount of shock oil to the thread

Note the double ring face to ball connector

Shock Body

Shock Height Adjuster

Shock Bottom Cap

Shock Piston (3 holes)

Shock Bottom Connector

Shaft Cap

Shaft Sealer O-Ring

Shaft Guide

Shock Shaft

M3 E-Clip

Sealer O-Ring

Shock Height Adjuster

BAG MARKED

STEP27-28

28

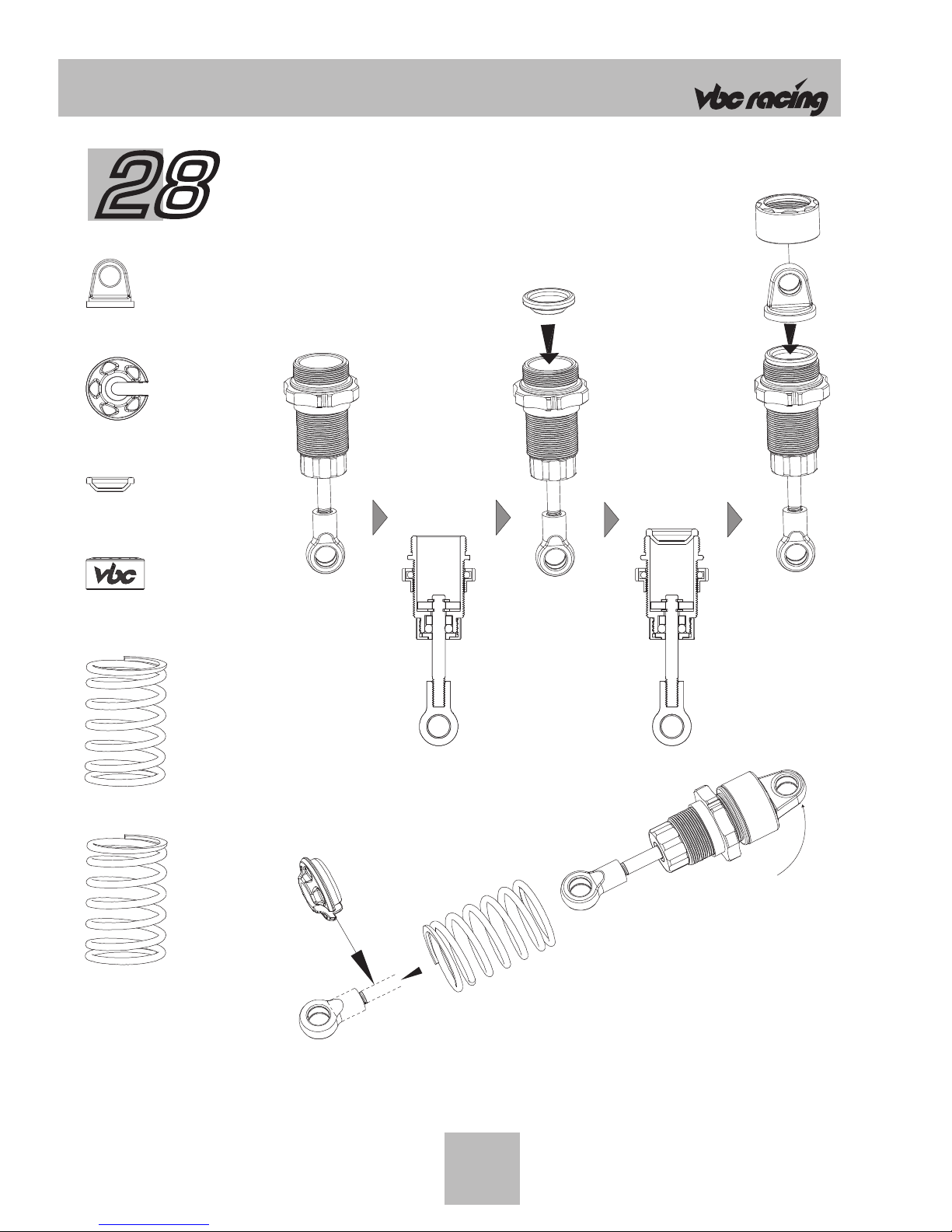

Assemble Oil Shocks Part2

23© VBC Racing WILDFIRE

Shock Top Connector A-03-VBC-0042 x 4

Spring Bottom Support A-03-VBC-0043 x 4

Oil Sealer Cap B-03-VBC-0011 x 4

Shock Body Cap B-02-VBC-0040 x 4

Shock Spring White (For Front) x 2

Shock Spring Red (For Rear) x 2

Shock Body Cap

Shock Top Connector

Oil Sealer Cap

Fill supplied shock oil and remove air by moving the piston up and down until air bubbles disappears

When placing Oil Sealer Cap make sure no bubbles are trap inside the shock body

Shock Spring Red (For Rear)

Shock Spring White (For Front)

Spring Bottom Support

Note the double ring face to ball connector

Optional VBC Racing Shock Springs:

Shock Spring Green SOFT B-02-VBC-0073-D Shock Spring Orange MED-SOFT B-02-VBC-0073-A Shock Spring Red MED-HARD B-02-VBC-0073-C Shock Spring White HARD B-02-VBC-0073-B

BAG MARKED

STEP29-32

29

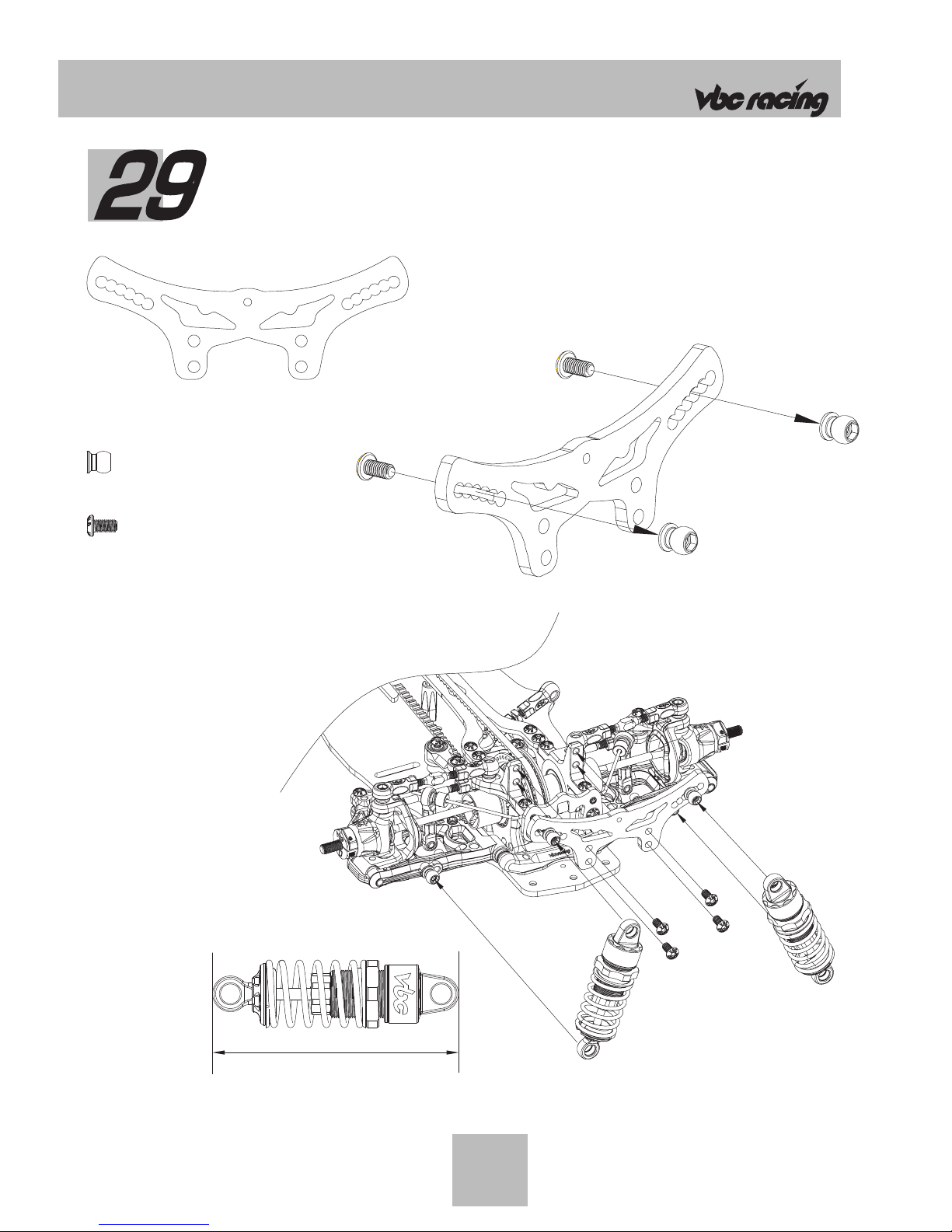

Install Front Shocks

24

Graphite Front Shock Tower A-01-VBC-0027 x 1

Ball Connector B-02-VBC-0045 x 2

M3x6 Round Head Screw C-02-SC-SS-0306 x 6

63.5mm

Make sure both shocks are the same length

Graphite Front Shock Tower

Ball Connector

M3x6 Round Head

Note the double ring face to ball connector

Shock Spring White

BAG MARKED

STEP29-32

30

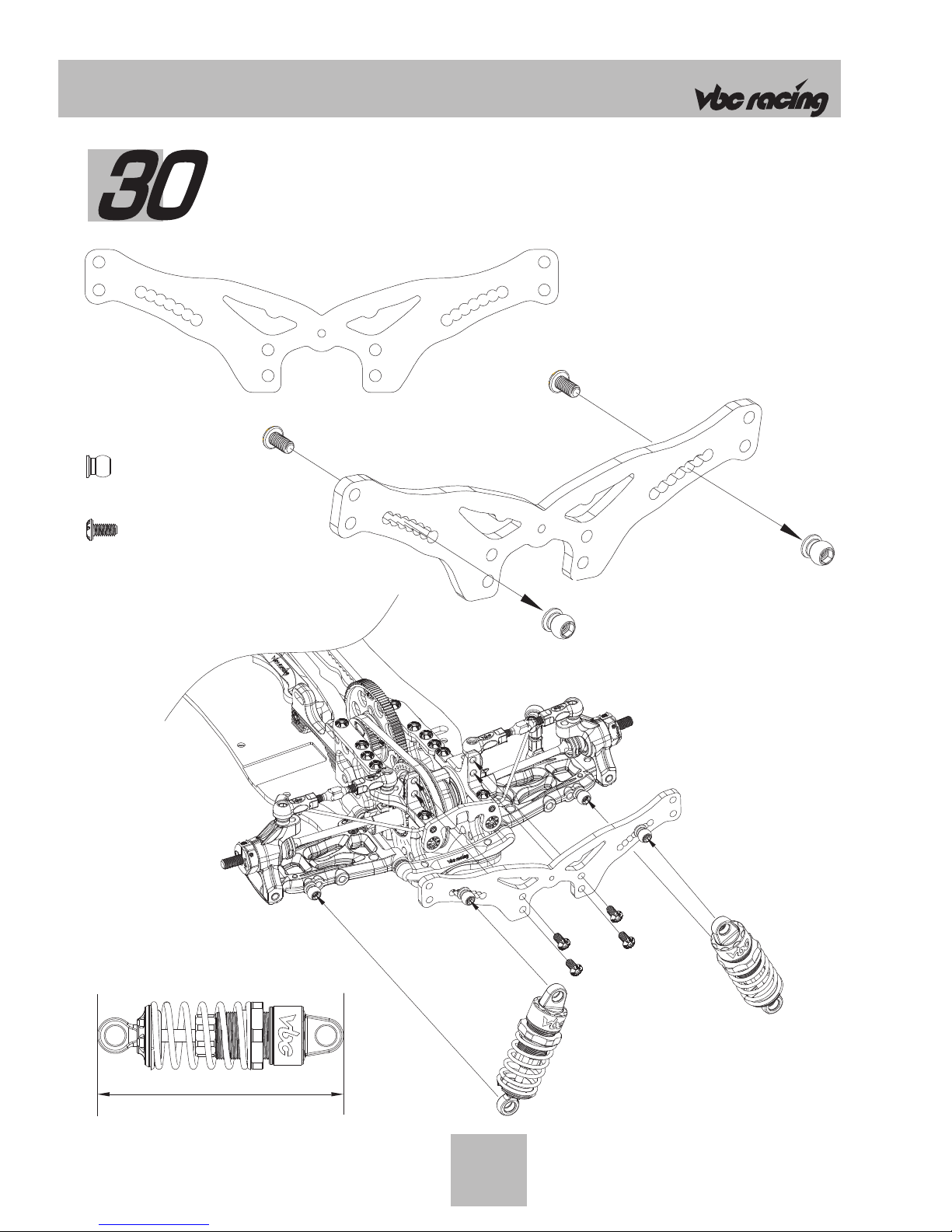

Install Rear Shocks

25

Graphite Rear Shock Tower A-01-VBC-0028 x 1

Ball Connector B-02-VBC-0045 x 2

M3x6 Round Head Screw C-02-SC-R0306 x 6

63.5mm

Make sure both shocks are the same length

Note the double ring face to ball connector

Graphite Rear Shock Tower

M3x6 Round Head

Ball Connector

M3x6 Round Head

Shock Spring Red

BAG MARKED

STEP29-32

31

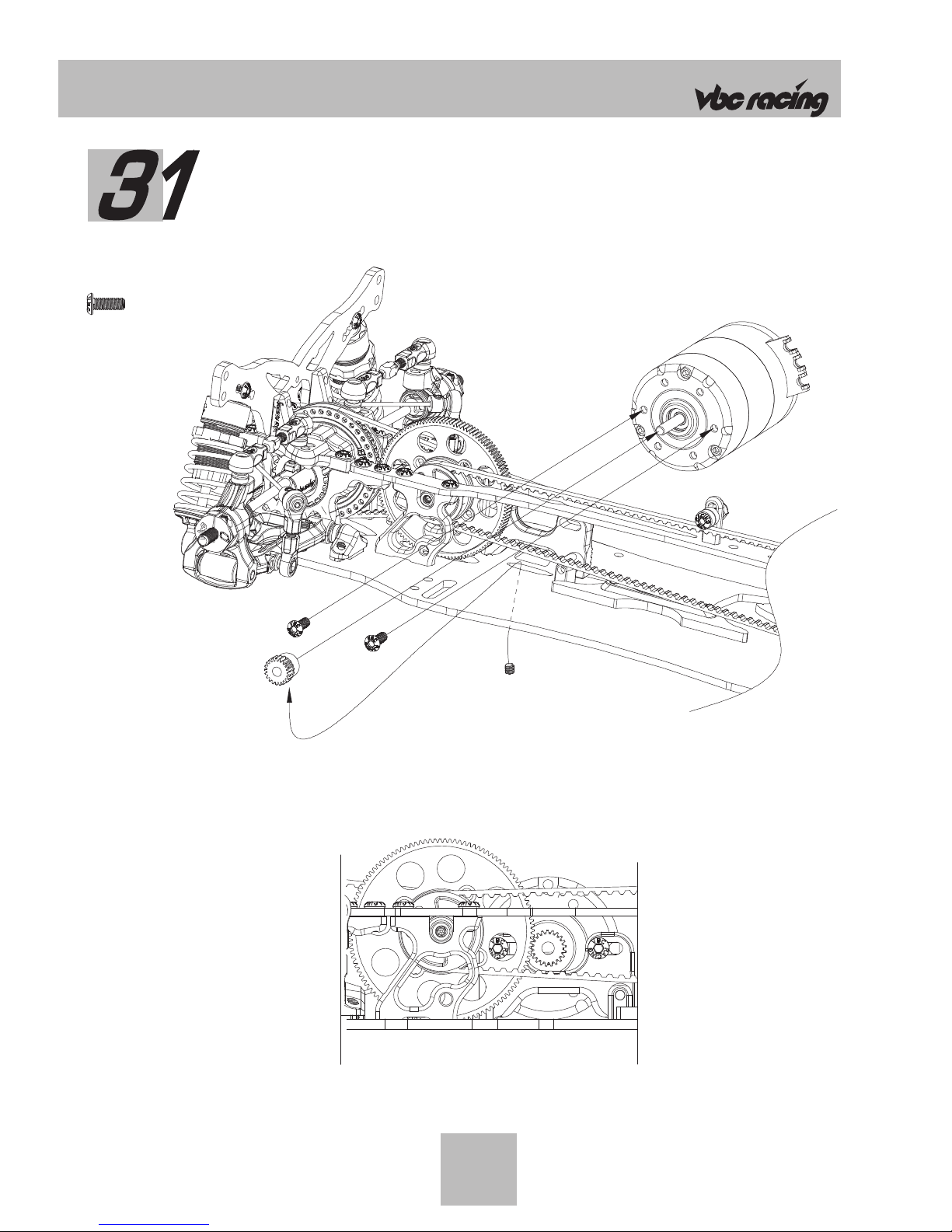

Install Motor

26

M3x8 Round Head Screw C-02-SC-R0308 x 2

M3x8 Round Head

Pinion Gear not included

Pinion set screw not included

Motor not included

Please make sure there is enough clearance for the gears to run smoothly

BAG MARKED

STEP29-32

32

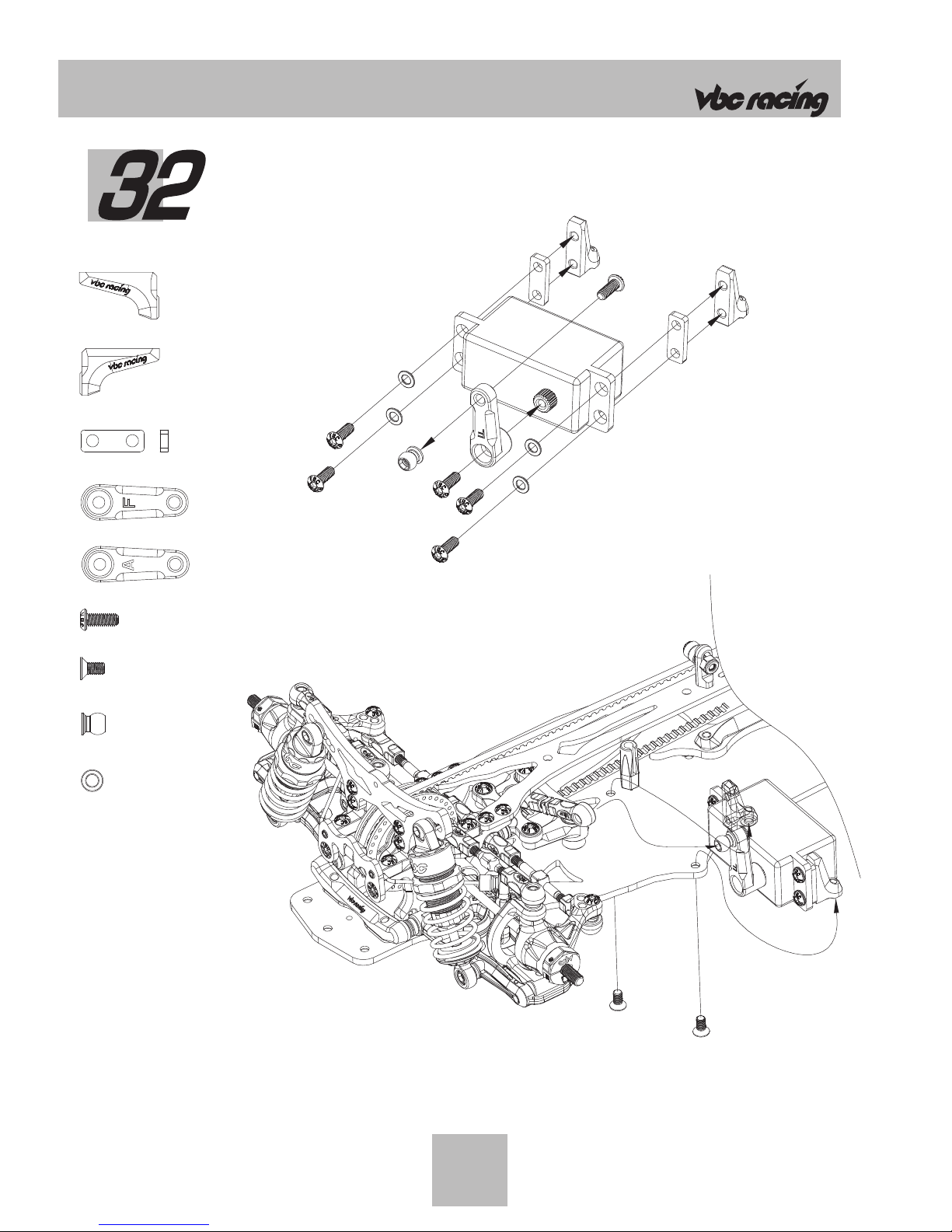

Install Steering Servo

27

Servo Spacer 2mm A-03-VBC-0033 x 2 Optional Servo Spacer 1mm A-03-VBC-0032 x 2 included

Servo Horn Type F A-03-VBC-0053 x 1

Servo Horn Type A A-03-VBC-0054 x 1

Ball Connector B-02-VBC-0045 x 1

Servo Washer (not included) x 4

M3x8mm Round Head Screw C-02-SC-R0308 x 6

Servo Mount A B-02-VBC-0065 x 1

Servo Mount B B-02-VBC-0091 x 1

M3x8mm Round Head

Servo not included

Use Servo Horn Type F or Servo Horn Type A depending on the servo

Servo Mount A

Servo Mount B

Servo Spacer 2mm or Servo Spacer 1mm

Servo Washer (not included)

Ball Connector

Servo Spacer 2mm or Servo Spacer 1mm

M3x6 Flathead C-02-SC-F0306 x 2

M3x6 Flathead

Servo Washer (not included)

BAG MARKED

STEP33-35

33

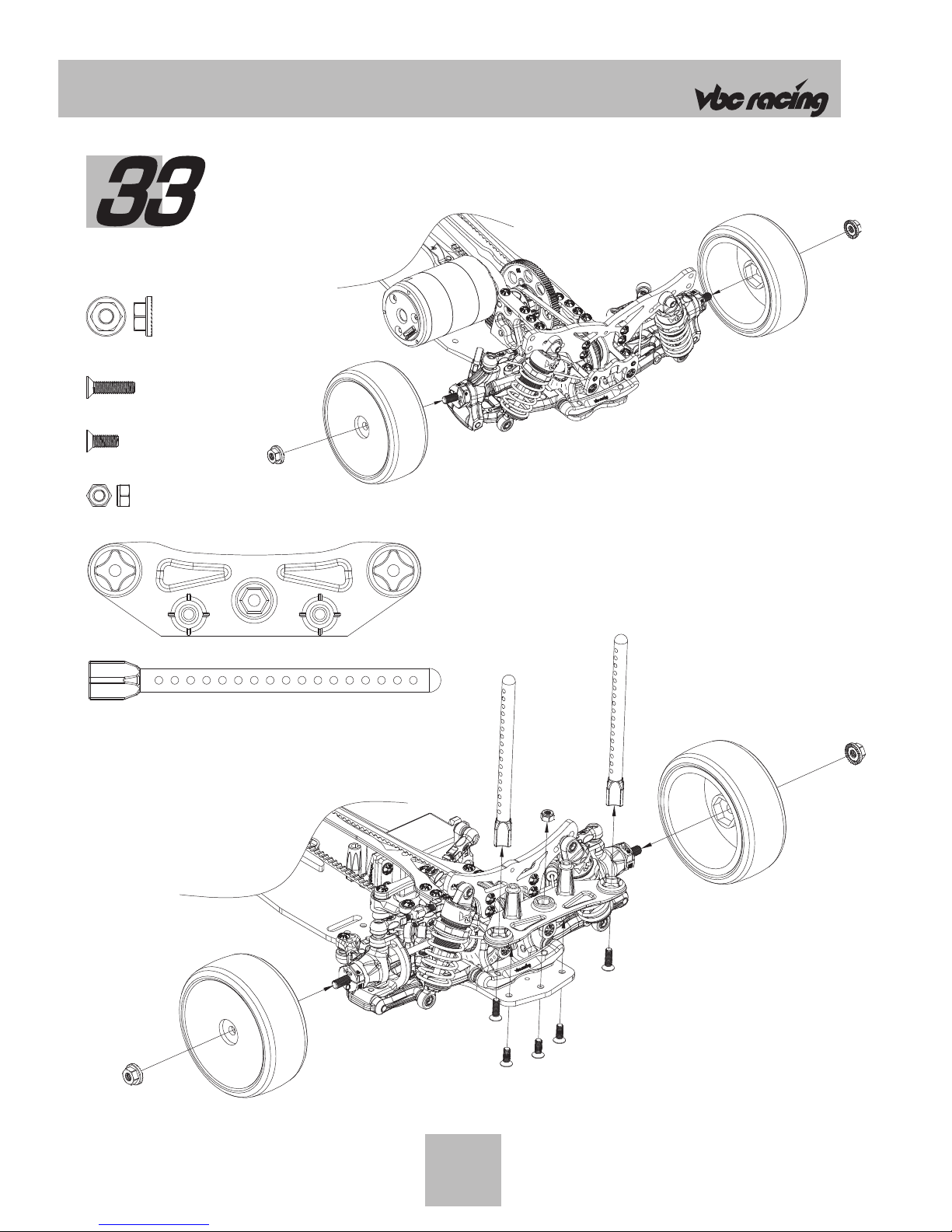

Install Front Bumper and Body Posts

28

5mm Flanged Wheel Nut B-02-VBC-0086 x 4

M3x10mm Flat Head Screw C-02-SC-F0310 x 2

M3x8mm Flat Head Screw C-02-SC-F0308 x 3

M3 Lock Nut C-02-SC-NN03 x 1

Front Bumper Bottom Support A-03-VBC-0011 x 1

Front Body Post A-03-VBC-0013 x 2

WHEELS AND TIRES NOT INCLUDED

5mm Flanged Wheel Nut

M3x10mm Flat Head

M3x8mm Flat Head

Front Bumper Bottom Support

Front Body Post

M3 Lock Nut

BAG MARKED

STEP33-35

34

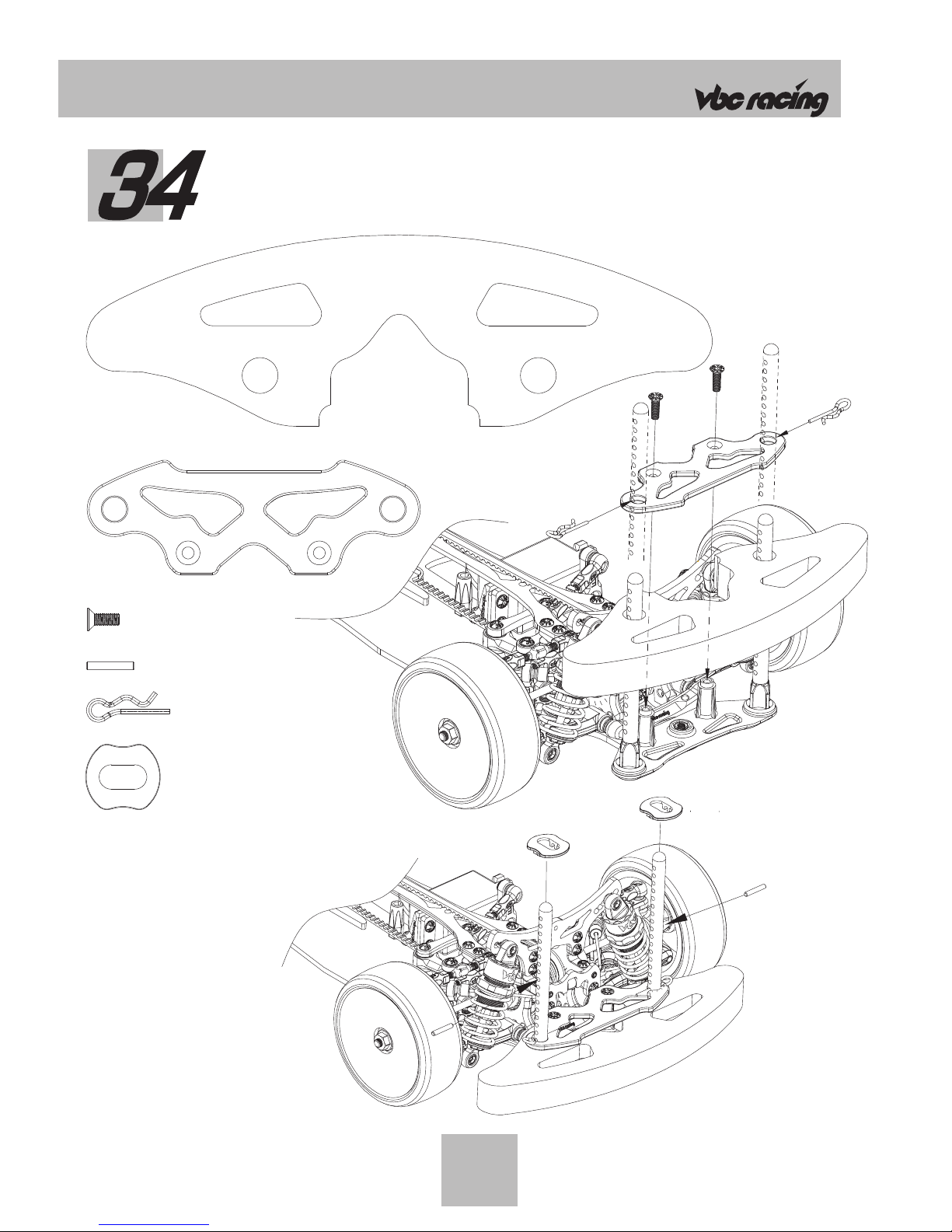

Install Front Bumper Part 2

29

M3x10mm Flat Head Screw C-02-SC-F0310 x 2

Front Foam Bumper B-03-VBC-0009 x 1

Bumper Top Plate A-03-VBC-0062 x 1

M2x12 Shaft Pin B-02-VBC-0022 x 2

Body Clip B-02-VBC-0076 x 2

Body Height Adjuster Support A-03-VBC-0015 x 2

M3x10mm Flat Head

Body Clip

Body Height Adjuster Support

M2x12 Shaft Pin

Optional: Graphite Bumper Top Plate A-01-VBC-0029

BAG MARKED

STEP33-35

35

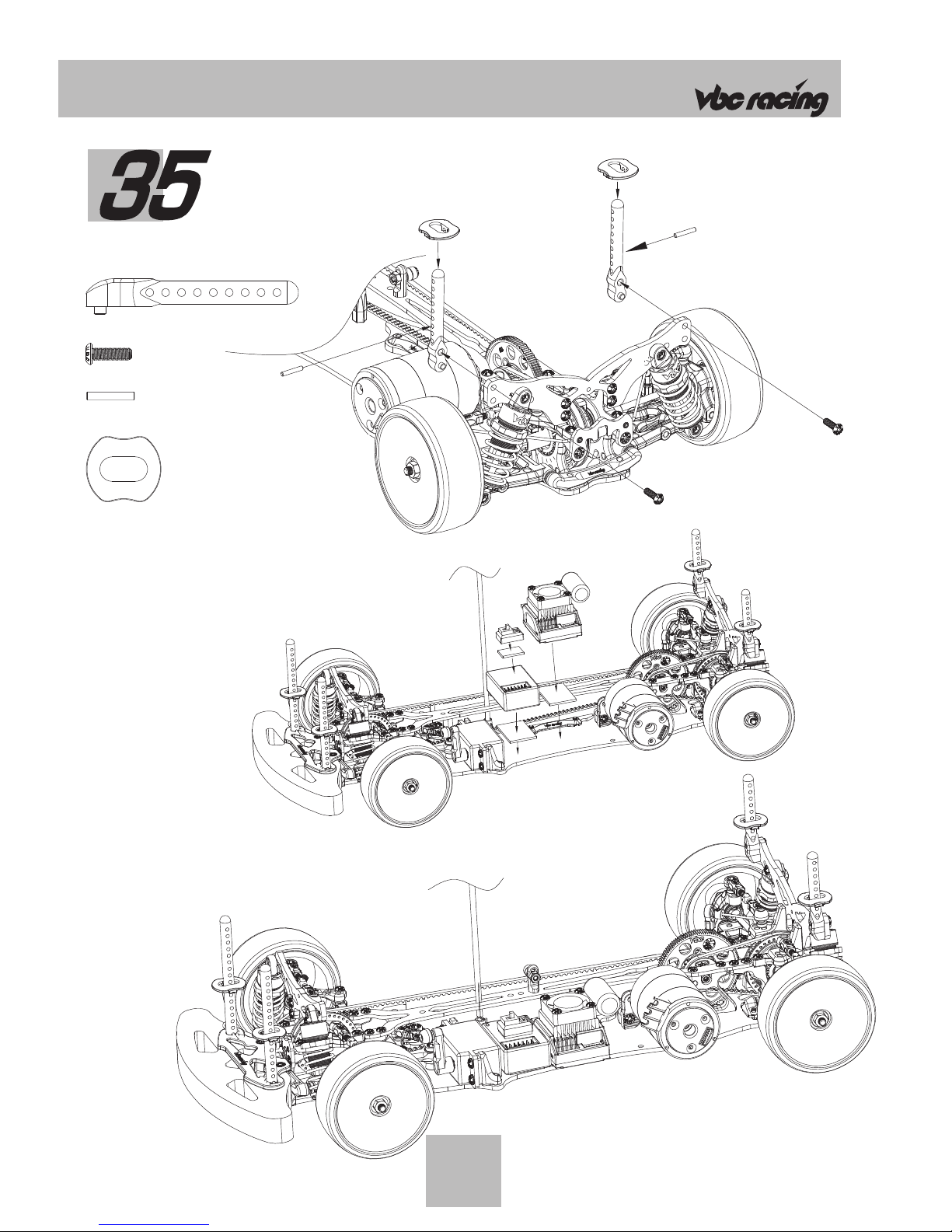

Install Rear Body Posts and Electronics

30

Body Height Adjuster Support A-03-VBC-0015 x 2

M2x12 Shaft Pin B-02-VBC-0022 x 2

M3x8mm Round Head Screw C-02-SC-R0308 x 2

Rear Body Post A-03-VBC-0014 x 2

Body Height Adjuster Support

M2x12 Shaft Pin

Rear Body Post

M3x8mm Round Head

INSTALL ESC, RECEIVER AND ANTENNA TUBE (these items are not included in this kit)

BAG MARKED

STEP33-35

35

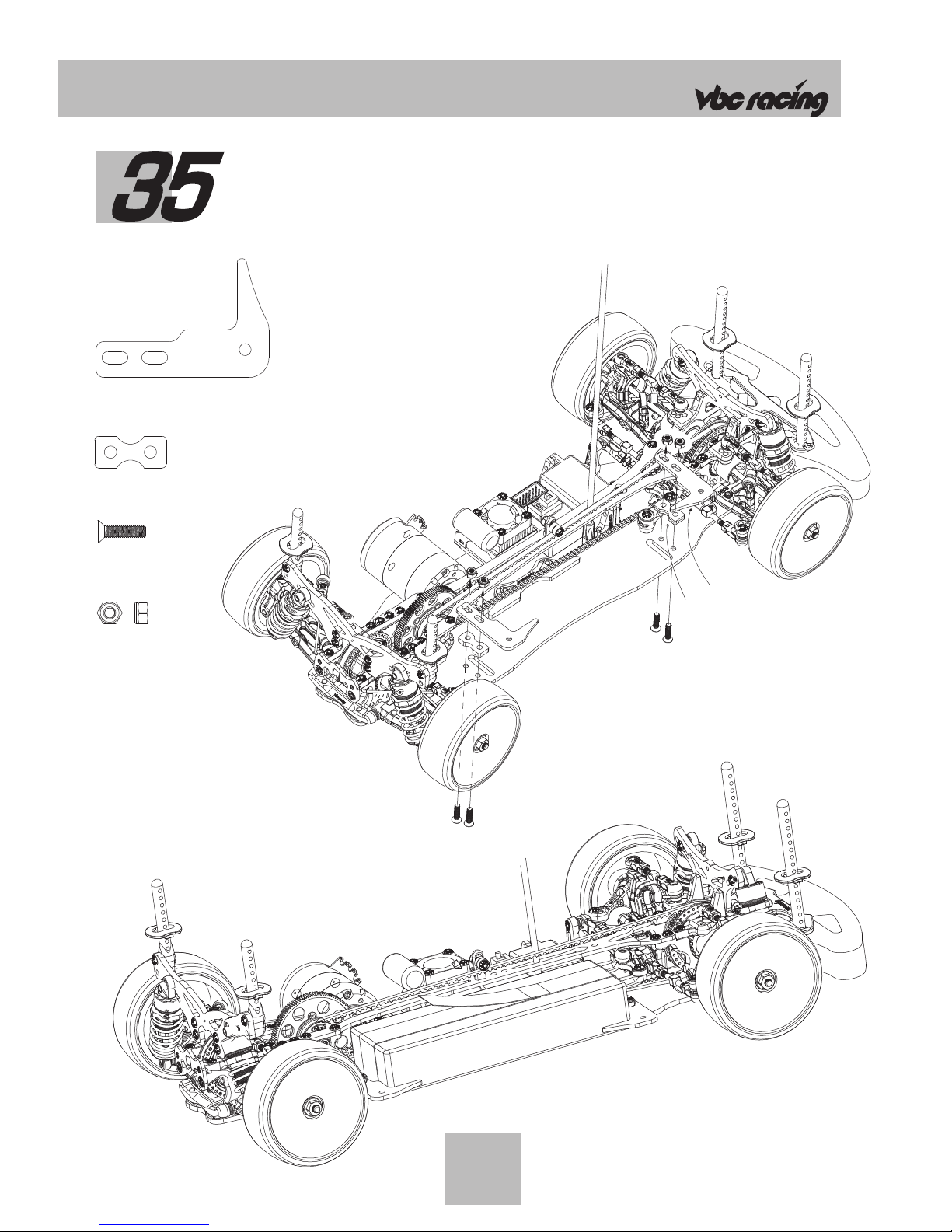

Install Battery Guards

31

Graphite Adjustable Battery Guard A-01-VBC-0031 x 2

Graphite Battery Guard Spacer A-01-VBC-0032 x 2

M3x12mm Flat Head Screw x 4 C-02-SC-F0312

M3 Lock Nut C-02-SC-NN03 x 4

Graphite Adjustable Battery Guard

Graphite Battery Guard Spacer

Graphite Adjustable Battery Guard

Graphite Battery Guard Spacer

M3x12mm Flat Head

Continue

PARTS LIST

32

Order Number Package Descriptions Parts Number Parts Descriptions

A-03-VBC-0016 Gear Diff Housing

A-03-VBC-0017 Gear Diff Pulley 38T

A-03-VBC-0018 Diff Gear 10T

A-03-VBC-0019 Diff Gear 18T

A-03-VBC-0020 Diff Gear Shaft

B-03-VBC-0004 Seal Gasket

B-03-VBC-0006 Diff Shaft Sealer O-Ring

B-03-VBC-0005 Diff Housing Sealer O-Ring

C-02-SC-F2.6x10 M2.6x10 Flathead Screw

B-02-VBC-0022 Diff Cup

B-02-VBC-0020 M2x10 Shaft Pin

B-02-VBC-0077 15x0.3mm Shim

B-02-VBC-0078 9.5x0.2mm Shim

A-03-VBC-0018 Diff Gear 10T

A-03-VBC-0019 Diff Gear 18T

A-03-VBC-0020 Diff Gear Shaft A-03-VBC-0020 Diff Gear Shaft

B-02-VBC-0022 Diff Cup B-02-VBC-0022 Diff Cup

B-03-VBC-0005 Diff Housing Sealer O-Ring B-03-VBC-0005 Diff Housing Sealer O-Ring

B-03-VBC-0004 Seal Gasket B-03-VBC-0004 Seal Gasket

B-02-VBC-0077 15x0.3mm Shim

B-02-VBC-0078 9.5x0.2mm Shim

B-02-VBC-0020 M2x10 Shaft Pin B-02-VBC-0020 M2x10 Shaft Pin

C-02-BB-1510-B 10x15 Ball Bearing (2pcs) C-02-BB-1510-B 10x15 Ball Bearing

A-03-VBC-0047 Belt Tension Adjuster Ring

C-02-SC-R2.0x10 M2x10 Roundhead Screw

B-02-VBC-0057 Lower Bulkhead A

B-02-VBC-0090 Lower Bulkhead B

B-02-VBC-0058 Motor Mount

B-02-VBC-0067 Motor Mount Support

C-02-SC-F0310 M3x10 Flathead Screw

B-02-VBC-0059 WildFire Main Gear Bulkhead B-02-VBC-0059 Main Gear Bulkhead

B-02-VBC-0062 Center Suspension Mount (C0) B-02-VBC-0062 Center Suspension Mount

A-01-VBC-0038 Center Suspension Mount Shim(1.0mm)

A-01-VBC-0042 Center Suspension Mount Shim(0.5mm)(Option)

B-02-VBC-0072 Battery Adjust Top Plate

A-01-VBC-0033 Battery Position Slider

C-02-SC-F0308 M3x8 Flathead Screw

B-02-VBC-0054

Steering Assembly Travel Plate

B-02-VBC-0053

Steering Travel Arm

B-02-VBC-0055

Steering Assembly Pole

B-02-VBC-0045

Ball Connector

C-02-BB-0805-B

5x8 Ball Bearing

C-02-BB-0603

3x6 Ball Bearing

B-02-VBC-0089 Steering Cone Washer

B-02-VBC-0019-20 T2 7075 Spacer

B-02-VBC-0019-10 T1 7075 Spacer

C-02-SC-R0306 M3x6 Roundhead Screw

C-02-SC-SS-0306 M3x6 Set Screw

C-02-SC-SS-0310 M3x10 Set Screw

A-03-VBC-0039 Turnbuckle Cup (Grey) A-03-VBC-0039 Turnbuckle Cup

A-03-VBC-0056 Turnbuckle Cup S (Grey) A-03-VBC-0056 Turnbuckle Cup S

B-02-VBC-0037 M3x42mm Turnbuckle (Titan) B-02-VBC-0037 M3x42mm Turnbuckle

B-02-VBC-0038 M3x18mm Turnbuckle (Titan) B-02-VBC-0038 M3x18mm Turnbuckle

A-03-VBC-0048-512

Front Belt Type SS A-03-VBC-0048-512 Front Belt Type SS

A-03-VBC-0048-177

Rear Belt Type SS A-03-VBC-0048-177 Rear Belt Type SS

B-02-VBC-0069 Belt Tensioner

C-02-BB-0603 3x6 Ball Bearing

B-02-VBC-0093 3x5x0.5mm Shim

C-02-SC-R-0312 M3x12 Roundhead Screw

C-02-SC-NN03 M3 Lock Nut

A-03-VBC-0023 20T Center Pulley

A-03-VBC-0060 Center Pulley Spacer

B-02-VBC-0087 Center Pulley Drive Shaft

B-02-VBC-0020 M2x10 Shaft Pin

B-02-VBC-0085 M5x11 E-Clip

C-02-SC-SS-0306 M3x6 Set Screw

C-02-BB-0805-B 5x8 Ball Bearing C-02-BB-0805-B 5x8 Ball Bearing

A-03-VBC-SG-116 64P Spur Gear 116T

C-02-SC-R0304 M3x4 Roundhead Screw

A-01-VBC-0026-20 WildFire Standard Upper Deck A-01-VBC-0026-20 WildFire Standard Upper Deck

B-02-VBC-0063 Upper Bulkhead A

B-02-VBC-0064 Upper Bulkhead B

B-02-VBC-0045 Ball Connector B-02-VBC-0045 Ball Connector

B-02-VBC-0019-20 T2 7075 Spacer B-02-VBC-0019-20 T2 7075 Spacer

A-03-VBC-0021 Front Spool Pulley 38T

A-03-VBC-0022 Pulley Belt Guide

A-03-VBC-0049 Spool Drive Shaft

A-03-VBC-0055 Front Spool Outdrive

C-02-SC-R0306 M3x6 Roundhead Screw

C-02-SC-F0312 M3x12 Flathead Screw

A-03-VBC-0055 Front Spool Outdrive A-03-VBC-0055 Front Spool Outdrive

A-03-VBC-0049 Spool Drive Shaft A-03-VBC-0049 Spool Drive Shaft

A-03-VBC-0021 Front Spool Pulley 38T

A-03-VBC-0022 Pulley Belt Guide

A-03-VBC-0024 Front Suspension Arm (Composite)

A-03-VBC-0050 Rear Suspension Arm (Composite)

A-03-VBC-0051 Suspension Arm Spacer T1(Composite)

A-03-VBC-0052 Suspension Arm Spacer T2(Composite)

B-02-VBC-0029 Suspension Arm Pin B-02-VBC-0029 Suspension Arm Pin

B-02-VBC-0035 Arm Pin Pivot Ball B-02-VBC-0035 Arm Pin Pivot Ball

B-02-VBC-0061-30 E30 Suspension Mount B-02-VBC-0061-30 E30 Suspension Mount

A-01-VBC-0037 1mm Suspension Shim

A-01-VBC-0041 0.5mm Suspension Shim(Option)

A-03-VBC-0037

Rear Suspension Upright (Composite)

A-03-VBC-0037 Rear Suspension Upright (Composite)

A-03-VBC-0038 Shaft End Shoe A-03-VBC-0038 Shaft End Shoe

D-05-VBC-0041 Spool Pulley Set

D-05-VBC-0016 WildFire Suspension

Arm Set (Composite)

D-05-VBC-0032

WildFire Front/Rear Suspenion Shim (1mm,0.5mm)

D-05-VBC-0040 64P Spur Gear 116T

D-05-VBC-0027 WildFire Upper Bulkhead Set

D-05-VBC-0015 WildFire Front Spool Set 38T

D-05-VBC-0038 WildFire Mid Belt Tensioner Set

D-05-VBC-0039 20T

Center Pulley/Pulley Spacer Set

D-05-VBC-0025

WildFire Center Pulley Drive Shaft Set

D-05-VBC-0033

WildFire Center Suspension Shim (1mm, 0.5mm)

D-05-VBC-0030

WildFire Battery Center Position Set

D-05-VBC-0037 WildFire Steering Set

D-05-VBC-0022 WildFire Adjuster Ring Set

D-05-VBC-0036 WildFire Lower Bulkhead (A+B)

D-05-VBC-0026 WildFire Motor Mount Set

D-05-VBC-0014 WildFire Gear Differential 38T

D-05-VBC-0034 Differential Gear Set

D-05-VBC-0035 Gear Differentials Shims Set

Order Number Package Descriptions Parts Number Parts Descriptions

B-02-VBC-0024 Inner Axle

B-02-VBC-0025 Wheel Axle

B-02-VBC-0026 Axle Joint

B-02-VBC-0027 Axle Lock Spring

B-02-VBC-0020 M2x10 Shaft Pin

B-02-VBC-0020-12 M2x12 Shaft Pin

C-02-SC-SS-0302 M3x2 Set Screw

C-02-BB-1005-B 5x10 Ball Bearing C-02-BB-1005-B 5x10 Ball Bearing

B-02-VBC-0024 Inner Axle

B-02-VBC-0026 Axle Joint

B-02-VBC-0025 Wheel Axle B-02-VBC-0025 Wheel Axle

B-02-VBC-0027 Axle Lock Spring B-02-VBC-0027 Axle Lock Spring

B-02-VBC-0020 M2x10 Shaft Pin B-02-VBC-0020 M2x10 Shaft Pin

B-02-VBC-0020-12 M2x12 Shaft Pin B-02-VBC-0020-12 M2x12 Shaft Pin

B-02-VBC-0051 0 Offset Hex Wheel Hub

C-02-SC-R1.6x4 M1.6x4 Screw

B-02-VBC-0019-10 T1 7075 Spacer B-02-VBC-0019-10 T1 7075 Spacer

B-02-VBC-0036 M3x32mm Turnbuckle B-02-VBC-0036 M3x32mm Turnbuckle

B-02-VBC-0032 M3x23 Upright Pin B-02-VBC-0032 M3x23 Upright Pin

A-03-VBC-0040 Turnbuckle Cup Open Type S

A-03-VBC-0041 Turnbuckle Cup Open Type L

B-02-VBC-0060-00 F00 Suspension Mount B-02-VBC-0060-00 F00 Suspension Mount

A-03-VBC-0034 Steering Block (Composite) A-03-VBC-0034 Steering Block (Composite)

A-03-VBC-0030 Left C-Hub (Composite)

A-03-VBC-0031 Right C-Hub (Composite)

B-02-VBC-0033 Steering Swivel Tube B-02-VBC-0033 Steering Swivel Tube

B-02-VBC-0074-13 Front Stabilizer 1.3

B-02-VBC-0074-14 Front Stabilizer 1.4(Option)

B-02-VBC-0074-12 Front Stabilizer 1.2(Option)

B-02-VBC-0075-14 Rear Stabilizer 1.4(Option)

B-02-VBC-0075-13 Rear Stabilizer 1.3

B-02-VBC-0075-12 Rear Stabilizer 1.2(Option)

B-02-VBC-0047 Stabilizer Connector

B-02-VBC-0070 Stabilizer Collar

B-02-VBC-0071 Graphite Stabilizer Mount

C-02-SC-SS-0303 M3x3 Set Screw

A-03-VBC-0066 Shock Bottom Connector

A-03-VBC-0042 Shock Top Connector

A-03-VBC-0043 Spring Bottom Support

A-03-VBC-0057 Shock Piston (1 hole)

A-03-VBC-0044 Shock Piston (2 holes)

A-03-VBC-0045 Shock Piston (3 holes)

A-03-VBC-0046 Shaft Cap

A-03-VBC-0058 Shaft Guide

B-02-VBC-0039 Shock Body

B-02-VBC-0042 Shock Height Adjuster

B-02-VBC-0041 Shock Bottom Cap

A-03-VBC-0057 Shock Piston (1 hole)

A-03-VBC-0044 Shock Piston (2 holes)

A-03-VBC-0045 Shock Piston (3 holes)

A-03-VBC-0066 Shock Bottom Connector

A-03-VBC-0046 Shaft Cap

A-03-VBC-0058 Shaft Guide

B-02-VBC-0043 Shock Shaft

B-03-VBC-0002 Sealer O-Ring (Shock)

B-03-VBC-0012 Shaft Sealer O-Ring

B-02-VBC-0044 M3 E-Clip

A-03-VBC-0042 Shock Top Connector

A-03-VBC-0043 Spring Bottom Support

B-03-VBC-0011 Oil Sealer Cap

B-02-VBC-0040 Shock Body Cap

B-02-VBC-0073-C Shock Spring (Medium Soft)

B-02-VBC-0043 Shock Shaft B-02-VBC-0043 Shock Shaft

B-02-VBC-0073-A Shock Spring A B-02-VBC-0073-A Shock Spring A

B-02-VBC-0073-B Shock Spring B B-02-VBC-0073-B Shock Spring B(Option)

B-02-VBC-0073-C Shock Spring C B-02-VBC-0073-C Shock Spring C

B-02-VBC-0073-D Shock Spring D B-02-VBC-0073-D Shock Spring D(Option)

A-01-VBC-0027

WildFire Graphite Front Shock Tower

A-01-VBC-0027 WildFire Graphite Front Shock Tower

A-01-VBC-0028

WildFire Graphite Rear Shock Tower

A-01-VBC-0028 WildFire Graphite Rear Shock Tower

B-02-VBC-0065 Servo Mount A

B-02-VBC-0091 Servo Mount B

A-03-VBC-0053 Servo Horn Type F (Composite)

A-03-VBC-0054 Servo Horn Type A (Composite)

A-03-VBC-0032 Servo Spacer 1mm

A-03-VBC-0033 Servo Spacer 2mm

A-03-VBC-0011 Front Bumper Bottom Support

A-03-VBC-0062 Bumper Top Plate

A-03-VBC-0013 Front Body Post

A-03-VBC-0014 Rear Body Post

A-03-VBC-0015 Body Height Adjuster Support

B-02-VBC-0076 Body Clip

B-02-VBC-0020-12 M2x12 Shaft Pin

B-03-VBC-0009

WildFire Front Foam Bumper (Lightweight)

B-03-VBC-0009 Front Foam Bumper

A-01-VBC-0031 Graphite Adjustable Battery Guard

A-01-VBC-0032 Graphite Battery Guard Spacer

C-02-SC-F0312 M3x12 Flathead Screw

C-02-SC-NN03 M3 Lock Nut

A-01-VBC-0035-25

WildFire Standard Graphite Chassis

A-01-VBC-0035-25 WildFire Standard Graphite Chassis

C-02-SC-F0306 M3x6 Flathead Screw C-02-SC-F0306 M3x6 Flathead Screw

C-02-SC-F0308 M3x8 Flathead Screw C-02-SC-F0308 M3x8 Flathead Screw

C-02-SC-F0310 M3x10 Flathead Screw C-02-SC-F0310 M3x10 Flathead Screw

C-02-SC-F0312 M3x12 Flathead Screw C-02-SC-F0312 M3x12 Flathead Screw

C-02-SC-R0304 M3x4 Roundhead Screw C-02-SC-R0304 M3x4 Roundhead Screw

C-02-SC-R0306 M3x6 Roundhead Screw C-02-SC-R0306 M3x6 Roundhead Screw

C-02-SC-R0308 M3x8 Roundhead Screw C-02-SC-R0308 M3x8 Roundhead Screw

C-02-SC-R0309 M3x9 Roundhead Screw C-02-SC-R0309 M3x9 Roundhead Screw

C-02-SC-R0310 M3x10 Roundhead Screw C-02-SC-R0310 M3x10 Roundhead Screw(Option)

C-02-SC-R-0312 M3x12 Roundhead Screw C-02-SC-R-0312 M3x12 Roundhead Screw

C-02-SC-R-0316 M3x16 Roundhead Screw C-02-SC-R-0316 M3x16 Roundhead Screw(Option)

D-05-VBC-0031 WildFire Battery Side Adjuster Set

D-05-VBC-0018

WildFire Servo Horn Set (Composite)

D-05-VBC-0013 WildFire Bumper Pack

D-05-VBC-0012 WildFire Body Posts Pack

D-05-VBC-0021 WildFire Shocks Parts Set

D-05-VBC-0024 WildFire Shocks Set

D-05-VBC-0028 WildFire Servo Mount

D-05-VBC-0046 WildFire Rear Stabilizer Set

D-05-VBC-0047 Stabilizer Connector/Collar Set

B-02-VBC-0071 Graphite Stabilizer Mount

D-05-VBC-0044 Turnbuckle Cup Open Type Set

D-05-VBC-0017 WildFire C-Hub Set (Composite)

D-05-VBC-0045 WildFire Front Stabilizer Set

D-05-VBC-0042 WildFire Drive

Axle Set for Front/Rear (Pair)

D-05-VBC-0043 Inner Axle/Axle Joint Set

B-02-VBC-0051 0 Offset Hex Wheel Hub

FOR ONLINE ORDERS, PLEASE VISIT OUR WEBSITE WWW.VBCRACING.COM OR VISIT YOUR NEAREST HOBBY STORE. PLEASE VISIT OUR WEBSITE FOR THE LATEST VBC WILDFIRE OPTION PARTS.

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT

1/10 4WD ELECTRIC COMPETITION TOURING CAR KIT

www.vbcracing.com

Instruction Book P-0001.3 VBC Racing WildFire Touring Car Kit D-05-VBC-0005
