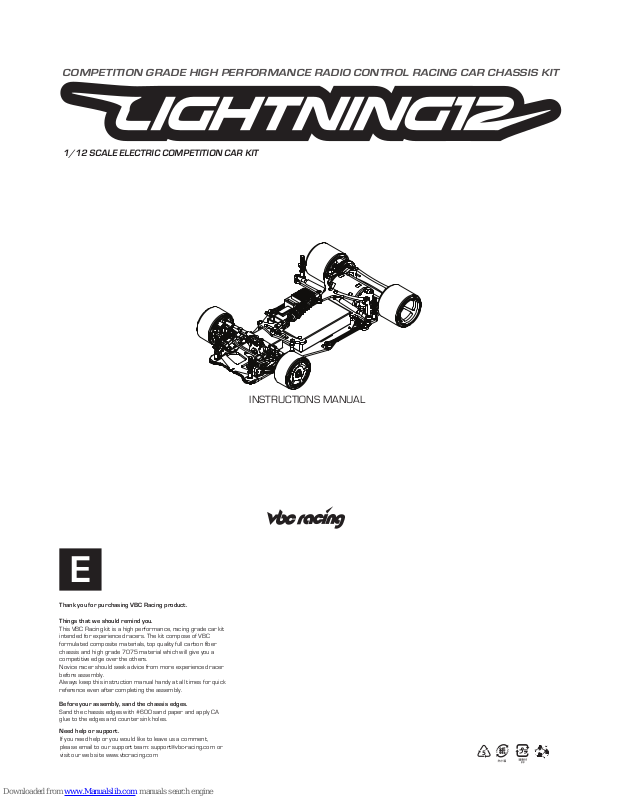

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
1/12 SCALE ELECTRIC COMPETITION CAR KIT
E
INSTRUCTIONS MANUAL
5
Thank you for purchasing VBC Racing product.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Things that we should remind you.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
BAG MARKED
STEP1
1
Graphite Edges Protection Procedure
01© VBC Racing LIGHTNING12
CA
Sand the chassis edges with #600 sand paper(not included) and
apply CA glue(not included) to the edges of the chassis.
Sand the below graphite edges with #600 sand paper and apply CA glue to the edges.
*Not included in this kit
A-01-VBC-5002 Lightning12 2.5mm Graphite Main Chassis
A-01-VBC-5072 Lightning12 Graphite Chassis Brace
A-01-VBC-5083 Lightning12 Graphite Lower Pod Plate
BAG MARKED
2
02© VBC Racing LIGHTNING12
Pivot Brace D-05-VBC-0101 x 1
Pivot Brace Cover D-05-VBC-0101 x 1
Pivot Balls A-03-VBC-1027 x 5
M3x6 Flathead C-02-SC-F0306 x 5
Pivot ball shoulder should be facing downwards
Pivot Brace Assembly Part1
STEP2-5
Pivot Brace
Pivot Brace Cover
M2x6 Cap Head
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
Pivot Balls
Pivot Balls
Pivot Balls
Pivot Balls
Use screws to adjust the
play of the piviot ball Movement. Do not
overtighten to avoid stripping
M2x6 Cap Head C-02-SC-R2.0x6 x 2
BAG MARKED
03© VBC Racing LIGHTNING12
M3x10 Flathead C-02-SC-F0310 x 2
M2x6 Cap Head C-02-SC-R2.0x6 x 4
Pivot Brace Assembly Part2
STEP2-5
Lightning Pod Link Set
A-03-VBC-5009 x 2
2
Rear Bulkhead Assembly Part1
3
M3 Locknut C-02-SC-NN03 x 2
Tighten each side screw
slowly, Make sure the lower pod
plate can rotate freely.
Note the direction screw in from
the larger hole side
M3x6 Flathead C-02-SC-F0306 x 4
Aluminum Right Bulkhead B-02-VBC-5089 x 1
Aluminum Left Bulkhead B-02-VBC-5090 x 1
03
Aluminum Left Bulkhead B-02-VBC-5090
Aluminum Right Bulkhead B-02-VBC-5089
M3x6 Flathead C-02-SC-F0306 x 4
04
© VBC Racing LIGHTNING12
Lightning12 Graphite Motor Mount Brace
A-01-VBC-5091 x 1
M3x6 Flathead C-02-SC-F0306 x 2
BAG MARKED
STEP2-5
Chassis Brace Assembly
Rear Bulkhead Assembly Part2
3
M3x6 Roundhead C-02-SC-R0306 x 4
14mm Aluminum Standoff B-02-VBC-5073 x 2
14mm Aluminum Standoff
M3x6 Flathead
M3x6 Flathead
M3x6 Roundhead
M3x6 Roundhead
4
BAG MARKED
STEP2-5
05
© VBC Racing LIGHTNING12
Side Spring (Medium/Gold) A-03-VBC-1047 x 2
4.7mm Ball Nuts B-02-VBC-5020 x 2
Aluminum Side Spring Retainer B-02-VBC-5074 x 2
M3x8 Set Screw C-02-SC-SS-0308 x 2
M3x6 Roundhead C-02-SC-R0306 x 4
4
4.7mm Ball Nuts
M3x6 Roundhead
Aluminum Side Spring Retainer
Side Spring (Medium/Gold)
M3x8 Set Screw
M3x6 Roundhead
05
M3x6 Roundhead
Thead Lock
Thead Lock
OPTIONAL SIDE SPRINGS SET :
Side Spring (Soft/Silver)
Side Spring (Medium/Gold)
Side Spring (Hard/Black)
(A-03-VBC-1047)
