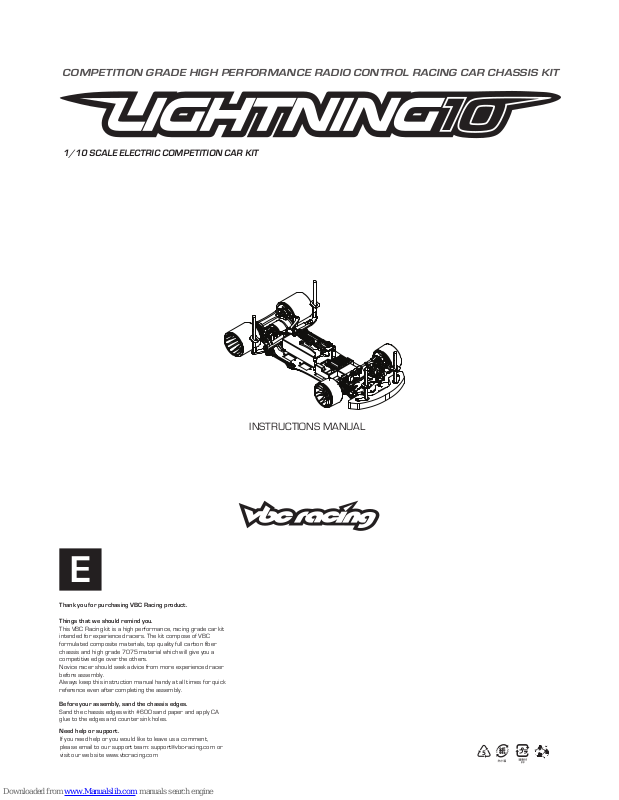

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
1/10 SCALE ELECTRIC COMPETITION CAR KIT
E
INSTRUCTIONS MANUAL
5
Thank you for purchasing VBC Racing product.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Things that we should remind you.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
BAG MARKED
STEP1
1
Graphite Edges Protection Procedure
01© VBC Racing LIGHTNING10
CA
Sand the chassis edges with #600 sand paper(not included) and
apply CA glue(not included) to the edges of the chassis.
Sand the below graphite edges with #600 sand paper and apply CA glue to the edges.
*Not included in this kit
A-01-P50205 Lightning10 2.5mm Graphite Main Chassis
A-01-P50210 Lightning10 Rear Tweak Plate
A-01-VBC-5083 Lightning12 Graphite Lower Pod Plate
BAG MARKED
02© VBC Racing LIGHTNING10
Pivot Brace D-05-VBC-0101 x 1
Pivot Brace Cover D-05-VBC-0101 x 1
Pivot Balls A-03-VBC-1027 x 5
M3x6 Flathead C-02-SC-F0306 x 5
Pivot ball shoulder should be facing downwards
Pivot Brace
Pivot Brace Cover
M2x6 Cap Head
Use screws to adjust the
play of the piviot ball Movement. Do not
overtighten to avoid stripping
M2x6 Cap Head C-02-SC-R2.0x6 x 2
M3x6 Flathead
M3x6 Flathead
Pivot Balls
Pivot Balls
STEP2-5
02
2
Pivot Brace Assembly Part 1
M3x6 Flathead
M3x6 Flathead
Pivot Balls
Pivot Balls
BAG MARKED
03© VBC Racing LIGHTNING10
M3x10 Flathead C-02-SC-F0310 x 2
M2x6 Cap Head C-02-SC-R2.0x6 x 4
Pivot Brace Assembly Part2
STEP2-5
Lightning Pod Link Set
2
Rear Bulkhead Assembly Part1
3
M3 Locknut C-02-SC-NN03 x 2
Tighten each side screw
slowly, Make sure the lower pod
plate can rotate freely.
M3x6 Flathead C-02-SC-F0306 x 4
03
Note the direction screw in from
the larger hole side
M3x6 Flathead
LightningF Al7075 Motor Mount B-02-VBC-5128 x 1
LightningF Al7075 Left Bulkhead B-02-VBC-5129 x 1
LightningF Al7075 Left Bulkhead
LightningF Al7075 Motor Mount
03
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M2x6 Cap Head
M2x6 Cap Head
M2x6 Cap Head
M2x6 Cap Head
M3x10 Flathead
M3x10 Flathead
04
© VBC Racing LIGHTNING10
Lightning10 Graphite Rear Pod Strut
A-01-P50206 x 1
M3x6 Flathead C-02-SC-F0306 x 2
BAG MARKED
STEP2-5
Chassis Brace Assembly
Rear Bulkhead Assembly Part2
3
M3x6 Roundhead C-02-SC-R0306 x 4
Lightning Rear Tweak Plate Standoff B-02-G50228 x 2
M3x6 Flathead
M3x6 Flathead
M3x6 Roundhead
M3x6 Roundhead
4
Lightning10 Graphite Rear Pod Strut
A-01-P50206 x 1
Lightning Rear Tweak Plate Standoff
BAG MARKED
05
© VBC Racing LIGHTNING10
Side Spring (Medium/Gold) A-03-VBC-1047 x 2
4.7mm Ball Nuts B-02-VBC-5020 x 2
Aluminum Side Spring Retainer B-02-VBC-5074 x 2
M3x8 Set Screw C-02-SC-SS-0308 x 2
M3x6 Roundhead C-02-SC-R0306 x 4
4
4.7mm Ball Nuts
M3x6 Roundhead
Aluminum Side Spring Retainer
Side Spring (Medium/Gold)
M3x8 Set Screw
M3x6 Roundhead
05
M3x6 Roundhead
Thead Lock
Thead Lock
OPTIONAL SIDE SPRINGS SET :
Side Spring (Soft/Silver)
Side Spring (Medium/Gold)
Side Spring (Hard/Black)
(A-03-VBC-1047)
M3x8 Set Screw
4.7mm Ball Nuts
M3x6 Roundhead
Aluminum Side Spring Retainer
Side Spring (Medium/Gold)

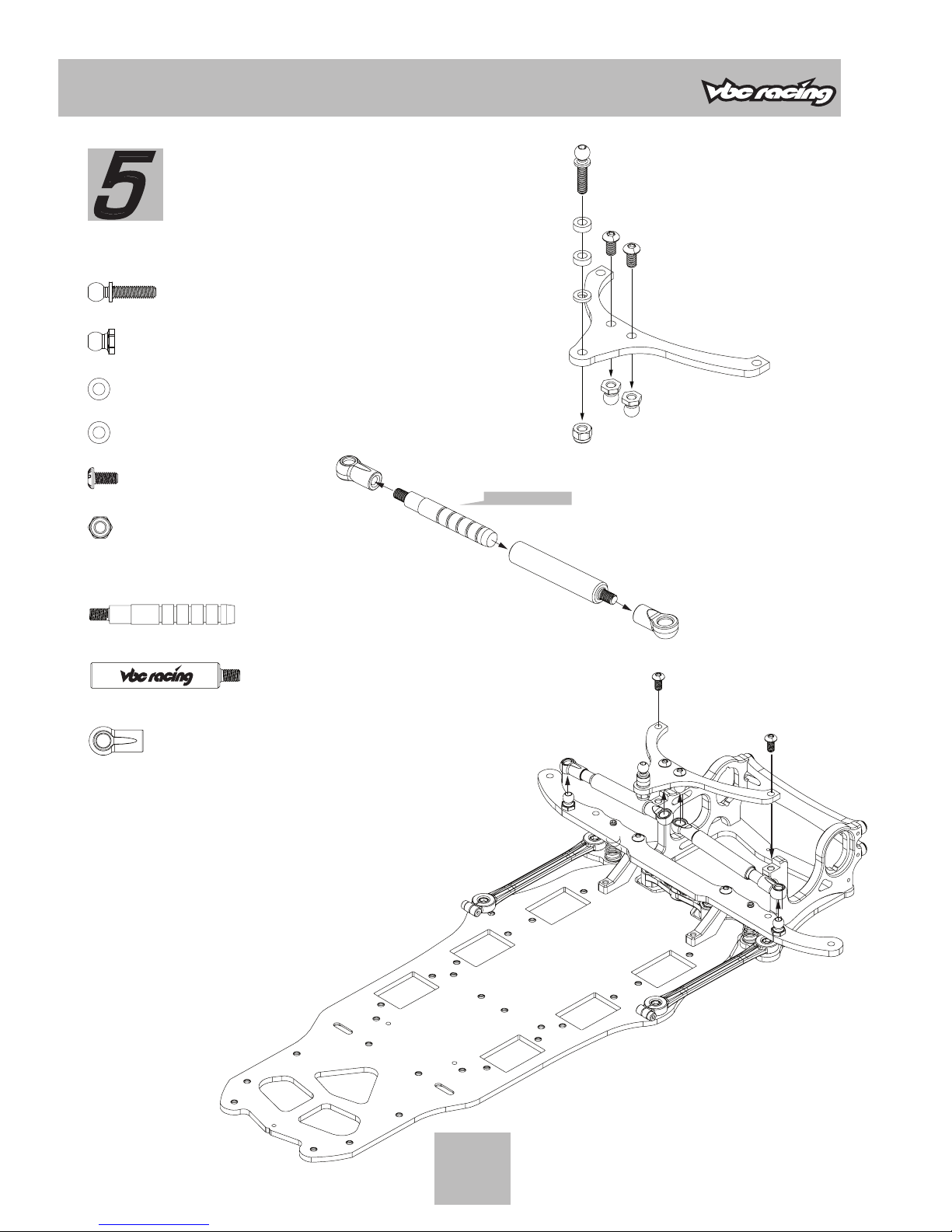

STEP2-5
A-01-P50210
Lightning 10 Rear Tweak Plate
