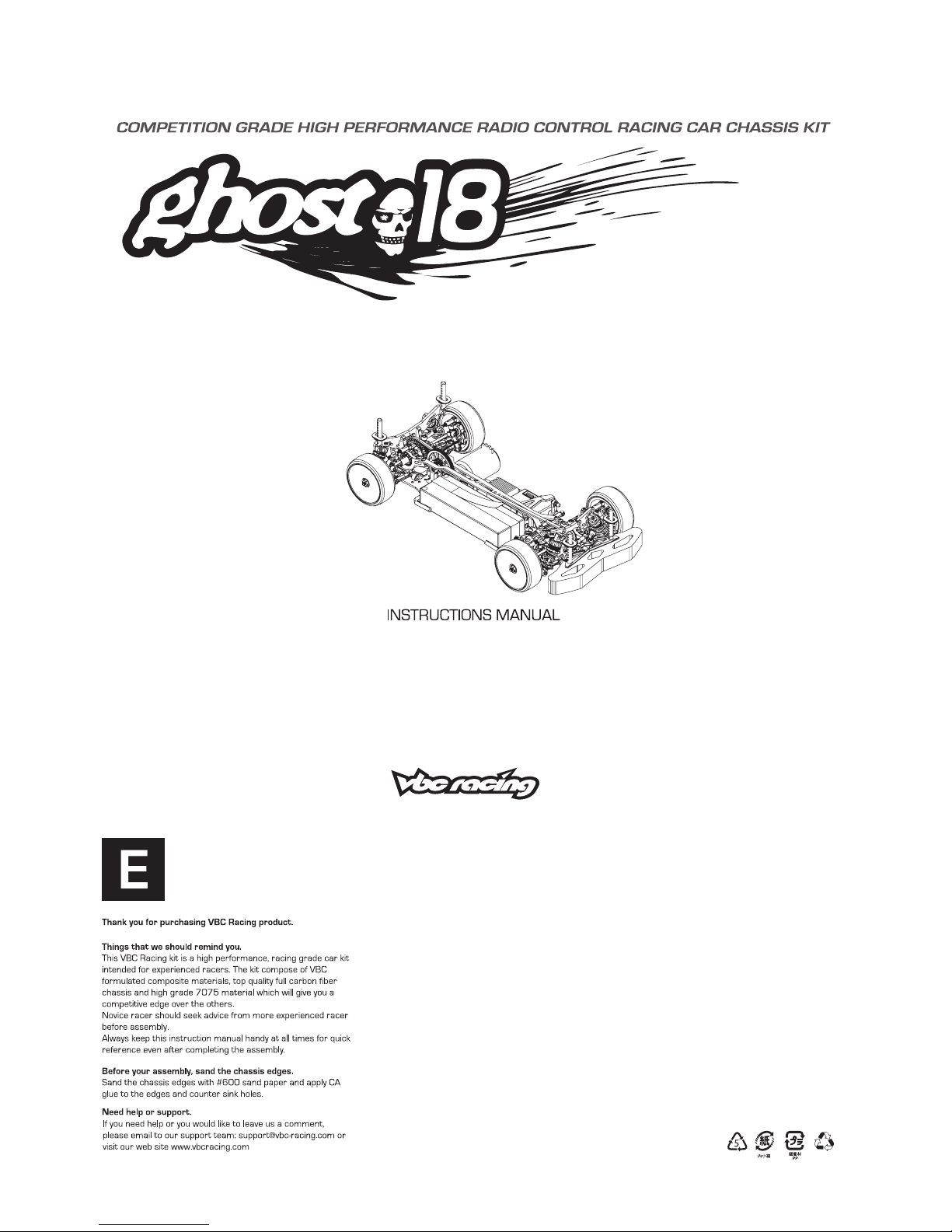

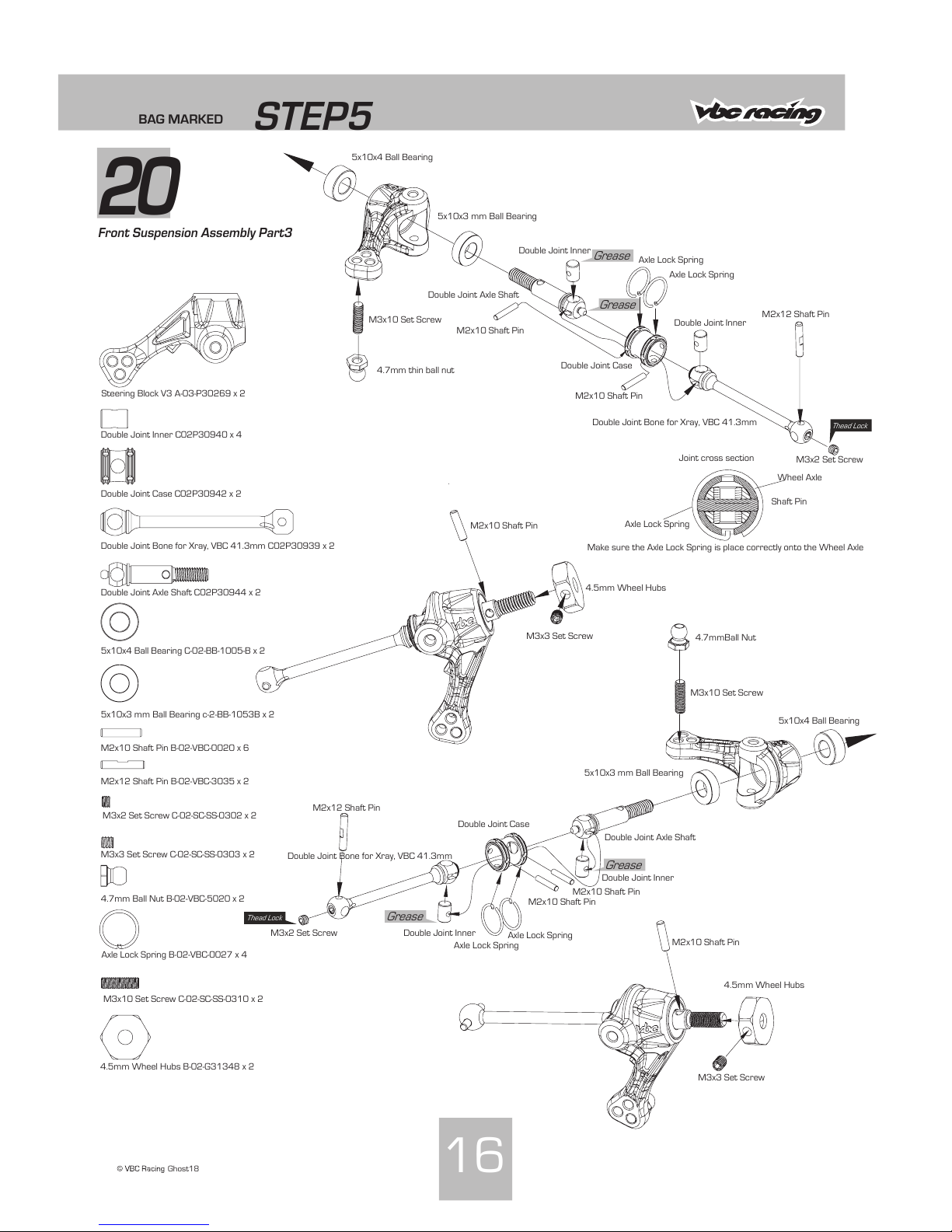

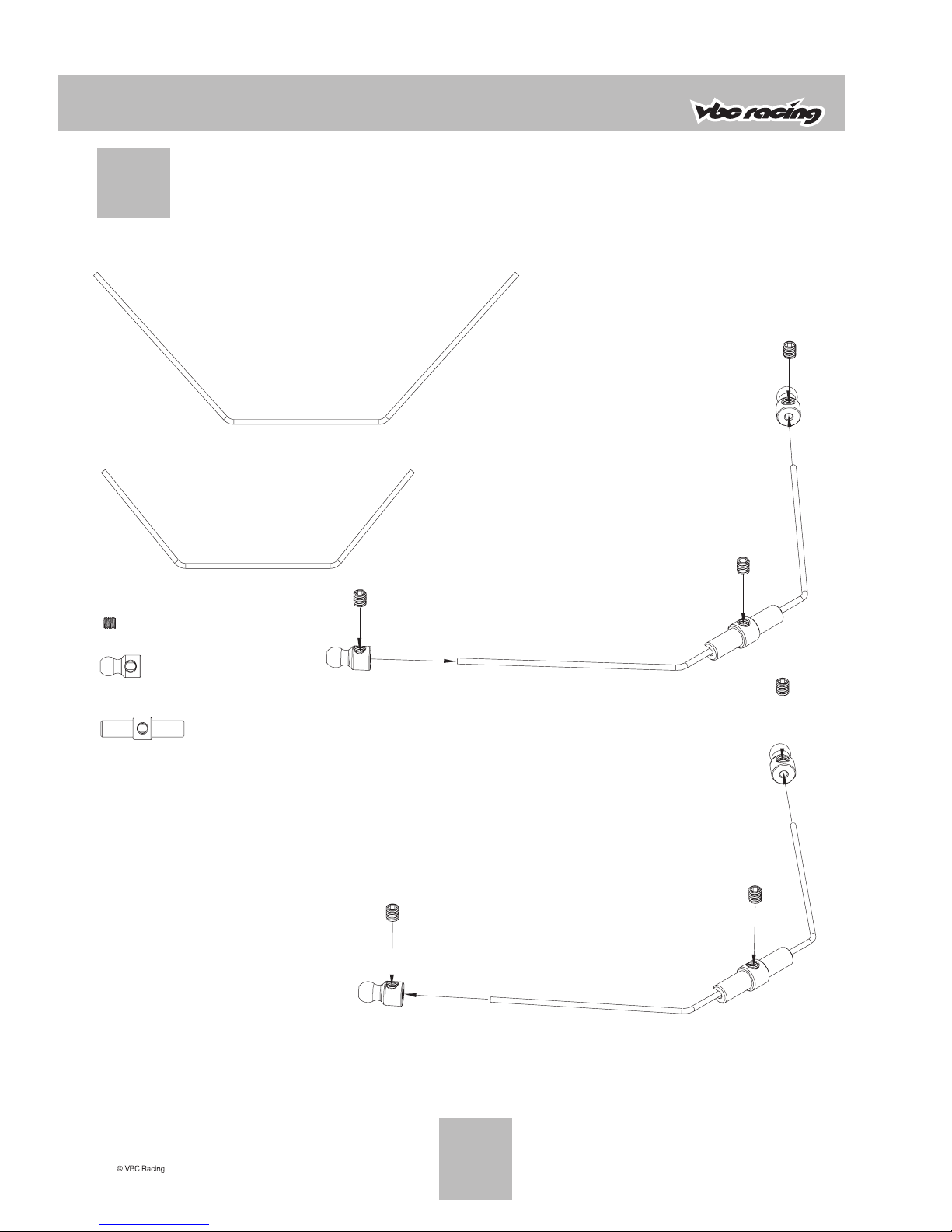

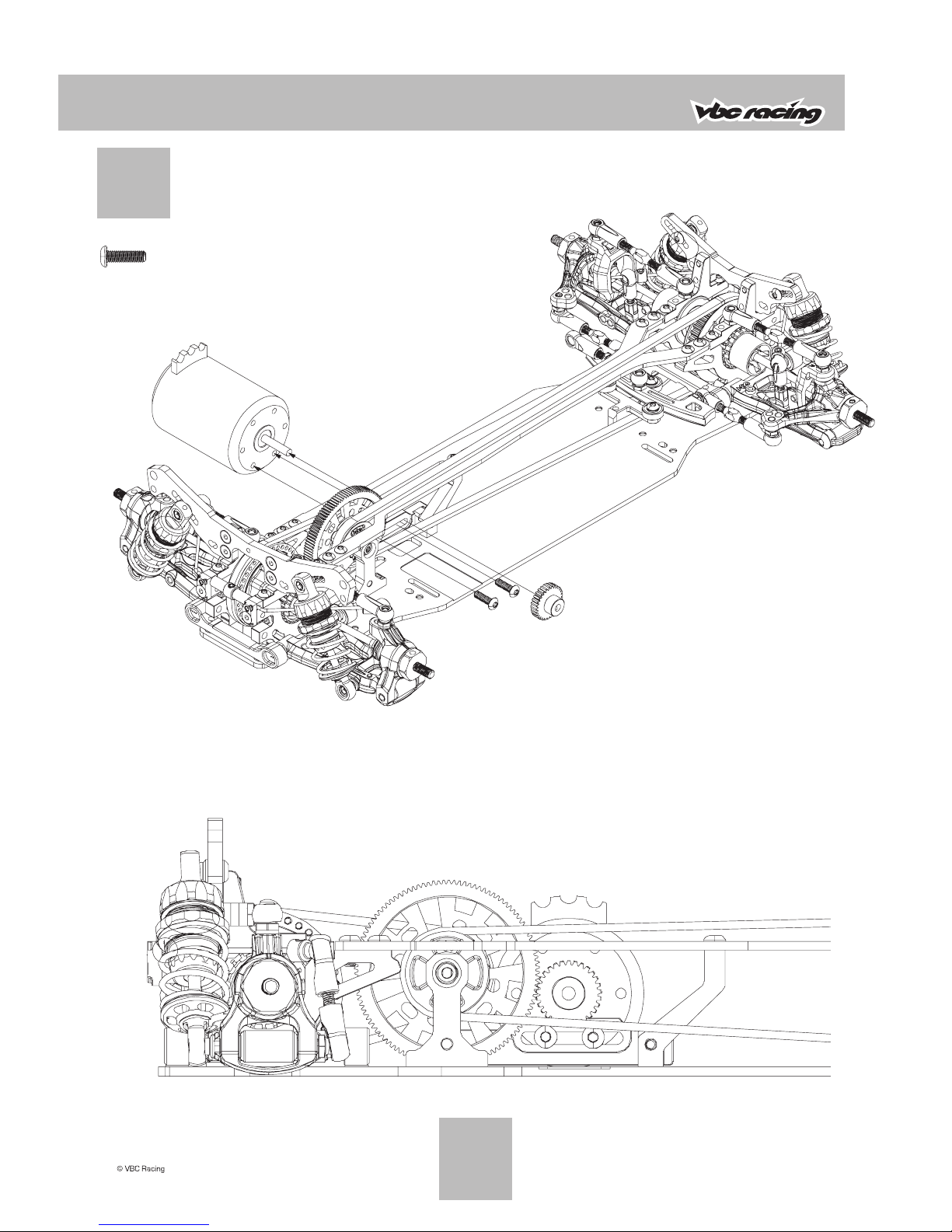

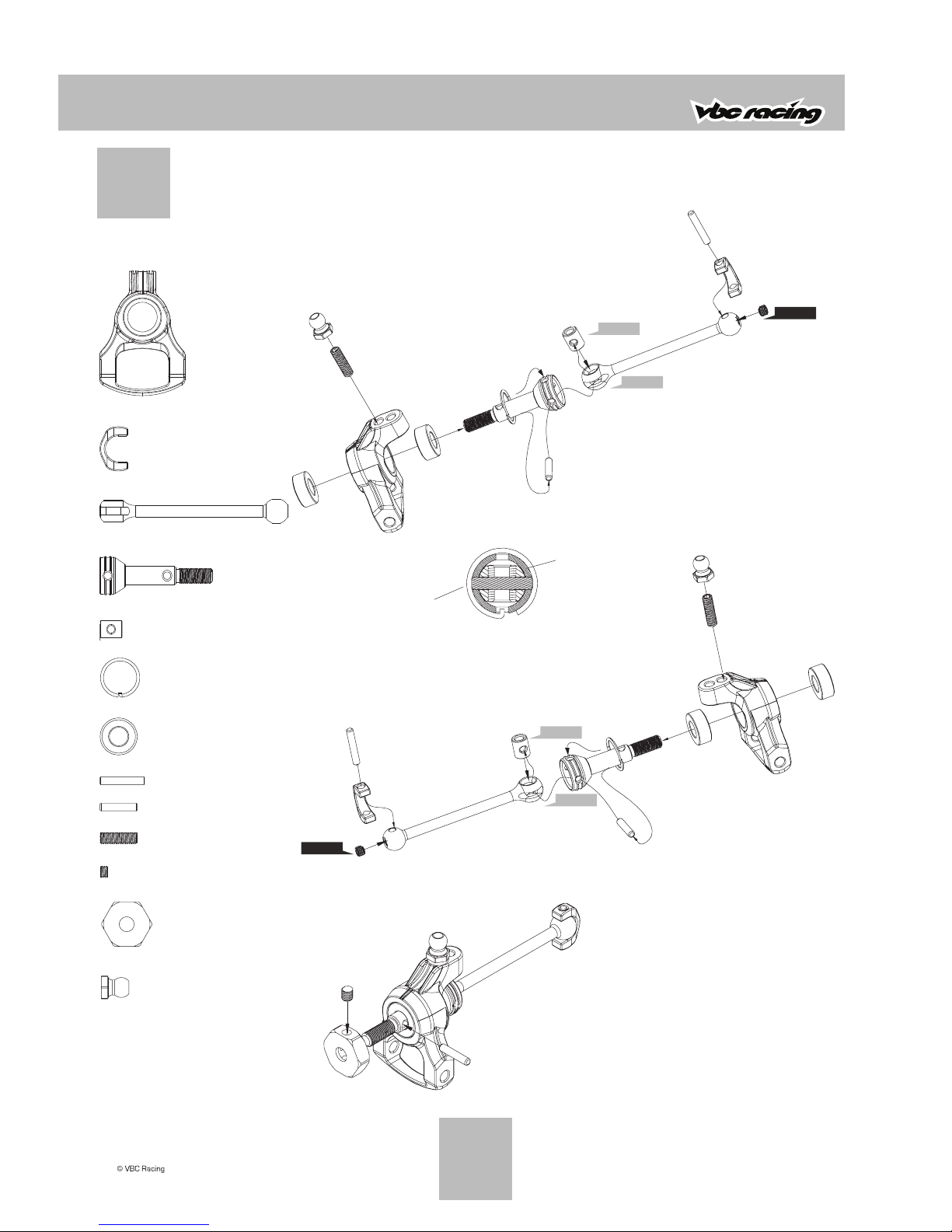

1/10 4WD ELECTRIC COMPETITION TOURING CAR KIT
01
ALU7075 Motor Mount Support B-02-P41678 x 1
Motor Mount Support
M3x6 Flathead C-02-SC-F0306 x 15
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
M3x6 Flathead
ALU7075 Center Pulley Mount B-02-P41679 x 1
Center Pulley Mount
ALU7075 Lower Bulkhead B-02-P41676 x 4
Lower Bulkhead
Lower Bulkhead
Lower Bulkhead
Lower Bulkhead
ALU7075 Motor Mount B-02-P41677 x 1
Motor Mount
Ghost18
1
Front Lower Bulkhead Assembly
BAG MARKED
STEP1
02
Ghost18
2
BAG MARKED
STEP2
Front Lower Bulkhead Assembly
Bulkhead Belt Adjuster 927000477 x 2
C-02-BB-1510-P 10x15x4 Bearing x 2
M3x12 Flathead C-02-SC-F0312 x 2
M3x12 Flathead
Spool Drive Cup
Diff Holder
10x15x4 Bearing
10x15x4 Bearing
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
Front Spool 38T
Pulley Guide
Spool Shaft
Optional: 7075 Aluminum Spool Shaft B-02-VBC-0094 (not included)
Diff Holder
Spool Drive Cup
M3x12 Flathead
M3x6 Roundhead C-02-SC-R0306 x 3
Front Spool Outdrive A-03-VBC-0055 x 2
Spool Drive Shaft A-03-VBC-0049 x 1
Pulley Belt Guide A-03-VBC-0022 x 1
Front Spool 38T A-03-VBC-0021 x 1
Apply CA and note the position
03
Ghost18
3

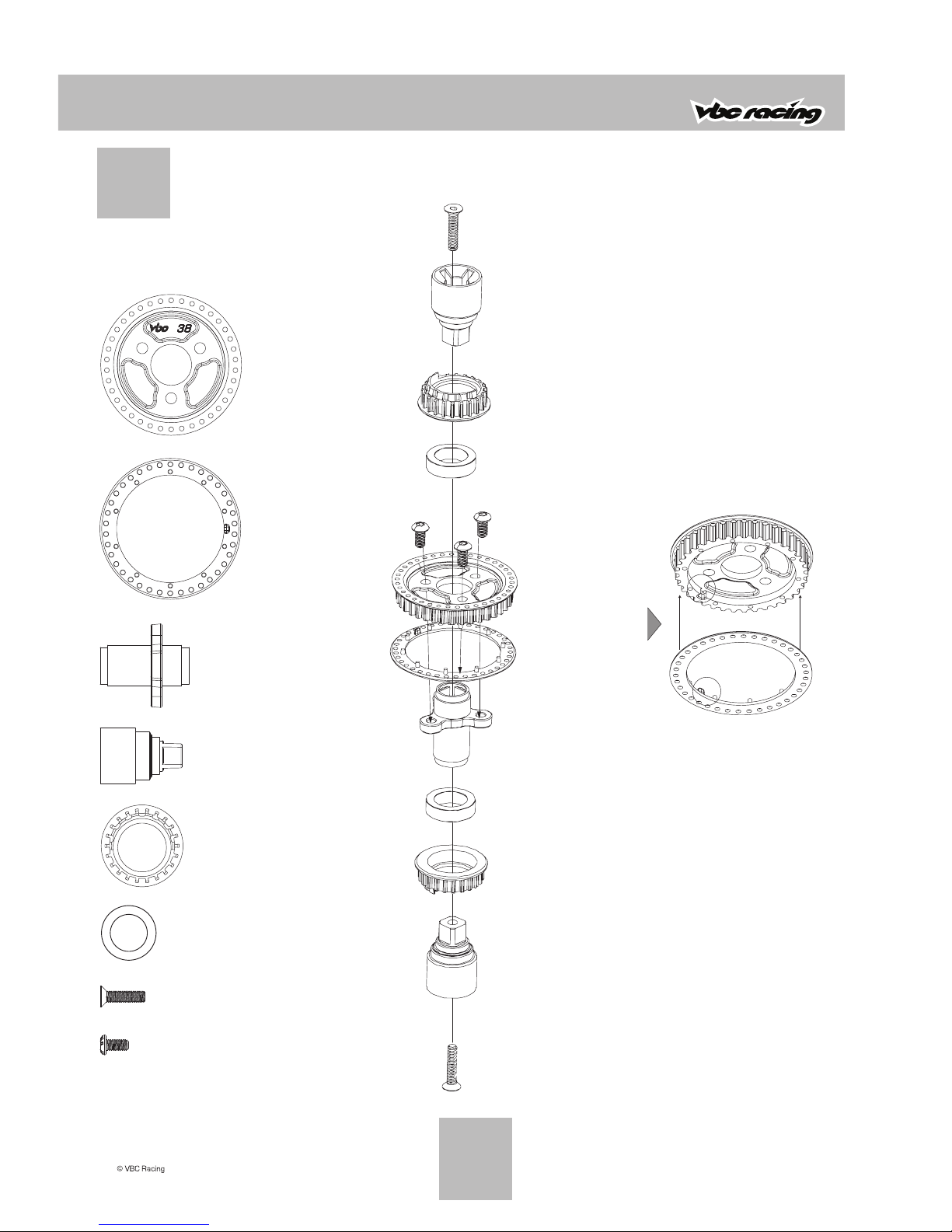

Rear Gear Diff Assembly
Rear Gear Diff Left Side
Rear Gear Diff Right Side
BAG MARKED
STEP3
38
Rear Gear Diff Right Side Assembly Cross Section
Diff Gear 18T
Diff Outdrive
Right Gear
Diff Housing
Outdrive Sealer O-Ring
10x15 Ball Bearing
M2x10 Shaft Pin
15x0.3 Shim
Diff Oil
Apply small amount of diff oil
Hardened Gear Differential Hub C-02-P41681 x 2
Hardened Gear Differential Hub
Gear Diff Housing
Hardened Gear Differential Hub
Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2
04
Ghost18
4
BAG MARKED
STEP3
Bulkhead Belt Adjuster 927000477 x 2
Bulkhead Belt Adjuster
Bulkhead Belt Adjuster

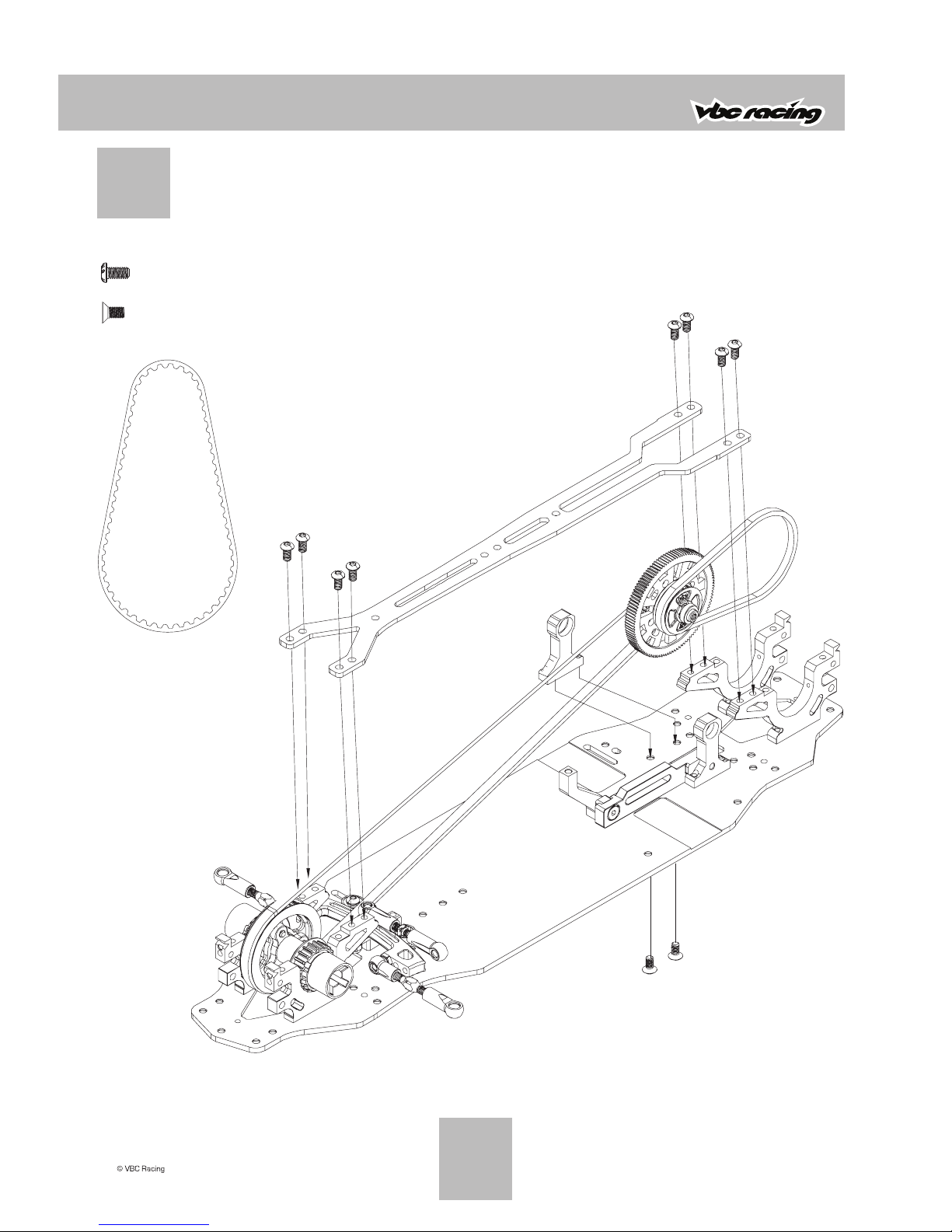

05
Ghost18
5
BAG MARKED
STEP4

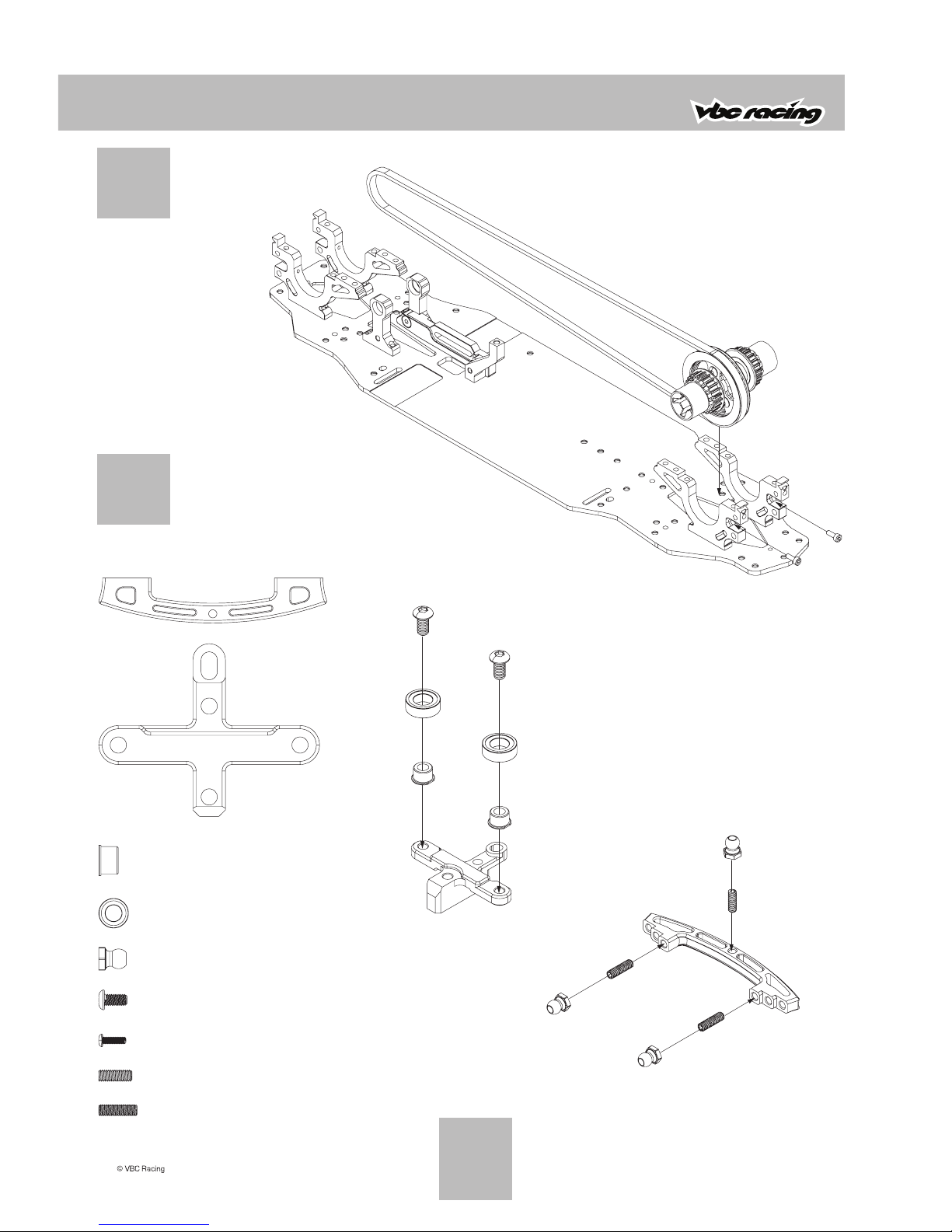

Install Front Drivetrain
6
Steering System Assembly
ALU7075 Steering Slider B02G40309 x 1
ALU7075 Steering Slider
Steering Post B02P40363 x 2
Steering Post
Steering Post
Steering Slider Mount B02G40308 x 1
Steering Slider Mount
5x9 Ball Bearings C-02-BB-0905-B x 2
5x9 Ball Bearings
5x9 Ball Bearings
ALU7075 Ball Connector B-02-VBC-5020 x 3
ALU7075 Ball Connector
ALU7075 Ball Connector
ALU7075 Ball Connector
M3x6 Roundhead C-02-SC-R0306 x 2
M3x6 Roundhead
M2x6 Roundhead C-02-SC-R0206 x 2
M3x8 set screw C-02-SC-SS-0308 x 1
M3x8 set screw
M3x10 set screw C-02-SC-SS-310 x 2
M3x10 set screw
M3x10 set screw
Front Belt Type SS A-03-VBC-0048-512
M2x6 Roundhead
M3x6 Roundhead
06
Ghost18
7
BAG MARKED
STEP4

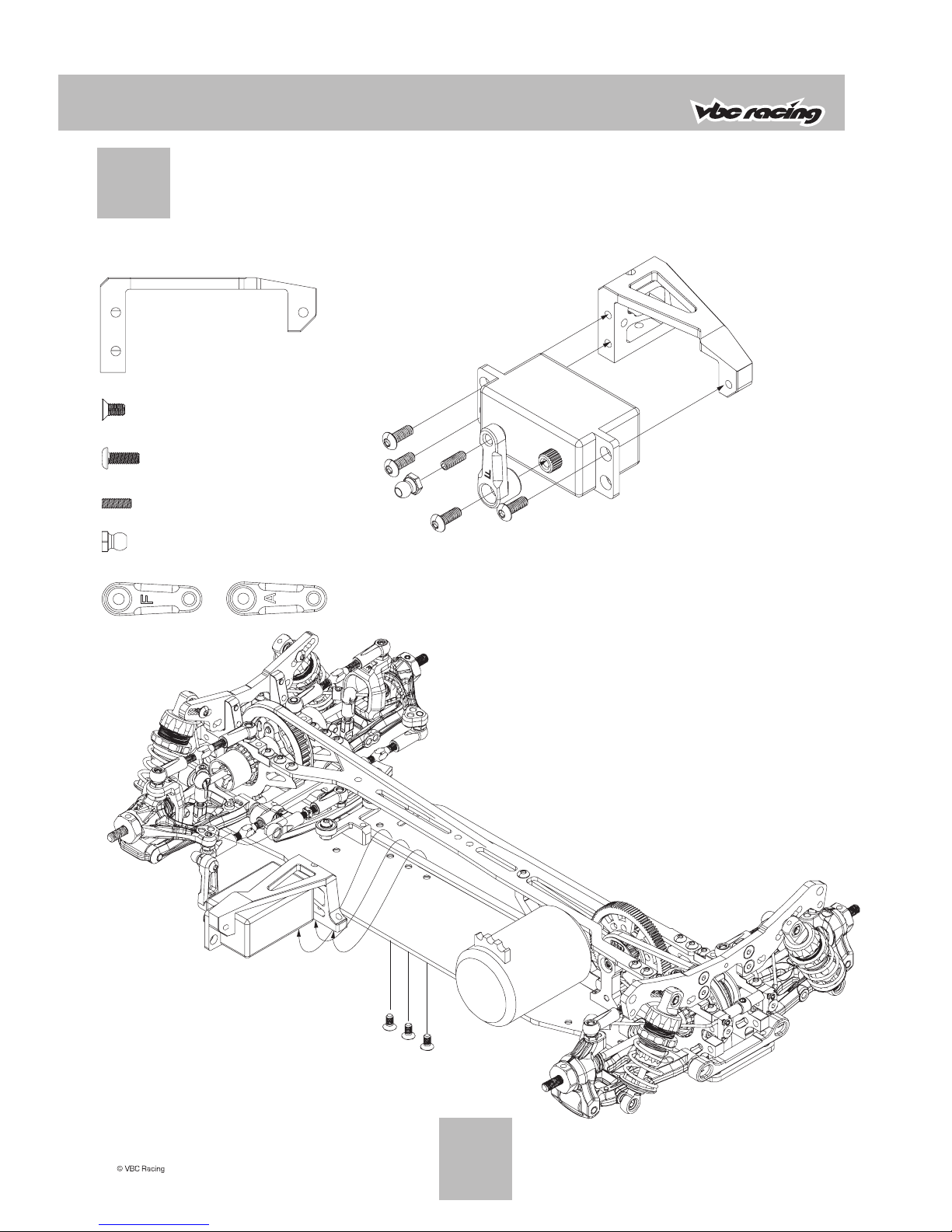

Steering System Assembly

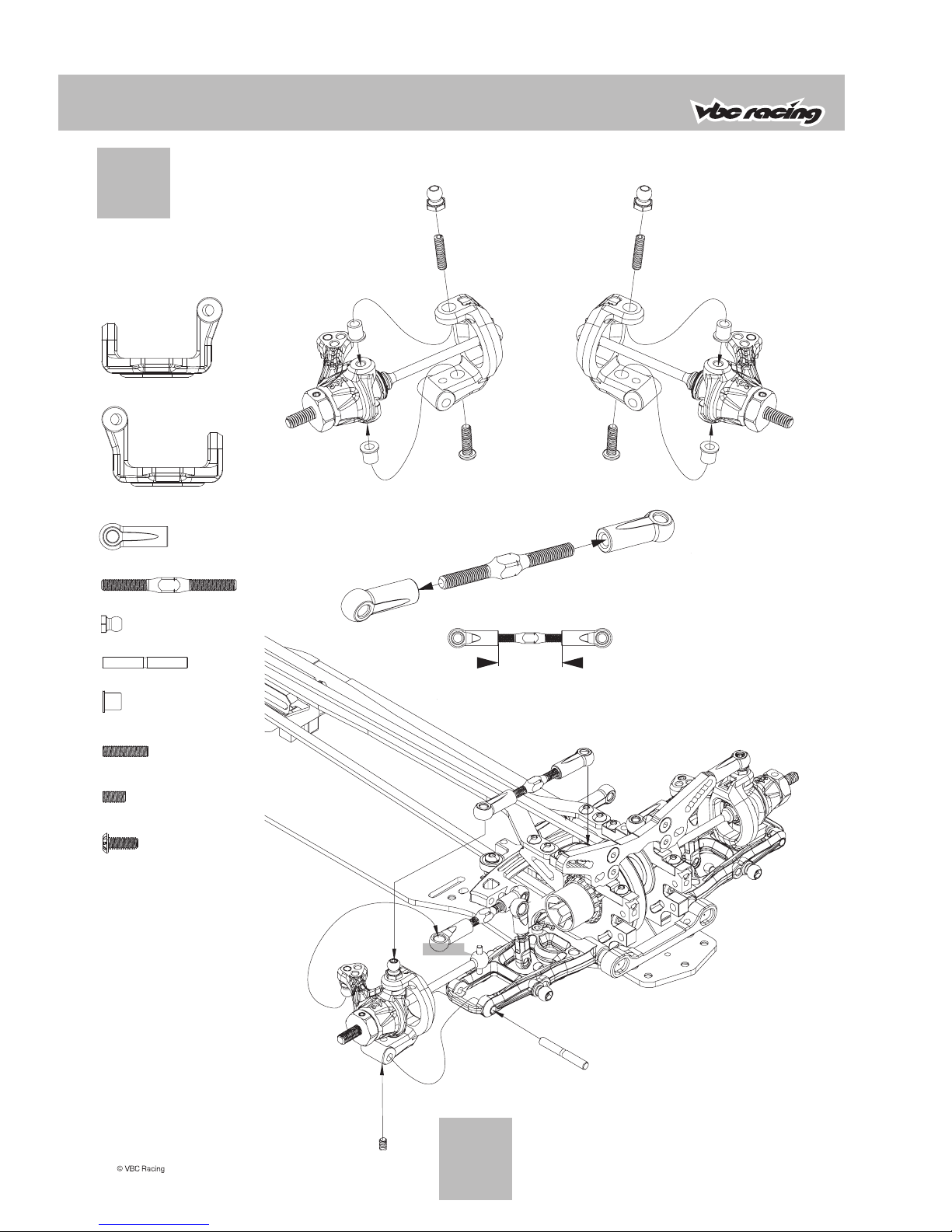

28mm ALU7075 Turnbuckle B02P30512 x 2
28mm ALU7075 Turnbuckle
16.80mm
9.00mm
M3x18mm Turnbuckle B-02-VBC-0038 x 1
M3x18mm Turnbuckle
Composite Ball Link A-03-VBC-5016 x 6
Composite Ball Link
Composite Ball Link
Composite Ball Link
Composite Ball Link
M3X6 Flathead screw C-02-SC-F0306 x 2
M3 locknut C-02-SC-NN03 x 1
M3 locknut
M3X6 Flathead screw
M3X6 Flathead screw

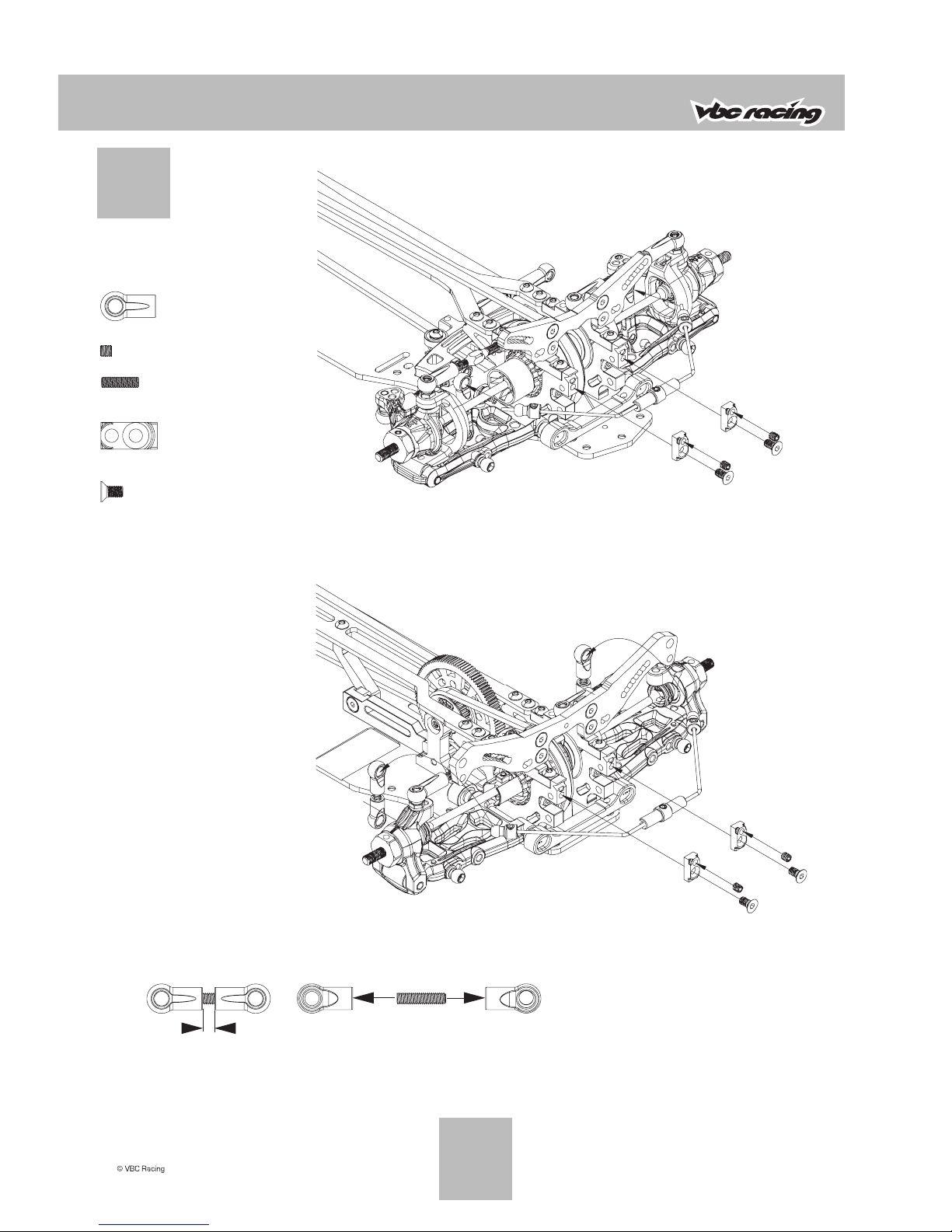

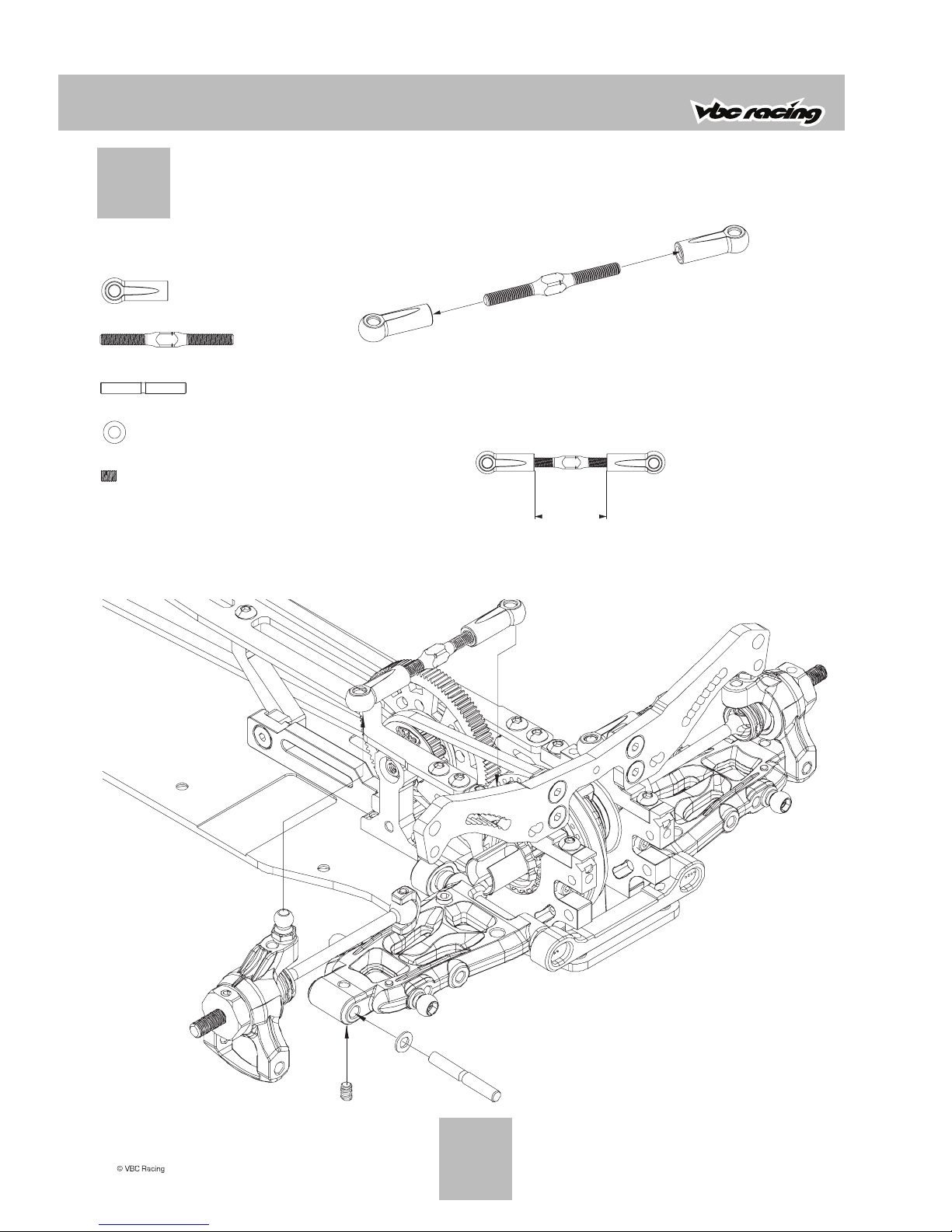

Make 2 steering link tie-rods, follow the connector cups directions as
the above diagram. The connector cups edge to edge shall be 29.40mm.
Please use a caliper to measure the exact measurement
Make 1 servo link tie-rod, follow the connector cups directions as
the above diagram. The connector cups edge to edge shall be 7.50mm.
Please use a caliper to measure the exact measurement
Right Thread Right Thread
Right Thread
M3x10 Roundhead Screw C-02-SC-R0310 x 1
M3x10 Roundhead
5x9 Ball Bearings C-02-BB-0905-B x 1
5x9 Ball Bearings
07
8
BAG MARKED
STEP5
Upper Deck Assembly
5x8x2.5 bearing C-02-BB-D0805 x 2
5x8x2.5 bearing
5x8x2.5 bearing
ALU7075 Center Pulley Drive Shaft B-02-P41683 x 1
Center Pulley Drive Shaft
M3X4 Roundhead Screw C-02-SC-R0304 x 3
M3X4 Roundhead
Center Pulley Spacer A-03-VBC-0060 x 1
Composite Spur Gear Spacer
20T Center Pulley A-03-VBC-0003 x 2
Kawada 64p 110T
M2x12 Pin B-02-VBC-0020 x 2
M3x6 set screw C-02-SC-SS-0306 x 2
M3x6 set screw
M3x6 set screw
M5x11 E-Clip B-02-VBC-0085 x 2
M5x11 E-Clip
M5x11 E-Clip
Kawada SuperEX 64P Spur Gear 110T x 1
Ghost18
20T Center Pulley
20T Center Pulley
M3X4 Roundhead
M3X4 Roundhead
08
9
BAG MARKED
STEP5
Upper Deck
Ghost18
M3x6 Roundhead Screw C-02-SC-R0306 x 8
M3x6 Roundhead
M3X6 Flathead screw x 2
Rear Belt Type R B-03-VBC-0013-177 x 1
M3X6 Flathead Screw
M3X6 Flathead Screw
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
M3x6 Roundhead
09
11
BAG MARKED
STEP5
Upper Bulkhead Assembly
12
Install Rear Drivetrain
Ghost18

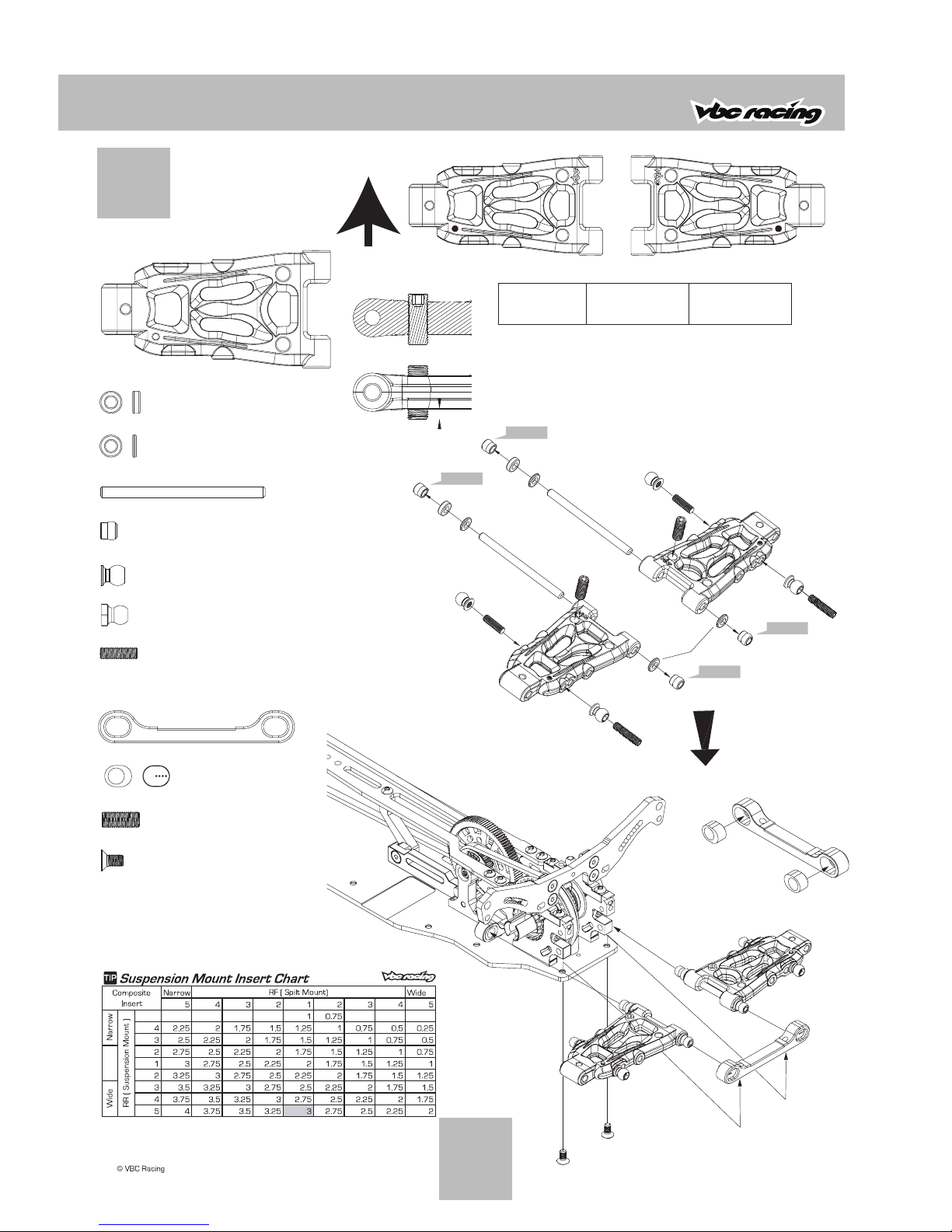

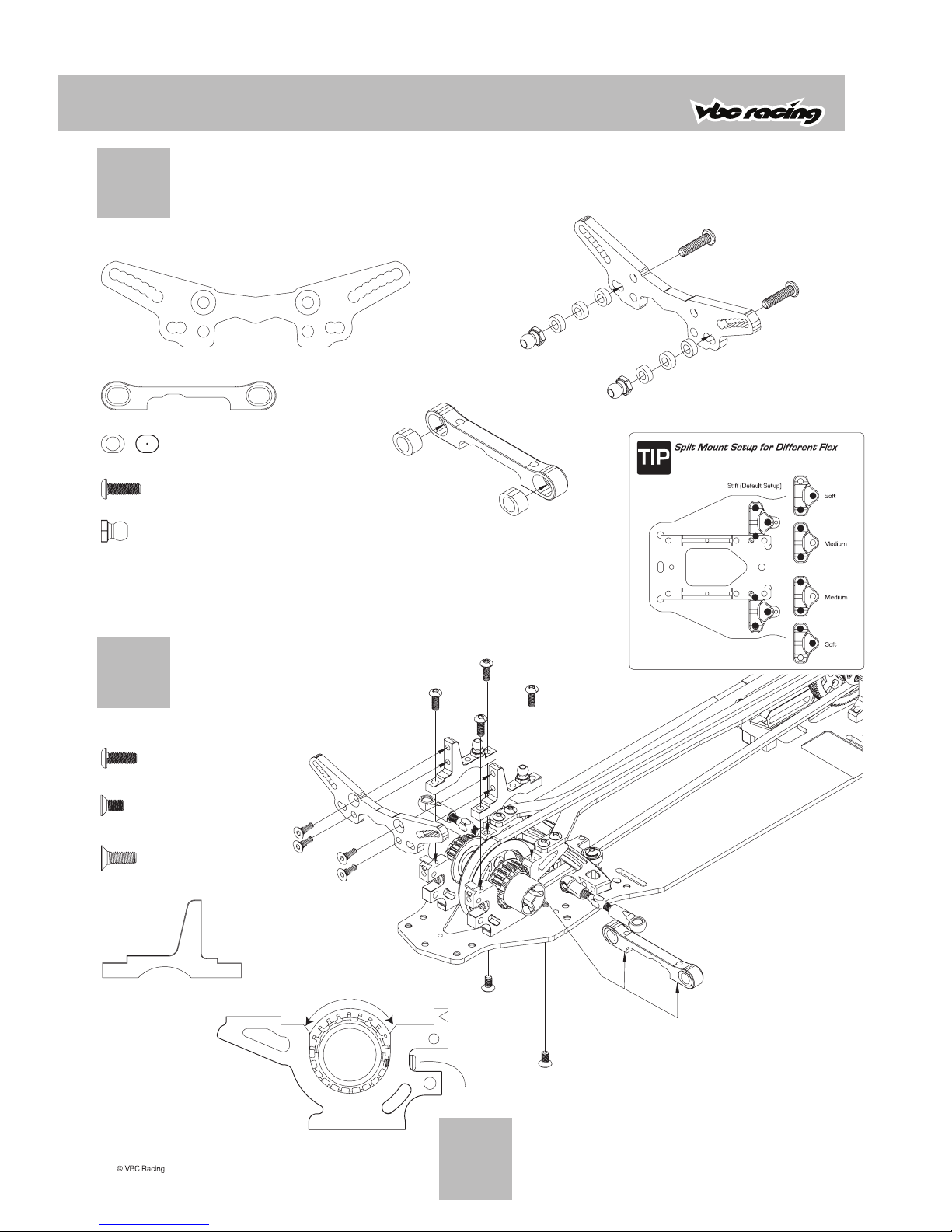

ALU7075 Suspension Mount C B-02-P41685 x 1
Suspension Mount
Suspension Mount
M3X6 Flathead Screw C-02-SC-F0306 x 2
BH M3x8 C-02-SC-R0308 x 4
M3x8 Roundhead
M3x8 Roundhead C-02-SC-R0308 x 2
M3x8 Roundhead
M3x8 Roundhead
M3X8 Flathead Screw C-02-SC-F0308 x 4
M3X6 Flathead Screw
M3X6 Flathead Screw
M3X8 Flathead Screw
M3X8 Flathead Screw
M3X8 Flathead Screw
M3X8 Flathead Screw
Suspension Mount Composite Insert 1 A03G30311 x 2
Suspension Mount Composite Insert
Suspension Mount Composite Insert
4.7mm Ball Nut B-02-VBC-5020 x 4
4.7mm Ball Nut
4.7mm Ball Nut
4.7mm Ball Nut
ALU7075 Suspension Mount B B-02-P41682 x 2
ALU7075 Suspension Mount
ALU7075 Suspension Mount
ALU7075 Suspension Mount
M2X6 Roundhead C-02-SC-R-0206 x 2
M2X6 Roundhead

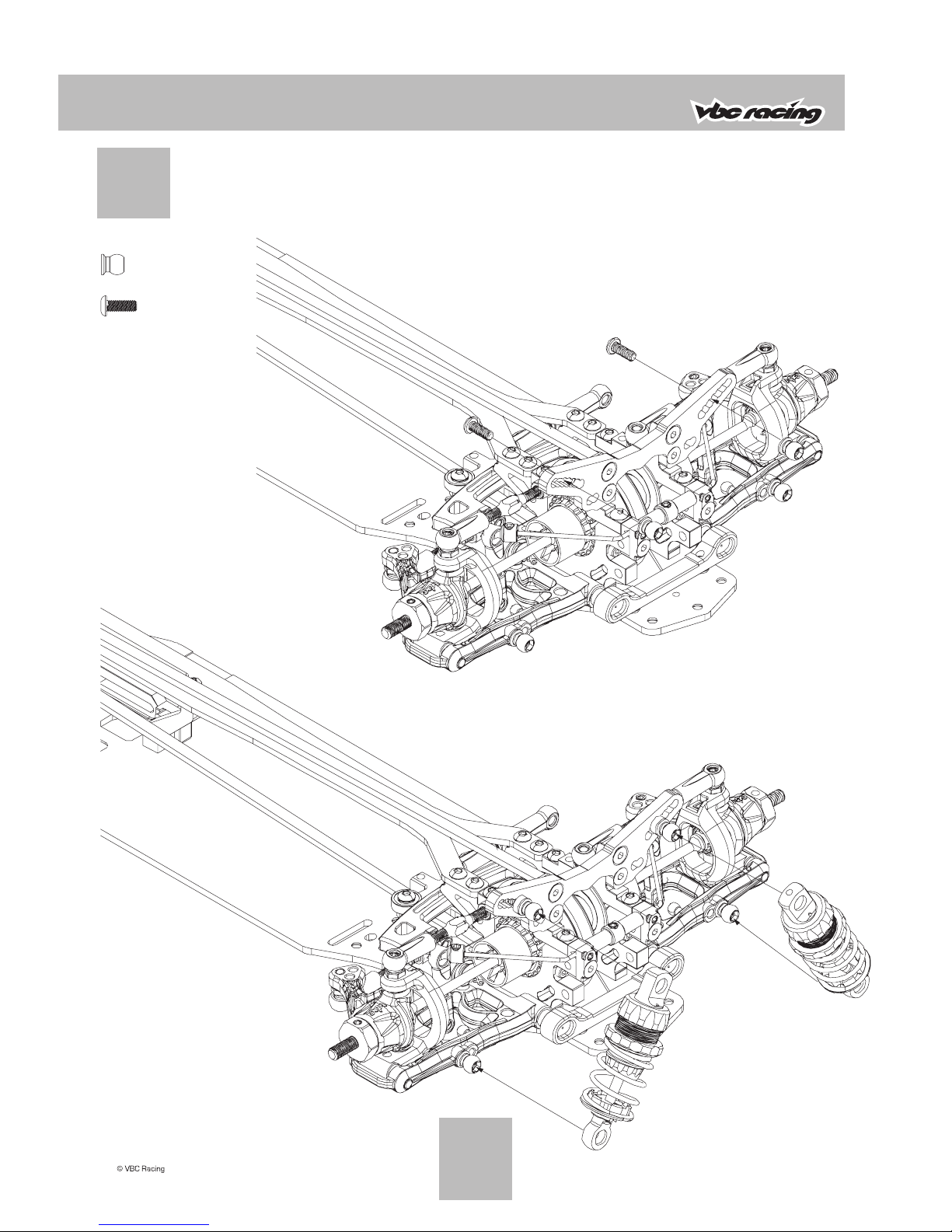

Rear Shock Tower A01P31652 x 1
M3x10 set screw C-02-SC-SS-310 x 2
M3x10 set screw
Rear Shock Tower
M3x8 Roundhead
M3x8 Roundhead
M3x8 Roundhead
MAKE TWO
M2X6 Roundhead
