VBC Racing Firebolt DM2 Instruction Manual

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT

1/10 RWD ELECTRIC COMPETITION OFFROAD BUGGY CAR KIT

E

INSTRUCTIONS MANUAL

5

Thank you for purchasing VBC Racing product.

This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality 7075 aluminum chassis and high grade full carbon fiber material which will give you a competitive edge over the others. Novice racer should seek advice from more experienced racer before assembly. Always keep this instruction manual handy at all times for quick reference even after completing the assembly.

Before your assembly, sand the carbon fiber parts edges.

Things that we should remind you.

Sand the edges with #600 sand paper and apply CA glue to the edges and counter sink holes.

Need help or support.

If you need help or you would like to leave us a comment, please email to our support team: [email protected] or visit our web site www.vbcracing.com

BAG MARKED

STEP1

Asssmbling the main Chassis

01© VBC Racing FIREBOLT DM2

Side Guard, Right A-03-VBC-6017 x 1

Side Guard, Left A-03-VBC-6016 x 1

Firebolt DM2 7075 Main Chassis B-02-P60180 x 1

M3x8 Flathead Screw C-02-SC-F0308 x 4

M3x8 Flathead

BAG MARKED

STEP2-3

2

02

Firebolt Alum Front Suspension Brace B-02-VBC-6012 x 1

3x35mm Suspension Pin C-02-VBC-6015 x 2

Front Suspension Arm Mount A-03-VBC-6014 x 1

Front Suspension Arm, FL A-03-VBC-6045 x 1

Front Suspension Arm, FR A-03-VBC-6044 x 1

Front Suspension Assembling

Note the bottom markings of the front suspension arm mount. The default setting is 25 towards the front. You can change the kickup setting to 30 by turning the 30 towards the front. The set screws are to lock the suspension pins.

3x35mm Suspension Pin

Front Suspension Arm, Left

Front Suspension Arm, Right

Front Suspension Arm Mount

Firebolt Alum Front Suspension Brace

M3x3 Set Screw C-02-SC-SS-0303 x 2

M3x3 Set Screw

3

Front Suspension Assembly

03© VBC Racing FIREBOLT DM2

STEP2-3

BAG MARKED

4.7x15mm Ball Connector C-02-VBC-6008 x 2

Firebolt Alum Front Camber link Mount B-02-VBC-6013 x 2

Firebolt Alum Front Camber link Mount

Front Center Bulkhead A-03-VBC-6046 x 1

Front Bumper A-03-VBC-6011 x 1

Firebolt Graphite Front Camber Link Plate A-01-VBC-6001 x 1

4.7x15mm Ball Connector

Front Center Bulkhead

Firebolt Graphite Front Camber Link Plate

M3x12 Flathead Screw C-02-SC-F0312 x 2

M3x14 Flathead Screw C-02-SC-F0314 x 2

M3x8 Roundhead Screw C-02-SC-R0308 x 1

M3x8 Roundhead Screw

M3x14 Flathead Screw

M3x12 Flathead Screw

Front Bumper

4

Front Steering Assembly

04© VBC Racing FIREBOLT DM2

BAG MARKED

STEP4-6

Steering Center Bridge A-03-VBC-6022 x 1

Steering Arm A-03-VBC-6028 x 2

4.7x12mm Ball Connector B-02-VBC-5015 x 3

5x8 Ball Bearings C-02-BB-0805-B x 4

M3x10 Roundhead Screw C-02-SC-R0310 x 2

Steering Swivel Tube B-02-VBC-0033 x 2

Steering Swivel Tube

5x8 Ball Bearings

4.7x12mm Ball Connector

M3x10 Roundhead Screw

4.7x12mm Ball Connector

Firebolt Alum Steering Post B-02-VBC-6011 x 2

M3x16 Roundhead Screw C-02-SC-R0316 x 2

Firebolt Alum Steering Post

M3x16 Roundhead Screw

6

Assembling Front Part

Servo Mount, Left A-03-VBC-6018 x 1

Servo Mount, Right A-03-VBC-6019 x 1

OR

Servo arm, Futaba (F) A-03-VBC-6034 x 1

OR

Servo arm, Sanwa/KO (A) A-03-VBC-6035 x 1

Ball Cup, Short A-03-VBC-6029 x 2

Ball Connector 4.7x12mm B-02-VBC-5015 x 1

M3x6x0.5 Spacer B-02-VBC-5093 x 4

M3x8 Roundhead Screw C-02-SC-R0308 x 4

M3x10 Set Screw C-02-SC-SS-0310 x 1

4.7x12mm Ball Connector

Servo arm, Futaba (F)

OR

Servo arm, Sanwa/KO (A)

Servo Mount, Left (A)

Servo Mount, Right (B)

Ball Connector 4.7x12mm

M3 Washer

Ball Cup, Short

M3x10 Set Screw

A

B

M3x6 Roundhead Screw C-02-SC-R0306 x 1

M3x6 Roundhead Screw

M3x8 Roundhead Screw

Front Upper Bulkhead A-03-VBC-6013

BAG MARKED

05

M3x20 Roundhead Screw C-02-SC-R0320 x 4

Front Damper Mount Assembly

Graphite Front Damper Mount A-01-VBC-6004 x 1

M3x8 Roundhead Screw C-02-SC-R0308 x 4

M3 Nut C-02-SC-FN03 x 2

STEP7-9

CA

*Not included in this kit

Sand the graphite shock tower edges with #600 sand paper and apply CA glue to the edges.

M3x18 Roundhead Screw C-02-SC-R0318 x 2

M3x20 Roundhead Screw

M3x18 Roundhead

M3x8 Roundhead Screw

M3x20 Roundhead Screw

M3 Nut

BAG MARKED

06

Front Knuckle Assembly

3 front caster angles included in this kit. We recommend default 0deg.

C-hub, Left A-03-VBC-6020 x 1

5x10 Ball Bearing C-02-BB-1005-B x 4

Aluminium Front Axle Washer B-02-VBC-6005 x 2

Front Axle C-02-VBC-6006 x 2

C-hub, Right A-03-VBC-6021 x 1

Steering Knuckle, Right A-03-VBC-6025 x 1

M2x10 Shaft Pin B-02-VBC-0020 x 2

Steering Knuckle, Right

C-hub, Left

Front Axle

M2x10 Pin

5x10 Ball Bearing

Aluminium Front Axle Washer

Steering Knuckle, Left A-03-VBC-6024 x 1

8

Ball Connector 4.7x15mm C-02-VBC-6008 x 4

3x6x2mm Plastic Spacer A-03-VBC-6056 x 2

0° caster adjuster A-03-VBC-6031 x 2

2.5x6x1mm Plastic Spacer A-03-VBC-6052 x 2

Front Wheel Adaptor A-03-VBC-6057 x 2

2.5x24.8mm Kingpin C-02-VBC-6018 x 2

M2x4 Roundhead Screw C-02-SC-R0204 x 2

Insert the Front Wheel Adaptor to the Front Axle first and then insert the 2x10mm Shaft Pin

Thread Lock

2.5° caster adjuster A-03-VBC-6032 x 2

5° caster adjuster A-03-VBC-6033 x 2

Thread Lock

Insert the Front Wheel Adaptor to the Front Axle first and then insert the 2x10mm Shaft Pin

3 front caster angles included in this kit. We recommend default 0deg.

Left Assembly

Right Assembly

Ball Connector 4.7x15mm

3x6x2mm Spacer

Steering Knuckle, Left

0° caster adjuster

2.5x6x1mm Spacer

0° caster adjuster

Front Wheel Adaptor

2.5x24.8mm Kingpin

M2x4 Roundhead Screw

Insert the Kingpin before put on the M2x4 screw

STEP7-9

M3x6 Flathead Screw C-02-SC-F0306 x 2

M3x6 Flathead

BAG MARKED

STEP7-9

9

Steering System Assembly

07

Upper Camber Linkage Steering Tie Rod

M2x4 Roundhead Screw C-02-SC-R0204 x 2

2.5x6x1mm Plastic Spacer A-03-VBC-6052 x 2

3x52mm Hardened Turnbuckle

32mm

32.5mm

Ball Cups,, Long

3x52mm Hardened Turnbuckle

2.5x27.8mm Suspension Pin C-02-VBC-6016 x 2

Ball Cups,, Long A-03-VBC-6030 x 8

3x52mm Hardened Springsteel Turnbuckle C-02-VBC-6003 x 4

Upper Camber Linkage

Steering Tie Rod

Make Two

M2x4 Roundhead Screw

2.5x6x1mm Plastic Spacer

Perform the same assembly on the other side

2.5mm Suspension Pin

BAG MARKED

STEP10

10

Rear Differentials Assembly

08

FireboltDM Diff Joint A C-02-VBC-6012 x 1

FireboltDM Diff Joint B C-02-VBC-6013 x 1

Firebolt 52T Compsite Ball Diff Gear A-03-P60545 x 1

Firebolt Diff Ring C-02-VBC-6023 x 2

Diff Balls (2.4mm) C-03-VBC-6004 x 12

Ball Diff Screw C-02-VBC-6014 x 1

M2.6 Lock Nut C-02-VBC-6029 x 1

Diff Spring C-02-VBC-6024 x 1

Firebolt Thrust Balls Bearing Set C-03-VBC-6003 x 1

Ball Diff Nut A-03-VBC-6042 x 1

5x8 Ball Bearings C-02-BB-0805-B x 2

5x8 Ball Bearings

Firebolt 52T Ball Diff Gear

Firebolt Diff Ring

FireboltDM Diff Joint A

Diff Balls (2.4mm)

Ball Diff Screw

Firebolt Thrust Balls Bearing

FireboltDM Diff Joint B

Diff Spring

Ball Diff Nut

Grease

Axle

M1.0x4x6 O-ring R-02-VBC-6036 x 1

Grease

Diff

M1.0x4 O-ring

Firebolt Diff Ring

BAG MARKED

STEP11-12

11

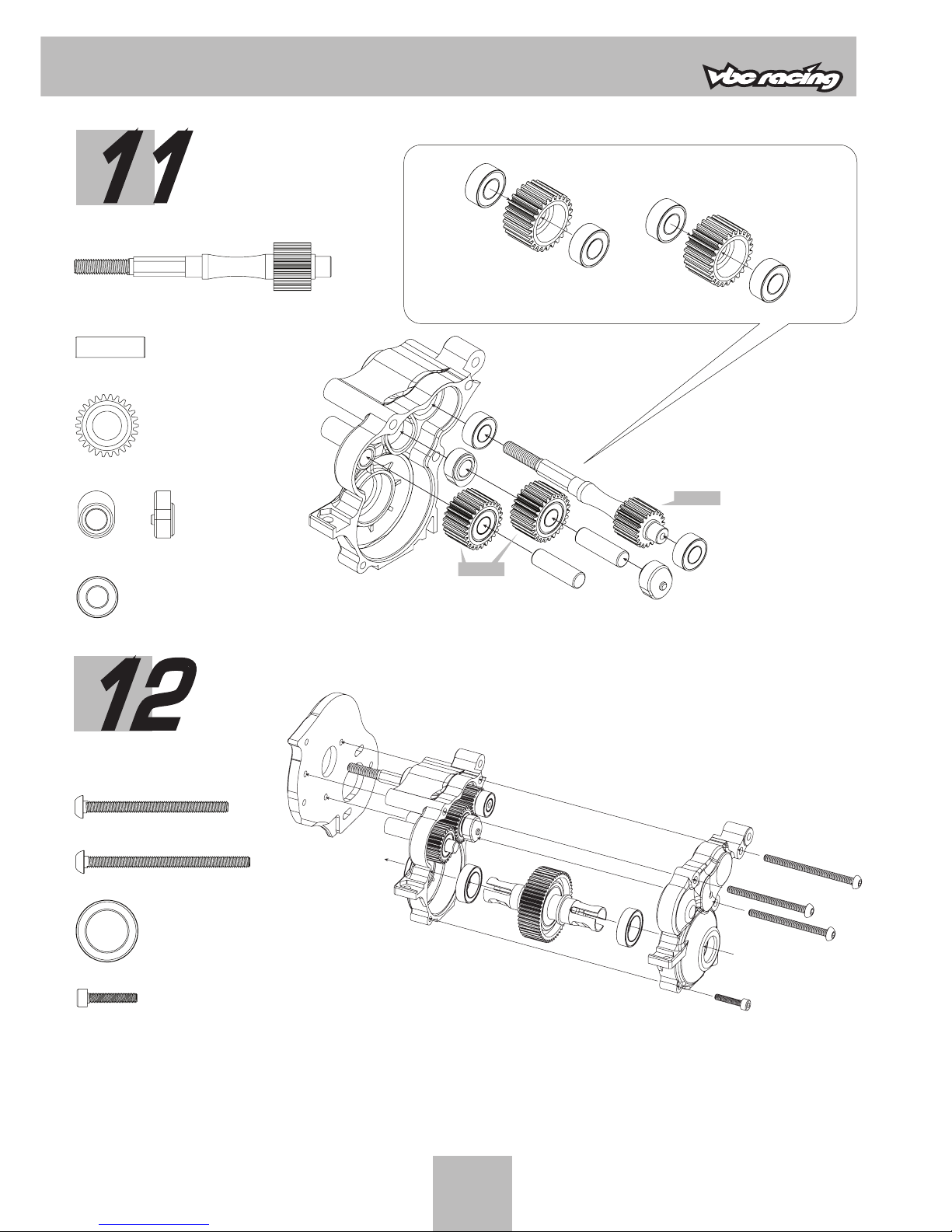

Installing gears

09

12

Gearbox Assembly

Firebolt Gear Top Shaft C-02-VBC-6005 x 1

Firebolt Idler Shaft C-02-VBC-6002 x 2

Firebolt Composite Idler gear A-03-P60646 x 1

Idler Gear Spacer A-03-P60188 x 2

5x10 Ball Bearings C-02-BB-1005-B x 4

M3x35 Roundhead Screw C-02-SC-R0335 x 2

M3x40 Roundhead Screw C-02-SC-R0340 x 1

DM2 Gearbox Case, Left A-03-P60875

10x15 Ball Bearings C-02-BB-1510-P x 2

Firebolt Extreme Lightweight Aluminium Motor Plate

B-02-G60648

M2.5x12 Cap Screw C-02-SC-R2512 x 1

10x15 Ball Bearings

DM2 Gearbox Case, Right A-03-P60876

M3x35 Roundhead Screw

M3x40 Roundhead Screw

M2.5x12 Cap Screw

Firebolt Idler gear

5x10x4mm Ball Bearings

Firebolt Gear Top Shaft

Firebolt Idler Shaft

Idler Gear Spacer

Grease

5x10x4mm Ball Bearings

BAG MARKED

STEP13-19

13

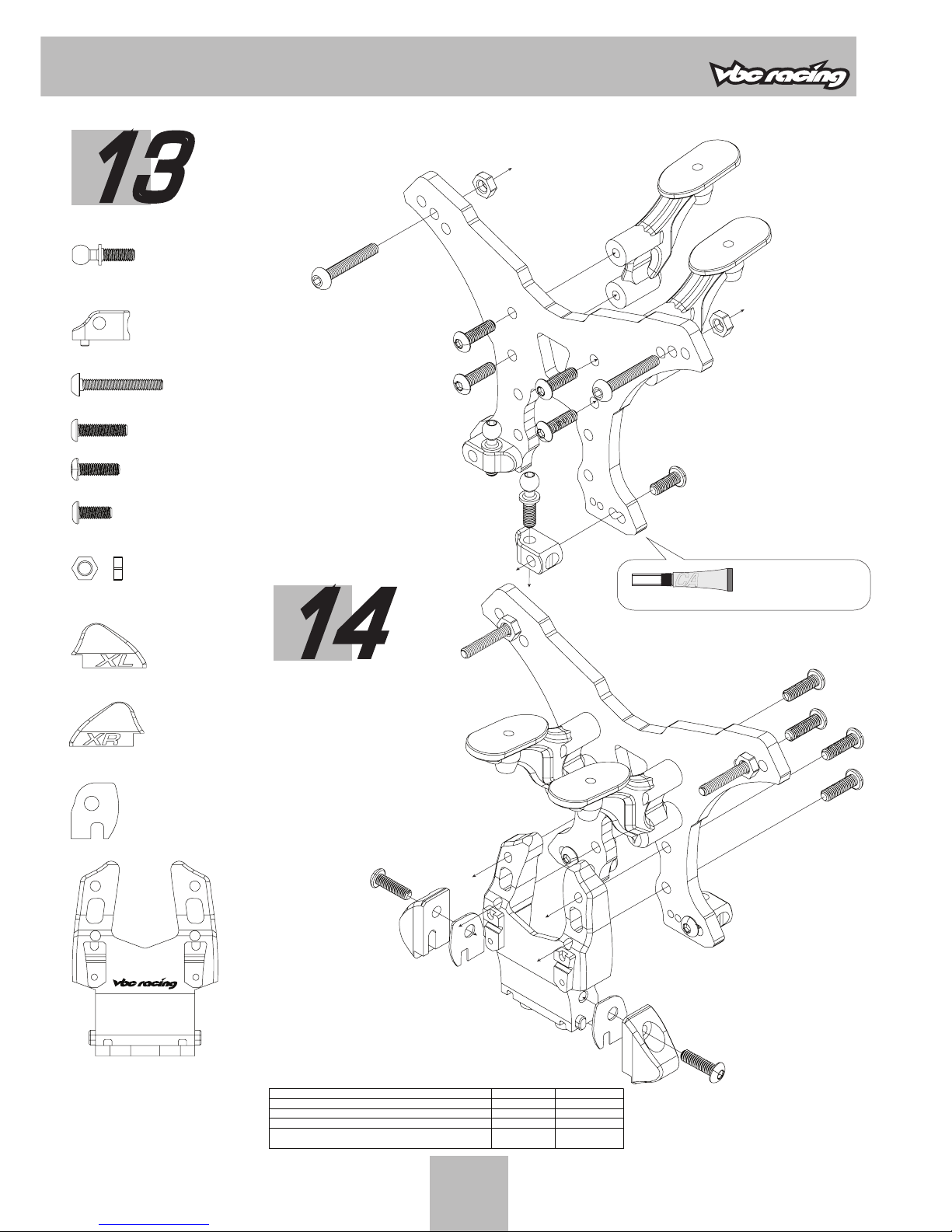

Rear Suspension Assembly

10

4.7x15mm Ball Connector C-02-VBC-6008 x 2

Firebolt Alum Rear Camber Link Mount B-02-VBC-6010 x 2

Firebolt Alum Rear Suspension Mount, XL B-02-VBC-6002 x 1

Rear Suspension Mount Spacer 0.5mm A-01-VBC-6079 x 2

Firebolt Alum Rear Suspension Mount, XR B-02-VBC-6001 x 1

M3x20 Roundhead Screw C-02-SC-R0320 x 2

M3x12 Roundhead Screw C-02-SC-R0312 x 4

M3x10 Roundhead Screw C-02-SC-R0310 x 4

FireboltDM Rear Aluminium Shock Tower Mount B-02-VBC-6077 x 1

M3x8 Roundhead Screw C-02-SC-R0308 x 4

M3 Hex Nut C-02-SC-FN03 x 2

M3x20 Roundhead Screw

FireboltDM Rear Wing Mount A-03-VBC-6036

M3 Hex Nut

M3x12 Roundhead Screw

4.7x15mm Ball Connector

Firebolt Alum Rear Camber Link Mount

M3x10 Roundhead Screw

M3x8 Roundhead Screw

M3x10 Roundhead Screw

Rear Suspension Mount Spacer 0.5mm

Firebolt Alum Rear Suspension Mount, XL

Firebolt Alum Rear Suspension Mount, XR

FireboltDM Rear Aluminium Shock Tower Mount

Firebolt Graphite Rear Damper Mount A-01-VBC-6006

14

CA

*Not included in this kit

Sand the graphite shock tower edges with #600 sand paper and apply CA glue to the edges.

Spacer Thickness Rear Toe-in Angle

Without Rear Suspension Mount Spacer 0mm 3.0° Rear Suspension Mount Spacer 0.5mm A-01-VBC-6079 0.5mm 3.6° Rear Suspension Mount Spacer 1.0mm A-01-VBC-6080(Optional) 1.0mm 4.3°

Rear Suspension Mount Spacer 0.5mm A-01-VBC-6079 + Rear Suspension Mount Spacer 1.0mm A-01-VBC-6080(Optional)

1.5mm 5.0°

BAG MARKED

STEP13-19

15

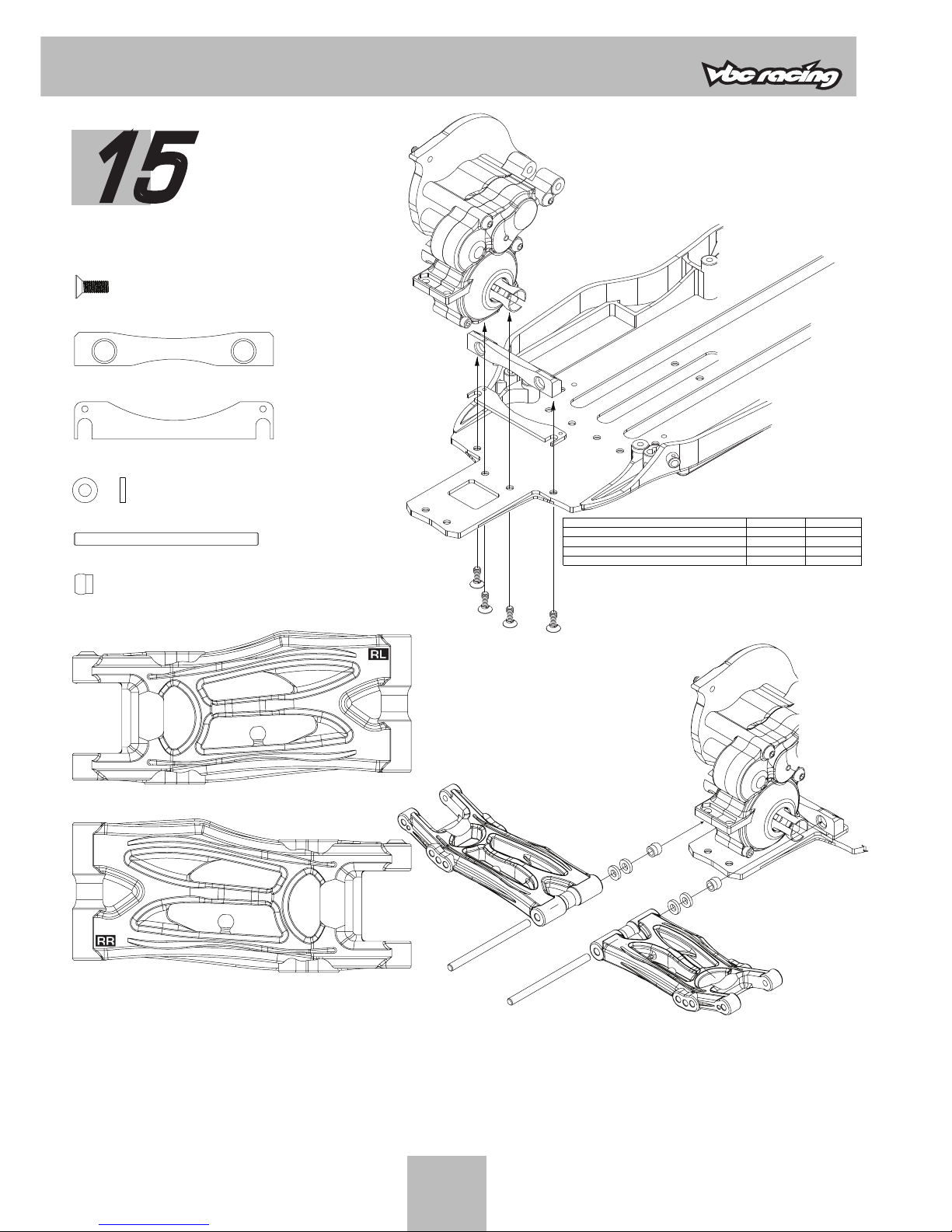

Installing the Gearbox

11

M3x8 Flathead Screw C-02-SC-F0308 x 4

M3x8 Flathead C-02-SC-F0308 x 4

Firebolt Alum Rear Suspension Mount, RF B-02-VBC-6003 x 1

Rear RF Mount Spacer 1.5mm A-01-VBC-6081 x 1

3x6x1.2mm Plastic Spacer A-03-VBC-6055 x 4

3x44.5mm Suspension Pin B-02-VBC-0029 x 2

Arm Pin Pivot Ball B-02-VBC-0035 x 4

Firebolt Rear Suspension Arm, RL A-03-VBC-6026 x 1

Firebolt Rear Suspension Arm, RR A-03-VBC-6027 x 1

Firebolt Alum Rear Suspension Mount

Rear RF Mount Spacer 1.5mm

3x6x1.2mm Plastic Spacer

Arm Pin Pivot Ball

3x44.5mm Suspension Pin

Spacer Thickness Anti-Squat Angle

Without RF Mount Spacer 0mm 0° Rear RF Mount Spacer 0.5mm A-01-VBC-6083 (Optional) 0.5mm 0.7° Rear RF Mount Spacer 1.0mm A-01-VBC-6082 (Optional) 1.0mm 1.4° Rear RF Mount Spacer 1.5mm A-01-VBC-6081 1.5mm 2.1°

BAG MARKED

STEP13-19

16

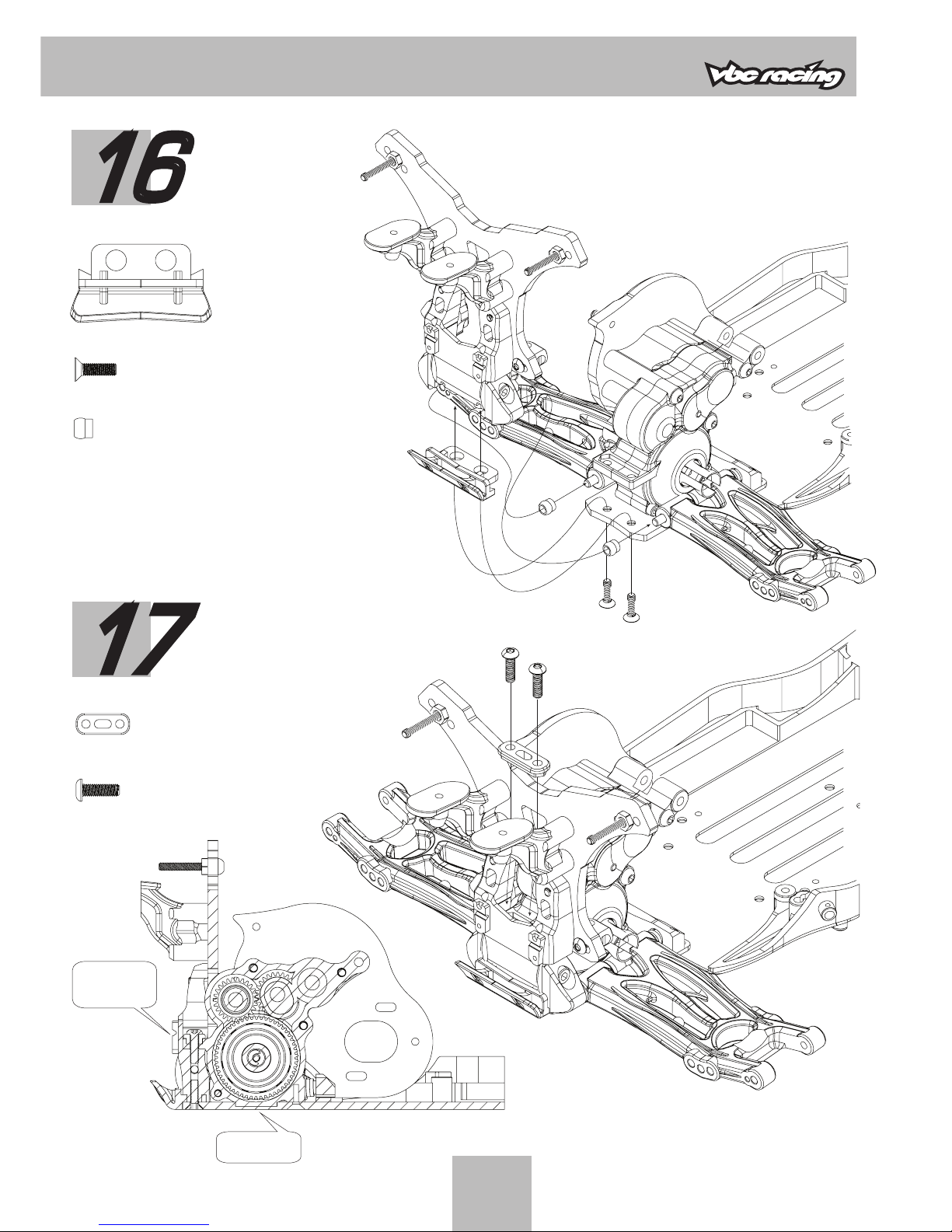

Rear Suspension Assembly 2

12

M3x10 Flathead C-02-SC-F0310 x 2

Rear Bumper A-03-VBC-6012 x 1

17

Gearbox Mount Spacer B-02-VBC-6078 x 1

M3x9 Roundhead Screw C-02-SC-R0309 x 2

Arm Pin Pivot Ball B-02-VBC-0035 x 2

Please make sure the Gearbox Mount Spacer is recessed onto the gearbox and the M3x9 screws are tightly fastened

The gearbox case groove is recessed onto the chassis slot

M3x10 Flathead

Arm Pin Pivot Ball

Rear Bumper

M3x9 Roundhead

Gearbox Mount Spacer

BAG MARKED

STEP13-19

18

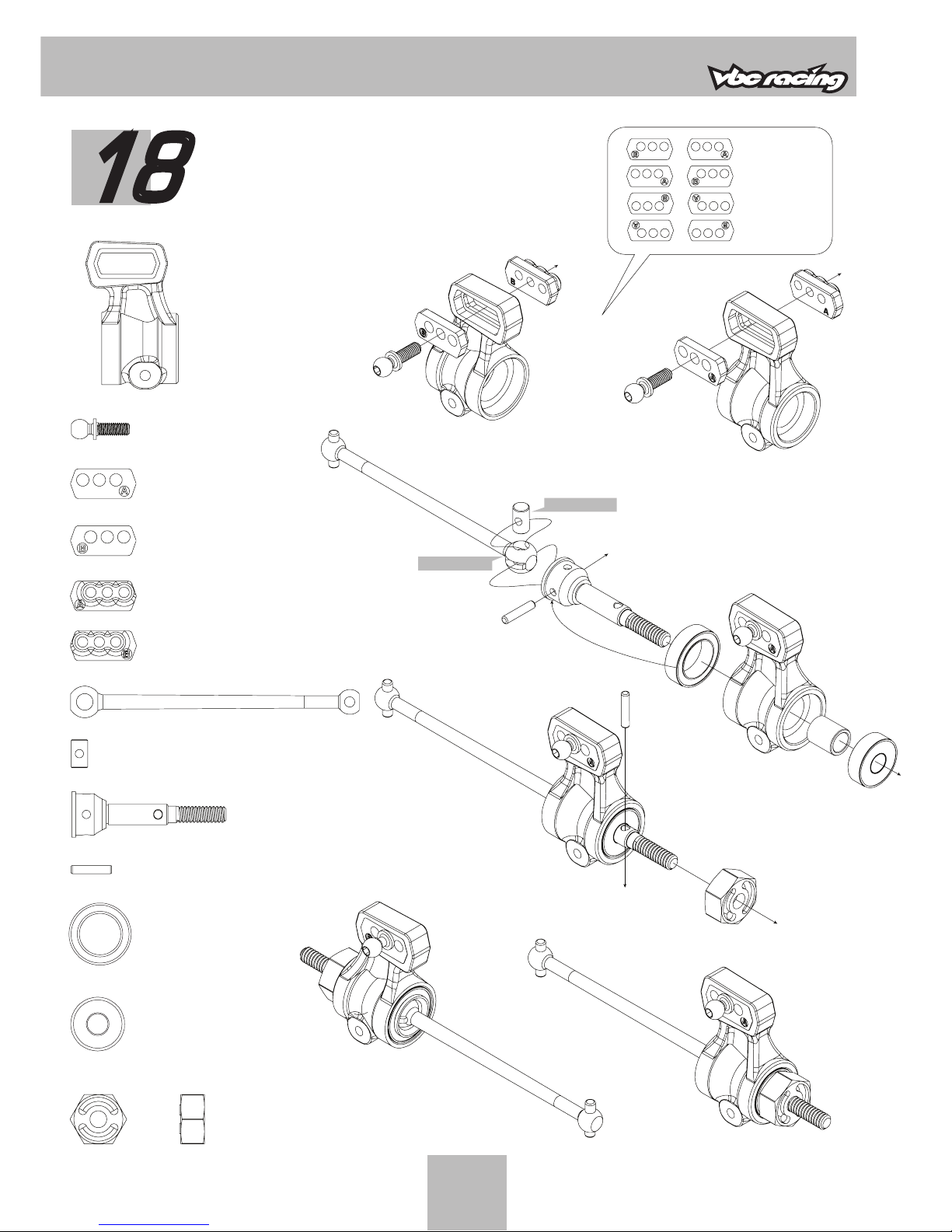

Rear Suspension Arm Assembly

13

Firebolt Rear Upright A-03-VBC-6038 x 2

Left Rear Hub

Right Rear Hub

Multiple camber link settings by placing the camber link holders into different positions

Axle Grease

4.7x14mm Ball Connector C-02-VBC-6034 x 2

Rear Camber Link Holder (A) A-03-VBC-6023 x 1

Rear Camber Link Holder (B) A-03-VBC-6049 x 1

Rear Camber Link Plate (A) A-03-VBC-6050 x 1

Rear Camber Link Plate (B) A-03-VBC-6051 x 1

Firebolt Rear CVD Inner Axle C-02-VBC-6010 x 2

Firebolt Rear CVD Inner Joint C-02-VBC-6011 x 2

Firebolt Rear CVD Outer Wheel Axle C-02-VBC-6009 x 2

10x15 Ball Bearings C-02-BB-1510-P x 2

6mm Rear Wheel Adapter A-03-VBC-6069 x 2

5x13mm Ball Bearings C-02-BB-1305-B x 2

Firebolt Rear Upright

Rear Camber Link Holder (B)

Rear Camber Link Plate (B)

Rear Camber Link Holder (A)

Rear Camber Link Plate (A)

Firebolt Rear CVD Inner Axle

Firebolt Rear CVD Inner Joint

M2x10 Shaft Pin

M2x10 Shaft Pin B-02-VBC-0020 x 4

M2x10 Shaft Pin

6mm Rear Wheel Adapter

Firebolt Rear CVD Outer Wheel Axle

10x15 Ball Bearings

5x13mm Ball Bearings

Rear drive left and right drive axles

Firebolt RM 5.1 x 7 x 8.2mm Spacer B02P60725

BAG MARKED

STEP13-19

19

14

3x45mm Hardened Springsteel Turnbuckle C-02-VBC-6004 x 2

Ball Cup L Type, Long Right A-03-VBC-6047 x 1

Ball Cups, Long A-03-VBC-6030 x 2

Ball Cup L Type, Long Left A-03-VBC-6048 x 1

2.5x6x1mm Plastic Spacer A-03-VBC-6052 x 6

2.5x29.8mm Suspension Pin C-02-VBC-6017 x 2

M2x4 Roundhead Screw C-02-SC-R0204 x 2

M2x4 Roundhead Screw

2.5x29.8mm Suspension Pin

2.5x6x1mm Plastic Spacer

Right Rear Camber Link Assembly

Ball Cup L Type, Long Right

Ball Cups, Long

3x45mm Hardened Turnbuckle

27.5mm

Left Rear Camber Link Assembly

Ball Cups, Long

3x45mm Hardened Turnbuckle

Ball Cup L Type, Long Left

27.5mm

Left Rear Camber Link

Right Rear Camber Link

2.5x6x1mm Plastic Spacer

BAG MARKED

STEP20-22

20

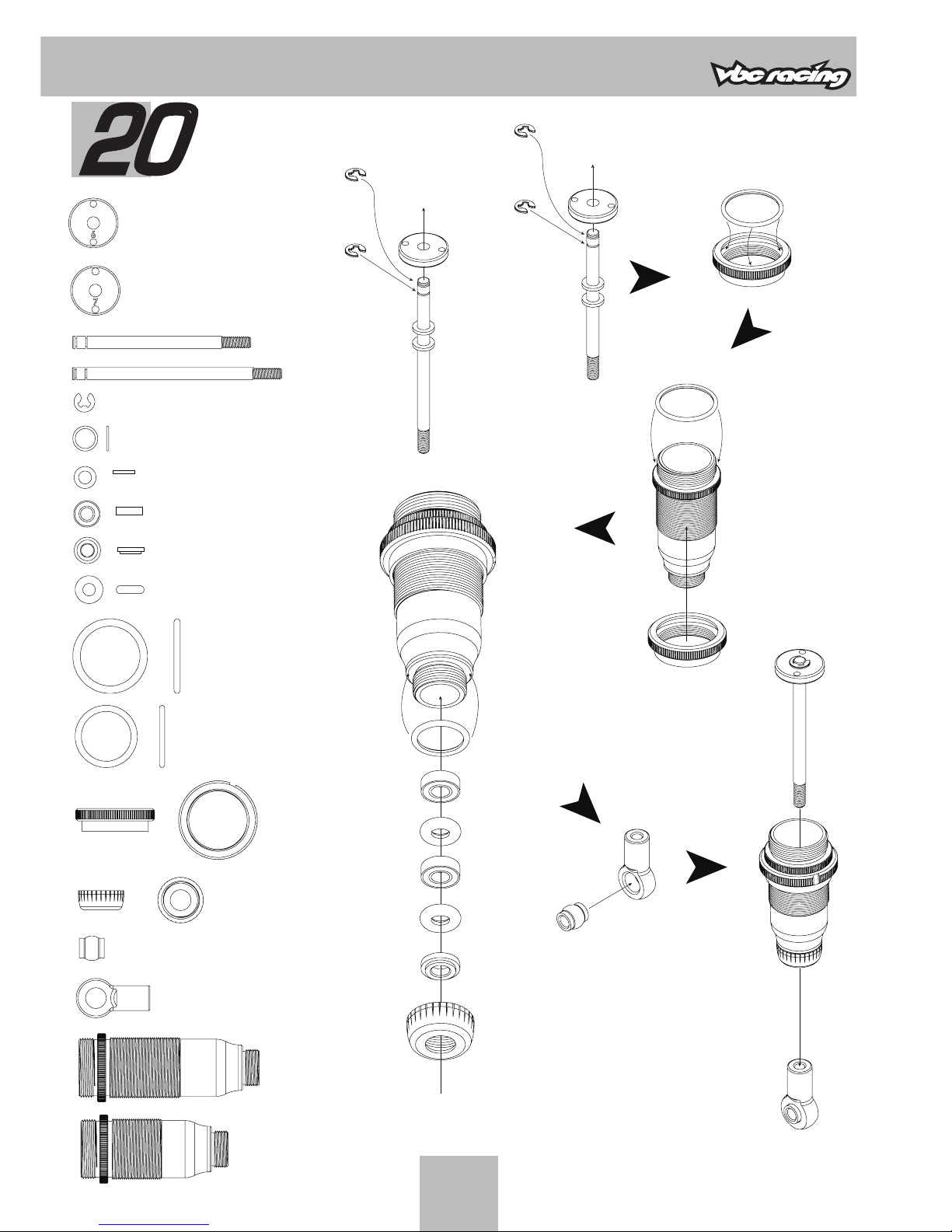

Firebolt Suspension Shocks Assembly

15

Front Firebolt Shock Shaft C-02-VBC-6019 x 2

Rear Firebolt Shock Shaft C-02-VBC-6020 x 2

M2 E-clip B-03-VBC-0129 x 8

Damper Inner Spacer A-03-VBC-6063 x 8

1.6x2 Holes Piston for Firebolt Shocks A-03-VBC-6004 x 2

1.7x2 Holes Piston for Firebolt Shocks A-03-VBC-6064 x 2

Firebolt Shaft Cap A-03-VBC-6066 x 4

Shock Shaft Guide A-03-VBC-0126 x 8

TBB Shaft Sealer O-Ring B-03-VBC-0012 x 8

M1.5x15x18 O-Ring (Shock Height Adjuster) R-02-VBC-6082 x 4

Spring Adjuster for Firebolt Shocks B-02-VBC-6020 x 4

Firebolt Shock O-Ring Cap B-02-VBC-6017 x 4

Firebolt Shock Body, Rear B-02-VBC-6019 x 2

Firebolt Shock Body, Front B-02-VBC-6018 x 2

Rear Firebolt Shock Shaft

Damper Inner Spacer

1.7x2 Holes Piston

M2 E-clip

Damper Inner Spacer

M2 E-clip

1.6x2 Holes Piston

Make 2 Front Piston Shafts

M1.5x15x18 O-Ring

Spring Adjuster for Firebolt Shocks

X2

Make 2 Rear Piston Shafts

X2

X4

M1x13x15 O-ring R-02-VBC-6034 x 4

X4

Firebolt Shock Body, Rear x 2

Firebolt Shock Body, Front x 2

M1x13x15 O-ring

Spring Adjuster for Firebolt Shocks

M1x4x6 O-ring R-02-VBC-6036 x 4

M1x4x6 O-ring

Shock Shaft Guide

TBB Shaft Sealer O-Ring

Firebolt Shaft Cap

Firebolt Shock O-Ring Cap

Firebolt Shocks Ball Cups A-03-VBC-6001 x 4

6mm Damper End Pivot Ball A-03-VBC-6060 x 4

Firebolt Shocks Ball Cups

6mm Damper End Pivot Ball

Front Firebolt Shock Shaft

BAG MARKED

STEP20-22

21

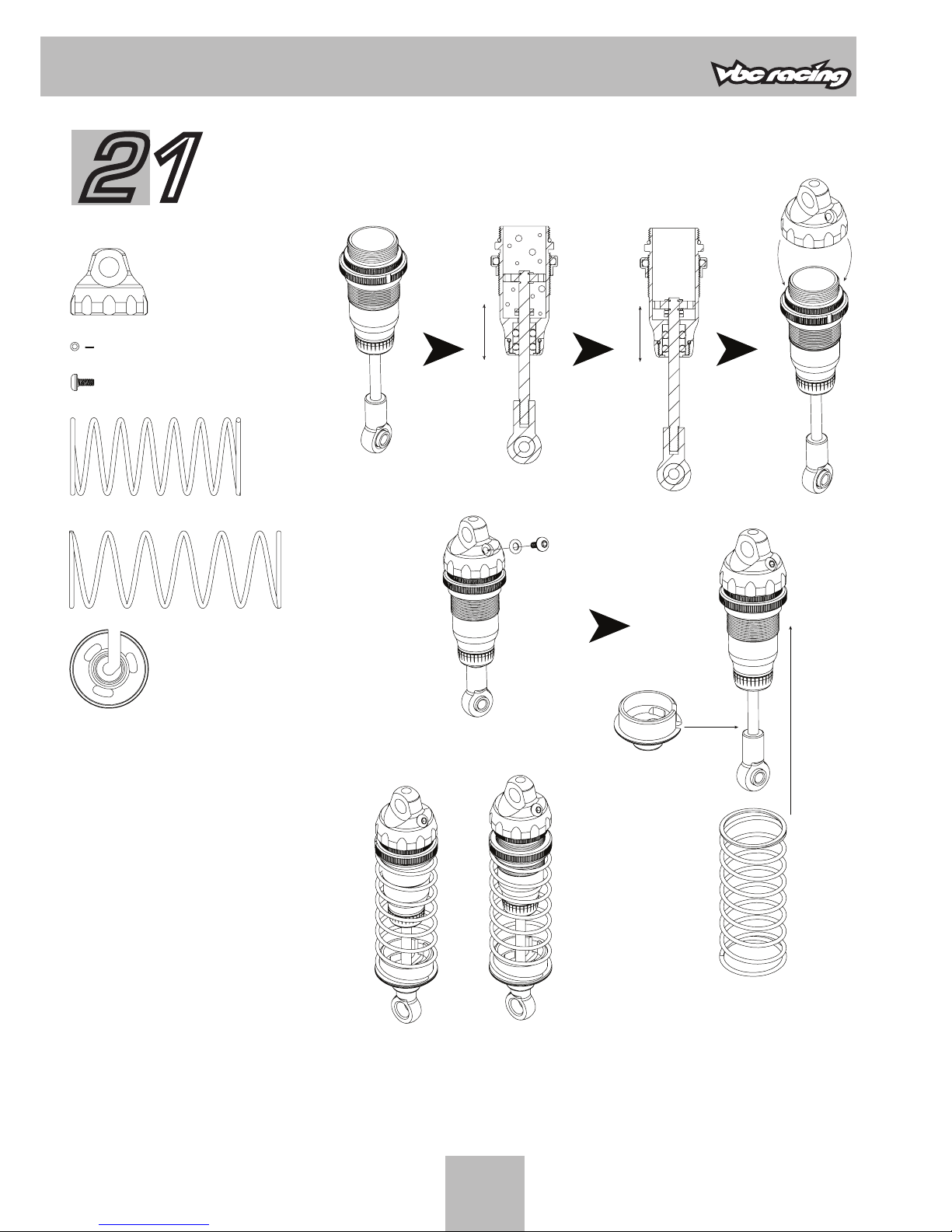

Front Suspension Assembly Part1

16

Firebolt Alum Shock Cap B-02-VBC-6021 x 4

Front Spring, Medium(Red) C-02-VBC-6021 x 2

Rear Spring, Medium(Red) C-02-VBC-6022 x 2

M1x1x3 O-ring R-02-VBC-6035 x 4

M2x4 Roundhead Screw C-02-SC-R0204 x 4

Fill supplied shock oil and remove air by moving the piston up and down until air bubbles disappears

M1x4x6 O-ring

M2x4 Roundhead Screw

Firebolt Shocks Spring Retainer A-03-VBC-6002 x 4

Front Spring, Medium(Red)

Rear Spring, Medium(Red)

Firebolt Shocks Spring Retainer

Repeat the above steps on the front and the rear shocks

VBC Racing Firebolt Shock Springs: Front Spring, Med-Soft(Green) C-02-VBC-6033(Optional) Front Spring, Medium(Red) C-02-VBC-6021 Front Spring, Med-Hard(Orange) C-02-VBC-6030(Optional) Rear Spring, Med-Soft(Green) C-02-VBC-6031(Optional) Rear Spring, Medium(Red) C-02-VBC-6022 Rear Spring, Med-Hard(Orange) C-02-VBC-6032(Optional)

Firebolt Alum Shock Cap

BAG MARKED

STEP20-22

22

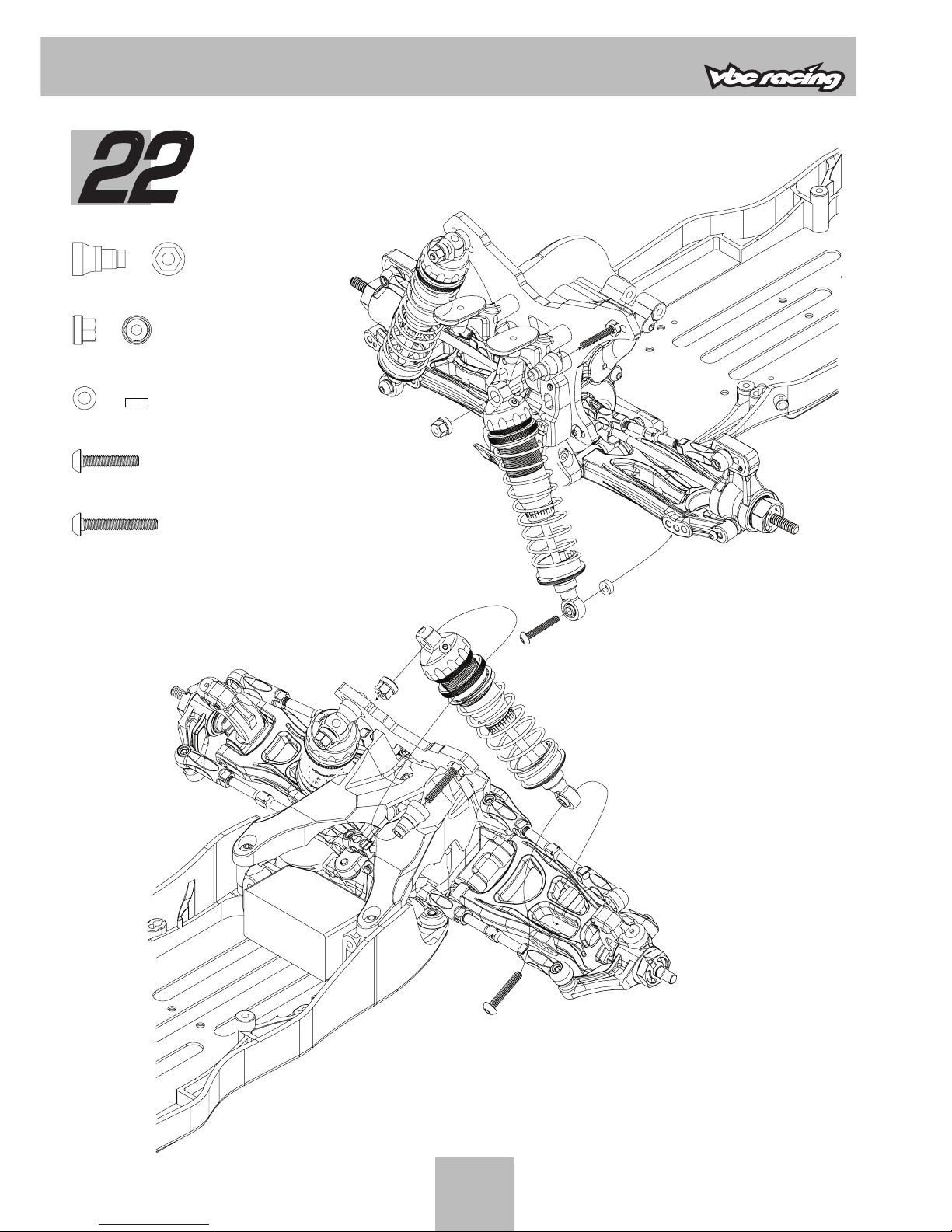

Installing Front and Rear Suspension Shocks

17

Damper Cap Shaft Pivot Ball A-03-VBC-6061 x 4

M3 Plastic Lock Nut A-03-VBC-6062 x 4

Suspension Arm Spacer T2(Composite) A-03-VBC-0052 x 2

M3x14 Roundhead Screw C-02-SC-R0314 x 2

M3x18 Roundhead Screw C-02-SC-R0318 x 2

Damper Cap Shaft Pivot Ball

M3 Plastic Lock Nut

Suspension Arm Spacer T2(Composite)

M3x14 Roundhead Screw

M3 Plastic Lock Nut

Damper Cap Shaft Pivot Ball

M3x18 Roundhead Screw

BAG MARKED

STEP23-24

23

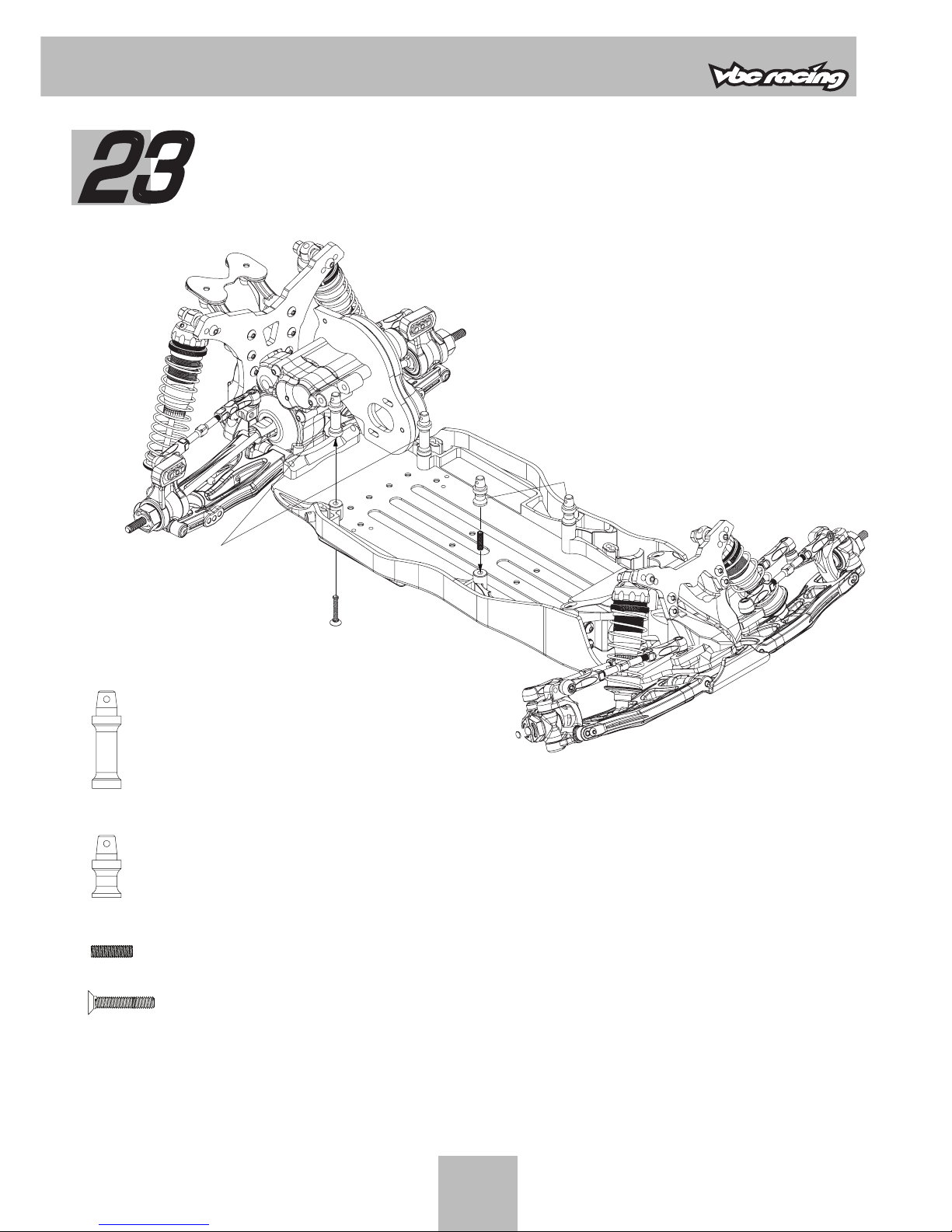

Battery Mount Assembly

18

Firebolt Alum Battery Post, Short B-02-VBC-6008 x 4

M3x10 Set Screw C-02-SC-SS-0310 x 2

Firebolt Alum Battery Post, Short

M3x10 Set Screw

Firebolt DM2 Upper Deck Post B-02-P60595 X 2

Firebolt DM2 Upper Deck Post

M3x16 Flathead Screw C-02-SC-F0316 x 2

M3x16 Flathead Screw

BAG MARKED

STEP23-24

24

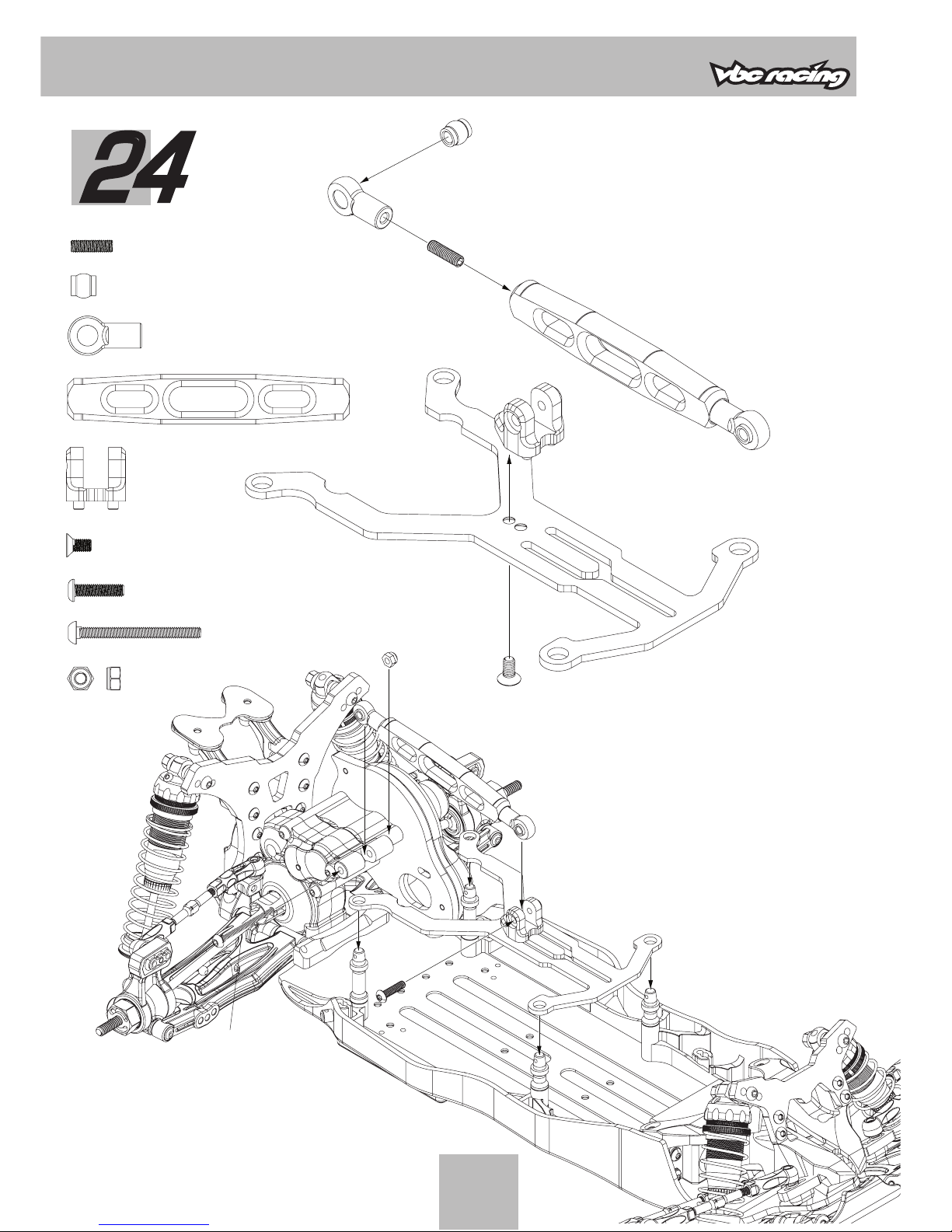

Upper Strut Assembly

19

M3x10 Set Screw C-02-SC-SS-0310 x 2

Firebolt Shocks Ball Cups A-03-VBC-6001 x 2

6mm Damper End Pivot Ball A-03-VBC-6060 x 2

Firebolt DM2 Supporting B02-P-60811 x 1

6mm Damper End Pivot Ball

Firebolt Shocks Ball Cups

M3x10 Set Screw

Firebolt DM2 Support Mount B-02-P60821 x 1

M3x6 Flathead Screw C-02-SC-F0306 x 1

Firebolt RM Upperdeck A-01-P60644

Firebolt DM2 Support Mount

M3x6 Flathead

M3x12 Roundhead Screw C-02-SC-R0312 x 1

M3x30 Roundhead Screw C-02-SC-R0330 x 1

M3x30 Roundhead

M3 Lock Nut C-02-SC-NN03 x 1

M3 Lock Nut

M3x12 Roundhead

BAG MARKED

STEP25-26

25

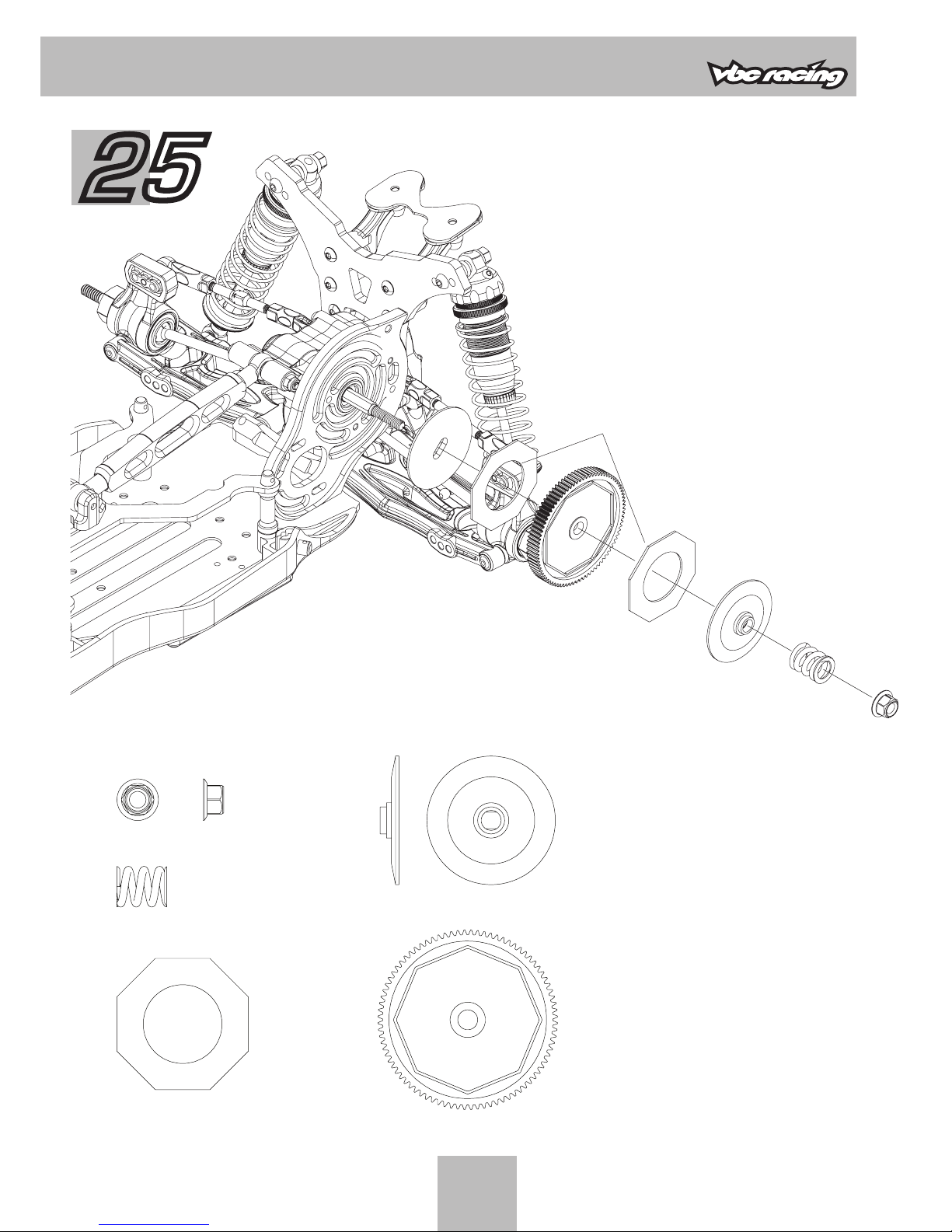

Installing the Slipper

20

FireBolt Slipper Plate B-02-VBC-6023 x 2

M4 Flanged Wheel Nuts B-02-VBC-0086 x 1

FireBolt Slipper Spring C-03-VBC-6002 x 1

FireBolt Slipper Pad C-03-VBC-6001 x 2

48P 80T Spur Gear A-03-VBC-6105 x 1

FireBolt Slipper Plate

FireBolt Slipper Pad

48P 80T Spur Gear

FireBolt Slipper Spring

M4 Flanged Wheel Nuts

FireBolt Slipper Plate

BAG MARKED

STEP25-26

26

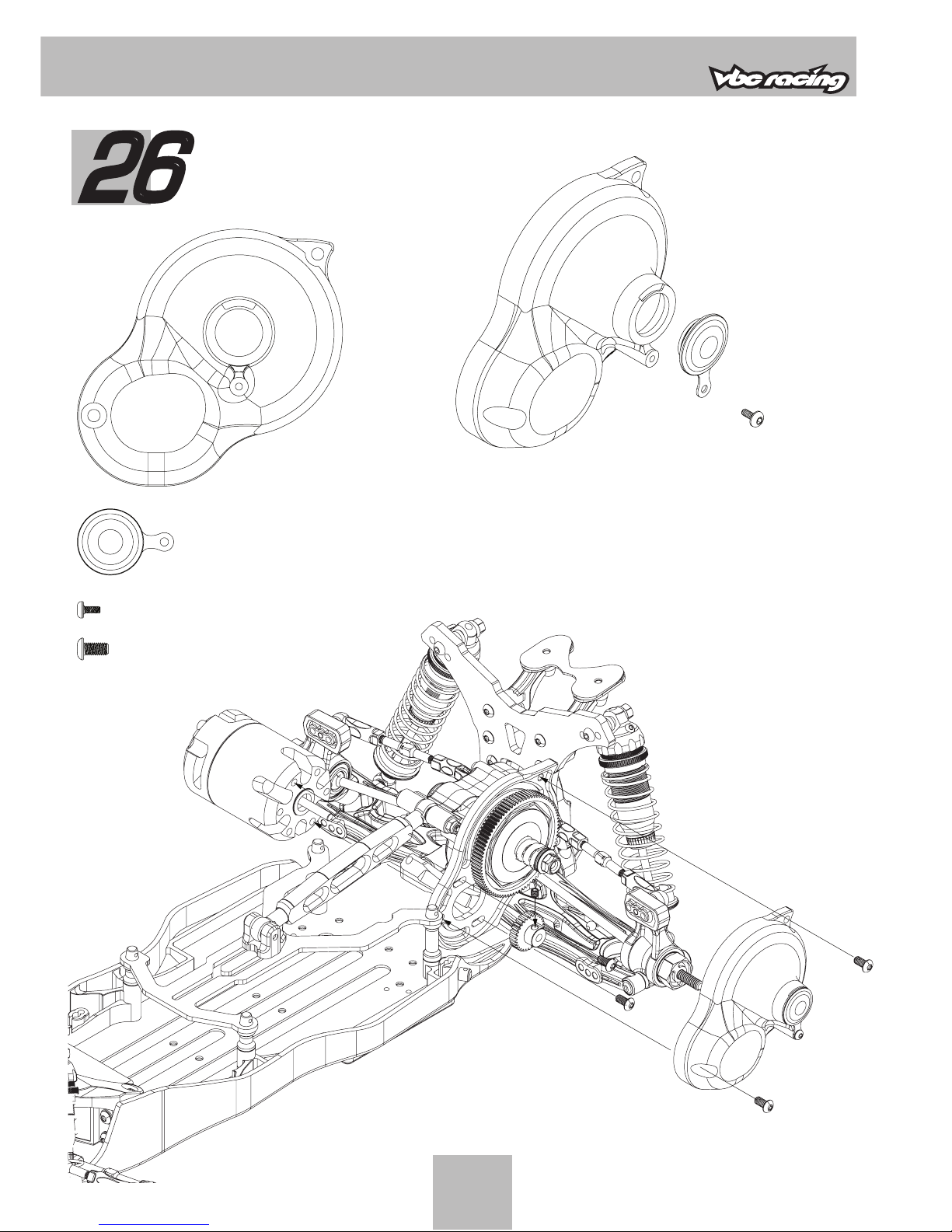

Intall Gear Diff Cover

21

Firebolt Gear Cover A-03-VBC-6006 x 1

Slipper Ajust Cover Cap A-03-VBC-6043 x 1

Firebolt Gear Cover

Slipper Adjust Cover Cap

M2x4 Roundhead Screw

M3x6 Roundhead Screw C-02-SC-R0306 x 4

M3x6 Roundhead Screw

M2x4 Roundhead Screw C-02-SC-R0204 x 1

Electric motor and motor pinion gear are not included

BAG MARKED

STEP27-32

27

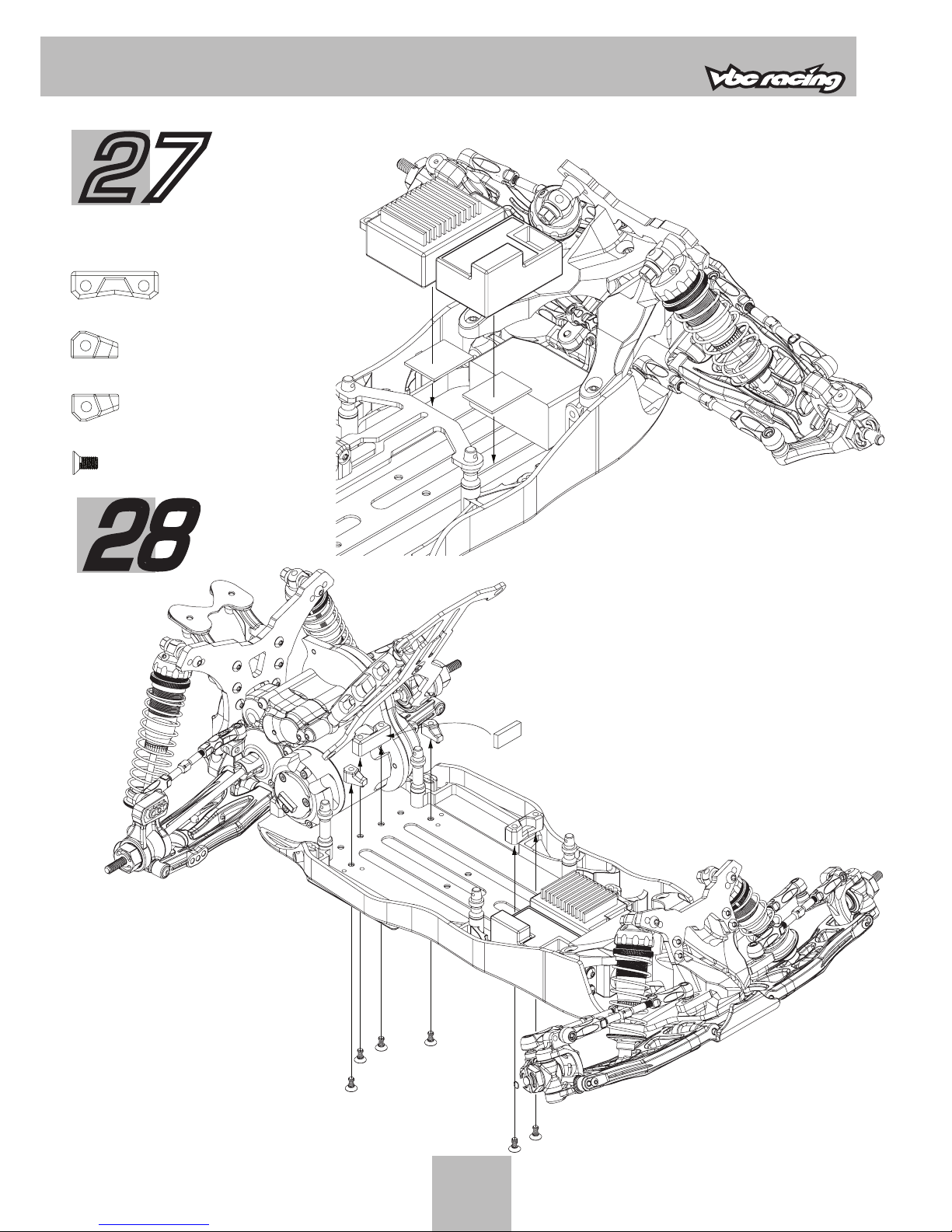

Mounting Transmitter/ESC/Battery

22

Firebolt Center Battery Stopper A-03-VBC-6074 x 1

Firebolt Side Battery Stopper X A-03-VBC-6075 x 1

Firebolt Side Battery Stopper Y A-03-VBC-6076 x 1

Receiver, electronic speed controller and double sided tapes are not included in this kit.

This is the demonstration for vertical shorty battery pack layout. Other configurations are on the next page.

M3x6 Flathead Screw C-02-SC-F0306 x 6

M3x6 Flathead Screw

28

Cut the supplied EVA foam pads and stick it to the battery stoppers to minimize the battery movements

BAG MARKED

STEP27-32

29

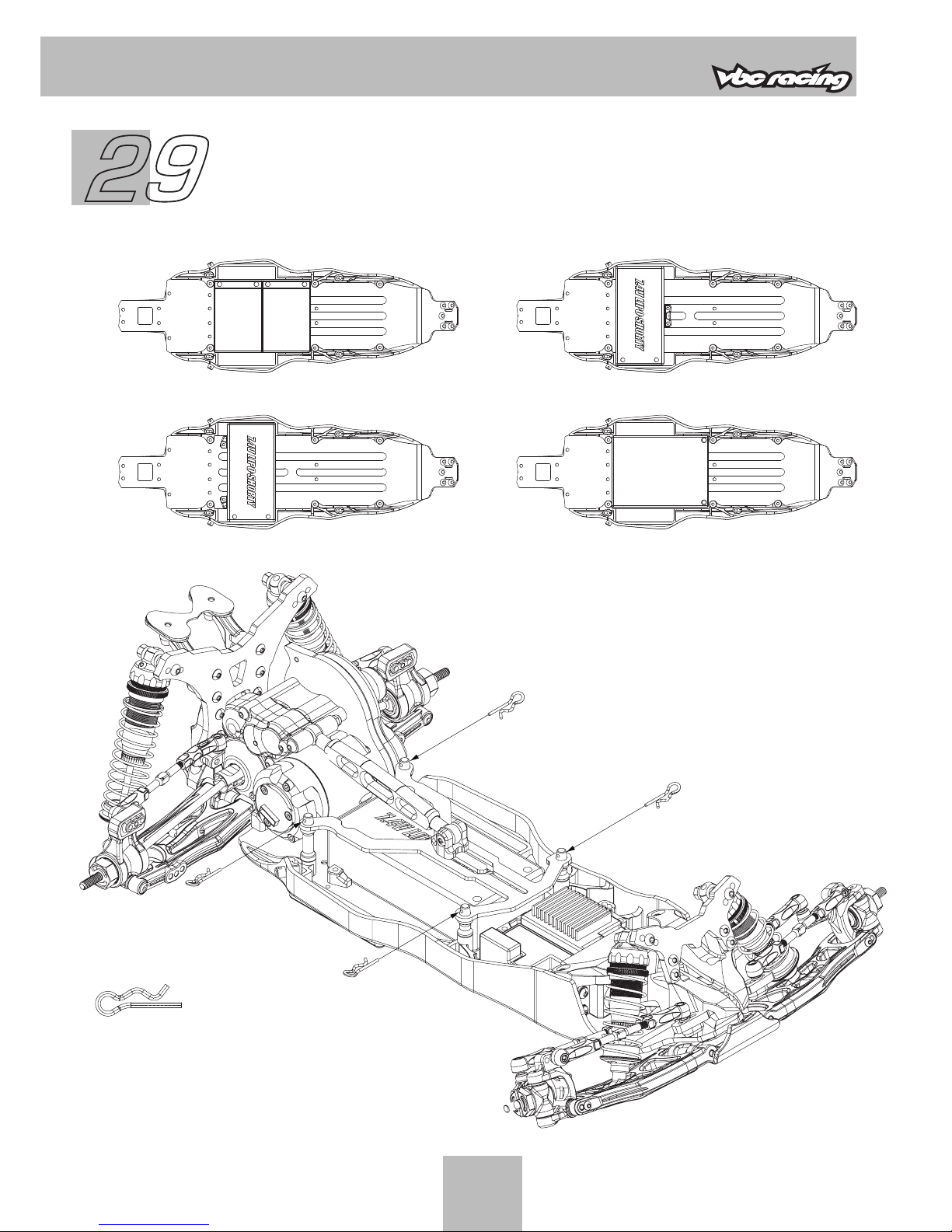

Mounting Different Battery Positions

Shorty pack horizontal forward setup

Shorty pack horizontal backward setup

Square pack setup

Mounting different batteries on the Firebolt by adjusting the Center and the Side Battry Stoppers

Body Clip B-02-VBC-0076 x 4

Saddlepack Setup

Body Clip

BAG MARKED

STEP27-32

30

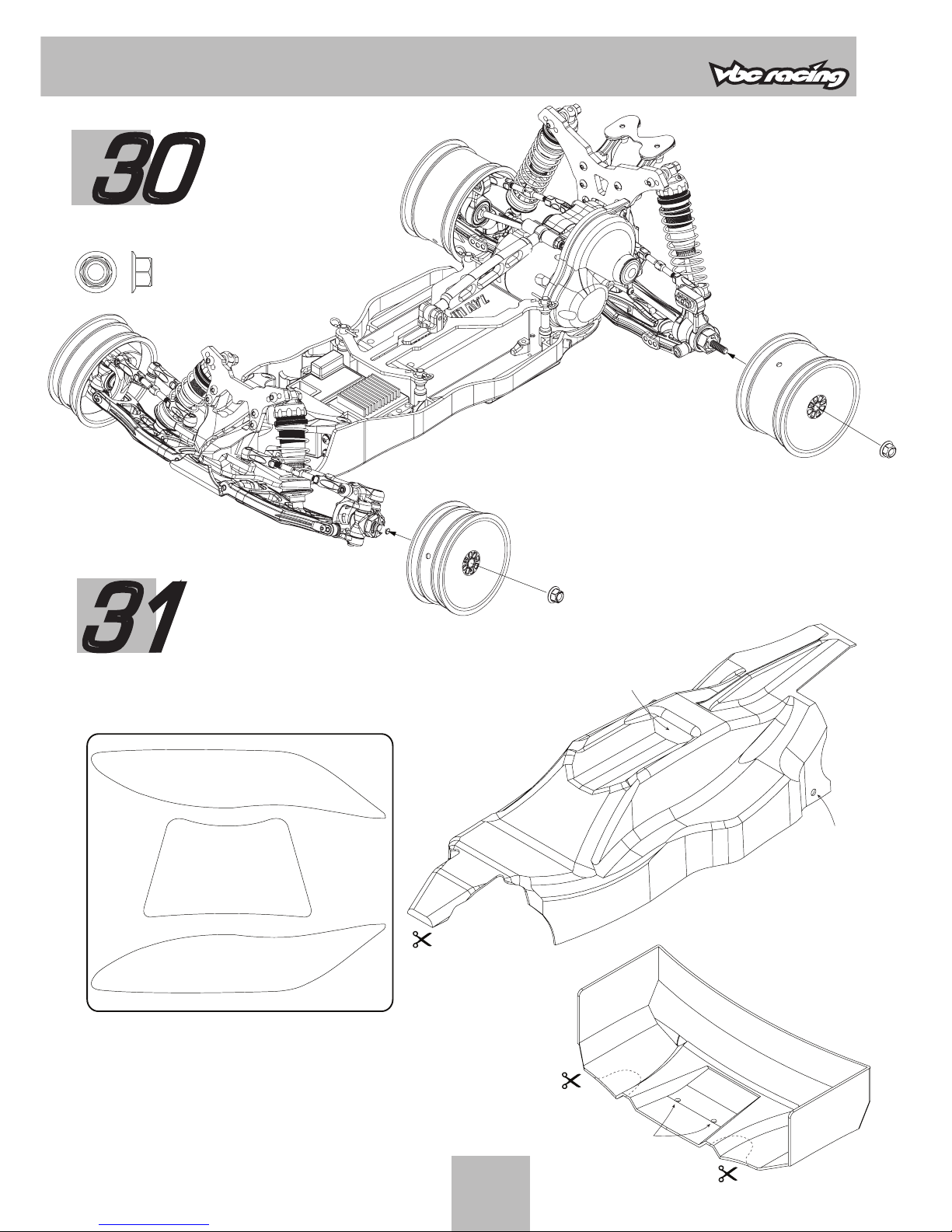

Install Front and Rear Wheels

24

M4 Flanged Lock Nut (Steel) B-02-P60726

Left Side Window

Right Side Window

Front Window

Left Side Window

Front Window

Right Side Window

Follow the lines on the body to cut out the shape using scissors. After painting from the inside, peel off the protector film before attaching on the to car.

Make a 5mm hole using a body reamer on both sides

Supplied windoes masking stickers. Attach the stickers from the inside of the body shell.

31

Preparing the Car Body and Rear Wing

You may choose to cut out this part as an air intake for extra motor cooling

Follow the markings on the wing to make a 3mm hole using a body reamer on both sides

Cut these areas to make clearance for the rear shocks

Wheels, inserts and tyres are not included. Firebolt wheel hubs fit most major brands 12mm Hex wheels

Firebolt DM Car Body L-01-VBC-6001

Firebolt DM Rear Wing L-01-VBC-6002

Firebolt DM Window Mask L-01-VBC-6106

M4 Flanged Lock Nut

BAG MARKED

STEP27-32

25

M3x8 Round Head Screw C-02-SC-SS-0308 x 2

Firebolt DM Rear Wing Spacer A-03-VBC-6037 x 2

32

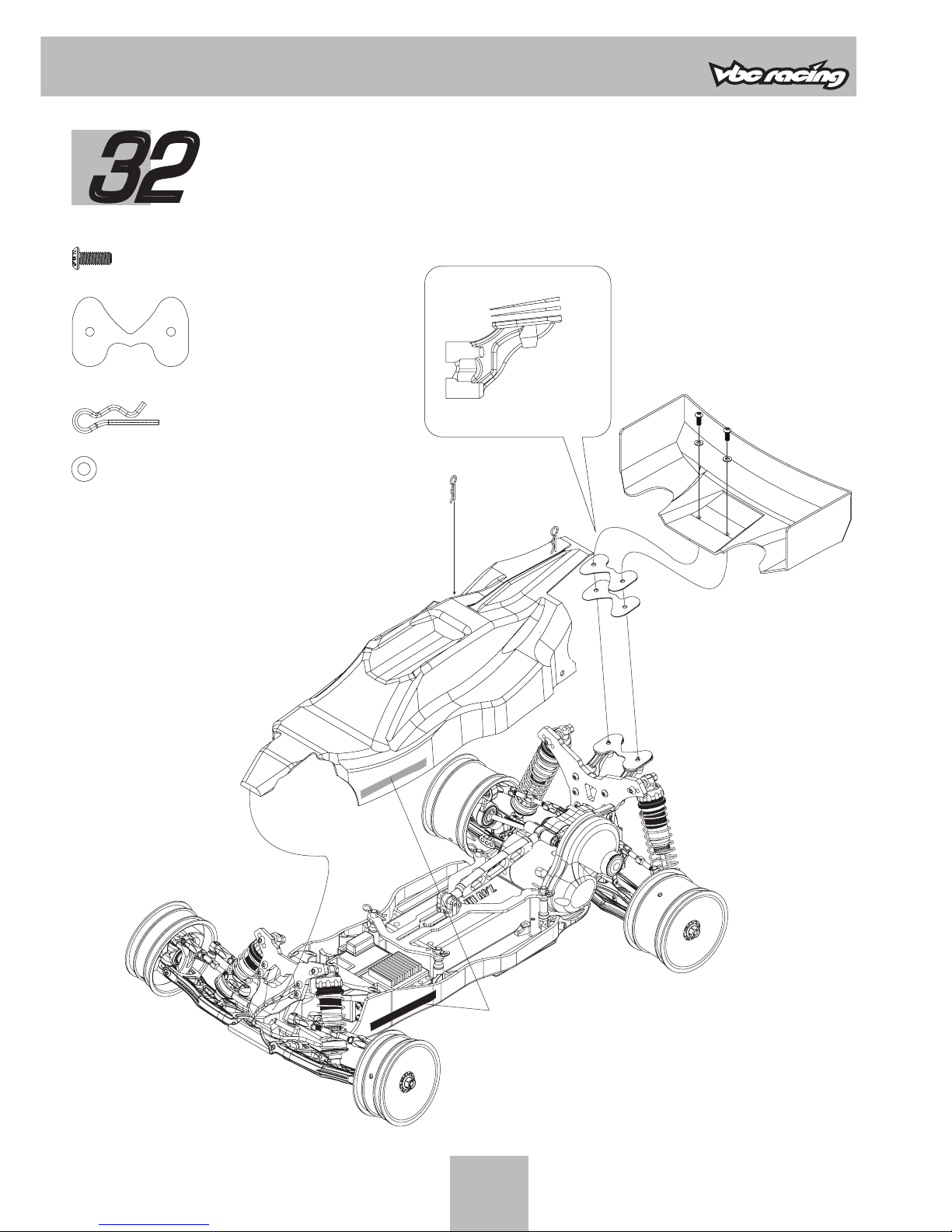

Installing the Car Body and Rear Wing

6°

2°

The rear wing angle is adjustable by adding or removing the Rear Wing Spacer

Firebolt DM Rear Wing Spacer

Body Clip B-02-VBC-0076 x 2

M3x8 Round Head Screw

Velcro tape A-01-VBC-6094

M3x6x0.5 Spacer B-02-VBC-5093 x 2

M3x6x0.5 Spacer

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT

1/10 RWD ELECTRIC COMPETITION OFFROAD BUGGY CAR KIT

Instruction Book P01-P-60885 VBC Racing FireboltRM Offroad Car Kit D-05-VBC-CK14

www.vbcracing.com
