SL-1620
Long Range 1200FT Wireless
HDMI/SDI HD Video Transmission
Suite
(VAXIS SL1620)
User manual
Preface..................................................................................................... 1
1. Cautions............................................................................................... 2
2. About................................................................................................... 3
3. Installation........................................................................................... 4
4. Operation instruction............................................................................5
5. Maintenance......................................................................................... 6
6. Truble shooting.................................................................................... 7
1
Preface
Thanks for purchasing our Long Range Wireless HDMI/SDI HD Video
Transmission Suite. Before using this product, read this user manual
carefully please. Follow the instruction to keep your safety and avoid
products damage. This user manual might be modified irregularly
because of updated products. And the manual is for instruction only; we
do not guarantee the information and the suggestions.
2
1. Cautions
■Logo and meaning
Careful, warning, dangerous, Pay attend to following items.
■Cautions
Do not use this product in the extreme hot, cold, dusty or humid
environments.
Prevent friction with hard objects.
Avoid the product falling down from a high place, or it may damage
the hardware.
The product is not water proofed. So do not get any liquid into the
unit please.
Do not dismantle, assemble or alter the product arbitrarily.
3
2. About
■Product model and standard
The VAXIS SL1620 1200FT Wireless HDMI/SDI Transmission Suite
utilize today’s most advanced wireless video transmission technology,
which can realize the broadcast-class and uncompressed 3G SDI/HDMI
HD video signal transmitted with no compression and zero delay. The

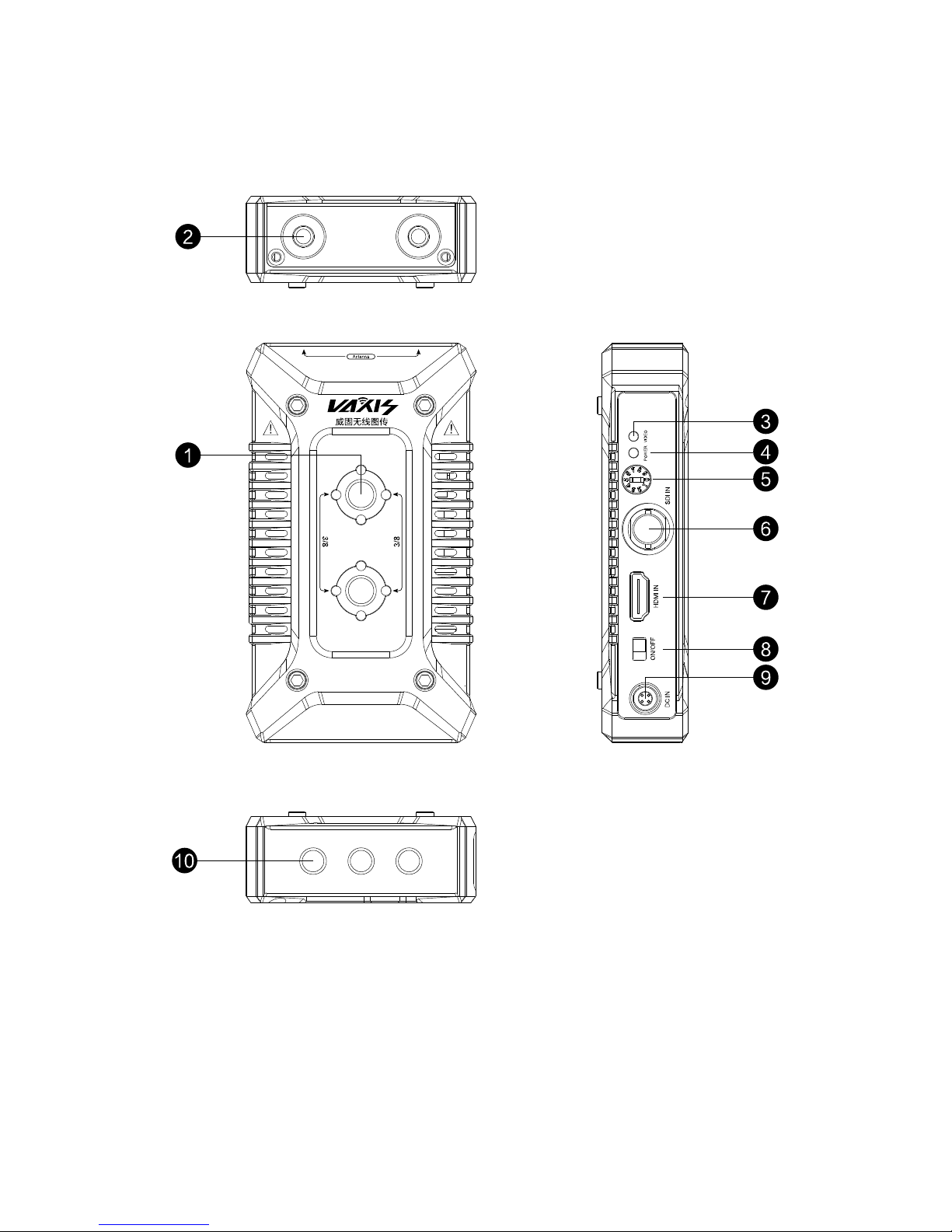

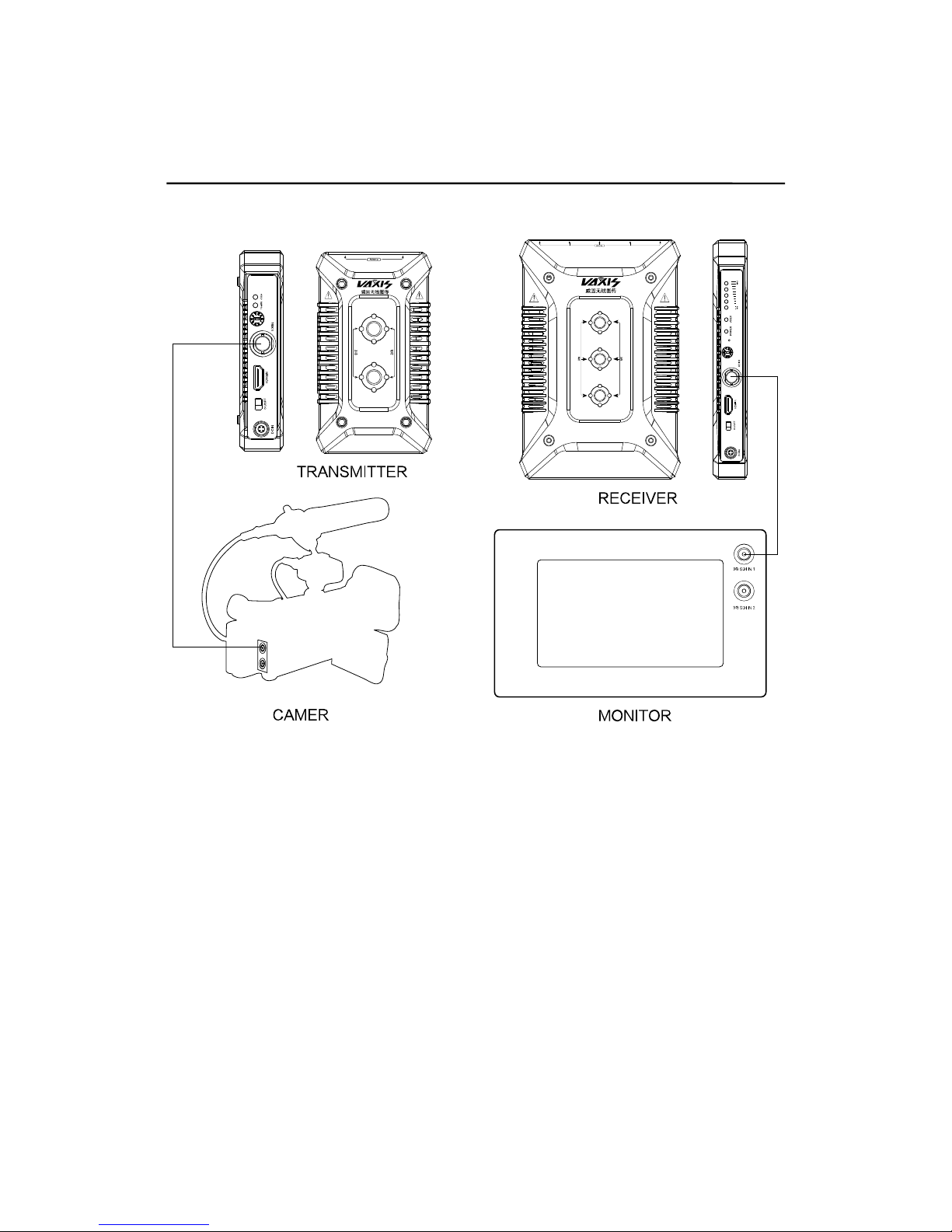

suite includes one transmitter and one receiver, where the transmitter
provides a 3G/HD SDI input and a HDMI input, and the receiver also

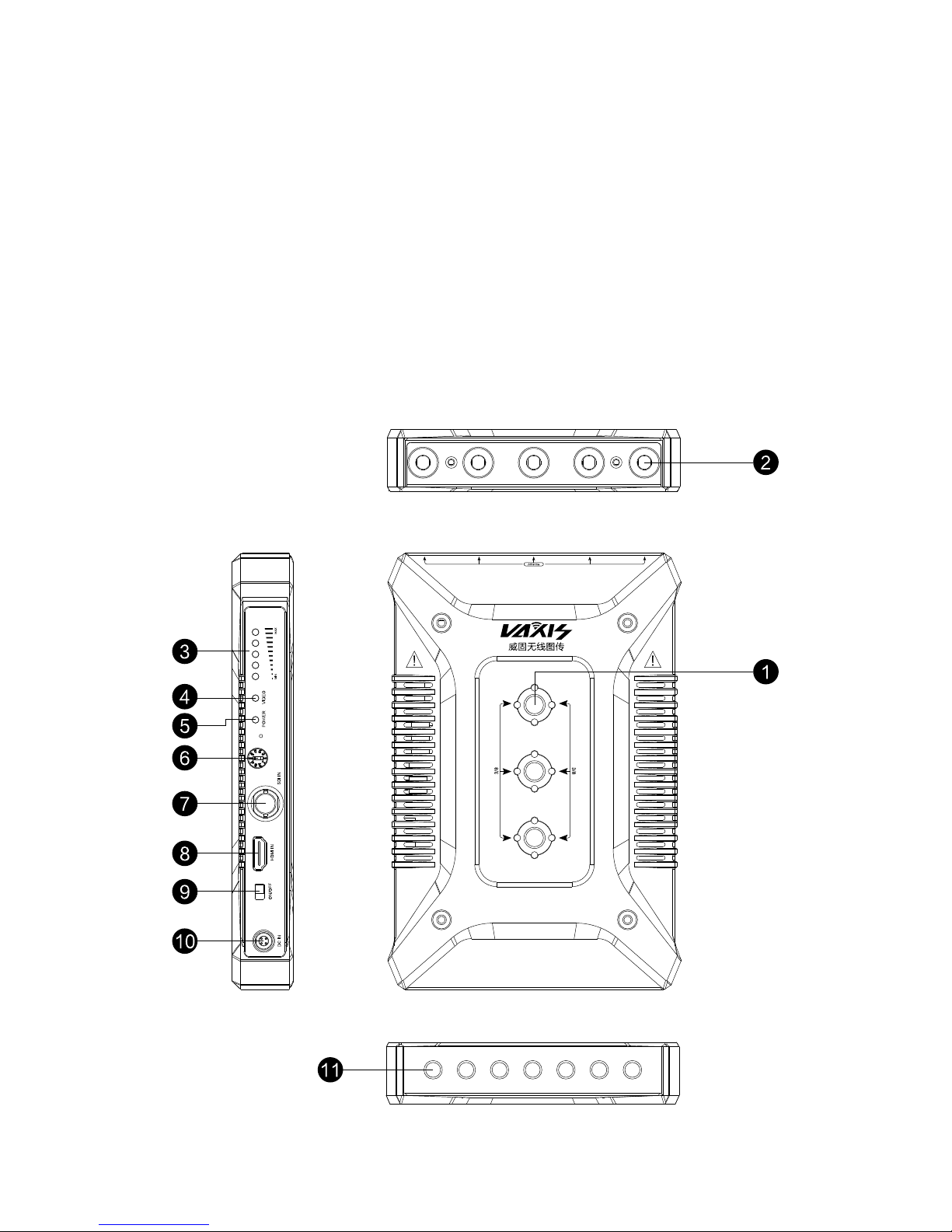

provides a 3G/HD SDI output and a HDMI output. The wireless HD suite
has 2 stick antennas in transmitter side, and 5 stick antennas in receiver
side, and it can work in 5.1-5.9GHz frequency band and be flexibly
software configured to licensed or ISM band of global different regions,
as well as the side panel of both transmitter and receiver have been
installed a frequency select knob, which provides maximum 10 workable
frequency channels, and supports maximum 4 sets working
simultaneously. The wireless suite can accept wide range DC power input,
which is suitable for many kinds of camera battery model. The suite also
can sustain ±8 kV ESD (HBM, contact discharge), the industry class
metal case and professional heat design would guarantee most robust
reliability.
