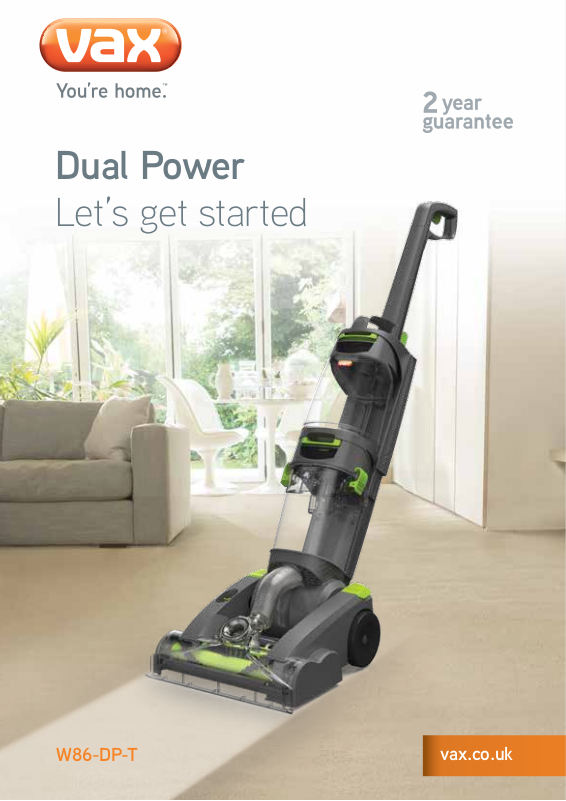

Dual Power
Let’s get started
W86-DP-T
vax.co.uk
Let’s talk safety
Basic safety precautions
• This carpet washer is intended for
household use only and NOT for
commercial or industrial use.
• Only use the carpet washer indoors and
keep the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing
from moving parts and openings whilst
using the carpet washer.
• This carpet washer is NOT to be used
by children under eight years or persons
with reduced physical, sensory or mental
capabilities, unless they have been given
instructions on how to use the machine
or are supervised during use.
Don’ts
8 Don’t leave the carpet washer plugged
in when unattended.
8 Don’t use this carpet washer if it
has been dropped, damaged or
left outdoors.
8 Don’t run over the power cord or use
carpet washer if the power cord or
plug is damaged. Please contact our
Customer Care Line on:
0330 026 8455
(Mon-Fri 8:30am to 6:00pm, Sat
09:00am to 5:00pm)
8 Don’t use your carpet washer to pick
up any ammable or combustible
materials (lighter uid, petrol, kerosene
etc.) or use the carpet washer in an
area with explosive vapours or liquid.
8 Don’t handle the plug or use the carpet
washer with wet hands.
• Any cleaning or maintenance of your
carpet washer should not be made by
children without supervision and ensure
they don’t play with the carpet washer.
• Before using your carpet washer
test your carpets/rugs/upholstery for
colourfastness and pile distortion.
• Only Vax recommend tools and solution
should be used with this carpet washer.
Using other solutions may invalidate
the guarantee.
Please keep instructions for further use.
8 Don’t carry the carpet washer while it’s
switched on.
8 Don’t pull or carry this carpet washer
by the power cord.
8 Don’t use the power cord as a handle,
pull the power cord around corners,
sharp edges or close a door over
the power cord. Don’t unplug carpet
washer by pulling on the power cord.
8 Don’t use your carpet washer to pick
up hot coals, cigarette butts, matches
or smoking hot burning items or use in
an area where there may be harmful
uids (chlorine, bleach, and ammonia
drain cleaner).
8 Don’t attempt to remove blockages
with sharp objects as this may cause
damage to your carpet washer.
8 Don’t over saturate your carpet.
8 Don’t use the carpet washer with
incorrect voltage as this may result
in damage or injury to the user. The
correct voltage is listed on the
ratings label.
Do’s
3 Check with the manufacturer of
your ooring prior to using the
carpet washer.
3 The clean water tank should only be
lled with warm water (max 40’C).
Filling the clean water tank with hot or
boiling water may damage your machine
and invalidate your guarantee.
3 Store your carpet washer in a cool, dry
area. Before storing your carpet washer
please ensure all water/solutions tanks
and lters are thoroughly clean and dry.
3 Always vacuum your carpets thoroughly
before using your
carpet washer.
3 Always unplug the carpet washer before
carrying out any maintenance and
before connecting or disconnecting the
hose/accessories.
3 Turn o all controls on the carpet
washer before disconnecting or
connecting the power cord, after use
always wrap the power cord around the
cord clips provided.
3 Always replace the fuse in the plug with
a 13amp fuse. Always protect the power
cable from heated surfaces or near
open ames.
3 Always keep the power cord away
from the brushes whilst using your
carpet washer.
3 Use only CE approved 13amp extension
cords, non-approved extension cords
may overheat. Care should be taken to
arrange the extension cord as it can be
a trip hazard.
3 Take extra care when cleaning on
the stairs.
3 Always use the carpet washer with all
water/solution tanks and lters in place.
3 Keep all openings clear and free
from debris as this may aect the
airow/suction.
3 Always use the carpet washer in an
upright position. To prevent motor
damage from dirty water, never hold
the carpet washer upside down or lay
on its side.
Thank you for buying this Dual Power.
Taking care of your carpets
The Dual Power is designed to make washing carpets regularly, as eective and ecient as
possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer and smell fresh and
clean. You’ve chosen carpets for your home for a reason and Vax will help you take good care
of them.
Taking care of your Dual Power
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets.
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
The user guide can also be found online at: vax.co.uk/support
Let us know what you think @VaxUK
Contents
Dual Power
Included with
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
What to do if it goes wrong
Getting in touch
your machine
Vax ultra+ carpet
cleaning solution
Wash tool
Accessory
bag
Long reach
hose
Accessories
Notes
Pre Treatment
wand
Pre Treatment solution
Getting to know your machine
Handle
Carry handle
Clean water tank release button
Solution trigger (hidden)
Cord storage hooks
Clean water tank
Dirty water tank handle
Dirty water tank clips
Dirty water tank
Hose connector
Solution port
Dual rotating
brushbars
Technical Specication
Name Dual Power
Code W86-DP-T
Part Number 1-1-133343-00
Voltage 220-240V~50-60Hz
Wattage 800W
Power cable
Cord storage hooks
On/o pedal
Handle release
pedal
Wheels
Cord length 8m
Weight 6.6kg
Subject to technical change without notice.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Assembling your carpet washer
Stand base in
upright position and
lower top section to
connect onto base
Assemble the upper handle screw and tighten
with a cross/at head screwdriver
Assemble the two lower handle screws and tighten
with a cross/at head screwdriver.
Slide handle down
onto unit.
Using your machine
Before you begin cleaning
• IMPORTANT: Carpets should be dry vacuumed thoroughly
before washing
• Test for colourfastness – Wet a white absorbent cloth with the
solution. In a small hidden area of your carpet/rugs/upholstery
gently rub with the dampened cloth. Wait ten minutes and check
for colour removal or bleed with white paper towel or cloth. If your
carpet has more than one colour, check all colours
• Test your carpet/rugs/upholstery – Run the carpet washer over a
small hidden area. If no pile distortion occurs continue cleaning
• Don’t over saturate your carpets.
• When using the carpet washer, basic safety precautions should
always be observed
• IMPORTANT: Only use Vax carpet solution. Using other solutions
may cause excess foaming and may invalidate your warranty
• IMPORTANT: The clean water tank should only be lled with
warm water (max 40°C). Filling the clean water tank with hot/
boiling water may damage your machine and invalidate your
warranty.
• CAUTION: This is a powerful carpet washer, before plugging in
make sure all controls are turned o also hold carpet washer
rmly when staring and during use.
TIP
When cleaning an entire room,
move furniture out of the area
to be cleaned. If the furniture
is too heavy to move, place
aluminium foil or wax paper
under legs. This will prevent
wood nishes from staining
your carpet. Pin up furniture
skirts and curtains.
Cleaning the shroudOperating your carpet washer
Operating your carpet washer
Your dirty water tank is tted with a oat. When the dirty water tank is full or the oor head is not in contact with the
carpet the oat will shut o the suction at the oor nozzle. You will be able to hear if this has happened as the motor
noise on the unit will increase. Once the oat is activated, empty the dirty water tank if full. If the dirty water tank is not
full then turn o your machine at the power switch and wait for the oat to settle.
Xxxxxxxxxxxxx
Remove clean water tank Unscrew the clean water
tank cap from the top of
the clean water tank.
Pour required dose of
carpet cleaning solution
(approx.40ml per 1.0L of
water) and pour into tank.
Operating your carpet washer
40C
Max
Using your machine
Mix solution with
warm water.
(40°C Max)
Turn the machine on. Recline the machine. Press trigger to
Fill clean water tank with
solution mix.
TIP
Tighten cap before
returning tank to unit.
release solution.
Unwrap power cord and
plug unit in.
For best results apply
solution on the forward
stroke and release the
trigger to recover solution
on the backward stroke.
Carpets should be dry
vacuumed thoroughly
before washing.
Picking up spills
Remove the long
reach hose from the
accessory bag.
Plug the long reach
hose into the front of
the cleaner.
Operating your Pre Treatment wand
40C
Max
Mix solution with
warm water.
(40°C Max)
Fill clean water tank with
solution mix.
Turn the machine on.
Tighten cap before
returning tank to unit.
Pull wash tool over spill to
pick up liquid.
Unwrap power cord and
plug unit in.
Turn the machine on. Plug the Pre Treatment
wand into the
Spray evenly onto
desired areas.
solution port.
Pre-treating your carpet before washing will help to remove stubborn stains. Do not saturate your carpet.
Leave pre-treatment solution to work for 10-15 minutes. Before setting the machine to wash, ensure the clean water
tank is rinsed thoroughly of Pre Treatment solution.
Cleaning the shroud
Using the wash tool
Using your machineUsing your machine
Remove the long
reach hose from the
accessory bag.
Turn the machine on. Press trigger to
Plug the long reach
hose into the front of
the cleaner.
release solution.
Plug the solution tube,
from the long reach hose,
into the solution port.
Pull wash tool over
treated area to pick
up solution.
TIP
Do not over saturate your upholstery.
The clean water tank will need to be lled with solution
and water before use.
For best results apply
solution on the forward
stroke and release the
trigger to recover on the
backward stroke.
Taking care of your machine Taking care of your machine
For large spills use the carpet washer
Turn the machine on. Recline the machine. For best results use
straight parallel strokes.
Emptying and cleaning the dirty water tank
IMPORTANT: All solution must be emptied from tanks when storing the machine.
IMPORTANT: Be sure to remove any debris that has accumalated in the screen above the oat. If
the screen becomes clogged, this may reduce the performance of your cleaner.
NOTE: Rinse out tank with clean water and leave to air dry before storing your machine
Remove dirty water tank
Lift dirty water tank clips up and outward to release.
CAUTION
Always switch o and unplug the
carpet washer from the electrical
outlet before assembling, lling
and emptying the clean water
tank, emptying the dirty water
tank, or before connecting /
disconnecting the attachments.
Taking care of your machine
Emptying and cleaning the dirty water tank
Lift to remove dirty water tank
lid. Empty dirty water over the
sink. Rinse dirty water tank and
lid under water to remove debris.
Clean the lter screen located at
the back of the dirty water tank.
Storage
Empty and rinse out clean and dirty water tanks
and leave to air dry before replacing.
Do not leave solution stored in the tanks between uses.
To re-t, tilt clean water/solution tank
and line up to carpet washer. Push
back until it clicks into place.
TIP
During normal use of cleaning,
debris may accumulate inside
the dirty water tank. In order
to keep your unit functioning
properly and to prevent any
odours building up, it is best
to rinse out your dirty water
tank with fresh water after
each use.
Let’s talk technical What to do if it goes wrong
Removing blockages from the brushbar
CAUTION
Threads caught in the
brushbar can be cut.
Replacing the belt or brushbars
WARNING: Do not open the motor cover.
Use a crosshead
screwdriver to remove
the seven screws.
Remove belt cover from unit.
NOTE: Wheel is intended to
be removed with belt cover.
To reduce the risk of electric
shock, turn the machine o
and unplug from electrical
socket before performing
maintenance/
troubleshooting checks.
Pull both brushbars
towards user to remove
from unit.
Remove and dispose of
old belt.
To replace belt, slip
the brushbars through
the belt. NOTE: Place
belt on rounded areas
of brushbars without
bristles.
With the belt in place, pull
and slide the brushbars
into the unit, making sure
the brushbar end caps are
in the correct position.
Place new belt on motor shaft. Replace belt cover
and secure by replacing all screws.
Why won’t my carpet
washer turn on?
Why won’t the solution/
clean water dispense?
Why won’t my carpet
washer pick up?
What to do if it goes wrong
SolutionProblem
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always
replace with a 13amp fuse
• Make sure the clean water tank is tted securely
• The clean water tank valve may be stuck, hold the clean water
tank over the sink and press the valve underneath to release
• The oat in the dirty water tank may have been activated.
Empty the dirty water tank wait for the oat to settle before
re-starting your carpet washer
• Check the dual spin power brushes for blockages and clear
• The dirty water tank may not be tted correctly, also make
sure the lid is pushed down securely
• Check the nozzle for blockages and clear
• Check the power brushes for blockages and clear
• Check the belt Go to ‘Replacing the belt or brushbars’
Why won’t the
brushes spin?
Caution: Always switch o and unplug the carpet washer from the electrical outlet before assembling, lling and emptying the clean water tank,
emptying the dirt water tank, or before connecting/disconnecting the attachments.
Important: Carpets should be dry vacuumed thoroughly before washing.
Caution: The carpet washer is a very powerful unit. Before plugging the cord into the electrical outlet, make sure all controls on the unit
are turned o. Hold the carpet washer rmly when starting and in use.
Important: The motor is equipped with a thermal cut-out. If for any reason the unit should overheat, the thermostat will automatically turn the
unit o. Should this occur, unplug the carpet washer from the electrical outlet and turn o the switch. Check the hose for blockages.
Clean the lters. Allow the unit to cool for approximately one hour. To re-start the machine, plug it into an electrical outlet and switch it back on.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
Accessories
Don’t forget your solution!
Order at: www.vax.co.uk/spares-and-solutions
Ultra+ Pet Carpet
Cleaning Solution (1.5L)
(1-9-132707-00)
Our best ever deep cleaning
performance on carpets and
upholstery. Ultra+ Pet Carpet
Cleaning Solution tackles
stubborn spots and stains
and removes unpleasant pet
odours too.
Pre Treatment
Trigger Spray (500ml)
(1-9-131929-00)
Ideal for use on carpets and
upholstery. Use this spray
before washing your carpets
to loosen stubborn stains and
embedded dirt. It is perfect
for those high trac areas,
removing dirty foot prints and
muddy paw prints.
Post Treatment
Trigger Spray (500ml)
(1-9-131930-00)
Ideal for use on carpets and
upholstery. Use this spray
after washing your carpets
to protect your carpets. It
contains an anti-resoil agent
to protect carpet bres and
keep them cleaner for longer
after cleaning.
Notes Notes
@VaxUK
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
email: info@vax.co.uk website: vax.co.uk
Version 2.1
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility,
declare that the W86-DP-T is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Loading...
