Dual Power
Let’s get started
W86-DP-R
vax.co.uk
Let’s talk safety
Thank you for buying this Dual Power.
Basic safety precautions
• This carpet washer is intended for household use only and
NOT for commercial or industrial use.
• Only use the carpet washer indoors and keep the area you’re
cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts and
openings whilst using the carpet washer.
• This carpet washer is NOT to be used by children under eight
years or persons with reduced physical, sensory or mental
capabilities, unless they have been given instructions on how
to use the machine or are supervised during use.
Don’ts
8 Don’t leave the carpet washer plugged in when unattended.
8 Don’t use this carpet washer if it has been dropped,
damaged or left outdoors.
8 Don’t run over the power cord or use carpet washer if
the power cord or plug is damaged. Please contact our
Customer Care Line on: 0844 4128 455
(Mon-Fri 8:30am to 6:00pm, Sat 09:00am to 5:00pm)
8 Don’t use your carpet washer to pick up any ammable or
combustible materials (lighter uid, petrol, kerosene etc.) or use
the carpet washer in an area with explosive vapours or liquid.
8 Don’t handle the plug or use the carpet washer with wet hands.
8 Don’t carry the carpet washer while it’s switched on.
8 Don’t pull or carry this carpet washer by the power cord.
3 Check with the manufacturer of your ooring prior to using
the carpet washer
3 The clean water tank should only be lled with warm water
(max 40’C). Filling the clean water tank with hot or boiling
water may damage your machine and invalidate your
guarantee.
3 Store your carpet washer in a cool, dry area. Before storing
your carpet washer please ensure all water/solutions tanks
and lters are thoroughly clean and dry.
3 Always vacuum your carpets thoroughly before using your
carpet washer.
3 Always unplug the carpet washer before carrying out any
maintenance and before connecting or disconnecting the
hose/accessories.
3 Turn o all controls on the carpet washer before
disconnecting or connecting the power cord, after use
always wrap the power cord around the cord clips provided.
• Any cleaning or maintenance of your carpet washer should not
be made by children without supervision and ensure they don’t
play with the carpet washer.
• Before using your carpet washer test your carpets/rugs/
upholstery for colourfastness and pile distortion.
• Only Vax recommend tools and solution should be used with
this carpet washer. Using other solutions may invalidate the
guarantee.
Please keep instructions for further use.
8 Don’t use the power cord as a handle, pull the power cord
around corners, sharp edges or close a door over the power
cord. Don’t unplug carpet washer by pulling on the power cord.
8 Don’t use your carpet washer to pick up hot coals, cigarette
butts, matches or smoking hot burning items or use in an
area where there may be harmful uids (chlorine, bleach, and
ammonia drain cleaner).
8 Don’t attempt to remove blockages with sharp objects as this
may cause damage to your carpet washer.
8 Don’t over saturate your carpet.
8 Don’t use the carpet washer with incorrect voltage as this may
result in damage or injury to the user. The correct voltage is
listed on the ratings label.
Do’s
3 Always replace the fuse in the plug with a 13amp fuse.
Always protect the power cable from heated surfaces or
near open ames.
3 Always keep the power cord away from the brushes whilst
using your carpet washer.
3 Use only CE approved 13amp extension cords, non-approved
extension cords may overheat. Care should be taken to
arrange the extension cord as it can be a trip hazard.
3 Take extra care when cleaning on the stairs.
3 Always use the carpet washer with all water/solution tanks
and lters in place.
3 Keep all openings clear and free from debris as this may
aect the airow/suction.
3 Always use the carpet washer in an upright position.
To prevent motor damage from dirty water, never hold
the carpet washer upside down or lay on its side.
Taking care of your carpets
The Dual Power is designed to make washing carpets regularly, as eective and ecient as
possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer and smell fresh and
clean. You’ve chosen carpets for your home for a reason and Vax will help you take good care
of them.
Taking care of your Dual Power
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets.
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0844 412 8455 (ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
Let us know what you think @VaxUK
Contents Getting to know your machine
Dual Power
Handle
Included with
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
your machine
Vax Ultra+ Carpet
Cleaning Solution
Carry handle
Clean water tank release button
Solution trigger (hidden)
Cord storage hooks
Taking care of your machine
Let’s talk technical
What to do if it goes wrong
Getting in touch
Accessories
Notes
Wash tool
Accessory
bag
Long reach
hose
Clean water tank
Dirty water tank handle
Dirty water tank
Hose connector
Solution port
Dual rotating
brushbars
Technical Specication
Name Dual Power
Code W86-DP-R
Part Number 1-1-133342-00
Voltage 220-240V ~50Hz
Wattage 800W
Power cable
On/o pedal
Cord storage hooks
Handle release
pedal
Wheels
Cord length 8m
Weight 6.6kg
Subject to technical change without notice.
Getting started Using your machine
PLEASE READ ‘LEt’S tALk SAFEtY’ At tHE BEGINNING BEFORE USE
Assembling your carpet washer
Stand base in
upright position and
lower top section to
connect onto base
Assemble the upper handle screw and tighten
with a cross/at head screwdriver
Assemble the two lower handle screws and tighten
with a cross/at head screwdriver.
Slide handle down
onto unit.
Before you begin cleaning
• IMPORTANT: Carpets should be dry vacuumed thoroughly
before washing
• Test for colourfastness – Wet a white absorbent cloth with the
solution. In a small hidden area of your carpet/rugs/upholstery
gently rub with the dampened cloth. Wait ten minutes and check
for colour removal or bleed with white paper towel or cloth. If your
carpet has more than one colour, check all colours
• Test your carpet/rugs/upholstery – Run the carpet washer over a
small hidden area. If no pile distortion occurs continue cleaning
• Don’t over saturate your carpets.
• When using the carpet washer, basic safety precautions should
always be observed
• IMPORTANT: Only use Vax carpet solution. Using other solutions
may cause excess foaming and may invalidate your warranty
• IMPORTANT: The clean water tank should only be lled with
warm water (max 40°C). Filling the clean water tank with hot/
boiling water may damage your machine and invalidate your
warranty.
• CAUTION: This is a powerful carpet washer, before plugging in
make sure all controls are turned o also hold carpet washer
rmly when staring and during use.
Cleaning the shroudOperating your carpet washer
Operating your carpet washer
Your dirty water tank is tted with a oat. When the dirty water tank is full or the oor head is not in contact with the
carpet the oat will shut o the suction at the oor nozzle. You will be able to hear if this has happened as the motor
noise on the unit will increase. Once the oat is activated, empty the dirty water tank if full. If the dirty water tank is not
full then turn o your machine at the power switch and wait for the oat to settle.
When cleaning an entire room,
move furniture out of the area
to be cleaned. If the furniture
is too heavy to move, place
aluminium foil or wax paper
under legs. This will prevent
wood nishes from staining
your carpet. Pin up furniture
skirts and curtains.
TIP
Xxxxxxxxxxxxx
Remove clean water tank Unscrew the clean water
tank cap from the top of
the clean water tank.
Pour required dose of
carpet cleaning solution
(approx.40ml per 1.0L of
water) and pour into tank.
Using your machine
Using your machine
Operating your carpet washer
40C
Max
Mix solution with
warm water.
(40°C Max)
Turn the machine on. Recline the machine. Press trigger to
Fill clean water tank with
solution mix.
TIP
Tighten cap before
returning tank to unit.
release solution.
Unwrap power cord and
plug unit in.
For best results apply
solution on the forward
stroke and release the
trigger to recover solution
on the backward stroke.
Cleaning the shroud
Picking up spills
Remove the long
reach hose from the
accessory bag.
Turn the machine on.
Plug the long reach
hose into the front of
the cleaner.
Pull wash tool over spill to
pick up liquid.
Carpets should be dry
vacuumed thoroughly
before washing.
Using your machine
Taking care of your machine
Cleaning the shroud
Using the wash tool
Remove the long
reach hose from the
accessory bag.
Turn the machine on. Press trigger to
Plug the long reach
hose into the front of
the cleaner.
release solution.
Plug the solution tube,
from the long reach hose,
into the solution port.
Pull wash tool over
treated area to pick
up solution.
For large spills use the carpet washer
Turn the machine on. Recline the machine. For best results use
straight parallel strokes.
Emptying the dirty water tank
IMPORTANT: All solution must be emptied from tanks when storing the machine
NOTE: Rinse out tank with clean water and leave to air dry before storing your machine
Do not over saturate your upholstery.
The clean water tank will need to be lled with solution
and water before use.
For best results apply
solution on the forward
stroke and release the
trigger to recover on the
backward stroke.
TIP
Remove dirty water tank To empty the tank, unplug
the quick spout pour cap
and empty.
Insert dirty water tank
back into the cleaner
WARNING
Always switch o and unplug the
carpet washer from the electrical
outlet before assembling, lling
and emptying the clean water
tank, emptying the dirty water
tank, or before connecting /
disconnecting the attachments.
Taking care of your machine Let’s talk technical

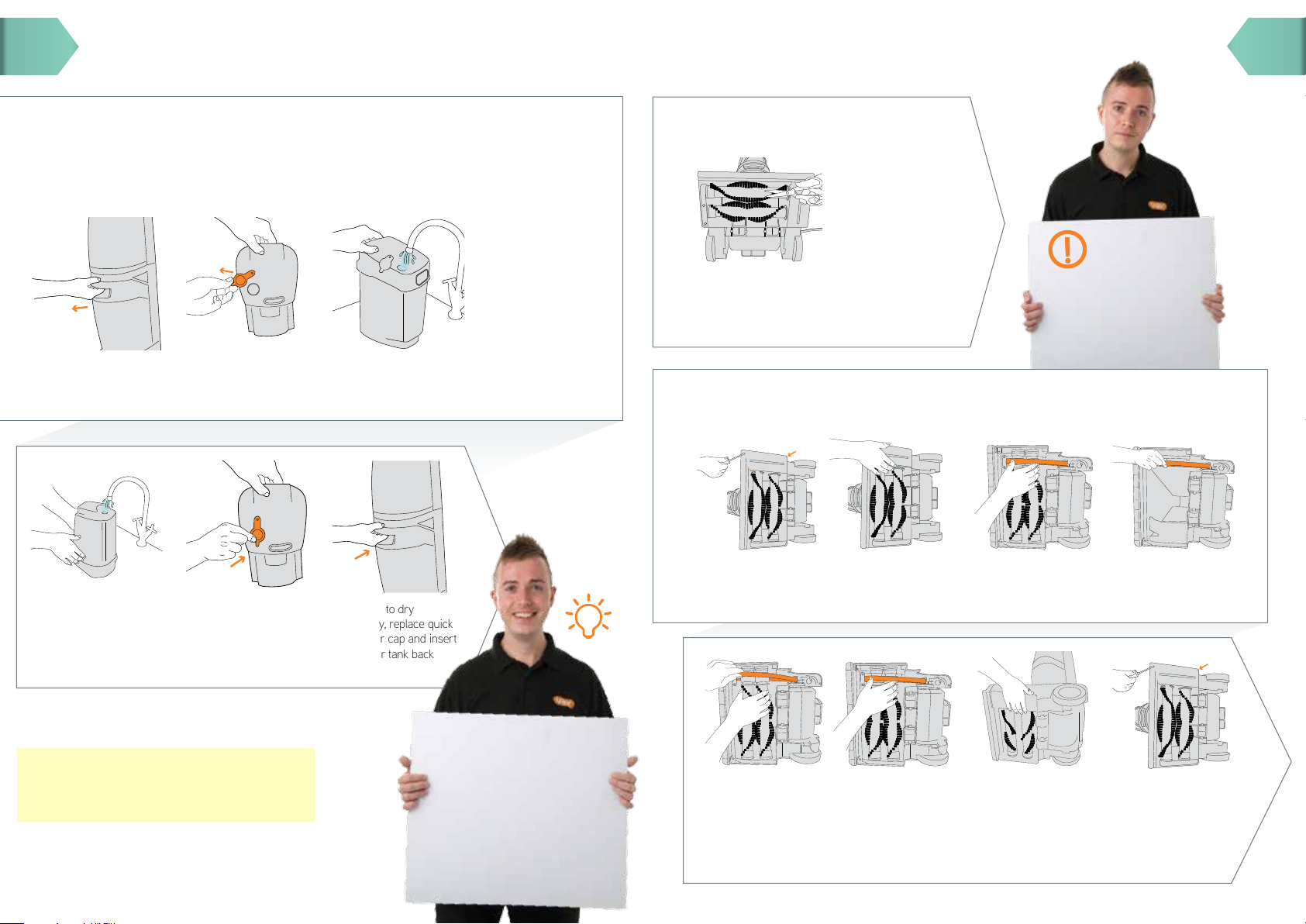

Cleaning the dirty water tank
IMPORTANT: Be sure to remove any debris that has accumulated in the screen above the oat. If the screen
becomes clogged, this may reduce the performance of your cleaner.
IMPORTANT: For full suction it is important that the quick pour cap is securely in place. If misplaced, suction will be
severely aected.
Remove dirty water tank
To clean dirty water tank ducting, place dirty water tank
under a tap and dispense high pressure clean water into the
inlet port of the dirty water tank to loosen debris that has
accumulated
Open quick spout pour cap and partially ll dirty water tank with
clean water and swirl around to loosen debris
Allow tank to dry
completely, replace quick
spout pour cap and insert
dirty water tank back
onto unit
TIP
Removing blockages from the brushbar
Threads caught in the
brushbar can be cut.
Replacing the belt or brushbars
WARNING: Do not open the motor cover.
Use a crosshead
screwdriver to remove
the seven screws.
Remove belt cover from unit.
NOTE: Wheel is intended to
be removed with belt cover.
To reduce the risk of electric
shock, turn the machine o
and unplug from electrical
socket before performing
maintenance/
troubleshooting checks.
Pull both brushbars
towards user to remove
from unit.
WARNING
Remove and dispose of
old belt.
Storage
Empty and rinse out clean and dirty water tanks
and leave to air dry before replacing.
Do not leave solution stored in the tanks between uses.
During normal use of cleaning,
debris may accumulate inside
the dirty water tank. In order
to keep your unit functioning
properly and to prevent any
odours building up, it is best
to rinse out your dirty water
tank with fresh water after
each use.
To replace belt, slip
the brushbars through
the belt. NOTE: Place
belt on rounded areas
of brushbars without
bristles.
With the belt in place, pull
and slide the brushbars
into the unit, making sure
the brushbar end caps are
in the correct position.
Place new belt on motor shaft. Replace belt cover
and secure by replacing all screws.
What to do if it goes wrong Getting in touch
SolutionProblem
• The plug may not be fully pushed into the electrical socket.
Why won’t my carpet
washer turn on?
Why won’t the solution/
clean water dispense?
Why won’t my carpet
washer pick up?
• Check the fuse in the plug if this needs replacing, always
replace with a 13amp fuse
• Make sure the clean water tank is tted securely
• The clean water tank valve may be stuck, hold the clean water
tank over the sink and press the valve underneath to release
• The oat in the dirty water tank may have been activated.
Empty the dirty water tank wait for the oat to settle before
re-starting your carpet washer
• Check the dual spin power brushes for blockages and clear
• The dirty water tank may not be tted correctly, also make
sure the lid is pushed down securely
• Check the nozzle for blockages and clear
• Check the power brushes for blockages and clear
• Check the belt Go to ‘Replacing the belt or brushbars’
Why won’t the
brushes spin?
Warning: Always switch o and unplug the carpet washer from the electrical outlet before assembling, lling and emptying the clean water tank,
emptying the dirt water tank, or before connecting/disconnecting the attachments.
Important: Carpets should be dry vacuumed thoroughly before washing.
Caution: The carpet washer is a very powerful unit. Before plugging the cord into the electrical outlet, make sure all controls on the unit
are turned o. Hold the carpet washer rmly when starting and in use.
Important: The motor is equipped with a thermal cut-out. If for any reason the unit should overheat, the thermostat will automatically turn the
unit o. Should this occur, unplug the carpet washer from the electrical outlet and turn o the switch. Check the hose for blockages.
Clean the lters. Allow the unit to cool for approximately one hour. To re-start the machine, plug it into an electrical outlet and switch it back on.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
Accessories
Don’t forget your solution!
Order at: www.vax.co.uk/spares-and-solutions
Notes
Ultra+ Pet Carpet
Cleaning Solution (1.5L)
(1-9-132707-00)
Our best ever deep cleaning
performance on carpets and
upholstery. Ultra+ Pet Carpet
Cleaning Solution tackles
stubborn spots and stains
and removes unpleasant pet
odours too.
Pre Treatment
Trigger Spray (500ml)
(1-9-131929-00)
Ideal for use on carpets and
upholstery. Use this spray
before washing your carpets
to loosen stubborn stains and
embedded dirt. It is perfect
for those high trac areas,
removing dirty foot prints and
muddy paw prints.
Post Treatment
Trigger Spray (500ml)
(1-9-131930-00)
Ideal for use on carpets and
upholstery. Use this spray
after washing your carpets
to protect your carpets. It
contains an anti-resoil agent
to protect carpet bres and
keep them cleaner for longer
after cleaning.
Notes Notes
@VaxUK
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
email: info@vax.co.uk website: vax.co.uk
Version 2.0
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility,
declare that the Dual Power series is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Loading...
