www.vax.co.uk
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Bagless upright
Vax model number:
VZL-6013
VZL-6014
VZL-6013A
VZL-6014A
VZL-6013AL
VZL-6013ALL
WARNING: This cleaner has a constantly
rotating brush bar which, when left in
contact with lino, parquet and other hard flooring
could potentially cause some damage to the floor
surface.
NOTE: Vax recommends that you raise the height
of the brush bar when using this cleaner on lino and
hard flooring. Vax cannot be held responsible for
damage to these surfaces if the customer fails to
take notice of this recommendation.
!
1. Diagram
www.vax.co.uk
2
parts overview
1 Handle Grip
2 On/off switch
3 Telescopic handle
4 Handle release button
5 Carrying handle
6 Dirt container release button
7 Dirt container assembly
8 Dirt container door hinge
9 Stair cleaning handle
(located below edge of dirt container)
10 Headlight
11 Carpet height adjuster
(located on back of dirt container)
12 Furniture guard
13 Hose handle
14 Combination tool
15 Powered hand tool
16 Hose
17 Hose/tool holder
18 Extension Tubes
19 Crevice tool
20 Quick release cord hooks
21 Handle release pedal
22 Hard Floor Brush
(Models: VZL-6014, VZL-6014A only)
23 Additional stretch hose
(Models: VZL-6013AL, VZL-6013ALL,
VZL-6014, VZL-6014A only)
Fig.1/1
1
16
8
7
9
10
11
12
14
13
17
15
14
20
19
18
21
20
15
4
5
6
3
2
22
23
VZL-6013
VZL-6014
WARNING: This cleaner has
a constantly rotating brush
bar which, when left in contact
with lino, parquet and other hard
flooring could potentially cause
some damage to the floor surface.
NOTE: Vax recommends that you
raise the height of the brush bar
when using this cleaner on lino
and hard flooring. Vax cannot be
held responsible for damage to
these surfaces if the customer
fails to take notice of this
recommendation.
!
!
3
V
ax Careline 0870 606 1248
safety information
2. Safety Information
For Household Use Only
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.
7. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
8. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
9. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.
12. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.
13. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).
14. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool, dry area.
19. Turn off the on/off switch before unplugging the
vacuum cleaner.
20. Use only CE-approved 13 amp extension cords. Nonapproved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical
outlet, make sure the switch is in the ‘off’ position. Hold
the vacuum cleaner firmly when starting and in use.
IMPORTANT: If the inlet, hose or extension tube is
blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the vacuum
cleaner.
IMPORTANT: Cleaning filters regularly improves
vacuum performance. Make sure all filters are
replaced back into the vacuum cleaner before using. This
vacuum cleaner is intended for household use only and
not for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.
!!!
!
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the vacuum
cleaner should over-heat, the thermostat will
automatically turn the unit off. Should this occur,
unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove the dirt container
and empty. Clean the filters. Allow the cleaner to cool
for approximately one (1) hour. To re-start, plug into
an electrical outlet and switch back on.
!
www.vax.co.uk
4
assembly
3. How to assemble
Attach Handle
Grasp orange tie wrap and pull until the black plug comes
out of the handle cavity (Fig.3/1).
Hold plug with one hand; upper handle with the other
hand. Push plug into upper handle, aligning with opposite
end of plug and push firmly until you hear a snap or click
(Fig.3/2). After ends are connected, pull on plug to make
sure it is securely attached.
Align the groove on the back of the upper handle with
the small projection on the back of the handle housing.
Push upper handle down until you hear a click (Fig.3/3).
Press button at handle base and push handle all the way
down (Fig.3/4).
Adjusting Handle
For convenience in storing or carrying your cleaner, the
handle is designed to retract into the body of the cleaner.
Lower the handle by depressing the button located at the
handle base and pushing the handle down. Raise the
handle by depressing the button and pulling the handle
upward, locking it into the desired position (Fig.3/5).
Transporting Cleaner
To move your cleaner from room to room, put handle in
upright position, tilt cleaner back on rear wheels and push
forward (Fig.3/6).
Fig.3/1
Fig.3/2
Fig.3/3
Fig.3/4
Fig.3/5
Fig.3/6
5
V
ax Careline 0870 606 1248
operation
4. How to operate
Carrying Cleaner
The cleaner can also be moved by using the carrying
handle (Fig.4/1).
Handle Positions
The handle of your cleaner has three positions; upright
for storage and when using cleaning tools; operating
position for general operation on carpet and floors; low
for reaching under low furniture.
Step on handle release lever to lower handle (Fig.4/2).
Carpet Height Adjustment
The cleaning of carpet and rugs takes place at the nozzle
(A). When it is necessary to raise and lower the nozzle for
various carpet pile heights, place handle in upright
position and turn the carpet height adjuster (B) to the
desired setting (Fig.4/3).
NOTE: The nozzle will not move into the adjusted
position until the cleaner handle is lowered to the
operating position.
Settings
For maximum cleaning performance, the following carpet
height settings are recommended:
• Lowest setting: for all types of carpet.
NOTE: If the cleaner is difficult to push, turn knob to
the next higher setting.
• Higher settings: for very deep pile carpet, where easier
pushing effort is desired, while maintaining good cleaning
performance.
Cleaning Lightweight Flexible Rugs
Stand on one end of rug and move cleaner toward other
end or edge. Before reaching edge, push down on handle.
This will lift up the nozzle (front of cleaner) as shown and
will prevent rug from clinging to cleaner (Fig.4/4).
Continue to lift up nozzle so that when you have reached
the edge, it is completely off the rug. Move cleaner back
to start again, lower nozzle, and use only forward strokes.
Stair Cleaning
A stair cleaning handle has been designed for ease in
using your cleaner on stairs. With handle in operating
position, place fingers under edge of stair cleaning
handle and guide cleaner with other hand on upper
handle (Fig.4/5).
Fig.4/1
Fig.4/2
Fig.4/3
A
B
Fig.4/4
WARNING: This cleaner has a constantly
rotating brush bar which, when left in contact
with lino, parquet and other hard flooring could
potentially cause some damage to the floor surface.
NOTE: Vax recommends that you raise the height of
the brush bar when using this cleaner on lino and hard
flooring. Vax cannot be held responsible for damage to
these surfaces if the customer fails to take notice of
this recommendation.
!
www.vax.co.uk
6
operation
As an alternative, you may use the hose and power hand
tool for stair cleaning. Clean from bottom to top.
NOTE: When using cleaning tools, the brush bar will
continue to rotate.
CAUTION: To avoid personal injury or unnecessary
wear to carpet, and to prevent the cleaner from
falling, always place it at bottom of stairs.
Cleaning Tools
Tools allow for cleaning surfaces above the floor and for
reaching hard to clean areas.
The cleaner is ready for tool use when handle is in
upright position.
CAUTION: The brush bar continues to rotate
while cleaner handle is in upright position.
Avoid tipping cleaner or setting it on furniture,
fringed area rugs or carpeted stairs during tool use.
How to Clean Tools
To clean the hose, wipe off dirt with a cloth dampened in
a mild detergent. Rinse with a damp cloth.
Cleaning tools may be washed in warm water with a
detergent. Rinse and air dry before using.r easiest
adjustment, place cleaner in full upright position.

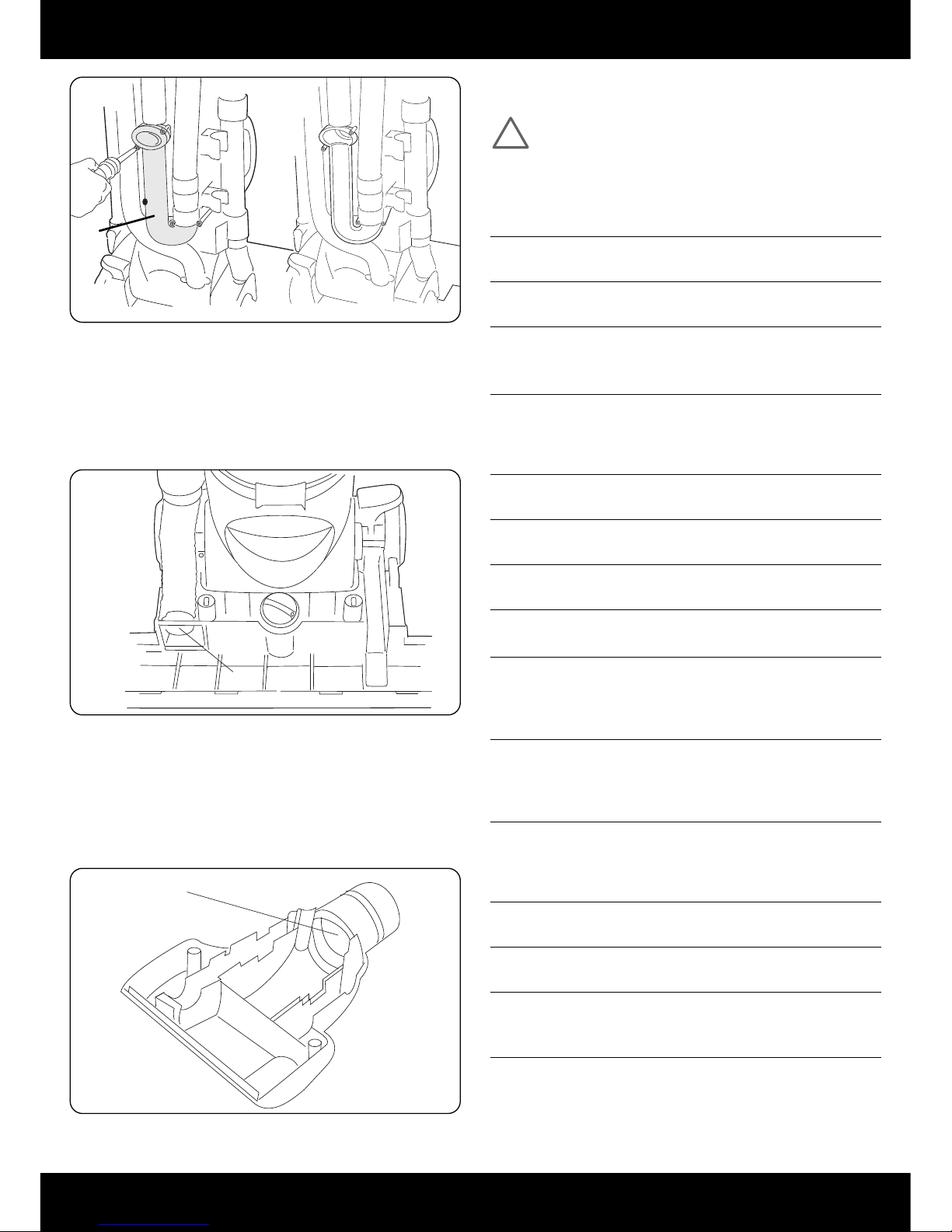

Removing Hose
When using cleaning tools, cleaner handle should be in
the upright position. Also, turn cleaner OF before
disconnecting and connecting hose to hose tube (A).
To use hose, lift hose end (B) as shown. Check to be sure
the hos tube cover (C) is closed over the hose tube
(Fig.4/6).
When you are finished cleaning with the tools, lift cover
from hose tub and reposition hose end into tube.
Select Proper Tool
Combination tool: use with brush for carved furniture,
table tops, books, lamps, lighting fixtures, venetian blinds,
baseboards, shutters, and registers.
Remove brush to clean upholstered furniture, draperies,
mattresses, clothing, and carpeted stairs.
Powered hand tool: may be used for upholstered
furniture, draperies, mattresses, clothing, automobile
interiors, and carpeted stairs.
Crevice tool: may be used in tight spaces, corners and
along edges in such places as dresser drawers,
upholstered furniture, stairs and baseboards.
Wands: are used to give extra length to your hose. Use
them with any of the above tools.
Floor brush: (available on some models only) use on hard
surface floors.
Attach wand and tools
Attach tool or wand to the hose. Attach tool to wand by
pushing it firmly onto the wand. Twist wand or tool
slightly to tighten or loosen the connection.
Combination tool
Slide brush to remove. To replace brushes, align bottom of
brush with grooves on tool. Slide brush into place (Fig.4/7).
!
!
Fig.4/5
Fig.4/6
Fig.4/7
B
A
C
7
V
ax Careline 0870 606 1248
dirt container and filters
5. Dirt container & filters:
removal & replacement
NOTE: Familiarize yourself with these home
maintenance tasks as proper use and care of your
cleaner will ensure continued cleaning effectiveness.
Emptying the Dirt Container
Empty the dirt cup before the dirt reaches the fill line (A)
(Fig.5/1).
CAUTION: Very fine materials, such as face
powder or cornstarch, may seal the filter and
cause a reduction in performance.
When using the cleaner for this type of dust, empty the
cup and clean the filters often.
How to Empty
IMPORTANT: Disconnect cleaner from electrical
outlet. Do not use the cleaner without dirt cup
or filters in place.
Press dirt cup release button and pivot cup out (Fig.5/2).
Holding dirt cup over trash receptacle, press dirt cup door
release button (A) to open dirt cup door (Fig.5/3).
Press dirt cup door release button to latch dirt cup door
closed.
Place bottom of dirt cup in first. Pivot cup into cleaner
body (Fig.5/4).
Press on dirt cup release button while firmly pressing on
dirt cup. Release button in order for it to return to proper
position and lock the dirt cup into place (Fig.5/5).
Cleaning Filters
Cleaning the Cyclonic Filter Assembly
IMPORTANT: Disconnect cleaner from electrical
outlet. Do not use cleaner without dirt cup or
filters in place.
Fig.5/3
Fig.5/4
Fig.5/5
Fig.5/1
Fig.5/2
A
A
!!!
www.vax.co.uk
8
dirt container and filters
Remove dirt container as described above. Twist filter
assembly counterclockwise. Remove assembly from dirt
container (Fig.5/6).
Dirt and debris can be cleaned from the filter assembly by
brushing with the cleaner’s combination tool.
Place the filter assembly on the dirt cup, aligning tabs (A)
on either side of filter with slots on dirt cup (B) and twist
it clockwise to secure into position.
Press dirt cup door release button (C) to latch dirt cup
door closed (Fig.5/7).
Replace dirt cup as described above.
Cleaning the Secondary Filter
IMPORTANT: Disconnect cleaner from electrical
outlet. Do not operate cleaner without dirt cup
or filters in place.
Remove dirt cup as previously described.
Pull down on latch (A) located at the top of the dirt cup
cavity to remove gray filter frame (B). Remove white
fabric filter and black foam filter from frame. Hand wash
filters in cold water with a mild detergent.
Allow filter frame and both filters to air dry for 24 hours
before replacing filters into filter frame.
Reposition filter frame by inserting tabs (C) into slots (D)
on back of dirt cup cavity. Rotate filter frame up toward
top of dirt cup cavity and snap closed (Fig.5/8).
Cleaning the Final Filter
IMPORTANT: Disconnect cleaner from electrical
outlet. Do not operate cleaner without dirt cup
or filters in place.
Remove dirt cup as previously described.
Pull filter frame (A) straight out from bottom of dirt
container cavity. Do not attempt to remove filter (B) from
frame (Fig.5/9).
Hand wash in cold water with a mild detergent.
Allow to air dry for 24 hours before replacing frame into
bottom of dirt cup cavity.
Fig.5/6
Fig.5/8
Fig.5/7
Fig.5/9
A
A
A
B
B
C
D
B
C
!
!
9
V
ax Careline 0870 606 1248
maintenance
To remove the hood, press handle release pedal and place
handle in low position. Using a coin, turn the two slots (A)
on either side of the hood as shown (Fig.6/3).
Rotate hood toward front of cleaner and remove the
hood (Fig.6/4).
Remove brush bar and used belt (Fig.6/5). Discard used
belt.
To install the new belt, with lettering on outside of belt,
slide new belt over motor pulley (A). Insert brush bar
through belt and place belt in belt guide (B) on brush bar
(Fig.6/6).
6. Maintenance
Replacing the Headlight
Removing lens
Disconnect cleaner from electrical outlet.
Press handle release pedal and place handle in low
position.
Using a Phillips screwdriver, remove the the screw as
shown and lift off lens (Fig.6/1).
Pull old bulb straight out of socket.Push new bulb straight
into socketuntil locked in place (Fig.6/2).
Excessive force is not required.
Reposition lens and secure with the screw.
Belt Replacement
The belt on your vacuum cleaner causes the brush bar to
rotate and is important for the effective operation of the
cleaner. The belt is located under the hood of the cleaner
and should be checked from time to time to be sure it is
in good condition.
IMPORTANT: Disconnect cleaner from electrical
outlet.
To check belt, remove hood as shown below. Replace belt
if it is stretched, cut or broken.
Fig.6/1
Fig.6/2
Fig.6/3
Fig.6/4
Fig.6/5
A
A
!
www.vax.co.uk
10
maintenance
Grasp brush bar firmly and fit it into position by first
sliding end opposite the belt into the rectangular slot (A)
on side of cleaner.
Pull other side of brush bar (B) into place (Fig.6/7).
Turn brush bar making sure belt turns freely and is not
pinched between brush bar and bottom of cleaner.
To replace the hood, align tabs (A) on hood with slots (B)
on base of cleaner. Pivot hood into position.
Secure hood into position by turning the coin slots (Fig.
6/8).
Replacing the Brush Bar
When brush bar brushes are worn, the brush bar should
be replaced.
IMPORTANT: To check condition of brushes,
disconnect cleaner from electrical outlet.
Move edge of a card across bottom plate while turning
brush bar (Fig.6/9).
To maintain cleaning effectiveness, replace brush bar if
brushes do not touch card.
Powered Hand Tool Brush Bar Replacement
When brush bar brushes are worn, the brushbar should be
replaced.
Remove tool from hose and turn it so bottom faces up.
Press the latches on both sides of tool and remove
bottom plate (A) (Fig.6/10).
Unscrew the two Phillips screws and remove belt guard
(Fig.6/11).
!
Fig.6/6
Fig.6/7
Fig.6/9
Fig.6/10
Fig.6/11
Fig.6/8
A
A
A
B
B
11
V
ax Careline 0870 606 1248
maintenance
Remove brush bar including end plates (A) and discard.
Inspect belt to ensure that it is in good condition. If belt
is cracked, gouged or broken, replace it (see following
section).
Insert brushbar through belt and position belt over gear
teeth (B) on brushbar (Fig.6/12).
With curved ends down, slide end plates (A) of brushbar
into slots (B) on too (Fig.6/13).
Replace belt guard (A) making sure not to pinch brush
bristles in guard. Turn brush bar, to make sure it rotates
freely (Fig.6/14).
Replace and tighten screws.
To replace bottom plate, insert the four tabs on edge of
bottom plate into slots on front of tool.
Pivot bottom plate down and snap closed (Fig.6/15).
Powered Hand Tool Belt Replacement
The powered hand tool belt is designed to last a long
time and is not normally replaced. However, if the belt is
cracked, gouged or broken, it should be replaced.
Remove tool from hose. The belt can be seen through the
top of the nozzle or by removing the bottom plate and
belt guard (Fig.6/16).
Remove tool from hose. Remove bottom plate, belt guard
and brushbar as described previously.
Grasp turbine (A) and pull firmly to remove. Remove belt
from turbine pulley (B). Replace with new belt (Fig.6/17).
Fig.6/12
Fig.6/13
Fig.6/15
Fig.6/16
Fig.6/17
Fig.6/14
A
B
A
A
B
B
www.vax.co.uk
12
maintenance / clearing blockages
With flat sides of turbine retainers (A) pointing down, slide
retainers into grooves (B) in tool housing and snap into
place (Fig.6/18).
Replace brushbar, belt guard, and bottom plate as
described previously.
7. Clearing blockages
IMPORTANT: Disconnect cleaner from electrical
outlet before attempting to clear blockages.
Low suction or pick up may be due to a blockage in the
system. Refer to the following steps to check for blockages
continuing with each step until the blockage is found:
Check fullness of dirt cup; empty if needed.
Checking Airflow Path
Plug cleaner in and turn ON. Check for suction at end of
hose (A) (Fig.7/1). If there is suction, continue with next
step.
Turn cleaner OFF and unplug.
Check connection at hose tube (A); remove any blockage
(Fig7/2).
Checking Airflow Path Through Hose Inlet Tube on
Back of Cleaner
Turn cleaner OFF and unplug.
If blockage can be seen in tube (A), remove 5 screws using
a Phillips screwdriver. Pull tube from cleaner, remove
blockage (Fig.7/3).
Fig.6/18
Fig.7/1
Fig.7/2
!
A
A
A
B
13
V
ax Careline 0870 606 1248
clearing blockages / troubleshooting
Reposition tube on back of cleaner, replace 5 screws.
Checking Under Hood
Turn cleaner OFF and unplug.
Remove hood, belt and brush bar as described in previous
section. Look into opening (A) for blockages and remove
(Fig.7/4).
Replace belt, brush bar and hood.
If a Blockage Occurs During Powered Hand Tool Use
Disconnect powered hand tool from hose. Remove bottom
plate, belt guard and turbine as described in previous
section.
Remove any blockage from turbine channel (A) (Fig.7/5).
Replace belt turbine, brush roll, belt guard and bottom plate.
8. Troubleshooting
WARNING: To reduce the risk of personal injury,
u
nplug vacuum cleaner before servicing.
PROBLEM: Cleaner won’t run
Cause: Not properly plugged into wall outlet.
Solution: Plug in firmly.
Cause: No electricity in wall outlet.
Solution: Check fuse or breaker.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
Cause: Motor thermostat tripped.
Solution: Switch off and unplug the vacuum cleaner.
Leave for one (1) hour. See page 3.
PROBLEM: Cleaner/tools won't pick up
Cause: Broken or worn belt.
Solution: replace belt.
Cause: Brush bar worn.
Solution: Replace brush bar.
Cause: Dirt container full.
Solution: Empty dirt container.
Cause: Incorrect carpet height setting.
Solution: Move nozzle control knob to lower setting.
Cause: Blockage in air flow passages.
Solution: Clear blockage - refer to section 7.
PROBLEM: Cleaner hard to push
Cause: Incorrect carpet height setting.
Solution: Move nozzle control knob to higher setting.
PROBLEM: Smoky/burning smell detected
Cause: Belt broken or stretched.
Solution: Replace brush bar as described in Section 7.
PROBLEM: Powered Hand Tool brushbar won’t turn
Cause: Too much pressure being applied to tool.
Solution: Continue using tool applying light pressure.
Cause: Blockage in turbine channel.
Solution: Remove blockage - refer to section 7.
Cause: Broken or worn belt.
Solution: Replace belt.
Cause: Low cleaner suction.
Solution: Check items under “Cleaner/tools won’t pick
up” above.
Fig.7/4
Fig.7/5
Fig.7/3
!
A
A
A
www.vax.co.uk
14
uk service & help / technical specification
9. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 8.00am to 8.00pm.
Saturday-Sunday 9.00am to 5.00pm.
Any queries or concerns about using the Vax, call the Vax
Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
10. Technical Specification
Voltage: 220 – 240V ~50Hz
Wattage: 1300W
Capacity: 2.5l
Filters: Washable pre-motor filter assembly
Washable HEPA post-motor filter assembly
Washable anti-bacterial post-motor filter
(VZL-6013ALL only)
Cord Length: 9m
Weight: 9.04kg
Subject to technical change without notice.
15
V
ax Careline 0870 606 1248
This page has been left intentionally blank.
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
VZL-6013 Mach 3 Range and VZL-6014 Mach 4 Range upright vacuum cleaners
are manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: www.vax.co.uk
Loading...
