Instruction Manual
MODIFIED DECEMBER 200 8 P/N Z6410
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
VZ-701
Z-6000
2
1. Safety Information
FOR HOUSEHOLD USE ONLY
When using the vacuum cleaner, basic safety
precautions should always be observed,
including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains
supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum
hose and accessories.
4. This appliance is not intended for use by
young or infirm persons unless they have
been adequately supervised by a responsible
person to ensure that they can use the
appliance safely.
Young children should be supervised
to ensure that they do not play with the
appliance.
5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped
into water. Do not use the vacuum cleaner
with a damaged cord or plug. If the supply
cord or plug is damaged, return the vacuum
cleaner to a Vax Authorised Service Agent
for examination, repair or replacement.
7. Do not pull or carry by the cord. Do not use
the cord as a handle, close a door on the
cord or pull the cord around sharp edges or
corners. Do not run the vacuum cleaner over
the cord. Keep the cord away from heated
surfaces.
8. Do not handle the plug or vacuum cleaner
with wet hands. Do not use outdoors or on
wet surfaces.
9. Do not put any objects into openings. Do
not use with any openings blocked and do
not restrict air flow. Keep all openings free of
dust, lint, hair or anything that may reduce
airflow.
10. Keep hair, loose clothing, fingers and all
parts of the body away from openings and
moving parts.
11. Do not pick up hot coals, cigarette butts,
matches or any hot, smoking or burning
objects.
12. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc)
or use in the presence of explosive liquids or
vapours.
13. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner,
etc).
14. Do not vacuum up hard or sharp objects
such as glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool,
dry area.
19. Turn off the on/off switch before unplugging
the vacuum cleaner.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt
container, or before connecting/disconnecting
the attachments.
IMPORTANT: If the inlet, hose or telescopic
tube is blocked, switch off the vacuum cleaner
and remove the blockage(s) before re-starting.
This vacuum cleaner is intended for household
use only and not for commercial or industrial
use.
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the vacuum
cleaner should over-heat, the thermostat will
automatically turn the unit off. Should this occur,
unplug the vacuum cleaner from the electrical
outlet and turn off the switch. Remove the dirt
container and empty. Clean or replace the filters.
Allow the cleaner to cool for approximately one
(1) hour before restarting.
7
Troubleshooting
WARNING: To reduce the risk of injury,
unplug vacuum cleaner before servicing.
PROBLEM: Vacuum cleaner won’t run
Cause: Not properly plugged into electrical
outlet.
Solution: Plug in firmly.
Cause: No electricity in the electrical outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat tripped.
Solution: Switch off and unplug the vacuum
cleaner. Leave for one (1) hour before
switching the vacuum cleaner back on.
Cause: Blown fuse/tripped breaker.
Solution: Reset house circuit breaker or
replace fuse.
PROBLEM: Cleaner won’t pick up/loss
of suction
Cause: Dirt container not installed properly.
Solution:
Review dirt container replacement.
Cause: Dirt container full or blocked.
Solution: Empty dirt container.
Cause: Clogged filters.
Solution: Remove, clean and replace filters.
PROBLEM: Accessories won’t pick up
Cause: Accessories not attached correctly.
Solution: Refer to section 5.
PROBLEM: Dust escaping from the
vacuum cleaner
Cause: Dirt container full.
Solution: Empty dirt container.
Cause: Dirt container not installed correctly.
Solution: Review dirt container
replacement.
Cause: Filter not installed completely.
Solution: Remove, clean and replace filters.
VAXCARE Service & Help:
AUSTRALIA 1300 36 4040
NEW ZEALAND 0800 800 900
Any queries or concerns about using the
Vax, call VAXCARE.
Please make a note of the model number of
the appliance before calling.
(Aust only: Mon-Fri. 10.00am to 6.00pm. EST)
Calls are charged at the local rate.
An answerphone is available out of these
hours.
There are over 300 approved Vax Service Agents
in Australia and New Zealand. For the nearest
Service Agent, please refer to your Vax warranty
or call VAXCARE or visit www.vax.com.au
Technical Specification
Name: Zero Compact
Part No: Z-6000
Voltage: 220-240V~50Hz
Wattage: 1600W
Capacity: 1.5 litres approx
Filters: Cyclone separator - wipe clean
Pre-motor filter - washable
HEPA Post-motor filter - washable
Cord length: 6m
Weight: 5.2kg
Subject to technical change without notice.
Separate the foam filter from the fabric
cassette. Each filter can be tapped against
the side of a dust bin to remove the excess
dirt and dust (Fig 6/6).
Fig.6/5
Fig.6/6
The pre-motor filters may be rinsed in warm
water (max 40 deg.). Allow to thoroughly air
dry before replacing.
NOTE: Do not use any detergents or boiling
water to wash the filter. Vax recommends this
filter should be checked and cleaned
periodically.
Once completely dry, return the pre-motor
filters and case to the vacuum cleaner.
Replace the pre-motor filter cover before
restarting the vacuum cleaner.
Cleaning the Post-motor filter
NOTE: This is located on the base of the
vacuum cleaner.
Using a coin, rotate the post-motor filter
cover lock clockwise, and remove the cover
as shown. Remove the filter by pulling the tab
towards you (Fig 6/7).
Fig.6/7
3

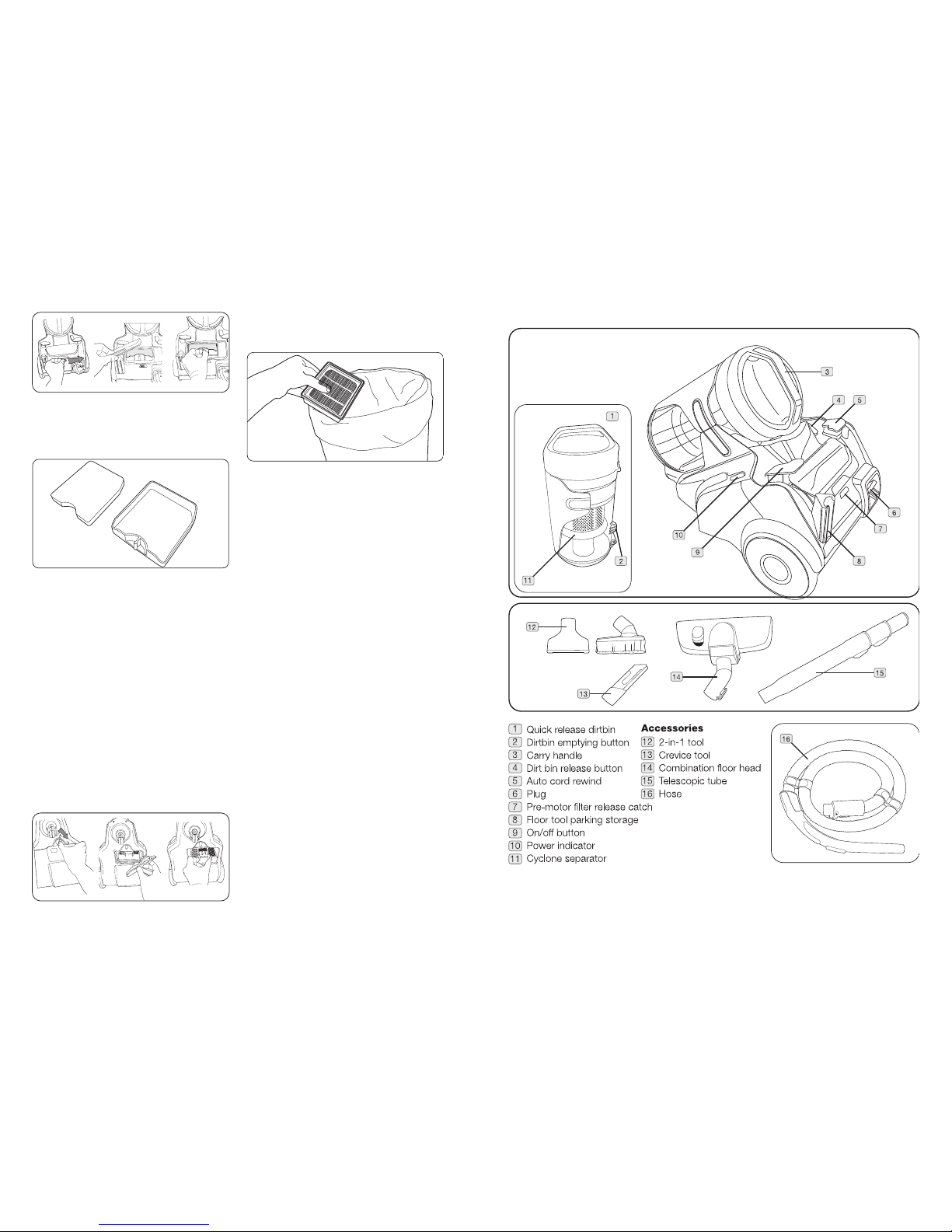

2. Parts Overview
6
7. Cleaning Blockages
WARNING: To reduce the risk of injury, the
power cord must be disconnected before
performing maintenance / troubleshooting
checks.
1. Turn the vacuum cleaner off and unplug
from the electrical outlet.
2. The flexible hose can be disconnected
from the vacuum cleaner by turning the
hose to the left and pulling away from the
machine. Remove any blockages found
then reconnect the hose securely.
8. Storage
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet and rewind
the power cord as directed before storing.
NOTE: Always store the vacuum cleaner
base down.
Replacement Filters
If lost or damaged replacement filters are
available from your stockist or Vax direct.
Phone Vaxcare or visit www.vax.com.au for
stockist listing.
Fig.6/8
T
he filter can be tapped against the side of a
dust bin to remove the excess dirt and dust
(Fig 6/8).
The post- motor filter may be rinsed in warm
water (max 40 deg.). Allow to thoroughly air
dry before replacing.
NOTE: Do not use any detergents or boiling
water to wash the filters. Vax recommends
washing the filter every 3-6 months.
Once completely dry, return the post-motor
filter to the vacuum cleaner. Replace the
post-motor filter cover before restarting the
vacuum cleaner.
3. How to Assemble
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before
assembling or removing the accessories.

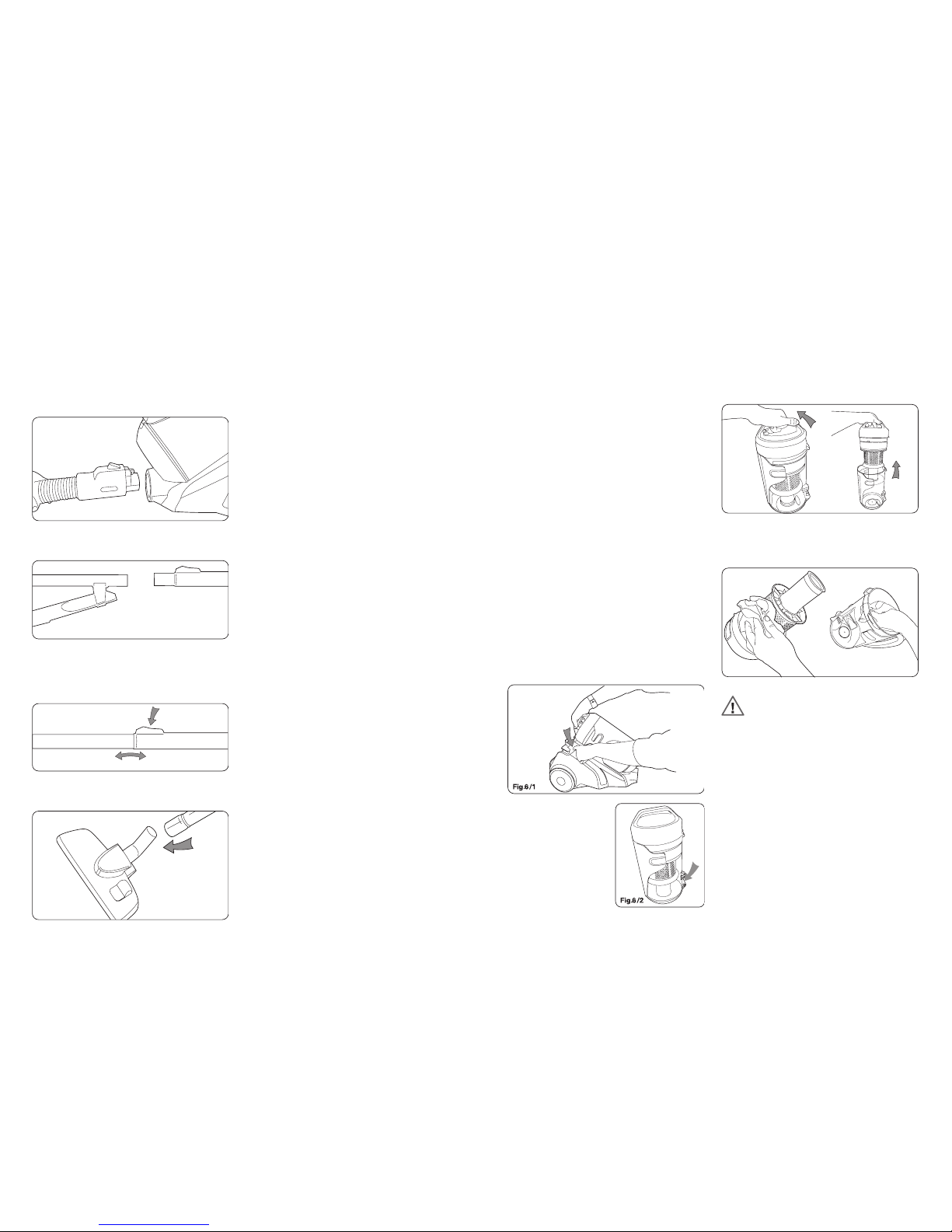

Insert the flexible hose (Fig.3/1) into the inlet
on the main body by pressing the clip on the
connector and releasing when the clip clicks
into place.
4. How to Operate
Cord Release
Fully unwind the power cord. A yellow mark on
the power cord indicates the recommended
cord length. Do not unwind the cord beyond
this mark.
On/off Button
1. Insert the plug into the electrical outlet.
2. Press the on/off switch located on the
top of the vacuum cleaner, to switch on
the vacuum cleaner and press the button
again to turn the vacuum cleaner off.
Carpet Cleaning
For carpet and rug cleaning, press the rocker
switch on the combination floor head to raise
the brushes.
Hard Floor Cleaning
For hard floor cleaning, press the rocker
switch on the combination floor head to lower
the brushes.
Cord Rewind
To rewind the power cord, press the cord
rewind button located on the top of the
vacuum cleaner, and guide the power cord
with one hand. Rewind 1-11/2 metres of cord
at a time. This will prevent the cord from
whipping which could cause damage or
injury.
Carry Handle
Use the carry handle located at the top of the
dirt bin to move from room to room.
Hose Storage
For convenience there is a parking slot located
at the rear of the vacuum cleaner where the
floor tool and hose can be parked for carrying
and storage.
4 5
5. Accessories
1. The accessories can be attached directly
to the handle by removing the telescopic
tubes and pushing in the desired
accessory.
2. The accessories can also be attached to
the telescopic extension tube for extra
reach. Remove the combination floor head
and push on the desired accessory.
2-in1 tool:
Dusting brush: for delicate surfaces
Upholstery tool: for carpet, upholstery and
stairs etc.
Crevice tool: for crevices, corners and
cracks, etc.
6. Dirt Container & Filters
Removal & Replacement
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before
removing the dirt container.
IMPORTANT: Do NOT use the vacuum
cleaner without ALL of the filters in place.
Emptying the dirt container
Press the dirt bin release button on the main
body of the unit. The dust container can then
be lifted and removed off the unit. (Fig.6/1)
Hold the dirt container
over a bin and press
the quick release
button as shown
(Fig.6/2).
When all the dirt has
fallen, close the dirt
container flap, a click
will be heard when
closed. Then return the dirt container to the
unit which will click into place when secure.
Cleaning the cyclone separator
1. Remove the dirt container from the unit as
directed above and dispose of dirt inside
the container before cleaning.
2. Rotate the lid of the dirt container anticlockwise to remove the dirt container off
the cyclonic separator (Fig 6/3).
Fig.3/1
Fit the combination floor head by pushing
onto the extension tube. (Fig.3/4).
Push the telescopic extension tube on to the
end of the handle (Fig.3/2).
T
he telescopic tube can be lengthened or
shortened by pushing the button in and
sliding the tube apart or together as required.
(Fig.3/3).
Fig.3/2
Fig.3/3
Fig.3/4
Fig.6/3
Fig.6/4
The separator should be cleaned with a soft
brush and wiped with a damp cloth. The dirt
container can be wiped clean (Fig 6/4).
IMPORTANT: The cyclonic separator
should not be submerged in water.
When the cyclone separator has been
cleaned, leave the separator to dry completely.
Re-attach the dirt container to the lid of the
separator and return the dirt container to the
unit.
Cleaning the Pre-motor filter
NOTE: This is located on the rear of the unit,
underneath the pedals.
Release the pre-motor filter cover by sliding
across the release catch to the right. Lift off
the filter cover to gain access to the filter.
Remove the filter by pulling the tab towards
you (Fig 6/5).
Loading...
