GENERAL SAFETY INFORMATION

PLEASE KEEP THESE ORIGINAL INSTRUCTIONS FOR FUTURE REFERENCE.

This Manual shall be considered an integral part of the machine and should be carefully looked
after for subsequent reference.

WARNING: ALWAYS READ THE USER GUIDE THOROUGHLY BEFORE USE.
WARNING: READ THIS INSTRUCTION MANUAL BEFORE USING THIS MACHINE AND

ALWAYS FOLLOW THE SAFETY AND MAINTENANCE INSTRUCTIONS.

WARNING: OPERATORS SHALL BE ADEQUATELY INSTRUCTED ON THE USE OF

THIS MACHINE.

WARNING: THIS MACHINE IS NOT SUITABLE FOR PICKING UP HAZARDOUS DUST

(CONTACT VAX FOR SPECIFIC EQUIPMENT FOR THIS USE).

WARNING: DO NOT USE THIS MACHINE IN WET CONDITIONS.
WARNING: THIS MACHINE IS INTENDED FOR THE VACUUMING OF DRY DUST AND/

OR SMALL DEBRIS OFF DRY CARPETED OR HARDFLOOR SURFACES IN
INDOOR AREAS ONLY.

WARNING: DO NOT USE THE MACHINE WITHOUT THE DUST BAG AND FILTERS

IN PLACE.

CAUTION: THIS MACHINE IS FOR INDOOR USE ONLY.
CAUTION: THIS MACHINE SHALL BE STORED INDOORS ONLY.

1. Remove the machine from packaging and ensure it and all its accessories and attachments
are present and in perfect condition. Contact the place of purchase immediately in the event
of any discrepancies.

2. The electrical specifications of this machine are noted on the data plate which is located near
the power switch. Ensure the specifications correspond to those of the mains power supply
in your area.

3. If the machine is without a rating plate, contact the place of purchase immediately.

4. This machine is intended for domestic use.

5. Do not restrict the vacuum cleaner’s airflow. Maintain the vacuum cleaner regularly so that all
filters and openings are free of dust, lint, hair build-up or anything else which may affect airflow.

6. If the machine has been dropped, damaged, left outdoors or has been exposed to liquids,
return it to your local authorised Vax Service and Warranty Agent for a safety check.

Vax Commercial Careline: AU 1300 829 287

NZ 0800 829 695 3

7. Do not use the machine to pick up flammable or combustible liquids or materials, such as
petrol etc. and do not use in areas where they may be present.

8. Do not

vacuum anything that is burning or smoking such as cigarettes, hot coal or hot ashes.

9. Do not vacuum up hard or sharp objects such as glass, nails, screws etc.

10. Keep hair, loose clothing, fingers and all parts of the body away from moving parts and openings.

11. Keep the machine and power cord away from heated surfaces.

12. Do not unplug the machine while it is turned on. Turn the machine off, turn the power off
at the power outlet then unplug by grasping the plug and pulling gently to unplug.

13. Do not handle the machine, power cord or plug with wet hands.

14. Unplug from power point when not in use, before servicing or before changing filters and attachments.

15. Do not pull or carry the machine by the power cord.

16. Do not close doors on the power cord and do not pull the cord around sharp edges or corners.

17. Regularly check the power cord for damage, such as cuts, abrasions, exposed wiring or aging. If the
power cord or plug is damaged, the complete power cord must be replaced by your local authorised
Vax Service and Warranty Agent in order to avoid an electric shock. The power cord should

only be replaced with a Vax Genuine Spare Part with the same specifications.

18. Store in an appropriate place after use to prevent tripping accidents.

19. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the machine by a person responsible for

their safety. Children should be supervised to ensure that they do not play with this machine.

20. Use only the manufacturer’s recommended attachments and/or replacement parts.

21. The Vax Commercial Advance Backpack has an “A”-weighted emission sound \ pressure
level of 66 ± 3dB(A) (measured at 1.5 meters).

22. Floor Tool and Attachment Use Part No. VXFLT002 - Floor Tool is intended for vacuuming of
dry dust and debris off floor surfaces.

23. Part No. VXACC002 - Crevice Tool is intended for vacuuming of dry dust and debris from crevices.

24. Only Vax recommend tools and accessories should be used with this vacuum cleaner.

GENERAL SAFETY INFORMATION

vax.com.au

4 vax.co.nz

GENERAL SAFETY INFORMATION

25. Vax recommends the use of a Residual Current Device rating of 30 mA or less.

26. Don’t use the vacuum cleaner with incorrect voltage as this may result in damage or injury
to the user. The correct voltage is listed on the rating label.

27. Don’t not vacuum plaster dust, concrete dust or any other building or vitreous material.

28. Always make sure the filter and dirt container are fitted correctly before using your
vacuum cleaner.

29. Use only Australian certified 10amp water proof extension cords. Care should be taken to
arrange the extension cord as it can be a trip hazard.

MOTOR THERMOSTAT

IMPORTANT: The motor is equipped with a thermostat. If for any reason, the vacuum cleaner

should over-heat, the thermostat will automatically turn the unit off. Should this occur, turn off
the switch and unplug the vacuum cleaner from the electrical outlet and conduct safety and

maintenance checks. Allow the cleaner to cool for approximately 60 minutes. To re-start, plug
into a power point and switch back on.

Vax Commercial Careline: AU 1300 829 287

NZ 0800 829 695 5

MACHINE OVERVIEW

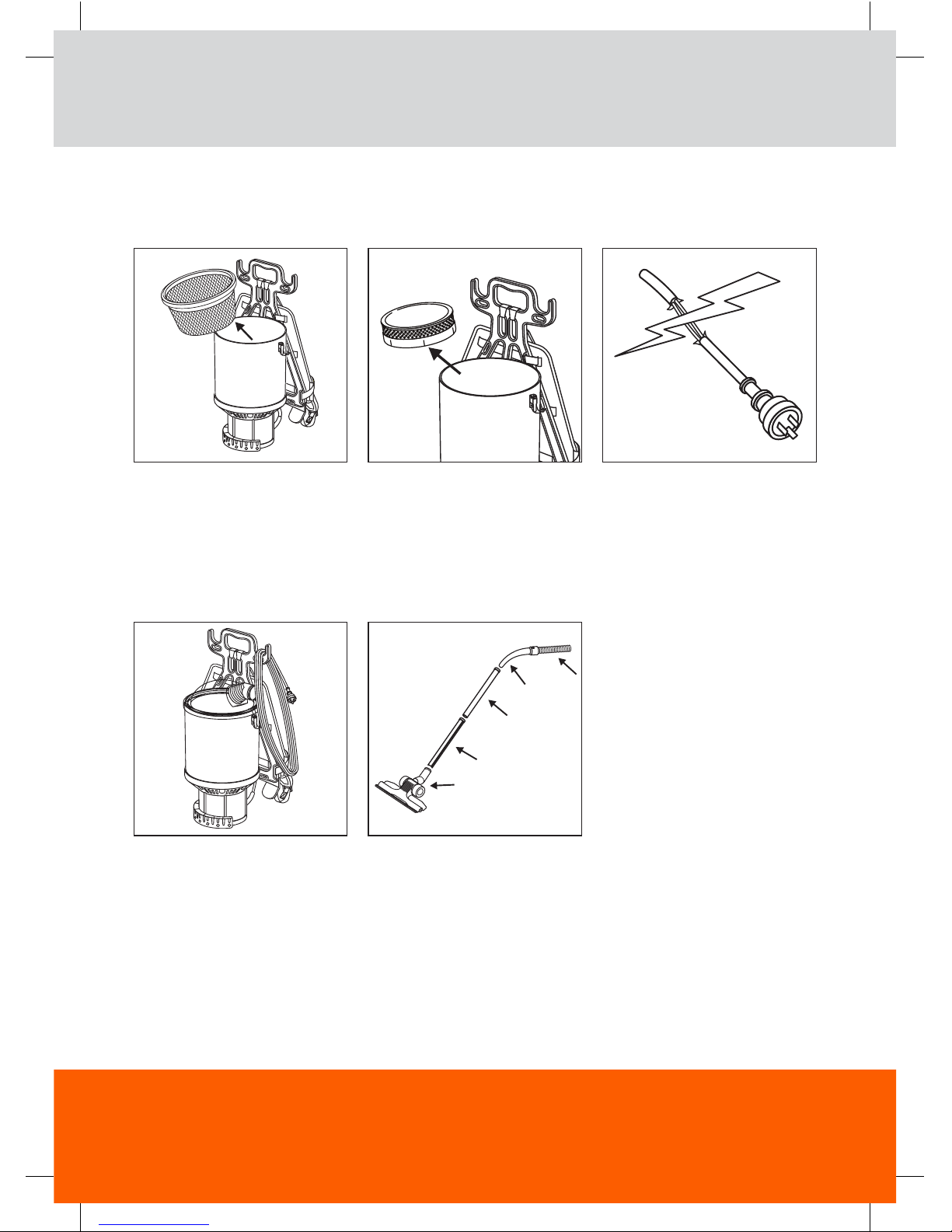

WHATS INCLUDED WITH YOUR MACHINE

Floor Tool

Crevice Tool

Reuseable Dust Bag Plastic Wand

Vacuum Hose

Hose Connection

Canister

Filter

Harness

Disposable
Dust Bag x2

vax.com.au

6 vax.co.nz

MACHINE PARTS

No. Part Name

1. Lid - Plastic - Clear - 270mm

2. Dust Bag - Disposable - SMS - Sealed - Pkt 5

3. Dust Bag - Reusable - SMS - Bucket - Pkt 1

4. Filter - Pre-Motor - Cartridge - Hi-Flow

5. Canister - Thrift 650

5a. Latch - Aluminum - Silver - 65mm

6. Gasket - Motor - Foam - 145mm

7. Motor - Single Stage - Flow Through - 240V - 1300W

8. Spacer - Motor - Plastic - 145mm

9. Gasket - Motor - Rubber - 150mm

10. Insulation - Noise - Foam - 180mm

11. Intermediate Housing - Insert - Blank - Grey

12. Switch - On-Off - Non-Illuminated - Black

13. Insulation - Motor - Foam - 420mm

14. Screw - Aluminum - 1mm x 9mm

15. Cage - Motor Filter - Plastic - Blue

16. Clamp - Cable - Plastic - White - 34mm

17. Filter - Exhaust - Flat - Foam

18. Bottom Cap - Plastic - Black - 175mm

19. Short Lead - Hard Wired - 420mm - 3C - Plug Type I

20. Extension Lead - 18m - 3C - Plug Type I

21. Power Cord - Hard Wired - 18m - 3C - Plug Type G

22. Power Cord - Hard Wired - 18m - 3C - Plug Type E/F

Quote these part numbers when ordering spare parts

Part No.

VXLID001

VXDUB005

VXDUB006

VXFIL002

VXCAN002

VXLAT001

VXGAS010

VXMOT005

VXSPA002

VXGAS007

VXINS008

VXINH004

VXSWI001

VXINS009

VXSCR007

VXCAG002

VXCLA001

VXFIL004

VXBOT001

VXSHL003

VXEXL001

VXPWC021

VXPWC022
