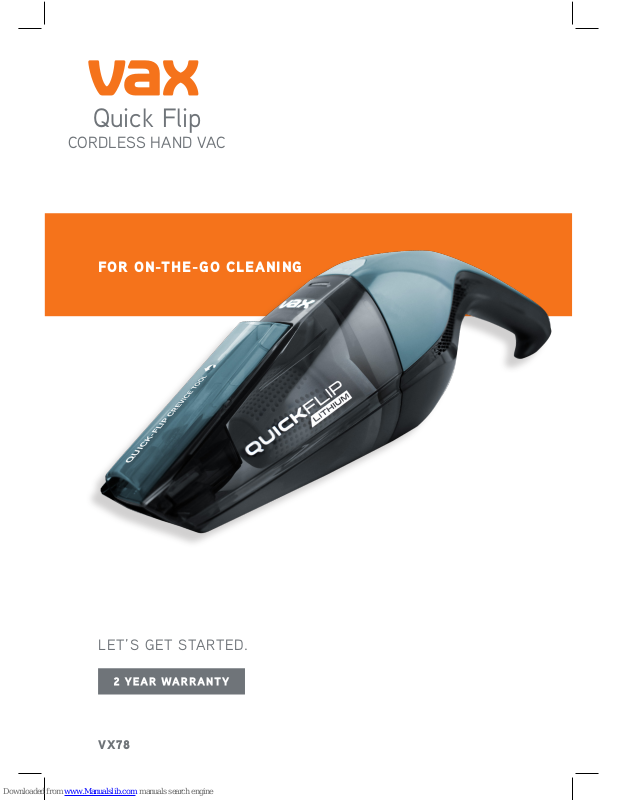

VX78
LET’S GET STARTED.
FOR ON-THE-GO CLEANING
Quick Flip
CORDLESS HAND VAC
Let’s talk safety
Basic safety precautions
Do’s
ž Use only as described in this manual. Use only
manufacturer’s recommended attachments.
ž Keep hair, loose clothing, ngers, and all parts of body
away from openings and moving parts.
ž Use extra care when cleaning on stairs.
ž Only use the charger supplied to charge the unit
ž The charger is for indoor use only. Be sure to always
keep the battery and charger in a dry place.
ž Put product away after use to prevent tripping accidents.
ž Unplug the charger from the outlet before any routine
cleaning or maintenance.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
READ ALL THE INSTRUCTIONS BEFORE USING
THIS APPLIANCE
• It is a battery-operated appliance, the battery being
charged inside the appliance.
• Only use the vacuum cleaner indoors and keep the
area you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts
and openings whilst using the vacuum cleaner.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by
a person responsible for their safety. Children should
not play with the vacuum cleaner. Cleaning and
user maintenance should not be made by children
without supervision
• Only Vax recommend tools and accessories should
be used with this vacuum cleaner
• Keep the charger and vacuum cleaner in a dry place,
and use them indoors only.
• Do not use charger with damaged cord or plug.
If appliance or charger is not working as it should,
has been dropped, damaged, left outdoors or dropped
into water, take it to a Vax authorised repair agent prior
to continuing use. Please contact our Customer Care
Line on: AU: 1300 829 287 / NZ: 0800 829 695
(Mon-Fri 8.30am to 5.00pm) or visit www.vax.com.au
/ vax.co.nz for your nearest Vax authorised repair agent.
• It must only be supplied at safety extra low voltage
corresponding to the marking on the appliance.
Please keep instructions for further use.
\ Do not use the unit, store, or charge battery outdoors
or on wet surfaces. Do not allow to get wet.
\ Do not allow to be used as a toy. Not intended for
use by children age 12 and under. Close supervision
is necessary when used by or near children. To avoid
injury or damage, keep children away from product,
and do not allow children to place ngers or other
objects into any openings.
\ Do not use charger with damaged cord or plug.
If appliance or charger is not working as it should,
has been dropped, damaged, left outdoors, or dropped
into water, take it to a service centre prior to
continuing use.
\ Do not pull or carry charger by cord, use cord
as handle, close a door on cord, or pull cord around
sharp edges or corners. Do not place product
on cord. Do not run appliance over cord. Keep cord
away from heated surfaces.
\ Do not unplug charger by pulling on cord. To unplug
charger, grasp the plug, not the cord.
\ Do not handle charger, including charger plug, and
charger terminals with wet hands.
\ Do not put any objects into openings. Do not use
with any opening blocked; keep free of dust, lint, hair,
and anything that may reduce air ow.
\ Do not use to pick up ammable or combustible
liquids, such as gasoline, or use in areas where they
may be present.
\ Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
\ Do not use without lters and/or dirt cup in place.
\ Do not incinerate the charger, battery, or appliance
even if it is severely damaged. The batteries can
explode in a re.
\ Do not use for wet vacuum
\ This product includes rechargeable lithium-ion
batteries. Do not expose batteries to high temperatures,
as they may catch re and/or explode.
\ Do not expose battery to crushing, incineration
or similar actions.
\ Do not attempt to disassemble battery.
\ Do not attempt to short circuit the battery or charger
terminals.
\ Do not place cleaner on stairs or furniture, as it may
result in injury or damage.
\ Do not use chargers that are not designed for this
unit
\ CAUTION: Not to be used for grooming a pet.
BATTERY WARNING
\ Do not incinerate the battery even if it is severely
damaged. The batteries can explode in a re.
\ Do not expose batteries to high temperatures, as they
may catch re and/or explode.
\ Do not expose battery to crushing, incineration or
similar actions.
\ Do not dispose of battery in a re or trash
compactor.
\ Do not attempt to disassemble battery.
\ Leaks from battery cells can occur under extreme
conditions. If any liquid gets on the skin wash quickly
with soap and water. If any liquid gets into the eyes,
do not rub eyes, immediately ush them with clean
water continuously for a minimum of 15 minutes.
Seek medical attention immediately.
\ Do not attempt to short circuit the battery or charger
terminals.
\ This appliance contains batteries that are
non-replaceable
\ WARNING: For the purposes of recharging the
battery, only use the charger provided with this
appliance (YLJXA-A100030).
Don’ts
Thank you for buying this Quick Flip.
Taking care of small cleaning tasks
The Quick Flip is designed to make cleaning as quick and convenient as possible and this
user guide will help you get the most out of your machine. The Quick Flip is perfect for small
cleaning tasks on surfaces and upholstery.
Taking care of your Quick Flip
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you need to tackle those small jobs.
We’re here if you need us
For troubleshooting simply visit or call:
Australia: 1300 829 287* New Zealand: 0800 829 695*
vax.com.au vax.co.nz
*Monday – Friday: 8:30am -5:00pm
Calls are charged at the standard local rate. Please make note of the serial
number and model number of the product before calling.
Contents
Quick Flip
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Notes
What to do if it goes wrong
Getting in touch
Included with
your machine
Flip Out Crevice Tool
Charger
Getting to know your machine
Handle
On/O button
Dirt container release button
Flip out crevice tool
Dust separator
and shroud
Name Quick Flip
Model No VX78
Voltage 8V DC Li-ion
Wattage 80W
Weight 0.72g
Technical Specication
Subject to technical change without notice. Images are illustrative only.
To purchase consumables and accessories, please visit vax.com.au/vax.co.nz
Charger Model No YLJXA-A100030
Charger Input 100-240V~50/60Hz
Charger Output 10V 300mA
Pre-motor lter
Model No VX78F
Charger Specication Accessories & Consumables
For the purposes of recharing the battery,
only use the charger provided with this
appliance (YLJXA-A100030)
MEPS
Eciency
Double
Insulated
This product
meets applicable
regulatory
requirements
Indoor Use Only Read Instructions
Getting started
Assembling your vacuum cleaner
Remove from carton & review the instruction manual. Plug in & charge unit until the charge indicator light
goes out (Charging may take up to 6 hours).
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Using your machine
Turning your machine On and O
Slide the power switch to the ON position. ` After using to clean, slide the power switch to the
OFF position.
NOTE: Empty dirt cup after each use or when
full. Check the lter to see if it needs cleaned.
TIP: The power switch must be in the OFF
position for the unit to charge.
PUSH
Quick ip crevice tool
Flip crevice tool out to line up with the entrance
then push in until secured in place.
To store crevice tool: gently pull the tool away from
the dust cup and ip the tool up towards the unit
& press down until you feel it lock into place.
FLI P
Using your machine
Charging
Power switch must be in the OFF position. The charge indicator light will pulse when
charging and the indicator will turn o when
charging is complete.
NOTE: Use only the charger supplied by the manufacturer to recharge.
TIP: For a better experience, fully charge the unit before rst use.
NOTE: The charge indicator will only turn
on while charging. Once the battery is fully
charged, the indicator will not go on again. The
charger will be warm while charging.
TIP: The unit will charge only for as long as
needed. It may take up to 6 hours for full charge.
NOTE: The unit can only charge when the
switch is in the OFF position.
NOTE: If the unit is running and the charger
plug is connected to the unit, the unit will shut
o to prevent damage to the charger or unit.
Taking care of your machine
Filter removal and replacement
While holding the dirt cup and handle, press dirt
cup release button.
Remove lter assembly from dirt cup & separate
the white lter from the lter housing.Tap lter over
a trash can to remove debris. Be sure to also wipe
debris from the lter housing.
Remove the dirt cup to access lter.
Place lter back into the lter housing. Place dirt
cup back onto the body of the hand vac until you
hear it click.
TIP: To maintain performance, lter should be changed every 3-6 months, or as needed.
WARNING: To reduce the risk of personal injury, turn power switch o before cleaning or servicing.
NOTE: For replacement lter VX78F visit vax.com.au / vax.co.nz or call us at AU: 1300 829 287 / NZ: 0800 829 695.
NOTE: Do not discard lter or lter housing.
FILTER
FILTER
HOUSING
NOTE: Filter is washable with water. Do not use soap/detergent. Let filter air dry for 24 hours or until
completely dry.
Notes
Notes
Notes
• Battery not charged – Charge battery up to 6 hours. The indicator light will
pulse until the battery is fully charged and then will turn o.
• Battery dead - won’t hold charge – Contact customer service. Visit our
website at www.vax.com.au / www.vax.co.nz or call AU 1300 829 287
/ NZ 0800 829 695.
• Needs service – Contact customer service. Visit our website at
www.vax.com.au / www.vax.co.nz or call AU 1300 829 287/
NZ: 0800 829 695.
• Dirt Cup not installed correctly – Review Filter Removal & Replacement.
• Dirt Cup is full – Empty dirt cup.
• Battery charge is getting weak – Charge battery.
• Filter is dirty – Clean or replace lter.
• Clogged lter – Remove lter and clean.
• Entrance/dirt passage clogged – Turn o the unit
• Filter/Filter Frame missing – Contact customer service. Visit our website at
www.vax.com.au / www.vax.co.nz or call AU 1300 829 287 /
NZ: 0800 829 695.
• Problem with the charging circuit – Contact customer service.
Visit our website at www.vax.com.au / www.vax.co.nz or call
AU 1300 829 287 / NZ: 0800 829 695.
• Dirt cup is full – Turn o unit and remove debris.
• Dirt cup not installed correctly – Review Filter Removal & Replacement.
• Filter not installed correctly – Review Filter Removal & Replacement.
SolutionProblem
Cleaner won’t run
Cleaner won’t pick up
or low suction
Dust escaping
from cleaner
Charger indicator
ashes then goes out
What to do if it goes wrong
* Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
Getting in touch
Distributed by
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149, Melbourne, Australia
Careline AU: 1300 VAX AUS (1300 829 287) www.vax.com.au
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere, Auckland, 2022, New Zealand
Careline NZ: 0800 VAX NZL (0800 829 695) www.vax.co.nz
Loading...
