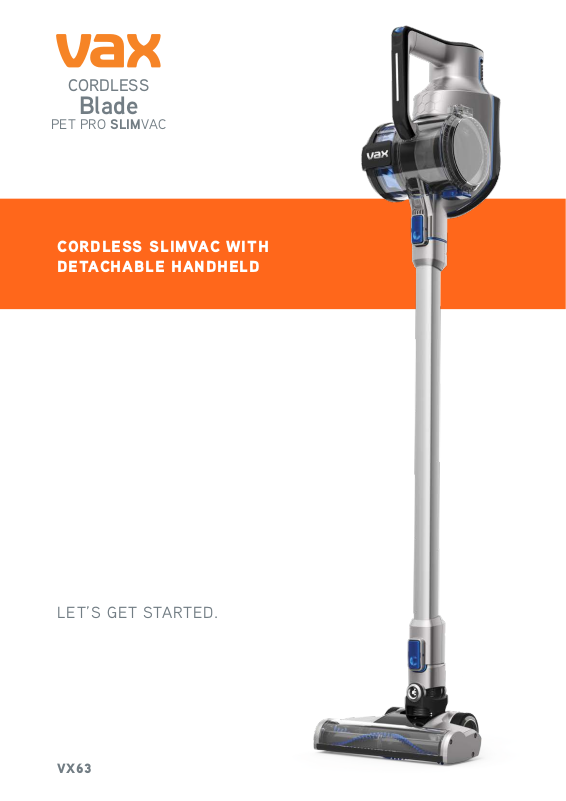

CORDLESS
Blade
PET PRO SLIMVAC
CORDLESS SLIMVAC WITH
DETACHABLE HANDHELD
LET’S GET STARTED.
VX63
Let’s talk safety
Basic
safety
precautions
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE
• It is a battery-operated appliance, the battery being charged whilst inside the appliance.
• Only use the vacuum cleaner indoors and keep the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts and openings whilst using
the vacuum cleaner.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should not play with
the vacuum cleaner. Cleaning and user maintenance should not be made by children
• Only Vax recommended tools and accessories should be used with this vacuum
cleaner
• This vacuum cleaner does not stay upright without constant support, in between
uses lie at on the oor in a suitable location so it does not become a trip hazard
or can be stepped on.
• Keep the charger and batteries in a dry place, and use them indoors only.
• Do not use charger with damaged cord or plug. If appliance or charger is not
working as it should, has been dropped, damaged, left outdoors or dropped into
water, take it to a Vax authorised repair agent prior to continuing use. Please
contact our Customer Care Line on: AU: 1300 361 505 / NZ: 0800 800 900
(Mon-Fri 8.30am to 5.00pm) or visit www.vax.com.au / vax.co.nz for your nearest
Vax authorised repair agent.
Please keep instructions for further use.
Battery Safety Precautions:
• Do not place vacuum or batteries near re or heat. This will reduce the risk of
explosion and possible injury.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger
that has been dropped or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged battery immediately.
• Batteries can explode in the presence of a source of ignition, such as a pilot
light. To reduce the risk of serious personal injury, never use any cordless
product in the presence of open ame. An exploded battery can propel debris
and chemicals. If exposed, ush with water immediately.
• Do not charge vacuum in a damp or wet location. Following this rule will reduce
the risk of electric shock.
• For best results, charge the battery tool in a location where the temperature is more than 10°C but
less than 37°C. To reduce the risk of serious personal injury, do not store outside or in vehicles.
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in
contact with the skin, wash immediately with soap and water, then neutralize with lemon juice or
vinegar. If liquid gets into the eyes, ush them with clean water for at least 10 minutes, then seek
immediate medical attention. Following this rule will reduce the risk of serious personal injury.
• Store the battery pack where the temperature is below 27°C.
• The battery must be removed from the appliance before it is scrapped by a qualied person.
• The appliance must be disconnected from the supply mains when removing the battery.
• The battery is to be disposed of safely.
Charger Safety Precautions:
• The charger must not be damp, and should never be used in a damp environment.
• The charger is for indoor use only.
• Do not use the product if it has suered any heavy shock or jolting, or is damaged in any other way.
• Do not conduct charging in a position which may become exposed to sunlight or other heat
source. Recommended temperature range at charging vicinity is 10° to 25° C.
• Do not conduct charging operations in the vicinity of ammable materials. Example: Cloth,
packaging materials, paint, spray paint or aerosols, lubricant, thinners, petrol containers, gas
containers or gas appliances.
• Do not cover any ventilating slots and provide adequate ventilation during operation.
• Never modify, disassemble or attempt to repair the product yourself.
• Do not allow the charger or batteries to become contaminated with any material which could
be conductive.
• Remove the plug of the product from the power socket when it is not in use or when cleaning it.
• Protect battery contacts to avoid a short circuit caused by metallic objects which could cause
a re or explosion!
• Do not charge batteries which show signs they have leaked electrolyte. Dispose of them properly.
• Never charge a damaged battery
Let’s talk safety
Don’ts
Do’s
• Do not pull or carry by charger cord, use cord as a handle, close a door on cord, or
pull cord around sharp edges or corners. Do not place product on cord. Do not run
appliance on cord.
• Don’t handle the charger plug or use the vacuum cleaner with wet hands.
• Don’t use this vacuum cleaner if it has been dropped, damaged, immersed in water or
left outdoors.
• Don’t leave the vacuum cleaner in one spot for an extended period of time when the
brushbar is activated. This vacuum cleaner is tted with a rotating brushbar which if
left in one place may cause damage to the oor surface.
• Don’t attempt to remove blockages with sharp objects as this may cause damage to
the vacuum cleaner.
• Always make sure the lter and dirt container are tted correctly before using
your vacuum cleaner.
• Always turn o and unplug from charger and remove the battery before carrying
out any maintenance.
• Turn o all controls on the vacuum cleaner before disconnecting or connecting the battery.
• Take extra care when cleaning on the stairs.
• Always protect the charger cord from heated surfaces or near open ames.
• Keep all openings clear and free from debris as this may aect the airow/suction.
• Store your vacuum cleaner in a cool, dry area. If lters have been cleaned as per
user guide instructions ensure they are thoroughly dry before storing away.
• Always use the charger supplied with the vacuum cleaner.
• Use only SAA approved 10amp extension cords. Care should be taken to arrange
the extension cord as it can be a trip hazard.
• Always carry the vacuum cleaner by the handle.
• Don’t try to short the terminals of the battery and the charger.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in damage or injury to the user.
The correct voltage is listed on the rating label.
• Don’t vacuum up hot coals, cigarette butts, ash, matches or smoking hot burning items or use in an
area where there may be harmful uids (chlorine, bleach, and ammonia drain cleaner).
• Do not vacuum hard or sharp objects such as glass, nails, screws or coins etc.
• Do not vacuum plaster dust, concrete dust or any other building or vitreous material.
• Do not vacuum our, baking soda or any other powder-based carpet refresher or deodoriser.
• Store your vacuum cleaner in a cool, dry area. Store the battery pack in a “charged” condition.
Minimum 30-50% charged for best battery life.
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated.
Do not disassemble, heat or incinerate.
Replace battery with Vax battery only. Use of another battery may present a risk of re or explosion.
Dispose of used battery promptly. Keep away from children.
Do not disassemble and do not dispose of in re. Do not attempt to disassemble the battery or remove
any component projecting from the battery terminals.
The battery and charger have no user serviceable parts. Fire or injury may result.
Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting.
WARNING: For best performance terminals on battery, battery charger and vacuum cleaner must be
clean and free from dust and dirt.
Do not attempt to recharge non-rechargeable batteries.
Thank you for buying this Vax Cordless Blade.
Taking care of your carpets and hard oors
The Vax Cordless Blade series is designed to make vacuuming carpets and hard oors
regularly, as eective and ecient as possible and this user guide will help you get the
most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer
and Vax will help you take good care of them.
Taking care of your Vax Cordless Blade
Also inside this guide are instructions on maintaining your new machine, so that it’s ready
when you are to tackle your carpets and hard oors.
Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Cordless Blade Pet Pro
Included with
your machine
Crevice Tool
We’re here if you need us
For troubleshooting simply visit or call:
Australia: 1300 361 505* New Zealand: 0800 800 900*
vax.com.au vax.co.nz
*Monday – Friday: 8:30am -5:00pm
Calls are charged at the standard local rate. Please make note of the serial
number and model number of the product before calling.
Taking care of your machine
What to do if it goes wrong
Getting in touch
Accessories
Dusting Brush
Pet/Stair Tool
All models come with a charger, wall mount,
3 screws and user manual.
Getting to know your machine Getting started
Battery level indicator
Dirt container lid
Dirt container
Dirt container release button
Handheld release button
Reach wand
Powered Head/
accessory release clip
Powered Head
Brushbar
On/O button
Handle
Battery level gauge
Battery level indicator
Boost mode on/o button
Brushbar on/o button
Charging port
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Filter cap
Before you begin
CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the handheld/attachments
or removing and emptying the dirt container.
For best cleaning results, lters require cleaning at least every 3 months and should be replaced every 12 months
depending upon use.
Lithium-Ion battery safety features
• Over charge protection • Over load protection
• Short circuit protection • High/low temp protection
• Deep discharge protection
Assembling your upright slim vacuum cleaner
CAUTION: This vacuum cleaner is not free standing. In between uses or when carrying out any maintenance
always lie at on the oor in a suitable location so it does not become a trip hazard or can be stepped on.
Technical Specication
Model Number VX63
Name Vax Cordless Blade Pet Pro
Battery voltage 28.8V
Run time Up to 45 minutes*
Charge time 4 hours
Weight 3.0 kg
Dust bin capacity 0.3L
Powerhead Specication
Model no. FT3V1B1
Wattage 48W
Voltage 28.8V
Powerhead to be used ONLY
with Vax VX63
Subject to technical change without notice.
Turn o brushbar on hard oors. Images are illustrative only.
Type Lithium-ion rechargeable battery pack
Battery model no. 32BTBT3V1
Voltage 28.8V
Rating 2.0Ah 57.6Wh
Use with E-TEK model ZD24W342060
Charger ONLY
Charger SpecicationBattery Specication
Charger model no. ZD24W342060
Input 100-240V ~ 50/60Hz 0.8A Max
Output 34.2V
Use with Li-ion Battery 32BTBT3V1 ONLY
600mA
Accessories & Consumables
Filter pack Model No. VX63F
To purchase consumables and accessories, please visit vax.com.au
*Brushbar and Boost o
Line up the connector on
the reach wand with the
Powered Head. Push the
reach wand down onto
the Powered Head until it
clicks into place.
Push the handheld down
onto the reach wand until
it clicks into place.
The vacuum is not free
standing and in between
uses must always be placed
in the wall bracket, or laid
at on the oor in a suitable
location, so it does not
become a trip hazard or
can be stepped on.
Getting started
Fixing the wall bracket PLEASE READ ‘LET’S TALK SAFETY’ BEFORE USE
CAUTION: The battery used in this device may present a risk of re or chemical burn if mistreated. Do not
disassemble or heat above manufacturer’s maximum temperature limit (60°C/140°F) or incinerate. Use of another
battery may present a risk of re or explosion. Dispose of used battery promptly. Keep away from children. Do not
disassemble and do not dispose of in a re. Do not attempt to disassemble the battery or remove any component
projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury may
result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting. The battery is to
be disposed of safely at your local battery recycling centre.
Do not attempt to recharge non-rechargeable batteries. The battery must be removed from the appliance before it
Fully assemble
the vacuum.
Slot the wall bracket through the groove
and lift upwards into position.
Choose a position where
you would like to keep the
vacuum stored, preferably
near a power point. With
the wall bracket attached,
stand the vacuum close
to the wall, in the upright
position with the Powered
Head at on the oor.
is scrapped. The appliance must be disconnected from the charger/supply mains before use and when removing
or installing the battery into the machine. In case of battery leakages avoid any contact with the skin. Contact our
Customer Care Line on: AU 1300 361 505 / NZ 0800 800 900.
Charging the vacuum cleaner
NOTE: The initial charge is 4 hours, charging will be required before rst use. The vacuum can be charged with
the handheld either attached to, or detached from, the reach wand.
Getting started
Holding the wall bracket
rmly in place, carefully
lift and remove the
vacuum away from
the wall bracket.
Using a pencil make
a small mark for
each screw.
Use both screws and wall
plugs to secure the wall
bracket to the wall. Place
covers over the screws.
Firmly press the vacuum
handle into the wall
bracket to secure.
To charge the machine,
detach the reach wand
and place the handheld
on its base. You can also
charge the machine
whilst attached to the
wall mount.
Insert the charging lead
into the charging port
located on the base of
the handle.
Plug the charging plug
into a power point.
Getting started
Using your machine
Charging the battery
WARNING: Do not use the vacuum cleaner when the machine is plugged in and charging.
NOTE: Once the battery is fully depleted the vacuum will still turn on for a few seconds. Plug in the charger until
fully charged. The machine can remain on the battery charger once fully charged. The life expectancy of the
battery will vary depending on the usage of the vacuum cleaner.
White light ashing – The battery is charging.
White light – The battery is charged (after 4 hours).
Red light – The battery is low.
If charging for the rst time the initial charge time is 4 hours.
CAUTION: For use on delicate hard oors, the brushbar must be turned o to enable slow suction.
To prevent any damage being sustained test on an inconspicuous area of the ooring.
Using as a stick vacuum cleaner
Place your foot on the
Powered Head and pull
the handle backwards
to recline.
To turn the machine on,
press the on/o button
located on the handle.
To activate and deactivate
the brushbar, press the
brushbar on/o button
located on the dial.
The machine will always
start with the brushbar
turned o.
For additional cleaning
time, deactivate the boost
mode located on the dial.
The machine will always
turn on in boost mode.
When the vacuum cleaner
is in use the charging
lights will indicate how
much charge is remaining.
When the rst bar starts
to ash red this indicates
the battery is running low
(<25%).
Using your machine
Using your machine
Using as a handheld vacuum cleaner
CAUTION: Always take extra care when using the vacuum cleaner on the stairs.
Press the handheld
release clip. Pull to
separate the handheld
from the reach wand.
The reach wand, when
attached to the Powered
Head/accessory, is not
free standing. Place safely
and securely to one side.
Choose an accessory. Push the chosen
accessory into the
handheld until it
clicks into place.
Using as a reach stick vacuum cleaner
The reach wand can be used for hard to reach places.
Press the Powered Head/
accessory release clip
and pull to remove the
Powered Head from the
reach wand.
Choose an accessory. Push the chosen
accessory into the
reach wand until it
clicks into place.
To turn the machine on,
press the on/o button
located on the handle.
To turn the machine on.
Press the on/o button
located on the handle.
All of the accessories
including the Powered
Head can be attached
directly onto the handheld.
The reach wand can be used for hard to reach places
and at dierent heights for above oor cleaning.
The vacuum is not free
standing and in between
uses must always be
placed in the wall bracket,
or laid at on the oor in a
suitable location, so it does
not become a trip hazard
or can be stepped on.
Taking care of your machine Taking care of your machine
24hr
Emptying and cleaning the dirt container
WARNING: Don’t over ll the dirt container to avoid blocking the air ow through the vacuum cleaner.
24hr
Press the handheld
release clip. Pull to
separate the handheld
from the reach wand.
The reach wand when
attached to the Powered
Head/accessory is not
free standing. Place safely
and securely to one side.
Hold the handheld over a bin, press the dirt release
button to allow dirt/debris to fall out.
Cleaning the lter and separator
CAUTION: Always empty the dirt container before cleaning the separator and lter. Remove the reach wand/
accessories from the handheld. Incorrect tting of the separator and lter will reduce suction. Always switch o
the vacuum cleaner before carrying out any maintenance or troubleshooting. Do not use your vacuum cleaner
without the lters in place.
Remove the lter
from the lid.
Tap the lter, foam and
separator over a bin
to remove any dirt and
debris. Do not wash
the separator.
Reassemble lter and separator
1 - SEPARATOR 2 - FOAM
3 - FILTER 4 - LID
Wash the foam and
lter under running
water (max 40°C).
Leave for 24hrs or until
fully dry before replacing.
Step 1: place foam (2)
into separator (1).
Step 2: place lter (3)
into lid (4) with the pull
tab facing up.
To access the lter and separator twist the cap anti-clockwise and pull out.
To put the cap back on, push the cap into the unlock position ensuring it is tted
correctly and twist clockwise to lock.
Step 3: attach back
onto machine
For best cleaning results, lters require cleaning every 3 months or as needed.
TIP
Let’s talk technical Accessories
IMPORTANT: If the brushbar has been obstructed, the Motor Protection Sensor may have been activated and the
brushbar will seize. Remove the Powered Head from the machine and clear any obstruction. Ret the Powered
Head, switch on the vacuum cleaner by pressing the trigger and press the brushbar on/o button.
Removing blockages from the Powered Head and reach wand
Using scissors, remove
any threads or hair from
around the brushbar and
clear any dirt or debris
from Powered Head.
To test for a blockage in the reach wand, drop a small ball
of paper into the wand. The paper will drop through if the
wand is clear. Use a broom handle or similar blunt object to
remove any blockage.
Removing and replacing the brushbar and belt
Also available Vax Cordless Blade Accessories
Order at: www.vax.com.au
Refer to ‘using your machine’ section for tool assembly instructions.
Vax Cordless Blade Accessories
Filter Pack
VX63F
Pic to come ex Vax
On the base of the
oorhead, nd letter
A engraved to indicate
the side of the brushbar
cap. Using a screwdriver,
unscrew the three
screws to remove
the brushbar cap.
Once the cap is removed,
slide the brushbar out.
On the base of the oorhead, nd letter B engraved to
indicate the side of the belt cap. Using a screwdriver,
unscrew the three screws to remove the belt cap.
Clear any threads or hair
from around the brushbar
and any dirt/debris
inside the housing of the
Powered Head.
When re-tting the
brushbar, slide it back
into place ensuring the
brushbar end cap ts
into position. Realign the
cap and screw securely
back on.
What to do if it goes wrong
There is an
accessory missing
Why does my vacuum
cleaner have no power?
Getting in touch
SolutionProblem
• Check the contents panel on the box to make sure the part is included
with your vacuum cleaner.
• The battery may not be charged. Go to ‘Getting Started’.
• The motor thermostat may have tripped. If this has happened, switch o the vacuum
cleaner. Remove and empty the dirt container and check for blockages. Clean the lters
and allow the vacuum cleaner to cool for approximately 1 hour (if you have washed the
lters you will need to wait 24 hours for the lters to fully dry before putting them back
into the vacuum cleaner).
Why isn’t the light on
the vacuum cleaner
lit when the battery
is charging?
Why won’t the vacuum
cleaner pick up?
Why won’t the
brushbar turn?
Why is dust escaping
from the vacuum?
• Check the battery charger is plugged in. Go to ‘Getting started’.
• The dirt container may not be correctly tted, remove the dirt container from the
vacuum cleaner and check it’s assembled correctly, ret ensuring it’s locked into place.
• The separator is not correctly tted. Go to ‘Taking care of your machine’.
• The lters may be clogged, clean the lters. Go to ‘Taking care of your machine’.
• The dirt container may be blocked, empty the dirt container. Go to ‘Taking care of
your machine’.
• The brush on the Powered Head has not been activated. Go to ‘Using your machine’.
• There may be a blockage in the reach wand. Disconnect from the vacuum cleaner
and carefully remove any blockages. Go to ‘Let’s talk technical’.
• Brushbar may be blocked, this will activate the brushbar motor thermostat.
• The brushbar has not been activated. Go to ‘using your machine’.
• The Powered Head/brushbar may be obstructed. Go to ‘Let’s talk technical’.
• The lters may be clogged, clean the lters. Go to ‘Taking care of your machine’.
• The separator may be clogged, clean the separator. Go to ‘Taking care of your machine’.
• The separator may be misassembled or not locked in correctly.
* Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
NotesNotes
Distributed by Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mt Waverley, VIC 3149 Australia.
Careline AU: 1300 361 505 www.vax.com.au
Careline NZ: 0800 800 900 www.vax.co.nz
Loading...
