Don’ts
Let’s talk safety
• Do not pull or carry by cord. Do not use the cord
as a handle, close a door on the cord or pull cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
• Do not handle the plug or vacuum cleaner with wet hands.
• Do not use outdoors or on wet surfaces.
• Do not put any objects into openings. Do not use
with any openings blocked and do not restrict
airow. Keep all openings free of dust, lint, hair
or anything that might reduce airow.
• Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
• Do not pick up ammable or combustible materials
(lighter uid, petrol, kerosene etc.) or use in the
presence of explosive liquids or vapours.
• Do not vacuum up harmful or toxic material
(chlorine, bleach, ammonia, drain cleaner etc.).
• Do not vacuum up hard or sharp objects such
as glass, nails, screws, coins, etc.
• Do not use without ALL of the lters in place.
• Do not leave outdoors.
• Do not vacuum baking soda or any other
powder-based carpet re-fresher or deoderiser.
• Do not vacuum plaster dust, concrete dust or any
other building or vitreous material.
Do’s
Always switch o and unplug the machine
from the electrical outlet before assembling,
opening, emptying the dirt container,
before connecting/disconnecting the
attachments, or carrying out maintenance or
troubleshooting checks.
WARNING
Cleaning lters improves vacuum performance.
Vax recommends that your lters should be
checked and cleaned periodically. If your
lters are washable make sure they are
completely dry before inserting back into the
vacuum cleaner.
The motor is equipped with a thermal cut-out.
If for any reason the unit should overheat, the
thermostat will automatically turn the unit
o. Should this occur, unplug the vacuum
cleaner from the electrical outlet and turn
o the switch. Remove dirt container and
empty. Clean lters. Allow the unit to cool for
approximately one (1) hour. To re-start, plug
into an electrical outlet and switch back on.
WARNING
WARNING
DAMAGE TO THE VACUUM CLEANER CAUSED
AS A DIRECT RESULT OF NOT ADHERING TO
THE GENERAL SAFETY INFORMATION AND THE
INSTRUCTIONS IN THIS USER GUIDE INVALIDATES
THE WARRANTY.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.
If servicing of this product is required, it should only
be performed by a qualied service agent. Please
visit the Vax website for a most up to date list of Vax
service agents or contact our Customer Care Line
on: AU: 1300 361 505 / NZ: 0800 800 900 (Mon-Fri
8:30am to 5:00pm)
vax.com.au / vax.co.nz
Basic safety precautions
This machine is intended for household use only, and
NOT for commercial or industrial use.
WHEN USING THE VACUUM CLEANER:
Basic safety precautions should always be observed,
including the following:
• Only use the vacuum cleaner indoors on dry surfaces.
• Always unplug the vacuum cleaner before connecting
or disconnecting the vacuum hose and accessories.
• Children should be supervised to ensure that they
do not play with the appliance.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance
by a person responsible for their safety.
• Use only as described in this manual. Use only Vax
recommended attachments.
• Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped
into water. Do not use the vacuum cleaner with
a damaged cord or plug. If the supply cord is
damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in
order to avoid a hazard.
• Use only SAA approved 10 amp extension cords.
Non-approved cords may overheat. Care should be
taken to arrange the cord so that the cord cannot be
tripped over.
• We recommend the use of a residual current device
with a residual current of 30mA or less.
• Turn o the vacuum cleaner controls before
disconnecting or connecting from the mains supply.
• Keep hair, loose clothing, ngers and all parts of
the body away from openings and moving parts.
• Take extra care when vacuuming on stairs.
• Keep vacuuming area well lit.
• Store the vacuum cleaner in a cool, dry area.
• Turn o the on/o switch before unplugging the
vacuum cleaner.
Contents
Upright Cleaner
Included with
your machine
Thank you for buying this Upright Cleaner.
The Vax Air Reach is one of the most lightweight full sized multi-cyclonic upright vacuums
in the range. It's multi-cyclonic technology provides great suction power and incredible cleaning
results, so you can effectively clean your whole home, leaving it looking spotless. The Air Reach
makes reaching to the tops of stairs a breeze with its extra-long 10m cord length and
4.2m stretch hose.
Taking care of your Vax Air Reach Upright Cleaner
Inside this guide are instructions on maintaining your new machine so it is always ready
when you are to tackle carpets, hard floors and stairs.
We’re here if you need us
For troubleshooting simply visit or call:
Australia: 1300 361 505* New Zealand: 0800 800 900*
vax.com.au vax.co.nz
*Monday – Friday: 8:30am -5:00pm
Calls are charged at the standard local rate. Please make note of the serial
number and model number of the product before calling.
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
What to do if it goes wrong
Getting in touch
Notes
Telescopic extension tube
3-in-1 crevice, upholstery & dusting
brush tool
Turbo tool
Extension hose
Post motor lter
Pre-motor lter
Keep your Vax like new
Assembling your vacuum cleaner
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Getting startedGetting to know your machine
Name Air Reach Upright
Voltage 220-240V ~ 50Hz
Wattage 1200W
Capacity 1.5 Litres
Cord length 10m
Weight 8kg
Filters Pre-motor lter (washable)
HEPA 12 antibacterial post motor lter (tap to clean)
Technical Specication
Subject to technical change without notice.
*To purchase consumables and accessories, please visit vax.com.au
IMPORTANT: The condition of the lters aects the performance of your machine. Please check and clean lters
periodically (depending on the level of use). For full cleaning instructions see Taking care of your machine.
IMPORTANT: Do not use the vacuum cleaner without all lters in place.
Pre-motor lter Post-motor lter
Double
Insulated
This product
meets applicable
regulatory
requirements
Indoor
Use
Read
Instructions
Handle
Handle height adjuster
Rotating brushbar
Upper handle release button
Post motor lter
release button
Brushbar blockage
indicator
Power on/o button
Brushbar on/o button
Dirt bin release
Hose extension
tube connector
Quick release cord wrap
Cord
3-in-1 crevice, upholstery
& dusting brush tool
Wheels
Hose to machine connector
Carry handle
Inner cyclones
Dirt bin
Brushbar access clips Brushbar reset button
Operating the appliance Attaching to hose
Attaching to telescopic extension tube
Using the stretch hose
Using accessories
NOTE: Switching the brushbar on whilst cleaning hard oors
may damage the ooring.
NOTE: The crevice tool, dusting brush and upholstery tool can all be attached to the telescopic tube
or directly to the hose.
Using your machine Using your machine
Twist cord hook to
release cord.
Brushbar on - carpets
Brushbar o - hard oors
Recline unit.Turn unit on.Adjust handle height. Remove hose. Choose an accessory. Attach accessory to hose.
Remove telescopic
extension tube.
Attach hose to telescopic
extension tube.
Attach accessory to
telescopic extension tube.
IMPORTANT: Hold unit
while using hose or
telescopic extension tube.
Remove stretch hose. Attach stretch hose to the
existing base hose.
Attach stretch hose to
telescopic extension tube.
Hose can now be extended
for stair cleaning.
Taking care of your machineTaking care of your machine

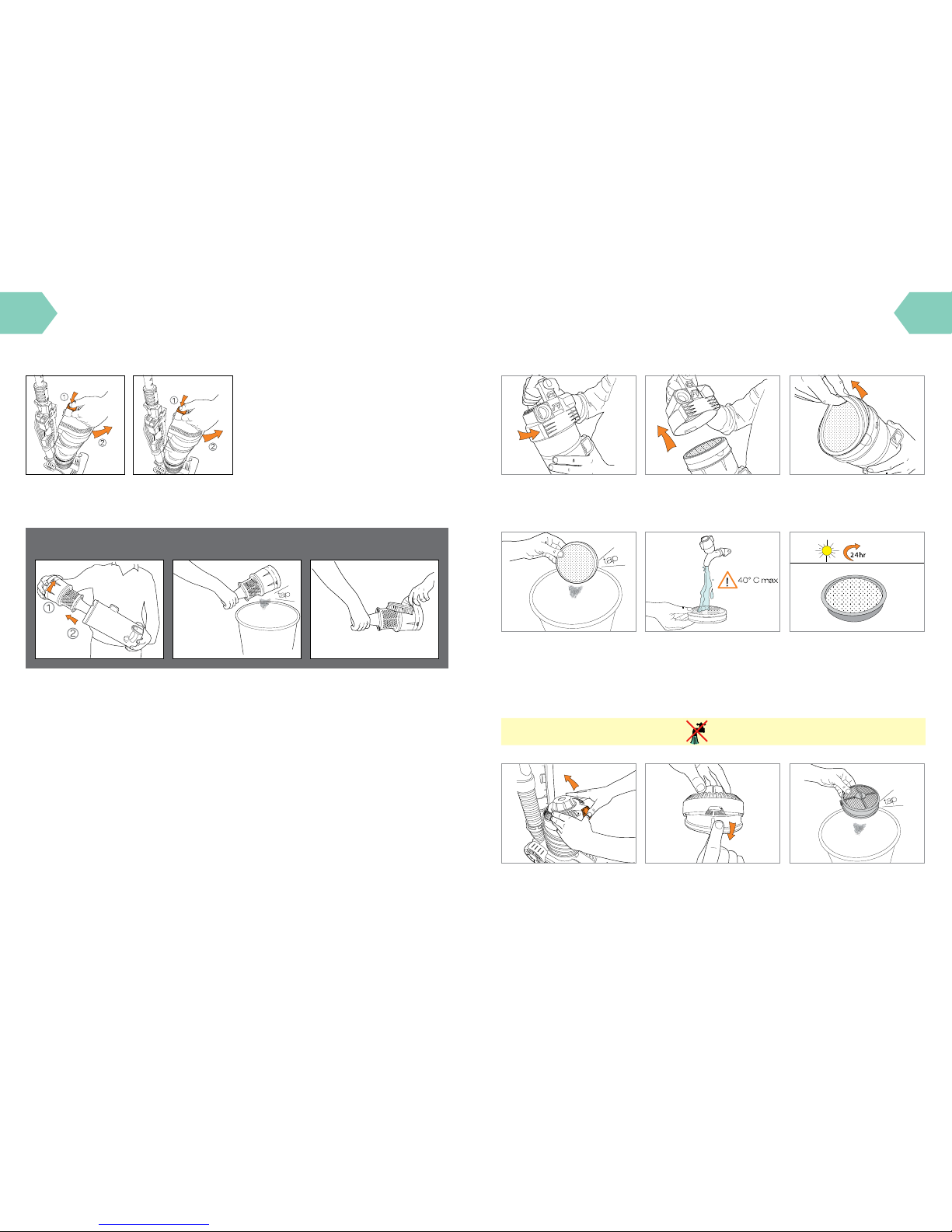

Advanced cleaning
Lift o canister.
Slide out the cyclone separator.
Press the release button
on canister to empty.
Tap over a bin to remove
excess dirt
or use a brush to gently
clean separator.
Operating the appliance Cleaning the pre-motor lter
Cleaning the post-motor lter
Twist canister lid.
Tap over a bin to remove
excess dirt.
Lift lid o.
Wash lter with warm tap water
(40º max).
Pull out the lter from the
canister base.
Allow to dry for 24hrs.
Press the release clip at the front on
the lter cap.
Separate lter from the holder. Tap over bin to clean.
WARNING: Do not wash the post-motor lter.
Taking care of your machineTaking care of your machine
Removing blockages from the Turbo ToolRemoving blockages from the brushbar
Resetting jammed brushbar
WARNING: To reduce the risk of electric shock, turn the vacuum cleaner o and unplug from the electrical outlet
before performing maintenance/troubleshooting checks.
Disconnect the hose from the vacuum cleaner and remove any blockages found then reconnect the hose securely.
IMPORTANT: For your safety, never try to access / replace brush bar drive belt. If problem persists please call
our careline: AU 1300 361 505 / NZ: 0800 800 900.
A red ashing light will indicate a jammed brushbar. To reset press the button on the side of you vacuum.
Removing debris from the brushbar
If the light continues to ash after resetting, the brushbar may still be blocked. Using a pair of scissors, cut
through any threads or hairs caught around the brushbar. To access brushbar:
Press the brushbar reset button again to ensure the blockage is fully cleared.
Press the two side buttons together
and pull apart.
Carefully use scissors to cut
out the blockage.
Realign turbo brush sides and
press together.
What to do if it goes wrong
SolutionProblem
CAUTION: To reduce the risk of personal injury, unplug the product before performing
maintenance/troubleshooting checks.
What to do if it goes wrong
What do I do if the unit/
accessory becomes
damaged or broken?
Why won’t the accessory
pick up properly?
Why will the vacuum
cleaner not run?
Why isn’t my brushbar
rotating?
Why is there a red light
on the nozzle?
• We’re here to help. Simply call us on AU 1300 361 505 or
NZ 0800 800 900 or visit vax.com.au / vax.co.nz
• The accessory may be blocked; Refer to ‘Taking care of your machine:
Removing blockages from the Turbo Tool’.
• The accessory may be faulty. Simply call us on AU 1300 361 505
or NZ 0800 800 900
• It may not be plugged into the electrical outlet correctly; ensure that
the plug is pushed in securely.
• The electrical outlet may not be working properly; check the fuse or
breaker, or consult an electrician.
• The motor thermostat may have tripped; switch o and unplug the
vacuum cleaner, and leave for one hour before switching the cleaner
back on.
• The brushbar may not be turned on. Refer to the Using your machine
section.
• The unit may not be reclined. Refer to the Using your machine section.
• The brushbar may be jammed. Refer to 'Taking care of your machine;
how to resetting jammed brushbar.'
• The brushbar may be jammed. 'Taking care of your machine; how to
resetting jammed brushbar.'
• If the red light still shows, we’re here to help. Simply call us
on AU 1300 361 505 or NZ 0800 800 900
• Check the Parts Overview page in the guide to make sure the part
is denitely included in your unit.
• If the part is missing we’re here to help. Simply call us on:
AU 1300 361 505 or NZ 0800 800 900
• The dirt container may be incorrectly installed; Refer to ‘Taking care
of your machine: Operating the appliance’.
• The lter may be clogged; Refer to ‘Taking care of your machine:
Cleaning the lters’.
• The dirt container is full or blocked; refer to ‘Taking care of your
machine; Emptying and cleaning the dirt container’.
• The brushbar may be blocked; refer to ‘Taking care of your machine;
Removing blockages from the brushbar’.
SolutionProblem
There is an
accessory missing.
Why won’t the vacuum
cleaner pick up?
Why is dust escaping
from the vacuum cleaner?
• The lter may be clogged; Refer to ‘Taking care of your machine:
Cleaning the lters’.
• The lters may be incorrectly installed; Refer to ‘Taking care of your
machine: Cleaning the lters’.
• The dirt container may be incorrectly installed; remove the dirt
container from the unit by pressing the dirt container release button
and then re-attach it to the unit, ensuring it is locked rmly back
into place.
* Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
NotesGetting in touch
NotesNotes
Distributed by Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mt Waverley, VIC 3149 Australia.
Careline AU: 1300 361 505 www.vax.com.au
Careline NZ: 0800 800 900 www.vax.co.nz
Loading...
