COMMERCIAL
VCU-03
VCU-03
User Guide
Vax Commercial Careline: (UK) 0844 375 4275
vaxcommercial.co.uk
Performance is everything.
Machine Overview
2 vaxcommercial.co.uk
1 Ergonomic handgrip
2 Top cord winder
3 Hose
4 Bottom cord winder
5 Power cable
6 Electric brush
7 Switch
8 Back door (hidden)
9 Carrying handle
10 Box
11 Air vent
12 Motor housing
13 Base
12
5
13
11
10
55
1
2
3
6
4
7
9
8
WARNING: Always switch o and unplug your vacuum cleaner from the electrical socket before
carrying, opening, emptying or conducting maintenance or troubleshooting checks on the machine.
Always switch o and unplug your vacuum cleaner from the electrical socket when connecting/
disconnecting the attachments.
!
!
!
!
Operation
3Vax Careline: (UK) 0844 375 4275
Insert the revolving coupling into the dust bag container hole:
insert the second revolving coupling into the side slot of the
motor housing.
To operate: use your foot to press the cover and lower the
cleaner at the same time.
Connecting the hose
Starting up the brush
PLEASE READ SAFETY INFORMATION BEFORE USE (PAGE 8)
If the sack full indicator turns red, check the following:
a) if the dust bag is full
b) if the brush is obstructed
c) if the suction tube is obstructed; in this case, remove the obstruction
d) if the lter is completely obstructed during suction, it is normal
for the bag full indicator to turn partly red, since the tube is almost
completely closed.
Filter-full indicator
Keep these instructions safe
Maintenance
4 vaxcommercial.co.uk
Remove the hatch. Place paper bag in the container, inserting the bag
support tting into the hole in the bag and pushing the safety ring as
far as it will go. If the lter bag is not correctly positioned, it will not
be possible to close the hatch.
Press the button to release the ventilation grille and at the same
time slide out the grille (in the direction of the arrow) to free it.
Replace or clean the pre lter by washing it.
Take out the lter support and replace it or clean it by tapping it
gently (the lter needs to be replaced about every 20 dust bags).
Filter dust bag replacement
Filter replacement or cleaning
Filter replacement
Maintenance
5Vax Careline: (UK) 0844 375 4275

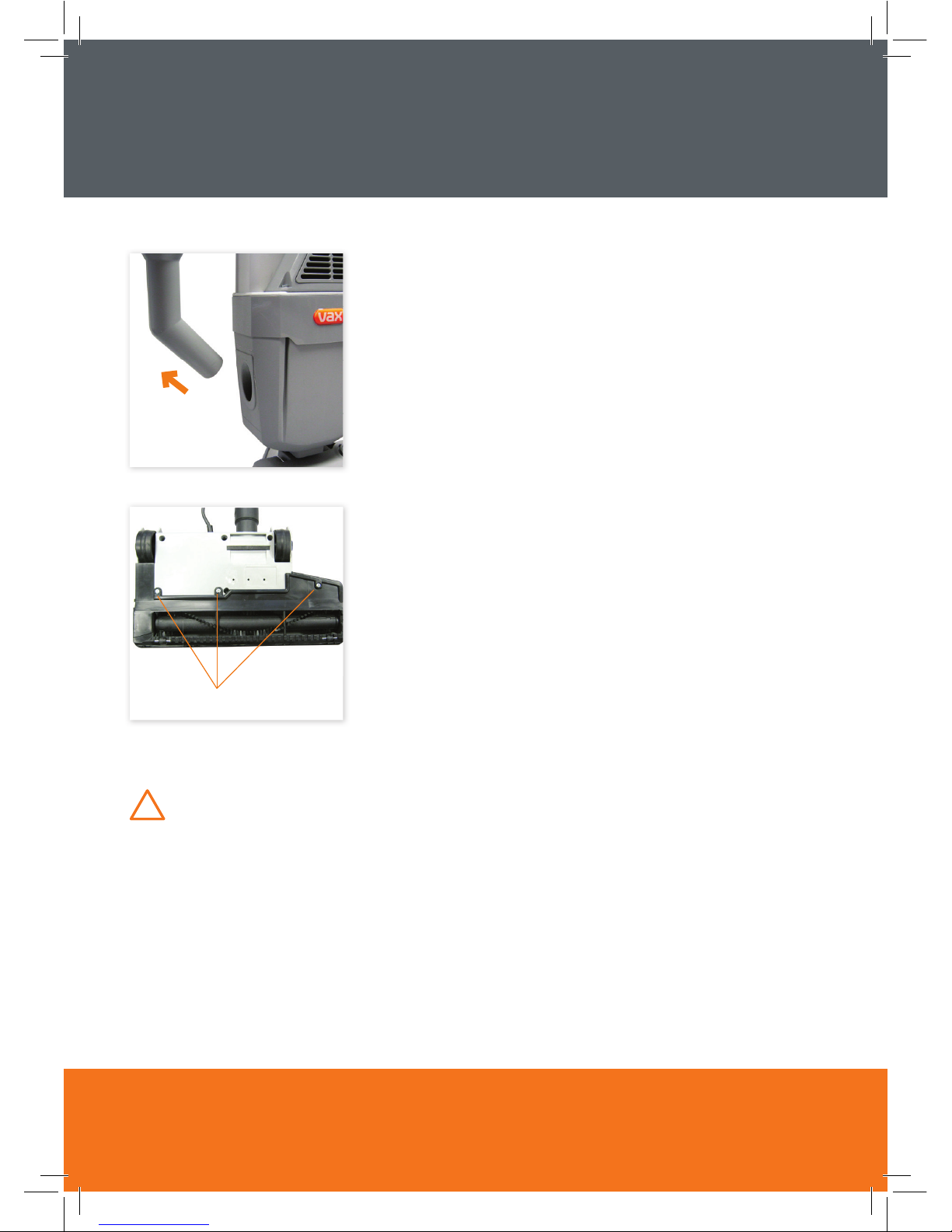

Obstructions can be removed from the hose by sliding the hose out
from its seating and starting up the suction function but blocking
it intermittently with your hand. Do not insert any items to remove
obstructions from the pipe.
Put the suction unit in a horizontal position in line with the electric
brush.
Remove the screws from the base: remove the base.
Remove the obstruction from the hose with the aid of a exible
cleaning swab.
Removing obstructions from the external hose
Removing obstructions from the internal hose
Screws
WARNING: Avoid direct heat sources as these will damage the lter.
!
!
!
!
Filter replacement
To maintain optimum performance check lters whenever you replace the dust bag. Replace the lters if they
become damaged or discoloured.
Checking castors and wheels
To help maintain the smooth movement of the machine, regularly check the front castors and rear wheels and
remove any hair or bres.
WARNING: Avoid direct heat sources as these will damage the lter.
!
!
!
!
Maintenance
6 vaxcommercial.co.uk
1 - Filter
2 - Air freshener
3 - Filter bag
4 - Protection motor lter
Wiring diagram
Spare parts
CAUTION! Any job involving the electric equipment must be carried out by quali ed personnel only.
!
!
!
!
Wiring diagram
ON/OFF Switch
Capacitor
Vacuuming
motor
Electric brush
microswitch
Brush motor
FAQs
7Vax Careline: (UK) 0844 375 4275
Is there an accessory missing?
• Check the ‘Machine Overview’ (page 2) to make sure the part is denitely included in your unit.
• If it is missing, we’re here to help. Simply call us on 0844 375 4275
Why will the vacuum cleaner not run?
• It may not be plugged into the electrical outlet correctly. Ensure that the plug is pushed into the electrical
outlet securely.
• The electrical outlet may not be working. If unsure consult an electrician.
• The motor thermostat may have tripped. Switch o and unplug the vacuum cleaner. Leave for one hour before
switching the vacuum cleaner back on.
Why won’t the vacuum cleaner pick up?
• Dust bag may be full or incorrectly installed; remove the dust bag from the unit and if not full, re-attach as
shown on page 4.
• The lter may be clogged; refer to ‘Maintenance: Cleaning the lters’ on page 4.
• The lter may not be tted correctly; refer to ‘Maintenance: Cleaning the lters’ on page 4
• There may be a blockage in the tube or hose. Disconnect the hose from the vacuum cleaner, carefully remove
any blockages found and reconnect securely.
Why won’t the accessories pick up properly?
• Accessories may not be attached securely; ensure tools are tted correctly
• Accessory may be blocked; remove accessory from handle/tube and carefully remove blockage and re-attach
to the vacuum cleaner.
Why is dust escaping from the vacuum?
• The lter may be clogged; refer to ‘Maintenance: Cleaning the lters’ on page 4.
• The dust bag may be full; remove the bag and if full, t a new bag as shown on page 4.
• Dust bag may be incorrectly installed; remove the dust bag from the unit and re-attach as shown on page 4.
• The hose may not be installed correctly, remove and ret as shown on page 3
What do I do if the unit/an accessory becomes damaged or broken?
• We’re here to help. Simply call 0844 375 4275 or visit vaxcommercial.co.uk
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner from mains supply
before performing maintenance/troubleshooting checks.
!
!
!
!
General Safety Information
8 vaxcommercial.co.uk
• Check the voltage stated on the vacuum cleaner before connecting the power cable to the mains power
supply; the mains voltage needs to be the same as the voltage stated on the appliance rating plate,
which is located on the bottom of the vacuum cleaner. If you are not sure of your power supply voltage,
please check with a qualied electrician.
• A damaged vacuum cleaner can be dangerous. Check the packaging, the vacuum cleaner and the
attachments for any signs of damage. Never use a damaged appliance.
• Never leave the vacuum cleaner plugged into the mains power. Unplug the cleaner when not in use or
before carrying out any cleaning or maintenance to the appliance itself.
• Only use the vacuum cleaner on dry surfaces; do not use it outdoors, on wet surfaces or to clean up any
type of liquid. Do not use this appliance to clean up liquids as this could reduce the electrical safety of the
cleaner. This also applies in the case of carpets that have just been washed: wait until they are dry.
• Do not allow the vacuum cleaner to be used as a toy. Take care if it is used by or near children.
• If the power cable rewind or the cable itself are damaged, they should be replaced only by an authorised
after-sales assistance service. Never use the vacuum cleaner with a damaged cable or plug.
• If the appliance does not operate correctly or if it has been dropped or damaged, left outdoors or
immersed in water, take it to your retailer or to an aftersales assistance service.
• For any repairs or to purchase parts or accessories, please contact your retailer or an authorised technical
service centre. Do not try to carry out repairs yourself.
• Do not pull or carry the vacuum cleaner by the cable; do not use the cable as a handle; do not close the
cable in doors or pull it across sharp edges or around corners. Never pass the appliance over the cable.
Keep the cable well away from hot surfaces.
IMPORTANT SAFETY MEASURES
When using an electrical appliance, there are several basic precautions to be taken at all
times, including:
• Always read all of the instructions for use before using the appliance.
• Always abide by these safety instructions.
• Never use the appliance on people or animals.
IMPORTANT: The manufacturer cannot accept any liability for damage to people or
property caused by improper use, maintenance carried out by persons without the proper
authorisation, the use of non-original or unauthorised spare parts, or any form of tampering
with and/or changes made to the original product.
The manufacturer reserves the right to make changes to the appliance and/or accessories
supplied without any prior notice.
IMPORTANT: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY
!
!
!
!
!
!
!
!
General Safety Information
9Vax Careline: (UK) 0844 375 4275
• Do not unplug the appliance by pulling on the power cable: grip the plug and not the cable. Do not touch the
cable or the appliance with wet hands.
• If your appliance has a cable rewind, always hold the plug while rewinding the cable. Do not let the cable ap
around as you rewind.
• Attachments, hoses and oor attachments must not be used at head height as there is a risk of injury to eyes
or ears.
• Always keep hair, clothing, ngers and all other body parts well away from openings and moving parts.
• Set the switch to OFF after use.
• Take special care when cleaning stairs
• When using this appliance with an accessory always remove the plug from the electric socket before attaching
any rotating brush. In any case, never touch the rotating brush while it is operating.
• Do not pass attachments over the appliance power cable or any extension lead.
• Do not clean up sharp objects.
• Always switch o the appliance before tting or removing the hose.
• The poles in the plug and the contacts in the power socket must never come into contact with water. These
parts can only be wiped clean with a dry cloth and must not be allowed to come into contact with moisture.
Danger of electric shock.
• Only wipe the appliance clean with a dry (or very slightly damp) cloth while it is unplugged. Never place the
appliance in water.
• Never clean up anything that is burning or smoking, such as cigarettes, matches, hot ash, etc.
• Never use the vacuum cleaner to clean up ammable or combustible liquids such as petrol and never use the
appliance in areas where the fumes of such liquids might be present.
• Never place any items in the appliance openings. Never use the vacuum cleaner with openings blocked in any
way; keep them free from dust, u, hair and anything else that might reduce air ow.
• Do not clean up toner powder. The toner used in printers and copiers can conduct electricity.
• Do not use the vacuum cleaner without a dust bag and/or without the lters in place. Dust bags need to be
disposed of and can be used only once. Do not try to re-use them
• If your vacuum cleaner has a blower function, do not use it to operate paint spraying or other similar
equipment that emits volatile or toxic fumes.
Machine Overview
10 vaxcommercial.co.uk
Service & Help
Vax Commercial Careline:
(UK) 0844 375 4275
Monday-Friday 8.30am to 6.30pm
Saturday 9.00am to 5.00pm
Any queries or concerns about using your Vax, call the Vax Commercial Careline. Calls are charged at the UK
local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling. For
the nearest Service Agent, please call the Vax Commercial Careline or visit vaxcommercial.co.uk
Technical Specication
Vacuum motor power 1000 W
Brush motor power 160 W
Dust bag capacity 6.5 L
Working surface 350 mm
Weight 6.5 Kg
Noise level 66 dB(A)
Voltage 240 Volt / 50-60 HZ
The manufacturer reserves the right to make any modication without prior notice.
Other Information
11Vax Careline: (UK) 0844 375 4275
EEC Statement of Compliance
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
VCU-03 series is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive Disposal
Disposal
Waste electrical products should not be disposed of with normal waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Packaging
• The box and packaging materials have been designed to protect the appliance during shipping and are
biodegradable and recyclable. Please dispose of these items as you would any other product that can
be recycled.
Used vacuum cleaner
• The symbols for the materials used to manufacture parts and accessories, and the recycle
symbols, are located on the parts themselves, where there is room to do so. Old vacuum
cleaners may contain materials that can be re-used or recycled
• The symbol on the product or packaging is to remind you that this item cannot be disposed of along
with common waste, as stated in the Directive 2002/96 EC (WEEE).
• The appliance needs to be taken to a suitable recycling centre for electrical or electronic equipment.
• By making sure that you dispose of this product correctly, you will be contributing to the prevention of
possible negative consequences for the environment and human health that could result from unsuitable
product disposal.
• For more information about recycling this product, please contact your local council or household refuse
disposal service or the retailer from whom you purchased the appliance.
COMMERCIAL
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
email: info@vaxcommercial.co.uk website: vaxcommercial.co.uk
Performance is everything.
Version 1.0
Loading...
