www.vax.co.uk
Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
R
e
tain f
or future reference.
Vax careline
0870 1129 145
instruction manual
Commercial Upright
Vax model number:
VCU-02
(UK only)
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 1
VCU-02
1. Diagram
Vax VCU-02
2
parts overview
Fig.1/1
1
2
5
4
3
8
6
7
13
12
14
15
12
1616
17
18
12
11
10
9
1 Handle Grip
2 On/Off Switch
3 Upper Handle
4 Zip
5 Outer Cloth Bag
6
Base
7
Bumper
8 Edge cleaning bristles
9
Upper C
or
d Wr
ap
10 Cord Extension Connector
11 Cord Lock
12 Collars
13 Carry Handle
14 Lower Cord Wrap
15
Lower Handle
16
Wheels
17 Bag Pocket
18
C
or
d Clip
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 2
3
user guide
safety information
2. Safety Information
FOR COMMERCIAL USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. This appliance is for dry use only and is not to be
used or stored outdoors or in wet conditions.
2. Turn off the vacuum cleaner controls before
connecting to or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the vacuum hose.
4. Children should be supervised to ensure that they do not
play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
6. Use only as described in this manual. Use only the
manufacturer’s recommended attachments.
7. Do not use the vacuum cleaner with a damaged cord
or plug. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified person
for examination, repair or adjustment.
Call 08701129 145 for your nearest service centre.
Regularly examine the power cord for damage, such
as cracking or ageing. If damage is found replace the
cord before further use.
8. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do no
t use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flo
w. K
eep all openings fr
ee of dust, lint, hair or
anything that may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.
13.
Do not pick up flammable, hazardous dust or
combustible materials (lighter fluid, petrol, kerosene, etc)
or use in the presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner, etc).
15. Do not vacuum up hard or sharp objects such as glass,
nails, screws, coins, etc.
16. Do not use without the filters in place.
17. Use extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner indoors in a cool, dry area.
20. Turn off the switch before unplugging.
21. Use only CE-approved 13 amp extension cords. Nonapproved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.
22. Regularly examine the supply cord for damage, such
as cracking or ageing. If damage is found replace the
cord before further use.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the outlet
make sure the switch is in the ‘off’ position. Hold the
vacuum cleaner firmly when starting and in use.
IMPORTANT: If the inlet is blocked, switch off
the vacuum cleaner and remove the blockage(s)
before re-starting the vacuum cleaner.
IMPORTANT: Changing the paper dust bag
improves performance. Make sure all filters are
replaced back into the vacuum cleaner before using.
Vax recommends cleaning the pre-motor filter every
month and the exhaust filter every 9-12 months.
This appliance is suitable for commercial use.
PLEASE KEEP THESE INSTRUCTIONS
FOR FURTHER USE.
!!!!!
Motor Thermostat
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason, the vacuum cleaner should
o
v
er-hea
t, the thermostat will automatically turn the
unit off. Should this occur, unplug the vacuum cleaner
from the electrical outlet and turn off the switch.
R
emo
v
e the dirt c
on
tainer and emp
ty. Clean the
filt
ers. Allo
w the cleaner t
o c
ool for approximately one
(1) hour. To re-start, plug into an electrical outlet and
switch back on.
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 3
Vax VCU-02
4
initial set up
3. How to Assemble
NOTE: To ensure proper operation of the cleaner, verify
that the rubber O-ring is in place and tighten all collars.
To attach the lower handle, align with nozzle opening in the
base of the cleaner (Fig.3/1). Push together firmly and turn
the knob clockwise to tighten (Fig.3/2).
To attach the bag, hold the handle and firmly push into lower
handle (Fig.3/3). Turn the top knob counterclockwise to
tighten and snap bag clip onto lower handle (Fig.3/4).
To attach the upper handle, align with middle section of
cleaner and push firmly into place (Fig.3/5). Turn the knob
clockwise to tighten (Fig.3/6).
To keep the cord out of the way while vacuuming, snap it
into the cord clip on the back of the upper handle (Fig.3/7).
Fig.3/1 Fig.3/2
Fig.3/3 Fig.3/4
Fig.3/5
Fig.3/6
Fig.3/7
!
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 4
5
user guide
use and function / operation
4. How to Operate
WARNING: Fully assemble before operating.
Plug the extension cord firmly into the cord extension
connector making sure that both ends are completely
engaged.
NOTE: Use only a 3-core 1.0mm2H05VV-F extension cord
with this cleaner. Using a cord of different type may result in
increased risk of fire or electric shock.
To prevent the cords from coming apart while vacuuming,
create a loophole with the extension cord and slide through
opening at top of cord lock (Fig.4/2). Allow loophole to slip
over hook at bottom of cord lock then remove excess slack
by pulling the long end of the extension cord (Fig.4/3).
Plug extension cord into electrical outlet. Turn power switch
to the “ON“ position.
Tilt the cleaner back before you start vacuuming. At the same
time, use your foot to press the base down onto the carpet.
For tidy cord storage, wrap cord around upper and lower cord
wraps on back of cleaner.
Fig.4/1
Fig.4/4
Fig.4/5
Fig.4/2 Fig.4/3
Fig.4/6
!
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 5
Vax VCU-02
6
dust bag
5. Paper Bag:
Removal & Replacement
WARNING: To reduce the risk of injury from moving
parts - unplug from servicing.
NOTE: Cleaner MUST have paper bag in place at all times.
Remove Old Bag
Unzip the soft outer bag.
Insert hand into the top of the cloth bag and grasp top of
paper bag collar. Pull collar away from the dirt tube. Dispose
of old paper bag.
To install new bag
Install the paper bag into the outer cloth bag. Be sure paper
bag is fully extended inside the cloth bag.
Push collar of paper bag onto the dirt tube past the raised
tabs on the sides of the dirt tube to ensure bag is securely
in place.
C
omple
t
ely zip up the so
ft outer cloth bag.
Fig.5/3
!
Fig.5/2
Fig.5/1
Fig.5/4
RAISED LOCKING TABS
Fig.5/5
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 6
7
user guide
belt & brush bar removal & replacement
6. Belt or Brush Bar:
Removal & Replacement
Tool required: Phillips Screwdriver
WARNING: To reduce the risk of injury from moving
parts - uplug before servicing.
To Remove New Belt
Turn cleaner over. Base should lay flat and face up. To
remove nozzle guard, remove two (2) screws near rollers
(Fig.6/1).
Release the nozzle guard by pulling tab toward the front of
the cleaner and rotate/pivot the nozzle guard up to lift off
(Fig.6/2).
Be sure belt is off motor shaft. Lift and remove brush bar.
Dispose of old belt (Fig.6/3).
!
Fig.6/1
TA B
Fig.6/2
Fig.6/3
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 7
Vax VCU-02
8
belt & brush bar & replacement

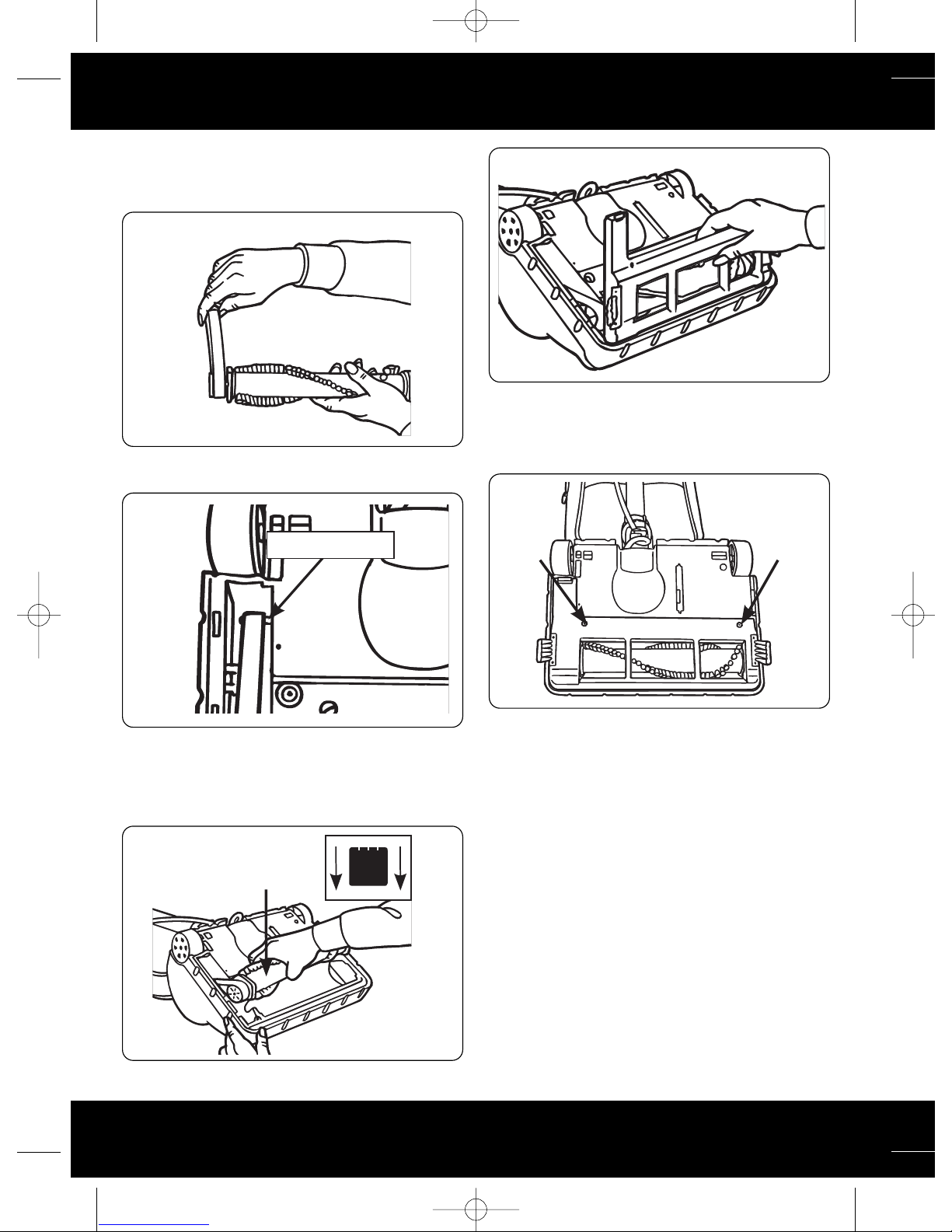

To Replace New Belt
Slip brush bar through belt. Place belt in area of brush bar
without bristles (Fig.6/4).
Loop belt around motor shaft (Fig.6/5).
With new belt in place, pull and slide brushroll into nozzle
making sure that the brush bar end caps are in the correct
orientation (Fig.6/6). Rotate brushroll manually to make sure
belt is properly aligned.
To reassemble the nozzle guard, align the three (3) tabs on
the front of the nozzle guard with the slots in the base.
Rotate/pivot the nozzle guard back into position making sure
that the tab is fully engaged back by the rear wheel.
Replace the two (2) screws to secure nozzle guard.
Fig.6/4
Fig.6/5
MOTORSHAFT
Fig.6/6
Fig.6/7
Fig.6/8
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 8
9
user guide
edge cleaning bristle
7. Edge Cleaning Bristles:
Removal & Replacement
Tool required: Phillips Screwdriver
WARNING: To reduce the risk of injury from moving
parts - uplug before servicing.
To Replace Edge Cleaning Brushes
Remove two (2) screws from each edge cleaning bristle.
Remove and dispose of old bristles and replace with new
bristles on each side.
Replace all four (4) screws to secure.
Fig.7/2
Fig.7/3
Fig.7/1
!
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 9
Vax VCU-02
10
troubleshooting
8. Troubleshooting
WARNING: To reduce the risk of personal injury,
unplug the vacuum cleaner before servicing.
PROBLEM: Vacuum cleaner won't run
Cause: Not properly plugged into electrical outlet.
Solution: Plug unit in firmly.
Cause: Cord Extension Connector and Power
Cord not fully connected or
unconnected completely.
Solution: Firmly push cords together until they are
fully connected.
Cause: Blown fuse or tripped breaker.
Solution: Check fuse or breaker in home. Replace fuse /
reset breaker.
Cause: Needs service.
Solution: Take to service centre
or call 0870 1129 145.
PROBLEM: Cleaner won’t pick up/loss of suction.
Cause:
Paper bag not installed correctly.
Solution: Review paper bag removal and
replacement - p6.
Cause: Paper bag is full.
Solution: Remove/replace paper bag - p6.
Cause: Brushroll worn.
Solution: Replace brushroll - p8.
Cause: Broken or worn belt.
Solution: Replace belt - p8.
PROBLEM: Dust escaping from the vacuum cleaner.
Cause:
Paper bag is full.
Solution: Replace paper bag - p6.
Cause: Paper bag is not installed correctly.
Solution: Review paper bag removal and
replacement - p6.
9. UK Service & Help
Vax Care 0870 1129 145 (UK only)
Monday-Friday 9.00am to 5.00pm.
An answerphone is available outside of these hours. Any
queries or concerns about using the Vax, call the Vax
Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the vacuum cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
!
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 10
11
user guide
10. Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 450W (max)
Capacity: 7.5 litres
Filters: 2 layer paper bag and HEPA outer
cloth bag.
Cord length: 12.5m
Weight: 5.81kg
Sound Level: 84 dB(A)*
*The sound level is measured in accordance with IEC 60704-2-1
Subject to technical change without notice.
technical specification
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 11
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the product
VCU-02 Commercial Upright is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 89/336/EEC Electromagnetic Compatibility Directive
W
as
te electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: www.vax.co.uk
Vax VCU-02 User Guide.qxd 6/3/07 13:58 Page 12
Loading...
