Air series
Get Cleaning...
What’s your Vax model number? (Located on the flap of the packaging)
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
– – – – –
e.g. U9 O - M A - B
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 1
Page 2
---
Unit
Accessories
24
25
Filters
2
3
1
22 Telescopic extension tube
23 TurboTool
(not standard on all models)
24 Pre-motor filter
25 Post motor filter
1
1
4
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
17
23
22
20
1
Handle
2
Handle height adjuster
3 Upper handle release button
4
Dirt bin release button
5 Carry handle
6 Power on/off button
7
Brushbar on/off button
8 Inner cyclones
9 Dirt bin
10 Post motor filter release button
11 Brushbar blockage indicator
12 Brushbar access clips
13 Rotating brushbar
14 Hose to extension tube connector
15 Quick release cord wrap
16 Cord
17 3-in-1 crevice, upholstery and
dusting brush tool
18 Wheels
19 Hose to machine connector
20 Brushbar reset button
21 Stretch hose
(not standard on all models)
21
21
2

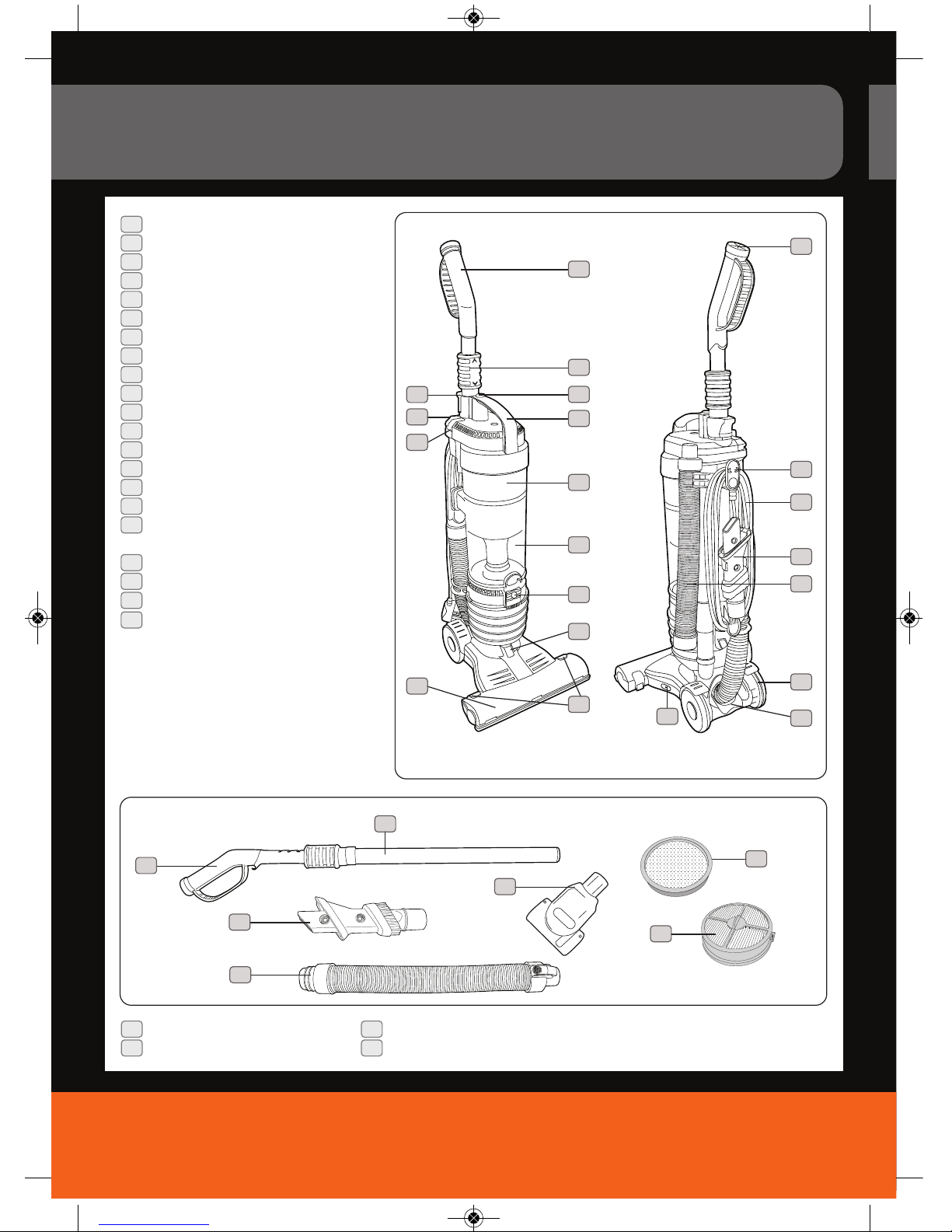

Machine Overview
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 2
Page 3
vax.co.uk
3
General Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions should always
be observed, including the following:
1. Only use the vacuum cleaner indoors on dry surfaces. Do not
handle the plug or vacuum cleaner with wet hands. Do not use
outdoors or on wet surfaces.
2. Turn off the vacuum cleaner controls before disconnecting or
c
onnecting from the electrical socket.
3. Always unplug the vacuum cleaner before connecting or
disconnecting the hose and accessories.
4. Children should be supervised to ensure that they do not play with
the appliance.
5. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
6. Only use as described in this manual. Only use Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not use the
vacuum cleaner with a damaged cord or plug. If the supply
cord is damaged, it must be replaced by the manufacturer or a
recommended Service Agent to avoid hazard and
invalidating the guarantee.
8. Do not pull or carry by cord. Do not use the cord as a handle,
close a door on the cord or pull cord around sharp edges or
corners. Do not run the vacuum cleaner over the cord. Keep
the cord away from heated surfaces.
9. Do not put any objects into openings. Do not use with any
openings blocked and do not restrict air flow. Keep all openings
free of dust, lint, hair or anything that might reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the body away
from openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches or any hot,
smoking or burning objects.
12. Do not pick up flammable or combustible materials (lighter fluid,
petrol, kerosene etc.) or use in the presence of explosive liquids
or vapours.
13. Do not vacuum up harmful or toxic materials (chlorine, bleach,
ammonia, drain cleaner etc.).
14. Do not vacuum up hard or sharp objects such as glass, nails,
screws, coins, etc.
15. Do not use without ALL of the filters in place.
16. Take extra care when vacuuming on stairs.
1
7. Keep vacuuming area well lit.
18. Store the vacuum cleaner in a cool, dry area.
19. Turn off the on/off switch before unplugging the
v
acuum cleaner
2
0. Use only CE-approved 13 amp extension cords.
N
on-approved cords may overheat. Care should be taken to
arrange the cord so that the cord cannot be tripped over.
W
ARNING: Always switch off and unplug the vacuum cleaner from
the electrical socket before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful unit. Before
plugging the cord into the electrical socket, make sure the switch is in
the ‘off’ position.
IMPORTANT: If the inlet, hose or telescopic tube is blocked, switch off
the vacuum cleaner and remove the blockage(s) before re-starting the
vacuum cleaner. See Maintenance:
Clearing blockages.
IMPORTANT: Washing filters maintains vacuum performance. Vax
recommends that they should be checked and cleaned periodically
(depending on the level of use). Make sure all filters are completely
dry before inserting back into the vacuum cleaner.
IMPORTANT:
The motor is equipped with a thermal cut-out. If for any
reason the unit should overheat, the thermostat will automatically turn
the unit off. Should this occur, unplug the vacuum cleaner from the
electrical socket and turn off the switch. Remove dirt container and
empty. Clean filters. Allow the unit to cool for approximately one (1)
hour. To re-start, plug into an electrical socket and switch back on.
This vacuum cleaner is intended for household use only and NOT
for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 3
Page 4
---
Assembling your vacuum cleaner
Operating the appliance
IMPORTANT: The condition of the filters affects the performance of
your machine. Filters need to be cleaned every time you empty the
dirt container for best cleaning results. For full cleaning instructions,
see page 6.
IMPORTANT: Do not use the vacuum cleaner without all of the filters
in place.
1
2
17
22
15
6
2
7
Twist cord hook to
release cord.
Turn unit on. Adjust handle height. Recline unit.
Brushbar on - carpets.
Brushbar off - hard floors.
IMPORTANT: Switching the brushbar on whilst cleaning hard floors may
damage flooring.
Operation
4
Keep your Vax like new
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 4
Page 5
Operation
NOTE: The crevice tool, dusting brush and upholstery tool can all be attached to the telescopic tube or directly
to the hose.
Using accessories
19
1
7
17
19
3
14
19
Remove hose. Attach accessory to hose.
Remove telescopic
extension tube.
Attach hose to telescopic
extension tube.
Attach accessory to
telescopic extension tube.
IMPORTANT:
Hold unit while using
hose or telescopic
extension tube.
17
22
Attaching to hose
Attaching to telescopic extension tube
23
Choose an accessory.
Using the stretch hose (Not standard on all models)
Remove stretch hose
Attach stretch hose
to hose
Attach stretch hose to
telescopic extension tube.
14
21
19
24
21
vax.co.uk
5
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 5
Page 6
---
Emptying and cleaning the dirt container
Cleaning the post-motor filter
Cleaning the HEPA pre-motor filter
t
a
p
t
a
p
24hr
t
ap
Advanced cleaning
1
2
!
40° C max
1
2
WARNING: Do not wash the post-motor filter.
Maintenance (Keep your Vax as good as new)
6
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 6
Page 7
Removing blockages from the brushbar
WARNING: To reduce the risk of electric shock, turn the vacuum cleaner off and unplug from the electrical outlet
before performing maintenance/troubleshooting checks.
Disconnect the hose from the vacuum cleaner and remove any blockages found then reconnect the hose securely.
Resetting jammed brushbar
A red flashing light will indicate a jammed brushbar. To reset press the button on the side of your vacuum.
Removing debris from the brushbar
If the light continues to flash red after resetting, the brushbar may still be blocked. Using a pair of scissors, cut
through any threads or hairs caught around the brushbar. To access brushbar:
Press the brushbar reset button again to ensure the blockage is fully cleared.
IMPORTANT: for your safety, never try to access / replace brushbar drive belt.
If problem persists please call our careline: 0844 412 8455
Red light Green light
Removing blockages from the TurboTool (Not standard on all models)
Maintenance (Keep your Vax as good as new)
vax.co.uk
7
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 7
Page 8
---
8
FAQs
WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner before performing
maintenance/troubleshooting checks.
Is there an accessory missing?
• Check the ‘Parts Overview’ page in this guide to
make sure the part is definitely included in
your unit.
• If it is missing, we’re here to help. Simply call us
on 0844 412 8455
Why won’t the vacuum cleaner pick up?
• The dirt container may be incorrectly installed;
remove the dirt container from the unit by
pressing the dirt container release catch and then
re-attaching it to the unit, ensuring it is locked
firmly back into place.
• The filter may be clogged; refer to ‘Maintenance:
Cleaning the filters’ on pages 5 and 6.
• The dirt container may be blocked; refer to
‘Maintenance: Emptying and cleaning the dirt
container’ on page 5.
• There may be a blockage in the tube/hose.
Disconnect from the vacuum cleaner, carefully
remove any blockages found and reconnect
securely.
Why is dust escaping from the vacuum?
• The filter may be clogged; refer to ‘Maintenance:
Cleaning the filters’ on pages 5 and 6.
• The dirt container may be blocked; refer to
‘Maintenance: Emptying and cleaning the dirt
container’ on page 5.
• The dirt container may be incorrectly installed;
remove the dirt container from the unit by
pressing the dirt container release catch and then
re-attaching it to the unit, ensuring it is locked
firmly back into place.
What do I do if the unit/an accessory becomes
damaged or broken?
• We’re here to help. Simply call
0844 412 8455 or visit vax.co.uk
Why won’t the accessories pick up properly?
• Hose blockages: remove the hose from the unit.
Carefully remove any blockages found and
reconnect hose securely.
• Accessory blockages: remove accessory from
handle/tube. Carefully remove blockage and
re-attach to the vacuum cleaner.
• The accessory may be faulty. Simply call us on
0844 412 8455 for assistance.
Why will the vacuum cleaner not run?
• It may not be plugged into the electrical
socket correctly; ensure that the plug is pushed
in securely.
• The electrical socket may not be working properly;
check the fuse or breaker, or consult an
electrician.
• The motor thermostat may have tripped; switch off
and unplug the vacuum cleaner, and leave for one
hour before switching the cleaner back on.
Why isn’t my brushbar rotating?
• The brushbar may not be turned on. Refer to the
operation section
(page 7).
• The unit may not be reclined. Refer to the
operation section (page 4).
• The brushbar may be jammed. Refer to the
maintenance section for how to reset the brushbar
(page 7).
Why is there a red light on the nozzle?
• The brushbar may be jammed. Refer to the
maintenance section for how to reset the brushbar
(page 7).
• If the red light still shows, we’re here to help.
Simply call us on 0844 412 8455
we’re here if you need us
(UK) 0844 412 8455 (ROI) 1-800 928 308
vax.co.uk/support • vaxireland.ie
or call:
Instead of taking me back to the shop, simply visit;
This does not aect your statutory rights.
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 8
Page 9
UK Service & Help
Any queries or concerns about using your Vax, simply visit; vax.co.uk/support – vaxireland.ie or call the
Vax Careline. Calls are charged at the UK local rate. Please make a note of the serial number and model
number of the vacuum cleaner before calling.
Vax Careline:
(UK) 0844 412 8455
(ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm
Saturday-Sunday 9.00am to 5.00pm
Consumables
To purchase spares and accessories, please visit vax.co.uk
The use of genuine vax spare parts helps to maintain optimised
performance and validates your guarantee
Filter kit (Type 27): 1-9-129220-00
Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1200 W
Capacity: 1.5L
Filters: Pre-motor filter (washable)
HEPA post-motor filter (lifetime – tap to clean) (not standard on all models)
Antibacterial HEPA post-motor filter (lifetime – tap to clean) (not standard on all models)
Cord length: 6m approx
10m approx (not standard on all models)
Weight: 4.9kg in use (Air, Air Pet, Air Living)
5.3kg in use (Air Reach, Air Total Home)
Subject to technical change without notice.
vax.co.uk
9
Other Information
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 9
Page 10
---
Other Information
10
EEC Statement of Compliance
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
U90-MA/U91-MA Air series is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 10
Page 11
Notes
vax.co.uk
11
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 11
Page 12
---
A
Version 1.1
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: vax.co.uk
U90 & U91-MA Air Series User Guide UPDATED 10.08.12_User guide 13/08/2012 14:17 Page 12
Loading...
