U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 1
User Guide
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Bagless Upright
Get Cleaning...
What’s your Vax model number?
e.g. U 9 1 - M A- B
What’s your serial number? (Located on the base of the machine)
– – – – –
Note these down in case you need them in future. Please keep instructions for further use.
vax.co.uk
Mach Air Series
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 2
---
Machine Overview
1 Handle
Handle height adjuster
2
Upper handle release button
3
4 Dirt bin release button
5 Carry handle
Power on/off button
6
7 Brushbar on/off button
8 Inner cyclones
Dirt container
9
10 Post-motor filter release button
11 Brushbar blockage indicator
12 Brushbar access clips
13 Rotating brushbar
14 Hose to extension tube connector
15 Quick release cord wrap
16 Cord
17 3-in-1 crevice, upholstery and
dusting brush tool
18 Wheels
19 Hose to machine connector
20 Brushbar reset button
21 Hose
22 Flexi crevice tool
23 Flat nozzle/upholstery tool
(not standard on all models)
NOTE: Some parts may vary according
to model. Please check inside flap of box
for more details.
(not standard on all models)
3
6
7
13
Unit
14
1
2
4
5
8
9
10
11
12
20
15
16
17
25
21
18
19
Accessories
1
22
24 Telescopic extension tube
25 TurboTool+
26 TurboTool (not standard on all models)
(not standard on all models)
2
23
24
17
28
27
27 Stretch hose (not standard on all models)
28 Fluff ‘n’ Fur tool
(not standard on all models)
(
25
29 Pre-motor filter
30 Post-motor filter
Filters
26
29
30
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
!
!!!
!
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 3
General Safety Information
FOR HOUSEHOLD USE ONLY.
hen using the vacuum cleaner, basic safety precautions
W
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
. Turn off the vacuum cleaner controls before
2
isconnecting or connecting from the mains supply.
d
. Always unplug the vacuum cleaner before
3
onnecting or disconnecting the vacuum hose and
c
accessories.
4. Children should be supervised to ensure that they
do not play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord is damaged, it
must be replaced by the manufacturer or a
recommended Service Agent to avoid hazard and
invalidating the guarantee.
8. Do not pull or carry by cord/hose. Do not use the
cord/hose as a handle, close a door on the cord/hose
or pull cord/hose around sharp edges or corners. Do
not run the vacuum cleaner over the cord/hose. Keep
the cord away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air-
flow. Keep all openings free of dust, lint, hair or
anything that might reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
13. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene etc.) or use
in the presence of explosive liquids or vapours.
4. Do not vacuum up harmful or toxic material
1
(chlorine, bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner
21. Use only CE-approved 13 amp extension cords.
Non-approved cords may overheat. Care should
be taken to arrange the cord so that the cord
cannot be tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical
outlet, make sure the switch is in the ‘off’ position.
IMPORTANT: If the inlet, hose or telescopic tube
is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the vacuum
cleaner. See Maintenance; Clearing Blockages.
IMPORTANT: Cleaning filters maintains vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters are
washable make sure they are completely dry before
inserting back into the vacuum cleaner.
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason the unit should overheat,
the thermostat will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the electrical outlet
and turn off the switch. Remove dirt container and empty.
Clean filters. Allow the unit to cool for approximately one (1)
hour. To re-start, plug into an electrical outlet and switch back
on.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
vax.co.uk
3
!
!
!
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 4
---
Operation
Keep your Vax like new
IMPORTANT: The condition of the filters affects the
performance of your machine. Please check and clean
filters periodically (depending on the level of use). For full
cleaning instructions, see page 6.
IMPORTANT: Do not use the vacuum cleaner without
all of the filters in place.
Assembling your vacuum cleaner
Operating the appliance
Twist cord hook to
release cord.
Adjust handle height. Turn unit on. Recline unit.
Brushbar on - carpets.
Brushbar off - hard floors.
IMPORTANT: Switching the brushbar on whilst cleaning
hard floors may damage flooring.
4
2
1
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
!
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 5
Operation
Using accessories
NOTE: The accessories can all be attached to the telescopic tube or directly to the hose.
Attaching to hose
Remove hose. Attach accessory to
Choose an accessory.
hose.
Attaching to telescopic extension tube
Remove telescopic
extension tube.
Attach hose to
telescopic extension
tube.
Attach accessory to
telescopic extension
tube.
IMPORTANT:
Hold unit while
using hose or telescopic
extension tube.
Using the stretch hose (Not standard on all models)
Remove stretch hose
Attach stretch hose to
hose
Attach stretch hose to
telescopic extension
tube.
vax.co.uk
5
t
a
p
t
a
p
24hr
t
ap
!
!
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 6
---
Maintenance (Keep your Vax as good as new)
Emptying and cleaning the dirt container
1
1
2
2
Cleaning the HEPA pre-motor filter
40° C max
Advanced cleaning
Cleaning the post-motor filter
6
Vax Careline: (UK) 0844 412 8455
WARNING: Do not wash the post-motor filter.
(ROI) 1-800 928 308
!
!
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 7
Maintenance (Keep your Vax as good as new)
Removing blockages from the brushbar
WARNING: To reduce the risk of electric shock, turn the vacuum cleaner off and unplug from
the electrical outlet before performing maintenance/troubleshooting checks.
Disconnect the hose from the vacuum cleaner and remove any blockages found then reconnect
the hose securely.
Resetting jammed brushbar
A red flashing light will indicate a jammed brushbar. To reset press the button on the side of your vacuum.
Red light Green light
Removing debris from the brushbar
If the light continues to flash red after resetting, the brushbar may still be blocked. Using a pair of
scissors, cut through any threads or hairs caught around the brushbar. To access brushbar:
Press the brushbar reset button again to ensure the blockage is fully cleared.
IMPORTANT: for your safety, never try to access/replace brushbar drive belt.
If problem persists please call our Careline: 0844 412 8455
vax.co.uk
7
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 8
---
FAQs

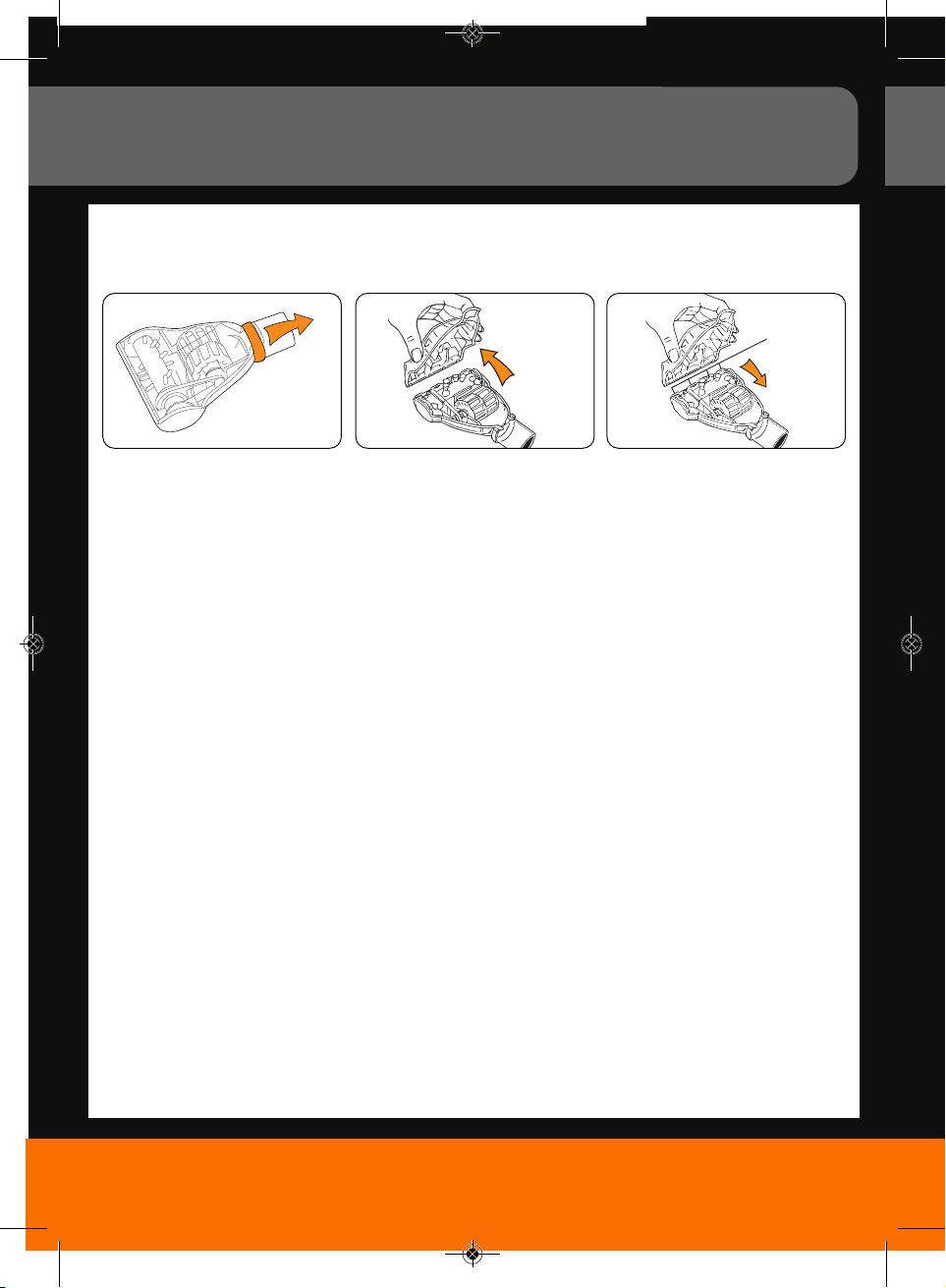

Removing blockages from the TurboTool and TurboTool+
(some models only)
Tabs
Slide off the locking ring. Pivot lower housing and
remove clog.
To re-assemble, ensure that the
tabs are engaged and pivot the
lower housing closed. Slip the
locking ring into the groove at
the neck of the TurboTool to
complete reassembly.
8
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
!
:
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 9
Other Information
WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner
before performing maintenance/troubleshooting checks.
hy won’t the accessories pick up properly?
s there an accessory missing?
I
• Check the ‘Machine Overview’ page in this guide
to make sure the part is definitely included in your
nit.
u
• If it is missing, we’re here to help. Simply call us on
844 412 8455
0
W
The accessory may be blocked: Refer to the
•
Maintenance section (page 7).
The accessory may be faulty: please call our
•
ax Careline to order a replacement:
V
844 412 8455
0
Why won’t the vacuum cleaner pick up?
• The filters may be clogged: Refer to the
Maintenance sections (page 6).
• The dirt container is full or blocked: Refer to
the Maintenance sections (page 6).
• The dirt container may be incorrectly installed: Refer
to the Maintenance sections (page 6).
• The brushbar may be blocked. Refer to the
maintenance section (page 7).
Why is dust escaping from the vacuum?
• The filters may not be installed correctly. Refer to the
Maintenance sections (page 6).
• The dirt container may be incorrectly installed:
Remove the dirt container from the unit by pressing
the dirt container release button (page 6) and
reattach it to the unit, ensuring it is locked firmly
back into place.
• The filters may be clogged: Refer to the
Maintenance sections (page 6).
What do I do if an accessory/the unit becomes
damaged or broken?
• Visit vax.co.uk for parts and spares.
• Please call our Vax Careline to purchase new
spares or order a replacement:
0844 412 8455
Why will the vacuum cleaner not run?
• It may not be plugged into the electrical outlet
correctly. Ensure that the plug is pushed into the
electrical outlet securely.
• The electrical outlet may not be working. Check the
fuse or breaker and consult an electrician.
• The motor thermostat may have tripped. Switch off
and unplug the vacuum cleaner. Leave for one
hour before switching the vacuum cleaner back
on.
Why isn’t my brushbar rotating?
• The brushbar may not be turned on. Refer to the
operation section (page 7).
• The unit may not be reclined. Refer to the
operation section (page 4).
• The brushbar may be jammed. Refer to the
maintenance section for how to reset the
brushbar (page 7).
Why is there a red light on the nozzle?
• The brushbar may be jammed. Refer to the
maintenance section for how to reset the
brushbar (page 7).
• If the red light still shows, we’re here to help.
Simply call us on 0844 412 8455
vax.co.uk
9
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 10
---
Other Information
Service & Help
Vax Careline:
(UK) 0844 412 8455
(ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm
Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using your Vax, call the Vax Careline. Calls are charged at the UK
local rate.
Please make a note of the serial number and model number of the vacuum cleaner before calling.
For the nearest Service Agent, please call the Vax Careline or visit vax.co.uk
Consumables
To purchase spares and accessories, please visit vax.co.uk
Filter kit 1-9-129220-00
Stretch hose 1-9-130429-00
Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1200 W
Capacity: 1.5L
Filters: Pre-motor filter (washable)
Cord length: 6m approx
Weight: 4.9kg in use (Mach Air, Mach Air2, Mach Air Pets and Family and Mach Air Living)
10
HEPA post-motor filter (tap to clean) (not standard on all models)
Antibacterial HEPA post-motor filter (tap to clean) (not standard on all models)
10m approx (not standard on all models)
5.3kg in use (Mach Air Reach and Mach Air Total Home)
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 11
Notes
EEC Statement of Compliance
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
U89-MA/U90-MA/U91-MA Mach Air series is manufactured in compliance with the following
Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
vax.co.uk
11
U89 U90 & U91-MA Mach Air UG V2.1(V7):User guide 18/03/2011 16:50 Page 12
---
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: info@vax.co.uk - website: vax.co.uk
Version 2.0
Loading...
