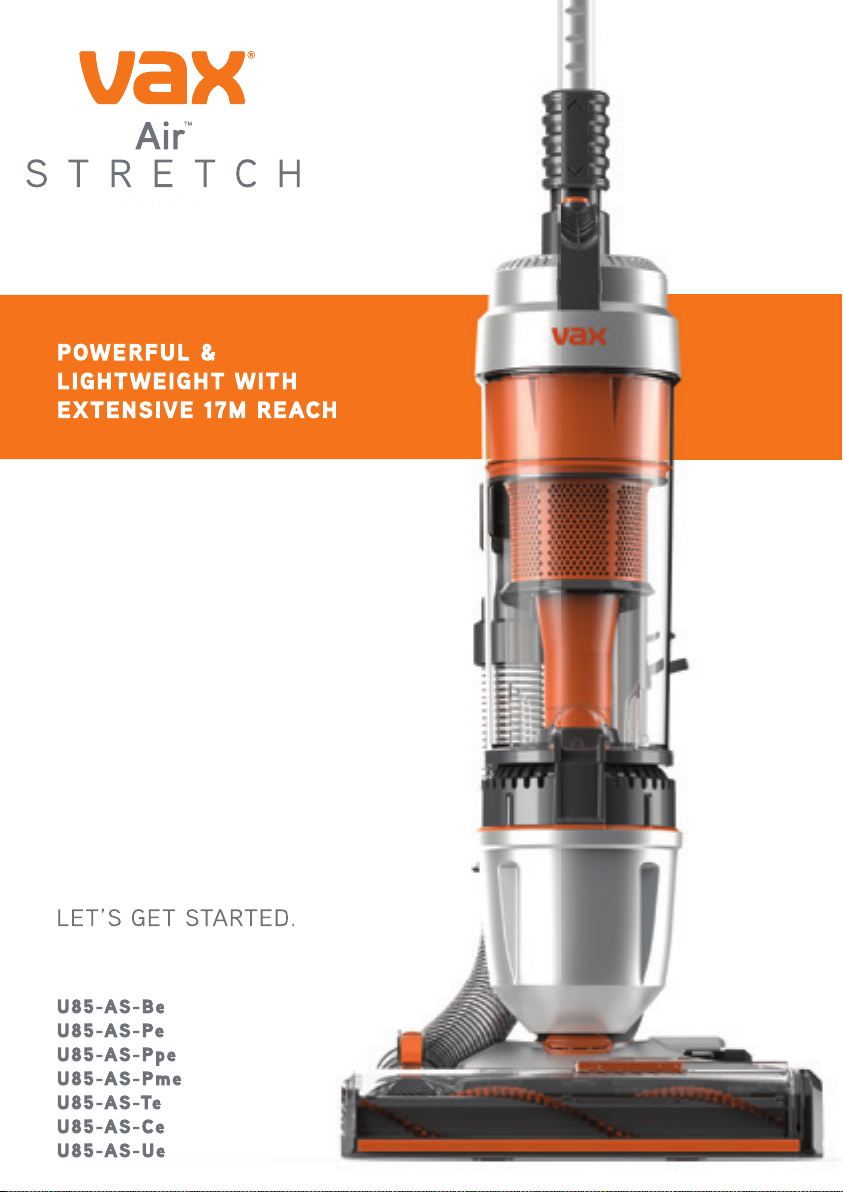

Vax U85-AS-UE Instruction manual

TM

Air

TM

Air

STRETCH

VARIANT

POWERFUL &
LIGHTWEIGHT WITH
EXTENSIVE 17M REACH

LET’S GET STARTED.

U85-AS-Be
U85-AS-Pe
U85-AS-Ppe
U85-AS-Pme
U85-AS-Te
U85-AS-Ce
U85-AS-Ue

Let’s talk safety

Basic
safety
precautions

Don’ts

Please keep instructions for further use and use

only as instructed in this guide. This vacuum
cleaner is intended for household use only and NOT
for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces
and keep the area you’re cleaning well lit.

• Keep ngers, hair and loose clothing away from moving parts
and openings whilst using the vacuum cleaner.

• Don’t use this vacuum cleaner if it has been dropped, damaged
or left outdoors.

• Don’t run over the power cord or use vacuum cleaner if the
power cord or plug is damaged. Please contact our Customer
Care Line on: 0330 026 8455 (Mon-Fri: 8:30am to 6:30pm,
Sat: 9:00am to 5:00pm).

• Don’t handle the plug or use the vacuum cleaner with wet hands.

• Don’t pull or carry this vacuum cleaner by the power cord.
Don’t use the power cord as a handle, pull the power cord
around corners, sharp edges or close a door over the power
cord. Don’t unplug vacuum cleaner by pulling on the power cord.

• Don’t vacuum up hard or sharp objects such as glass, nails,
screws or coins etc.

Do’s

• Turn o all controls on the vacuum cleaner before disconnecting
or connecting the power cord.

• Always keep the power cord away from the brushes whilst
using your vacuum cleaner. After use always wrap the power
cord around the cord clips provided.

• Always make sure both the pre-motor/post-motor lters
are in place before use.

• Always make sure the brushbar is set to hard oor when using
your vacuum on the stairs and take extra care when positioning
the vacuum cleaner on the stairs.

• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.

• Only Vax recommended tools should be used with this vacuum cleaner.

• Don’t vacuum up any ammable or combustible materials (lighter uid,
petrol, kerosene etc.) or use the vacuum cleaner in an area with explosive
vapours or liquid.

• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).

• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your vacuum cleaner.

• Don’t use the vacuum cleaner with incorrect voltage as this may result
in damage or injury to the user. The correct voltage is listed on the ratings label.

• Don’t wash the post-motor lter.

• Always switch o the vacuum cleaner before disconnecting
or connecting the hose and accessories.

• Keep all openings clear and free from debris as this may aect
the airow/suction.

• Always replace the fuse in the plug with a British 13amp fuse.

• Always protect the power cable from heated surfaces and open ames.

• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it could
be a trip hazard.

• Store the vacuum cleaner in a cool, dry area. If lters have been cleaned as per
the user guide instructions ensure they are thoroughly dry before storing away.

Thank you for buying this Air Stretch
vacuum cleaner.

Taking care of your carpets and hard fl oors

The Air Stretch is designed to make vacuuming carpets and hard  oors regularly, as e ective
and effi cient as possible and this user guide will help you get the most out of your machine.

Maintaining your carpets and hard  oors will ensure they keep their appearance for longer.
You’ve chosen the carpets and hard  oors for your home for a reason and Vax will help you
take good care of them.

Taking care of your Air Stretch

Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your carpets and hard  oors.

Taking care of you

We’re here if you need us. Instead of taking me back
to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.

Alternatively, you can write to us at:

Vax Ltd, Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 OLW, UK

This User Guide can be found online at: vax.co.uk/support

Let us know what you think @VaxUK

Contents

Included with
your machine*

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Accessories

What to do if it goes wrong

Getting in touch

Air Stretch

3-in-1 Crevice, Dust
and Upholstery Tool

Pre-motor Filter

Post-motor Filter

Stretch Hose

Air Stretch Pet

As per Air Stretch, plus

TurboTool

Air Stretch Pet Plus

As per Air Stretch Pet, plus

Fur ‘n’ Flu Tool

Tool Connector

Air Stretch Pet Max

As per Air Stretch Pet, plus

Flat Upholstery Tool

Initial setup for normal operation

1. Use the base accessories.
– Shortest hose.
– Extension tube set to shortest practicable length.

2. Clean  lters installed.

3. Dust receptacle empty.

4. All air vents must be closed.

5. Floor heads/tools set to Carpet Mode for carpet cleaning.

6. Mechanical Agitation turned ON for carpet cleaning.

7. Floor heads/tools set to Hard Floor Mode for hard  oor cleaning.

8. Mechanical Agitation turned OFF for hard  oor cleaning.

* Some parts may vary according to model. Please check inside of

box for more details.

Tool Connector

Air Stretch Total Home

As per Air Stretch Pet, plus

Soft Dusting Brush

Air Stretch Complete

As per Air Stretch Pet, plus

Flexi Crevice Tool

Tool Connector

Air Stretch Ultimate

As per Air Stretch Pet, plus

Matress Tool

Handle

Getting to know your machine

Hose to extension tube connector

Handle height adjuster

Dirt container
release button

Carry handle

Separator

Dirt container

Post-motor  lter release button

Post-motor  lter cover

Brushbar blockage indicator

Hose

Air vent

Telescopic extension tube

Upper handle release button

Power On/Of button

Brushbar On/O button

Quick release
cord hook

Power cord

Wheels

Rotating brushbar

Technical Specifi cation

Name Air Stretch
Voltage See rating label on machine for details
Wattage See rating label on machine for details
Capacity 1.5L
Cord length 13m
Weight 4.9kg

Subject to technical change without notice.

Accessories & Consumables

Filter Kit (Type 90)*

1-1-134227-00

TurboTool (Type 6)*

1-1-134419-00

Belt (Type 26)*

1-1-134530-00

3-in-1 tool

1-1-129167-00

*To purchase consumables and accessories, please visit vax.co.uk

Fur ‘n’ Flu tool

1-1-131392-00

Flexi Crevice tool

1-1-131393-00

Flat Upholstery tool

1-1-131394-00

PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

!

!

!

Assembling your upright

Getting started

Insert the handle.

How to use

Twist the quick release cord
hook to release the power cord.

Place the 3-in-1 tool onto
the on board storage area.

Plug in your machine and push
ON/OFF button to switch on.

Adjust handle up
or down to select
the desired height.

Brushbar on — carpets
Brushbar o — hard  oors

Recline the unit.

!

IMPORTANT: Switching the brushbar on whilst cleaning hard  oors may damage  ooring.

Using your machine

Before you begin cleaning

• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments, or removing
and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat
will automatically turn the vacuum cleaner o . If this happens, switch the vacuum cleaner o and unplug from electrical
socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to
cool for approximately 1 hour (if you have cleaned the  lters please wait 24 hours for the  lters to fully dry before putting
back into the vacuum).

• Pre-motor  lters require cleaning at least every 3 months.

• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.

• When using the accessories always make sure the brushbar is switched to the o position.

IMPORTANT: When the vacuum cleaner is stood in the upright position or when using on stairs and the hose/tools,
the brushbar height adjust dial must be set to hard  oor

Using accessories

NOTE: The crevice tool, dusting brush and upholstery tool can all be attached to the telescopic tube or directly to the hose.

Attaching the hose

a

b

Remove hose end
from the  oorhead.

Telescopic extension tube

Remove telescopic
extension tube.

Choose an accessory.

*Accessories may vary.

Attach hose to telescopic
extension tube.

c

3-in-1 tool converts into:
a = Crevice tool
b = Upholstery tool
c = Dusting brush

Attach accessory to
telescopic extension tube.

Attach accessory
to hose end.

How to use the air vent

!

!!!

Taking care of your machine

Slide vent cover open to decrease suction,
if required on high piled carpets.

Note: For most effi cient results the air vent should be closed.

Emptying and cleaning the dirt container

Press the dirt container release button and pull
to remove the dirt container.

Cleaning the HEPA pre-motor fi lter

Turn the dirt container lid
anti-clockwise…

…and lift to remove.

Close the vent cover to increase suction,
for maximum cleaning on hard  oors.

Hold dirt container over a bin and press the dirt
container release button to open allowing dirt to fall out.

Grasp tab on  lter and pull to remove.

Tap the  lter over a bin
to release any dirt.

tap

Wash the  lter under
running water (40°C max).

24hr

40°C max

Leave to fully dry for at least 24
hours before putting back into the
vacuum cleaner.

Taking care of your machine

Cleaning the shroud

tap

Turn the dirt container lid
anti-clockwise and lift to remove.

Tap over a bin to remove
dirt and debris.

Brush dirt from the shroud.

HEPA post-motor fi lter maintenance

IMPORTANT:

The exhaust  lter is designed to o er long life with no maintenance. The  lter should be
checked periodically and when heavily discoloured it should be replaced. Please do not
wash, scrub or brush the  lter as this will damage the delicate  lter media.

Press button on post-motor
 lter cover and remove.

Remove the post-motor  lter
from the  lter cover.

Check the post-motor  lter
for discolouration.

Taking care of your machine

CAUTION: To reduce the risk of electric shock, turn the vacuum cleaner o and unplug from the electrical outlet
before performing maintenance/troubleshooting checks.

Removing debris from the brushbar

A RED light will indicate
a jammed brushbar.

Switch o your vacuum cleaner
at the main socket. Using a pair
of scissors cut any hair or debris
free from around the brushbar.

Turn the vacuum cleaner back on.

GREEN light will indicate that the

A
brushbar is clear and ready for use.

Changing the brush bar

IMPORTANT: Unplug and switch o vacuum cleaner before maintenance or troubleshooting checks

Using a crosshead screwdriver,
remove 3 screws from the side
of the  oor head.

Remove the end cap belt cover. Remove the brush bar location

plate to gain access to the belt.

PULL

Replace the old belt, ensuring the
teeth are fully engaged with the cogs.

Pull brushbar through brushbar
side cover to remove.

Taking care of your machine

Removing blockages from the TurboTool

Turn the TurboTool over and
slide o the locking ring.

*Not applicable to some models.

Detach lower housing
and remove.

Using a pair of scissors,
cut any hair or debris free
from around the brushes.

Changing the belt

IMPORTANT: Unplug and switch o vacuum cleaner before maintenance or troubleshooting checks

Using a crosshead screwdriver,
remove 3 screws from the side
of the  oor head.

Remove the end cap belt cover. Remove the brush bar location plate

to gain access to the belt.

To re-assemble the
TurboTool, ensure that the
tabs are engaged and pivot
the lower housing closed.
Slip the locking ring over the
neck of the TurboTool and
into the groove to  nish.

Replace the old belt, ensuring the teeth
are fully engaged with the cogs.

Accessories

Don’t forget your accessories!

Order at: www.vax.co.uk/spares-and-solutions

TurboTool (Type 6)
1-1-134419-00

Use the TurboTool for vacuuming your stairs,
upholstery and car interiors. It’s great for
picking up stubborn pet hair.

3-in-1 Tool
1-1-129167-00

3-in-1 tool includes crevice tool for awkward
areas and corner, dusting brush for areas
such as skirting and an upholstery tool for
cleaning sofas, curtains, chair seats and
car interiors.

Pro cleaning kit
1-1-133326-00

All our best tools all in one kit that makes
cleaning your home quicker, easier and with
even better results. We’ve taken care of
cleaning all of the hard to reach areas such
as on top of cupboards and in between blinds
to the dust that collates behind and within
the radiator.

What to do if it goes wrong

SolutionProblem

• Check the ‘This pack contains’ panel on the box to make sure
the part is included with your machine.

There is an
accessory missing

• The plug may not be fully pushed into the electrical socket.

• Check the fuse in the plug if this needs replacing, always replace with

Why does my vacuum
cleaner have no power?

a British 13amp fuse.

• The motor thermostat may have tripped. If this has happened, unplug
the vacuum cleaner. Remove and empty the dirt container and check
the hose for blockages.

• Clean the  lters and allow the vacuum cleaner to cool for approximately
1 hour (if you have washed the  lters you will need to wait 24 hours for
the  lters to fully dry before putting them back into the vacuum cleaner).

• There may be a blockage in the hose. Please remove the hose from
the vacuum cleaner, check and clear any blockages.

Why won’t the vacuum
cleaner pick up?

My brushbar

• Empty the dirt container and clean  lters. Go to the ‘Taking care
of your machine’.

• The brushbar may not be turning. Go to ‘My brushbar isn’t turning’ below.

• If the accessory/tool will not pick up, check and clear any blockages.

• Air vent may be open, close vent. Go to ‘Using your machine’

• The brushbar may be clogged, check the brushbar and clear
any hair or debris. Go to ‘Let’s talk technical’.

• The belt may be broken. Go to ‘Let’s talk technical’.

isn’t turning

IMPORTANT: To reduce the risk of personal injury, unplug the vacuum before performing

maintenance/troubleshooting checks.

†

Registration required. Terms and conditions apply, see vax.co.uk for details.

* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.

GET IN TOUCH

0330 026 8455 [e-mail] vax.co.uk @VaxUK

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that
the U85-AS-Be, U85-AS-Pe, U85-AS-Ppe, U85-AS-Pme, U85-AS-Te, U85-AS-Ce and U85-AS-Ue manufactured
in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.

© 2015 All rights reserved. VAX®, VAX Logo, are trade marks or registered trade marks of Techtronic Floor Care Technology Ltd.
