AirTMLift
STEERABLE
POWERFUL UPRIGHT
WITH LIFT OUT CYLINDER
LET’S GET STARTED.
U84-AL-Pe
U84-AL-PMe
U84-AL-Ue
Let’s talk safety
Basic
safety
precautions
Don’ts
This vacuum cleaner is intended for household use only and
NOT for commercial or industrial use.
• This vacuum cleaner can be used by children aged from 8
years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of
the vacuum cleaner in a safe way and understand the hazards
involved. Children shall not play with the vacuum cleaner.
• Don’t use the vacuum cleaner if it has been dropped, damaged
or left outdoors.
• Don’t run over the power cord or use vacuum cleaner if the
power cord or plug is damaged. Please contact our Customer
Service 0330 026 8455 (Mon-Fri 08:30-18:30 Sat 09:00-17:00).
• Don’t handle the plug or use the vacuum cleaner with wet hands.
• Don’t pull or carry the vacuum cleaner by the power cord.
Don’t use the power cord as a handle, pull the power cord around
corners, sharp edges or close a door over the power cord.
Don’t unplug the vacuum cleaner by pulling on the power cord.
• Don’t vacuum up hard or sharp objects such as glass, nails,
screws or coins etc.
Cleaning and user maintenance shall not be made by children
without supervision.
• Only use the vacuum cleaner indoors on dry surfaces and keep the area
you’re cleaning well lit.
• Keep ngers, hair and loose clothing away from moving parts and openings
whilst using the vacuum cleaner.
• Only Vax recommended tools should be used with the vacuum cleaner, use of
non-branded Vax accessories/tools will invalidate your warranty.
• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,
kerosene etc) or use the vacuum cleaner in an area with explosive vapours
or liquid.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Don’t attempt to remove blockages with sharp objects as this may cause damage
to the vacuum cleaner, remove blockages only as instructed in this guide.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
Do’s
• Turn o all controls on the vacuum cleaner before disconnecting
or connecting the plug from the mains socket.
• Always keep the power cord away from the brushes
during use. After use always wrap the power cord around
the cord hooks provided.
• Always make sure both the pre-motor/post-motor lters
are in place before use.
• Hold the lift out cylinder by the carry handle at all times when
the lift out cylinder is detached for stair and above oor cleaning.
• Always take extra care when positioning the vacuum cleaner
on the stairs.
• Always switch o the vacuum cleaner before disconnecting
or connecting the hose and accessories.
• Keep all openings clear and free from debris as this may aect the
airow/suction.
• Always replace the fuse in the plug with a British 13amp fuse. Always protect
the power cable from heated surfaces and open ames.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can
be a trip hazard.
• Store the vacuum cleaner in a cool, dry area. If the lters have been cleaned
as per user the guide instructions ensure they are thoroughly dry before
storing away.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY
AS INSTRUCTED IN THIS GUIDE.
Thank you for buying this AirTM Lift Steerable.
Contents
AirTM Lift Steerable Pet
Included with all models
Taking care of your carpets and hard oors
TM
The Air
Lift Steerable is designed to make vacuuming carpets and hard oors regularly,
as eective and ecient as possible and this user guide will help you get the most out
of your machine.
Maintaining your carpets and hard oor will ensure they keep their appearance for longer.
You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you
take good care of them.
TM
Taking care of your Air
Lift Steerable
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your carpets and hard oors.
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
Let us know what you think @VaxUK
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
What to do if it goes wrong
Getting in touch
Accessories
Notes
Initial Setup for normal operation
1. Use the base accessories.
– Shortest hose.
– Extension tube set to shortest practicable length.
2. Clean lters installed.
3. Dust receptacle empty.
4. All Bleeds must be closed.
5. Floorheads/tools set to Carpet Mode for carpet cleaning.
6. Floorheads/tools set to Hard oor Mode for hard oor cleaning.
3-in-1 Tool
(Crevice, Dusting
and Upholstery Tool)
TurboTool
Handle
AirTM Lift Steerable Pet Max
As per AirTM Lift Steerable Pet, plus
Fur ‘n’ Flu Tool
Tool Connector
AirTM Lift Steerable Ultimate
As per AirTM Lift Steerable Pet, plus
Mattress Tool
Getting to know your machine
Getting started
Handle
Dirt container
release button
Cylinder lift-out button
Carry handle
Dirt container lid release clip
Separator
Hose
Dirt release button (hidden)
Hose end clip
Lower hose
Air vent
Brushbar indicator light
Hose to handle
connection
Extension tube
Power On/O button
Brushbar On/O button
Quick release
cord hook
3-in-1 Tool
storage clip
Quick release
cord hook
Handle
release clip
Hose
holder
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Before you begin cleaning
WARNING: Always switch o the vacuum cleaner before connecting or disconnecting the lift out cylinder/ hose/attachments
or removing and emptying the dirt container.
IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat
the thermostat will automatically turn the vacuum cleaner o. If this happens switch the vacuum cleaner o and unplug
from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. If the vacuum
cleaner is blocked, switch o and unplug before removing the blockage. Allow the vacuum cleaner to cool for approximately
1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry before putting back into the machine).
For best cleaning results, lters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed every
3 to 6 months (depending on the level of use).
Assembling your upright
Place the lift out cylinder
onto the back panel
and oorhead.
In a hinge like manner
push the lift out cylinder
backwards until it clicks
into place.
Push the handle with
extension tube into the back
panel of the vacuum cleaner.
The handle will click into
position when correctly tted.
Place the 3-in-1 tool
onto the storage clip.
Brushbar
Technical Specication
Name AirTM Lift Steerable Pet
Voltage Full product: 950W
Lift out: 800W
Wattage See rating label on machine for details
Cord length 10m
Weight 6.2kg
Subject to technical change without notice.
Accessories & Consumables
Filter Kit (Type 98)
1-1-134233-00
Belt Kit (Type 1)
1-1-130669-01
Pro Cleaning Kit (Type 2)
1-1-133326-00
To purchase consumables and accessories, please visit vax.co.uk
TurboTool (Type 6)
1-1-134419-00
3-in-1 Tool
1-1-129167-00
Fur ‘n’ Flu Tool
1-1-131392-00
Mattress Tool
1-1-133837-00
Using your machine – The full unit
Using your machine – The full unit
Using with the lift out cylinder attached
Twist the quick release
cord hooks and release
the power cord.
Press the brushbar button
to activate the brushbar
The brushbar should be
ON for carpets and OFF
for hard oors.
Plug the vacuum cleaner
into the mains and
switch on.
Slide the air vent cover
open to reduce suction,
if required on high
piled carpets.
Place foot on the oorhead
and pull the handle
backwards to recline.
For maximum cleaning on
hard oors, close the air
vent cover.
Press the On/O button
to switch the vacuum
cleaner on.
When the vacuum
is reclined with the
brushbar switched on,
never leave the vacuum
in one position for any
long period of time.
CAUTION

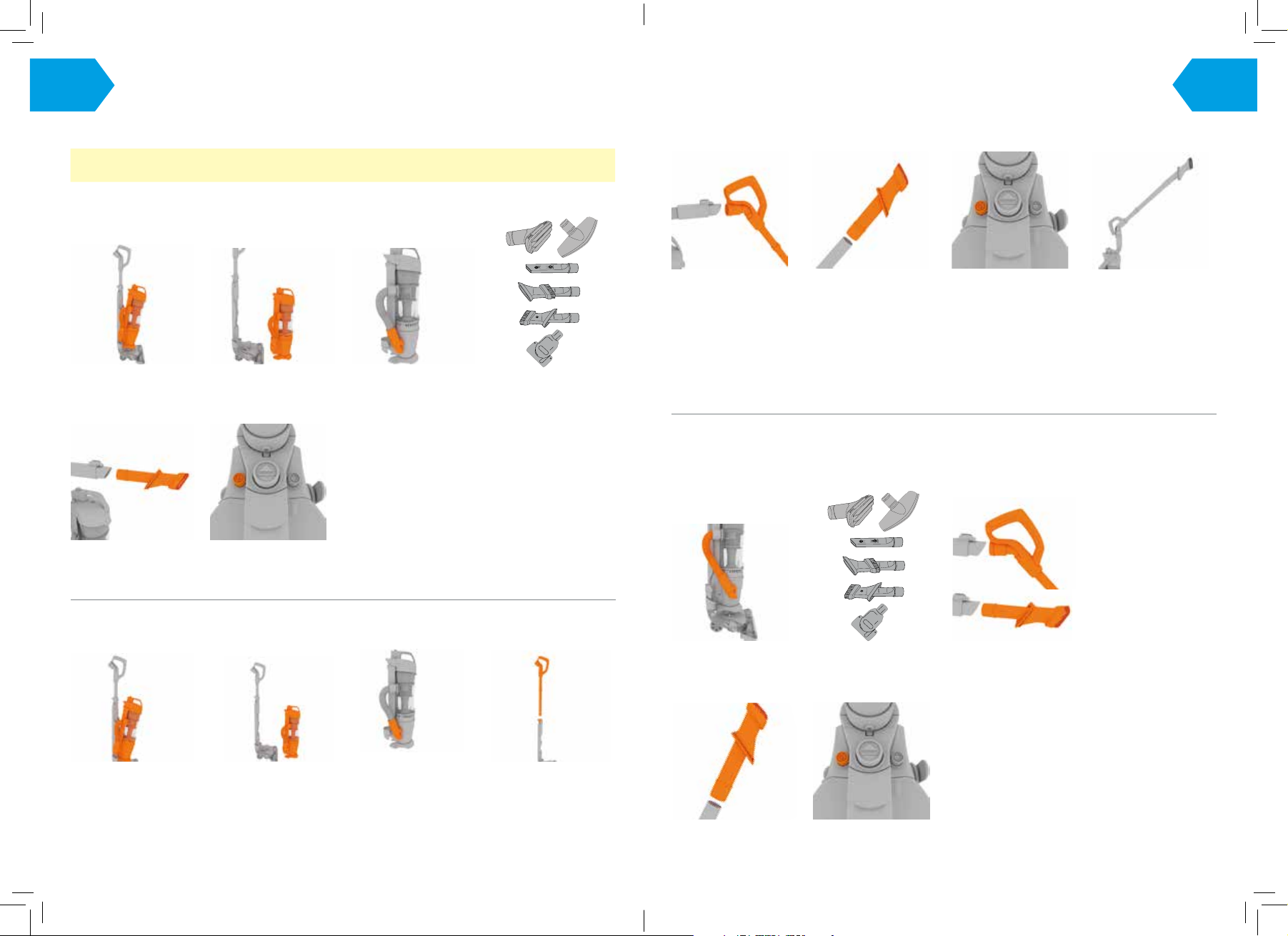

Using the hose/extension tube with the lift out cylinder attached
Always switch o the vacuum cleaner before connecting or disconnecting the hose/ tools.
For easier cleaning detach the lift out cylinder for stair and above oor cleaning. Hold the lift out cylinder by the carry handle
at all times when detached.
The accessories can be attached directly to the hose or extension tube.
Using the hose with the extension tube
Press the handle release
clip and lift to remove the
handle with extension tube
from the back panel.
Press the On/O button
to switch the vacuum
cleaner on.
Attach the hose to the
handle, clipping the hose
end clip over the ridge on
the handle entry point.
Use the hose with the
handle for hard to
reach areas.
Choose an accessory
The brushbar will not rotate when the vacuum
cleaner is stood in the upright position.
Whilst using the whole unit, don’t forget to use the
handle cord hook so that the cord doesn’t get caught
or tangled in the machine.
Attach the tool to the end
of the extension tube.
TIP
Using the hose
Pull and remove
the hose from
the hose holder.
Choose an accessory.
Attach the tool to the
end of the hose.
Press the On/O button
to switch the vacuum
cleaner on.
Using your machine – The lift away
Using your machine – The lift away
Using the hose/extension tube with the lift out cylinder detached
CAUTION: Hold the lift out cylinder by the carry handle at all times when the lift out cylinder is detached for stair
and above oor cleaning.
Using the hose
Hold the carry handle
and press the lift out
release button.
Lift and remove the lift out
cylinder body o the back
panel and oorhead.
Pull and remove the hose
from the hose holder.
Choose an accessory.
Using the hose with the extension tube (continued)
Attach the hose to the
handle, clipping the hose
end clip over the ridge on
the handle entry point.
Choose an accessory and
attach tool to the end
of the extension tube.
Press the On/O button
to switch the vacuum
cleaner on.
Use the hose with
extension tube for hard to
reach areas. Hold the lift
out cylinder by the carry
handle at all times.
Using the hose with the lift out cylinder attached
Only attach the hose to the vacuum cleaner with the lift out cylinder attached. The hose can be attached directly to the hose.
Attach the tool to the end
of the hose.
Press the On/O button
to switch the vacuum
cleaner on.
Using the hose with the extension tube
Hold the carry handle and
press the lift out cylinder
release button.
Lift and remove the lift out
cylinder o the back panel
and oorhead.
Pull and remove
the hose from the
hose holder.
Press the handle release
clip and remove the handle
with extension tube from
the back panel.
Pull and remove the hose
from the hose holder.
If required attach tool
to the end of the
extension tube.
Choose tool or
extension tube.
Press the On/O button
to switch the vacuum
cleaner on.
Attach the tool or
extension tube to the
other end of the hose.
Taking care of your machine
MA
40˚C
Taking care of your machine
IMPORTANT: The motor is equipped with a thermal cut-out. If for any reason the machine should overheat, the thermostat
will automatically turn the machine o. Switch o and unplug the vacuum cleaner. Check the machine for blockages and
clean the lters . Wash the lters with warm water (40°C max) and leave for 24 hours or until fully dry before replacing
into the machine.
For best cleaning results, lters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed every
3 to 6 months (depending on the level of use). Don’t use your vacuum cleaner without all of the lters in place.
Emptying and cleaning the dirt container
Don’t over ll the dirt
container to avoid
blocking the air ow
through the vacuum
cleaner and replace
lters every 6-9 months.
Press the dirt container
release buttons located the
side of the carry handle.
Pull and remove the
dirt container o the
vacuum cleaner.
Hold the dirt container over
a bin, press the dirt release
button to open and allow the
dirt to fall out.
TIP
Cleaning the pre-motor lter
Cleaning the separator
Lift the dirt container lid
release clip. In a hinge
like manor lift the dirt
container lid.
Pull the pre-motor lter
tab and remove the lter
from the dirt container.
Lift and remove separator
out of dirt container. Using a
soft brush remove any dirt/
debris from separator.
Re t the separator making
sure the semi circular tab
on the separator ts into
the groove on the
dirt container.
Post-motor lter maintenance
IMPORTANT: The post-motor lter is designed to oer long life with no maintenance. The lter should be checked
periodically and when heavily discoloured it should be replaced. Please do not wash, scrub or brush the lter as this will
damage the lter.
Lift the dirt container lid
release clip. In a hinge
like manor lift the dirt
container lid.
Pull the pre-motor lter tab
and remove the lter from
the dirt container.
X
Tap the lter over a bin
to remove any dirt/debris.
Wash the lter under
running water (40
degrees max).
24hrs
Leave for 24hrs or until fully
dry before replacing.
Twist the post-motor
lter cover anti clockwise
and remove.
Lift and remove the
post-motor lter.
Check the post-motor lter
for any discolouration.
Don’t use your vacuum
cleaner without all of the
lters in place.
CAUTION

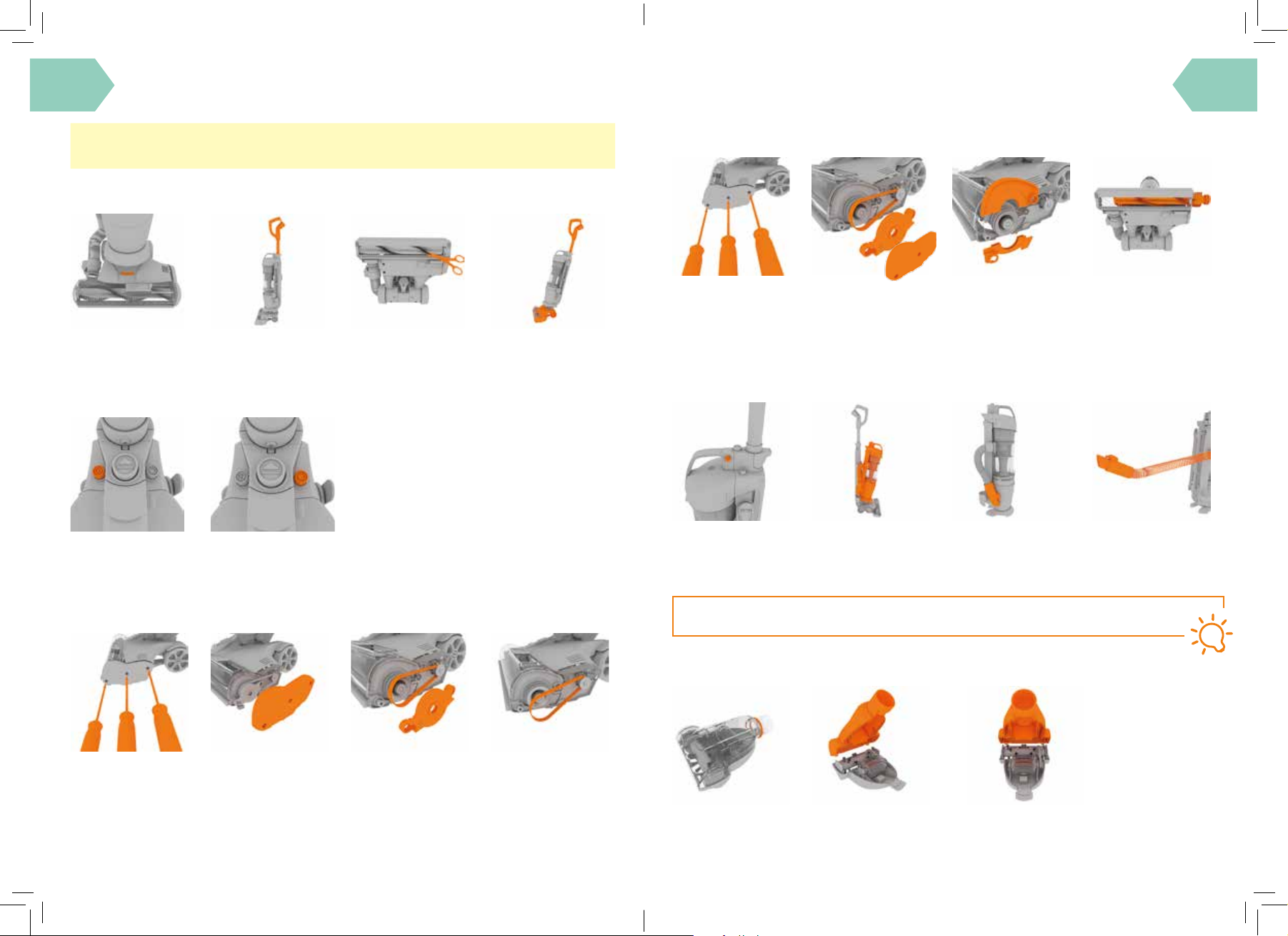

Let’s talk technical
Let’s talk technical
IMPORTANT: Unplug and switch o vacuum cleaner before performing maintenance or troubleshooting checks.
If the brushbar has been obstructed, the Motor Protection Sensor may have been activated.
Resetting/removing debris from the brushbar
The brushbar indicator light
will illuminate red and the
brushbar will stop spinning if
the brushbar is obstructed.
Press the On/O button
to switch the vacuum
cleaner on.
Switch the vacuum cleaner
o and clear the obstruction
from the brushbar. Stand the
vacuum cleaner in the upright
positon to reset the brushbar.
Press the brushbar button
to activate the brushbar.
Using a pair of scissors
remove any threads or hair
caught around the brushbar.
Place foot on the oorhead
and pull the handle backwards
to recline.
Changing the brushbar/advanced brushbar cleaning
Using a crosshead
screwdriver, remove 3
screws from the belt cover
on the side of the oorhead.
Pull to remove the belt cover
and brushbar location plate.
Remove belt.
Lift and separate brushbar
side cover.
Removing a blockage from the hose
Press the dirt container
release buttons
located the side of
the carry handle.
Pull and remove the
dirt container o the
vacuum cleaner.
Pull and remove the
hose from the hose holder.
Pull brushbar through side
cover to remove.
Pull and stretch the hose,
any blockage in the hose
should then be visible.
Changing the belt
Using a crosshead
screwdriver, remove 3
screws from the belt cover
on the side of the oorhead.
Pull to remove the
belt cover.
Pull to remove the brushbar
location plate. Remove belt.
Clean any debris from
spindle. Place new belt
onto spindle, lining up
teeth on the belt over
and onto the cog.
Using a broom handle or similar blunt instrument, push into the stretched out hose to remove blockage.
Removing dirt/debris from TurboTool
Slide the locking ring
to remove.
Lift and separate the housing.
Using a pair of scissors
remove any threads or hair
caught around the brushbar.
Line up the tabs on front
of housing and re-t. Slide
locking ring into groove
to secure.
TIP
What to do if it goes wrong Getting in touch
There is an
accessory missing
SolutionProblem
• Check the ‘This pack contains’ panel on the box to make sure the part
is included with your vacuum cleaner.
Why does my vacuum
cleaner have no power?
Why won’t the vacuum
cleaner pick up?
Why isn’t my
brushbar rotating?
Why is there a red light
on my oorhead?
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace with a 13amp
British fuse.
• The motor thermostat may have tripped. If this has happened, unplug the vacuum
cleaner. Remove and empty the dirt container and check the hose for blockages.
Clean the lters and allow the vacuum cleaner to cool for approximately 1 hour
(if you have washed the lters you will need to wait 24 hours for the lters to fully
dry before putting them back into the vacuum cleaner).
• The dirt container may not be tted correctly, remove the dirt container and
re-attach making sure it is clicked rmly into place.
• The air vent is open, reducing the suction . Go to ‘Getting started’.
• The dirt container may be blocked, empty the dirt container and clean the lters.
Go to ‘Taking care of your machine’.
• There may be a blockage in the hose. Check and clear any blockages. Go to ‘Let’s
talk technical’.
• The brushbar may not be turning. Go to ‘Why isn’t my brushbar rotating?’ below.
• If the accessory/tool will not pick up, check and clear any blockages. Go to ‘Let’s
talk technical’.
• The brushbar may not be turned on. Go to ‘Getting started’.
• The vacuum cleaner may not be reclined. Go to ‘Getting started’.
• The lift out cylinder may not be correctly assembled to the back panel and
oorhead. Go to ‘Getting started’.
• The brushbar may be obstructed. Go to ‘Let’s talk technical’.
• The brushbar may need resetting. Go to ‘Let’s talk technical’.
• The belt may be broken. Go to ‘Let’s talk technical’.
• The brushbar may be obstructed, check the brushbar and clear any hair or debris
Go to ‘Let’s talk technical’.
†
Why is dust escaping
from the vacuum?
• The lters may not be correctly tted. Go to ‘Taking care of your machine’.
• The dirt container may be full or blocked. Go to ‘Taking care of your machine’.
• The lters may need cleaning. Go to ‘Taking care of your machine’.
• There may be a blockage in the hose. Go to ‘Let’s talk technical’.
†
Registration required. Terms and conditions apply, see vax.co.uk for details.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro Cleaning Kit (Type 2)
1-1-133326-00
All our best tools all in one kit that makes cleaning your
home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach areas
such as on top of cupboards and in between blinds to the
dust that collates behind and within the radiator.
Filter Kit (Type 90)
1-1-134227-00
Notes
GET IN TOUCH
0330 026 8455 VaxVacuumsinfo@vax.co.uk vax.co.uk @Vax UK
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
U84-AL-Pe, U84-AL-PMe and U84-AL-Ue are manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive.
EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
© 2015 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge is the property of Techtronic Floor Care
Technology Ltd and is registered in the EU and may be pending or registered in other countries.
Loading...
