easy guide
Please read carefully before using your
cleaner. Always fully extend mains
cable before use.
V-056TT
Cylinder range
V-056TT D1 10/25/05 3:46 PM Page 1
Parts checklist
Parts Accessories Optional accessories
1) Carry handle 9) Dusting brush 14) *Turbobrush
2) On/off button 10) Upholstery tool (*
log on to www.vax.co.uk to buy on line)
3) Cord rewind button 11) Crevice tool
4) Hose connection socket 12) Combination floor head
5) Dust container 13) TurboTool
TM
(V-056TT only)
6) Top cover release buttons
7) Carry handle release button
8) Telescopic extension tubes
4
5
11
9
12
13
14
10
3
1
2
7
6
8
V-056TT D1 10/25/05 3:46 PM Page 2
Assembling the cleaner
21

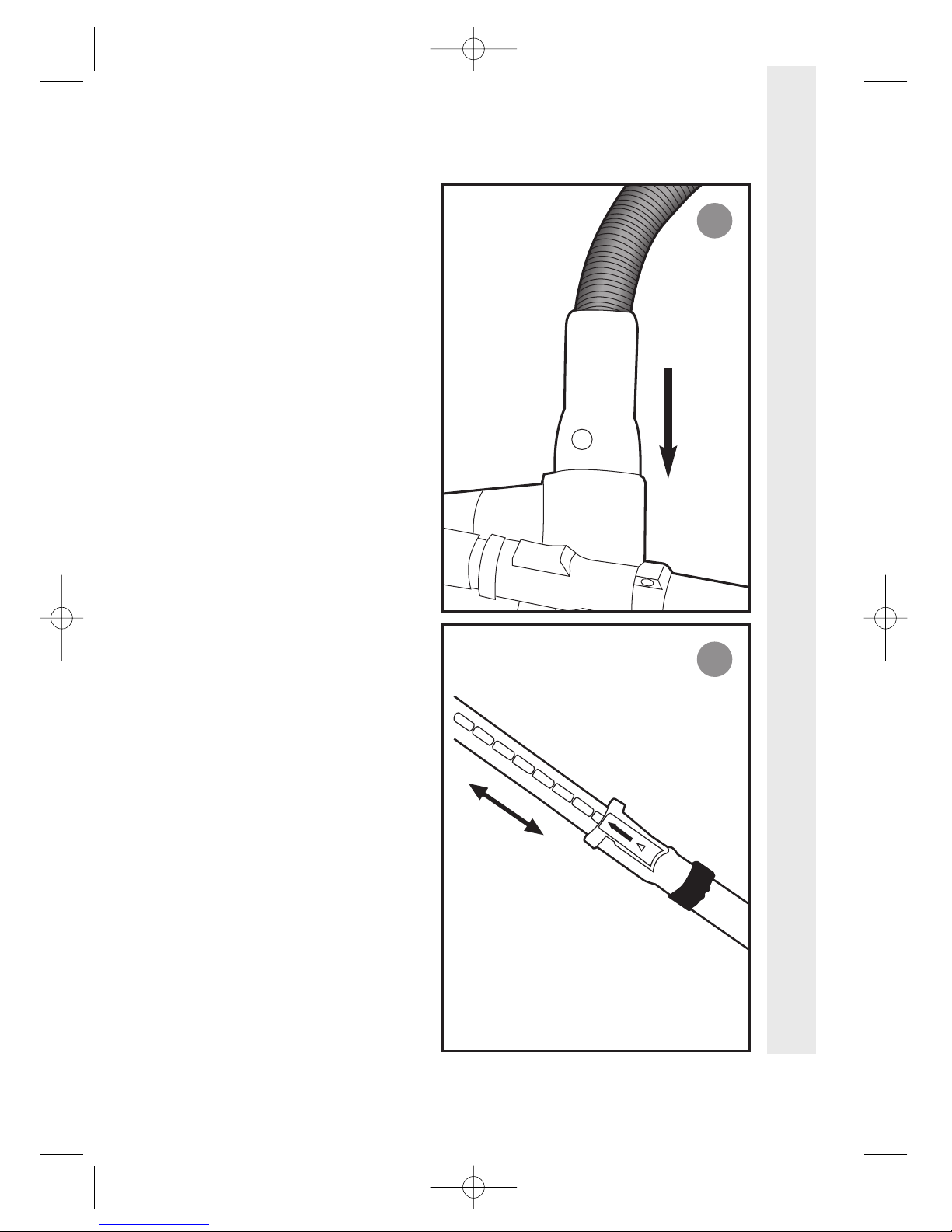

fig. 1 To attach the flexible hose to the vacuum cleaner, push the connecting end of the flexible hose into the hose
connection socket on the vacuum cleaner by pressing the two buttons on either side of the hose connection.
fig. 2 The telescopic extension tubes can be lengthened or shortened by pushing the button forward and sliding the
tubes apart or together as required.
V-056TT D1 10/25/05 3:46 PM Page 3
Assembling the easy-reach tool system
Your Vax cylinder is equipped with easily-accessible tool storage. To assemble this, please follow these instructions.
fig. 3 The tool storage system fixing bracket is already in place on the extension tube.
Insert the holding tubes as shown until the tubes click into place.
fig. 4 Place the dusting brush (A), upholstery tool (B) and crevice tool (C) on the tubes as shown.
3
4
A
C
B
V-056TT D1 10/25/05 3:46 PM Page 4
