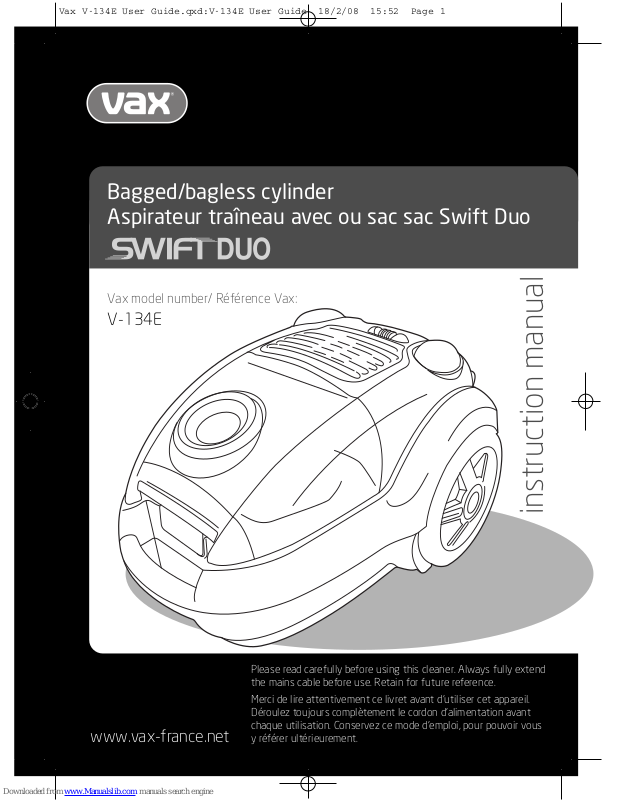

Bagged/bagless cylinder
Aspirateur traîneau avec ou sac sac Swift Duo
Vax model number/ Référence Vax:
V-134E
Please read carefully before using this cleaner. Always fully extend
the mains cable before use. Retain for future reference.
Merci de lire attentivement ce livret avant d’utiliser cet appareil.
Déroulez toujours complètement le cordon d’alimentation avant
chaque utilisation. Conservez ce mode d’emploi, pour pouvoir vous
y référer ultérieurement.
instruction manual
Vax V-134E User Guide.qxd:V-134E User Guide 18/2/08 15:52 Page 1
2
contents
Contents
3. parts overview
4. safety information
5. Assembly
6. operation/ accessories

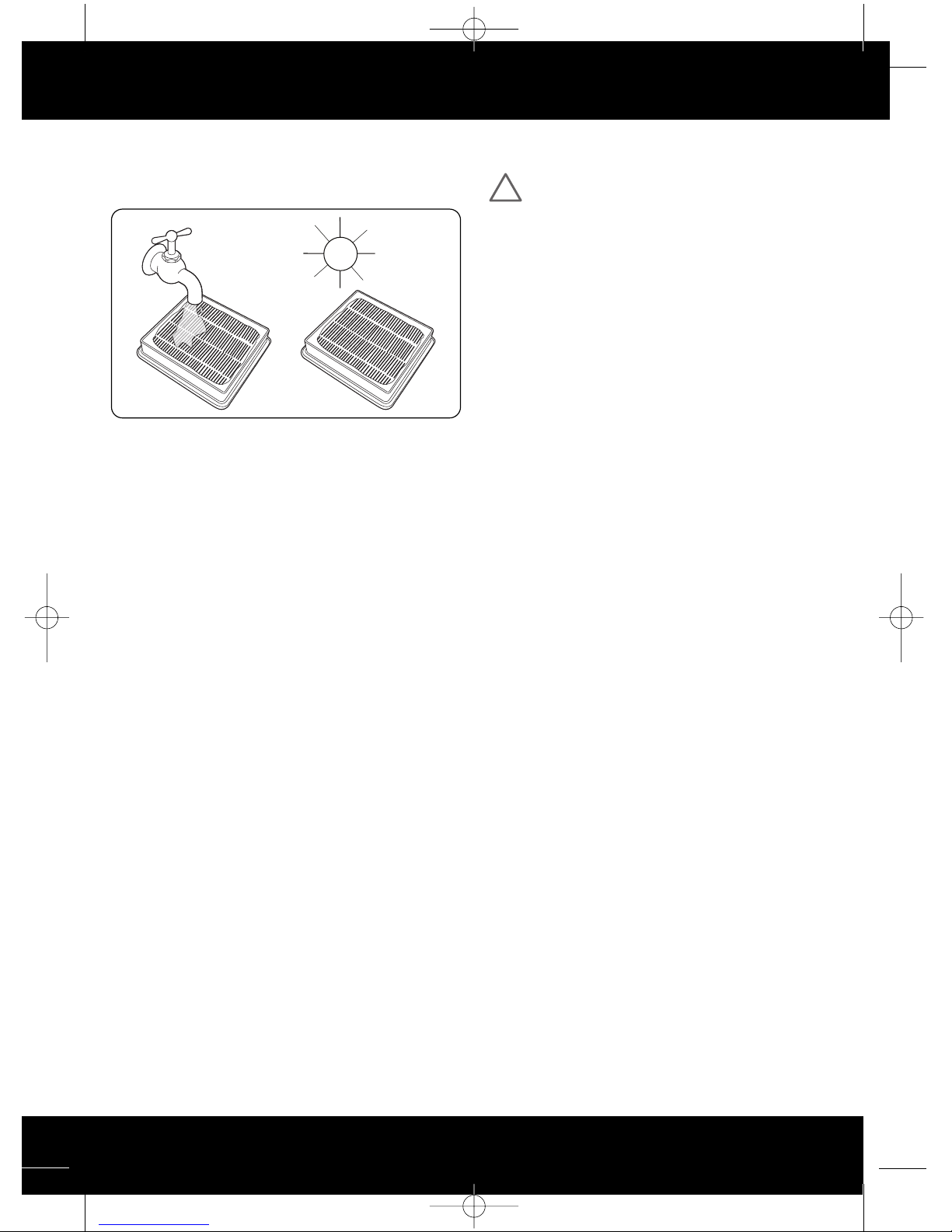

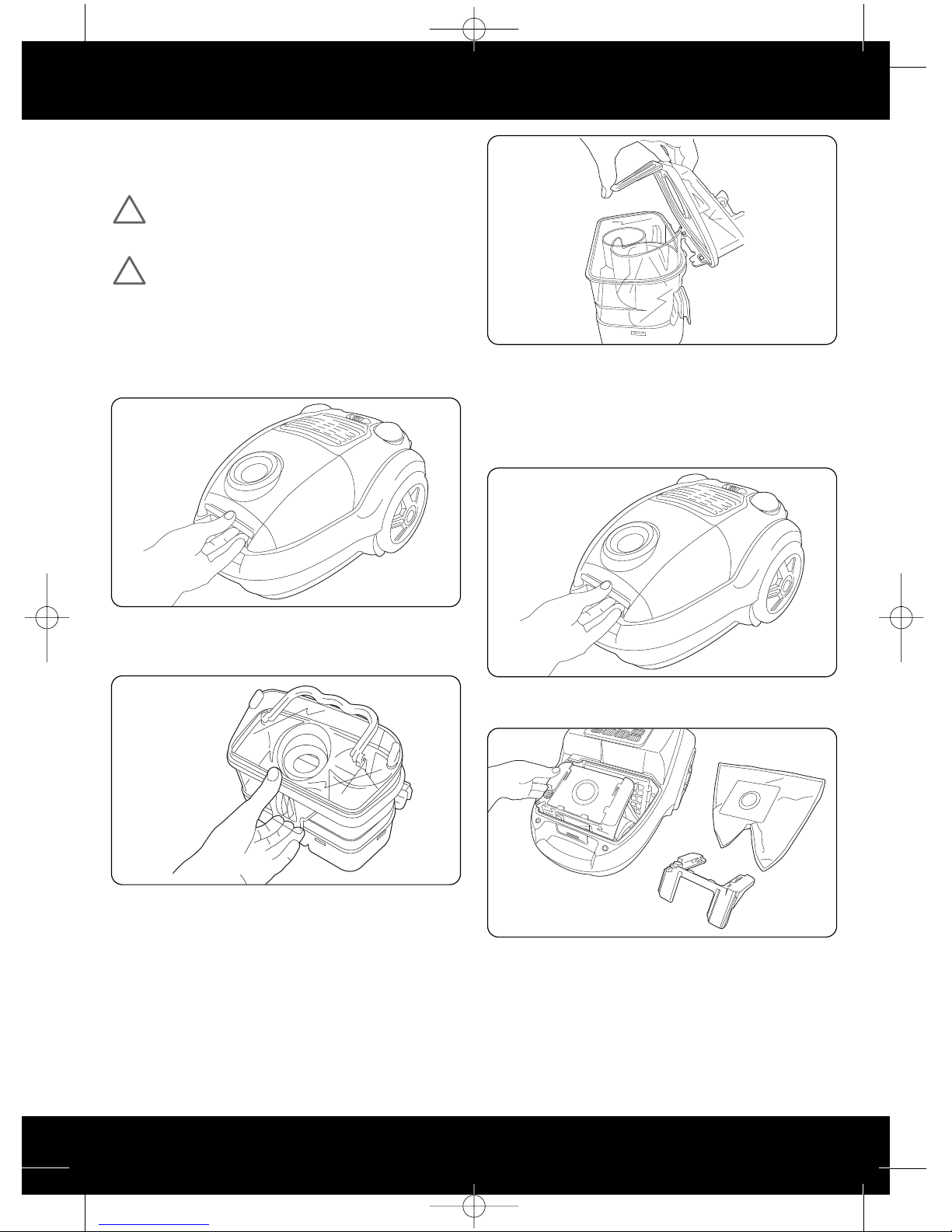

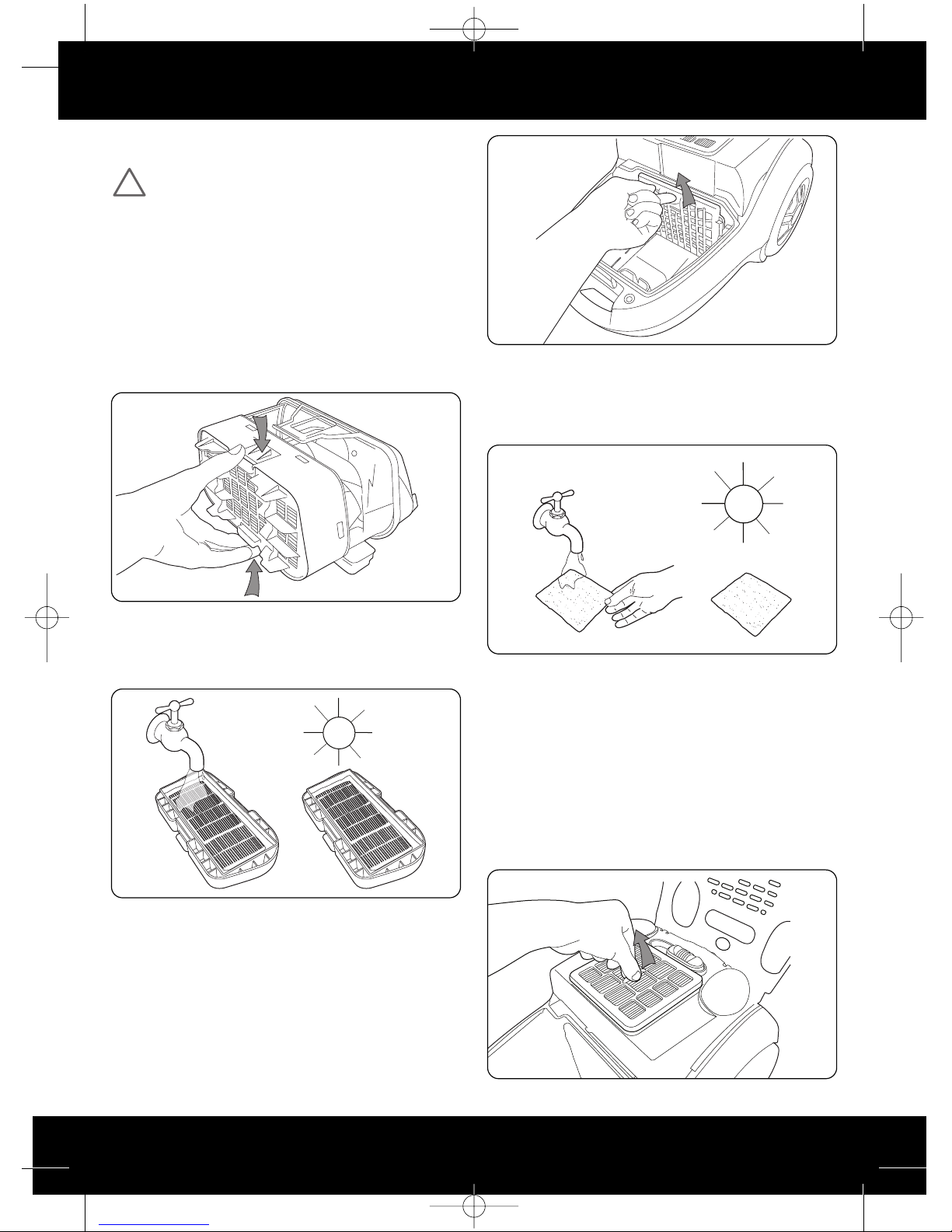

7. dirt container & filter
9. clearing blockages
10. storage/ troubleshooting
11. contact/ technical support
sommaire
12. croquis
13. information de sécurité
14. assemblage
15. fonctionnement
15. accessoires

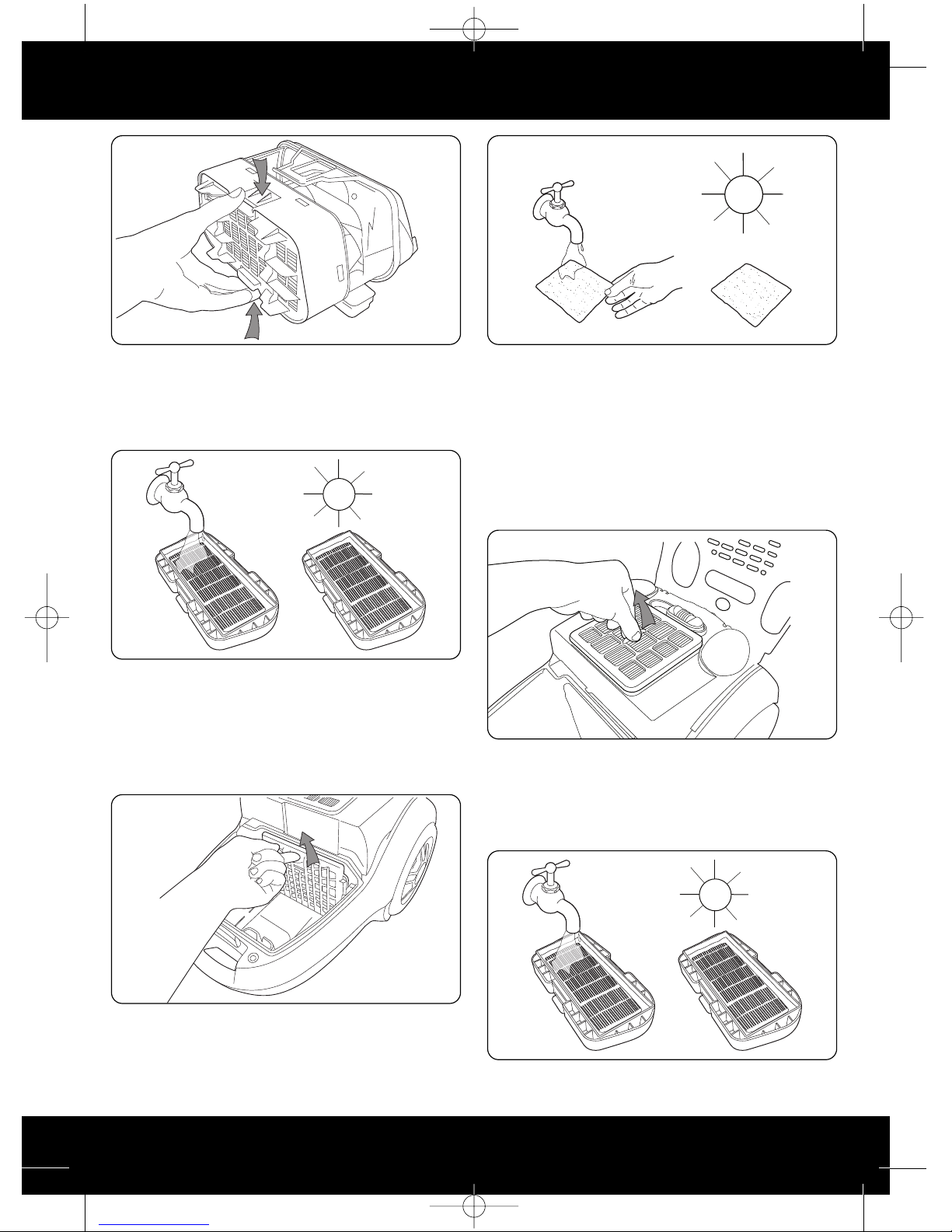

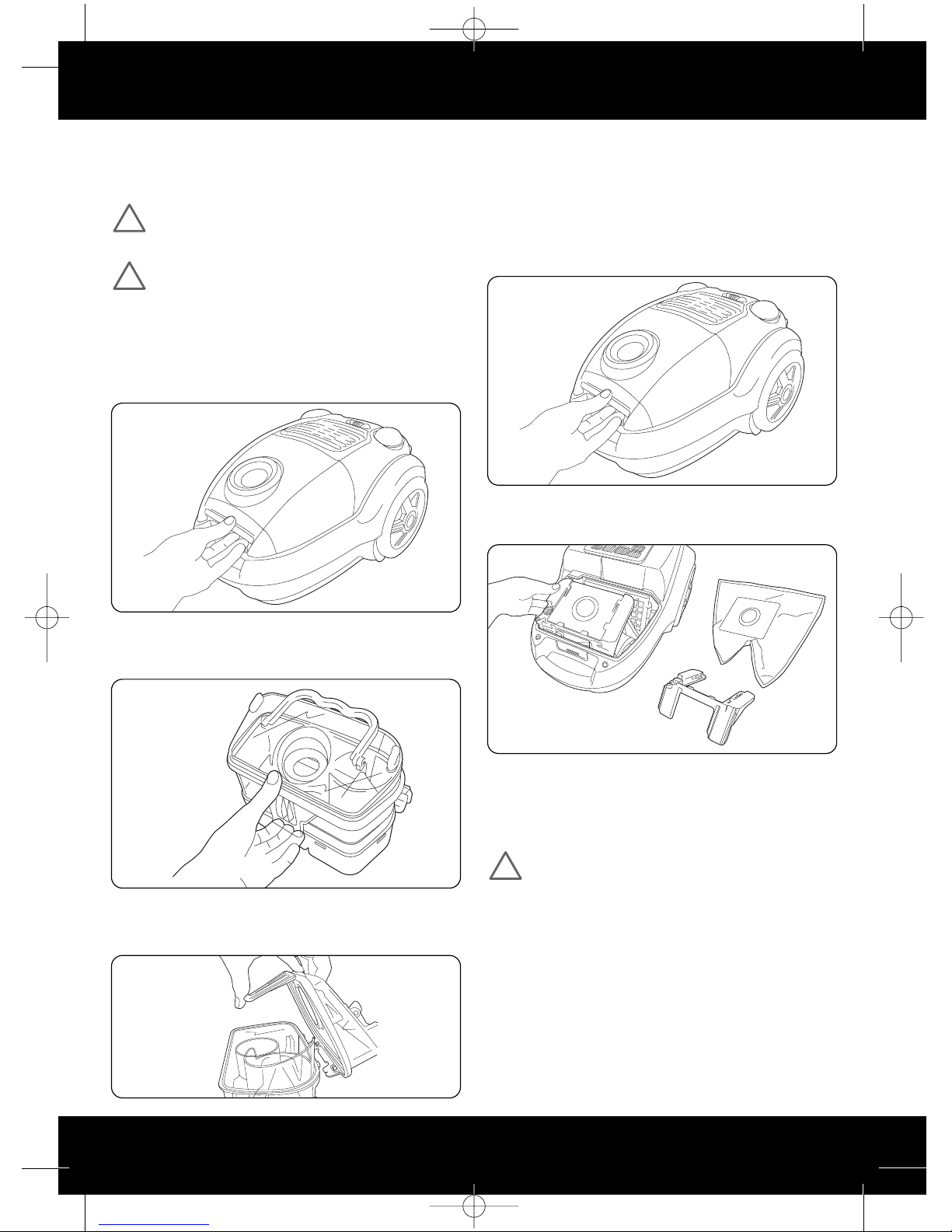

16. bac à poussière et filtres: Vidange et remplacement
18. en cas d’obstruction du flexible
18 rangement de l’appareil
19. diagnostiquer de panne
19 contact
19 caractéristiques techniques
Vax V-134E User Guide.qxd:V-134E User Guide 18/2/08 15:52 Page 2
V-134E
4
1
2
3
5
6
9
7 8

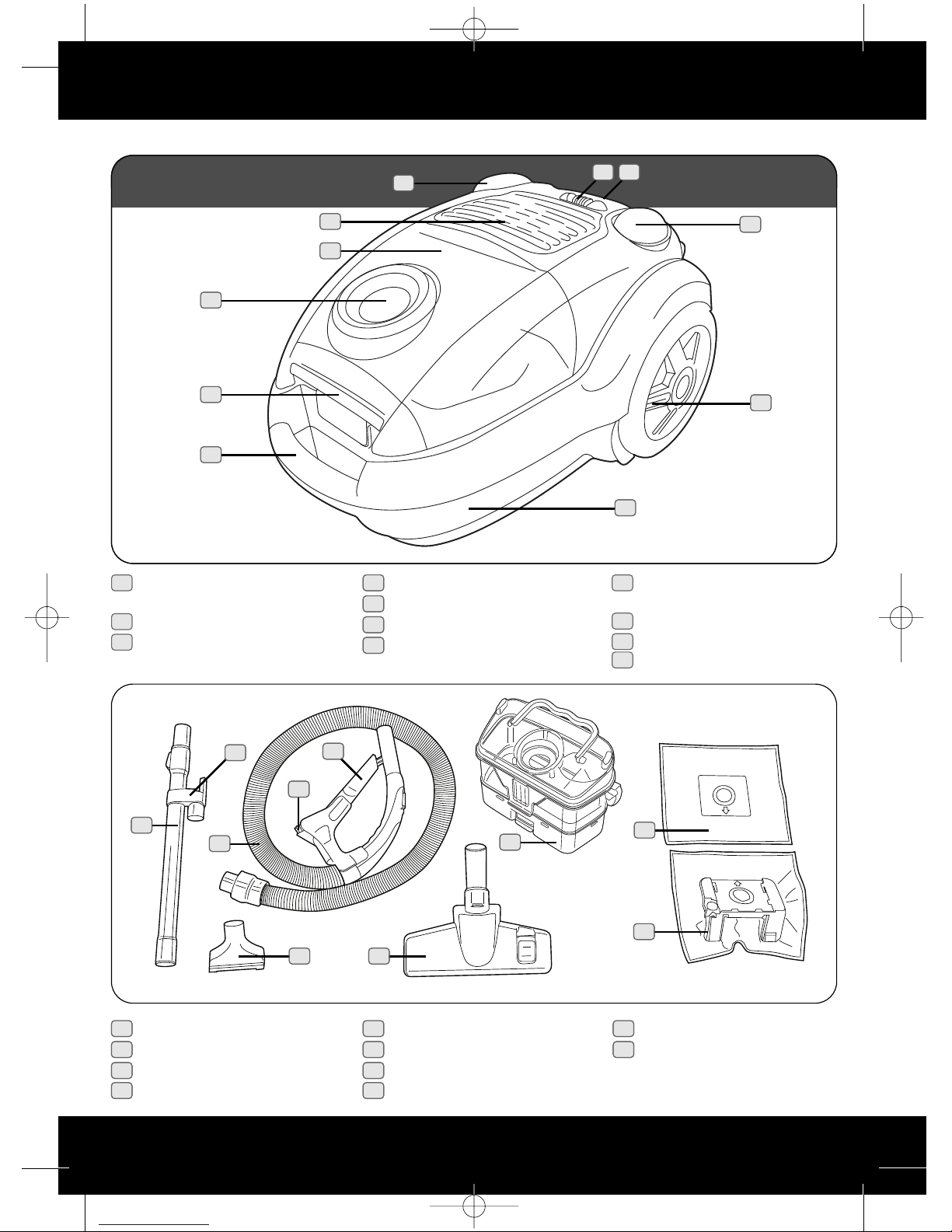

Fig.1/1
1 Auto cord rewind button
2 Post-motor HEPA filter
3 Dirt container compartment
4 Hose inlet
5 Lid release catch
6 Carry handle
7 Variable power
8 Blockage indicator
9 On/off button
10 Wheel
11 Scuff guard
10
11
1
3
6 7
8
10
9
Fig.1/2
2
5
4
1 Telescopic extension tube
2 Accessory tool parking slot
3 Flexible hose
4 Dusting brush
5 Crevice tool
6 Upholstery tool
7 Combination floor tool
8 Bagless dirt container
9 Disposable bag
10 Disposable bag and frame
parts overview
3
1. Diagram
www.vax-france.net
Vax V-134E User Guide.qxd:V-134E User Guide 18/2/08 15:52 Page 3
safety information
2. Safety Information
For Household Use Only
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. Children should be supervised to ensure that they
do not play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by
person responsible for their safety.
6. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.
8. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.
13. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).
15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
16. Do not use without the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner indoors in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner.
21. Use only CE-approved 13 amp extension cords. Nonapproved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.
CAUTION: The vacuum cleaner is a very
powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position. Hold the vacuum cleaner firmly when
starting and in use.
IMPORTANT: If the inlet, hose or telescopic
tube is blocked, switch off the vacuum cleaner
and remove the blockage(s) before re-starting the
vacuum cleaner.
IMPORTANT: Washing filters improved vacuum
performance. Make sure all the filters are
completely dry before inserting back into the vacuum
cleaner.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
!!!
!
Motor Thermostat
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason, the vacuum cleaner should
over-heat, the thermostat will automatically turn the
unit off. Should this occur, unplug the vacuum cleaner
from the electrical outlet and turn off the switch.
Remove the dirt container and empty. Clean the
filters. Allow the cleaner to cool for approximately one
(1) hour. To re-start, plug into an electrical outlet and
switch back on.
4
Vax V-134E User Guide.qxd:V-134E User Guide 18/2/08 15:52 Page 4
assembly
3. How to Assemble
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or
removing the accessories.

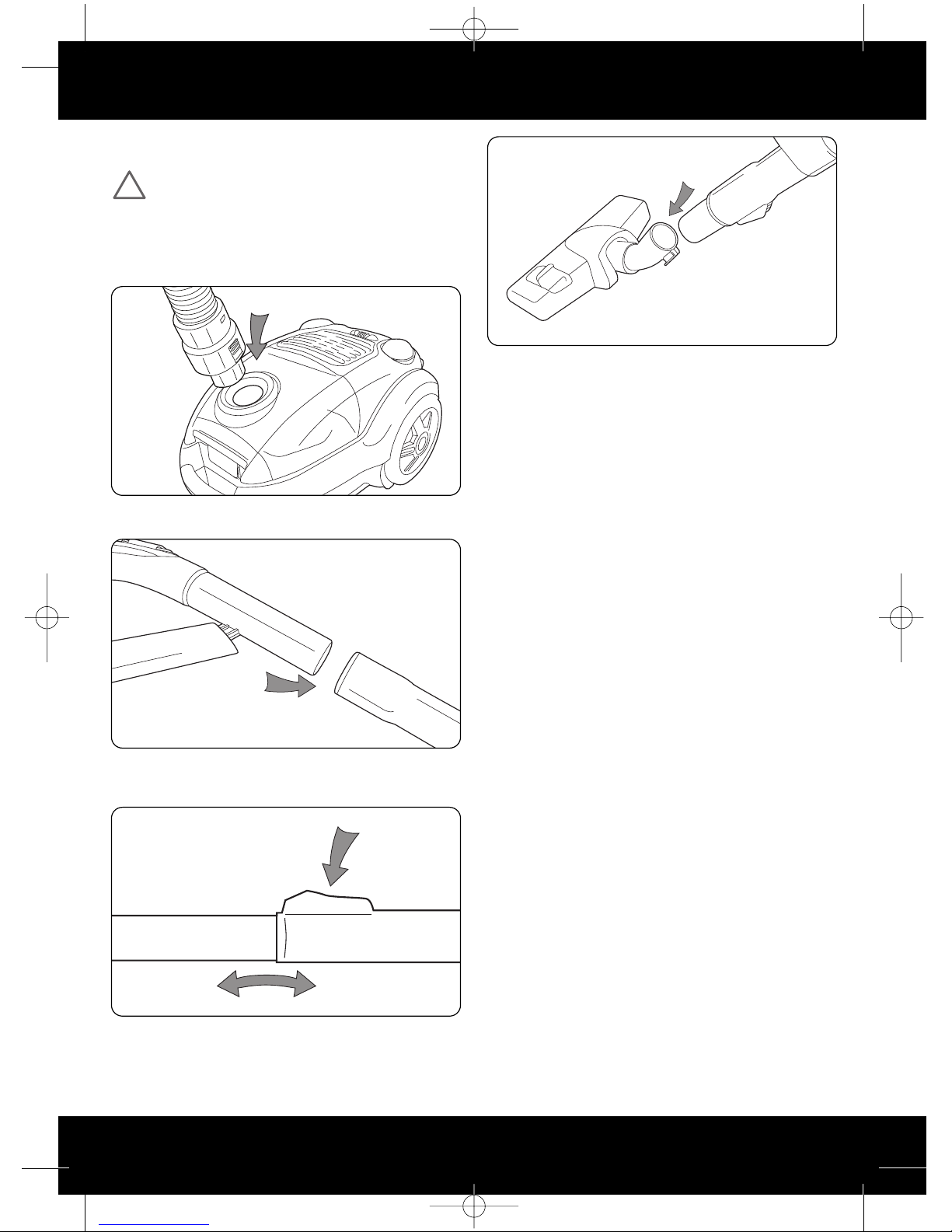

Insert the flexible hose into the inlet on the main body of
the vacuum cleaner until it clicks into position. (Fig.3/1)
Push the telescopic tube onto the end of the handle
(Fig.3/2).
The telescopic tube can be lengthened or shortened by
pushing the button in and sliding the tube apart or
together as required (Fig.3/3).
Fit the combination floor head by pushing on to the
telescopic tube tube (Fig.3/4).
Fig.3/1
Fig.3/4
Fig.3/2
Fig.3/3
!
5
www.vax-france.net
Vax V-134E User Guide.qxd:V-134E User Guide 18/2/08 15:52 Page 5
Fig.6
Fig.6
4. How to Operate
Cord Release
Fully unwind the power cord. A yellow mark on the power
cord indicates the recommended cord length. Do not
exceed the cord length beyond the red mark.
On/Off Button
Insert the power plug into the electrical outlet. Ensure the
vacuum cleaner is switched off.
Press the on/off button located on the top of the vacuum
cleaner and press the button again to turn the vacuum
cleaner off.
Carpet Cleaning
For carpet and rug cleaning press the rocker switch on the
combination floor head to raise the brushes.
Hard floor cleaning
For hard floor cleaning, press the rocker switch on the
combination floor head to lower the brushes.
Variable Power
Located between the cord rewind button and the on/off
button there is a variable power slider. The slider can be
moved from left to right to increase and reduce power.
Combination floor head storage
For convenience there is a slot located behind the on/off
button and on the underside of the vacuum cleaner where
the combination floor head can be parked when not in use.
Carry handle
Use the carry handle located at the front of the machine to
move the vacuum cleaner from room to room.
Hose storage
For convenience there is a slot located on the rear and
underneath side of the vacuum cleaner where the floor
tool and hose can be parked for carrying and storage.
5. Accessories
The accessories can be attached directly to the handle by
removing the telescopic tube and pushing in the desired
accessory.
The accessories can also be attached to the telescopic
tube for extra reach. Remove the combination floor head
and push on the desired accessory.
The dusting brush and crevice tool are stored on the
handle. The upholstery tool can be stored on the
telescopic tube.
Dusting Brush : For delicate surfaces
Upholstery Tool : For carpet, upholstery stairs etc.
Crevice Tool : For crevices, corners and cracks, etc.
operation / accessories
6
Vax V-134E User Guide.qxd:V-134E User Guide 18/2/08 15:52 Page 6
