Vax Rapide Ultra VCWRU1000 User Manual

Download

Carpet Washer

User Guide

Vax Careline: AU: 1300 361 505

NZ: 0800 800 900

Get Cleaning...

What’s your Vax’s model number?

V C W

What’s your serial number?

– – – – –

Note these down in case you need them in future. Please keep instructions for further use.

www.vax.com.au

U 1

0 0

(Located on the base of the machine)

VCWRU1000

---

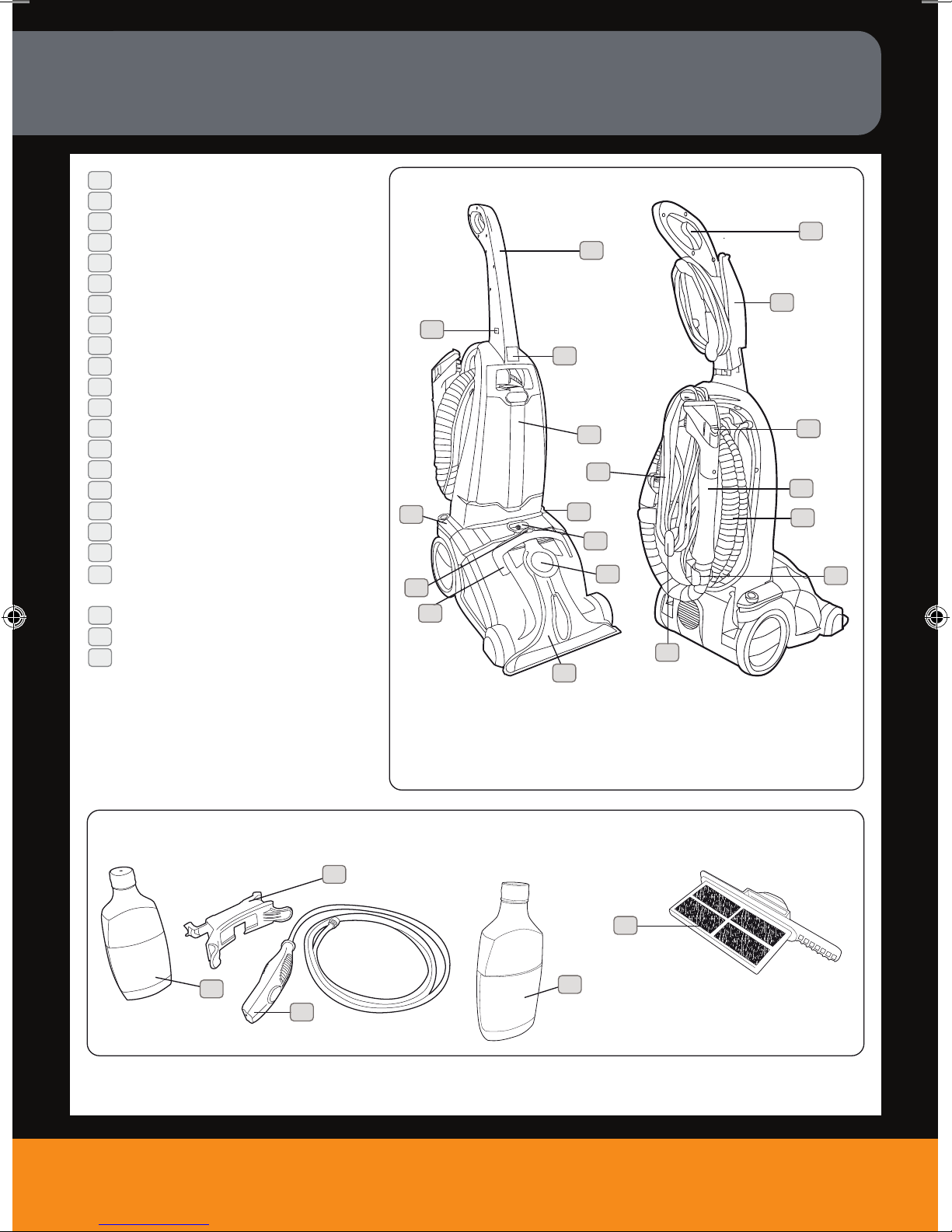

Machine Overview

1 Handle 2 Solution trigger 3 Clean water tank release button 4 Clean water tank

y h

(hidden)

older

(hidden)

5 Recline pedal 6 Solution tube port 7 Dirty water tank release lever 8 Dirty water tank carry handle 9 Hose port

10 Rotating brushbar

11 On/off pedal 12 Powercord releaselock 13 Power cord 14 Hose 15 Wash tool 16 Wash tool solution trigger 17 Vax carpet cleaning solution 18 Pre-treatment wand 19 Pre-treatment wand holder 20 Vax pre-treatment carpet

cleaning solution 21 Accessor 22 Float chamber filter 23 Handle locking pin

Accessories

items shown packaged separately

Unit

Filter

Pre-assembled in machine

Vax Service line

AU: 1300 361 505 / NZ: 0800 800 900

---

General Safety Information

FOR HOUSEHOLD USE ONLY.

When using the carpet washer, basic safetyprecautions should always be observed, including the following:

1. Do not leave the carpet washer unattended when plugged in. Unplug it from socket when not in use.

2. To prevent electric shock do not use outdoors.

3. Not to be used as a toy. Children should be supervised to ensure that they do not play with theappliance.

4. This appliance is not intended for use by persons children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

. Use only as described in this manual.

6. Do not use the carpet washer if it has been dropped, damaged, left outdoors or dropped into water. Do not use the carpet washer with a damaged cord or plug. If the supply cord is damaged, it

ust be replaced by the manufacturer or a

m recommende invalidating the guarantee.

7. Do not pull or carry by cord/hose. Do not use the cord/hose as a handle, close a door on the cord/hose or pull cord/hose around sharp edges or corners. Do not run the carpet washer over the cord/hose. Keep the cord away from heated surfaces.

8. Do not unplug by pulling on the cord.

9. Do not handle the plug or carpet washer with wet hands.

10. Do not put any objects into openings blocked, k may reduce airflow.

11. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.

12. Do not use the carpet washer on any glowing, burning or smoking particles.

13. Do not use without the solution tank and dirty water tank in place.

14. Turn off all controls before unplugging.

15. Do not use to pick up flammable or combustible liquids such as petrol, or use in areas wh be present.

d Service Agent to avoid hazard and

openings or operate with

eep them free of anything that

(including

ere they may

16. Keep the unit on t

17. Do not attempt to remove blockages with sharp objects as they may cause damage.

18. Store indoors put away after use to prevent tripping accidents.

19. Using improper voltage may result in damage to the motor and possible injury to the user. The correct voltage is listed on the rating label.

20. A hazard may occur if the carpet washer runs over the power supply cord.

21 . To prevent dirty wate

not hold the appliance upside-down or lay o Use appliance in normal cleaning position.

22. Use extra care when cleaning on stairs.

23. Do not carry appliance while motor is running.

24. Use only SAA approved 10amp extension cords. Non-approved cords may overheat. Care should be taken to arrange the cord so that the cord cannot be tripped over.

WARNING: Always switch off and unplug your

machine from the electrical outlet before filling and emptying the clean water tank, emptying the dirty water tank, before assembling, opening, before connecting/ disconnecting the attachments, or carryin or troubleshooting checks and storage.

NOTE: Carpets should be dry vacuu

before washing.

IMPORTANT: If the hose or tools are blocked, switch

off and unplug the carpet washer and remove the

blockage(s) before re-starting your machine. See maintenance.

IMPORTANT: Cleaning filters maintains cleaning

performance. Vax recommends that your filters should be checked and cleaned periodically. If your filters are washable make sure they are completely dry before

nserting back into the machine.

This machine is intended for household use only, and NOT for commerc

PLEASE KEEP THESE INSTRUCTIONS F USE.

he floor.

r from running into the motor, do

n its side.

g out maintenance

med thoroughly

ial or industrial use.

OR FURTHER

www.vax.com.au

---

Operation

Assembling your carpet washer handle

Locate locking pin and press in points shown to remove.

Press

Insert handle and re-fit locking pin.

‘Click’

Locking pin will ‘click’ when in place.

Assembling your tool caddy and hose

Ensure locking tabs are horizontal.

Attach caddy to unit top first.

Rotate tabs 90˚ clockwise to lock caddy onto unit.

Fit hose connector end in first.

Wrap hose around caddy tightly anti-clockwise. Clip in the last wrap of the hose and wash tool as shown.

Assembling your pre-treatment kit

Slide pre-treatment wand holder onto handle.

Place wand into holder as shown

Wrap solution tube around holder for storage.

Vax Service line

AU: 1300 361 505 / NZ: 0800 800 900

---

Operation

Before you begin cleaning

• Vacuum your carpets thoroughly with a dry vacuum cleaner.

• Test for colourfastness - Wet a white absorbent cloth with the solution. In a small, hidden

area of your carpet, gently rub the surface with the dampened cloth. Wait ten minutes and check for colour removal or bleed with white paper towel or cloth. If your carpet has more than one colour, check all colours.

• When cleaning an entire room, move furniture out of the area to be cleaned. If the furniture is too heavy to m finishes from staining your carpet. Pin up furniture skirts and curtains.

ove, place aluminium foil or wax paper under legs. This will prevent wood

IMPORTANT: Only use Vax carpet cleaning solution. Using other solutions may cause excess foaming. Excessive foam will prevent the machine from working effectively. Using

other solutions will invalidate the guarantee.

IMPORTANT: Do not over saturate your carpet.

IMPORTANT: We recommend the use of a residual current device with a residual current

rating of 30mA or less.

www.vax.com.au

---

Operation

Operating your pre-treatment wand

NOTE: Pre-treating your carpet before washing will help to remove stubborn stains. NOTE: Do not over saturate your carpet.

40° C

max

Pour required dose of pre-treatment solution (approx. 40ml per 1L of water).

Fill clean water tank with solution mix.

Mix solution with warm water. (max 40˚ C)

Tighten cap before returning tank to unit.

Remove clean water tank.

Unwrap power cord and plug unit in.

Remove pre-treatment wand from holder and unwrap solution tube.

NOTE: Leave pre-treatment solution to work for 10-15 minutes then wash carpets as described on page 7 of Operation.

IMPORTANT: Before setting the machine up to wash,ensure the clean water tank is

rinsed thoroughly of pre-treatment solution.

To insert wand cable

Align inserts and push in.

into socket, align inserts

Turn clockwise to secure.

and push in. Turn clockwise to secure.

Press ‘on’ pedal.

Spray evenly onto desired areas.

Vax Service line

AU: 1300 361 505 / NZ: 0800 800 900

---

Operation

Operating your carpet washer

NOTE: Your dirty water tank is fitted with a float.When the dirty water tank is full or the floor head is not in contact with the carpet the float will shut off the suction at the floor nozzle.You will be able to hear if this has happened as the motor noise on the unit will increase. Once the float is activated, empty the dirty water tank if full.If the dirty water tank is not full then turn off your machine at the power switch and wait for the float to settle before re-starting.

40° C

max

Pour required dose of cleaning solution (approx. 40ml per 1L of water).

Fill clean water tank with solution mix.

Mix solution with warm water. (max. 40˚C)

Tighten cap before returning tank to unit.

Remove clean water tank.

Unwrap power cord and plug unit in.

Press ‘on’ pedal.

Recline the machine. NOTE: When machine is reclined brushbar will rotate. Upright position brushbar will not rotate.

www.vax.com.au

Press trigger to release solution

For best results apply solution on the forward stroke and release the trigger to recover solution on the backward stroke.

---

Picking up spills

Operation

Remove hose.

Insert tube into socket. Press ‘on’ pedal.

Connect to dirty water tank outlet.

Twist to secure position.

Pull wash tool back over spill to pick up liquid.

Vax Service line

AU: 1300 361 505 / NZ: 0800 800 900

---

Operation

Using the wash tool

NOTE: Do not over saturate your upholstery. NOTE: The clean water tank will need to be filled with solution and water before use.

Remove hose. Connect to dirty water

tank outlet.

Press ‘on’ pedal.

Press trigger to release solution.

Twist to secure position.

For best results apply solution on the forward stroke and release the trigger to recover on the backward stroke.

Insert tube into socket.

www.vax.com.au

---

Maintenance

WARNING: To reduce the risk of electric shock, turn the machine off and unplug

from electrical outlet before performing maintenance/troubleshooting checks.

(Keep your Vax as good as new)

Emptying the dirty water tank

NOTE: Rinse out tank with clean water and leave to air dry before storing your machine.

Pull back release lever.

Lift tank.

Turn cap and remove. Rinse out tank and

dirty water.

Cleaning the float chamber filter

Remove filter from machine by lifting upwards.

Rinse under water to remove debris (max 40ºc). Allow to dry completely before replacing or storing away your machine.

(We recommend 24hrs to dry completely).

Removing blockages from the brushbar

WARNING: To reduce the risk of electric shock, turn the machine off and unplug

from electrical outlet before performing maintenance/troubleshooting checks.

Threads caught in the brushbar can be carefully cut out.

Vax Service line

AU: 1300 361 505 / NZ: 0800 800 900

---

Maintenance

(Keep your Vax as good as new)

Replacing the belt

WARNING: DO NOT OPEN THE MOTOR COVER.

Use a Phillips screwdriver to remove two (2) screws.

Remove cover. Remove damaged/

broken belt off the spindles.

Replace new belt on to spindles and secure the belt cover.

Storage

• Empty and rinse out clean and dirty water tanks and leave to air dry before replacing.

• You can remove the handle and tool caddy for convenient storage.

Press handle release button.

Remove hose caddy for easy storage.

Remove locking pin and pull handle upwards.

Turn orange tab on the tool caddy anticlockwise to release caddy.

www.vax.com.au

---

FAQs

WARNING: To reduce the risk of personal injury, unplug the carpet washer

before performing maintenance/troubleshooting checks.

Is there an accessory missing?

• Check the ‘Parts Overview’ page in this guide to make sure the part is definitely included in your unit.

Why won’t the carpet washer turn on?

• It may not be plugged into the electrical outlet

correctly: ensure that the plug is pushed in securely and switched on.

• The power button on the unit hasn’t been fully

depress

• If unit cuts out during use, disconnect the unit from

the wall socket, allow to cool for one hour, clean the filter and empty the dirty water tank and check hose, brushbar for blockages.

Why won’t the cleaner pick up solution/spills?

• The float in the dirty water tank may have been

activated. Empty the dirty water tank if full. If the dirty water tank is not full then switch the machine off and wait for the float to settle before re-starting your machine.

• The dirty water tank m

off engaged. Empty the dirty water tank.

• Ensure the dirty water tank is fitted correctly and the

tank cap is securely fitted.

• Check the hose for blockages.

• Check the brushbar for blockages.

y be full and the auto shut

Why won’t the solution/clean water dispense?

• Ensure the clean water tank is fitted securely.

• The solution/clean water tank may be empty.

• Ensure dirty water tank is fitted securely.

Why won’t the brushes rotate?

• The brushes will only rotate when the unit reclined and turned on.

• Check the float chamber filter and clean if necessary.

• Belt may be broken - replace if necessary.

AU: 1300 361 505 NZ: 0800 800 900

www.vax.com.au

Vax Service line

AU: 1300 361 505 / NZ: 0800 800 900

---

Other Information

Vax Service & Help

Vax Careline: (AU) 1300 361 505 (NZ) 0800 800 900

Monday-Friday 8.30am to 5.00pm

If you have queries or concerns about using your Vax, call the Vax Careline. Calls are charged at the

standard

cleaner before calling. For the nearest Service Agent, please call the Vax Customer Careline or visit www.vax.com.au.

local rate. Please make a note of the serial number and model number of the vacuum

Technical Specification

Voltage: 220-240V ~50Hz Wattage: 1000 W Capacity: Clean water tank 4.5L

Dirty water tank 3.0L Cord length: 8 Weight: 10.6kg Filter: Float chamber filter

Subject to technical change without notice.

Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the Rapide Ultra series is manufactured in compliance with the following Directives:

afety

S EMC: 2004/108/EC Electromagnetic Compatibility Directive

: 2006/95/EC Low Voltage Directive

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
