Instruction Manual
Please read carefully before using this cleaner.
Retain for future reference.
Always fully extend power cable before use.
MODIFIED JANUARY 2008 / P/N 89410
VAXCARE Service & Help:
AUSTRALIA 1300 36 4040
NEW ZEALAND 0800 800 900
If you have any queries or concerns about using
your Vax, call VAXCARE. Please make a note
of the model number and model name of the
appliance before calling.
(Aust only: Mon-Fri. 10.00am to 6.00pm. EST)
Calls are charged at the local rate.
An answerphone is available outside of these
hours. We will return your call the next working
day.
There are over 300 approved Vax Service Agents
in Australia and New Zealand. For the nearest
Service Agent, please refer to your Vax warranty
or call VAXCARE or visit www.vax.com.au
10. Storage
Transporting & storing carpet washer
Fig.10/1 Put handle in upright locked
position.
Turn unit off. Store cord and above floor
cleaning attachments if used.
Fig.10/2 Tilt unit back on rear wheels and
push forward.
NOTE: The unit can also be transported
between rooms or floors using the carry handle
at the rear of the machine.
BEFORE STORING CARPET WASHER:
1. Empty and rinse clean water tank and dirty
water tank.
2. Replace empty clean water tank and dirty
water tank.
3. Wash foam filter with warm warm. Squeeze
out excess water and allow to air dry before
replacing.
4. Ensure that brushes and underside of unit
are fully dry prior to storing on a carpeted or
wood surface.
NOTE: Do not store unit with a full clean water
tank or dirty water tank.
DO NOT TRANSPORT THE CARPET
WASHER WITH EITHER THE CLEAN WATER
TANK OR DIRTY WATER TANK FULL.
11. Technical Specification
Power supply: 220-240/50Hz
Motor power: 900W
Clean water tank volume: 4 litres
Dirty water tank volume: 2.0 litres
Filter system: Foam block
Cord length: 7.5m
Weight: 8.9kg
Subject to technical change without notice.
Fig.10/1
Fig.10/2
12. Troubleshooting
WARNING: TO REDUCE RISK OF
PERSONAL INJURY, UNPLUG CARPET
WASHER BEFORE SERVICING
PROBLEM: Carpet washer won’t
pickup or low suction
Cause: The dirty water tank door is not
installed.
Solution: Insert the dirty water tank door.
Cause: The dirty water tank door is not
installed correctly.
Solution: Review placing dirty water tank in
base of carpet washer.
Cause: The dirty water tank is full.
Solution: Empty the dirty water tank.
Cause: The dirty water passage clogged.
Solution: Clean the dirty water tank.
PROBLEM: Water escaping from
carpet washer
Cause: The dirty water tank is full.
Solution: Empty the dirty water tank.
Cause: The dirty water tank is not installed
correctly.
Solution: Review placing dirty water tank in
base of cleaner.
Cause: The clean water tank is not installed
properly.
Solution:
Review clean water tank installation.
PROBLEM: Carpet washer won’t
dispense solution
Cause: The clean water tank is not installed
properly.
Solution: Review How to Operate.
Cause: The carpet washer needs a service.
Solution: Take it to an Authorised VAX Service
Centre or contact VAXCARE.
PROBLEM: Carpet washer
attachments won’t pick up
Cause: The hose is clogged.
Solution: Remove the hose and tools; remove
obstruction.
Cause: The dirty water tank is full.
Solution: Empty the dirty water tank.
PROBLEM: Carpet washer
attachments won’t spray
Cause: The solution tube is not connected
properly.
Solution: Connect the solution tube properly.
12
P/N 8900 0
2
7
8
9
10
11
12
14
15
26
27
25
23
22
24
16
17
18
19
21
13
6
2
3
4
5
1
Fig.1/1
Fig.1/4 Fig.1/5
Fig.1/3
Fig.1/2
A
AA
ANTI
ALLERGEN
ADDITIVE
20
Fig.1/7ig.1/6F
28 29
21. Hose wrap
22. Solution tube
23. Upholstery/stair hose adaptor
24. Upholstery/stair hose
25. Upholstery/stair attachment
26. Solution spray trigger
27. 8x Screws
28. Pre-treatment wand
29. Powered wash brush
1. Handle
2. Clean water tank latch
3. Clean water tank
4. Dirty water tank latch
5. Dirty water tank handle
6. Brushbar
7. Dirty water tank
8. Dirty water tank door
9. Dirty water tank lid
10. Solution tube clip
11. Power cord
12. Lower cord clip
13. Lower cord wrap with
quick cord release
14. Power on/off pedal
15. Solution tube port
16. Handle release pedal
17. Tool caddy
18. Carry handle
19. Cord wrap
20. Vax Carpet Cleaner
1. Parts Overview
Fig.9/5
Fig.9/6
Fig.9/8
Fig.9/7
Fig.9/4
To empty dirty water tank, grasp handle with
one hand and nozzle with the other and
empty into sink. To clean, rinse tank
thoroughly with clean water and let dry.
Remove filter from rear of dirty water tank lid.
Rinse dirty water tank and filter with
warm tap water. Wipe and let dry
thoroughly before storing to prevent
mildew.
NOTE: Do not use any chemicals when
cleaning filter.
Replacing dirty water tank in base of
carpet washer
While making sure the front of the dirty water
tank is resting on the base, place the rear of
the tank into the base of the cleaner.
Push handle down until it latches.
NOTE: Do not store cleaner with solution
in reservoir or dirty water in dirty water
tank. Mineral deposits and mildew can
form which will affect the performance
of the carpet washer.
11
Remove dirty water tank lid.
HANDLE
LATCH
Fig.9/1
Grasp handle and pull tank out of base.
Fig.9/2
Fig.9/3
Grasp top of dirty water tank handle and push
latch to release.
Step on power on/off pedal to turn cleaner
on. Press the button at the back of the Power
Wash Brush to start the rotation of the brushes.
To release the flow of water and solution, press
the trigger and then move the tool in slow
circular motions over the desired area.
NOTE: After compressing the trigger there
will be a short time delay before water is
dispensed.
NOTE: Although the tool is continually
extracting water from the carpet while switched
on, positioning the front nozzle directly onto the
area will allow better recovery and aid drying.
IMPORTANT: For first use, there may be a
10-15 second delay between depressing the
trigger/button and water being released from
the attachments. This is normal and is not a
fault.
9. Filters
Emptying and cleaning the dirty water
tank and filter
The carpet washer is equipped with a shut
off valve within the dirty water tank. When the
dirty water tank becomes full, the float will rise,
shutting off the air flow through the nozzle.
NOTE: The float in the carpet washer will shut
off the suction when the dirty water tank is full.
For best results use a smooth, steady motion
keeping the nozzle flat against the carpet.
Tipping the carpet washer and breaking the
seal of the nozzle and carpet will cause the
float to rise and shut off the suction. Once the
float is activated, empty the dirty water tank. If
the dirty water tank does not appear full, press
the Power on/off pedal and wait for the float
to settle and reset. If the float repeatedly shuts
off the suction, empty the dirty water tank.
For best results, use only Vax Carpet Cleaner.
Other solutions may generate excessive foam
which will cause the float to rise prematurely
and shut off the suction. Use a maximum of 4
(four) capfuls of Vax Carpet Cleaner per fill up of
the clean water tank. A higher concentration of
carpet cleaner may cause excessive foaming.
NOTE: There will be a noticeable change in
the pitch of the cleaner. This indicates a need
to empty the dirty water tank.
WARNING: To reduce the risk of injury from
moving parts - unplug before emptying the
dirty water tank.
10
2. Safety Instructions
For Household Use Only
When using the carpet washer, basic safety
precautions should always be observed,
including the following.
1. Do not leave the carpet washer unattended
when plugged in. Unplug it from socket
when not in use.
2. To prevent injury do not use outdoors.
3. This appliance is not intended for use
by young or infirm persons unless they
have been adequately supervised by a
responsible person to ensure that they can
use the appliance safely.
Young children should be supervised
to ensure that they do not play with the
appliance.
4. Use only as described in this manual.
5. Do not use with a damaged cord or plug.
If the supply cord and/or plug is damaged,
they must be replaced by an authorised Vax
Service Agent or similarly qualified persons
in order to avoid hazard.
6. Do not pull or carry by the cord, use the
cord as a handle, allow the cord to come
into contact with hot or sharp surfaces or
close a door on the cord.
7. Do not unplug by pulling on the cord.
8. Do not handle the plug or carpet washer
with wet hands.
9. Do not put any objects into openings or
operate with openings blocked, keep them
free of anything that may reduce airflow.
10. Keep hair, loose clothing fingers and all
parts of the body away from openings and
moving parts.
11. Do not use the carpet washer on any
glowing, burning or smoking particles.
12. Do not use without the solution tank and
dirty water tank in place.
13. Turn off all controls before unplugging.
14. Do not use to pick up flammable or
combustible liquids such as petrol, or use in
areas where they may be present.
15. Keep the carpet washer on the floor.
16. Do not use an extension cord.
17. Do not attempt to remove blockages with
sharp objects as they may cause damage.
18. Store indoors put away after use to prevent
tripping accidents.
19. Using improper voltage may result in
damage to the motor and possible injury to
the user. The correct voltage is listed on the
rating label.
20. A hazard may occur if the carpet washer
runs over the power supply cord.
NOTE: Carpets should be dry vacuumed
thoroughly before washing.
NOTE: The carpet washer must be unplugged
from the mains socket outlet after use, and
before cleaning or maintaining the carpet
washer.
IMPORTANT: This carpet washer is not
intended for commercial use.
3. Use & Function

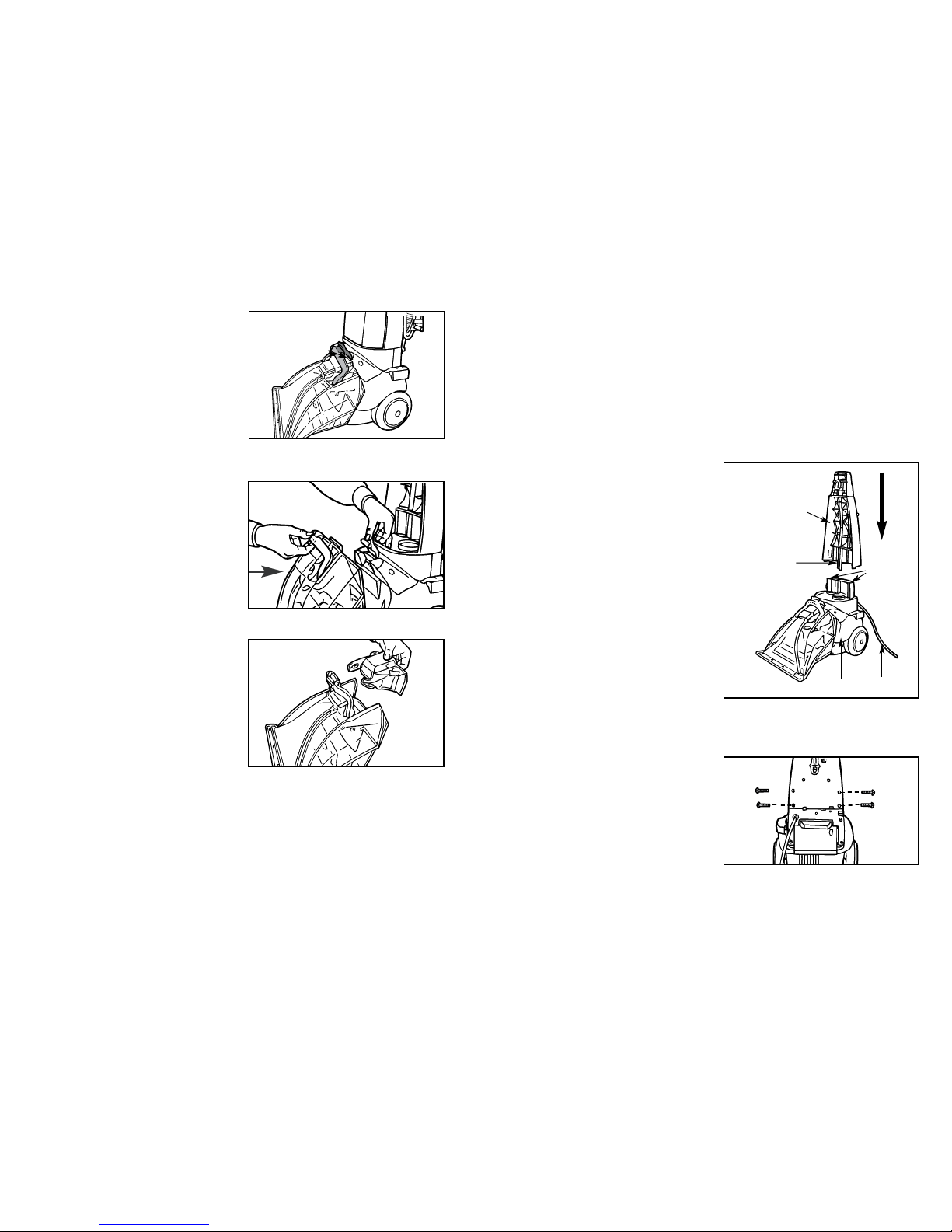

Assembling the carpet washer
BASE
POCKETS
TABS
MID-SECTION
Fig.3/1
CORD
Fig.3/1: Stand base in upright position. Push
mid-section onto base by aligning tabs on inside
of mid-section with the pockets on the base as
shown in Fig.3/1.
BACK VIEW
Fig.3/2
Fig.3/2: Insert 4 lower handle/tool caddy
screws (as shown) and tighten until secure.
3
UPPER HANDLE
Fig.3/3
Caddy Assembly
Fig.3/5
Fig.3/3: Slide upper handle down onto unit.
4
Fig.3/4: Insert the upper handle screw (as
shown) and tighten until secure.
NOTE: Make sure the power cord is out of
the way to avoid pinching.
Align tool caddy with screw holes on midsection and base.
Fig.3/6
Insert the three (3) tool caddy screws (as
shown) and tighten until secure.
Cord Storage
Upper Cord
Wrap
Lower Cord
Wrap with
Quick Cord
Release
Fig.3/7
Wrap cord around upper and lower cord
wraps as shown in Fig.3/7.
Clip plug to cord to secure for storage.
9
Fig.8/1
Fig.8/2
Fig.8/5
BACK
VIEW
Upholstery / stair attachment
Fig.8/6
Fig.8/3
IMPORTANT: For best cleaning results use
a steady, moderate, forward and backward
motion.
IMPORTANT: If the sound of the motor
changes to a high pitch, this indicates the
dirty water tank is full and must be emptied.
8. Accessories
For cleaning upholstery and stairs
Remove the dirty water tank door from the
top of the dirty water tank.
Put carpet washer in its upright position.
Insert the
upholstery /
stair hose
adaptor into
the opening on
top of the dirty
water tank.
Connect the
hose solution
tube into the
fitting on the
lower left side
of handle
facing carpet
washer.
Fig.8/4
Step on power on/off pedal to turn cleaner
on. While depressing solution spray
trigger, pull attachment in backward
motion. Release trigger and push attachment forward in the same path to
remove dirty water and solution from
upholstery. (For heavily soiled areas, repeat
if necessary.)
NOTE: Do not oversaturate the upholstery.
IMPORTANT: For best cleaning results use
steady, moderate, forward and backward
motion. Make sure upholstery is dry before
use.
NOTE: If the dirty water tank door is not
replaced, there will be no suction through the
nozzle and the unit will not operate properly.
Power Wash Brush usage
8
7. Carpet Cleaning
Fig.7/1
Fig.7/2
Fig.7/4
Fig.7/5
Fig.7/3
Place bottom of clean water tank into carpet
washer and rotate top into position until the
clean water tank Latch snaps into place.
Fill remainder of clean water tank with warm
(max 40ºC) tap water. Replace cap.
Plug cord into electrical socket. Step on the
power on/off pedal to turn cleaner on.
NOTE: Never leave unit unattended with
power on. Turn off when emptying and filling
tanks. Do not oversaturate the carpet.
While depressing solution spray trigger,
pull carpet washer in backward motion.
Release trigger and push unit forward in
same path to remove dirty water and
solution from carpet. (For heavily soiled
areas, repeat if necessary).
Step onto handle release pedal to put into
cleaning position.
5
4. Preparing the Carpet
IMPORTANT: DO NOT USE THE CARPET
WASHER AS A DRY VACUUM.
1. Vacuum carpet thoroughly. Use a vacuum
cleaner with a revolving brushbar for best
results.
2. Remove as much furniture from the room as
possible. If unable to remove the furniture,
place plastic or foil under and around the
legs until the carpet has dried completely.
HELPFUL HINTS FOR CLEANING
CARPET:
1. Only use Vax Carpet Cleaner with this
carpet washer.
2. Do not oversaturate carpet with cleaning
solution while using the carpet washer.
3. For heavily soiled areas, additional
applications may be necessary.
4. Allow plenty of time to dry carpet
thoroughly.
5. Wipe cleaning solution from woodwork to
prevent any damage.
6. Try not to walk on carpet until it is completely
dry.
7. After carpet is thoroughly dry, vacuum
the carpet using a vacuum cleaner with a
rotating brushbar.
8. Before cleaning, determine where to start
and end, making sure not to walk over
previously cleaned areas.
CHECK FOR COLOUR FASTNESS:
Before cleaning carpet, test for colour
fastness. Dampen a white cloth with solution.
Test a small area in a closet or inconspicuous
area. Gently rub the cloth over the area.
Check each colour for colour bleeding. If the
cloth remains clean, it should be safe to clean
the carpet.
AFTER CLEANING:
• Allow carpet to dry completely. Try not to
walk on the carpet until it is dry.
• If it is necessary to walk on the carpet,
place white towels on the areas to be
walked on.
• If the carpet is not dry and the furniture must
be placed back in the room, use plastic or
foil under the furniture to prevent staining
the carpet.
• Thoroughly clean the dirty water tank with
warm (max 400C) tap water.
Upholstery/
Stair hose
Upholstery/Stair
hose attachment
Upholstery/Stair
hose
adaptor
Left clip On
Tool caddy
Adaptor end
of hose
Hose
clips
No 2
Bottom
hose clip
No 1
Upholstery
tool
attachment
handle
Right clip
on Tool
caddy
Tool Storage
Fig.3/8
Fig.3/9
Fig.3/10
Fig.3/11
Fig.3/12
Slide the adaptor end of hose into the
left clip on tool caddy.
Place Upholstery/Stair hose adaptor,
Upholst ery/Stair hose, a nd the
Upholst ery/Stair atta chment into their
storing locations.
Run hose from the tool caddy to the
upper hose wrap and press into hose clip
No.1 (Fig.3/10). Continue wrapping hose
clockwise, aligning hose into groove on the
bottom hose clip (Fig.3/11). Wrap hose back
to the upper hose wrap and press into hose
clip No.2 (Fig.3/10). Slide upholstery tool
attachment handle into the right clip of the
tool caddy (Fig.3/12).
Clean
water
tank
handle
Clean water
tank latch
Fig.5/1
Fig.5/2
Fig.5/3
5. Pre-treating your Carpet
Grasp the clean water tank under the handle
while pressing the clean water tank latch. Tilt
the clean water tank away from the carpet
washer and remove.
Unscrew the measuring cap from the back of
the clean water tank.
Fill the measuring cap with the VAX Carpet
Cleaning fluid.
Pour into the clean water tank.
Fill the remainder of the clean water tank with
warm (max 40oC) tap water. Replace the
cap.
Place the bottom of the clean water tank into
the carpet washer and rotate top into position
until the clean water tank latch snaps into
place.
Attach the pre-treatment wand to the water
supply port and press firmly until it locks into
place.
Fig.5/4
Fig.5/6
Fig.5/5
BACK
VIEW
6 7
6. How to Operate
Clean water
tank handle
Clean water
tank
latch
Unscrew measuring cap from back side of
clean water tank.
Fig.5/7
Fig.5/8
Fig.5/9
Fig.6/1
Fig.6/2
Fig.6/3
T
o pre-treat your carpet, step on the power
on/off pedal to turn the cleaner on.
Using the wand and the trigger, apply the
pre-treatment solution to your carpets.
T
urning the spray nozzle clockwise or anti-
clockwise will alter the spray pattern.
Releasing the trigger will stop the solution
flow.
T
he treated areas should be left for 10 to 15
minutes.
For heavy stains, mild agitation may be used.
NOTE: Do not over wet carpets.
NOTE: Once your carpets have been pre-
treated, rinse the clean water tank and clean
your carpets with Vax Carpet Cleaner as
directed.
Grasp clean water tank under handle while
pressing clean water tank latch. Tilt clean
water tank away from cleaner and remove.
Fill measuring cap with solution. Pour into
clean water tank.
NOTE: Use only Vax Carpet Cleaner
solution.
Using other cleaning solutions may cause
excess foaming. Excessive foam will cause
the float to shut off the carpet washer prematurely. Using other solutions can void the
warranty.
Loading...
