Putting your cleaner together
Stand the base in the upright
position. Assemble the mid section
onto the base, taking care not to
trap internal mains wire.
Insert the two nuts into the
recesses located on the left and
right sides of the base.
While holding the nuts in place,
insert the two medium length
screws through the front of the mid
section and tighten.
Slide the upper handle down onto
the unit. Insert the nut into the
recess in the back of the upper
handle. While holding the nut in
place, insert the long screw through
the front of the upper handle and
tighten.
Run the mains wire above the
upper cord hook and secure with
the cord clip.
Phillips screwdriver required
Parts checklist
a Handle
b Clean solution reservoir latch
c Clean solution reservoir
d Dirty water tank latch
e Dirty water tank handle
f Rotating brush bar
g Dirty water tank
h Dirty water tank lid
m
r
q Cord clip
r Solution release trigger
s Upholstery water supply plug
t Upholstery hose adaptor
u Upholstery hose
v Upholstery attachment
w Upholstery trigger
x Tool caddy /storage
y Water supply socket
i
Brush bar on/off switch
j
Vacuum on/off switch
k Handle screw
l Power cord
m Carrying handle
n Quick cord release
o Handle release pedal
p Cord hook
k
e
b
p
n
o
q
l
h
j
i
s
t
u
v
w
x
y
1
2
3
Tool caddy assembly
Align tabs on tool caddy with slots
on midsection and snap into place.
Place nut into recess on tool caddy
and hold into place (2).
Press handle release with your
other hand to tilt the midsection
backwards (2a).
Place screw through centre of lower
midsection and tighten.
Upper
Cord
Clip
Hose Clip 1
Hose Clip 2
Lower
Cord
Clip
1
2
3
Tool caddy use
Wrap the cord around the upper
and lower cord clips.
Detach the Upholstery hose
adapter from the end of the hose
and slide it onto the adapter post.
Slide the Upholstery attachment
into the middle slot of the lower tool
caddy.
4
5
2a
Phillips screwdriver required
4
5 6
Tool caddy use
Slide the adapter end of the hose
into the left slot on the lower tool
caddy. Be sure to line up the
pushpin with the slot and press
down until secure in place.
Run the hose to the upper caddy
and press into hose clip #1 (1).
Continue wrapping the hose
clockwise around the tool caddies,
pressing the hose into the groove
on the bottom of the lower tool
caddy.
7
8
Run the hose back to the upper
caddy and press into hose clip #2
(1).
Lock the attachment end of the
hose into place by pressing down
onto the post located on the right
side of the lower tool caddy, until
secure in place.
6
7
8
9
1
2 3

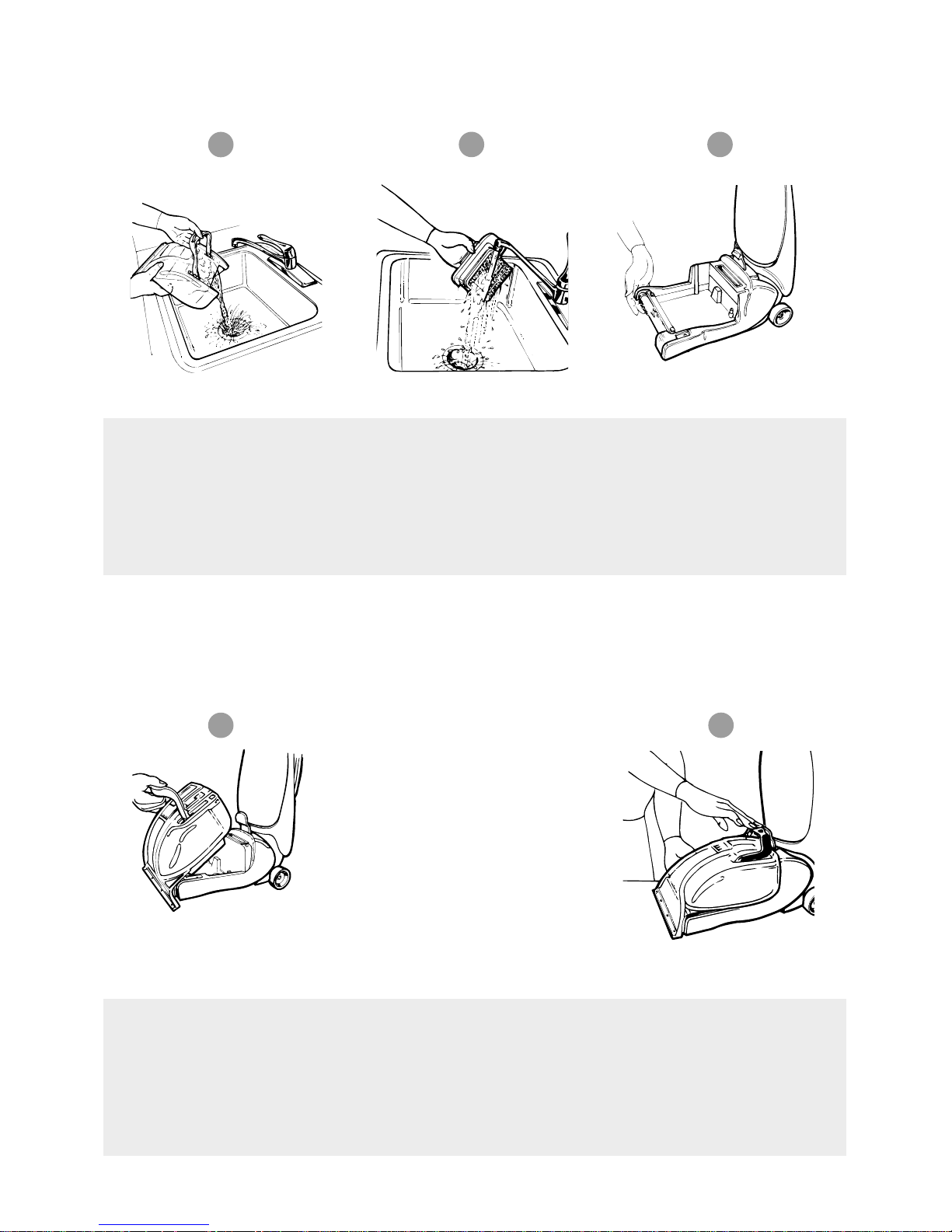

How to operate your cleaner
Important: Turn off when
emptying and filling the reservoir.
Grasp the solution reservoir under
the handle and press the handle
release lever upward.
Tilt the solution reservoir away from
the cleaner and remove.
Unscrew the filler/measure cap
from the rear of the solution
reservoir.
4
5 6
How to operate your cleaner
Fill the bottle cap or measure cap 3
times with VAX AAA carpet cleaning
solution and pour into the reservoir.
Fill the remaining space in the
solution reservoir with tap water.
Replace the measuring cap.
Note: use only VAX AAA cleaning
solution, using other cleaning
solutions may cause excessive
foaming. This may cause the float
to shut off the cleaner prematurely.
Using other cleaners will void your
warranty.
Place the bottom of the solution
reservoir into the cleaner and push
into place. There will be an audible
click when the reservoir is in the
correct position.
